Abstract

Bis-phenylamides and bis-hydroxyindolamides of diethylenetriaminepentaacetic acid-gadolinium (DTPA(Gd)) are paramagnetic reducing substrates of peroxidases that enable molecular imaging of peroxidase activity in vivo. Specifically, gadolinium chelates of bis-5-hydroxytryptamide-DTPA (bis-5HT-DTPA(Gd)) have been used to image localized inflammation in animal models by detecting neutrophil-derived myeloperoxidase (MPO) activity at the inflammation site. However, in other preclinical disease models, bis-5HT-DTPA(Gd) presents technical challenges due to its limited solubility in vivo. Here we report a novel MPO-sensing probe obtained by replacing the reducing substrate serotonin (5-HT) with 5-hydroxytryptophan (HTrp). Characterization of the resulting probe (bis-HTrp-DTPA(Gd)) in vitro using nuclear magnetic resonance spectroscopy and enzyme kinetic analysis showed that bis-HTrp-DTPA(Gd) (1) improves solubility in water; (2) acts as a substrate for both horseradish peroxidase and MPO enzymes; (3) induces cross-linking of proteins in the presence of MPO; (4) produces oxidation products, which bind to plasma proteins; and (5) unlike bis-5HT-DTPA(Gd), does not follow first-order reaction kinetics. In vivo magnetic resonance imaging (MR!) in mice demonstrated that bis-HTrp-DTPA(Gd) was retained for up to 5 days in MPO-containing sites and cleared faster than bis-5HT-DTPA(Gd) from MPO-negative sites. Bis-HTrp-DTPA(Gd) should offer improvements for MR! of MPO-mediated inflammation in vivo, especially in high-field MR!, which requires a higher dose of contrast agent.

MYELOPEROXIDASE (mpo) has emerged as a promising imaging target in molecular imaging.^1–5 MPO activity in vivo has a clear outcome-predictive value in several cardiovascular diseases, including myocardial infarction and stroke.⁶ MPO has also been implicated in the progression of cancer, several central nervous system pathologies, and the development of unstable atheroma.^7,8 Because the catalytic activity of MPO is preserved in live tissue either in intact granulocytes or as a component of exocytosed granules, the enzymatic activity of MPO can be used as an imaging marker of localized inflammation in vivo, including cardiovascular disease and vascular wall pathologies.^3,9 We previously synthesized and tested several paramagnetic complexes of mono- and bis- amides of macrocyclic and linear polycarboxylic chelates that “sense” MPO activity.^1,10,11 These chelates carry heterocyclic hydroxyindole moieties, which donate electrons, thereby reducing peroxide-oxidized MPO-I and MPO-II compounds to a catalytically active state.¹² The reactions of MPO with hydrogen peroxide and the following reduction of MPO-I and MPO-II can be written as follows:

MPO + H_{2} O_{2} \leftarrow \to MPO - I + H_{2} O

(1)

MPO - I + {CI}^{-} \leftarrow \to MPO + HOCI

(2)

MPO - I + AOH \to MPO - II + AOH

(3)

MPO - II + AOH \to MPO + AOH

(4)

2 AOH \to HOAAOH

(5)

2 AOH + P \to P - OAH

(6)

nAOH \to {(AOH)}_{n}

(7)

where A represents an aromatic (eg, indole) moiety and P is protein. Reaction schemes 1 and 2 illustrate the commonly observed MPO catalysis of hydrogen peroxide reduction that uses chloride anion for generating bactericidal hypochlorite as part of the inflammatory response following neutrophil infiltration and degranulation. Reactions 3 and 4 result in sequential reduction of MPO-I to ground-state MPO by hydroxyindole-containing compounds and tyrosine. Oxidized species generated from these reactions can react with proteins containing tyrosines (6) or can engage in either spontaneous dimerization (5) or oligomerization (7). In the case of plant peroxidases, for example, horseradish peroxidase (HRP), reaction 2 is not catalyzed because chloride anion is not a reducing substrate of HRP.

Paramagnetic hydroxindole-containing sensors apparently follow the same trend as other reducing organic compounds; that is, they dimerize, oligomerize, and/or form covalent bonds with proteins. Importantly, the latter two reactions result in increased molar relaxivity (r1 and r2) of the paramagnetic sensors.^1,13,14 This enables direct magnetic resonance imaging (MRI) of MPO activity in vivo because the products of the reaction are retained in the tissue for longer periods of time than the initial substrates.^2,3,5 Although some of the previously developed paramagnetic MPO sensors have very high kinetic stability,¹⁴ the thermodynamic stability of bisamides is frequently compromised. Moreover, the solubility of neutrally charged (nonionic) bis-tryptamides of diethylenetriamine-pentaacetic acid (DTPA)¹⁰ and monoamides of glycyl-MeDOTA¹ in water is limited. Given that the amount of injected contrast agent needed to produce detectable contrast in MRIs is relatively high (0.1-0.3 mmol/kg), the need to improve the safety, enzymatic specificity, and formulation of MPO-sensing probes remains.

The goal of the current study was to synthesize and characterize an alternative charged bifunctional sensor of MPO activity with the same number of donor atoms as in DTPA (ie, three nitrogen/five oxygen configuration) in anticipation of improved thermodynamic stability and better solubility. We used a natural serotonin precursor, 5-hydroxytryptophan (HTrp), which shares reactive oxygen species (ROS)-scavenging properties with serotonin¹⁵ for synthesis of a novel paramagnetic DTPA diamide-based substrate.

Materials and Methods

Synthesis of Bis-HTrp-DTPA

Two grams (5.6 mmol) of diethylenetriaminepentaacetic dianhydride was reacted with 2.7 g (12.3 mmol) of L-5-HTrp in dry dimethylformamide in the presence of 1.0 g (12.5 mmol) of pyridine. The mixture was stirred at room temperature for 24 hours. The solvent was removed in vacuo. The crude product was solubilized in methanol and precipitated by slow acetone diffusion. The yield of pure product is 50%. Matrix-assisted laser desorption/ionization with ion trap mass spectrometry (MALDI-ITMS) analysis resulted in m/z 796.36 (C₃₆H₄₃N₇O₁₄ + H+), the expected m/z was 795.29. 1H nuclear magnetic resonance (NMR) (400 MHz, d6-DMSO), chemical shifts δ (ppm): 10.57 (s, 2H), 8.30 (d, 2H, J = 7.8 Hz), 7.05 (m, 4H, J = 8.6 Hz), 6.83 (s, 2H), 6.53 (d, 2H, J = 8.6), 4.35 (2H), 3.47 (s, 2H), 3.35 (s, 4H), 3.27 (s, 4H), 3.17 (s, 2H), 2.98 (s, 4H), 2.86 (s, 4H), 2.71 (s, 4H).

Syntheses of Gadolinium Chelates

Four grams (5.0 mmol) of bis-HTrp-DTPA was dissolved in 100 mL of 1% citric acid solution (pH 6.5). GdCl₃.6H₂O (1.1 eq.) was added in portions for 1 hour, and the solution was adjusted to pH 7.0 with 0.5 M NaOH solution. The mixture was stirred in dark under argon for 48 hours. The mixture was lyophilized. Final product was purified by high-performance liquid chromatography (HPLC) using a gradient of acetonitrile in water with 35% yield. Mass spectrometry measurements resulted in m/z value of 951.28 (M + 2H). The expected m/z value was 949.49 (which was based on formula C₃₆H₃₈N₇O₁₄Gd). Gadolinium chelates of bis-5-hydroxytryptamide-DTPA (bis-5HT-DTPA(Gd)) and bis-tyramide-DTPA were synthesized as described previously.^11,14 All substrates were purified using C18-HPLC and lyophilized prior to use. Concentrations of gadolinium were measured using inductively coupled plasma-optical emission spectrometry (ICP-OES) (Galbraith Labs, Knoxville, TN).

Substrate Stability Measurements

Transmetallation of the gadolinium substrates (thermodynamic and kinetic indices) was measured and calculated as previously described.¹⁶ Longitudinal and transverse relaxation rates were measured in phosphate buffer (pH 6.0 and pH 7.0) containing 2.5 mM of the substrate and 10 μL of 2.5 mM zinc chloride at different time points up to 3 days at 40°C.

Substrate Activation Studies

Initially, the substrates were dissolved in sterile Dulbecco's Phosphate Buffered Saline (DPBS), pH 7.4, for preparing 10 mM stock solutions. These stock solutions were further diluted to 0.1 to 1 mM in DPBS, pH 6.8, containing 5 mM glucose. The comparative substrate activation experiments were performed using glucose oxidase (GOX)/MPO or GOX/HRP (positive control) as complementing activity-coupled enzymatic pairs (3 IU GOX: 1.5 IU MPO or HRP, added directly to the reaction mixture). The enzymes were chemically deglycosylated and capped with hydroxylamine as previously described.¹⁷ GOX was added to 0.5 mL of preheated (40°C) substrate solutions containing HRP or MPO in NMR spectroscopy tubes, and the solution was rapidly vortexed. The changes in T₁ and T₂ relaxation times were measured at 0.47 T using an inversion recovery (IR) and Carr-Purcell-Meiboom-Gill (CPMG) pulse sequences, respectively. The obtained time-course data were analyzed using Guggenheim approximation for pseudo-first-order kinetics.¹⁸ The reaction mixtures were further analyzed using 4 to 15% gradient polyacrylamide gel electrophoresis (PAGE) (1 μg total protein/lane loaded), and the gels were stained with a silver stain kit (Thermo-Fisher, Waltham MA) to visualize both proteins and polymerized reaction products. Radioactive ¹¹¹In-labeled analogues of bis-HTrp-DTPA and bis-5HT-DTPA ligands were synthesized by transchelating ¹¹¹In³⁺ from ¹¹¹In citrate (obtained by diluting ¹¹¹InCl₃ stock solution [1 mCi; Perkin-Elmer, Waltham, MA] in 0.01 M sodium citrate, pH 5.5, and adding a 50-fold molar excess of HPLC-purified ligand followed by heating for 5 minutes at 50°C. The remaining free chelating groups were blocked by adding 1.1-fold molar excess of GdCl₃, and the radiolabeled substrates were purified using C18-HPLC column (Discovery 5 μm, Supelco, Bellefoonte, PA) with an acetonitrile/water gradient. The main radioactive peaks were collected and dried under argon for further experiments.

Protein Binding Experiments

Heparinized human blood was centrifuged at 10,000g for 15 minutes followed by filtration through a 0.4 μm polyvinylidene difluoride filter to obtain cell-free total blood plasma. Gradient sodium dodecyl sulfate (SDS)-PAGE (4–15%) was performed using samples incubated in the presence or absence of the substrates to determine potential protein cross-linking using silver staining.

An aliquot containing 150 μCi of ¹¹¹In-labeled substrate (0.5 μL) was mixed with 20 μL of 1 mM ligand solution in 10 mM sodium acetate/citrate, pH 6.0, followed by 10 μL of MPO/GOX or HRP/GOX mixture. Control samples had no enzymes added. The reactions were initiated by diluting the above mixtures with either 10 μL of 4×-Hank's Balanced Salt Solution (with Ca and Mg), pH 8, or with 10 μL of human plasma. After 30 minutes′ incubation at 37°C, 50 μL aliquots of reaction mixtures were loaded on Bio-Spin P-6 columns (Bio-Rad, Hercules, CA), and the protein fraction was recovered in the spin-through eluate. The bound versus total radioactivity fractions were determined by counting ¹¹¹In radioactivity using the eluate and the remaining column in a dose calibrator (Bicron Instruments Newbury, OH). The aliquots of the eluates (20 μg total plasma protein) or equivalent volumes of control samples that did not contain plasma were loaded on 4 to 15% gradient PAGE, and the resultant gels were stained with GelCode Blue stain reagent (Thermo-Fisher), dried, and subjected to autoradiography using BioMAX MS film (Carestream Health, Rochester, NY).

MRI In Vivo and In Vitro at 3 T

All animal experiments were performed as approved by the Institutional Animal Care and Use Committee (IACUC) of the University of Massachusetts Medical School (Worcester, MA). Imaging of MPO activity was performed in a model system as previously described² with modifications. Briefly, DBA/2 female mice (NCI–Frederick, Frederick, MD) (n = 7), weighing 20 to 25 g, were injected with 200 μL of Matrigel (BD Biosciences, Bedford, MA) containing an MPO (7.5 IU)/GOX (5 IU) mixture in the left femoral muscle region, whereas the contralateral side, which served as the control, received Matrigel (200 μL) containing 5 IU GOX only. The animals were then imaged using MRI. Throughout the imaging sessions, animals were anesthetized using 1% isofluorane in an oxygen gas mixture. The lower body of the mouse was placed in a custom-made holder and then positioned in a 38 mm diameter, 55 mm long birdcage radiofrequency (RF) coil with a nose cone such that the thigh region was in the center of the coil. A circulating water heating blanket was placed under the mouse/RF coil assembly. For administration of contrast agent, a 29-gauge polyurethane catheter (Strategic Applications, Libertyville, IL) capped with a needle port was placed in the tail vein. A respiratory sensor was placed on the chest area to monitor the respiration rate throughout the imaging session.

All MRI measurements were performed using a Philips Achieva 3.0 T/60 cm console (Andover, MA) equipped with 80 mT/m actively shielded gradients. To monitor the temporal evolution of signal enhancement in the right and left femoral muscles following contrast agent delivery, multislice, T₁-weighted (T₁-W) MRIs (repetition time [TR]/echo time [TE] = 700/8 ms) were acquired using spin-echo sequence at various time points after contrast agent administration. Other imaging parameters were slice thickness = 1 mm; slice separation (center to center) = 1.1 mm; field of view (FOV) = 30 mm × 30 mm; data acquisition matrix = 320 × 320; number of averages (NEK) = 4. Within an hour after implantation of Matrigel mixtures, precontrast images were acquired followed by intravenous injection of 0.2 mmol/kg bis-HTrp-DTPA(Gd). Several T₁-W images were then acquired every 15 minutes up to the first hour and then at longer time intervals up to 5 days. Precontrast T₂-W images were acquired prior to contrast administration to corroborate the presence of Matrigel mixture in the T₁-W slices. T₂-W imaging was performed using multislice, multi-spin-echo imaging with TR = 1,380 ms and NEX = 2. Eight echoes were acquired with intervening TE values of 25 ms. In vivo T₂-W imaging was performed with the same FOV, data acquisition matrix, slice thickness, slice separation, and slice position as the in vivo T₁-W images. Imaging of the in vitro phantom samples was done using a spin-echo sequence with TR/TE = 200/30 ms and NEX = 1.

Data Analysis

We quantitated the results obtained in two mice injected with identical specific activity of MPO and GOX. The signal decay in the femoral muscle following administration of bis-HTrp-DTPA(Gd) was evaluated for both MPO-treated and untreated (control) sides. Depending on the size of the implant, 5 to 14 imaging slices were selected at each time point covering the entire area of the implant corroborated using the T₂ images. The ImageJ software package (National Institutes of Health, Bethesda, MD) was used to construct a region of interest (ROI) around the boundary of the implants. The mean signal intensity (SI) values within each ROI were calculated using ImageJ. Contrast to noise ratios (CNRs) were then calculated using the following equation:

C N R_{M P O / c o n t r o l} = \frac{S I_{M P O / c o n t r o l} - S I_{m u s c l e}}{S D_{n o i s e}}

(8)

where CNR_MPO/control is the CNR of the MPO or control side, SI_MPO/control is the mean signal intensity, SI_muscle is the mean signal intensity of muscle, and SD _noise is the standard deviation of noise in the corresponding slice. Analysis of variance (ANOVA) for mixed models was used to determine if there was a significant change in CNR between the MPO-treated and control sides. The Tukey-Kramer honestly significant difference multiple comparisons procedure was used to determine if any significant differences existed between the MPO-treated and control sides. Statistical analyses were carried out using the SAS statistical software package (SAS Institute, Cary, NC).

Results

In Vitro Stability and Relaxivity

The gadolinium (HI) chelate of bis-HTrp-DTPA(Gd) (substrate I, Figure 1) showed excellent solubility in water, DPBS, or 0.9% NaCl at concentrations up to 40 mg/mL (42 mM), whereas bis-5HT-DTPA(Gd) (substrate II, Figure 1B) showed a solubility limit of approximately 30 mg/mL in 5% dimeglumine in DPBS and dissolved only with heating above 60°C (with the compound being precipitated from solution after returning to room temperature). Longitudinal relaxation time measurements at 0.47 T, 40°C showed that the r1 of substrates I and II were very similar (4.9 and 5.0 [mM s]⁻¹, respectively). Purified I and II were further tested as reducing substrates in peroxidase-mediated reactions in the presence of D-glucose and GOX. End-point relaxivity measurements of reaction mixtures showed a similar increase in r1 value for both I and II (Table 1 and Figure 2) in the presence of either HRP or MPO (1.7- and 1.8- fold, respectively, at 0.47 T). Measurements of kinetic and thermodynamic stability, when obtained under conditions of normal tissue pH (pH 7.0) or tissue acidosis (pH 6.0), revealed that substrate II was a more stable chelate of gadolinium when compared to other bis-amides of DTPA(Gd) used in this study (Table 2).

Figure 1.

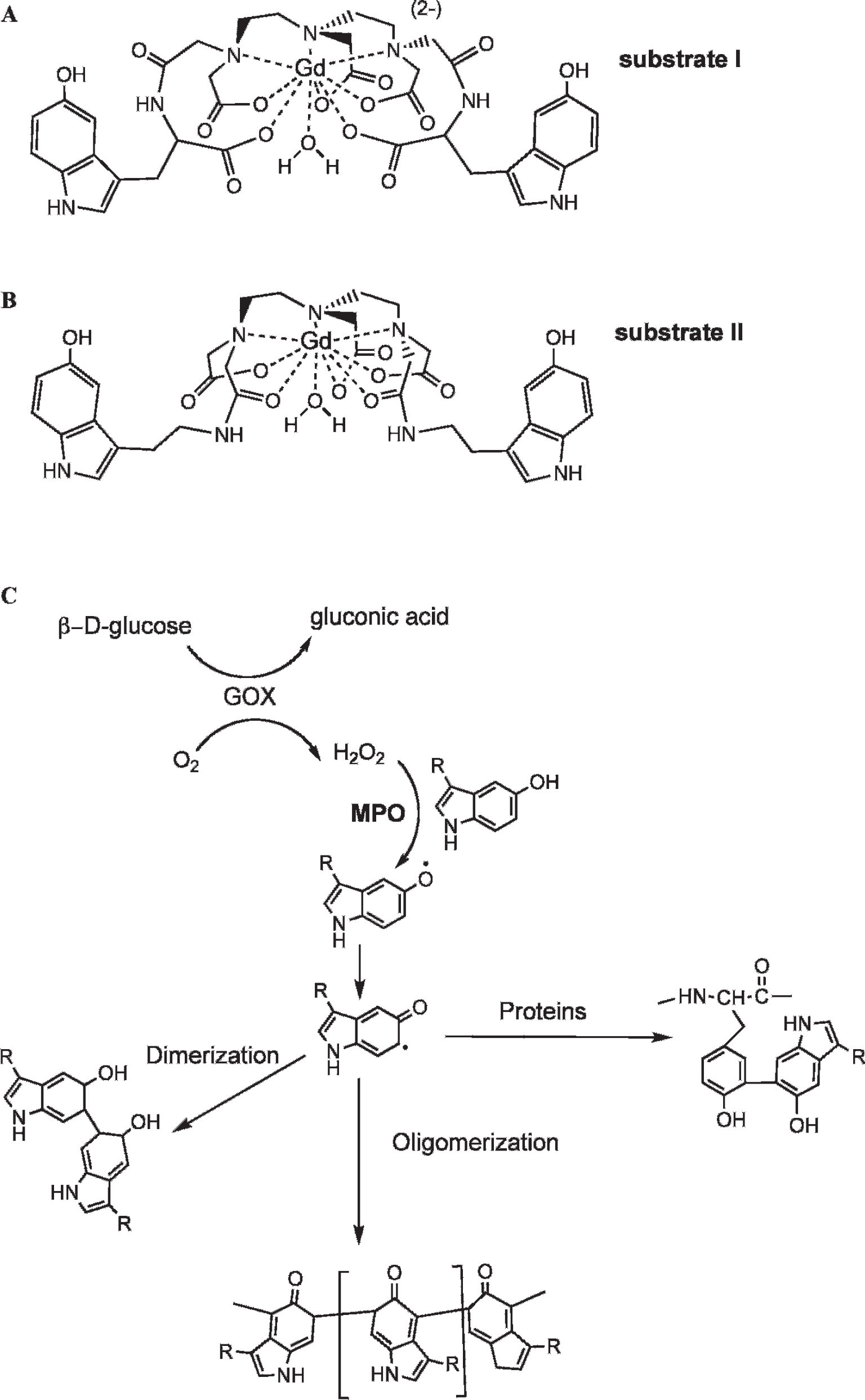

Theoretical structures of MPO substrates built using Gd(III), which has a coordination number of 9. A, A novel substrate bis-HTrp-DTPA(Gd) (substrate I) synthesized using L-5-hydroxytryptophan. B, Bis-5HT-DTPA(Gd) (substrate II) synthesized using serotonin (5-hydroxytryptamide). This substrate is also known as MPO-Gd in the literature.² C, Hypothetical MPO reaction pathways leading to enzyme-generated products with higher relaxivity. R = paramagnetic moiety.

Table 1.

Measurements of Enzyme-Mediated Changes in r1 and Pseudo-First-Order Kinetic Constants (k_eff) in the Presence of Bis-HTrp-DTPA(Gd) (I), Bis-5HT-DTPA(Gd) (II), and Bis-Tyr-DTPA(Gd) (III)

				k_eff R1, 10⁻³ [s]⁻¹			k_eff R², 10⁻³ [s]⁻¹			Effective k_eff, 10⁻³ [s]^−1*
Substrate	Enzyme	r1 [mMs]⁻¹ 0.47 T, 40° C	r_1enzyme/r1₀	0.25 mM	0.5 mM	1 mM	0.25 mM	0.5 mM	1 mM
I		4.9		^‡	^‡	^‡	^‡	^‡	^‡
I	MPO	8.3	1.7	7.4	12.2	21.2	4.4	11.4	17.2	1.2
I	HRP	8.8	1.8	0.4	1.6	4.3	0.2	0.9	3.0	10.5
II		5.0		^‡	^‡	^‡	^‡	^‡	^‡
II	MPO	8.7	1.7	0.8	0.9	0.9	0.8	0.8	0.6	3.1
II	HRP	9.0	1.8	18.0	18.1	20.1	16.5	17.1	17.0	37.7
III^†	HRP			7.5	17.0	24.4	6.7	16.1	30.5	83.3

HRP = horseradish peroxidase; MPO = myeloperoxidase.

Determined by measuring initial rates of absorbance increase at 350 nm; 1.01-10⁻⁷ M enzyme; 2.5.10⁻⁴ M H₂O₂.

†

Bis-Tyr-DTPA(Gd) (substrate III) was tested only in reactions with HRP because it does not react with MPO.

‡

Data do not fit a pseudo-first-order model.

Figure 2.

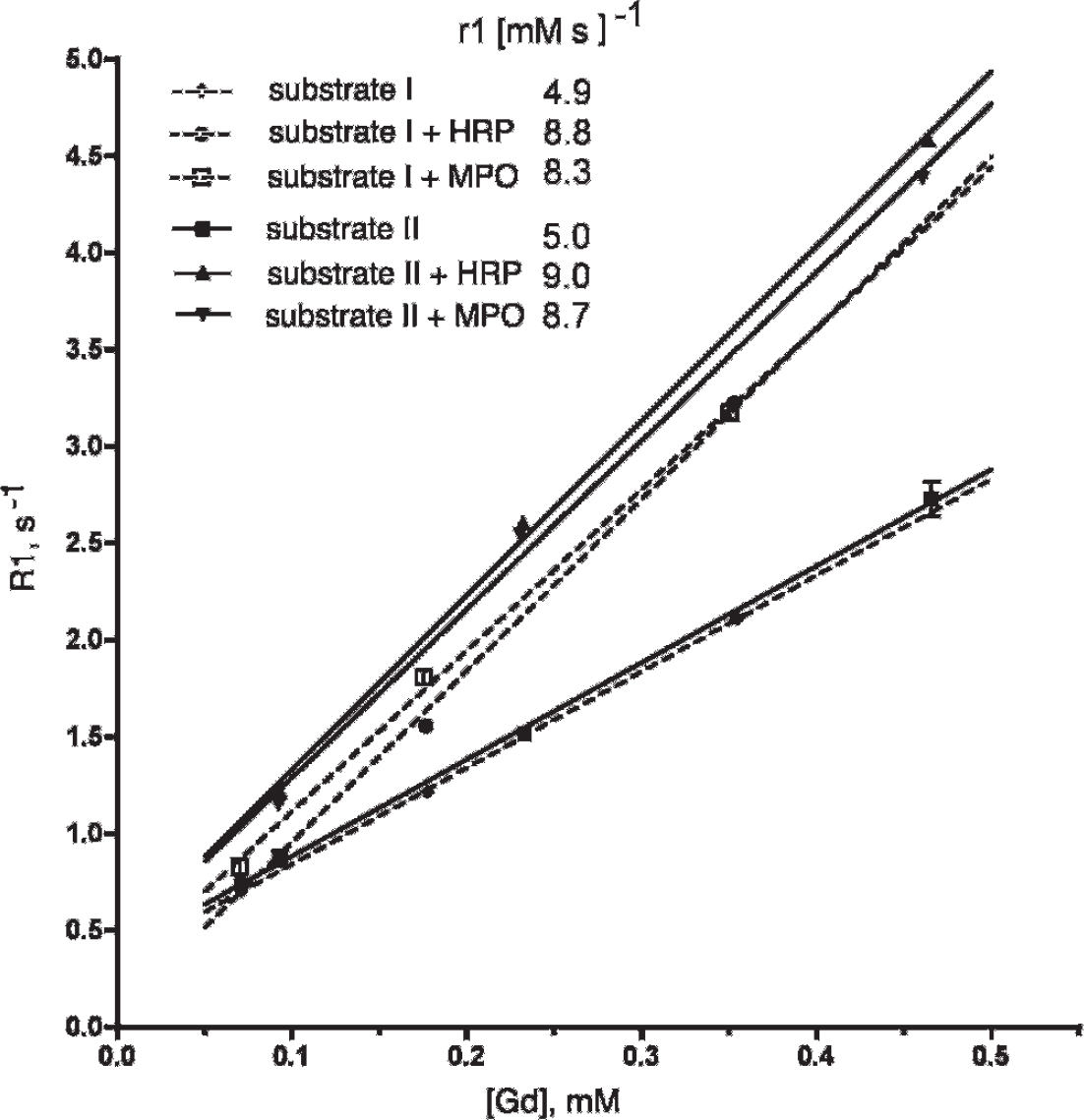

Concentration dependence of proton relaxation rates (R1) in the presence of substrate I (dashed lines) and substrate II (solid lines) solutions after adding MPO/GOX or HRP/GOX enzyme pairs in the presence of glucose. See the figure legend for disambiguation of symbols and molar relaxivity values of substrates (r1).

Table 2.

R1 Stability Measurements in 0.47 T at 40°C of Bis-HTrp-DTPA(Gd) (I), Bis-5HT-DTPA(Gd) (II), and Bis-Tyr-DTPA(Gd) (HI) at Different pH Values in DPBS

	pH 6		pH 7
Substrate	Thermodynamic Index: R1 (t = 4,300 min)/R1(t = 0)	Kinetic Index: Time (min) Required to Reach R1(t)/R1(0) = 0.8	Kinetic Index: Time (min) Thermodynamic Index: Required to Reach R1(t = 4,300 min)/R1(t = 0) R1(t)/R1(0) = 0.8
I	0.22	106	0.62	1,504
II	0.62	306	0.77	3,215
III	0.30	82	0.56	1,203

DPBS = Dulbecco's Phosphate Buffered Saline.

Reaction Kinetics

Longitudinal and transverse relaxation rate measurements (R1 and R2) at different substrate concentrations showed a concentration dependence of both longitudinal and transverse pseudo-first-order kinetic constants for substrate I but not for substrate II (see Table 1). We further compared the effective pseudo-first-order constants of cumulative relaxivity change reactions under the conditions of continuous enzyme cycling, that is, steady-state kinetics. The reactions were triggered by H₂O₂ generation via a GOX/glucose system that allowed measurements of pseudo-first-order kinetic constants to be made by tracking the concentration dependence of the reaction rates. In the case of HRP, the enzyme-mediated relaxivity change showed that the pseudo-first-order kinetic constants depended on the concentration of bis-tyramide-DTPA(Gd) (substrate III, a positive control for HRP). The reaction of HRP with substrate II showed independence of the effective reaction rate constant on concentration, suggesting that the measurements of relaxivity change rates were dependent only on the concentration of the enzyme in the studied range of substrate concentrations. MPO-mediated catalysis of the high-relaxivity products was also independent of the concentration of substrate II. The effective pseudo-first-order reaction constants were approximately 20-fold lower in the case of MPO compared to HRP. Conversely, when substrate I was tested in reactions with both enzymes, we observed more rapid second-order kinetics of R1 and R2 increase in the case of MPO compared to HRP.

A direct comparison of the kinetics of relaxivity increase to the kinetics of oxidized product formation was performed by measuring the change in absorbance at 350 nm (Figure 3). The goal was to find out whether changes occurring during reactions 5, 6, and 7 (see above), that is, downstream from the formation of the total pool of DTPA(Gd)-linked oxidized aromatic groups, happen in concert with the reduction of MPO-II or HRP-II by the paramagnetic substrates. Both MPO and HRP reaction rates followed a linear dependence on substrate concentration (r² range .85–.9) in the presence of H₂O₂ (0.2 mM).¹⁹ MPO showed much lower kinetic constant values in the case of substrate II (which reduces both HRP-II and MPO-II), reflecting the overall slow rate of MPO reaction, which was about 10-fold slower than that catalyzed by HRP (see Table 1).

Figure 3.

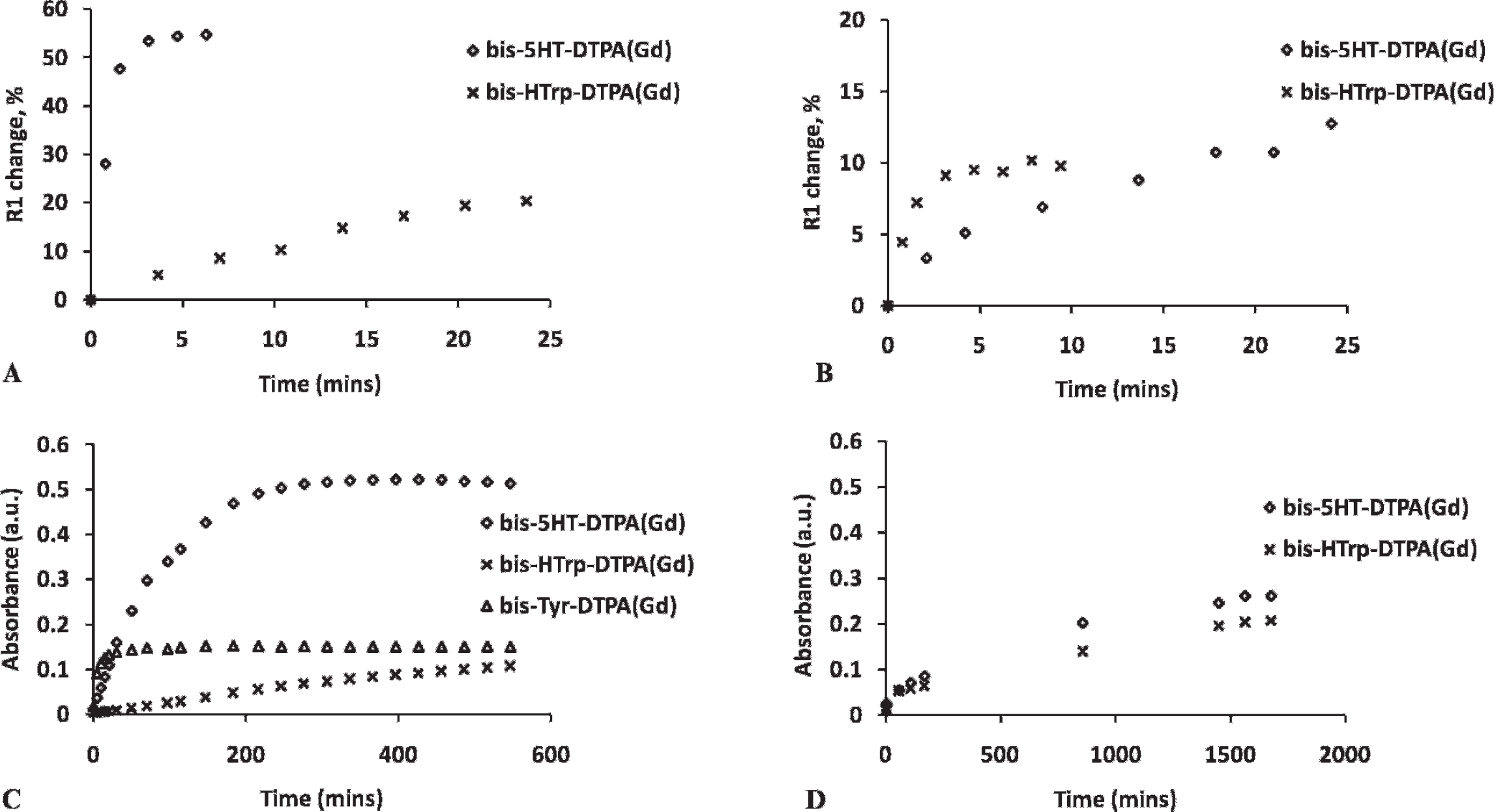

Relaxivity and absorbance measurements of substrates in the presence of HRP/MPO. Longitudinal relaxivity of substrates I and II in HRP/GOX reaction mixture (A) and their absorbance in HRP/H₂O₂ mixture (C) are shown in the first column. Longitudinal relaxivity of substrates I and II in MPO/GOX reaction mixture (B) and their absorbance in MPO/H2O2 mixture (D) are shown in the second column.

Interaction of the Reaction Products with Proteins

Gradient PAGE analysis of the substrates and reaction mixtures with peroxidases and GOX showed that HRP reaction products formed within 15 minutes of incubation. We observed a higher mass spot above the band corresponding to substrate I (Figure 4, lane 4). The optical density of this spot increased after a 2-hour incubation with HRP and GOX mixture (data not shown). The nonreacted substrates migrated with the front of the gel. In the case of MPO, there was no apparent formation of higher–molecular-weight oligomerized products (Figure 4, lane 5). However, in MPO-containing reaction mixtures, we observed the formation of a cross-linked dimer of GOX (165 kDa band) (shown with an arrow on Figure 4). This band became more prominent after a 2-hour incubation. The non-cross-linked form of GOX dimer usually completely dissociated in the presence of SDS (see lanes 1, 2, 7, and 8). No cross-linking was present if substrate I was absent from the reaction mixture (lane 2). In contrast, analysis of substrate II–containing reaction mixtures (lanes 6–8) showed high-molecular-weight condensation products in both HRP- and MPO-containing reaction mixtures, with the former enzyme catalyzing approximately eight times the amount of the oligomerized product. No protein cross-linking was present in these reaction mixtures.

Figure 4.

Gradient PAGE (4–15%) of paramagnetic substrates and reaction mixtures with peroxidases and glucose oxidase (silver stain). Reactions were carried out in 5 mM D-glucose, DPBS, pH 6.8. Substrates were at 0.5 mM. Lanes: 1 = reaction mixture of HRP and GOX, no substrate; 2 = reaction mixture of MPO and GOX, no substrate; 3 = substrate I (20 μL); 4 = reaction mixture of HRP and GOX, substrate I; 5 = reaction mixture of MPO and GOX, substrate I; 6 = substrate II (20 μL); 7 = reaction mixture of HRP and GOX, substrate II; 8 = reaction mixture of MPO and GOX, substrate II. Cross-linked product is marked with an arrow.

To determine enzymatic reaction efficacy in the presence of serum proteins and to determine whether the serum proteins bind the chelates directly, we labeled the initial chelates (ie, bis-5HT-DTPA and bis-HTrp-DTPA) with ¹¹¹In isotope and measured the accumulation of reaction products in vitro. The radioactivity in eluates of the columns is shown in Table 3. We determined that both substrates I and II bind to plasma proteins at very low levels (not exceeding 0.5%) in the absence of peroxidases. In the absence of plasma proteins, a reaction mixture containing MPO/GOX resulted in 5 to 6% eluted radioactivity, suggesting low levels of oligomerization with the formation of a high-molecular-mass fraction. In contrast, HRP resulted in 30% of the substrates converting into a high-molecular-mass (> 6 kDa) fraction of radioactive products. Both MPO and HRP catalyzed the formation of products that were bound to plasma proteins as confirmed by adding plasma proteins to the reactions and separating the obtained products (see Table 3). The MPO-catalyzed reaction resulted in approximately three times more binding of substrate II products to plasma proteins than substrate I (14% vs 50%; see Table 3), whereas the HRP-catalyzed reaction resulted in approximately equal amounts of radioactivity eluted in the void volume together with plasma proteins (50–60%).

Table 3.

Oligomerization of ¹¹¹In-Labeled Substrates I and II (0.5 μM) and Binding to Plasma Proteins

Substrate	Enzymes	Plasma Proteins	Void Volume, μCi Eluted^*	% Eluted, Average
I	−	−	0.05 ± 0.03	0.04
II	−	−	0.12 ± 0.10	0.18
I	−	+	0.2 ± 0.1	0.5
II	−	+	0.2 ± 0.1	0.5
I	MPO/GOX	−	3.4 ± 0.3	5.1
II	MPO/GOX	−	3.5 ± 0.6	5.6
I	HRP/GOX	−	13.5 ± 0.6	27.5
II	HRP/GOX	−	20.3 ± 0.1	20.9
I	MPO/GOX	+	8.8 ± 0.4	14.0
II	MPO/GOX	+	31.5 ± 3.6	48.5
I	HRP/GOX	+	39.7 ± 8.7	62.5
II	HRP/GOX	+	33.3 ± 4.3	52.3

GOX = glucose oxidase; HRP = horseradish peroxidase; MPO = myeloperoxidase.

Void volume of Bio-Spin P-6 columns contains molecules exceeding 6 kDa.

Autoradiography was used to analysis reaction products after labeling the substrates with ¹¹¹In, and low-molecular-weight products were resolved by gradient SDS-electrophoresis. The products of MPO in reaction with substrate I resulted in hydrophilic products that were poorly retained in the gel. The main plasma component that was labeled during substrate II oxidation was serum albumin (Figure 5). HRP showed much more efficient oligomerization of substrate II if compared to substrate I. The distribution of radioactivity associated with plasma proteins in the case of both substrate I and II reactions with HRP was very similar (see Figure 5). Serum albumin and an unidentified 200 kDa protein were the main binding partners for oxidized substrates. Both products of substrate I and II bind to plasma proteins; however, the binding is lower in the case of MPO/substrate I combination than in other tested substrate/enzyme combinations.

Figure 5.

Gradient PAGE (4–15%) analysis of ¹¹¹In-labeled substrate-containing mixtures in the absence and presence of blood plasma proteins. Fifty microliters of Bio-Spin P-6 eluates (see Table 2) were loaded on a gel. Lanes: 1 = Coomassie stain of total protein in a serum sample (20 μg total protein); 2 = MPO/GOX reaction mixture, substrate I; 3 = MPO/GOX reaction mixture, substrate II; 4 = HRP/GOX reaction mixture, substrate I; 5 = HRP/GOX reaction mixture, substrate II; 6 = MPO/GOX reaction mixture, substrate I, 40% plasma; 7 = MPO/GOX reaction mixture, substrate II, 40% plasma; 8 = HRP/GOX reaction mixture, substrate I, 40% plasma; 9 = HRP/GOX reaction mixture, substrate II, 40% plasma. MW = molecular weight.

In Vivo Imaging of MPO Activity Using Substrate I

The capability of bis-HTrp–DTPA(Gd) to generate magnetic resonance signal enhancement at sites of localized MPO activity in vivo was assessed in mice. Animals received bilateral femoral muscle implants of basement membrane matrix gel (Matrigel) containing either an MPO (7.5 IU)/GOX (5 IU) mixture (left femoral muscle, denoted by the asterisk in Figure 6A) or 5 IU GOX only (right femoral muscle), which served as the control. Figure 6A shows sequential T₁-W images depicting implant enhancement as a function of time following intravenous injection of bis-HTrp-DTPA(Gd). Strong initial signal enhancement was observed in both MPO active and control femoral muscle implants. However, in control implants, the initial enhancement steadily decreased over time and was barely visible 4 hours after contrast injection, whereas the enhancement of MPO active implants persisted, even after 5 days (p < .0001) (Figure 6B). A similar time-dependent course of magnetic resonance signal enhancement was observed in animals that were injected with a 10-fold lower MPO dose (data not shown).

Figure 6.

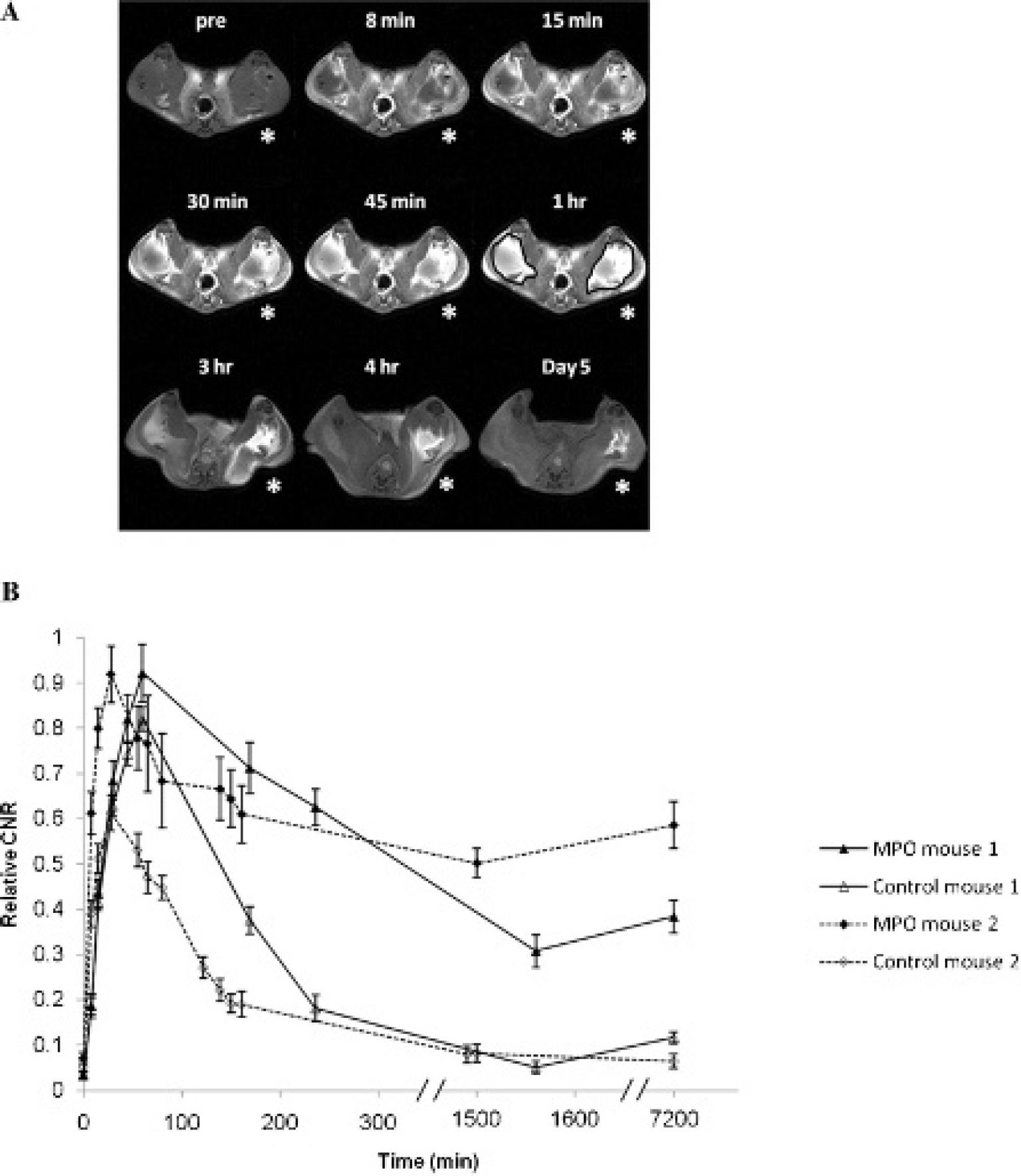

Magnetic resonance imaging of mouse femoral muscle at 3 T with implanted Matrigel and MPO/GOX mixture. A, T₁-weighted sequential mouse extremity images are shown following intravenous injection of bis-HTrp-DTPA(Gd) depicting MPO/GOX enhancement (due to formation of cross-linked products) as a function of time in the left femoral muscle region (indicated with an asterisk), whereas the contralateral side implanted with Matrigel served as the control. Time intervals after the injection of bis-HTrp-DTPA(Gd) are shown above each image. Regions of interest were selected for all time points as indicated in the 1-hour time point slice. The signal intensities from all time points were normalized to precontrast slice and are thus directly comparable, B, Relative contrast to noise ratio (CNR) curves showing enhancement in the femoral muscle of two mice are shown as a function of time following intravenous injection of bis-HTrp-DTPA(Gd). For each animal, the temporal wash-in and washout of bis-HTrp-DTPA(Gd) signal enhancement is shown in the MPO-treated muscle (filled triangles and diamonds) and the untreated control side (empty triangles and diamonds). These plots were derived from several slices in each animal at each time point. Within each animal, the CNR is normalized to the maximum value to compute relative CNR.

Discussion

Noninvasive imaging of MPO activity can be performed by using high anatomic resolution MRI,² high-sensitivity single-photon emission computed tomography (SPECT),²⁰ or bioluminescence.⁴ MPO activity can be detected and monitored in tissues during the initiation and progression of diseases such as atherosclerosis,³ myocardial infarction,⁹ stroke,²¹ and autoimmune encephalitis.²² The precise localization of MPO-containing lesions is enabled by paramagnetic low-molecular-weight substrates, which are mono- or bis-amides of linear or cyclic chelates.^1,10 Rapid progress in the development of high-field MRI dictates the need for MPO-sensing probes that can be injected at higher doses than previously developed bis- amide-based probes, which have relatively low solubility and can be injected only at low doses. This study examined the potential benefits of replacing previously used 5-HT with HTrp in the synthesis of a magnetic resonance–detectable MPO probe. The newly synthesized probe demonstrated greater solubility in aqueous solutions and produced gradual increases in proton relaxation rates (R1 and R2) in the presence of either MPO or HRP with the addition of H₂O₂. Interestingly, the oxidation of charged bis-HTrp-DTPA(Gd) (substrate I) by HRP resulted in a less efficient reactive intermediate than the nonionic bis-5HT-DTPA(Gd) (substrate II). Conversely, the reactions catalyzed by MPO resulted in a more rapid proton relaxation rate increase in the presence of substrate I.

The observed substrate (I vs II) and enzyme (HRP vs MPO) -dependent differences in the kinetics of R1 and R2 changes raise two important questions: (1) are the observed differences in reaction constants due to the reaction being limited by the formation of oxidized reactive groups (ie, the efficiency of reduction of oxidized enzymes) and (2) are the observed results related to variations in substrate I– and substrate II–generated products? To address these questions, we determined the kinetics of the enzyme-catalyzed reactions. An analysis of reaction products and the resultant protein reaction mixtures suggests that the reaction products of HRP reduction were not rate limiting, whereas MPO generated oxidized intermediates at a much slower rate, which could be rate limiting for a substrate II–mediated rise in relaxivity of the reaction products. In addition, we found that the products of HRP versus MPO reactions were entirely different. Whereas enzyme-mediated oxidation of both substrates I and II resulted in products that showed binding to plasma proteins (see Table 3), only MPO-oxidized substrate I resulted in detectable cross-linking of GOX, which was used as a source of H₂O₂ in the reaction mixture (see Figure 4). The significance of this finding lies in the fact that cross-linking, as opposed to the formation of smaller paramagnetic oligomers, can potentially result in a higher relaxivity increase per reacting Gd-labeled paramagnetic chelate due to the effect of Gd immobilization and the resultant increase in rotational correlation time.^23,24 The formation of such products in blood plasma protein solutions will likely depend on the number of exposed tyrosines and the degree of protein solvation and will require further investigation.

In vivo experiments performed after implantation of MPO-positive and MPO-negative Matrigel mixtures into the flanks of mice demonstrated that magnetic resonance signal enhancement on T₁-W images was substantially long-lasting in MPO-containing muscle implants. This is likely due to retention of paramagnetic MPO-generated reaction products, which results from the cross-linking of proteins in the Matrigel matrix, as characterized by us previously.^2,17,25 Using bis-5HT-DTPA as the substrate, Chen and colleagues and Nahrendorf and colleagues observed similar results in vivo in injured myocardium and in extremity implants, respectively, where the wash-in CNR curve reached a maximum at around the 1-hour time point and was still present after 200 minutes.^2,9 In the current study, we observed an increase in the magnetic resonance CNR during wash-in of bis-HTrp-DTPA(Gd), which reached a maximum during the first hour and then a gradual decrease (washout) of CNR over the next 5 days. This may be due to a combined effect of less efficient oligomerization of substrate I than substrate II in the presence of MPO and the solubility of the resultant oligomers.

Conclusion

The synthesis of bis-HTrp-DTPA(Gd) resulted in a new MPO-sensitive MRI probe that produced an increase in Gd-induced proton relaxation rates similar to that of bis- 5HT-DTPA(Gd). The new probe has high solubility in aqueous media at room temperature, making it preferable for applications requiring higher in vivo probe concentrations (ie, mouse imaging at higher magnetic fields, reviewed in Sosnovik and colleagues²⁶). Kinetic experiments demonstrated that although both MPO and HRP reacted with both substrates, there were notable differences in terms of the type of reaction products formed: substrate II and HRP gave insoluble cross-linked final products if the reaction proceeded for several hours, whereas the products of substrate I were soluble. Gradient SDS-PAGE analysis of enzymatic activation of substrate I showed the formation of a 10 to 20 kDa oligomerized product in the case of HRP, whereas in the reaction mixture containing MPO, we observed the formation of cross-linked proteins. The binding of the reactive products after the substrate activation by MPO was also detected in the presence of plasma proteins. This suggests that protein binding in the case of substrate I reaction with MPO can potentially compensate for the lack of extensive oligomerization. Despite lower stability of substrate II, especially under conditions modeling tissue acidosis, we anticipate it to be an efficient sensor for in vivo imaging of MPO activity due to potential linking of the corresponding reaction products to tissue proteins in inflammatory lesions.

Footnotes

Acknowledgments

We are grateful to Dr. Mary Mazzanti for editing the manuscript and Jaime O'Callaghan, AS, for her assistance with animal experiments.

Financial disclosure of authors: This work was supported by National Institute of Health grants R01EB000858 and R01AG034901 (to A.A.B.) and the Department of Radiology, University of Massachusetts Medical School.

Financial disclosure of reviewers: None reported.

References

Chen

Pham

Weissleder

. Human myeloperoxidase: a potential target for molecular MR imaging in atherosclerosis. Magn Reson Med 2004;52:1021–8, doi:10.1002/mrm.20270.

Chen

Querol Sans

Bogdanov

Jr . Imaging of myeloperoxidase in mice by using novel amplifiable paramagnetic substrates. Radiology 2006;240:473–81, doi:10.1148/radiol.2402050994.

Ronald

Chen

. Enzyme-sensitive magnetic resonance imaging targeting myeloperoxidase identifies active inflammation in experimental rabbit atherosclerotic plaques. Circulation 2009;120:592–9, doi:10.1161/CIRCULATIONAHA.108.813998.

Gross

Gammon

Moss

. Bioluminescence imaging of myeloperoxidase activity in vivo. Nat Med 2009;15:455–61, doi:10.1038/nm.1886.

DeLeo

3rd Gounis

Hong

. Carotid artery brain aneurysm model: in vivo molecular enzyme-specific MR imaging of active inflammation in a pilot study. Radiology 2009;252:696–703, doi:10.1148/radiol.2523081426.

Brennan

Penn

Van Lente

. Prognostic value of myeloperoxidase in patients with chest pain. N Engl J Med 2003;349:1595–604, doi:10.1056/NEJMoa035003.

Sugiyama

Okada

Sukhova

. Macrophage myeloperoxidase regulation by granulocyte macrophage colony-stimulating factor in human atherosclerosis and implications in acute coronary syndromes. Am J Pathol 2001;158:879–91, doi:10.1016/S0002-9440(10)64036-9.

Klebanoff

. Myeloperoxidase: friend and foe. J Leukoc Biol 2005;77:598–625, doi:10.1189/jlb.1204697.

Nahrendorf

Sosnovik

Chen

. Activatable magnetic resonance imaging agent reports myeloperoxidase activity in healing infarcts and noninvasively detects the antiinflammatory effects of atorvastatin on ischemia-reperfusion injury. Circulation 2008;117:1153–60, doi:10.1161/CIRCULATI0NAHA.107.756510.

10.

Querol

Chen

Weissleder

. DTPA-bisamide-based MR sensor agents for peroxidase imaging. Org Lett 2005;7:1719–22, doi:10.1021/ol050208v.

11.

Querol

Chen

Bogdanov

Jr . A paramagnetic contrast agent with myeloperoxidase-sensing properties. Org Biomol Chem 2006;4:1887–95, doi:10.1039/b601540a.

12.

Allegra

Furtmuller

Regelsberger

. Mechanism of reaction of melatonin with human myeloperoxidase. Biochem Biophys Res Commun 2001;282:380–6, doi:10.1006/bbrc.2001.4582.

13.

Bogdanov

Jr Matuszewski

Bremer

. Oligomerization of paramagnetic substrates results in signal amplification and can be used for magnetic resonance imaging of molecular targets. Mol Imaging 2002;1:16–23, doi:10.1162/153535002753395671.

14.

Rodriguez

Nilges

Weissleder

. Activatable magnetic resonance imaging agents for myeloperoxidase sensing: mechanism of activation, stability, and toxicity. J Am Chem Soc 2009;132:168–77, doi:10.1021/ja905274f.

15.

Betten

Dahlgren

Hermodsson

. Serotonin protects NK cells against oxidatively induced functional inhibition and apoptosis. J Leukoc Biol 2001;70:65–72.

16.

Laurent

Vander Elst

Henoumont

. How to measure the transmetallation of a gadolinium complex. Contrast Media Mol Imaging 2010;5:305–8, doi:10.1002/cmmi.388.

17.

Shazeeb

Sotak

Deleo

3rd . Targeted signal amplifying enzymes enhance magnetic resonance imaging of EGRF expression in an orthotopic model of human glioma. Cancer Res 2011;71:2230–9. Epub 2011 Jan 18.

18.

Cornish-Bowden

. Analysis of enzyme kinetic data. Oxford, UK: Oxford University Press; 1995.

19.

Ghibaudi

Laurenti

. Unraveling the catalytic mechanism of lactoperoxidase and myeloperoxidase. Eur J Biochem 2003;270:4403–12, doi:10.1046/j.1432-1033.2003.03849.x.

20.

Querol Sans

Chen

Weissleder

. Myeloperoxidase activity imaging using (67)Ga labeled substrate. Mol Imaging Biol 2005;7:403–10, doi:10.1007/s11307-005-0020-5.

21.

Breckwoldt

Chen

Stangenberg

. Tracking the inflammatory response in stroke in vivo by sensing the enzyme myeloperoxidase. Proc Natl Acad Sci U S A 2008;105:18584–9, doi:10.1073/pnas.0803945105.

22.

Chen

Breckwoldt

Aikawa

. Myeloperoxidase-targeted imaging of active inflammatory lesions in murine experimental autoimmune encephalomyelitis. Brain 2008;131:1123–33, doi:10.1093/brain/awn004.

23.

Toth

Helm

Merbach

. Relaxivity of MRI contrast agents. Top Curr Chem 2002;221:61–101, doi:10.1007/3-540-45733-X_3.

24.

Caravan

Cloutier

Greenfield

. The interaction of MS-325 with human serum albumin and its effect on proton relaxation rates. J Am Chem Soc 2002;124:3152–62, doi:10.1021/ja017168k.

25.

Querol

Bogdanov

Jr . Amplification strategies in MR imaging: activation and accumulation of sensing contrast agents (SCAS). J Magn Reson Imaging 2006;24:971–82, doi:10.1002/jmri.20724.

26.

Sosnovik

Nahrendorf

Weissleder

. Targeted imaging of myocardial damage. Nat Clin Pract Cardiovasc Med 2008;5 Suppl 2:S63–70, doi:10.1038/ncpcardio1115.
