Abstract

Nerve damage is the major morbidity of many surgeries, resulting in chronic pain, loss of function, or both. The sparing of nerves during surgical procedures is a vexing problem because surrounding tissue often obscures them. To date, systemically administered nerve-highlighting contrast agents that can be used for nerve-sparing image-guided surgery have not been reported. In the current study, physicochemical and optical properties of 4,4‘-[(2-methoxy-1,4-phenylene)di-(1E)-2,1-ethenediyl]bis-benzenamine (BMB) and a newly synthesized, red-shifted derivative 4-[(1E)-2-[4-[(1E)-2-[4-aminophenyl]ethenyl]-3-methoxyphenyl]ethenyl]-benzonitrile (GE3082) were characterized in vitro and in vivo. Both agents crossed the blood-nerve barrier and blood-brain barrier and rendered myelinated nerves fluorescent after a single systemic injection. Although both BMB and GE3082 also exhibited significant uptake in white adipose tissue, GE3082 underwent a hypsochromic shift in adipose tissue that provided a means to eliminate the unwanted signal using hyperspectral deconvolution. Dose and kinetic studies were performed in mice to determine the optimal dose and drug-imaging interval. The results were confirmed in rat and pig, with the latter used to demonstrate, for the first time, simultaneous fluorescence imaging of blood vessels and nerves during surgery using the FLARE™ (Fluorescence-Assisted Resection and Exploration) imaging system. These results lay the foundation for the development of ideal nerve-highlighting fluorophores for image-guided surgery.

SURGERY IS among the most commonly recommended treatments for major acute and chronic diseases, with as many as 40 million procedures conducted each year in the United States alone.¹ A common but underrecognized clinical complication of these procedures following healing of the surgical site is chronic pain from nerve damage, with an estimated 0.05 to 1.5% prevalence up to 1 year postsurgery.¹ Although the incidence is low, the absolute number is quite large, ranging from 20,000 to 600,000 patients per year. Persistent postsurgical pain, formally recognized approximately 10 years ago,^2–4 is now termed “chronic postsurgical pain” or “postsurgical neuralgia.” In fact, nerve damage is a major morbidity associated with many surgical procedures, including inguinal hernia repair,^5,6 lumpectomy and mastectomy,^7–9 thoracic surgery,^10,11 coronary artery bypass,^12,13 and prostatectomy.^14,15 In spite of the knowledge base of human nerve anatomy, surgery that spares the nervous structures is still a difficult task owing to patient-to-patient variability and the difficulty of nerve visualization. Nerves are usually protected deep within the tissue, rendering them difficult to detect prior to injury from surgical dissection. Damage to nerves during surgery often leads to chronic pain, loss of function, or both.^1,4,15,16

Much of the difficulty with chronic pain and loss of function can be attributed to the fact that, currently, most surgical procedures are performed without the assistance of image guidance. Although ultrasonography and x-ray fluoroscopy are used selectively during human surgery,¹⁷ the former requires direct contact with tissue and sees only a narrow slice within the surgical field, and the latter exposes patients and caregivers to ionizing radiation. More importantly, neither technique is amenable to low doses of targeted contrast agents and are, thereby, unable to provide nerve-specific imaging.

Optical imaging has tremendous clinical potential for image-guided surgery. Through administration of exogenous contrast agents specific for nervous tissues, the nerve anatomy could be directly visualized in real time during surgery. The use of near-infrared (NIR) wavelengths between 700 and 900 nm is particularly attractive for nerve-specific contrast agents because tissue autofluorescence, absorbance, and scatter are minimal in this region of the electromagnetic spectrum.^18,19 Importantly, NIR fluorescent contrast agents can now be visualized during surgery using the FLARE™ (Fluorescence-Assisted Resection and Exploration, BidMC, Boston, MA) intraoperative imaging system,^20–24 which is currently being used in three trials funded by the National Institutes of Health.²⁵ Although developing agents with desirable characteristics is a challenge, a nerve-specific fluorescent contrast agent would be of immediate benefit to patients and surgeons for image guidance during numerous surgical procedures.

The ideal nerve-specific contrast agent should fulfill the following criteria: (1) have a logD at pH 7.4 between 0.5 and 3 to maximize blood-nerve barrier (BNB) penetration,^26,27 (2) have a molecular weight ≤ 500 Da to maximize BNB penetration,^26,27 (3) bind to a nerve-specific target and be retained in the nervous tissue for several hours, and (4) have excitation and emission maximum wavelengths in the NIR region of the electromagnetic spectrum. The current study focused on characterizing the utility of a previously described nerve-specific contrast agent, 4,4‘-[(2-methoxy-1,4-phenylene)-di-(1E)-2,1-ethenediyl]bis-benzenamine (BMB),²⁸ and a red-shifted derivative of this molecule, 4-[(1E)-2-[4-[(1E)-2-[4-aminophenyl]ethenyl]-3-methoxyphenyl]ethenyl]-benzonitrile (GE3082) (K Nasr, et al, unpublished data, 2010), for image-guided surgery. The goals of this study were to fully characterize the physicochemical and optical properties of these fluorophores in vitro and in vivo, define an effective formulation for intravenous (IV) administration, characterize the dose effect and kinetics of both fluorophores, and demonstrate their performance during image-guided surgery in mice, rats, and pigs.

Materials and Methods

Synthesis of Nerve-Highlighting Contrast Agents BMB and GE3082

The nerve-specific fluorescent contrast agents BMB (Figure 1A) and GE3082 (Figure 1B) were synthesized using a modified Horner-Wittig olefination (K Nasr, et al, unpublished data, 2010).

Figure 1.

Structure and spectral properties of fluorescent nerve-highlighting agents: the chemical structure and molecule weight (top) for (A) BMB and (B) GE3082. The absorbance and fluorescence spectra in dimethyl sulfoxide (DMSO), absolute methanol (MeOH), the formulation used for IV administration (10% DMSO, 5% Cremophor EL, 65% serum, and 20% HEPES buffer), and fetal bovine serum buffered with 20 mM HEPES (FBS) are shown (middle). The extinction coefficient, quantum yield, excitation, and emission maximum in DMSO, MeOH, FBS, and the IV formulation are shown (bottom).

Physicochemical Characterization of BMB and GE3082

Absorbance and fluorescence spectra of 10 μM solutions of BMB and GE3082 were measured in dimethyl sulfoxide (DMSO), absolute methanol (MeOH), fetal bovine serum (FBS) buffered with 20 mM HEPES, and the formulation used for IV administration (10% DMSO, 5% Cremophor EL, 65% serum, and 20% HEPES buffer) using fiberoptic HR2000 (200-1100 nm) and USB2000FL (350-1,000 nm) spectrometers (Ocean Optics, Dunedin, FL), respectively. Fluorescence excitation was provided by a 375 ± 10 nm light-emitting diode (LED). The extinction coefficients of BMB and GE3082 were calculated at the excitation maximum in DMSO, MeOH, FBS, and the IV formulation. The quantum yields of BMB and GE3082 in DMSO, MeOH, FBS, and the IV formulation were measured by comparing the integrated fluorescence emission of the fluorophores in each solvent to the emission of 7-ethylamino-6-methyl-4-trifluormethylcoumarin (also known as Coumarin 503, Coumarin 307; Exciton, Dayton, OH) in MeOH (quantum yield = 15%^29,30) as a reference standard under conditions of matched absorbance at the excitation wavelength. The logD values of BMB and GE3082 at pH 7.4 were calculated using Marvin JChem software (Chem Axon, Budapest, Hungary).

Animals

All animals used in this study were studied under the supervision of an approved institutional protocol. CD-1 mice of either sex weighing 28 to 30 g and Sprague-Dawley rats of either sex weighing 225 to 250 g were purchased from Charles River Laboratories (Wilmington, MA). Male Yorkshire pigs weighing 30 kg were purchased from E. M. Parsons & Sons (Hadley, MA). Prior to surgery, mice and rats were anesthetized with 65 mg/kg intraperitoneal pentobarbital (Ovation Pharmaceutical, Inc., Deerfield, IL). Pig anesthesia was induced with 4.4 mg/kg intramuscular Telazol (Fort Dodge Animal Health, Fort Dodge, IA) and maintained with 2% isoflurane after intubation.

Intraoperative Fluorescence Imaging

The FLARE intraoperative imaging system has been described in detail previously,^20–24 and its use for nerve-specific imaging is explained briefly as follows. For excitation, two 375 ± 10 nm LEDs (Epitex, Inc., Kyoto, Japan) fitted with 370 nm shortpass filters were used, which created a fluence rate of 0.15 mW/cm² on the imaging field. All filters and beam splitters were from Chroma Technology (Brattleboro, VT). To image the emission of BMB, a 550 ± 25 nm filter was used. To image the emission of GE3082, a 610 ± 38 nm filter was used. Fluorescence images were collected using exposure times ranging from 67 to 500 ms. All images collected for comparison between vehicle-injected control animals and fluorophore-injected animals had the same exposure time and normalization. Color video images were collected on a separate channel using custom-designed optics and software.

Simultaneous nerve and vessel fluorescence imaging was performed using GE3082 for nerve contrast and indocyanine green (ICG) for vessel contrast. The same excitation and emission wavelengths mentioned previously were used for GE3082 fluorescence imaging. ICG was excited using 760 ± 30 nm LEDs (Epitex) fitted with 764 ± 17 nm filters in custom holders that produced a fluence rate on the imaging field of 8.5 mW/cm². To image the emission of ICG, an 824 ± 24 nm filter was used.

Formulation, Dosing, and Kinetics for In Vivo Fluorescence Imaging

The lipophilic nature of BMB and GE3082 required specialized formulation for IV administration. Formulations containing 1 to 10% DMSO, 1 to 5% Cremophor EL, and 0 to 65% serum were tested by centrifugation for 5 minutes at 10,000g. Formulations in which the fluorophores remained completely in solution following centrifugation were composed of 10% DMSO, 5% Cremophor EL, 65% serum, and 20% HEPES buffer at pH 7.4. This IV formulation was used for all subsequent IV administrations.

Dose and kinetic experiments were performed in mice where the brachial plexus nerve was exposed and imaged over a 4-hour period. The brachial plexus nerve to surrounding muscle tissue ratio was calculated. The doses of BMB and GE3082 were serially decreased from 0.5 mg/mouse to 0.03125 mg/mouse. Control mice were administered IV formulation only (vehicle). Images of the mouse brachial plexus region were acquired using the FLARE intraoperative imaging system prior to fluorophore administration; 5, 10, 15, 30, 45, and 60 minutes after administration; and then every 30 minutes for 4 hours following fluorophore administration. Three mice were evaluated for each fluorophore at each dose over the 4-hour period.

In Vivo Optical Spectroscopy

BMB and GE3082 were evaluated in mice by imaging their trigeminal ganglia with a Maestro™ small-animal multi-spectral imaging system (CRI, Woburn, MA). Four hours after IV administration of the 0.25 mg/mouse dose of the fluorophore in the IV formulation, the mice were sacrificed, and their trigeminal ganglia, optic nerves, and brain were exposed for imaging. A 390 nm shortpass filter was used for excitation; the fluorescence emission spectra were collected between 500 and 800 nm at 10 nm intervals. The trigeminal ganglia, optic nerves, and brain of the vehicle-injected control animals were imaged using the same integration time as each fluorophore-injected animal. The in vivo fluorescence spectra of BMB and GE3082 in the nerve, adipose, and muscle tissues were unmixed from the nerve, adipose, and muscle tissues of vehicle-injected control animals using the software supplied by the manufacturer. Using the spectral signature of each tissue, representative nerve, adipose, and muscle images were unmixed from the original fluorescence image using the same manufacturer-supplied software.

Nerve Imaging of Rats and Pigs

Using the dosing and kinetics information from mice, BMB and GE3082 were evaluated in rats using the 0.25 mg/mouse dose scaled by weight. Rats (225 g) were administered 2 mg of fluorophore in the IV formulation. Four hours after administration, the brachial plexus, sciatic nerve, trigeminal ganglia, and optic nerves were exposed and imaged. The nerves and adipose tissues were resected for analysis by fluorescence microscopy. Both BMB and GE3082 were also evaluated in Yorkshire pigs (n = 7), where the dose was scaled by body surface area (BSA; 272-fold difference compared to mouse). BMB was administered at a BSA equivalent of the 0.25 mg/mouse dose, or 68 mg. GE3082 was administered at a BSA equivalent of the 0.125 mg/mouse dose, or 34 mg. Images of the brachial plexus and sciatic nerves were acquired at 4 and 8 hours following IV administration. ICG in saline, 2.5 mg per dose, was administered as an IV bolus for NIR fluorescence angiography. The nerve and adipose tissues were resected for analysis by fluorescence microscopy.

Histology and Microscopy

Tissues from mice, rats, and pigs were preserved for microscopic assessment and localization of fluorescent signal. Tissues were resected from the animal and placed in 2% paraformaldehyde in phosphate-buffered saline (pH 7.4) for 12 hours before mounting in Tissue-Tek OCT compound (Fisher Scientific, Pittsburgh, PA) and flash-freezing in LN₂. Each sample was serially cryosectioned (10 mm per slice); one slide was stained with hematoxylin and eosin, and a consecutive section was used for fluorescence microscopy.

For ex vivo fluorescence microscopy, serial sections were imaged on a Nikon TE 300 microscope system equipped with a mercury excitation source (Chiu Technical Corporation, Kings Park, NY), CoolSNAP HQ² 14-bit camera for fluorescence imaging (Photometrics, Tucson, AZ), QImaging 12-bit camera for color imaging (Surrey, BC, Canada), and iVision software (BioVision Technologies, Exton, PA), using the following excitation and emission filter combinations. To obtain fluorescence images of BMB, the mercury light source was passed through a 360 ± 20 nm BP excitation filter, a 400 nm LP beam splitter, and a 550 ± 50 nm BP emission filter. To obtain fluorescence images of GE3082, the mercury light source was passed through a 360 ± 20 nm BP excitation filter, a 400 nm LP beam splitter, and a 610 ± 38 nm BP emission filter. Exposure times were adjusted between 400 and 5000 ms for fluorescence images.

Results

Physicochemical and Optical Property Characterization of BMB and GE3082

BMB and GE3082 have molecular weights of 342 and 352 Da and logD values at pH 7.4 of 4.8 and 5.5, respectively. The absorbance and fluorescence spectra of BMB and GE3082 were tested in solvents with varied proton content including DMSO, MeOH, FBS, and the IV formulation. Overall, GE3082 exhibited a 80 to 100 nm red shift in peak fluorescence emission compared to BMB. Whereas BMB showed very similar absorbance and fluorescence in each of the four solvents (see Figure 1A), the spectral shape of GE3082 was significantly affected by solvent (see Figure 1B). A dual fluorescence peak was seen in DMSO and MeOH, whereas a single peak was seen in FBS and the IV formulation for GE3082. The dual fluorescence peak was more pronounced in MeOH than in DMSO. The asymmetric resonance structure of GE3082 is affected by excitation wavelength, pH, and solvent polarity. A physicochemical mechanism accounting for these complex spectral results will be published elsewhere (K Nasr et al, unpublished data, 2010).

The extinction coefficient of BMB was similar in DMSO, MeOH, and the IV formulation but lower in FBS (see Figure 1A). The extinction coefficient of GE3082 was highest in DMSO and MeOH and lowest in the IV formulation and FBS (see Figure 1B). The quantum yield of BMB was moderate in DMSO and MeOH and only twofold lower in FBS and the IV formulation (see Figure 1A). In contrast, the quantum yield of GE3082 was an order of magnitude lower in DMSO and MeOH compared to FBS and the IV formulation (see Figure 1B).

In Vivo Optical Property Characterization of BMB and GE3082

The spectral properties of BMB and GE3082 were examined in vivo in the mouse trigeminal ganglia, optic nerve, brain, adipose, and muscle tissues. The fluorescence spectrum of BMB was similar in the nerve and adipose tissues with the emission maxima at 540 nm in both tissues. Minimal fluorescence was seen in the surrounding muscle tissue, which had an emission maximum at 550 nm (Figure 2A). In contrast, the fluorescence spectrum of GE3082 was blue-shifted in white adipose tissue (emission maximum = 560 nm) compared to its spectrum in nervous tissues (emission maximum = 600 nm) (Figure 2B). Some GE3082 fluorescence was detected in muscle with an emission maximum of 610 nm. Using the spectral shape differences between nerve, adipose, and muscle, unmixed images of each tissue were created, which illustrated the contribution of each tissue to the total fluorescence signal (see Figure 2).

Figure 2.

Spectral properties of BMB and GE3082 in vivo: in vivo fluorescence spectra 4 hours after IV administration of 8.3 mg/kg (0.25 mg/mouse) of (A) BMB and (B) GE3082. Shown are the trigeminal ganglia (arrow), optic nerves (arrowhead), brain (Br), adipose (A), and muscle (M) tissues. The spectrum of each tissue was unmixed from vehicle-injected control animal tissues (left). The original fluorescence image (mixed image) and unmixed nerve, adipose, and muscle tissue images are shown (right). Scale bar = 1 cm.

Nerve-Specific Fluorescence In Vivo and Ex Vivo

BMB and GE3082 were found to highlight all large nervous structures in mice, rats, and pigs, including the brachial plexus, spine, sciatic, optic, trigeminal ganglia, facial, vagus, femoral, penile, and phrenic nerves. Example rat images of the brachial plexus, sciatic, trigeminal ganglia, and optic nerve are shown in Figure 3 for BMB (see Figure 3A) and GE3082 (see Figure 3B). Both BMB and GE3082 showed accumulation in the nerves and adipose tissues. The brachial plexus and trigeminal ganglia were resected and serially sectioned for analysis by fluorescence microscopy. Both examples showed fluorescence throughout the cross-sectioned nerve (see Figure 3A and 3B, bottom rows).

Figure 3.

Image-guided surgery using nerve-specific agents in rats: example nerve to muscle contrast for Sprague-Dawley rats administered 8.9 mg/kg (A) BMB and (B) GE3082. Shown are the brachial plexus (solid arrow), sciatic (arrowhead), trigeminal ganglia (dashed arrow), and optic (striped arrow) nerves. Scale bars = 1 cm. A = adipose. Ex vivo microscopy images of the brachial plexus (BP) and trigeminal ganglia (TG) nerves serially sectioned for fluorescence microscopy and standard hematoxylin and eosin microscopy are shown. Scale bars = 200 μm.

Dose and Kinetics of BMB and GE3082

The dose response and kinetics of both BMB and GE3082 were studied in mice. The brachial plexus nerves were exposed by resection of the pectoralis major prior to administration of 0.03125 to 0.5 mg/mouse of BMB or GE3082. Background fluorescence was measured prior to IV administration of each fluorophore. Images of each animal were acquired over a 4-hour period following BMB or GE3082 administration and postprocessed using line profile analysis to determine the fluorescence maxima in the brachial plexus and surrounding muscle tissue. The fluorescence maxima were assessed in three regions of each brachial plexus nerve and surrounding muscle tissue (n = 6 sites total per animal) to reveal the average nerve to muscle ratio for each dose (Figure 4, A and B). Following BMB administration, the muscle fluorescence increased rapidly over the first 15 minutes after IV administration, resulting in a nerve to muscle contrast of less than 1. After 15 minutes, the muscle fluorescence decreased as the nerve fluorescence increased over the 4-hour period, resulting in a nerve to muscle ratio greater than 1 (see Figure 4A). Following GE3082 administration, nerve and muscle tissues showed similar contrast over the first 15 minutes, resulting in a nerve to muscle ratio near 1. After 15 minutes, a reduction in fluorescence of the muscle and an increase in fluorescence of the nerve resulted in a nerve to muscle ratio greater than 1 (see Figure 4B). Both BMB and GE3082 showed maximum fluorescence at the 4-hour time point (see Figure 4). The linear dose range for both BMB and GE3082 was between 0.0625 and 0.25 mg/mouse. The lowest dose tested for both fluorophores, 0.03125 mg/mouse, did not show significant fluorescence contrast over vehicle-injected control animals, and the highest dose tested, 0.5 mg/mouse, appeared to be a saturated dose as it did not show a linear increase in nerve to muscle contrast compared to the 0.25 mg/mouse dose. Nerve to muscle contrast was maintained for up to 8 hours following IV administration of either fluorophore (data not shown). Nerve to muscle signal was maintained longer for GE3082 than for BMB, where nerve to muscle signal was 20% of peak for GE3082 compared to 2% of peak for BMB 24 hours after IV administration (data not shown).

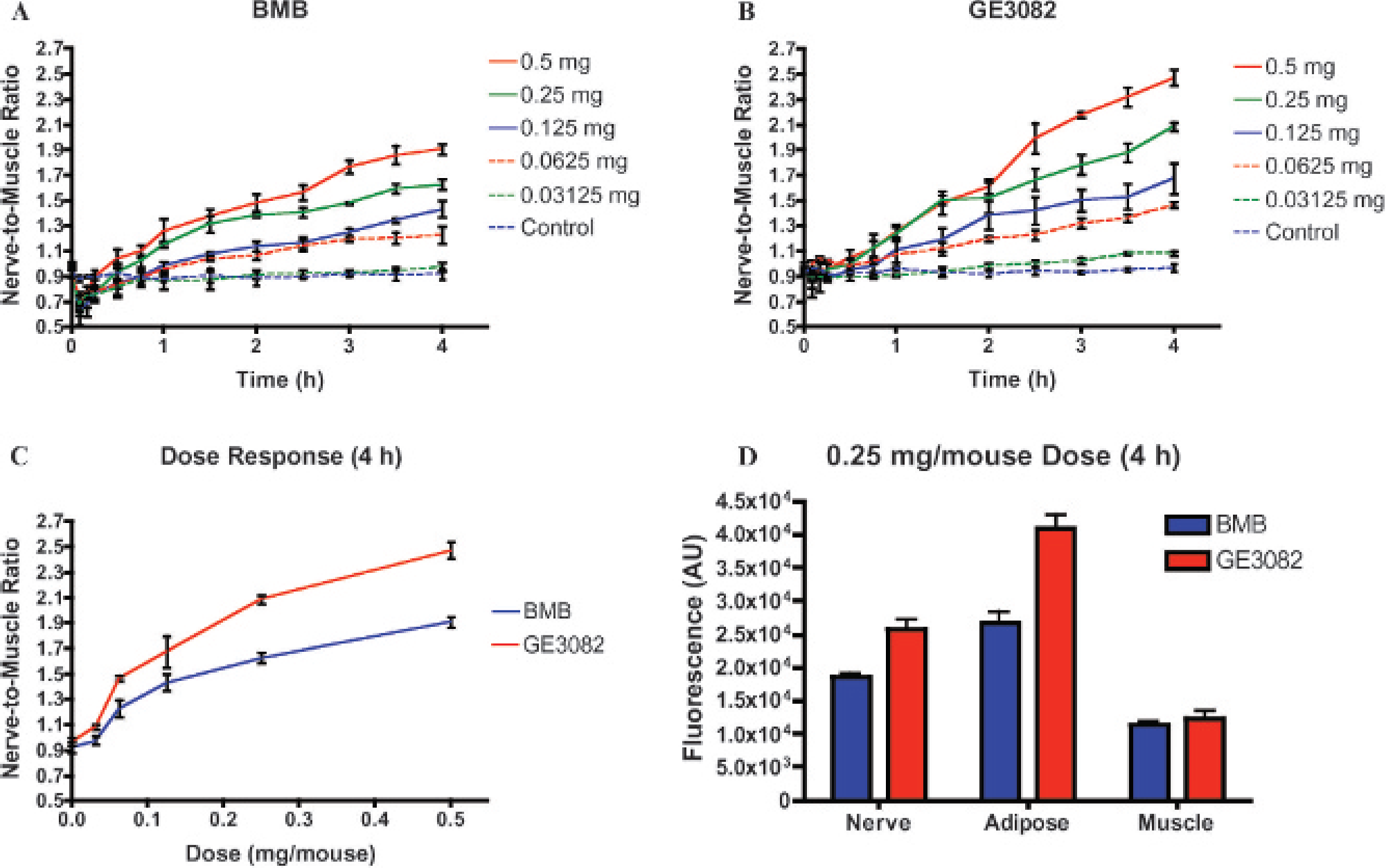

Figure 4.

Kinetics, dose, and tissue-specific fluorescence: kinetics of each fluorophore in mice following IV administration at serially decreased doses from 0.5 mg/mouse (0.5, 0.25, 0.125, 0.0625, and 0.03125 mg/mouse and vehicle-injected control). Images were acquired prior to IV administration and at 5, 10, 15, 30, 45, and 60 minutes following administration of the fluorophore. Image acquisition continued every 30 minutes for up to 4 hours. The nerve to muscle ratio (mean ± SD) of the brachial plexus to surrounding muscle tissue was calculated (n = 3 mice per group) for (A) BMB and (B) GE3082. C, Nerve to muscle dose response (mean ± SD) 4 hours after IV administration. D, Tissue-specific fluorescence (mean ± SD) in the brachial plexus nerve, adipose, and muscle tissue (n = 6 independent sites).

As might be expected owing to its significant red shift in fluorescence emission, GE3082 showed higher nerve to muscle contrast than BMB for all tested doses at 4 hours after administration (see Figure 4C). This was due to increased nerve signal following GE3082 administration compared to BMB administration, with similar muscle fluorescence for both compounds (see Figure 4D). Of note, GE3082 also had significantly higher adipose tissue accumulationthan BMB (see Figure 4D) and thus lowernerveto adipose contrast. Adipose tissue fluorescence was maintained similar to nerve fluorescence for up to 8 hours following IV administration (data not shown). Adipose to muscle signal was maintained longer for GE3082 than for BMB, where adipose to muscle signal was 60% of peak for GE3082 compared to 15% of peak for BMB 24 hours after IV administration (data not shown).

Image-Guided Surgery in Pig

The dose and kinetic experiments in mice were used to scale the dose for nerve imaging in pig. Without administration of BMB, no fluorescence contrast in the nervous tissues over the muscle was seen (Figure 5, row 1). After IV administration of BMB in pig, images of the sciatic nerve and brachial plexus were collected 4 and 8 hours postinjection. Nerve to muscle contrast was highest 8 hours after BMB administration, as can be seen in the example sciatic nerve image (see Figure 5, row 2). The sciatic nerve and surroundng adipose tissue were resected and preserved for analysis by fluorescence microscopy. As seen in the rat nerves, BMB fluorescence was seen throughout the cross-sectioned nerve bundles (see Figure 5, row 3). BMB also highlighted the adipose tissue, which was localized to the membranes of the lipid droplets (see Figure 5, row 4).

Figure 5.

Real-time image-guided nerve surgery in pig using BMB. The sciatic nerves of Yorkshire pigs were imaged using the FLARE™ intraoperative imaging system. A, The sciatic nerve (arrow) of a control pig in color video and fluorescence are shown (top). The sciatic nerve (arrow) of a pig injected with 2.3 mg/kg BMB 8 hours before imaging in color video and fluorescence (bottom), where adipose (A) and nerve (N) are highlighted. Scale bars = 1 cm. Data shown are representative of five independent experiments. B, Ex vivo microscopy of pig sciatic nerve from A in cross section (top) with visible nerve bundles (arrow) and adipose tissue (bottom), including blood vessels (arrowhead) and adiposities (dashed arrow). Scale bars = 200 μm. H&E = hematoxylin-eosin stain.

After IV administration of GE3082 into 30 kg Yorkshire pigs, images of the sciatic nerve and brachial plexus were acquired at 4 and 8 hours. Nerve to muscle contrast was similar at the 4- and 8-hour time points. ICG was administered during brachial plexus imaging and enabled simultaneous nerve and vessel imaging (Figure 6A). The brachial plexus and surrounding adipose tissue were resected and preserved for microscopic analysis. Similar to the pig sciatic nerve with BMB, the brachial plexus nerve showed GE3082 fluorescence throughout the cross-sectioned nerve bundles (Figure 6B). GE3082 also showed significant fluorescence signal in the adipose tissue, although the pattern of fluorescence was different from that of BMB. GE3082 accumulated in both the membrane and the cytosol of the lipid droplet (see Figure 6B).

Figure 6.

Simultaneous imaging of nerves and blood vessels during pig surgery using GE3082 and ICG. The brachial plexus nerves of Yorkshire pigs were imaged using the FLARE™ intraoperative imaging system. A, Color video of the brachial plexus nerve (arrow), artery (arrowhead), and vessel (dashed arrow) of a pig 8 hours after injection of 1.1 mg/kg GE3082 (top). The nerves and vessels were imaged simultaneously during the arterial (5 seconds after ICG administration, top row) and venous (2 minutes after ICG administration, bottom row) phases. Nerve (N) and adipose (A) tissues were highlighted by GE3082 (column 2), vessels and arteries were highlighted by ICG (column 3), and a merged image of the color, GE3082 fluorescence (false-colored red), and ICG fluorescence (false-colored green) was displayed in real time (column 4). Scale bars = 1cm. Data shown are representative of two independent experiments. B, Ex vivo microscopy of pig brachial plexus nerve from A in cross section (top) with visible nerve bundles (arrow) and adipose tissue (bottom), including blood vessels (arrowhead) and adiposities (dashed arrow). Scale bars = 200 μm. H&E = hematoxylin-eosin stain.

Discussion

With 40 million surgical procedures performed annually in the United States,¹ nerve damage is inevitable. As a result, patients suffer from chronic pain and a loss of normal bodily functions, which could possibly be avoided if the nerves could be seen prior to their injury. Nerve contrast agents that bind specifically to myelin have been used for histopathologic examination of the nervous system for nearly 50 years,^31–33 and more recently, additional fluorophores have been developed for rapid, selective staining of myelin in brain tissue sections.^34,35 Contrast agents have also been developed to assess the anatomy and function of peripheral nerve tissue through intramuscular administration and retrograde transport.³⁶ Although myelinated nerve staining techniques are widely used for histopathology and ex vivo examination of tissue sections, none of these compounds can be used as in vivo nerve contrast agents because they are impermeable to the blood-brain barrier (BBB) and blood-nerve barrier (BNB).³⁴ To date, only a few select molecules have been found to penetrate the BNB and BBB and specifically stain nervous tissues in vivo. These molecules fall into three main classes: (1) stilbene derivatives,³⁷ (2) (E,E)-1, 4-bis(49-aminostyryl)-2-dimethoxy-benzene (BDB)³⁴ and BMB,²⁸ and (3) the styryl pyridinium dyes (FM dyes).^38,39

The most promising class of nerve staining dyes developed to date includes BMB and BDB, as well as the potential derivatives that could be synthesized from this base structure, such as GE3082. Although BMB administered intravenously was found to produce high nerve to muscle contrast, BDB was found to selectively stain only the corpus callosum and cerebellum when applied to frozen sections or when administered intravenously³⁴ but not other nervous tissues (data not shown). BMB (see Figure 1A) and GE3082 (see Figure 1B) fulfill two of the four criteria for an ideal nerve-highlighting dye. BMB and GE3082 have molecular weights ≤ 500 Da and bind to a nerve-specific target, likely myelin,²⁸ which enables retention in the nerve tissue for up to 8 hours after systemic administration. The logD at pH 7.4 of BMB and GE3082 is above the ideal range of 0.5 to 3, rendering them more lipophilic than necessary for BBB and BNB penetration^26,27 and helping to explain their significant accumulation in adipose tissue. Both fluorophores were studied following systemic administration and their use was demonstrated during image-guided surgery. BMB and GE3082 were found to penetrate the BBB and BNB following IV administration and highlighted peripheral and central nervous tissues in mice, rats (see Figure 3), and pigs (see Figure 5 and Figure 6). Although uptakein adipose tissue was significant for both agents, the spectral shift of GE3082 in adipose tissue permitted separation of nerve signal from those of adipose and muscle tissues (see Figure 2B).

A key characteristic of fluorescent contrast agents for image-guided surgery is the use of fluorophores that absorb andemitinthe NIRregion(700-900 nm) of the electromagnetic spectrum. Indeed, red-shifting BMB emission toward the NIR region was the primary motivation for synthesizing GE3082. NIR fluorescent contrast agents are significantly advantageous over agents that absorb and emit at wavelengths below 700 nm because tissue autofluorescence, absorbance, and scattering are at their minimum in the NIR wavelengths.^18,19 The most important criterion for an ideal nerve-specific contrast agent not fulfilled by BMB and GE3082 is a fluorophore that absorbs and emits in the NIR region. Although both BMB and GE3082 theoretically have enough double bonds to resonate in the NIR, the symmetry of these molecules results in ultraviolet and visible absorption and emission. In the IV formulation, the maximum absorbance and fluorescence of GE3082 were red-shifted 21 and 81 nm, respectively, from BMB (see Figure 1). A similar fluorescence red shift was seen in vivo between GE3082 and BMB in nerve tissue, where the maximum nerve fluorescence for GE3082 was 60 nm above that of BMB (see Figure 2). Ongoing studies are aimed at further modifying the base structure to promote resonance along the full length of the available conjugated π-system while retaining nerve-specific uptake.

The base structure of BMB and GE3082 is a promising start to a nerve-specific contrast agent for image-guided surgery. Both BMB and GE3082 highlight central and peripheral nerve tissue for up to 8 hours following systemic administration. The current fluorophores could be significantly improved by decreasing the logD at pH 7.4 into the ideal range for BBB and BNB penetration, which would likely decrease adipose tissue signal, and by decreasing the resonance symmetry, to increase the wavelength of absorbance and emission. Although a significant challenge, a nerve-specific NIR fluorescent contrast agent would be of immediate benefit to both patients and surgeons for nerve-sparing image-guided surgery.
