Abstract
Additive Manufacturing (AM) is modernizing the manufacturing industry by enabling the layer-by-layer deposition process to manufacture objects in nearly any form with minimum material waste. However, components developed utilizing the AM process have dimensional constraints. To address this issue, AM-produced metal materials can be coupled with various welding processes. This article focuses on the foundations, highlighting the distinguishing features, capabilities, and challenges of welding-based AM processes by categorizing them into two major groups; arc welding-based AM like Cold Metal Transfer (CMT), Gas Metal Arc Welding (GMAW), Gas Tungsten Arc Welding (GTAW), Plasma Arc Welding (PAW), and high-energy density welding based AM like Laser Beam Welding (LBW) and Electron Beam Welding (EBW). The prior study findings of welding-based AM metal components on mechanical characteristics and microstructural characterization have been addressed. This work will aid researchers, academicians, and professional welders since it gathers vital information on welding-based AM processes. Furthermore, current research in the arena of welding-based AM and its future opportunities has been discussed.
Keywords
Introduction
Additive Manufacturing (AM) is a revolutionary manufacturing method that emerged in the 1980s
1
AM is the manufacturing process that can be recognized as a 3D printer or rapid prototyping, where the components are developed layer-by-layer and digitally controlled.2–4 AM is a near-net-shape fabrication technology that can significantly increase design freedom and shorten the lead time of production, completely different from traditional fabrication techniques like casting, forging, and machining. As a result, AM offers excellent prospects for intelligent production in the forthcoming Industry 4.0 era.5,6 In general, the process variables and alloy compositions are two key components for influencing the microstructures of metals produced through AM.
7
Figure 1 depicts the four phases of “plan,” “do,” “check,” and “act” in the framework of AM to continue producing quality and customer satisfaction. PDCA cycle combined with AM.
110

All AM procedures depend deeply on materials because of their inherent ability to influence performance and shape. Metal, polymer, ceramic, and natural materials have all been used in various AM methods, as indicated in Figure 2. Based on these homogeneous material systems, AM methods with heterogeneous materials, such as all varieties of composites, and multiple materials, have been built successfully to get better qualities. Material system used in AM processes.
111

With its characteristics, this technique has achieved significant development for metal materials as well as polymer materials. It is capable of processing an extensive range of metals, alloys, and ceramics.8–10 It is divided into seven classes based on the stacking mechanism: material extrusion, powder bed fusion (PBF), material jetting, vat photopolymerization, sheet lamination, binder jetting, and direct energy deposition.11,12
AM is a valuable method for creating scaffolds that are essential in bone tissue creation.13,14 It is quickly becoming an extensively acknowledged approach in medicine because it provides high complexity, patient-specific design, on-demand and cost-effective manufacture, and high productivity.
15
Arora et al.
16
have discussed that AM has contributed to the fight against COVID-19 by manufacturing face shields, ventilators for testing, 3-D bio-printing, antimicrobial polymers, face masks, oxygen valves, lung prototypes, and so on. The application of AM in construction has recently received a lot of interest. The big robotic arm and scaffold systems have been developed to print construction parts from comprehensive materials, metals, or polymers.
17
Klimyuk et al.
18
have concluded that the ability to use 3D printing is an alternate technique for producing punch components for single-piece and small-batch manufacture. Nadagouda et al.
19

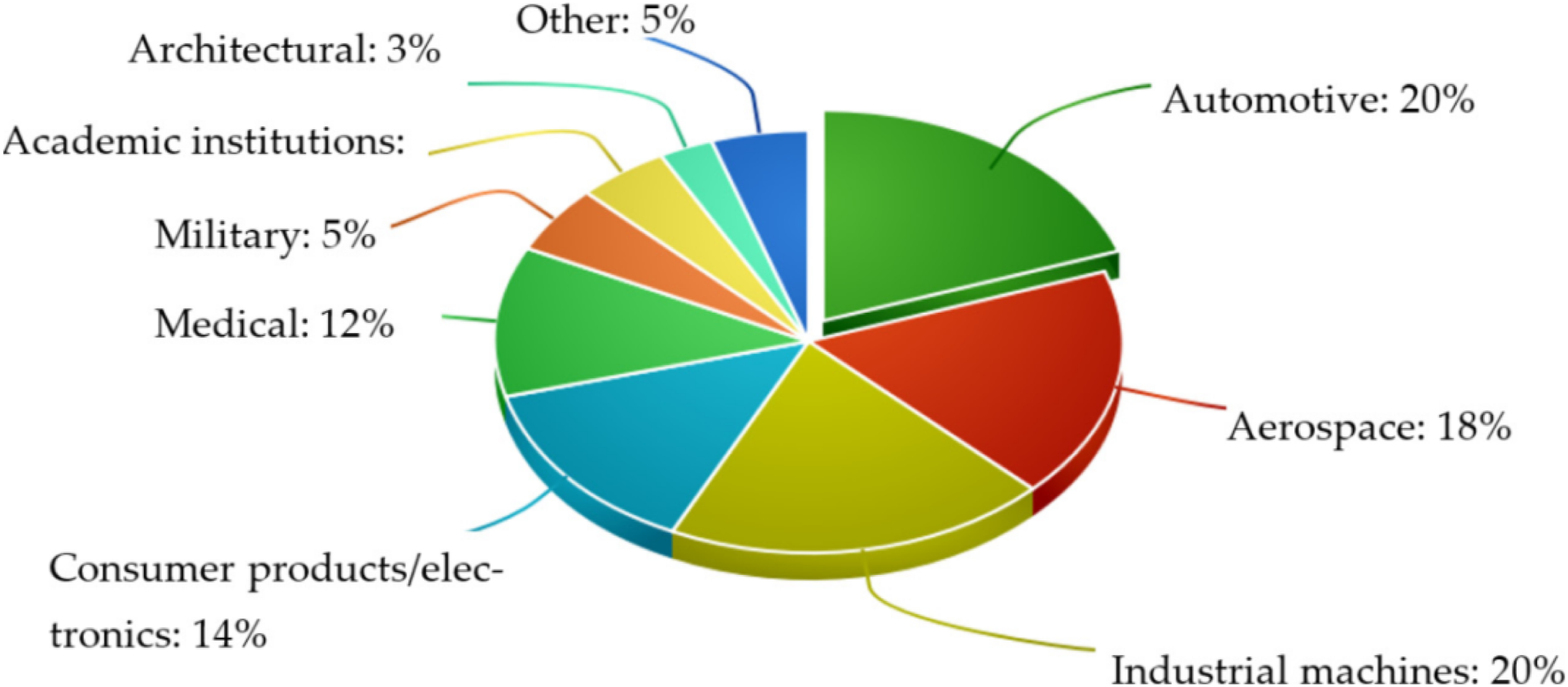

have highlighted 3D printing applications in four environmental fields, including sustainable engineering, wastewater, air quality, water, and alternative energy sources. Figure 3 represents the diverse industrial adoption of AM. Industrial adoption of AM.
112

The modern world has seen enormous developments in AM research, along with applications and other aspects of it. To fully enable the value of AM, however, some obstacles must be removed. The main problems are the compatibility of raw materials, the absence of testing facilities, and the incidence of numerous flaws in AM-fabricated parts. 20 AM is proficient in creating specialized and high-end products. Energy usage, production costs, and lead times are all improved with the use of AM to meet sustainability standards. Aside from that, AM technologies are seen as being environmentally sustainable because they result in reduced material waste, CO2 emissions, and a stronger circular economy. 21 The qualification and certification processes for AM have been hampered despite the technology’s rapid growth due to the multiple flaws found in printed parts. Contrarily, neural networks have drawn a lot of interest as a deep learning technique over the past 10 years and have proven to be quite effective when processing image data. 22 Since the exceptional post-COVID-19 situation prompted international automakers to adopt on-shoring, Sheriff Muhammad et al. 23 have concentrated on AM implementation in the automotive supply chain’s procurement stage to create auto components. To examine the adoption of AM in such settings, future research should take into account the effects of the collaboration amongst AM service providers in the automotive supply chain. It is difficult to recreate the space environment using physical variables like gravity, atmospheric pressure, and temperature in a laboratory setting. Therefore, creating proper AM space technologies is a huge task for scientists. 24 AM methods deal with complicated problems such as poor surface quality, flaws, and decreased corrosion resistance. These issues preclude AM parts from being used in real-time operating applications. These problems are typically solved using post-processing techniques such as laser shock peening, laser polishing, traditional machining techniques, and heat treatments. 25
Welding methods
Welding is an important manufacturing procedure because it allows for the easy production of complicated structures. Because it is practically incredible and time-consuming to create complicated components as separate parts, the effect of welding technology has expanded dramatically everywhere in current years. 26 It is commonly employed in the last stages of casting production and in the fabrication of connecting components. 27 There are three forms of welding: fusion welding, non-fusion welding, and resistance welding. Because of its fast welding speed, continuous lengthy welding, and strong mechanical qualities of weldments, GMAW is a widely utilized welding technology with widespread application in industries. 28 TIG, TAGS, or GTAW, also known as tungsten arc inert gas shielded welding, is a type of arc welding that uses an inert gas to shield the electrode and a non-consumable tungsten electrode. 29 PAW employs a sharply restricted arc to create a keyhole inside the molten pool. As a result, the PAW technique has a substantially higher process efficiency than the typical TIG welding process. 30 The electric field between the base electrode and anode accelerates electrons generated by the electron gun cathode in EBW. These accelerated electrons are directed to a welding location in the workpiece. 31 In LBM, a unique light composed of photons created either by gas or solid-state is concentrated on an incredibly tiny diameter, resulting in a high energy density that is utilized for welding. 32 Friction Stir Welding (FSW) is a powerful solid-state joining technique. It is deliberated as a green and environmentally friendly welding process because of no requirement for filler material or shielding gas. Furthermore, there is no arc flash, fumes, or dispersion in this welding technique.33,34 It has certain benefits over conventional fusion welding processes. FSW is a novel and very successful solid-state joining process developed in 1991 by TWI in Cambridge, England, for combining aluminum alloys. 35 Ultrasonic Metal Welding (USMW) is a solid-state welding technology that produces metallurgical bonding between similar or different materials without melting. 36
Welding and AM are both examples of surface growth difficulties because they both require the deposition of thermally extended material on the surface of a surface and result in the buildup of longitudinal residual stress after the operation.
37
The difference between normal welding and welding-based AM processes was nicely illustrated in Figure 4. Thermal conductivity occurs in more dimensions in welding (Figure 4(a)) than in welding-based AM processes, where heat must be derived in most cases in one direction: to the bottom of the component (Figure 4(b)). Heat transfer (a) welding (b) welding-based AM.
113

Arc welding-based additive manufacturing
WAAM is incredibly inexpensive since the equipment is current welding equipment, and the filler metals, which are comparable to those used in welding, can also be purchased off the layer.
38
Because of the rapid deposition rates and minimal geometrical constraints, this is particularly ideal for near-net shape manufacture of large components as well as incremental manufacturing.
39

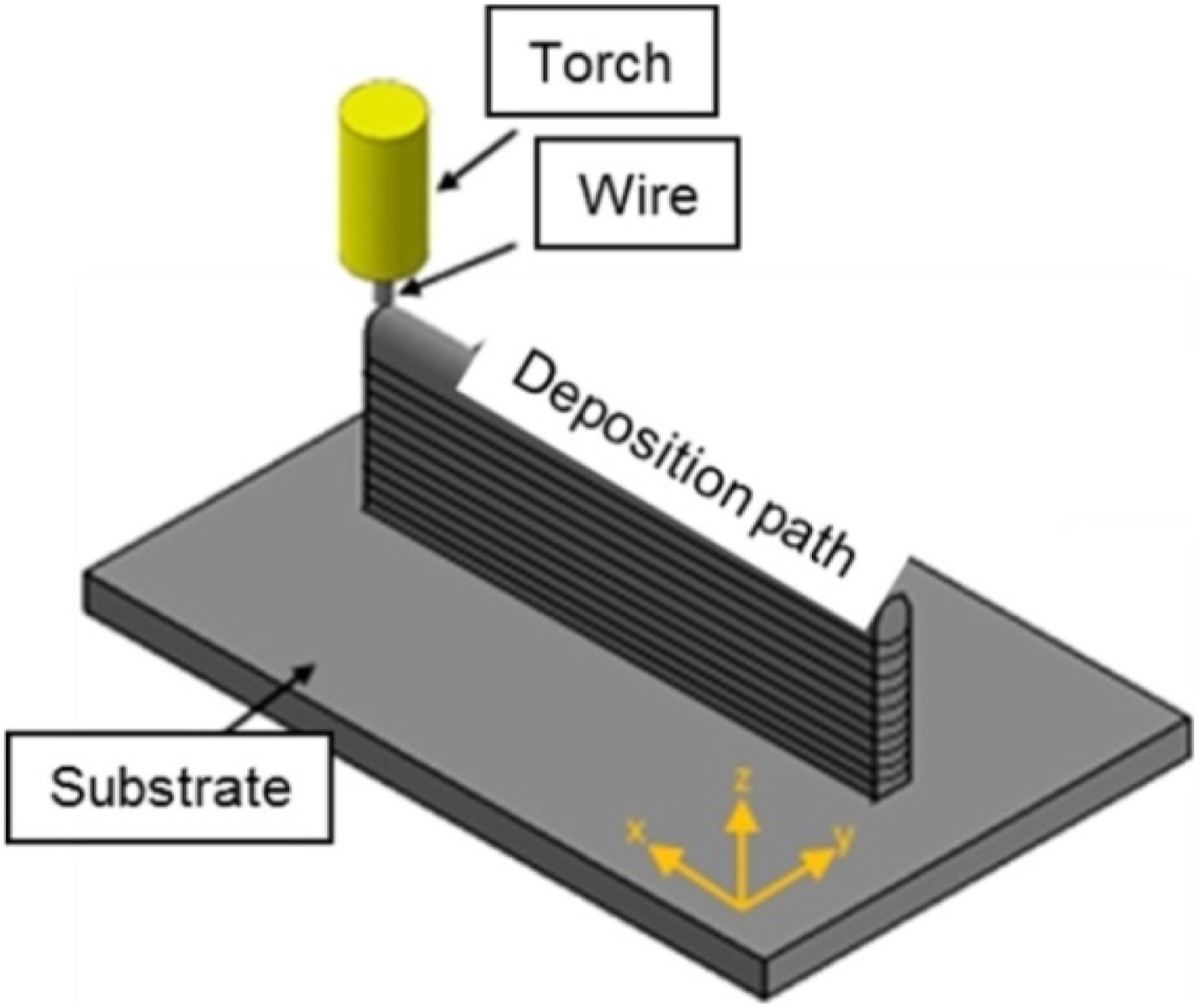

Figure 5 illustrates how the alternate layers were deposited in opposing directions to maintain the geometric tolerance. Graphical illustration of the layer sequence.
114

Wire Arc Additive Manufacturing (WAAM) is a metal-part manufacturing technology that uses directed energy deposition and arc welding. The CNC machine or an industrial robot guides the welding flame along a deposition path, allowing 3D forms to be created. The experimental setup for robot-guided WAAM is shown in Figure 6. Experimental setup for robot-guided WAAM.
115

The arc welding-based AM can be classified into GMAW, GTAW, and PAW-established technologies. Figure 7 shows the representation of these three heat sources. Representation of WAAM: (a) MIG, (b) TIG (c) PAW.
116

Gas metal arc welding-based additive manufacturing process
In GMAW-AM, an electric arc is formed between the consumable electrode and the workpiece, melting the wire electrode and depositing it above the substrate surface as a result of the relative motion of the worktable and the GMAW torch. The feature of metal deposited in GMAW-AM is mainly indicated by surface form, dimensional quality, relative density, mechanical characteristics, hardness, and so on.
40
Vinoth et al.
41

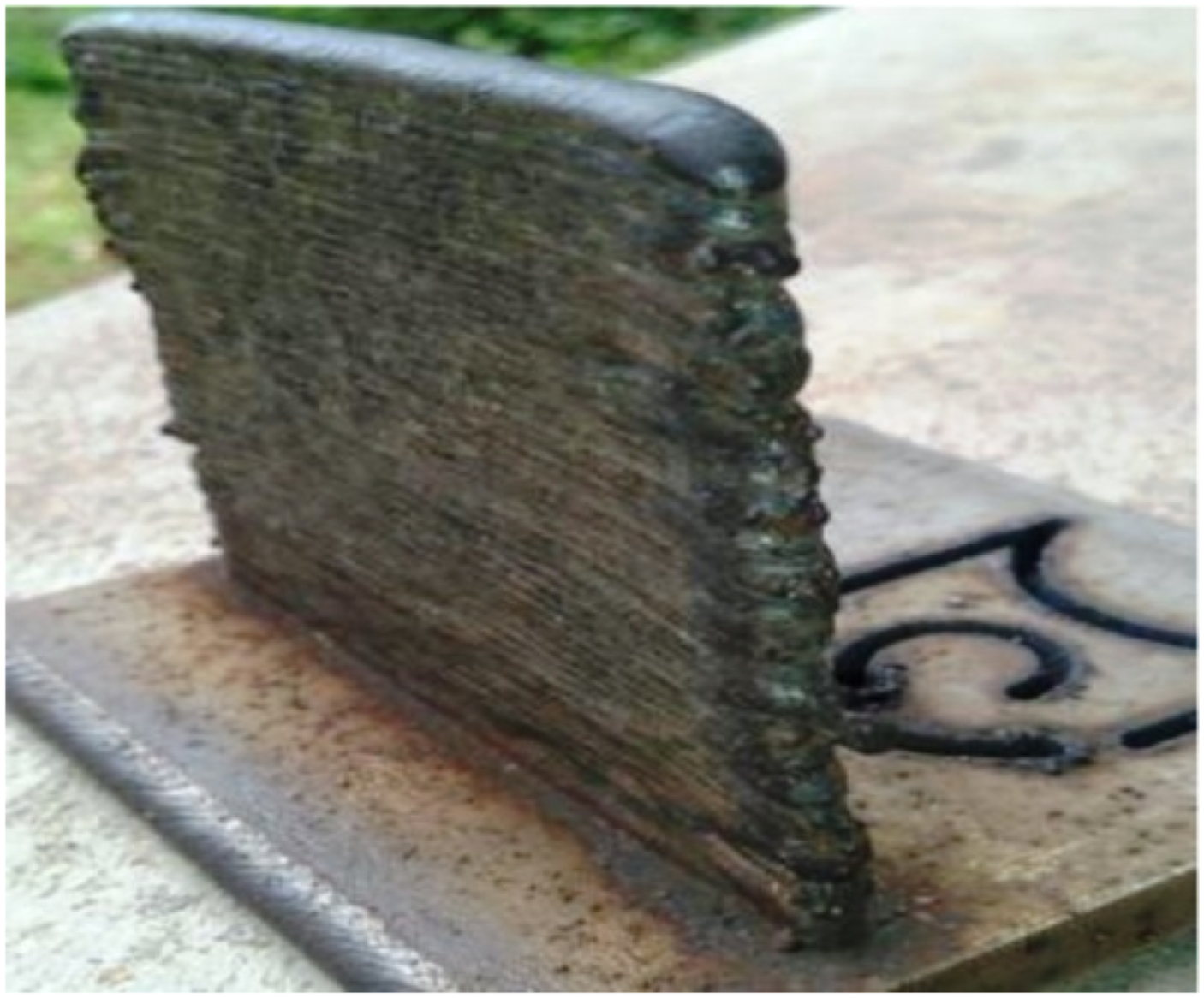

fabricated the stainless steel plate using robot GMAW with ER 316 L consumable wires. The WAAM plate is built one layer at a time on that same plate, as seen in Figure 8. Cross-sectional view of the GMAM Plate.
Reimann et al.
42
used the GMAW welding procedure to create intricate, three-dimensional free-form constructions. Figure 9 depicts an additively built, topology-optimized component that has been cleaned but has not yet been taken from the substrate. Additively manufactured component.
Shengfu et al.
43
used YHJ507M wire to create a hollow pipe with many branches (see Figure 10). When compared to the qualities of the casting pipe junction, the tensile strength of the 10-directional pipe joint improved by 12.4%. Hollow pipe (a) CAD model (b) fabricated part.
Nagamatsu et al.
44
have fabricated the hollow turbine blade using GMAW based AM approach which is presented in Figure 11. Turbine blade (a) fabricated part (b) after finishing.
Le and Mai et al.
45
constructed the thin-walled models on SS400 steel plates using an industrial robot GMAW-AM process. The tensile properties of thin-walled 308 L stainless steel are shown in Figure 12. Tensile properties of 308 L stainless steel.
Lee et al.
46
explored the impact of heat input, current ratio, and voltage ratio on bead shape under nine distinct deposition circumstances. Figure 13 depicts the results of hardness measurements under various situations. Comparisons were made between the maximum and minimum heat input circumstances as well as the current-to-voltage ratio. It displays a current to voltage ratio of 0.21 for the blue line and 0.15 for the red line. The two lines are placed at 80 HV, and no discernible difference is seen despite the different current to voltage ratios. Furthermore, the rate of heat input makes little influence. The hardness test revealed that the hardness did not alter as a result of the welding different heat input and current-to-voltage ratio. Hardness comparison.
Suarez et al.
47
used the GMAW technique to produce bimetallic walls of mild steel and 316 L stainless steel in both overlying and stacked solutions. The manufacture of defect-free bi-metallic walls from various sheets of steel is a novel procedure that is detailed here for the first time. The superimposed wall and the intermetallic structure were shown in Figure 14. They have found the finer bainitic structure on the SS-ER70 sample. Microstructure analysis of the GMAM-ed SS-ER70.
Colegrove et al.
48

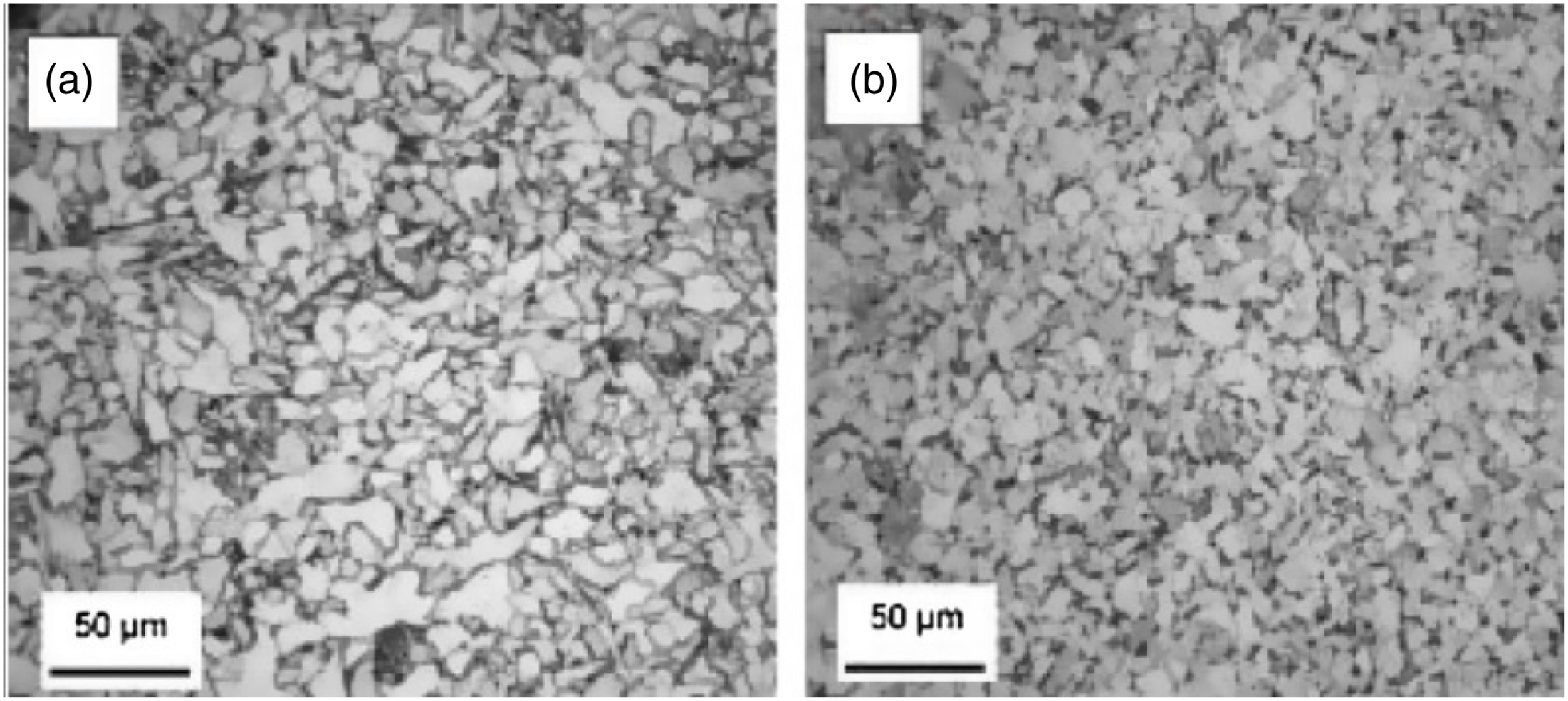

used a rolling technique on GMAW-AM of ER70S-6 steel to minimize residual stress and grain size. The microstructure of the AM-ed wall is shown in Figure 15. The rolling technique flattened the columnar grains generated during deposition by applying compressive force. Microstructure of wall (a) GMAW deposited (b) rolled.
Yuan et al. 49 invented a multi-directional WAAM technology for producing complicated metal components with robotic GMAW. The suggested multidirectional WAAM technology can greatly reduce production time and cost when compared to current WAAM approaches. According to Pattanayak and Sahoo, 50 high deposition is a substantial advantage of GMAW-AM, but it is also related to higher heat input, causing residual strains and distortions. As a result, intensive testing and process modeling are required to analyze the thermal characteristics of GMAW-AM to diminish residual stresses and distortions.
Cold metal transfer (CMT) arc welding-based additive manufacturing
WAAM is a reasonably simple method for enabling non-vertical material deposition, as welding apparatus paired with an industrial robot manipulator established in various labs and industries. Figures 16(a)–(b) illustrate the distinction between raising the welding gun’s height incrementally over a few centimeters versus all at once. (a–b) Construction of square box using WAAM.
117

Wall constructions were created utilizing CMT arc welding-based AM utilizing two types of ER2319 welding wires, one with and one without Cd components. With Cd elements, the yield strength in the deposition and building directions is raised by 5.5% and 9.3%, respectively, as compared to without Cd elements.
51
Mohiuddin and Mohideen
52
employed robotic CMT technology to additively build the 1.25Cr 0.5Mo 14 mm wall component. In various zones and orientations, the microstructure and mechanical characteristics of fabricated wall sections were investigated. Plangger et al.
53
studied the viability of immediately producing a near-net form structural part on a subassembly for use in crane building without post-machining. The hardness values vary from 220 Hv to 440 Hv, with a single outlier of 180 Hv for the middle region. Tian et al.
54

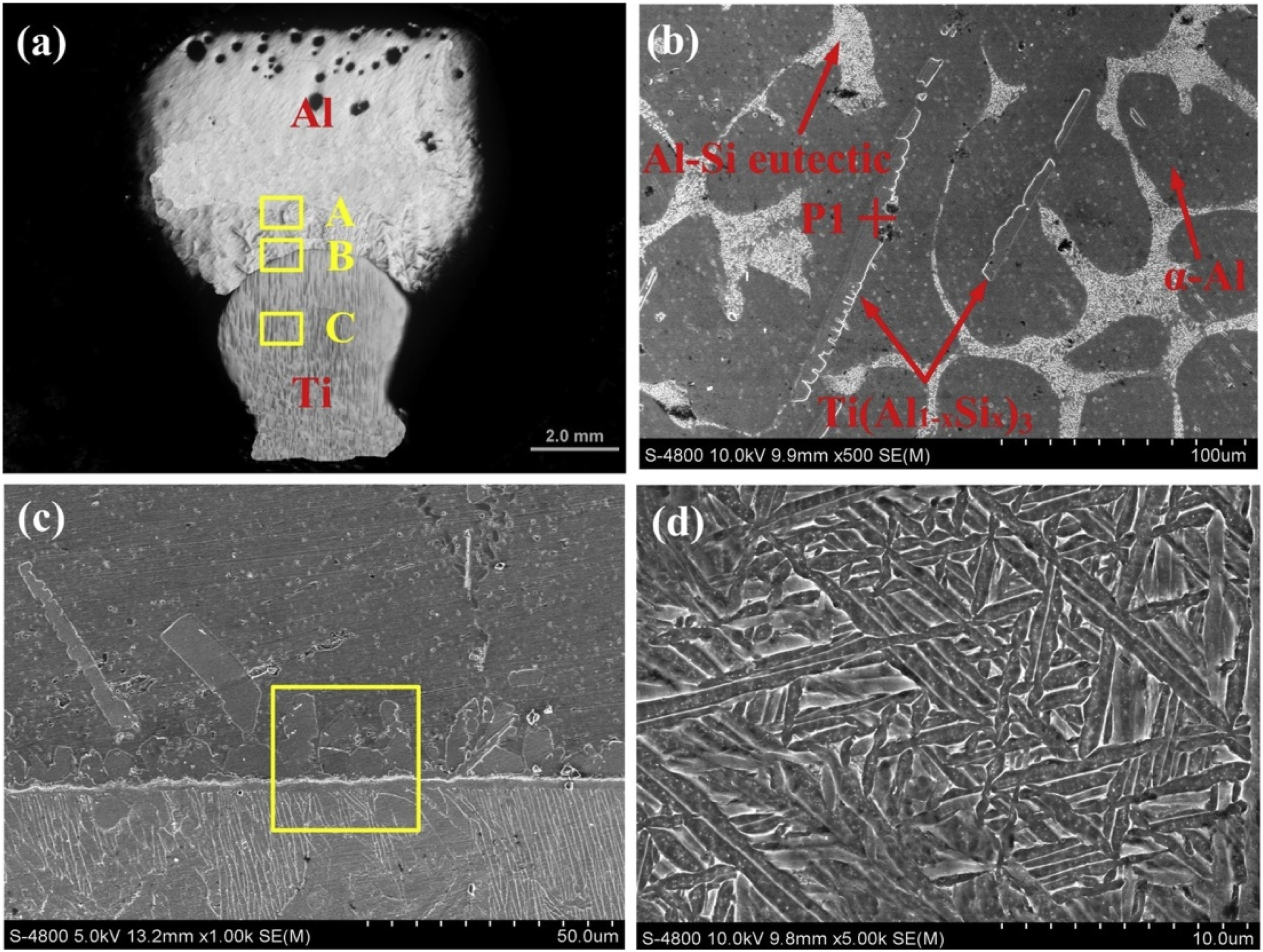

employed direct current CMT welding with Ti-6Al-4V and AlSi5 wires for WAAM. Ti alloy was placed initially, followed by Al alloy on top of the Ti layer. Figure s17(a)–(d) depict the component’s cross-sectional microstructure, which may be separated into three areas: the Al alloy region (area A), the interface layer between the Al and Ti alloys (area B), and the Ti alloy (area C). Figure 17(a) shows the component’s morphology. Al and Ti alloys contact was clearly visible. Area A contained the porosity. The round pores had an average diameter of 70 microns. A lengthy, discontinuous strip of Ti(Al1-xSix)3 was shown in Figure 17(b). During the flow process, the strips were struck by the liquid Al alloy, resulting in the breakage of some strips and the formation of Ti(Al1-xSix)3 phases with varying lengths. Strip and block-shaped intermetallic compounds were created in the interface layer, as seen in Figure 17(c). The basket-wave structure of the Ti alloy during deposition is depicted in Figure 17(d). (a–d) Cross-sectional morphology of component.
Ti alloy was placed initially, followed by Al alloy on top of the Ti layer. Using the CMT welding machine, Xu et al.
55
created the Ti-6Al-4V wall. The columnar grain structure of the WAAMed Ti-6Al-4V was observed all beside the build direction (Figure 18). The microstructure inside the grains was made up of fine laths, and the breadth of the paths was significantly finer than in the wrought plate sample. Microstructure of BM: (a) Wrought Ti-6Al-4V; (b) WAAMed Ti-6Al-4V.
118

Gas tungsten arc welding based additive manufacturing process
Mechanical properties of stainless steels parts.
Veeman et al.
59
have studied the mechanical and microstructural characterization of functionally graded material walls using GTAW-based AM. According to the experimental results, the fabricated wall possesses superior attributes such as tensile strength and hardness. Paskual et al.
60
have studied the capabilities of AM and mechanical properties obtained by the TIG-AM. Tensile strength tests reveal that anisotropy reappears in terms of elongation at break, which is below the limit in the transverse direction (PT). However, yield and ultimate strengths transcend this limit and exhibit uniformity in both directions. Oropeza et al.
61
used TIG welding to evaluate the characteristics of nanoparticle-enhanced aluminium 7075 wire on overlay and 3D-printed component samples. When 3D printed and single-layer overlay microstructures are compared, the printed condition has bigger grains with a textured structure, as seen in Figure 19. Microstructure (a) single layer overlay (b) 3D printed parts.
Plasma arc welding-based additive manufacturing process
AM applications that employ arc welding technologies are becoming increasingly widespread due to the higher productivity that these processes may achieve when compared to laser deposition. Among these methods, plasma transferred arc (PTA) deposition requires less heat than GTAW and GMAW and allows for more precise control of the feed rate. Martina and colleagues. 62 Alberti et al. 63 studied the possibility of PTA for AM thin wall production. They determined that PTA may be utilized to successfully create thin walls of Ni-based superalloys without crack nucleation caused by stacked deposition heat cycles. Wang et al. 64 used plasma arc AM to create crack-free Ti-Al alloy samples, and the influence of substrate temperature on as-deposited TiAl alloy was also examined. They discovered that as substrate temperature rises, microstructural lamellar spacing and colony size tend to increase. Li et al. 65 effectively deposited the metal portion in the shape of the Chinese character “中” using the self-adaptive double electrode micro PAW control system. Thus, it was established that the system shields the PAW deposition process from interferences caused by torch stand-off distance and that this method has the potential to be used to repair complicated surface metal components.
Veiga et al. 66 investigated the mechanical qualities of the PAW-WAAM wall constructed in compliance with aviation requirements. The tensile test results of specimens retrieved from the titanium alloy wall were generated under the identical PAW-WAAM process parameters. According to the results of the testing, UTS and yield stress are lesser in the vertical compared to the horizontal direction. Artaza et al. 67 used WAAM-PAW to build Ti6Al4V walls to study the deposition process under various air conditions. The impacts of relating heat treatment to WAAM-produced components in various media have been investigated. The core microstructure of all three heat-treated materials under consideration displayed fine acicular alpha and beta phases.
High-energy density (HED) welding-based additive manufacturing
Advantages and disadvantages of HED welding. 68
Electron beam welding (EBW) based additive manufacturing
Individually fabricating pieces using Laser Additive Manufacturing (LAM) and electron beam welding (EBW) is a viable method for creating big components with less internal stress. Fortuna et al.
69
created the bulk components on austenitic stainless steel by using the electron beam wire-feed additive technique. Figure 20 depicts the overall appearance of cylindrical blanks on substrates that were created using various process settings. Cylindrical blanks with different deposition velocities (a) 0.10 (b) 0.23 (c) 0.18.
Weglowski et al.
70
used a universal EB machine to conduct the EBAM with a wired procedure. A wire feeder and a 4.9 m3 working chamber are included in the apparatus. Figure 21 displays the macrostructure images of the EBAM LNM 307 plate. Macrostructure of EBAM LNM 307 plate.
Wanjara et al.
71
performed the additive repair using an electron beam gun with a 60 kV accelerating voltage. For the construction of the wall structure (Figure 22), 142 layers of single beads were needed to achieve a bead height of 50 mm with a wire deposition rate of 25 mm3/sec. EBW-AM fabricated Ti6Al4V wall.
Bimetallic structural gradient material was created by Osipovich et al.
72
utilizing an in-house AM wire-feed EBW machine. The substrate was a rectangular AISI 304 plate with a thickness of 12 mm, and the feedstock materials were copper C11000 and 304 SS wires with a diameter of 1 mm. Figure 23 depicts the height disparity of microhardness in the SS/copper wall cross-section. Microhardness with the distance from the substrate.
The substrate was a rectangular AISI 304 plate with a thickness of 12 mm, and the feedstock materials were copper C11000 and 304 SS wires with a diameter of 1 mm. Figure 31 depicts the height disparity of microhardness in the SS/copper wall cross-section. Panchenko et al.
73
explored the phase composition, microstructure, mechanical characteristics, and fracture processes in EBAM-produced chromium-nickel stainless steel before and after post-built Solid Solution Treatments (SST). Coarse Nb-based particles had little effect on the deformation pattern but do help with pore development (Figure 24). SEM pictures of the EBAM specimens: (a) as-built (b) SST for 1 h (c) SST for 5 h (d) SST for 10 h.
Kalashnikova et al.
74
used their self-developed wire-feed EB-based AM equipment to create block-shaped samples. The hardening patterns of aluminum-silicon alloy A04130 and aluminium magnesium alloy AA5056 produced using EBM technology were investigated. After the EBAM process, the base metal of the AA5056 alloy is represented by big elongated grains that develop epitaxially. The average grain size ranges from 132.5 m to 76.1 m in height and breadth to 52.7 m and 30.4 m in height and width, respectively (Figure 25). Base metals in as-built samples of (a) AA5056 and A04130 (b) after EB-AM.
Laser beam welding-based additive manufacturing
It is a fabrication method that is an important part of Industry 4.0, which seeks to use numerous sensors for continuous process control. The geometric inaccuracy of produced components is the current LBAM difficulty. Francis and Bian et al.
75
created the Deep Learning technique to improve accuracy and forecast distortion. Du et al.
76
used wire-based laser AM to investigate the dimensional properties of thin-walled Ti-6Al-4V components. The outcome demonstrates that as the number of layers is increased, the thickness of the layer on thin-walled parts progressively rises at first before stabilizing quickly. Zhang et al.
77
developed a novel AM method that uses low-power pulsed laser-assisted welding to fabricate metal components. The results show that the rational range of the laser power in LBW-based AM was about 200W to 400W, to assure the forming quality. Caiazzo
78
studied the effects of changing the laser power and processing speed while depositing a single trace of Ti-6Al-4V wire across a substrate. The geometrical responses, including dilution, trace height, breadth, and depth, were taken into consideration. It was determined that, for a particular processing speed, laser power has no influence on trace height but noticeably has an effect on trace width. Miao et al.
79
have investigated the microstructure advancement and mechanical properties of the LAHAM sample. Figure 26 depicts the microstructure of a LAHAM sample perpendicular to the scanning direction. They discovered that the laser Zone (LZ) contains finer granules than the HAZ, which is due to the increased cooling rate and enhanced fluid movement in the laser zone. Microstructure of LAHAM sample.
79

Brandl et al. 80 created the Ti-6AL-4V cylinder using laser-based WAAM and assessed the mechanical characteristics of the deposited plates concerning aerospace material requirements. They have acquired an average hardness rating of 355 ± 28 HV0.5 in constructed conditions. The effects of laser amplification with both a leading and the following laser beam on CMT-based WAAM have been researched by Nasstrom et al. 81 The topological capabilities of WAAM are found to be best enhanced by a trailing laser beam.
Comparison study
The applicability of WAAM in numerous areas has increased the need for study in this area. According to the Web of Science, more than 60 review articles (including conferences and proceedings) on this topic have been published in the last 4 years (2018–2021), with the majority of them published in 2021. Almost 40% of the evaluations in these review articles focused on wire arc additive manufacturing of any given alloy as shown in Figure 27. Emphasis of review articles of WAAM process.
119

Characteristics of various WAAM processes.
Process parameters for different welding based AM process.
Summary of AM builds parameters and resulting properties.
Nagasai et al.
87
developed 308 L austenitic stainless steel cylindrical components using two separate arc welding techniques. The mechanisms and effects of the processes on the microstructure and mechanical properties were investigated. Figure 28 depicts micrograph images of GMAW and CMT components generated by the image analysis tool ImageJ. The photos clearly illustrate that the volume fraction of the phase in the GMAW is substantially smaller than in the CMT. Austenite and ferrite phases (a) GMAW (b) CMT
Aldalur et al.
88

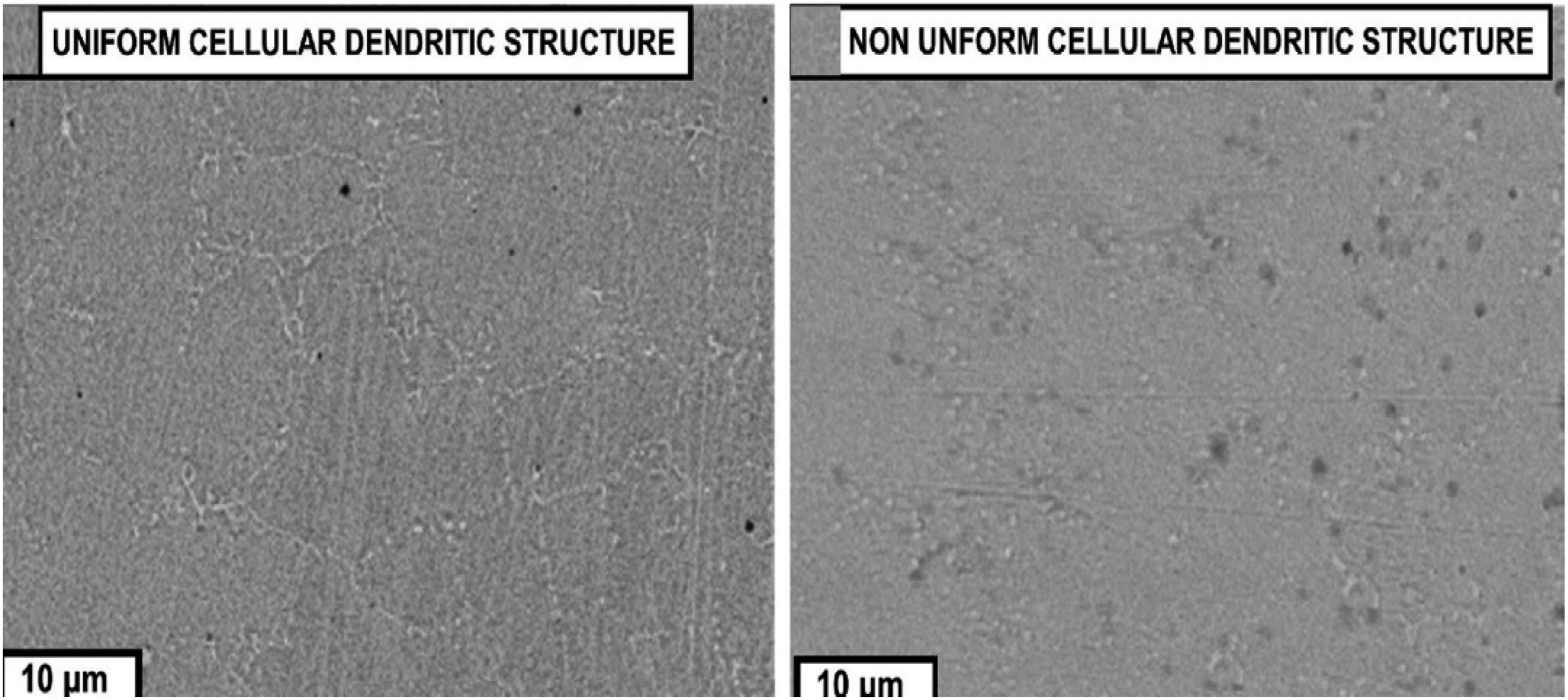

investigated the thermal expansion behavior of Invar specimens made with GMAW-based and PAW-based WAAM technologies. Because of the lower heat input of the deposition process, the Invar material generated by PAW included a larger concentration of niobium carbides than the sample produced by GMAW. The microstructure images for the WAAM process are shown in Figure 29. SEM micrographs for WAAM process (a) GMAW (b) PAW
Recent developments in welding-based additive manufacturing
Timeline of friction additive techniques. 121
There are two approaches to FSAM: stacked-based FSAM and powder-based AFSD. Both methods have the same principle, but their processing is different. Metal plates or layers are linked one by one in stacked-type FSAM. To assure the connecting of two stacked layers at the same time, the tool pin is made longer than the created layer. The graphical procedure of the FSAM technology is shown in Figure 30.
95

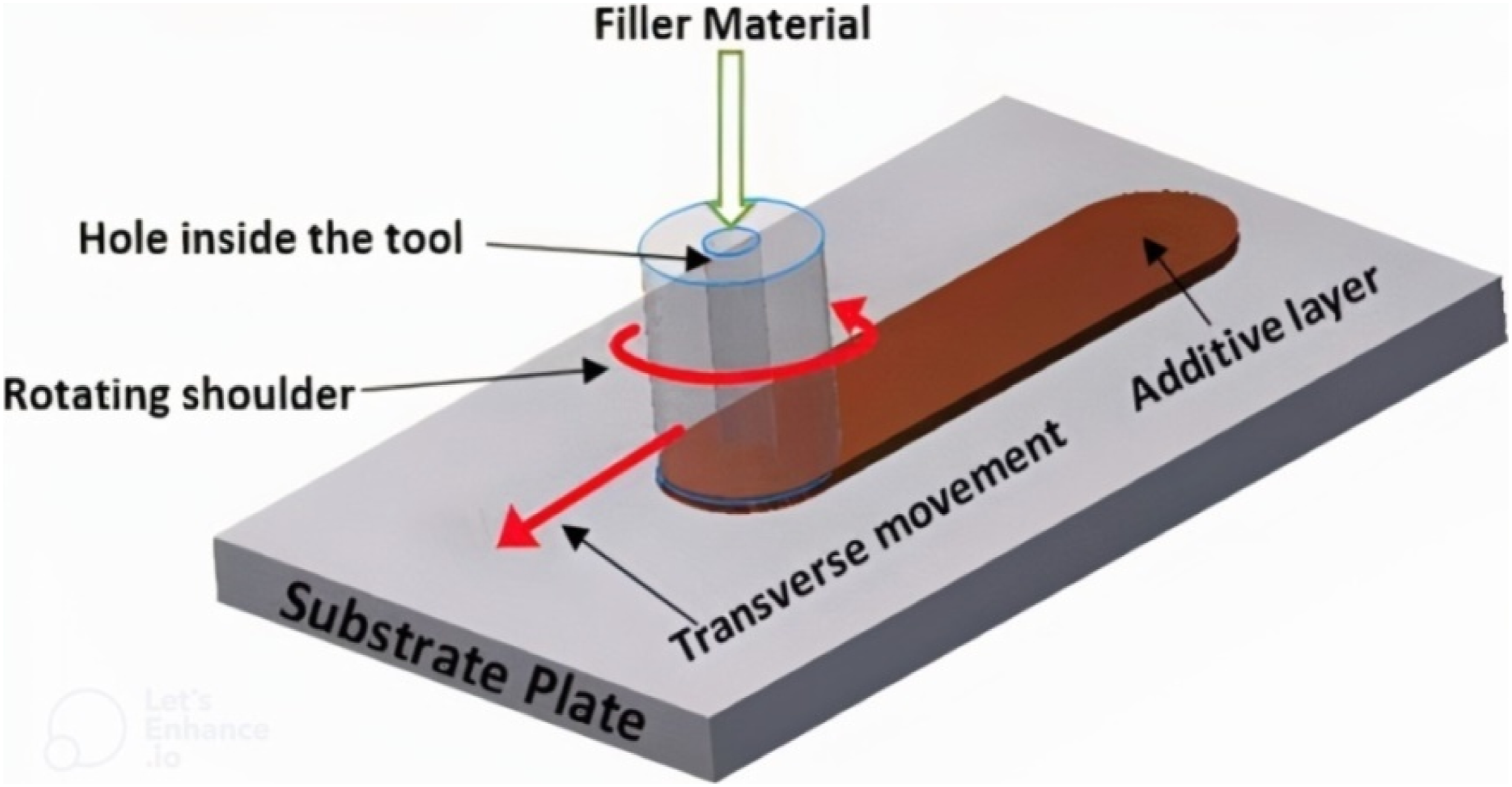

Schematic arrangement of FSAM technique.

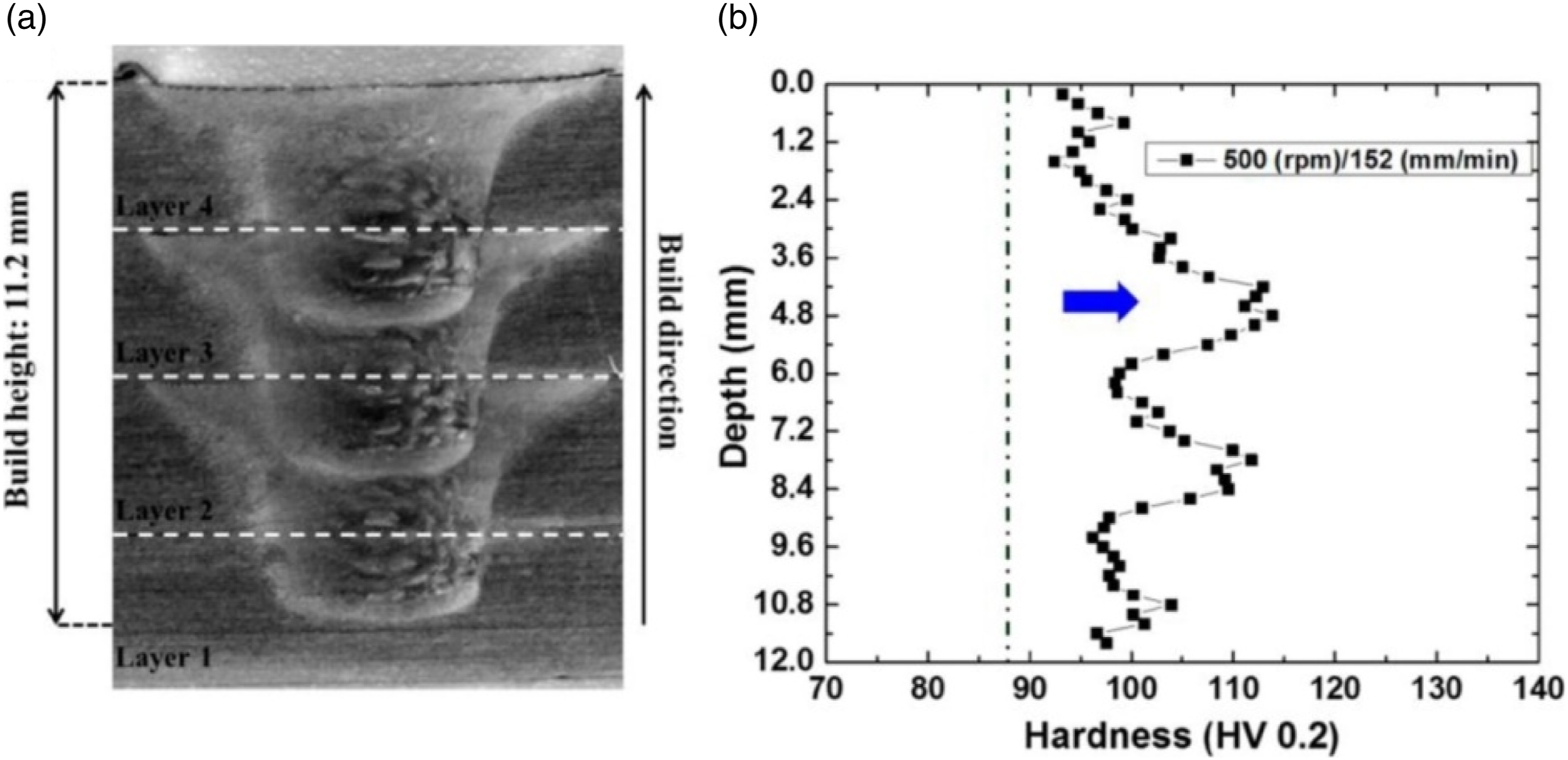

Figure 31 depicts a macrograph of the weld and a hardness profile along the material’s center line. They determined that a significant improvement in hardness may be detected over the whole layer thickness when related to the base material. Macrograph and hardness profile of AA5083 alloy fabricated using FSAM.
120

Zhang et al.
96
created an integrated model in FSAM to forecast microstructures and mechanical characteristics. They concluded that re-heating and re-stirring in FSAM enhanced hardness and yield strength. Zhao et al.
97
conducted the FSAM on 2195-T8 aluminum–lithium alloy sheets with a thickness of 2 mm. The impact of tool pin parameters on interfacial bonding properties among additively built layers has been explored. Figure 32 depicts microstructure pictures of the five tools’ constructions. Interfacial formations of the builds manufactured with different tools (a) convex (b) conical (c) cylindrical pin with concave (d) flared pin and (e) cylindrical pin.
97

They discovered that cylindrical pins and conical pins with three flats are unsuitable for the FSAM method because they provide extremely poor material mixing characteristics along the bonding contact. Ultrasonic additive manufacturing (UAM) is a solid-state AM method that uses metal foil feedstock to generate near-net-form objects. Han et al. 98 explored how the welding power affects the strength of as-welded UAM steel. The shear strength of a cobalt-chromium-coated sonotrode is increased. Batista et al. 99 investigate and develop a unique resistance spot welding process in zinc-coated steel sheets using additive manufacturing (AMSW), which is used in the car industry. In contrast, spot welding was also accomplished using the usual resistance spot welding process (RSW). The outcomes demonstrated that when the best settings were used, the AMSW had 34.47% greater shear tensile stress and 28.57% higher tensile stress with a transverse load to the weld spot than the standard RSW.100–109
Insights, discussions, and future perspectives
The manufacturing industry is being revolutionized by AM, which enables the layer-by-layer deposition process to fabricate structures in almost net shape and with minimal material waste. But there are dimensional restrictions on parts made using the AM technique. According to current studies, to solve this issue, metal materials produced using AM can be combined with various welding techniques. This article intends to review the basic concepts, the effect of process parameters, possible materials, and an understanding of defect formation of the welding-based AM. In addition, the effects of these methods on the mechanical properties and microstructures have been addressed. AM technique differs from the welding technique in that it offers advantages such as sophisticated component manufacturability, material savings, and configurable components throughout the process. AM is closely related to welding, and the collaboration is helpful to the progress of both technologies. This manufacturing technique has significantly increased as a result of the strong economic and scientific interest. In general, the use of welding-based AM to create parts with non-porous, and good fatigue strength is promising for many industries.
The previous sections of this review article detail the many aspects of the state of the research in the area of welding-based AM. In summary, numerous concepts are being introduced in AM that has been widely employed in arc welding with filler material. As a result, clarification of fundamental terminology is critical to creating a shared backdrop between welding and AM. In general, there has been less research into beam welding-based AM techniques than arc welding-based AM techniques. One of the biggest problems is that fusion welding-based AM cannot produce incredibly complicated structures. The hybridization of the arc with beam welding-based AM was discovered to increase the process capabilities and support the production of high-quality metallic parts. However, the hybridization of beam and arc for AM has not received much attention. Welding and AM have many characteristics, and this complementarity is advantageous to the development of both technologies. Therefore, it is hoped that research into the application of various welding techniques for the various materials produced by AM will increase. Future research predicts that combining AM technology with welding techniques will increase in popularity.
This technology has very promising prospects. The main areas of research in the near future will be on the development of newer materials, the fabrication of intricate patterns, the management of grain and phase changes, and microstructure through a greater variety of alloys and composites, among other things. Optimization and neural networks have demonstrated outstanding successes over the past 10 years in a variety of fields, particularly those involving applications involving image data, which offers up new opportunities for the subject of welding-based AM. The FSAM process has numerous advantages, such as good mechanical and microstructural characteristics, structural efficiency, and environmentally friendly processing, which is evident after examining the existing literature. The FSAM process is more flexible in the future for engineering applications because of these characteristics. Further study is needed to develop FSW-based AM technologies that may overcome the limitations of fusion welding. To develop cutting-edge methods, researchers should focus on building FSW-based AM processes.
Conclusion
The application of AM processes in combination with standard welding processes such as GMAW, CMT, GTAW, EBW, LBW, FSW, and USW on raw materials including wire, plates, and sheets (excluding powder) has been investigated. The following findings may be drawn from this review article: (i) A high deposition is a key advantage of GMAW-based AM, but it is also accompanied by higher heat input, which results in residual strains and distortions. AM based on CMT welding is appropriate for large-scale stainless steel products with low-medium mechanical characteristics needs. TIG and PAW-AM techniques might be utilized for small-medium titanium and stainless steel with medium-high mechanical needs. (ii) AM based on laser beam welding used the minimum amount of energy and provided the best control over the melt pool and surface quality. The LBW-AM component has greater hardness, tensile strength, and qualitative characteristics than the EBW-AM component. (iii) FSW-based AM can convert raw materials into functional products with improved mechanical and microstructural properties while consuming little material, emitting minimal emissions, and wasting minimal energy.
