Abstract

Macrodomains recognize intracellular adenosine diphosphate (ADP)-ribosylation resulting in either removal of the modification or a protein interaction event. Research into compounds that modulate macrodomain functions could make important contributions. We investigated the interactions of all seven individual macrodomains of the human poly(ADP-ribose) polymerase (PARP) family members PARP9, PARP14, and PARP15 with five mono-ADP-ribosylated (automodified) ADP-ribosyltransferase domains using an AlphaScreen assay. Several mono-ADP-ribosylation-dependent interactions were identified, and they were found to be in the micromolar affinity range using surface plasmon resonance (SPR). We then focused on the interaction between PARP14 macrodomain-2 and the mono-ADP-ribosylated PARP10 catalytic domain, and probed a ~1500-compound diverse library for inhibitors of this interaction using AlphaScreen. Initial hit compounds were verified by concentration–response experiments using AlphaScreen and SPR, and they were tested against PARP14 macrodomain-2 and -3. Two initial hit compounds and one chemical analog each were further characterized using SPR and microscale thermophoresis. In conclusion, our results reveal novel macrodomain interactions and establish protocols for identification of inhibitors of such interactions.

Keywords

ADP-ribosylation macrodomain inhibitor PARP protein–protein interaction AlphaScreen

Introduction

ADP-ribosylation is a posttranslational modification that regulates a multitude of vital processes.^1,2 Intracellular mono- and poly-ADP-ribosylation (MARylation and PARylation) are catalyzed by two different subclasses of the poly(ADP-ribose) polymerase (PARP) family, enzymes also known as ADP-ribosyltransferases with homology to diphtheria toxin (ARTDs).^3–5 Protein MARylation has emerged as an important signaling event in the nucleus and cytosol.^6–9 One way to mediate and modulate ADP-ribosylation signaling is by means of a universal structural module called a macrodomain (Pfam ID PF01661).¹⁰ Lately, specific macrodomains have been reported as readers and regulators of MARylation,^2,11–13 whereas others have been linked to the recognition of PARylation,^14,15 breakdown of PAR chains,^16,17 or turnover of ADP-ribose metabolites.^18–20

Among the 11 human macrodomain-containing proteins are PARP9/ARTD9, PARP14/ARTD8, and PARP15/ARTD7, all with documented MARylation activity ( Fig. 1A ).^20,21 The macrodomains of these proteins do not possess ADP-ribosyl glycohydrolase activity;¹⁰ they bind free ADP-ribose,^12,14 and PARP14 macrodomains bind several proteins that are subject to MARylation by PARP10 as well as auto-MARylated PARP10 itself.¹² The spectrum of ADP-ribosylated target proteins for these macrodomains, and also the consequences of the binding events, are yet poorly understood. It is clear, however, that these proteins are involved in a multitude of cancer-related processes and that they are potentially interesting from a drug discovery perspective.^10,22,23

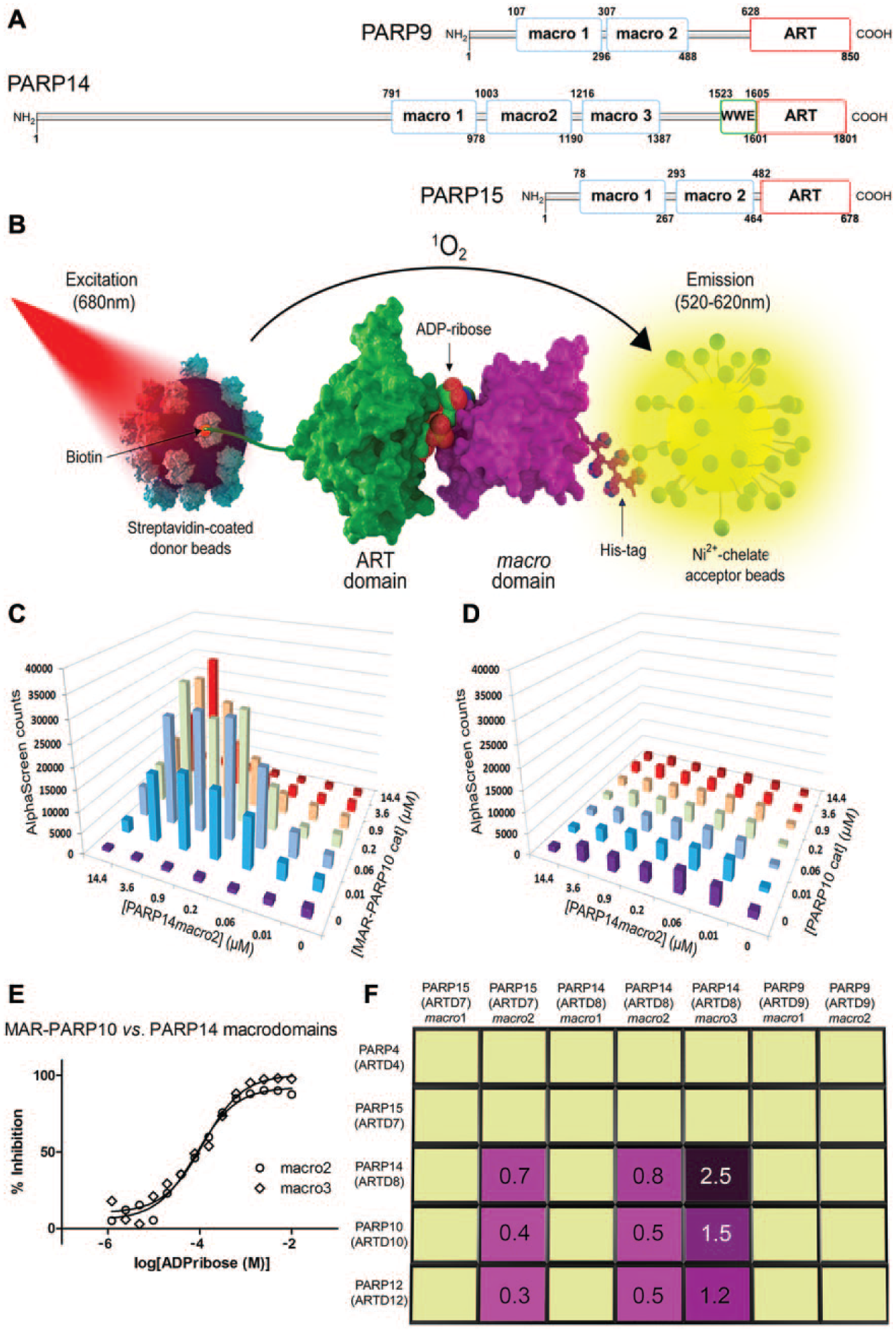

Figure 1.

Probing the interactions between macrodomains and automodified poly(ADP-ribose) polymerase (PARP) catalytic domains. (A) Domain organization of the human macrodomain containing PARP family members. Macro, macrodomain; WWE, WWE domain; ART, adenosine diphosphate (ADP)-ribosyltransferase domain. (B) Schematic illustration of the bead-based proximity assay for macrodomain interactions with mono-ADP-ribosylated (MARylated) target proteins. PARP catalytic (ART) domains were site-specifically biotinylated in vivo to allow immobilization on streptavidin donor beads. Hexahistidine-tagged macrodomains were captured on nickel chelate acceptor beads. The interaction between macrodomain and PARP catalytic domain generated an AlphaScreen signal. (C) Cross-titration of PARP14 macrodomain-2 and auto-MARylated PARP10 ART domain to illustrate establishment of optimal assay conditions. (D) Cross-titration of PARP14 macrodomain-2 and unmodified PARP10 catalytic domain to document the absence of interaction in the absence of MARylation. (E) Competition with free ADP-ribose of the interaction between PARP14 macrodomains-2 and -3 and auto-MARylated PARP10 ART domain to further illustrate the MARylation dependency of the interaction. Data were normalized based on the signal observed in the absence of free ADP-ribose and presented as % inhibition. (F) Schematic illustration of the results of the interaction screening matrix. Positive interactions shown to be MARylation dependent (magenta) were further analyzed by SPR to determine dissociation constants (in µM; determined from the kinetics of the binding and unbinding events; N = 2–3, n = 10–15). Yellow fields indicate no confirmed interaction, that is, the domain pair failed the interaction or selectivity criteria in either one of the three control experiments illustrated in panels C–E (see text for details).

A homogeneous high-throughput assay of macrodomain–target interactions would be a valuable method for identification of novel targets, for the study of macrodomain physiological functions, and for discovery of small-molecule ligands that break these interactions. Therefore, we set out to develop an assay that could report the stable interaction between a macrodomain and its ADP-ribosylated target protein. The resulting AlphaScreen method enabled us to map the interactions between all PARP family macrodomains and a set of auto-MARylated PARP catalytic domains. Subsequently, we used this assay to screen for compounds that could block the interaction between PARP14 macrodomain-2 and MARylated PARP10. We discovered some of the first macrodomain ligands and used complementary binding methods to determine their affinities in the mid-micromolar range.

Materials and Methods

Expression and Purification of Macrodomain Protein Constructs

DNA fragments encoding the individual macrodomains of human PARP9, -14, and -15 (PARP9^G102-K298, PARP9^E300-M489, PARP14^S794-D984, PARP14^A994-S1196, PARP14^F1208-G1388, PARP15^S53-K251, and PARP15^G265-N448) were inserted into pNIC-Bsa4 (Genbank EF198106) containing an N-terminal hexahistidine tag with a tobacco etch virus (TEV)-protease cleavage site (MHHHHHHSSGVDLGTENLYFQ*SM, where the asterisk indicates the site of cleavage). All proteins were produced in Escherichia coli strain BL21(DE3) pRARE2 and purified using an immobilized metal affinity chromatography (IMAC) step (HiTrap Ni-chelating; GE Healthcare), followed by size exclusion chromatography (Superdex-75; GE Healthcare). Protein purity and integrity were verified by sodium dodecyl sulfate polyacrylamide gel electrophoresis (SDS-PAGE) and mass spectrometry.

Expression and Purification of In Vivo Biotinylated PARP Catalytic Domain Constructs and GRB14

The catalytic domain fragments PARP4^E252-E581, PARP10^A809-G1017, PARP12^D489-S684, PARP14^D1611-K1801, and PARP15^N459-A656 and the SH2 domain of human growth factor receptor-bound protein-14 (GRB14) were subcloned into either pNIC-Bsa4, as above (for purposes other than AlphaScreen), or pNIC-Bio3 (GenBank JN792439.1) containing an N-terminal hexahistidine tag as above, as well as a C-terminal biotin acceptor sequence (GLNDIFEAQKIEWHE). Proteins were produced as above. For AlphaScreen, all proteins were produced and in vivo biotinylated by co-expression with BirA ligase in E. coli strain C41 cultivated overnight at 18 °C in rich medium supplemented with 50 µg/L D-biotin (SigmaAldrich). After purification as above, proteins were incubated with hexahistidine-tagged TEV protease to remove affinity tags, and further purified by size exclusion chromatography. Enzymatic activity was confirmed for all biotinylated catalytic domain fragments by performing automodification reactions with ³²P-γ-NAD⁺ prior to SDS-PAGE and autoradiography. All proteins were correctly folded as judged by their enzymatic activities and thermal stability.^12,24,25

AlphaScreen Protein–Protein Interaction Assay

In vivo biotinylated PARP catalytic domains were diluted to 2 mg/ml in 50 mM 4-(2-hydroxyethyl)-1-piperazineethanesulfonic acid (HEPES) pH 7.5, 100 mM NaCl, 4 mM MgCl₂, 0.05% Tween20, and 0.2 mM tris(2-carboxyethyl)phosphine (TCEP), and automodification was induced by incubation with 200 µM β-NAD+ at 30 °C for 30 min. Assay beads were prepared using the Histidine Detection Kit (PerkinElmer, cat. 6760619M), with streptavidin donor beads and nickel chelate acceptor beads. The MARylated, biotinylated catalytic domains were immobilized on streptavidin donor beads (20 µg/ml). Macrodomains were captured onto nickel chelate acceptor beads (20 µg/ml). The beads were mixed and incubated for 1 h in light gray AlphaPlate-384 (PerkinElmer, cat. 6005350) prior to detection in an EnSpire plate reader (PerkinElmer), according to the manufacturer’s protocol ( Fig. 1B ). Optimal assay concentrations were identified for each interacting pair of PARP macro- and catalytic domains by cross-titration experiments (each partner at 0–15 µM; e.g., Fig. 1C and 1D ). Positive interactions were confirmed by competition experiments in which ADP-ribose was used to block the interaction between macrodomains and catalytic domains (e.g., Fig. 1E ). Prism (GraphPad Software) was used to evaluate titration experiments by four-parameter regression analysis and curve fitting with no further constraints.

Characterization of Protein–Protein Interactions by Surface Plasmon Resonance

PARP10, -12, and -14 catalytic domains (without biotin tag) were diluted to 2 mg/ml in 50 mM HEPES pH 7.5, 100 mM NaCl, 4 mM MgCl₂, and 0.2 mM TCEP, and automodification was induced by incubation with 200 µM β-NAD⁺ at 30 °C for 30 min. A Biacore 3000 instrument (GE Healthcare) was used to characterize the biospecific interactions identified by AlphaScreen assays. A pH scouting was performed to find optimal coupling conditions for each protein. MARylated PARP14 was diluted to 20 µg/ml in 100 mM HEPES pH 6.6, MARylated PARP10 was diluted to 20 µg/ml in 10 mM NaAc pH 5.0, and MARylated PARP12 was diluted to 20 µg/ml in 10 mM NaAc pH 4.5; the proteins were then covalently coupled to Sensor Chip CM5 (GE Healthcare, cat. BR100012) using the Amine coupling kit (GE Healthcare, cat. BR100050) with N-hydroxysuccinimide (NHS) and 1-ethyl-3-(3-dimethylaminopropyl)carbodiimide hydrochloride (EDC). Macrodomains were diluted in running buffer [50 mM HEPES pH 7.4, 150 mM NaCl, 3.4 mM ethylenediaminetetraacetic acid (EDTA), and 0.005% Surfactant P20] to concentrations ranging from 0 to 30 µM. Experiments were performed with a buffer flow rate of 10 µl/min, an association phase of 3 min followed by a dissociation phase of 3 min, and regeneration with 1 M NaCl. The dissociation constants were calculated based on kinetic data using a 1:1 Langmuir binding model and the BIAeval software (GE Healthcare).

Screening Compounds and Analogs

A 1584-compound diversity set was provided by the Chemical Biology Consortium Sweden (CBCS). Primary hit compound 1 [methyl 3-(2-nitro-4-(trifluoromethyl)-phenylsulfonamido)thiophene-2-carboxylate; CBCS ID CBK004510] was resynthesized as follows. 2-nitro-4-(trifluoromethyl)benzenesulfonyl chloride (500 mg, 1.73 mmol) and methyl 3-aminothiophene-2-carboxylate (326 mg, 2.07 mmol) were dissolved in CH₂Cl₂ (10 ml). The reaction was stirred at room temperature overnight, diluted with ethyl acetate, and washed with brine (with pH set to 1 using HCl). The organic layer was dried (Na₂SO₄), filtered, and concentrated. The residue was purified using column chromatography on silica gel (heptane–ethyl acetate 80:20) to give ME0491 (551 mg, 78%). ¹H NMR (nuclear magnetic resonance) (400 MHz, CDCl₃) δ 10.43 (s, 1H), 8.27 (d, J = 8.1 Hz, 1H), 8.13 (d, J = 1.8 Hz, 1H), 7.95 (dd, J = 8.3, 1.7 Hz, 1H), 7.53 (d, J = 5.5 Hz, 1H), 7.48 (d, J = 5.5 Hz, 1H), 3.90 (s, 3H); ¹³C NMR (100 MHz, CDCl₃) δ 163.9, 148.2, 141.3, 136.5, 136.2 (q, J = 34.4 Hz, 1C), 132.5, 132.0, 129.8 (q, J = 3.3 Hz, 1C), 123.1 (q, J = 3.3 Hz, 1C), 121.9 (q, J = 273.6 Hz, 1H), 120.2, 112.5, 52.5 (see Suppl. Fig. S1 for NMR spectra). The chemical analog 1a (methyl 3-{[(4-nitrophenyl)sulfonyl]amino}-2-thiophenecarboxylate) was purchased from Hit2Lead (ID 6108295). Primary hit compound 2 (4-[(2,6-dichlorophenyl)methyl]-2-(4-methoxyphenyl)-5-methyl-1H-pyrazol-3-one; CBCS ID CBK084521) was retrieved from the original batch synthesis, provided by CBCS. The chemical analog 2a [4-(2-chlorobenzyl)-1-(4-methoxyphenyl)-3-methyl-1H-pyrazol-5-ol] was purchased from Hit2Lead (ID 9270432). Further Hit2Lead compounds listed in Supplementary Table 1 had no effect on the macrodomain interactions tested.

AlphaScreen Compound Screening Assay

Compounds (200 µM) were screened for breaking the interaction between MARylated PARP10 on donor beads (150 nM) and PARP14 macrodomain-2 on acceptor beads (3 µM). The final concentration of DMSO was 2%, and control experiments showed that the protein–protein interaction was unaffected by DMSO at concentrations up to 5%. Wells containing 2% DMSO were used as negative controls (69,325±10,725 counts among five plates), and wells lacking PARP10 as positive controls (197±146 counts). The overall Z’-factor was 0.47, and the coefficient of variation (CV) was 15.5%. A selection cutoff of 3 SD was applied. 257 compounds were evaluated twice in a counterscreen experiment containing AlphaScreen beads crosslinked using in vivo biotinylated and hexahistidine-tagged Grb14 protein, but neither PARP10 nor a macrodomain. 203 compounds either were found to quench the AlphaScreen signal in this test or could not be retrieved from the library. 53 primary hit compounds were tested in concentration–response experiments: Selected compounds were serially diluted from a 10-mM stock solution in DMSO. The highest compound concentration was 200 µM, and the final DMSO concentration was 2%. Compounds were evaluated in triplicate concentration–response experiments with both PARP14 macrodomain-2 and macrodomain-3.

Compound Characterization by Surface Plasmon Resonance

SPR (Biacore T200; GE Healthcare) was used to analyze the interactions between the screening hits and their analogs and PARP macrodomains. Different macrodomain immobilization strategies were evaluated: Direct covalent coupling to Series S Sensor Chip CM5 (GE Healthcare, cat. BR-1005-30) was compared to a hexahistidine capture strategy with an anti-His antibody (His capture kit; GE Healthcare, cat. 28-9950-56) and to oriented immobilization to Series S Sensor Chip NTA (GE Healthcare, cat. 28-9949-51). Reproducible ligand binding was observed when PARP14 macrodomain-2 was diluted to 10 µg/ml in 10 mM NaOAc pH 5.5 and when PARP14 macrodomain-3 was diluted to 10 µg/ml in 10 mM NaOAc pH 5.0 and directly coupled to the CM5 chip using the Amine Coupling Kit (GE Healthcare, cat. BR100050) with NHS and EDC. 13000RU PARP14 macrodomain-2 and 15400RU PARP14 macrodomain-3 were immobilized. HBS-EP (100 mM HEPES, 150 mM NaCl, 3 mM EDTA, 0.05% v/v surfactant P20, and pH 7.4) was used as running buffer. Compounds were serially diluted in running buffer from 20 mM stock solutions in DMSO. Concentrations ranged from 200 to 0 µM, with a final DMSO concentration of 2%. Binding experiments were performed in HBS-EP with 2% DMSO. The flow rate was 30 µl/min, injection time was 120 s, and each cycle contained a 30-s regeneration phase. All binding experiments were run twice using freshly prepared sensor chips. Dissociation constants were calculated using the BIAeval software (GE Healthcare) and a 1:1 Langmuir binding model.

Microscale Thermophoresis

Experiments were performed on a Monolith NT.115 instrument. PARP14 macrodomains-2 and -3 were labeled using the Monolith NT Protein Labeling Kit Blue–NHS (NanoTemper Technologies, cat. L0003), according to the manufacturer’s protocol. Compounds were serially diluted in 50 mM Tris-HCl pH 7.5, 150 mM NaCl, 10 mM MgCl₂, 0.05% Tween, and 5% DMSO, and mixed 1:1 with proteins. Despite extensive buffer scouting, inclusion of 5% DMSO was necessary to obtain reliable data. Measurements were carried out in Premium Coated Capillaries (NanoTemper Technologies, cat. MO-K005). Binding data were collected with 40% microscale thermophoresis (MST) power and 20% light-emitting diode (LED) power. Data analysis was performed in the MO.Affinity Analysis software (NanoTemper Technologies, version 2.1.2).

Results and Discussion

Assay Development and Interaction Mapping

The automodified (i.e., MARylated) PARP10 catalytic ADP-ribosyltransferase (ART) domain is a binding partner for PARP14 macrodomain-2.¹² In the present study, we set out to study this interaction using AlphaScreen technology ( Fig. 1B ). First, optimum protein concentrations were determined by cross-titration of the two proteins ( Fig. 1C ). The corresponding experiment using nonmodified PARP10 confirmed that the interaction with the macrodomain was strictly MARylation dependent ( Fig. 1D ). Next, we verified that addition of free ADP-ribose, which is also a ligand for macrodomains,¹² inhibited the interactions in a competitive, concentration-dependent manner ( Fig. 1E ). This confirmed once more that the macrodomain specifically recognized ADP-ribosylated PARP10 and that the interaction detected by AlphaScreen was the physiologically relevant one. The dissociation constant for the interaction was determined by SPR to be 0.5 µM.

Using the bead-based proximity assay procedure, we then tested all other PARP macrodomains ( Fig. 1A ) for their interactions with five automodified PARP catalytic domains. Pairs of auto-MARylated PARP catalytic domains and macrodomains for which a signal was detected were considered further only when cross-titration led to identification of a hook effect (as illustrated in Fig. 1C ). Those pairs were then cross-titrated as before, but using the nonmodified PARP catalytic domains (as illustrated in Fig. 1D ). Protein–protein interactions were considered further only when this control experiment verified that the interaction was dependent on automodification of the catalytic domain. The nine resulting pairs of auto-MARylated PARP catalytic domains and macrodomains were then subjected to competition experiments with titration series of free ADP-ribose, shown in Supplementary Figure 2 .

The results of this analysis comprise seven novel interactions ( Fig. 1F ): PARP14 macrodomains-2 and -3, in addition to their confirmed interactions with PARP10, also recognized MARylated PARP12 and -14, but did not interact with any of the other MARylated ART domains in the study. PARP15 macrodomain-2 also interacted with the MARylated catalytic domains of PARP10, -12, and -14. Quantification of the binding affinities using SPR ( Fig. 1F ) and MST (not shown) indicated K_d values in the high nanomolar to low micromolar range for all interactions. No interactions were observed between any MARylated ART domain and PARP14 macrodomain-1, PARP15 macrodomain-1, or either of the two macrodomains of PARP9. Automodified PARP4 and PARP15 ART domains were not recognized by any macrodomain in the study. We detected only weak interactions between some macrodomains and the PARP16 full-length protein expressed in E. coli (results not shown), perhaps due to the low automodification activity of PARP16.²⁵ We did not include PARP11 in this analysis because we could not detect any automodification activity in PARP11 expressed in E. coli.²⁵

Our results show that PARP macrodomains are capable of discriminating between MARylated target proteins. Thus, these macrodomains apparently require ADP-ribose in a structure-dependent context to mediate specific protein–protein interaction. This would suggest that macrodomains also are capable of discriminating between identical targets MARylated at different sites. This concept will have to be tested, for example by using site-specific mutants of target proteins once MARylation sites have been identified.

Our results also illustrate the general utility of AlphaScreen in the identification of novel macrodomain–target interactions. The assay format is homogeneous and particularly well suited for studying low-affinity protein–protein interactions.²⁶ Thus, our method development is a step toward a better understanding of the specific roles of individual macrodomains in epigenetic signaling and disease etiology.

Discovery of PARP14 Macrodomain Inhibitors

Having established this assay for PARP–macrodomain interactions, we were interested in its application in screening for inhibitors of target recognition events. We acquired a screening set of diverse compounds and carried out screening as described in Materials and Methods, using the interaction between PARP14 macrodomain-2 and the MARylated PARP10 ART domain. Primary hit compounds were identified and subjected to a counterscreening experiment to remove unspecific signal quenchers, followed by concentration–response experiments. The resulting 17 compounds were evaluated using SPR. Only compounds 1 and 2, with respective AlphaScreen EC₅₀ values of 26.1 and 27.1 µM ( Fig. 2 and Table 1 ), showed SPR responses with transitions in the micromolar range ( Fig. 3 and Table 1 ), and they were selected for in-depth follow-up analysis.

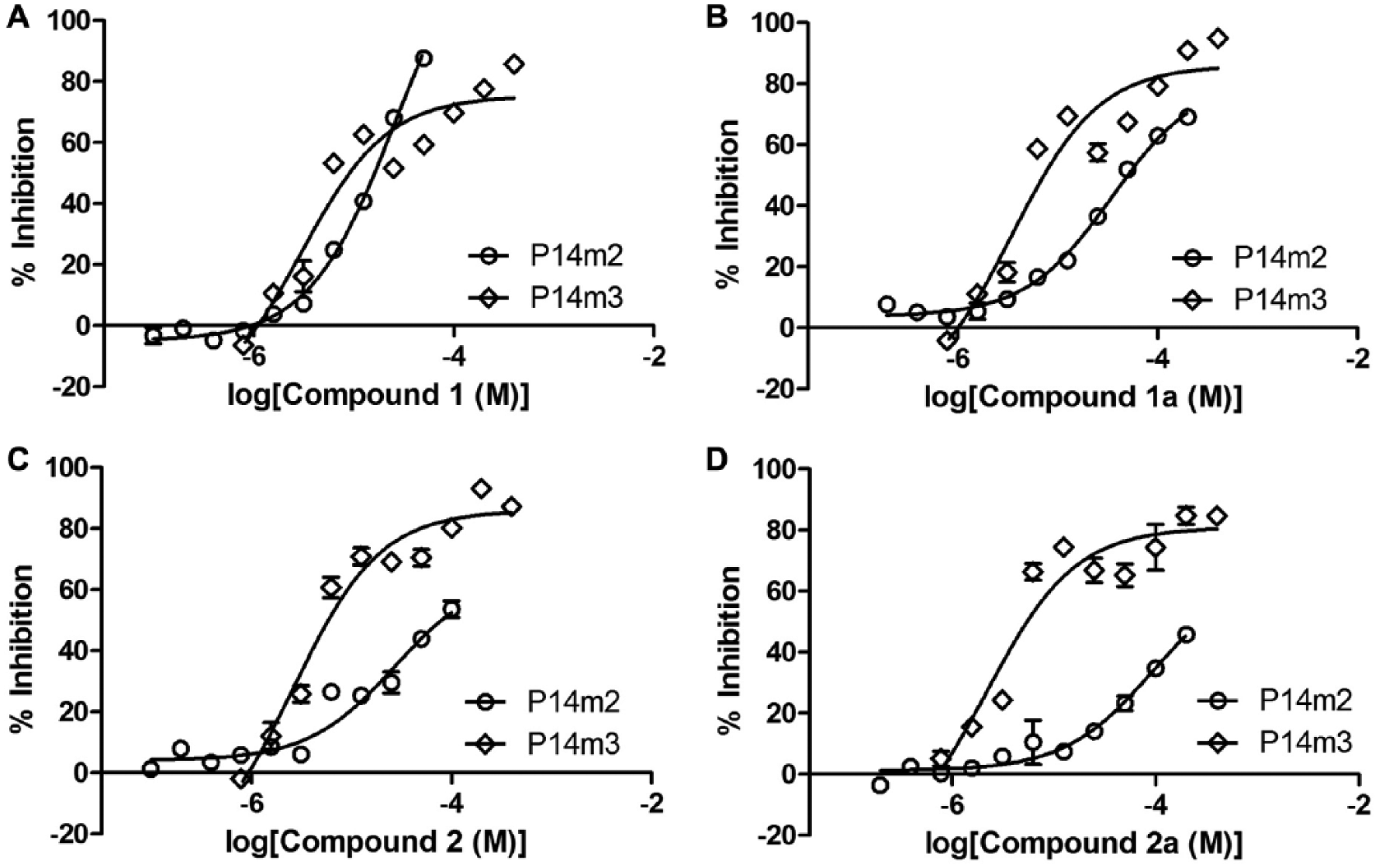

Figure 2.

Discovery of inhibitors of PARP14 macrodomains-2 and -3. AlphaScreen concentration–response experiments for the validation of primary screening hits 1 and 2 and the analogs 1a and 2a (panels A–D, respectively). EC₅₀ values are reported in Table 1 .

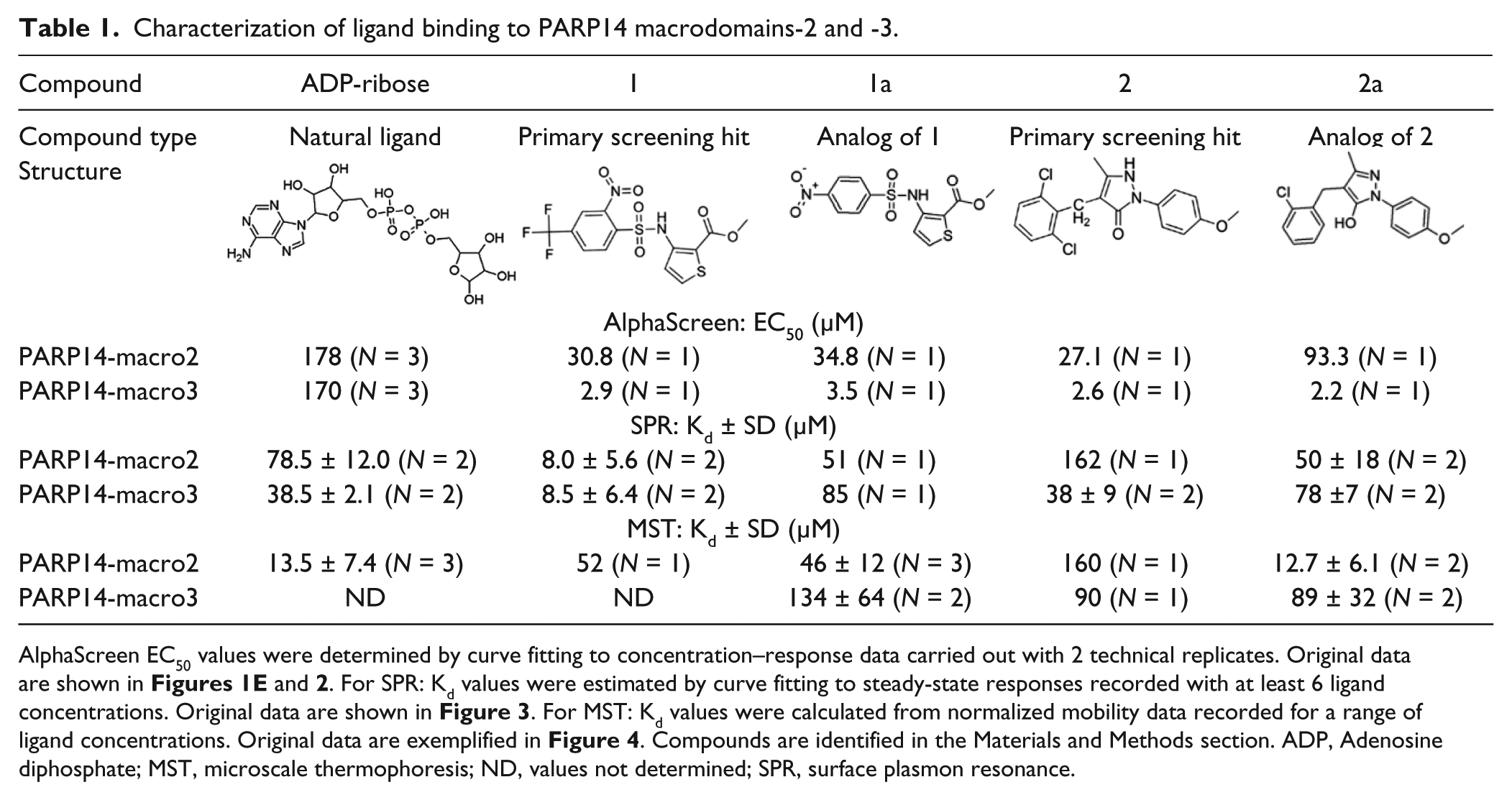

Table 1.

Characterization of ligand binding to PARP14 macrodomains-2 and -3.

Compound	ADP-ribose	1	1a	2	2a
Compound type	Natural ligand	Primary screening hit	Analog of 1	Primary screening hit	Analog of 2
Structure
	AlphaScreen: EC₅₀ (µM)
PARP14-macro2	178 (N = 3)	30.8 (N = 1)	34.8 (N = 1)	27.1 (N = 1)	93.3 (N = 1)
PARP14-macro3	170 (N = 3)	2.9 (N = 1)	3.5 (N = 1)	2.6 (N = 1)	2.2 (N = 1)
	SPR: K_d ± SD (µM)
PARP14-macro2	78.5 ± 12.0 (N = 2)	8.0 ± 5.6 (N = 2)	51 (N = 1)	162 (N = 1)	50 ± 18 (N = 2)
PARP14-macro3	38.5 ± 2.1 (N = 2)	8.5 ± 6.4 (N = 2)	85 (N = 1)	38 ± 9 (N = 2)	78 ±7 (N = 2)
	MST: K_d ± SD (µM)
PARP14-macro2	13.5 ± 7.4 (N = 3)	52 (N = 1)	46 ± 12 (N = 3)	160 (N = 1)	12.7 ± 6.1 (N = 2)
PARP14-macro3	ND	ND	134 ± 64 (N = 2)	90 (N = 1)	89 ± 32 (N = 2)

AlphaScreen EC₅₀ values were determined by curve fitting to concentration–response data carried out with 2 technical replicates. Original data are shown in Figures 1E and 2 . For SPR: K_d values were estimated by curve fitting to steady-state responses recorded with at least 6 ligand concentrations. Original data are shown in Figure 3 . For MST: K_d values were calculated from normalized mobility data recorded for a range of ligand concentrations. Original data are exemplified in Figure 4 . Compounds are identified in the Materials and Methods section. ADP, Adenosine diphosphate; MST, microscale thermophoresis; ND, values not determined; SPR, surface plasmon resonance.

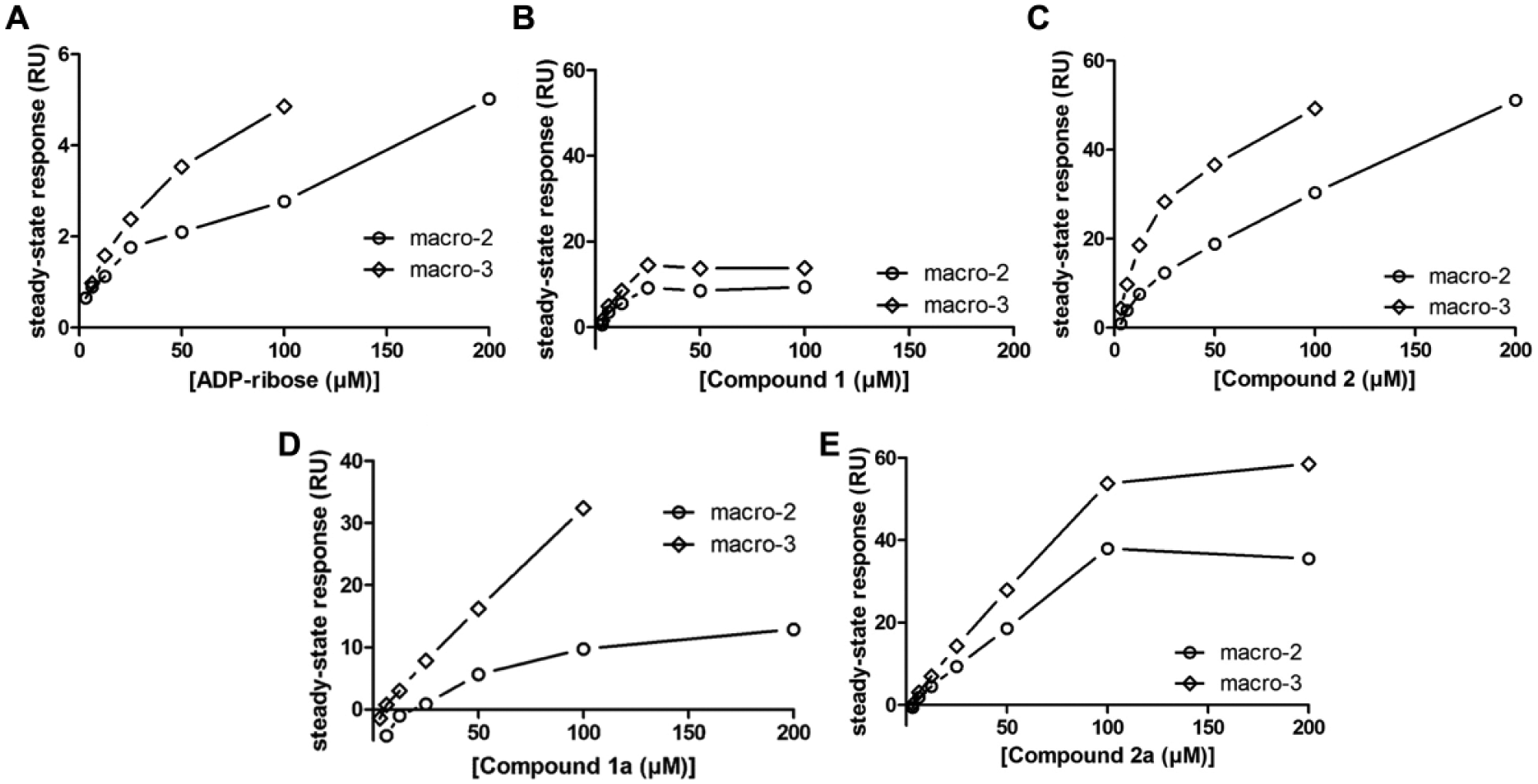

Figure 3.

Characterization of primary screening hits and their analogs using surface plasmon resonance (SPR). Biacore steady-state response levels in dependence of ligand concentration for (A) adenosine diphosphate (ADP)-ribose and (B–E) the four macrodomain inhibitors. PARP14 macrodomains-2 and -3 were examined. Apparent dissociation constants are reported in Table 1 .

For the following analyses, 1 was resynthesized, and 2 was retrieved in powder form from the original batch synthesis. The binding of these compounds to PARP14 macrodomain-2 was evaluated together with free ADP-ribose and the primary screening hits 1 and 2 using SPR. The same experiments were also performed using PARP14 macrodomain-3, which is highly homologous to macrodomain-2 and of equal pharmacological interest. (PARP14 macrodomain-1 has low affinity for free ADP-ribose,¹² and our screening matrix did not reveal any interaction that was useful for compound evaluation; Fig. 1F .) When ligand binding was observed, the dissociation constants were estimated by curve fitting of the steady-state responses at different ligand concentrations. This analysis confirmed the binding of 1 and 2 to macrodomain-2, and showed that both compounds bound with similar affinities to macrodomain-2 ( Table 1 ). Both compounds also bound to macrodomain-3 with similar affinity. 1 bound both macrodomains with higher affinity than free ADP-ribose, and 2 bound with similar affinity, although the affinities for ADP-ribose were slightly higher than determined previously using isothermal titration calorimetry.¹²

In parallel, chemical substructure searches were performed, and a small set of chemical analogs of compounds 1 and 2 was purchased. One analog of each primary screening hit (compounds 1a and 2a, respectively) was identified as a macrodomain ligand, and both bound with similar affinities to both macrodomains. AlphaScreen concentration–response experiments (as above) showed that 1a and 2a were capable of displacing the interaction between the macrodomains and MARylated PARP10 ART domain, with AlphaScreen EC₅₀ values of 34.8 and 93.3 µM ( Table 1 and Fig. 2 ). This indicated that these analogs bound in the ADP-ribose binding site, as expected. Concentration–response plots of the SPR steady-state response units for ADP-ribose and all four novel macrodomain inhibitors identified in this study are shown in Figure 3 .

For an independent confirmation of the binding affinities of the four novel ligands for the two PARP14 macrodomains, MST was used. In essence, the K_d values calculated from these experiments confirm the results of the SPR analysis ( Table 1 and Fig. 4 ). Together, the data highlight 1 and 2a as the most potent inhibitors of PARP14 macrodomain-2, with dissociation constants in the low micromolar range. Compound 1 was also the macrodomain-3 ligand with the highest affinity, although we were unable to confirm the potency of 1 by MST.

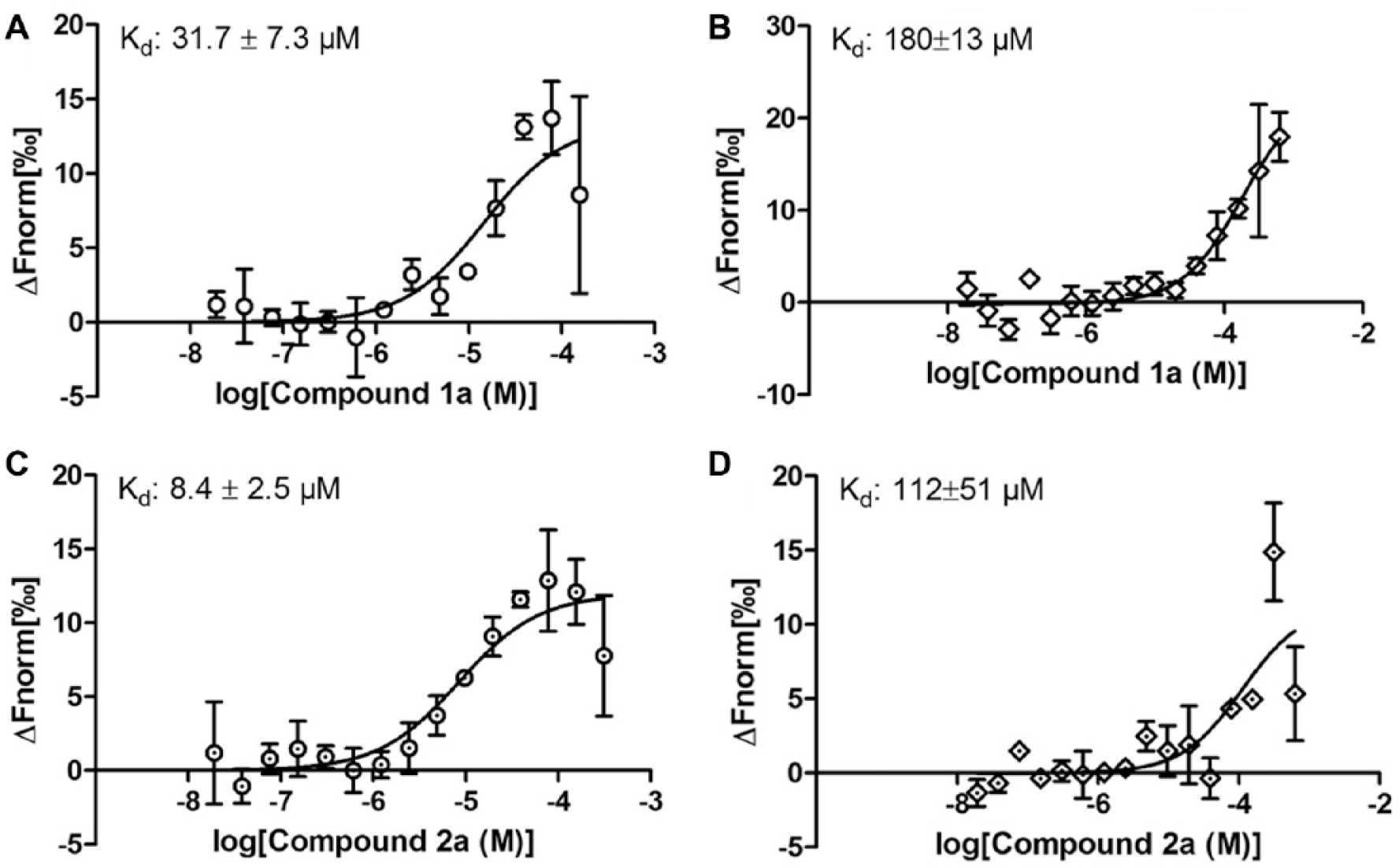

Figure 4.

Characterization of screening hit analogs 1a and 2a using microscale thermophoresis (MST). Examples of compound titrations for (A) 1a and PARP14 macrodomain-2, (B) 1a and PARP14 macrodomain-3, (C) 2a and PARP14 macrodomain-2, and (D) 2a and PARP14 macrodomain-3. Dissociation constants are reported in Table 1 .

Although the PARP macrodomains can bind free ADP-ribose with intermediate affinity ( Table 1 ),¹² our results show that in binding of ADP-ribosylated target, the protein context can strengthen the interaction by at least one order of magnitude. We were interested in exploring this further by using the newly discovered macrodomain inhibitors in the context of the domain interaction matrix shown in Figure 1F . For this, concentration–response experiments were carried out with the four macrodomain inhibitors, probing eight different combinations of MARylated ART domains (PARP10, -12, and 14) and macrodomains (PARP14 macrodomains-2 and -3 and PARP15 macrodomain-2). The resulting AlphaScreen EC₅₀ values ( Fig. 5 ) represent a qualitative comparison of the inhibitors’ ability to disrupt the respective interactions. The results provide further evidence for a structure context-specific recognition of MARylation by the PARP macrodomains. For instance, 1 displaced PARP14 macrodomain-2 interactions with the PARP10 and PARP12 ART domains but not the PARP14 ART domain. Conversely, 1 displaced the highly homologous PARP15 macrodomain-2 interaction with the PARP14 but not the PARP12 ART domain. Furthermore, the PARP14 macrodomain-3 interaction with the PARP10 ART domain is apparently efficiently displaced by all four inhibitors, whereas its interaction with the PARP14 catalytic domain is either unaffected or displaced less efficiently by these compounds. This is despite the fact that these two protein–protein interactions are very similar in affinity (the two weakest interactions measured within the matrix; Fig. 1F and Suppl. Fig. 2 ). We conclude that the ADP-ribose moiety itself plays a more important role in the recognition of the MARylated PARP10 than of the MARylated PARP14 ART domain. Finally, we find that some macrodomain–target interactions were displaced equally well by all four inhibitors, whereas other interactions were displaced by some compounds and unaffected by others ( Fig. 5 ). This indicates inhibitor substructure effects and implies that the development of target-specific macrodomain inhibitors is a future possibility.

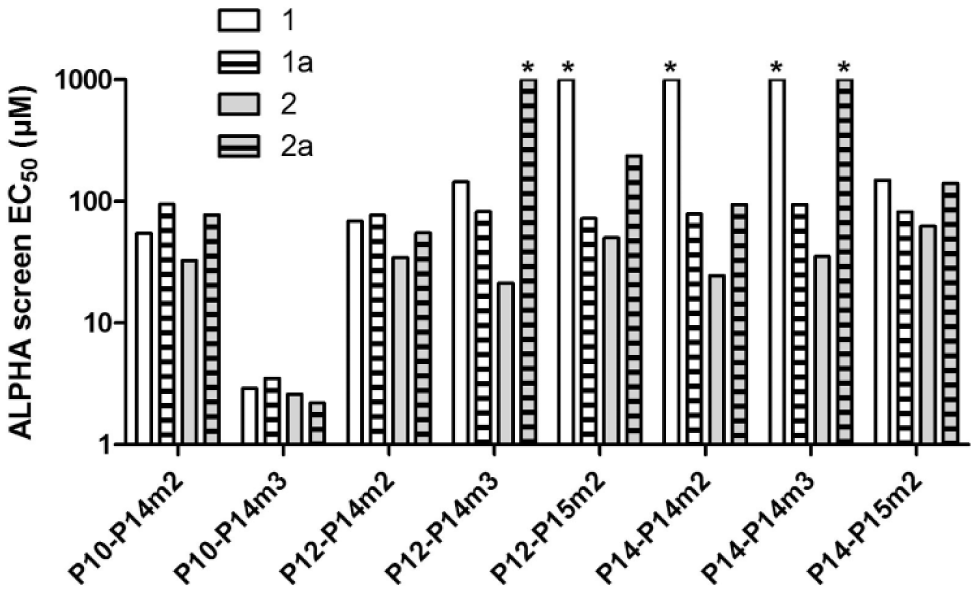

Figure 5.

Relative potential of four macrodomain inhibitors to displace eight different macrodomain–target interactions. Concentration titrations were conducted with compounds 1, 1a, 2, and 2a with combinations of MARylated ART domains and macrodomains on AlphaScreen beads, as before (e.g., Fig. 1E). EC₅₀ values allow a general comparison of inhibitor potencies and indicate the contribution of protein surface recognition in both the macrodomain mechanism of binding and the mechanism of binding inhibition. Lower EC₅₀ values indicate displacement at lower compound concentrations (stronger inhibition); the values marked by asterisks (*) indicate no or negligible displacement. Abscissa labels: P10, P12, and P14, MARylated ART domains of PARP10, -12, and -14; P14m2, P14m3, and P15m2, macrodomains-2 and -3 of PARP14 and PARP15.

To summarize, we have developed protocols for efficient screening of macrodomain–target interactions and of compounds that prevent these interactions. Contrary to recently published similar methods,^27,28 our protocols interrogate interactions between physiological binding partners. We have used these protocols to discover some of the first inhibitors of PARP macrodomains. Another inhibitor of PARP14 macrodomain-2 was recently identified.²⁷ Together, these compounds provide an entrance into development of chemical probes directed at these macrodomains, and they can provide positive controls for in vitro and in silico compound-screening efforts.
