Polyacrylonitrile-based carbon nanofiber electrode fabricated via electrospun for supercapacitor application

Abstract

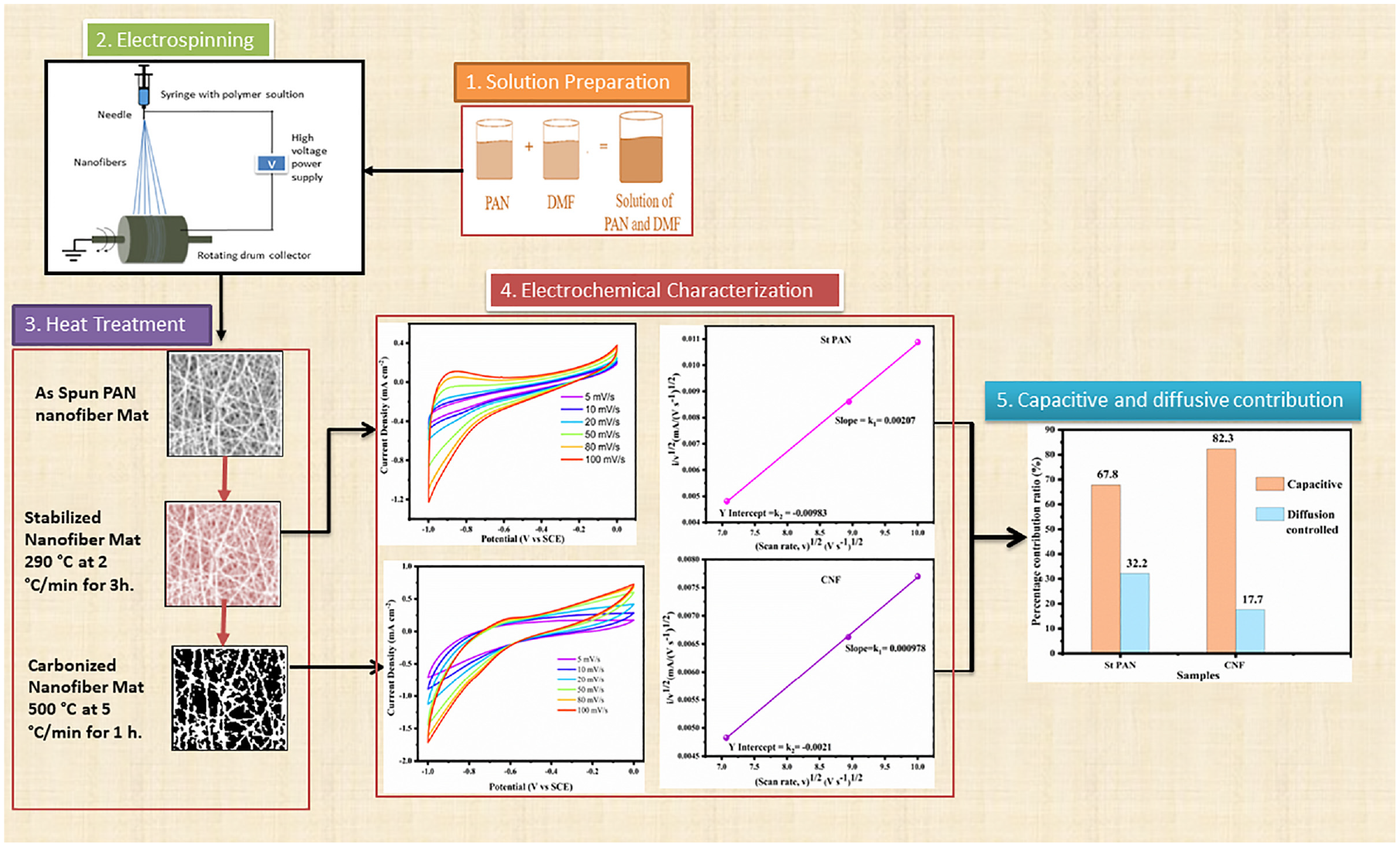

Graphical abstract

The versatile properties of electrospun carbon nanofibers gaining attention for electrode materials for supercapacitors. The heat treatment process of stabilization played an important role before the carbonization process in electrode fabrication. In the present study, electrospun stabilized polyacrylonitrile nanofiber (St PAN) and carbonized Polyacrylonitrile nanofiber (CNF) at minimum temperature were used as active mass for supercapacitor electrodes. Stabilized CNF nanofiber sample showed a reduction in nanofiber diameter with increased carbon percentage. XRD results showed increased crystallinity in the CNF sample as compared with the Stabilized PAN sample. Electrochemical characterization was performed to measure specific capacitance and to analyze the charge storage mechanism. The proportion of capacitive and diffusion-controlled contributions to energy storage was estimated using Dunn’s model. The results obtained demonstrated that, in comparison to the St PAN electrode, the CNF electrode exhibited a greater capacitive-controlled contribution. The CNF sample has shown an increased capacitive contribution of 82.3% as compared with the St PAN sample. This work provides a method for making electrospun carbon nanofiber-based electrodes as well as a methodical methodology for examining the charge storage process.
