Abstract
Background:
A lateral dislocation of the patella is a common injury in adolescents and young adults that is largely caused by underlying anatomic risk factors. Surgically managed patients have a significantly lower risk of recurrent dislocations. However, determining the optimal surgical treatment remains a challenge, with patients sometimes undergoing multiple surgical procedures before achieving successful stabilization.
Purpose:
To computationally evaluate patients who have undergone multiple surgical procedures to treat recurrent lateral patellar dislocations and predict their clinical outcomes.
Study Design:
Controlled laboratory study.
Methods:
Our cohort consisted of 16 patients with trochlear dysplasia and recurrent lateral patellar dislocations. We used magnetic resonance imaging to create 3-dimensional patient-specific finite element models of the knee joint and evaluated patellofemoral stability before and after surgery. We applied these models to computationally predict the clinical outcome of each surgical procedure. We simulated a knee extension activity coupled with external tibial torsion to assess patellofemoral stability. We also included a healthy control group of 12 participants in the computational evaluation. Finally, we developed and trained a logistic regression model based on anatomic risk factors and applied this model to classify whether patients had a likelihood of a dislocation to efficiently differentiate between surgical outcomes.
Results:
Of 12 control, 12 preoperative, and 9 postoperative scans, the finite element model correctly predicted 29 of 33 surgical outcomes (87.9% accuracy). Postoperative simulations predicted patellofemoral stability metrics similar to those of the control group. Specifically, patients after trochleoplasty were associated with increased constraint force on the patellar lateral facet and lower involvement of the medial patellofemoral ligament. The logistic regression model demonstrated 81.8% accuracy in classification.
Conclusion:
Preliminary results are promising, but an improvement of the model and a larger clinical dataset are necessary to increase accuracy and comprehensively validate model performance.
Clinical Relevance:
The aim of this study was to provide surgeons with a useful computational tool that can predict the likelihood of a patellar dislocation and differentiate, before a clinical intervention, between successful versus unsuccessful surgery to determine the optimal treatment pathway for individual patients.
Keywords
A lateral dislocation of the patella is a common injury in adolescents and young adults. 4 A patellar dislocation occurs when the patella disengages completely from the trochlear groove. When dislocations are isolated and the existing patellar mechanics and anatomy can accommodate the rehabilitation process, nonsurgical management is preferred. 2 However, patients who are ultimately managed surgically have a significantly lower risk of recurrent dislocations at 2 to 5 years’ follow-up, 21 suggesting that pathoanatomy plays a dominant role in patellar instability. Research has shown that recurrent patellar instability is associated with anatomic abnormalities, including trochlear dysplasia, patella alta, femoral anteversion, genu valgum, and increased tibial tubercle–trochlear groove (TT-TG) distance. Recent work has also shown a strong association between an increased TT-TG distance and external tibial rotation.3,5,11,23 Of all the anatomic risk factors, trochlear dysplasia is the most common and has been found radiographically in up to 90% of patients who undergo a surgical intervention for recurrent patellar instability. 18
Common surgical options in the United States are medial patellofemoral ligament (MPFL) reconstruction (MPFLR) and tibial tubercle osteotomy. 12 In Europe, trochleoplasty is considered a first-line treatment approach for patients with recurrent patellar instability and high-grade trochlear dysplasia. 24 However, because no evidence-based surgical algorithms exist, determining the optimal surgical treatment for patients with patellar instability and trochlear dysplasia remains a challenge, with patients sometimes undergoing multiple surgical procedures before achieving successful stabilization.
Computational models have been used to associate patellar tracking with anatomic parameters for patients with recurrent patellar instability. Knee models are usually created using computed tomography or magnetic resonance imaging (MRI) and used to perform dynamic simulations. Elias et al 8 demonstrated that, during an extension activity, patellar tracking is related to both trochlear dysplasia and the tibial tuberosity position, but the relationship changes with the flexion angle. The use of patient-specific computational models also allows us to quantitatively evaluate the effect of different surgical options on patellofemoral joint stability metrics relative to the underlying anatomy. Previous computational studies that have simulated procedures to treat patellar dislocations indicated that patient-specific interventions that correct underlying anatomic abnormalities are the only surgical options to restore joint stability to the statistical equivalent of a healthy control group. 1 Other studies have shown that trochleoplasty significantly decreased lateral patellar tracking, particularly at low knee flexion angles, decreased the contact area, and increased maximum contact pressure at multiple flexion angles, thus reducing the risk of patellar dislocations. 7
While these simulations allow us to quantify stability metrics and develop relative ranking across a variety of procedures, it is not obvious if the differences identified between simulations are clinically relevant to patient outcomes and surgical success. Notably, previous simulations have assessed patellofemoral stability in the absence of clinical data to determine whether “virtual” surgery would have a real-world impact on a patient’s clinical outcome. Additionally, these studies typically applied a generic or stylized loading condition rather than reproduce more complex loading conditions of daily living that place a patient at risk of patellar dislocations during an in vivo activity.7,8
The objective of this study was to computationally evaluate patients with patellar instability and trochlear dysplasia who have undergone surgical procedures to treat recurrent lateral patellar dislocations and to evaluate how well these models can predict their clinical outcomes. We used patient-specific imaging to create 3-dimensional (3D) finite element (FE) models of the knee joint and evaluated patellofemoral stability at multiple time points before and after surgery. We evaluated whether our computational approach can accurately predict the success or failure of each surgical procedure. We also developed and applied a logistic regression model to determine if we can accurately predict surgical success from anatomic risk factors alone.
Methods
Patients and Data Collection
We retrospectively obtained MRI scans of the knee joint from 28 participants: 16 patients with recurrent lateral patellar dislocations plus 12 healthy control participants. Patients were extracted from a larger patient cohort that underwent a surgical procedure for recurrent patellar instability due to high-grade trochlear dysplasia between September 2017 and July 2021. High-grade trochlear dysplasia was defined as proximal trochlear morphology that was either flat or convex as opposed to a normal concavity. All patients were aged between 12 and 19 years at the time of surgery. Inclusion criteria for this study were patients who underwent trochleoplasty and/or MPFLR and had a preoperative and/or postoperative MRI scan, with those undergoing trochleoplasty requiring both preoperative and postoperative scans to quantify morphological changes to the trochlea. Specifically, we had (1) only preoperative scans for 7 patients, (2) only postoperative scans for 4 patients after undergoing MPFLR, and (3) both preoperative and postoperative scans for 5 patients after undergoing both MPFLR and sulcus-deepening trochleoplasty. Overall, we obtained a total of 33 scans that we used to build patient-specific models: 12 preoperative, 9 postoperative (4 after MPFLR, 5 after MPFLR + trochleoplasty), and 12 control (Table 1).
Characteristics of Models a
MPFLR, medial patellofemoral ligament reconstruction.
At a minimum 2-year follow-up, there were no reported cases of patellar instability in the patients since surgery. Control participant data were collected as part of a separate study. None in the control group had a prior knee injury. All scans were obtained as part of standard patient care and were anonymized before inclusion in this study; accordingly, the study protocol received an exemption from our university’s institutional review board.
Model Development
We constructed patient-specific models to evaluate trochlear morphology, patellar height, and TT-TG distance. We imported and segmented MRI scans using commercially available reconstruction software (Amira; Thermo Fisher Scientific) to create a patient-specific 3D model of each knee joint (Figure 1). Each model included femoral, tibial, and patellar bone and cartilage geometries. We scaled and aligned generic quadriceps muscles and tendons, patellar tendons, and MPFLs to match patient-specific bone and cartilage geometries (Figure 2). We aligned models from different time points with one another using an iterative closest point algorithm. We created local tibiofemoral and patellofemoral joint coordinate systems to define 6 degrees of freedom translational and rotational axes according to Grood and Suntay. 13

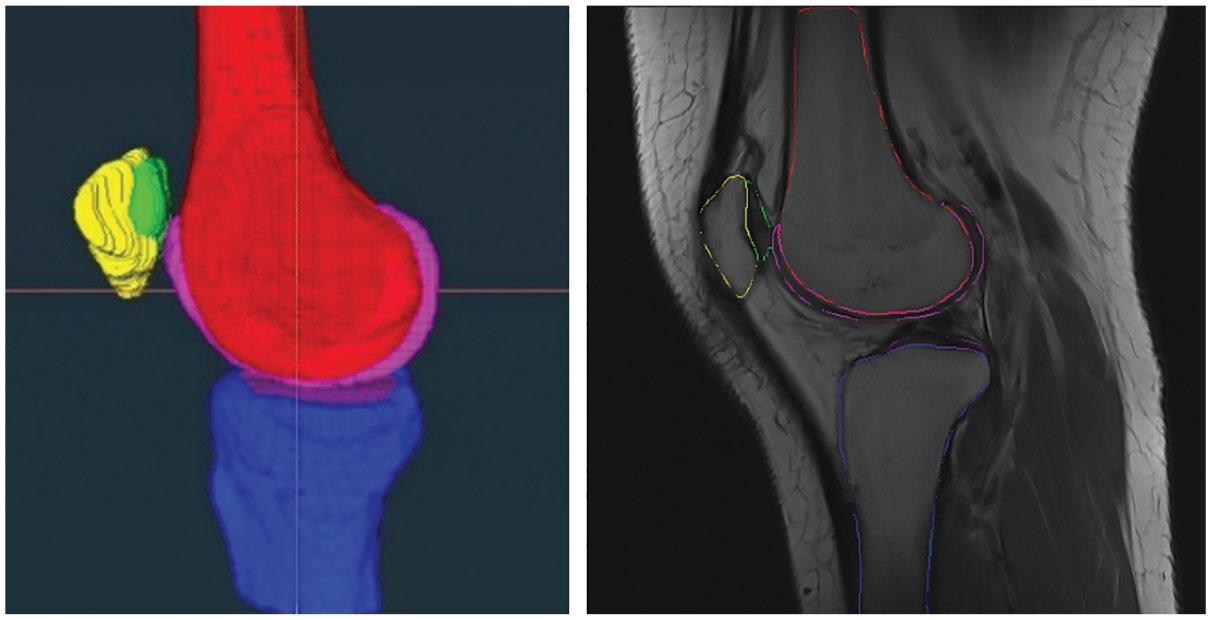

Segmentation of bone and cartilage geometries from patient-specific magnetic resonance imaging scans.
Three-dimensional finite element model of a patient-specific knee joint reconstructed from magnetic resonance imaging scans, including the (A) femur, (B) tibia, (C) patella, (D) quadriceps tendon, (E) medial patellofemoral ligament (MPFL), and (F) patellar tendon.
We calculated 5 geometric factors from the reconstructed 3D model: patellar height, TT-TG distance, trochlear dysplasia, lateral trochlear inclination, and bisect offset index.
Patellar height was defined as the Insall-Salvati ratio, which is the ratio of the patellar tendon length to the superior-inferior length of the patella.
Trochlear dysplasia was defined by the sulcus angle, which is the angle subtended between the most proximal aspect of the medial and lateral trochlear facets. A sulcus angle >145° was defined as a dysplastic trochlea.
Lateral trochlear inclination was the angle subtended along the most proximal aspect of lateral trochlear cartilage and the tangent of the posterior femoral condyle. A lateral trochlear inclination ≤11° has been shown to have a specificity of 0.95 in discriminating between patients with and without symptomatic trochlear dysplasia. 6
TT-TG distance was measured as the medial-lateral distance (parallel to the posterior condylar line) from the anterior point of the tibial tuberosity to the deepest point of the trochlear groove.
Bisect offset index was defined as the proportion of the patella lying lateral to the midline of the trochlea as a percentage of the whole patellar width. 16
FE Model
We imported bone geometry into HyperMesh (Altair) and meshed the surfaces as rigid triangular elements with an approximately 1-mm edge length. We represented cartilage as 8-noded hexahedral elements using publicly available automated hexahedral meshing software implemented in MATLAB (MathWorks). 20 We modeled the patellar tendon as 6 nonlinear springs and the quadriceps tendon and MPFL as 2-dimensional membranes (quadrilateral elements) with embedded fiber-reinforced springs.
We created the FE model in Abaqus/Explicit (SIMULIA) and performed a dynamic simulation. We applied an initial force of 100 N to the quadriceps, distributed with a ratio of 20:20:35:25, respectively, across the rectus femoris, vastus intermedius, vastus lateralis, and vastus medialis. 9 We applied an 8-N force to the MPFL to create a pretensioned state at full extension while allowing for a slack MPFL later in flexion.1,9 To evaluate the effect of MPFL force on our results, we performed a sensitivity analysis of the MPFL pretensioning force, increasing and decreasing the initial value of 8 N by 50% and evaluating differences in classification performance. We applied a compressive force of 50 N across the tibiofemoral joint to ensure tibiofemoral articular contact throughout the simulation. While loaded, we flexed the knee to 90°. Starting from this flexed position, we simulated a weighted knee extension activity. Specifically, we used experimental data to kinematically apply tibiofemoral flexion-extension, internal-external, medial-lateral, and anterior-posterior motions throughout the activity. 14 Adduction-abduction rotation and superior-inferior displacement were kinematically unconstrained, with their motions determined by articular contact between the femur and tibia. We used a pressure-overclosure relationship of 3.2 MPa/mm to define cartilage contact mechanics at the tibiofemoral articular surface. 10 The applied quadriceps force ranged from 100 to 750 N throughout the activity. We applied 30° of external tibial rotation to evaluate patellofemoral joint stability under a challenging loading condition. 22
Postprocessing
For each simulation, we evaluated a series of patellofemoral joint stability metrics. This analysis focused on the last 40° of extension in which anatomic resistance to a dislocation is reduced and soft tissue constraint necessary to maintain a stable joint is increased. 9 Specifically, the simulation reported total force on the MPFL and contact force on the patellar articular surface throughout the activity. As there is not an established method to define exactly when a dislocation occurs within a computational simulation, we defined the patella as dislocated if the total force on patellar cartilage switched from a medial to lateral direction, indicating that it disengaged completely from the trochlear groove. However, other metrics could have been used (eg, the relative medial-lateral position of the patella with respect to the lateral facet of the trochlear groove).
Subsequently, we simulated “virtual” trochleoplasty in the postoperative group to increase the depth of the femoral sulcus angle to 140° to evaluate sensitivity to change in sulcus depth as a result of the trochleoplasty procedure. We implemented this procedure using a method described in detail in our prior work. 1 In brief, we used radial basis functions to simulate sulcus-deepening trochleoplasty. There were 3 landmark points used to calculate the sulcus angle with the knee flexed sequentially to 0°, 30°, 60°, and 90°. Radial basis function points were morphed to generate a sulcus angle of 140° at full extension, which blended smoothly with the native anatomy at the most posterior point of the groove.
We performed 5 one-way analyses of variance (one for each anatomic factor) between the control group, preoperative group, and postoperative group to examine the null hypothesis that no significant differences exist in the mean value of each factor among groups. Statistical significance was set to .05. We performed tests for normality and the equality of variance in addition to post hoc Bonferroni tests to establish which groups showed significant difference and to account for correlation among factors. We performed a power analysis to determine the statistical power of the test with the current dataset size.
Logistic Regression Classification Model
In addition to the FE simulations described above, we evaluated the ability of a simple logistic regression model to predict the likelihood of a dislocation based only on anatomic risk factors and to determine a binary classification (dislocation or no dislocation). Previous studies have shown that multivariable models can identify patients who are at a high risk for recurrent dislocations. 17 We used backward elimination as a predictor selection technique and the “leave-one-out” method for cross-validation because of the small sample size. We quantified model performance using an accuracy classification score.
Results
FE Model
The FE model was able to correctly predict 29 of 33 surgical outcomes (87.9% accuracy). Misclassifications occurred in 3 preoperative simulations in which the model was not able to predict a dislocation (3 false negatives) and in 1 postoperative simulation in which the model predicted a false dislocation (1 false positive). By decreasing the MPFL initial force by 50% to 4 N, classification performance was not affected in any of the groups. Increasing the force by 50% to 12 N resulted in misclassifications in 4 preoperative simulations and 1 postoperative simulation (4 false negatives and 1 false positive) (Table 2).
Rate of Correct Classifications by MPFL Pretensioning Force a
Data are shown as n (%). MPFL, medial patellofemoral ligament.
When comparing the results of analyses of variance and post hoc Bonferroni tests among the preoperative, postoperative, and control groups, the Insall-Salvati ratio was the only factor to show no significant difference between groups. For all the other factors, the control group was significantly different from the preoperative group but not from the postoperative group (Tables 3 and 4), suggesting that surgery was able to restore the anatomic condition close to normal.
Values of Anatomic Factors a
Data are shown as mean ± SD. TT-TG, tibial tubercle–trochlear groove.
P Values for Anatomic Factors a
Significant values (<.05) are shown in bold. TT-TG, tibial tubercle–trochlear groove.
When comparing MPFL force and contact force on patellar cartilage, postoperative simulations showed results trending toward the control group (Figure 3). A deeper sulcus angle was associated with increased constraint force on the patellar lateral facet and lower involvement of the MPFL, mostly close to full extension. The same analysis was applied to the virtual trochleoplasty simulations (Figure 4). Virtual surgery showed an even higher trochlear constraint force, mostly between 20° and 40° of flexion, while no effect was shown for the MPFL total force. The control group still performed best most likely because of better mean values for the other anatomic factors.

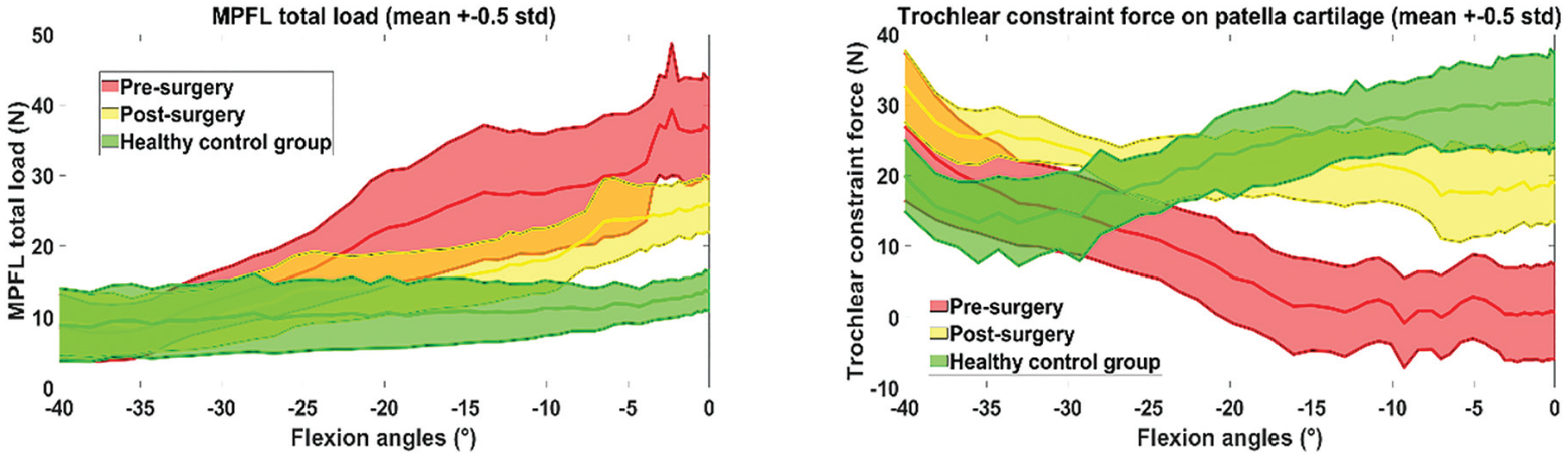

Mean total medial patellofemoral ligament (MPFL) constraint force (left) and contact trochlear constraint force on patellar cartilage (right) at different flexion angles for different groups.
Effect of virtual trochleoplasty on patellofemoral joint stability metrics.
Logistic Regression Classification Model
Backward elimination provided a logistic regression model with only 2 significant predictors (P < .05): lateral trochlear inclination and bisect offset index. Statistical information of the model is shown in Table 5.
Statistical Values for Predictors in Logistic Regression Model
After applying the “leave-one-out” method of cross-validation, we used the accuracy classification score to describe the performance of the model to classify dislocations and nondislocations. The accuracy was 81.8% in classification. In general, the logistic regression model was a worse predictor of dislocation events than the FE simulations.
Discussion
A lateral patellar dislocation is a common injury, and there is no general consensus on the optimal treatment strategy on a patient-specific basis. The overall aim of this study was to develop a useful computational tool that can predict the likelihood of a patellar dislocation and differentiate, before a clinical intervention, between successful versus unsuccessful prospective surgery. This may assist the surgeon in determining the optimal treatment pathway for individual patients. We evaluated 2 different approaches: FE and logistic regression models. Overall, FE and logistic regression models were able to predict a patellar dislocation with an accuracy of 87.9% and 81.8%, respectively.
The FE model was able to provide additional information besides the dislocation risk. Specifically, total constraint force on the MPFL and total contact force on patellar cartilage were useful metrics to establish the mechanism of a dislocation and the potential risk of MPFL ruptures. In addition, the overall accuracy of the FE model was higher. However, this method is more prohibitive as a surgical guidance tool; it requires technical expertise to develop and run these simulations and postprocess the results as well as computational resources (dedicated software and simulation time). Training the logistic regression model requires only the anatomic factors for each patient, and it runs almost instantaneously. In this study, we measured all the anatomic factors used in the logistic regression model from the reconstructed 3D models. In future work, we plan on performing the same analysis with measurements directly from the MRI scans, which would eliminate the need to reconstruct these scans. It may be helpful to establish the accuracy and repeatability of a direct MRI measurement method and possibly define correction factors between the 2 different approaches.
Previous computational studies have mostly focused on associating anatomic factors with patellar tracking.19,25 Our computational framework applied a previously developed FE model of patellar dislocations to patient data with known clinical outcomes, facilitating the quantification of model performance against real-world data. The logistic regression model represents a new and potentially useful alternative, particularly efficient in terms of computational cost. Recent studies have also applied multivariate statistical models to predict the risk of patellar dislocations based on anatomic factors.3,15,17,26 In addition to the anatomic factors already used in this study, other parameters considered were skeletal immaturity, age, history of a contralateral patellar dislocation, and lateral patellar tilt. To our knowledge, this study is one of the first studies that applied both a computational model and a data-driven model on the same dataset to predict the risk of patellar dislocations, classify surgical outcomes, and compare classification performance.
While these preliminary results are promising, there are a number of limitations associated with this work. First, we need to increase the sample size to increase the statistical power of our study; with the current dataset, only sulcus angle and bisect offset index reached statistical power >80% (Table 6). Unfortunately, preoperative and postoperative MRI scans are not often part of standard patient care, making it difficult to build a large-scale patient database. There are also additional improvements and extensions that we can make to our models; only MPFLR and trochleoplasty were considered as surgical options, as they were the only surgical procedures performed on the patients available through the current dataset. To expand the scope of this analysis to a more comprehensive assessment of potential surgical options, patients who have undergone tibial tubercle osteotomy (which would likely impact the Insall-Salvati ratio and TT-TG distance) should also be included.
Power Analysis Based on Anatomic Factors a
TT-TG, tibial tubercle–trochlear groove.
There are also some simplifications and limitations associated with the FE model. The patellar tendon is the only soft tissue structure for which we implemented an automatic alignment process. Specifically, we used the most prominent point on the tibial tubercle and lowest point on the patella as the attachment sites of the patellar tendon. We manually aligned the MPFL and quadriceps tendon based on bony landmarks. For this reason, the selection of attachment sites is subject to some interuser variability as well as increasing the total time for model preparation. Additionally, MRI scans were localized to the knee; thus, patient-specific quadriceps attachment sites at the hip were not available. In the absence of patient-specific data, it may be possible to implement an automated method (similar to that used for the patellar tendon) to ensure consistency among patients. In addition, we simulated only 1 loading condition. Although this better represents a dislocation-inducing activity than most previous models, external tibial torsion is not the only mechanism that can lead to a patellar dislocation. Also, both the loading and kinematics profiles were not patient specific, as these data are not collected as part of standard preoperative practice. Model predictions would likely improve if all inputs were patient specific, but currently, that would be difficult or infeasible to implement outside of a research setting.
Lastly, regarding classification, only logistic regression was used as a predictor model. There is potential that other classification methods may improve the results presented here. In addition, although the 5 anatomic parameters included in this model are considered the main risk factors for a patellar dislocation, we did not evaluate a more comprehensive set of parameters that could be added to train the model and that may improve model performance. However, despite these limitations, results are promising, reinforcing the importance and potential impact of both computational and data-driven models in the decision-making process for clinicians and setting the stage for future exploration and research in this field.
