Evaluation of Muscle Strength and Graft Laxity With Early Open Kinetic Chain Exercise After ACL Reconstruction: A Cohort Study

Abstract

Background:

Open kinetic chain (OKC) exercise is an effective method to improve muscle function during rehabilitation after anterior cruciate ligament reconstruction (ACLR); however, there is controversy about its use in the early phase of rehabilitation.

Purpose:

To determine (1) whether the use of OKC and closed kinetic chain (CKC) exercises improves quadriceps and hamstring strength in the early phase of rehabilitation after ACLR and (2) whether the early use of OKC exercise affects graft laxity at 3 and 6 months postoperatively in patients with a hamstring tendon graft.

Study Design:

Cohort study; Level of evidence, 3.

Methods:

This study included an intervention group that underwent OKC + CKC exercises (n = 51) and a control group that underwent CKC exercise only (n = 52). In the intervention group, OKC exercise for the quadriceps and hamstring was started at 4 weeks after ACLR. At 3 and 6 months postoperatively, isokinetic testing was performed to calculate the limb symmetry index (LSI) and the peak torque to body weight ratio (PT/BW) for the quadriceps and hamstring. Anterior knee laxity was measured by an arthrometer.

Results:

At 3 and 6 months postoperatively, quadriceps strength was higher in the intervention group than in the control group for the LSI (3 months: 76.14% ± 0.22% vs 46.91% ± 0.21%, respectively; 6 months: 91.05% ± 0.18% vs 61.80% ± 0.26%, respectively; P < .001 for both) and PT/BW (3 months: 1.81 ± 0.75 vs 0.85 ± 0.50 N·m/kg, respectively; 6 months: 2.40 ± 0.73 vs 1.39 ± 0.70 N·m/kg, respectively; P < .001 for both). There were similar findings regarding hamstring strength for the LSI (3 months: 86.13% ± 0.22% vs 64.26% ± 0.26%, respectively; 6 months: 91.90% ± 0.17% vs 82.42% ± 0.24%, respectively; P < .001 at three months, P = .024 at 6 months) and PT/BW (3 months: 1.09 ± 0.36 vs 0.67 ± 0.39 N·m/kg, respectively; 6 months: 1.42 ± 0.41 vs 1.07 ± 0.39 N·m/kg, respectively; P < .001 for both). No significant difference in laxity was observed between the intervention and control groups at 3 or 6 months.

Conclusion:

Early use of OKC exercise for both the quadriceps and the hamstring, in addition to conventional CKC exercise, resulted in better correction of quadriceps and hamstring strength deficits without increasing graft laxity.

Keywords

anterior cruciate ligament reconstruction open kinetic chain return to sport strength recovery graft laxity

After anterior cruciate ligament (ACL) reconstruction (ACLR), a long period of rehabilitation begins that is well-documented. There are consensus guidelines on the main steps to follow for rehabilitation according to 3 main phases.²⁷ It starts with the early phase, which includes the management of postoperative pain and other issues as well as the consequences of surgery. Then, the middle and late phases consist of the return-to-sport continuum, as proposed in the “reconstruction, rehabilitation and return-to-sport continuum after anterior cruciate ligament injury” (ACLR3–continuum).³⁶ Upon return to sport or in the longer term, a persistent strength deficit in the quadriceps is often observed and sometimes also in the hamstring, especially with the use of hamstring tendon grafts. Thus, muscle strengthening is a key element in rehabilitation after ACLR, and it is necessary to optimize rehabilitation to allow for a safe return to sport while respecting the biological (graft healing), physiological (ie, neuromuscular adaptations), and psychological challenges that the patient must face.³⁸

Open kinetic chain (OKC) exercise of the quadriceps early in the postoperative period is an effective method to improve muscle function; however, there is controversy regarding its use. According to the consensus guidelines,²⁷ this mode of strengthening can be utilized from the fifth postoperative week unless the graft is harvested from the semitendinosus, in which case the authors recommend against additional loads to the leg such as leg extension exercises. However, multiple studies have shown the absence of harm from this mode of contraction, even with this type of graft,^9,10,45 as indicated by laxity measured using the KT-1000 arthrometer (MEDmetric). This type of measurement with the KT-1000 arthrometer or another evaluation that requires human action may introduce errors and be inaccurate. The GNRB arthrometer (Genourob), an automated tool to assess knee laxity, provides a more objective, reproducible, and less error-prone measurement of joint laxity.^{16,17,28,33,41}

Few studies have been published that focus on hamstring strengthening during the early phase, especially after ACLR with a hamstring tendon graft. However, even if tenotomy is performed (semitendinosus tendon is fully harvested), healing and even regrowth may occur.⁴³ It therefore seems logical to offer early OKC exercise for the hamstring after the first stages of healing are complete. An isokinetic dynamometer is also very safe for both the evaluation and the strengthening of the knee extensor and flexor muscles. The isokinetic mode of OKC exercise, in addition to classic strengthening exercises for the quadriceps and hamstring, may both protect the graft (the action of the hamstring makes it possible to avoid anterior tibial drawer) and limit the onset of amyotrophy during the first phases of rehabilitation (early and middle).

Thus, this study was designed to assess the association of OKC exercise for quadriceps and hamstring muscle strengthening with the accepted closed kinetic chain (CKC) exercise. The main objective was to compare the peak torque to body weight ratio (PT/BW) and the limb symmetry index (LSI) of the quadriceps and hamstring muscles at 3 and 6 months postoperatively between the 2 groups. The secondary objective was to compare the difference in laxity during rehabilitation (at 3 and 6 months) between a group of patients with an OKC + CKC exercise protocol (intervention group) and a group of patients rehabilitated only with CKC exercise (control group).

Methods

Study Design

The protocol for this study received ethics review board approval, and all included patients participated in agreement with the Declaration of Helsinki and provided written informed consent. The following baseline information was recorded for each participant regarding medical data (graft type, date of surgery, knee surgeon’s name) and demographic and sport-related data (age, weight, height, Tegner and Marx scores before ACL injury).

Participants

This study included 103 recreational athletes (33 women) who had undergone ACLR. Patients were included if (1) they had undergone ACLR using a hamstring autograft with semitendinous and gracilis tendons by 3 different knee surgeons (A.V., P.D., L.R.) (no extra procedures were performed), (2) their ACL injury occurred without contact during sports, (3) they were younger than 35 years and had a body mass index (BMI) <30 kg/m², and (4) their activity level before the ACL injury was defined as a Tegner score⁸ of ≥6 and a Marx score¹⁹ of ≥6.

The exclusion criteria were (1) an existing or previous injury to the ipsilateral knee and (2) reconstruction for an iterative injury. Patients with meniscal repair and/or meniscectomy were not excluded, but patients with associated lesions (osteochondral lesions, multiple ligament injuries) other than meniscal injuries were excluded. There were 2 groups established: a control group (exclusively CKC exercise) and an intervention group (mixed OKC and CKC exercises). The intervention group underwent rehabilitation at 1 center, and the control group underwent rehabilitation at other centers. Each group was matched by sex, age, height, weight, BMI, Marx score, and Tegner score.

Rehabilitation Protocol

The rehabilitation protocols were overseen independently by 4 physical therapists who were experienced in ACL rehabilitation and who participated in the design of the rehabilitation programs but none of whom were authors of the study.. All the physical therapists were involved in the follow-up of the programs with regard to the assessment of the applied loads and the dosage of the individual exercises.

The control group followed a rehabilitation protocol after ACLR, 3 times per week, with muscle strengthening exclusively with CKC exercise initiated from the immediate postoperative phase, without any OKC exercise. The patients followed the same standardized rehabilitation protocol as different rehabilitation centers, as previously described by Quelard et al.³⁴ The intervention group followed a mixed protocol of OKC and CKC exercises for muscle strengthening of the quadriceps and hamstring. CKC exercise was initiated from the immediate postoperative phase, and OKC exercise was initiated from 4 weeks postoperatively (31.4 ± 7.6 days), as recommended by Perriman et al.³¹ The introduction of OKC exercise was authorized if the patient presented a stroke test result of ≤1+, a range of motion between 0° and 110°, a single-leg rise without lag, and graft laxity at 134 N of <1.5 mm.^13,33 Meniscal procedures did not modify ACL rehabilitation.³⁵

The OKC exercise protocol focused on the quadriceps and hamstring muscles. It was performed on an isokinetic machine with leg extension and seated leg curls. It included 10 sets of 8 repetitions in isokinetics at 60 deg/s (Figure 1A) as well as 8 sets of 8 repetitions, 3 times per week, for leg extension for the quadriceps (Figure 1B) and seated leg curls for the hamstring (Figure 1C). The contraction modalities were the same, regardless of the type of exercise, with 3 seconds of concentric contraction, 1 second of isometric contraction, and 3 seconds of eccentric contraction.⁷ The load applied was 60% of the maximum resistance, reassessed weekly for the quadriceps and hamstring with a handheld dynamometer (microFET 2; Hoggan Scientific) at 90° of knee flexion with a strap. Both groups were assessed at 3 and 6 months postoperatively during follow-up with a clinical evaluation and an isokinetic muscle strength assessment for the quadriceps and hamstring. From 3 months onward, the interval was variable between each patient because time was not an absolute criterion and delays had to be individualized on the basis of other objective variables but were nevertheless without significant difference between the 2 groups.^37,38

Figure 1.

(A) Isokinetic machine for the quadriceps and hamstring muscles. (B) Seated leg curl for the hamstring. (C) Leg extension for the quadriceps.

Assessment Protocol

The principal investigator (F.F.), who performed all measurements, was not informed of group assignment. At 3 months (102.3 ± 18.9 days) and 6 months (203.4 ± 42.2 days), all participants underwent an isokinetic muscle strength assessment for the quadriceps and hamstring and a graft laxity assessment with a GNRB arthrometer. The muscle strength assessment was performed using a Humac Norm isokinetic dynamometer (Version 15.000.0273; Computer Sports Medicine), and data were collected using the computer software interface attached to the machine. Before carrying out the isokinetic assessment, each participant had a standardized warm-up with 10 minutes of walking on a treadmill at 5 km/h. The objective of this assessment was to measure the PT/BW for the quadriceps and hamstring during knee extension and flexion movements, allowing interpatient comparison, and for both legs to analyze the variation in intrapatient strength. Symmetry was expressed as percentages by the LSI, which was calculated as the PT/BW of the injured limb divided by the PT/BW of the uninjured limb, multiplied by 100.^26,46

The positioning of the participants on the isokinetic dynamometer was individually adjusted to ensure correct alignment of the anatomic axis of the knee joint with the axis of rotation of the lever arm during movements. The trunk and thigh of the limb tested were strapped to minimize body movements. Once the warm-up was completed and the positioning adjusted on the machine, each of the participants performed 1 series of 4 knee extensions and flexions at 60 deg/s ranging from 0° to 100°. The series was performed first on the operated limb and then on the nonoperated limb.

The angular range chosen and the angular velocity corresponded to standards in the literature in terms of isokinetic assessments for the quadriceps and hamstring in the context of follow-up after ACLR.^14,39 These were justified, as the maximum torque values measured were obtained at between 0 and 60 deg/s. An assessment at a higher angular velocity would not only decrease PT/BW values but also decrease the sensitivity of a comparison of the PT/BW between the 2 legs or between 2 distinct groups, thus biasing decision making within the framework of return to sport.³⁸

After the isokinetic muscle strength assessment for the quadriceps and hamstring, the graft laxity assessment with the GNRB arthrometer was performed (Figure 2). After having immobilized the distal extremities of the femur (tightening at 10 N compared with the contralateral side) and of the tibia (the base-foot distance indicated is noted for the reproducibility between measurements), 3 successive thrusts were carried out.^{13,16,17,28,41} The data were collected at 134 N.^13,28,33,41 The laxity assessment had moderate to good intratester reliability (intraclass correlation coefficient [ICC], 0.72-0.83) and good intertester reliability (ICC, 0.76-0.81), and test-retest repeatability also demonstrated good reliability (ICC, 0.77-0.83).^13,28,33,42 The calculated standard errors of measurement for intrarater reliability, interrater reliability, and test-retest repeatability ranged from 0.48 to 0.62 mm. The minimal detectable change at 134 N was 2.1 mm/N.⁴² The minimal detectable change can be a clinically significant metric when looking to compare the smallest amount of change between testing sessions of 1 limb.⁴²

Figure 2.

Positioning of the leg segment during the assessment with a GNRB arthrometer.

Statistical Analysis

Statistical analysis and calculation of means and standard deviations were performed with R software (Version 1.2.5033; RStudio) after exporting the data to Excel (Microsoft Version 16.61). All variables were normally distributed (Shapiro-Wilk normality test). A P value of <.05 was used to identify statistical significance. To compare the characteristics between patient groups, the unpaired t test was used for continuous variables, and the chi-square test was used for categorical variables. For measurements of the LSI, the PT/BW, and graft laxity (anterior displacement of the tibia), t tests were used for independent-samples group comparisons. The effect size was reported as the Cohen d, with values of 0.2, 0.5, and 0.8 interpreted as small, medium, and large effects, respectively.²³

Results

Patient Characteristics

The mean age of the 103 study patients was 30.1 ± 9.3 years. A complete summary of patient data is presented in Table 1. No statistically significant differences were observed between the 2 groups for the variables of sex, age, height, weight, BMI, and Tegner and Marx scores (Table 1).

Table 1

Characteristics of Patients (N = 103) ^a

	Intervention Group (n = 51)	Control Group (n = 52)	P	Cohen d
Age, y	26.3 ± 5.3	30.5 ± 10.2	.71	0.22
Male sex, n	34	36	.94	NA
Height, cm	173.0 ± 9.0	174.0 ± 8.0	.94	0.11
Weight, kg	74.0 ± 13.5	73.1 ± 10.9	.96	0.07
BMI, kg/m²	24.6 ± 3.5	24.4 ± 3.2	.96	0.05
Tegner score ^b	7.5 ± 1.0	7.0 ± 2.0	.82	0.31
Marx score ^c	13.5 ± 3.0	10.2 ± 3.3	.46	1.04

^a Data are reported as mean ± SD unless otherwise indicated. BMI, body mass index; NA, not applicable.

^b All Tegner scores were between 6 and 10.

^c All Marx scores were between 6 and 16.

Tables 2 and 3 present comparisons between the groups for the LSI and PT/BW, respectively. At 3 months, significant differences of 29.2% in the LSI for the quadriceps (P < .001; Cohen d = –1.3) and of 21.8% in the LSI for the hamstring (P < .001; Cohen d = –0.9) were observed, favoring the intervention group. At 6 months, similar results were observed, with significant differences of 29.2% in the LSI for the quadriceps (P < .001; Cohen d = –1.2) and of 9.5% in the LSI for the hamstring (P = .024; Cohen d = –0.4), also favoring the intervention group.

Table 2

Limb Symmetry Index (%) ^a

	Intervention Group (n = 51)	Control Group (n = 52)	P	Cohen d
Quadriceps strength
3 mo	76.14 ± 0.22	46.91 ± 0.21	<.001	–1.3
6 mo	91.05 ± 0.18	61.80 ± 0.26	<.001	–1.2
Hamstring strength
3 mo	86.13 ± 0.22	64.26 ± 0.26	<.001	–0.9
6 mo	91.90 ± 0.17	82.42 ± 0.24	.024	–0.4

^a Data are reported as mean ± SD. Boldface P values indicate a statistically significant difference between groups (P < .05).

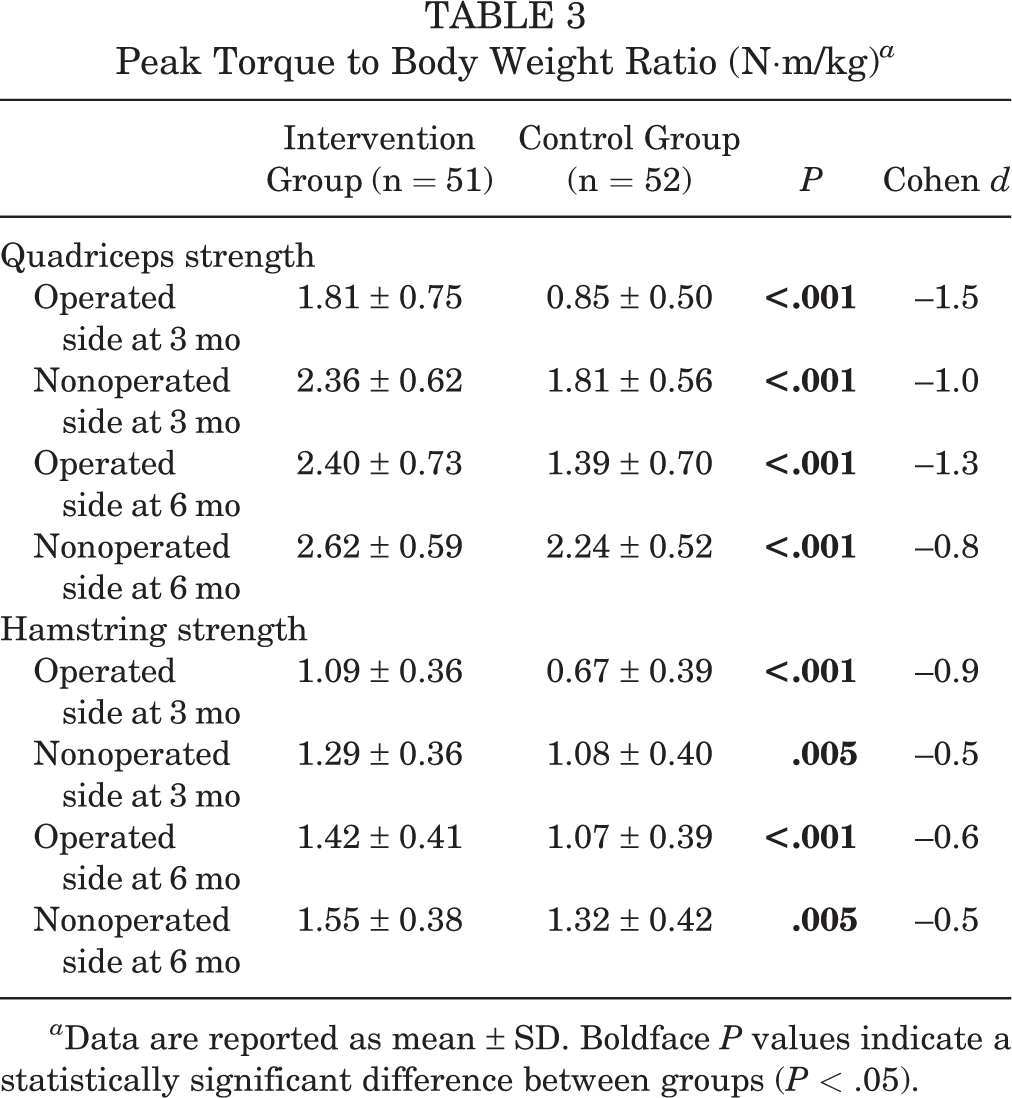

Table 3

Peak Torque to Body Weight Ratio (N·m/kg) ^a

	Intervention Group (n = 51)	Control Group (n = 52)	P	Cohen d
Quadriceps strength
Operated side at 3 mo	1.81 ± 0.75	0.85 ± 0.50	<.001	–1.5
Nonoperated side at 3 mo	2.36 ± 0.62	1.81 ± 0.56	<.001	–1.0
Operated side at 6 mo	2.40 ± 0.73	1.39 ± 0.70	<.001	–1.3
Nonoperated side at 6 mo	2.62 ± 0.59	2.24 ± 0.52	<.001	–0.8
Hamstring strength
Operated side at 3 mo	1.09 ± 0.36	0.67 ± 0.39	<.001	–0.9
Nonoperated side at 3 mo	1.29 ± 0.36	1.08 ± 0.40	.005	–0.5
Operated side at 6 mo	1.42 ± 0.41	1.07 ± 0.39	<.001	–0.6
Nonoperated side at 6 mo	1.55 ± 0.38	1.32 ± 0.42	.005	–0.5

^a Data are reported as mean ± SD. Boldface P values indicate a statistically significant difference between groups (P < .05).

Similar results were observed in the comparison of the PT/BW, with a significant difference at 3 months of 0.96 N·m/kg in relative quadriceps strength (1.81 ± 0.75 vs 0.85 ± 0.50 N·m/kg, respectively; P < .001; Cohen d = –1.5) and 0.42 N·m/kg in relative hamstring strength (1.09 ± 0.36 vs 0.67 ± 0.39 N·m/kg, respectively; P < .001; Cohen d = –0.9), favoring the intervention group. These significantly higher strength values in the intervention group were also present at 6 months, with a between-group difference in quadriceps strength of 1.01 N·m/kg (P < .001; Cohen d = –1.3) and in hamstring strength of 0.35 N·m/kg (P < .001; Cohen d = –0.6).

Graft Laxity

As shown in Figure 3A, laxity was substantially the same at 3 months between the 2 groups (0.38 ± 1.19 vs 0.38 ± 1.90 mm, respectively; P = .98; Cohen d = 0.005). However, at 6 months (Figure 3B), laxity was increased in the control group versus the intervention group (0.58 ± 1.65 vs 0.44 ± 1.20 mm, respectively; P = .62; Cohen d = 0.09). Yet, in both groups, the results were not significant at 3 and 6 months.

Figure 3.

Comparison of laxity at (A) 3 and (B) 6 months in the intervention and control groups (the width of the plots indicates the frequency with which these values occur). CKC, closed kinetic chain; OKC, open kinetic chain.

Discussion

The results show that the rehabilitation program that combined CKC exercise with early OKC exercise for the quadriceps and hamstring seemed to lead to significantly higher quadriceps and hamstring strength at 3 and 6 months on isokinetic testing compared with a rehabilitation program exclusively carried out with CKC exercise. Muscle assessments have shown that OKC exercise with resistance is more effective than CKC exercise alone for quadriceps and hamstring strength recovery. There was no significant increased graft laxity with combined CKC and OKC exercises.

Consistent with these results, other studies have shown that OKC exercise with CKC exercise significantly improved quadriceps strength.^1,4,11,29 However, this study highlights the benefits of OKC exercise on the hamstring strength symmetry index. For return to sport, the hamstring strength symmetry index is a decisive value^37,38 and was not considered by previous researchers. Also, Grondin et al¹² showed that the hamstring strength symmetry index could be added to slightly increase the prediction of return to running. In addition, Krzeminska and Czamara¹⁸ highlighted that restoring the hamstring strength symmetry index and hamstring/quadriceps ratio can reduce the risk factor for ACL graft ruptures. As with Kang et al¹⁵ and Morrissey et al,³⁰ the increase in applied and controlled loads to the quadriceps and hamstring showed similar effects to those in our intervention group. Quadriceps and hamstring muscle function after an ACL injury appear to be critical factors in a patient’s ability to cope with the injury process.⁴⁶ Therefore, it is very important to recover strength in the quadriceps and hamstring. These results support the theory that progressive training of the quadriceps and hamstring with OKC exercise facilitates the recovery of muscle strength at different times for return to sport.

At 3 and 6 months, most patients had started running, jumping, agility exercises, and specific sport activities, which may have influenced the results in the 2 groups as well. In the control group, the LSI for the quadriceps and the LSI for the hamstring were far from recommended values at 3³⁷ and 6 months,^22,32 while those in the intervention group were close. Indeed, at 3 and 6 months, a difference of 29.2% was noted in the LSI for the quadriceps and of 21.8% and 9.5% in the LSI for the hamstring at 3 and 6 months, respectively. Similar differences in the PT/BW were observed at 3 and 6 months for quadriceps and hamstring strength. However, analysis of the results showed moderate effect sizes for the LSI and PT/BW of the hamstring at 6 months after ACLR.

Beynnon et al^2,3 found that CKC and OKC exercises produced similar ACL strain forces, and in the present study, there was no significant difference in tibial translation between the groups at 3 or 6 months. These findings are consistent with previous studies that showed that both CKC and OKC exercises can be safely implemented in an ACL rehabilitation program in the early phase without restricting the range of motion.^{1,4,25,29,30,40} However, Heijne and Werner¹³ concluded that the early introduction of OKC exercise of the quadriceps engendered greater anterior translation after ACLR with a hamstring tendon graft compared with a bone–patellar tendon–bone graft. However, their rehabilitation protocol of OKC exercise did not include strengthening sessions on an isokinetic machine with seated leg curls but only leg extension on a quadriceps machine. Therefore, the 2 protocols are not comparable, which may explain the differences in the LSI and graft laxity between the 2 studies. Contrary to Heijne and Werner,¹³ early OKC exercise for hamstring strengthening was introduced in a concentric contraction mode. This mode of exercise could have had a role in less anterior tibial translation. Indeed, Blackburn et al^5,6 showed that isometric concentric strengthening increases hamstring stiffness and that stiffness decreases anterior tibial translation. Joint compression increases, which lead to joint stiffening, improve joint stability in the anterior position^20,21,24,44 and reduce graft strain.

Limitations

In this study, standardization and compliance of the control group could not be controlled. The intervention group was derived from the same rehabilitation center and underwent rehabilitation after ACLR according to the same standardized protocol. The patients in the control group underwent their rehabilitation at other centers, according to Quelard et al.³⁴ However, it was not possible to randomize and perform blinded testing on the patients of the 2 groups and the evaluators. In addition, the time from injury to surgery, the time from surgery to strength testing, meniscal procedures, sex, mechanisms of injury, and rehabilitation before surgery may be parameters that influence the initial and final strength assessments.

Conclusion

The current results indicated the potential benefits of early OKC exercise at 6 months postoperatively. This study is consistent with previous literature that examined similar protocols and supports current recommendations that OKC exercise should be introduced at an early stage. These results highlight several perspectives that would be interesting to consider in the future, particularly by linking with psychological parameters that are also involved in the decision-making process as patients progress toward recovery.

Footnotes

Acknowledgment

The authors thank Saphia Issaouni, Elodie Boisselier, Cindy Lelievre, Sandra Domrane, Alexandra Maggio, Illéna Maggio, Christelle Zerrougui, Salima Loeillet, and all team members at Clinique de Domont.

Final revision submitted February 4, 2023; accepted March 9, 2023.

The authors declared that there are no conflicts of interest in the authorship and publication of this contribution. AOSSM checks author disclosures against the Open Payments Database (OPD). AOSSM has not conducted an independent investigation on the OPD and disclaims any liability or responsibility relating thereto.

Ethical approval for this study was obtained from Clinique de Domont (No. PCE-06.18-038).
