Concurrent JAK2-Positive Myeloproliferative Disorder and Chronic Myelogenous Leukemia: A Novel Entity? A Case Report With Review of the Literature

Abstract

JAK2 V617F mutation and BCR-ABL translocation have been considered to be mutually exclusive. However, many cases where both hits coexisted have been reported. We have personally managed a case too. We believe this hybrid entity is underdiagnosed. Thus, we decided to shed light on this “double hit” disease to improve its diagnosis and optimize its treatment. We reviewed the English literature in PubMed since JAK2 discovery. We found 33 cases reported so far. We summarized patient characteristics and analyzed possible interactions between JAK2 and BCR-ABL clones.

Keywords

myeloproliferative disorder chronic myelogenous leukemia JAK2 mutation BCR-ABL translocation

Introduction

Chronic myelogenous leukemia (CML) and Philadelphia-negative myeloproliferative disorders (MPD) are common hematologic diseases. The prevalence of CML is 1 in 17 000. Polycythemia vera (PV) with a prevalence of 44 to 57 per 100 000 and essential thrombocytosis (ET) with a prevalence of 38 to 57 per 100 000 are much more common than primary myelofibrosis (PMF), which has a prevalence of 4 to 6 per 100 000.¹ In CML, hybrid BCR-ABL gene as a result of translocation (9,22) encodes a fusion protein that leads to activation of ABL tyrosine kinase and subsequent uncontrolled production of mature and maturing granulocytes. In Philadelphia-negative MPD, mutated Janus kinase 2 (JAK2) has increased kinase activity. It leads to proliferation of progenitors independently of cytokine stimulation. JAK2 V617F mutation is present in around 95% of PV and 50% of ET and PMF cases. BCR-ABL translocation and JAK2 V617F mutation have been considered to be mutually exclusive. However, several cases of JAK2 mutation coexisting with CML have been reported. In the pre-JAK2 era, it was difficult to confirm the coexistence of CML and Philadelphia-negative MPD due to lack of a marker for the latter. The discovery of JAK2 V617F mutation in 2005 provided the opportunity to document concomitant Philadelphia-positive and Philadelphia-negative MPD with more certainty. We used PubMed to conduct a review of cases published in English where JAK2-positive MPD and CML coexisted. Obviously, the cases were published post JAK2 discovery in 2005. We are also reporting a case that we have personally diagnosed and treated.

Results

We found 33 cases of concomitant JAK2-positive MPD and CML. Patient characteristics are shown in Table 1. We have also personally managed a case of PMF and CML.

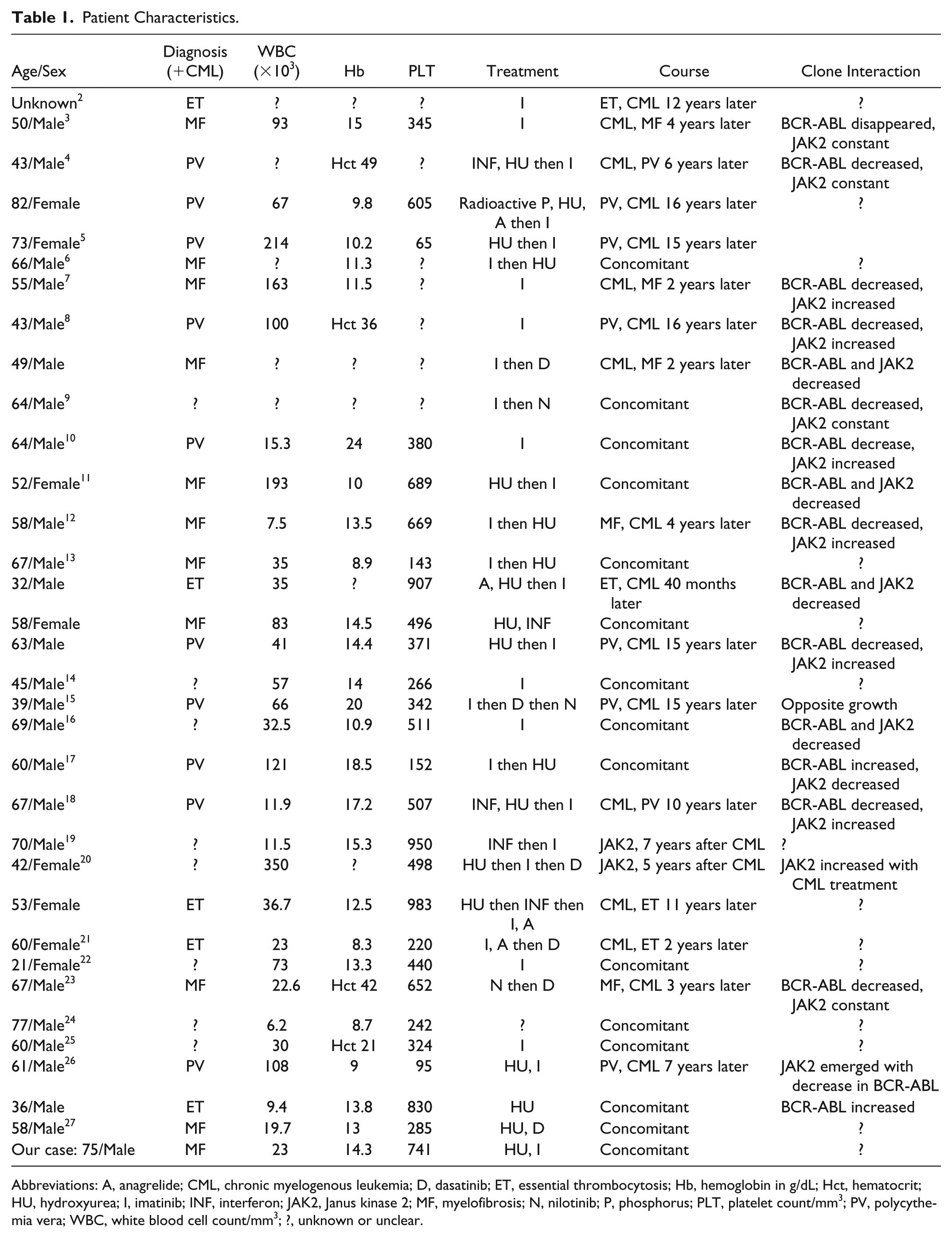

Table 1.

Patient Characteristics.

Age/Sex	Diagnosis (+CML)	WBC (×10³)	Hb	PLT	Treatment	Course	Clone Interaction
Unknown²	ET	?	?	?	I	ET, CML 12 years later	?
50/Male³	MF	93	15	345	I	CML, MF 4 years later	BCR-ABL disappeared, JAK2 constant
43/Male⁴	PV	?	Hct 49	?	INF, HU then I	CML, PV 6 years later	BCR-ABL decreased, JAK2 constant
82/Female	PV	67	9.8	605	Radioactive P, HU, A then I	PV, CML 16 years later	?
73/Female⁵	PV	214	10.2	65	HU then I	PV, CML 15 years later
66/Male⁶	MF	?	11.3	?	I then HU	Concomitant	?
55/Male⁷	MF	163	11.5	?	I	CML, MF 2 years later	BCR-ABL decreased, JAK2 increased
43/Male⁸	PV	100	Hct 36	?	I	PV, CML 16 years later	BCR-ABL decreased, JAK2 increased
49/Male	MF	?	?	?	I then D	CML, MF 2 years later	BCR-ABL and JAK2 decreased
64/Male⁹	?	?	?	?	I then N	Concomitant	BCR-ABL decreased, JAK2 constant
64/Male¹⁰	PV	15.3	24	380	I	Concomitant	BCR-ABL decrease, JAK2 increased
52/Female¹¹	MF	193	10	689	HU then I	Concomitant	BCR-ABL and JAK2 decreased
58/Male¹²	MF	7.5	13.5	669	I then HU	MF, CML 4 years later	BCR-ABL decreased, JAK2 increased
67/Male¹³	MF	35	8.9	143	I then HU	Concomitant	?
32/Male	ET	35	?	907	A, HU then I	ET, CML 40 months later	BCR-ABL and JAK2 decreased
58/Female	MF	83	14.5	496	HU, INF	Concomitant	?
63/Male	PV	41	14.4	371	HU then I	PV, CML 15 years later	BCR-ABL decreased, JAK2 increased
45/Male¹⁴	?	57	14	266	I	Concomitant	?
39/Male¹⁵	PV	66	20	342	I then D then N	PV, CML 15 years later	Opposite growth
69/Male¹⁶	?	32.5	10.9	511	I	Concomitant	BCR-ABL and JAK2 decreased
60/Male¹⁷	PV	121	18.5	152	I then HU	Concomitant	BCR-ABL increased, JAK2 decreased
67/Male¹⁸	PV	11.9	17.2	507	INF, HU then I	CML, PV 10 years later	BCR-ABL decreased, JAK2 increased
70/Male¹⁹	?	11.5	15.3	950	INF then I	JAK2, 7 years after CML	?
42/Female²⁰	?	350	?	498	HU then I then D	JAK2, 5 years after CML	JAK2 increased with CML treatment
53/Female	ET	36.7	12.5	983	HU then INF then I, A	CML, ET 11 years later	?
60/Female²¹	ET	23	8.3	220	I, A then D	CML, ET 2 years later	?
21/Female²²	?	73	13.3	440	I	Concomitant	?
67/Male²³	MF	22.6	Hct 42	652	N then D	MF, CML 3 years later	BCR-ABL decreased, JAK2 constant
77/Male²⁴	?	6.2	8.7	242	?	Concomitant	?
60/Male²⁵	?	30	Hct 21	324	I	Concomitant	?
61/Male²⁶	PV	108	9	95	HU, I	PV, CML 7 years later	JAK2 emerged with decrease in BCR-ABL
36/Male	ET	9.4	13.8	830	HU	Concomitant	BCR-ABL increased
58/Male²⁷	MF	19.7	13	285	HU, D	Concomitant	?
Our case: 75/Male	MF	23	14.3	741	HU, I	Concomitant	?

Abbreviations: A, anagrelide; CML, chronic myelogenous leukemia; D, dasatinib; ET, essential thrombocytosis; Hb, hemoglobin in g/dL; Hct, hematocrit; HU, hydroxyurea; I, imatinib; INF, interferon; JAK2, Janus kinase 2; MF, myelofibrosis; N, nilotinib; P, phosphorus; PLT, platelet count/mm³; PV, polycythemia vera; WBC, white blood cell count/mm³; ?, unknown or unclear.

The patient is a 75-year-old male who presented to our clinic in 2017 with progressive weight loss over prior 2 years, night sweats, pruritus, early satiety, and left upper quadrant pain. Physical examination was pertinent for hepatosplenomegaly. His white blood cell (WBC) count was 23 200 cells/mm³ with 92% neutrophils, hemoglobin 14.3 g/dL, and platelet count 741/mm³. He had no blasts in peripheral blood. Per chart review, we noted that he had started to develop neutrophilia and thrombocytosis in 2013 and 2014, respectively. Quantitative reverse transcription polymerase chain reaction was positive for both b2a2 and b3a2 transcripts at 2.1% and 1.2%, respectively. Imatinib was started. Eight weeks later, WBC count was 16.8 cells/mm³, hemoglobin 14.5 g/dL, platelet count 649/mm³, and reverse transcription polymerase chain reaction negative for BCR-ABL transcripts. The fact that the patient had complete molecular response without hematologic response triggered further workup. JAK2 V617F mutation was checked in peripheral blood and was positive. Erythropoietin was low at 1.3 mIU/mL. Examination of the bone marrow showed hypercellularity (90%) with myeloid/erythroid ratio of 7.7, proliferation of atypical megakaryocytes, <1% blasts, and widespread grade 2 reticulin fibrosis. No BCR-ABL translocation was detected by fluorescence in situ hybridization. DIPSS (Dynamic International Prognostic Scoring System) Plus score was 1. Myelofibrosis mutational profile analysis was not available. Hydroxyurea was added on top of imatinib (Figure 1).

Figure 1.

Clinical course.

Including our case, 11 patients had PMF, 10 had PV, and 5 had ET. In 8 cases, the exact nature of the myeloproliferative disorder was not clear. MPD preceded CML in 10 cases, CML preceded MPD in 9 cases, and both were diagnosed concomitantly in 15 cases. Interestingly, when MPD preceded CML, the mean time interval between the diagnoses of the 2 entities was 10.6 years compared with 5.4 years when CML preceded MPD. Interaction between JAK2 mutation and BCR-ABL transcripts levels varies. In most cases, JAK2 and BCR-ABL levels moved in opposite directions. In the remaining cases, JAK2 level decreased or remained constant while BCR-ABL level decreased.

Discussion

BCR-ABL transcripts have been detected at very low levels in healthy persons without clinical features of CML. The amount of BCR-ABL mRNA present in healthy individuals ranged from 5 to 20 copies/5 × 10⁷ to 10⁸ WBCs.²⁸ Our patient had BCR-ABL transcripts level well above this threshold. We believe he had concomitant PMF and CML. As mentioned above, JAK2 mutation and BCR-ABL translocation have been considered to be mutually exclusive. However, several cases of coexistence of both hits have been reported. The prevalence of this “dual disease” is unknown. However, we think this entity is underdiagnosed since it is rarely suspected and checked. Few studies showed surprisingly elevated proportion of this “double hit” in CML patients. In one study, 314 patients with CML were screened for the presence of JAK2 V617F mutation. The latter was present in 8 patients accounting for 2.5%.²⁹ Two studies done in Karachi, Pakistan, showed proportions of CML patients harboring JAK2 V617F mutation as high as 26.7% and 44%.^30,31

Clinically, emergence of MPD in CML patients may be mistaken for relapse or drug resistance. MPD must be suspected in CML with atypical course such as erythrocytosis or progressive or persistent thrombocytosis or neutrophilia while CML is in remission. Development of CML must be considered in cases of JAK2-positive MPD with CML-like features such as leukocytosis or progressive splenomegaly years after clinical stability.

In Figure 2, we show possible interactions between JAK2 mutation and BCR-ABL transcripts levels and corresponding clonal origin. The model where BCR-ABL clone is a subclone of JAK2 one was demonstrated in a patient with CML and PV. BCR-ABL translocation and JAK2 mutation were present in most erythroid and myeloid colonies. Few colonies harbored JAK2 mutation only, and none had BCR-ABL transcripts alone.⁸ In another case, JAK2 mutation was present in CFU-GM and CFU-E compartments. However, BCR-ABL translocation was present in few CFU-GM colonies and absent in CFU-E.⁶ In 2 patients with PV and CML³² and a patient with PMF and CML,²³ all hematopoietic colonies had JAK2, some had both JAK2 and BCR-ABL, and none had BCR-ABL alone. The model where JAK2 clone is a subclone of BCR-ABL one was also demonstrated. A patient with CML with positive JAK2 was treated with imatinib. Both JAK2 and BCR-ABL disappeared with treatment.¹⁶ The model where JAK2 and CML clones are distinct was also shown. BCR-ABL was absent in endogenous erythroid colonies formed without erythropoietin. Progressive decrease in BCR-ABL was associated with JAK2 clone expression.¹⁰

Figure 2.

Possible JAK2 and BCR-ABL interactions and clones.

As mentioned above, it took around a decade in average for CML to occur after MPD. However, MPD followed CML in about 5.4 years in average. The difference between time intervals is not clear.

Conclusion

Several cases of concomitant JAK2 MPD and CML have been reported. This hybrid disease is probably more frequent than expected because it is underdiagnosed. Providers must suspect this hybrid disease in atypical clinical course to optimize treatment and avoid transformation to acute leukemia. The World Health Organization’s MPD diagnostic criteria must probably be revised to account for the possibility of this “double hit” disease, which might be a novel clinical entity.

Footnotes

Declaration of Conflicting Interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) received no financial support for the research, authorship, and/or publication of this article.

Ethics Approval

Our institution does not require ethical approval for reporting individual cases.

Informed Consent

Verbal informed consent was obtained from the patient for his anonymized information to be published in this article.

ORCID iD

Gilbert Bader

References

Mehta

Wang

Iqbal

Mesa

Epidemiology of myeloproliferative neoplasms in the United States. Leuk Lymphoma. 2014;55:595-600.

Scott

Campbell

Baxter

et al . The V617F JAK2 mutation is uncommon in cancers and in myeloid malignancies other than the classic myeloproliferative disorders. Blood. 2005;106:2920-2921.

Krämer

Reiter

Kruth

et al . JAK2-V617F mutation in a patient with Philadelphia-chromosome-positive chronic myeloid leukaemia. Lancet Oncol. 2007;8:658-660.

Inami

Inokuchi

Okabe

et al . Polycythemia associated with the JAK2V617F mutation emerged during treatment of chronic myelogenous leukemia. Leukemia. 2007;21:1103-1104.

Mirza

Frantz

Clarke

Voth

Turner

Transformation of polycythemia vera to chronic myelogenous leukemia. Arch Pathol Lab Med. 2007;131:1719-1724.

Bornhäuser

Mohr

Oelschlaegel

et al . Concurrent JAK2(V617F) mutation and BCR-ABL translocation within committed myeloid progenitors in myelofibrosis. Leukemia. 2007;21:1824-1826.

Hussein

Bock

Seegers

et al . Myelofibrosis evolving during imatinib treatment of a chronic myeloproliferative disease with coexisting BCR-ABL translocation and JAK2 V617F mutation. Blood. 2007;109:4106-4107.

Bocchia

Vannucchi

Gozzetti

et al . Insights into JAK2-V617F mutation in CML. Lancet Oncol. 2007;8:864-866.

Kim

Shin

Kim

et al . Simultaneous occurrence of the JAK2V617F mutation and BCR-ABL gene rearrangement in patients with chronic myeloproliferative disorders. Leuk Res. 2008;32:993-995.

10.

Cambier

Renneville

Cazaentre

et al . JAK2V617F-positive polycythemia vera and Philadelphia chromosome-positive chronic myeloid leukemia: one patient with two distinct myeloproliferative disorders. Leukemia. 2008;22:1454-1455.

11.

de Conchon

MRM

Costa

Novaes

MMY

et al . Simultaneous detection of JAK2 V617F mutation and BCR-ABL translocation in a patient with chronic myelogenous leukemia. Int J Hematol. 2008;88:243-345.

12.

Jallades

Hayette

Tigaud

et al . Emergence of therapy-unrelated CML on a background of BCR-ABL-negative JAK2V617F-positive chronic idiopathic myelofibrosis. Leuk Res. 2008;32:1608-1610.

13.

Pardini

Fozza

Contini

et al . A case of coexistence between JAK2V617F and BCR/ABL. Eur J Haematol. 2008;81:75-76.

14.

Hussein

Bock

Theophile

et al . Chronic myeloproliferative diseases with concurrent BCR-ABL junction and JAK2V617F mutation. Leukemia. 2008;22:1059-1062.

15.

Pingali

Mathiason

Lovrich

RS.

Emergence of chronic myelogenous leukemia from a background of myeloproliferative disorder: JAK2V617F as a potential risk factor for BCR-ABL translocation. Clin Lymphoma Myeloma. 2009;9:E25-E29.

16.

Campiotti

Appio

Solbiati

Ageno

Venco

JAK2-V617F mutation and Philadelphia positive chronic myeloid leukemia. Leuk Res. 2009;33:e212-e213.

17.

Bee

Gan

Nadarajan

Latiff

Menaka

A man with concomitant polycythemia vera and chronic myeloid leukemia: the dynamics of the two disorders. Int J Hematol. 2010;91:136-139.

18.

Tefferi

Levitt

Lasho

Knudson

Ketterling

RP.

Postimatinib therapy emergence of a new JAK2V617F clone and subsequent development of overt polycythemia vera in a patient with chronic myelogenous leukemia. Eur J Haematol. 2010;85:86-87.

19.

Caocci

Atzeni

Orrù

et al . Response to imatinib in a patient with chronic myeloid leukemia simultaneously expressing p190 BCR-ABL oncoprotein and JAK2 V617F mutation. Leuk Res. 2010;34:e27-e29.

20.

Pastore

Schneider

Christ

Hiddemann

Spiekermann

Impressive thrombocytosis evolving in a patient with a BCR-ABL positive CML in major molecular response during dasatinib treatment unmasks as additional JAK2V617F. Exp Hematol Oncol. 2013;2:24.

21.

Lee

Moon

Shin

et al . Two CML patients who subsequently developed features of essential thrombocytopenia with JAK2-V617F mutation while in complete cytogenetic remission after treatment with imatinib mesylate. Int J Hematol. 2013;97:804-807.

22.

Chen

Tong

Chronic myeloid leukemia patient with co-occurrence of BCR-ABL junction and JAK2 V617F mutation. Int J Hematol. 2014;99:87-90.

23.

Yamada

Mahfoudhi

Plo

et al . Emergence of a BCR-ABL translocation in a patient with the JAK2V617F mutation: evidence for secondary acquisition of BCR-ABL in the JAK2V617F clone. J Clin Oncol. 2014;32:e76-e79.

24.

Maerki

Katava

Siegel

Silberberg

Bhattacharyya

PK.

Unusual case of simultaneous presentation of plasma cell myeloma, chronic myelogenous leukemia, and a Jak2 positive myeloproliferative disorder. Case Rep Hematol. 2014;2014:738428.

25.

Hassan

Dogara

Babadoko

Awwalu

Mamman

AI.

Coexistence of JAK2 and BCR-ABL mutation in patient with myeloproliferative neoplasm. Niger Med J. 2015;56:74-76.

26.

Ursuleac

Colita

Adam

Jardan

Ilea

Coriu

The concomitant occurrence of JAK2V617F mutation and BCR/ABL transcript with phenotypic expression—an overlapping myeloproliferative disorder or two distinct diseases? Case report. J Med Life. 2013;6:34-37.

27.

Park

Chi

Cho

et al . Two cases of myeloproliferative neoplasm with a concurrent JAK2 V617F mutation and BCR/ABL translocation without chronic myelogenous leukemia phenotype acquisition during Hydroxyurea treatment. Ann Lab Med. 2013;33:229-232.

28.

Biernaux

Loos

Sels

Huez

Stryckmans

Detection of major BCR-ABL gene expression at a very low level in blood cells of some healthy individuals. Blood. 1995;86:3118-3122.

29.

Pieri

Spolverini

Scappini

et al . Concomitant occurrence of BCR-ABL and JAK2V617F mutation. Blood. 2011;118:3445-3446.

30.

Pahore

Shamsi

Taj

et al . JAK2V617F mutation in chronic myeloid leukemia predicts early disease progression. J Coll Physicians Surg Pak. 2011;21:472-475.

31.

Tabassum

Saboor

Ghani

Moinuddin

Frequency of JAK2 V617F mutation in patients with Philadelphia positive chronic myeloid leukemia in Pakistan. Pak J Med Sci. 2014;30:185-188.

32.

Wang

Tripodi

Kremyanskaya

et al . BCR-ABL1 is a secondary event after JAK2V617F in patients with polycythemia vera who develop chronic myeloid leukemia. Blood. 2013;121:1238-1239.
