Abstract

A series of bioactive glass scaffolds doped with SrO or ZnO (0, 5, and 10 mol%) were synthesized by the foam replica and melting method. The thermodynamic evolution, phase composition, microstructure, ion release, in vitro bioactivity, and oxygen density of the scaffolds were characterized. The proliferation of murine long bone osteocyte Y4 cells was studied by cell culture. The survival rate of the BGs evaluated the antibacterial activity and Escherichia coli strains in co-culture. The results indicated that the process window decreases with the increase of dopants. All the samples have a pore structure size of 200–400 μm. When the scaffolds were immersed in simulated body fluid for 28 days, hydroxyapatite formation was not affected, but the degradation process was retarded. The glass network packing and ionic radii variations of the substitution ions control surface degradation, glass dissolution, and ion release. MTT results revealed that 5Sr-BG had a significant effect on promoting cell proliferation and none of the BGs were cytotoxicity. Sr-BGs and Zn-BGs exhibited significantly inhibited growth against E. coli bacterial strains. Generally, these results showed the 5Sr-BG scaffold with high vitro bioactivity, cell proliferation, and antibacterial property is an important candidate material for bone tissue regeneration and repair.

Keywords

Bioactive glass scaffolds strontium zinc biocompatibility antibacterial activity

Introduction

Bones, as structure, are composed of bone cells (osteoblasts, osteoclasts, and so on), bone matrix, and inorganic substance.¹ Large bone defects or functional disorders were caused by injuries, tumors, congenital diseases, sports accidents, osteoporosis, and arthritis.² The growth rate of bone tissue was abnormally slow, and it was challenging to treat bone defects and other related diseases through self-repair.³ The major challenges of the clinical field are damage caused by bone defects and subsequent infection. Current treatments based on autogenous bone grafts have some limitations. Therefore, it is urgent to develop artificial bone graft materials with bone tissue repair funtion.⁴

In bone repair, bioactive glasses (BGs) have been developed as bone-filler materials since they are bioactive and biodegradable.⁵ The first commercial bioactive glass (BG), Bioglass^® 45S5, invented by Hench et al.⁶ have been developed and successfully applied in orthopedics bone defect repair, scaffolds, small bone grafting, bioactive coatings, and periodontal reconstruction. Due to their amorphous structure, bioactive glasses allow greater flexibility in composition, unlike crystals that are dependent on specific stoichiometry. This makes it possible to make bioactive glass with different physiological activity and therapeutic properties by incorporating varying concentrations and species of ions.⁷ Since ion release, glass degradation, and apatite formation are the critical indicators for the clinical use of bioactive glass, researchers have conducted much research on them.⁸ The relationship between the ion release, glass structure, and apatite formation was revealed by the analysis of bioactive glasses in various dissolution media (Tris buffer,⁹ simulated body fluids (SBF),¹⁰ or cell culture medium¹¹) combined with a variety of test methods.

Bone repair materials should not only promote osteocyte formation and osteogenic differentiation but also can inhibit bacterial growth. The clinical risk of bacterial infection with open bone injuries is high, up to 20%, while the risk of infection with closed fractures is approximately 3%–8%. The bacteria can cause serious bone infections that can even require amputation. Therefore, bone infection has always been a challenge in clinical treatment.¹² Making bioactive glasses have antibacterial properties is an effective method to solve this problem.¹³

The element strontium (Sr) and calcium (Ca) have similar chemical and biological properties.¹⁴ Strontium found in the bone, muscle, liver, and physiological fluid has antibacterial, augment osseointegration, and stimulating osteoblastic proliferation.¹⁵ Extensive researches on strontium in bioactive glasses have been conducted by many researchers, confirming the benefits of strontium doped bioactive glasses. Many studies indicated the positive influence of strontium on antibacterial efficiency,¹⁶ stimulating bone formation,¹⁷ treating osteoporosis,¹⁸ improving bone density, and reducing the risk of fracture.¹⁹ Other reports indicated that strontium reduces biological activity by inhibiting or delaying calcium phosphate layer formation.^20
–22

Zinc (Zn) is necessary for bone growth in the human body. Zinc can promote the growth, proliferation and differentiation of bone cells, and it also promotes DNA replication, protein production, and enzyme production.^23,24 Zinc is ideal for developing bioactive glass because of its antibacterial and angiogenesis properties.²⁵ Adding zinc element to bioactive glass matrix can produce higher chemical stability and densification.²⁶ Zinc can inhibit the transformation of amorphous apatite to crystalline hydroxyapatite, hindering the nucleation rate of apatite in SBF solution.²⁷

The present study’s objective was to create porous bioactive glasses scaffolds using either strontium and zinc in place of calcium in the bioactive glass and study the effects of substitution elements on physicochemical properties, ion release, and bioactivity bioactive glass. The cell viability and proliferation were detected by Thiazolyl Blue Tetrazolium Bromide assay (MTT). The antimicrobial activity of the scaffolds was evaluated by the inhibition of E. coli (ATCC 25922).

Materials and experiments

Materials

Na₂CO₃, K₂CO₃, MgCO₃, CaCO₃, SiO₂, H₃BO₃, NaH₂PO₄, SrCO₃, ZnO (analytical grade, Sinopharm Chemical Reagent Co., Ltd, China) were used for the synthesis of BGs as a source of Na₂O, K₂O, MgO, CaO, B₂O₃, SiO₂, P₂O₅, SrO, ZnO in BGs composition. NaCl, KCl, K₂HPO₄, MgCl₂.6H₂O, CaCl₂, Na₂SO₄, (HOCH₂)₃CNH₂, and HCl (analytical grade, Sinopharm Chemical Reagent Co., Ltd, China) were used to prepare the SBF. Polyurethane foam was provided by Hangzhou Hangmei Foam Co., Ltd, China.

Preparation of bioactive glass scaffolds

The elemental composition of bioactive glass (BG) is shown in Table 1. The mixture was heated and melted in a muffle furnace in a platinum crucible for 2 h at 1500°C. Uniform and transparent glass were obtained and then crushed and ground to obtain particles with particle size less than 30 μm.

Table 1.

Elemental compositions of the various BGs (mol%).

Glass	Na₂O	K₂O	MgO	CaO	SiO₂	B₂O₃	P₂O₅	ZnO	SrO
BG	6	8	8	22	18	36	2	0	0
5Sr-BG	6	8	8	17	18	36	2	0	5
10Sr-BG	6	8	8	12	18	36	2	0	10
5Zn-BG	6	8	8	17	18	36	2	5	0
10Zn-BG	6	8	8	12	18	36	2	10	0

The slurry was prepared by stirring bioactive glass particles (53 wt%), anhydrous ethanol (44 wt%), and ethyl cellulose (3 wt%) at room temperature. Polyurethane foam with a porosity of 50 holes per inch was dipped into the slurry. The foam was dried at room temperature for 24 h, and heated at 400°C for 1.5 h to decompose the template foam, then heated at 570°C for 2 h to form a dense 3D scaffold network structure.

Preparation of SBF

The SBF immersion method was used to evaluate the synthesized bioactivity scaffolds in vitro. According to Kokubo’s et al.²⁸ method, the SBF solution was prepared by chemical reagents.

Degradation and mineralization of bioactive glass scaffolds in SBF

The degradation of scaffolds in SBF was used to characterize the weight loss of the scaffolds.²⁹ The scaffolds were immersed in SBF at 37°C (0.001 g\mL) and completely replaced with a fresh medium at a fixed time point. After the scaffolds were removed from the SBF solution, they were rinsed with anhydrous ethanol and deionized water three times, dried at 90°C for 24 h, and weighed to calculate the mass loss. The reacted scaffolds’ weight loss was defined as (Wo − Wt)/Wo, where Wo was the initial (unreacted) mass and Wt was the mass at an immersion time t. The concentrations of the ions released from the scaffolds into the SBF solution were measured using inductively coupled plasma optical emission spectrometry (Perkin Elmer Model Optima 8000 ICP, USA). The scaffolds were soaking for 0.125, 0.25, 0.375, 0.5, 1, 3, 7, 14, and 28 days.

Density measurements and calculation

Density ( $ρ_{g l a s s}$ ) was measured on glass monoliths (5 × 5 × 20 mm) in a density balance (Sartorius SQP). The estimated error limits are ±0.001 g/cm³.

Oxygen density ( $ρ_{O}$ ) can be used to evaluate the BG network’s compactness.^30,31 It was calculated by dividing the mass of oxygen atoms present in one mole of glass, $m_{O}$ , which was constant in both glass series by molar volume of the glass, $V_{m}$ :

ρ_{O} = m_{O} / V_{m}

(1)

m_{O} = M_{O} \times (\begin{array}{l} 2 x_{N a_{2} O} + x_{K_{2} O} + x_{M g_{2} O} + x_{C a O} \\ + 2 x_{S i O_{2}} + 3 x_{B_{2} O_{3}} + 5 x_{P_{2} O_{5}} + x_{S r O} + x_{Z n O} \end{array})

(2)

\begin{array}{l} V_{m} = (x_{N a_{2} O} M_{N a_{2} O} + x_{K_{2} O} M_{K_{2} O} + x_{M g_{2} O} M_{M g_{2} O} \\ + x_{C a O} M_{C a O} + x_{S i O_{2}} M_{S i O_{2}} + x_{B_{2} O_{3}} M_{B_{2} O_{3}} \\ + x_{P_{2} O_{5}} M_{P_{2} O_{5}} + x_{S r O} M_{S r O} + x_{Z n O} M_{Z n O}) / ρ_{g l a s s} \end{array}

(3)

where $x_{N a_{2} O}$ , $x_{K_{2} O}$ , $x_{M g_{2} O}$ , $x_{C a O}$ , $x_{S i O_{2}}$ , $x_{B_{2} O_{3}}$ , $x_{P_{2} O_{5}}$ , $x_{S r O}$ , and $x_{Z n O}$ are the molar fractions of Na₂O, K₂O, Mg₂O, CaO, SiO₂, B₂O₃, P₂O₅, SrO, and ZnO, respectively; M_O is the atomic mass of oxygen; $M_{N a_{2} O}$ , $M_{K_{2} O}$ , $M_{M g_{2} O}$ , $M_{C a O}$ , $M_{S i O_{2}}$ , $M_{B_{2} O_{3}}$ , $M_{P_{2} O_{5}}$ , $M_{S r O}$ , and $M_{Z n O}$ are the molecular masses of Na₂O, K₂O, Mg₂O, CaO, SiO₂, B₂O₃, P₂O₅, SrO, and ZnO, respectively.

Characterization

Simultaneous Differential Scanning Calorimetry (DSC, Netzsch STA449F5) was carried out from room temperature to 1000°C (10°C/min) under Ar flow (20 mL/min) in platinum crucibles. The crystalline phases of the powder samples were analyzed by X-ray diffraction (XRD, Bruker D8). Scanning electron microscopy (SEM, Hitachi S4800) was used to examine the surface morphology of the specimens. Elemental analysis was performed by Energy Dispersive Spectrometer (EDS, Oxford INCA X-MAX).

MTT assay

Biocompatibility of the bioactive glass in vitro was investigated by MLO-Y4 (murine long bone osteocyte Y4) cells. The initial density of MLO-Y4 was 1 × 10⁵ cells/scaffold, and they were cultured on 5 × 5 × 5 mm scaffolds placed in 96-well culture plates. MLO-Y4 cells were grown in Dulbecco’s modified Eagle’s Medium (DMEM) containing L-Glutamine 2 mM, 1 mM sodium pyruvate, streptomycin, and 10% (v/v) FBS (Fetal Bovine Serum-Invitrogen). The cells for the MTT assay were cultured in 96-well plates containing the sample eluates. The cell culture was conducted at 37°C ± 1°C, 90% ± 5% humidity, and 5% ± 1% CO₂/air in an incubator. The cells were mixed with eluent for 1 and 3 days, and each sample was repeated three times. The scaffolds and 0.5 mg/mL of MTT (Sigma-Aldrich) were cultured at 37°C for the collection of formazans. The MTT medium was discarded after the incubation, and dimethyl sulfoxide (DMSO) was used to dissolve formazan. The outcomes were demonstrated as absorbance per well (minus the optical density of the blank ones) at 495 nm.

In vitro antibacterial activity of the BGs

The antibacterial activities of BG were evaluated by the spread plate method. E. coli (ATCC 25922) was used to evaluate the antibacterial activity of the BG. Disinfect all samples with ultraviolet light lamp for 2 h prior to use. Before the experiment, E. coli were cultured in liquid lysogeny broth (LB) medium and diluted approximately to 1 × 10⁵ mL⁻¹ at 37°C. BG powder and LB medium (10 mg, 0.9 mL) were added to the Eppendorf tube and stirred for 5 min. Then, 0.1 mL bacterial suspension was added to each Eppendorf tube, and cultured for 24 h at 37°C. The solution was diluted continuously 1000 times, then coated with 100 μL suspensions on LB-agar plates, and incubated overnight at 37°C in the dark.³² The bactericidal effect was calculated by calculating the final colony-forming units. The tests were repeated three times.

Statistical analyses

The data (n = 3) were presented as a mean ± SD. One-way analysis of variance was used to characterize the differences between the groups, followed by the Tukey test. Differences were considered to be statistically significant for p < 0.05 (*), p < 0.01 (**), and p < 0.001 (***).

Results and discussion

Physical-chemical characterization results

DTA determined the temperature of glass transition (Tg) and the crystallization temperature (Tc) to study the thermodynamic properties of BGs. BG, 5Sr-BG, 10Sr-BG, 5Zn-BG, and 10Zn-BG showed exothermic peaks at 690°C, 693°C, 695°C, 768°C, 770°C, respectively as shown in Table 2 and Figure 1(a). The Tg and Tc increased with the increase of the substitution amount of Sr and Zn. As a result, the Sr series’ processing window (Tc-Tg) decreased from 143°C to 135°C. By contrast, the processing window of the Zn series increased from 143°C to 209°C. This can be due to the disorder of glass structure caused by the substitution of Sr for Ca.³³ Since ZnO formed [ZnO₄] in bioactive glasses structure entered the glass network, the resulting Tg and Tc of bioactive glass containing ZnO increased.³⁴ Thus, bioactive glass needs a suitable processing window for reprocessing that requires heat treatment, such as coatings, sintered samples, and porous scaffolds.

Table 2.

Characteristic temperatures of BGs.

Sample name	Tg (°C)	Tc (°C)	Tc-Tg
BG	547	690	143
5Sr-BG	556	693	137
10Sr-BG	560	695	135
5Zn-BG	562	768	206
10Zn-BG	561	770	209

Figure 1.

(a) DTA thermograms curves of the different samples, (b) comparative XRD diagrams of the as-synthesized BGs, and (c) SEM images of BG scaffold.

XRD patterns of the BGs powder are presented in Figure 1(b). The results showed a typical glass amorphous peak. The introduction of Sr and Zn has not affected the amorphous character of bioactive glasses samples.

The SEM micrographs in Figure 1(c) display the microstructure of the BG scaffold. As can be seen from SEM analysis, there was no significant difference in microstructures among the five scaffold groups. Consequently, only SEM images of the BG scaffold are shown in Figure 1(c). The scaffolds possess a significantly porous structure with pore sizes of 200–400 μm. High magnification SEM images show that the scaffold’s surfaces are smooth (except particles).

Ions released and mineralization of BGs scaffolds

The weight loss of the reacted scaffolds in SBF at different points is shown in Figure 2. BG’s weight loss was significantly higher, while the weight loss of the remaining samples was smaller. When the tests were over at 28 days, the final weight loss was 24.20% ± 2.1%, 17.57% ± 3.2%, 12.55% ± 2.5%, 14.63% ± 1.8%, and 8.18% ± 1.6%, respectively, for the BG, 5Sr-BG, 10Sr-BG, 5Zn-BG, and 10Zn-BG scaffolds. Assuming that all the calcium was converted to HA and all the boron was released into SBF in the BG sample, the scaffold’s theoretical weight loss is 25.32%. After 28 days of SBF immersion, the BG scaffolds were almost completely converted to HA. The rest of the scaffolds can further convert into HA with prolonged soaking time. SrO can be used as only network modification oxide in the glass structure. Since the charge of SrO is balanced, its introduction does not change the network structure of the glass, forming two tetrahedrons connected by an ionic bond and leading to an increase in the glass’s chemical stability. ZnO can be used as network modification oxide and intermediate oxide in the glass network.³⁵ Part of the function of Zn²⁺ is to make [BO₄] or [SiO₄] replaced by [ZnO₄] charge balance in the glass structure. The other part, Zn²⁺, can be used as a network modifier to improve the chemical stability of glass.³⁶ Incorporating Sr and Zn into the glass will enhance the chemical stability of glass, causing the degradation rate of glass to slow down.

Figure 2.

Weight loss of five groups of scaffolds as a function of immersion time in SBF.

As the soaking time increases, more B, Si, Sr, and Zn ions are released into the SBF solution. When the HA was formed, the concentration of P ions in SBF declined. Figure 3(a) to (f) illustrates the change curves in the concentration of B, Ca, P, Si, Sr, and Zn in the SBF with soaking time up to 28 days. Figure 3(a) shows that the total amount of B released into the SBF solution were 579.3, 547.77, 465.3, 501.37, and 442.4 ppm for BG, 5Sr-BG, 10Sr-BG, 5Zn-BG, and 10Zn-BG. Figure 3(b) shows that Ca concentrations in SBF solution for BG, 5Sr-BG, 10Sr-BG, 5Zn-BG, and 10Zn-BG increased significantly from 60 ppm in the SBF solution to 242.81, 226.83, 191.38, 214.82, and 210.91 ppm on day 1, 3, and 7, as a result of cationic release from the scaffold. These values rapidly decrease on day 7 for BG, 5Sr-BG, 10Sr-BG, 5Zn-BG, day 14 for 10Zn-BGs to about 140.12, 157.35, 159.64, 176.23, and 170.51 ppm, indicating HA was formed on the surface of the scaffold at different growth rates. The trend of Ca for BGs changed due to the formation of the hydroxyapatite layer on the BG scaffolds surface.³⁷ The formation of the hydroxyapatite layer consumed large amounts of Ca ions. Additionally, ion concentration was also related to the formation rate of the hydroxyapatite layer.³⁸

Figure 3.

The variation of elemental concentration in the SBF with soaking time for boron (a), calcium (b), phosphorus (c), silicon (d), strontium (e), zinc (f).

From Figure 3(d), Sr-BGs shows an increase in the amount of Si releases into the solution. The trend was more evident with the increase of Sr content; the opposite was observed for Zn-BGs where Si concentration was lower than BG and decreased with an increase in Zn content. The release amount of Si ions was related to Sr and Zn ionic radius. The ionic radius of Sr²⁺ (118 pm) is larger than that of Ca²⁺ (100 pm), which leads to the looser structure of Sr²⁺ network, thus increasing the ions release of the Sr-BGs. The lower ionic radius of Zn²⁺ (74 pm) concerning Ca²⁺ has the opposite effect.

The release amount of Sr and Zn was related to Sr and Zn’s content in the scaffolds. The Sr and Zn release in the SBF solution was almost two times higher for 10Sr-BG and 10Zn-BG in comparison with 5Sr-BG and 5Zn-BG, respectively (Figure 3(e) and (f)).

Figure 4 shows the XRD patterns of the scaffolds soaked in the SBF solution at different time. After 1 day of soaking in the SBF solution, the XRD pattern indicated the presence of HA on the surface of the BG scaffold (Figure 4(a)) by the appearance of a peak at 33.09° corresponding to (300) plane (according to a reference HA, Ca₁₀(PO₄)₆OH₂ (JCPDS 47-1758)). The peak became more pronounced over soak time. The rest scaffold exhibited an amorphous phase on the day. 5Sr-BG, 10Sr-BG, and 5Zn-BG scaffolds (Figure 4(b)–(d)) are observed a diffraction peak of (300) at 33.09° after soaking 3 days. 10Zn-BG scaffold (Figure 4(e)) is observed a diffraction peak of (300) at 33.09° after soaking 7 days. 10Sr-BG and 5Zn-BG scaffolds appear a diffraction peak of (112) at 31.92°. The XRD results indicated that the scaffolds’ bioactivity reduced with increasing Sr and Zn content in BGs. Zn has a more pronounced effect on the formation of HA compared to Sr.

Figure 4.

The XRD patterns of synthesized BGs after 1, 3, 7, 14, and 28 days soaking in SBF, (a) BG, (b) 5Sr-BG, (c) 10Sr-BG, (d) 5Zn-BG, and (e) 10Zn-BG.

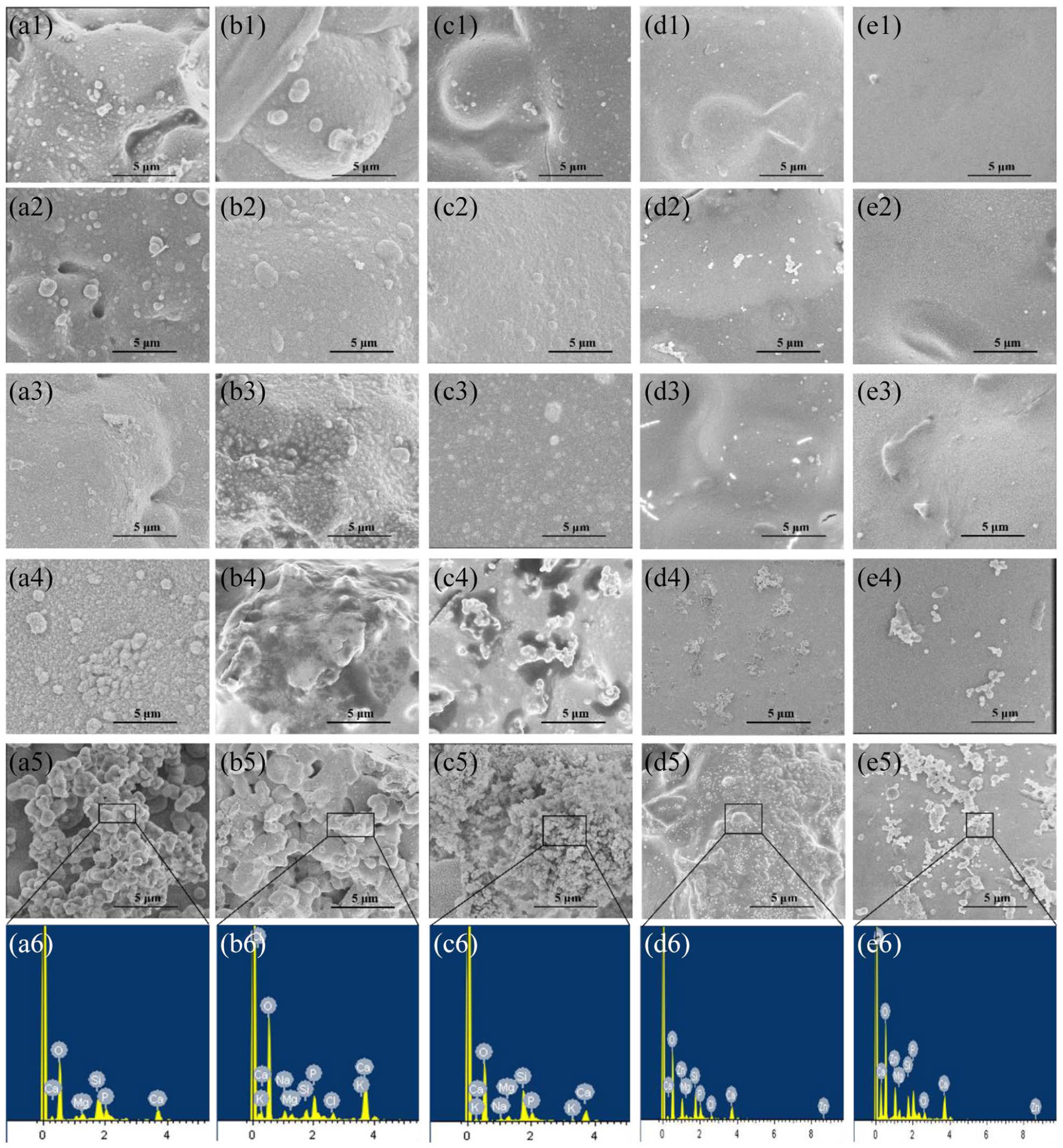

SEM and EDS analysis are carried out for BG (Figure 5(a1)–a6), 5Sr-BG (Figure 5(b1)–(b6)), 10Sr-BG (Figure 5(c1)–(c6)), 5Zn-BG (Figure 5(d1)–(d6)), and 10Zn-BG (Figure 5(e1)–(e6)) scaffolds soaked in the SBF solution for 1, 3, 7, 14, 28 days. The surface of all samples was completely covered with a hydroxyapatite layer after soaking with SBF, which was significantly different from the relatively smooth surface before soaking. Some spherical nuclei of HA were observed on the BG scaffold surface (Figure 5a1). As shown in Figure 5(a2) to (a5), the apatite assembles into sub-micro-spherical aggregates, which further form a dense layer covering the entire scaffold. The rest scaffolds need to be soaked for a longer period for this phenomenon to happen. EDS analysis of the surfaces after SBF solution immersion detected prominent characteristic peaks of Ca, P elements; the Ca/P atomic ratio of 1.60–1.70 was comparable to that for HA.

Figure 5.

SEM images for the BG (a1–a5), 5Sr-BG (b1–b5), 10Sr-BG (c1–c5), 5Zn-BG (d1–d5), and 10Zn-BG (e1–d5) scaffold before soaking in SBF; EDS analysis for the BG (a6), 5Sr-BG (b6), 10Sr-BG (c6), 5Zn-BG (d6), and 10Zn-BG (e6).

The results of ion release, XRD, and SEM confirmed each other. When the Ca ions concentration began to decrease, the hydroxyapatite phase appeared between 1 and 7 days in XRD, and spherical particles appeared in SEM images in the same period. SrO and ZnO could be used as network modifiers to balance charge. This removed cations from the silica network, reduced non-bridged oxygen, and decreased the glass’s biological activity by reducing its dissolution.³⁹ The degradation process of bioactive glass first involved the rapid exchange of Na⁺ and H₃O⁺ ions in the surrounding solution, but this process was hindered by the doping of Sr and Zn ions. The increase of Sr and Zn ions can decrease the release of alkaline earth metal ions (Ca²⁺, Mg²⁺) and alkaline metal ions (Na⁺, K⁺).^27,40 Therefore, the spheroidal particle structure on the sample surface was less evident, and the crystallinity was reduced compared to the BG sample.

Bioactive glass density and oxygen density

Figure 6 shows the variation of the molar volume (a) and oxygen density (b) as a function of CaO substitution by SrO or ZnO. The values showed an increasing molar volume with increasing Sr substitution and a decreasing molar volume with increasing Zn substitution. The trend of oxygen density is opposite to that of molar density as SrO and ZnO substitute CaO.

Figure 6.

The variation of molar volume (a) and oxygen density (b) as a function of CaO substitution SrO or ZnO in Sr-BGs and Zn-BGs (mol%), respectively.

The change of ion radius of substituted elements significantly affects the packing of the silicate network (molar volume and oxygen density) of the glass.⁴¹ When smaller ions are replaced by larger ions (Sr²⁺ instead of Ca²⁺), the glass network expands with a larger molar volume and a decreased oxygen density. On the contrary, when Ca²⁺ replaced Zn²⁺, the glass network becomes denser, the molar volume becomes smaller, and the oxygen density increases.

Oxygen density is the mass of oxygen atoms per unit volume and is comparable for different glass systems where the number of oxygen atoms is constant.⁴² In this study, strontium oxide or zinc oxide was used instead of calcium oxide on a molar basis, and thus the number of oxygen atoms remained the same. The results showed that a more disrupted silicate network contributes to ion release, then the Si ion release rate of strontium-replaced glass was faster because the network was more extensive (caused by larger modified ions), making it easier to permeate water and ion exchange. On the other hand, the Si ion release rate from zinc-substituted glasses was slow because the network was more compact, impeding water molecules’ penetration.⁴³ This indicated that Si ion release in the bioactive glass is directly controlled by the packing of silicate networks via modified ion radii.

In vitro evaluation of cell proliferation and antibacterial properties

To make a constant comparison in MLO-Y4 cells’ proliferation on various BGs scaffolds, MTT assay is conducted (Figure 7). As can be seen from the results, the growth of cells increased with the change of culture time. MTT results revealed that 5Sr-BG had a higher effect on cell proliferation than BG, while the remaining samples had no significant effect on cell proliferation. A small amount of strontium doping can promote cell proliferation. Zinc doping significantly inhibited cell proliferation. Inhibition of cell proliferation depends not only on the amount of zinc oxide added but also on the composition of glass and its degradation rate.⁴⁴ None of the scaffolds was obvious toxicity to cells. The cell proliferation was no apparent differences (p > 0.05) between the four types of scaffolds and BG scaffolds.

Figure 7.

MTT after 1 or 3 days of MLO-Y4 cells cultured.

The spread plate method was used to evaluate the antibacterial activity of BGs against E. coli (ATCC 25922). Twenty-four hours later, the number of viable bacteria colony-forming units was numbered. Figure 8 shows that the BGs inhibited the proliferation of E. coli. Fewer CFUs of 10Sr-BG (16 ± 3) and 10Zn-BG (12 ± 5) were recorded than those of BG (363 ± 12), 5Sr-BG (68 ± 7), 5Zn-BG (110 ± 10), and blank (400 ± 14). Figure 9 demonstrates the histograms of the antibacterial activity of the BGs powders against E. coli bacterial strains. Sr series and Zn series have an apparent bactericidal effect. Compared with blank, the bactericidal efficiency of BG was statistically significant (*p < 0.05). 5Sr-BG, 10Sr-BG, 5Zn-BG, and 10Zn-BG exhibited high antibacterial activity compared to BG and black (***p < 0.001). In other words, the antimicrobial activity of the doping Sr and Zn samples had a dose-dependent against E. coli (ATCC 25922) bacteria.

Figure 8.

Representative images of E. coli bacteria grown, (a) blank, (b) BG, (c) 5Sr-BG, (d) 10Sr-BG, (e) 5Zn-BG, and (f) 10Zn-BG.

Figure 9.

Histograms of the antibacterial activity of the BGs powders against E. coli bacterial strains.

About 30% of proteins contained metal ions in their molecules.⁴⁵ Half of the proteins require metal ions to perform their functions. The most important ions for bacteria are iron, manganese, and magnesium, but trace amounts of transition metals are also needed. As the concentration of the transition metal rises, the bacteria try to adapt, and toxic phenomena appear when the optimal concentration is exceeded.⁴⁶

Potential pathways by which metal ions impede bacterial proliferation include: (i) damaging the bacterial cell membrane⁴⁷; (ii) enzyme modification⁴⁸; (iii) oxidative stress (production of reactive oxygen species (ROS) and intercellular reactive oxygen species)⁴⁹; (iv) DNA damage, the regulatory role of DNA and RNA.⁵⁰

The antibacterial mechanisms of Sr and Zn ions are different. Sr ions can cause enzyme blockage and loss of function, leading to bacteria’s death.⁵¹ The cell membrane contains electronegative molecules with a high affinity for metal ions, and Zn²⁺ binds to them, thereby inhibiting the normal function of the cell. Zinc can prevent the entry of essential ions in bacteria, accumulate in the body, and produce toxic effects, ultimately leading to death.⁵²

Conclusion

The bioactive glass scaffolds with porous structure (200–400 μm) were prepared. A systematic investigation was performed on BG, Sr-BGs, and Zn-BGs scaffolds with different SrO or ZnO (5 and 10 mol%) contents in vitro bioactivity and antibacterial activities. The result of DTA indicated that 10Zn-BG has the largest processing window. When immersed in SBF, the Sr and Zn in glass retarded the degradation process of bioactive glass but did not affect hydroxyapatite (HA) formation after 28 days of soaking. The ion release, glass dissolution, and surface degradation were controlled by the change of ion radius and variations in network packing. MTT results revealed that 5Sr-BG had the most obvious effect on cell proliferation. Sr-BGs and Zn-BGs exhibited significant antimicrobial efficiency against E. coli bacterial strains. Also, the experimental results indicated that 5Sr-BGs could be used as a potential candidate material for bone tissue engineering.

Footnotes

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: The work was supported by the Anhui Emphatic Research and Developmental Projects (201904a05020080); Key Natural Science Project of Bengbu Medical College (2020byzd170).

ORCID iD

Hailun Zheng

References

Vuong

Hellmich

Bone fibrillogenesis and mineralization: quantitative analysis and implications for tissue elasticity. J Theor Biol 2011; 287: 115–130.

Yang

Wang

Hou

Guo

Liu

Bone regeneration using cell-mediated responsive degradable PEG-based scaffolds incorporating with rhBMP-2. Biomaterials 2013; 34(5): 1514–1528.

J Panetta

M Gupta

T Longaker

. Bone regeneration and repair. Curr Stem Cell Res Ther 2010; 5(2): 122–128.

Henslee

Spicer

Yoon

, et al. Biodegradable composite scaffolds incorporating an intramedullary rod and delivering bone morphogenetic protein-2 for stabilization and bone regeneration in segmental long bone defects. Acta Biomater 2011; 7(10): 3627–3637.

Rezwan

Chen

Blaker

Boccaccini

AR.

Biodegradable and bioactive porous polymer/inorganic composite scaffolds for bone tissue engineering. Biomaterials 2006; 27: 3413–3431.

Hench

Splinter

Allen

Greenlee

TK.

Bonding mechanisms at the interface of ceramic prosthetic materials. J Biomed Mater Res 1971; 5: 117–141.

Groh

Döhler

Brauer

DS.

Bioactive glasses with improved processing. Part 1. Thermal properties, ion release and apatite formation. Acta Biomater 2014; 10(10): 4465–4473.

Moghanian

Firoozi

Tahriri

Sedghi

A comparative study on the in vitro formation of hydroxyapatite, cytotoxicity and antibacterial activity of 58S bioactive glass substituted by Li and Sr. Mater Sci Eng C 2018; 91: 349–360.

Bossard

Granel

Jallot

, et al. Mechanism of calcium incorporation inside Sol-Gel silicate bioactive glass and the advantage of using Ca(OH)₂ over other calcium sources. ACS Biomater Sci Eng 2019; 5: 5906–5915.

10.

Wetzel

Brauer

. Apatite formation of substituted bioglass 45S5: SBF vs. tris. Mater Lett 2019; 257. 126760.

11.

Leite

ÁJ

Gonçalves

Rodrigues

Gomes

Mano

JF.

Strontium-doped bioactive glass nanoparticles in osteogenic commitment. ACS Appl Mater Interfaces 2018; 10: 23311–23320.

12.

Renaud

Lavigne

Vendittoli

P-A.

Periprosthetic joint infections at a teaching hospital in 1990–2007. Can J Surg 2012; 55(6): 394–400.

13.

Popa

Fernandes

Necsulescu

, et al. Antibacterial efficiency of alkali-free bio-glasses incorporating ZnO and/or SrO as therapeutic agents. Ceram Int 2019; 45: 4368–4380.

14.

Pors Nielsen

. The biological role of strontium. Bone 2004; 35: 583–588.

15.

Fredholm

Karpukhina

Brauer

Jones

Law

Hill

. Influence of strontium for calcium substitution in bioactive glasses on degradation, ion release and apatite formation. J R Soc Interface 2012; 9: 880–889.

16.

Gentleman

Fredholm

Jell

, et al. The effects of strontium-substituted bioactive glasses on osteoblasts and osteoclasts in vitro. Biomaterials 2010; 31: 3949–3956.

17.

Liu

Rawlinson

Hill

Fortune

Strontium-substituted bioactive glasses in vitro osteogenic and antibacterial effects. Dent Mater 2016; 32: 412–422.

18.

Querido

Rossi

Farina

The effects of strontium on bone mineral: a review on current knowledge and microanalytical approaches. Micron 2016; 80: 122–134.

19.

Özarslan

Yücel

Fabrication and characterization of strontium incorporated 3-D bioactive glass scaffolds for bone tissue from biosilica. Mater Sci Eng C 2016; 68: 350–357.

20.

Kargozar

Lotfibakhshaiesh

, et al. Synthesis, physico-chemical and biological characterization of strontium and cobalt substituted bioactive glasses for bone tissue engineering. J Non Cryst Solids 2016; 449: 133–140.

21.

Hesaraki

Gholami

Vazehrad

Shahrabi

The effect of Sr concentration on bioactivity and biocompatibility of sol–gel derived glasses based on CaO–SrO–SiO2–P2O5 quaternary system. Mater Sci Eng C 2010; 30: 383–390.

22.

Goel

Rajagopal

Ferreira

JM.

Influence of strontium on structure, sintering and biodegradation behaviour of CaO-MgO-SrO-SiO₂-P₂O₅-CaF₂ glasses. Acta Biomater 2011; 7: 4071–4080.

23.

Ishikawa

Miyamoto

Yuasa

Ito

Nagayama

Suzuki

Fabrication of Zn containing apatite cement and its initial evaluation using human osteoblastic cells. Biomaterials 2002; 23(2): 423–428.

24.

Wang

Shi

Synthesis and characterization of mesoporous CaO–MO–SiO₂–P₂O₅ (M = Mg, Zn, Cu) bioactive glasses/composites. J Mater Chem 2008; 18: 4103–4109.

25.

Hoppe

Mouriño

Boccaccini

AR.

Therapeutic inorganic ions in bioactive glasses to enhance bone formation and beyond. Biomater Sci 2013; 1(3): 254–256.

26.

Lusvardi

Malavasi

Menabue

, et al. Properties of zinc releasing surfaces for clinical applications. J Biomater Appl 2008; 22(6): 505–526.

27.

Haimi

Gorianc

Moimas

, et al. Characterization of zinc-releasing three-dimensional bioactive glass scaffolds and their effect on human adipose stem cell proliferation and osteogenic differentiation. Acta Biomater 2009; 5(8): 3122–3131.

28.

Kokubo

Kushitani

Sakka

Kitsugi

Yamamuro

Solutions able to reproduce in vivo surface-structure changes in bioactive glass-ceramic A-W. J Biomed Mater Res 1990; 24: 721–734.

29.

Kokubo

Takadama

How useful is SBF in predicting in vivo bone bioactivity?

Biomaterials 2006; 27(15): 2907–2915.

30.

Fredholm

Karpukhina

Law

Hill

. Strontium containing bioactive glasses: glass structure and physical properties. J Non Cryst Solids 2010; 356: 2546–2551.

31.

Tylkowski

Brauer

DS.

Mixed alkali effects in bioglass® 45S5. J Non-Cryst Solids 2013; 376: 175–181.

32.

Chang

Liu

Ning

Study on antibacterial effect of 45S5 bioglass^®. J Mater Sci Mater Med 2009; 20: 281–286.

33.

Rocton

Oudadesse

Lefeuvre

Comparison of Zn and Sr effects on thermal properties and on the excess, entropy of doped glasses for use in the biomedical field. Thermochim Acta 2018; 668: 58–64.

34.

Shahrabi

Hesaraki

Moemeni

Khorami

Structural discrepancies and in vitro nanoapatite formation ability of sol–gel derived glasses doped with different bone stimulator ions. Ceram Int 2011; 37: 2737–2746.

35.

Motke

Yawale

SS.

Infrared spectra of zinc doped lead borate glasses. Bull Mater Sci 2002; 25: 75–78.

36.

Boyd

Towler

MR.

The processing, mechanical properties and bioactivity of zinc based glass ionomer cements. J Mater Sci Mater Med 2005; 16: 843–850.

37.

Liu

Tan

, et al. Rubidium-containing mesoporous bioactive glass scaffolds support angiogenesis, osteogenesis and antibacterial activity. Mater Sci Eng C 2019; 105: 110155.

38.

Kim

Mondal

Bharathiraja

Manivasagan

Moorthy

Optimized Zn-doped hydroxyapatite/doxorubicin bioceramics system for efficient drug delivery and tissue engineering application. Ceram Int 2018; 44: 6062–6071.

39.

Rabiee

Nazparvar

Azizian

Vashaee

Tayebi

Effect of ion substitution on properties of bioactive glasses: a review. Ceram Int 2015; 41: 7241–7251.

40.

Aina

Malavasi

Fiorio Pla

Munaron

Morterra

Zinc-containing bioactive glasses: surface reactivity and behaviour towards endothelial cells. Acta Biomater 2009; 5: 1211–1222.

41.

Brauer

DS.

Bioactive glasses—structure and properties. Angew Chem Int Ed Engl 2015; 54: 4160–4181.

42.

Ray

NH.

Composition—property relationships in inorganic oxide glasses. J Non Cryst Solids 1974; 15: 423–434.

43.

Brückner

Tylkowski

Hupa

Brauer

DS.

Controlling the ion release from mixed alkali bioactive glasses by varying modifier ionic radii and molar volume. J Mater Chem B 2016; 4: 3121–3134.

44.

Qaysi

Petrie

Shah

Knowles

JC.

Degradation of zinc containing phosphate-based glass as a material for orthopedic tissue engineering. J Mater Sci Mater Med 2016; 27: 27–157.

45.

Andreini

Bertini

Cavallaro

Holliday

Thornton

JM.

Metal ions in biological catalysis: from enzyme databases to general principles. J Biol Inorg Chem 2008; 13: 1205–1218.

46.

Garza-Cervantes

Chávez-Reyes

Castillo

, et al. Synergistic antimicrobial effects of silver/transition-metal combinatorial treatments. Sci Rep 2017; 7: 903.

47.

Dizaj

Lotfipour

Barzegar-Jalali

Zarrintan

Adibkia

Antimicrobial activity of the metals and metal oxide nanoparticles. Mater Sci Eng C 2014; 44: 278–284.

48.

Waldron

Robinson

NJ.

How do bacterial cells ensure that metalloproteins get the correct metal?

Nat Rev Microbiol 2009; 7: 25–35.

49.

Xie

Irwin

Jin

Shi

Antibacterial activity and mechanism of action of zinc oxide nanoparticles against campylobacter jejuni. Appl Environ Microbiol 2011; 77: 2325–2331.

50.

Linley

Denyer

McDonnell

Simons

Maillard

JY.

Use of hydrogen peroxide as a biocide: new consideration of its mechanisms of biocidal action. J Antimicrob Chemother 2012; 67: 1589–1596.

51.

Cuzic

Hartmann

RK.

Studies on Escherichia coli RNase P RNA with Zn²⁺ as the catalytic cofactor. Nucleic Acids Res 2005; 33: 2464–2474.

52.

Lemire

Harrison

Turner

RJ.

Antimicrobial activity of metals: mechanisms, molecular targets and applications. Nat Rev Microbiol 2013; 11: 371–384.

Evaluation of bioactive glass scaffolds incorporating SrO or ZnO for bone repair: In vitro bioactivity and antibacterial activity

Abstract

Keywords

Introduction

Materials and experiments

Materials

Preparation of bioactive glass scaffolds

Preparation of SBF

Degradation and mineralization of bioactive glass scaffolds in SBF

Density measurements and calculation

Characterization

MTT assay

In vitro antibacterial activity of the BGs

Statistical analyses

Results and discussion

Physical-chemical characterization results

Ions released and mineralization of BGs scaffolds

Bioactive glass density and oxygen density

In vitro evaluation of cell proliferation and antibacterial properties

Conclusion

Footnotes

Declaration of conflicting interests

Funding

ORCID iD

References
