A Comparison of the Effects of Augmented Reality N-Back Training and Traditional Two-Dimensional N-Back Training on Working Memory

Abstract

We compared two versions of an n-back training program, differing from the graphical perspective, on the effects of working memory (WM) training and transfer. Sixty participants were trained on a traditional n-back task (2D perspective) or an augmented reality (AR) version of the same program. The AR version was rated more engaging and graphically stimulating. Pre- and post-performance on a 2D spatial working memory (SWM) test showed that while both groups improved, the distributions of improvement differed significantly between the groups; the group using traditional training showed generally more improvement on the easier levels of the SWM test. These results may be explained by the fact that the traditional (2D) version of the n-back training was more similar than the AR version to the SWM outcome measure (in virtue of its 2D presentation). This may support the common demands theory of training transfer, which claims that shared demands between training and transfer tasks accounts for near-transfer improvements.

Keywords

working memory traditional n-back task spatial working memory test augmented reality n-back task training transfer

Introduction

Working Memory and Cognitive Training

Working memory (WM) is an essential cognitive ability involved in many daily activities, such as managing tasks, problem-solving, and interacting with others (Tulbure & Siberescu, 2013). WM is the ability to temporarily store, process, and manipulate information during mental activities (Au et al., 2015; Jaeggi et al., 2010b). Studies have found that WM has a close relationship with fluid intelligence (Gf) (Engle et al., 1999) and that the improvement of WM can enhance Gf (Jaeggi et al., 2008; Jaeggi et al., 2010b; Wiley et al., 2011). Gf is the ability to think logically, reason, and solve problems in novel situations without relying on previously acquired knowledge (Au et al., 2015). Therefore, working memory improvement is closely related to learning and daily life, such as school preparation (Bierman et al., 2008), the development of academic skills (Allan et al., 2014), and mental health (Short et al., 2016).

Many studies demonstrate the potential of cognitive training to improve cognitive functions in healthy young adults (Tulbure & Siberescu, 2013), older adults (Anguera et al., 2013), children (Van Dongen-Boomsma et al., 2014), and even in clinical populations (Bahar-Fuchs et al., 2013; Robb et al., 2018). Even relatively short periods of computerized training can lead to significant improvements in the working memory and attention capacity of young healthy adults (Akter et al., 2015; Tulbure & Siberescu, 2013). This evidence indicates that working memory is malleable and can be improved by repeatedly engaging in cognitive training (Shipstead et al., 2012; Zhang et al., 2019), even in participants with no previous deficits (Tulbure & Siberescu, 2013). However, other previous research has found limited or no improvements in cognitive function after WM training (Melby-Lervåg & Hulme, 2013; Simons et al., 2016). In terms of the cognitive task used to measure improvement, it is common in the literature to distinguish between near- and far-transfer tasks. Transfer tasks that share many components with the trained task are used to illustrate near transfer, whereas tasks that share fewer components are seen as far transfer (Oei & Patterson, 2015). Simons et al. (2016) have found that training on one WM task can transfer to other similar tasks (near transfer), while producing no transfer to tasks that are dissimilar to the trained task (far transfer). In addition, research suggests that the near-transfer effects were more likely to sustain in visuospatial WM training than verbal WM training (Melby-Lervåg & Hulme, 2013). Also, stronger motivation and engagement may lead to better improvements following cognitive training, as participants are more engaged in the training (Katz et al., 2014). Hence, through innovating the visuospatial form of Virtual Realtiy [VR] training task (such as using augmented reality [AR]), this study attempts to explore the way of how to make the WM training more engaging and effective.

Traditional Computerized Task for Working Memory Improvement

A variety of computerized tasks have been used in WM training, including the n-back task which is used extensively (Forns et al., 2014; Jones et al., 2018). Studies find that training in performing n-back tasks can result in improvements in WM capability (Jaeggi et al., 2008; Jaeggi et al., 2010a). During n-back training, participants must deal with multiple processes such as observation, decision-making, selection, inhibition, interference resolution, and more (Jaeggi et al., 2010a). This process involves several aspects of cognition, including attention, memory updating, and working memory (Cormack et al., 2016). When completing an n-back task, the participant is presented with one or more series of stimuli (e.g., the location of the stimulus in a grid). A response is required whenever the current stimulus matches the stimulus in n positions back in the sequence (e.g., 1, 2, or 3) (Jaeggi, Buschkuehl, et al., 2010).

A typical example (Figure 1) from the work of Jaeggi et al. shows that an n-back task can be set with a single task with only one factor, such as visuospatial-nonverbal material in each trial (Jaeggi et al., 2010a; Jaeggi et al., 2008). Moreover, each trial generally consisted of a stimulus that was presented for 500 ms, followed by an interstimulus interval (ISI) of 2,500 ms, after which the next stimulus was presented.

Figure 1.

Traditional n-back task.

The difficulty of n-back task training can be increased by rising the value of n. When the processing load increases systematically by manipulating the value of n, one of the most important dimensions in measuring improvement is participant selection accuracy (Jonides et al., 1997).

Traditionally, the n-back task needs to be installed and run on a computer screen; however, in recent years, it is available on the internet or mobile devices (e.g., smartphones, IPad; Tulbure & Siberescu, 2013). As technology rapidly advances, many researchers around the world are continuously exploring, trying to find new interventions that are more effective than traditional methods (Au et al., 2015; Katz et al., 2014). Some studies modified the features or forms of the traditional n-back task to make it more like a game and to investigate the effects on working memory (Katz et al., 2014; Nagle et al., 2015). These studies also proposed that future research might investigate whether AR technology can provide a more efficient way of cognitive training.

AR for Cognitive Training

AR, as a new way to understand and learn about the real world, allows users to learn virtual information in a real context, extending the depth of learning about the real environment (Akçayır et al., 2016; Sungkur et al., 2016). AR is an interactive experience in which a real-world environment is enhanced with perceptual information generated using computers (Schueffel, 2017). AR applications present virtual objects which appear to be situated in the real world (e.g., by augmenting the feed from a smartphone camera so that a 3D cube appears to be placed on the floor that the user is viewing through the camera, see Figure 2), to create the sensation of immersion in a contextual learning environment which combines real and virtual elements (Sungkur et al., 2016). This simple means of interaction creates a new mode of learning, which is easily used even by students who have no prior experience of using computers (Lu & Liu, 2015).

Figure 2.

Traditional n-back task and AR n-back task.

Recently, AR has been used to create novel and mobile tasks or to improve cognitive health. Studies have found that AR technologies have the capability to effectively induce psychological reactions in users (Brito & Stoyanova, 2018). A trend has emerged in which researchers have begun to explore the feasibility of using AR technology to create cognitive training tasks (Boletsis & McCallum, 2014, 2016). In addition, AR technology is strongly connected to a user’s cognitive and physical functionality, as it has a positive impact on mental processes and supports spatial cognition (Scanlon et al., 2016).

Moreover, some studies have found evidence that AR-based cognitive training is effective in improving a participant’s ability to perform. For example, AR-based cognitive training can enhance the behavioral and cognitive functions of children with attention deficit (Shema-Shiratzky et al., 2018) and can improve spatial visualization in older people (Boletsis & McCallum, 2016; Hoe et al., 2019). Furthermore, studies suggest that AR plays a significant role in increasing students’ motivation and attention throughout the learning process (Bacca et al., 2014). When AR provides users with an interesting and pleasant virtual scientific experience, they may enjoy the learning process more, which may shorten their perception of time spent learning new information (Brito & Stoyanova, 2018). Some studies argue that the application of AR in educational settings can help students learn more effectively and increase knowledge retention relative to traditional 2D desktop interfaces (Billinghurst et al., 2015; Mitrovic et al., 2009).

To the best of our knowledge, no studies have investigated the differences between AR and traditional interfaces in the context of WM training. Investigating this difference is important, as the positive experience associated with AR may lead to greater engagement with cognitive training. However, it is also possible that AR training may be less effective in terms of transfer to laboratory measures of WM due to dissimilarities between the training and laboratory tasks (e.g., Oei & Patterson, 2015, argue that training transfer depends on common demands between the trained task and the transfer task). Thus, in this study, we compared the effects of traditional WM training with AR WM training in a controlled training experiment.

Method

A Traditional N-back Task and an AR N-back Task

In this study, we compared the effects of training with traditional and AR versions of a simple visuospatial n-back task. The visuospatial stimulus consisted of green squares appearing in one of nine different locations spaced on a grid on a black screen. Figure 2 (the figures of the traditional n-back task and the AR n-back task) indicates the main differences between the two versions of n-back tasks. In the AR version, the player perceives the stimulus as located in real-world surroundings, while in the traditional version, the stimulus is perceived as being located on the screen of the device. Both versions were built on a game engine called Unity (unity.com). The AR n-back task was developed using a combination of the Unity game engine and Apple’s ARKit AR Framework.

According to the principles described in the previous studies (Jaeggi et al., 2007, 2008, 2009), both versions of the n-back tasks were developed with the same specific rules. The tasks were used with three load levels (1-back, 2-back, and 3-back). On the grid, a response is needed whenever a stimulus is presented onscreen that matches the one presented in n positions back in the sequence (Jaeggi et al., 2007, 2008). As shown in Figure 2, participants were required to press the “Match” button (located at the bottom right of the screen) for correct targets during performing the n-back task and no responses were required for incorrect targets. After several user tests, we determined the speed of the visuospatial stimulus in this study. Each trial consisted of a stimulus that was presented for 2,000 ms followed by an ISI of 2,500 ms, after which the next stimulus was presented (Jaeggi et al., 2010a).

Two groups of participants performed separate experimental sessions of traditional n-back tasks and AR n-back tasks. Each session included a 1-back task, 2-back task, or 3-back task in each day of training. Each task trial lasted 3 min. Within this time frame, the visuospatial stimulus in different trials (n = 1, 2, or 3) was arranged in a pseudo-randomized order, which was matched for the number of targets (33%) and non-targets (67%) (Jaeggi et al., 2010a). Participants were encouraged to respond to the correct targets as quickly and accurately as possible. The processing load can be varied by manipulating the value of n, which can be shown by changes in accuracy (Jonides et al., 1997). Hence, in this study, the performances on both n-back tasks were assessed in terms of participant accuracy, which includes scoring and false clicks.

Participants

A total of 60 participants took part in the experiment (average age = 19.33 years, SD = 1.15 years, 29 females). They were undergraduate students from a university in China who were fulfilling a course credit, without any specified selection criteria. All participants received a payment of 15 dollars to encourage them to take the trial seriously. Written informed consent was collected from the students before they began the working memory training and participants were informed that they could drop out of the study at any time. Prior to beginning the study, ethics approval was obtained from the institutional ethics committee.

Materials

Measure of spatial working memory

To measure WM changes, we used the spatial working memory (SWM) task from the Cambridge Neuropsychological Test Automated Battery (CANTAB) (Owen et al., 1990; Robbins et al., 1994; Sahakian & Owen, 1992).

The CANTAB SWM test begins with a number of colored boxes (4, 6, 8, and 12 boxes in this study) being shown on the screen of an iPad (see Figure 3). The aim of the SWM test is that, by process of elimination, the participant should find a yellow “token” within a number of boxes by hand touching and using them to fill up an empty column on the right-hand side of the screen. The key point is that once a token has been located from a particular box, it should not appear there again during that particular trial. The number of boxes is gradually increased from 4 to 12 (4, 6, 8, 12), with 12 being the most difficult. To discourage the use of stereotyped search strategies, the colors and positions of the boxes change from trial to trial.

Figure 3.

Sample of CANTAB SWM.

Currently, CANTAB SWM offers two difficulty level tests: Recommended Standard 2.0 (SWM Standard) and Recommended Standard 2.0 Extended (SWM Extended). Two significant terms are used in the CANTAB SWM tests to measure WM changes:

SWM between errors: The number of times the subject incorrectly revisits a box in which a token has previously been found.

SWM strategy: The number of times a subject begins a new search pattern from the same box they started with previously.

SWM Standard test collects data of five key variables: between errors across trials with 4 boxes, between errors across trials with 6 boxes, between errors across trials with 8 boxes, between errors across trials with 4, 6, and 8 boxes (SWMBE468) and strategy for 6 and 8 boxes trials (SWMS). Compared with the SWM Standard test, the key variables of the SWM Extended test are expanded with two more variables: between errors on trials with 12 boxes (SWMBE12) and strategy for 12 boxes trials (SWMSX). Neither CANTAB SWM tests collect the data of strategy for 4 box trials because the 4 box trials is not difficult enough for participants to apply complex strategy on.

In the past decades, many studies used two key variables of CANTAB SWM: total between errors (SWMBE468) and strategy on 6 and 8 boxes (SWMS) to predict the cognitive function on orders (e.g., Csipo et al., 2019; Wu et al., 2020) and to investigate the effects of WM training on the cognitive development of impaired populations (e.g., Cacciamani et al., 2018; Cocchi et al., 2009). Based on these similar study aims, therefore, this study decided to use SWMBE468 and SWMS as the key variables to investigate the effects of WM training. However, as the participants of this study were young healthy adults, the SWM Extended test (with two more expanded key variables: SWMBE12 and SWMSX) was selected as the WM measurement tool. SWMBE12 and SWMSX can be used in impaired populations, but also healthy controls, due to the more difficult stages mitigating ceiling effects. Hence, this study separately analyzes the data of SWMBE468 and SWMBE12 (between errors), along with the analysis of SWMS and SWMSX (strategy) to measure healthy participants’ WM changes.

In addition, the SWM Extended model also collected basic demographic information, including age, sex, and the highest level of education per participant.

User experience questionnaires

Following training, participants completed a user experience questionnaire (see Table 1) for the respective training programs (traditional and AR). The questionnaire was written in Chinese and English. Nine questions within the questionnaire were developed based on usability and user experience surveys from Nielsen’s Heuristic Evaluation (Nielsen, 1993) and the Computer System Usability Questionnaire (CSUQ) (Lewis, 1995). In addition, two questions were based on the Flow Short Scale (Engeser & Rheinberg, 2008), which is designed to determine a person’s level of flow experience (Csikszentmihalyi & Csikszentmihalyi, 1992), which is recognized as an enjoyable state of absorption and optimal challenge that is associated with positive outcomes in e-learning (Rodríguez-Ardura & Meseguer-Artola, 2017). All items were 7-point Likert-type-style scales with possible response ranging from 1 (strongly disagree) to 7 (strongly agree).

Table 1.

User Experience Questionnaire (Nine Items).

Questions
The n-back task was easy to play
The text within the n-back task was easy to understand
The design of the n-back task screen made sense to me
The graphics of the n-back task were stimulating
When I was playing the n-back task, I was totally absorbed in it
When I was playing the n-back task, I felt just the right amount of challenge
The game was too fast
The game was too slow
Overall, I enjoyed using this software

Training Procedure

A flowchart of the study procedure is illustrated in Figure 4. At the beginning of the study, participants were randomly divided into two groups, with 30 participants in each group (see Table 2). Before training, all participants completed the CANTAB SWM for the first time on the first day for the purpose of baseline measures. The instructions for the SWM test were explained to the students before the initiation of the test.

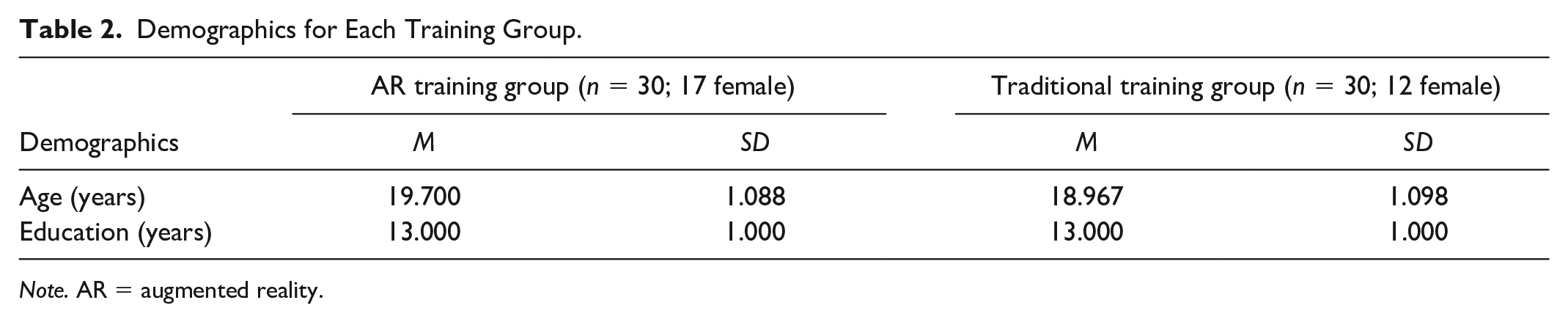

Table 2.

Demographics for Each Training Group.

	AR training group (n = 30; 17 female)		Traditional training group (n = 30; 12 female)
Demographics	M	SD	M	SD
Age (years)	19.700	1.088	18.967	1.098
Education (years)	13.000	1.000	13.000	1.000

Note. AR = augmented reality.

Figure 4.

Study design.

Two groups of participants then received separate training in two versions of n-back tasks for 4 days. Each session lasted 3 min, and with two sessions conducted on each of the 4 days (eight sessions in total). The instructions for the n-back task were explained to the participants prior to the training, followed by three practice trials (when n = 1 or n = 2) over the first 2 days. On the remaining five sessions, all participants received training in performing 3-back tasks. As the participants of this study were healthy undergraduates, 3-back tasks (the hardest level of n-back task in this study) had been set as the main training task. The participants’ performance was assessed in terms of n-back task accuracy (scoring and false clicks) and their data were recorded throughout the duration of the training.

After the training had finished, all participants completed the CANTAB SWM a second time on the last day to obtain an indication of improvement in their SWM. Following the test, all the participants immediately completed the usability questionnaire.

All above tests and trainings were conducted on six new iPad Pros (IOS 13.1). The entire experiment was conducted in a well-equipped laboratory during the practice class of the course of New Media Application. Participants were asked to perform all cognitive tests and trainings on their own, in a quiet space and to the best of their ability.

Statistical Analysis

Data were analyzed using IBM SPSS version 26.0 and JASP version 0.11.1. Differences in mean performance within the groups from baseline to posttreatment were analyzed by using paired-sample t-tests. Differences between the groups were analyzed using independent sample t-tests. In addition to the outcome measures from the CANTAB SWM mentioned above, we also analyzed the performance of the participants in the n-back training program. All data were measured at 95% confidence intervals (CIs), and the threshold for statistical significance was set at p < .05.

Results

Pre-Training Performance on CANTAB SWM

In terms of baseline performance on the CANTAB SWM, the traditional and AR training groups had different distributions in terms of between errors (the number of times the subject incorrectly revisits a box in which a token has previously been found; see the “Measure of spatial working memory” section) on 4, 6, and 8 box trials, and different distributions in terms of strategy (the number of times a subject begins a new search pattern from the same box they started with previously; see the “Measure of spatial working memory” section). However, the difference in the pre-training strategy on 6 and 8 box trials (SWMS) was the only significant difference (Mann–Whitney U test, W = 283.50, p = .012). The traditional training group had a generally less effective strategy than the AR training group before training (Figure 5).

Figure 5.

Distribution of the pre-training strategy on 6 and 8 box trials for both groups.

Accuracy on N-Back Training Programs

With regard to scores on the traditional n-back and AR n-back training programs, there were no significant differences in terms of average score on the 3-back trials, nor in terms of improvement in scores on the 3-back trials over the five 3-back training sessions. Paired-sample t-tests showed that both groups significantly improved their training tasks score between the first and final 3-back session (Table 3).

Table 3.

Paired-Sample t-Tests Showing Significant Improvement in Score on Both Types of Training Over Five Sessions.

	Score on first 3-back session		Score on final 3-back session		Student’s t-test
Training groups	M	SD	M	SD	t	df	p
Traditional training	12.467	5.444	16.100	4.908	−3.338	29	.001
AR training	14.367	6.228	17.700	5.844	−3.276	29	.001

Note. The alternative hypothesis is that first score is lower than final score. AR = augmented reality.

We also compared the mean number of false clicks across the five 3-back training sessions, and the mean improvement in incorrect clicks over five 3-back training sessions. In this case, the data were normally distributed, and the AR training group had a mean incorrect score of 5.873 (SD = 3.301). The traditional training group had a significantly lower mean of 4.000 (SD = 2.257) (Student’s t-test, t = −2.566, p = .013). The difference in improvement of incorrect clicks over five 3-back training sessions was not significant. The training performance data of AR training group and traditional training group is attached in the online appendix of this study.

Improvements to CANTAB SWM

We used paired-sample tests to examine the hypotheses that each group would show an improved performance in terms of between errors on the CANTAB SWM after training. As improvement is shown by a reduction in errors, the alternative hypothesis was that the number of pre-training errors would be higher than the number of post-training errors. As the post-training data were not all normally distributed (Figure 6), we used non-parametric Wilcoxon signed-rank tests. Both groups significantly reduced the number of between errors across the 4, 6, and 8 box trials (SWMBE468) and the 12 box trials (SWMBE12) (Table 4).

Figure 6.

Distributions of post-training between errors for both groups.

Table 4.

Pre- and Post-Training Between Errors Showing Significant Improvement on the CANTAB SWM After Both Types of Training.

Training groups variables	Pre-training between errors		Post-training between errors		Wilcoxon signed-rank test
Training groups variables	M	SD	M	SD	W	p
Traditional n-back training
SWMBE12	29.067	15.402	20.700	12.801	356.500	.001
SWMBE468	14.833	8.956	6.900	7.640	325.500	<.001
AR n-back training
SWMBE12	28.533	11.602	17.200	14.554	378.500	<.001
SWMBE468	10.567	8.955	5.900	7.680	337.000	.005

Note. The alternative hypothesis is that the number of errors post training is less than the number of errors pre-training. CANTAB SWM = Cambridge Neuropsychological Test Automated Battery Spatial Working Memory; AR = augmented reality.

Next, we compared between errors (SWMBE468 and SWMBE12) improvement between the two groups. Improvement was calculated by subtracting the number of post-training between errors from the pre-training between errors, where a higher number indicates greater improvement. There were two outliers in the traditional training group: one participant made 21 additional between errors after training, while another participant made a total of 68 fewer between errors after training (Figure 7). In each of the following analyses, we indicate whether or not these outliers are included in the analysis.

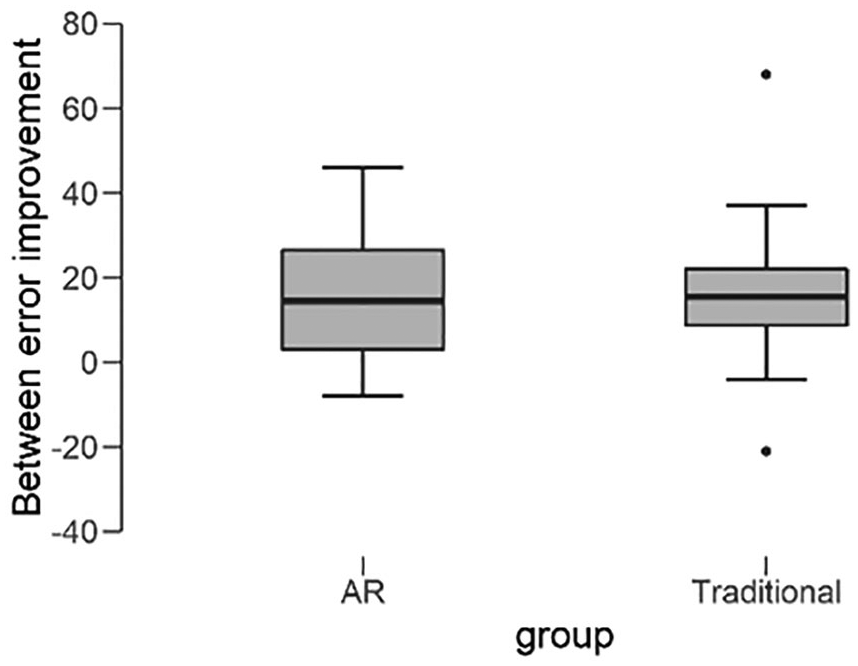

Figure 7.

Between errors improvement showing two outliers in the traditional training group.

Including both outliers, an independent sample t-test showed no significant differences between the two groups in terms of improvement in between errors after training (Table 5). However, the data were not normally distributed (Table 6), which is an assumption of the Student’s t-test.

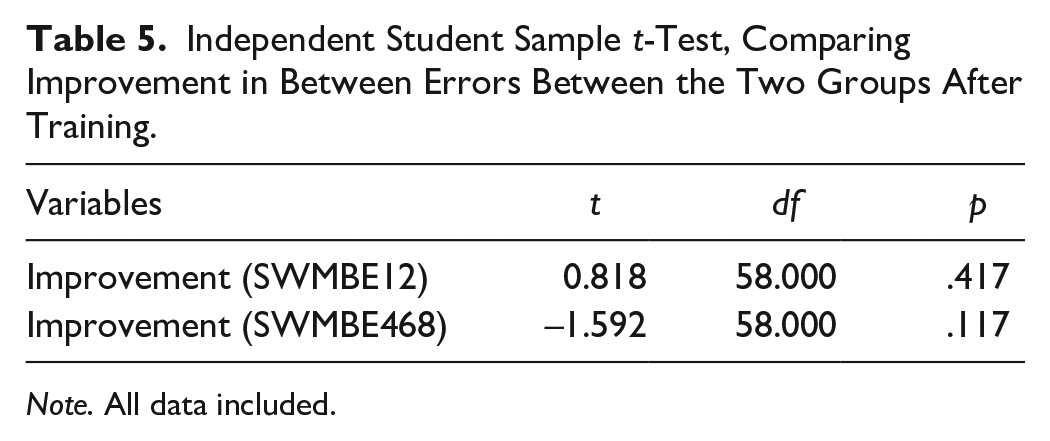

Table 5.

Independent Student Sample t-Test, Comparing Improvement in Between Errors Between the Two Groups After Training.

Variables	t	df	p
Improvement (SWMBE12)	0.818	58.000	.417
Improvement (SWMBE468)	–1.592	58.000	.117

Note. All data included.

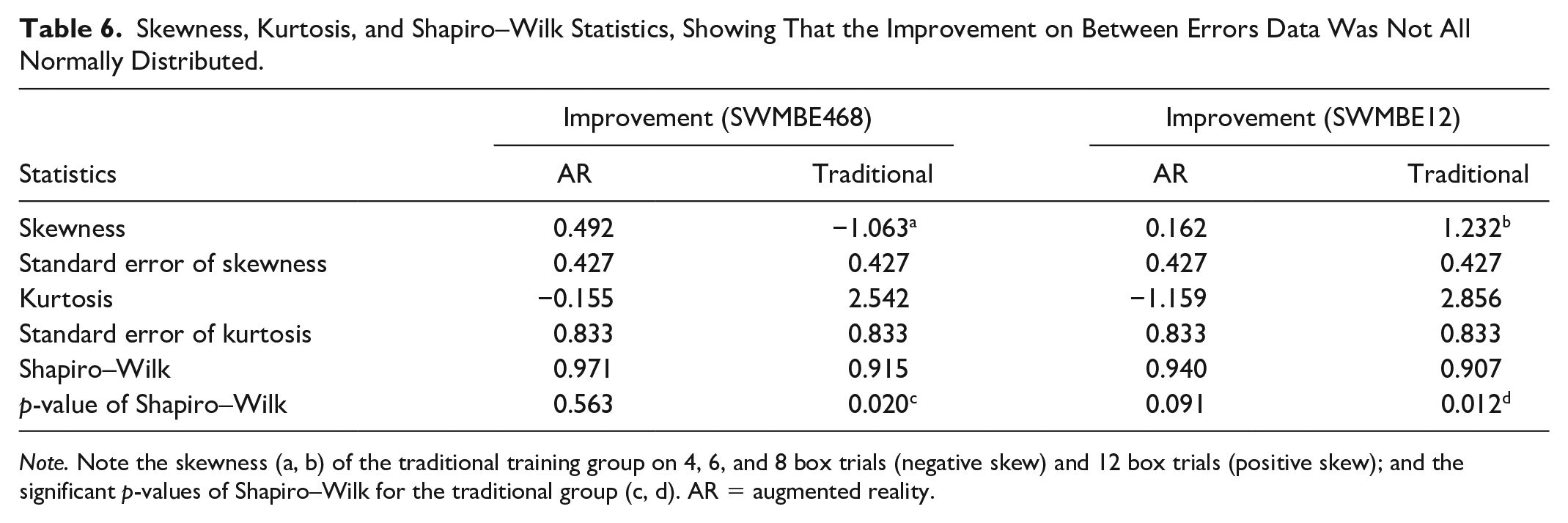

Table 6.

Skewness, Kurtosis, and Shapiro–Wilk Statistics, Showing That the Improvement on Between Errors Data Was Not All Normally Distributed.

	Improvement (SWMBE468)		Improvement (SWMBE12)
Statistics	AR	Traditional	AR	Traditional
Skewness	0.492	−1.063^a	0.162	1.232^b
Standard error of skewness	0.427	0.427	0.427	0.427
Kurtosis	−0.155	2.542	−1.159	2.856
Standard error of kurtosis	0.833	0.833	0.833	0.833
Shapiro–Wilk	0.971	0.915	0.940	0.907
p-value of Shapiro–Wilk	0.563	0.020^c	0.091	0.012^d

Note. Note the skewness (a, b) of the traditional training group on 4, 6, and 8 box trials (negative skew) and 12 box trials (positive skew); and the significant p-values of Shapiro–Wilk for the traditional group (c, d). AR = augmented reality.

As such, there were two possible approaches, and both are reported here. The first option was to exclude the outliers from the traditional group. Doing so meant that the improvement scores of both groups were normally distributed and, with the outliers excluded, a Student’s t-test showed that the traditional training group improved more significantly than the AR training group in terms of between errors in 4, 6, and 8 box trials after training (Table 7). The AR group improved more than the traditional training group in terms of between errors on 12 box trials, although this difference was not significant (Table 7).

Table 7.

Improvement for Both Groups in Terms of Between Errors on the CANTAB SWM.

Statistics	AR	Traditional	T	df	p
Improvement (SWMBE12)
M	11.333	7.214	1.226	56.000	.225
SD	14.030	11.292	1.226	56.000	.225
Improvement (SWMBE468)
M	4.667	8.571	−2.016	56.000	.049
SD	8.454	5.990	−2.016	56.000	.049

Note. Student’s t-test. Two outliers excluded. CANTAB SWM = Cambridge Neuropsychological Test Automated Battery Spatial Working Memory; AR = augmented reality.

However, given the relatively large spread of both datasets (see standard deviations in Table 7), it is perhaps more relevant to consider a second option: investigating the differences in distributions using a non-parametric test. Therefore, we used a Mann–Whitney test, which does not assume normally distributed data. In this case, we found that the distributions were significantly different in the case of improvement on between errors for 4, 6, and 8 trials only (outliers included, Figure 8, Table 8). Most noticeably, in the traditional training group, 22 participants (73.3%) reduced their number of between errors on 4, 6, and 8 box trials by at least 5. The corresponding figure in the AR training group was 15 (50%) participants.

Figure 8.

Distribution plots for improvement in between errors on the CANTAB SWM. (All data included).

Table 8.

Independent Sample t-Test.

Variables	W	p
Improvement (SWMBE12)	517.500	.321
Improvement (SWMBE468)	314.000	.045

Note. Mann–Whitney test showing significantly different distributions of improvement in between errors on 4, 6, and 8 box trials. Distributions are shown in Figure 8.

As the AR group utilized a significantly stronger strategy on 6 and 8 box trials before training, we also used independent sample t-tests to compare post-training strategy scores and improvement. With all data included (SWMS and SWMSX), there were no significant differences between the two groups post-training in terms of strategy score, nor in terms of improvement in strategy score (i.e., post-training strategy subtracted from pre-training strategy).

User Experience Questionnaire Results

Table 9 shows that the AR version of the n-back task was found to have graphics that were significantly more motivating as compared with the traditional version, and the participants playing the AR version felt significantly more absorbed in the n-back task than the traditional group. There were no significant differences between the groups on any of the other user experience questionnaire items.

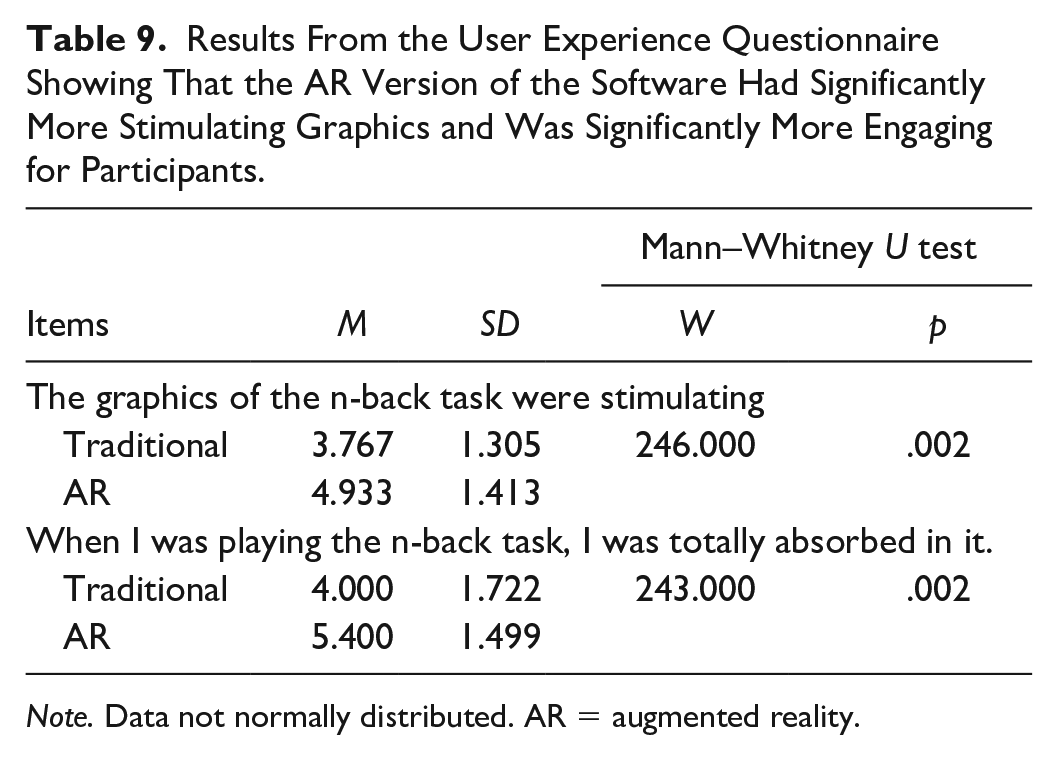

Table 9.

Results From the User Experience Questionnaire Showing That the AR Version of the Software Had Significantly More Stimulating Graphics and Was Significantly More Engaging for Participants.

	M	SD	Mann–Whitney U test
Items	M	SD	W	p
The graphics of the n-back task were stimulating
Traditional	3.767	1.305	246.000	.002
AR	4.933	1.413	246.000	.002
When I was playing the n-back task, I was totally absorbed in it.
Traditional	4.000	1.722	243.000	.002
AR	5.400	1.499	243.000	.002

Note. Data not normally distributed. AR = augmented reality.

Discussion

As the recent advances in AR technology, AR applications have been seen as a potential means of improving cognitive training outcomes by many researchers (Boletsis & McCallum, 2014, 2016). Study found that transfer effectiveness increases are closely attributable to the transfer tasks’ similarity to the practiced tasks, as well as the category of WM tasks on which improvements are all seen as near transfer (Simons et al., 2016). Therefore, this study focuses on comparing the efficacy of an AR n-back task and a traditional 2D n-back task in leading to the training and transfer improvements in WM.

Results show that after just a short period of AR-based n-back training, participants showed significantly improved CANTAB SWM test scores. As such, our findings support previous research suggesting that AR technologies have the capability to positively influence cognitive functions (Boletsis & McCallum, 2016; Brito & Stoyanova, 2018; Scanlon et al., 2016). Furthermore, we found that the AR version of the n-back test was rated as more engaging and having more stimulating graphics than the traditional version. Given that engagement with cognitive training is recognized as a key factor contributing to the effectiveness of such training (Robb et al., 2018), these findings suggest that AR and other related technologies could play a role in the effectiveness of cognitive training software.

However, we also found differences in the distributions of performance improvement between the AR and traditional training groups. Specifically, we found that the traditional training group had a distribution of improvement in (easier) 4, 6, and 8 box trials, which suggested better levels of improvement, while the AR group had a higher mean improvement in (more difficult) 12 box trials, although only the first of these differences was statistically significant. This suggests that a minor change in the graphical context of an n-back training program can have effects on the outcomes, even after only a short period of training. This finding makes a timely contribution to our understanding of the effects of cognitive training, as researchers in this field have recently begun to highlight how research on cognitive training must acknowledge the many specific aspects of a training environment. This is because differences in content may lead to different effects, which should be specified and controlled for in research (Dale & Green, 2017; Green et al., 2019). Our research provides empirical evidence to support this point, which undoubtedly warrants further research using carefully controlled versions of training programs to investigate these effects.

We suggest that some of our findings may contribute to our understanding of transfer in cognitive training. Specifically, our finding that improvement in the traditional training group in 4, 6 and 8 box trials was significantly different (generally, more improved) than the AR group may be of particular importance. In virtue of the fact that the stimuli are presented in a two-dimensional display, the traditional n-back training program is clearly more similar to the CANTAB SWM than the AR training program. One plausible explanation of our results is that training on the traditional n-back task produced improvements on the similar (to the training) CANTAB SWM (i.e., near transfer) while training on the AR n-back tasks produced less improvement on the dissimilar (to the training) CANTAB SWM (i.e., far transfer). It is therefore possible that our findings can be explained in terms of the common demands theory of training transfer (Oei & Patterson, 2015; Simons et al., 2016), which holds that transfer of training to different tasks occurs when the trained task and transfer task share some common demands, such that a previously acquired task set (e.g., a representation of the task stored in working memory), can be drawn on to facilitate performance of the transfer task. Furthermore, the fact that the traditional training group did not further improve in the (more difficult) 12 box trials may also be explained in terms of shared demands. That is, if we assume that the level of difficulty of the task is one such demand that can be shared.

It may be argued that our findings are limited by the fact that practice effects have been found in the CANTAB SWM (Levaux et al., 2007; Lowe & Rabbitt, 1998). Although this does limit our findings regarding pre and post improvement in both groups, it is important to note that our two main findings—specifically, (a) that the AR training program was found to be more engaging and have more appealing graphics and (b) that the distributions of improvement on between errors was significantly different between the two groups—are not limited by any such practice effects. This is emphasized by noting that Lowe and Rabbitt (1998) claimed that practice effects were particularly prevalent in tests of executive function (which include working memory) due to the fact that the discovery of a strategy can dramatically affect participants’ subsequent performance on the tests. In our sample, while both groups showed a significant improvement in strategy after training, there were no significant differences between the groups in terms of strategy improvement. Therefore, the difference in the distributions of improvement in terms of error reduction must be explained by something other than strategy. As such, our main findings do not depend on the absence of the practice effects in the CANTAB SWM test.

This study demonstrates the feasibility of future work using a controlled version of training programs to investigate the influence of specific features (e.g., 2D vs. 3D perspective) on the effectiveness of cognitive training programs. Furthermore, our work shows that such features may be associated with positive improvement on one outcome measure (as the AR training was more engaging and graphically appealing), while simultaneously leading to less or no improvement on another outcome measure (as the traditional training had a significantly better distribution of improvement in terms of error reduction on the CANTAB tests). This illustrates the complex interaction of various features of cognitive training programs and should encourage future research to understand these interactions.

Limitation

Although this study has a number of important implications, several limitations also need to be considered. First, the number of training sessions was few. We suggest further research with longer training time to further verify the transfer results, which may reveal more scientifically significant finding on cognitive development. Second, this study did not include a non-WM training control group, thereby lack of the difference assessment between non-WM training and WM training. Finally, this study was conducted with a single task to measure the training and transfer effects. However, for the purposes of this study, there are several reasons on why we conducted such an experimental design. As many studies suggest that traditional n-back task is an effective instrument to improve participants’ WM (Jaeggi et al., 2010a; Jaeggi et al., 2007, 2008, 2009; Jones et al., 2018), this study, therefore, did not include a non-WM training control group to compare whether the trainings were effective in either n-back group. Moreover, previous study suggested that a simpler single n-back task makes the investigation of the process in training and transfer more accessible, as the dual n-back task is too complex to be understood by the participants (Jaeggi et al., 2010b).

In addition, the near-transfer effects were more intended to maintain in visuospatial WM training than the verbal WM training (Melby-Lervåg & Hulme, 2013). From these considerations, we used a single n-back task with visuospatial-nonverbal material, in which n was set with 3 to increase the difficulty of WM task in this study. Furthermore, previous studies found that short-term (e.g., 1–2 weeks) cognitive training can result in cognitive improvements (Akter et al., 2015; Au et al., 2015), and especially produce significant improvements in young healthy adults (Tulbure & Siberescu, 2013). Therefore, to explore the possibility of short WM training effects, we conducted a short training with eight sessions in 4 days, as the participants in the present investigation were healthy undergraduates.

Conclusion and Future Study

As WM is a significant cognitive skill that affects a wide range of life functions, even small improvements can have deep societal implications (Au et al., 2015; Tulbure & Siberescu, 2013). It is becoming very clear to us that training on WM with the AR n-back task holds much promise. It would be interesting for future research to create an AR-specific transfer measure for the same type of the present work to investigate the transfer in an AR WM task. Our study nevertheless provides some further limited evidence for the effectiveness of both traditional and AR n-back training, while highlighting how differences in the visual mode of presentation of a WM training task may have important effects on both transfer and engagement with the training. As these two factors are important in considering the efficacy of WM training, our study provides evidence that there may be crucial considerations concerning the correct balance of engagement and training effectiveness. It is clear from our results that making simple alterations to the visual presentation of a WM training task can affect participant’s engagement with the training, while simultaneously affecting the effectiveness of the training. In addition, we show that such simple alterations in visual presentation of WM training tasks may have important implications in terms of near and far transfer of training effects, and we suggest that this may provide support for the common demands theory of training transfer (Oei & Patterson, 2015). Our findings suggest that the level of improvement on a transfer task after training may be closely related to how similar or dissimilar the training and transfer tasks are in terms of, among other factors, whether they are both presented in a traditional, 2D format or in an AR and/or 3D format.
