Abstract
Background
The coronary artery calcium scoring (CCS) has been widely used for cardiac risk stratification for asymptomatic patients.
Purpose
To assess the reproducibility of CCS performed on four different computed tomography (CT) scanners, and compare the variability between two reconstruction algorithms, filtered back projection (FBP), and iterative reconstruction (IR).
Material and Methods
A CCS phantom was made from agar and contained 23 pieces of chicken bones. The phantom was repeatedly scanned using four different CT scanners: Toshiba; GE; Philips; and Siemens. Images were reconstructed using FBP and IR. Agatston and volume scores of total bone fragments were calculated and the overall differences between the instruments were evaluated using the Friedman test. Comparison of the Agatston and volume scores between the two reconstruction algorithms, for each instrument, was evaluated using the Wilcoxon signed rank test.
Results
The difference in the Agatston scores was significantly different between the four machines (P = 0.001). The Toshiba scanner yielded the highest score followed by Philips, GE, and Siemens scanners. There was no difference in the CCS evaluated using the two reconstruction algorithms, except in case of the Siemens scanner (P = 0.032).
Conclusion
CCS performed on different scanners varied significantly. In the Toshiba, Philips, and GE scanners, there was no significant difference in the CCS determined using either an IR or the FBP algorithm. In the Siemens scanner, applying the IR algorithm resulted in a slightly different scores, which might not be clinically significant.
Keywords
Introduction
Coronary calcium scoring (CCS) has emerged as one of the most important methods for risk stratification and a reliable follow-up tool for coronary heart disease (1–3). In 1990, Agatston first proposed an algorithm to measure the burden of coronary calcification using electron beam computed tomography (EBCT) (4). Since then, the Agatston score has been widely used to predict the possibility of coronary artery events, such as acute myocardial infarction (5,6).
For a method to be credible, it is crucial that the variability in measurement is as low as possible. There are several studies assessing the variability in CCS using identical machines, interscan variability, and ways to reduce this variability (7,8). McCollough et al. (9) reported the standardized quantification of coronary artery calcium results from equivalent calcium scores, acquired using different computed tomography (CT) systems. However, the hardware and software used in CT has improved dramatically since Agatston first proposed the Agatston score for CCS. Multi-detector channel CT (MDCT) has replaced EBCT and various reconstruction algorithms have been proposed to improve image quality. Iterative reconstruction (IR) will eventually replace filtered back projection (FBP) reconstruction as the algorithm of choice. IR enhances the CT image quality considerably and has the potential to reduce radiation dose in CT angiography for coronary artery by reducing image noise (10,11). However, the effect of IR on CCS is yet to be evaluated.
The aim of the present study was to assess the variability in CCS performed on the CT scanners from four different manufactures (Toshiba, GE, Philips, and Siemens) and to evaluate the effect of the IR algorithm on CCS.
Material and Methods
Coronary calcium phantom
The coronary calcium phantom used in this study was made of agar and chicken bones (Fig. 1). Agar (cell-culture and electrophoresis grade) was dissolved in water (5 g in 500 mL), by heating in a regular microwave oven, and gently poured into a plastic container. On cooling, agar solidified to form a gel foam. Cooked and dried chicken bones were broken into small fragments, a few millimeters in size, with a hammer. Twenty-three bone pieces of varying size (range = 1.4–6.0 mm; mean size = 2.88 ± 1.06 mm) were collected and inserted into the agar gel foam using needles.

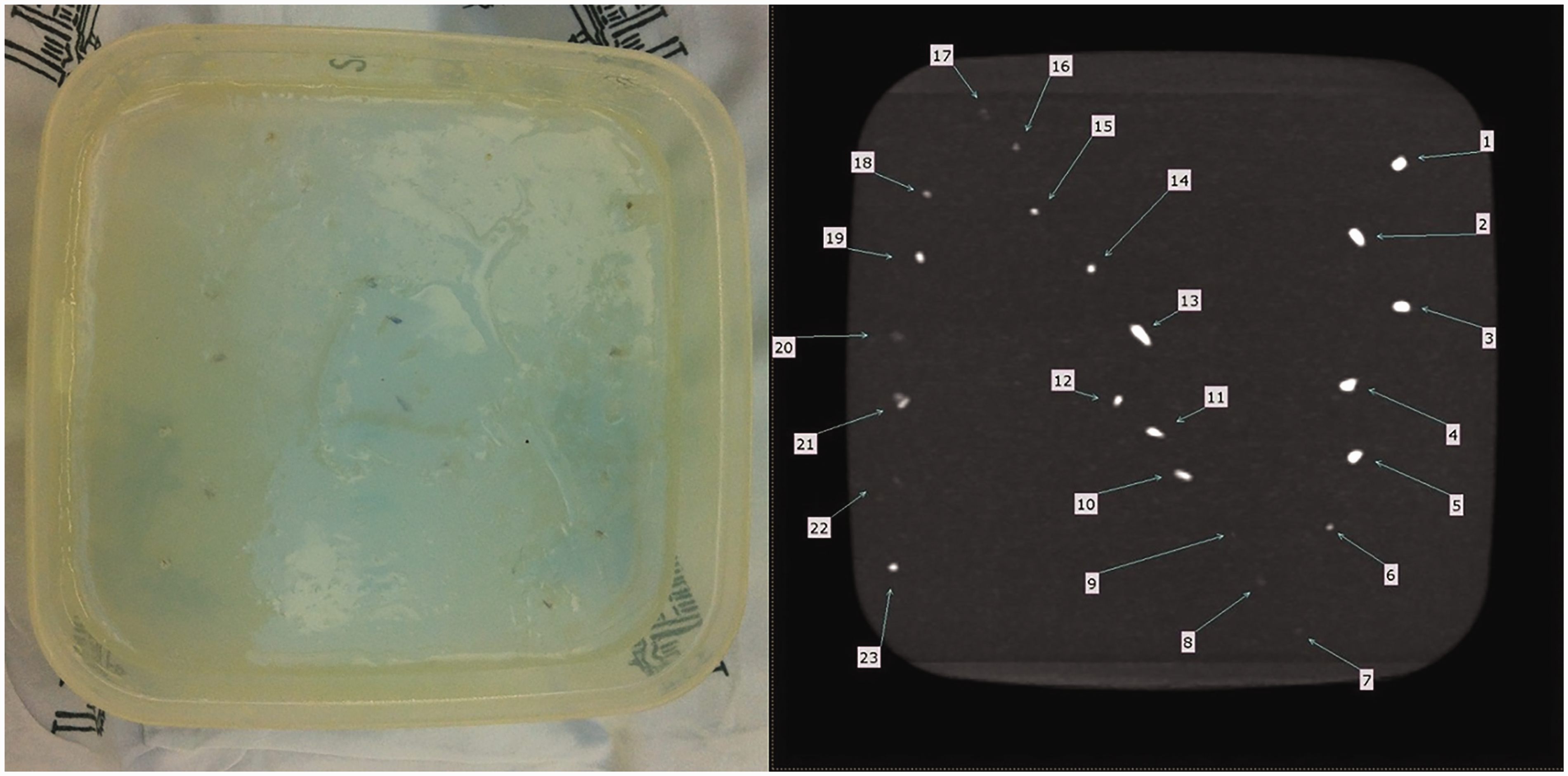

An in vitro agar phantom for coronary calcium scoring.
Scanning protocols
The agar phantom was scanned five times each using four different CT scanners (Toshiba, GE, Philips, and Siemens). The phantom was moved randomly between consecutive scans to mimic the positioning variability observed during actual patient scanning in the clinical setting. All the CT scans were performed using a sequential and prospective acquisition. CCS was performed using manufacturer recommended protocols for each of the scanners (Table 1). The acquired CT images were reconstructed into 2.5–3-mm-thick slices using FBP and IR algorithms, which was used for comparison. A 0.5-mm scan was acquired using the GE scanner as a reference, and the reference image was not used for comparison.
CT protocols used for scanning the agar coronary calcium phantom.
CT, computed tomography.
Scoring methods
CT images were analyzed using Rapidia (Infinitt, Seoul, Republic of Korea). Using images from a 0.5-mm reference scan, acquired using the GE scanner, all the bone pieces were located and serially numbered from 1 to 23. Manufacturer-recommended calcium scoring protocols for each of the CT machines were used to automatically locate bone inserts, which were >130 Hounsfield units (HU). The Agatston score and volume score of each bone piece was measured. Calcium score of the whole phantom was defined as the sum of all the scores from individual pieces.
Comparison of calcium scores
Total calcium scores from different CT scanners and different reconstruction algorithms were compared. Friedman test was used for the overall comparison of the Agatston scores and volume scores between various CT scanners. Wilcoxon signed rank test with Bonferroni correction was performed as a post-hoc analysis. Only FBP reconstruction data was used for the comparison. Wilcoxon signed rank test was used for the comparison of the Agatston scores and volume scores between FBP and IR algorithms. All statistical analyses were performed using MedCalc software (version 16.2.1, MedCalc Software); P < 0.05 was considered statistically significant.
Results
Comparison of number of detected calcifications
Of the 23 bone pieces, only 8–14 pieces were detected for each scanner, since other pieces were too small and their HU values were too low to be detected. There were significant differences in detected number of bone pieces between different scanners, both with FBP and IR algorithms (P = 0.007 and P = 0.013). The Agatston score obtained from the Siemens scanner detected the least number of calcifications (Table 2) among the four vendors, with both FBP and IR algorithms. However, there were no significant differences in number of detected bone pieces for each vendor, comparing FBP and IR algorithms (all P > 0.05).
Agatston scores evaluated from CT images acquired using four different CT scanners.
Values are given as mean ± SD.
CT, computed tomography; FBP, filtered back projection; IR, iterative reconstruction.
Comparison between different scanners
The difference in the Agatston scores and volume scores between the four CT machines was significant (P = 0.0018). The Toshiba scanner yielded the highest Agatston score followed by the Philips, GE, and Siemens scanners. The scores were significantly different in a pairwise comparison of the subgroups (Tables 2 and 3, Fig. 2a). There were significant inter-vendor differences (P = 0.003) in the volume scores. In the pairwise comparison, there was no significant difference between GE and Philips (P = 0.068), and Philips and Toshiba (P = 0.138), while all other combinations showed significant differences (P = 0.043 for all comparisons) (Tables 2 and 3, Fig. 2b). Agatston score differences were in the range of 13.3–109.48 (–31.0% to +34.7% when comparing with the calcium score from a Philips scanner, which was the median value of four machines). The differences in the volume scores were relatively smaller, in the range of 11.68–42.92 (–19.8% to +7.4% compared to Philips data).
Volume scores evaluated from CT images acquired using four different CT scanners.
Values are given as mean ± SD.
CT, computed tomography; FBP, filtered back projection; IR, iterative reconstruction.
Comparison of (a) Agatston score and (b) volume score determined from CT images acquired using four different CT scanners (Toshiba, Philips, GE, and Siemens) and following two different reconstruction algorithms (iterative reconstruction and filtered back projection). CT, computed tomography.
Comparison between FBP and IR algorithms for different scanners
The Agatston and volume scores, obtained using IR, were different for different scanners. In the case of the Siemens scanner, there was an increase in the Agatston score between FBP and IR (P = 0.032). The mean difference was 9.1. In the Toshiba, Philips, and GE scanners, the Agatston score from FBP reconstruction was comparable to that of IR. Agatston scores and volume scores for FBP and IR are shown in Tables 2 and 3. There was an increase in the volume score, obtained from IR, in the case of the Siemens and GE scanners (P = 0.043 for both) (Fig. 2b). Mean differences were 3.3 and 3.9, respectively. There was no significant difference in the case of the Toshiba and Philips scanners (Fig. 2b).
To investigate the effect of IR in detecting tiny calcifications with low calcium scores, calcium scores of calcification observed in each of the five scans processed using FBP and IR algorithms were averaged to obtain a Bland–Altman plot (Fig. 3). In the range of average scores <10, Agatston scores from IR were significantly higher than the scores from FBP for all scanners except the Toshiba scanner (P = 0.0078 for GE, P = 0.0156 for Philips, P = 0.0313 for Siemens, and P = 0.916 for Toshiba). In the range of scores >10, Agatston scores were higher for FBP than IR for all vendors except Toshiba. However, the differences were not statistically significant (P >0.05 for all comparisons). The Agatston score from a Toshiba scanner showed a relatively higher agreement between FBP and IR when compared to the other vendors, except for an outlier with a score < 10 (Fig. 3d). Moreover, larger calcifications tended to show less variability and have almost identical values. Small calcifications showed larger variability (Fig. 3).
Bland–Altman plot comparing the two algorithms (iterative reconstruction and filtered back projection) employed for reconstructing images acquired using (a) GE, (b) Philips, (c) Siemens, and (d) Toshiba CT scanners. Plotted scores are averages of calcium scores for five scans for each of the calcifications. CT, computed tomography.
Discussion
CCS is a widely accepted non-invasive tool to assess risk stratification of coronary artery events (1–3). Many studies suggest that there are no significant differences in CCS between different CT scans, vendors, and scoring software (7,9). However, Willemink et al. (12) recently reported that there could be significant inter-vendor variability in the Agatston scores from state-of-the-art CT machines, which can lead to inappropriate risk stratification, and re-stratification may lead to subsequent loss of early treatment.
In the present study, we investigated the variability in calcium scoring using different CT scanners. We observed significant differences, and our result differs from the findings of McCollough et al. (9), who applied standardization at a set noise level of 20 HU for all the scanners. We did not apply any standardization in the present study, which might be the reason for the observed differences. However, we followed the regular clinical protocol, which can lead to significantly different CCS. This is in line with the recent study by Willemink et al. (12).
Several factors could affect this difference. First, the number of calcifications detected can be different. In the present study, the Agatston score obtained from the Siemens scanner detected the least number of calcifications (Table 2) among the four vendors, with both FBP and IR algorithms (P = 0.007 and P = 0.013). However, these undetected calcifications were very small and their total calcium score too low to explain all the differences. Furthermore, the volume difference and HU values can affect the significant difference of CCS. Volume scores are dependent solely on the number of voxels with a HU value >130, without considering the actual HU values of the detected calcifications (13), whereas Agatston scores are not only dependent on the lesion area occupied by calcification, but also on the HU values of calcifications (4). Though volume scores differ significantly, there is a lot more variation in the Agatston scores. This implies that the HU values may also differ with CT scanners, possibly frequently in a clinical setting, especially with state-of-the-art CT machines (12).
There also could be an issue of risk reclassification with different vendors. In standardized categories for the CCS, patients are categorized into risk groups by using Agatston scores as follows: 0 = absent calcification, very low risk; 1–10 = minimal calcifications, low risk; 11–100 = mild calcifications, intermediate risk; 101–400 = moderate calcifications, moderately high risk; and >400 = extensive calcifications, high risk (7,14). Our results suggest that differences between scanners are so high that patients may be classified in different risk groups depending on what scanner was used for the CCS. Moreover, the significance of zero calcium score has been highlighted because of a very high negative predictive value (up to 99%) for cardiovascular events in the next 2–5 years (14,15).
IR has been validated in many recent studies to reduce image noise significantly and resulted in a reduction of calcium scores by reducing “blooming artifacts” (3,16). In the present study, there was very little difference in the number of calcifications detected, using IR and FBP reconstruction algorithms. The Agatston score obtained from FBP was comparable to that of IR in three CT scanners (Toshiba, Philips, and GE), and was different for only one scanner (Siemens). In a Siemens scanner, though the Agatston score obtained from FBP was significantly higher than that obtained from IR (P = 0.032), the difference was relatively small (mean = 9.1) and might not be important in a clinical setting. There was no difference in the volume scores obtained using FBP and IR algorithms in the case of the Toshiba and Philips scanners, and only small mean differences were observed between the Siemens and GE scanners (3.3 and 3.9, respectively). The data from the Siemens scanner show that when the calcification is dense, which implies higher CCS, the IR results in larger scores compared to FBP reconstruction. This results in lower total Agatston or volume scores for IR compared to FBP reconstruction. This result can be explained based on the ability of IR to detect larger number of small calcifications compared to FBP reconstruction, because of lower noise. Meanwhile, if the calcification is less dense, which means lower Agatston or volume scores, IR detects more calcifications, compared to FBP reconstruction, which makes total Agatston or volume scores obtained from IR higher than that of FBP reconstruction. This result can be explained based on the efficiency with which IR can measure smaller scores because of fewer blooming artifacts compared to FBP reconstruction. Overall, since most of the calcifications were small and less dense, total Agatston or volume scores obtained from IR were higher than the scores obtained from FBP reconstruction. Finally, the results from the Siemens scanner in the present study appear to be in line with the previous study of Schindler et al. (15).
There are several limitations in this study. This is not an in vivo study. We did not use an anthropomorphic cardiac phantom with calcium insertion. Our agar phantom has a fixed amount of calcification, which makes it difficult to simulate variable calcification with variable HU values observed in clinical settings. Finally, the HU values of the phantom calcification were relatively low compared to real patients, which magnifies the observed variability and may lead to wrong risk stratification, because of the lower HU values and the more densely divided stratification.
In conclusion, CCS varied significantly between CT scanners from four different manufacturers, when evaluated using conventional FBP reconstruction. There was no difference in the CCS obtained using IR and FBP methods in the Toshiba, Philips, and GE scanners. However, in the Siemens scanner, applying the IR method resulted in a slightly higher CCS, which may not be significant in a clinical setting.
