Abstract

Angiogenesis is considered an important issue in the development of biomaterials for the successful regeneration of tissues including bone. While growth factors are commonly used with biomaterials to promote angiogenesis, some ions released from biomaterials can also contribute to angiogenic events. Many silica-based biomaterials have been widely used for the repair and regeneration of tissues, mainly hard tissues such as bone and tooth structure. They have shown excellent performance in bone formation by stimulating angiogenesis. The release of silicate and others (Co and Cu ions) has therefore been implicated to play critical roles in the angiogenesis process. In this short review, we highlight the in vitro and in vivo findings of angiogenesis (and the related bone formation) stimulated by the various types of silicon-containing biomaterials where silicate ions released might play essential roles. We discuss further the possible molecular mechanisms underlying in the ion-induced angiogenic events.

Keywords

Angiogenesis silicate ions silicon-containing biomaterials bone stimulation

Introduction

A challenging issue in bone tissue engineering is the development of angiogenic/osteogenic biomaterials which can effectively promote both bone formation and vascularization after implantation.¹ During bone regeneration process, endothelial progenitor and stem cells are initially stimulated to enable angiogenesis, with the secretion of angiogenic factors; also, the stem cells are further committed to osteogenic differentiation and maturation to form vascularized bone structure.^2–4 Therefore, biomaterials that are developed for bone regeneration should initially stimulate endothelial cells to form vascular networks in the damaged area and then stimulate osteoprogenitor or bone-forming cells to synthesize the extracellular matrix for bone.^5,6

Much effort has been exerted to incorporate growth factors within biomaterials such as vascular endothelial growth factor (VEGF) and bone morphogenetic proteins (BMPs) to enhance the angiogenesis and osteogenesis, respectively. For example, the loading of VEGF to poly(lactic-co-glycolic acid) (PLGA) scaffolds significantly stimulated blood vessel formation and bone regeneration in irradiated osseous defects.⁷ However, the growth factor approach holds several drawbacks such as high cost, denaturation, or degradation of protein structure during scaffold fabrication and adverse side effects when overdosed.^8,9

As another category of therapeutic molecules, ions have also been incorporated within biomaterials, and the ions used thus far include cobalt, copper, silver, strontium, zinc, iron, phosphate, and silicate.^3,10,11 This ionic approach has several advantages, including simplicity, low cost, stability during scaffold processing, and effectiveness at low concentrations. In fact, many different forms of biomaterials have been developed to incorporate those ions for diverse biological effects, such as angiogenesis, osteogenesis, or antibacterial activity.^3,11–13

Among the biomaterials that can incorporate ions, silica-based bioactive glasses (SBGs) have been widely explored for the repair and regeneration of hard and soft tissues.^12,14 SBGs can induce the deposition of a mineral phase onto the surface which mimics the inorganic mineral of natural bone. Moreover, they have the ability to induce vascular network formation without utilizing vascular-stimulating growth factors,^12,15 thus enhancing the tissue repair processes.^10,12,16 Early findings showed that 45S5 Bioglass^® particles enhanced vessel formation by stimulating the secretion of angiogenic growth factors such as VEGF and basic fibroblast growth factor (bFGF) from endothelial cells,^17,18 which was ultimately helpful for bone formation. Similarly, calcium silicate (CS) bioceramics releasing silicate ions also showed significantly stimulated angiogenesis through the upregulated VEGF in endothelial cells and the activated kinase insert domain receptor (KDR).^3,14

As witnessed in the previous studies, many silicon-containing biomaterials have the potential for bone regeneration through the angiogenic stimulation, and the role of silicate ions in the events can thus be envisaged. This mini review focuses on the silicon-containing biomaterials and highlights their ability to release silicate ions at various concentration levels and the biological role in promoting angiogenesis. We scrutinize the recent in vitro and in vivo findings related to silicate ionic roles and discuss possible mechanisms in the angiogenic stimulation.

Silicon-containing biomaterials

Silicate ions that can release during the degradation of silica-based biomaterials (glasses, crystalline ceramics, or composites/hybrids) have been found to influence cell functions and to accelerate osteogenesis and angiogenesis.^10,12 Silicate ions release at different levels due to the different degradation rates of biomaterials which depend on the composition, size, and shape.¹⁶ A diverse array of silica-networked, silicon-substituted, or silicon-incorporating biomaterials has thus been developed with different forms, such as monoliths/solid blocks, porous scaffolds, nano/microfibers, and nano/microparticles, as presented in Figure 1. In the following sections, these biomaterials are described in detail.

Figure 1.

Various forms of silicon-containing biomaterials that can release silicate ions at proper therapeutic doses (silicate ions are symbolized as Si⁴⁺ for simplicity).

Glasses

SBGs are amorphous materials that contain SiO₂ as the main glass network former. The most well-known SBG in biomedical fields is 45S5 Bioglass which has a bioactive and biodegradable silicate composition (see Table 1). This was discovered by Hench¹⁹ and Jones and Hench²⁰ in 1969, and since then, many bioactive glass/glass ceramics (melt or sol-gel derived) have been introduced for bone repair and grafting.²¹ The main characteristic of the bioactive glasses is the well-known ionic reactions and the subsequent formation of hydroxyapatite (HA) layer on their surface in contact with physiological body fluid.^22,23 The apatite layer is very similar to that of bone mineral.^19,22,23 Furthermore, the dissolved silicate ions from bioactive glasses have stimulating effects on osteoblasts, regulating the expression of several genes including key osteoblastic markers and extracellular matrix proteins.

Table 1.

Summary of Si ion–releasing silica-based biomaterials and the biological effects observed in vitro and in vivo.

Biomaterials	Compositions	Si ion (mM)	In vitro/in vivo	Findings	References
Glasses
45S5 Bioglass^®	45SiO₂-24.5Na₂O-24.5 CaO-6P₂O₅	~0.59	In vitro	Ionic dissolution induces osteoblast proliferation by mediating IGF-II	Xynos et al.²⁴
mBGn	75SiO₂-25 CaO	~3.9–6		Induction of the bone mineral–like formation	El-Fiqi and Kim²⁶
58S and 80S-Nano BG	60 SiO₂-36CaO-4P₂O₅ 80 SiO₂-15CaO-5P₂ O₅		In vitro	Upregulation of angiogenic gene expression	Mao et al.⁴⁸
Crystalline ceramics
Akermanite	Ca₂MgSi₂O₇	0.03–4.4	In vitro	Stimulation of the osteoblast cell functions	Wu and Chang⁶²
Akermanite	Ca₂MgSi₂O₇	0.03–4.4	In vitro/in vivo	Induction of the proangiogenic expression	Zhai et al.¹²
Bredigite	Ca₇MgSi₄O1₆	~0.08–6.98	In vitro	Stimulation of the osteoblast cell functions	Wu and Chang⁶²
Bredigite	Ca₇MgSi₄O1₆	~0.08–6.98	In vitro	Promotion of the cell growth and spreading	Wu et al.⁶³
Diopside	CaMgSi₂O₆	~0.02–1.89	In vitro	Induction of the osteoblast cell proliferation	Wu and Chang⁶²
Si-doped HA	Ca₁₀(PO4)_6−x (SiO₄)x(OH)_2−x	~0.178–0.61		Introduction to ion delivery vehicles	Lindahl et al.⁶⁴
Composites and hybrids
Si-doped vaterite	(Si)CaCO₃	~21–50	In vitro	Introduction to osteogenic devices	Jin et al.⁴⁰
Si-doped CPG	50P2O5–40CaO–10SiO₂	~1–25	In vitro	MC3T3-E1 osteoblast induction	Mohammadi et al.⁶⁵
PCL-GEL-BGn	Nanocomposite	~0.5–2	In vitro/in vivo	Stimulation of the osteogenic differentiation and bone regeneration	Fi-qi et al.²¹
COL-ALG-BGn	Nanocomposite	~2.9–4.3	In vitro/in vivo	Synergistic effect accelerate bone regeneration	Perez et al.⁶⁶
α-TCP-BGn	Nanocomposite	~1.4–2.1	In vitro	Upregulation of the odontogenic differentiation and angiogenesis	Lee et al.⁶⁷
Wollastonite-HA	Composite	~0.35–2.5	In vitro	Induction of the osteoblast cell functions	Fiocco et al.⁶⁸
Silica/PLLA	Composite	~0.09–0.75	–	Application for skeletal regeneration	Gowsihan et al.⁴¹

IGF-II: insulin-like growth factor II.

Xynos et al. studied the effects of ions extracted from Bioglass 45S5 on cell behaviors. A twofold increase in VEGF expression was observed when human primary osteoblasts were treated with the ionic products.²⁴ Although silicate ions could be released to a level of 16.58 ppm after 24 h of incubation, calcium and phosphorus ions were also contained in the treated medium, which might complicate the interpretation of the exact role of silicate ions, which requires further studies.

The release rate of silicate ions varies according to the material shape (spheres, fibers, or irregular), size (micro or nano), and texture (porous or non-porous), which are related to surface area.^25,26,27 For example, the dissolution profiles of silicate ions from powder, foam, and monolithic disk of 58S bioactive glass (60 mol% SiO₂, 36 mol% CaO, 4 mol% P₂O₅) with the same mass was compared in simulated body fluid (SBF) for 24 h.²⁸ The results showed that the release of silicate ions was highest for powder (~2.5 mM) and lowest for monolith (~0.178 mM),¹⁴ reflecting the role of surface area that is in contact with the medium. In another example, the silicate ions released from irregular bioactive glass (IBG) particles and bioactive glass microspheres (BGMs) showed significantly different release kinetics.²⁹

Another type of glasses that contain silicon is the calcium phosphate glasses (CPGs). CPGs are biodegradable materials, and their degradation rate is tailored by the compositional change.³⁰ The incorporation of silica in the glass reduced degradation rate,¹⁰ and the released silicate ions were shown to regulate key angiogenic factors.

Crystalline ceramics

Some bioceramics, for example, akermanite, bredigite, and diopside, are silicate crystallines and thus can release silicate ions in aqueous environments. Akermanite (Ca₂MgSi₂O₇) has been shown to be bioactive and degradable, releasing silicate ions.¹² Bredigite (Ca₇MgSi₄O₁₆) is another bioactive silicate ceramic with excellent biocompatibility and apatite mineralization ability. The ionic products from the bredigite dissolution significantly promoted stem cell growth.³¹

CS bioceramics comprise another unique class of silica-based bioceramics. They have been used for bone repair materials due to bioactivity, degradability, and biocompatibility. Several studies have reported that CS in powders or coatings exhibited excellent in vitro and in vivo bioactivity.¹¹ There are three kinds of CSs with different Ca/Si ratios: monocalcium silicate (CaSiO₃), dicalcium silicate (Ca₂SiO₄), and tricalcium silicate (Ca₃SiO₅). Monocalcium silicate (MCS) is not hydraulic and has two main forms: low temperature phase, wollastonite (β-CaSiO₃), and high temperature phase, pseudowollastonite (α-CaSiO₃). Dicalcium silicate and tricalcium silicate can be hydrated and then hardened by mixing with liquid phases.^32,33 The silicate ions released from CS were shown to provide excellent environment for stem cell proliferation and differentiation toward an osteogenic lineage and also for human umbilical vein endothelial cell (HUVEC) proliferation and angiogenesis.^3,10,34

Calcium phosphate bioceramics (HA and tricalcium phosphate (TCP)) are often doped with silicon.^19,20 In fact, biological apatites are non-stoichiometric and contain small levels of impurities including silicon.³⁵ The incorporation of silicon within HA lattice was proposed to improve the bioactivity. Thus, several methods were used to produce silicon-substituted HA (Si-HA) with varying silicon content.³⁶ Silicon can partially replaces phosphate (PO₄³⁻) groups in HA lattice to result in Ca₁₀(PO₄)_6−x(SiO₄)x(OH)_2−x,³⁷ and the amount incorporated is limited with ranging from 0.1% to 5% by weight. Silicate ion was also doped to α-TCP (α-Ca₃(PO₄)₂), which is widely used as a powder for calcium phosphate cement (CPC). The α-TCP hydrolyzes in aqueous media to convert into calcium-deficient HA. The Si-doped α-TCP was shown to release silicate ions at ~1.5 mM.³⁸

Calcium carbonate (CaCO₃) was developed to incorporate silicate species. CaCO₃ mineral has three polymorphs, that is, calcite, aragonite, and vaterite.³⁹ Vaterite is the least thermodynamically stable and thus immediately dissolves, releasing calcium ions, while a part of it re-crystallizes as the most stable calcite. Vaterite particles containing aminopropyl-functionalized silsesquioxane (Si_xV, where x = 0, 2.6 and 4.9 wt%) were prepared. Compositions of Si_2.6V and Si_4.9V were shown to hydrolyze and produce soluble silicate species in the range of ~21–50 mM.^39,40

Composites and hybrids

Hybrids and composites containing silicon have also been developed for improved mechanical and biological responses. The silicon-containing glasses and ceramics were either incorporated within biopolymer matrices or mixed with other inorganic materials.^15,41 Composite scaffolds of poly(d,l-lactic acid) (PDLLA) with bioactive wollastonite could release silicate ions over 3 weeks at levels ~1 mM with 20 wt% wollastonite and ~1.5 mM with 40 wt% wollastonite.⁴² Organic/inorganic sol–gel hybrid fibers made of silica/poly(l-lactic acid) (PLLA) were also developed.⁴¹ The hybrids with 10% and 20% silica released silicate ions ~5 and ~9 ppm, respectively, within a week. Furthermore, when calcium was also incorporated within the hybrids, the release of silicate ions was observed to increase to ~20 ppm.⁴³

Nanocomposite fibrous membranes made of polycaprolactone–gelatin (PCL-GEL, 1:1 ratio) and bioactive glass nanoparticles (BGn, 75%SiO₂-25%CaO) were also developed.^21,26 The addition of 2.5% BGn was shown to release silicate ions ~0.5–2 mM within 28 days when immersed in deionized water (pH: 7.4, 37°C).

Highly porous wollastonite–HA composite scaffolds were prepared with two different CaO:SiO₂ ratios (1.6 and 0.8).⁴² The scaffolds (CaO:SiO₂ = 1.6) could release silicate ions about 57 and 72 ppm, respectively, for 24 and 72 h of immersion in SBF at 37°C. However, a further increase in immersion time up to 21 days showed an almost saturation.⁴⁴

CPC composites based on α-TCP were recently prepared with the incorporation of BGn (85%SiO₂-15%CaO) up to 10 wt%.³⁷ The release of silicate ions from the nanocomposite cement was ~2 mM after 2 weeks of immersion in deionized water (pH: 7.4, 37°C).

Effects of Si ion release on angiogenic events (in vitro and in vivo findings)

The in vitro and in vivo findings demonstrated that silicon-containing biomaterials were excellent in promoting angiogenic events, such as endothelial (progenitor) cell homing, cell polarization, migration, angiogenic differentiation, and neo-blood vessel sprouting (as depicted in Figure 2).

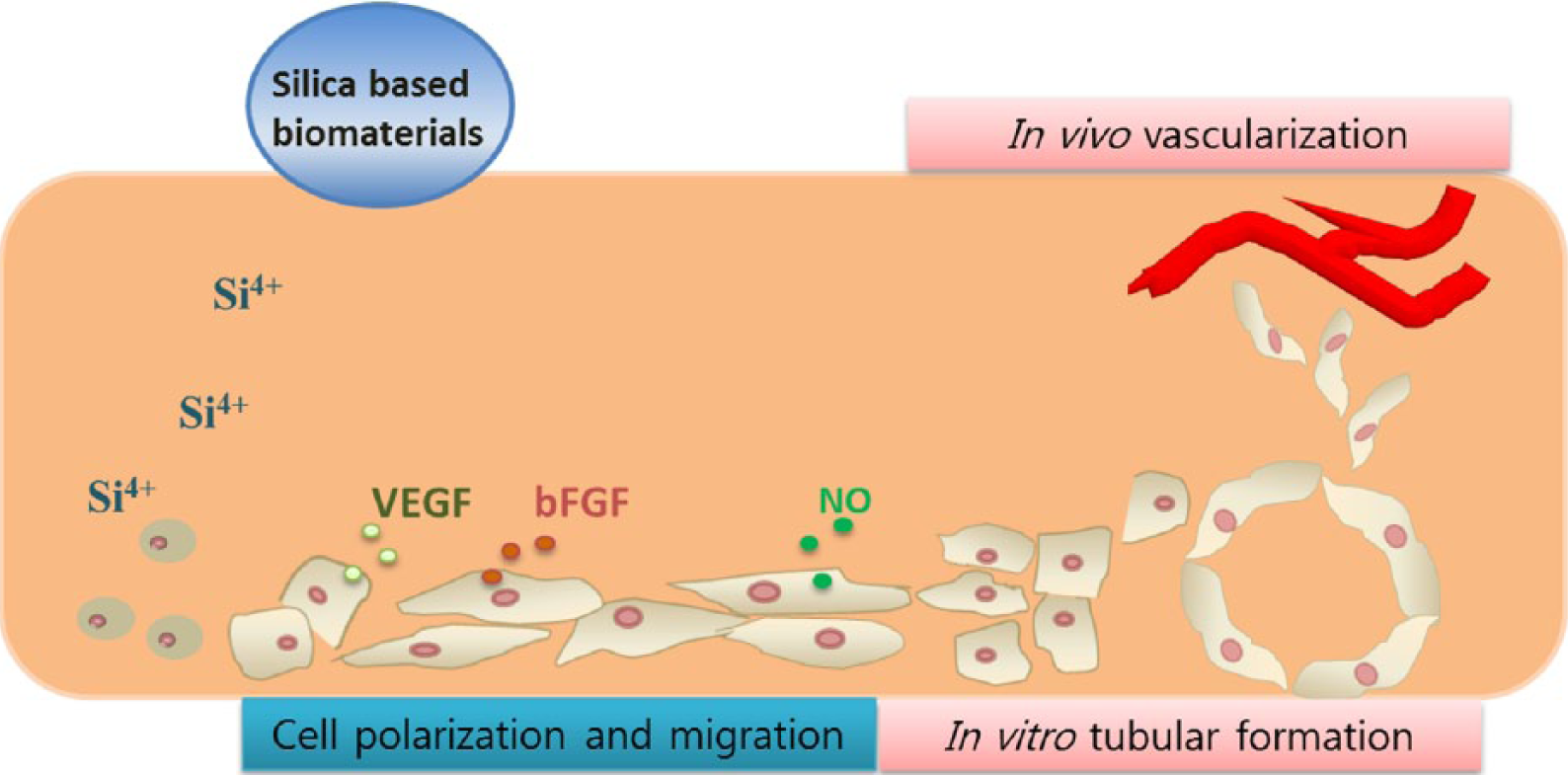

Figure 2.

Silica-based biomaterials that release silicate ions, stimulating angiogenic events in vitro and in vivo, including endothelial (progenitor) cell homing, polarization, cell migration, angiogenesis, tubule-like formation, and neo-vessel sprouting.

In vitro angiogenic events (migration, gene stimulation, tubule-like formation)

Endothelial cell migration is a key attribute of the angiogenesis event.⁴⁴ The cell migration is driven by three main routes: chemotaxis, haptotaxis, and mechanotaxis. Biomaterials that release ions like silicon can encourage the chemotaxis of cells, enabling a directional migration of cells toward a gradient of chemoattractant ions.^45,46 Generally, the cell migration studies use a transwell membrane where the cells contained in the membrane are to sense the chemoattractive molecules released from the biomaterials placed at the bottom of the culture well.⁴⁷ Our recent study used this in vitro model to demonstrate the stimulating effects of silicate ion release from silica microspheres on migration of endothelial cells (HUVECs) toward the silica microspheres.⁴⁶ The cell migration motility can also be easily assessed in an in vitro cell scratch model, which is often used to assume the wound repair ability of biomaterials. Two different nanosized bioactive glass compositions, 58S and 80S, could enhance the modeled cellular scratch gap within 24 h, suggesting that the released ions might stimulate cellular motility and movement.⁴⁸

Cellular tubulogenesis assay is a common tool to mimic many stages of in vivo angiogenesis, including cell migration, proliferation, vessel branching, and anastomosis processes.^49,50 For this assay, HUVECs are supported on Matrigel, and the effects of biomaterials or molecules are examined on the tubular networking of cells. The nanosized bioactive glasses that could release silicate ions at 2.87–8.39 µg/mL presented significantly higher number of tubules and more stable tubular structure when compared to the glass-free control group. In the process, key angiogenic factors, such as VEGF, FGF, and endothelial nitric oxide synthase (eNOS), that were known to regulate endothelial cell functions, such as proliferation, migration, and differentiation, were expressed at significantly higher levels.⁴⁸

Using the model, akermanite bioceramics (containing Ca-, Mg-, and Si) were shown to drive angiogenesis by increasing proangiogenic factors and upregulating downstream signaling molecules.^12,13,51,52 The akermanite extracts at 1/256 and 1/64 dilutions presented more numbers of node, circle, and tubules than the TCP extracts and control in the Matrigel assay (Figure 3). At the same time, the proangiogenic genes such as KDR, fibroblast growth factor receptor 1 (FGFR1), and eNOS were highly stimulated. The most effective concentration of silicate ions released from akermanite was found to be in the range 0.6–2 µg mL⁻¹ based on the in vitro tubule networking.

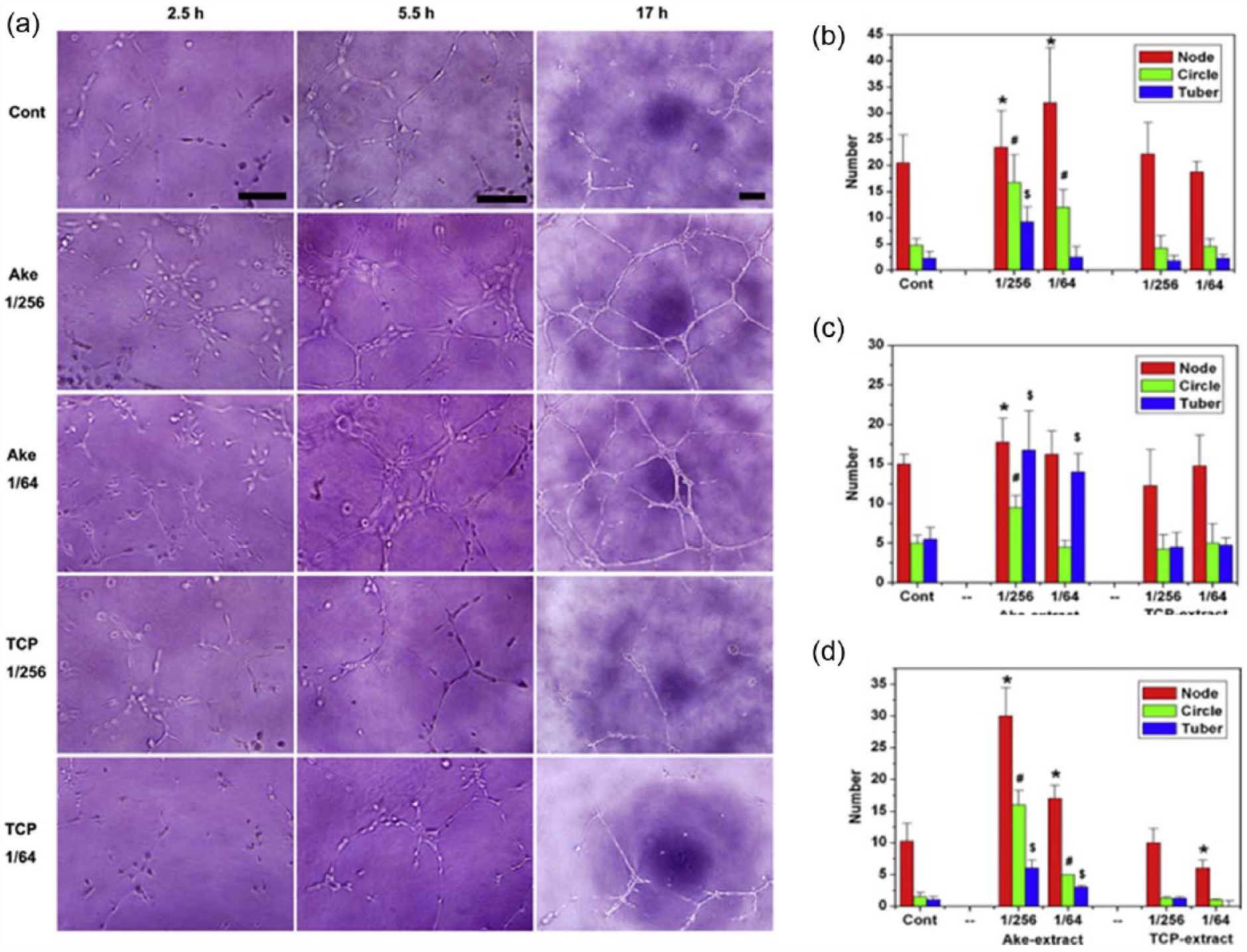

Figure 3.

In vitro angiogenesis of HAECs cultured on ECMatrix in the presence of Ake and TCP extracts at 1/256 and 1/64 dilutions. (a) Optical images of HAECs cultured on ECMatrix in the presence of Ake and TCP extracts at 1/256 and 1/64 dilutions for 2.5 h (bar = 100 µm), 5.5 h (bar = 100 µm), and 17 h (bar = 200 µm). (b–d) The statistics of the number of nodes, circles, and tubes formed in the culture after 2.5, 5.5, and 17 h, respectively. Data represent mean values ± SD (n = 4). The symbols /, #, and $ represent p < 0.05 of node number, p < 0.01 of circle number, and p < 0.01 of tube-like number, respectively, when compared with the control. Reprint permission was obtained from Zhai et al.¹²

A co-culture system is often used to understand cell-to-cell interactions in the in vitro angiogenesis of cells that mimic better the in vivo multicellular conditions. In an earlier mono-culture study, the silicate ions released from CS induced HUVECs by activating VEGF and its receptor KDR to trigger the angiogenic pathway.^14,34 In a co-culture of HUVECs with human dermal fibroblasts (HDFs), interestingly, the silicate ions stimulated the synthesis of abundant VEGF in HDF, which in turn activated the KDR expression in HUVECs, indicating an important role of silicate ions in driving surrounding cells to exert paracrine effects on endothelial functions. A therapeutic range for the silicate ion concentration was proposed to be 0.7–1.8 µg/mL in the co-cultures.¹⁴ Possible cellular mechanisms of the angiogenic stimulation by the released silicate ions will be detailed in section “Proposed mechanisms of silicon ionic roles in angiogenesis.”

In vivo findings

The angiogenesis of silica-based biomaterials has been witnessed in different animal models. The chorioallantoic membrane (CAM) model is considered as a simple and popular assay tool to examine in vivo angiogenesis,⁵³ which allows a rapid growth of capillary networks in confined conditions where biomaterials come in direct contact. 45S5 Bioglass–based glass–ceramic scaffolds were used to examine the angiogenesis in the CAM model, and results showed significant differences with respect to the control polypropylene scaffold.⁴⁵ When the 45S5 Bioglass scaffolds were combined with human adipose tissue–derived stem cells (hASCs), angiogenesis, including number of newly formed blood vessels and tubule networks, was substantially induced, and the ions released from the scaffolds were presumed to stimulate the hASC function or to directly induce angiogenesis.

The angiogenesis event is considered critical in the wound healing in vivo as the new blood vessel formation is a key event that can provide nutrients and signaling molecules through vascular networks during the healing process.⁵⁴ Therefore, the angiogenic ability of biomaterials is often incurred by the wound healing performance.⁵⁵ Several silica-based biomaterials have shown excellent wound healing ability in vivo. It was⁵⁶ reported that Bioglass had great potential in an in vivo wound healing model. Although the exact mechanism was not clarified, the ionic release from Bioglass might activate endothelial cells and the consequent wound healing.^56,57 It was hypothesized that the silicate ions released from Bioglass (~0.88 ± 0.17 ppm) could upregulate cytokines from endothelial or other stem cells, which in turn stimulate endothelial migration toward the wound bed.³⁴ Another in vivo study also demonstrated the effects of Bioglass in stimulating surrounding cells. When the Bioglass with fibroblast cell sheets were implanted to the wound site in rat, a successful wound healing was achieved at 14 days (Figure 4(a)).⁵⁶ The wound healing and new blood vessel formation during 14 days in skin defect were higher in the Bioglass group than in the control. It was suggested that the release of ions from Bioglass significantly activated fibroblast cells to secrete proangiogenic factors such as VEGF, bFGF, and epidermal growth factor (EGF).

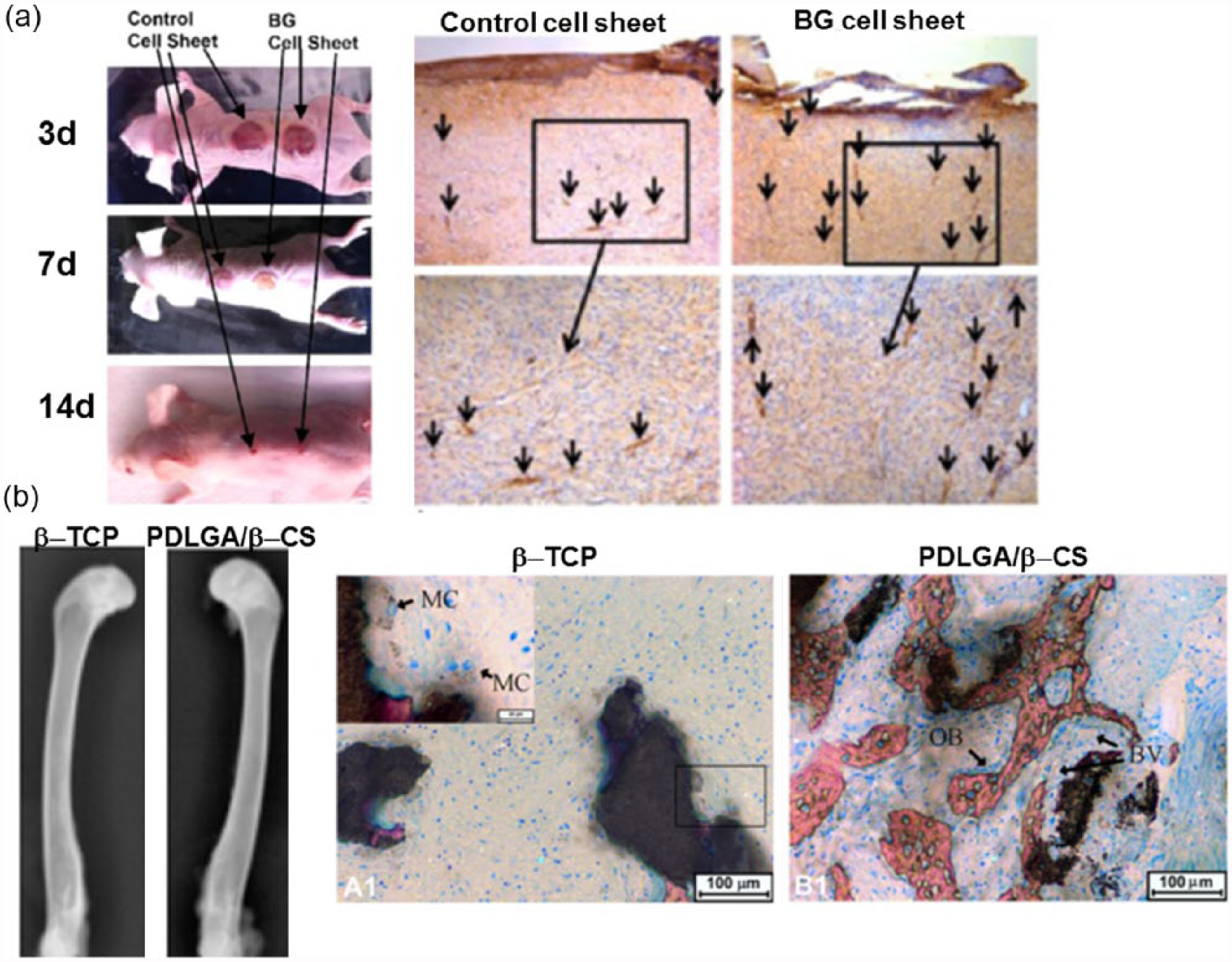

Figure 4.

In vivo angiogenesis stimulated by silica-based biomaterials in (a) wound healing model: wound closure at different time points and CD31 staining for the new blood vessels (arrows) at day 14 and in (b) bone defect model: β-TCP and PLDLA/β-CS implantation after 4 weeks, radiographs and Van Gieson’s picrofuchsin staining performed (BV: blood vessel; MC: multinucleate cell, and OB: osteoblast cell). Reprint permission was obtained from Wang et al.¹⁵ and Yu et al.⁵⁶

Bone is one of the tissues that critically require angiogenesis in the regeneration process.^13,58 Many silicate-based biomaterials are considered as excellent bone regeneratives, and the successful bone formation has often been incurred by the accelerated vascular networks.⁵⁸ The CS composite with poly(d,l-lactide-co-glycolide) implanted in rabbit femur defect was able to induce better angiogenesis and osteogenesis when compared to β-TCP (Figure 4(b)). To support this, the extracts from CS substantially enhanced HUVEC proliferation which was correlated with the phosphorylation of protein kinase B (Akt) and eNOS as well as the increased nitric oxide (NO) and VEGF production.¹⁵ Moreover, earlier study showed the 45S Bioglass implanted locally in irradiated bone defects increased neovascularization based on histological and micro-computed tomographical analyses.⁵⁹

In fact, the silicate ions are also known to directly stimulate the osteogenesis of cells; furthermore, the silicate ions are found to be the most highly concentrated in bone; especially, the concentration of silicon in osteoid is ~25 times higher than that in surrounding area.^60,61 Mainly located at the calcification sites, silicate ions are thought to involve in the mineralization process.⁶¹ Therefore, the bone formation observed in the silica-based biomaterials may be due to the combined effects of silicate ions on angiogenesis as well as osteogenesis.^6,12 Akermanite bioceramics were shown not only to upregulate osteogenic markers (BMP2, osteocalcin (OCN), and osteopontin (OPN)) but also to activate proangiogenic molecules.^12,51 In the in vivo rat calvarial model, the akermanite enhanced both angiogenesis and osteogenesis, and consequently bone formation.⁵¹

Combinatory/synergistic effects with other factors

Ions are often incorporated into the silica-based biomaterials to stimulate angiogenesis. Copper is well known to induce hypoxic-mimic conditions, which is helpful for angiogenesis. The copper-doped CS (Cu-CS) was developed and the effects on angiogenesis were carried out.¹⁰ Results showed that the copper and silicate ions released could regulate the expression of hypoxia-induced factor-1α (HIF-1α), resulting in the VEGF upregulation. The optimal silicate and copper ions in the extracts were found to be 0.6 and 0.7 µg mL⁻¹, respectively; of note, this concentration range is lower than the range known to be effective with single ion, thus suggesting a synergistic role of the dual ions in the angiogenesis.¹⁰

Our group has recently developed a dual factor (ion plus growth factor) delivering system using sol–gel-derived mesoporous silica microspheres.⁴⁶ Along with the silicate ions intrinsically present in the silica microspheres, VEGF was extrinsically loaded onto the mesopores of microspheres. The silicate ions release was modulated at the therapeutic range (a few ppm level per day), while VEGF was released over a couple of weeks continuously. The silicate ions were shown to stabilize HIF-1α expression by blocking prolyl hydroxylase domain (PHD2) enzyme and further upregulate key angiogenic factors such as bFGF, VEGF, their receptors, FGFR and KDR, and eNOS. The VEGF/silicate ion co-delivery could demonstrate a synergism of the therapeutic molecules, such as endothelial cell migration and tubular formation, and the new blood vessel formation in the in vivo CAM model (Figure 5).

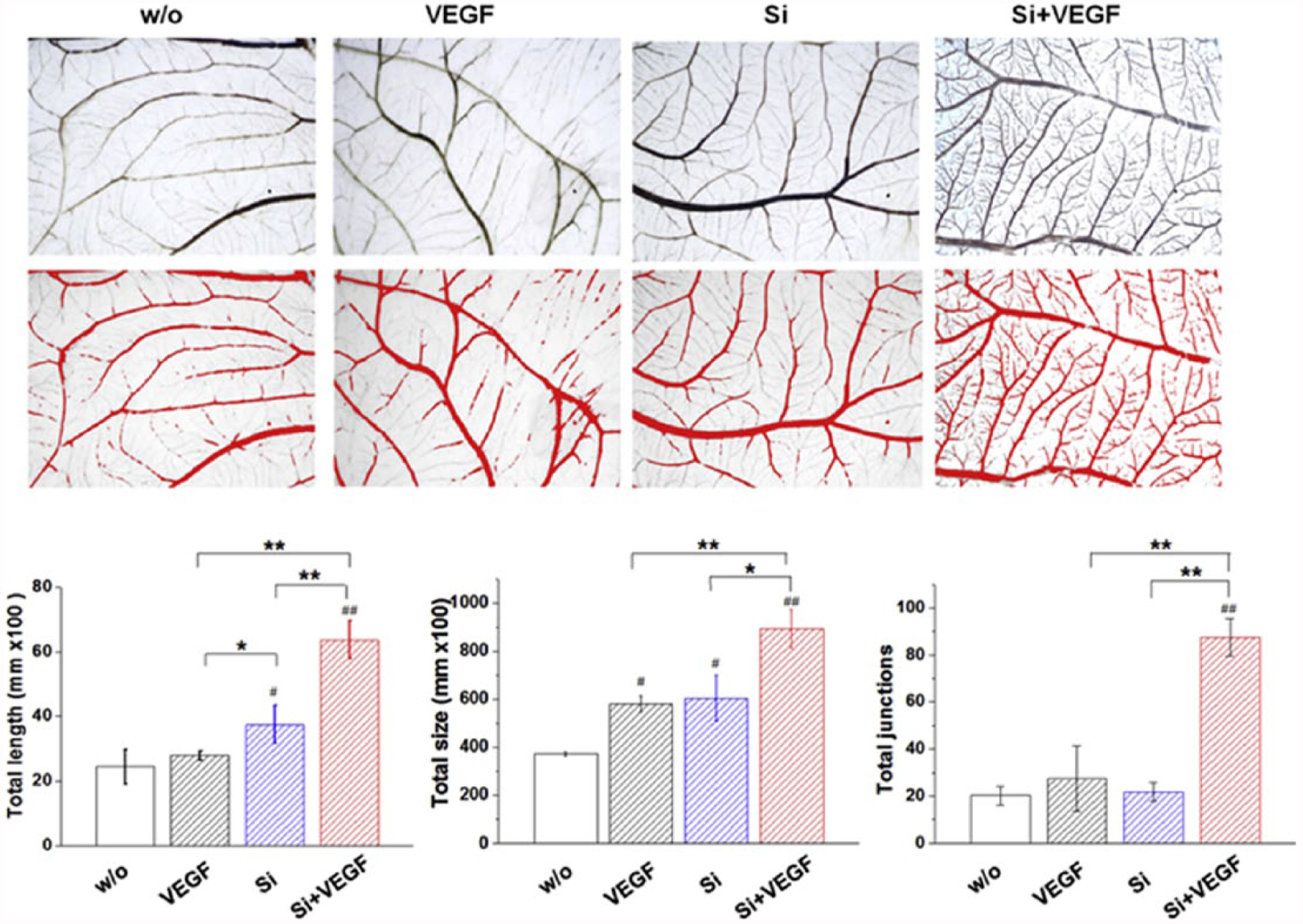

Figure 5.

Synergistic effect of the silicate ion and VEGF releasing from mesoporous silica microspheres presented excellent neovascularization from existing vessels in the CAM model. Quantification of the total length, total size, and total junctions showed significantly enhancement of each parameter. Reprint permission was obtained from Dashnyam et al.⁵³

Proposed mechanisms of silicon ionic roles in angiogenesis

Based on recent studies,^{2,10,14,15,34} here, we summarize the hypothetical key points in which silicon may play roles in promoting angiogenic events in cells.

In hypoxia, cells such as fibroblasts and endothelial cells (“Cell I” in Figure 6) are able to sense reduced oxygen levels and stimulate angiogenesis mainly by the activation of HIF-1.^{10,14,54,69,70} HIF-1, heterodimer transcription factor composed of subunits α and β, regulates the expression of VEGF, which is responsible for the activation of angiogenesis.⁷¹ Other growth factors such as bFGF and transforming growth factor beta (TGF-β) are also upregulated and stimulate the angiogenic pathway.^{3,10,14,34,48,58,69,70} While HIF-1β is constitutively expressed in cells, HIF-1α is a regulatory component in angiogenesis. At low oxygen level, HIF-1α rapidly stabilizes and accumulates in the cytosol and both subunits, α and β, dimerize to form HIF-1 complex which translocates to the nucleus where it activates the hypoxia response elements (HREs).^10,71,72 This activation of HRE is required for the upregulation of VEGF. The VEGF released from cells is recognized by VEGF tyrosine kinase receptors (VEGFRs) in endothelial cells (“Cell II” in Figure 6), activating the signaling cascade of angiogenesis.^34,48,54,70 VEGFR2, known as KDR or fetal liver kinase 1 (Flk1), appears to be the most important receptor in the angiogenesis pathway.⁴⁸ HRE is upregulated soon after KDR is activated by VEGF, and the endothelial cells express more VEGF which is then released extracellularly. In the process, autocrine (Cell II to Cell II) and paracrine (Cell I to Cell II) signaling is able to activate the angiogenic pathway.^{10,14,54,69,70} In addition, KDR signaling leads to upregulating eNOS and NO production, which is responsible for the proliferation and migration of endothelial cells.^14,15,34,48 At the same time, VE-cadherin is overexpressed at the endothelial adherens junctions, which is essential for blood vessel formation.^14,34,54,73

Figure 6.

Schematic illustration of the possible mechanisms of silicate ion in the angiogenic pathway. The key step in this diagram is the activation or inactivation of PHD2. PHD2 is in charge of the hydroxylation of HIF-1α for further degradation in the proteasome. If any cofactor (ascorbic acid, Fe²⁺) or substrate (oxygen or 2-oxyglutarate) is reduced or substituted by other ions, PHD2 cannot hydroxylate HIF-1α. Silicate ion may in part share the mechanisms in common with other metallic ions such as copper, cobalt, or nickel by interacting directly with PHD2 or with any of the substrates or cofactors. Besides, silicon may enhance the production of ROS and thus affecting Fe²⁺ role in PHD2 blocking. Modified from original article with reprint permission from Fong and Takeda.⁷²

However, under normoxia conditions, HIF-1α is exposed to the hydroxylation at a proline residue by PHD2 protein, also referred to HIF-prolyl hydroxylase (HPH).⁷² This hydroxylation of HIF-1α makes it critical for the interaction with von Hippel–Lindau (VHL) protein, a component of the E3 ubiquitin ligase complex, which, by its ubiquitin ligase activity, ubiquitinizes HIF-1α. Consequently, HIF-1α is degraded at the proteasome, and angiogenesis is inhibited.^10,71,72

Often, the growth factors, such as VEGF, bFGF, or TGF-β, are delivered through biomaterials to induce hypoxic-mediated angiogenic stimulation.^10,34,48 Furthermore, ions involved in the stimulation of angiogenic processes (e.g. Cu²⁺, Co²⁺, and Si⁴⁺) are used with biomaterials to mimic this hypoxic condition.³ As demonstrated, those ions may be involved in the stimulation of HIF-1α through PHD2 inhibition.^10,54,71,72 PHD2 uses oxygen (O₂) and 2-oxyglutarate (2-OG) as co-substrates and iron (Fe(II)) and ascorbic acid (AA) as cofactors;^71,72 therefore, a lack of any of these will lead to the inactivation of the protein; consequently, HIF-1α rapidly accumulates in the cytosol to induce angiogenic signaling pathway. A recent finding revealed that silicate ions released from pure mesoporous silica microspheres were able to stabilize HIF-1α in the cytosol of endothelial cells.⁴⁶

Up to date, the exact molecular pathway for the inhibition of PHD2 or dehydroxylation of HIF-1α mediated by silicate ions is still unclear; thus, further investigation is needed to confirm precise mechanisms. Here, we presume the silicate interaction mechanisms based on the findings of how other ions interact in the events. Similar to other ions, silicate ions are able to flux into cells through a specific subfamily of aquaporin (AQP10), which is involved not only in the permeability of water molecules but also in the passive transport of small solutes. Specificity for silicate ion is determined by concrete residues (XX/R) in the structure domain according to the recent findings.^74–77

Transition metal cations such as cobalt (Co²⁺) and nickel (Ni²⁺) resembling iron (Fe²⁺) can replace it in the iron-binding domain of prolyl hydroxylases;^71,78 thus, PHD2 is not able to hydroxylate HIF-1α. Besides, cobalt and nickel interact directly with HIF-1α by occupying the VHL-binding domain to inhibit the interaction between VHL and hydroxylated HIF-1α.⁷⁸ It has been seen that although high levels of reactive oxygen species (ROS) may result in high toxicity in cells and tissues, an initial burst of free radicals is beneficial for the initiation of angiogenesis.⁷⁹ Cobalt, nickel, and also copper ions can cause oxidative damage to cells by the generation of ROS.^11,71 ROS, including peroxides, superoxides, hydroxyl radicals, and singlet oxygen, is produced under normal conditions by cells as products of the oxidative phosphorylation in the mitochondria.⁷² Under stress environments, such as ionizing radiation, inflammation, or exposure to metals, ROS generation is enhanced leading to cellular damages.^54,72 While AA mainly functions as a cofactor of enzymes, it also acts as an antioxidant by preventing the oxidation of molecules during oxidative stress. In this way, AA can reduce Fe(III) into the oxidized iron Fe(II), which is necessary for PHD2 activity. Cobalt and nickel may deplete intracellular AA levels by preventing the entrance into the cell through mechanisms of irreversible degradation of AA to smaller products.^71,72,80 Free copper ion can participate in the formation of hydroxyl radicals (OH·) in the presence of AA or superoxide.^11,81,82 Although the exact mechanism of silicate ionic interaction with AA still remains unknown, we hypothesize that silicate ions may also interact in a similar way, inhibiting the functions of PHD2 by chelating iron in the binding site of PHD2 and/or HIF-1α or interacting directly or indirectly with AA or even by the generation of ROS. Further studies are needed to clarify how silicate ion affects the PHD2 activity through free radicals and intracellular AA which in turn regulates ROS levels in cells.

One note with regard to the role played by silicon is the possible synergism with other ions. Copper and silicon were shown to have a synergistic effect on the co-cultured fibroblasts and endothelial cells, although silicon appeared to show lower stimulatory effects on HIF-1α expression than copper.¹⁰ It is still not clear how silicon helps copper in the angiogenic stimulation; thus, more studies are needed to elucidate the molecular signaling events of the cooperative roles of silicon and copper and also for the case with other ions, such as cobalt or nickel.

Conclusion

Many different forms of silicate-based biomaterials have shown excellent performance in the tissue repair and regeneration processes where angiogenesis is considered a key event. As witnessed in this short review, the release of silicate ions at appropriate levels (a few ppm) is thus believed to play some essential roles in the biological events of these biomaterials. Silicate ion can mimic hypoxic conditions to stimulate angiogenesis pathway by increasing the expression of proangiogenic factors, such as VEGF, FGF, and the receptors in endothelial cells, which in turn upregulates the downstream cascade of angiogenesis including the stimulation of NO. It is considered that silicate ion may inactivate PHD2 by either directly interacting or indirectly depleting intracellular AA or enhancing ROS generation, all of which possibly contribute to stabilizing HIF-1α and the consequent angiogenic events. Besides, it is needed to pay attention to the cooperative action of silicon with other angiogenic promoting ions. Still more studies are needed to clarify the exact molecular mechanisms in which silicate ion contributes to the angiogenesis of cells.

Footnotes
