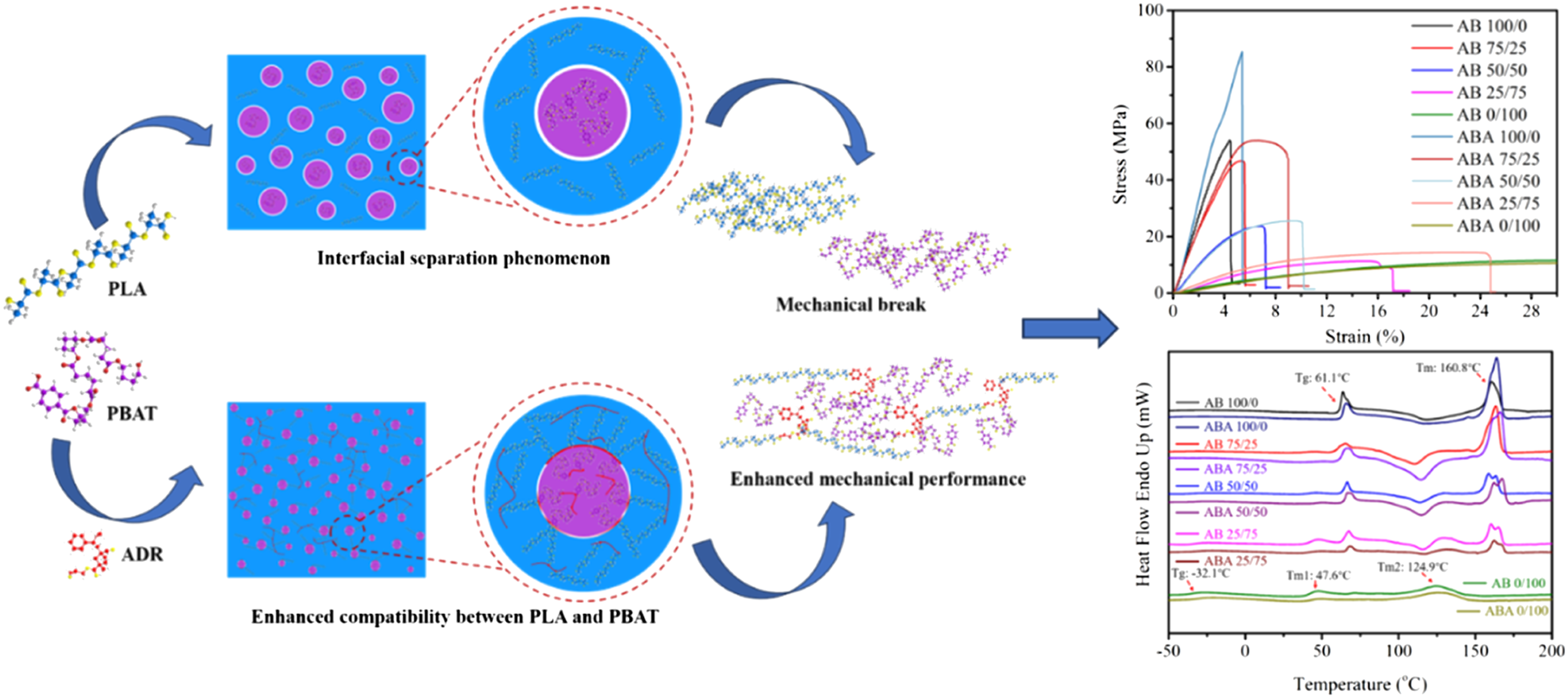

Environmental problems, such as plastic pollution and global warming, are motivating researchers worldwide to seek sustainable biodegradable polymers that would replace the nonbiodegradable ones. Polylactic acid (PLA) has emerged as one of the most promising alternatives due to its superior mechanical and thermal qualities compared to other types of biopolymers. However, PLA has some inherent deficiencies such as its brittleness and rigidity, which limit its further use. This study investigates the toughening effect of different amounts of polybutylene adipate terephthalate (PBAT) on PLA, and the compatibilization effect of ADR, a chain extender, on the PLA/PBAT blends. The results indicate that PBAT can significantly enhance the flexibility and toughness of PLA. PLA and PBAT can react with ADR to form PLA-g-PBAT copolymers thereby increasing the compatibility of these two polymers. The tensile strength, elongation at break and impact strength of the PLA/PBAT/ADR blends are all increased due to the increased compatibility. The chain extension reaction can promote the formation of a better crystalline structure in the PLA/PBAT blends, which leads to the increase of the Tm of PLA. Besides, the hydrophilicity of PLA can be adjusted by blending with PBAT, and the hydrophilicity of the blends with blend ratios of 75:25, 50:50 and 25:75 can also be enhanced after the addition of ADR.
BallaEDaniilidisVKarliotiG, et al.Poly(lactic acid): a versatile biobased polymer for the future with multifunctional properties—from monomer synthesis, polymerization techniques and molecular weight increase to PLA applications. Polymers2021; 13(11): 1822.
2.
BhasneySMKumarAKatiyarV. Microcrystalline cellulose, polylactic acid and polypropylene biocomposites and its morphological, mechanical, thermal and rheological properties. Compos B Eng2020; 184: 107717.
3.
WilliamsATRangel-BuitragoN. The past, present, and future of plastic pollution. Mar Pollut Bull2022; 176: 113429.
4.
Castro-AguirreEIñiguez-FrancoFSamsudinH, et al.Poly(lactic acid)-mass production, processing, industrial applications, and end of life. Adv Drug Deliv Rev2016; 107: 333–366.
5.
FarahSAndersonDGLangerR. Physical and mechanical properties of PLA, and their functions in widespread applications - a comprehensive review. Adv Drug Deliv Rev2016; 107: 367–392.
6.
HeLSongFLiDF, et al.Strong and tough polylactic acid based composites enabled by simultaneous reinforcement and interfacial compatibilization of microfibrillated cellulose. ACS Sustainable Chem Eng2020; 8(3): 1573–1582.
7.
NofarM, et al.Ductility improvements of PLA-based binary and ternary blends with controlled morphology using PBAT, PBSA, and nanoclay. Compos B Eng2020; 182: 107661.
8.
HamadKKaseemMAyyoobM, et al.Polylactic acid blends: the future of green, light and tough. Prog Polym Sci2018; 85: 83–127.
9.
TsouC-HGaoCGuzmanMD, et al.Preparation and characterization of poly(lactic acid) with adipate ester added as a plasticizer. Polym Polym Compos2018; 26(8–9): 446–453.
10.
YangYZhangLXiongZ, et al.Research progress in the heat resistance, toughening and filling modification of PLA. Sci China Chem2016; 59(11): 1355–1368.
11.
NairSSChenHPengY, et al.Polylactic acid biocomposites reinforced with nanocellulose fibrils with high lignin content for improved mechanical, thermal, and barrier properties. ACS Sustainable Chem Eng2018; 6(8): 10058–10068.
12.
SiW-JYangLWengYX, et al.Poly(lactic acid)/biobased polyurethane blends with balanced mechanical strength and toughness. Polym Test2018; 69: 9–15.
13.
BritoGAgrawalPAraújoEM, et al.Polylactide/biopolyethylene bioblends. Polímeros2011; 22: 427–429.
14.
YouXSnowdonMRMisraM, et al.Biobased poly (ethylene terephthalate)/poly (lactic acid) blends tailored with epoxide compatibilizers. ACS Omega2018; 3(9): 11759–11769.
15.
Pivsa-ArtSKord-Sa-ArdJPivsa-ArtW, et al.Effect of compatibilizer on PLA/PP blend for injection molding. Energy Proc2016; 89: 353–360.
16.
ZhaoXHuHWangX, et al.Super tough poly(lactic acid) blends: a comprehensive review. RSC Adv2020; 10(22): 13316–13368.
17.
KohlerT, et al.Development of PLA hybrid yarns for biobased self-reinforced polymer composites. IOP Conf Series Mat Sci and Eng2017; 254(4): 042016.
18.
JianJXiangbinZXianboH. An overview on synthesis, properties and applications of poly(butylene-adipate-co-terephthalate)–PBAT. Adv Industrial and Eng Polymer Res2020; 3(1): 19–26.
19.
FuYWuGBianX, et al.Biodegradation behavior of poly (butylene adipate-Co-terephthalate) (PBAT), poly (lactic acid) (PLA), and their blend in freshwater with sediment. Molecules2020; 25(17): 3946.
20.
QiuSZhouYGeoffreyNW, et al.Optimizing interfacial adhesion in PBAT/PLA nanocomposite for biodegradable packaging films. Food Chem2021; 334: 127487.
21.
MalinowskiRMoraczewskiKRaszkowska-KaczorA. Studies on the uncrosslinked fraction of PLA/PBAT blends modified by electron radiation. Materials2020; 13: 1068.
22.
MatumbaKIMotloungMPOjijoV, et al.Investigation of the effects of chain extender on material properties of PLA/PCL and PLA/PEG blends: comparative study between polycaprolactone and polyethylene glycol. Polymers2023; 15(9): 2230.
23.
ColtelliMBBertoliniAAliottaL, et al.Chain extension of poly(lactic acid) (PLA)-Based blends and composites containing bran with biobased compounds for controlling their processability and recyclability. Polymers2021; 13(18): 3050.
24.
WuDGuoYHuangAP, et al.Effect of the multi-functional epoxides on the thermal, mechanical and rheological properties of poly(butylene adipate-co-terephthalate)/polylactide blends. Polym Bull2021; 78: 5567–5591.
25.
TangDZhangCWengY. Effect of multi-functional epoxy chain extender on the weathering resistance performance of Poly(butylene adipate-co-terephthalate) (PBAT). Polym Test2021; 99: 107204.
26.
Gonzalez AusejoJ. On the use of tris(nonylphenyl) phosphite as a chain extender in melt-blended poly(hydroxybutyrate-co-hydroxyvalerate)/clay nanocomposites: morphology, thermal stability, and mechanical properties. J Appl Polym Sci2015; 132: 42390.
27.
NajafiNHeuzeyMCarreauP, et al.Control of thermal degradation of polylactide (PLA)-clay nanocomposites using chain extenders. Polym Degrad Stabil2012; 97(4): 554–565.
28.
DawinTPAhmadiZTaromiFA. Bio-based solution-cast blend films based on polylactic acid and polyhydroxybutyrate: influence of pyromellitic dianhydride as chain extender on the morphology, dispersibility, and crystallinity. Prog Org Coating2018; 119: 23–30.
29.
PanHLiZYangJ, et al.The effect of MDI on the structure and mechanical properties of poly (lactic acid) and poly (butylene adipate-co-butylene terephthalate) blends. RSC Adv2018; 8(9): 4610–4623.
30.
LiXAiXPanH, et al.The morphological, mechanical, rheological, and thermal properties of PLA/PBAT blown films with chain extender. Polym Adv Technol2018; 29(6): 1706–1717.
31.
LiXYanXYangJ, et al.Improvement of compatibility and mechanical properties of the poly(lactic acid)/poly(butylene adipate-co-terephthalate) blends and films by reactive extrusion with chain extender. Polym Eng Sci2018; 58(10): 1868–1878.
32.
ParodiEGovaertLEPetersGWM. Glass transition temperature versus structure of polyamide 6: a flash-DSC study. Thermochim Acta2017; 657: 110–122.
33.
WangXPengSChenH, et al.Mechanical properties, rheological behaviors, and phase morphologies of high-toughness PLA/PBAT blends by in-situ reactive compatibilization. Compos B Eng2019; 173: 107028.
34.
KoningC. Strategies for compatibilization of polymer blends. Prog Polym Sci1998; 23(4): 707–757.
35.
DingYZhangCLuoC, et al.Effect of talc and diatomite on compatible, morphological, and mechanical behavior of PLA/PBAT blends. e-Polymers2021; 21: 234–243.
36.
PietrosantoAScarfatoPDi MaioL, et al.Evaluation of the suitability of poly(lactide)/poly(butylene-adipate-co-terephthalate) blown films for chilled and frozen food packaging applications. Polymers2020; 12(4): 804.
37.
GanZKuwabaraKYamamotoM, et al.Solid-state structures and thermal properties of aliphatic–aromatic poly(butylene adipate-co-butylene terephthalate) copolyesters. Polym Degrad Stabil2004; 83(2): 289–300.
38.
NunesEd.CDSouzaAGdRosaDS. Effect of the Joncryl1 ADR compatibilizing agent in blends of poly (butylene adipate-co-terephthalate)/poly (lactic acid). Macromol Symp2019; 383: 1800035.
39.
SmithMJVerbeekCJ. Manipulating morphology in thermoplastic protein/polyester blends for improved impact strength. Adv Polym Technol2018; 37(6): 2354–2366.
40.
DuQZhouPPanY, et al.Influence of hydrophobicity and roughness on the wetting and flow resistance of water droplets on solid surface: a many-body dissipative particle dynamics study. Chem Eng Sci2022; 249: 117327.
