Single-Dose Intra-Cartilage Delivery of Kartogenin Using a Cationic Multi-Arm Avidin Nanocarrier Suppresses Cytokine-Induced Osteoarthritis-Related Catabolism

Abstract

Objective

Kartogenin (KGN) has proven as a both chondrogenic and chondroprotective drug for osteoarthritis (OA) therapy. However, being a small hydrophobic molecule, KGN suffers from rapid joint clearance and inability to penetrate cartilage to reach chondrocytes following intra-articular administration. As such multiple high doses are needed that can lead to off-target effects including stimulation and tissue outgrowth. Here we design charge-based cartilage targeting formulation of KGN by using a multi-arm cationic nano-construct of Avidin (mAv) that can rapidly penetrate into cartilage in high concentrations owing to weak-reversible electrostatic binding interactions with negatively charged aggrecan-glycosaminoglycans (GAGs) and form an extended-release drug depot such that its therapeutic benefit can be reaped in just a single dose.

Design

We synthesized 2 novel formulations, one with a releasable ester linker (mAv-OH-KGN, release half-life ~58 h) that enables sustained KGN release over 2 weeks and another with a non-releasable amide linker (mAv-NH-KGN) that relies on mAv’s ability to be uptaken and endocytosed by chondrocytes for drug delivery. Their effectiveness in suppressing cytokine-induced catabolism was evaluated in vitro using cartilage explant culture model.

Results

A single 100 μM dose of cartilage homing mAv-KGN was significantly more effective in suppressing cytokine-induced GAG loss, cell death, inflammatory response and in rescuing cell metabolism than a single dose of free KGN; multiple doses of free KGN were needed to match this therapeutic response.

Conclusion

mAv mediated delivery of KGN is promising and can facilitate clinical translation of KGN for OA treatment with only a single dose.

Keywords

Kartogenin osteoarthritis Avidin electrostatic interactions intra-cartilage drug delivery

Introduction

Osteoarthritis (OA) is characterized by chronic inflammation and cartilage degradation and is one of the most common joint disorders affecting millions of people worldwide.^1,2 There are no approved disease-modifying treatments that can delay or prevent OA progression.^3,4 Current treatment options like non-steroidal anti-inflammatory drugs (NSAIDs), intra-articular (IA) injection of hyaluronic acid (HA)-based products or triamcinolone encapsulating poly(lactic-co-glycolic acid) (PLGA) microparticles can only help manage OA pain.^4-7 Thus, there is an urgent need to develop effective therapeutic interventions that can not only inhibit OA-associated catabolic activity but also upregulate anabolic processes to enable repair at cell and tissue level.⁸ It is also important that these therapies are delivered to their cell and matrix target sites inside cartilage in a sustained manner for an effective treatment.^9-12 Following IA administration, most macromolecules clear out rapidly from the joint space via lymphatics or blood vessels resulting in short intra-joint residence times.^5,10,13,14 In addition to this, their transport and penetration into cartilage is hindered due to its dense negatively charged matrix comprising high density of aggrecan-glycosaminoglycans (GAGs) and collagen type II meshwork giving it a nanometer range pore size.^5,10,12,14

Kartogenin (KGN) is a small molecule that promotes the selective differentiation of mesenchymal stem cells (MSCs) into chondrocytes through interactions with actin-binding protein filamin A (FLNA), core binding factor β (CBFβ), and transcription factor RUNX1.¹⁵ KGN functions by breaking the balance between CBFβ and FLNA in the cytoplasm and translocating CBFβ into the nucleus, where CBFβ interacts with RUNX1 to form the CBFβ-RUNX1 complex.¹⁵ This complex activates the transcription of chondrogenesis-related proteins and enhances synthesis of cartilage matrix proteins like collagen type II and aggrecan.¹⁵ In addition, KGN exhibits chondroprotective effects by stabilizing the interaction of CD44 receptors to hyaluronan while blocking the inflammatory cytokine-induced expression of aggrecanase.¹⁶ However, being a small hydrophobic molecule (MW ~ 317.3 Da),¹⁷ KGN suffers from rapid joint clearance following its IA administration.^18,19 As such, multiple high doses are needed that can potentially lead to off-target effects such as stimulation and outgrowth of normal tissues.^19,20 For example, a recent rat study evaluating multiple doses of KGN for wound healing in the tendon-bone junctions (TBJs) reported that KGN spread out from the intended location and resulted in excessive growth of patellar and surrounding cartilage like tissues, which completely hid the patellar tendon.²⁰

KGN has gained significant attention lately as a disease-modifying OA drug.^{15,16,19,21-25} For example, 125 μM KGN was shown to be effective in suppressing anterior cruciate ligament transection (ACLT)-induced subchondral bone and cartilage degradation but weekly IA injections were required until 12 weeks.²⁵ Similarly, weekly IA administered KGN combined with microfracture was found to increase production of hyaline like cartilage tissue and improve the cartilage repair assessment (ICRS) scores compared with microfracture alone in a rabbit cartilage defect model.²⁶ Recently, a more potent and stable analogue of KGN, KA34 was shown to be effective in cartilage repair and pain modulation in injury models of rats and dogs with weekly or biweekly IA injections.²² These preclinical studies have led to a Phase I clinical trial (NCT03133676) to evaluate the safety and tolerability of single and multiple IA doses of KA34 in OA patients. These are promising developments further highlighting the importance of developing sustained release formulations to reduce the need for multiple injections, which is also associated with local injection site pain, inflammation and discomfort. Particle and gel-based systems are under consideration for enhancing intra-joint residence time of small molecule drugs like KGN but none of these delivery methods enable cartilage targeting or penetration.^18,24,27-29

Our group has shown that electrostatic interactions are effective in targeting cartilage, a tissue with a very high negative fixed charge density.^10,30-33 We showed previously that Avidin, a glycoprotein, due to its optimal size (< 10 nm which is the estimated cartilage matrix pore size)³⁴ and net charge (between +6 and +20), is an effective carrier for intra-cartilage drug depot delivery.^34-37 We synthesized a multi-arm Avidin nano-construct (mAv) by conjugating four 8-arm branched polyethylene glycols (PEGs) to its biotin binding sites^38,39 and showed that it can penetrate through the full thickness of cartilage in high concentrations (112x higher than the equilibration bath) resulting in a long intra-cartilage residence time (>7 days) in both healthy and arthritic cartilage owing to weak-reversible binding with negatively charged aggrecans.^13,31,39

Here, our goal is to design cartilage targeting formulations of KGN by using mAv that can penetrate rapidly into the tissue in high concentrations and form an extended-release drug depot such that its therapeutic benefit can be reaped in just 1 dose. We synthesize 2 novel formulations, one with a releasable ester linker that enables sustained KGN release over 2 weeks and another with a non-releasable amide linker that relies on mAv’s ability to be uptaken and endocytosed by chondrocytes for drug delivery ( Fig. 1 ). We characterize their structural properties and investigate their effectiveness in suppressing cytokine-induced catabolism in a cartilage explant OA model over 8 days with only a single dose of KGN. The data show that a single low dose of these cartilage homing mAv-KGN formulations is significantly more effective in suppressing OA-associated catabolism than a single dose of free KGN, and that multiple doses of free KGN are needed to match the therapeutic response from the two cartilage homing formulations. mAv-mediated delivery of KGN, therefore, is a promising technique and can facilitate clinical translatability of KGN for OA treatment with only a single dose.

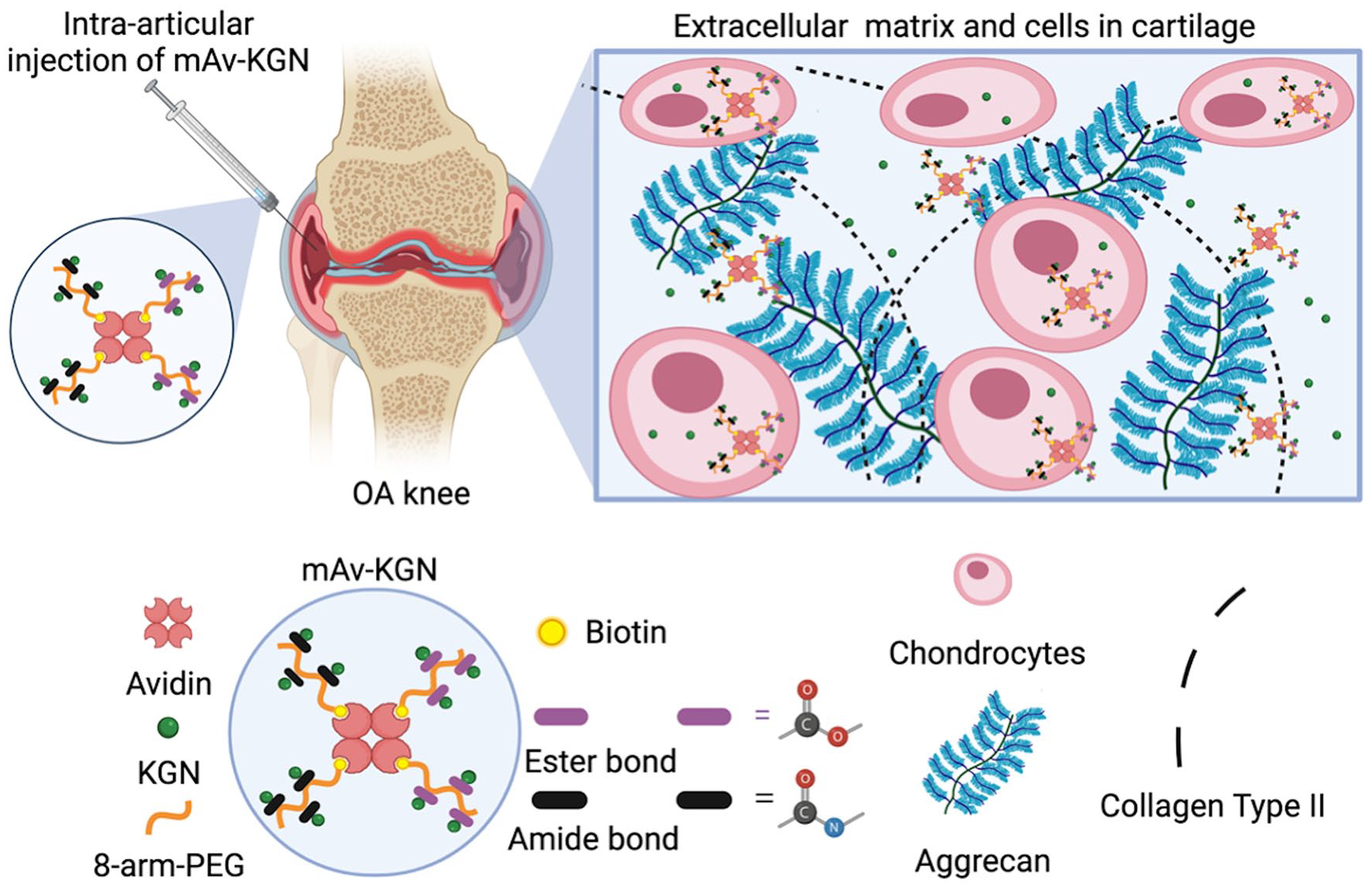

Figure 1.

Schematic of charge-based intra-cartilage delivery of KGN conjugated to multi-arm Avidin nanocarrier (mAv-KGN) by using either a releasable ester linker or a non-releasable amide linker. Following its intra-articular administration, mAv-KGN can rapidly penetrate through the full thickness of negatively charged cartilage in high concentrations due to electrostatic interactions thereby creating an intra-cartilage drug depot. The optimal net positive charge of mAv enables its rapid and high intra-cartilage uptake and long-term retention via weak-reversible binding with negatively charged aggrecan-GAGs. Therapeutic doses of KGN are either released via hydrolysis of ester linker or in case of amide linker, mAv-KGN is uptaken by chondrocytes. KGN = Kartogenin; mAv = multi-arm Avidin nano-construct; GAGs = glycosaminoglycans; OA = osteoarthritis; PEG = polyethylene glycol.

Methods

Materials

The 10 kDa 8-arm PEG amine hydrochloride salt was purchased from Advanced Biochemicals (Lawrenceville, GA). N-Hydroxysuccinimido (NHS)-biotin, NHS, 1-ethyl-3-(3 dimethylaminopropyl) carbodiimide hydrochloride (EDC), N-hydroxysulfosuccinimide (NHSS), Avidin (Av), 3.5 kDa molecular weight cut-off (MWCO) and 7 kDa MWCO SnakeSkin dialysis tubing was purchased from Thermo Fisher Scientific (Waltham, MA). Kartogenin (KGN) was purchased from Tocris bioscience; Proteinase-K was purchased from Roche Diagnostics (Risch-Rotkreuz, Switzerland). Dulbecco’s Modification of Eagle’s Medium (DMEM) was from Cellgro (Manassas, VA). HEPES, non-essential amino acids (NEAA), penicillin-streptomycin Antibiotic-Antimycotic (PSA), and trypsin-EDTA phenol red were purchased from Gibco (Carlsbad, CA). Ascorbic acid and L-proline were from Fisher Bioreagents (Pittsburgh, PA). Propidium iodide (PI) was obtained from Thermofisher Acros Organics (Geel, Belgium). Human recombinant interleukin (IL)-1α and Oncostatin-M (OSM) were from PeproTech (Rocky Hill, NJ). Antibodies for type II collagen immunohistochemistry was acquired from the Developmental Studies Hybridoma Bank (University of Iowa), while the Vectastain Elite ABC kit was from Vector Laboratories (Burlingame, CA). 3-hydroxpropionic acid, dimethyl sulfoxide-d6 (DMSO-d6) containing 0.03% (v/v) tetramethylsilane, fluorescein diacetate (FDA), fluorescein isothiocyanate isomer I (FITC), dimethylaminopyridine (DMAP), resazurin sodium salt, Griess reagent, histology reagents, and other salts were purchased from Sigma-Aldrich (St. Louis, MO).

Biotinylation of 8-Arm PEG

Eight-arm PEG-amine was biotinylated by reacting with NHS-biotin to get 1 biotin per PEG as previous described.^38,39 Briefly, 8-arm PEG-amine (10 mg, 0.001 mmol, 1 equiv.) was reacted with NHS-biotin (1.7 mg, 0.005 mmol, 5 equiv.) for 2 hours under gentle rotation at room temperature (RT). Excess NHS-biotin was removed from the PEG-biotin conjugate solution using dialysis tube (7.0 kDa MWCO) for 24 hours against phosphate buffer saline (PBS) and following another 24 hours against water at room temperature. Eight-arm PEG-Biotin-amine (PEG-Biotin) was then lyophilized, weighed, and stored at −20°C for future use.

Synthesis of PEG-OH-KGN and PEG-NH-KGN

Briefly, 3-hydroxypropinoic acid (31 μl of 30% solution in water, 0.1 mmol, 100 equiv.) was firstly activated with EDC (14 mg, 0.067 mmol, 67 equiv.), and NHSS (16mg, 0.073 mmol, 73 equiv.) in PBS, then reacted with 8-arm PEG-Biotin (10 mg, 0.001 mmol, 1.0 equiv.) to form PEG-OH (as shown in Fig. 2A ). Eight-arm PEG-OH was purified via dialysis. KGN (25 mg, 0.08 mmol, 80 equiv.) was activated with EDC (28 mg, 0.134 mmol, 134 equiv.) and DMAP (14 mg, 0.114,114 equiv.) in anhydrous CH₂Cl₂ for 0.5 hours. Then PEG-OH was added for 24 hours reaction to form the releasable formulation, PEG-OH-KGN containing a hydrolysable ester linker. Thereafter, CH₂Cl₂ was removed by purging air and cold deionized (DI) water was added resulting in the formation of a white precipitate. It was stirred for 10 minutes and centrifuged at 10,000 g for 5 minutes for 3 cycles. In each cycle, the supernatant containing PEG-OH-KGN (white precipitate) was collected, and fresh cold DI water was added. The final product was purified via dialysis in PBS for 24 hours, then in DI water for 24 hours. The product was lyophilized, weighed and stored at −20°C.

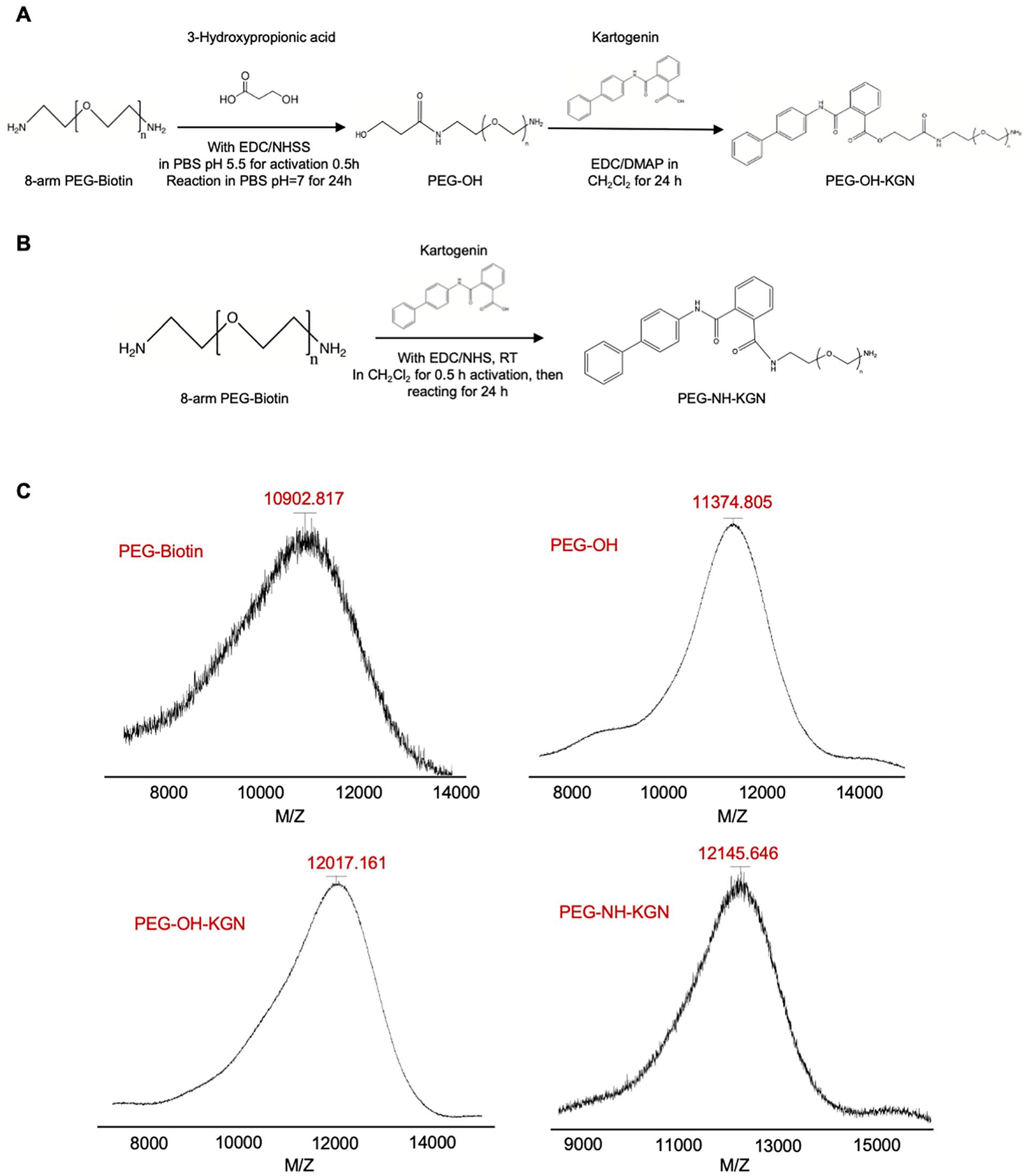

Figure 2.

Schematic of KGN conjugation with 8-arm PEG-amine by forming (A) ester bond and (B) amide bond. (C) Confirmation of PEG-Biotin, PEG-OH, PEG-OH-KGN, and PEG-NH-KGN using MALDI-TOF MS. The calculated mass of PEG-Biotin is 10902.817 Da, PEG-OH is 11374.805 Da, PEG-OH-KGN is 12017.161Da, and PEG-OH-KGN is 12145.646 Da. KGN = Kartogenin; PEG = polyethylene glycol; MALDI-TOF MS= Matrix-assisted laser-desorption ionization time-of-flight mass spectrometry; EDC = 1-ethyl-3-(3 dimethylaminopropyl) carbodiimide hydrochloride; NHSS = N-hydroxysulfosuccinimide; PBS = phosphate buffer saline; DMAP = dimethylaminopyridine; NHS = N-Hydroxysuccinimido; RT = room temperature.

To form an amide linker between the 8-arm PEG-Biotin-amine and KGN, carboxyl group in KGN (25mg, 0.08 mmol, 80 equiv.) was firstly activated with EDC (28mg, 0.134 mmol,134 equiv.) and NHS (14mg, 0.121 mmol, 121 equiv.) in anhydrous CH₂Cl₂ for 0.5 hours (as shown Fig. 2B ). Then 8-arm PEG-amine (10 mg, 0.001 mmol, 1 equiv.) was added to react over 24 hours to form the non-releasable formulation, PEG-NH-KGN containing an amide linker. The final product was separated and purified similar to PEG-OH-KGN, as described above.

Characterization of PEG-OH, PEG-OH-KGN, and PEG-NH-KGN

Matrix-assisted laser-desorption ionization time-of-flight mass spectrometry (MALDI-TOF MS) was used to confirm the molecular weight of PEG-Biotin, PEG-OH, PEG-OH-KGN, and PEG-NH-KGN. 2 µL of PEG-OH, PEG-OH-KGN, or PEG-NH-KGN (1 mg/ml) was mixed with equal amount of sinapic acid matrix (10 mg/ml), and the change in molecular weight between unmodified and modified molecules and the drug loading content were confirmed using MALDI-TOF spectrometry (Bruker Microflex II). The data were analyzed using flexAnalysis software from Bruker.

Conjugation with KGN was further confirmed with HPLC. 1 mg/ml of each purified compound was injected into HPLC (Agilent Technologies 1260 infinity II) equipped with a Variable Wavelength Detector using a Poroshell 120 EC-C18 column (4.6 x 150 mm). A gradient of solvent A (0.1% trifluoroacetic acid [TFA] in water) and solvent B (0.1% TFA in acetonitrile) was used. The concentration of solvent B was increased linearly from 5% to 65% over 15 minutes. Column temperature of 30 °C and a flow rate of 1.0 ml/minute were used. KGN was detected at UV = 280 nm.

The chemical shift values for KGN, PEG-OH, PEG-OH-KGN and PEG-NH-KGN were analyzed using 500 MHz ¹H NMR (Varian Inova, Agilent Technologies). One to two milligrams of each of the 4 purified compounds were dissolved in 700 μl DMSO-d6 at RT. The obtained NMR data were analyzed using MestRe Nova software. The 4 compounds KGN, PEG, PEG-OH-KGN and PEG-NH-KGN were characterized by Fourier transform infrared spectroscopy (FTIR) (Billerica MA, Bruker). 0.5 mg of each sample was dissolved in 1 ml dichloromethane (DCM) and read at 4000-650 cm⁻¹ range using 30 scans. The spectrum was analyzed used Octopus software (Billerica MA. Bruker).

In Vitro Drug Release Study

The lyophilized products, PEG-OH-KGN (10 mg) and PEG-NH-KGN (10 mg), were dissolved in 1 ml PBS in a dialysis tube (3.5 kDa cutoff) and then put in a 50 ml tube containing 25 ml release media (pH = 7.4 PBS). The setup was put on slow shaking inside the incubator at 37 °C. At different time points, 300 μl of release media was collected and analyzed using HPLC to measure the amount of KGN released as described in section above. An equal amount of fresh media was replaced.

Synthesis of mAv-OH-KGN and mAv-NH-KGN

Purified biotin containing PEG-OH-KGN and PEG-NH-KGN were reacted with Avidin in DI water in 5:1 molar ratio for 30 minutes under gentle shaking at room temperature to form releasable mAv-OH-KGN and non-releasable mAv-NH-KGN using Avidin-biotin reaction. The conjugation was confirmed using 4’-hydroxyazobenzene-2-carboxylic acid (HABA) dye assay and gel electrophoresis as described previously.^38,39 Both formulations were synthesized right before their use in biological experiments described below.

Bioactivity of Single-Dose mAv-KGN in Cytokine Challenged Cartilage Explant Culture OA Model

Cartilage explants harvested from 1- to 2–week-old calf knee joints (procured from Research 87, Boylston, MA) were equilibrated separately in culture media for 2 days prior to treatment as described previously.^40-42 Cartilage explants were then treated with or without a combination of cytokines, Oncostatin M (OSM) (3 ng/ml) + IL-1α (2 ng/ml), for 8 days in combination with (1) a single dose of 100 μM free KGN, (2) a continuous dose of 100 μM free KGN, (3) a single dose of mAv-OH-KGN (100 μM KGN), or (4) a single dose of mAv-NH-KGN (100 μM KGN). Media was changed every 2 days and the cytokine combination (OSM + IL-1α) was replenished at each medium change. Single-dose treated explants were subjected to the drug or drug carrier for only the first 2 days and in the following media changes, the media did not contain any therapeutic, thereby simulating a single intra-articular injection in vivo.^39,40 KGN was replenished throughout the culture duration for the continuous dosing condition. Combination of OSM + IL-1α was chosen based on prior published literature demonstrating that this combination cytokine can trigger a more aggressive GAG loss by degrading both aggrecan and hyaluronan^43-45 and break the interactions with CD44¹² that can be rescued by KGN.¹⁶ Previous work has shown that treatment with 10 to 100 μM KGN can be effective in suppressing cytokine-induced catabolism in cartilage explant culture model.^15,16,21,23 We, therefore, chose single dose of mAv-KGN with effective KGN concentration of 100 μM for intra-cartilage drug depot delivery and compared its efficacy with a single or continuous dosing of equivalent concentration of free (unmodified) KGN (the dosing is described in more detail in the “Results” section).

After 8 days of culture, cartilage explants were weighed and digested in proteinase K as previously described.^39,40,42 The cumulative GAGs released to the media and residual GAGs in the digested explants were measured using the 1,9-dimethylmethylene blue (DMMB) assay.⁴⁶ Nitrite content was measured using the Griess assay as an indicator of nitric oxide (NO) release from tissues.^40,47 Sodium nitrite was used as the standard.

Cartilage explant cell viability was analyzed by staining cartilage explants with fluorescent cocktails of FDA (4.0 mg/ml) and PI (10.0 mg/ml) for live (green) and dead (red) cells, respectively. Slices were washed with PBS and imaged at 4x magnification (Nikon Eclipse Ts2R). The live and dead images were overlaid using ImageJ. At the end of the culture, tissue explants were incubated with alamarBlue assay for 3 hours in dark at 37°C and 5% CO₂. Cell metabolic activity was then estimated by measuring fluorescence at 530 nm excitation and 590 nm emission wavelengths.

Statistical Analysis

Data are presented as Mean ± Standard Deviation. For all studies, n = 6-8 explants per condition and experiments were repeated using explants from at least 3 animals. A general linear mixed effects model was used with animal as a random variable. For comparisons between different treatment conditions, Tukey’s Honestly Significant Difference test was used. P < 0.05 was considered statistically significant.

Results

Synthesis and Characterization of PEG-OH-KGN and PEG-NH-KGN

Based on change in molecular weight measured using MALDI-TOF, we estimated 6.55 OH groups per PEG-OH, 2.15 KGN per PEG-OH-KGN, and 4.15 KGN per PEG-NH-KGN ( Fig. 2C ). KGN peak showed at 14.6 minutes with C-18 column ( Suppl. Fig. S1A ), which following conjugation to form PEG-OH-KGN and PEG-NH-KGN shifted to 11.3 and 11.9 minutes, respectively ( Suppl. Fig. S1B-C ) owing to change in polarity of KGN from extremely hydrophobic to hydrophilic. The broad peaks can be attributed to the heterogeneous property of the 8-arm PEG itself.

The ¹H NMR spectra of KGN showed prominent resonance peaks “1-13” at δ = 7.0-8.0 ppm, which correspond to the protons in the aromatic ring of KGN, consistent with previous reports ( Fig. 3A ).^24,29 The resonance peak “a” at δ = 3.5 ppm corresponds to the proton in the repeated methylene group of PEG (Fig. 3B-D and Suppl. Fig. S2). The peaks “b” at δ = 4.5 ppm and “c” at δ = 7.8 ppm confirm the proton in the hydroxyl group and the proton in the amide bond, respectively, in PEG-OH ( Fig. 3B ). The peaks “a” and “1-13” representing PEG and KGN, respectively, were also seen in PEG-OH-KGN and PEG-NH-KGN spectrums confirming successful conjugation of KGN (Fig. 3C and D). Peak “b” at δ = 4.5 ppm denoting the hydroxyl (OH) group is still visible in Figure 3C as not all OH groups are conjugated with KGN, consistent with our findings from MALDI-TOF. Finally, the peak “c” for amide bond is not visible in the spectra of PEG-OH-KGN or PEG-NH-KGN (Fig. 3C and D) as it is blended with KGN peaks “1-13.”

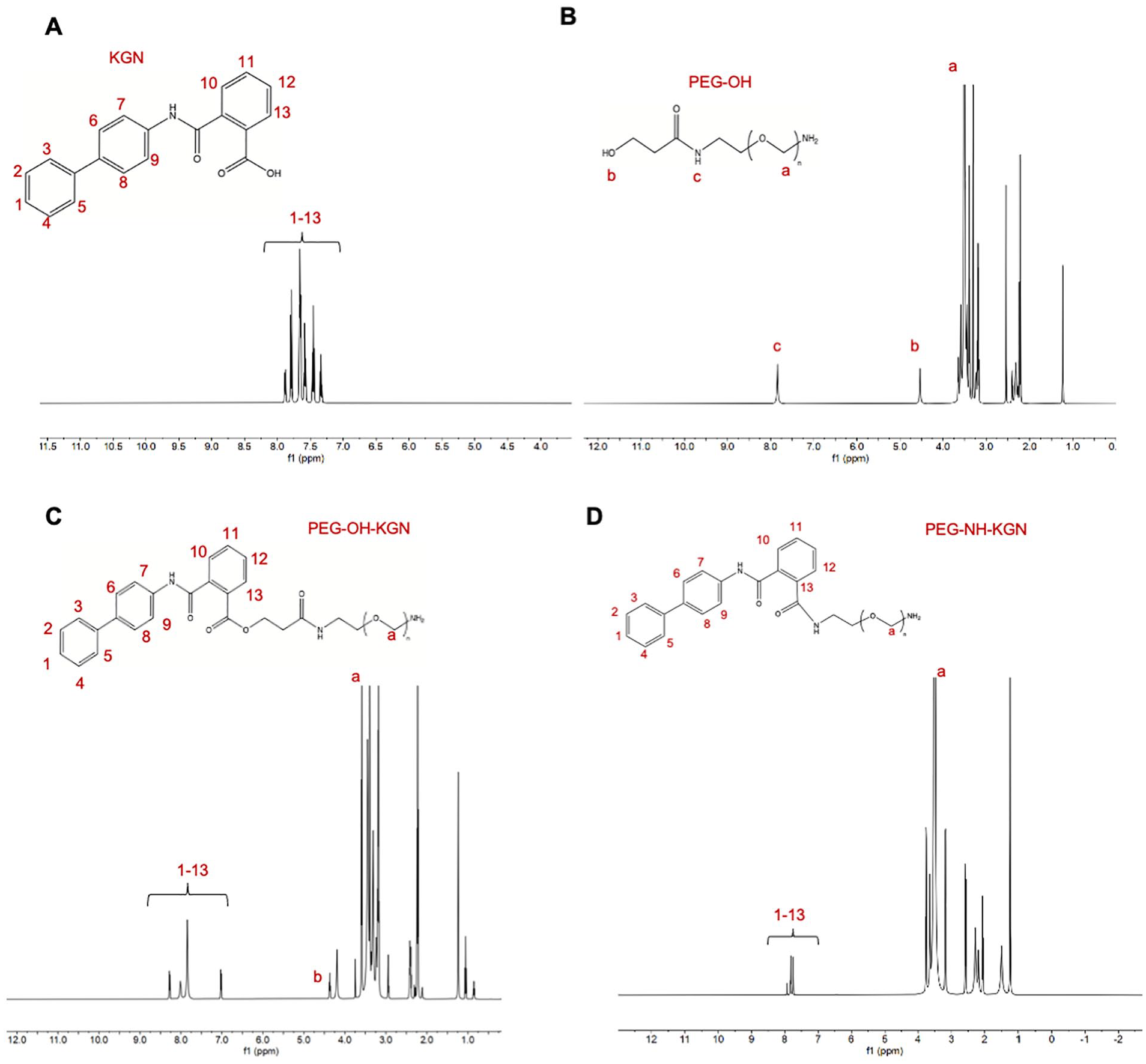

Figure 3.

¹H NMR spectra of (A) KGN, (B) PEG-OH, (C) PEG-OH-KGN, and (D) PEG-NH-KGN in Dimethyl sulfoxide-d6 indicating successful conjugation of KGN with PEG either using an ester or an amide linker. KGN = Kartogenin; PEG = polyethylene glycol. The labels “1~13” indicate the resonance peaks corresponding to each proton in benzene ring of KGN. The lower-case “a” indicates the resonance peaks of the proton in the repeated methylene group of PEG. “b” indicates the proton in hydroxyl group. “c” indicates the proton in amide group.

The FTIR spectrum of KGN shows C=C bend in the aromatic ring of KGN (peaks at 1537 cm⁻¹ and 1596 cm⁻¹) ( Fig. 4A ).^24,29 The spectrum for PEG confirmed C-H stretch and C-O-C stretch at 2866 cm⁻¹ and 1094 cm⁻¹, respectively ( Fig. 4B ).²⁹ The peaks for KGN and PEG were present in the spectra of both PEG-OH-KGN and PEG-NH-KGN (Fig. 4C and D), in addition to the C=O stretch from the amide group at 1652 cm⁻¹ (between PEG-amine and 3-hydroxypropionic acid in PEG-OH-KGN, and between PGE-amine and KGN in PEG-NH-KGN). The FTIR data together with NMR results confirm successful conjugation of KGN with PEG through EDC-catalyzed chemistry.

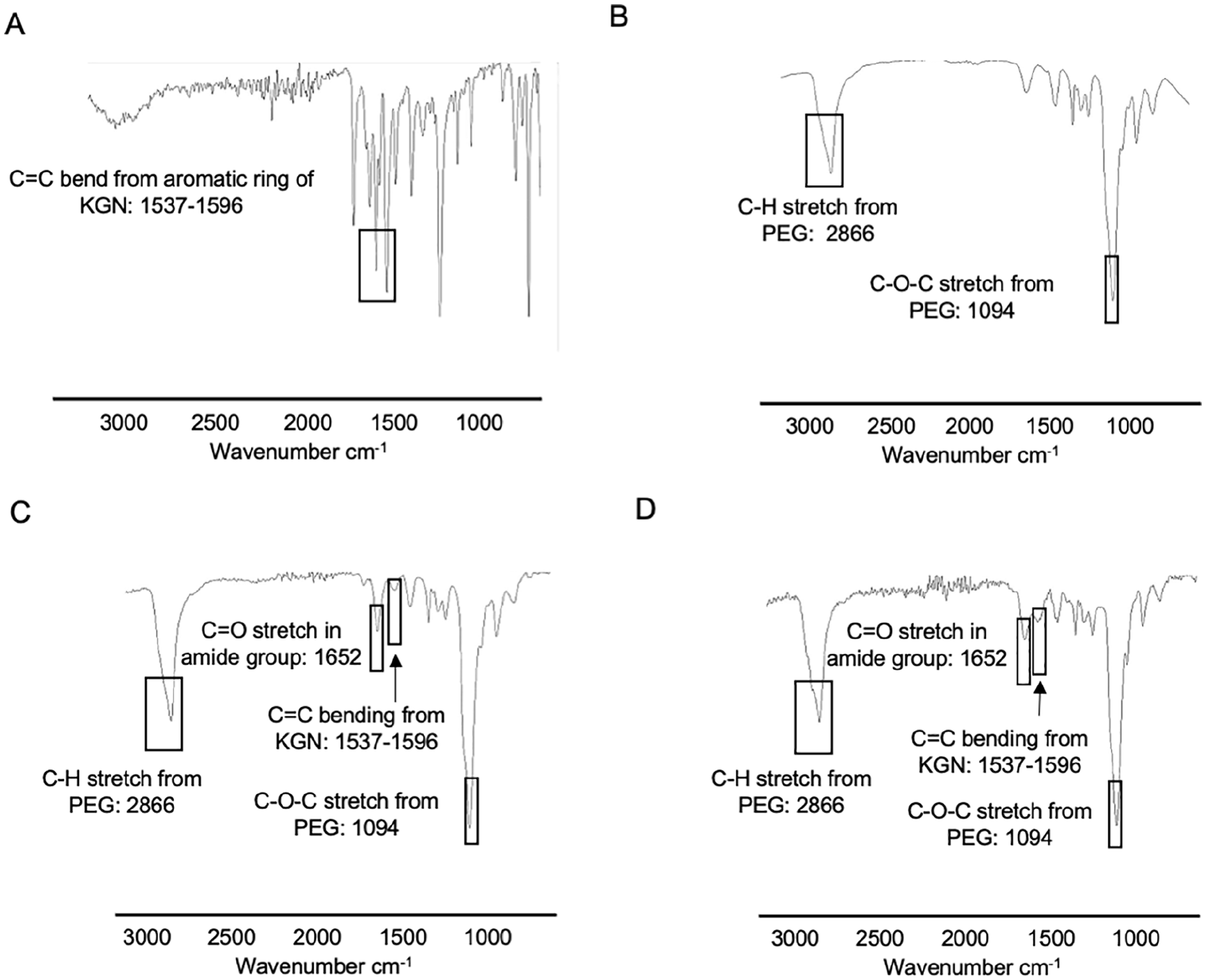

Figure 4.

FTIR spectra of (A) KGN, (B) PEG, (C) PEG-OH-KGN, and (D) PEG-NH-KGN in DCM showing successful conjugation of KGN with PEG. FTIR = Fourier transform infrared spectroscopy; KGN = Kartogenin; PEG = polyethylene glycol; DCM = dichloromethane.

In Vitro Drug Release and Cytotoxicity

Figure 5A shows that KGN was released in a sustained manner from the releasable formulation, PEG-OH-KGN (black curve), containing the hydrolysable ester linker resulting in a half-life of about 58 hours. The non-releasable formulation containing amide linker, PEG-NH-KGN (red curve) remained stable releasing only about 5% of total KGN loaded over a test period of 300 hours (12.5 days). Treatment with either conjugate at 100 μM KGN dose did not show any change in cell viability compared with untreated control ( Fig. 5B ), confirming no cytotoxic effects.

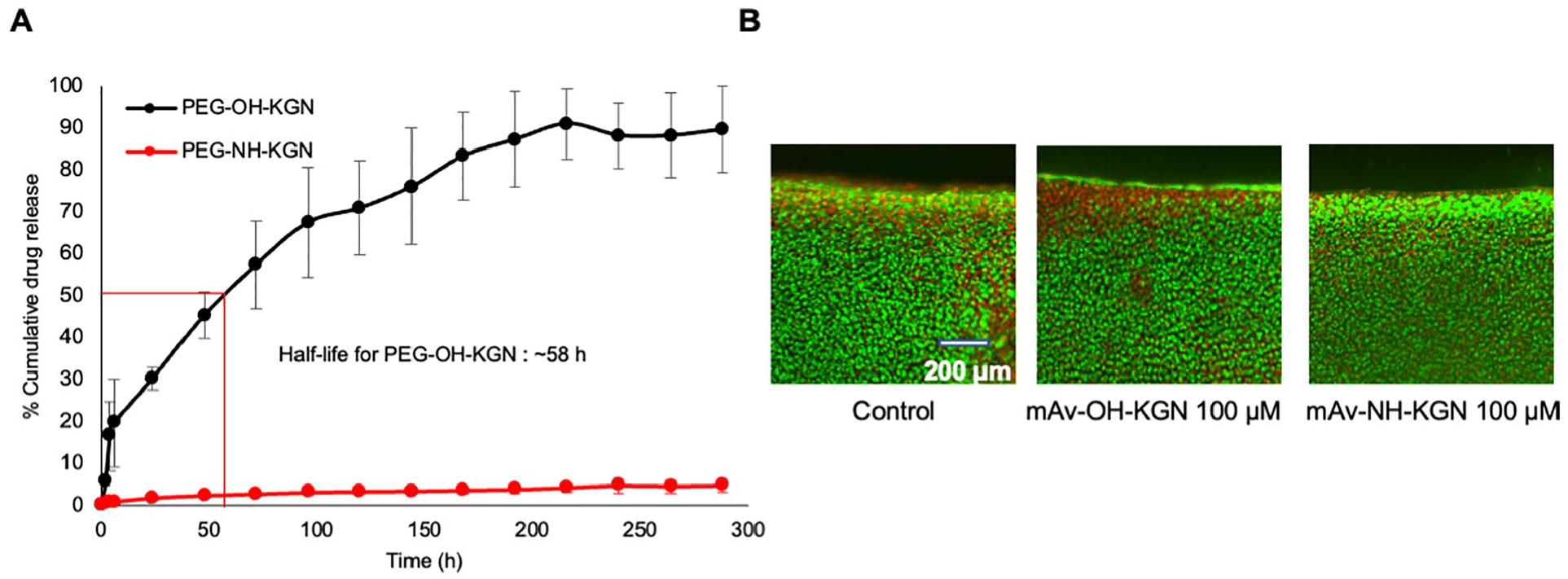

Figure 5.

(A) KGN release profiles from PEG-OH-KGN and PEG-NH-KGN compounds at 37 °C, pH 7.4 in PBS. (B) Chondrocyte viability after 48-hour treatment with 100 µM mAv-OH-KGN or mAv-NH-KGN. Green indicates viable cells and red indicates non-viable cells. Scale bar = 200 μm. KGN = Kartogenin; PEG = polyethylene glycol; PBS = phosphate buffer saline; mAv = multi-arm Avidin nano-construct.

Bioactivity of Single-Dose mAv-OH-KGN or mAv-NH-KGN in ΟSM + IL-1α Challenged Cartilage Explant Culture OA Model

We first compared the effectiveness of single versus continuous doses of 100 μM free KGN in suppressing OSM + IL-1α–induced catabolic activity in cartilage. Treatment with OSM + IL-1α significantly increased GAG loss over the 8-day culture period compared with control (P < 0.0001) (red curve, Fig. 6A ). A single dose of 100 μM free KGN was not effective (gray curve) and a continuous dose of KGN (yellow curve) was needed to significantly suppress OSM + IL-1α–induced GAG loss and bring the levels close to the healthy condition. This highlights the importance of maintaining therapeutic doses of drugs throughout the culture period.

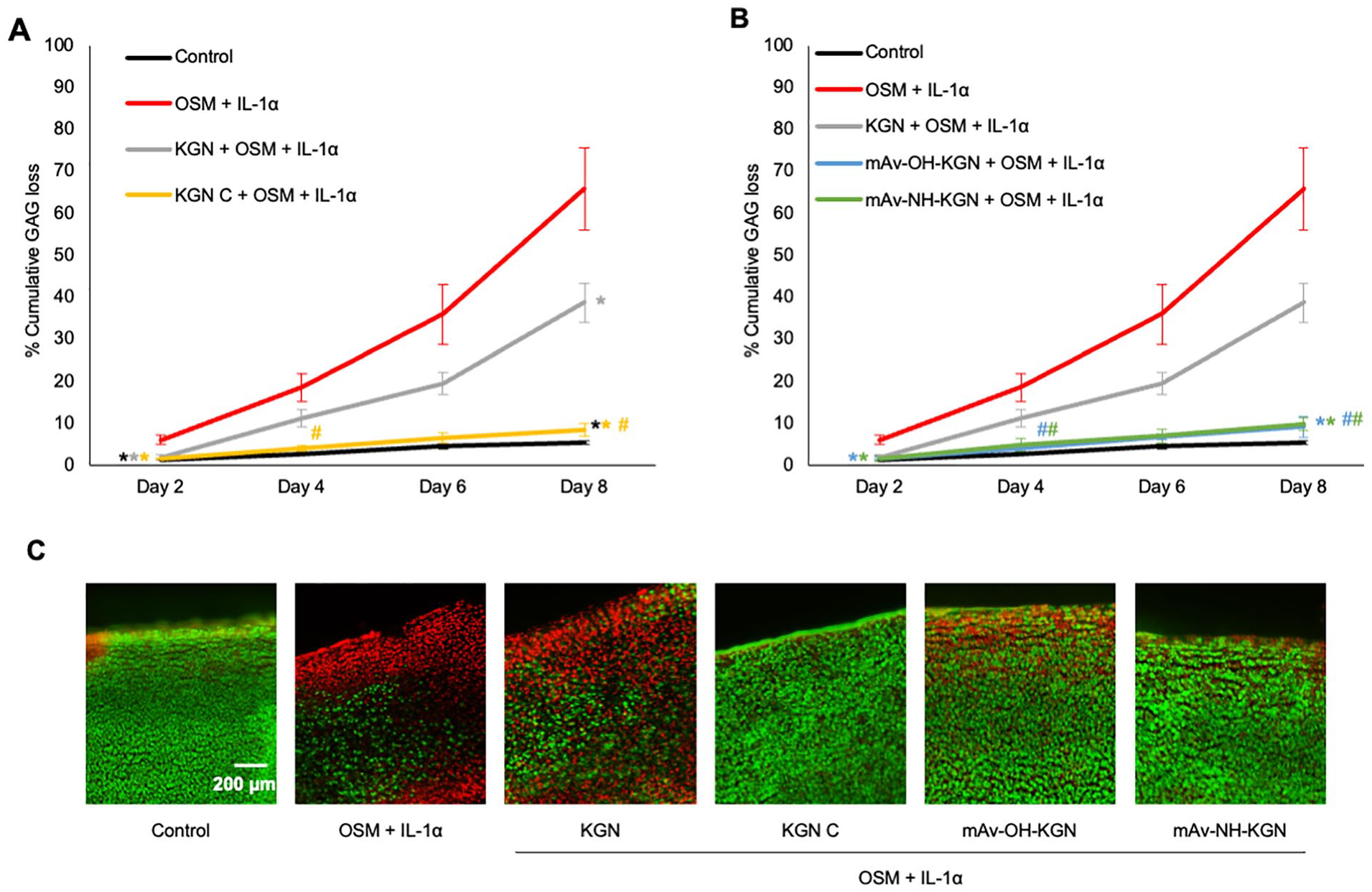

Figure 6.

Effectiveness of single-dose mAv-KGN treatment in suppressing OSM + IL-1α–induced GAG loss and chondrocyte death. % cumulative GAG loss over 8 days: OSM + IL-1^α–treated cartilage explants treated with (A) a single or continuous (C) dose of 100 μM free KGN, (B) single dose of 100 μM mAv-OH-KGN or mAv-NH-KGN. (* vs. OSM+IL-1α, # vs. single-dose KGN condition, P < 0.05. Statistical markers are color coordinated with the curves. All data enclosed within statistical markers are significant.). (C) Chondrocyte viability after 8 days of culture. Green indicates viable cells and red indicates non-viable cells. Scale bar = 200 μm. mAv = multi-arm Avidin nano-construct; KGN = Kartogenin; OSM = Oncostatin-M; GAG = glycosaminoglycan; IL = interleukin.

To evaluate the bioactivity of single dose of mAv-OH-KGN and mAv-NH-KGN, equivalent amounts containing 100 μM KGN were tested and compared with free KGN. Since both these formulations can form intra-cartilage depots, a single dose containing 100 μM KGN was chosen as it is sufficient to provide therapeutic KGN doses over the entire culture duration. The choice of dosing is further explained here. We have shown that a sustained (continuous) dosing of 100 μM KGN throughout the culture duration is effective in suppressing cytokine-induced catabolism ( Fig. 6A ), which translates to about 1 nmol KGN inside 3 × 1 mm (10 µL volume) cartilage explant at equilibration. Due to Donnan partitioning effects, an initial dose of 100 µM mAv-KGN should result in 112x higher concentration inside cartilage than the outside media³⁹ at equilibration within 24 hours. Therefore, based on mass balance between the explant and surrounding media, the equilibrium KGN concentration in media is estimated as 21 µM, implying an intra-cartilage concentration of ~2352 µM (112 × 21 µM), which is equivalent to 23.5 nmol of KGN inside the cartilage disk of 10 µL volume before the media change at 48 hours. KGN release half-life from mAv-OH-KGN was measured to be about 58 hours implying 3.31 half-lives over the 8-day culture period. This means that [(0.5) ^3.31 = 0.10] of the initial administered KGN dose should be present in cartilage after 8 days which equals to 2.35 nmol (0.1 × 23.5 nmol), which is 2x higher than the desired therapeutic estimate of 1 nmol KGN. Therefore, a one-time dose of 100 µM mAv-KGN was chosen for both formulations. mAv can be uptaken by the chondrocytes ( Suppl. Fig. S3 ) and thus we also tested one-time dose of 100 µM non-releasable mAv-NH-KGN containing the amide bond.

Both single dose of mAv-OH-KGN and mAv-NH-KGN suppressed OSM + IL-1α–induced GAG loss throughout the culture duration significantly greater than single dose of free KGN (P < 0.05 starting at Day 4), bringing levels down close to that of the untreated control as expected ( Fig. 6B ). Similar trends were observed in Day 8 chondrocyte viability images ( Fig. 6C ); treatment with OSM + IL-1α enhanced cell death which was rescued effectively by the continuous dose of 100 μM KGN but not with a single dose. On the other hand, single dose of both 100 μM mAv-OH-KGN and mAv-NH-KGN rescued cytokine-induced cell death similar to the continuous dosing condition.

Nitrites are a reactive oxygen species (ROS) triggered by an upregulation in inflammatory activity such as the presence of cytokines in an OA environment.^40,47 As expected, OSM + IL-1α treated explants produced 10x and 20x higher amounts of nitrite compared with control at 2 and 8 days of culture (P < 0.0001), respectively ( Fig. 7A ). Single-dose KGN (gray bar) did not suppress cytokine-induced nitrite release and its continuous dose (yellow) was necessary to keep nitrite levels down to control levels until day 8. A single dose of mAv-OH-KGN as well as mAv-NH-KGN effectively suppressed nitrite release bringing levels down to that of control by day 8. Similarly, both mAv formulations rescued cytokine suppressed cell metabolism similar to the continuous KGN dosing condition while a single dose of free KGN was insufficient ( Fig. 7B ).

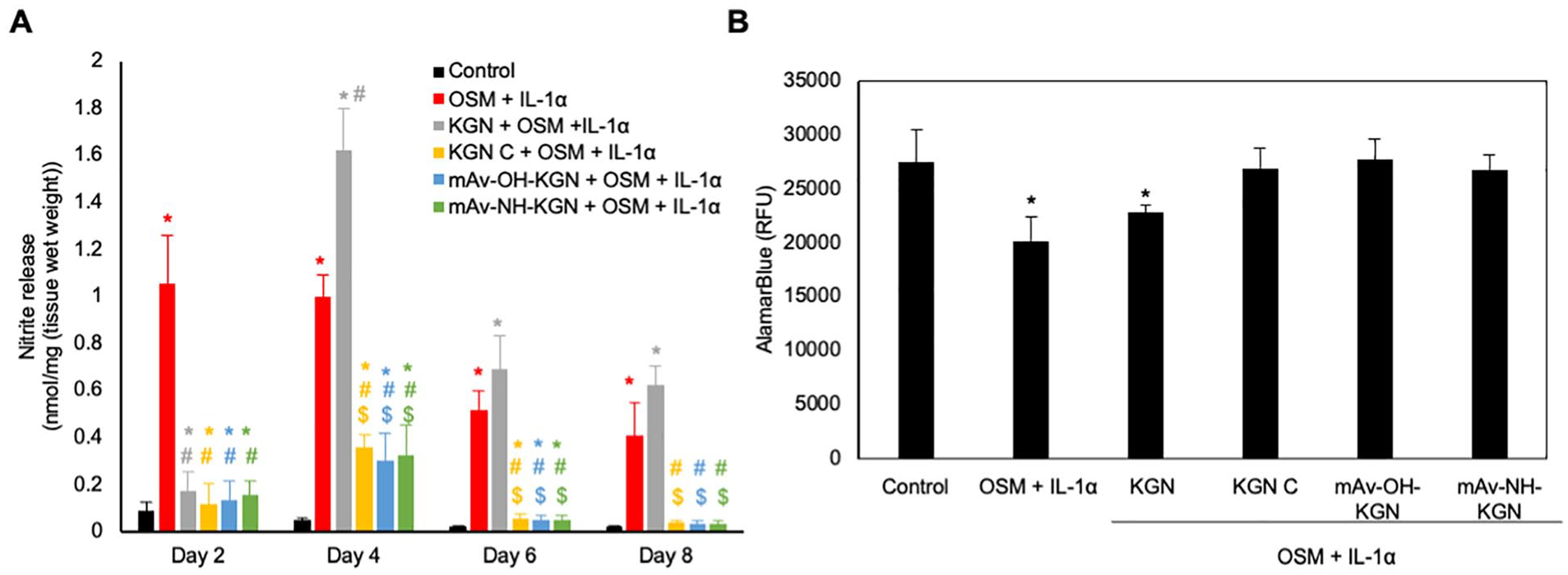

Figure 7.

Effect of mAv-KGN on nitrite release and cell metabolism in OSM + IL-1α treated cartilage. (A) Nitrite released to the medium over 8 days. (B). Chondrocyte metabolism measured as relative fluorescence units (RFU) using AlamarBlue assay on Day 8. mAv = multi-arm Avidin nano-construct; KGN = Kartogenin; OSM = Oncostatin-M; IL = interleukin. (* vs. control, # vs. OSM + IL-1α, $ vs. single-dose KGN condition, P < 0.05. Statistical markers are color coordinated with the bars.)

Discussion

It is necessary that drugs are delivered in a sustained manner inside cartilage to reach chondrocytes in therapeutic doses over several days for effective treatment of OA. Cartilage, being a dense, avascular and one of the most negatively charged tissues in our bodies, hinders transport of IA administered macromolecules.^10,30 Targeted delivery to cartilage has remained an outstanding challenge in the field, which has limited effectiveness of OA therapeutics and their clinical success.⁴⁸ Here, we demonstrate that a branched PEGylated cationic protein, Avidin-based nanocarrier (multi-arm Avidin, mAv) can penetrate into the tissue to form an intra-cartilage depot owing to electrostatic binding interactions and provide sustained release of pro-anabolic small molecule OA drug, KGN^16,21 to chondrocytes over several days. This is timely work as IA administered KGN analogue is currently being evaluated in a clinical trial for OA therapy.²²

We designed 2 mAv-KGN formulations with high drug loading content. The releasable mAv-OH-KGN formulation with a hydrolysable ester linker comprised 8.5:1 molar ratio of KGN to mAv and the non-releasable mAv-NH-KGN with an amide linker had 16.6:1 KGN to mAv by mole. As a result, for a single shot intra-cartilage delivery of 100 μM KGN, less than 10 µM of Avidin was needed—a dose that has been shown to be well within safe limits; our extensive studies evaluating the dose dependent response of Avidin and mAv showed no change in GAG loss, chondrocyte viability, or biosynthesis rates of protein and GAGs with doses within 100 µM range.^35,37,39 A low 10 µM concentration of Avidin was shown to be non-immunogenic when administered IA in rabbits.³⁷ A 30-minute intravenous infusion of 100 mg Avidin was found to be well tolerated and safe in a prospective Phase III substudy evaluating Avidin’s effectiveness in clearing a systemically injected biotinylated drug in patients with deep vein thrombosis.⁴⁹ In the preceding Phase 1 dose studies, single or repeated 25 to 100 mg doses of intravenous administered Avidin showed a low incidence of asymptomatic antibody response and no cases of hypersensitivity,⁵⁰ further strengthening the clinical prospects of using Avidin as a drug delivery carrier. Moreover, our current design of mAv incorporates high molecular weight 8-arm PEGs ( Fig. 2 ), which has been shown to further reduce the immunogenicity of Avidin following injection without significantly affecting its isoelectric point.^51-54 Our results show that mAv possessed sufficient electrical driving force to carry the conjugated KGN in therapeutic doses and create a depot inside cartilage. It is the weak-reversible binding nature of non-specific charge interactions that facilitates rapid transport and penetration of mAv through the full thickness of cartilage in high concentrations.^11,30 Despite this weak binding, it is due to the high density of negatively charged aggrecan-GAG binding sites that prevent mAv from releasing out from cartilage thereby creating a drug depot.^10,39 Our data show that a one-time dose of releasable formulation, mAv-OH-KGN with a KGN release half-life of 58 hours ( Fig. 5 ) effectively suppressed cytokine-induced catabolism in OA cartilage culture model and rescued biosynthesis levels, significantly superior to the equivalent dose of free (unmodified) KGN. Since mAv can also be uptaken by chondrocytes ( Suppl. Fig. S3 ), we conjugated KGN using non-releasable amide linkers to form mAv-NH-KGN, which also demonstrated similar therapeutic efficacy over the 8-day culture period (Figs. 6 and 7). A continuous dose of free KGN to maintain therapeutic concentrations throughout the culture period was needed to match the efficacy of single-dose mAv-KGN formulations in this model. mAv-KGN, therefore, has the potential to reduce the need for multiple injections and dosing.

KGN has gained significant attention as a chondrogenic factor since its first discovery and use for cartilage repair in 2012.¹⁵ Recently, the anabolic effect of KGN on cytokine challenged chondrocytes was confirmed to be mediated by SMAD-1 phosphorylation¹⁶—these SMAD transcriptional modulators are exhibited by the aggrecan, CD44 and hyaluronan synthase-2 genes.^55,56 KGN also reduced IL-1 β stimulated release of aggrecan G1 domain fragments from human cartilage explants by inhibiting both ADMASTS5 mediated aggrecanase activity as well as by blocking the proteolytic cleavage of the hyaluronan receptor, CD44.¹⁶ KGN ameliorated OA-induced cartilage degradation by attenuating oxidative stress by suppressing miR-146a, which is known to upregulate the protein levels of NRF2 (a key transcription regulator of antioxidant defense system inhibiting apoptosis and mitochondrial dysfunction) and down-regulate the expression of matrix degradation enzymes thereby preserving the expressions of collagen type II and aggrecans in IL-1β-treated chondrocytes.²¹ OSM in combination with IL-1 can induce greater G1 and hyaluronic acid (HA) release from cartilage than either OSM or IL-1 alone.⁴³ We, therefore, used a combination cytokine treatment of OSM + IL-1α in our in vitro bovine cartilage OA model to validate the chondroprotective and chondrogenic effect of one dose mAv-KGN and continuous dose of free KGN, which may be induced by protecting G1 and stabilizing HA-CD44 interaction or by attenuating oxidative stress by suppressing miR-146a. Similar to our results, sustained dose of KGN has been shown to suppress OSM + tumor necrosis factor (TNF)-α–induced nitrite release from chondrocytes and GAG loss from cartilage explants.¹⁵ Since mAv can be uptaken by other negatively charged soft tissues inside the joint including fat pad, synovium, ligaments, menisci and synovial fluid,³⁵ mAv-KGN is expected to target these as well and elicit a disease-modifying OA effect in the entire joint. In addition, mAv-KGN can facilitate differentiation of synovial fluid residing MSCs to chondrocytes, which are known to be overexpressed in early stages of OA.^57,58

Current methods for developing sustained release formulations of KGN utilize materials like chitosan,²⁴ thermogel,¹⁸ PAMAM-PEG,¹⁷ amphiphilic polymers polyurethanes,⁵⁹ or HA PEG hydrogels.²⁹ These delivery systems, however, cannot penetrate cartilage to reach chondrocytes residing in tissue deep zones either owing to their large size,^17,18,24,59 negatively charged surfaces,²⁹ or aggregating nature.^18,29 The hydrodynamic diameter of mAv even after KGN conjugation is within the 10 nm pore size limit of cartilage matrix. mAv-KGN is thus not sterically hindered, and its intra-cartilage transport and binding is significantly enhanced by electrical charge interactions. Use of high cationic charges is associated with cytotoxicity concerns but that can be minimized by incorporating structure modifications like PEGylation, spatial charge distribution, use of reducible linkers for easy breakdown and by controlling the dose^32,60—several of these features were incorporated in mAv-KGN design. PEGylation also increased its drug loading content thereby requiring smaller doses of Avidin for KGN delivery. mAv-KGN, therefore, has high translational potential due to its simple Avidin-biotin based chemistry,³⁸ no cytotoxicity and its ability to reduce the amount of drug dose and the frequency of administration.

A limitation of this study is that synovial fluid was not used. Synovial fluid has negatively charged hyaluronic acid that could potentially hinder transport of cationic carriers into cartilage. However, our in vivo work evaluating intra-articular kinetics and biodistribution in rats and rabbits has shown that Avidin can rapidly penetrate through the full thickness of cartilage in high concentrations^35-37 potentially owing to 20x higher negative fixed charge density of cartilage than the joint fluid.³⁰ Future work will evaluate the efficacy of mAv-KGN in vivo using post-traumatic OA models. As OA has a range of causal factors, and one class of OA drugs may not be effective for all clinical cases, a broad applicability of drug delivery system is critical.¹⁰ mAv offers itself as a broad charge-based platform that can enable sustained delivery of a variety of small molecules and their combinations to cartilage as well as to scaffolds for chondral repair.^39,61

Conclusion

In summary, we designed cartilage targeting and homing formulations for delivery of a pro-anabolic OA drug, KGN by using a branched cationic protein-based carrier, multi-arm Avidin. By using the weak-reversible binding nature of charge interactions, we showed that mAv-KGN can create a concentrated drug depot inside the negatively charged cartilage and effectively suppress cytokine-induced catabolism in cartilage with only a single dose. The hydrolysable ester linkers enabled sustained KGN release in therapeutic doses over several days while the formulation with non-releasable amide linker elicited chondroprotective response following direct uptake by the chondrocytes. A single dose of free KGN, on the other hand, was not effective. This charge-based cartilage targeting delivery system, therefore, can reduce the required number of injections and drug dosage. It paves way for facilitating clinical translation of various other OA drugs, which is currently limited due to a lack of tissue targeting methods and/or concerns around drug toxicity.
