Development of an Ex Vivo Murine Osteochondral Repair Model

Abstract

Objective

Mouse models are commonly used in research applications due to the relatively low cost, highly characterized strains, as well as the availability of many genetically modified phenotypes. In this study, we characterized an ex vivo murine osteochondral repair model using human infrapatellar fat pad (IPFP) progenitor cells.

Design

Femurs from euthanized mice were removed and clamped in a custom multidirectional vise to create cylindrical osteochondral defects 0.5 mm in diameter and 0.5 mm deep in both condyles. The IPFP contains progenitors that are a promising cell source for the repair of osteochondral defects. For proof of concept, human IPFP-derived progenitor cells, from osteoarthritic (OA) patients, cultured as pellets, were implanted into the defects and cultured in serum-free medium with TGFβ3 for 3 weeks and then processed for histology and immunostaining.

Results

The custom multidirectional vise enabled reproducible creation of osteochondral defects in murine femoral condyles. Implantation of IPFP-derived progenitor cells led to development of cartilaginous tissue with Safranin O staining and deposition of collagen type II in the extracellular matrix.

Conclusions

We showed feasibility in creating ex vivo osteochondral defects and demonstrated the regenerative potential of OA human IPFP-derived progenitors in mouse femurs. The murine model can be used to study the effects of aging and OA on tissue regeneration and to explore molecular mechanisms of cartilage repair using genetically modified mice.

Introduction

Osteochondral lesions can be painful, result in loss of function, and eventually lead to secondary osteoarthritis (OA).^1,2 There are numerous surgical treatments for osteochondral lesions, such as arthroscopic lavage and debridement, microfracture, osteochondral auto-grafting and allografting, and autologous cell techniques. ³ To date, autologous chondrocyte transplantation and matrix-assisted chondrocyte implantation are the only Food and Drug Administration–approved cell-based treatments for focal cartilage defects.^4,5 Unfortunately, autologous chondrocytes are in limited supply, their chondrogenic potential varies between donors, and diminishes after multiple cell passages.^6,7 As a possible alternative, there has been an increased interest in the use of stem cells for the treatment of both focal lesions as well as generalized OA.^8,9

Several studies have assessed the chondrogenic capacity of various cell sources, such as bone marrow-derived mesenchymal stem cells (MSCs), adipose tissue-derived MSCs, synovial tissue-derived MSCs, peripheral blood-derived progenitor cells, and umbilical cord blood-derived MSCs.^10-12 Cells harvested from the infrapatellar fat pad (IPFP) also have chondrogenic capacity.^13-15 The human IPFP is a readily accessible source of progenitor cells for tissue engineering or other cell-based therapies to treat osteochondral defects.^16,17 Also, differentiation of IPFP-derived cells toward a chondrogenic and osteogenic lineage results in higher chondrogenic and osteogenic gene expression relative to cells derived from subcutaneous fat. ¹⁴ This makes IPFP-derived progenitor cells an attractive source for the treatment of osteochondral lesions in the knee.

It is essential to show initial proof of concept of novel cell therapies in experimental animal models. Rabbits are the most common small animal model for the study of osteochondral repair. ¹⁸ Larger animals (e.g., dogs, sheep, goats, pigs, horses) are often used as preclinical models.^18-22 However, mice are affordable, easy to breed and maintain in-house, and useful for screening purposes for treatments in large animal models.^18,23 The entire mouse genome has been sequenced, and genetically modified mice are very useful in studying molecular processes and pathways involved in cartilage repair and regeneration.^18,24 However, the creation of articular defects in mice is technically challenging due to the small size of the joint and the narrow thickness of the articular cartilage of mice. ¹⁸ The practicality of using ex vivo tissues to examine cartilage repair has been demonstrated in equine, ²⁵ bovine, ²⁶ and human tissue explants.^27,28 Therefore, an ex vivo mouse model might be a useful tool to study the repair and regeneration of osteochondral defects and to form a bridge between cell culture models and in vivo models.

Our primary objective was to develop a murine model of ex vivo osteochondral repair. Toward that objective, we showed viability of explant culture of mouse femurs, designed an apparatus for reproducible creation of osteochondral defects, and characterized the cell pellet size appropriate for filling the defect. As initial proof of concept, we used human IPFP-derived progenitor cells from OA patients undergoing total knee arthroplasty.

Materials and Methods

IPFP Tissue and Cell Isolation

Human IPFP tissue was obtained from human donors (n = 3, 68- and 71-year-old female, and 76-year-old male) following total knee arthroplasty after approval by the Scripps Institutional Review Board. Progenitor cells were isolated from IPFP tissue aseptically within 5 hours of tissue harvest as described previously. ²⁹ Briefly, the fibrous synovial component was removed and discarded. Between 3 and 6 pieces of the remaining fatty tissue (approximately 5 to 6 mm³) were placed into each well of a 6-well plate, which were precoated with human collagen type I (Cell Adhere, StemCell Technologies, Vancouver, Canada). For the first 12 to 16 hours, tissues were maintained in an incubator at 37°C in only 0.5 mL of MSC-medium (LONZA, Walkersville, MD) supplemented with FGF-2 (10 ng/mL; PeproTech, Rocky Hill, NJ) in a partially sealed box containing 10 mL water to create high humidity. Then an additional 1.5 mL of MSC medium was added. Cells were typically observed to emerge from the tissue between 2 and 4 days and were considered as passage 0. Medium was changed every 3 to 4 days until cell confluency was 70% to 85%. Cells were screened for progenitor markers using flow cytometry at passage 1 or 2.

IPFP Cell Pellets

High-density pellets of human IPFP cells were formed by centrifuging cells in 0.5 mL of chondrogenic medium with 10 ng/mL TGFβ3 at 900 rpm for 5 minutes. The pellets were cultured in 0.5 mL serum-free chondrogenic medium (Dulbecco’s Modified Eagle Medium [DMEM], Mediatech Inc., Manassas, VA), 1× ITS+1 supplement (Sigma-Aldrich, St. Louis, MO), 100 nM dexamethasone (Sigma), 1.25 mg/mL human serum albumin (Bayer, Leverkusen, Germany), 100 µM ascorbic acid 2-phospahate (Sigma), 1% penicillin/streptomycin/gentamycin (PSG; Gibco, Carlsbad, CA), and 10 ng/mL TGFβ3 (PeproTech, Rocky Hill, NJ). The pellets were cultured for 3 days in an incubator before implantation. To optimize fit of cell pellet constructs into the 0.5 mm defects, 3 pellet sizes (consisting of 40,000, 45,000, and 50,000 cells each) were tested in trial implantations.

Murine Osteochondral Defect

C57BL/6 mice (n = 6, 16-week-old males) were euthanized according to Institutional Animal Care and Use Committee protocol at The Scripps Research Institute, Department of Molecular Medicine (La Jolla, CA), and fresh femurs were harvested aseptically. The femur of a mouse is very small, which makes it challenging to create 0.5 mm defects reproducibly. We therefore 3D-printed a multidirectional vise ( Fig. 1 ) to mount and align the femur. The multidirectional vise enabled aligning the femur in the optimal position to control the location and angle of the defect. A manual Z-stage (OptoSigma, Santa Ana, CA) was used to control the depth of the drilling with an accuracy of 20 µm. Osteochondral defects, 0.5 mm in diameter and 0.5 mm in depth, were drilled in the weight-bearing portions of the medial and lateral femoral condyles using a 0.5 mm drill bit (Shina Store, China). The defects were rinsed with sterile 1× phosphate buffered saline.

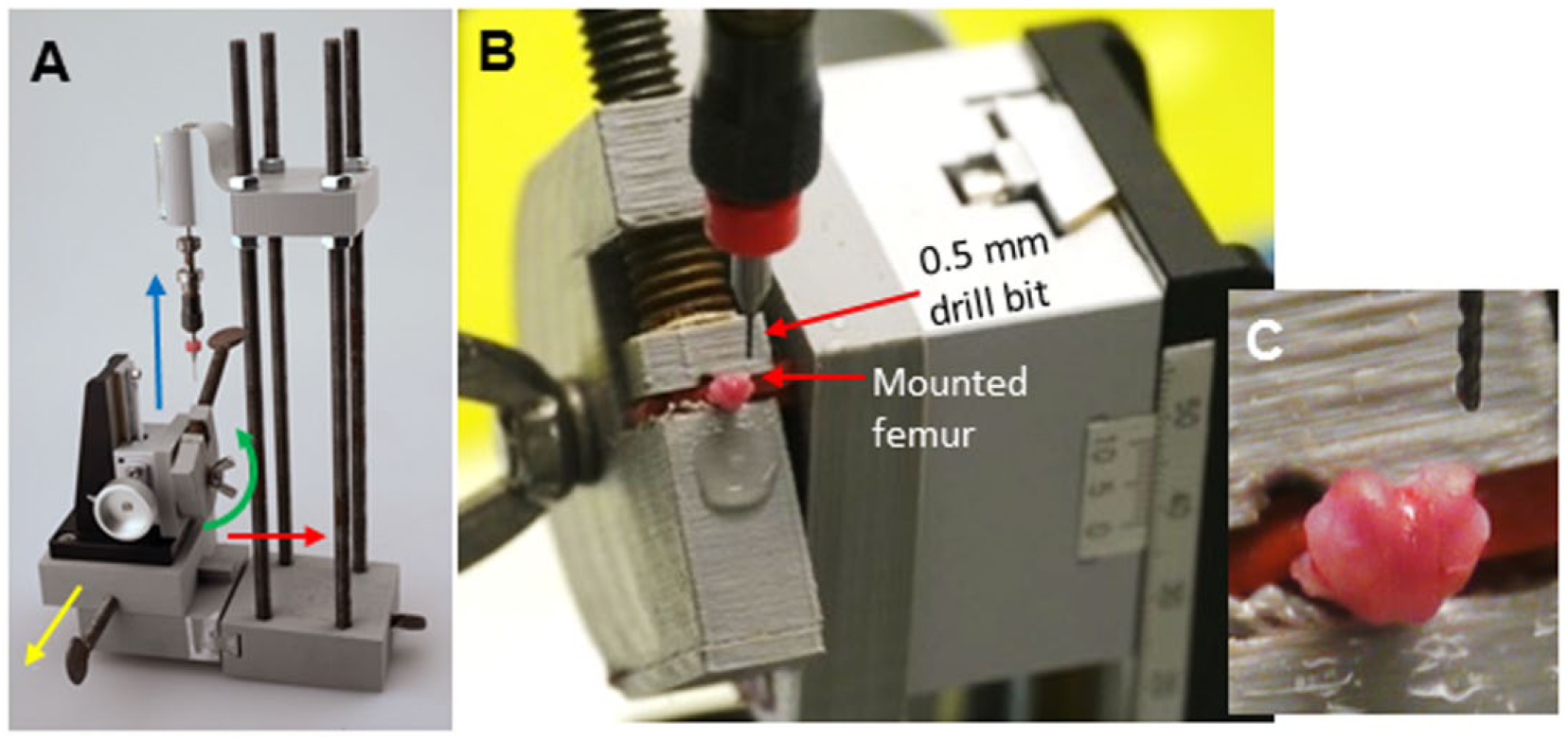

Figure 1.

(A) 3D-printed multidirectional vise with movement in X-, Y-, and Z-directions, and rotation. (B) Mouse femur in vise facing drill bit (0.5 mm) with weight-bearing portion of condyles. (C) Closer view of mounted femur and drill bit.

The defects were created 3 to 4 hours after harvesting, after which the isolated femurs were maintained in culture to assess viability. Immediately after creating the defect, IPFP cell pellets were implanted into the drilled defects (empty defects were used as control) using a standard plastic pipette under stereo microscope control. The femoral condyles where then isolated by cutting the distal femur with sharp scissors 1 to 2 mm proximal to the condyles. Bone wax (Surgical Specialties, Wyomissing, PA) was applied to seal off the cut-off end of the femur. The samples were then placed in a well of a 48-well plate, cultured in 1 mL of serum-free ITS+ medium (Sigma-Aldrich) supplemented with 10 ng/mL TGFβ3 (PeproTech), with medium changes every 2 to 3 days for 3 weeks.

Cell viability was assessed in femurs with osteochondral defects (without cell pellet implantation) on days 0, 4, and 21. A live/dead kit consisting of Calcein-AM and Ethidium Homodimer-1 (Invitrogen, Waltham, MA) was used for viability assessments using a laser confocal microscope (LSM-510; Zeiss, Jena, Germany) as previously described. ³⁰ Briefly, Z-scanned image stacks were collected in order to image the full depth of field encompassed by the rounded surface of the condyle. Stacks were then flattened using a maximum intensity Z projection using ImageJ. ³¹

Flow Cytometry

IPFP cells were detached, using Accutase (Innovative Cell Technologies, Inc., San Diego, CA), counted and suspended in FACS buffer consisting of Hank’s buffered saline solution (Gibco) and 1% bovine serum albumin (Sigma) at a concentration of 0.2 × 10⁶ cells per 100 µL. A panel of CD molecules were used, each with the following fluorochromes: CD34-FITC, CD73-APC, CD90-PE-Cy7, CD140b-BV421, CD146-BV510, and CD105-BV650. Corresponding IgGs with the same fluorochrome conjugates were also used for background gating. To compensate for spectral overlap, unstained cells and individual tubes with each fluorochrome were incubated with Dynabeads to distinguish positive and negative fluorochromes signal. A Novocyte flow cytometer (ACEA Biosciences Inc., San Diego, CA) was used for data acquisition, and FlowJo software (version 10; FlowJo, LLC, Ashland, OR) was used to determine percentage positive signal for each molecule relative to isotype controls.

Histology and Immunohistochemistry

Mouse osteochondral explants from each group were fixed in Z-Fix (3.7% formaldehyde, Anatech Ltd., Battle Creek, MI) and decalcified using Shandon TBD-2 (Thermo Fisher Scientific, Waltham, MA). The samples were processed for embedding in paraffin and cut into 4-µm-thick sections. Slides were stained with Safranin O and Fast Green to visualize the distribution of proteoglycans in the tissue.

For detection of collagen types I and II, all sections were pretreated with pepsin (Digest-All 3, Thermo Fisher Scientific) for 9 minutes at 37°C in a humid chamber. Rabbit anti-human collagen type I antibody (Ab 34710; Abcam, Cambridge, MA) was used at a concentration of 1 µg/mL. Mouse anti-human collagen type II (II-II6B3; Hybridoma Bank, University of Iowa) was used at 2 µg/mL. Primary antibody incubation was conducted at 4°C for 12 to 16 hours using a humid chamber. The ImmPRESS secondary DAB kit (Vector Laboratories, Burlingame, CA) was used for color development. Isotype controls were used to monitor nonspecific staining.

Results

Viability of Mouse Femoral Explants

Cell viability remained high up to 3 weeks in culture ( Fig. 2 ). Some cells at the border of the osteochondral defect were dead, presumably due to the surgical trauma induced by the drill bit, which has been reported previously. ³²

Figure 2.

Confocal images showing cell viability of condyles (green = live cells; red = dead cells). Time points of assessing viability for both intact and with defects were assessed 1 hour after collection, 4 days in culture, and following 3 weeks in culture. Dotted white line indicates the edges of the defect (For interpretation of the references to colours in this figure legend, refer to the online version of this article).

IPFP Cells Have a Stem Cell–Like Phenotype

Cells isolated from human IPFP revealed a typical MSC-like profile and were triple positive for CD73, CD90, and CD105 ( Fig. 3A ) and negative for CD34 and CD45. Approximately 50% of the cells were additionally positive for CD140b, a marker for vascular pericytes ( Fig. 3B ). ³³

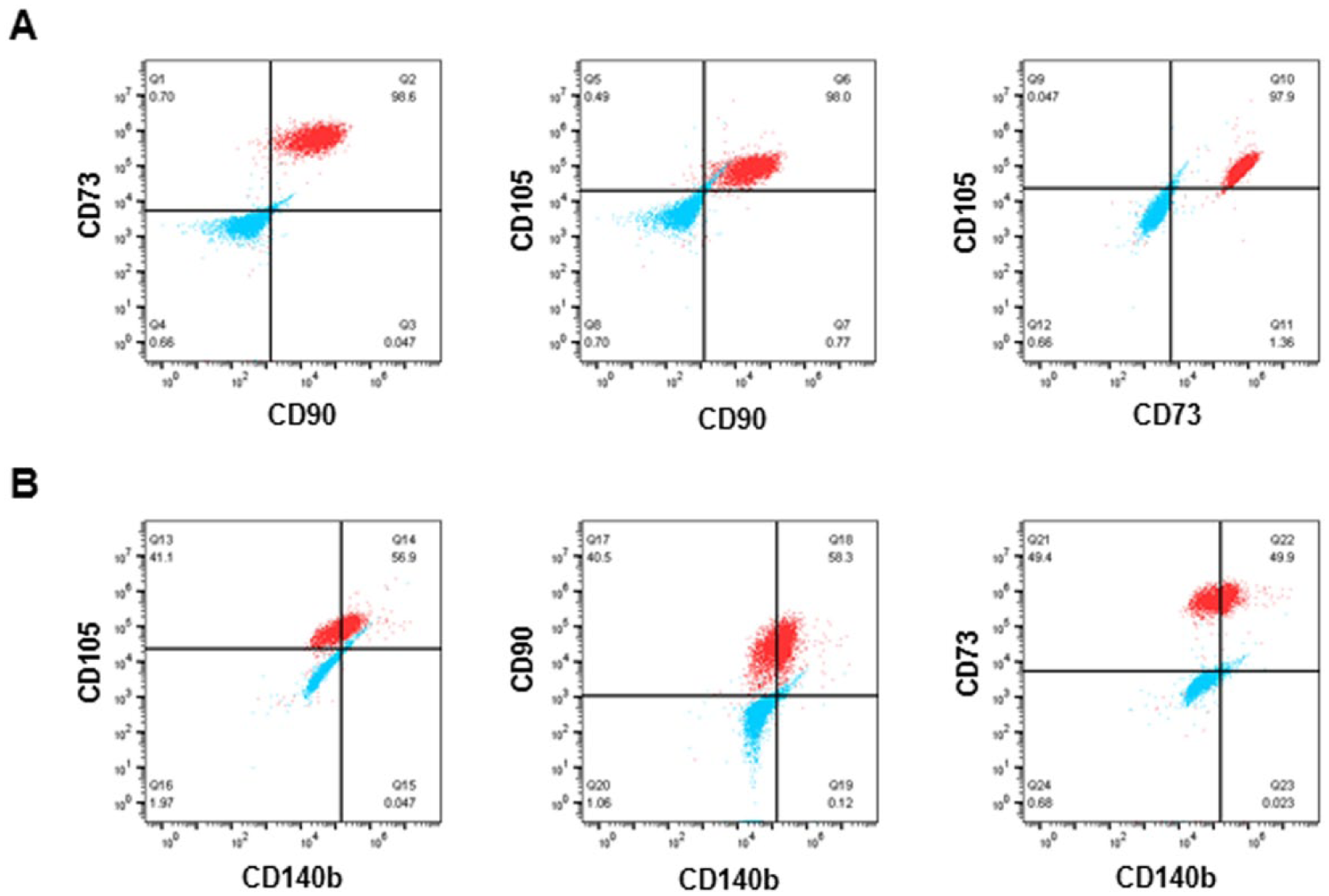

Figure 3.

Flow cytometry for isolated human IPFP cells. (A) The cells show a typical MSC-like profiles including being triple positive for CD73, CD90, and CD105. (B) IPFP cells are approximately 50% CD140b positive (red = positive antigens; blue = isotype controls) (For interpretation of the references to colours in this figure legend, refer to the online version of this article).

IPFP Pellets

Cell pellet size could be effectively controlled by cell number ( Fig. 4 ) with average pellet diameters ranging from 540 to 670 µm for cell numbers ranging from 40,000 to 50,000, respectively. The pellet size finally chosen for implantation into the 0.5 mm osteochondral defects was approximately 540 µm (40,000 cells; Fig. 4 ) as these pellets consistently filled the entire defect. Larger pellets (50,000 cells) generated exuberant neotissue that covered the entire mouse condyle.

Figure 4.

IPFP pellet cultures were formed with a range of cells numbers to assess pellet sizes for implantation into mouse femur defects. (A) 40,000 cells produced pellets of 540 µm; (B) 45,000 cells led to pellets of 600 µm; and (C) 50,000 cells made pellets of 670 µm. (D) IPFP pellets (3 days old) freshly implanted into 0.5 mm defects created an explant femur; 50,000 cell pellet in left defect and 40,000 cell pellet in the right defect. (E) Explant femurs with IPFP pellets after 3 weeks in culture. (F) Same as E with the implanted pellets outlined.

Cartilaginous Repair Tissue Created by IPFP Cells

No histologic evidence of repair tissue was found in the untreated osteochondral defects. The implanted cells generated tissue that covered the entire femoral condyle. The histologic sections of the condyles implanted with IPFP pellets revealed hyaline-like cartilage repair neotissue, with intense Safranin O staining, and with extracellular matrix staining positive for collagen types I and II ( Fig. 5 ). Isotype control staining for each collagen was negative ( Fig. 5 ).

Figure 5.

(A) Development of cartilaginous-like tissue with strong Safranin O stain (high GAG content). The deposition of collagen types I and II in the extracellular matrix is evident. (B) Empty defect showing no spontaneous healing.

Discussion

Ex vivo organ culture is a useful translational bridge between cell culture models and in vivo models. Mice are the smallest mammals used to study cartilage injury and repair and joint degeneration in vivo. Major advantages of using mice include reliability and reproducibility of animal strains, ease of genetic modification, and lower cost of breeding and housing relative to larger animals. The ready availability of aged mice, and strains that are at high risk for OA, expand the applications of this model to study the effect of aging and joint disease on the potential for cartilage repair.^18,23,24 The risk for xenogeneic immune response in the ex vivo model is also negligible.

We showed feasibility of creating ex vivo osteochondral defects and reported on the regenerative potential of human IPFP in mouse femurs. Eltawil et al. reported on the creation of in vivo full-thickness defect in the trochlear region of C57BL/6 and DBA/1 mice, which was created by manual scraping with a 26G needle. ³⁴ The authors reported spontaneous repair in young (8-week-old) DBA/1 mice but not in young C57BL/6 mice, or older (8-month-old) DBA/1 or C57BL/6 mice, indicating a strain- and age-related difference in regeneration potential. Another report described creation of osteochondral defects in vivo with a 25G needle and reported little to no repair up to 14 days in 15-week-old BKS mice. ³⁵ In our study, to create reproducible osteochondral defects, we used a 0.5 mm drill bit mounted on a custom 3D-printed miniature drill press. We also fabricated a custom multidirectional vise to hold and align the mouse femur precisely to the drill press and to control the depth of the defect. A 0.5 mm diameter defect spanned approximately 50% of each mouse condyle generating a model equivalent to a large clinical defect in a human knee. The absence of spontaneous osteochondral repair in our ex vivo model (16-week-old C57BL/6 mice) was consistent with in vivo reports and facilitated the study of implanted cells.

Hydrogels are commonly used in cartilage tissue engineering to suspend the cells and to provide structural integrity. Given our interest in scaffold-free tissue engineering, we decided to analyze repair using cell pellets without hydrogels. We found that 40,000 cells formed a pellet of appropriate size within 3 to 4 days in culture to fit the 0.5-mm diameter defect. Histology of repair tissue generated by implanted pellets revealed a rich glycosaminoglycan-positive neotissue that completely filled the defect. Larger pellets (50,000 cells) generated neotissue that extended beyond the surgical defect and covered the full width of the femoral condyle, which opens the potential for regenerating an entire condyle. However, lower cell densities may be appropriate if cells are to be suspended in hydrogels or other scaffolds. Longer-term culture, beyond 3 weeks, may reveal evidence of tissue remodeling into the characteristic zones of articular cartilage. The potential to create even larger defects may enable the ex vivo modeling of a biological joint replacement.

Our primary objective was not to prove regenerative potential for IPFP cells but for proof of concept of an ex vivo cell-based osteochondral defect repair. IPFP cells were obtained from older donors with severe OA and undergoing total knee arthroplasty. Cells were isolated based on their emergence from tissues onto collagen type I–coated culture plates without enzymatic digestion. This method has been shown to enrich cells with pericyte markers. ²⁹ Despite the donor age and disease status, IPFP cells expressed mesenchymal progenitor and pericyte markers, and cell pellets demonstrated chondrogenic and regenerative potential after implantation. IPFP-derived cells have potential for cartilage regeneration when cultured in 3 dimensions in vitro,^17,36-38 in animal models with focal defects,^39,40 and when injected into OA knees of rabbits ⁴¹ and humans^42,43 to reduce pain, improve knee function, and reduce the severity of OA progression.

One weakness of ex vivo models is the absence of other factors that can be important in cartilage repair such as the synovial membrane, synovial fluid, and physiological joint loading. In these small femurs creating and repairing defects is technically challenging and requires custom instruments. To support the potential value of this model as a surrogate for in vivo rabbit and sheep models, we are conducting a species comparison of cartilage repair responses. Our focus was on matrix synthesis and we used histology (Safranin O) and immunostaining (collagen types I and II). It may also be of interest to examine gene expression profiles of the neotissues generated in this ex vivo model. Isolating the neotissue from the host tissue for RNA extraction is technically challenging. Extraction of RNA from the cultured explant and using human-specific primers for genes of interest may serve distinguish between implant versus host gene expression. Alternatively, in situ hybridization^44,45 or in situ polymerase chain reaction^46,47 are more attractive: not only to observe target genes of interest but also to spatially document gene expression and track the fate of implanted cells.

In summary, this ex vivo model can be an efficient method to analyze cartilage repair of entire femoral condyles. The murine model can be used to study the effects of aging and osteoarthritis on tissue regeneration and to explore molecular mechanisms of cartilage repair using genetically modified mice.
