Abstract

Objective

Osteoarthritis (OA) is one of the leading causes of disability in the adult population. Common nonoperative treatment options include nonsteroidal anti-inflammatory drugs (NSAIDs), intra-articular corticosteroids, and intra-articular injections of hyaluronic acid (HA). HA is found intrinsically within the knee joint providing viscoelastic properties to the synovial fluid. HA therapy provides anti-inflammatory relief through a number of different pathways, including the suppression of pro-inflammatory cytokines and chemokines.

Methods

We conducted a systematic review to summarize the published literature on the anti-inflammatory properties of hyaluronic acid in osteoarthritis. Included articles were categorized based on the primary anti-inflammatory responses described within them, by the immediate cell surface receptor protein assessed within the article, or based on the primary theme of the article. Key findings aimed to describe the macromolecules and inflammatory-mediated responses associated with the cell transmembrane receptors.

Results

Forty-eight articles were included in this systematic review that focused on the general anti-inflammatory effects of HA in knee OA, mediated through receptor-binding relationships with cluster determinant 44 (CD44), toll-like receptor 2 (TLR-2) and 4 (TLR-4), intercellular adhesion molecule-1 (ICAM-1), and layilin (LAYN) cell surface receptors. Higher molecular weight HA (HMWHA) promotes anti-inflammatory responses, whereas short HA oligosaccharides produce inflammatory reactions.

Conclusions

Intra-articular HA is a viable therapeutic option in treating knee OA and suppressing inflammatory responses. HMWHA is effective in suppressing the key macromolecules that elicit the inflammatory response by short HA oligosaccharides.

Keywords

osteoarthritis hyaluronic acid knee anti-inflammatory

Introduction

Osteoarthritis (OA) is one of the leading causes of disability in the adult population.¹ OA is most often a slow progressive joint disorder, characterized by joint pain, cartilage degeneration, and decreased joint function.² Common nonoperative treatment options include nonsteroidal anti-inflammatory drugs (NSAIDs), intra-articular corticosteroids, and intra-articular injections of hyaluronic acid (IA-HA).³ HA is found intrinsically within the knee joint providing viscoelastic properties to the synovial fluid, and the onset of knee OA is associated with reduced HA synthesis and increased HA degradation leading to a shift in distribution toward a lower average molecular weight in the synovium, synovial cavity, and cartilage.³

Many of the biological actions of HA are dependent on the molecular size of the ligand ( Fig. 1 ). HA in its native form is synthesized by hyaluronic acid synthases (HAS) into long polymers often ranging from lower molecular weight to higher molecular weight HA, as high as 5 × 10⁶ kDa.⁴ Hyaluronidase-1 (Hyal-1) and hyaluronidase-2 (Hyal-2) enzymes are responsible for HA degradation through fragmentation of HA from both ends toward the center of the molecule, which decreases the molecular weight and creates HA oligosaccharide fragments within the synovial fluid.⁵ Several studies have found significant differences in the inherent properties of high molecular weight HA (HMWHA) versus short HA oligosaccharide chains, and it has been proposed that long polymer HA displays anti-inflammatory properties, whereas short HA oligosaccharides act as ligands that produce a pro-inflammatory response through mediated receptor signaling pathways.⁶ The molecular weight distribution of HA products is important to consider, as there is potential for short oligosaccharides to potentially be included within an HA product if the molecular weight distribution is wide and around a low average molecular weight.

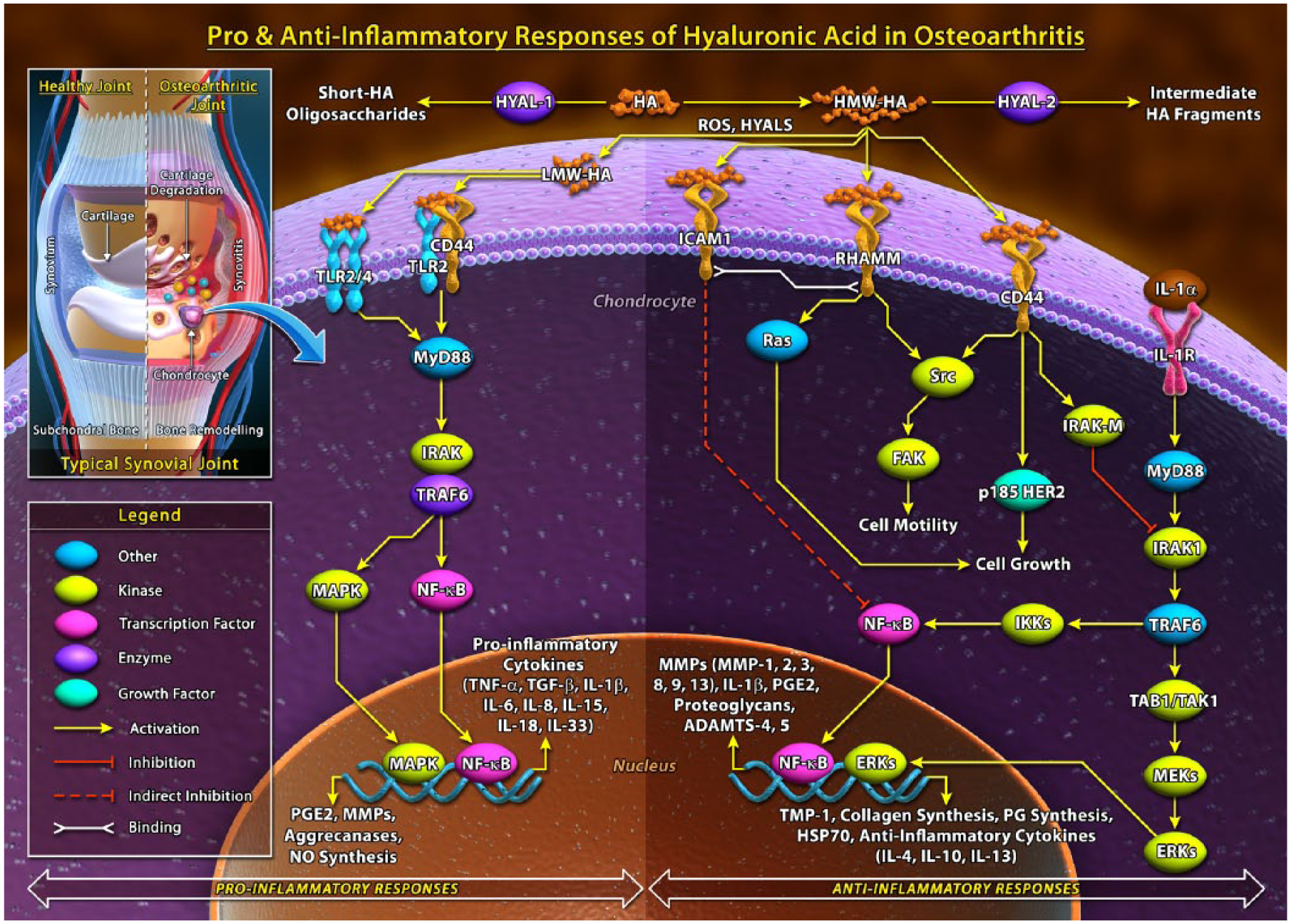

Figure 1.

Summary of the pro-inflammatory and anti-inflammatory responses of hyaluronic acid.

Intra-articular HA therapy provides therapeutic relief through a number of pathways, including the suppression of pro-inflammatory cytokines and chemokines via inhibitors of the signal transduction pathways from specific cell surface receptors, as well as promotion of the synthesis of anti-inflammatory mediators.⁷ Evidence has shown that HA oligosaccharides and HMWHA polymer chains bind to cell surface receptors such as cluster determinant 44 (CD44), toll-like receptor 2 (TLR-2) and 4 (TLR-4), layilin (LAYN), and intercellular adhesion molecule-1 (ICAM-1). Since HA has an established impact on inflammation in osteoarthritis, the purpose of this review was to summarize the evidence within published literature regarding the anti-inflammatory properties of HA in osteoarthritis. Additionally, the review describes the macromolecules and inflammatory-mediated responses associated with the cell transmembrane receptors. Understanding the effects of HA on inflammation at the cellular level may provide further insight to into the clinical applications of HA treatment.

Methods

Literature Search and Article Screening

We conducted a comprehensive literature search using the MEDLINE (1946 to present), EMBASE (1974 to present), and PubMed databases on February 4, 2016. An updated literature search was performed on February 1, 2017. The literature search terms are listed in the appendix. The following inclusion criteria were used to determine study eligibility: (1) articles describing the anti-inflammatory mechanism of HA treatment for OA, (2) primary nonclinical basic science articles, and (3) articles with full text published in English. Studies must have focused on the inflammatory processes of osteoarthritis using HA derivatives to elucidate the anti-inflammatory mechanisms. Studies focusing on the general treatment of osteoarthritis using hyaluronic acid were excluded. Nonclinical basic science articles included experimental studies in vivo and/or in vitro, and excluded experimental studies conducted on human participants. Article screening was done in 3 stages: titles were screened for relevance, followed by abstract screening, and finally full text screening to determine eligibility.

Data Abstraction

After article screening, included articles were categorized based on the primary anti-inflammatory responses described within them based on a review of the material. Sections were derived by the immediate cell surface receptor protein discussed within the article, or based on the primary theme of the article. The inflammatory response categories used in the data abstraction process were the following: HA-CD44 receptor response, HA-TLR-4 receptor response, HA-LAYN receptor response, and HA-ICAM-1 receptor response. The key findings and conclusions from included articles were summarized in aggregate with studies of the same categorical assignment.

Results

Search Strategy

The literature search identified 1604 articles; 1074 of these articles were deemed relevant for screening ( Fig. 2 ). Of these, 37 articles met the predefined inclusion criteria and 10 additional articles were identified from our review of the reference lists of relevant articles. Therefore, 47 articles were included in this systematic review.^8-54 The updated literature search identified one additional article.⁵⁵

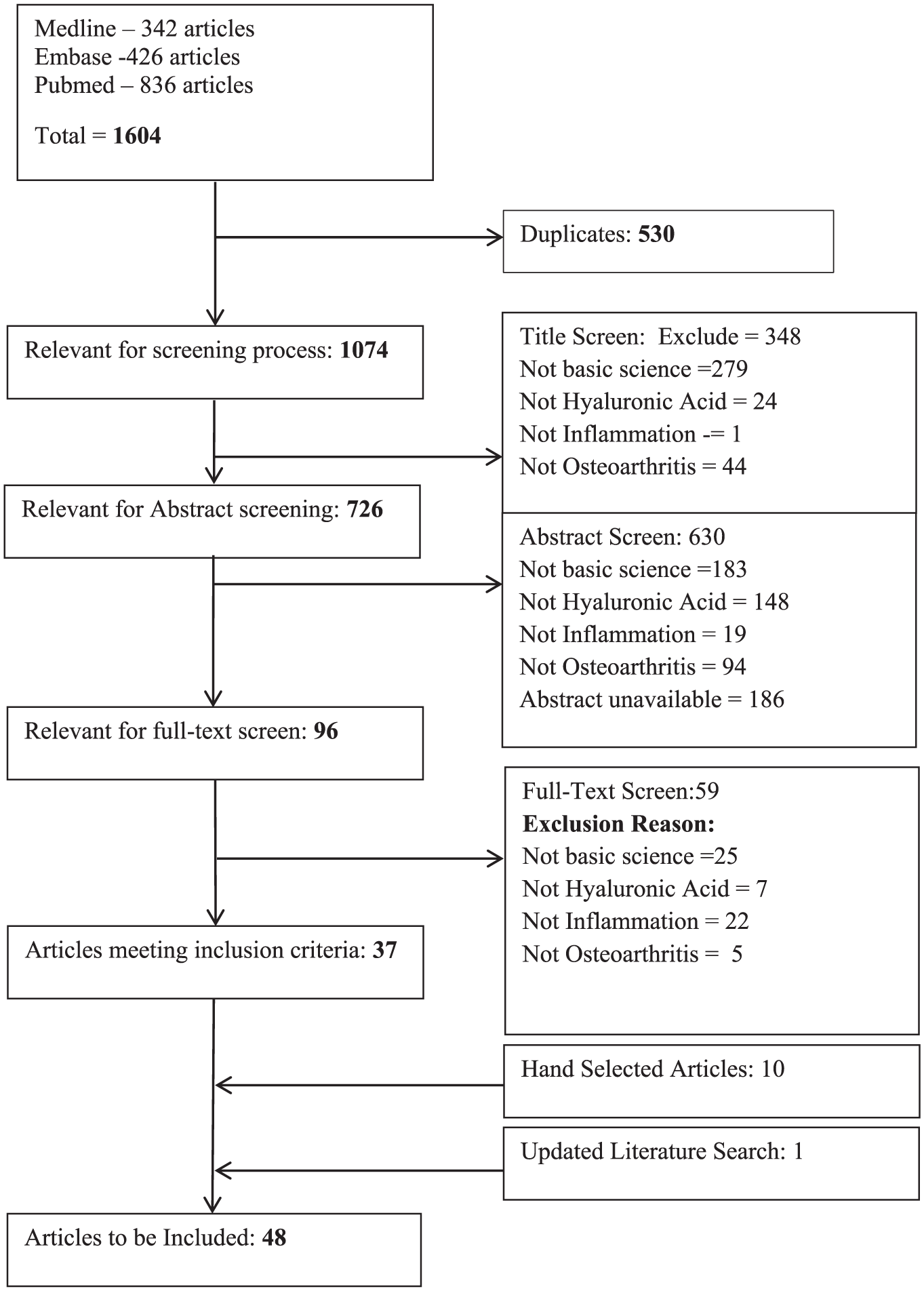

Figure 2.

Literature Search.

Study Characteristics and Area of Focus

The studies included in this review were published between 1985 and 2016 ( Table 1 ). Approximately half of the studies were published within the past decade. The majority of studies were conducted in Asia (43.8%), North America (25%), and Europe (27.1%). Multiple different factors involved in the anti-inflammatory process of HA were evaluated ( Table 2 ), with the majority of articles focusing on general anti-inflammatory effects of HA (33.3%), fragmentized HA versus HMWHA (22.9%), CD-44 receptor binding (14.6%) and pro-inflammatory macromolecules respective influences in inflammation (14.6%).

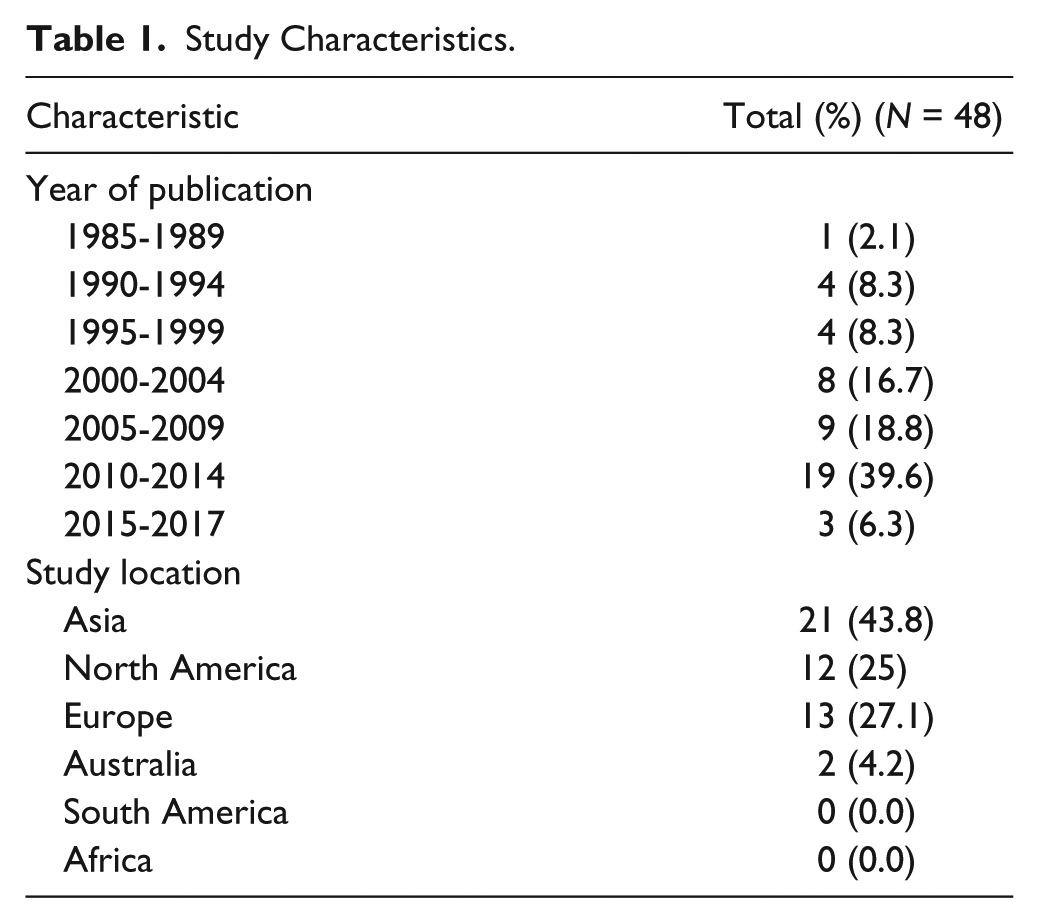

Table 1.

Study Characteristics.

Characteristic	Total (%) (N = 48)
Year of publication
1985-1989	1 (2.1)
1990-1994	4 (8.3)
1995-1999	4 (8.3)
2000-2004	8 (16.7)
2005-2009	9 (18.8)
2010-2014	19 (39.6)
2015-2017	3 (6.3)
Study location
Asia	21 (43.8)
North America	12 (25)
Europe	13 (27.1)
Australia	2 (4.2)
South America	0 (0.0)
Africa	0 (0.0)

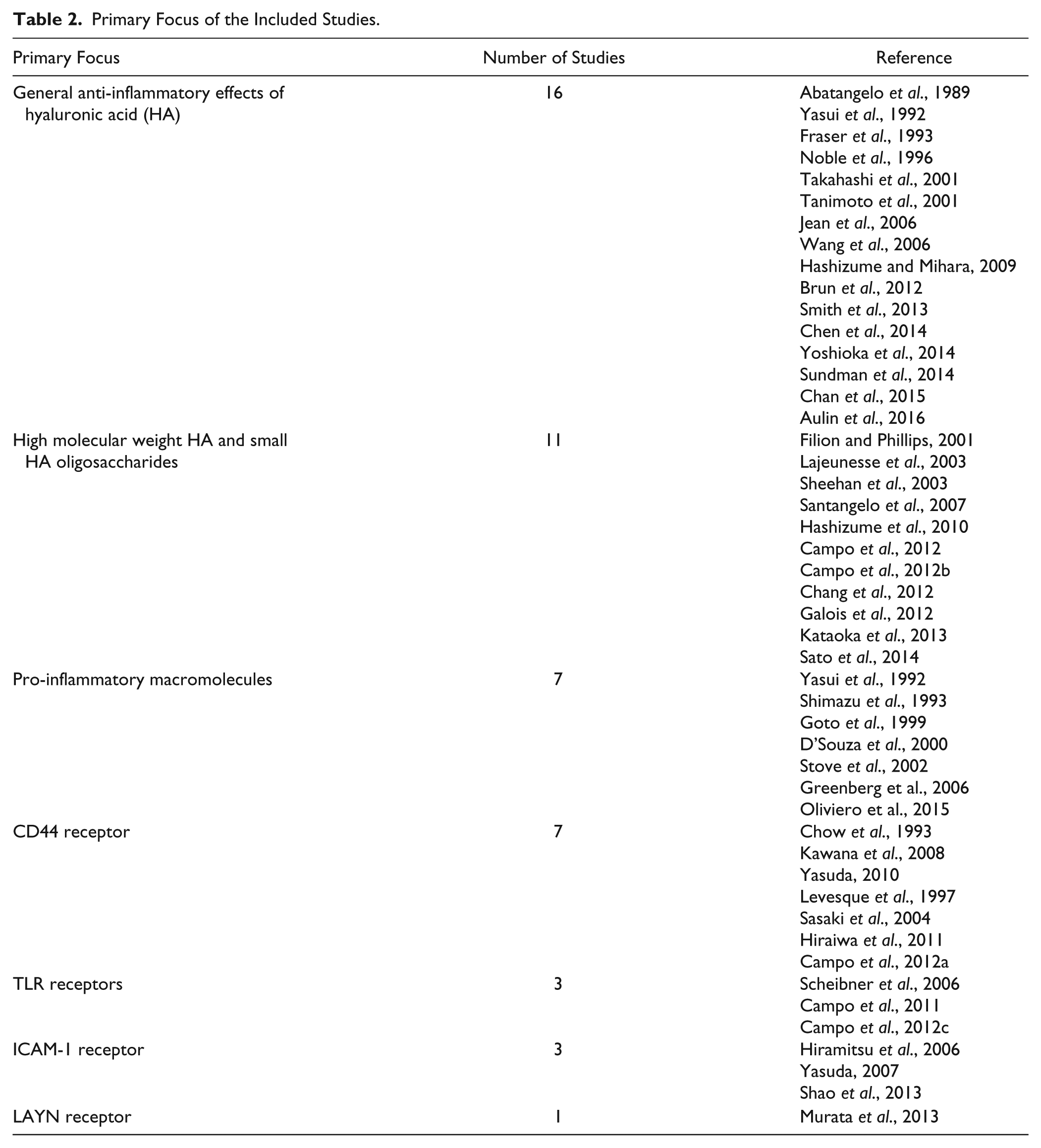

Table 2.

Primary Focus of the Included Studies.

Primary Focus	Number of Studies	Reference
General anti-inflammatory effects of hyaluronic acid (HA)	16	Abatangelo et al., 1989 Yasui et al., 1992 Fraser et al., 1993 Noble et al., 1996 Takahashi et al., 2001 Tanimoto et al., 2001 Jean et al., 2006 Wang et al., 2006 Hashizume and Mihara, 2009 Brun et al., 2012 Smith et al., 2013 Chen et al., 2014 Yoshioka et al., 2014 Sundman et al., 2014 Chan et al., 2015 Aulin et al., 2016
High molecular weight HA and small HA oligosaccharides	11	Filion and Phillips, 2001 Lajeunesse et al., 2003 Sheehan et al., 2003 Santangelo et al., 2007 Hashizume et al., 2010 Campo et al., 2012 Campo et al., 2012b Chang et al., 2012 Galois et al., 2012 Kataoka et al., 2013 Sato et al., 2014
Pro-inflammatory macromolecules	7	Yasui et al., 1992 Shimazu et al., 1993 Goto et al., 1999 D’Souza et al., 2000 Stove et al., 2002 Greenberg et al., 2006 Oliviero et al., 2015
CD44 receptor	7	Chow et al., 1993 Kawana et al., 2008 Yasuda, 2010 Levesque et al., 1997 Sasaki et al., 2004 Hiraiwa et al., 2011 Campo et al., 2012a
TLR receptors	3	Scheibner et al., 2006 Campo et al., 2011 Campo et al., 2012c
ICAM-1 receptor	3	Hiramitsu et al., 2006 Yasuda, 2007 Shao et al., 2013
LAYN receptor	1	Murata et al., 2013

General Anti-Inflammatory Effects of HA

Several studies focused on the general effects of HA, such as its ability to inhibit inflammation, impede advances of osteoarthritis progression^8,29,56 and its effect on the production of nitric oxide.⁴⁷ Fraser et al.²¹ observed that mild acute inflammation resulted in large changes in the metabolic turnover of synovial HA. Additionally, pro-inflammatory cytokines (IL-1b, TNF-a, or IFN-y) can regulate hyaluronic acid synthase (HAS) expression^17,19,48 and therefore affect the distribution of higher to lower molecular weight HA in the synovium.

Role of HA–CD44 Receptor Binding

The primary receptor of the HA ligand is the CD44 receptor. Activation of CD44 receptors initiates a signaling cascade associated with p185 human epidermal growth factor receptor 2 (HER2) and proto-oncogene c-Src kinase tyrosine kinase pathways.⁵⁷ The affinity of HA to CD44 receptors is dependent on the molecular size of HA; increased avidity of HA binding to CD44 is correlated with an increase in the size of the polysaccharide chain, as larger HA oligosaccharides are capable of decreasing dissociation through divalent binding.⁵⁸ Expression of the CD44 receptor is responsible for the maintenance of cartilage homeostasis, and the principal function of CD44 is to bind and internalize exogenous HA.¹⁸ Several T-cells and cytokines can assist in regulating HA-CD44 receptor binding, primarily through tumor necrosis factor–α (TNF-α) regulation.³³ Kawana et al.³¹ conducted experiments on CD44 −/− mice and wild-type counterparts (CD44 +/+ mice) to assess the effects of HA on cytokine production. They determined that HA–CD44 binding suppressed in vivo pro-inflammatory cytokine production mediated by TLRs via nuclear factor kappa-light-chain-enhancer of activated B cells (NF-κB) activation. An early and pivotal study conducted by Noble et al.³⁵ examined the effects of higher molecular weight HA and lower molecular weight HA fragments on NF-κB activation in mouse macrophages. Only the smaller HA fragments were found to activate NF-κB DNA binding activity, suggesting that small HA oligosaccharide fragments elicit a pro-inflammatory response.

Several studies have further demonstrated that fragmentized HA produces a pro-inflammatory response and HMWHA produces an anti-inflammatory response in osteoarthritis.^{12,13,16,32,39,42,45,49,51} Treatment of normal mouse synovial fibroblasts with HA fragments significantly increased expression of TLR-4 and CD44 receptors, along with increased expression of inflammatory cytokines IL-18 and IL-33.^13,14

HMWHA can occupy multiple binding sites of CD44 and promote anti-inflammatory effects within the cell, while small HA fragments bind suboptimally to a limited number of CD44 sites. HA oligosaccharides smaller than 10 units are suggested to not optimally occupy the CD44 binding site, while HA oligosaccharides of at least 20 units are required for divalent binding to multiple CD44 receptors.⁵⁸ Through this action, higher molecular weight HA suppresses pro-inflammatory cyotokines,^11,23,30,46 suppresses matrix metalloproteinase, proteoglycans,⁴³ and prostaglandin E₂ (PGE₂) syntheses^{24,27,37,38,51} and production.^26,52,54 HMWHA suppresses PGE₂ production via CD44 through the downregulation of NF-κB.⁵¹ HMWHA also decreases levels of matrix metalloproteinase levels by increasing levels of tissue inhibitor of metalloproteinase–1 (TIMP-1).⁵³

Campos et al.¹¹ investigated the effects of inhibiting HA degradation on the inflammatory response in synovial fibroblasts in mice. Inhibition of HA degradation via small interference RNA (siRNAs) targeted for hyaluronidase enzymes HYAL1, HYAL2, and HYAL3 reduced TLR-4 and CD44 activation by HA fragments, suggesting that inhibition of HA degradation may contribute to reducing TLR-4 and CD44 activation and the corresponding inflammatory mediator response.¹¹

Role of HA–TLR Receptor Binding

TLRs are highly conserved proteins that coordinate the defense against common bacteria and viruses within the immune system.⁴ TLRs can be activated by pathogen-associated molecular patterns (PAMPs) along with various endogenous molecules called damage-associated molecular patterns (DAMPs), which include extracellular matrix breakdown products such as low molecular weight HA fragments.⁴ Scheibner et al.⁴⁰ demonstrated that fragmentized HA activates the innate immune response via TLR-2 through the myeloid differentiation primary response protein (MyD88)-, IL-1R-associated kinase-, TNFR-associated factor–6-, protein kinase C₅-, and NF-κB-dependent pathways. Furthermore, Scheibner et al.⁴⁰ found that higher molecular weight HA can inhibit TLR-2 signaling, demonstrating the anti-inflammatory ability of HMWHA therapy. A similar study was conducted by Campos et al.¹⁰ to investigate the influence of HMWHA at different concentrations on TLR-4 and TLR-2 modulation in collagen-induced arthritis (CIA) in mice. HA treatment significantly limited CIA incidence and decreased TNF-α, interleukin-1β (IL-1β), interleukin-17 (IL-17), matrix metalloprotease-13 (MMP-13), and inducible nitric oxide synthase (iNOS) levels that were initially upregulated by CIA.

Campos et al.¹³ investigated the influence of short HA oligosaccharides and HMWHA on the inflammatory response in normal mouse chondrocytes. HA fragment treatment produced a significant upregulation of TLR-4, TNF-a, IL-1b, IL-6, and IL-18. HMWHA did not exert any activity in untreated cells, although it was able to reduce the effects of HA fragments significantly. TLR-4 was confirmed as the target of HA action through TLR-4 small interference RNA experiments. Therefore, HMWHA can attenuate the inflammatory process induced by small HA fragments through TLR-4 receptor binding.

Role of HA–ICAM Receptor Binding

ICAM-1 is another cell surface receptor for HA. Upregulation in the expression of ICAM receptors has been observed in inflamed and malignant tissues.⁵⁹ The NF-κB/I-κB transcriptional regulatory system is a critical component of the host inflammatory response, induced by activation of the aforementioned cell surface receptors. This system has an essential role in transducing signals leading to the expression of numerous genes involved in the inflammatory response, including the induction of the expression of pro-inflammatory cytokines such as IL-1β, IL-6, and IL-8, as well as TNF-α.⁴ Shao et al.⁴¹ evaluated the impact of ICAM-1 in HA therapy in an experimental rat model of severe non-bacterial cystitis. Elevated ICAM-1, TNF-α, and IL-6 levels were observed in the inflammation model. After treatment with HA, a significant decrease in ICAM-1 was observed, suggesting that a reduction of ICAM-1 may play a role in the anti-inflammatory effect of HA. Yasuda et al.⁵⁰ examined the effects of HMWHA within the physiological levels on pro-inflammatory cytokine production by lipopolysaccharide (LPS)-stimulated U937 macrophages. HA was added to U937 macrophage cultures in the presence of LPS, with or without pretreatment with anti-ICAM-1 antibody. LPS stimulated production of TNFα, IL-1β, and IL-6. HMWHA inhibited LPS-induced cytokine production, whereas fragmentized HA provided no effect. Anti-ICAM-1 antibody blocked the effects of HA on the LPS actions on U937 cells, suggesting an intrinsic role of ICAM-1 receptors in the anti-inflammatory action of HA. LPS activated NF-κB and mitogen-activated protein kinases (MAPK) pathways, whereas HA downregulated p65 NF-κB and I-κBα phosphorylation by LPS without affecting MAPKs. Inhibition studies revealed the requirement of NF-κB for LPS-stimulated cytokine production. HMWHA suppresses LPS-stimulated production of pro-inflammatory cytokines via ICAM-1 through downregulation of NF-κB and I-κB.

Role of HA–Layilin Receptor Binding

LAYN’s ability to bind HA illustrates a parallel between the LAYN and CD44, as they both bind to cytoskeleton-membrane linker proteins through their cytoplasmic domains and to HA through their extracellular domains.⁶⁰ Murata et al.³⁴ examined the expression and potential function of LAYN in human articular chondrocytes and synoviocytes. LAYN was constitutively expressed in human articular chondrocytes and synoviocytes and it was shown that IL-1β significantly suppressed the expression of LAYN in these cells. HMWHA repressed IL-1β-induced MMP-1 and MMP-13 production in chondrocytes, but this was significantly abrogated in chondrocytes transfected with siRNA against LAYN, suggesting that LAYN may contribute to the regulation of HA functions in the arthritic condition.

Discussion

HA has multiple effects on inflammatory mediators involved in the osteoarthritic disease state. In vitro and animal studies have shown that HA interacts with different cell surface receptors in a molecular weight– and dose-dependent manner. The size of HA strongly influences receptor affinity, receptor activation, and downstream signaling.⁶¹ However, the distinct HA ligand-receptor relationships with CD44, TLR-2 and TLR-4 remain to be fully elucidated. Recent evidence suggests signal transduction by HA is dependent on the ability of HA to cluster the receptors on the cell membrane. For example, the amount of HA binding to CD44 receptors increases as a function of HA size. HMWHA possess multivalent sites for CD44 binding while short oligosaccharides of HA have only 1 or 2 binding sites.⁶² Reversible binding of HA to CD44 receptors occur with short HA oligosaccharides, and this interaction is essentially irreversible with larger HA polymers, suggesting an antagonistic relationship between short chain oligosaccharides of HA and CD44 receptors. Similar molecular weight– and size-dependent relationships to TLR receptors also exist, influencing downstream signaling cascades.^56,63,64

HMWHA can bind to the sites of CD44, TLR-2, and TLR-4, to promote anti-inflammatory effects within the cell. Through CD44 receptor binding, HMWHA downregulates the expression of IL-8, IL-33, MMPs, proteoglycans and PGE₂ and suppresses NF-κB activation. HMWHA also suppresses pro-inflammatory cytokine levels through interactions with ICAM-1 by downregulation of NF-κB and I-κB. Further research into the relationship between HA and LAYN is warranted to fully understand its involvement with inflammation.

Overall, HA has a safe and tolerable profile in clinical trials and practice.^1,2,7 Basic science evidence has progressed the understanding of how HA is able to inhibit the inflammatory response in knee OA, and the clinical efficacy of HA has been studied extensively and has been used in treating patients with symptomatic knee OA.⁶⁵ Patients with knee OA suffer significant pain and disability. HA has been used to treat these symptoms of OA, to restore proper knee function and manage pain.⁶⁶ HA is not traditionally seen as an anti-inflammatory agent; however, HA has demonstrated, in vitro and in vivo, anti-inflammatory effects within the synovial fluid at the molecular level. Further insight into the clinical efficacy of IA-HA in treating inflammation in knee OA is required. Kaneko et al. observed a decrease in synovial fluid IL-6 and IL-8 levels in patients with knee OA after being treated with sodium hyaluronate.⁶⁷ Segzin et al.⁶⁸ observed a significant decrease in IL-6 levels in patients receiving both hyaluronan and placebo in a randomized controlled trial; however, IL-8 and TNF-α levels did not change. A recent pilot study investigated the use of viscosupplementation on synovial fluid inflammation by examining changes in synovial fluid levels of cytokines and oxidative stress, and reductions in TNF-α and IL-1β levels were observed over a 6-month period.⁶⁹ Higher quality studies are necessary to evaluate the anti-inflammatory properties of viscosupplementation treatment used in clinical practice, as well as delineate the differences between products that differ in structure from endogenous HA.

The systematic review is strengthened by the methodological approach in identifying available nonclinical basic science evidence in online databases. Multiple mechanisms of action of HA in inflammation have been identified and comprehensively reported, providing insight into the pro- and anti-inflammatory key macromolecules identified. Moreover, an in vitro comparison of the different preparations of HA further explicates the anti-inflammatory potential of intra-articular HA treatment. This review is limited in that it primarily focused on the anti-inflammatory influence of HA in the treatment of OA, and did not address the larger profile of the mechanism of action of HA. Other characteristics of viable HA treatment that should be considered include its rheological properties, subchondral protective properties, chondroprotective effects, and lubrication and shock absorption features, which may also affect inflammatory properties.⁷⁰

Conclusion

HA produces molecular weight–dependent anti-inflammatory effects through a multifactorial mechanism of action via CD44, TLR, and I-CAM receptor signaling. HMWHA combats the pro-inflammatory influences of fragmentized HA, such as suppressing the expression of pro-inflammatory cytokines, matrix metalloproteinases, prostaglandins, and nitric oxide. Future studies investigating the effects of HA on cartilage damage and inflammation in well controlled clinical studies may help determine whether preparations of intra-articular HA aid in other degenerative characteristics of OA, such as chondroprotection and slowing the progression of disease.

Footnotes

Appendix

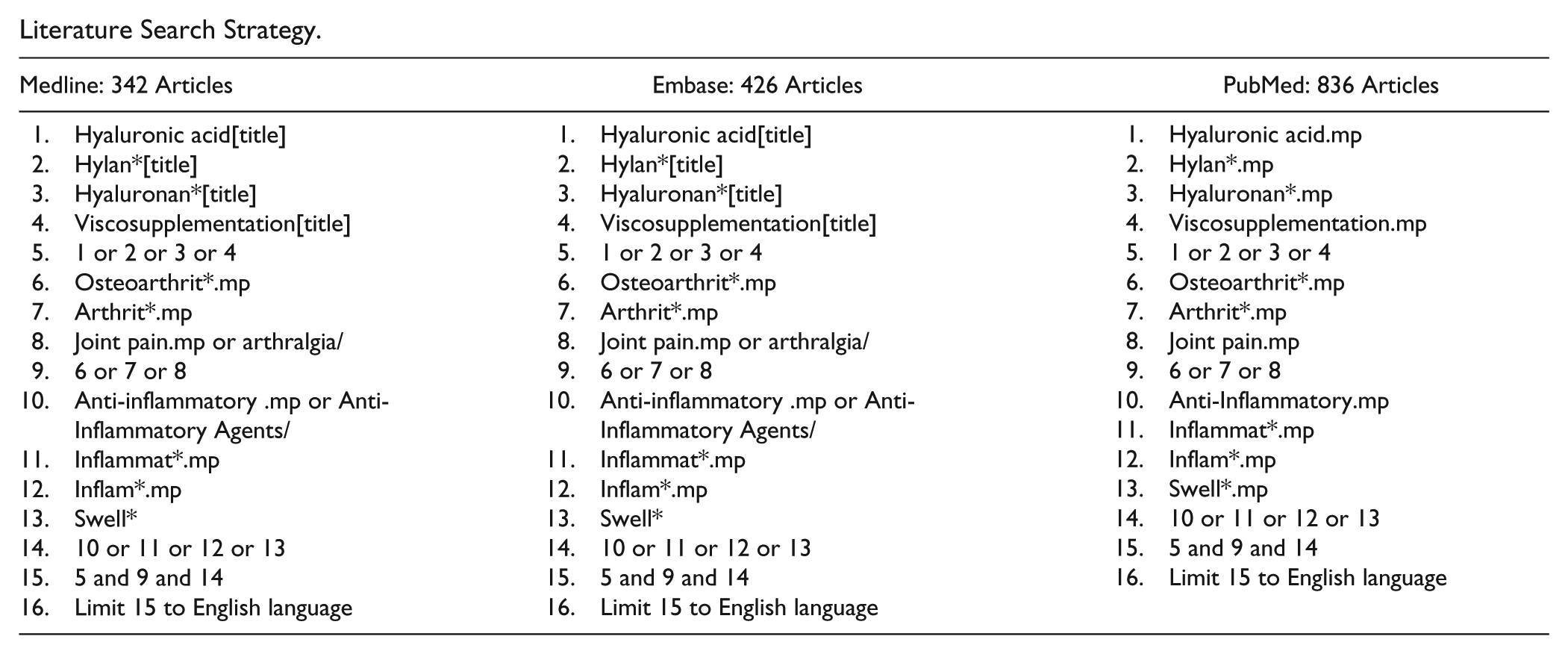

Literature Search Strategy.

Medline: 342 Articles	Embase: 426 Articles	PubMed: 836 Articles
1. Hyaluronic acid[title] 2. Hylan[title] 3. Hyaluronan[title] 4. Viscosupplementation[title] 5. 1 or 2 or 3 or 4 6. Osteoarthrit.mp 7. Arthrit.mp 8. Joint pain.mp or arthralgia/ 9. 6 or 7 or 8 10. Anti-inflammatory .mp or Anti-Inflammatory Agents/ 11. Inflammat.mp 12. Inflam.mp 13. Swell* 14. 10 or 11 or 12 or 13 15. 5 and 9 and 14 16. Limit 15 to English language	1. Hyaluronic acid[title] 2. Hylan[title] 3. Hyaluronan[title] 4. Viscosupplementation[title] 5. 1 or 2 or 3 or 4 6. Osteoarthrit.mp 7. Arthrit.mp 8. Joint pain.mp or arthralgia/ 9. 6 or 7 or 8 10. Anti-inflammatory .mp or Anti-Inflammatory Agents/ 11. Inflammat.mp 12. Inflam.mp 13. Swell* 14. 10 or 11 or 12 or 13 15. 5 and 9 and 14 16. Limit 15 to English language	1. Hyaluronic acid.mp 2. Hylan.mp 3. Hyaluronan.mp 4. Viscosupplementation.mp 5. 1 or 2 or 3 or 4 6. Osteoarthrit.mp 7. Arthrit.mp 8. Joint pain.mp 9. 6 or 7 or 8 10. Anti-Inflammatory.mp 11. Inflammat.mp 12. Inflam.mp 13. Swell*.mp 14. 10 or 11 or 12 or 13 15. 5 and 9 and 14 16. Limit 15 to English language

Acknowledgments and Funding

The authors would like to thank Mark Gichuru and Mark Phillips of Global Research Solutions Inc. for their medical writing assistance. This study was funded by Ferring Pharmaceuticals, Inc.

Declaration of Conflicting Interests

The author(s) declared the following potential conflicts of interest with respect to the research, authorship, and/or publication of this article: Roy Altman is a consultant for Ferring Pharmaceuticals, Inc. Asheesh Bedi and Ajay Manjoo have no conflicts of interest to disclose. Peter Shaw and Faizan Niazi are paid employees of Ferring Pharmaceuticals Inc. Philip Mease is a consultant for Genentech, has a research grant with Genentech, Merck and Zynerba, and is a speaker for Lilly, Merck, Sun, and Zynerba.
