Abstract
Reliable baseline information necessary for the monitoring and conservation of Sumatran elephants is scarce. We here combine non-invasive molecular genetics methods and capture-recapture modeling to estimate elephant population size, distribution, sex ratio, and age structure for the Bukit Tigapuluh landscape in Sumatra, Indonesia. Two separate subpopulations were found, for which we estimated a population size of 99 (95% CI = [86,125], PCCL = 38.59%) and 44 elephants (95% CI = [37, 56], PCCL = 43.18%), respectively. Low elephant densities are likely the result of patchy habitat usage and anthropogenically increased mortality, the latter assumption being supported by strong skews in both sex ratio and age structure as well as direct evidence of elephant killing. Still, the Bukit Tigapuluh landscape currently holds the largest known population of elephants in central Sumatra, representing one of the most important areas for their conservation in Indonesia. Conservation of both the elephant population and their habitat in this region should thus be of high priority. We identified several threats to the population, including (i) the risk of inbreeding and subsequent loss of genetic diversity, (ii) illegal elephant killing, and (iii) the lack of protected habitat. In order to overcome these challenges we suggest: (i) the implementation of a meta-population management program, (ii) monitoring and safeguarding elephants and improving law enforcement, and (iii) providing sufficient safe habitat to mitigate human-elephant-conflict (HEC) and ensure elephant survival.
Keywords
Introduction
The Sumatran elephant (Elephas maximus sumatranus) is one of three currently recognized subspecies of Asian elephants [1,2] and is both genetically [3] and anatomically different from other Asian elephants [1]. The critically endangered status of the Sumatran elephant is primarily due to massive habitat destruction, which has resulted in the local extinction of the species in at least 15 areas of Sumatra and continues to threaten most of the remaining wild populations [4].
Based on data compiled by the Indonesian Elephant Conservation Forum (Forum Konservasi Gajah Indonesia, FKGI) in 2007, the estimated population size was 2,400 to 2,800 animals [5]. That number may have dropped to below 2,000 individuals in 2014, but accurate information is scarce (head of FKGI Krismanko Padang, pers. communication). The lack of reliable elephant population size estimates for Indonesia was already noted a decade ago [6] and it appears that not much new data have been produced since then. Certainly, information alone cannot save elephants from extinction, but national and local conservation strategies based on incomplete and/or outdated data would likely fail as scarce conservation resources would not be adequately allocated and important conservation needs and opportunities may be overlooked.
Sound scientific information on elephant populations in Indonesia is not easily gathered, as the dense and tangled vegetation rarely allows for direct sightings, complicating the scientific sampling framework. Therefore, substantial effort was made to develop methods that overcome sampling issues for elusive animals (see [7] for review). For elephants, dung-count based distance sampling is a preferred method that can be used in a variety of habitats [8] including the Sumatran and Bornean jungle [9,10]. However, the use of dung-counts has been shown to lack precision when applied to very small elephant populations that live in low densities [11], as they do in Indonesia.
A promising alternative to dung counts is the sampling of DNA from fresh dung for individual identification using methods similar to those applied in human forensics [12]. If these samples are taken within a capture-recapture sampling framework, reliable population size estimates become possible even for small groups where individuals have never been sighted [13–15]. In addition to abundance estimates, important information on population structure can be obtained using DNA-based sex determination [16,17] and measurements of elephant dung bolus dimensions for age class estimation [8,18]. While not successfully applied to Sumatran elephant populations before, this non-invasive sampling method has provided reliable population size estimates in mainland Asia and Africa [19–23].
Our study was carried out in the Bukit Tigapuluh Landscape in Central Sumatra and is part of an island-wide attempt by both government and non-government members of the FKGI to provide crucial baseline data for population monitoring and conservation planning. We combined non-invasive molecular genetics methods and capture-recapture modeling to estimate population size, distribution, sex ratio, and age structure of a local elephant population.
Methods
Research location
The Bukit Tigapuluh landscape is located approximately in the geographical centre of the Indonesian island of Sumatra (1°4′27.72¶ime;S, 102°30′43.89¶ime;E), stretching over two provinces (Riau and Jambi) and covering more than 3,200 km2 of land including the 1,440 km2 Bukit Tigapuluh National Park (Fig. 1). The climate is tropical with high rainfall and warm temperatures year round. The original vegetation type, the extremely species-rich dipterocarp rainforest [24] is now largely limited to the rugged centre of the landscape and surrounded by a patchwork of various land-use types, including oil palm and rubber tree plantations, pulpwood plantations, surface coal mining areas, small settlements, private farmland, and non-active former logging areas now partly covered with secondary forest (Frankfurt Zoological Society, unpublished data 2005–2011).
Map* of the Bukit Tigapuluh Landscape in Sumatra, Indonesia. Shown are the survey blocks of survey area “Sumai” and survey area “RiauJambi”, elephant presence (small black squares), and the locations of DNA samples collected (black & white dots). *Map data sources: forest cover = Frankfurt Zoological Society, unpublished data 2005–2014; provincial borders = BAKOSURTANAL, Bogor 2008.
Field Survey
The study area consisted of two 900 km2 survey areas, “Sumai” and “RiauJambi”, which together cover all areas used by elephants in 2011 (Fig. 1). The borders of these survey areas were determined based on elephant distribution data collected between 2005 and 2011 ([25,26], Frankfurt Zoological Society, unpublished survey & patrol data 2005–2011) and a three-month pre-survey of all potential elephant habitat not recently surveyed.
Both survey areas contained six equally sized survey blocks, which were subdivided into six 25 km2 sampling blocks. This design allowed all resident elephants to potentially be sampled, as the home range of Sumatran elephants is substantially larger than the sampling blocks [27,28]. Each survey area was surveyed three times by six field teams within discrete time intervals of a minimum of 12 survey days, separated by a break of ten days. Each time the area was surveyed corresponds to one sampling occasion. During each sampling occasion survey teams searched for fresh elephant dung in each sampling block for two full days. The landscape-wide survey was completed within six months, from May to October 2011, with total survey time not exceeding three months for each survey area.
Fresh elephant dung (≤ one day old) was sampled by collecting approximately five grams of dung from the outermost layer of intact dung boli into a sampling tube filled with ethanol absolute (MERCK, Frankfurt, Germany). Recent (up to seven days old) dung was only sampled in the absence of fresh dung piles. All samples were stored at ambient temperature in the field and at -20°C in the laboratory. Dung bolus circumference was measured for up to three boli of each dung pile sampled, using a soft measuring tape and following established procedures [8]. The location of the sample was recorded using a hand-held GPS (Garmin GPSMap 76CSX).
Laboratory Analysis
Genomic DNA was extracted using the QIAamp® DNA Stool Mini Kit (QIAGEN, Hilden, Germany) following a modified protocol [29]. The extraction was performed in a biosafety cabinet exclusively used for this purpose. Preparation of Polymerase Chain Reaction (PCR) mixture for amplifications was carried out in a DNA-free PCR hood, while the addition of DNA template was completed in a separate UV-sterilized hood in order to prevent contamination. A GeneAmp® PCR System 9700 thermo cycler (Perkins Elmer/ Applied Biosystems, Singapore) was used for amplification. Each panel included a negative (no-template) control to detect reagent and sample contamination and a positive control (DNA extracted from blood samples collected from Sumatran elephants by the author) to ensure consistent and comparable results.
For sex determination, two short Y-specific fragments (SRY1 and AMELY2) and one longer X-specific fragment (PLP1) [17] were amplified in multiplex PCRs. PCR was conducted in a 15 μL reaction containing 1 U AmpliTaq Gold® 360 DNA Polymerase (Applied Biosystems, Foster City, CA, USA), 1X AmpliTaq Gold® 360 Buffer (Applied Biosystems, Foster City, CA, USA), 0.08 mM of each dNTP, 0.4 μM of each primer, 2 mM MgCl2, 0.3 μL 360 GC Enhancer, 150 ng – 250 ng of extracted DNA template, and PCR-grade water. Upon electrophoresis on a 2% agarose gel, females showed a single band (the 191 bp long PLP1 fragment) while three bands (the 191 bp long PLP1, the 122 bp long AMELY2, and the 71 bp long SRY1 fragments) indicated a male. Females were confirmed a minimum of three times and males at least twice in order to reduce the risk of false sexing.
Individuals were identified using a set of fourteen microsatellite loci developed for Asian and/or African elephants: EMU07, EMU04, EMU14, EMU10, EMU03, EMU17, EMU13, EMU12 [30], FH60 and FH103 [31], LafMS04, LafMS04, LafMS05 [32], and FH94R [33]. The multiplex PCR amplification was conducted in two separate panels, each reaction containing 1× multiplex PCR Master Mix (QIAGEN, Hilden, Germany), 1× Q-Solution (QIAGEN, Hilden, Germany), 0.05-0.3 μM of fluorescently labeled forward primer mix, 0.05-0.3 μM of reverse primer mix, a minimum of 100 ng of DNA template (DNA concentration was adjusted for each sample individually), and PCR-grade water to reach a total volume of 10 μL. PCR was carried out using the following conditions: 95°C for 15 min followed by 35 cycles of denaturation at 94°C for 30 sec, annealing at 57°C for 90 sec, extension at 72°C for 60 sec, and a final extension step at 60°C for 30 min. Capillary electrophoresis was performed in an Applied Biosystem® 3130 Genetic Analyzer (Applied Biosystems, Foster City, CA, USA), each run containing a mix of 1 μL of PCR product, 9.3 μL of HiDi Formamide, and 0.2 μL of GeneScan™ 500 LIZ® molecular size marker (Applied Biosystems, Foster City, CA). Genotypes were scored using GeneMapper®V.4.0 software (Applied Biosystems, Foster City, CA, USA). For each locus, heterozygote results were confirmed twice and homozygote results were confirmed a minimum of three times.
Data analysis and modeling
Genotype data from repeated multiplex PCRs were compiled in M
Samples were considered to have originated from the same individual if they i) had similar bolus circumferences, ii) were identified as originating from the same sex, and iii) had the same genotype profile (with one mismatching allele allowed). Individuals identified the first time were considered “captures” and subsequent encounters of the same individual on a different sampling occasion were considered a “recapture.” Minimum population size was determined by the sum of unique genotypes.
Total abundance was estimated in a capture-recapture modeling framework using M
A low number of sampling occasions in combination with few identified individuals can substantially decrease estimation power of unknown parameters, especially when heterogeneity models are applied (Brian D. Gerber, personal communication). In order to obtain reliable results for the limited dataset of the RiauJambi area, we merged the data from both survey areas to obtain a larger dataset for the estimation of capture and re-capture probabilities, and then analyzed abundance separately [39]. Model averaging was applied to obtain consensus estimates with asymmetrical confidence intervals [40] for each survey area with models contributing according to their second order Akaike Information Criterion (AICc) weights [41]. To allow a comparison of the precision of our results with those of other surveys, we calculated PCCL, the ratio of the confidence limit (CL) to the population estimate (N) [42]. Abundance estimates were converted into density estimates by dividing population size by the area of survey blocks occupied by elephants in 2011 for each of the two survey areas.
Age was estimated using the classification system developed for dung counts [43]. We distinguished three age classes [19]: class 1: 0–5 years old = neonates & juveniles with mean bolus circumference (mbc) ≤ 30 cm, class 2: 5–15 years old = subadults with 30 cm < mbc ≤ 42 cm, and class 3: older than 15 years = adults with mbc > 42 cm. For repeatedly sampled individuals with dung dimensions close to age class boundaries, the average bolus circumference calculated for all samples from that individual was used for analysis.
To evaluate whether the physical separation of the two subpopulations had already caused genotypic differentiation, we applied the software S
Results
Indirect signs of elephants such as dung and footprints were detected in all but one survey block, but recent elephant activity (and thus fresh dung) was limited to nine out of the 12 blocks (Fig. 1). A total of 398 samples were collected. The survey area Sumai yielded 270 samples, more than twice as many as the 128 samples from the RiauJambi survey area. The majority of samples (n=326, 81.9%) were taken from fresh dung piles (Table 1). After merging replicates (repeated sampling from the same dung pile) and excluding samples with incomplete information, a total of 357 samples remained for DNA extraction and analysis.
Number of dung samples collected in 2011, amplification success, and individual elephants captured and re-captured for survey area Sumai and RiauJambi, Bukit Tigapuluh landscape, Indonesia.
Elephant DNA was successfully amplified from 294 samples (82.35%), but only 277 samples (77.59%) yielded consistent results, of which 272 (76.2%) were successfully sexed. Locus EMU04 was monomorph and thus excluded from further analysis. The observed heterozygosity (Hobs) was low to medium and similar to the heterozygosity expected (Hexp) under HWE. All loci were at HWE, and there was no evidence for the presence of null alleles (Table 2). We observed up to five different alleles per locus and the presence of two private alleles for each survey area: a160 (EMU12) and a123 (EMU17) in Sumai samples, and a152 (FH103) and a218 (FH94R) in samples from RiauJambi. PID was 2.96E-07 and PID(sib) was 8.72E-04, indicating that our set of primers was well able to discriminate between closely related individuals with negligible risk of shadow effects (sensu [48]).

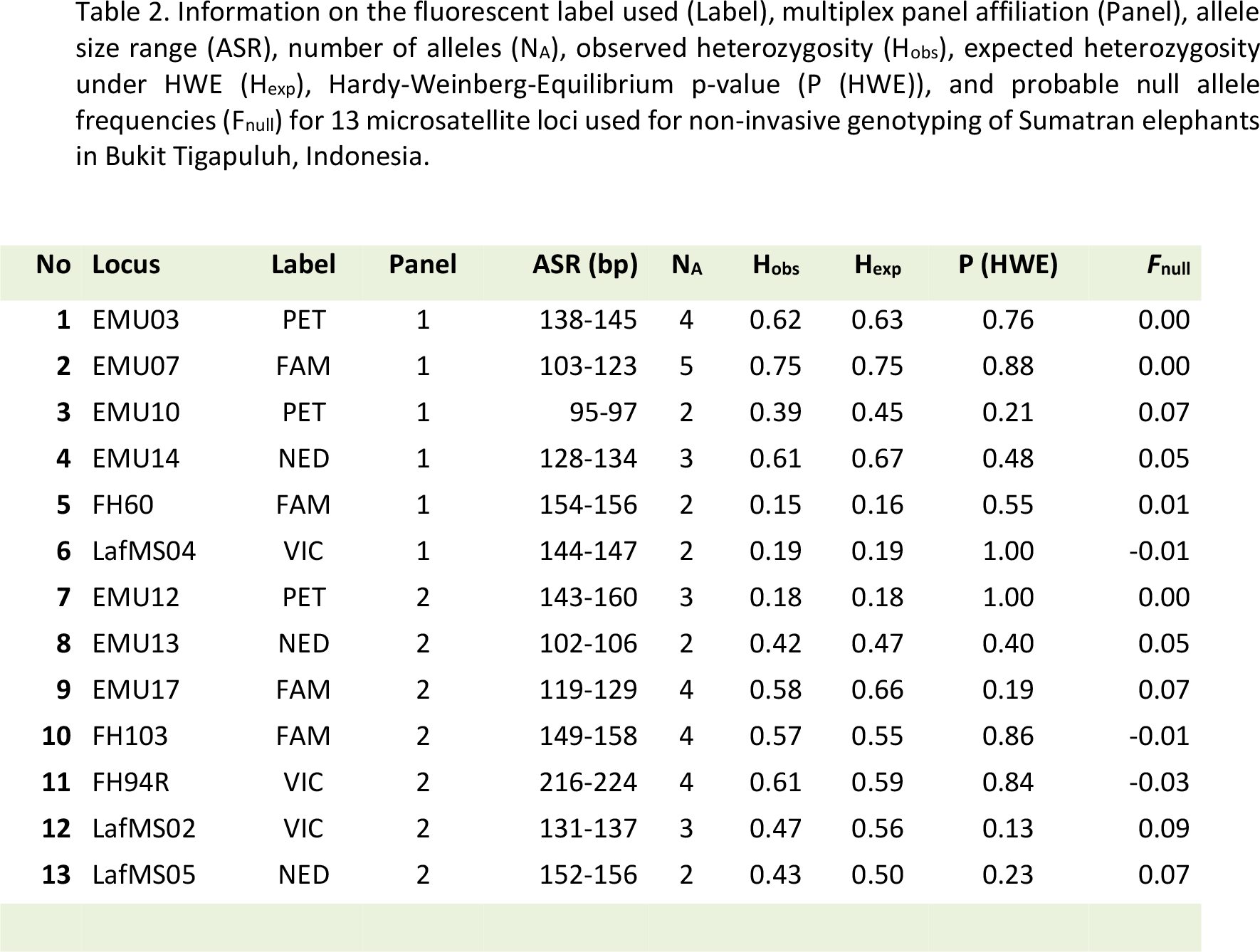

Information on the fluorescent label used (Label), multiplex panel affiliation (Panel), allele size range (ASR), number of alleles (NA), observed heterozygosity (Hobs), expected heterozygosity under HWE (Hexp), Hardy-Weinberg-Equilibrium p-value (P (HWE)), and probable null allele frequencies (Fnull) for 13 microsatellite loci used for non-invasive genotyping of Sumatran elephants in Bukit Tigapuluh, Indonesia.
We identified 104 individuals, of which 74 originated from Sumai and 30 from the Riau-Jambi area (Table 1). Of these, 26 were classified as juveniles, 44 as subadults, 33 as adults, and one individual remained unclassified due to insufficient dung measurements. Molecular sexing revealed the presence of 73 females and 29 males in our sample. For two elephants sex could not be identified reliably (Table 3). While there were almost twice as many male calves than females, the sex ratio in older age classes was substantially biased towards females, with only three adult bulls detected by our survey at the landscape level.
Age class and sex of successfully genotyped Sumatran elephants for Sumai and RiauJambi area, Bukit Tigapuluh landscape, Indonesia.
n.d.: not determined
Total population size estimates differed only slightly among models for both study sites. This and the generally small difference in AIC values suggested robust results. The simple, less parameterized models M(0) and M(t) performed better than those including heterogeneity (Table 4). The results of model averaging suggested that 99 ± 9.30 (SE) elephants (95% CI = [86, 125]; PCCL = 38.59%) were present in the Sumai area and 44 ± 4.62 (SE) elephants (95% CI = [37, 56]; PCCL= 43.18%) were present in the RiauJambi area in 2011 (Table 4). Based on the total area of survey blocks used by elephants in 2011, our abundance estimates translate into an estimated density of roughly 0.05 and 0.13 elephant per km2 for RiauJambi and the Sumai area, respectively.
Sumatran elephant population size estimates (N) based on four different capture-recapture models (sensu [38]) and model averaging using MARK.
AICc: for finite sample size corrected Akaike Information Criterion, SE: standard error, CI(lo): lower confidence limit, CI(up): upper confidence limit, PCCL: ratio of the confidence limit to the population estimate.
The S
Estimated population structure of Sumatran elephants in Bukit Tigapuluh, Indonesia, from Bayesian STRUCTURE analyses [44]. The most likely population structure consisted of two genotypic clusters. Bars represent individuals, sorted according to their probability to belong to either cluster 1 or 2. Cluster membership proportions are visualized by colored fractions (cluster 1: lime green, cluster 2: green). Individuals sampled in RiauJambi survey area are marked with an “x”.
Discussion
Accuracy and precision of the population size estimates
Population size estimates for the Bukit Tigapuluh Landscape (including both the Sumai and RiauJambi areas) range from 300–400 animals in 1984 [49] to only 50 animals in 2007 (as mapped in [50]). However, with the exception of a dung count census from 2009 [29] that estimated 117 elephants for the Sumai area (in older literature referred to as “Semambu”) and 47 elephants for the RiauJambi area, available estimates are either outdated, entirely based on guesswork, or both, and therefore do not likely reflect the current population size. While our abundance estimates were very similar to those of the dung count from 2009 [29], we achieved a much smaller PCCL, which supports the conclusion of others [19] that non-invasively collected DNA-based capture-recapture methods are as reliable and more precise than dung counts. Being the most recent and most precise study, our estimates of 99 elephants (95% CI = [86, 125], PCCL = 38.59%) for the Sumai area and of 44 elephants (95% CI = [37, 56], PCCL = 43.18%) for the RiauJambi area should be used for conservation planning and as a baseline for monitoring.
Fragmentation and genotypic structure
An approximately 30km wide corridor where no elephant presence has been found divides the Sumai and RiauJambi populations. The absence of evidence for any individual exchange between these study areas suggests that the elephants in RiauJambi and Sumai represent separate subpopulations. The genotypic structuring clearly indicated the progressed genotypic isolation of the two subpopulations. The high number of genotypically admixed individuals depicts the situation of the past when gene-flow was undisturbed. However, the now elephant-free corridor between the two areas will likely enforce the ‘isolation by distance’ process.
Elephant Density and Habitat Condition
Our study revealed an extremely low population density in Bukit Tigapuluh compared to areas of India or Sri Lanka, where 10 to 40 times more elephants inhabit similarly sized areas (e.g., [51,52]), which is not surprising as tropical forests are known for their small carrying capacity [53]. However, the overall density for RiauJambi (0.05 elephants per km2) is extremely low, even for Sumatra, where mean densities of 0.15 and 0.18 elephants per km2 and locally up to 0.57 individuals per km2 had been estimated previously [10]. Moreover, both our estimates were substantially smaller than those reported for the majority of areas surveyed in Borneo [9].
Preliminary observations made during the field survey suggested that low overall densities may have been caused by the limited availability of habitat, as both populations were using much smaller areas than the perimeter of their distribution would allow. Satellite imagery revealed a steep decline in natural forest cover during the years preceding the survey, with an estimated 2,150.5 km2 of natural forest (43% of the total forest) converted between 2005 and 2011 (Frankfurt Zoological Society, unpublished data 2005–2011). Much of this conversion took place within the elephant's range, leaving a heavily fragmented habitat (Fig. 1). The effective, usable area may therefore be considerably smaller than the total area of the 11 survey blocks where elephants were detected in 2011, as much of this area was occupied by both legal and illegal fields and plantations (personal observation), areas where food is limited (e.g., in case of monoculture pulpwood plantations) or where elephants are not tolerated (e.g., in oil palm plantations). In addition, increased anthropogenically caused mortality is likely to have contributed to the low overall densities observed. Evidence for the killing of elephants in the past is outlined below.
Age Structure, Sex Ratio and Evidence for Illegal Killing of Elephants
Asian elephants are generally long-lived and slow-reproducing animals that if undisturbed, enjoy relatively high survival rates well into old age after a few slightly more risky postnatal years [53]. In natural populations we therefore expect to find a greater number of adult animals than subadults and juveniles, as observed, inter alia, by Kumara et al. [51] and Easa & Balakrishnan [54] in India. Our sample, however, revealed a distorted age structure for Bukit Tigapuluh, with almost equal numbers of individuals in all age classes for the RiauJambi area and a clear dominance of animals younger than 15 years in the Sumai area. Interestingly, the only available study for other areas in Sumatra reported a similarly young population, which at that time seemed to be dominated by subadult individuals, noting that calves may have been underrepresented in the sample [18]. These unexpected findings were not discussed [18], but computer simulations indicated that populations suffering from increased adult mortality show a relatively increased number of calves, which will subsequently result in a general age distribution shift towards younger classes [53]. Thus, a young population might not necessarily mean recovery, but could instead be a sign of substantial losses in older age classes, as we suspect to be the case for the Bukit Tigapuluh population.
Strong skews in the sex ratio lend further support to this scenario. Statistically, elephants are born at equal sex ratios, but males naturally suffer from somewhat increased mortality rates, which explains the slightly female-biased sex ratios in older age classes observed in many populations [53]. For example, in Rajaji National Park, India, as well as in Ruhuna National Park, Sri Lanka, populations had approximately twice as many adult females as adult males [55, 56], and an adult sex ratio of 1:0.84 (female:male) was estimated for Uda Walawe National Park in Sri Lanka [52]. Natural populations are also partly stochastic systems, with small populations being more affected by random effects than larger ones [53]. However, it is unlikely that the extreme distortions observed in our study could have been caused solely by chance or natural difference in mortality, but may be due to frequent killing of elephants in the past. This assumption is supported by anecdotal evidence for heavy ivory poaching and poisoning of elephants in response to crop raids. Forest police investigation results compiled by the author prove that humans killed 17 elephants between 2008 and 2014. Although sound direct evidence is lacking, it is likely that elephant killing was far more common prior to 2008, as during this time the region was mostly uncontrolled and unmonitored. We therefore assume that anthropogenically increased mortality has shaped the population structure in Bukit Tigapuluh, as it has for other elephant populations in Asia [53,57,58].
Implications for Conservation
The Bukit Tigapuluh landscape supports the largest known elephant population in Central Sumatra and is therefore among the most important areas for elephant conservation in Indonesia. The protection of the Bukit Tigapuluh elephants (Fig. 3) and their habitat should consequently be of high priority. While potentially viable populations of Sumatran elephants are known to exist in Lampung and are suspected in Aceh province, preliminary unpublished information gathered at a workshop of the FKGI held in Bogor in 2014 suggests that most of the other populations are extremely small. Although these small populations may harbor alleles that are important for the survival of the subspecies, their long-term survival is unlikely. Other than Bukit Tigapuluh, it is likely that only one other landscape in Central Sumatra, Tesso Nilo in Riau province, still holds more than 100 animals. Further study is needed to determine whether any additional viable populations exist that are as yet undetected.
A group of Sumatran elephants searching for food in a pulpwood concession in survey area RiauJambi (A); part of a larger elephant herd drinking and taking a bath in survey area Sumai (B); forest destruction, one of the main problems for elephant conservation in Bukit Tigapuluh (C); postmortem of a poisoned adult female elephant (D). Photo credit: Frankfurt Zoological Society / Alexander Moßbrucker & Albert Tetanus.
Our study revealed two specific conservation issues:
The effective population size is reduced by fragmentation into two isolated subpopulations, increasing the risk of inbreeding and loss of local adaptation by genetic drift.
Population viability is compromised by the distorted demographic structure.
Although the aforementioned conservation issues must be addressed, the fundamental challenges for the survival of the Sumatran elephants in Bukit Tigapuluh are the destruction of their habitat and the impact of illegal killing on their numbers. Habitat destruction and the killing of elephants (Fig. 3) must be addressed as a priority if the subspecies is to survive.
While it is beyond the scope of this study to provide site-specific solutions for the conservation issues discussed, we offer some thoughts about a suitable conservation strategy for the region:
As no other elephant population appears to be close enough to allow genetic exchange with Bukit Tigapuluh, a meta-population management program that includes an occasional restocking of individuals from other populations is required. In addition, exchange between subpopulations could be facilitated by increasing the permeability of the separating corridor in order to allow for natural dispersal.
The poaching of elephants and their killing due to Human-Elephant Conflict (HEC) are thought to be the two primary causes of elephant deaths. Incidences of poaching could be reduced to some extent by the close monitoring of animals at risk, which may be technically feasible if field teams supported by satellite and radio telemetry are deployed (see [27] for a first trial in the region). However, to be effective, prevention may require deterrence in the form of serious law enforcement. In spite of a long history of illegal elephant killings in Bukit Tigapuluh (first reported in 1995 by [49]), convictions are extremely rare, and improvements to investigations and legal proceedings are likely required.
Several HEC mitigation methods were tested in the Bukit Tigapuluh region and found to be suitable [26]. However, these methods can only lead to the effective protection of elephants if the habitat is safe and large enough to allow elephants to satisfy their basic needs away from settlements, fields, and plantations. Allocating and protecting sufficient elephant habitat is therefore a high priority for HEC mitigation.
As most elephants roam outside protected areas, present conservation efforts need to be adapted to broaden areas of protection. Landscape species such as elephants may need much larger conservation areas with different characteristics from those already allocated. The coexistence of elephants and humans on intensively used agriculture land may not be possible, but extensive productive forest concessions surrounding the Bukit Tigapuluh National Park provide potentially safe habitat. Within these concessions, wildlife-friendly management beyond statutory conservation commitments could transform much of the landscape into suitable elephant habitat without the need to remove all commercial interests. In addition, ecosystem restoration concessions [59] provide an opportunity to restore and protect the archetype forest ecosystem in parts of the production forest, and therefore represent a highly valuable land use model for areas inhabited by elephants and other (critically) endangered species.
Footnotes
Acknowledgements
We thank the U.S. Fish & Wildlife Service (USFWS), the International Elephant Project (IEP), and Perth Zoo (Western Australia) for financial support, the Institute for Zoo and Wildlife Research (IZW) for material support, and the Indonesian State Ministry of Research and Technology (RISTEK) for granting research permits. We are grateful to the Jambi division of the Indonesian Nature Conservation Agency (BKSDA Jambi) for their kind support of the field survey and to the Eijkman Institute for Molecular Biology for providing access to their laboratories. We thank Dr. Herawati Sudoyo and the laboratory assistants Tri Cita Hutama, Stephanie Pranawijaya, and Bertha Letizia Utami for their support of the laboratory work. We are also thankful to Dr. Gernot Segelbacher and Dr. Lori Eggert for advice concerning laboratory work and Dr. Brian Gerber for advice concerning capture-recapture modeling. Further, the authors thank Dr. Amanda Fernie for carefully reviewing the English. Special thanks go to Dr. Antje Müllner, Dr. Peter-Hinrich Pratje and the entire team of Frankfurt Zoological Society for their enthusiastic and manifold project support.
