Two New Sterol Sulfates from Marine Spider Conch Lambis Lambis Linnaeus,1758

Abstract

Two new (1 and 2) and six known (3-8) compounds were isolated from the methanolic extract of the Vietnamese marine spider conch Lambis lambis Linnaeus, 1758. Based on comprehensive spectroscopic analyses, particularly HRESIMS, and 1D- and 2D-NMR spectra, their chemical structures were determined to be 25,26,27-tri-nor-cholest-5-ene-2β,3α,24-triol-2,24-disulfate (1), 25,26,27-tri-nor-cholesta-2β,3α,24-triol-3,24-disulfate (2), 25,26,27-tri-nor-cholesta-2β,3α,24-triol-2,3,24-trisulfate (solomonsterol A, 3), 1-O-arachidonoyl-3-O-stearylglycerol (4), eicosapentaenoic acid (5), adenosine (6), adenine (7), and uracil (8). This is the first report of compounds 3-8 from L. lambis.

Introduction

Lambis Linnaeus, 1758, commonly known as the spider conch, is a species of large sea snail, a marine gastropod mollusk in the family Strombidae. ¹ The meat of L. lambis provides many nutrients, such as minerals (macro minerals, Na, K, Ca, P; micro minerals, Fe, ZN, Cu), protein, and vitamins. ² Fucoidanase was isolated from the digestive glands of Lambis sp. producing sulfated fucooligosaccharides. ³ The mucus extract of L. lambis exhibited cytotoxic activity. ⁴ Continuing our program of study on Vietnamese marine organisms,^5-8 we report in this paper the isolation and structural elucidation of two new sterol sulfates (1 and 2) and six known compounds (3-8) from the methanol extract of the sea spider conch L. lambis.

Results and Discussion

Compound 1 was obtained as a white amorphous solid with a molecular formula of C₂₄H₃₈O₉S₂Na_2, according to its HRESIMS ion at m/z 581.1844 [M + H]⁺ (calcd. for [C₂₄H₃₉O₉S₂Na₂]⁺: 581.1825, Δ =  + 3.3 ppm) and at m/z 603.1637 [M + Na]⁺ (calcd. for [C₂₄H₃₈O₉S₂Na₃]⁺: 603.1645, Δ = −1.3 ppm). The ¹H NMR spectrum of 1 showed the presence of two methyl singlets at δ_H 0.75 and 1.19 (each 3H), one methyl doublet at δ_H 0.99 (3H, d, J = 7.0 Hz), and one olefinic proton at δ_H 5.37 (1H, dd, J = 2.5, 2.5 Hz), along with two methine carbinol groups at δ_H 4.04 and 4.46 (each, 1H, br d, J = 2.5 Hz) and one oxygenated methylene group at δ_H 3.98 (2H, td, J = 7.0, 2.5 Hz). The ¹³C NMR and HSQC spectra of 1 showed the presence of 24 carbons, including three quaternary carbons (δ_C 37.8, 43.5, 139.6), nine methylenes (δ_C 21.9, 25.3, 27.2, 29.2, 32.9, 33.2, 35.8, 39.0, 41.2), eight methines (δ_C 32.8, 36.9, 51.8, 57.5, 58.1, 69.6, 78.3, 123.5), and three methyls (δ_C 12.1, 19.1, 22.2) (Table 1). The above information suggested that 1 was a sulfated sterol compound having one double bond, three oxygenated carbons, and which was structurally similar to solomonsterol A (3) (Figure 1).^9,10 In the HSQC spectrum of 1, methyl protons at δ_H 0.75, 0.99, and 1.19 had cross peaks to carbons at δ_C 12.1, 19.1, and 22.2, respectively, while protons at δ_H 3.98, 4.40, 4.46, and 5.37 correlated with carbons at δ_C 69.7, 69.6, 78.3, and 123.5, respectively. In the ¹H-¹H COSY spectrum of 1, correlations of H-1/H-2/H-3/H-4, H-7/H-8/H-9/H-11/H-12, H-8/H-14/H-15/H-16/H-17/H-20/H-21, and of H-20/H-22/H-23/H-24 (Figure 2) were observed. This evidence suggested that the A, B, C, and D rings of 1 were similar to that of (20R)-cholesta-5,24-diene-2β,3α,21-triol-2,21-disulfate, ¹¹ and the side chain was similar to that of solomonsterol.^9,10 These suggestions were confirmed by the HMBC spectrum. HMBC correlations were observed from H₃-19 (δ_H 1.19) to C-1 (δ_C 39.0)/C-5 (δ_C 139.6)/C-9 (δ_C 51.8)/C-10 (δ_C 37.8), from H₃-18 (δ_H 0.75) to C-12 (δ_C 41.2)/C-13 (δ_C 43.5)/C-14 (δ_C 58.1)/C-17 (δ_C 57.5), from H₃-21 (δ_H 0.99) to C-17/C-20 (δ_C 36.9)/C-22 (δ_C 33.2), and from H₂-24 (δ_H 3.98) to C-22 (δ_C 33.2). In addition, the lower field signals of C-2 (δ_C 78.3) and C-24 (δ_C 69.7), together with the complete match of the NMR data of the A and B rings of 1 with those of (20R)-cholesta-5,24-diene-2β,3α,21-triol 2,21-disulfate, ¹¹ and of the side chain of 1 with that of solomonsterol A (3)^9,10 suggested two sulfate groups were at C-2 and C-24, and the hydroxy group was at C-3. These were further confirmed by the interpretation of ¹H NMR, ¹³C NMR, ¹H-¹H COSY, HSQC, HMBC, and NOESY spectra. The small proton coupling constants of H-3 and H₂-4 (J = 2.0∼2.5 Hz), H-2 and H₂-1 (J = 2.0∼2.5 Hz), and of H-2 and H-3 (J = 2.5 Hz) confirmed that H-3 and H-2 were β/equatorial and α/equatorial, respectively. This were further indicated from the observation of the NOE correlation of H-2 (δ_H 4.46) and H-3 (δ_H 4.04). The other key NOE correlations of 1 are shown in Figure 3 indicating that its relative configuration was similar to that of (20R)-cholesta-5,24-diene-2β,3α,21-triol 2,21-disulfate. ¹¹ The CH₃-20 group was suggested as having an α-orientation due to the biosynthetic characteristics of all sterols. ¹² From the above evidence, compound 1 was determine to be a new compound, 25,26,27-tri-nor-cholest-5-ene-2β,3α,24-triol-2,24-disulfate.

Figure 1.

Chemical structures of compounds 1-8.

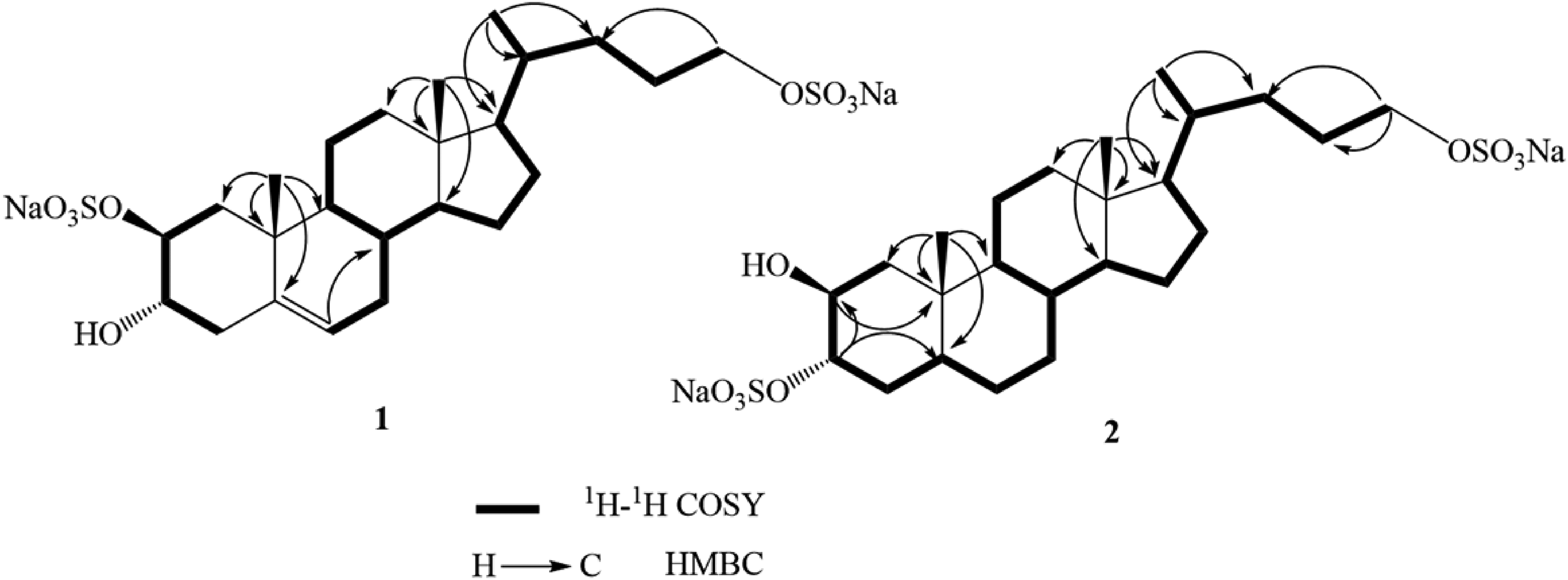

Figure 2.

Key ¹H-¹H COSY and HMBC correlations of 1 and 2.

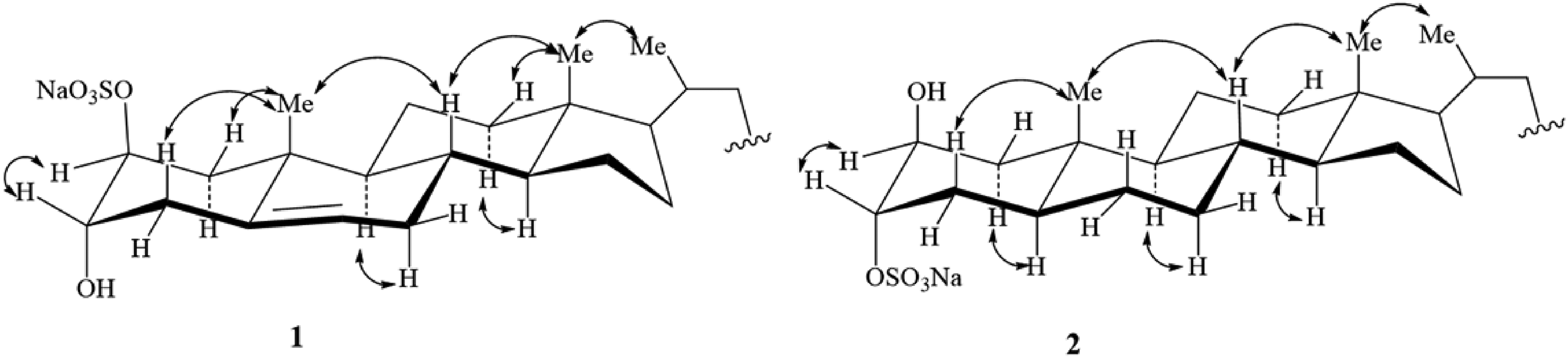

Figure 3.

Key NOE correlations of 1 and 2.

Table 1.

NMR Spectroscopic Data for 1–3 (in CD₃OD).

Pos.	1		2		3
	δ C	δH (mult, J in Hz)	δ C	δH (mult, J in Hz)	δ C	δH (mult, J in Hz)
1	39.0	1.60 (dd, 14.0, 2.5) 2.14 (dd, 14.0, 2.0)	41.1	1.37 (14.0, 2.5) 1.77 (14.0, 2.0)	39.3	1.44 (m), 2.09 (m)
2	78.3	4.46 (br d, 2.5)	70.0	4.09 (br d, 2.5)	76.6	4.72 (br s)
3	69.6	4.04 (br d, 2.5)	78.5	4.42 (br d, 2.5)	76.2	4.75 (br s)
4	35.8	2.82 (dt, 14.5, 2.5) 1.97 (dd, 14.5, 2.0)	30.3	1.60 (m), 1.84 (m)	30.8	1.61 (m), 1.28 (m)
5	139.6	-	40.6	1.06 (m)	40.2	1.59 (m)
6	123.5	5.37 (dd, 2.5, 2.5)	29.2	1.25 (m), 1.30 (m)	29.5	1.32 (m), 1.91 (m)
7	32.9	1.62 (m), 1.97 (m)	33.2	0.95 (m), 1.70 (m)	33.2	1.12 (m), 1.72 (m)
8	32.8	1.50 (m)	36.4	1.41 (m)	36.3	1.44 (m)
9	51.8	1.06 (m)	56.6	0.72 (m)	56.5	0.73 (m)
10	37.8	-	36.3	-	36.3	-
11	21.9	1.21 (m), 1.54 (m)	22.0	1.33 (m), 1.55 (m)	22.0	1.47 (m), 1.45 (m)
12	41.2	1.20 (m), 2.06 (m)	41.4	1.16 (m), 2.02 (m)	41.4	1.18 (m), 2.02 (m)
13	43.5	-	43.8	-	43.8	-
14	58.1	1.06 (m)	57.9	1.07 (m)	57.8	1.08 (m)
15	25.3	1.10 (m), 1.62 (m)	25.2	1.29 (m), 1.60 (m)	25.2	1.09 (m), 1.51 (m)
16	29.2	1.32 (m), 1.90 (m)	29.3	1.33 (m), 1.88 (m)	29.2	1.32 (m), 1.91 (m)
17	57.5	1.13 (m)	57.6	1.12 (m)	57.6	1.14 (m)
18	12.1	0.75 (s)	12.5	0.71 (s)	12.5	0.71 (s)
19	22.2	1.19 (s)	14.6	1.02 (s)	14.1	0.99 (s)
20	36.9	1.47 (m)	36.8	1.46 (m)	36.8	1.44 (m)
21	19.1	0.99 (s)	19.1	0.97 (s)	19.6	0.97 (d, 6.5)
22	33.2	1.13 (m), 1.56 (m)	33.1	1.12 (m), 1.55 (m)	33.1	0.99 (m), 1.54 (m)
23	27.2	1.55 (m), 1.76 (m)	27.2	1.57 (m), 1.77 (m)	27.2	1.09 (m), 1.51 (m)
24	69.7	3.98 (t, 7.0)	69.7	3.97 (td, 7.0, 2.5)	69.7	3.97 (m)

The NMR spectra of 2 were similar to those of 1 and 3 suggesting that 2 was a sterol. The double bond signals of 1 were absent from the NMR spectra of 2. In addition, the molecular formula of 2 was determine as C₂₄H₄₀O₉S₂Na₂ from the exhibition of ions at m/z 583.1977 [M + H]⁺ (calcd C₂₄H₄₁O9S₂Na₂ = 583.1982 Δ = −0.9 ppm) and m/z 605.1808 [M + Na]⁺ (calcd C₂₄H₄₀O9S₂Na₃ = 605.1801 Δ =  + 1.2 ppm). The above data suggested that 2 was a disulfate sterol, similar to compounds 1 and 3.^9,10 The NMR data of 2 were elucidated based on analyzing its ¹H, ¹³C NMR, HSQC, ¹H-¹H COSY, HMBC, and NOESY spectra in comparison with the corresponding data of 1 and solomonsterol A (3), measured in the same solvent (Table 1).^9,10 In the HSQC spectrum, protons H-1 (δ_H 1.16/2.02), H-2 (δ_H 4.09), H-3 (δ_H 4.42), H-4 (δ_H 1.60/1.84) and H-5 (δ_H 1.60) correlated to carbons at δ_C 41.4, 70.0, 78.5, 30.3, and 40.6, respectively. In addition, COSY correlations of H-1/H-2/H-3/H-5/H-5 were observed. This evidence indicated two oxygenated carbons were at C-2 and C-3. The complete agreement of the NMR data of the A, B, and C rings of 2 with those of (20R)-5α-cholest-24-ene-2β,3α,21-triol-3,21-disulfate (in the same solvent, CD₃OD) ¹² suggested that one sulfate moiety was at C-3 and one hydroxy group was at C-2. The NMR data of the side chain of 2 were compared to those of 1 and solomonsterol A (3) and found to match perfectly, suggesting that the other sulfate group was at C-24. The key HMBC correlations of 2 are shown in Figure 2. HMBC correlations from H-3 (δ_H 4.42) to C-5 (δ_C 40.6), from H-2 (δ_H 4.09) to C-10 (δ_C 36.3), from H₃-21 (δ_H 0.97) to C-22 (δ_C 33.1), and from H-24 (δ_H 3.97) to C-22 (δ_C 33.1)/C-23 (δ_C 27.2) further confirmed the positions of the hydroxy group at C-2 and two sulfate groups at C-3 and C-24. Similar to 1, the small proton coupling constants between H₂-1 and H-2, and H-2 and H-3, as well as the observed NOE correlation between H-2 and H-3 clearly indicated equatorial positions of both H-2 and H-3. Thus, compound 2 was elucidated as a new compound, 25,26,27-tri-nor-cholesta-2β,3α,24-triol-3,24-disulfate.

Compounds 3-5 were identified as 25,26,27-tri-nor-cholesta-2β,3α,24-triol-2,3,24-trisulfate (solomonsterol A, 3),^9,10 1-O-arachidonoyl-3-O-stearylglycerol (4), ¹³ and eicosapentaenoic acid (5) ¹⁴ by the coincidence between their NMR spectral data and those of the corresponding reported data, and further confirmed by HSQC and HMBC spectra. Compounds 6-8 were identified as adenosine (6), adenine (7), and uracil (8) ¹⁵ by analyzing their ¹H NMR data, and comparison with authentic samples by HPLC analysis. Compounds 3-8 are reported for the first time from L. lambis. The sulfated sterol solomonsterol A was isolated from a sponge for the first time. This compound has been reported to exhibit anti-inflammatory activity and attenuated systemic inflammation and immune dysfunction in a mouse model of rheumatoid arthritis. ¹⁶ The isolated new compounds are its analogs and it seems to be obvious that substances 1–3 have a dietary origin from a sponge eaten by L. lambis. Hence the found substances are food markers.

The NMR spectra for compounds 1-8 are shown in Supplemental Figures S1-S31. The NMR data of 4 and 5 are shown in Tables S1 and S2.

Materials and Methods

General Experimental Procedures^17,18

Optical rotation was measured on a Jasco P-2000 polarimeter. HRESIMS were measured on an Agilent 6530 Accurate Mass Q-TOF system, and NMR spectra on a Bruker Avance III 500 MHz spectrometer. For preparative HPLC, an Agilent 1260 Infinity II system was used equipped with a YMC J′sphere ODS-H80 (20 × 250 mm, 4 µm) HPLC column. Flash column chromatography was performed using either silica gel or reversed phase (RP-18) resins as adsorbent. Thin layer chromatography was carried out on pre-coated silica gel 60 F₂₅₄ and/or RP-18 F_254S plates.

Animal Materials

The samples of Lambis Linnaeus, 1758 were collected from Truong Sa archipelago, Vietnam (8°51′53″N 112°15′27″E, 8°51′53″N 112°15′27″E, 8°38′39″N 111°55′21″E, 8°58′30″N 113°42′23″E, 10°22′30.9″N 114°28′55.4″E, 112°15′27″E, 8°51′53″N 112°15′27″E, 8°38′39″N 111°55′21″E, 8°58′30″N 113°42′23″E, 10°10′41″N 114°21′50″E, 10°01′23″N 113°51′19″E) during June 2021 and identified by Dr Nguyen Thi Bich Nga, Institute of Biotechnology, Vietnam Academy of Science and Technology. The voucher specimen (TS07-08) has been deposited at Vietnam - Russia Tropical Center, Vietnam.

Extraction and Isolation

L. lambis (2.5 kg) was defrosted, then extracted with MeOH in an ultrasonic bath (3 times × 10.0 L MeOH, 40 ^oC, 3 h). The MeOH extract (121.1 g) was suspended in distilled water (2.5 L) and extracted with CH₂Cl₂ (2.5 L) to obtained the CH₂Cl₂ extract (LL1, 10.3 g). LL1 (10.0 g) was chromatographed on a silica gel column, eluting with a gradient solvent system of CH₂Cl₂ in MeOH (100:0, 40:1, 20:1, 0:100) to obtain four fractions, LL1A-LL1D. LL1A (1.8 g) was chromatographed on a silica gel column, eluting with n-hexane/EtOAc (7/1, v/v) to obtain compounds 4 (13.5 mg) and 5 (17.1 mg). LL1B (1.2 g) was chromatographed on a RP-18 column, eluting with acetone/water (4/1, v/v) to give compound 6 (23.1 mg). LL1C (4.3 g) was chromatographed on a RP-18 column, eluting with acetone/water (3.5/1, v/v) to obtain 5 fractions, LL1C1- LL1C5. LL1C2 (736 mg) was purified by HPLC (J’sphere ODS H-80, 250 mm × 20 mm column), eluting with 35% acetonitrile (ACN) in H₂O to yield 3 (6.1 mg, t_R 37.8). LL1C3 (679 mg) was chromatographed on an HPLC (J’sphere ODS H-80, 250 mm × 20 mm column), eluting with 45% acetonitrile (ACN) in H₂O to yield 1 (5.2 mg, t_R 42.5) and 2 (4.7 mg, t_R 44.6). LL1D (2.7 g) was chromatographed on a RP-18 column, eluting with acetone/water (2/1, v/v) to give compounds 7 (6.1 mg), 8 (4.6 mg), and 9 (7.2 mg).

3.3.1. 25,26,27-Tri-nor-cholest-5-ene-2β,3α,24-triol-2,24-disulfate (1)

White amorphous solid, : + 8.7 (c 0.1, MeOH); HRESIMS m/z 581.1844 [M + H]⁺ (calcd. for [C₂₄H₃₉O₉S₂Na₂]⁺: 581.1825, Δ =  + 3.3 ppm); m/z 603.1637 [M + Na]⁺ (calcd. for [C₂₄H₃₈O₉S₂Na₃]⁺: 603.1645, Δ = −1.3 ppm). ¹H NMR (CD₃OD, 500 MHz) δ (ppm), ¹³C NMR (CD₃OD, 125 MHz) δ (ppm) data: see Table 1.

3.3.1. 25,26,27-Tri-nor-cholesta-2β,3α,24-triol-3,24-disulfate (2)

White amorphous solid, : + 12.3 (c 0.1, MeOH); HRESIMS m/z m/z 583.1977 [M + H]⁺ calcd C₂₄H₄₁O9S₂Na₂ = 583.1982 Δ = -0.9 ppm; m/z 605.1808 [M + Na]⁺ calcd C₂₄H₄₀O9S₂Na₃ = 605.1801 Δ =  + 1.2 ppm. ¹H NMR (CD₃OD, 500 MHz) δ (ppm), ¹³C NMR (CD₃OD, 125 MHz) δ (ppm) data: see Table 1.

Conclusions

From the methanol extract of the Vietnamese marine spider conch Lambis Linnaeus, 1758, two new (1 and 2) and six known compounds (3-8) were isolated. Their chemical structures were elucidated as 25,26,27-tri-nor-cholest-5-ene-2β,3α,24-triol-2,24-disulfate (1), 25,26,27-tri-nor-cholesta-2β,3α,24-triol-3,24-disulfate (2), and 25,26,27-tri-nor-cholesta-2β,3α,24-triol-2,3,24-trisulfate (3), 1-O-arachidonoyl-3-O-stearylglycerol (4), eicosapentaenoic acid (5), adenosine (6), adenine (7), and uracil (8) based on extensive spectroscopic methods, including HRESIMS, 1D- and 2D-NMR spectra. Compounds 3-8 are reported herein from L. lambis for the first time.
