Abstract

The polymethoxyflavonoids nobiletin and tangeretin are isolated from peels of shekwasha (Citrus depressa Hayata) and ponkan (Citrus reticulata Blanco). These natural products possess biological activities, including anticancer and anti-inflammation properties. This report describes an efficient method for the extraction and isolation of nobiletin and tangeretin from citrus peels using 1-ethyl-3-methylimidazolium methylphosphonate ([C₂mim][(MeO)(H)PO₂]) and centrifugation/decantation. The results showed that the extraction yield of nobiletin and tangeretin using [C₂mim][(MeO)(H)PO₂]/organic solvent (1:1 w/w) was 1.4 to 1.6 times higher than that using organic solvent. This extraction method is expected to be applicable for obtaining other organic compounds from natural sources.

Keywords

extraction nobiletin tangeretin Ionic liquid

Shekwasha (Citrus depressa Hayata) and ponkan (Citrus reticulata Blanco), family Rutaceae, are cultivated in the northern area of Okinawa, Japan, and in Southeast Asian countries, such as China and Taiwan.^1,2 The polymethoxylated flavonoids nobiletin and tangeretin (Figure 1) occur in high concentrations in the fruit peels of shekwasha and ponkan.^3,4 These flavonoids exhibit anticancer^5,6 and anti-inflammatory activities^7,8 and are thus good candidates for therapeutic drugs and for functional food to prevent disease. To obtain the compounds for bioassay, extraction of nobiletin and tangeretin from citrus peels has been achieved. For example, calamandin peels have been treated at 150°C for 1.5 hours, followed by extraction of the phenolic and flavonoid compounds using hot water.⁹ However, a more efficient extraction method for flavonoids from citrus peels was desired.

Figure 1

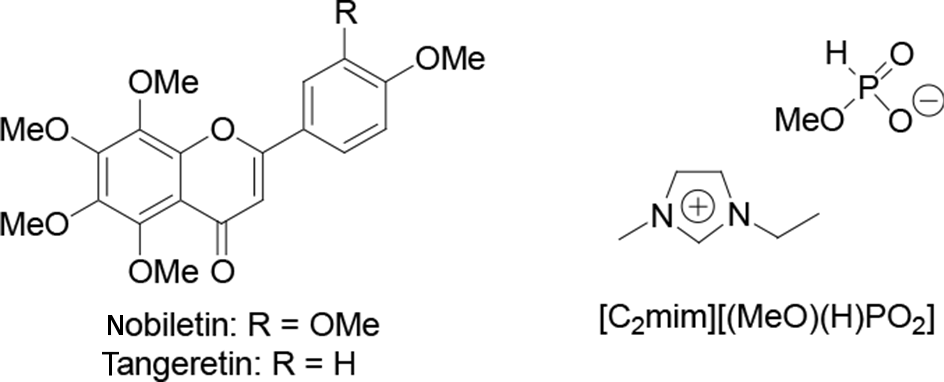

Structures of nobiletin, tangeretin, and [C₂mim][(MeO)(H)PO₂].

Ionic liquids (ILs) are salts composed of an anion and a cation, which have melting points of less than 100°C.¹⁰ They offer advantages such as low volatility, low flammability, high thermostability, high viscosity, and recyclability. Additionally, some ILs such as 1-ethyl-3-methylimidazolium methylphosphonate ([C₂mim][(MeO)(H)PO₂], Figure 1) can dissolve cellulose under mild conditions.¹¹ A plant cell is surrounded and protected by a cell wall, which consists mainly of cellulose. Therefore, the use of an IL as an extraction solvent was expected to result in efficient extraction of natural products from citrus peels. The IL [C₂mim][(MeO)(H)PO₂] is particularly useful because it dissolves cellulose at room temperature,¹² but is not soluble in ethyl acetate (EtOAc), which could be used to extract or back-extract organic compounds.

A previous report indicated that 1-butyl-3-methylimidazolium chloride ([C₄mim]Cl) was an efficient extraction solvent for shikimic acid and bilobalide from Ginkgo biloba leaves.^13,14 Caffeoylquinic acids were efficiently extracted from sweet potato leaves using [C₄mim]Cl,¹⁵ and extraction of citral from lemon grass and lemon myrtle using [C₂mim][(MeO)(H)PO₂] was accomplished.^16,17 Cynaropicrin and cnicin were efficiently extracted from artichoke and blessed thistle.¹⁸ Therefore, IL-mediated extraction of natural products from plant leaves was selected. The present report describes the extraction of nobiletin and tangeretin from peels of shekwasha and ponkan using [C₂mim][(MeO)(H)PO₂].

First, the extraction of nobiletin and tangeretin from shekwasha peels was conducted using ethanol (EtOH), acetone, and EtOAc as control experiments (Figure 2). Crushed shekwasha peels and an organic solvent were stirred at 25°C for 75 minutes and then centrifuged for 10 minutes to separate the shekwasha peel residue. After evaporation, the extract was dissolved in methanol (MeOH). Next, extraction using the cellulose-dissolving IL [C₂mim][(MeO)(H)PO₂] was conducted as follows (Figure 2). The crushed shekwasha peels and [C₂mim][(MeO)(H)PO₂], [C₂mim][(MeO)(H)PO₂]/EtOH (1:1 w/w), [C₂mim][(MeO)(H)PO₂]/acetone (1:1 w/w), and [C₂mim][(MeO)(H)PO₂]/EtOAc (1:1 w/w) were stirred at 25°C for 60 minutes. After addition of H₂O and EtOAc, the extraction solutions were stirred at 25°C for 5 minutes and centrifuged for 1 minute to separate the supernatant. Nobiletin and tangeretin are insoluble in H₂O, but soluble in [C₂mim][(MeO)(H)PO₂] and EtOAc. Thus, addition of H₂O decreases the solubility of nobiletin and tangeretin in the [C₂mim][(MeO)(H)PO₂] layer and increases their solubility in the EtOAc layer. This EtOAc layer containing nobiletin and tangeretin was collected by decantation and, after evaporation, the extract obtained was dissolved in MeOH.

Figure 2

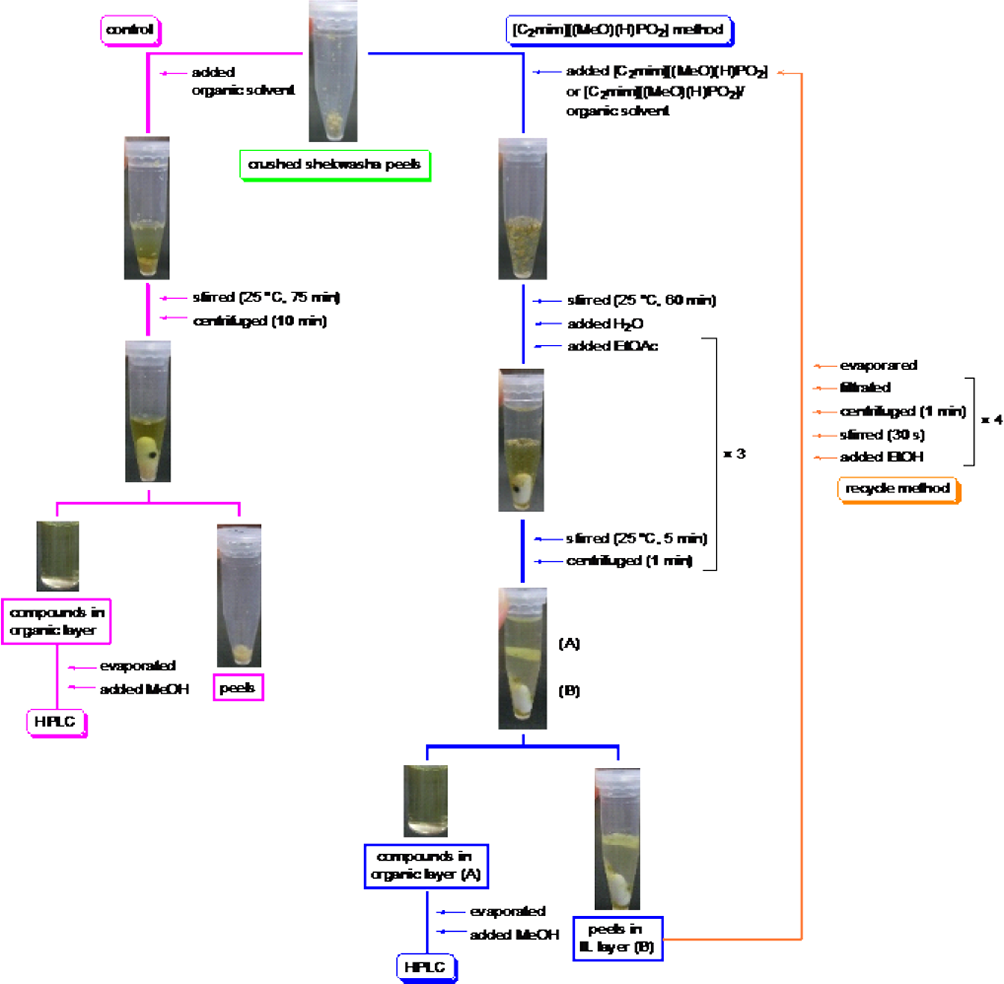

Protocols for extraction of nobiletin and tangeretin from shekwasha peels using an organic solvent or an ionic liquid (IL) and for recycling the IL.

Quantitative analysis of the obtained extracts was performed using reversed-phase high-performance liquid chromatography (RP-HPLC). The quantity of nobiletin and tangeretin in individual extracts was calculated using a calibration curve. Extraction yields were calculated as [amount of natural products]/[original quantity of natural materials] (Figure 3).

Figure 3

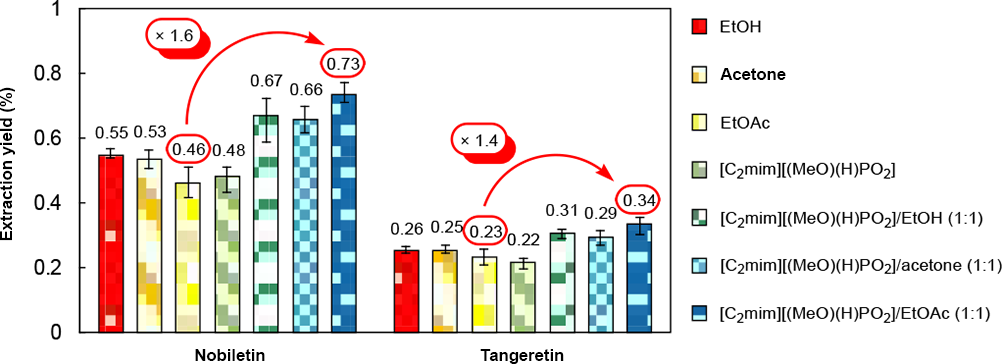

Extraction yield of nobiletin and tangeretin from shekwasha peels using organic solvents and ionic liquid.

The extraction yields of nobiletin and tangeretin using [C₂mim][(MeO)(H)PO₂] and organic solvents were similar when [C₂mim][(MeO)(H)PO₂]/organic solvents (1:1 w/w) was used as the extraction solvents. These extraction yields were better than those obtained using an organic solvent only, with the greatest yields resulting from the use of [C₂mim][(MeO)(H)PO₂]/acetone (1:1 w/w) (nobiletin: 2.3%; tangeretin: 0.29%). These yields were 1.5 and 1.4 times higher, respectively, than those using acetone (nobiletin: 1.5%, tangeretin: 0.21%). These results suggest that the proposed method is an effective alternative for the extraction of nobiletin and tangeretin from shekwasha peels.

The solubility of the flavonoids in the organic solvents was similar, as indicated by the similarity of the extraction yields. Extraction using [C₂mim][(MeO)(H)PO₂] did not improve the yield, probably because of the high viscosity of the IL, which reduced the stirring efficiency. Therefore, a mixture of organic solvents and IL was used, which improved the extraction yield by decreasing the viscosity. The greatest yield was obtained when using [C₂mim][(MeO)(H)PO₂]/acetone (1:1 w/w). The effect of extraction time was also examined at 30, 90, and 120 minutes. The results showed that an extraction time of 60 minutes was optimal. The identity of nobiletin and tangeretin was confirmed by liquid chromatography-mass spectrometry (LC-MS) (data not shown).

The reusability of [C₂mim][(MeO)(H)PO₂] was also confirmed (Figures 2 and 4). First, the [C₂mim][(MeO)(H)PO₂] layer, which included the shekwasha peels and EtOH, was stirred for 30 seconds to allow the EtOH to dissolve [C₂mim][(MeO)(H)PO₂] and reduce the viscosity. The tube was centrifuged for 1 minute to separate the shekwasha peel residue, followed by filtration of the supernatant to remove the shekwasha peel residue. This operation was repeated 4 times. The filtrate obtained was evaporated and then reused in subsequent extractions after mixing with an equivalent volume of acetone. The [C₂mim][(MeO)(H)PO₂] could be reused at least 9 times without any effect on extraction yield (Figure 4).

Figure 4

Extraction yield of nobiletin and tangeretin using recycled [C₂mim][MeO(H)PO₂].

Similarly, the extraction of nobiletin and tangeretin from ponkan peels was also conducted under the conditions optimized for shekwasha peels. First, the extraction of nobiletin and tangeretin from ponkan peels was carried out using EtOH, acetone, and EtOAc as control experiments (Figure 5). The crushed ponkan peels and an organic solvent were stirred at 25°C for 60 minutes. The resulting solution was stirred at 25°C for 15 minutes, followed by centrifugation for 10 minutes to separate the ponkan peel residue. The obtained extract was dissolved in MeOH after evaporation. Next, extraction using IL [C₂mim][(MeO)(H)PO₂] was conducted (Figure 5). The crushed ponkan peels and [C₂mim][(MeO)(H)PO₂], [C₂mim][(MeO)(H)PO₂]/EtOH (1:1 w/w), [C₂mim][(MeO)(H)PO₂]/acetone (1:1 w/w), and [C₂mim][(MeO)(H)PO₂]/EtOAc (1:1 w/w) were stirred at 25°C for 60 minutes. The resulting solutions were stirred with H₂O and EtOAc at 25°C for 5 minutes and centrifuged for 1 minute to separate the supernatant. Finally, the EtOAc layer containing nobiletin and tangeretin was collected by decantation. The extract obtained was dissolved in MeOH after evaporation. Quantitative analysis of the extracts was performed using RP-HPLC (Figure 6).

Figure 5

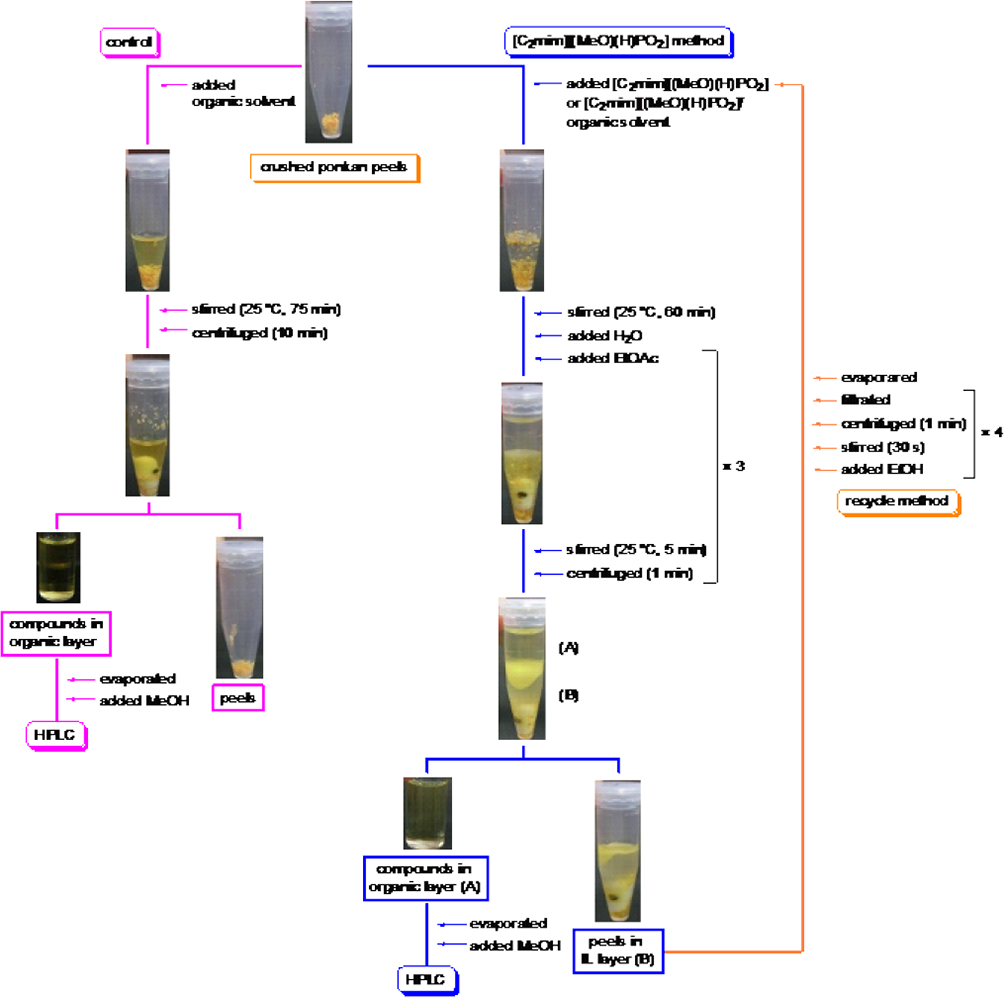

Protocols for extraction of nobiletin and tangeretin from ponkan peels using either an organic solvent or an ionic liquid (IL) and for recycling the IL.

Figure 6

Extraction yield of nobiletin and tangeretin from ponkan peels using organic solvents and an IL.

The extraction yield of nobiletin and tangeretin from ponkan peels using EtOAc (0.46% and 0.23%, respectively) was the lowest among the control experiments. However, the extraction yield using [C₂mim][(MeO)(H)PO₂]/EtOAc (1:1 w/w) was the highest (0.73% and 0.34%, respectively), 1.6 and 1.4 times greater than that using EtOAc. These results indicated that [C₂mim][(MeO)(H)PO₂]/EtOAc (1:1 w/w) was the best combination for the extraction of nobiletin and tangeretin from ponkan peels. While EtOAc gave the worst extraction yield, use of [C₂mim][(MeO)(H)PO₂]/EtOAc (1:1 w/w) afforded the best yield. The poor performance of EtOAc alone was probably due to its inability to extract flavonoids from inside the cell wall. However, EtOAc does not dissolve [C₂mim][(MeO)(H)PO₂], which is able to maintain cellulose solubility and thus improve the extraction yield. The identity of nobiletin and tangeretin was confirmed by LC-MS (data not shown). Reusability of [C₂mim][(MeO)(H)PO₂] after use for extraction was confirmed (Figure 5). As previously, [C₂mim][(MeO)(H)PO₂] could also be reused at least 9 times without reduced extraction yields.

These results demonstrated that the best solvents for extraction of nobiletin and tangeretin from shekwasha and ponkan peels were [C₂mim][(MeO)(H)PO₂]/acetone (1:1 w/w) and [C₂mim][(MeO)(H)PO₂]/EtOAc (1:1 w/w), respectively. Differences in the optimized conditions for extraction from peels of shekwasha and ponkan were likely due to differences in the components, component ratios, and pH of individual peels.

In summary, an efficient method for the extraction of nobiletin and tangeretin from shekwasha and ponkan peels was developed using the cellulose-dissolving [C₂mim][(MeO)(H)PO₂] and centrifugation. The use of [C₂mim][(MeO)(H)PO₂]/organic solvent (1:1 w/w) allowed more efficient extraction of nobiletin and tangeretin than extraction using organic solvent alone. In addition, the [C₂mim][(MeO)(H)PO₂] could be reused at least 9 times for extraction without loss of efficiency. This method is expected to be applicable to the extraction and isolation of other natural products.

Experimental

General Methods

All reagents were obtained from commercial suppliers and used without further purification unless otherwise stated. [C₂mim][(MeO)(H)PO₂], HPLC-grade MeOH, and HPLC-grade distilled H₂O were purchased from Kanto Chemicals (Tokyo, Japan), and shekwasha and ponkan from Ryukyu Front (Okinawa, Japan) and Shikisai-En (Wakayama, Japan), respectively. The HPLC analyses were performed using a JASCO instrument equipped with a multiwavelength detector (MD-2010), semi-micro HPLC pump (PU-2085), autosampler (AS-2057), column thermostat (CO-2060), and a Shimadzu instrument equipped with a communications bus module (CBM-20A), UV/Vis detector (SPD-20A), degassing unit (DGU-20A), autosampler (SIL-20AC), liquid chromatograph (LC-20AD), and column oven (CTO-20AC). The LC-MS were recorded on a Shimadzu LCMS-8030 instrument.

Extraction of Nobiletin and Tangeretin From Shekwasha Peels

Control experiments were conducted using organic solvents to extract nobiletin and tangeretin from shekwasha peels. The shekwasha peels were crushed using a mixer. The crushed peels (0.025 g) and an organic solvent (EtOH, acetone, or EtOAc) (422 µL) were added to an Eppendorf tube, which was stirred at 25°C for 60 minutes. The resulting solution was stirred at 25°C for 15 minutes, followed by centrifugation for 10 minutes to remove the shekwasha peel residue. This operation was repeated 3 times. The obtained supernatant was analyzed by RP-HPLC.

Extraction using [C₂mim][(MeO)(H)PO₂)] was conducted as follows: Crushed shekwasha peels (0.025 g) were added to the extraction solvents (422 µL), either 1:1 (w/w) such as [C₂mim][(MeO)(H)PO₂)], [C₂mim][(MeO)(H)PO₂)]/EtOH (1:1 w/w), [C₂mim][(MeO)(H)PO₂)]/acetone (1:1 w/w), or [C₂mim][(MeO)(H)PO₂)]/EtOAc (1:1 w/w), and the solution stirred at 25 °C for 60 minutes. The solution was next stirred with H₂O (211 µL) and EtOAc (633 µL) at 25°C for 5 minutes, followed by centrifugation for 1 minute to separate the supernatant. This operation was repeated 3 times. The resulting supernatant was analyzed by RP-HPLC.

HPLC Analysis of Nobiletin and Tangeretin From Shekwasha Peels

Quantitative analyses of the extracts obtained were performed using an RP-HPLC system [column: YMC-Pack ODS-AM (150 × 4.6 mm); mobile phase: HPLC-grade distilled H₂O/MeOH (gradient), flow rate: 1.0 mL/min; detection: 330 nm; injection amount: 10 µL; temperature: 30°C]. The quantities of nobiletin and tangeretin from individual extraction experiments were calculated using a calibration curve. The equations used to determine nobiletin and tangeretin amounts are as follows, where x represents the peak area and y represents the amount of nobiletin or tangeretin (mg):

nobiletin:

y = 1.286 \times 10^{- 9} x - 3.912 \times 10^{- 5} (R^{2} = 0.9997)

(1)

tangeretin:

y = 4.189 \times 10^{- 10} x - 1.236 \times 10^{- 4} (R^{2} = 0.9913)

(2)

Extraction yields were calculated as [quantity of nobiletin or tangeretin] per [original quantity of material]. The retention times of nobiletin and tangeretin were 23.0 and 25.3 minutes, respectively.

Extraction of Nobiletin and Tangeretin From Ponkan Peels

Ponkan peels were crushed using a mixer. The crushed peels (0.025 g) and an organic solvent (EtOH, acetone, or EtOAc) (422 µL) were then added to an Eppendorf tube, which was stirred at 25°C for 60 minutes. The resulting solution was stirred at 25°C for 15 minutes, followed by centrifugation for 10 minutes to remove the ponkan peel residue. This operation was repeated 3 times. The obtained supernatant was analyzed by RP-HPLC.

Extraction using [C₂mim][(MeO)(H)PO₂)] was conducted as follows: Crushed ponkan peels (0.025 g) were added to the extraction solvents (422 µL), either [C₂mim][(MeO)(H)PO₂)] or [C₂mim][(MeO)(H)PO₂)]/organic solvents (EtOH, acetone, EtOAc) (1:1 w/w), and the solution stirred at 25°C for 60 minutes. The solution was next stirred with H₂O (211 µL) and EtOAc (633 µL) at 25°C for 5 minutes, followed by centrifugation for 1 minute to separate the supernatant. This operation was repeated 3 times. The resulting supernatant was analyzed by RP-HPLC.

HPLC Analysis of Nobiletin and Tangeretin From Ponkan Peels

Quantitative analyses of the extracts obtained were performed using an RP-HPLC system [column: Symmetry C-18 (250 × 4.6 mm); mobile phase: HPLC-grade distilled H₂O/MeOH (gradient), flow rate: 1.0 mL/min; detection: 330 nm; injection amount: 10 µL; temperature: 30°C]. The quantities of nobiletin and tangeretin from individual extraction experiments were calculated using a calibration curve. The equations used to determine nobiletin and tangeretin amounts are as follows, where x represents the peak area and y represents the amount of nobiletin and tangeretin (mg):

nobiletin:

y = 3.711 \times 10^{- 10} x - 9.573 \times 10^{- 5} (R^{2} = 0.9910)

(3)

tangeretin:

y = 1.979 \times 10^{- 10} x + 1.121 \times 10^{- 6} (R^{2} = 1.0000)

(4)

Extraction yields were calculated as [quantity of nobiletin or tangeretin] per [original quantity of materials]. The retention times of nobiletin and tangeretin were 22.4 and 24.4 minutes, respectively.

Recycling of [C₂mim][(MeO)(H)PO₂)]

The [C₂mim][(MeO)(H)PO₂] layer, including shekwasha or ponkan peels, was added to EtOH (500 µL), which was centrifuged for 1 minute to allow precipitation after stirring for 30 seconds. The mixture was then filtered. These operations were repeated 4 times. The filtrate was recycled as mixture solvent.
