Abstract

Background:

Breath acetone (BrACE) is an end product of ketone metabolism that is measurable by noninvasive breath ketone analyzers. We assessed the correlation between capillary blood β-hydroxybutyrate (BOHB) and BrACE in people with type 1 diabetes during 14 days of outpatient care with and without dapagliflozin treatment and during supervised insulin withdrawal studies with and without dapagliflozin.

Methods:

In this randomized crossover study, participants completed two 14-day outpatient periods with or without dapagliflozin 10 mg daily. Each 14-day unsupervised outpatient period was followed by a 1-day supervised insulin withdrawal study. Paired BOHB and BrACE measurements were obtained 3 times daily during outpatient periods, then hourly during supervised insulin withdrawal. The correlation between BrACE and BOHB was assessed by Spearman’s ρ.

Results:

Twenty people with type 1 diabetes completed the study. During outpatient periods, BrACE and BOHB were moderately correlated (n = 1425 paired readings; ρ = .41; 95% CI = 0.36 to 0.45; P < .0001). However, BrACE and BOHB were strongly correlated during insulin withdrawal (n = 246 paired values, ρ = .81; 95% CI = 0.77 to 0.85). In ROC analysis, BrACE > 5 ppm demonstrated optimal sensitivity (93%) and specificity (87%) for detecting capillary BOHB ≥ 1.5 mmol/L. No serious adverse events occurred.

Conclusions:

In adults with type 1 diabetes, measurement of breath acetone provides a noninvasive estimate of blood BOHB concentration. The correlation between BrACE and BOHB was suboptimal during unsupervised outpatient care, but was strong during supervised insulin withdrawal.

Trial registration:

clinicaltrials.gov (NCT05541484)

Keywords

type 1 diabetes ketone monitoring diabetic ketoacidosis sodium glucose co-transporter 2 inhibitors

Introduction

Despite progress in developing insulin analogs and insulin delivery devices, the frequency of hospitalizations due to diabetic ketoacidosis (DKA), the most critical acute complication of type 1 diabetes (T1D), has risen.¹ Furthermore, the mortality risk associated with DKA has not improved over the past decade.^1-3 Risk factors for DKA include poor adherence to insulin regimens, errors in insulin administration, chronic poor glucose control, acute illness and use of sodium glucose co-transporter 2 inhibitors (SGLT2i).^4,5 Individuals with T1D are instructed to measure ketones using urine ketone test strips or capillary blood ketone meters in the setting of symptoms of ketoacidosis, during other illnesses, and when severe hyperglycemia occurs.^4-7 Although routine ketone monitoring during usual care is generally not recommended, this has been shown to identify individuals at higher risk of DKA.⁸ In practice, ketone monitoring remains suboptimal; over 50% of adults do not test for ketones during periods of illness.^9-11

Sodium-glucose cotransporter 2 inhibitors (SGLT2i) improve glycemic control, decrease insulin requirements, and reduce glycated hemoglobin levels in T1D.^12-18 However, multiple randomized trials and meta-analyses have revealed a greater incidence of DKA and higher ketone levels in individuals using SGLT2i.^13,14,19-21 Ketone monitoring using commercially available tools has been proposed as a strategy for DKA mitigation in the setting of SGLT2i use in patients with diabetes.^12,22-25

Ketone monitoring refers to the routine surveillance of 1 of the 3 major circulating ketone bodies: acetoacetate, β-hydroxybutyrate (BOHB), or acetone.²⁶ Acetoacetate is measured in the urine using semi-quantitative test strips, whereas BOHB can be measured quantitatively by point-of-care capillary blood ketone meters. Urine acetoacetate testing has major limitations: it measures the average ketone concentration in urine stored in the bladder since the previous void, and urinary ketone levels can misleadingly increase when treatment for ketosis is initiated as BOHB is oxidized to acetoacetate.²⁷ Capillary blood ketone meters that measure BOHB are commercially available for outpatient use but the technology is not widely used due to expense, inconvenience, and possibly inexperience with ketone meters.²⁵ Unused test strips may expire, compromising their accuracy.

Measurement of breath acetone (BrACE), the highly volatile metabolic end product of ketone metabolism excreted through the lung, has not been thoroughly evaluated in persons in T1D. Commercially available breath ketone analyzers (BKA) harness advances in chemiresistive sensor technology to permit low-cost, high-sensitivity, and portable measurement of breath acetone.²⁸ BKA have been employed in individuals without diabetes to monitor adherence to ketogenic diets and are of potential utility for ketone monitoring in individuals with diabetes.²⁹ Previous studies have demonstrated linear relationships between BrACE and plasma acetone levels during episodes of DKA,³⁰ and between BrACE and blood BOHB in various settings, suggesting potential utility of BrACE in risk prediction for ketosis and DKA.^31-33 Breath acetone meters are subject to potential interference from volatile organic compounds (VOCs) including alcohols, acetic acid, propionic acid, and butyric acid. Commonly used household items like cleaning products, nail polish removers, hand sanitizer, lip balm and fermented foods contain VOCs which can lead to falsely elevated readings of breath acetone. Recent food or alcohol ingestion or smoking can also falsely elevate BrACE readings.³⁴

The Biosense BKA (Readout Health, Inc) has previously been studied in people without diabetes who were instructed to follow either a standard diet or a ketogenic diet and collected paired capillary BOHB and BrACE measurements five times daily. A correlation of r = 0.75 between BrACE and BOHB was observed in this setting.³⁵ In a study investigating the use of a breath acetone analyzer in adults and children with T1D, a significant correlation between BrACE and capillary blood ketones was observed in adults but not in children.³⁶ BrACE >3.9 ppm yielded a sensitivity of 94.7% for detecting BOHB >0.6 mmol/L, but specificity of just 54.2%.³⁶ In this context, BKAs are not currently recommended by professional society guidelines for ketone monitoring in patients with T1D.

The goal of this study was to assess the utility of BKA using the Biosense BKA to detect mild to moderate ketosis in persons with T1D and to compare BrACE levels with capillary BOHB. The choice of the Biosense BKA was guided by its designation as a Class 1 device by the Food and Drug Administration (FDA). The correlation between capillary BOHB and BrACE was assessed in unsupervised outpatient settings with and without an SGLT2i and during insulin withdrawal to induce mild to moderate ketosis. To further evaluate the utility of BrACE in identifying a threshold level of ketosis that would require intervention, we interrogated the data using receiver-operating characteristic (receiver operating characteristic curve (ROC)) analysis to identify the BrACE level that best predicted capillary blood BOHB concentration ≥1.5 mmol/L. This point-of-care capillary blood BOHB threshold has been validated to identify impending DKA, demonstrating a sensitivity and specificity ranging from 93% to 100% and 85% to 98%, respectively.^37-39

Methods

Study Design

This was an open-label, single-center (Washington University School of Medicine, St. Louis, MO) randomized crossover trial in which study participants completed 2 study periods in random order: usual care (UC) and usual care plus dapagliflozin (DAPA). During UC, participants continued their usual insulin regimen, either multiple daily injections (MDI) or CSII using an automated insulin delivery system (AID), for 14 days while performing paired measurements of capillary BOHB and BrACE 3 times per day. This was followed by a 1-day supervised insulin withdrawal study. During DAPA, participants added dapagliflozin 10 mg daily to their usual care for 14 days and continued to perform paired measurements of capillary BOHB and BrACE 3 times per day. A supervised insulin withdrawal study followed immediately after a dose of dapagliflozin in the morning. The study was unblinded to both participants and investigators.

Study Participants

The study was approved by the Washington University Human Research Protection Office (institutional review board (IRB) #202206078) and all study participants provided written informed consent. The trial was registered in clinicaltrials.gov (NCT05541484). Inclusion criteria included (1) T1D of >1 year duration, (2) age 18 to 75 years, (3) HbA1c ≤10%, (4) stable insulin delivery method for the past 30 days, (5) vision of 20/40 or better, (6) insulin delivery by either continuous subcutaneous insulin infusion (CSII) or MDIs of insulin (MDI), and (7) use of Dexcom G6 or G7 continuous glucose monitor (CGM). Key exclusion criteria include (1) history of DKA within 6 months of study entry or more than 1 episode of DKA in the past 2 years; (2) use of SGLT2i or prior intolerance of SGLT2i; (3) eGFR <30 mL/min/1.73 m²; (4) adherence to a very-low-carbohydrate (<90 g/day) or ketogenic diet; (5) pregnancy, plan to become pregnant within the next 3 months, or lack of contraceptive use in premenopausal women; (6) history of urinary tract infection within 3 months of study entry; (7) unwilling to avoid alcohol ingestion during the study period; and (8) vomiting within the past 30 days.

Breath Ketone Analysis

The Biosense BKA uses a metal oxide semiconductor (MOS) sensor which is selective for acetone. A specific breathing pattern is recommended that includes prolonged forced exhalation because breath acetone concentration increases during exhalation. The MOS sensor is housed inside a sealed flow cell to decrease the entrance of surrounding environmental air.³⁵ Results from this device are reported as units of parts per million (ppm). Each device is calibrated using laboratory gas standards certified by the National Institute of Standards and Technology, with acetone concentrations of 0, 5, and 20 ppm. The device was calibrated by representatives from Readout Health.

Procedures

Study participants completed a screening evaluation including demographics, medical history, physical examination, assessment of insulin administration (doses and routes), download of continuous glucose monitor (CGM) data and insulin pump data if applicable. Participants were instructed in the use of the Precision Xtra capillary blood ketone monitoring system and the Biosense BKA, and the need for paired (within 30 minutes) blood and breath measurements three times every day.³⁵ Specifically, participants were instructed to use the BKA device prior to eating, smoking, drinking soda, using toothpaste, mouthwash, or lip balm and to avoid environmental contaminants such as cleaning solutions. The device was to be used in indoor spaces only. Study participants were educated on a ketone action plan and provided individual insulin dosing recommendations for capillary blood BOHB ≥ 1.5 mmol/L by the study investigators. During the DAPA period, insulin dose adjustments were recommended based on insulin delivery method and level of glucose control. The standard recommendation was to reduce bolus doses by 10-20%.

For the insulin withdrawal study, participants were admitted to the Clinical Translational Research Unit (CTRU) after an overnight fast. Participants on continuous subcutaneous insulin infusions were instructed to stop insulin delivery 1 hour prior to arrival. Participants using MDIs were transitioned to morning basal insulin for the study period, which was held the morning of the insulin withdrawal, allowing for basal insulin washout. Participants were required to have blood glucose level between 90 and 250 mg/dL and capillary blood BOHB <1.5 mmol/L before leaving home on the morning of the supervised insulin withdrawal study visit or the visit was canceled. Participants remained fasting with serial venous blood sampling for plasma BOHB and basic metabolic panel every 2 hours and paired measurements of capillary blood glucose, capillary blood BOHB, and BrACE every hour. Capillary blood BOHB was measured using the Precision Xtra capillary blood ketone meter (Abbott). Plasma BOHB was measured using an enzymatic assay (β-hydroxybutyrate LiquiColor, Stanbio Laboratory, Boeme, TX). Paired capillary and plasma BOHB values displayed good agreement (r2 = .9341). Hemoglobin A1c was centrally measured by the Washington University Core Laboratory for Clinical Studies. A plastic cap was applied to the BKA device when not in use to minimize VOC interference. The supervised insulin withdrawal study was terminated when 1 or more stopping criteria were met (capillary blood glucose > 400 mg/dL, capillary blood BOHB > 4 mmol/L, symptoms of DKA, more than 8 hours elapsed from insulin withdrawal, or participant request).

Outcomes

The primary outcome for the study was the correlation coefficient between capillary blood BOHB and BrACE in the outpatient periods with and without dapagliflozin. Other outcomes included the correlations between capillary blood BOHB and BrACE levels during the insulin withdrawal days. Adverse events were actively collected for safety and included the daily ketone measurements, severe hypoglycemia events, CGM sensor glucose <54 mg/dL for more than 1% of time, DKA, genitourinary infections, gastrointestinal distress, or dehydration.

Statistical Analysis

The prespecified primary outcome of the study was the correlation of capillary blood BOHB and BrACE during the 2-week outpatient periods. We calculated using the pwr R package that at least 84 ketone measurements above baseline (~0.1 mmol/L or 1 BrACE ppm would provide >80% power to detect a weak correlation of 0.3 using a 2-sided significance level of .05 and estimated that 20 participants would need to be enrolled to achieve this sample size.³⁵ Descriptive statistics were examined for normality using histograms and Kolmogorov-Smirnov tests and are reported as mean ± SD or median (interquartile range) as appropriate. Median capillary blood BOHB or BrACE concentrations between UC and DAPA periods were compared using the Mann-Whitney U test. Correlations of blood and breath ketone concentrations were calculated as Spearman’s ρ given nonnormal variable distributions; r² values from least-squares linear regression and linear trendlines are also reported for ease of interpretation. For ROC curves, Youden’s J statistic was used to determine the optimal BrACE threshold. Values were excluded from analysis if study participants described reason for BrACE >10 ppm that included food or drink prior to measurement, use of lip balm, environmental contaminants or measurements taken outside. Paired values were compared using paired 2-tailed t tests or Wilcoxon matched-pairs signed-rank test as appropriate. Statistical analyses were completed in SPSS 29 (IBM), R version 4.3.2 and GraphPad Prism 10.

Results

Participant characteristics are shown in Table 1. Twenty-one adults with T1D were screened, and 20 participated in the study, including 11 males and 9 females. The average age was 48 ± 18 years and mean body mass index (BMI) was 29.5 ± 5.2 kg/m². CSII in hybrid closed loop systems were used by 16 (80%) of the participants. At baseline, CGM time-in-range (70-180 mg/dL) was 61% ± 18%, with mean hemoglobin A1c of 7.0% ± 0.9%.

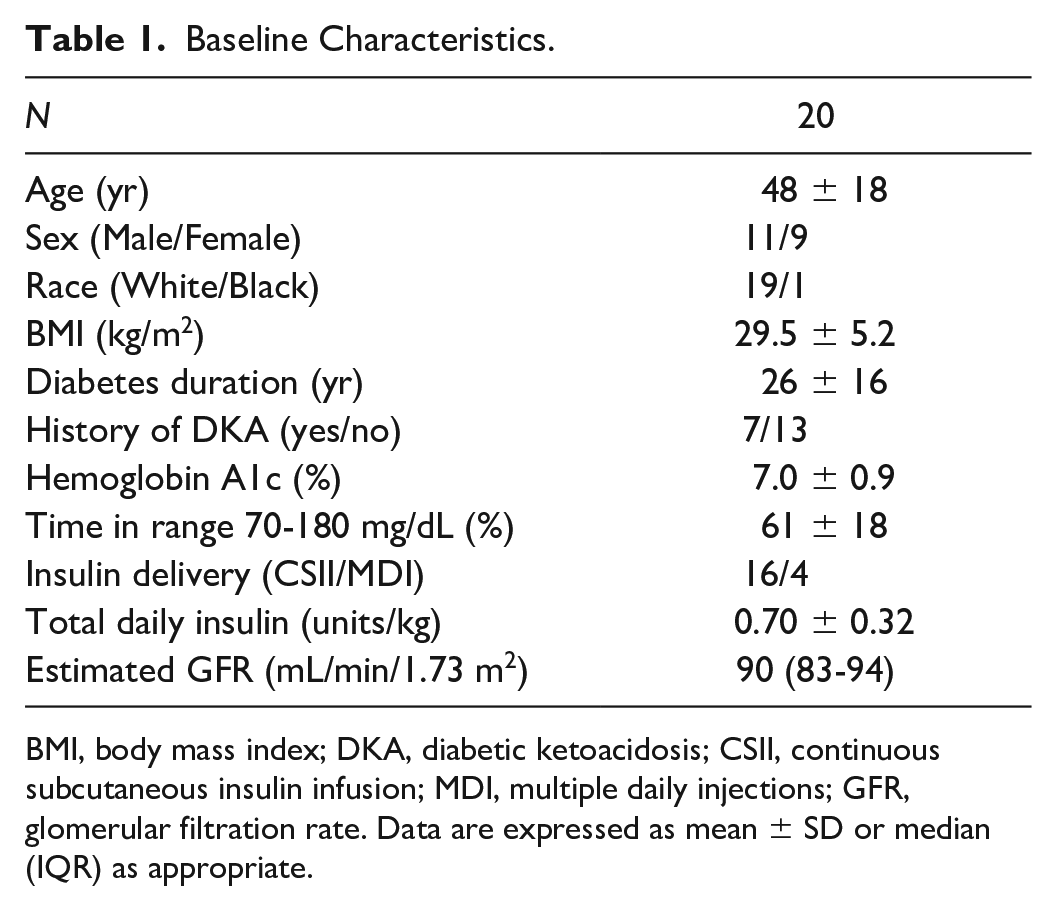

Table 1.

Baseline Characteristics.

N	20
Age (yr)	48 ± 18
Sex (Male/Female)	11/9
Race (White/Black)	19/1
BMI (kg/m²)	29.5 ± 5.2
Diabetes duration (yr)	26 ± 16
History of DKA (yes/no)	7/13
Hemoglobin A1c (%)	7.0 ± 0.9
Time in range 70-180 mg/dL (%)	61 ± 18
Insulin delivery (CSII/MDI)	16/4
Total daily insulin (units/kg)	0.70 ± 0.32
Estimated GFR (mL/min/1.73 m²)	90 (83-94)

BMI, body mass index; DKA, diabetic ketoacidosis; CSII, continuous subcutaneous insulin infusion; MDI, multiple daily injections; GFR, glomerular filtration rate. Data are expressed as mean ± SD or median (IQR) as appropriate.

The correlation between BrACE and BOHB during unsupervised outpatient care was moderate (ρ = .41; 95% confidence interval (CI) = 0.36 to 0.45; P < .0001; Figure 1a). During the DAPA period, the median (IQR) capillary blood BOHB concentration was higher than in the UC period [0.2 (0.1-0.3) mmol/L DAPA vs. 0.1 (0.1-0.2) mmol/L UC, P < .001; Figure 1b]. Median (IQR) BrACE was also greater during the DAPA period than in the UC period [2 (1-4) ppm DAPA vs. 1 (1-3) ppm UC, P < .001; Figure 1c]. During unsupervised outpatient UC periods, 3 of 718 BOHB readings were ≥ 1.5 mmol/L.

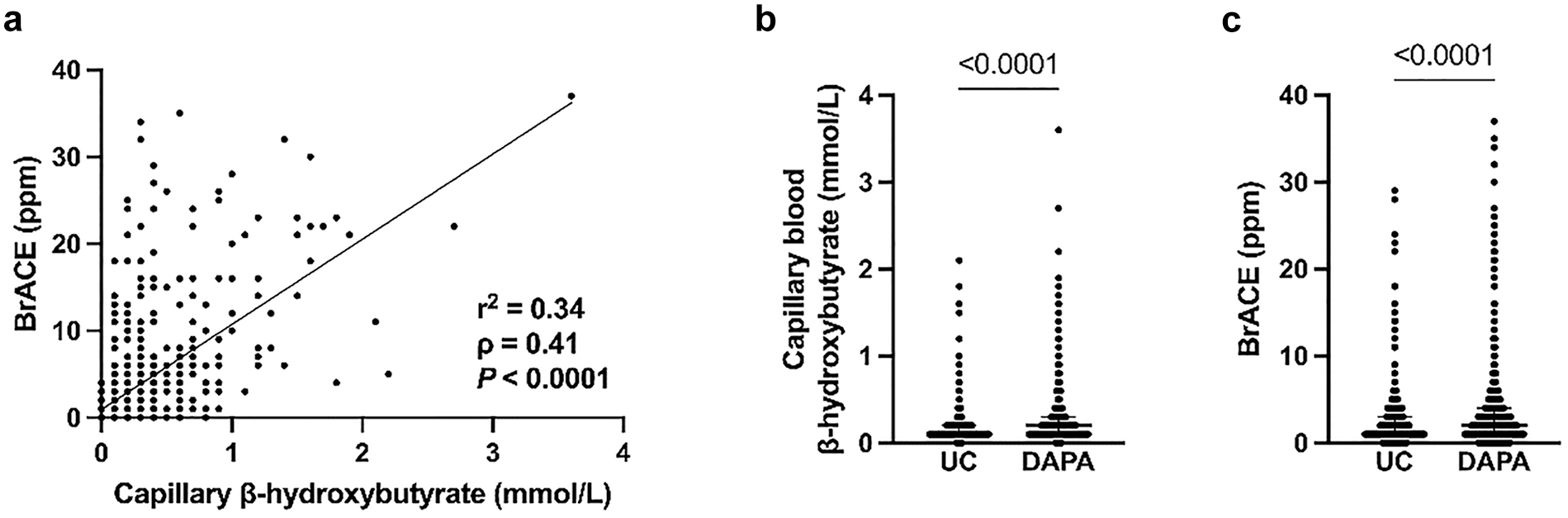

Figure 1.

Blood and breath ketones during unsupervised outpatient periods. (a) Correlation of paired capillary blood BOHB and BrACE measurements during unsupervised outpatient periods (n = 1425 paired measurements). Linear trendline is shown. (b) Capillary blood BOHB values in UC and DAPA periods during unsupervised outpatient care; n = 722 UC and n = 716 DAPA. (c) BrACE values in UC and DAPA periods during unsupervised outpatient care; n = 718 UC and n = 709 DAPA. In (b-c), P values by Mann-Whitney U test.

During unsupervised outpatient DAPA periods, 10 of 707 BOHB readings were ≥1.5 mmol/L, but 6 of these occurred in a single bout of ketosis in 1 participant (Figure 2). In this individual, BrACE identified clinically significant ketosis during the outpatient dapagliflozin treatment period. Repeated paired BrACE and BOHB measurements showed that BrACE values required more time to normalize as compared with capillary BOHB (Figure 2).

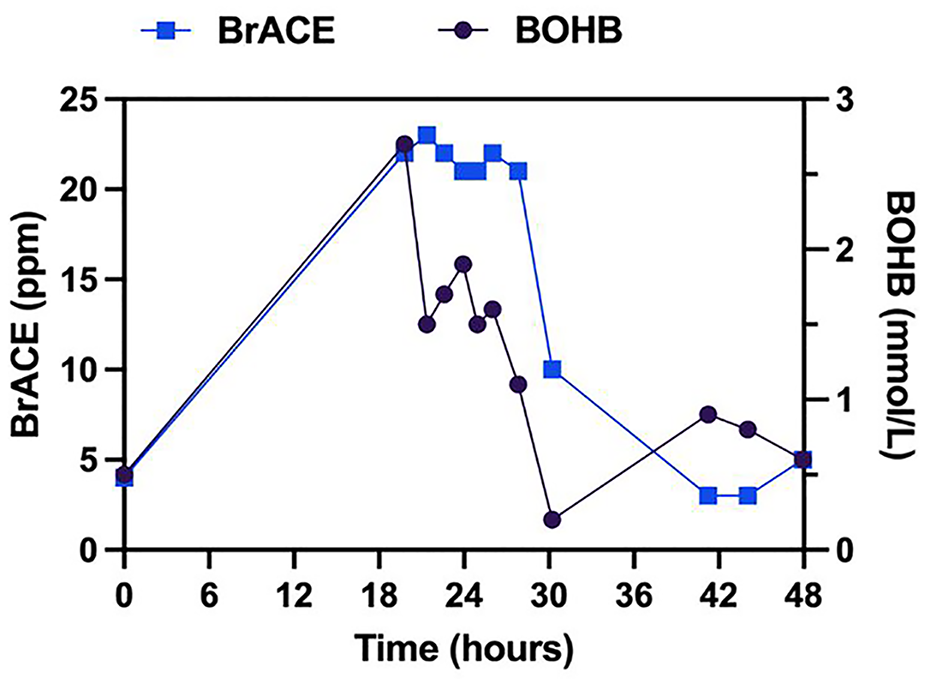

Figure 2.

Paired BrACE and capillary blood BOHB values during a bout of outpatient ketosis. Paired values collected over a 48-hour period in a participant who developed and was treated for ketosis while taking dapagliflozin.

During the supervised insulin withdrawal visits, 341 paired capillary blood BOHB and BrACE measurements were collected. A strong correlation of ρ = .81 between capillary blood BOHB and BrACE during supervised insulin withdrawal was observed (95% CI = 0.77 to 0.84; P <0.0001; Figure 3a). The correlation of 254 paired plasma BOHB and BrACE measurements during supervised insulin withdrawal was similar (ρ = .82; 95% CI = 0.78 to 0.86; P <0.0001; Figure 3b).

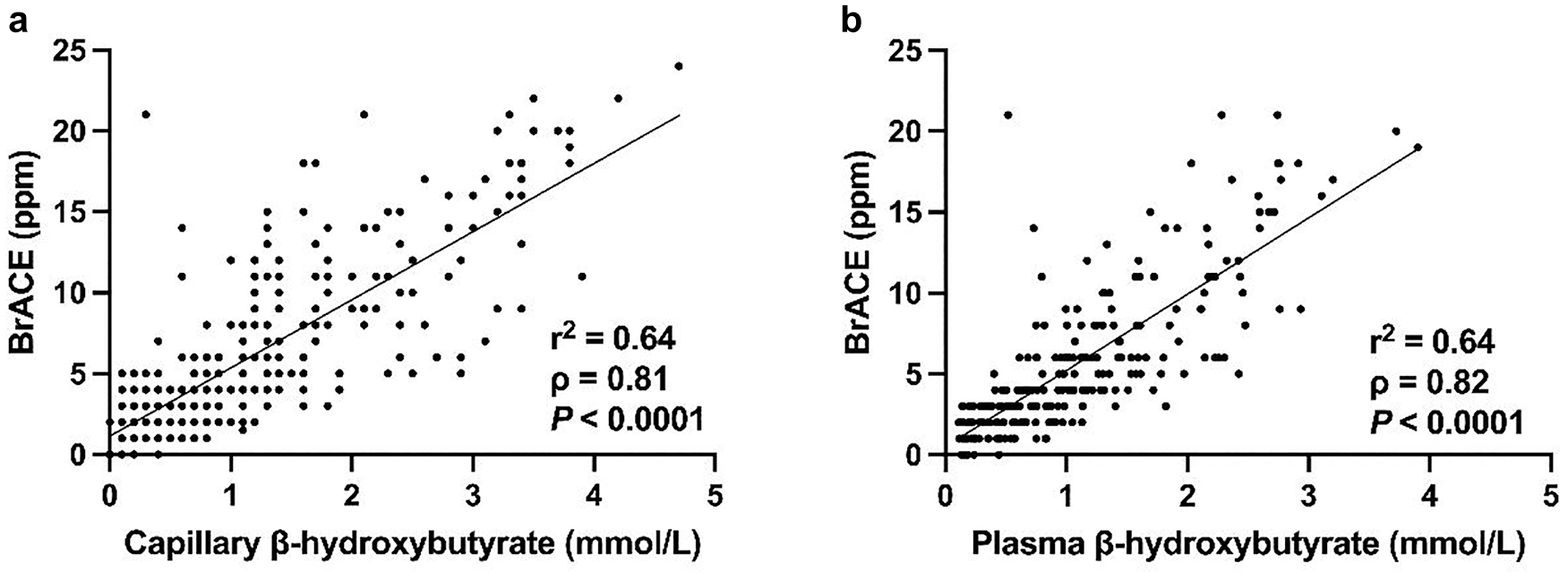

Figure 3.

Paired BOHB and BrACE measurements during supervised insulin withdrawal. (a) Correlation of capillary blood BOHB and BrACE (n = 341 paired measurements). (b) Correlation of plasma BOHB and BrACE (n = 254 paired measurements). Study visits with and without dapagliflozin treatment were pooled (n = 38 visits). Linear trendlines are shown.

When the data from the 2-week unsupervised outpatient care and supervised insulin withdrawal study periods were combined, the correlation of capillary blood BOHB and BrACE was moderate (ρ = .56; 95% CI = 0.53 to 0.59; P < .0001; Figure 4).

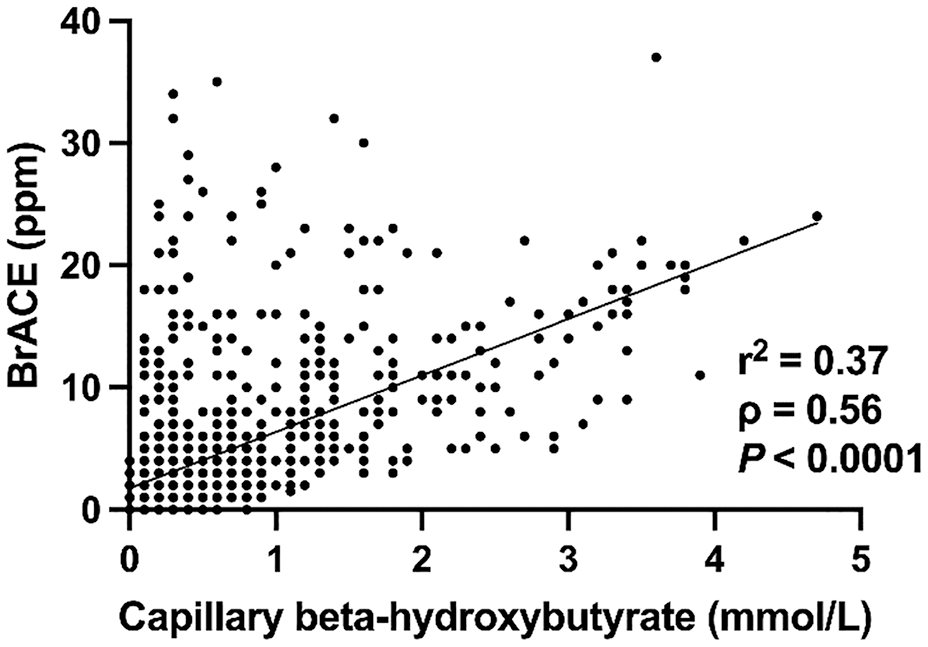

Figure 4.

Correlation of capillary BOHB and BrACE during unsupervised outpatient care and supervised insulin withdrawal. Data from Figures 1 and 3a were pooled (n = 1766 paired measurements). Linear trendline is shown.

Receiver operating characteristic curve analysis including data from both the unsupervised outpatient periods and the supervised insulin withdrawal visits with and without dapagliflozin was performed to determine the optimal BrACE value for identification of ketosis, defined as capillary BOHB ≥1.5 mmol/L (Figure 5). Optimal sensitivity (92%) and specificity (83%) were obtained at BrACE values ≥5 ppm.

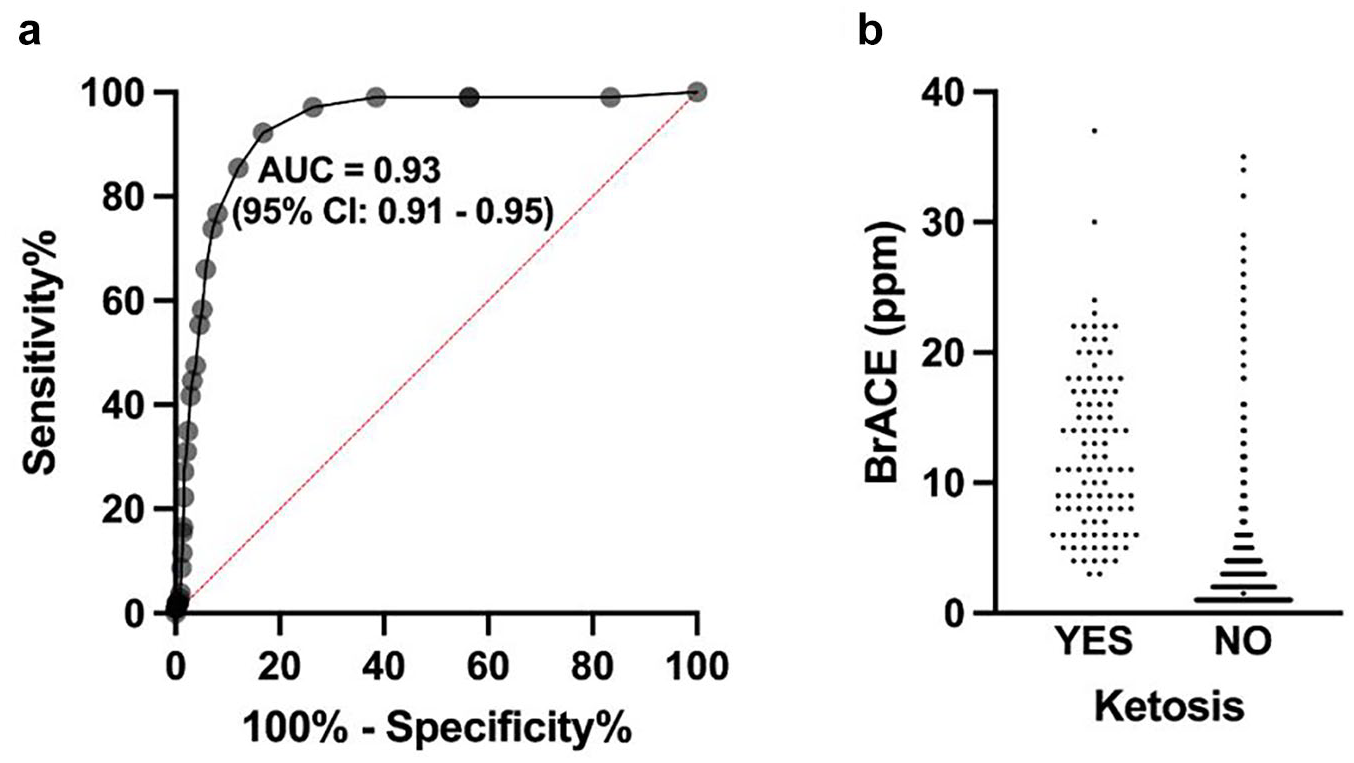

Figure 5.

Receiver operating characteristic curves for BrACE identification of ketosis. (a) Pooled data from 2-week outpatient periods and supervised insulin withdrawal studies with and without dapagliflozin treatment were analyzed. Ketosis status was defined as capillary blood BOHB ≥1.5 mmol/L (YES) or <1.5 mmol/L (NO). n = 1743 nonketotic and 103 ketotic paired measurements. (b) Distribution of BrACE levels (parts per million, ppm) in individuals with and without ketosis.

As expected, dapagliflozin use in those with T1D was associated with a reduction in insulin requirements and an improvement in blood glucose metrics (Table 2). As compared with UC, DAPA was associated with a ~11% reduction in total insulin requirement, a ~5% decrease in average CGM glucose level and a ~8% increase in time in range (70-180 mg/dL) (Table 2).

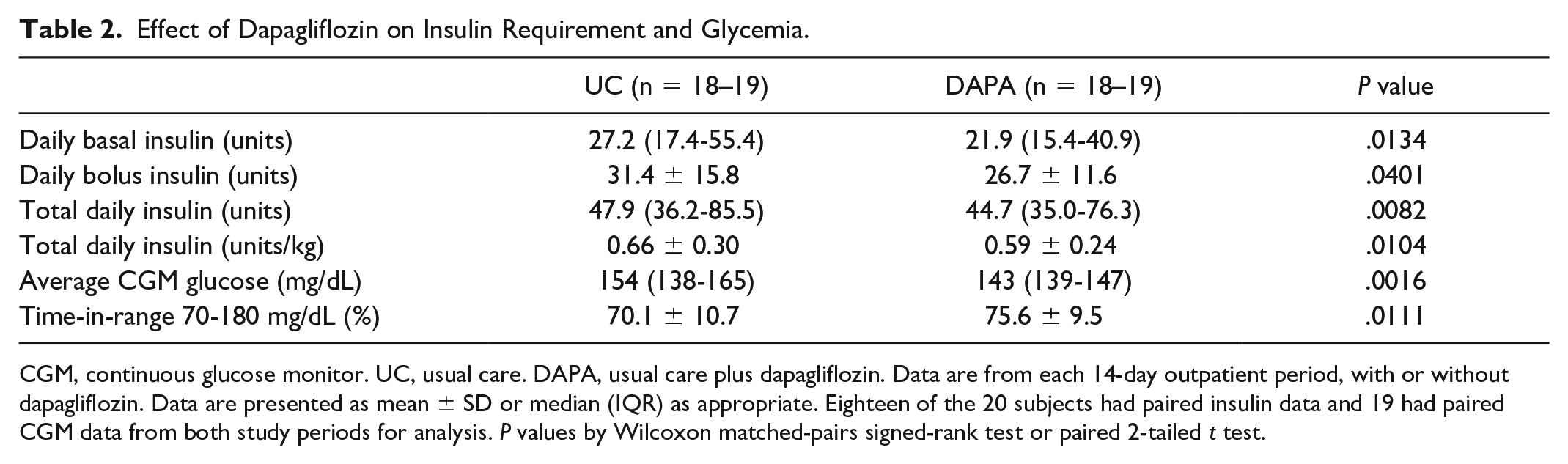

Table 2.

Effect of Dapagliflozin on Insulin Requirement and Glycemia.

	UC (n = 18–19)	DAPA (n = 18–19)	P value
Daily basal insulin (units)	27.2 (17.4-55.4)	21.9 (15.4-40.9)	.0134
Daily bolus insulin (units)	31.4 ± 15.8	26.7 ± 11.6	.0401
Total daily insulin (units)	47.9 (36.2-85.5)	44.7 (35.0-76.3)	.0082
Total daily insulin (units/kg)	0.66 ± 0.30	0.59 ± 0.24	.0104
Average CGM glucose (mg/dL)	154 (138-165)	143 (139-147)	.0016
Time-in-range 70-180 mg/dL (%)	70.1 ± 10.7	75.6 ± 9.5	.0111

CGM, continuous glucose monitor. UC, usual care. DAPA, usual care plus dapagliflozin. Data are from each 14-day outpatient period, with or without dapagliflozin. Data are presented as mean ± SD or median (IQR) as appropriate. Eighteen of the 20 subjects had paired insulin data and 19 had paired CGM data from both study periods for analysis. P values by Wilcoxon matched-pairs signed-rank test or paired 2-tailed t test.

Discussion

The increased ketoacidosis risk associated with SGLT2i has prevented their regulatory approval and widespread use in people with T1D.^19,40 To alleviate this concern and potentially allow those with T1D to benefit from the established cardiovascular and renal benefits of SGLT2i, expert consensus panels have recommended the development of noninvasive ketone monitoring technologies.²⁵ Handheld BrACE analyzers represent one such technology with potential clinical utility. BrACE has been shown to correlate well with capillary blood ketone measurements in free-living people with T1D, but the performance of BKAs has not been examined during insulin withdrawal—a scenario closely mimicking real-world ketogenesis associated with insulin pump failure or insulin omission.³⁶

In this study, to explore the utility of BrACE measurement in T1D, participants monitored ketones with paired blood and breath assessments both during 14 days of their usual care at home, and during 14 days of usual care plus dapagliflozin treatment, which we hypothesized would enhance ketone production. Furthermore, participants underwent supervised insulin withdrawal during usual care and immediately after 14 days of dapagliflozin treatment. We observed a strong correlation between capillary blood BOHB and BrACE during supervised insulin withdrawal conditions but a moderate correlation in the unsupervised outpatient settings.

The suboptimal correlation between capillary blood BOHB and BrACE observed during the unsupervised outpatient periods may be related to several factors. First, most ketone values collected during the unsupervised outpatient periods were low, generating the problem of restricted range.⁴¹ Second, proper use of the BKA including the correct breathing pattern and the use of a filter cap was enforced by supervision during the insulin withdrawal study. Third, VOC interference may have occurred in the outpatient setting. VOCs are released from many items used in daily life and can result in falsely elevated BrACE readings. During the insulin withdrawal study, all measurements were done during fasting and under supervision, so the technical validity of the measurements and the range of ketones produced were both greater.

In ROC analysis, a BrACE level of ≥5 ppm had 92% sensitivity and 83% specificity for detecting a capillary BOHB of ≥1.5 mmol/L. This level of BrACE was therefore considered the actionable level for prevention of ketoacidosis. A recent study of SGLT2i treatment in people with T1D demonstrated that DKA mitigation strategies including ketone monitoring with capillary BOHB or urinary ketones can reduce DKA episodes despite higher average BOHB levels in those taking sotagliflozin.¹⁹ BrACE measurement using a BKA is noninvasive, allows repeated measurements without additional cost and may represent a viable method for ketone monitoring that can be included in DKA mitigation strategies for persons with T1D using SGLT2i and those at increased risk of episodic DKA.

One individual experienced a clinically significant bout of ketosis during the unsupervised outpatient DAPA period. This individual did not eat breakfast and lunch, thus reducing his automated insulin delivery. He did not have hyperglycemia, did not manually change insulin doses, and did not report symptoms during the ketosis episode. He reported the rise in ketones to the study team and was instructed in a treatment strategy that led to resolution of the ketosis. He did not skip any further meals and did not have additional ketosis episodes during the remainder of the study period despite continuing SGLT2i treatment. Identifying persons at risk for episodic ketosis may require trial periods of SGLT2i use with frequent ketone monitoring and underscores the importance of appropriate patient selection for SGTL2i use in people with T1D. Importantly, blood BOHB normalized (<1.5 mmol/L) more than 12 hours before BrACE normalized (<5 ppm). Delayed resolution of BrACE compared with blood ketones in DKA treatment is well described^30,42,43 and represents a key limitation for the clinical utility of breath acetone analyzers.

Notable aspects of this study’s design include the collection of over 1700 paired BrACE and BOHB measurements and testing in the participants’ home environment. The data from the supervised insulin withdrawal study is relevant to scenarios such as insulin pump failure or loss of insulin access, in which absolute insulin deficiency gradually develops.⁴⁴ This is important as CSII remains a risk factor for development of DKA.⁴⁵

This study has important limitations including the small sample size. Furthermore, in the unsupervised outpatient care periods, the range of values used for correlation calculations was relatively narrow and the risk for interference of VOC with BrACE measurements was higher. The restricted range likely contributed to the weaker correlation between BrACE and capillary BOHB observed in the outpatient setting. Participants were instructed to provide paired breath and capillary blood ketone measurements within a 30-minute interval in the outpatient setting. Although most participants completed their paired measurements at the same time, the 30-minute interval we permitted could have contributed to the suboptimal correlation of blood and breath ketones observed during outpatient care. In addition, the strong correlation between BrACE and BOHB measurements during supervised insulin withdrawal may have been enhanced by the controlled environment of the research unit, in which paired measurements were supervised by a nurse and the BKA device was capped when not in use to reduce the risk of VOC interference. In addition, this study has the limitation of excluding individuals with history of frequent DKA, uncontrolled diabetes (HbA1c >10%) or use of a ketogenic diet, who may be at increased risk for DKA with use of SGLT2i especially during insulin withdrawal. Future studies should consider investigating BrACE monitoring in patients at greater risk for ketoacidosis.

Our study demonstrates that BrACE measurement using a noninvasive, handheld BKA can detect clinically actionable ketosis but is more reliable in supervised settings as compared with unsupervised outpatient care. A critical limitation for more widespread real-world use in T1D is that currently available BKA devices remain highly susceptible to VOC interference. Whether repeated training on proper use of the device or deployment of a filter cap in the outpatient care setting would have reduced presumed interference in the BrACE measurements is unknown. Additional BKA device development is needed to explore modifications that could address these issues, making them more viable for home use in people with T1D. In addition, the occurrence of ketosis in more than 1 patient while at home reminds health care providers that persons with T1D are at risk for asymptomatic ketosis that may lead to serious adverse consequences. The advice to test for ketones after symptoms develop may be too late for early detection and effective treatment at home.

Conclusions

BrACE monitoring in adults with T1D offers a noninvasive assessment of circulating ketones. A BrACE reading of ≥5 ppm had 92% sensitivity and 83% specificity for a capillary blood BOHB concentration ≥1.5 mmol/L. The efficacy of the BKA is limited by common interfering VOC found in the home and by the need for proper operating technique. Larger studies are needed to further evaluate the utility of BrACE measurements as a substitute for capillary BOHB measurements in persons with T1D at risk of ketosis.

Footnotes

Acknowledgements

We would like to thank the individuals with type 1 diabetes who participated in the study. We thank the staff of the Washington University Clinical Translational Research Unit and Core Lab for Clinical Studies for conducting the study visits and completing the sample analyses. We would also like to thank Readout Health for planning and technical assistance.

Abbreviations

BKA, biosense ketone analyzer; BOHB, β-hydroxybutyrate; BrACE, breath acetone; CGM, continuous glucose monitor; CSII, continuous subcutaneous insulin infusion; CTRU, clinical translational research unit; DKA, diabetic ketoacidosis; eGFR, estimated glomerular filtration rate; HbA1c, hemoglobin A1c; MDI, multiple daily injections; MOS, metal oxide sensor; SGLT2i, sodium glucose cotransporter-2 inhibitor; T1D, type 1 diabetes; VOC, volatile organic compound.

Declaration of Conflicting Interests

The author(s) declared the following potential conflicts of interest with respect to the research, authorship, and/or publication of this article: AMMc is a current employee of Novo Nordisk Inc. At the time of the research AMMc was full-time faculty at Washington University in St. Louis. Contributions to this publication by AMMc were not on behalf of Novo Nordisk Inc. MS has received consulting fees from Eli Lilly and Neurocrine Biosciences, and receives grant funding to his institution from MBX Biosciences, Inc., Bayer HealthCare Pharmaceuticals Inc., Crinetics Pharmaceuticals, Inc., Neurocrine Biosciences, Inc., and Mylan. JBM has been a consultant for Bayer, Lilly, Mannkind, and Novo Nordisk; and has received grant funding from NIH, Novo Nordisk, Diamyd, and Breakthrough T1D.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: JDRF (2-SRA-2022_1190-M-B/P22-03211), National Institutes of Health grants UL1TR002345 (Washington University Institute of Clinical and Translational Sciences), including sub-award KL2TR002346 (ICTS Institutional Career Development Program), T32DK007120, P30DK020579 (Washington University Diabetes Research Center), and K12DK133995.

ORCID iDs

Kai E. Jones

Max C. Petersen

Alexander M. Markov

Maamoun Salam

Petra Krutilova

Alexis M. McKee

Kathryn L. Bohnert

Samantha E. Adamson

Janet B. McGill

References

McCoy

Herrin

Galindo

, et al. All-cause mortality after hypoglycemic and hyperglycemic emergencies among U.S. adults with diabetes, 2011–2020. Diabetes Res Clin Pract. 2023;197:110263.

Shaka

Aguilera

Aucar

, et al. Rate and predictors of 30-day readmission following diabetic ketoacidosis in type 1 diabetes mellitus: a US analysis. J Clin Endocrinol Metab. 2021;106:2592-2599.

Benoit

Zhang

Geiss

Gregg

Albright

. Trends in diabetic ketoacidosis hospitalizations and in-hospital mortality–United States, 2000–2014. MMWR Morb Mortal Wkly Rep. 2018;67:362-365.

Virdi

Poon

Abaniel

Bergenstal

. Prevalence, cost, and burden of diabetic ketoacidosis. Diabetes Technol Ther. 2023;25(suppl. 3):S75-S84.

Rosenbloom

. The management of diabetic ketoacidosis in children. Diabetes Ther. 2010;1:103-120.

ElSayed

Aleppo

Bannuru

, et al; American Diabetes Association Professional Practice Committee. 6. Glycemic goals and hypoglycemia: standards of care in diabetes—2024. Diabetes Care. 2024;47:S111-S125.

Joslin Diabetes Center. Ketone Testing. Accessed February 28, 2024. www.joslin.org/patient-care/diabetes-education/diabetes-learning-center/ketone-testing-0.

Song

Dhaliwal

Bapat

, et al. Point-of-care capillary blood ketone measurements and the prediction of future ketoacidosis risk in type 1 diabetes. Diabetes Care. 2023;46:1973-1977.

Larsson

Januszewski

McGrath

, et al. Suboptimal behaviour and knowledge regarding overnight glycaemia in adults with type 1 diabetes is common. Intern Med J. 2018;48(9):1080-1086.

10.

Foster

Beck

Miller

, et al. State of type 1 diabetes management and outcomes from the T1D exchange in 2016-2018. Diabetes Technol Ther. 2019;21(2):66-72.

11.

Albanese-O’Neill

Miller

, et al. Poor adherence to ketone testing in patients with type 1 diabetes. Diabetes Care. 2017;40(4):e38-e39.

12.

Goldenberg

Berard

Cheng

AYY

, et al. SGLT2 inhibitor–associated diabetic ketoacidosis: clinical review and recommendations for prevention and diagnosis. Clin Ther. 2016;38(12):2654-2664.

13.

Haidar

Yale

Lovblom

, et al. Reducing the need for carbohydrate counting in type 1 diabetes using closed-loop automated insulin delivery (artificial pancreas) and empagliflozin: a randomized, controlled, non-inferiority, crossover pilot trial. Diabetes Obes Metab. 2021;23(6):1272-1281.

14.

Pasqua

M-R

Jafar

Kobayati

Tsoukas

Haidar

. Low-dose empagliflozin as adjunct to hybrid closed-loop insulin therapy in adults with suboptimally controlled type 1 diabetes: a randomized crossover controlled trial. Diabetes Care. 2023;46:165-172.

15.

Tomasoni

Fonarow

Adamo

, et al. Sodium–glucose co-transporter 2 inhibitors as an early, first-line therapy in patients with heart failure and reduced ejection fraction. Eur J Heart Fail. 2022;24(3):431-441.

16.

Dandona

Mathieu

Phillip

, et al. Efficacy and safety of dapagliflozin in patients with inadequately controlled type 1 diabetes (DEPICT-1): 24 week results from a multicentre, double-blind, phase 3, randomised controlled trial. Lancet Diabetes Endocrinol. 2017;5(11):864-876.

17.

Mathieu

Dandona

Gillard

, et al. Efficacy and safety of dapagliflozin in patients with inadequately controlled type 1 diabetes (the DEPICT-2 Study): 24-week results from a randomized controlled trial. Diabetes Care. 2018;41(9):1938-1946.

18.

Boeder

Thomas

Le Roux

Giovannetti

Gregory

Pettus

. Combination SGLT2 inhibitor and glucagon receptor antagonist therapy in type 1 diabetes: a randomized clinical trial. Diabetes Care. 2025;48:52-60.

19.

Peters

McGuire

Danne

, et al. Diabetic ketoacidosis and related events with sotagliflozin added to insulin in adults with type 1 diabetes: a pooled analysis of the intandem 1 and 2 studies. Diabetes Care. 2020;43(11):2713-2720.

20.

Boeder

Davies

McGill

, et al. Beta-hydroxybutyrate levels and risk of diabetic ketoacidosis in adults with type 1 diabetes treated with sotagliflozin. Diabetes Technol Ther. 2024;26(9):618-625.

21.

Henry

Rosenstock

Edelman

, et al. Exploring the potential of the SGLT2 inhibitor dapagliflozin in type 1 diabetes: a randomized, double-blind, placebo-controlled pilot study. Diabetes Care. 2015;38(3):412-412.

22.

Rodbard

Peters

Slee

Cao

Traina

Alba

. The effect of canagliflozin, a sodium glucose cotransporter 2 inhibitor, on glycemic end points assessed by continuous glucose monitoring and patient-reported outcomes among people with type 1 diabetes. Diabetes Care. 2017;40(2):171-180.

23.

Rosenstock

Marquard

Laffel

, et al. Empagliflozin as adjunctive to insulin therapy in type 1 diabetes: the EASE trials. Diabetes Care. 2018;41(12):2560-2569.

24.

Garcia-Tirado

Farhy

Nass

, et al. Automated insulin delivery with SGLT2i combination therapy in type 1 diabetes. Diabetes Technol Ther. 2022;24(7):461-470.

25.

Danne

Garg

Peters

, et al. International consensus on risk management of diabetic ketoacidosis in patients with type 1 diabetes treated with Sodium-Glucose Cotransporter (SGLT) inhibitors. Diabetes Care. 2019;42(6):1147-1154.

26.

Laffel

. Ketone bodies: a review of physiology, pathophysiology and application of monitoring to diabetes. Diabetes Metab Res Rev. 1999;15(6):412-426.

27.

Dhatariya

. Blood ketones: measurement, interpretation, limitations, and utility in the management of diabetic ketoacidosis. Rev Diabet Stud. 2016;13(4):217-225.

28.

Liu

Sun

Huang

Cui

. A review of non-invasive blood glucose monitoring through breath acetone and body surface. Sens Actuators Phys. 2024;374:115500.

29.

Jadhav

Wankhede

Srivastava

Bhargaw

Singh

. Breath-based biosensors and system development for noninvasive detection of diabetes: a review. Diabetes Metab Syndr. 2024;18(1):102931.

30.

Owen

Trapp

Skutches

, et al. Acetone metabolism during diabetic ketoacidosis. Diabetes. 1982;31:242-248.

31.

Prabhakar

Quach

Wang

, et al. Breath acetone as biomarker for lipid oxidation and early ketone detection. Glob J Obes Diabetes Metab Syndr. 2014;1:12-19.

32.

Anderson

. Measuring breath acetone for monitoring fat loss: review. Obesity. 2015;23(12):2327-2334.

33.

Güntner

Kompalla

Landis

, et al. Guiding ketogenic diet with breath acetone sensors. Sensors. 2018;18:3655.

34.

Spaněl

Dryahina

Rejšková

Chippendale

Smith

. Breath acetone concentration; biological variability and the influence of diet. Physiol Meas. 2011;32(8):N23-N31.

35.

Suntrup Iii

Ratto

McCarter

. Characterization of a high-resolution breath acetone meter for ketosis monitoring. PeerJ. 2020;8:e9969.

36.

Akturk

Snell-Bergeon

Pyle

Fivekiller

Garg

Cobry

. Accuracy of a breath ketone analyzer to detect ketosis in adults and children with type 1 diabetes. J Diabetes Complicat. 2021;35(11):108030.

37.

Naunheim

Jang

Banet

Richmond

McGill

. Point-of-care test identifies diabetic ketoacidosis at triage. Acad Emerg Med. 2006;13(6):683-685.

38.

Charles

Bee

Eng

PHK

Goh

. Point-of-care blood ketone testing: screening for diabetic ketoacidosis at the emergency department. Singapore Med J. 2007;48(11):986-989.

39.

Brooke

Stiell

Ojo

. Evaluation of the accuracy of capillary hydroxybutyrate measurement compared with other measurements in the diagnosis of diabetic ketoacidosis: a systematic review. Int J Environ Res Public Health. 2016;13:837.

40.

Bayona Cebada

Nattero-Chávez

Alonso Díaz

Escobar-Morreale

Luque-Ramírez

. Efficacy and safety of SGLT2 inhibitors in type 1 diabetes after the introduction of an off-label use protocol for clinical practice. Diabetes Technol Ther. 2020;22(3):208-215.

41.

Bland

Altman

. Correlation in restricted ranges of data. BMJ. 2011;342:d556.

42.

Hancock

Sharma

Galpin

, et al. The correlation between breath acetone and blood betahydroxybutyrate in individuals with type 1 diabetes. J Breath Res. 2020;15:017101.

43.

Sulway

Malins

. Acetone in diabetic ketoacidosis. Lancet Lond Engl. 1970;296:736-740.

44.

Herring

Shojaee-Moradie

Garesse

, et al. Metabolic effects of an SGLT2 inhibitor (Dapagliflozin) during a period of acute insulin withdrawal and development of ketoacidosis in people with type 1 diabetes. Diabetes Care. 2020;43:2128-2136.

45.

Wersäll

Adolfsson

Forsander

Hanas

. Insulin pump therapy is associated with higher rates of mild diabetic ketoacidosis compared to injection therapy: a 2-year Swedish national survey of children and adolescents with type 1 diabetes. Pediatr Diabetes. 2022;23(7):1038-1044.
