A prototype of textile wastewater treatment using coagulation and adsorption by Fe/Cu nanoparticles: Techno-economic and scaling-up studies

Abstract

This study aims to investigate the efficiency of a pilot prototype system comprising coagulation/flocculation, filtration, and nano-bimetallic iron/copper (Fe/Cu) degradation and adsorption units for the removal of chemical oxygen demand (COD), biological oxygen demand (BOD), color, total nitrogen (TN), total phosphorus (TP), and TSS from real textile wastewater. The total removal efficiencies of the system were 96, 98, 82, 69, 88, and 97%, respectively, using 0.5 g/L ferric chlorides as a coagulant under an optimum adsorption condition of pH 6.0, nano-dosage 1.4 g/L, contact time 80 min, and stirring rate 250 r/min at room temperature. Adsorption isotherms indicated that the removal of COD and TP obeys both Koble–Corrigan and Freundlich adsorption models, removal of color obeys both Koble–Corrigan and Hill adsorption models, and removal of TN and TSS obeys Koble–Corrigan and Khan models, respectively. Avrami kinetic models adequately describe the adsorption data for COD, BOD, TN, and TSS, while pseudo-second-order and intraparticle models described the removal mechanism of color and TSS, respectively. An artificial neural network (ANN) with r²-value exceeding 0.98 is accurate and can be used with confidence in predicting removal efficiencies of the targeted parameters. Sensitivity analysis results showed that the initial concentration was the most influential parameter for TSS removal with relative importance greater than 25%, while the bimetallic Fe/Cu dosage was the most influential factor for all other studied parameters with relative importance greater than 40%. The total treatment cost of the proposed system per m³ after scaling up was found to be US$4.5 for reuse of the treated water for the irrigation of forest trees.

Keywords

real textile wastewater coagulation filtration degradation adsorption nano-bimetallic Fe/Cu economical evaluation scale up and continuous feed

Introduction

Effluents from the textile industry usually contain high concentrations of unfixed dyes which can either be degradable or non-degradable.¹ Those toxic chemicals can be derived from fixing agents, surfactants, salts, and organic and inorganic chemicals and characterized by having high chemical oxygen demand (COD), biological oxygen demand (BOD), total suspended solids (TSS), pH, and temperature levels (at least 40°C), as well as having a strong color.^2–4 The dyes in water may cause severe health impacts such as dermatitis, nausea, hemorrhage, severe irritation of the skin, and ulceration of the skin.⁵ Additionally, high suspended solids in water can lead to the clogging of fish gills and reducing light penetration which reduces the algae’s photosynthesis ability.³ Organic substances in the textile effluents are difficult to degrade and can be reduced into carcinogenic agents under anaerobic conditions, while the presence of inorganic substances in textile effluents is harmful to aquatic life.⁶

All these undesirable characteristics contribute to the priority of treating textile wastewater prior to discharging into the environment.⁷ Additionally, finding an efficient cost-effective technique for treating textile wastewaters is obligatory. The mainstream methods for treating real textile wastewater include biological treatment,^8,9 the coagulation-flocculation process,^10,11 adsorption,^12,13 electrochemical treatment,¹⁴ and photocatalytic treatment.^15–17 It was found that the biological treatment has low abilities in removing color due to the poor biodegradation of certain types of dyes.¹⁸ Other potential factors that might affect the removal efficiency by biological treatment include organic load, dye concentration, microorganism load, and oxygen concentration. Besides that, the alteration of the temperature between winter and summer has a remarkable effect on the growth rate of the microorganisms that are capable of digesting and breaking down harmful organic and inorganic compounds. Moreover, the long treatment time is not fully consistent with the high effluent flow rates associated with textile industries.¹⁹ Serious disposal problems of large quantities of sludge and by-products are frequently related to coagulation and flocculation techniques.²⁰ Electrochemical treatment drawbacks lie in the significant amounts of energy required and special equipment requirements.²¹ Photocatalytic oxidation is a treatment process in which compounds are decomposed in the presence of light energy.²² Nanophotocatalysts have a shape dependent feature and greater surface ratio which help enhance the reactivity of catalyst.²³ Furthermore, the nanophotocatalysts have a high ability to degrade water pollutants due to the production of oxidizing agents at the surface of the material.^22,24 The photocatalytic process has proven to be efficient in treating wastewaters containing dyes; however, it requires high energy and substantial investment.²⁵ Adsorption is another common technique for the efficient removal of toxic dyes from industrial wastewater. It is characterized as being an inexpensive technology, has low sludge generation and by-products production, especially when using small adsorbent doses.^26,27 Activated carbon (AC), nanoscale zero-valent iron (nZVI), and bimetallic iron/copper nanoparticles (Fe/Cu NPs) are the most commonly used adsorbents.^28,29 Nano-bimetallic Fe/Cu particles are distinguished as having high porosity, high reactivity, and large surface area.^30,31 The bimetallic Fe/Cu nanoparticles have a high tendency to degrade and adsorb a wide range of organic compounds, such as chlorinated hydrocarbons, chlorinated ethanes, polychlorinated biphenyls, and poly and mono aromatic hydrocarbons.³²

The removal of dye compounds using bimetallic Fe/Cu nanoparticles undergoes two main procedures: reductive-degradation and adsorption. Therefore, bimetallic nanoparticles are preferred for reduction or dechlorination followed by adsorption of most organic compounds. A study has reported a high reduction efficiency of more than 95% for the dyes using bimetallic Fe/Cu nanoparticles.³³ Therefore, the adsorption of dyes onto bimetallic Fe/Cu can be a viable research topic. Various environmental factors can influence the adsorption process in wastewater such as adsorbent dosage, pH, contact time, stirring rate, and concentration.³⁴ The artificial neural network (ANN) is used to demonstrate the effects of these factors on the adsorption process. ANN involves interconnected neurons which are generally used to simulate human nervous system functions.³⁵ ANN has revealed a promising potential in driving meaningful relationships between imprecise data by relating input data with each other and with the output data.

The current study was performed at a textile factory located in El-Obour City, Qalyubia Governorate-Egypt. The wastewater effluent flow rate from this factory is about 1000 m³/day. The wastewater influent is generated from the dyeing and finishing of cotton and polyester fabrics. The current quality of the treated effluent did not meet the Egyptian standards of sewage discharge networks or non-fresh waterways. Therefore, this study proposed a novel multistage treatment system that can efficiently treat real textile wastewater. The novelty of the proposed system lies in integrating a tertiary treatment unit based on the nano-concept to the conventional treatment units (coagulation and sand filtration) through use of nano-bimetallic Fe/Cu for improving the final effluent quality. The optimum operating parameters were also identified, especially for the tertiary treatment unit to act as a scale up guideline. The performance of experimental factors (i.e., contact time, nano-bimetallic Fe/Cu dosage, pH, stirring rate, and dye concentration) on the adsorption process and removal efficiency was determined by conducting prototype experiments. Most of the technical literature has focused only on color removal; however, in this study, the authors have investigated the removal efficiency of another five parameters, in addition to the color removal: biological oxygen demand (BOD), chemical oxygen demand (COD), total nitrogen (TN), total phosphorus (TP), and total suspended solids (TSS). These parameters are important for the investigation since the effluent is normally discharged to the sewer system. A kinetic study was conducted to fit the adsorption data. The experimental factors and removal efficiency’s relationship were represented by employing ANN. Additionally, the optimization experiments were used to design a continuous-feed adsorption system to treat real textile wastewater. Finally, a techno-economic assessment including the amortization and operational costs was conducted. Thus, this paper acts as a guideline for textile industries interested in applying the proposed treatment system.

Materials and Methods

Chemicals and Reagents

The following chemicals were used in the current study: ferric chloride (FeCl₃•6H₂O, 98.5% pure, Arabic Lab.), copper (II) sulfate pentahydrate (CuSO₄•5H₂O, 99.5%, WINLAB), sodium borohydride (NaBH₄, 98% pure, CDH Company), ethanol (C₂H₅OH, 99%, World co. for sub and med industries), ammonium molybdate ((NH₄)₆Mo₇O₂₄), 99.5, Koch-Light Laboratory Ltd), silver sulfate (Ag₂SO₄, 99%, Fluka company), mercuric sulfate (HgSO₄, extra Pure, Oxford laboratory reagent company), potassium dichromate (K₂Cr₂O₇, 99.5%, Loba chemie), potassium orthophosphate (KH₂PO₄, 99% pure, ADWIC), stannous (II) Chloride (SnCl₂, 99.5% pure, Loba chemie), phenol phthalein (C₂₀H₁₄O₄, extra pure, Loba chemie), ammonium persulphate ((NH₄)₂S₂O₈, 95.5% pure, Oxford), sodium hydroxide (NaOH, 99% pure, Oxford Co.), sulfuric acid (H₂SO₄, 95–97%, Honeywell Co.), and standard chrome solution (Cr(NO₃)₃, 998±5 mg/L, Merck company).

Samples collection and analysis

Raw textile wastewaters samples were collected from the effluent of a textile factory located in El-Obour City, Qalyubia Governorate-Egypt. This factory operates in two 8-h shifts. Four raw wastewater samples were collected daily (every 4 h) for the period from the 22nd to the 26th of December 2019 to represent the effluent variation. A total of 20 samples were collected during this study. The wastewater samples were collected in brown glass bottles involving a 2 mL sulfuric acid/L sample for COD and TP sample analysis. Samples were also collected in plastic containers and a dark condition at 4°C for color, BOD, TN, and TSS analysis.

Treated wastewater samples were withdrawn using a 10-mL syringe by Whatman No. 42 filter paper with 0.2 μm pore size. The collected samples (raw and treated) were analyzed for the following parameters: pH, COD, BOD, color, TN, TP, and TSS. The medium pH was monitored using Multimeter PH/OXI 340 I (WTW 340i/05281018, Germany). The color was measured using HACH DR/2010 spectrometer set at a wavelength of 455 nm, and distilled water was used as a blank. The method applied for the color test is the APHA Platinum-Cobalt Method with the unit of platinum-cobalt (Pt-Co). The other studied parameters (COD, BOD, TN, TP, and TSS) were analyzed according to the Standard Methods for the Examination of Water and Wastewater.³⁶ The wastewater samples analyses were conducted in a chemical laboratory inside Housing and Building National Research Centre (HBRC) in Cairo, Egypt.

Preparation of nZVI

Approximately 1.08 g of ferric chloride (FeCl₃•6H₂O) was completely dissolved in a 60 mL 4/1 (v/v) ethanol/deionized water mixture. The reducing agent was prepared by dissolving approximately 0.76 g NaBH₄ in 200 mL of deionized water. The reducing NaBH₄ solution was poured in a burette and slowly dripped dropwise into the FeCl₃ solution with a rate of 0.05 mL/2 s. The black precipitate immediately formed after the addition of the first drops of NaBH₄ solution as described in equation (1). The chemical reduction between NaBH₄ and FeCl₃ was used to form black-colored nZVI. The mixture was stirred for another 10 min after adding the excess amount of NaBH₄ to complete the FeCl₃ reduction. Then, the precipitated iron nanoparticles were separated from the liquid solution using normal filtration technique. Finally, the chemically prepared nZVI was dried at 80°C for 3.0 h. For storage, the prepared nZVI were protected against oxidation by adding a layer of acetone

2FeCl3 (aq) +6NaBH4 (aq) +18H2O (l) 2Fe0 (s) + 21H2 (g) + 6B [OH] 3 (aq) + 6NaCl (aq)

(1)

Preparation of bimetallic Fe/Cu nanoparticles

The preparation of bimetallic Fe/Cu NPs was carried out in a chemical laboratory belongs to the Housing and Building National Research Center (HBRC). The bimetallic Fe/Cu nanoparticles were prepared according to a study conducted by Zin et al.³⁷ Approximately 1.0 g of freshly prepared nZVI was added into a copper sulfate (CuSO₄●5H₂O) solution at a flow rate of 0.1 g per 60 s with powerful stirring. CuSO₄●5H₂O solution was prepared by mixing 0.1 g of CuSO₄ with 100 mL ethanol/distilled water (DW) (1:1) at 60°C. Afterward, the solution was allowed to settle for 15 min. The color of black nZVI was changed into a coppery color. The solution was filtrated using two sheets of Whatman filter papers (41 circles, diameter 150 mm). After filtration, the bimetallic Fe/Cu nanoparticles were washed two times with 20 mL of absolute ethanol (99.99%, HPLC grade). The prepared Fe/Cu nanoparticles were dried in the oven for 5 h at 60°C and stored under nitrogen and covered with a thin parafilm layer.³²

Characterization of the prepared Fe/Cu nanoparticles

The prepared bimetallic Fe/Cu nanoparticles were investigated using X-ray powder diffraction (XRD) techniques. An X-ray diffractometer (PANalytical’s X’Pert PRO MRD, the Netherlands) with a voltage value of 40 kV and a current value of 30 mA was used for this purpose. The bimetallic Fe/Cu nanoparticles were placed in a sample holder made of stainless steel and then inserted into the X-ray diffractometer. The XRD patterns were recorded using Copper K-alpha radiation (wavelength 1.54 Å). The scan range was recorded from 10^o to 60^o with a step size of 0.02^o to cover the copper, iron, and iron oxides. Scanning Electron Microscope (SEM) (Philips, Quanta 250 field emission gun (FEG), USA) at a voltage of 25 kV and total magnification × 16 k was used to identify the morphological characteristics of prepared bimetallic Fe/Cu nanoparticles. Energy-dispersive spectroscopy (EDS) connected to the SEM was also used to identify the chemical characterization of the Fe/Cu nanoparticles.

Experimental work

Prototype experiments

A prototype system was created which consisted of an equalization tank, coagulation/flocculation tank, sedimentation tank, sand filter unit, adsorption tank, and sand filter unit. A schematic diagram of the coagulation, sedimentation, adsorption, and filtration/system is shown in Figure 1. Supplementary Figure 1 contains a photograph of the experimental system. All units are made of polyvinyl chloride (PVC). The equalization tank has a diameter of 60 cm and a height of 90 cm and has one tap in the side of the tank to control the flow. Coagulation/flocculation and adsorption tanks have a diameter of 25 cm and a height of 30 cm. Each of these two tanks contains two taps (one on each side) to control the input and output flow. These tanks also contain mechanical motors to help achieve a full mixing of the wastewater and the coagulant or adsorption material. The sedimentation unit has dimensions of 90 cm length × 45 cm width x 45 cm height and the conical part at the bottom of the tank helps to collect the sludge. The sedimentation tank has three taps: one in each side to control the input and output flow, as well as a tap at the bottom of the tank for sludge collection, and two sand filters, each having dimensions of 25 cm height and 20 cm diameter. The water enters the sand filter from the top and a small hose is fixed at the end-side of the filter to collect the filtered water.

Figure 1.

Schematic diagram of prototype system for the treatment of real textile industrial effluent.

Ferric chloride was used as a coagulant in this study since it has been proven more effective than other coagulants available in the market with an optimum dosage of 0.5 g per liter.³⁸ The operating conditions are as follows: a hydraulic retention time of 2.0 min and stirring rate of 100 r/min for the coagulation process and a hydraulic retention time of 10.0 min and a stirring rate of 50 r/min for the flocculation process. Floc settling was allowed in the sedimentation tank for about 10.0 min. The partially treated wastewaters are then transferred to the adsorption tank which has a capacity of 10.0 liters. In the adsorption process, a one-factor at-a-time method was applied to study the effects of the following operational parameters on the removal efficiencies of COD, BOD, color, TN, TP, and TSS using bimetallic Fe/Cu nanoparticles: pH (2–10), dose (0.2–3.0 g/L), contact time (20–180 min), stirring rate (50–300 r/min), and concentration at six different dilutions ratios. These five operational parameters were selected and their ranges based on previous studies.^1,28 Table 1 summarizes the tests performed at the different operating conditions. All experiments were performed in triplicate and measured at a certified ISO/IEC17025 chemistry lab belongs to HBRC for examination of water and wastewater.

Table 1.

The tests conducted at different operating parameters from pH, sorbent dose, contact time, stirring rate and initial concentration.

Effects	Adsorbent dose (g)	Contact time (min)	pH	Stirring rate (rpm)	Concentration (mg/L)
Effects	Adsorbent dose (g)	Contact time (min)	pH	Stirring rate (rpm)	COD	BOD	Color Pt-Co	TN	TP	TSS
pH	1.4	80	2:10	250	581	225	262	34	1.86	227
Fe/Cu nanoparticles dose	0.2:3	80	6	250	581	225	262	34	1.86	227
Contact time	1.4	20:180	6	250	581	225	262	34	1.86	227
Stirring rate	1.4	80	6	50:300	581	225	262	34	1.86	227
Concentration	1.4	80	6	250	100:581	40:225	45:262	6:34	0.3:1.86	40:227

Calculations of treatment performance

The removal efficiencies of the studied contaminants (%R) were calculated using equation (2)

%R = (C_{o} - \frac{C_{t}}{C_{o}}) \times 100

(2)

where C₀ represents the contaminant concentration before treatment (mg/L), while C_t refers to the contaminant concentration after treatment (mg/L).

The adsorption capacity of bimetallic Fe/Cu NPs was estimated using equation (3)

qt = (C_{o} - C_{t}) \times \frac{V}{m}

(3)

where V is the solution volume in liter, m is the adsorbent mass in gram, q_t is adsorption capacity in mg/g, and C_t is the contaminant concentration in mg/L at time t (min).

Isotherm studies

Different isotherm studies were performed to describe the adsorption process onto bimetallic Fe/Cu NPs for monolayer and multi-layer nonlinear adsorption models: Freundlich, Langmuir, Toth, Sips, Hill, Redlich–Peterson, Khan, Koble–Corrigan, and Jovanovich. The nonlinear equations of these models were obtained from Mahmoud et al..³²

Kinetic studies

To determine the suitable time for reaching the equilibrium state, the sample was placed in contact with bimetallic Fe/Cu NPs at different times, at room temperature. The amount removed at time t, Q_t (mg/g), was calculated using equation (4)

Q_{t} = (C_{o} - C_{t}) \frac{V}{W}

(4)

where C_o is the initial concentration (mg/L), C_t is the initial concentration at time t (mg/L), V is the volume of the solution (L), and W is the Fe/Cu NPs dosage.

To investigate the mechanisms of the kinetic process, the following kinetic techniques were applied: pseudo-first and second-order, intraparticle, Avrami, and Elovich.³²

Validation of adsorption isotherms and kinetics

A derivative of Marquardt’s Percent Standard Deviation (MPSD) error function equation was used to evaluate a better fit of nonlinear isotherm and kinetic models and to choose the most suitable model that can describe the treatment process, as listed in equation (5)

\sum_{i = 1}^{p} {(q_{e, meas} - \frac{q_{e, calc}}{q_{e, meas}})}_{i}^{2}

(5)

Artificial intelligence

An artificial neural network (ANN) model was built and tested to predict the removal efficiencies of the targeted parameters (COD, BOD, color, TN, TP, and TSS). The model has 3 main elements: (1) input layer which receives data from five experimental factors (pH, contact time, bimetallic Fe/Cu dosage, stirring rate, and concentration), (2) hidden layer which is comprised of ten neurons; their numbers are normally identified by trial and error, and (3) output layer which represents the removal efficiencies of the targeted parameters. Figure 2 shows the ANN structure which is expressed as 5–10–1. The input and target data were randomly separated into 20%, 20%, and 60% for testing, validation, and training procedures, respectively.³⁹

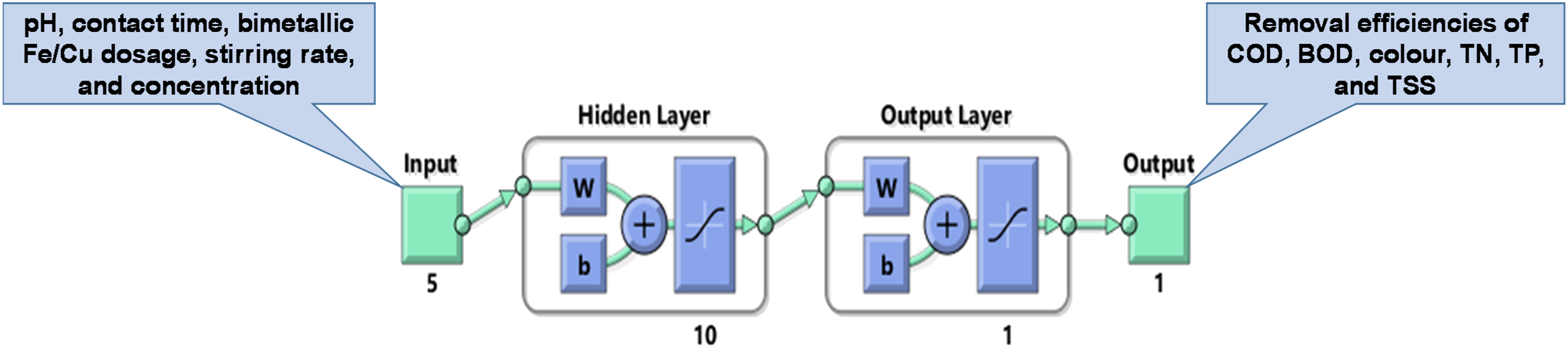

Figure 2.

ANN of 5–10–1 structure used for the prediction of studied parameters removal efficiency.

Equation (6) shows the “tansig” transfer function which was chosen for the hidden layer, while equation (7) shows the “purlin” activation function which was chosen for the output layer. A feedforward backpropagation algorithm was used for data classification. The comparison between the target and the output data was conducted by calculating the mean squared error (MSE). The MSE was also used to adjust both the weights and the biases, which occurs through passing back the MSE from the output node to the input layer (equation (8)). The training step was conducted using Levenberg–Marquartd method (trainlm) which is suitable for small and medium-size networks.³²

f (x) = x, −∞< f (x) < + ∞

(6)

f (x) = \frac{e^{x} - e^{- x}}{e^{x} + e^{- x}}, − 1 ≤ f (x) ≤ 1

(7)

MSE = \sum_{i=1}^{N} \frac{{(t_{i} - a_{i})}^{2}}{N}

(8)

where N is the number of measured data, and t_i and a_i are predicted target and the outputs, respectively.

Sensitivity analysis was performed using multi-layer perceptron (MLP) nonlinear neural network regression model and linear regression analysis using an enter method to identify the relative importance of each operating parameter (contact time, nano-bimetallic Fe/Cu dosage, pH, stirring rate, and concentration) on the removal efficiency of the studied parameters (COD, BOD, color, TN, TP, and TSS).

Results and discussion

Characterization of bimetallic Fe/Cu

Figure 3(a) shows the XRD pattern of Fe/Cu nanoparticles with an angle (2θ) from 5° to 70°. The XRD pattern shows three peaks at (2θ) equal 43.3, 44.7°, and 50.8° for planes Cu (111), Fe (101), and Cu (200), respectively. A sharp peak at 2θ = 44.7° indicated a dominance of zero-valent iron (Fe⁰) in the prepared bimetallic Fe/Cu sample. Similar findings were previously observed in studies by Khosravi and Arabi⁴⁰ and Hamdy et al.¹ Figure 3(c) shows an EDX analysis of the prepared Fe/Cu NPs which indicates that the weight percent of all bimetallic Fe/Cu components. The EDX results showed the presence of C, O, Fe, and Cu elements with weight percents of 19, 10, 66, and 5%, respectively. The C signals may be due to the C-containing compounds shaped during the washing the prepared Fe/Cu nanoparticles with ethanol.⁴¹ The O signals could be attributed to the formation of oxide(s) in the outer layer of nanoparticles. This formation normally occurs due to the reaction of nanomaterials with water or air during inspection and observation.^28,41 Figure 3(c) and (d) shows an SEM image of the synthesized bimetallic Fe/Cu NPs samples and the results indicated that there is an irregular surface structure with particle size ranging between 20 to 30 nm. The SEM image showed that the prepared nanoparticles contain many pores that allows easier mass transfer and diffusion of molecules to the inner of the nanomaterial.^1,42 The SEM image also showed that some nanoparticles agglomerated together to form larger nanoclusters. This likely occurs since the Fe/Cu nanoparticles are prepared by mixing freshly prepared nZVI, which is already agglomerated, with copper sulfate solution, as mentioned in the Preparation of bimetallic Fe/Cu nanoparticles section. The interconnection of iron nanoparticles with one another is mainly attributed to the static magnetism and the surface tension.^28,43,44 Shih et al.⁴² and Hamdy et al.¹ have also observed similar chain-like aggregates while preparing iron nanoparticles.

Figure 3.

Characterization of the nZVI: (a) XRD; (b) EDAX; (c) SEM 1 μm; (d) SEM 500 nm.

Primary Treatment Processes

The textile effluent cannot be treated directly using any adsorption process due to the high amount of organic compounds loaded in the effluent. The average results of COD, BOD, color, TN, TP, and TSS in the textile effluent were 2120, 980, 486, 54, 3.3, and 1120 mg/L, respectively. The effect of different coagulants (ferric chloride (FeCl₃), ferric sulfate (Fe₂(SO₄)₃), aluminum sulfate (Al₂(SO₄)₃), and aluminum chloride (AlCl₃)) were tested using the same operating conditions 0.5 g dose, 100 r/min for 2 min, 50 r/min for 8 min, natural pH value 10.89, and a settling time of 10 min. As shown in Table 2, the highest removal efficiencies for all studied parameters were obtained using FeCl₃. Further treatment was achieved by passing through a sand filter with a particle size ranges from 0.6 to 1.2 mm. The final concentration of COD, BOD, color, TN, TP, and TSS was 581, 225, 262, 34, 1.86, 227 mg/L after FeCl₃ and sand filter treatment.

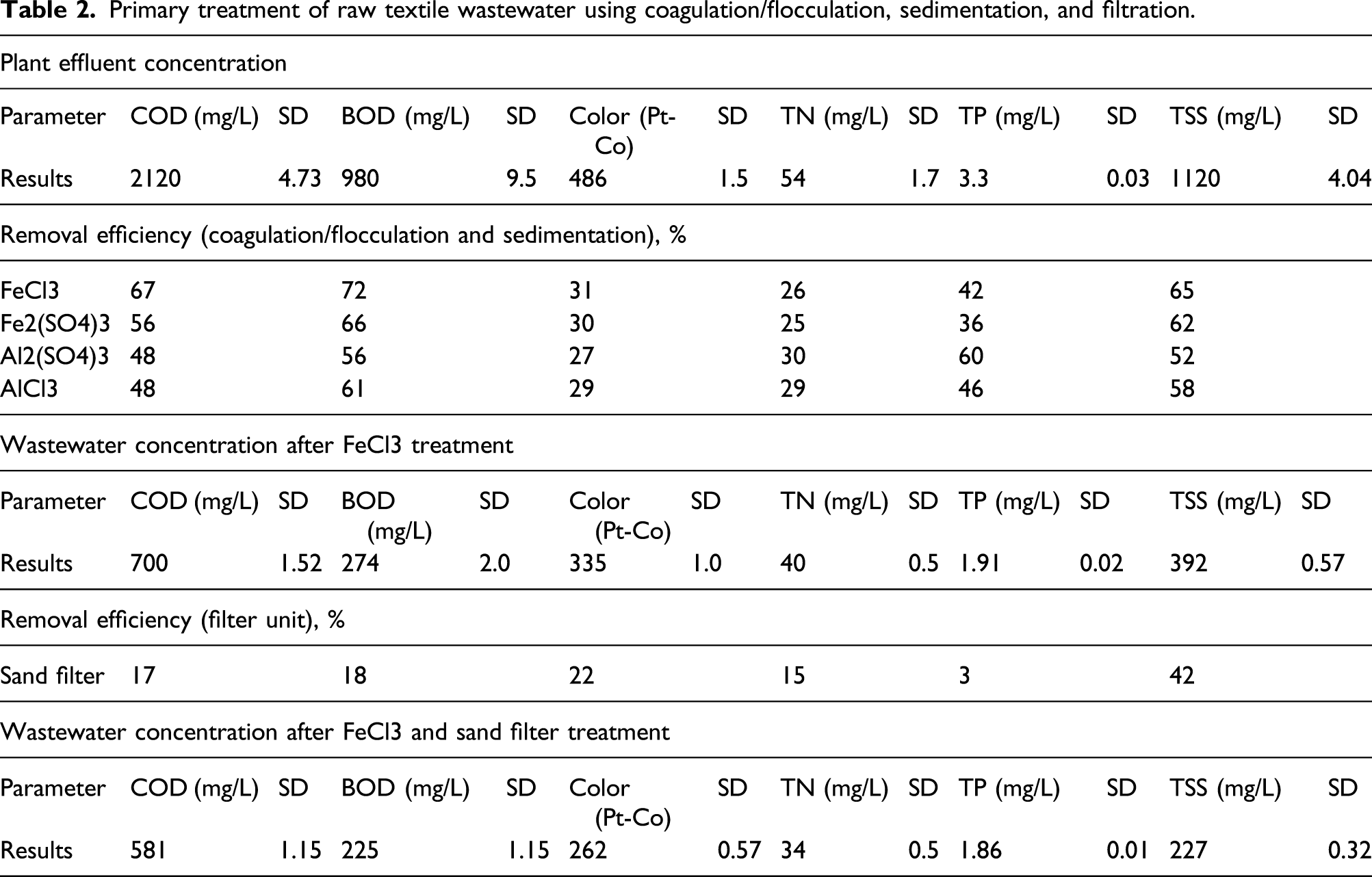

Table 2.

Primary treatment of raw textile wastewater using coagulation/flocculation, sedimentation, and filtration.

Plant effluent concentration
Parameter	COD (mg/L)	SD	BOD (mg/L)		SD	Color (Pt-Co)		SD	TN (mg/L)	SD	TP (mg/L)		SD	TSS (mg/L)		SD
Results	2120	4.73	980		9.5	486		1.5	54	1.7	3.3		0.03	1120		4.04
Removal efficiency (coagulation/flocculation and sedimentation), %
FeCl3	67		72			31			26		42			65
Fe2(SO4)3	56		66			30			25		36			62
Al2(SO4)3	48		56			27			30		60			52
AlCl3	48		61			29			29		46			58
Wastewater concentration after FeCl3 treatment
Parameter	COD (mg/L)	SD	BOD (mg/L)	SD		Color (Pt-Co)	SD		TN (mg/L)	SD	TP (mg/L)	SD		TSS (mg/L)	SD
Results	700	1.52	274	2.0		335	1.0		40	0.5	1.91	0.02		392	0.57
Removal efficiency (filter unit), %
Sand filter	17		18			22			15		3			42
Wastewater concentration after FeCl3 and sand filter treatment
Parameter	COD (mg/L)	SD	BOD (mg/L)		SD	Color (Pt-Co)		SD	TN (mg/L)	SD	TP (mg/L)		SD	TSS (mg/L)		SD
Results	581	1.15	225		1.15	262		0.57	34	0.5	1.86		0.01	227		0.32

Effects of operating parameters for the adsorption/filtration processes

Effect of pH

The effect of pH was studied in acidic, neutral and alkaline media at various pH values ranging from 2 to 10. The results indicated that the effect of pH is a significant parameter that affects the removal percentages as shown in Figure 4(a), where the maximum removal percentages were 87%, 91%, 66%, 50%, and 84% at pH 6 for COD, BOD, color, TN, and TSS removals, respectively. On the other hand, the phosphorus removal percentages gradually decreased with increasing pH values and the maximum removal percentages were 93% at pH 2 and reached 79% at pH 6.0. At acidic pH, considerable amounts of free electrons were exhausted to neutralize H⁺ in the acidic solution leading to a decrease in the degradation process of organic matter from textile effluent and the physical adsorption process takes place.³⁹ Also, significant amounts of bimetallic Fe/Cu doses were dissolved by the acid leading to a decrease in the vacant sites of sorbent material except for the case of phosphorous. The effect of the aeration process and the acid effect may transfer a significant amount of insoluble organic phosphorous into inorganic phosphate which may be suitable to chemisorbed phosphorus at nano-bimetallic surfaces. At pH 6 to 7, the nano-bimetallic Fe/Cu reaches the point of zero charges which is the most suitable case for the degradation process.²⁴ In alkaline media for pH greater than 7.0, the steric hindrance of negative OH⁻ decreases the effect of free electrons for organic degradation, decreases chemisorption of charged negative molecules, and decreases the ability of the physical adsorption processes. Several studies have been conducted with textile wastewater treatment, and the results obtained indicated the effective pH was ∼ 6.0.³³

Figure 4.

Effects of experimental factors on the removal of efficiency of COD, BOD, color, TN, TP, and TSS by Fe/Cu nanoparticles: (a) pH; (b) Fe/Cu nanoparticles dosage; (c) Contact time; and (d) stirring rate.

Effect of Fe/Cu nanoparticles dosage

Figure 4(b) shows the effects of Fe/Cu nanoparticles dose (0.2–3 g/L) at an initial pH of 6.0, room temperature 30°C, contact time of 80 min, and stirring rate of 250 r/min on the removal efficiency of all tested parameters. The removal efficiencies for all tested parameters were enhanced with an increase in the Fe/Cu nanoparticles dosage. For instance, when the dosage of Fe/Cu nanoparticles was increased from 0.2 g/L to 1.4 g/L, the removal efficiency increased from 61% to 87% for COD, from 70% to 91% for BOD, from 46% to 66% for color, from 38% to 50% for TN, from 56% to 79% for TP, and from 76% to 84% for TSS. This is mainly due to the increase in the number of vacant sites with increasing Fe/Cu nanoparticles dosage,⁴⁵ thereby entrapping significant amounts of molecular contaminants. However, less improvement in the removal efficiency was noticed with an increase in the Fe/Cu nanoparticles dosage greater than 1.4 g/L. This is could be due to the surplus of Fe/Cu nanoparticles dosage which may cause overlapping of the pore structure of the adsorbent, decreasing the interparticle distances, and shielding the binding sites from pollutants due to the increased boundary layer screening effect.⁴⁶

Effect of contact time

The effect of contact time was studied at different times: 20, 40, 60, 80, 100, 120, 140, 160, and 180 min, as shown in Figure 4(c). The effect of equilibrated time is an important factor to describe the reaction mechanism between sorbed and adsorbed molecules. The results obtained indicated that the minimum effective time for the best removal efficiency was approximately 80 min. Mahvi et al.⁴⁷ studied textile wastewater treatment by using titanium dioxide (TiO₂) nanoparticles, and the effective time for the decolourization process was 125 min using color concentrations ranging from 25 to 150 mg/L at pH 6.8 and TiO₂ dosage of 0.4 g/L; the removal percentages were nearly 100% and 40%, respectively. Also, the effect of contact time for COD removal was studied at the same research and the maximum decrease in COD concentration was at 250 min.⁴⁷ Soltani et al.⁴⁸ studied textile effluent treatment employing bentonite supported ZnO nanoparticles and the COD results were ∼ 44% which occurred for an initial COD concentration of 2880 mg/L at alkaline pH (9.0) using 2.0 g of sonocatalyst dose and a contact time of 150 min Afkhami and Moosavi⁴⁹ studied the removal of carcinogenic Congo red dye from textile wastewater using maghemite nanoparticles; the maximum adsorption capacity was 208 mg/g at pH 5.9 for a contact time of 30 min The relation between time (min) and equilibrated removal was directly added, shown in Table 3.

Table 3.

Effect of contact time on maximum uptake behavior for textile wastewater treatment using Bi Fe/Cu NPs.

Time	Q_t (mg/g)
Time	COD	BOD	Color	TN	TP	TSS
20	303.014	133.392	112.286	10.443	1.023	126.471
40	336.195	138.213	116.029	11.414	1.036	131.336
60	352.786	143.035	119.771	11.900	1.050	134.579
80	361.081	146.249	123.514	12.143	1.050	136.200
100	361.081	147.857	125.386	12.143	1.063	137.821
120	365.228	147.857	125.386	12.143	1.063	139.443
140	365.228	149.464	127.257	12.386	1.076	139.443
160	369.376	149.464	129.129	12.386	1.089	141.064
180	373.524	149.464	129.129	12.143	1.089	142.686

Effect of stirring rate

Figure 4(d) displays the effects of stirring rate in the range of 50–300 r/min at an initial pH of 6.0, room temperature 30°C, Fe/Cu nanoparticles dose of 1.4 g/L, and contact time of 80 min on the removal efficiency of all the studied parameters. The optimum removal efficiencies for all tested parameters were recorded at a stirring rate of 250 r/min: 87% for COD, 91% for BOD, 66% for color, 50% for TN, 79% for TP, and 84% for TSS. Increasing the stirring rate to 250 r/min increased the chance of dye molecules to come in contact with Fe/Cu nanoparticles and thus improved the liquid−solid mass transfer.

Effect of initial concentration

The effect of initial concentration was studied by diluting a fresh textile sample as mentioned in Table 1. The results indicated that the removal efficiency decreased with increasing concentrations. It can also affect the maximum capacity of the sorbent material. The effect of initial concentrations on the maximum uptake removal was directly added, shown in Table 4.

Table 4.

Effect of initial concentration on maximum uptake behavior for textile wastewater treatment using Bi Fe/Cu NPs.

COD		BOD		Color		TN		TP		TSS
Conc. mg/L	Q _e (mg/g)	Conc. mg/L	Q _e (mg/g)	Conc. mg/L	Q _e (mg/g)	Conc. mg/L	Q _e (mg/g)	Conc. mg/L	Q _e (mg/g)	Conc. mg/L	Q _e (mg/g)
100	71.35	40	28.56	45	25.71	6	2.85	0.3	0.214	40	27.85
200	138.57	80	57.071	90	50	12	5.71	0.6	0.427	80	54.28
300	203.57	120	85	135	72.14	18	7.85	0.9	0.607	120	78.57
400	265.71	160	110.71	180	92.85	24	10	1.2	0.764	160	101.42
500	321.42	200	132.85	225	110.71	30	11.42	1.5	0.907	200	124.28
581	361.42	225	146.42	262	123.57	34	12.14	1.86	1.05	227	136.42

The efficiency of the system

Figure 5 summarizes the removal efficiency of the studied parameters after each treatment process. The removal efficiencies for COD, BOD, color, TN, TP, and TSS reached 73, 77, 46, 37, 44, and 80%, respectively, after using 0.5 g/L ferric chloride as a coagulant, followed by sand filtration. The total removal efficiency of the system after the adsorption unit followed by sand filter was 96, 98, 82, 69, 88, and 97%, respectively, with optimum adsorption conditions of pH 6, nanodosage 1.4 g/L, contact time 80 min, stirring rate 250 r/min at room temperature.

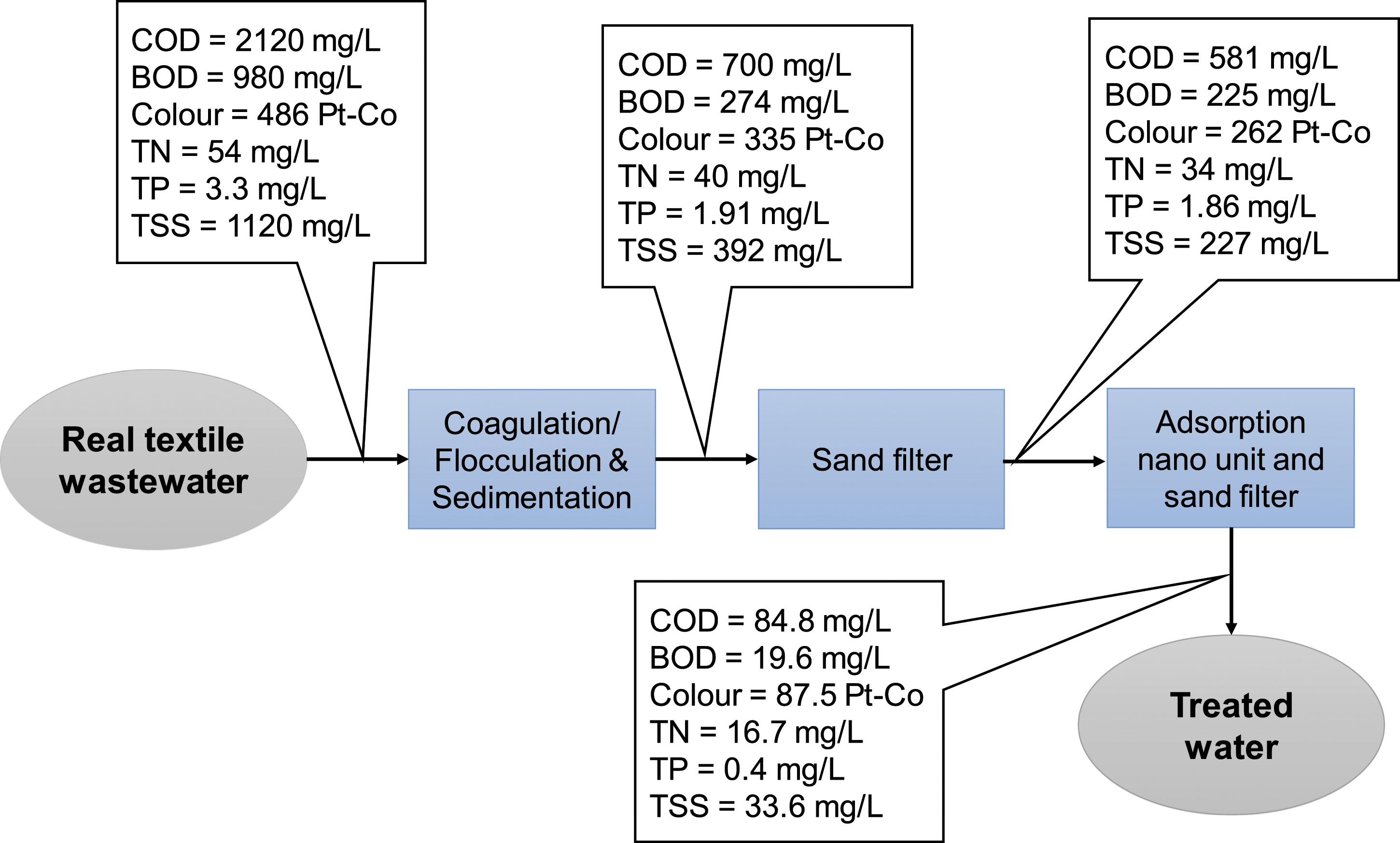

Figure 5.

The removal efficiency of the studied parameters after each treatment process.

Adsorption isotherm studies

Table 5 describes the adsorption mechanism of COD, BOD, Color, TN, TP, and TSS onto bimetallic Fe/Cu NPs. The results obtained indicated that the adsorption of COD and TP onto nano-bimetallic Fe/Cu dose according to both Koble–Corrigan and Freundlich adsorption isotherm mechanism. The Koble–Corrigan model combines homogeneous and heterogeneous adsorption mechanisms for pure compounds.⁵⁰ The Freundlich model describes a multi-layer adsorption process depending on binding energy between COD and TP and nano-bimetallic Fe/Cu sites; the removal efficiency decreased gradually until reaching zero by an energy decrease.⁵¹ The adsorption mechanism of BOD is best described by the Sips model which describes the Freundlich model at low concentration and applies the monolayer prediction model at high concentration.

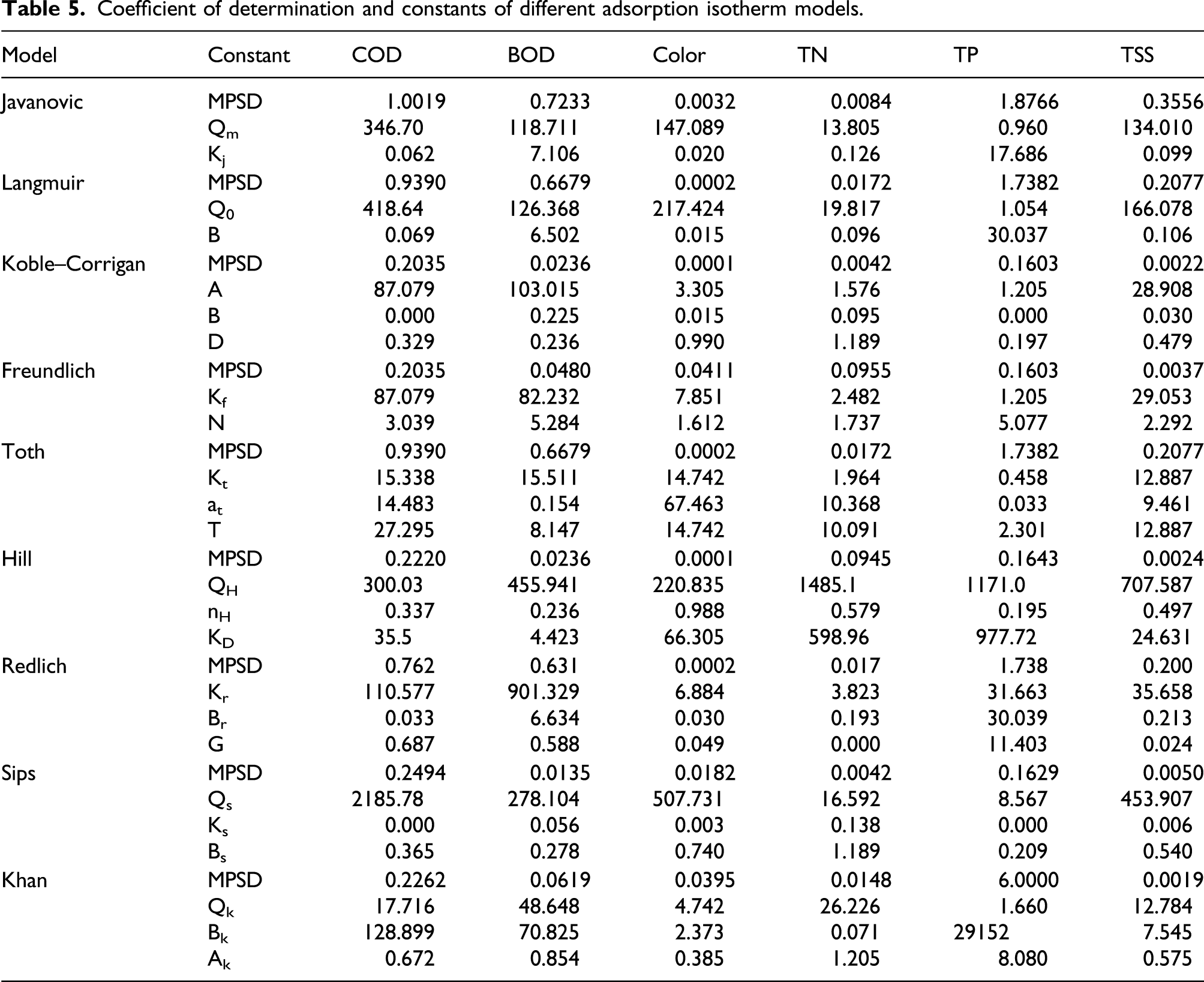

Table 5.

Coefficient of determination and constants of different adsorption isotherm models.

Model	Constant	COD	BOD	Color	TN	TP	TSS
Javanovic	MPSD	1.0019	0.7233	0.0032	0.0084	1.8766	0.3556
	Q_m	346.70	118.711	147.089	13.805	0.960	134.010
	K_j	0.062	7.106	0.020	0.126	17.686	0.099
Langmuir	MPSD	0.9390	0.6679	0.0002	0.0172	1.7382	0.2077
	Q₀	418.64	126.368	217.424	19.817	1.054	166.078
	B	0.069	6.502	0.015	0.096	30.037	0.106
Koble–Corrigan	MPSD	0.2035	0.0236	0.0001	0.0042	0.1603	0.0022
	A	87.079	103.015	3.305	1.576	1.205	28.908
	B	0.000	0.225	0.015	0.095	0.000	0.030
	D	0.329	0.236	0.990	1.189	0.197	0.479
Freundlich	MPSD	0.2035	0.0480	0.0411	0.0955	0.1603	0.0037
	K_f	87.079	82.232	7.851	2.482	1.205	29.053
	N	3.039	5.284	1.612	1.737	5.077	2.292
Toth	MPSD	0.9390	0.6679	0.0002	0.0172	1.7382	0.2077
	K_t	15.338	15.511	14.742	1.964	0.458	12.887
	a_t	14.483	0.154	67.463	10.368	0.033	9.461
	T	27.295	8.147	14.742	10.091	2.301	12.887
Hill	MPSD	0.2220	0.0236	0.0001	0.0945	0.1643	0.0024
	Q_H	300.03	455.941	220.835	1485.1	1171.0	707.587
	n_H	0.337	0.236	0.988	0.579	0.195	0.497
	K_D	35.5	4.423	66.305	598.96	977.72	24.631
Redlich	MPSD	0.762	0.631	0.0002	0.017	1.738	0.200
	K_r	110.577	901.329	6.884	3.823	31.663	35.658
	B_r	0.033	6.634	0.030	0.193	30.039	0.213
	G	0.687	0.588	0.049	0.000	11.403	0.024
Sips	MPSD	0.2494	0.0135	0.0182	0.0042	0.1629	0.0050
	Q_s	2185.78	278.104	507.731	16.592	8.567	453.907
	K_s	0.000	0.056	0.003	0.138	0.000	0.006
	B_s	0.365	0.278	0.740	1.189	0.209	0.540
Khan	MPSD	0.2262	0.0619	0.0395	0.0148	6.0000	0.0019
	Q_k	17.716	48.648	4.742	26.226	1.660	12.784
	B_k	128.899	70.825	2.373	0.071	29152	7.545
	A_k	0.672	0.854	0.385	1.205	8.080	0.575

The color adsorption can be adequately described by the Koble–Corrigan and Hill models. Hill models assume formation of macromolecules in the bimetallic Fe/Cu NPs sites, so the adsorption mechanism act as cooperative phenomenon between color and bimetallic Fe/Cu NPs. The TN adsorption onto bimetallic Fe/Cu NPs obeys both the Koble–Corrigan and Sips models. Finally, the adsorption mechanism for TSS removal efficiency obeys the Khan model which can describe the maximum TSS uptakes onto Fe/Cu NPs.⁵² Khan results indicated that the maximum uptake was 12.78 mg TSS/g Fe/Cu NPs which means there is another effective method that can affect the TSS removal efficiency, involving the degradation process.⁵³

Kinetic studies

Table 6 describes the kinetic analysis of using bimetallic Fe/Cu NPs to remove COD, BOD, TN, TP, and TSS contaminants from textile effluent. The results obtained indicated that COD, BOD, TN, and TSS were adequately described by Avrami Kinetic models with the lowest MPSD Error 0.0001, 0.0002, 0.0001, and 0.00003, respectively, for the above parameters. Avrami⁵⁴ kinetic model describes the chemical reaction rates between sorbed and adsorbed molecules and assumes one-dimensional growth occurs by solid transformation from one phase to another. The kinetics of color removal using bimetallic Fe/Cu NPs can be described by a pseudo-second-order model with the minimum MPSD error of 0.00019. The pseudo-second-order model describes a chemical reaction (chemisorption) between nanoadsorbent and adsorbed molecules.⁵⁵ Finally, the adsorption of TP onto bimetallic Fe/Cu NPs can be adequately described by the intraparticle kinetic model. The intraparticle model assumes transport of soluble and insoluble phosphorus compounds from the liquid phase to the solid bimetallic Fe/Cu NPs phase.⁵⁶

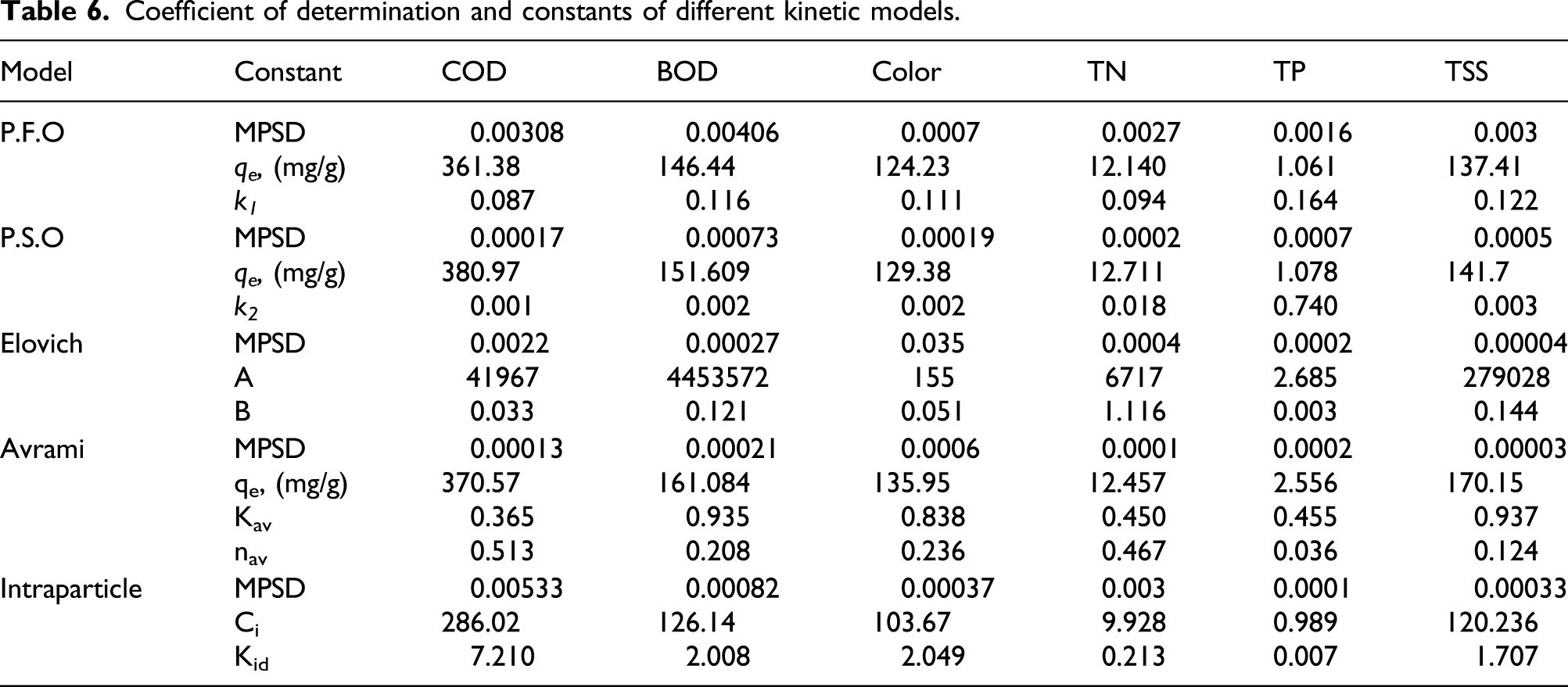

Table 6.

Coefficient of determination and constants of different kinetic models.

Model	Constant	COD	BOD	Color	TN	TP	TSS
P.F.O	MPSD	0.00308	0.00406	0.0007	0.0027	0.0016	0.003
	q_e, (mg/g)	361.38	146.44	124.23	12.140	1.061	137.41
	k ₁	0.087	0.116	0.111	0.094	0.164	0.122
P.S.O	MPSD	0.00017	0.00073	0.00019	0.0002	0.0007	0.0005
	q_e, (mg/g)	380.97	151.609	129.38	12.711	1.078	141.7
	k ₂	0.001	0.002	0.002	0.018	0.740	0.003
Elovich	MPSD	0.0022	0.00027	0.035	0.0004	0.0002	0.00004
	Α	41967	4453572	155	6717	2.685	279028
	B	0.033	0.121	0.051	1.116	0.003	0.144
Avrami	MPSD	0.00013	0.00021	0.0006	0.0001	0.0002	0.00003
	q_e, (mg/g)	370.57	161.084	135.95	12.457	2.556	170.15
	K_av	0.365	0.935	0.838	0.450	0.455	0.937
	n_av	0.513	0.208	0.236	0.467	0.036	0.124
Intraparticle	MPSD	0.00533	0.00082	0.00037	0.003	0.0001	0.00033
	C_i	286.02	126.14	103.67	9.928	0.989	120.236
	K_id	7.210	2.008	2.049	0.213	0.007	1.707

Real textile wastewater treatment by various adsorbents

Table 7 summarizes the removal efficiencies of COD and color by bimetallic Fe/Cu NPs in this study compared to some adsorbents (synthesis and natural) reported in the literature. Bimetallic Fe/Cu NPs exhibited a higher COD removal efficiency than all adsorbents listed in Table 7. In addition, the bimetallic Fe/Cu NPs achieved enhanced removal efficiency at a lower contact time compared to bamboo-based activated carbon. However, the color removal was the least when compared with the other listed adsorbents. This is may be due to the variation in the experimental conditions (e.g., textile concentration, contact time, pH, stirring rate, and adsorbent dosage).

Table 7.

Treatment of real textile wastewater using various adsorbents.

Adsorbent	Experimental factor					COD removal efficiency	Color removal efficiency	References
Adsorbent	pH	Adsorbent dosage	Temp. (^oC)	Stirring rate, rpm	Contact time	COD removal efficiency	Color removal efficiency	References
Nanoscale zero-valent iron	6	10 g/L	30	150	30 min	76.3%	66.2%	Hamdy et al., 2018
GT-ZVI nanoparticles (Green tea leaves)	3	Precursor/Extract volume ratio: 2/1	NA	NA	60 min	NA	74%	Yücesoy-Özkan et al., 2018
R-ZVI nanoparticles (Rose leaves)	3	Precursor/Extract volume ratio: 2/1	NA	NA	60 min	NA	78%	Yücesoy-Özkan et al., 2018
Graphene oxide (GO)	6	1 mL GO/30 mL raw wastewater	28±3	300	60 min	60%	76%	de Araújo et al., 2020
Bamboo-based activated carbon	3	0.30 g/100 mL wastewater	30	NA	25 h	75.21%	91.84%	Ahmad and Hameed, 2009
Sawdust	10	4 g/L	NA	400	60 min	78%	NA	Karadagi and Hiremath, 2016
Nano-bimetallic Fe/Cu	6	1.4 g/L	30	250	80 min	87%	66%	This study

NA: Not available.

Artificial intelligence

Adjusted weights and biases

A weight matrix (W_10×5) was generated as a result of the connection between each hidden layer neuron and each component of the input vector (P_5×1). A net input (u_10×1 = ΣW_10×5.P_5×1 + b_10×1) was generated by adding the sum of the weighted inputs (ΣW_10×5.P_5×1) to a 10-length bias (b_10×1). A “tansig” function was then used to transfer the calculated net input to the output layer. A weight matrix (W_1×10) was generated as a result of the connection between the output layer single neuron and each hidden layer neuron (P_10×1). A net input (u_1×1= ΣW_1×10.P_10×1 + b_1×1) was produced by adding the weighted inputs (ΣW_1×10.P_10×1) to 1-length bias (b_1×1). This net input is then transferred using a “purlin” function to the output layer.

Training and validation performance

The magnitudes of the performance gradient for all tested parameters (COD, BOD, color, TN, TP, and TSS) ranged from 0.238 to 5.25, as shown in Figure 6. Since these values exceeded the least error level of 1 x 10^{– 5}, the training process was terminated after 6 epochs. Figure 7 shows the mean square error (MSE) value at each iteration number. For all the tested parameters, the MSE for the training phase decreased with the increase in the number of epochs until reaching the lowest magnitude at epoch 6. This performance is common and does not pose a problem in the training phase. After epoch 0, the MSE for the validation step gradually increased, demonstrating that the created ANN model is overfitting the data. The same behavior was shared between the validation and test curves, where they increased in similarly with the number of epochs. The best validation performance was 0.404, 0.105, 0.174, 0.249, 0.211, and 0.212 at epoch 0 for COD, BOD, color, TN, TP, and TSS, respectively.

Figure 6.

Training performance: (a) COD; (b) BOD; (c) color; (d) TN; (e) TP; (f) TSS.

Figure 7.

Best validation performance: (a) COD; (b) BOD; (c) color; (d) TN; (e) TP; (f) TSS.

Regression plot

The coefficient of determination (r²-value) between the outputs and the targets of the generated network is presented in Figure 8. The solid line denotes the line of best fit, while the dashed line represents the line of perfect results. For all tested parameters, a good fit was obtained between the output and the target data for training, validation and test stages with r²-values ranged from 0.981 to 0.998 for the training step, 0.971 to 0.999 for the validation step, and 0.994 to 0.998 for the test step. The overall r²-value for all tested parameters ranged from 0.983 to 0.997, indicating the model’s accuracy and reliability. This indicates that more than 98% of the variations in the removal efficiency of the tested parameters (COD, BOD, color, TN, TP, and TSS) were explained by the tested environmental factors (pH, contact time, bimetallic Fe/Cu dosage, stirring rate, and concentration). Consequently, the developed ANN was able to accurately estimate the removal efficiency for the six tested parameters in the tested range of the five environmental factors.

Figure 8.

Regression plot between target and output: (a) COD; (b) BOD; (c) color; (d) TN; (e) TP; (f) TSS.

Sensitivity analysis

The relative and normalized importance of ANN operating parameters (contact time, nano-bimetallic Fe/Cu dosage, pH, stirring rate, and concentration) on the removal efficiency of the studied parameters (COD, BOD, color, TN, TP, and TSS) is shown in Figure 9. All the operating parameters had strong effects on the removal efficiency of the studied parameters. However, the bimetallic Fe/Cu dosage exhibited the most important factor among the operating parameter with a relative index greater than 40%, except with TSS removal, where the initial concentration was the most dominant factor followed by the bimetallic Fe/Cu dosage. Therefore, none of the studied operating parameters could be excluded from this study. These findings indicated that the developed network could express the performance of the adsorption process within the range of the operating environmental conditions.

Figure 9.

Sensitivity analysis of the relative and normalized importance of ANN operating parameters on the removal efficiency of the studied parameters.

Continuous-feed and scaling-up studies for textile wastewater treatment

A scaling-up design was performed for the proposed treatment system intended as a continuous-feed operation for a daily flow rate of about 1,000 m³.⁵⁷ The required volume in the cubic meter for each tank was calculated using equation (9).

V = Q X t / W H / 24

(9)

where Q is the daily flow rate (m³/day), t is the retention time (day) (i.e., coagulation/flocculation time = 10 min, sedimentation time = 10 min, and adsorption time = 80 min), and WH is the working hours per day (hours) (i.e., 12 h/day)

Figure 10 shows a flow chart of the proposed treatment system. The proposed treatment system after scaling up comprises: (1) an equalization tank (1,000 m³) for textile wastewater storage, (2) coagulation/flocculation tank (10.0 m³) designed for a hydraulic retention time of 2 min and stirring rate of 100 r/min for the coagulation process and a hydraulic retention time of 10 min and a stirring rate of 50 r/min for the flocculation process, (3) sedimentation tank (10.0 m³) to allow flocs to settle out of the wastewater, (4) sand filter to remove suspended matter and any floating particles, (5) adsorption tank (85.0 m³) which has been designed based on the optimum contact time obtained from the prototype experiments of approximately 80 min, and (6) a sand filter to separate the treated water from the loaded nanoadsorbent.

Figure 10.

Flow chart of the proposed treatment system with the inputs and the outputs.

Reusing treated wastewater in irrigation

Since the treated wastewater is planned to be reused for the irrigation of forest trees, its quality must achieve the Egyptian regulatory limits listed in Ministerial Resolution No. 44 for the year 2000: COD, BOD, and TSS concentrations must not exceed 80, 40, and 40 mg/L, respectively. Based on the prototype experiments, COD, BOD, and TSS concentrations at the effluent could reach 75, 20.3, and 36.4 mg/L, respectively, at the following optimum environmental conditions: an initial pH of 6, room temperature 30°C, contact time of 80 min, stirring rate of 250 r/min, and Fe/Cu nanoparticles dosage of 1.4 g/L. Since the concentrations of these pollutants did not exceed the Egyptian regulatory limits, the treated effluent from the proposed pilot prototype system is safe for reuse for irrigation of forest trees.

Cost analysis of the proposed system

A detailed economic analysis was conducted for the proposed system for the scale up system. The annual capital expenditures (CAPEX) and operating expenses (OPEX) for each unit were estimated based on optimum environmental conditions obtained from the prototype experiments. The annual benefits expected from the construction of the system were also calculated based on the assumption that the treated wastewater will be used for irrigation purposes.

Annual capital expenditures

The annual capital expenditure represents the annual interest outflows of CAPEX over the lifetime of each treatment unit in the proposed system. It is calculated by dividing the CAPEX by the annuity factor (AF). The CAPEX for each unit was obtained from local suppliers based on the design volume of the tanks that can be obtained from the previous section. The AF depends on the expected lifetime of the treatment unit and the annual interest rate. The annual capital expenditure was computed using equation (10)

Annual capital expenditure ($/year) = CAPEX / AF

(10)

where CAPEX is the total expenditure ($), AF is the annuity factor =

\frac{1 - {(1 + r)}^{- n}}{r}

, n is the lifetime (i.e., 20 years), and r is the annual interest rate (assumed to be 6%)

Operating expenses (OPEX)

The OPEX was calculated based on four main parameters: (1) coagulant and adsorbent materials (FeCl₃ and bimetallic Fe/Cu NPs), (2) energy need to operate the system, (3) maintenance costs, and (4) labor cost.⁵⁸ The cost of the chemicals was calculated using equation (11)

RC = C x P

(11)

where RC is chemical cost per cubic meter of treated wastewater ($/m³)

C is chemical dosage (g/m³) (i.e., coagulation: 500 g FeCl₃ per m³ and adsorption: 1,400 g bimetallic Fe/Cu NPs per m³)

P are the expenses per gram of chemical ($/g) (i.e., FeCl₃: US$0.3/kg and bimetallic Fe/Cu NPs: US$4.35/kg)

The energy cost was calculated using equation (12)

EC = \frac{E X t_{W}}{Q}

(12)

where EC is the energy cost per m³ of wastewater ($/m³)

E is the electricity cost per kilowatt-hour (kWh) ($/h) (i.e., US$0.1/kWh)

For the whole system, labor costs were calculated assuming 2 workers will be hired each of them working 60 h/week, and 4 weeks/month, with a salary of US$6/hour in Egypt. The maintenance cost (MC) was assumed as 2% of the CAPEX.²⁸

Total cost

The total cost was calculated by summing annual capital expenditure and OPEX (Table 8). The annual capital expenditure was estimated to be US$0.0208/m³. The EC was computed as US$0.00054/m³ using an electricity pricing of US$0.10/kWh. The RC cost for coagulant and adsorbent materials is about US$0.15/m³ and US$6.1/m³, respectively. The labor cost was computed as US$0.1/m³, while the maintenance cost for the whole system was estimated as US$0.0037/m³. The total OPEX was calculated as US$6.35/m³, resulting in TC of US$6.37/m³. The benefits expected from the construction of the system in case of reusing the treated water in irrigation purposes is about US$1.82/m³, which will decrease the TC to US$4.5/m³. In a comparable study, Yin et al.⁵⁹ found that the TC of treating textile wastewater using a combination of electrocoagulation and ozonation processes was US$5.8/m³. Seneviratne⁶⁰ also found that the TC of treating textile wastewater using combination of coagulation and UV/H₂O₂ processes was US$4.8/m³. It is also worth noting that the TC can be significantly decreased by regenerating the adsorbent nanomaterial. Hamdy et al.²⁸ have succeeded to reuse the iron nanoparticles for three cycles without losing their reactivity.

Table 8.

CAPEX and OPEX of the proposed treatment system.

Cost item	Total cost, $	Annual, $/year	$ Per m³ wastewater
CAPEX
Equalization tank	22,400	1955	0.005
Coagulation/flocculation	14,500	1270	0.0035
Sedimentation	14,500	1270	0.0035
Sand filters	16,000	1394	0.0038
Adsorption tank	22,400	1955	0.005
OPEX
Energy		197	0.00054
Labor		34,909	0.1
Chemicals:Coagulation: FeCl₃Adsorption: bimetallic Fe/Cu NPs		55,3032,219,500	0.156.1
Maintenance		1352	0.0037
Benefits cost
Reusing the treated water in irrigation		(663,636)	(1.82)
Total			4.5

20 years-life-time and 6% interest.

Environmental considerations for disposal of loaded adsorbent

Safe disposal of loaded adsorbent is one of the most important issues facing industrial wastewater treatment using the adsorption technique. Nowadays, landfilling is the most widely used practice for textile sludge management and disposal.⁵⁹ Recent research has been published that addressed the reuse of incinerated textile sludge in the manufacture of some building materials, such as tiles, bricks, and ceramics.^61–63 In other studies, textile and paint wastewater were used safely in the manufacture of the tiles and bricks,^64,65 which may support the use of textile sludge after incineration in the building materials industry. However, sludge management and disposal must be carried out under strict conditions to ensure the safe processing of sludge and to avoid air pollution and the release of ashes containing hazardous volatiles and heavy metals. Hence, the safe management of textile sludge is still under examination.

Conclusions

This study investigated the efficiency of a pilot prototype system comprising coagulation/flocculation, filtration and nano-bimetallic iron/copper (Fe/Cu) degradation and adsorption units in the treatment of real textile wastewater. The removal efficiencies reached 73, 77, 46, 37, 44, and 80%, respectively, after using 0.5 g/L ferric chloride as a coagulant, followed by sand filtration. This study also demonstrated that using Fe/Cu nanoparticles is effective in treating real textile wastewater. The results of the prototype system showed that the optimum environmental condition for the reduction of COD, BOD, color, TN, TP, and TSS from real textile wastewater was contact time = 80 min, pH = 6, stirring rate = 250 r/min, and Fe/Cu nanoparticles dose = 1.4 g/L at room temperature. At the optimum condition, the achieved removal efficiency after passing through all the units of the system was 96, 98, 82, 69, 88, and 97%, respectively. Isotherm studies showed that not all tested parameters obey one single isotherm model. The Avrami kinetic model adequately describes the adsorption data for COD, BOD, TN, and TSS, while the pseudo-second-order and intraparticle kinetic models describe the removal mechanism of color and TP, respectively. Under the tested experimental conditions, the developed ANN model with a structure of 5–10–1 was able to accurately predict the removal efficiency of the tested parameters with r² value ranged from 0.983 to 0.997. Sensitivity analysis showed that the operating parameters (i.e., contact time, nano-bimetallic Fe/Cu dosage, pH, stirring rate, and concentration) had considerable effects on the removal efficiency of the studied parameters. However, the initial concentration was the most influential factor for TSS removal with relative importance of greater than 25%, while the bimetallic Fe/Cu dosage was the most influential factor for all other studied parameters, achieving a relative importance of greater than 40%. The optimum conditions obtained from the prototype experiments were used to design the proposed system at a larger scale to treat about 1,000 m³ of real textile wastewater daily. The total treatment cost (including annual CAPEX and OPEX) per cubic meter of the proposed system was US$4.5 for the reuse of treated textile wastewater for the irrigation of forest trees. The present study indicated that the proposed novel multistage treatment system (coagulation followed by adsorption using Fe/Cu nanoparticles) can efficiently treat real textile wastewater at a reasonable price. The study also indicated that the designed ANN model is reliable and can be used to optimize the removal efficiencies of COD, BOD, color, TN, TP, and TSS from textile wastewater by Fe/Cu nanoparticles under various environmental conditions.

Future perspectives

Although the proposed multistage treatment system proved to be effective in treating textile wastewater, two main improvement can be applied on the system to increase its applicability. First improvement involves replacing the chemically prepared Fe/Cu nanoparticles by green synthesized nanomaterials in order to reduce the treatment cost. For example, Abdel-Aziz et al.⁶⁶ have synthesized Ficus Benjamina zero-valent Fe/Cu nanoparticles and used it for caffeine removal from aqueous solution. In another study, Farag et al.⁶⁷ have synthesized green nano-iron carbide and used it for phosphate removal from aqueous solutions. Fahmy et al.⁶⁸ provided a comprehensive review for different synthesis methods of iron oxide and zero-valent nanoparticles from several plant extracts and their possible application in dye removal.

Secondly, improvement involves entrapping the nanoparticles in a biopolymer material to allow the reuse of the nanomaterial. Entrapping the nanoparticles will also help avoid the toxic effect that could occur in the presence of nanoparticles with high concentration in water after treatment. Mahmoud et al.⁶⁹ have used the nano-iron entrapped in alginate biopolymer for removal of organochlorine pesticides from aqueous solutions. El-Shafei et al.⁷⁰ have used the same nanomaterial for removal of benzene, toluene, ethyl benzene, and xylene (BTEX) compounds. In another study, Liu et al.⁷¹ have used the nano-iron entrapped in chitosan beads for removal of hexavalent chromium from wastewater.

Supplemental Material

sj-pdf-1-nax-10.1177_18479804211041181 – Supplemental Material for A prototype of textile wastewater treatment using coagulation and adsorption by Fe/Cu nanoparticles: Techno-economic and scaling-up studies

Supplemental Material, sj-pdf-1-nax-10.1177_18479804211041181 for A prototype of textile wastewater treatment using coagulation and adsorption by Fe/Cu nanoparticles: Techno-economic and scaling-up studies by Ahmed S Mahmoud, Mohamed K Mostafa and Robert W Peters in Nanomaterials and Nanotechnology

Footnotes

Acknowledgment

The authors would like to thank Al Wadi for Heavy Equipment Company for providing the materials needed to build the system. The authors would also like to extend their thanks to Eng. Mohamed Abdelsamea for helping in setting-up the system. Special thanks to Prof. Mostafa Kamal, the president of Badr University in Cairo (BUC), Prof. Ahmed Moussa, the dean of Faculty of Engineering and Technology at BUC and Associate Professor. Dalia Hamdy, the head of Civil Engineering Department at BUC for supporting this project by providing location to build up the system inside the BUC Campus and allowing the use of chemicals in the BUC’s chemical lab to run the system. The authors would like also to thank the Chemical lab at Housing Building Research Center (HBRC) for nano preparation, collecting the raw wastewater samples and performing the samples analysis. The authors extremely appreciate the continous collaboration between University of Alabama at Birmingham (UAB) represented by Prof. Fouad Fouad (Former Dean of Engineering School), BUC represented by Associate Professor. Dalia Hamdy, and HBRC represented by Prof. Khaled El-Zahabi (President) and Prof. Khalid M. Yousri (Vice-president). The authors also thank the reviewers for their hard work to improve the quality of this paper.

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) received no financial support for the research, authorship, and/or publication of this article.

ORCID iDs

Ahmed S Mahmoud

Mohamed K Mostafa

Supplemental Material

Supplemental material for this article is available online.

References

Hamdy

Mostafa

Nasr

. Regression analysis and artificial intelligence for removal of methylene blue from aqueous solutions using nanoscale zero-valent iron. Int J Environ Sci Technol 2018; 16(1): 357–372.

Dixit

Yadav

Dwivedi

, et al. Toxic hazards of leather industry and technologies to combat threat: a review. J Clean Prod 2015; 87: 39–49.

Durai

Rajasimman

. Biological treatment of tannery wastewater–a review. J Environ Sci Technol 2011; 4(1): 1–17.

Keerthi

Mahalakshmi

Balasubramanian

. Development of hybrid membrane bioreactor for tannery effluent treatment. Desalination 2013; 309: 231–236.

Tüfekci

Sivri

Toroz

. Pollutants of textile industry wastewater and assessment of its discharge limits by water quality standards. Turkish J Fish Aquat Sci 2007; 7: 97–103.

Kongjao

Damronglerd

Hunsom

. Simultaneous removal of organic and inorganic pollutants in tannery wastewater using electrocoagulation technique. Korean J Chem Eng 2008; 25(4): 703–709.

Kamal

AKI

Ahmed

Hassan

, et al. Characterization of textile effluents from Dhaka export processing zone (DEPZ) area in Dhaka, Bangladesh. Pollution 2016; 2: 153–161.

Mannucci

Munz

Mori

, et al. Factors affecting biological sulphate reduction in tannery wastewater treatment. Environ Eng Manage J 2014; 13(4): 1005–1012.

Rameshraja

Suresh

. Treatment of tannery wastewater by various oxidation and combined processes. Int J Environ Res 2011; 5: 349–360.

10.

Liang

Sun

, et al. Treatment of highly concentrated wastewater containing multiple synthetic dyes by a combined process of coagulation/flocculation and nanofiltration. J Membr Sci 2014; 469: 306–315.

11.

Arulmathi

Jeyaprabha

Sivasankar

, et al. Treatment of textile wastewater by coagulation–flocculation process using Gossypium herbaceum and polyaniline coagulants. CLEAN–Soil Air Water 2019; 47(7): 1800464.

12.

Ayanda

Odo

Malomo

, et al. Accelerated decolourization of Congo red by powdered termite mound. CLEAN–Soil Air Water 2017; 45(12): 1700537.

13.

Fahim

Barsoum

Eid

, et al. Removal of chromium(III) from tannery wastewater using activated carbon from sugar industrial waste. J Hazard Mater 2006; 136(2): 303–309.

14.

Martínez-Huitle

Brillas

. Decontamination of wastewaters containing synthetic organic dyes by electrochemical methods: a general review. Appl Catal B: Environ 2009; 87(3–4): 105–145.

15.

Park

Hira

Muthuchamy

, et al. Synthesis of silver nanostructures in ionic liquid media and their application to photodegradation of methyl orange. Nanomater Nanotechnol 2019; 9. Epub ahead of print 12 March 2019. DOI: 10.1177/1847980419836500.

16.

Naseem

Durrani

. The role of some important metal oxide nanoparticles for wastewater and antibacterial applications: a review. Environ Chem Ecotoxicol 2021; 3: 59–75.

17.

Wang

Stoller

, et al. An overview of nanomaterials for water and wastewater treatment. Adv Mater Sci Eng 2016. Epub ahead of print 2016. DOI: 10.1155/2016/4964828.

18.

Pagga

. Development of a method for adsorption of dyestuffs on activated sludge. Water Res 1994; 28(5): 1051–1057.

19.

Khalid

Shahid

Niazi

, et al. Arsenic behaviour in soil-plant system: biogeochemical reactions and chemical speciation influences. In: Anjum

Gill

Tuteja

(eds) Enhancing Cleanup of Environmental Pollutants. Switzerland: Springer, 2017, pp. 97–126.

20.

Mostafa

Peters

. Improve effluent water quality at Abu-Rawash wastewater treatment plant with the application of coagulants. Water Environ J 2016; 30: 88–95.

21.

Vanrolleghem

Lee

. On-line monitoring equipment for wastewater treatment processes: state of the art. Water Sci Technol 2003; 47: 1–34.

22.

Gomes

Lincho

Domingues

, et al. N-TiO2 photocatalysts: a review of their characteristics and capacity for emerging contaminants removal. Water (Switzerland) 2019; 11: 373.

23.

Chen

Liu

Tian

, et al. Exposed facet dependent stability of ZnO micro/nano crystals as a photocatalyst. Appl Surf Sci 2019; 470: 807–816.

24.

Gómez-Pastora

Dominguez

Bringas

, et al. Review and perspectives on the use of magnetic nanophotocatalysts (MNPCs) in water treatment. Chem Eng J 2017; 310: 407–427.

25.

Yaqoob

Parveen

Umar

, et al. Role of nanomaterials in the treatment of wastewater: a review. Water (Switzerland) 2020; 12: 495.

26.

Patel

Vashi

. Characterization and treatment of textile wastewater, Waltham, MA: Elsevier, 2015.

27.

Robinson

McMullan

Marchant

, et al. Remediation of dyes in textile effluent: a critical review on current treatment technologies with a proposed alternative. Bioresour Technol 2001; 77: 247–255.

28.

Hamdy

Mostafa

Nasr

. Zero-valent iron nanoparticles for methylene blue removal from aqueous solutions and textile wastewater treatment, with cost estimation. Water Sci Technol 2018; 78: 367–378.

29.

Cardenas-Trivin

Trivino-Matus

. Synthesis and characterization of Fe, Co, and Ni colloids in 2-mercaptoethanol. Nanomater Nanotechnol 2020; 10: 1–10.

30.

Mahmoud

El-Tayieb

Ahmed

NAS

, et al. Algorithms and statistics for municipal wastewater treatment using nano zero valent iron (nZVI). J Environ Biotechnol Res 2018; 7: 30–44.

31.

Crane

Sapsford

. Tunable formation of copper metal, oxide, chloride and hydroxyl chloride nanoparticles from aqueous copper solutions using nanoscale zerovalent iron particles. Nanomater Nanotechnol 2019; 9: 1–16.

32.

Mahmoud

Ismail

Mostafa

, et al. Isotherm and kinetic studies for heptachlor removal from aqueous solution using Fe/Cu nanoparticles, artificial intelligence, and regression analysis. Separation Sci Technol 2020; 55: 684–696.

33.

Ulucan-Altuntas

Kuzu

. Modelling and optimization of dye removal by Fe/Cu bimetallic nanoparticles coated with different Cu ratios. Mater Res Express 2019; 6: 1150a4.

34.

Calderón

OAR

Abdeldayem

Pugazhendhi

, et al. Current updates and perspectives of biosorption technology: an alternative for the removal of heavy metals from wastewater. Curr Pollut Rep 2020; 6: 8–27.

35.

Mahmoud

Mostafa

Abdel-Gawad

. Artificial intelligence for the removal of benzene, toluene, ethyl benzene and xylene (BTEX) from aqueous solutions using iron nanoparticles. Water Supply 2018; 18: 1650–1663.

36.

American Public Health Association (APHA) . Standard Methods for the Examination of Water and Wastewater. Washington, D.C.: American Water Works Association, 2012.

37.

Zin

Borja

Hinode

, et al. Synthesis of bimetallic Fe/Cu nanoparticles with different copper loading ratios. Dimensions 2013; 13: 1031–1035.

38.

Cheng

Liu

, et al. Pretreatment of wastewater from triazine manufacturing by coagulation, electrolysis, and internal microelectrolysis. J Hazard Mater 2007; 146: 385–392.

39.

Mahmoud

Mostafa

Nasr

. Regression model, artificial intelligence, and cost estimation for phosphate adsorption using encapsulated nanoscale zero-valent iron. Separation Sci Technol 2019; 54: 13–26.

40.

Khosravi

Arabi

. Application of response surface methodology (RSM) for the removal of methylene blue dye from water by nano zero-valent iron (NZVI). Water Sci Technol 2016; 74: 343–352.

41.

Wang

Jin

Chen

, et al. Green synthesis of Fe nanoparticles using eucalyptus leaf extracts for treatment of eutrophic wastewater. Sci Total Environ 2014; 466–467: 210–213.

42.

Shih

Hsu

. Reduction of hexachlorobenzene by nanoscale zero-valent iron: kinetics, pH effect, and degradation mechanism. Sep Purif Technol 2011; 76: 268–274.

43.

Zhang

Liu

, et al. Removal of U(VI) in aqueous solution by nanoscale zero-valent iron(nZVI). Water Qual Expo Heal 2013; 5: 31–40.

44.

Liu

, et al. Comparative study of methylene blue dye adsorption onto activated carbon, graphene oxide, and carbon nanotubes. Chem Eng Res Des 2013; 91: 361–368.

45.

Cao

Chen

, et al. Remediation of arsenic contaminated soil by coupling oxalate washing with subsequent ZVI/Air treatment. Chemosphere 2016; 144: 1313–1318.

46.

Fawzy

Nasr

Abdel-Rahman

, et al. Techno-economic and environmental approaches of Cd²⁺ adsorption by olive leaves (Olea europaea L.) waste. Int J phytoremediation 2019; 21: 1205–1214.

47.

Mahvi

Ghanbarian

Nasseri

, et al. Mineralization and discolouration of textile wastewater by TiO2 nanoparticles. Desalination 2009; 239: 309–316.

48.

Soltani

RDC

Jorfi

Safari

, et al. Enhanced sonocatalysis of textile wastewater using bentonite-supported ZnO nanoparticles: response surface methodological approach. J Environ Manag 2016; 179: 47–57.

49.

Afkhami

Moosavi

. Adsorptive removal of Congo red, a carcinogenic textile dye, from aqueous solutions by maghemite nanoparticles. J Hazard Mater 2010; 174: 398–403.

50.

Mahmoud

Farag

Elshfai

. Reduction of organic matter from municipal wastewater at low cost using green synthesis nano iron extracted from black tea: artificial intelligence with regression analysis. Egypt J Pet 2019; 29: 9–20.

51.

SaryEl-deen

Mahmoud

, et al. Adsorption and kinetic studies of using entrapped sewage sludge ash in the removal of chemical oxygen demand from domestic wastewater, with artificial intelligence approach. In: 2017 Annual AIChE Meeting, Minneapolis, MN, USA, 29 October – 3 November 2017.

52.

Mahmoud

Farag

Elshfai

, et al. Nano zero-valent aluminum (nZVAl) preparation, characterization, and application for the removal of soluble organic matter with artificial intelligence, isotherm study, and kinetic analysis. Air Soil Water Res 2019; 12: 1–13.

53.

Heberling

Adewuyi

Mahmoud

, et al. AOP performance at wastewater treatment plants: recent developments. In: 2018 AIChE Annual Meeting, Pittsburgh, PA, USA, 28 October–2 November 2018.

54.

Avrami

. Kinetics of phase change. II transformation‐time relations for random distribution of nuclei. The J Chem Phys 1940; 8: 212–224.

55.

McKay

. Pseudo-second order model for sorption processes. Process Biochem 1999; 34: 451–465.

56.

Yang

, et al. Simultaneous adsorption/reduction of bromate by nanoscale zerovalent iron supported on modified activated carbon. Ind Eng Chem Res 2013; 52: 12574–12581.

57.

Hamdy

Mostafa

Nasr

. Techno-economic estimation of electroplating wastewater treatment using zero-valent iron nanoparticles: batch optimization, continuous feed, and scaling-up studies. Environ Sci Pollut Res 2019; 26: 25372–25385.

58.

Alalm

Nasr

. Artificial intelligence, regression model, and cost estimation for removal of chlorothalonil pesticide by activated carbon prepared from casuarina charcoal. Sustainable Environ Res 2018; 28: 101–110.

59.

Yin

Qiu

Qian

, et al. Textile wastewater treatment for water reuse: a case study. Processes 2019; 7: 34.

60.

Seneviratne

. Wastewater treatment technologies. Zero Discharge of Hazardous Chemicals (ZDHC) Programme. Amsterdam, Netherlands: ZDHC Foundation, 2018.

61.

Iqbal

Mahmud

Quader

. Textile sludge management by incineration technique. Proced Eng 2014; 90: 686–691.

62.

Chen

. Lightweight bricks manufactured from ground soil, textile sludge, and coal ash. Environ Technol 2018; 39: 1359–1367.

63.

Hossain

Das

Islam

, et al. Reuse of textile mill ETP sludge in environmental friendly bricks–effect of gamma radiation. Radiat Phys Chem 2018; 151: 77–83.

64.

Mostafa

Peters

. Applying the three R’s: reduce, reuse, and recycle in the chemical industry. J Air Waste Manage Assoc 2017; 67: 322–329.

65.

Mostafa

Peters

. Reuse paint wastewater in the manufacture of cement bricks and tiles. J Mater Cycles Waste Manage 2017; 19: 840–850.

66.

Abdel-Aziz

Farag

Abdel-Gawad

. Removal of caffeine from aqueous solution by green approach using Ficus Benjamina zero-valent iron/copper nanoparticles. Adsorpt Sci Technol 2020; 38: 325–343.

67.

Farag

Elshfai

Mahmoud

, et al. (592d) Green synthesis of nano iron carbide: preparation, characterization and application for removal of phosphate from aqueous solutions. In: Annual AIChE Meeting Proceedings, Pittsburgh, PA, 31 October 2018, https://www.aiche.org/conferences/aiche-annual-meeting/2018/proceeding/paper/592d-green-synthesis-nano-iron-carbide-preparation-characterization-and-application-removal (accessed 4 June 2021).

68.

Fahmy

Mohamed

Marzouq

, et al. Review of green methods of iron nanoparticles synthesis and applications. BioNanoScience 2018; 8: 491–503.

69.

Mahmoud

SaryEl-deen

Mostafa

, et al. (655d) Artificial intelligence for organochlorine pesticides removal from aqueous solutions using entrapped Nzvi in alginate biopolymer. In: Annual AIChE Meeting Proceedings, Minneapolis, MN, 2 November 2017, https://www.aiche.org/conferences/aiche-annual-meeting/2017/proceeding/paper/655d-artificial-intelligence-organochlorine-pesticides-removal-aqueous-solutions-using-entrapped (accessed 4 June 2021).

70.

El-Shafei

Mahmoud

Mostafa

, et al. (60b) Effects of entrapped nZVI in alginate polymer on BTEX removal. In: 2016 AIChE Annual Meeting, Environmental Division 2016–Core Programming 2016; Vol. 15–22.

71.

Liu

Zhao

Sun

, et al. Entrapment of nanoscale zero-valent iron in chitosan beads for hexavalent chromium removal from wastewater. J Hazard Mater 2010; 184: 724–730.

Supplementary Material

Please find the following supplemental material available below.

For Open Access articles published under a Creative Commons License, all supplemental material carries the same license as the article it is associated with.

For non-Open Access articles published, all supplemental material carries a non-exclusive license, and permission requests for re-use of supplemental material or any part of supplemental material shall be sent directly to the copyright owner as specified in the copyright notice associated with the article.

0.00 MB

0.22 MB
