One-step nitrogen plasma process for bimetallic impregnation to obtain N-TiO 2− X /Au/Ag composite

Abstract

The main motivation of this work is to deposit two different metals (gold and silver) on titanium oxide nanoparticles surface in a one-step simple and fast physical process by applying a nitrogen plasma as the main source of nitrogen atoms to obtain nanostructured N-TiO_{2 − X}/Au/Ag materials. The obtained nanomaterials were characterized by X-ray photoelectron spectroscopy, X-ray diffraction, diffuse reflectance spectroscopy, scanning electron microscopy–energy dispersive X-ray spectroscopy, and high-resolution transmission electron microscopy. Based on the characterization results, we found that gold and silver nanoparticles were uniformly loaded on the titanium oxide nanocomposite surface, showing a surface plasmon absorption band due to the loading of the metal nanoparticles over titania samples. The results of this work have shown that nitrogen plasma technique is a more feasible and simple alternative to obtain the N-TiO_{2 − X}/Au/Ag nanocomposite. Moreover, this plasma technique could be used to impregnate with other kind of metals over the surface of diverse nanomaterials.

Keywords

Bimetallic nanoparticles surface plasmon resonance plasma

Introduction

Titanium oxide (TiO₂) has been widely used to eliminate organic contaminants mainly in aqueous media; it is also used in air purification through the process of photocatalytic oxidation which occurs on the surface of this semiconductor. However, one of the drawbacks of using TiO₂ is the band gap value, which is found in the range of 3.0–3.2 eV, corresponding to ultraviolet radiation, thereby limiting the use of solar light in photocatalytic reactions. For this reason, therefore, and with the purpose of improving photocatalytic efficiency, several research groups have shown that the monometallic impregnation on the surface of TiO₂ of metals such as copper (Cu), palladium (Pd), silver (Ag), and gold (Au) enhance the photogenerated electrons transfer, which causes an increase in the useful life of the corresponding electron-hole pairs.

Au has been extensively studied since the 1980s when M Haruta reported that this metal is catalytically active when it is dispersed as small particles on transition metal oxides matrix (cobalt oxide, iron oxide, and nickel oxide).¹ Since then numerous studies have been conducted related to TiO₂/Au synergy, improving several catalysis reactions such as CO oxidation, water gas shift reaction (WGSR), H₂O₂ synthesis, and degradation of a diversity of contaminants.² In addition, other works can be found in the literature dealing with the impregnation of Ag on TiO₂ to obtain TiO₂/Ag^3,4, in particular, those related to the bactericidal properties of this metal. Therefore, Au and Ag are transition metals that have been widely studied and were the first metals to be impregnated by chemical methods by means of their precursor salts and their subsequent reduction on TiO₂.

Other research groups have also conducted studies on bimetallic impregnation of TiO₂ by chemical methods; these investigations have reported promising results to be applied on the field of photocatalysis, in comparison with the monometallic impregnation, and are paving the way for new and promising research in the field of catalysis. Regarding this topic, it is suitable to mention the study carried out by Anna Zielińska-Jurek et al. on bimetallic impregnation of platinum (Pt) and Pd onto TiO₂ to obtain Pt/Pd-TiO₂; this research group demonstrated that the nanoparticles (NPs) Pt/Pd-TiO₂ are highly active under visible light for the degradation of phenol and that this nanocomposite presents a more effective rate of phenol degradation in comparison with the monometallic photocatalysts Pt/TiO₂ and Pd/TiO₂.⁵ Good synergy of Au and Ag on TiO₂ has also been reported; Alberto Sandoval et al. obtained Au-Ag/TiO₂ based on the process of sequential deposit precipitation (two-step impregnation) of Ag and Au and also reported a significantly greater activity of the Au-Ag/TiO₂ in the oxidation of CO in comparison with the monometallic Au/TiO₂.⁶ The studies show that it is possible to improve the photocatalytic response or induce new reactions by depositing two metals on TiO₂. However, as with the monometallic impregnation, the processes used to achieve bimetallic impregnation are chemical processes, such as deposit precipitation.

The plasma process has been applied successfully in monometallic impregnation separately, either Au or Cu on TiO₂ to obtain TiO₂/Au and TiO₂/Cu, respectively.^7,8 Similarly, the process of plasma treatment has been successful in inducing phase changes on amorphous TiO₂.⁹ In this work, we reported positive results in bimetallic impregnation by applying nitrogen plasma technique, and this new proposal could contribute to improvement of novel processes in the search of new nanocomposite.

Materials and methodology

TiO₂ Degussa P25 (Evonik Ind. AG, Germany), a mixture of 80% anatase and 20% rutile, was used. Au and Ag metal foils were employed, with 99.99% purity (Sigma-Aldrich, Toluca, México) and a thickness of 0.1 mm. Nitrogen gas flow was applied with 99.99% of purity (Praxair, Mérida, México).

The methodology of producing the nanocomposite with monometallic impregnation used in this work is similar to that proposed by Trejo-Tzab et al.^7,8 to the process followed is as follows: creation of bimetallic impregnation (Au and Ag) and doping of titania Degussa P25 powder; to achieve this goal, foils of this materials must cover half–half surface of the bottom electrode, and on top of the Au-Ag surface, the titania in its powder form is placed, covering 75–85% of the foil surface; the sample titania size is around 200 mg (see Figure 1(b)).

Figure 1.

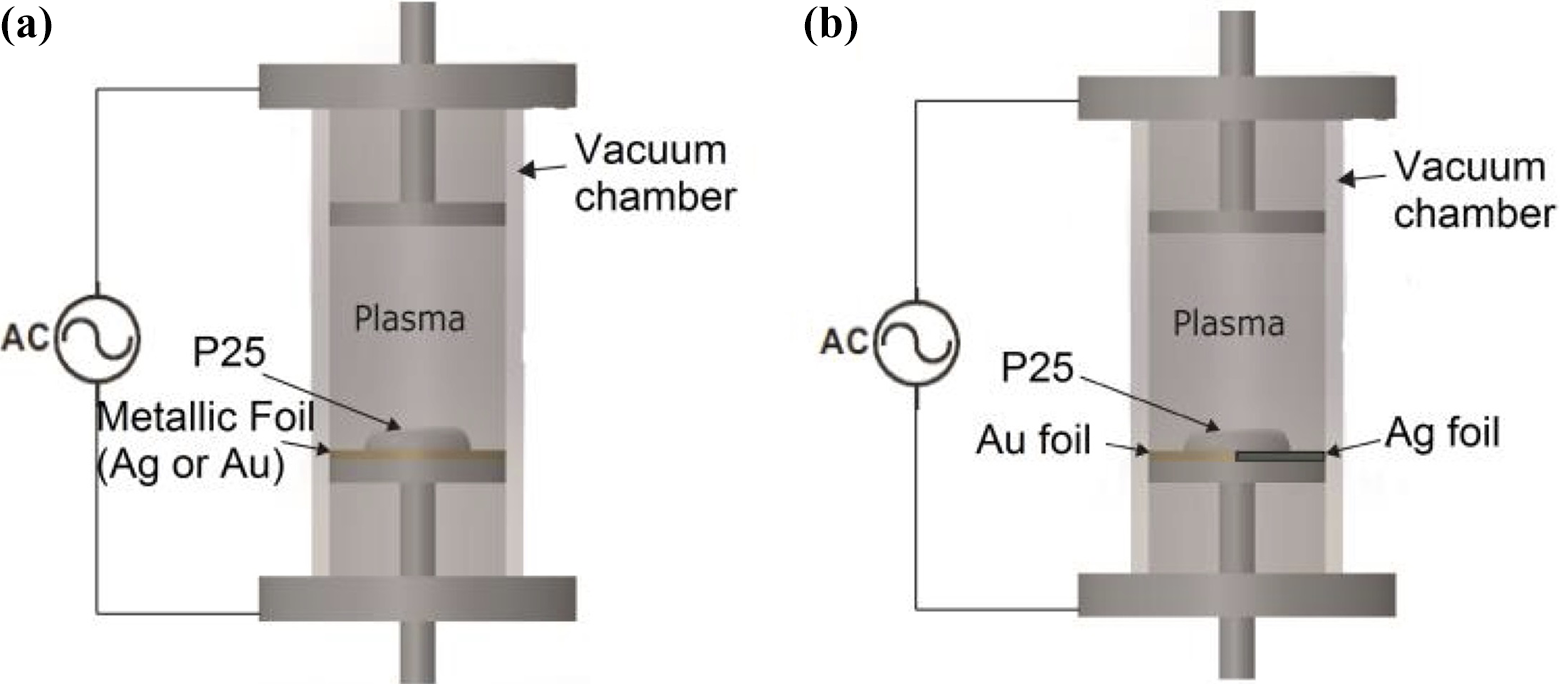

Reactor’s glow discharge configuration: (a) monometallic impregnation and (b) bimetallic impregnation.

A constant flow of nitrogen at a working pressure in the order of 10⁻² torr was introduced into the reactor; on reaching the working pressure, discharge between the electrodes was applied, thereby generating the nitrogen plasma inside the reactor with a power of 200 watts. The effective treatment time was 120 min, in a “batch” process of 60 min, in which the sample is mechanically homogenized every 60 min in an agate mortar to ensure homogeneous metal particles distribution on the sample and to avoid metal agglomeration over extended periods of time plasma treatment. Even more, in bimetallic impregnation, there is a possibility that half the sample is mostly impregnated by only one metal, for such reasons, it is important to homogenize the sample to ensure that both metals have an homogeneous distribution over the powder sample. At the end of this procedure, the samples of N-TiO_{2 − x}/Ag and N-TiO_{2 − x} /Au are obtained.

Characterization

Plasma characterization and optical properties

The nitrogen plasma emission throughout the entire period of the plasma treatment was observed using optical emission spectroscopy (OES). This optical characterization technique did not produce any perturbation in the plasma formation process, thus information of the optical characteristics are reliable. The intensity of the light emitted at particular wavelengths from an excited state is proportional to the density of species in that excited state and the excitation collisions and the subsequent radiative decays. Therefore, measurement of intensities provides a qualitative indicator of species concentration involved in the optical emission. These studies were conducted using an ultraviolet–visible (UV-Vis) Starline spectrophotometer (AvaSpec-3648, Avantes, Louisville, CO, USA).

Studies of UV-Vis diffuse reflectance spectroscopy were done to determine band gap changes of the samples after the plasma treatments, by means of a spectrophotometer (AvaSpec-3648), coupled to an integration sphere (AvaSphere-50-REFL), deuterium–halogen UV-Vis light source (AvaLight DH-S-BAL) and the WS-2 (Avantes) reference tile as white diffuse polytetrafluoroethylene (PTFE)-based material.

Particle size, elemental analysis, and surface composition

High-resolution transmission electron microscopy (HRTEM) investigations were carried out by a JEOL (Japan; model JEM 2100) transmission electron microscope operating at 200 kV. Shape and size of the particle were determined by field-emission scanning electron microscopy (FESEM) and by the technique of elemental analysis (energy-dispersive X-ray analysis (EDX)), employing a field-emission scanning electron microscope (JEOL model 7600F) applying an acceleration voltage of 15 kV.

The studies of the chemical states and surface composition were conducted with an X-ray photoelectron spectroscopy with a source of aluminum K _α (1400 eV; Thermo Fisher Scientific equipment, model K-alpha, México).

Analysis of the crystalline structure was conducted using an X-ray diffractometer (Bruker D8 Advance), which provides X-rays with a wavelength of 1.5418 Å at 30 mA. The diffraction experiments were carried out in a 2θ range from 20° to 70°. The diffraction patterns were analyzed using the International Center for Diffraction Data database (PDF2015).

Results and discussion

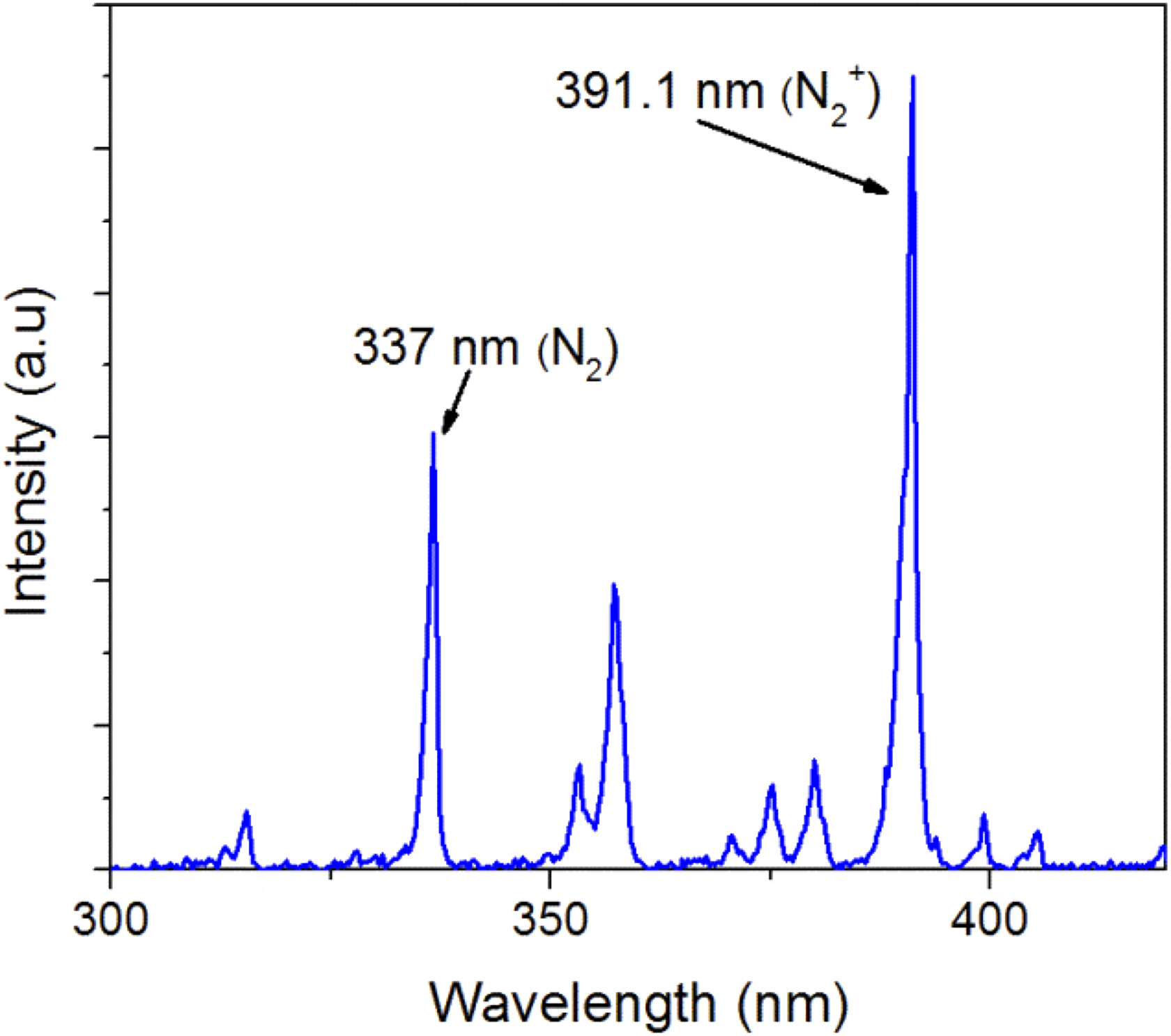

Nitrogen plasma spectrum from OES is observed in Figure 2, and the peaks with higher intensities at 391.1 nm and 337.0 nm belong to excitation emissions due to radiative decays that correspond to N₂ ⁺ molecular ion and molecular N₂, respectively. The magnitude of the emission intensity lines is proportional to the concentration of the aforementioned nitrogen species and the amount of electrons that have energy greater than the excitation threshold from ground state. Figure 2 also shows that N₂ ⁺ peak intensity is higher than N₂ peak emission because N₂ ⁺ emission is more sensitive to high-energy electrons than N₂. The emission spectra are consistent with other studies conducted by different research groups. Qayyum et al. and Abdel-Fattah et al. reported emission peaks that are similar to those reported in our studies.^10,11

Figure 2.

Optical emission spectrum of nitrogen plasma.

The samples obtained at 60 and 120 min of treatment, applying 200 watts of plasma power on the Au-Ag foil, present a gray–violet coloration, in comparison with the TiO₂ P25 which presents a characteristic intense white. After 120 min, the intensity of the violet color of the samples increases, in comparison with the samples treated for 60 min. (Figure 3).

Figure 3.

Monometalllic and bimetallic samples obtained after the plasma treatments at (a, c, and e) 60 min and (b, d, and f) 120 min.

Morphological studies using FESEM equipped with EDX was used to establish the influence of the plasma related to the metallic impregnation process after the 60-min and 120-min treatments. Figures 4 and 5 present the FESEM micrographs and EDX analysis corresponding to the bimetallic sample N-TiO₂/Ag/Au with different time treatment with nitrogen plasma. The EDX analysis for both treatments proves the existence of Au and Ag in the samples. Moreover, the FESEM images demonstrate that the power employed, and the treatment time required to obtain the bimetallic samples do not generate significant changes in the geometry of the NPs; both TiO₂/Au/Ag samples reveal a uniform distribution of particle size and both metals can be distributed uniformly on the surface of TiO₂ using the method of impregnation by plasma.

Figure 4.

FESEM micrograph of TiO₂/Ag/Au after 60 min of nitrogen plasma treatment: (a) ×200,000, (b) ×100,000, and (c) EDX analysis. FESEM: field-emission scanning electron microscopy; TiO₂: titanium oxide; Au: gold; Ag: silver; EDX: energy-dispersive X-ray spectroscopy.

Figure 5.

FESEM micrograph of TiO₂/Ag/Au after 120 min of nitrogen plasma treatment: (a) ×200,000, (b) ×100,000, and (c) EDX analysis. FESEM: field-emission scanning electron microscopy; TiO₂: titanium oxide; Au: gold; Ag: silver; EDX: energy-dispersive X-ray spectroscopy.

HRTEM was utilized to reveal the microstructure of the samples with metallic impregnation. It is important to mention that Ag and Au NPs have similar crystal characteristics. Figure 6 shows the typical images that were obtained through the HRTEM analyses of the samples; Figure 6(a) and (b), corresponding to the sample TiO₂/Ag, shows some spherical particles dispersed on the surface of TiO₂ with a diameter in a range between 5 nm and 10 nm. Moreover, the interplanar spacing allows the identification of the average values of lattice fringes of d corresponding to the planes (111) and (200) of the silver with values of 0.232 and 0.205 nm, respectively,¹² which reveals that the Ag NPs were deposited successfully on the surface of the TiO₂ particles.¹³ On the other hand, as can be seen from Figure 6(c) and (d) that Au NPs were successfully loaded on TiO₂ surface, Au NPs (dark sphere with 10 nm average diameter) are well dispersed on TiO₂/Au surface. One can clearly see the lattice fringes with an interplanar spacings d corresponding to planes (200) and (311) with values of 0.205 nm and 0.123 nm, respectively.¹⁴

Figure 6.

HRTEM analysis for monometallic and bimetallic samples: (a and b) TiO₂/Ag, (c and d) TiO₂/Au, and (e and f) TiO₂/Au/Ag and EDX mapping. HRTEM: high-resolution transmission electron microscopy; TiO₂: titanium oxide; Au: gold; Ag: silver; EDX: energy-dispersive X-ray spectroscopy.

Taking the HRTEM images for the samples with monometallic impregnation of Ag and Au NPs as reference, it is observed that Au particles onto TiO₂ show darker shades compared to the Ag ones, and HRTEM images shows a greater contrast for Au NPs. The difference between both metals is due to the procedure that was carried out to identify Au and Ag particles in the samples with bimetallic impregnation, in which it is presumed that the darkest belongs to Au. This procedure, by contrast identification, was carried out because the crystal lattice parameters of Au and Ag are very similar, and it was impossible to identify them independently in the samples with bimetallic impregnation.¹⁵ The results were confirmed when measuring the interplanar spacing of the lattice fringes corresponding to the plane (111) of the Ag and Au with average values of 0.234 and 0.236 nm, respectively. The values measured for both metals are consistent with the interplanar distance of the plane (111) of these metals with fcc structures.¹⁶ These results were confirmed through EDX mapping provind the presence of Au and Ag dispersed on the powder sample surface (Figure 6(e) and (f)). Once the particles of Au and Ag have been identified, the results of HRTEM reveal metallic NPs of both metals dispersed on the surface of TiO₂/Ag/Au samples with spherical shape and an average particle size of approximately 10 nm. It reveals not only particles of both metals dispersed independently but also the presence of metallic particles that have been formed by the union of both metals without forming an alloy as has been observed by other research groups when applying other techniques in comparison with the plasma methodology. It is postulated that the low power and short time used in the process of bimetallic impregnation are the key factors that do not allow the formation of metal NP alloys of Au-Ag on the TiO₂ surface.

X-Ray diffraction (XRD) pattern analysis (Figure 7) shows that the crystallinity of TiO₂ P25 does not change after the plasma treatments. One can observe that the intensity of the main peaks of anatase (101) and rutile (110), as well as their relative ratio, remain constant and do not present significant changes due to the effects of nitrogen plasma. The ratios of the phases in the mixture are 70% for anatase and 30% of rutile, with a 26 ± 3 nm size of the crystallite. The XRD patterns corresponding to the TiO₂/Au monometallic sample obtained after 120 min of treatment (Figure 7(b)) show three different diffraction peaks in the positions 2θ = 38.17°, 44.40°, and 64.62° corresponding to Au (111), Au (200), and Au (220), respectively. These peaks have higher intensity with 120 min of plasma treatments than the samples with only 60 min. These results confirm the presence of Au on the TiO₂ because of nitrogen plasma.

Figure 7.

Diffractograms of the monometallic and bimetallic samples obtained in (a, c, and e) 60-min and (b, d, and f) 120-min treatment times with nitrogen plasma (A: anatase, R: rutile, Au: gold, Ag: silver).

By means of the diffraction patterns, the presence of Ag is not as obvious as the one presented by Au. However, the deconvolution of the reflection at 2θ = 37.90° (inset on Figure 7(d)) for the TiO₂/Ag sample after 120 min of plasma treatment reveals a shoulder at 38.10°, characteristic of metallic Ag with lower intensity in comparison with the Au peak. In addition, the presence of both metals in the TiO₂/Au/Ag sample can be observed in the same way by means of the deconvolution (inset Figure 7(f)) for the reflection at 2θ = 37.90°. It is relevant to observe that 2θ positions in the diffraction patterns for Ag and Au are in proximity, presenting slight differences in value, thus the signal observed in the deconvolution for the bimetallic sample in the position 2θ = 38.19° is attributed to both metals Au and Ag. The presence of these metals was confirmed by X-ray photoelectron spectroscopy (XPS) analysis (Table 1) at the end of a 120-min treatment, with a weight percentage for Au and Ag of 1.7% and 1.3%, respectively.

Table 1.

Weight percent of N, Au, and Ag on the sample after 120-min plasma treatment (XPS analysis).

Sample	Wt%
Sample	N	Au	Ag
N-TiO_{2 − x}/Au	0.9	3.7	—
N-TiO_{2 − x}/Ag	0.3	—	1.2
N-TiO_{2 − x}/Au/Ag	0.3	1.7	1.3

XPS: X-ray photo spectroscopy; N: nitrogen; TiO₂: titanium oxide; Au: gold; Ag: silver.

XPS analysis

XPS was used to analyze the composition and surface chemical states in monometallic and bimetallic samples (N-TiO₂/Au, N-TiO₂/Ag, N-TiO₂/Au/Ag) after 120 min of plasma treatment. Figure 8(a) and (c) shows Au 4f binding energy values at 83.2–83.6 eV (Au 4f _7/2) and 87.0–87.4 eV (Au 4f _5/2) on N-TiO_{2 − x}/Au and N-TiO_{2 − x}/Au/Ag, respectively. These values are attributed to metallic gold (Au⁰).^17,18 The spectrum Ag 3d confirmed the presence of Ag in the metallic state, as shown in Figure 8(b) and (d). Two peaks at 373.6 eV and 367.3 eV were detected on N-TiO_{2 − x}/Ag and N-TiO_{2 − x}/Au/Ag. The first corresponding to the characteristic signal of metallic silver Ag⁰ and the second, at 367.3 eV, corresponds to metallic silver (Ag⁰) and silver oxides (Ag₂O and AgO), suggesting the presence of silver oxide in the TiO₂ surface. Therefore, Au, Ag, and silver oxide are deposited on the surface of P25. These results are in good agreement with other studies that report the presence of peaks, Au and Ag on TiO₂ bimetallic catalysts obtained by chemical methods.^19
–21

Figure 8.

XPS spectra for monometallic and bimetallic sample after 120-min plasma treatment for (a) Au on N-TiO_{2 − x}/Au, (b) Ag on N-TiO_{2 − x}/Ag, (c) Au on N-TiO_{2 − x}/Au/Ag, (d) Ag on N-TiO_{2 − x}/Au/Ag. XPS: X-ray photo spectroscopy; N: nitrogen; TiO₂: titanium oxide; Au: gold; Ag: silver.

On the other hand, the XPS spectrum from 395 eV to 405 eV (Figure 9) shows the nitrogen binding energies values for monometallic and bimetallic samples. The signal observed at 399.6, 399.8, and 400.0 eV corresponds to nitrogen spectrum N 1 s, which is attributed to the nitrogen when it occupies an interstitial site with Ti–O–N bond in TiO₂ doped with nitrogen, reported by Viswanathan and Krishanmurthy, which indicates that nitrogen was successfully incorporated.²² Also, Valentin et al. propose that both substitutional and interstitial doping generate optical properties modifications in titania, and these are associated with the improvement of the catalytic processes.²³

Figure 9.

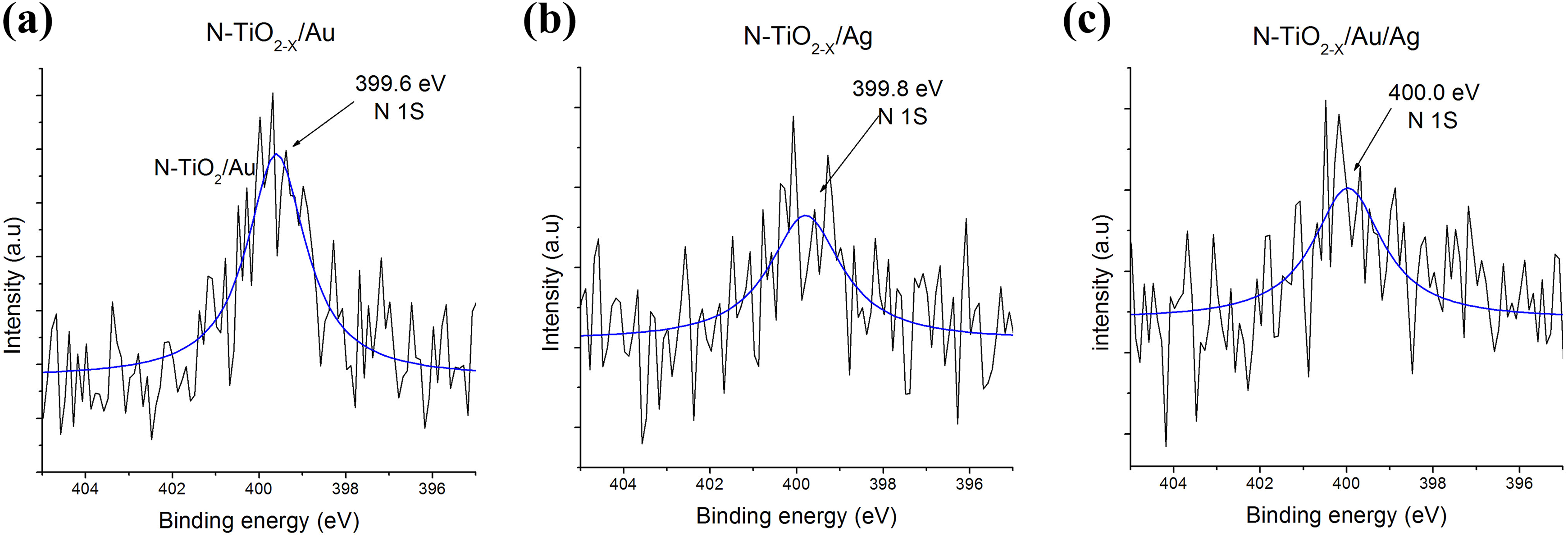

XPS spectra N1s nitrogen in monometallic and bimetallic sample after 120-min plasma treatment for (a) N-TiO_{2 − x}/Au, (b) N-TiO_{2 − x}/Ag and (c) N-TiO_{2 − x}/Au/Ag. XPS: X-ray photo spectroscopy; N: nitrogen; TiO₂: titanium oxide; Au: gold; Ag: silver.

The metal concentrations in the mono- and bimetallic samples with load noble metal particles were examined after 120 min of plasma treatment. By means of the high-resolution XPS spectra for Au, Ag, and N of all samples, their atomic percentage was determined. However, Table 1 summarizes the results in weight percentage. Au concentration on N-TiO_{2 − x}/Au was higher and equal to 3.7 wt%. The amount of Ag on N-TiO_{2 − x}/Ag was 1.2 wt%. The weight percentage of the silver on TiO₂/Ag samples is lower in comparison with the amount of Au in TiO₂/Au maybe by oxidation species presented in samples owing to silver oxidation. Au and Ag concentration on N-TiO_{2 − x}/Au/Ag were 1.7 and 1.3 wt%, respectively. The XPS results confirmed XRD spectra obtained, where higher Au signal was observed on the monometallic N-TiO_{2 − x}/Au sample (Figure 7(b)). In addition, the nitrogen concentration varied from 0.9 wt% to 0.3 wt% (Table 1). It should be noted that these analyses were conducted after eroding the surface. The XPS results indicate the presence of Au, Ag, and nitrogen in all samples, especially in the bimetallic samples. Therefore, the bimetallic sample obtained at the end of 120-min nitrogen plasma treatment is N-TiO_{2 − x}/Ag/Au due to the presence of Au, Ag on the surface of TiO₂, and to the interstitial doping of nitrogen.

The change of color observed on these materials (Figure 3) after plasma treatment is characteristic of the TiO₂ samples with impregnation of noble metal NPs due to surface plasmon resonance (SPR). It has been reported by other research groups for similar samples, for example, the ones obtained using tetrachloroauric (III) acid (HAuCl₄) and silver nitrate (AgNO₃) used as the starting material on Ag/Au-TiO₂ preparation in water-in-oil microemulsion system.²⁰ Diffuse reflectance absorbance (K/S) of TiO₂ P25 and the samples loaded with Au/Ag, Ag, and Au for the TiO_{2 − x}/Au, TiO_{2 − x}/Ag monometallic samples and TiO_{2 − x}/Au/Ag bimetallic sample are presented in Figure 10, which show the absorption around 450 nm to 650 nm in accordance with the SPR of Au/Ag, Ag, and Au.²⁴ The plasmonic band intensity and shape depend on particle size loaded onto the surface. This SPR band is the collective oscillations of free conduction electrons in metal excited by light at a particular wavelength.^7,15 Figure 10(a) and (c) revealed broad visible light absorption peak due to SPR absorption on monometallic and bimetallic samples, indicating metallic NPs Au and Ag existing over TiO₂ surface, validated by EDX mapping, HRTEM, and XPS analyses.

Figure 10.

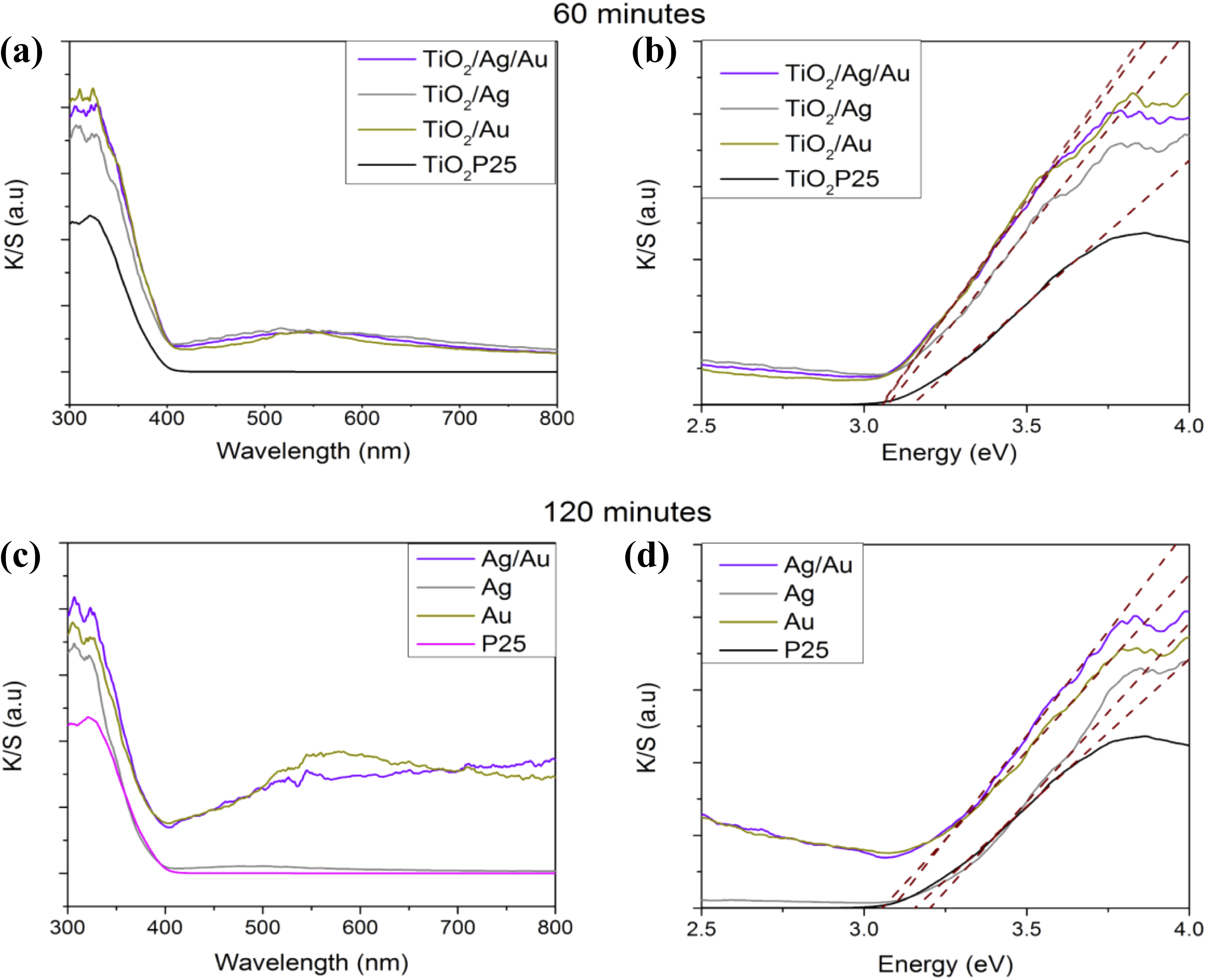

Absorption spectrum and band gap analyses of the monometallic and bimetallic samples at different treatment times with nitrogen plasma (a and b) 60 min and (c and d) 120 min.

The SPR peak of Ag NP appeared at 576 nm; however, Au-NPs give a plasmonic signal located at 580 nm due to SPR of Au-NPs. The plasmon resonance of Au and Ag loaded on TiO₂/Au/Ag around 450–700 nm is overlapped, making it difficult to observe the individual SPR response of both metals. The SPR peak of Au/Ag-NPs over TiO₂ P25 surface increased even more (approximately 410–750 nm) with loads of 1.7 wt% of Au and 1.3 wt% of Ag, probably due to the particles formed by the junction between Au and Ag particles confirmed by the HRTEM analyses.

From the obtained data, the band gap has been calculated by means of a linear adjustment of the section corresponding to the K/S versus energy of each sample, as presented in Figure 10(b) and (d); the procedure has been described in previous works,^7,8 and the results are presented in Table 2.

Table 2.

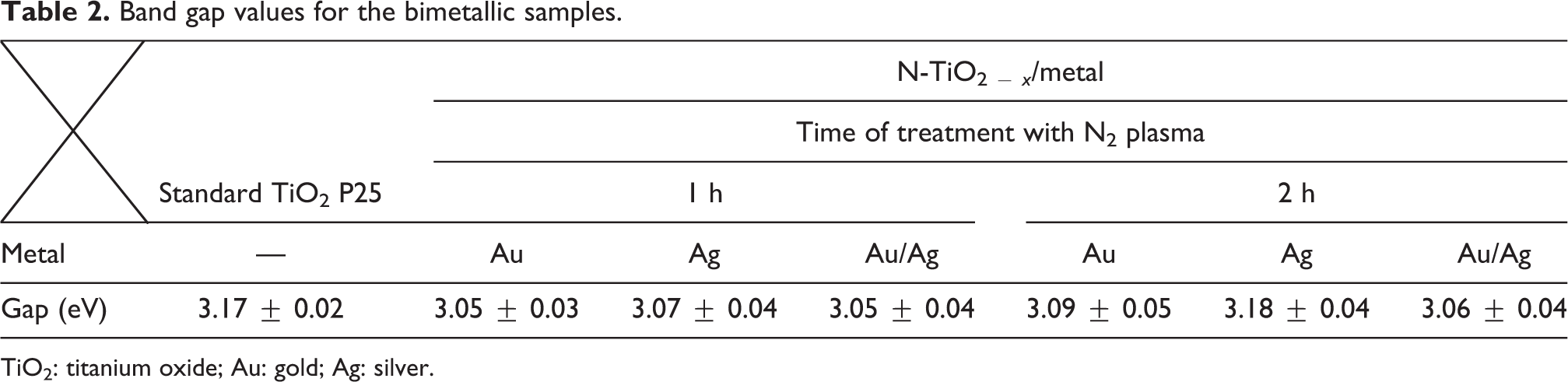

Band gap values for the bimetallic samples.

		N-TiO_{2 − x}/metal
		Time of treatment with N₂ plasma
	Standard TiO₂ P25	1 h			2 h
Metal	—	Au	Ag	Au/Ag	Au	Ag	Au/Ag
Gap (eV)	3.17 ± 0.02	3.05 ± 0.03	3.07 ± 0.04	3.05 ± 0.04	3.09 ± 0.05	3.18 ± 0.04	3.06 ± 0.04

TiO₂: titanium oxide; Au: gold; Ag: silver.

Au/Ag, Ag, and Au were loaded on the TiO₂ surface with the purpose of increasing the light energy absorption related to the visible range of the electromagnetic spectrum and to act as electron traps to further improve the charge separation on the TiO₂ surface. Similarly, the addition of metal particles succeeded in displacing the TiO₂ band. This is possible because of the SPR observed for the metallic elements such as Ag and Au, owing to the induction in the visible region absorption, caused by means of the collective excitation of the free electrons. The incoming electric field of the light wave will cause an oscillating behavior in the conduction of the band electrons, and thus, when the light frequency is in resonance with the movement of the electrons, a strong absorption is produced, resulting in SPR.

One can observe a displacement in the band gap for bimetallic samples with respect to P25, from 3.17 eV to a minimum value of 3.05 eV. The change of band gap values when the bimetallic samples increases in the treatment time, from 60 min to 120 min, is minimum. However, the band gap values for both samples are lower compared to that reported for P25, 3.05 and 3.06 eV, respectively. Within the limits of the error, it can be confirmed that a longer time of plasma treatment has minimal effects on the band gap shift.

Conclusions

One-step nitrogen plasma process for bimetallic impregnation is a new methodology to impregnate two metals in only one plasma treatment without changing the crystalline structure of TiO₂ (P25). Applying this technique successfully produces N-TiO_{2 − x}/Au/Ag using nitrogen plasma applied on crystalline TiO₂ in contact with the foil of both metals allowing the bimetallic impregnation of Au and Ag in one step. The obtained results show a homogenous metal impregnation of spherical-shaped Au and Ag NPs with an average diameter between 5 nm and 10 nm. The results also demonstrate the existence of metallic particles formed by the junction of both metals without actually forming an alloy. Also, the nitrogen plasma method allows the incorporation of nitrogen in the TiO₂ crystalline lattice to obtain a nanocomposite with nitrogen in the crystalline lattice of titania. In the same way, displacement of the band gap toward the visible region was obtained with plasma treatment times of 60 and 120 min at a 200-watt power. The results support the need to extend this research to improve the amount of the metal NPs impregnated on the semiconductor as a function of plasma intensity. On the other hand, this new method can open up a new window research to produce new composites with a wide range of applications in heterogeneous catalysis and more.
