Combination of metformin and curcumin targets breast cancer in mice by angiogenesis inhibition,immune system modulation and induction of p53 independent apoptosis

Abstract

Background:

The effects of metformin (MET) and curcumin (CUR) single treatments have been tested against breast cancer; however, their combination has not been explored. Here, we evaluated the antitumor activity of MET and CUR combination against breast cancer in mice.

Materials and methods:

The antiproliferative activity of single and combined treatments against breast cancer cell lines was determined. Vascular endothelial growth factor (VEGF) and Trp53 expression was examined in EMT6/P cells. In vivo studies were carried out by inoculating BALB/c mice with EMT6/P cells and examining tumor growth and apoptosis induction in tumor sections. Furthermore, serum levels of different cytokines and transaminases and creatinine were measured to detect the immune response and toxicity, respectively.

Results:

The combination treatment exhibited the highest effects against tumor proliferation and growth. It significantly reduced VEGF expression, induced Trp53 independent apoptosis, triggered Th2 immune response and showed no toxicity.

Conclusion:

The combination can be a potential therapeutic option to treat breast cancer. However, further testing is needed to measure the exact serum levels of MET and CUR and to further explain the obtained results.

Keywords

breast cancer combination therapy curcumin metformin

Introduction

Breast cancer is one of the most common malignant tumors worldwide.¹ It is the second most common cause of cancer-related death among women.² Although early diagnosis of the disease has become possible due to advanced detection techniques, the mortality among women suffering from breast cancer increased.³ Traditional disease treatments which include surgery, chemotherapy, radiotherapy and hormone therapies are not fully effective in treating breast cancer, especially in patients with an advanced stage of the disease.^3,4 Therefore, recent studies have focused on identifying alternative agents that reduce the incidence of the disease and cure it. Synthetic drugs or natural products that are highly selective and less toxic and show anticancer activity can be potential agents in breast cancer treatment.^3,5 Another possibility that can be more effective is the combination therapy using synthetic, natural or both types of compounds.

Metformin (N’,N’-dimethylbiguanide hydrochloride; MET) is an oral antidiabetic drug, commonly used to treat type 2 diabetes mellitus.⁶ It lowers the high insulin level in hyperinsulinemia associated with type 2 diabetes by inhibiting hepatic gluconeogenesis via AMP-activated protein kinase (AMPK) activation. Also, it increases the insulin sensitivity and plasma glucose utilization by skeletal muscles and adipose tissues resulting in decreased glucose and insulin blood levels.^7,8 Recently, MET has emerged as a potential anticancer drug. It shows an indirect effect as the increase in the insulin sensitivity and decrease in hyperinsulinemia reduces tumor proliferation.⁹ The drug also shows direct effects against a wide range of cancers, especially breast cancer which has high incidence of occurrence in diabetic women.⁶ In vitro and in vivo studies found that MET exhibits antiproliferative activity against different breast cancer subtypes by primarily inhibiting target of rapamycin and as a consequence reducing mRNA translation, ribosome biogenesis and cell growth.^10,11 MET also shows other antitumor activities against breast cancer such as the induction of apoptosis,^12–14 enhancement of cellular senescence¹⁴ and inhibition of the inflammatory response necessary for cell transformation and cancer stem cell formation.¹⁵ Finally, MET appears to have a paradox effect on angiogenesis as it promotes or inhibits expression of the pro-angiogenic vascular endothelial growth factor (VEGF) depending on breast cancer subtype.^16–18

Curcumin (1,7-bis(4-hydroxy-3-methoxyphenyl)-1,6-heptadiene-3,5-dione; CUR) is a natural product derived from the rhizome of the plant turmeric (Curcuma longa Linn).³ It is a common Indian spice used for centuries in food recipes and folk remedies. CUR possesses a wide range of biological activities such as antimicrobial, anti-inflammatory, antioxidant, antiviral, anti-angiogenic and antibiotic activities, in addition to its role in the treatment of neurodegenerative diseases such as Alzheimer’s.¹⁹ It also shows chemopreventive and chemotherapeutic effects against different types of cancer.²⁰ CUR’s effects against breast cancer have been largely explored. It has been found that CUR inhibits cell proliferation in different breast cancer cell lines by inducing cell arrest and inactivating growth signaling pathways. Also, it induces apoptosis by repressing anti-apoptotic genes and promoting pro-apoptotic ones.^2,19,21 Furthermore, CUR exhibits anti-invasive/antimetastatic effects by preventing reattachment of circulatory tumor cells, downregulating the expression of pro-inflammatory cytokines and matrix metalloproteases, suppressing mesenchymal–epithelial transition and inhibiting cancer-associated fibroblast activation.^19,21 CUR prevents angiogenesis in certain breast cancer subtypes by abrogating VEGF expression.^22,23

Although CUR and MET have been shown to exhibit antitumor activity, the combination of both may produce more effective treatment against breast cancer. To the best of the authors’ knowledge, this combination has not been tested. Therefore, in the present study, we took a step toward exploring the effect of MET and CUR combination in the treatment of breast cancer in mice.

Materials and methods

Ethical statement

Animal care and use were conducted according to standard ethical guidelines, and all of the experimental protocols were approved by the Research and Ethical Committee at the Faculty of Pharmacy—Applied Science University, Amman, Jordan.

Chemicals and culture media

The following culture media were purchased from Sigma-Aldrich (Missouri, USA): Dulbecco’s Modified Eagle’s Medium (DMEM), Minimum Essential Medium (MEM) and Roswell Park Memorial Institute (RPMI)-1640 Medium. CUR (99%) was purchased from ChromaDex (California, USA) and MET (99%) was bought from Wanbury Ltd (Navi Mumbai, India).

Selection of MET and CUR doses for in vitro and in vivo studies

In the in vitro part of our study MET concentrations of 10–180 mm were selected based on previous results that reported antiproliferative activity of MET at various concentrations from 8 mm²⁴ to 100 mm.²⁵ We took four additional concentrations of MET above 100 mm to cover the different sensitivities of cell lines toward MET. Previous studies showed antiproliferative activity of CUR at concentrations below 100 µm²⁶ and up to 160 µm.²⁷ However, these concentrations were tested in our laboratory in a pilot study and showed limited inhibitory effect. Accordingly, we designed our own concentrations range (150–400 µm) to cover the various sensitivities of our cell lines toward CUR. For in vivo study, the dose of 50 mg/kg/day of CUR was selected based on a previous study that proved the activity of this dose against multidrug-resistant cancer implanted in mice.²⁸ A dose of 80 mg/kg/day of MET was selected based on previous literatures and findings. This concentration was proved to be effective against implanted tumors with appreciated safety profile.²⁹

In vitro cell proliferation (MTT) assay

The antiproliferative activity of CUR, MET and their combinations were tested using 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide (MTT) assay. EMT6/p (mouse breast) and MCF-7 and T47D (human breast) carcinoma cell lines, as well as Vero (monkey kidney) normal cell line were cultured in 96-well microplates (100 µl; 1.5 × 10⁴ cells per well) in a medium containing 10% fetal bovine serum (FBS), 1% L-glutamine, 1% penicillin–streptomycin and 0.1% gentamycin. Cells were incubated for 24 h at 37°C in a 5% CO₂ enriched atmosphere. After that, the cells were treated with different concentrations of MET (10–180 mm), CUR (150–400 µm) and combination of MET and CUR (2–150 mm, 50–120 µm) for 48 h. Then, MTT was added to the wells according to the manufacturer’s instructions (Sigma-Aldrich, Missouri, USA). The calculated IC₅₀ represents the treatment concentration that showed a lethal effect on 50% of cells. Cells treated with vincristine sulfate (an alkaloid from Madagascar periwinkle) were used as a positive control and those incubated with culture medium alone were used as a negative control. Vincristine sulfate was used as a positive control because it is a plant derived natural product and both agents (MET and CUR) used in this study were originated from plants.

Calculation of CI

The combined activity of MET and CUR was determined by calculating the combination index (CI) for both compounds in the four used cell lines (EMT6/P, MCF-7, T47D and Vero) using the following equation³⁰: CI = (D1/DX1) + (D2/DX2) + α [(D1*D2)/(DX1*DX2)], where Dx1 = dose of drug 1 to produce 50% cell kill alone, D1 = dose of drug 1 to produce 50% cell kill in combination with D2, Dx2 = dose of drug 2 to produce 50% cell kill alone, D2 = dose of drug 2 to produce 50% cell kill in combination with D1, α = 0 for mutually exclusive or 1 for mutually nonexclusive modes of drug action. The results are interpreted as: CI > 1.3 antagonism; CI = 1.1–1.3 moderate antagonism; CI = 0.9–1.1 additive effect; CI = 0.8–0.9 slight synergism; CI = 0.6–0.8 moderate synergism; CI = 0.4–0.6 synergism; CI = 0.2–0.4 strong synergism.

Determination of VEGF expression in EMT6/P cells

EMT6/P cells were suspended at a concentration of 1.5 × 10⁶ cell/10 ml MEM and incubated for 24 h in four different tissue culture flasks. Tissue culture media were removed and cultured cells were subjected to the following treatments: 8 mm MET, 110 μm CUR, combination of 8 mm MET and 110 μm CUR and a blank MEM medium as a negative control. These concentrations represent two folds of IC₅₀ values for MET and CUR in the combination treatment. The treated cultured cells were incubated for 48 h. After that, the medium in each flask was removed, and the cells were harvested using trypsin-EDTA solution, washed with phosphate buffered saline (PBS), and then centrifuged at 1500 RPM for 10 min. VEGF expression in cancer cells was measured using mouse VEGF enzyme-linked immunosorbent assay (ELISA) kit (catalogue # RAB0510; Sigma-Aldrich, Missouri, USA) according to the manufacturer’s instructions.

Experimental animals

A total of 40 female BALB/c mice were used in this study (4–6 weeks old, 23–25 g body weight). Separate cages with wooden shaving were used to keep mice. The environmental parameters in the animal room were: 50–60% humidity, 25°C temperature and continuous ventilation.

Tumor inoculation

EMT6/P mouse breast carcinoma cells were purchased from Public Health England (catalogue # 96042344; Salisbury, UK). Cells were maintained using MEM and left to grow for 48 h. After that, cells were harvested using trypsin-EDTA solution, centrifuged, washed and tested for viability using trypan blue exclusion method. Viable cells were re-suspended in PBS at density of 1 × 10⁶ cells/ml. Mice were injected subcutaneously in the abdominal area with 1 × 10⁵ cells suspended in 100 µl PBS.

Antitumor activity

After 14 days of inoculation, mice were distributed into four groups (n = 10 for each group). Group 1 received intraperitoneally 100 µl of MET (80 mg/kg) once a day.³¹ Group 2 received orally by gavage 100 µl of CUR (50 mg/kg) dissolved in olive oil once a day.³² Group 3 received a combination of MET and CUR with doses and administration methods similar to those introduced in single treatments. Group 4 served as a negative control and received a vehicle once a day by intraperitoneal injection of 100 µl PBS and oral gavage of 100 µl olive oil. All groups received their treatment for 14 days. The tumor size was measured according to the following equation: length × width² × 0.5.³³ At the end of the treatment period (day 14), mice were sacrificed (by cervical dislocation) and their tumors were isolated and kept in 10% buffered formalin. The percentage of tumor size was measured according to the following equation: [(final tumor size – initial tumor size)/(initial tumor size)]*100%.³⁴

Histological examination of tumor sections

Formalin-fixed sample were gradually dehydrated in a series of ethanol concentrations, and then cleared in xylene. Following that, samples were infiltrated in wax and cut into 5 μm paraffin sections using a rotary microtome (Reichert, Nussloch, Germany). Standard hematoxylin and eosin (H&E) procedure was used to stain different sections, and images of the slides were visualized using light microscope equipped with computer-controlled digital camera.

Apoptosis detection in tumor sections and cultured EMT6/P cells

Apoptosis was detected in tumor sections using a terminal deoxynucleotidyl transferase (TdT)-mediated 16-deoxyuridine triphosphate (dUTP) Nick-End Labeling (TUNEL) kit (Promega, Wisconsin, USA). Xylene was used to de-paraffin tumor sections. Sections were rehydrated with gradual series of ethanol concentrations, and then washed several times with PBS. Following that, they were fixed with (4%) paraformaldehyde, washed with PBS and permeabilized with 20 μg/ml proteinase K solution. Fragmented DNA was labeled by incubating the sections with biotinylated dUTP in rTdT reaction mixture at 37°C for 1 h. Endogenous peroxidases were blocked using 0.3% hydrogen peroxide. After that, sections were incubated with streptavidin conjugated horse radish peroxide (HRP) at room temperature for 30 min, and fragmented DNA was visualized using hydrogen peroxide followed by the chromagen diaminobenzidine. The same procedure was followed to detect apoptosis in cultured EMT6/P cells after treatment with MET, CUR, and combination.

RNA extraction, cDNA synthesis and gene expression analysis

EMT6/P cells at a concentration of 1.5 × 10⁶ cell/10 ml MEM were cultured in four different tissue culture flasks for 24 h. After that, the media were removed and cultured cells were subjected to the following treatment for 48 h at 37°C: 8 mm MET, 110 μm CUR, combination of 8 mm MET and 110 μm CUR and a blank medium as a control. The media were removed and cells were harvested using trypsin-EDTA solution. The harvested cells were washed with PBS and centrifuged at 1500 RPM for 10 min at 4°C. Following that, total RNA was extracted from treated and untreated control cells using 0.75 ml of TRIzol reagent (Invitrogen, California, USA) per 0.25 ml (5–10 × 10⁶) of EMT6/P cells according to the manufacturer’s protocol. The RNA extracts were reverse-transcribed to cDNA using power cDNA synthesis kit (iNtRON Biotechnology, Inc., Gyeonggi-do, South Korea). Briefly, in each treatment, 1 µg of total RNA extract was used and the sample volume was completed to 9.5 µl using RNase free water. Then, 1 µl of Oligo (dT) was added to each RNA sample and the samples were heated at 75°C for 5 min. After that, they were placed on ice for at least 1 min. While on ice, 1 µl of RNase inhibitor, 4 µl of 5x RT buffer, 2 µl of dNTP, 2 µl of DTT and 0.5 µl of AMV RT enzyme were added to each tube and mixed gently. The samples were incubated at 42°C for 60 min, and then heated at 70ºC for 5 min to terminate the reaction. The synthesized cDNA was used to determine the expression level of Trp53 gene in treated and control cells using semiquantitative reverse transcriptase polymerase chain reaction (RT-PCR). The expression of β-actin gene was used as an internal control to normalize for initial variations in sample concentration. The PCR was carried out using KapaTaq Ready Mix DNA polymerase (Kapabiosystems, Massachusetts, USA) and gene specific primers. The following primers were designed according to a previous work³⁵ and were used at a final concentration of 0.4 µm: p53 forward, 5′- CTGAGGTTGGCTCTGACTGTACCACCATCC-3′; p53 reverse, 5′-CTCATT CAGCTCTCGGAACATCTCGAAGCG-3′; β-actin forward, 5′-ACGGGGTCACCCA CACTGTGC-3′; and β-actin reverse, 5′-CTAGAA GCATTTGCGGTGGACGATG-3′. The PCR conditions used were: 94°C for 3 min, 35 cycles of 94°C for 45 s, 55°C (Trp53) or 57°C (β-actin) for 45 s and 72°C for 1 min, and a final extension step at 72°C for 5 min. The PCR products were visualized using 1.5% agarose gel stained with ethidium bromide. Gene expression analysis was performed using AlphaView Software in AlphaImager Mini Gel Documentation System (Proteinsimple, California, USA). In the negative control, the template cDNA was replaced by RNase-free water.

Detection of IFN-γ, IL-2, IL-4 and IL-10 serum levels

Serum samples were collected from fresh blood. Levels of interferon-γ (IFN-γ), interleukin-2 (IL-2), IL-4 and IL-10 were measured using Th1/Th2 ELISA kit (catalogue # 88-7711-44; affymetrix eBioscience, California, USA) following the procedure in the catalogue.

Assessment of liver functions in mice

Serum levels of both alanine transaminase (ALT) and aspartate transaminase (AST) were quantitatively measured according to a previously described method,³⁶ using commercially available kits (BioSystems, Barcelona, Spain).

Assessment of kidney functions in mice

Serum level of creatinine was measured to assess any relative nephrotoxicity using creatinine detection kit (catalogue # C130613; Acromex, Amman, Jordan) following the manufacturer’s procedure.

Statistical analysis

Data were analyzed using IBM SPSS statistics version 21 (SPSS Inc., Chicago, Illinois, USA). They were presented as mean ± SEM (standard error of mean). One-way analysis of variance (ANOVA) followed by post hoc test was used to measure variations between different groups in VEGF and Trp53 expression analysis as well as cytokines, AST, ALT and creatinine determination. Paired-samples t test was used to examine the effects of different treatments on the tumor size and boy weight. Nonlinear regression analysis was applied to calculate the IC₅₀ values of different treatments in different cell lines. The level of significance was set at p < 0.05.

Results

The antiproliferative activity of MET, CUR and their combination against EMT6/P, MCF7, T47D and Vero cell lines were tested in vitro using the MTT assay. A dose-dependent inhibition was observed in all cell lines after treatment with MET or CUR (Figures 1 and 2). The mouse cell line (EMT6) showed the highest sensitivity to MET treatment with >80% inhibition at MET concentration of 80 mm. Other cell lines exhibited various degrees of inhibition with increasing MET concentration with the highest degree of resistance observed in Vero cell lines followed by MCF7 and T47D, respectively (Figure 1). Different results were obtained after treatment of cell lines with increasing concentrations of CUR. The highest sensitivity was observed for MCF7 followed by EMT6, T47D and Vero cell lines, respectively (Figure 2). The IC₅₀ for each treatment was calculated and compared with vincristine sulfate treatment. MET showed the highest antiproliferative effect against EMT6/P cells with IC₅₀ value of 9 mm, while CUR was more effective against MCF7 with IC₅₀ value of 155 µm. Moreover, the combination of MET and CUR caused a drastic reduction in IC₅₀ values of MET and CUR in all cell types compared with the single treatments. The highest reduction was observed against EMT6/P cells with IC₅₀ values of 4 mm and 55 µm for MET and CUR, respectively (Table 1). The calculated CI of different treatments revealed slight and moderate synergistic effect against EMT6/P and T47D cell lines, respectively.

Figure 1.

Effect of increasing concentrations of metformin (MET) on the viability of different cells lines (EMT6, MCF7, T47D and Vero).

Figure 2.

Effect of increasing concentrations of curcumin (CUR) on the viability of different cells lines (EMT6/P, MCF7, T47D and Vero).

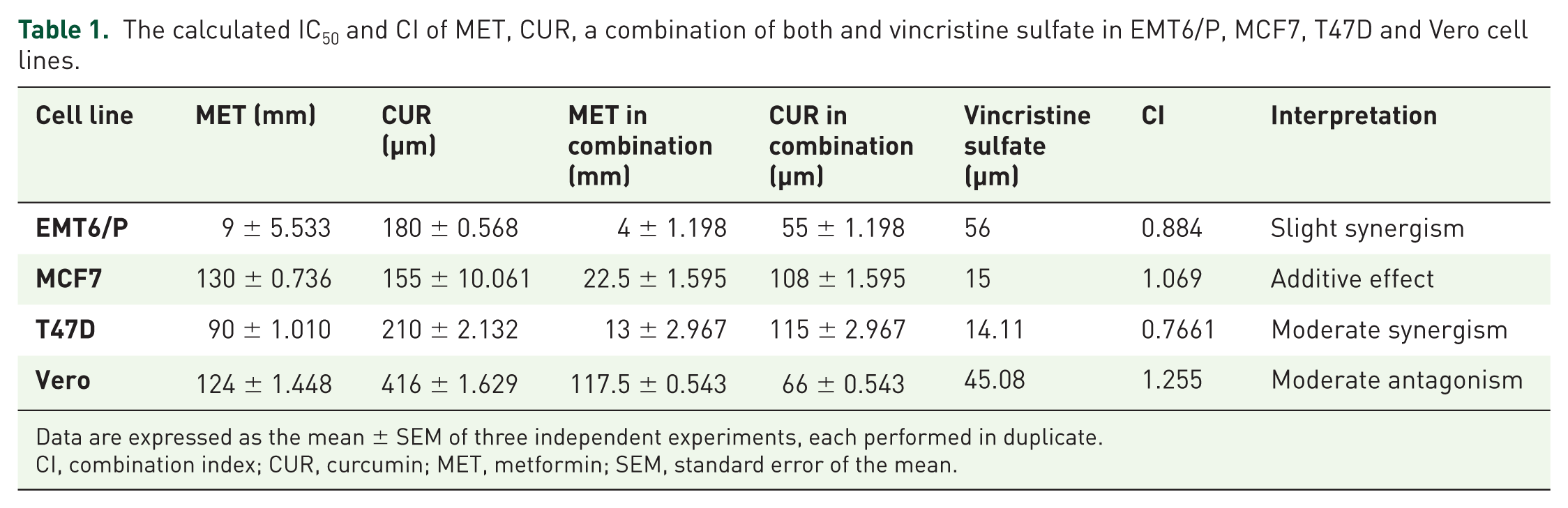

Table 1.

The calculated IC₅₀ and CI of MET, CUR, a combination of both and vincristine sulfate in EMT6/P, MCF7, T47D and Vero cell lines.

Cell line	MET (mm)	CUR(µm)	MET in combination (mm)	CUR in combination (µm)	Vincristine sulfate (µm)	CI	Interpretation
EMT6/P	9 ± 5.533	180 ± 0.568	4 ± 1.198	55 ± 1.198	56	0.884	Slight synergism
MCF7	130 ± 0.736	155 ± 10.061	22.5 ± 1.595	108 ± 1.595	15	1.069	Additive effect
T47D	90 ± 1.010	210 ± 2.132	13 ± 2.967	115 ± 2.967	14.11	0.7661	Moderate synergism
Vero	124 ± 1.448	416 ± 1.629	117.5 ± 0.543	66 ± 0.543	45.08	1.255	Moderate antagonism

Data are expressed as the mean ± SEM of three independent experiments, each performed in duplicate.

CI, combination index; CUR, curcumin; MET, metformin; SEM, standard error of the mean.

To test whether or not the inhibition of angiogenesis has a role in the observed antitumor activity, the expression of VEGF was measured in vitro for each treatment (Figure 3). Significant decrease of VEGF expression was observed in the cells treated with 8 mm MET (560 pg/ml) and those treated with a combination of 110 μm CUR and 8 mm MET (600 pg/ml) in comparison with untreated control cells (1000 pg/ml). Although the level of VEGF expression was reduced in cells treated with 110 μm CUR (960 pg/ml), this reduction was insignificant.

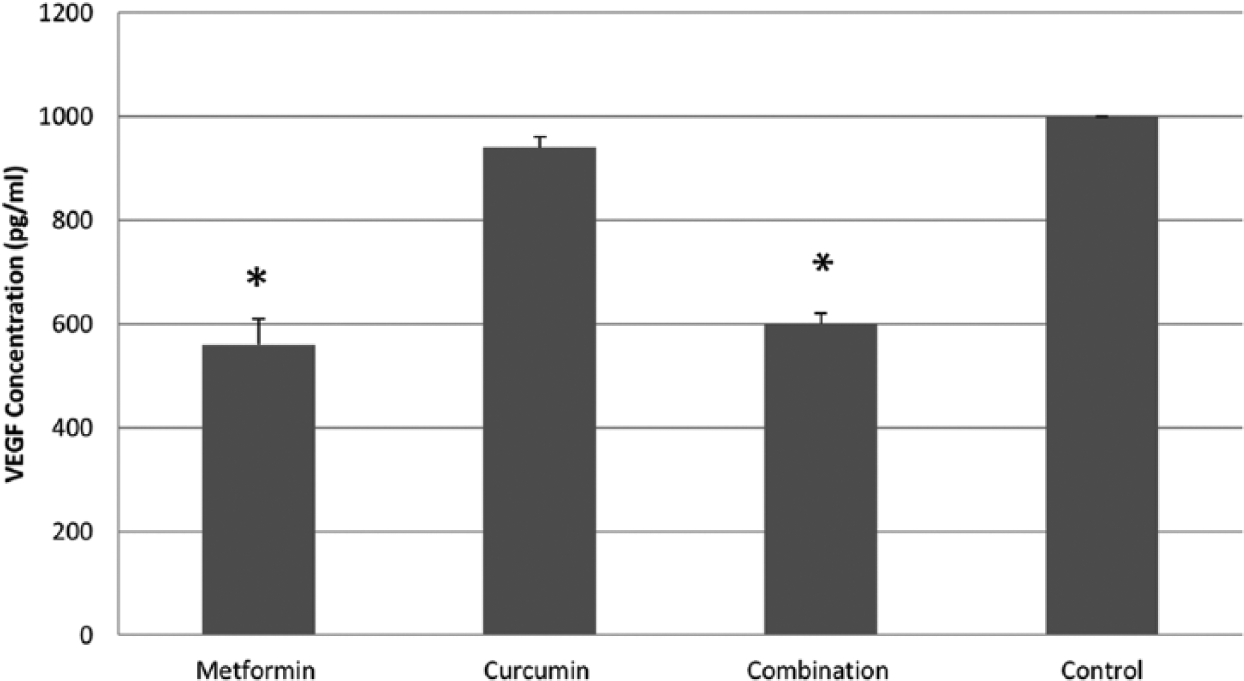

Figure 3.

The effect of different treatments on the expression of vascular endothelial growth factor (VEGF). Concentration of VEGF (pg/ml) in cells treated with 8 mm metformin (MET), 110 µm curcumin (CUR) and a combination of both, as well as in untreated control cells. Each treatment was performed in duplicate. Results are expressed as means (bars) ± SEM (lines). The asterisks represent significant values.

To examine the effect of each treatment in vivo, EMT6/P cells were inoculated in mice to induce tumor formation. Then, mice were treated with 80 mg/kg MET, 50 mg/kg CUR, combination of 80 mg/kg MET and 50 mg/kg CUR or treated with a vehicle as a control (Table 2). Although treatment with MET caused 15.83% increase in the tumor size, this percentage was statistically insignificant and far below that of the control group (201.82%). Treatment with CUR caused a −69.36% reduction in tumor size and it was statistically significant. However, treatment with MET and CUR combination showed the highest significant reduction in the tumor size (−98.59%). Moreover, the percentage change in body weight of mice at different treatments was measured (Table 2). The body weight reduced significantly in CUR (−6.49%) or combination of MET and CUR (−6.02%) treated groups. However, it was insignificantly reduced in MET treated group (−3.12%) and in the control (−3.77%).

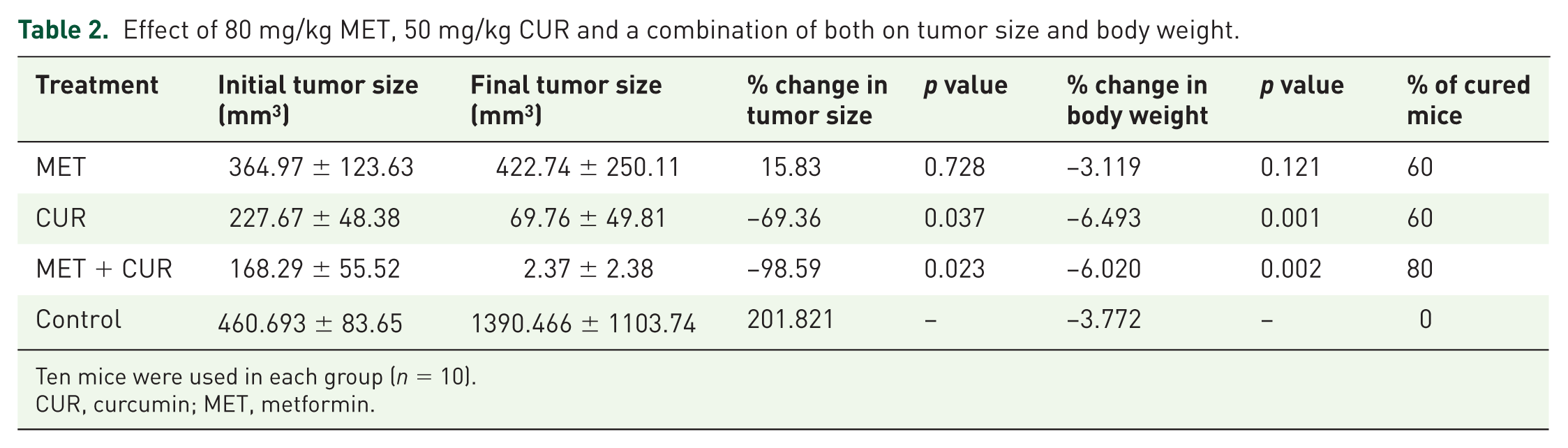

Table 2.

Effect of 80 mg/kg MET, 50 mg/kg CUR and a combination of both on tumor size and body weight.

Treatment	Initial tumor size (mm³)	Final tumor size (mm³)	% change in tumor size	p value	% change in body weight	p value	% of cured mice
MET	364.97 ± 123.63	422.74 ± 250.11	15.83	0.728	−3.119	0.121	60
CUR	227.67 ± 48.38	69.76 ± 49.81	−69.36	0.037	−6.493	0.001	60
MET + CUR	168.29 ± 55.52	2.37 ± 2.38	−98.59	0.023	−6.020	0.002	80
Control	460.693 ± 83.65	1390.466 ± 1103.74	201.821	−	−3.772	−	0

Ten mice were used in each group (n = 10).

CUR, curcumin; MET, metformin.

For better understanding of the effects of different treatments on tumor histology, tumors of similar sizes from all different animal groups were subjected to hematoxylin and eosin staining (Figure 4). Necrotic areas were observed in 80 mg/kg MET (Figure 4A) and 50 mg/kg CUR (Figure 4B) treated groups, while no necrosis was observed in the vehicle treated group (Figure 4D). However, combination of MET and CUR resulted in larger necrotic areas (Figure 4C) compared with those observed in tumor sections from single treatments (Figure 4A and B).

Figure 4.

Hematoxylin and eosin staining of tumors from different treatments. Tumors from animals treated once a day with 80 mg/kg metformin (MET) (A), 50 mg/kg curcumin (CUR) (B), combination of both (C) and a vehicle (D). N, necrotic area. Extensive necrosis was evident in tumors treated with a combination of MET and CUR (C). Four mice were used in each treatment.

In order to evaluate the ability of different treatments to induce apoptosis, TUNEL colorimetric assay was used to stain tumor sections and cultured cells from different treatments (Figures 5 and 6). This assay detects fragmented DNA in cells undergoing apoptosis. The level of apoptosis increased in the cells from 80 mg/kg MET treated animals (Figure 5A) compared with those in vehicle treated group (Figure 5D). The level became even higher in the cells from 50 mg/kg CUR treated animals (Figure 5B). The highest level of apoptosis was shown in the cells from animals treated with a combination of MET and CUR (Figure 5C). Similar results were observed in vitro where the highest apoptosis rate were detected in cells treated with the combination therapy (Figure 6).

Figure 5.

Colorimetric TUNEL assay to detect the induction of apoptosis in tumor sections from different treatments. Tumors from animals treated once a day with 80 mg/kg metformin (MET) (A), 50 mg/kg curcumin (CUR) (B), combination of both (C) and a vehicle (D). Apoptotic nuclei are stained dark brown. Four mice were examined in each treatment.

Figure 6.

Colorimetric TUNEL assay to detect the induction of apoptosis in cultured EMT6/P cells after different treatments. Cancer cells treated for 48 h with 10 mm metformin (MET) (A), 180 µm curcumin (CUR) (B), combination of both (C) and a vehicle (D). Apoptotic nuclei are stained dark brown. Four mice were examined in each treatment.

To uncover whether or not the apoptosis observed using TUNEL assay was due to upregulation in expression of the tumor suppressor gene Trp53 RT-PCR was carried out. Figure 7 shows the expression patterns of Trp53 and the internal control β-actin in EMT6/P cells treated with 8 mm MET, 110 µm CUR, combination of both and in the untreated control cells. In each treatment, the expression of Trp53 relative to that in control cells was normalized to corresponding expression of β-actin relative to that in the control (Figure 7). The expression of Trp53 in MET and combination of MET and CUR treated cells was significantly reduced compared to that in the control (Figure 8). Trp53 expression was also reduced in CUR treated cells, however, this reduction was statistically insignificant (Figure 8).

Figure 7.

The expression of Trp53 and β-actin genes from cells under different treatments. Electrophoretic bands represent the expression of Trp53 (371 bp; upper row) and β-actin (659 bp; lower row) in cells treated with 8 mm metformin (MET), 110 µm curcumin (CUR), a combination of both (Comb), untreated control cells (Cont) and RT-PCR negative control (-Cont) which includes RNase free water instead of cDNA. M represents DNA markers with molecular weights in base pairs (bp) shown at the right.

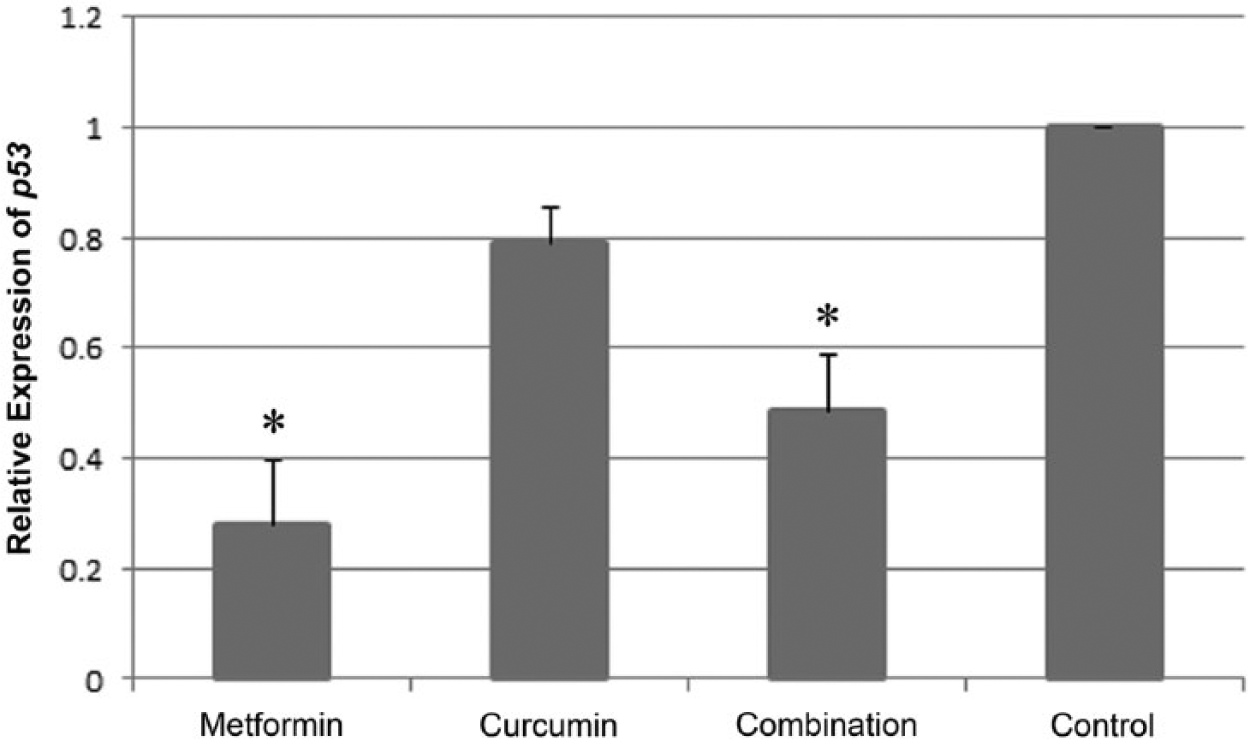

Figure 8.

Relative expression of Trp53 from cells under different treatments. The mean of Trp53 relative expression normalized to the corresponding β-actin relative expression in cells treated with 8 mm metformin (MET), 110 µm curcumin (CUR) and a combination of both, as well as in untreated control cells. In each treatment, five independent experiments were performed and each experiment was done in duplicate. Results are expressed as means (bars) ± SEM (lines). The asterisks represent significant values.

To explore the effect of different treatments on the immune response of animals, the serum levels of IFN-γ, IL-2, IL-4 and IL-10 were detected (Figure 9). Although the level of IFN-γ increased in 80 mg/kg MET (124.50 pg/ml), 50 mg/kg CUR (74.0 pg/ml) and combination of MET and CUR (82.0 pg/ml) treated animals compared to that in the control (46.50 pg/ml), this increase was only significant in MET treated group. The level of IL-2 was almost stable and did not change significantly across the different treatments compared with the control. In contrast, the level of IL-4 increased significantly in the MET (288.50 pg/ml) and combination of MET and CUR (255.5 pg/ml) treated animals compared to the control (113 pg/ml), and it was insignificantly reduced in the CUR treated group (94 pg/ml). IL-10 level did not significantly change among different treatments relative to the control.

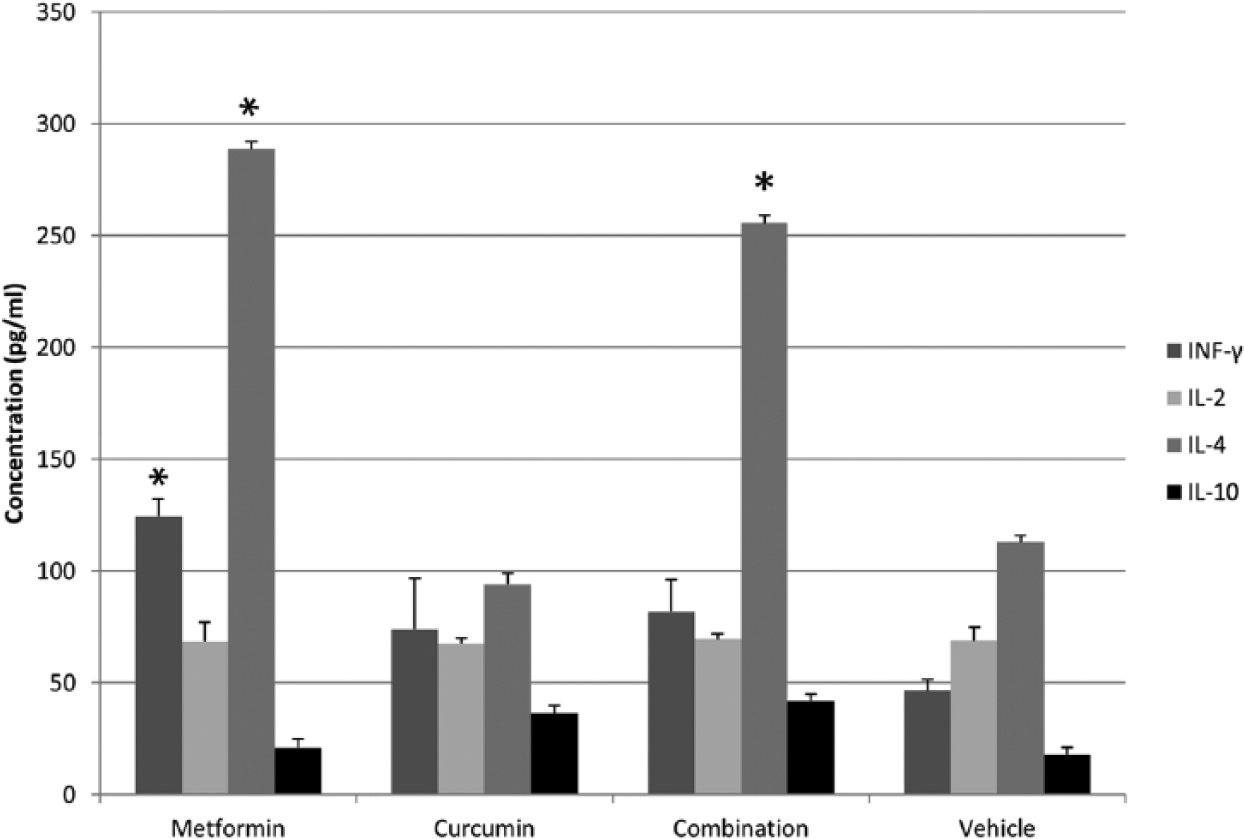

Figure 9.

The effect of different treatments on the immune response of animals. The measured serum levels (pg/ml) of interferon-γ (IFN-γ), interleukin-2 (IL-2), IL-4 and IL-10 from animals treated once a day with 80 mg/kg metformin (MET), 50 mg/kg curcumin (CUR), combination of both and a vehicle (control). Each treatment was performed in duplicate. Results are expressed as means (bars) ± SEM (lines). The asterisks represent significant values.

The potential of developing toxicity associated with different treatments was investigated by measuring the serum levels of AST and ALT liver enzymes as well as the creatinine kidney enzyme. No significant change in the AST level was observed across vehicle treated animals (58.33 IU/l), healthy normal animals (62.77 IU/l) and animals treated with a combination of 80 mg/kg MET and 50 mg/kg CUR (65.55 IU/l) (Figure 10). Although the AST level in MET (41.66 IU/l) and CUR (42.22 IU/l) treated groups was lower than that in the normal group, the reduction in the reading was statistically insignificant (Figure 10). The ALT level in the combination treated group (30 IU/l) was higher than in the normal group (17.36 IU/l), however, this level rise was not statistically significant (Figure 10). Moreover, in all other treated groups no significant changes in ALT levels were detected (Figure 10). Finally, in all different treatments, the creatinine levels did not significantly change compared with those in the normal group (Figure 11). Therefore, AST, ALT and creatinine levels were considered to be normal compared to their levels in the normal group.

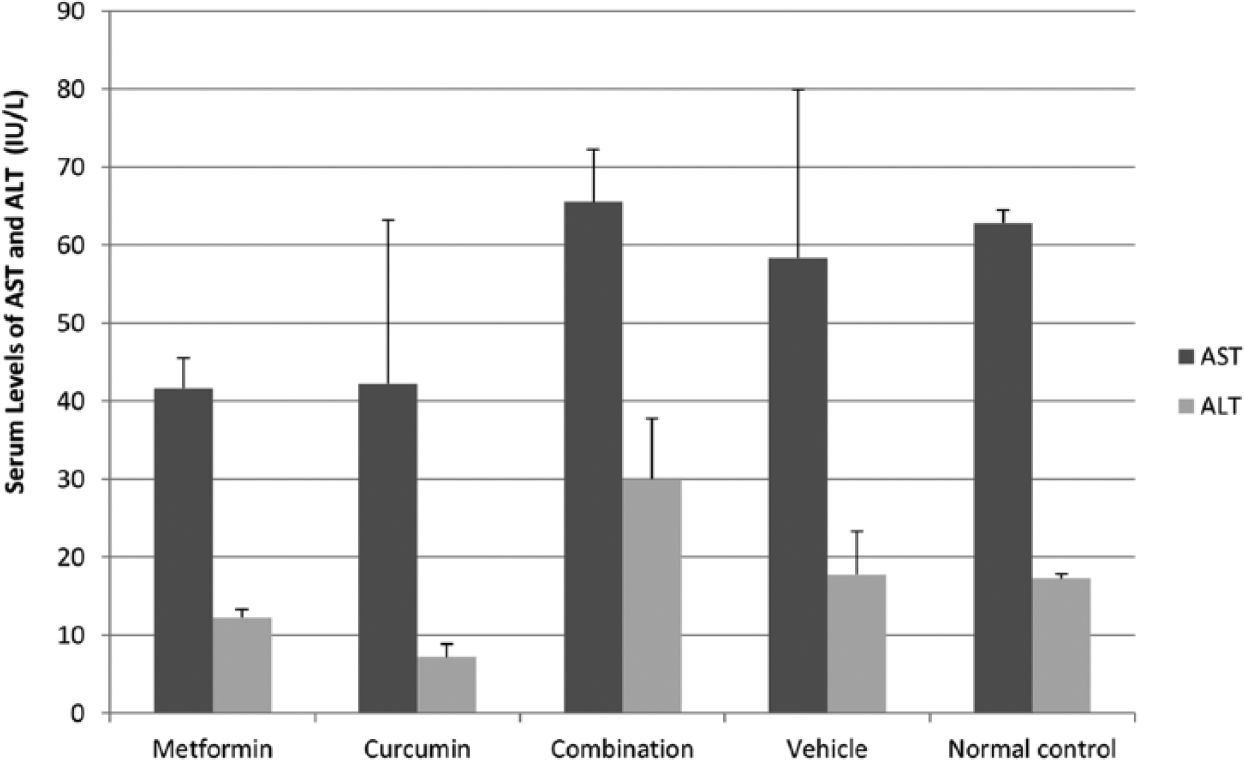

Figure 10.

The effect of different treatments on serum levels of aspartate transaminase (AST) and alanine transaminase (ALT). The measured levels (IU/l) of AST and ALT in animals treated once a day with 80 mg/kg metformin (MET), 50 mg/kg curcumin (CUR), combination of both and a vehicle, as well as in normal control animals. Each experiment was performed in duplicate. Results are expressed as means (bars) ± SEM (lines).

Figure 11.

The effect of different treatments on serum levels of creatinine. The measured level (mg/dl) of creatinine in animals treated once a day with 80 mg/kg metformin (MET), 50 mg/kg curcumin (CUR), combination of both and a vehicle, as well as in normal control animals. Each experiment was performed duplicate. Results were expressed as means (bars) ± SEM (lines).

Discussion

In the present study, the antitumor activity of MET and CUR combination was evaluated against mice breast cancer cells. In vitro and in vivo studies showed high ability of the combination to reduce tumor proliferation and growth, inhibit angiogenesis, induce apoptosis and trigger Th2 immune response.

We found that CUR and MET single treatments exhibited antiproliferative effect against cultured mouse (EMT6/P) and human (MCF-7 and T47D) breast cancer cell lines in a dose-dependent manner. These results are consistent with those from previous studies which demonstrated the inhibitory effect of MET^9,37–39 and CUR^40–42 on the proliferation of several breast cancer cell lines. MET exhibited its highest antiproliferative activity against EMT6/P cells while CUR was more active against MCF7 cells. Such difference may indicate that these two agents have different targets that are expressed at different levels on various cell lines. The combination of MET and CUR reduced dramatically cell proliferation in all cell types compared with the single treatments. The highest antiproliferative activity was against EMT6/P cells. However, we noticed that synergism was observed in only two cell lines: this difference could be due to tissue-specific response where different cell lines exhibit different sensitivity toward MET and CUR combination.

Inhibition of angiogenesis prevents tumor proliferation and expansion. In our study we used VEGF expression as a marker to test whether or not the different treatments exerted anti-angiogenic activity against EMT6/P cells. Although MET and CUR single treatments caused reduction in the VEGF expression compared with the control, the reduction was only significant in MET treatment. However, the inhibitory effect of CUR was augmented when combined with MET. The combination significantly reduced the expression of VEGF. Previous study showed that CUR had different effects on two human breast cancer cell lines. It markedly reduced VEGF transcript level in triple-negative MDA-MB-231 cells but had little effect on MCF-7 cells.²² Another study demonstrated the inhibitory effect of CUR on VEGF expression in 4T1 mouse mammary tumor cell line.²³ These results suggest that the effect of CUR can vary depending on breast cancer subtype. This may explain the slight effect of CUR single treatment on VEGF expression in EMT6/P cells used in our experiments. The reduction in VEGF expression under MET single treatment is in agreement with previous findings which elucidated its inhibitory action against VEGF expression in triple-negative MDA-MB-453 cells.¹⁸ In MCF-7 cells, one study reported an increase in VEGF expression after MET treatment.¹⁶ By contrast; another study showed a decrease in VEGF expression even though MET had a paradox effect on angiogenesis. It caused general decrease of both anti-angiogenic and pro-angiogenic proteins.¹⁷

We used mice bearing EMT6/P tumor cells to examine the effect of each treatment in vivo. Variable tumor sizes within each group were observed at the end of the study in all groups as indicated by high standard deviation values. Such difference is mainly due to the difference in response toward each treatment. Although all mice were inoculated using the same concentration of EMT6/P cells, not all inoculated cells were able to attach and start tumor colonies. A few millimeters increase in tumor size means millions of dividing cancer cells that makes therapy less effective. We found that MET treatment did not reduce tumor size; in contrast, the treatment caused a slight nonsignificant increase in the size. Several studies showed that the effect of MET against implanted breast tumors can vary according to the administrative route, duration of treatment or dosage concentration. For example, in a previous study, MET at a concentration of 2 mg/ml was provided in the animals’ drinking water either on day 8 following triple-negative MDA-MB-231 tumor inoculation or 1 week before inoculation.⁴³ The mice in both groups were sacrificed when the tumor size reached 2 cm or at 90 days (first group) and 103 days (second group) post implantation. In both groups MET significantly reduced tumor growth. In another study, mice were inoculated with triple-negative MDA-MB-231 cells.⁴⁴ Then, MET was orally administered by diluting it in drinking water at a concentration of 3 mg/ml. The drug remarkably reduced tumor size in the group under prolonged treatment (1 month); however, it showed no inhibitory effect against the group under pulse treatment (48 h). In a different study, MET (20 mg/kg) was injected locally for 15 consecutive days into mice bearing MCF-7 cells.⁴⁵ No inhibition of tumor progression was observed as tumor volume did not change between the control and MET treated groups. Our results are consistent with the last study. We also administered the drug by injection and the treatment similarly lasted for 2 weeks. One difference, however, between our experiment and their experiment was the dose concentration which was higher (80 mg/kg) in our case; nonetheless, no inhibition of tumor growth was detected. In addition, the concentration of MET (80 mg/kg) used in our study is extremely lower than concentrations given orally to control blood glucose (350 mg/kg). This difference is due to the difference in administration route where intraperitoneal injection proved to be more effective compared with the oral route⁴⁶ and a recent study showed that a concentration of 50 mg/kg was effective in lowering blood glucose if injected intraperitoneally.⁴⁷ We also examined the effect of CUR against tumor growth in vivo, and we found that it significantly reduced the tumor size. Our findings are in agreement with previous studies which reported the ability of CUR to reduce tumor size in human^41,48 or mice^23,49 breast cancer cells. Although <1% of oral CUR actually enter the plasma,⁵⁰ most studies depend on oral administration of CUR to treat different diseases.⁵¹ In our study we selected oral route to deliver CUR based on the promising results obtained in previous studies and the fact that CUR is a major component of widely consumed spices used to prepare different foods. Compared with single treatments, the combination treatment showed the strongest effect against tumor growth. We observed drastic decrease in tumors size which almost disappeared in the treated animals. The significant reduction in tumor size was correlated to significant reduction in body weight. This might be a consequence of losing large mass of tumor growth and was not due to side effects resulted from the administration of combination treatment. Indeed, 80% of the animals were cured at the end of the experiment.

We performed subsequent histological analysis to further explore the effect of each treatment against implanted tumors. We found that MET and CUR single treatments were able to promote the formation of large necrotic areas and to induce apoptosis. Our findings are consistent with previous findings that reported the effect of MET and CUR against breast cancer and other cancers. MET was shown to enhance necrosis in tumor sections from mice bearing breast tumors treated with the drug for long⁴⁵ or short period of time.⁴⁴ Also, it was able to induce apoptosis in pancreatic cancer cells⁵² and adrenocortical carcinoma cells implanted in mice.⁵³ Similarly, CUR was reported to enhance the formation of large necrotic areas in nasopharyngeal carcinoma sections⁵⁴ and to induce apoptosis in LNCaP prostate cancer cells⁵⁵ and uterine leiomyosarcoma cells⁵⁶ inoculated in mice. In our study, although MET and CUR single treatments showed obvious effect against breast tumors, the effect of their combination was even larger. The necrotic areas extended and more cells underwent apoptosis following the combination treatment.

There are two well-characterized pathways for apoptosis activation: the extrinsic pathway initiates by cell surface death receptors, and the intrinsic pathway operates through changes in mitochondrial integrity.⁵⁷ The pro-apoptotic protein p53 acts as a transcription factor that enhances or represses transcription of several genes involved in the two apoptotic pathways.⁵⁸ In our study, we examined the expression of Trp53 to determine whether apoptosis induced in the three different treatments is due to upregulation in Trp53 expression relative to that in the control. We found that none of the different treatments triggered Trp53 upregulation. Therefore, apoptosis appears to be induced by a Trp53-independent mechanism. Our results are inconsistent with those which showed the ability of MET to induce Trp53-dependent apoptosis in MDA-MB-231 and MCF-7 breast cancer cells³⁹ and those reported the ability of CUR to activate Trp53-dependent apoptosis in MDA-MB-231 cells.⁵⁹ One possible explanation is the use of different breast cancer cell line (EMT6/P) in our study. On the other hand, our results are in agreement with previous findings that showed the ability of CUR to induce apoptosis in the ovarian carcinoma,⁶⁰ melanoma⁶¹ and colon cancer cells⁶² in a Trp53-independent manner. CUR was also reported to cause the degradation of p53 protein and to inhibit p53-induced apoptosis in normal thymocytes and myeloid leukemia cells.⁶³ Moreover, MET was found to enhance efficacy of the anthracycline derivative WP 631 in promoting apoptosis in hepatocarcinoma cells without increasing Trp53 expression level.⁶⁴

The immune system did not exhibit significant response in the CUR treated animals. In contrast, in MET-treated animals, the serum levels of both IFN-γ and IL-4 cytokines were significantly increased compared with those in vehicle-treated animals. Originally, Th1/Th2 model postulated that IFN-γ is selectively produced by T helper1 (Th1) cells which express the master regulator T-bet, whereas IL-4 is selectively made by T helper2 (Th2) cells which express Gata-3.^65–67 T helper (Th1 or Th2) cells were also viewed as having the ability to reinforce the production of their own signature cytokines but repress the expression of other cell cytokines.⁶⁸ However, several studies showed that Th1, Th2 and other cell lineages (T helper17, Th17; T regulatory, Treg; T follicular helper, Tfh) originate from CD4⁺ T cells are plastic and can change their phenotypes.⁶⁹ One example is the reprogramming of Th2 cells that caused coproduction of IL-4 and IFN-γ upon viral infection.⁶⁸ The phenotypic plasticity of T helper cells may explain the rise in both IFN-γ and IL-4 levels following MET administration in our study. IFN-γ was found to play an important regulatory role in the antitumor response against pancreatic cancer cells.⁷⁰ It was also reported to interact synergistically with IL-4 to induce an immune action. For example, both IFN-γ and IL-4 cooperate to activate murine macrophages against Leishmania major amastigotes.⁷¹ They also synergize to enhance MHC class II expression on the surface of melanoma and breast cancer cells.⁷² Furthermore, IL-4 was shown not to inhibit IFN-γ-induced activation of human colostral macrophages.⁷³ Similarly, IFN-γ alone or in combination with IL-4 might elicit an antitumor immune response against breast cancer cells after MET treatment in our experiments. Furthermore, previous study showed that treatment of mice bearing RLmale1 leukemia cells with MET increased the number of CD8⁺ tumor-infiltrating lymphocytes (TILs).⁷⁴ These TILs were capable of producing IFN-γ, IFN-α and IL-2 which were responsible for tumor rejection. Although we found almost stable level of IL-2, the rise in IFN-γ level is in agreement with the previous study⁷⁴ that also reported a simultaneous increase in the number of CD4⁺ cells. Likewise, CD8⁺ TILs might have been activated in our study. Finally, the combination of MET and CUR resulted in a significant increase in IL-4 level without any significant change in IFN-γ, IL-2 and IL-10 levels. This suggests the trigger of Th2 immune response under combination treatment. Previous work demonstrated the ability of IL-4 to inhibit growth^72,75–77 and induce apoptosis⁷⁷ in human breast cancer cells. IL-4 also showed antiproliferative effect against other tumor cells including renal carcinoma⁷⁸ lung carcinoma⁷⁹ and gastric carcinoma.⁸⁰

To evaluate the safety of using MET, CUR and their combination, we measured the serum levels of AST, ALT and creatinine. We found that none of the different treatments significantly changed the levels of these enzymes compared with their levels in normal controls. Therefore, our results suggest that neither single treatments nor combined one had toxicity side effects on liver and kidney functions. Previous work also showed the safe use of MET and CUR in cancer treatment. In one study, MET was used to treat therapy-induced hyperglycemia in children with acute lymphoblastic leukemia, and it did not cause significant increase in AST and creatinine levels.⁸¹ In another work, CUR was administered to rats bearing diethylnitrosamine-induced liver tumor and it caused significant reduction in the high levels of ALT and AST enzymes⁸² or partially normalized them.⁸³ Furthermore, CUR was used to treat glioblastoma and it did not significantly change the levels of transaminases and creatinine.⁸⁴

In conclusion, compared with single treatments, the combination of MET and CUR showed the highest effect against cell proliferation in vitro and tumor growth in vivo. The action of CUR against angiogenesis was augmented by its combination with MET. Moreover, the combination showed the highest effect on necrosis enhancement and apoptosis induction. It is also safe and did not exhibit toxicity side effects against liver and kidney functions. However, further studies are required to explore the underlying mechanisms of apoptosis induction and immune response trigger. Also the accurate measurement of MET and CUR serum levels is essential to clearly understand the observed response. Taken together, our results suggest that the combination of MET and CUR can be a possible candidate for additional clinical investigations related to breast cancer therapeutics.
