Abstract
The treatment of advanced non-small cell lung cancer (NSCLC) is currently driven by the detection of targetable oncogenic drivers, i.e. epidermal growth factor receptor, echinoderm microtubule-associated protein-like 4–anaplastic lymphoma kinase, etc. Those patients who are wildtype for known and valuable oncogenes can receive standard chemotherapy as first-line treatment, with the possibility of adding bevacizumab. With regard to second-line treatment, nintedanib can improve the efficacy of docetaxel. Nintedanib is a tyrosine kinase inhibitor targeting three angiogenesis-related transmembrane receptors. The usefulness of nintedanib as an anticancer agent for NSCLC has been proved by both preclinical and clinical phase I and II trials; however, its approval for the use in clinical practice has been possible because of the positive results of the LUME-Lung 1 trial (nintedanib + docetaxel
Introduction
We are experiencing very exciting days in thoracic oncology thanks to the advent of new promising compounds which will shortly lead to a radical change in the treatment algorithm of non-small cell lung cancer (NSCLC). Targeted therapies, including epidermal growth factor receptor (EGFR) and echinoderm microtubule-associated protein-like 4–anaplastic lymphoma kinase (EML-ALK4) tyrosine kinase inhibitors (TKIs), represent the standard first-line therapy for EGFR-mutated or EML-ALK translocated NSCLC, showing a clear superiority compared with platinum-based chemotherapy [Bronte et al. 2014; Rolfo et al. 2014]. Although targetable ‘oncogene addicted’ tumors affect only a minority of patients, accounting for about 15–20% of the overall NSCLC population, other oncogenic drivers such as ROS1, cMet, human epidermal growth factor receptor type 2 (HER-2) and BRAF have been recently identified and clinical trials are investigating the activity of new targeted agents in order to extend the number of patients who may benefit from tailored approaches [Passiglia et al. 2015a; Bronte et al. 2010]. However, ‘non-oncogene addicted’ tumors currently represent the majority of NSCLC cases, classified into squamous
The question of comparative efficacy between EGFR-TKI and single agent chemotherapy in wildtype NSCLC populations has been addressed by several trials and meta-analysis [Zhao et al. 2014; Li et al. 2014], producing controversial results. Therefore, the choice of the best second-line therapy remains a matter of discussion and ongoing research. Combining anti-angiogenic agents with chemotherapy has recently emerged as a very promising strategy in this setting of patients. Two phase III randomized studies, comparing the oral triple TKI, nintedanib, and the anti vascular endothelial growth factor receptor 2 (VEGFR2) monoclonal antibody, ramucirumab, both in combination with docetaxel
In this review we focus our attention on nintedanib, which has been recently approved by European Medicine Agency (EMA) for the second-line treatment of NSCLC patients with adenocarcinoma subtype. We briefly describe the angiogenesis process and preclinical activity of such compound in NSCLC models. All clinical evidence emerging from phase I–III trials are subsequently reported, with discussion of controversial aspects of competition with the other compounds and ultimately looking at its best place in NSCLC therapy.
Angiogenesis of NSCLC
Cancer growth and its metastatic capability are sustained by angiogenesis, which is their lifeblood [Folkman, 1990]. Genetic and epigenetic events induce the ‘angiogenic switch’, a shift from a vascular tumor phenotype to a neovascularization condition which lends strength to the mass, simplifying the migration of endothelial cells and the metastatic process [Pallis and Syrigos, 2013]. In this event, the balance of pro-angiogenetic vascular endothelial growth factor (VEGF), epidermal growth factor (EGF), fibroblast growth factor α (TGF-α), platelet derived growth factor (PDGF), granulocyte-macrophage colony stimulating factor (GM-CSF), tumor necrosis factor α (TNF-α), placenta growth factor (PIGF), cytokines such as interleukin (IL-1, IL-6, IL-8) and monocyte chemotactic protein-1 (MCP-1), endothelin 1 (ET-1), endothelin 2 (ET-2) and protease matrix metalloproteinases (MMPs), cathepsins, gelatinase A and B, stromelysin and urokinase-type plasminogen activator (uPA), and anti-angiogenetic factors such as thrombospondin-1 (TSP-1), angiostatin moves in favor of the major secretion of pro-factors. Indeed, NSCLC tumor cells show the overexpression of VEGF, the most important vessel growth factor capable of controlling migration, proliferation, invasion and survival of endothelial cells, in both physiological and pathological ways [Jackson et al. 2010].
The signaling pathway, arising from the relationship between VEGF and its receptors (VEGFR), acts alone or in synergy with platelet-derived growth factor (PDGF) receptors (PDGFRs), fibroblast growth factor (FGF) receptors (FGFR) and angiopoietin (Ang)/endothelial TEK tyrosine kinase (Tie2), and seems critical for the growth of new vessels and the tumor cell survival [Onimaru and Yonemitsu, 2011]. Several studies have indicated that the tissue overexpression of VEGF and of these three molecules appears to be associated with poor prognosis and probable increase of angiogenesis, suggesting a potential prognostic role in NSCLC patients [Villaruz and Socinski, 2015]. The expression of VEGF is also regulated by PDGF through autocrine mechanisms. A higher percentage of NSCLC patients with high PDGF tissue levels may have a major resistance to VEGF-targeted therapy. In order to confirm this,
Preclinical development of nintedanib
Nintedanib was identified during a program for small molecule inhibitors of angiogenesis and studies were extended to various solid tumors. Recent evidence shows that nintedanib is a potent endothelial cell proliferation inhibitor with a good safety profile – proven in both
Nintedanib is an indolinone derivative, multiple TKI. This molecule occupies the adenosine triphosphate (ATP) binding sites in the kinase domain of pro-angiogenic receptors, including VEGFR-1, VEGFR-2, VEGFR-3, FGFR-1, FGFR-2, FGFR-3, PDGFR-α and PDGFR-β, inhibiting the downstream signaling pathways. Nintedanib also inhibits FMS-like tyrosine kinase 3 (FLT3) and SRC family members, but does not affect other kinases such as insulin-like growth factor receptor (IGFR) and the epidermal growth factor receptor (EGFR) (Figure 1) [Rolfo et al. 2013].

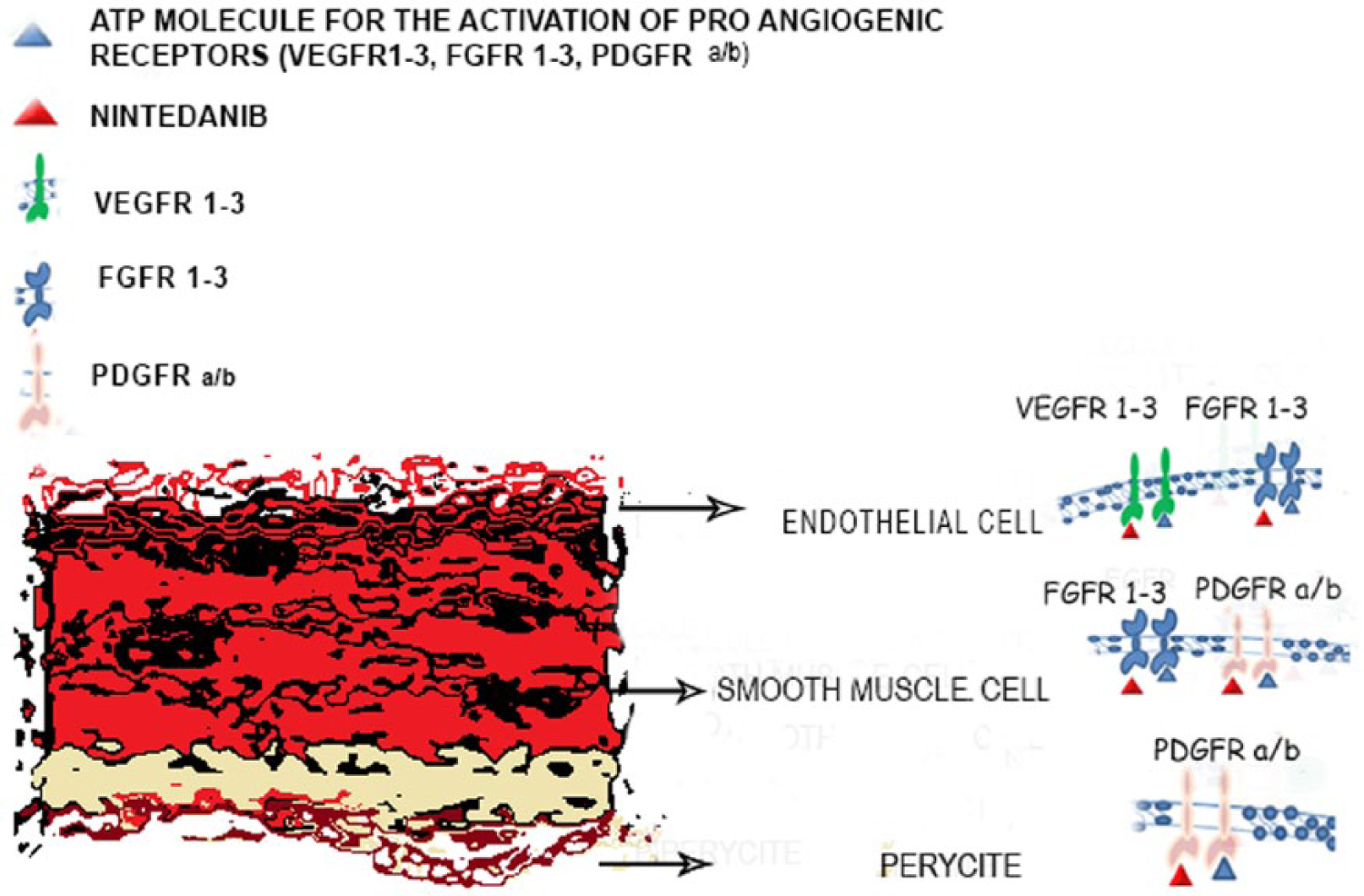

Nintedanib mechanism of action.
These data have been confirmed by
The toxic potential of nintedanib has been thoroughly evaluated in a toxicological program including
Evidence from clinical trials with nintedanib
Phase I and phase II trials
Nintedanib activity has been studied in different kinds of neoplasm such as ovarian cancer, NSCLC, breast cancer, glioblastoma, colorectal cancer, urothelial carcinoma, biliary tract carcinoma, and head and neck cancer, which provided substantial information about the tolerability of this drug [Mross et al. 2010]. With regard to its use in advanced NSCLC, Doebele and colleagues investigated nintedanib use in combination with paclitaxel and carboplatin in chemotherapy-naïve advanced NSCLC [Doebele et al. 2012]. In this trial, 26 patients received nintedanib at the starting dose of 50 mg twice daily on days 2–21 in association with paclitaxel at the dose of 200 mg/m2 and carboplatin at area under the curve (AUC) 5 on day 1 of each 21 day cycle. The treatment was well tolerated with only a few dose-limiting toxicities such as liver enzyme elevations, thrombocytopenia, abdominal pain and rash that did not affect the pharmacokinetic (PK) parameters of the nintedanib or chemotherapeutic backbone.
The scientific community is also waiting for the results of another phase I/II study in which nintedanib was added to gemcitabine/cisplatin as first-line treatment of advanced or recurrent NSCLC, specifically of squamous histology to evaluate its activity in this group of patients. In another dose escalation phase I trial, nintedanib in association with pemetrexed was investigated in a cohort of 26 patients with advanced NSCLC previously treated with a first-line platinum-based chemotherapy. The schedule of treatment was nintedanib given at staring dose of 100 mg twice daily on days 2–21 in association with a standard dose of pemetrexed (500 mg/m2) on day 1 of a 21 day cycle. The resultant maximum tolerated dose (MTD) of nintedanib was determined to be 200 mg twice daily; similar to the previous studies, nintedanib showed a good safety profile [17 dose limiting toxicities (DLT)] with interesting clinical efficacy (1 complete response, 2 partial responses and 8 stable disease of 20 evaluable patients) [Ellis et al. 2010].
The same MTD of nintedanib (200 mg twice daily) was established in another Japanese trial [Daga et al. 2013], where similar efficacy results as the previous studies was found and showing proof of efficacy of this drug in an Asiatic population. In another more recent Asiatic experience, Okamoto and colleagues evaluated the combination of nintedanib with docetaxel in advanced NSCLC patients who had been previously treated. They found promising and encouraging safety and efficacy results, obtaining a 73% of disease control rate and only 12 DLTs [Okamoto et al. 2015]. The time-to-progression and objective response rate found in this study provided the rationale to continue investigation about this drug within large randomized controlled trials.
Phase III trials
With regard to the evaluation of nintedanib in a wider population, its efficacy was tested in two randomized controlled phase III trials, with the aim of improving the clinical result of the standard cytotoxic agents in advanced NSCLC treatment. Reck and colleagues investigated the role of nintedanib (200 mg twice daily on days 2–21) in addition to docetaxel (75 mg/m2) on day 1 of 21 day cycle compared with docetaxel (75 mg/m2) plus placebo in the LUME-Lung 1 trial. The primary endpoint was progression-free survival (PFS). PFS was assessed by an independent central review, analyzed after 714 events in all patients. Overall survival (OS) was predefined as a key secondary outcome; other secondary outcomes were investigator-assessed PFS, tumor response by central review and investigator assessment, safety and tolerability. With regard to EGFR status evaluation, there was no preplanned subgroup analysis for this item because the test was not included in clinical practice at the time of the trial design.
The nintedanib plus docetaxel group showed a significantly longer PFS as determined by central independent review than the control group [median PFS 3.4

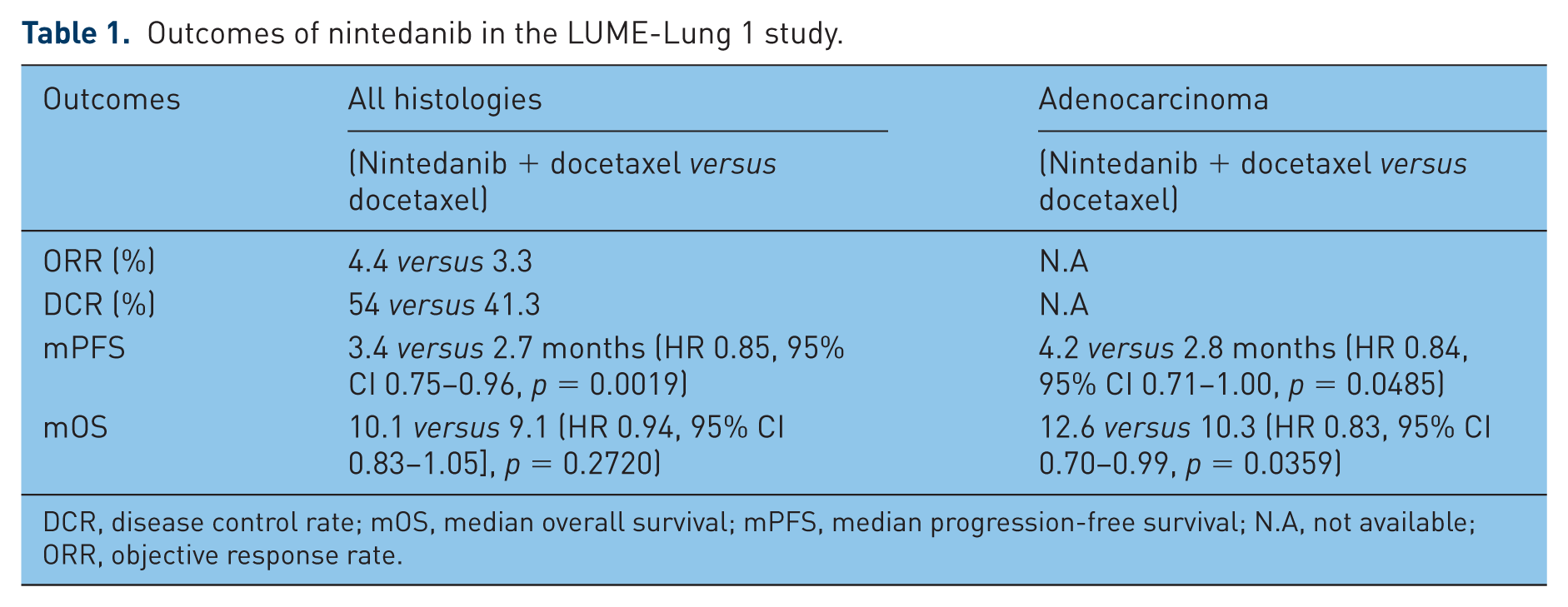

Outcomes of nintedanib in the LUME-Lung 1 study.
DCR, disease control rate; mOS, median overall survival; mPFS, median progression-free survival; N.A, not available; ORR, objective response rate.
Nintedanib, at the same dose, was also investigated in combination with pemetrexed (500 mg/m2) and compared with pemetrexed (500 mg/m2) plus placebo in the LUME-Lung 2 phase III controlled randomized trial [Hanna et al. 2013]. The primary endpoint was the same (PFS) based on independent central review and a preplanned futility analysis was performed to verify if the primary endpoint was unlikely to be met. The study met its primary endpoint for the combination arm (4.4
Based on new knowledge in the field of molecular biology, interesting data could emerge from an ongoing phase III study [ClinicalTrials.gov identifier: NCT02299141] that is evaluating the effectiveness of nintedanib in molecularly selected NSCLC patients, with investigation of the potential role of some genes (VEGFR1-3, PDGFR-A, PDGFR-B and FGFR1-3) that could be involved in the regulation of mechanisms of acquired resistance to anti-angiogenic agents.
Place of nintedanib in the current treatment algorithm of NSCLC
The results of the LUME-Lung 1 trial interrupted the negative trend of anti-angiogenic agent efficacy in NSCLC. Since the therapeutic success obtained by bevacizumab in the first-line setting, several multi-TKIs, including sunitinib, sorafenib, vandetanib and motesanib, had been investigated in clinical trials, both as single agents or in combination with chemotherapy, but failing to demonstrate any impact on the OS of NSCLC patients [Scagliotti et al. 2010, 2012a, 2012b; Paz-Ares et al. 2012; de Boer et al. 2011; Herbst et al. 2010]. After several years of research, this is the first study showing a modest, but significant OS advantage in favor of a combination regimen over the standard single-agent therapy in NSCLC patients who progressed to first-line platinum chemotherapy [Reck et al. 2014]. Specifically, the addition of nintedanib to docetaxel seems to benefit the subgroup of patients with adenocarcinoma histology (median OS 12.6
At the same time, the REVEL phase III randomized study investigated the addition of another anti-angiogenic agent, the anti-VEGFR2 monoclonal antibody, ramucirumab, to docetaxel in NSCLC patients who failed prior platinum-based chemotherapy. The results of this trial have also shown a significant superiority of combination therapy
A similarly manageable tolerability profile has emerged from both studies, and data on QoL showed that it did not deteriorate with the addition of anti-angiogenic agents to chemotherapy. However, there are also differences in the safety of these two compounds. A significantly higher incidence of gastrointestinal events, including diarrhea, nausea, vomiting and increases in liver enzymes was reported in the nintedanib plus docetaxel arm compared with the control arm in the LUME-Lung 1 study. Adverse events usually associated to anti-angiogenic therapies, including bleeding/hemorrhage and hypertension occurred more frequently with the ramucirumab plus docetaxel combination, while they did not significantly increase with nintedanib [Reck et al. 2015]. The two anti-angiogenic drugs are different in terms of extension of OS benefit. In the LUME-Lung 1 study, this benefit was limited to patients with adenocarcinoma histology, whereas in the REVEL study it was extended to the overall NSCLC population. However the percentage of patients with squamous histology and treated with ramucirumab were very low (25%) to demonstrate the clinical efficacy of such agent in this subset of patients. On the basis of such scientific evidence, nintedanib plus docetaxel has been recently approved by the EMA as a second-line treatment for patients with lung adenocarcinoma while ramucirumab plus docetaxel received US Food and Drug Administration (FDA) approval as a second-line option for the overall NSCLC population.
We recently proposed a new treatment algorithm describing the sequences of therapy from first to third-line for non-oncogene addicted adenocarcinoma patients, suggesting the combination of both nintedanib and ramucirumab with docetaxel as a new standard second-line option in non elderly and Eastern Cooperative Oncology Group (ECOG) Performance Status (PS) PS 0–1 patients who progressed to first-line platinum regimens [Bronte et al. 2015]. To date, there are no clinical trials comparing both nintedanib and/or ramucirumab plus docetaxel combinations with standard second-line options other than docetaxel. The comparisons between single-agent chemotherapy and the EGFR-TKI, erlotinib, suggested a potential survival benefit in favor of chemotherapy in EGFR wildtype NSCLC patients [Vale et al. 2015; Zhao et al. 2014; Osarogiagbon et al. 2015], thus providing indirect evidence about the superiority of combination regimens over EGFR-TKI.
Even if the addition of nintedanib to pemetrexed in the LUME-Lung 2 study has led to controversial results [Hanna et al. 2013], the fact remains that pemetrexed is currently used in combination with platinum as first-line treatment in most European patients with EGFR/ALK-WT lung adenocarcinoma. Therefore, it may be left out of the debate about the best second-line option in Europe, where the combination of nintedanib plus docetaxel may be considered as a new standard of care. For US patients, a direct comparison between single-agent pemetrexed and ramucirumab plus docetaxel combination is needed to establish the best therapy for patients with nonsquamous histology, who often do not receive pemetrexed first line. Currently, there are no studies which make a direct comparison between nintedanib and ramucirumab in NSCLC. However, nintedanib was registered by EMA for European patients, whereas ramucirumab was registered by FDA in the US. Hence, these two drugs can currently be prescribed in different populations.
Place of nintedanib in the future treatment algorithm of NSCLC
As well as angiogenesis inhibition, immunotherapy is emerging as another promising strategy in NSCLC. Several immune-checkpoint inhibitors, including both anti programmed death 1 (PD1) and anti programmed death-ligand 1 (PD-L1) monoclonal antibodies, have shown great activity in heavily pretreated NSCLC patients included in early phase I studies [Gettinger et al. 2015; Garon et al. 2015], reaching an objective response rate (ORR) close to 20%. Two randomized phase III studies (CheckMate 017 and 057) recently compared the anti-PD1 monoclonal antibody, nivolumab,
The lack of a direct comparison between the immune-checkpoint inhibitors and the new standard second-line therapy, represented by nintedanib and ramucirumab plus docetaxel combinations along with the absence of long-term survival analysis from published studies, currently limits any evidence-based recommendation. In the meantime, a careful evaluation of the characteristics of patients candidate to receive a second-line therapy, including general health conditions, comorbidities, disease burden and tumor-related symptoms, responses and tolerability to the first-line therapy and concomitant medications, together with the drug’s activity and safety profiles emerging from clinical studies could help to choice the best option to each of them. Indeed adenocarcinoma patients ‘fit for chemotherapy’, including non-elderly patients with PS 0–1, without significant comorbidities, who have tolerated first-line treatment well, or who have progressed within 9 months from beginning of first-line treatment could be the best candidates for nintedanib plus docetaxel combination in second-line. Conversely, older/PS2 people, current/former smokers or patients who experienced hematological toxicities from first-line therapy should receive immunotherapy as preferred option, excluding those with viral hepatitis or autoimmune disease or CNS symptomatic metastasis in treatment with steroids who are not eligible for such kind of treatment. However, strong evidence about the efficacy of immunotherapy in these subsets of patients have not been available yet.
Furthermore, we have evidence about the activity of immune-checkpoint inhibitors in NSCLC after second-line treatment [Besse et al. 2015], but we do not have that data for nintedanib. This should also be taken into account in the design of a potential treatment algorithm in order to offer all the treatment options available to our patients and ultimately try to extend their survival outcomes. On the basis of such available evidence, we propose here a new treatment algorithm describing the sequence of therapy from first-line to third-line treatment for non-oncogene addicted adenocarcinoma patients, including also the new immune-checkpoint inhibitors which will be approved early for this setting of patients (Figure 2). Based on studies mostly on immune-checkpoint inhibitors in NSCLC, a recent pooled analysis performed by our group has recently confirmed that tumor PD-L1 expression is significantly associated with higher ORR in pretreated NSCLC receiving different anti-PD1 or anti-PD-L1 monoclonal antibodies [Passiglia et al. 2015b]. The identification and clinical validation of reliable predictive biomarkers for both anti-angiogenic treatments and immunotherapies is likely to help oncologists to select the best therapy for each patient in the near future.

Treatment algorithm in non-oncogene addicted NSCLC adenocarcinoma including new emerging options.
Conclusion
For a long time, a slight improvement of NSCLC prognosis has been achieved by standard chemotherapy. In this context, platinum-based regimens represented the backbone for first-line treatment. The findings about the impact of pro-angiogenic markers on NSCLC natural history yielded the addition of bevacizumab to standard first-line chemotherapy for patients with nonsquamous histology. However, a striking antitumor effect and a sizeable outcome improvement have been observed only with the introduction of TKIs for targetable oncogenic drivers.
In this landscape of novel treatments for NSCLC, nintedanib provides the opportunity to improve outcomes for docetaxel-based second-line therapy for patients with adenocarcinoma. Fortunately, this achievement has been obtained at the expense of manageable higher rates of hematological and gastrointestinal toxicity. For this reason, nintedanib should be considered for patients with adenocarcinoma who can undergo second-line chemotherapy.
Footnotes
Acknowledgements
Dr Chiara Drago contributed to the revision of the English language of this manuscript.
Funding
This research received no specific grant from any funding agency in the public, commercial, or not-for-profit sectors.
Conflict of interest statement
The authors declare no conflicts of interest in preparing this article.
