A nomogram for predicting the response to exclusive enteral nutrition in adult patients with isolated colonic Crohn’s disease

Abstract

Background:

Isolated colonic Crohn’s disease (cCD) responds less well to induction therapy with exclusive enteral nutrition (EEN) compared with ileal or ileocolonic disease in adult patients; therefore, we aimed to identify the factors that influence the response to EEN and develop a predictive nomogram model to optimize the use of EEN in cCD patients.

Materials and methods:

Eighty-five cCD patients treated with EEN as first-line therapy at our center between 1 June 2012 and 30 June 2018 were retrospectively analyzed as the primary cohort. The primary endpoint was clinical remission after EEN therapy. Potential predictive factors for the efficacy of EEN were assessed by univariate and multivariate analyses, and a nomogram to predict the response to EEN therapy in cCD patients was designed. Another 19 cCD patients were retrospectively included in the validation cohort to verify the accuracy of the nomogram model.

Results:

The clinical remission rates for the primary cohort and validation cohort were 52.9% and 47.4%, respectively. Pancolitis was the greatest contributor to the risk of failure to respond to EEN [odds ratio (OR) = 4.896; 95% confidence interval (CI) = 1.223–19.607; p = 0.025], lean body mass index (LBMI), colonic lesion features, simple endoscopic scores for Crohn’s disease, C-reactive protein before treatment and ∆prealbumin were also related to the efficacy of EEN in cCD. The nomogram model showed robust discrimination, with an area under the receiving operating characteristic curve of 0.906.

Conclusion:

Several predictive factors for response to EEN therapy in cCD adult patients were identified, and a promising nomogram that can predict the effect of EEN in cCD was developed.

Keywords

exclusive enteral nutrition isolated colonic Crohn’s disease nomogram model

Introduction

Isolated colonic Crohn’s disease (cCD) has similar macroscopic features with those of ileal or ileocolonic disease, such as skip lesions, fissuring ulcers, or fibrostenosis, etc.¹ but different genetics, epidemiology, intestinal microecology, and disease progress.² The response to medicine also differs between cCD and ileal or ileocolonic Crohn’s disease (CD). Limited evidence has shown that 5-aminosalicyclic acid and corticosteroids are not as effective for inducing remission in cCD.^3–5 Several cohort studies have shown that colonic disease location is a predictor of response to antitumor necrosis factor (anti-TNF) agents;^6–8 however, approximately 5.9~54% cCD patients are primary nonresponders to anti-TNF,^8,9 and the high cost also limits its use. Exclusive enteral nutrition (EEN) is another effective induction therapy in patients with active Crohn’s disease. Although whether EEN is effective in cCD is controversial; our previous research indicated that EEN still has a considerable success rate of more than 50% for inducing clinical remission among cCD patients,¹⁰ which was also supported by other studies.^11–13 Therefore, the development of a new predictive model for screening cCD patients with poor EEN response characteristics will be helpful to optimize and personalize the use of EEN in clinical practice.

Nomograms have been applied in many fields of medicine. This type of model can combine multiple sequences and clinical factors to determine the probability of a clinical event with a simple pictorial representation.¹⁴ In this study, we reviewed our experience with EEN as the primary treatment for active cCD in adults and aimed to develop and validate a nomogram model to optimize the use of EEN in clinical practice.

Materials and methods

Patients and data collection

This retrospective study was conducted with the approval of the Ethics Committee of Jinling Hospital (Ethics approval number: 2018NZKY-013-03). We obtained informed, written consent from all patients prior to commencement of the study. All clinical data were collected from two independent prospectively maintained inflammatory bowel disease (IBD) databases at Jinling Hospital. One belonged to the IBD center and the other was owned by the gastroenterology department. A total of 91 consecutive cCD patients treated for disease flare-ups at our IBD center from 1 June 2012 to 30 June 2018 were reviewed, and they were identified as the primary cohort for building a nomogram model. From 1 January 2015 to 30 June 2018, another 19 consecutive cCD patients treated with EEN as induction therapy at the Department of Gastroenterology at our hospital were identified as the validation cohort. In order to maximize the predictive efficiency of the nomogram model, the patients in the primary cohort and validation cohort have no overlap or intersection.

The inclusion criteria were as follows: (a) age >18 years; (b) must be in the active disease phase [C-reactive protein (CRP) >10 mg/l and Harvey Bradshaw Index (HBI) > 4]; (c) EEN as the primary induction therapy. The exclusion criteria were as follows: (a) presence of bowel stoma; (b) treatment with EEN as maintenance therapy; (c) EEN treatment interference due to intolerance or noncompliance. All patients underwent colonoscopy before EEN treatment, and abdominal computed tomography (CT) scan or small intestine CT imaging were conducted within 2 weeks before or after admission, and gastroduodenoscopy was performed if upper gastrointestinal disease was suspected. Simple endoscopic scores for Crohn’s disease (SES-CD) were evaluated at the same time. All the patients had been assessed by the nutrition support team to determine their nutritional status, and their body composition was measured using a multifrequency bioelectrical impedance analyzer (Biospace InBody Co., Korea) within 1 week after admission to calculate the lean body mass index (LBMI).

Inflammatory markers [erythrocyte sedimentation rate (ESR) and CRP] and nutritional indicators [serum albumin (ALb) and prealbumin (pre-ALb)] were recorded at the start and once weekly during the exclusive enteral feeding treatment. Basic demographic data [age, sex, course of disease, family history of IBD in first-degree relatives, body mass index (BMI), Montreal classification, maintenance medication, history of surgery, etc.] were recorded at the start of treatment. Blood tests and HBI scores were performed once a week to determine whether the patients achieved clinical remission.

Exclusive enteral nutrition

Exclusive enteral nutrition (EEN) was provided for more than 2 weeks as the exclusive source of energy and nutrition, and all other medical treatments were forbidden. For gustatory improvement, only chewing gum and water were allowed in addition to EEN. In order to evaluate the efficacy of EEN treatment, CRP and HBI scores were recorded weekly. EEN was performed with enteral nutritional suspension (TPF) or with Peptisorb Liquid (SP; both Nutricia, Wuxi, China), in case of intolerance, such as diarrhea, bloating, and belching. The daily caloric intake was calculated depending on individual caloric requirements (approximately 25–30 kcal/kg/d) and was gradually increased from half that amount to the full amount over 2 days. Depending on tolerance, patient choice or doctors’ consideration, the formula was administered via a nasogastric tube (continuous or bolus) or orally in accordance with the patient’s daily routine. Intake of enteral nutrition was recorded by professional nurses in our center daily.

Body composition measurement

The body composition of the patients was estimated using a multifrequency bioelectrical impedance analyzer (Biospace InBody Co., Seoul, Korea) at admission. The patients were not allowed to eat or drink for 6 h before the test and were asked to empty their bladder before testing, if possible. The patients stood barefoot on the detector with both the heel and forefoot resting on the foot electrodes and the hands holding the hand electrodes, with the upper limbs away from the torso. After the test, the fat and skeletal muscle mass, total lean mass, fat ratio, BMI and basal metabolic rate were accurately analyzed. We then calculated the LBMI for every patient as the skeletal muscle mass (kg) divided by height in meters squared (m²).

Definitions

All patients with isolated cCD were diagnosed by endoscopic, histological, or radiological findings according to the European evidence-based consensus on the diagnosis and management of Crohn’s disease 2016.¹⁵ Isolated colonic involvement refers to any colonic lesion between the caecum and rectum with no small bowel or upper gastrointestinal involvement. Clinical remission of CD was assessed using the definition of a CRP level < 10 mg/l and an HBI score ⩽ 4. The failure of EEN therapy was determined when one of the following conditions was met: (a) HBI > 4 with or without CRP > 10 mg/l after EEN treatment; (b) the need for further treatment, such as surgery, corticosteroids or anti-TNFα or other medicine, due to no response to EEN treatment. Previous studies have demonstrated that fat mass and lean mass are strongly associated with prognosis in patients with CD.

Statistical analysis

Statistical analyses to identify risk factors were performed using SPSS version 23.0 (SPSS, Inc., an IBM Company, Chicago, IL, US). Potential influential variables were grouped based on clinical findings. Quantitative and qualitative variables were expressed as the mean (SD), frequency and percentage. Frequencies were compared between groups using chi-squared tests or Fisher’s exact test, as appropriate. Continuous variables were compared using the t test. To identify predictors of response to EEN treatment, we used logistic regression analysis for univariate and multivariate analyses.

A nomogram model was formulated based on the results of the multivariate analysis and by using the rms package¹⁶ in R version 3.5.1 (http://www.r-project.org/). The discriminative ability of the model was determined by the area under the receiver operating characteristic curve, which ranged from 50% to 100%. Generally, discrimination values below 60% are unacceptable, values of 60–70% may be acceptable, and values from 70% to >90% range from good to excellent. The prediction model was calibrated by a visual calibration plot that compared the predicted and actual probability of clinical remission with EEN therapy.¹⁷ In addition, the nomogram was subjected to 1000 bootstrap resamples for internal validation to assess predictive accuracy,¹⁸ and external verification was constructed using the validation cohort. The model development and validation code are presented in Appendix 1.

For all the analyses, p < 0.05 was considered statistically significant, and all tests were two tailed unless otherwise indicated.

Results

Patient characteristics

Between 1 June 2012, and 30 June 2018, 91 cCD patients were identified with EEN treatment as inducing therapy in our center. Six cCD patients were excluded from primary cohort due to EEN intolerance. The primary cohort finally comprised 85 enrolled patients in this study. For the validation cohort, we studied 19 consecutive cCD patients from the Department of Gastroenterology. There was no significant difference in terms of the main variables, such as sex (p = 0.35), age (p = 0.86), BMI (p = 0.36), CRP (p = 0.24) or SES-CD (p = 0.07), between the primary and validation cohorts. Among the patients in the primary cohort, aphtha ulcers accounted for approximately 50% of all colonic lesions, and the validation cohort showed a similar composition. The baseline characteristics of the participants are summarized in Table 1.

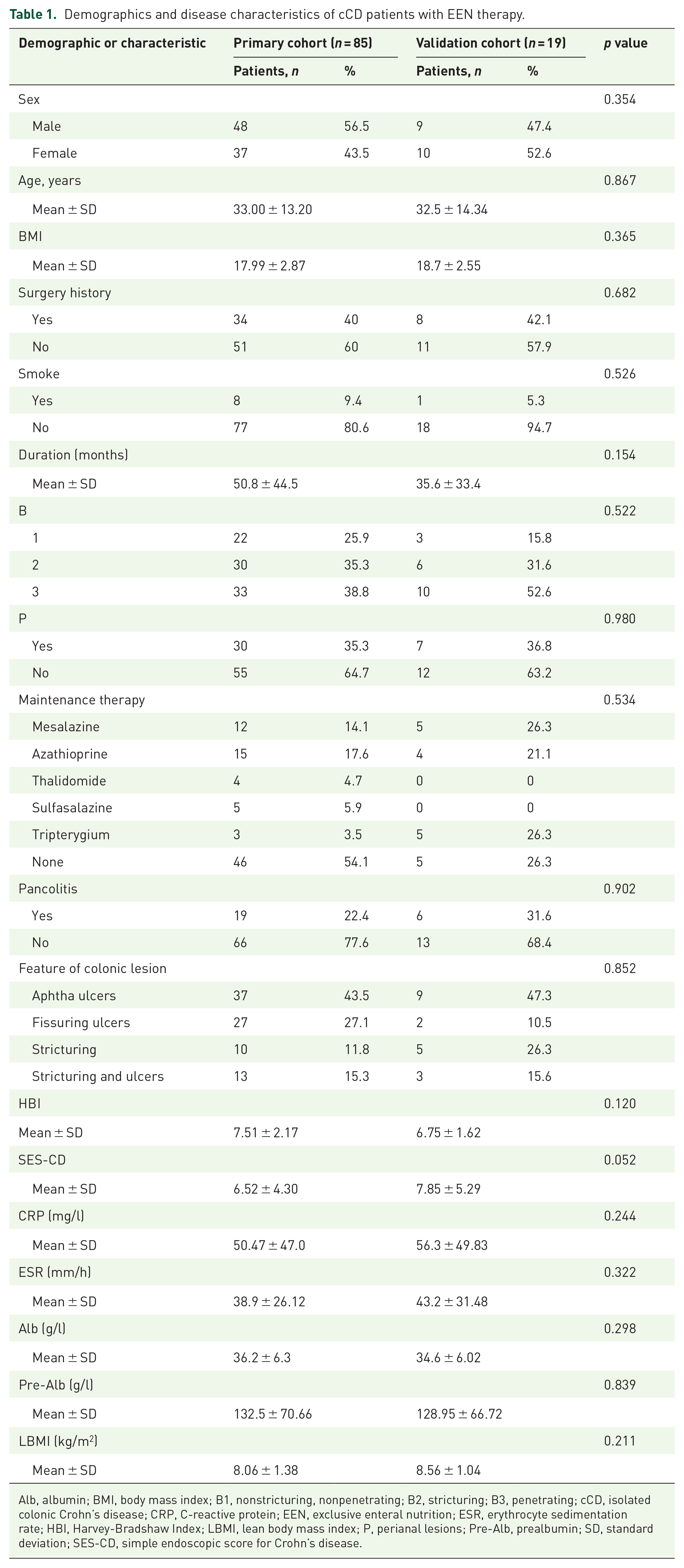

Table 1.

Demographics and disease characteristics of cCD patients with EEN therapy.

Demographic or characteristic	Primary cohort (n = 85)		Validation cohort (n = 19)		p value
Demographic or characteristic	Patients, n	%	Patients, n	%	p value
Sex					0.354
Male	48	56.5	9	47.4
Female	37	43.5	10	52.6
Age, years					0.867
Mean ± SD	33.00 ± 13.20		32.5 ± 14.34
BMI					0.365
Mean ± SD	17.99 ± 2.87		18.7 ± 2.55
Surgery history					0.682
Yes	34	40	8	42.1
No	51	60	11	57.9
Smoke					0.526
Yes	8	9.4	1	5.3
No	77	80.6	18	94.7
Duration (months)					0.154
Mean ± SD	50.8 ± 44.5		35.6 ± 33.4
B					0.522
1	22	25.9	3	15.8
2	30	35.3	6	31.6
3	33	38.8	10	52.6
P					0.980
Yes	30	35.3	7	36.8
No	55	64.7	12	63.2
Maintenance therapy					0.534
Mesalazine	12	14.1	5	26.3
Azathioprine	15	17.6	4	21.1
Thalidomide	4	4.7	0	0
Sulfasalazine	5	5.9	0	0
Tripterygium	3	3.5	5	26.3
None	46	54.1	5	26.3
Pancolitis					0.902
Yes	19	22.4	6	31.6
No	66	77.6	13	68.4
Feature of colonic lesion					0.852
Aphtha ulcers	37	43.5	9	47.3
Fissuring ulcers	27	27.1	2	10.5
Stricturing	10	11.8	5	26.3
Stricturing and ulcers	13	15.3	3	15.6
HBI					0.120
Mean ± SD	7.51 ± 2.17		6.75 ± 1.62
SES-CD					0.052
Mean ± SD	6.52 ± 4.30		7.85 ± 5.29
CRP (mg/l)					0.244
Mean ± SD	50.47 ± 47.0		56.3 ± 49.83
ESR (mm/h)					0.322
Mean ± SD	38.9 ± 26.12		43.2 ± 31.48
Alb (g/l)					0.298
Mean ± SD	36.2 ± 6.3		34.6 ± 6.02
Pre-Alb (g/l)					0.839
Mean ± SD	132.5 ± 70.66		128.95 ± 66.72
LBMI (kg/m²)					0.211
Mean ± SD	8.06 ± 1.38		8.56 ± 1.04

Alb, albumin; BMI, body mass index; B1, nonstricturing, nonpenetrating; B2, stricturing; B3, penetrating; cCD, isolated colonic Crohn’s disease; CRP, C-reactive protein; EEN, exclusive enteral nutrition; ESR, erythrocyte sedimentation rate; HBI, Harvey-Bradshaw Index; LBMI, lean body mass index; P, perianal lesions; Pre-Alb, prealbumin; SD, standard deviation; SES-CD, simple endoscopic score for Crohn’s disease.

Clinical remission after EEN

In the primary cohort, 45 patients (52.9%) achieved clinical remission after induction therapy with EEN. The clinical remission rate in the validation cohort was 47.4% (9/19). The mean HBI score and CRP level were 7.51 ± 2.17 and 50.47 ± 47, respectively, before treatment in the primary cohort and 2.43 ± 0.69 and 5.23 ± 1.82, respectively, for those who achieved clinical remission at the end of EEN therapy. Among those who did not respond well to EEN treatment in the primary cohort, 12 patients underwent surgery due to obstruction or fistula; 9 patients switched to anti-TNF-α (6 of them achieved clinical remission); 5 patients used corticosteroids; and the rest of the patients did not seek further treatment for a specific reason (Figure 1).

Figure 1.

Flow chart of cCD patient inclusion in the primary cohort.

Univariate and multivariate analyses of the predictive factors associated with clinical response to EEN in cCD patients

To investigate the predictive factors for the response to EEN therapy in cCD patients, we conducted univariate and multivariate analyses in the primary cohort. From the results presented in Table 2, we found that pancolitis was strongly associated with a poor response to EEN therapy [odds ratio (OR) = 4.896; 95% confidence interval (CI) = 1.223–19.607; p = 0.025]. The characteristics of the colonic lesions were also related to the efficacy of EEN therapy (OR = 2.32; 95% CI = 1.143–4.708; p = 0.020). Using aphtha ulcers as a reference, patients with strictures, or strictures combined with ulcers were much more likely to experience the failure of EEN therapy (p < 0.05, respectively); in contrast, the results for fissuring ulcers did not significantly differ from the results for aphtha ulcers (p = 0.526). In addition, the higher the CRP concentration before treatment and SES-CD scores were, the more likely patients would experience failure of EEN therapy (SES-CD: OR = 1.892; 95% CI = 1.086–4.117; p = 0.014; CRP: OR = 1.014; 95% CI = 1.011–1.030; p = 0.041). Furthermore, we found that the change in pre-Alb (∆pre-Alb) at 1 week after EEN treatment was a predictive factor for the response to EEN (OR = 0.983; 95% CI = 0.972–0.995; p = 0.005). In other words, if the patient has a quick increase in serum pre-Alb levels within a week of starting EEN, a good response to EEN therapy is highly likely. In addition, LBMI was an independent predictive factor for the efficacy of EEN (OR = 0.377; 95% CI = 0.206–0.689; p = 0.002).

Table 2.

Univariate and multivariate analyses of predictive factors associated with clinical response to EEN in the cCD.

	Univariate analysis			Multivariate analysis
	Remission (n = 45)	Nonremission (n = 40)	p	Odds ratio (95% CI)	p
Male	27	21	0.487	—
Age	34.49 ± 12.65	31.45 ± 13.82	0.291	—
Duration (months)	51.02 ± 45.12	50.73 ± 44.43	0.975	—
Smoke	6	2	0.207	—
Surgery	21	13	0.201	—
Maintenance therapy				—
None	24	22	1
Mesalazine	7	5	0.704
Azathioprine	7	8	0.711
Thalidomide	2	2	0.933
Sulfasalazine	4	1	0.261
Tripterygium	1	2	0.536
BMI	18.6 ± 2.72	17.33 ± 2.9	0.032	0.905 (0.674–1.214)	0.506
B				—
1	10	12	1
2	17	13	0.425
3	18	15	0.509
P	16	14	0.957	—
Pancolitis	6	13	<0.001	4.896 (1.223–19.607)	0.025
Feature of lesion				2.320 (1.143–4.708)	0.020
Aphtha ulcers	29	8	1
Fissuring ulcers	7	13	0.526
Stricturing	7	20	<0.001
Stricturing and ulcers	2	9	0.001
SES-CD	4.56 ± 3.25	8.80 ± 4.28	<0.001	1.892 (1.086–4.117)	0.014
CRP (mg/l)	43.0 ± 37.75	58.85 ± 54.9	0.130	1.014 (1.011–1.030)	0.041
ESR (mm/h)	41.18 ± 25.80	36.38 ± 26.59	0.403	—
Alb (g/l)	36.89 ± 5.91	35.45 ± 6.74	0.311	—
Pre-Alb (g/l)	136.04 ± 70.86	128.4 ± 71.15	0.620	—
∆Pre-Alb (g/l)	37.58 ± 73.56	−4.40 ± 59.68	0.008	0.983 (0.972–0.995)	0.005
LBMI (kg/m²)	8.38 ± 1.22	7.7 ± 1.47	0.014	0.377 (0.206–0.689)	0.002

Data shown as mean ± SD and n (%).

Alb, albumin; BMI, body mass index; B1, non-stricturing non-penetrating; B2, structuring; B3, penetrating; cCD, isolated colonic Crohn’s disease; CI, confidence interval; CRP, C-reactive protein; EEN, exclusive enteral nutrition; ESR, erythrocyte sedimentation rate; HBI, Harvey-Bradshaw Index; LBMI, lean body mass index; P, perianal lesions; Pre-Alb, prealbumin; SES-CD, simple endoscopic score for Crohn’s disease; SD, standard deviation.

The development of a nomogram model from selected factors

The nomogram was developed by translating multivariate analysis parameters into a visual scoring system, from which the estimated probability of EEN therapy failure could be calculated.¹³ After the multivariable analyses, the variables pancolitis, colonic lesion features, CRP concentration, SES-CD, and LBMI were selected for the final regression analysis for constructing the nomogram model (Figure 2). In consideration of the rationality and convenience of the nomogram model for predicting the response to EEN, we excluded the ∆pre-Alb from the construction of the model. To optimize the clinical prediction model, we translated the categorical variable (colonic lesion features) into grade variables. Specifically, we replaced the colonic lesion features with numbers (1, 2, 3, and 4 represented aphtha ulcers, fissuring ulcers, strictures, and strictures plus ulcers, respectively). A total score was calculated based on pancolitis, colonic lesion features, CRP, SES-CD, and LBMI. Each of these variables was given a score on the point scale axis. A total score could be easily calculated by adding each single score, and by projecting the total score onto the total point scale, we were able to estimate the probability that EEN therapy would fail to induce clinical remission.

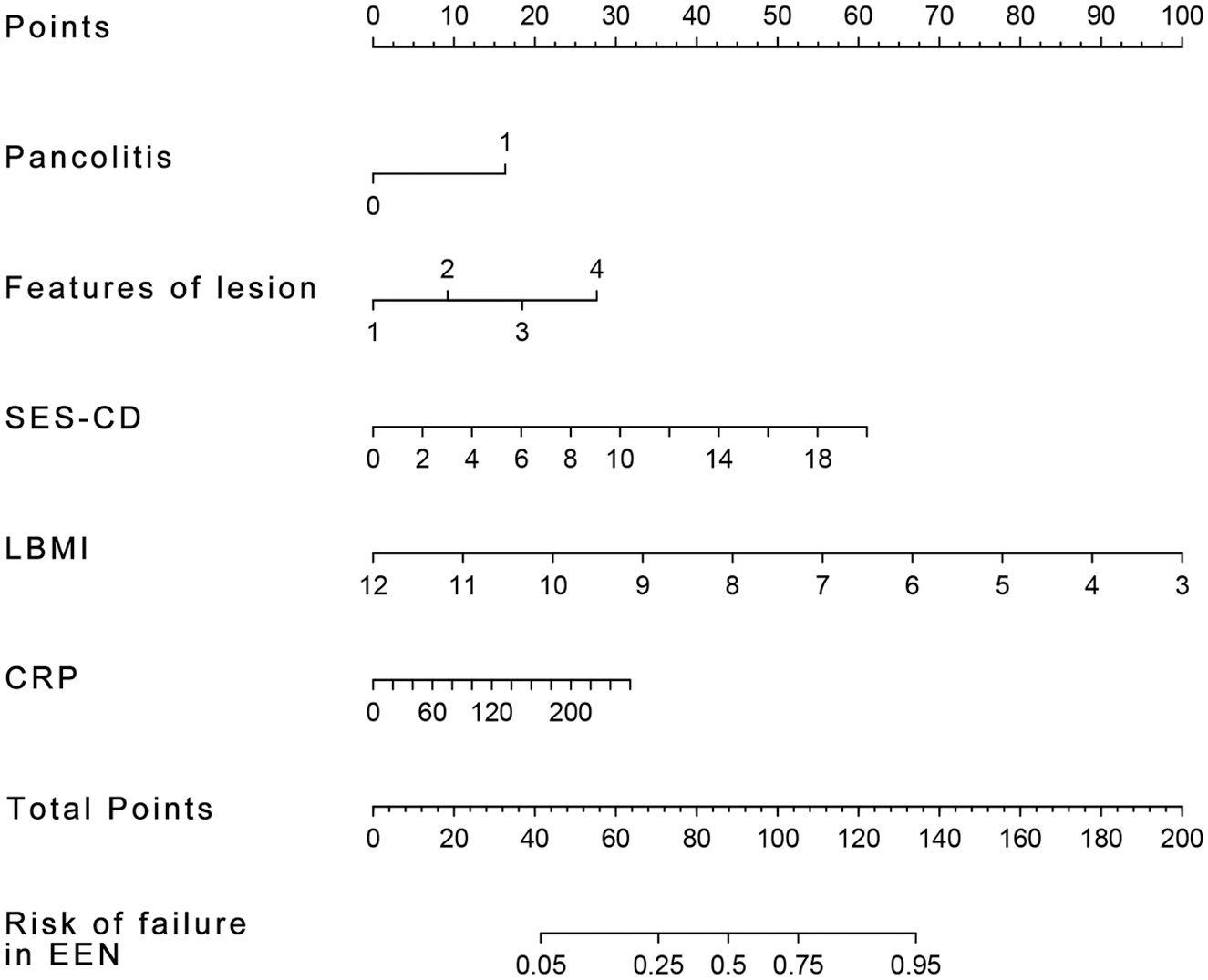

Figure 2.

A nomogram predicting the risk of response to EEN therapy in cCD patients.

Performance of the nomogram

The nomogram model showed robust discrimination based on the receiver operating characteristic analysis in Figure 3(a), with a C-index of 0.906 (95% CI 0.844–0.967). We then conducted 1000 bootstrap resamples for internal calibration validation using the package of rms in R. The result of the calibration curve of the nomogram is presented in Figure 3(b), which shows that the ideal probabilities of EEN therapy predicted by the nomogram agreed well with the actual probabilities. We then assessed the accuracy of the nomogram model using the validation cohort as an external verification. The C-index of the nomogram for predicting the effect of EEN therapy was 0.867 (95% CI 0.691–1.0), and the calibration curve of the nomogram also indicated good agreement between the predicted probability and the actual occurrence in the validation cohort [Figure 4(a) and (b)]. For clinical use of the model, we generalized the sensitivity, specificity, positive predictive value, and negative predictive value for estimating the risk cutoff points in Table 3.

Figure 3.

Measures of accuracy of the nomogram for the prediction in primary cohort.

Figure 4.

Measures of accuracy of the nomogram for the prediction in validation cohort.

Table 3.

Classification accuracy for prediction of response to EEN therapy in cCD patients at different risk cutoff points for the model.

Risk score threshold	Sensitivity (%)	Specificity (%)	PPV (%)	NPV (%)
>5%	97.5	33.3	69.1	98.2
>25%	92.5	64.4	53.2	95.4
>50%	80.2	84.4	87.5	75.3
>75%	65.3	93.3	98.0	49.4
>90%	45.6	97.8	98.9	5.2

cCD, isolated colonic Crohn’s disease; EEN, exclusive enteral nutrition; NPV, negative predictive value; PPV, positive predictive value.

Discussion

EEN has been widely accepted as a first-line therapy to treat active CD in children.^19–21 However, other than in the Japanese population, this intervention is not routinely utilized in adults due to heterogeneous response rate. Given that cCD patients have intact small bowel and relatively uninjured absorption function, EEN may be effective as an inducing therapy.

Our study showed that 52.9% of patients with cCD achieved clinical remission after EEN therapy, which is consistent with the results we reported previously.¹⁰ Given that more than half of the patients with isolated CD patients benefited from EEN therapy, we identified six factors that were predictive for the response to EEN, namely, pancolitis, colonic lesion features, SES-CD, CRP before treatment, LBMI and ∆pre-Alb, and we developed a simple, intuitive graph of a statistically predictive nomogram model that quantified the risk of nonresponse to EEN based on the five factors.

In our nomogram model, pancolitis is the greatest contributor to the risk of nonresponse to EEN, followed by LBMI and colonic lesion features. CRP before treatment showed the smallest effect on the probability of response to EEN. According to our findings, the risk of EEN therapy failure is approximately five times higher in isolated CD patients with pancolitis than in those without pancolitis. Pancolitis, characterized by high levels of inflammatory cytokines, will destroy the immunonutrition and anti-inflammatory effects of enteral nutrition.

We also observed that features of colonic lesions are related to the efficacy of EEN therapy. In particular, strictures or strictures combined with ulcers have a greater negative impact on the effectiveness of EEN therapy than fissuring ulcers. A likely explanation is that fibrostenosis and stricture are well-recognized endpoints in Crohn’s disease and chronic inflammation sequelae.²² Strictures, the result of the wound-healing process, are accumulations of collagenous scarring that thicken the muscle layers and contract the lumina. These changes play a role in producing critical architectural changes in the intestinal wall that impede the normal movement of intestinal contents.²³ EEN may be less effective in such luminal situations. Intestinal inflammation is not noticeable in some cases, but it does consistently coexist with strictures.²⁴ Therefore, some newly diagnosed CD patients who are undergoing EEN for the first time still cannot achieve a satisfactory response to EEN therapy.

SES-CD can quantify colonic lesions, including ulcers and stricture.²⁵ The more ulcers and strictures in the colon, the higher the scores will be, so it is understandable that SES-CD scores are a risk factor for response to EEN.

Our analyses indicated that LBMI was a protective factor for the efficacy of EEN. Some research has shown a significantly lower lean body mass in patients with high disease activity than in those with mild-to-moderate disease activity,²⁶ and preoperative lean body mass is a protective factor for postoperative overall and major complications in CD patients with severe malnutrition.^27,28 Lean mass was determined by the balance between muscle protein synthesis and breakdown, but loss of lean mass driven by inflammation and a suboptimal muscle protein synthetic response to enteral nutrition, termed anabolic resistance, may destroy this mechanism and finally lead to reduced lean mass.²⁹ Recently, Davies and colleagues³⁰ confirmed the theory in adolescent CD patients that inability to respond to nutrition could be implicated in low muscle mass in CD. Those CD patients with anabolic resistance cannot maintain a positive protein balance, even in remission. We believe that LBMI, as a reflection of both nutritional status and the inflammatory condition, plays a role in predicting the response to EEN treatment.

To our knowledge, this study is the first to construct a quantitative nomogram to predict the probability of failure to respond to EEN therapy in patients with cCD. However, this study has several limitations. First, the analysis of patients from a single center and the retrospective design may have caused some bias. Second, the accuracy of the nomogram model was based on large-sample learning. Thus, the relatively small number of patients enrolled in this study may have affected the accuracy of our model. Third, although internal and external validation of the model yielded optimal discrimination and calibration, the generalizability of this nomogram requires additional validation using other cohorts.

In conclusion, we identified several factors that predict the efficacy of EEN induction therapy and developed a novel nomogram for predicting the effect of EEN in adult patients with cCD. Our nomogram is easy to operate and has good accuracy and calibration. This nomogram might help clinicians make individualized predictions of each patient’s likelihood of response to EEN and improve individualized recommendations for clinical treatment.

Footnotes

Appendix 1

Library(rms)

#build a data set

#Set the parameters

ddist <- datadist(pancolitis, LBMI,. . .)

options(datadist=‘ddist’)

#For Logistic Regression Model

f <- lrm(Remission ~ pancolitis+LBMI. . ., x=T, y=T)

#For Nomogram

nom <- nomogram(f, fun=plogis, fun.at=c(.05,.25,.75,.99), lp=F, funlabel= “Risk of failure in response to EEN”)

plot (nom)

#For Resampling Validation of Nomogram#

validate (f, method=“boot”, B=1000, dxy=T)

#For Calibration Curve

cal<-calibrate (f, method=“boot”, B=1000)

plot (cal)

Author contributions

Yihan Xu and Zhen Guo contributed equally to this work. Weiming Zhu supervised the whole project. Liangyu Huang collected data, and Jianfeng Gong and Lili Gu analyzed the dataset. Yihan Xu and Zhen Guo conducted data analyses and drafted the manuscript. All authors critically reviewed the article and approved the final manuscript.

Funding

The authors disclose receipt of the following financial support for the research, authorship, and/or publication of this article: This study was supported by Nanjing Science and Technology Project (201715008).

Conflict of interest statement

The authors declare that there is no conflict of interest.
