Abstract

Background:

An overview of systematic reviews (SRs) and a network meta-analysis (NMA) were conducted to evaluate the comparative effectiveness of acupuncture and related therapies used either alone, or as an add-on to other irritable bowel syndrome (IBS) treatments.

Methods:

A total of eight international and Chinese databases were searched for SRs of randomized controlled trials (RCTs). The methodological quality of SRs was appraised using the AMSTAR instrument. From the included SRs, data from RCTs were extracted for the random-effect pairwise meta-analyses. An NMA was used to evaluate the comparative effectiveness of different treatment options. The risk of bias among included RCTs was assessed using the Cochrane risk of bias tool.

Results:

From 15 SRs of mediocre quality, 27 eligible RCTs (n = 2141) were included but none performed proper blinding. Results from pairwise meta-analysis showed that both needle acupuncture and electroacupuncture were superior in improving global IBS symptoms when compared with pinaverium bromide. NMA results showed needle acupuncture plus Geshanxiaoyao formula had the highest probability of being the best option for improving global IBS symptoms among 14 included treatment options, but a slight inconsistency exists.

Conclusion:

The risk of bias and NMA inconsistency among included trials limited the trustworthiness of the conclusion. Patients who did not respond well to first-line conventional therapies or antidepressants may consider acupuncture as an alternative. Future trials should investigate the potential of (1) acupuncture as an add-on to antidepressants and (2) the combined effect of Chinese herbs and acupuncture, which is the norm of routine Chinese medicine practice.

Keywords

acupuncture acupuncture points acupuncture therapy irritable bowel syndrome network meta-analysis systematic review

Introduction

Irritable bowel syndrome (IBS) is a chronic functional bowel condition, which is characterized by abdominal pain and altered bowel habits in the absence of an organic disease.¹ Conventional treatment for IBS has been oriented towards the symptomatic management of diarrhea, constipation, pain, cramping and bloating.² Exercise and dietary manipulation, such as low FODMAP diet, are key first-line treatment options.^3–5 The United Kingdom (UK) National Institute for Health and Clinical Excellence (NICE)⁶ and the World Gastroenterology Organization global guideline⁷ recommend antispasmodics as first-line therapy for relieving global IBS symptoms. However, antispasmodics may lead to adverse events, including dry eyes and mouth, and blurred vision.⁸ An antidiarrheal, loperamide, is also recommended in relieving diarrhea among IBS patients in NICE guidelines,⁶ but it may result in potential side effects, such as dizziness and vomiting.⁹ Antidepressants are suggested to be effective in global symptom relief among IBS patients, yet adverse events, public acceptability and their availability in the primary care setting have restricted their use.¹⁰ Other commonly used strategies for managing diarrhea (e.g. probiotics) and constipation (fiber and polyethylene glycol) are ineffective for reducing overall and abdominal symptoms.^10,11

In the United States (US), only one-third of IBS patients show satisfaction with their current therapies.¹² Lack of effectiveness and associated adverse effects are common reasons for dissatisfaction.¹² In view of these treatment gaps, some patients turn to traditional, complementary and integrative medicine (TCIM). In Australia, a population-based survey showed that about 21% of IBS patients had consulted a TCIM practitioner.¹³ In the UK, the prevalence of TCIM use among IBS patients attending outpatient specialist clinics was as high as 50%.¹⁴ In the US, a cohort study among functional bowel disorder patients suggested that the incidence of TCIM use was 35% over a 6-month period.¹⁵ In China, the use of Chinese medicine is prevalent among chronic disease patients.^16,17 Acupuncture and related therapies, as well as Chinese herbal medicine, have been extensively used for treating functional gastrointestinal disorders, including IBS.^18,19

Despite their wide usage, existing clinical evidence on acupuncture is conflicting. In a Cochrane review of two trials, needle and sham acupuncture were found to be of similar effect in improving IBS symptoms.²⁰ However, another meta-analysis showed that needle acupuncture provided stronger effects in IBS symptom relief than pharmacological therapies.²¹ The three other systematic reviews (SRs) suggested that needle acupuncture plus moxibustion was superior to pharmacological therapies for reducing IBS symptoms.^22–24 Inconsistent evidence summarized in different SRs makes it difficult to conclude whether acupuncture and related therapies may be used as a complement to, or an alternative treatment option for IBS.

In order to address the uncertainty described above, we conducted an overview of SRs to synthesize and critically appraise all clinical evidence on the comparative effectiveness of acupuncture and related therapies used either alone, or as an add-on to other treatments, compared with other IBS treatments using a network meta-analysis (NMA) approach.²⁵

Methods

Inclusion criteria

The definition of an SR was adopted from the most updated Cochrane Handbook (version 5.1.0), which defines an SR as an ‘attempt to identify, appraise and synthesize all the empirical evidence that meets prespecified eligibility criteria to answer a given research question.’²⁶ Based on the definition, we judged a publication as an SR if it answered a research question by searching at least two electronic databases.²⁷

To be included in this overview, SRs had to be in either the English or Chinese language and satisfy the criteria for participants, intervention, comparisons and outcomes of interest listed below. Individual randomized controlled trials (RCTs) were then retrieved from eligible SRs, which is a common approach used in NMA.²⁸

Participants

Patients diagnosed with IBS by any defined diagnostic criteria were included. The Manning criteria,²⁹ the Kruis criteria,³⁰ Rome I,³¹ Rome II,¹ and Rome III criteria³² as well as the recent Rome IV criteria³³ were considered as eligible, among other commonly used clinical criteria in China. There was no restriction on patients’ other characteristics or comorbidities.

Intervention and comparisons

In this overview of SRs, ‘acupuncture and related therapies’ was defined as single or combined use of needle acupuncture, moxibustion, electroacupuncture, periorbital acupuncture and catgut embedding (Table 1).^34–37 Acupuncture and related therapies including the single or combined use of these acupuncture modalities were considered eligible for this overview. SRs with studies providing any type of control treatments were considered, including conventional pharmacological and nonpharmacological treatments, as well as Chinese herbal medicine. Regardless of control treatment, to be eligible a trial must allow the estimation of net effect of acupuncture and related therapies.

Table 1.

Definitions of acupuncture and related therapies in this overview of systematic reviews.

Needle acupuncture	Needle insertion into acupuncture points, followed by manual manipulation such as lifting and thrusting, twirling and rotating, or a combination of the two. The function of needling is believed to promote Qi (the vital energy) in the meridians in order to produce its therapeutic effect.
Moxibustion	A method in which a moxa herb is burned above the skin or on the acupuncture points. It can be used a cone, stick, loose herb, or applied at the end of the acupuncture needles. The purpose of moxibustion is to alleviate symptoms by applying heat to the acupuncture points.
Electroacupuncture	A modern acupuncture technique used with manual acupuncture, where needle is attached to a trace pulse current after it is inserted to the selected acupoint for producing synthetic effect of electric and needling stimulation.
Periorbital acupuncture	A form of needle acupuncture in which the acupoints around the eyes are used.
Catgut embedding	An acupuncture technique which involves weekly infixing of surgical chromic catgut sutures into the subcutaneous tissue of acupoints located at the abdomen, extremities and the back with a specialized needle under aseptic precautions.

Outcome of interest

To be included in an NMA, trials should include at least one of the following outcomes: (1) IBS symptom improvement, measured with either global or individual symptom scores; or (2) proportion of patients reaching satisfactory relief of global or individual symptoms. These outcomes were chosen based on current reviews on the primary endpoints of IBS clinical trials.³⁸ Primary outcomes of symptom improvement were usually reported on short, 3 or 4-point Likert scales. Following recommendations from the Cochrane Handbook, these short ordinal outcome results were dichotomized into ‘improvement’ or ‘no improvement’ in judging clinical effectiveness.²⁶ Similarly, binary assessment of global symptom improvement is also accepted as an approach for outcome evaluation in IBS trials.³⁹

Since results of all 3-point Likert scales were categorized as ‘markedly effective,’ ‘effective’ and ‘no improvement’ while those of all 4-point Likert scale were categorized as ‘clinical remission,’ ‘markedly effective,’ ‘effective’ and ‘no improvement,’ the categories of ‘clinical remission,’ ‘markedly effective’ or ‘effective’ results were combined into a category named ‘improvement,’ while ‘no improvement’ was labelled as a nonbeneficial category in all analyses.

Literature search

A comprehensive literature search for SRs was conducted in eight databases from inception until December 2017. Potential SRs were searched through both international databases (MEDLINE, EMBASE, Cochrane Database of Systematic Reviews and Database of Abstracts of Reviews of Effect) and Chinese databases (Chinese Biomedical Databases, China National Knowledge Infrastructure, Wan Fang Digital Journals and Taiwan Periodical Literature Databases) without language or publication status restrictions. Specialized search filters for reviews were used in MEDLINE⁴⁰ and EMBASE.⁴¹ Detailed search strategies are shown in Appendix 1.

Literature selection, data extraction, methodological quality and risk of bias assessment

Eligible SRs were selected independently by two researchers (CHLW and WKWC). They conducted data extraction, assessment of methodological quality of eligible SRs and risk of bias of included RCTs independently. Any disagreement was resolved by discussion and consensus between them. Further unresolved discrepancy was managed by a third reviewer (IXYW).

Citations of SRs generated through database searches were screened and assessed for eligibility. Lists of included RCTs were retrieved from eligible SRs. For duplicate or overlapping RCT publications, the single most updated and comprehensive version was chosen. To be included in the NMA, RCTs had to include a common control intervention that provides a bridge for the indirect comparison of different acupuncture interventions.

The following data were extracted from each included RCT: year of publication, source of patients, number of patients enrolled, diagnostic criteria used, duration of IBS diagnosis, patient characteristics, details of interventions, types of outcome assessment, reporting of adverse events, as well as information for assessing risk of bias.

The methodological quality of included SRs was assessed using the AMSTAR instrument,⁴² which is a reliable and validated tool for conducting appraisal in overviews of SRs.⁴³ In total, 11 aspects were assessed by using AMSTAR according to the information provided. Each aspect was judged as yes, no, cannot answer or not applicable. The risk of bias of each retrieved RCT was assessed with the Cochrane risk of bias tool.⁴⁴ Overall, six domains in the risk of bias, namely sequence generation, allocation concealment, blinding of participants and personnel, blinding of outcome assessments, incomplete outcome data, and selective outcome reporting, were assessed, with each domain being judged as having low, unclear, or high risk of bias based on the information reported in each RCT publication.

Data synthesis

In this overview of SR, we followed established methods of conducting pairwise meta-analyses, followed by an NMA, which are considered as standard methodology in the field.⁴⁵ Pairwise random-effect model meta-analyses were used to synthesize data separately from individual types of acupuncture and related therapies or add-on of acupuncture and related therapies to control treatment, by comparing with identical control treatments.⁴⁶ For dichotomous data extracted from RCTs, pooled relative risks (RRs) with a 95% confidence interval (CI) were used to quantify the effectiveness of acupuncture and related therapies on IBS symptoms improvement. Heterogeneity across RCTs was tested with a Chi-square test and a p value < 0.1 was considered as an indicator of significant heterogeneity. The level of heterogeneity was measured with the I² statistic, with I² <25% regarded as a low level, 25–50% as a moderate level and >50% as a high level.⁴⁷

NMA is a preferred approach which offers a set of methods to visualize and interpret the wider picture of existing evidence, as well as to understand the comparative effectiveness of these multiple treatments.⁴⁸ It provides indirect evidence (comparison between different treatments via common comparators) when direct evidence (head-to-head comparison of different treatments) is unavailable.²⁵ It was conducted to explore, relatively speaking, the ‘most’ effective option for improving IBS symptoms among included interventions. With the common comparator of control interventions, indirect comparisons between different interventions on the effectiveness of IBS symptoms improvement were implemented with the ‘mvmeta’ command in STATA.^49,50

Network geometry was presented to describe the types of treatments in the network of comparisons using a network graph.⁵¹ Comparative effectiveness ranking results of all included interventions were summarized from NMA. The probability of each intervention being, relatively, the ‘most’ effective treatment option, the second-best treatment and so on was deduced. SUCRA, the surface under the cumulative ranking curve,⁵² is used to provide an effectiveness hierarchy. The larger the SUCRA, the higher effectiveness ranking the treatment would have. This data analysis was conducted using STATA version 13.0.

Consistency of direct evidence and indirect evidence on the same comparison is a key assumption in NMA.⁵⁰ In this NMA, loop-specific approach was used to assess consistency of each individual closed loop of the network, by comparing direct and indirect estimates of a specific comparison.⁴⁹ Presence of inconsistency in each loop was measured by the ratio of odds ratios (RoRs) between direct and indirect evidence results in the loop. A RoR value close to 1 indicates that the two evidence sources were consistent,⁴⁹ and the result was presented in an inconsistency factor (IF) plot. The consistency assessment is implemented using the ‘ifplot’ command in STATA.⁴⁹

Sensitivity analysis was carried out by excluding studies of acupuncture plus Chinese herbal medicine and only including studies which explored the effectiveness of needle acupuncture, needle acupuncture plus moxibustion, electroacupuncture, moxibustion and three pharmacological therapies (pinaverium bromide, trimebutine maleate and loperamide) on IBS symptoms improvement.

Results

Results on literature search and selection

A total of 15 SRs (Appendix 2) were identified through the literature search and were considered eligible for inclusion in the overview of SRs. These 15 SRs included a total of 180 RCTs. Overall, 153 RCTs were excluded from the NMA due to the following reasons: duplicates (n = 65), no IBS symptom-related outcome data reported (n = 1), trials with no common comparator with other RCTs for inclusion in the NMA (n = 76), trials with different outcome from other RCTs in the NMA (n = 10) and overlapping of study population (n = 1). Hence, 27 RCTs (Appendix 3) were included in the NMA. Details of the literature search and selection are presented in Figure 1.

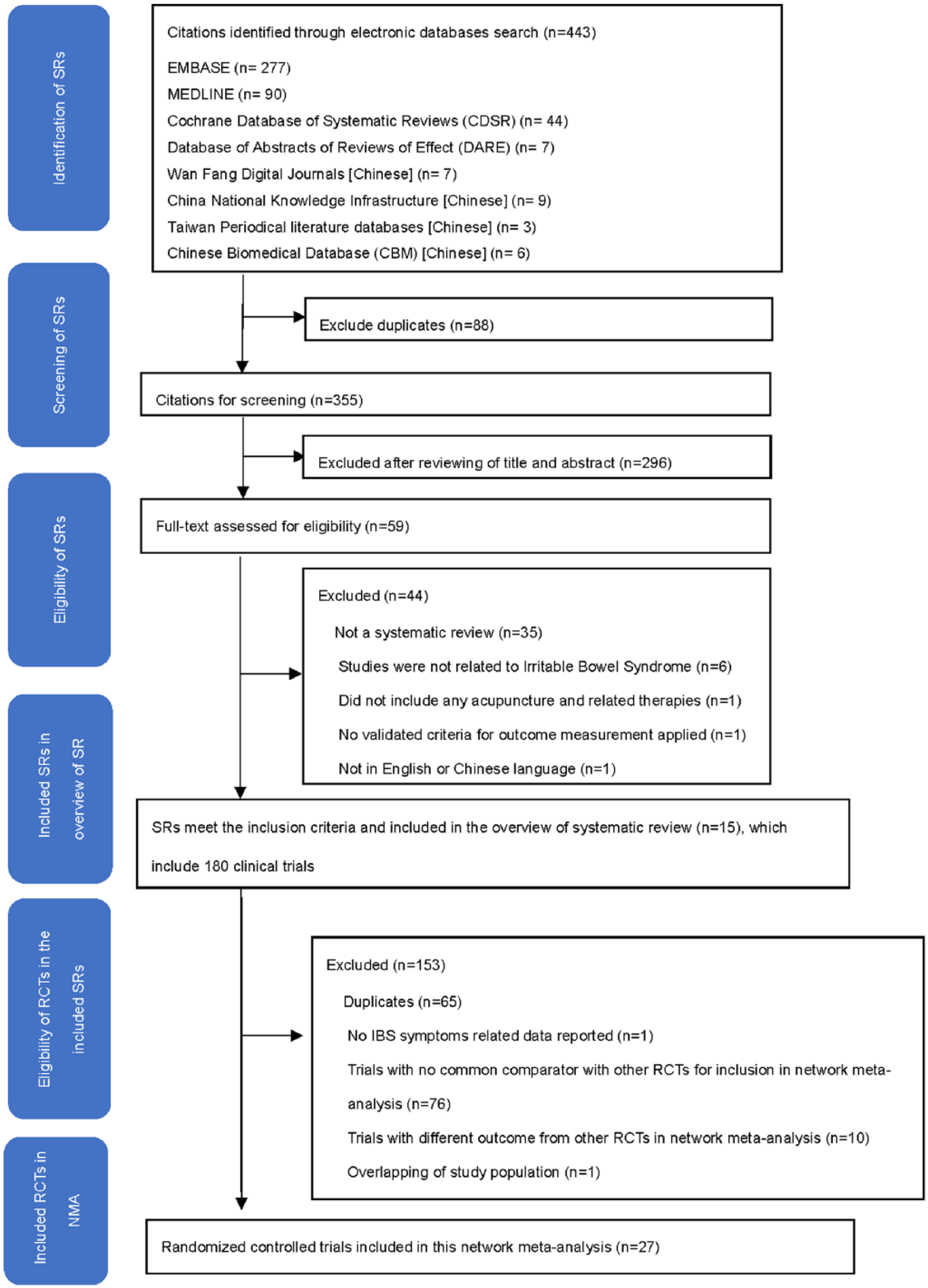

Figure 1.

Flowchart of literature selection on systematic reviews of acupuncture and related therapies for irritable bowel syndrome.

Characteristics of included RCTs

Participants

The 27 RCTs included a total of 2141 participants, with sample sizes varying from 40 to 300 patients. The age range of participants was 18–77 years. Duration of IBS ranged from 0.25 years to 38 years. All RCTs were conducted in China among Chinese populations. A total of 13 trials included outpatients only, 11 trials included both inpatients and outpatients and 3 trials did not report the study setting.

Diagnostic criteria and subtypes of IBS

A total of 24 RCTs recruited IBS patients using Rome/Rome II/Rome III criteria. Among them, 12 conducted patient eligibility assessments with additional diagnostic criteria, including Chinese IBS guidelines or traditional Chinese medicine (TCM) clinical practice guidelines. Overall, 18 recruited patients with IBS-D and 6 did not specify the subtype of IBS. For the remaining three RCTs, two recruited IBS patients using the Chinese IBS guidelines, while one did not specify the diagnostic criteria.

Interventions

A total of 14 interventions were evaluated in these 27 RCTs, including needle acupuncture (n = 12), electroacupuncture (n = 5), needle acupuncture plus moxibustion (n = 4), moxibustion (n = 2), periorbital acupuncture (n = 2), catgut embedding (n = 1), catgut embedding plus pharmacological therapy (trimebutine maleate) (n = 1), needle acupuncture plus Chinese herbal medicine (Geshanxiaoyao formula; n = 1), Geshanxiaoyao formula alone (n = 1), Chinese herbal medicine (Tongxieyaofang; n = 3), Bifidobacterium (n = 1), and three different pharmacological therapies, including two antispasmodics [pinaverium bromide (n = 15) and trimebutine maleate (n = 5)) and an antidiarrheal (loperamide (n = 3)]. Composition of Geshanxiaoyao formula and Tongxieyaofang is listed in Appendix 4. The duration of interventions ranged from 14 to 56 days. All the RCTs assessed global IBS symptom improvement at the end of treatment. Characteristics of included RCTs can be found in Table 2.^{35,36,53–77}

Table 2.

Main characteristics of included randomized controlled trials.

First author, country	Source of patients	IBS diagnostic criteria, IBS subtype	Types of intervention	Details of intervention(Duration of each session (mins/session), no. of sessions/dosage (on prescription); length of intervention)	No. of patients(A/R)	Age range/ mean ± SD (years)	Length of time since IBS diagnosis(range/ mean ± SD)	Types of outcomes assessment	Reporting of adverse events
Xu and colleagues,⁷⁵ China	Inpatient and outpatient	Chinese IBS guideline, IBS subtype: NR	Needle acupuncture plus moxibustion	Acupuncture: 40 mins/session; moxibustion: 30 mins/session; 21 sessions; 21 d	31/31	22.0–66.0	1.00–12.00 years	Global IBS symptoms improvement assessed on a 4-point Likert scale	NR
			Pinaverium bromide	50 mg (t.i.d.); 21 d	30/30	25.0–70.0	1.00–10.00 years
Sun and colleagues,⁷⁰ China	Outpatient	Rome III criteria, IBS-D	Needle acupuncture	30 mins/session;20 sessions; 28 d	30/31	18.0–61.0	1.00–20.00 years	Global IBS symptoms improvement assessed on a 4-point Likert scale	No occurrence of adverse events was observed.
			Pinaverium bromide	50 mg (t.i.d.); 28 d	30/32	18.0–59.0	1.00–38.00 years
Luo and colleagues,⁶⁶ China	Outpatient	Rome II criteria & Chinese IBS guideline, IBS-D	Moxibustion	30 mins/session,60 sessions; 30 d	48/48	26.0–63.0	1.00– 16.00 years	Global IBS symptoms improvement assessed on a 3-point Likert scale	NR
			Pinaverium bromide	50 mg (t.i.d.); 30 d	47/47	24.0–62.0
Liu,⁶⁴ China	Outpatient	Rome III criteria,IBS-D	Needle acupuncture	Duration of each session: NR; no. of sessions: NR; 28 d	30/30	42.3 ±7.6	2.51 years±1.28	Global IBS symptoms improvement assessed on a 4-point Likert scale	NR
			Pinaverium bromide	50 mg (t.i.d.); 28 d	30/30	41.8 ± 9.0	2.48 years±1.32
Kong and colleagues,⁵⁶ China	Outpatient	Rome III criteria and TCM clinical practice guideline,IBS-D	Needle acupuncture	30 mins/ session,28 sessions; 28 d	29/30	38.0 ± 11.0	6.21 years±6.33	Global IBS symptoms improvement assessed on a 4-point Likert scale	NR
			Pinaverium bromide	50 mg (t.i.d.); 28 d	28/30	38.0 ± 11.0	5.40 years ±3.85
Wei and colleagues,⁷² China	Outpatient	Rome II criteria, IBS subtype: NR	Needle acupuncture	20 mins/ session,30 sessions; 30 d	30/30	15.0–66.0	4.37 years(SD: NR)	Global IBS symptoms improvement assessed on a 4-point Likert scale	NR
			Pinaverium bromide	50 mg (q.d.); 28 d	30/30	22.0–77.0	3.37 years(SD: NR)
Liu and Wang,⁶¹ China	Outpatient	TCM clinical practice guideline,IBS subtype: NR	Electroacupuncture	20 mins/ session,24 sessions; 24 d	30/30	18.0–60.0	0.25– 5.00 years	Global IBS symptoms improvement assessed on a 3-point Likert scale	NR
			Pinaverium bromide	50 mg (t.i.d.); 20 d	30/30
Sun and Song,⁷¹ China	Inpatient and Outpatient	Rome III criteria and TCM clinical practice guideline,IBS subtype: NR	Electroacupuncture	30 mins/ session,15 sessions; 21 d	30/30	38.0 ± 12.0	5.16 years ± 4.67	Global IBS symptoms improvement assessed on a 4-point Likert scale	No occurrence of adverse events was observed.
			Pinaverium bromide	50 mg (t.i.d.); 21 d	30/30
Li and colleagues,⁵⁷ China	Outpatient	Rome III criteria,IBS-D	Electroacupuncture	30 mins/ session, 12–14 sessions; 28 d	35/35	39.1 ± 11.8	4.33 years±3.93	Global IBS symptoms improvement assessed on a 4-point Likert scale	NR
			Pinaverium bromide	50 mg (t.i.d.); 28 d	35/35	37.9 ± 11.5	5.23 years±7.35
Li,⁵⁹ China	Inpatient and Outpatient	Rome III criteria, TCM clinical practice guideline and Chinese IBS guideline,IBS subtype: NR	Needle acupuncture	30 mins/ session, 20 sessions; 20 d	30/32	55.5 ± 5.4	3.65 years±1.74	Global IBS symptoms improvement assessed on a 4-point Likert scale	NR
			Pinaverium bromide	50 mg (t.i.d.); 21 d	30/32	55.3 ± 5.0	3.63 years±1.80
Li and colleagues,⁵⁸ China	Inpatient and Outpatient	Rome III criteria and TCM clinical practice guideline,IBS-D	Needle acupuncture	30 mins/ session, 28 sessions; 56 d	30/30	46.0 ± 16.0	13.60 years ±9.80	Global IBS symptoms improvement assessed on a 3-point Likert scale	NR
			Pinaverium bromide	50 mg (t.i.d.); 56 d	30/30	44.0 ± 16.0	13.30 years±10.10
Wu and Gao,⁷⁴ China	Outpatient	Rome III criteria & Chinese IBS guideline,IBS subtype: NR	Electroacupuncture	30 mins/ session, 15 sessions; 30 d	30/30	25.0–62.0	NR	Global IBS symptoms improvement using binary assessment	NR
			Pinaverium bromide	50 mg (t.i.d.); 30 d	30/30	27.0–65.0
Pei and colleagues,⁶⁷ China	Outpatient	Rome III criteria & TCM clinical practice guideline,IBS-D	Needle acupuncture	30 mins/session, 20 sessions; 28 d	30/33	39.1 ± 11.8	4.93 years±3.93	Global IBS symptoms improvement assessed on a 3-point Likert scale	NR
			Pinaverium bromide	50 mg (t.i.d.); 28 d	30/32	37.9 ± 11.5	5.23 years±7.35
Gao,³⁵ China	Inpatient and outpatient	Rome III criteria & Chinese IBS guideline, IBS-D	Periorbital acupuncture	15 mins/session, 20 sessions; 20 d	30/32	37.2 ±10.2	4.14 years±1.12	Global IBS symptoms improvement assessed on a 4-point Likert scale	Five cases of bruises were observed in periorbital acupuncture group.
			Pinaverium bromide	50 mg (t.i.d.); 28 d	30/32	40.1 ±11.7	4.13 years±1.76
Liu,³⁶ China	Outpatient	Rome III criteria and TCM clinical practice guideline,IBS-D	Periorbital acupuncture	20 mins/ session, 20 sessions; 20 d	29/30	37.0 ± 10.1	4.08 years±1.11	Global IBS symptoms improvement assessed on a 4-point Likert scale	Five cases of bruises were observed in periorbital acupuncture group.
			Pinaverium bromide	50 mg (t.i.d.); 28 d	29/30	39.7 ± 10.6	4.11 years±1.58
Zeng and colleagues,⁷⁷ China	Inpatient and outpatient	Rome criteria, IBS-D	Needle acupuncture plus moxibustion	20 mins/session,30 sessions; 30 d	29/33	35.2 ± 7.2	1.27 years±7.85	Global IBS symptoms improvement assessed on a 3-point Likert scale	NR
			Trimebutine maleate	100 mg (t.i.d.); 30 d	31/32	34.7 ± 6.5	1.24 years±7.77
Shi and colleagues,⁶⁹ China	Inpatient and outpatient	Rome II criteria, IBS subtype: NR	Needle acupuncture	30 mins/session,28 sessions; 28 d	20/20	43.5 ± 5.3	0.90 year-5.00 years	Global IBS symptoms improvement assessed on a 3-point Likert scale	NR
			Trimebutine maleate	Dosage: NR (t.i.d.); 28d	20/20	46.2 ± 4.7	1.00–4.50 years
Liu,⁶⁵ China	NR	Rome III criteria, IBS-D	Needle acupuncture	20 mins/session,30 sessions; 35 d	31/31	23.0–64.0	3.15 years± 1.02	Global IBS symptoms improvement assessed on a 4-point Likert scale	A few cases of nausea and rash were observed in trimebutine maleate group.
			Trimebutine maleate	200 mg (t.i.d.); 35 d	31/31	20.0–65.0	3.52 years± 0.95
Shi and colleagues,⁶⁸ China	Inpatient and outpatient	Rome III criteria, IBS-D	Electroacupuncture	30 mins/session,56 sessions; 56 d	60/60	40.2 ± 10.8	8.60 years± 3.80	Global IBS symptoms improvement assessed on a 3-point Likert scale	NR
			Trimebutine maleate	200 mg (t.i.d.); 56 d	60/60	38.5 ± 9.1	7.30 years± 2.10
Yao,⁷⁶ China	Outpatient	Rome III criteria & TCM clinical practice guideline,IBS-D	Catgut embedding plus trimebutine maleate	7 d/session, 2 sessions plus 200 mg (t.i.d.); 14 d	30/30	18.0–65.0	NR	Global IBS symptoms improvement assessed on a 4-point Likert scale	No occurrence of adverse events was observed.
			Trimebutine maleate	200 mg (t.i.d.); 14 d	30/30	18.0–65.0
Guo and colleagues,⁵⁵ China	NR	Rome II criteria, IBS-D	Needle acupuncture plus moxibustion	30 mins/session,30 sessions; 30 d	52/52	18.0–60.0	1.00–15.00 years	Global IBS symptoms improvement assessed on a 3-point Likert scale	NR
			Loperamide	2 mg (t.i.d.); 30 d	48/48	20.0–60.0	1.00–14.00 years
Chu and colleagues,⁵³ China	Inpatient & outpatient	Rome II criteria, IBS-D	Moxibustion	30 mins/session,15 sessions; 15 d	30/30	23.0–61.0	0.25–4.00 years	Global IBS symptoms improvement assessed on a 4-point Likert scale	NR
			Loperamide	2 mg (b.i.d.); 15 d	30/30	24.0–60.0	0.25–5.00 years
Ge and Zeng,⁵⁴ China	NR	Rome criteria,IBS subtype: NR	Needle acupuncture plus moxibustion	30 mins/session,24 sessions; 28 d	60/60	38.9 ± 11.2	1.00–13.00 years	Global IBS symptoms improvement assessed on a 4-point Likert scale	NR
			Loperamide	2 mg (t.i.d.); 28 d	60/60	39.1 ± 10.3	1.00–12.00 years
Liu and colleagues,⁶³ China	Inpatient and outpatient	Rome III criteria,IBS-D	Needle acupuncture plus Chinese herbal medicine(Geshanxiaoyao formula)	Duration of each session: NR, 28 sessions plus 150 mL (b.i.d.); 28 d	150/150	45.8 ± 7.9	2.05 years±3.10	Global IBS symptoms improvement assessed on a 4-point Likert scale	No occurrence of adverse events was observed.
			Bifidobacterium	Dosage: NR(b.i.d.); 28 d	50/50	46.2 ± 8.1	1.98 years±2.92
			Chinese herbal medicine(Geshanxiaoyao formula)	150 mL (b.i.d.); 28 d	50/50	45.7 ± 7.9	2.03 years±2.84
			Needle acupuncture	Duration of each session: NR, 28 sessions; 28 d	50/50	46.1 ± 8.1	2.09 years± 2.89
Liu,⁶² China	Outpatient	Rome III criteria & TCM clinical practice guideline,IBS-D	Catgut embedding	7d/session, 6 sessions; 42 d	30/30	37.0 ± 8.1	NR	Global IBS symptoms improvement assessed on a 4-point Likert scale	Three cases of thickening on the regions where catgut embedding was carried out were observed.
			Chinese herbal medicine(Tongxieyaofang)	1 dose/d; 42 d	29/30	35.0 ± 8.7	NR
Wen,⁷³ China	Outpatient	Rome III criteria & TCM clinical practice guideline,IBS-D	Needle acupuncture	20 mins/session,15 sessions; length of intervention: NR	30/30	18.0–65.0	NR	Global IBS symptoms improvement assessed on a 4-point Likert scale	NR
			Chinese herbal medicine(Tongxieyaofang)	2 g (t.i.d.); 28 d	30/30	18.0–65.0
Liao,⁶⁰ China	Inpatient and outpatient	NR	Needle acupuncture	30 mins/session,10 sessions; length of intervention: NR	97/97	16.0–58.0	0.50–28.00 years	Global IBS symptoms improvement assessed on a 3-point Likert scale	NR
			Chinese herbal medicine(Tongxieyaofang)	1 dose/d; length of intervention: NR	35/35	22.0–50.0	0.42–32 years

A, number of patients analysed; b.i.d., two times a day; d, day; IBS, irritable bowel syndrome; IBS-D, irritable bowel syndrome-diarrhea type; NR, not reported; q.d., once a day; mins, minutes; R, Number of patients randomized; SD, standard deviation; TCM, traditional Chinese medicine; t.i.d., three times a day.

4-point Likert scale ranged from clinically remitted, markedly effective, effective to no improvement; 3-point Likert scale ranged from markedly effective, effective to no improvement; binary assessment included improvement and no improvement.

Methodological quality of included SRs and risk of bias among included RCTs

The methodological quality of the 15 SRs was mediocre. A total of 13 (86.7%) SRs performed comprehensive literature searches and assessed and documented scientific quality of the included studies. Overall, 12 (80.0%) SRs provided characteristics of the primary studies and considered the scientific quality of the study results in drawing conclusions. A total of 11 (73.3%) SRs used appropriate methods to combine the findings. Nevertheless, only one (6.67%) SR used the publication status as an inclusion criterion and provided an ‘a priori’ design. Details of the methodological quality of included SRs are presented in Appendix 5.

Among the 27 included trials, 16 (59.3%) reported details on sequence generation and used appropriate methods, and thus were judged as having a low risk of bias, while the remaining 11 did not report the procedure of sequence generation clearly. A total of 26 (96.3%) RCTs did not state any details on allocation concealment and were judged as having an unclear risk of bias. Only one (3.7%) trial reported using opaque envelopes to ensure allocation concealment. Only nine (33.3%) trials addressed how incomplete outcomes data were handled, and they were judged as having low risk of bias. All included trials had high risk of bias in blinding of participants and personnel to the intervention assignment, as well as blinding of outcome assessment. All included trials had unclear risk of bias in the domain of selective outcome reporting, as their trial protocols were unavailable. Details of risk of bias are shown in Table 3.

Table 3.

Risk of bias among 28 included randomized controlled trials.

First author	Random sequence generation	Allocation concealment	Blinding of participants and personnel	Blinding of outcome assessment	Incomplete outcome data addressed	Selective outcome reporting
Xu and colleagues⁷⁵	Unclear riskQuote: ‘All 61 patients were randomly and voluntarily divided into two groups.’However, the method of random sequence generation was not stated.	Unclear riskDetails not stated.	High riskAlthough the study did not mention blinding of participants and researchers, blinding was not possible as participants were either randomized to needle acupuncture plus moxibustion group or medication group.	High riskBlinding of assessors was not mentioned and its impact may be high as global IBS symptoms improvement was a subjective outcome measure.	Unclear risk: 61 patients were randomized while the author did not mention the follow-up rate.	Unclear riskProtocol is not available.
Sun and colleagues⁷⁰	Low riskQuote: ‘The 63 patients were assigned by a random number table to two groups.’	Unclear riskDetails not stated.	High riskAlthough the study was a single-blinded randomized control study, the blinded party was not mentioned. Blinding was not possible in the study as participants were either randomized to needle acupuncture group or medication group.	High riskBlinding of assessors was not mentioned and its impact may be high as global IBS symptoms improvement was a subjective outcome measure.	Low risk60 out of 63 patients completed the study.Drop-out rate: 5.0%	Unclear riskProtocol is not available.
Luo and colleagues⁶⁶	Unclear riskQuote: ‘95 patients were randomly divided into two groups.’ Random sequence generation method was not stated.	Unclear riskDetails not stated.	High riskAlthough the study did not mention blinding of participants and researchers, blinding was not possible as participants were either randomized to moxibustion group or medication group.	High riskBlinding of assessors was not mentioned and its impact may be high as global IBS symptoms improvement was a subjective outcome measure.	Unclear risk: 95 patients were randomized while the author did not mention the follow-up rate.	Unclear riskProtocol is not available.
Liu⁶⁴	Unclear riskQuote: ‘Patients were randomized based on admission sequence.’ Random sequence generation method not stated.	Unclear riskDetails not stated.	High riskAlthough the study did not mention blinding of participants and researchers, blinding was not possible as participants were either randomized to needle acupuncture group or medication group.	High riskBlinding of assessors was not mentioned and its impact may be high as global IBS symptoms improvement was a subjective outcome measure.	Unclear risk: 60 patients were randomized while the author did not mention the follow-up rate.	Unclear riskProtocol is not available.
Kong and colleagues⁵⁶	Low riskQuote: ‘Patients were randomized using a random number table into two groups.’	Unclear riskDetails not stated.	High riskAlthough the study did not mention blinding of participants and researchers, blinding was not possible as participants were either randomized to needle acupuncture group or medication group.	High riskBlinding of assessors was not mentioned and its impact may be high as global IBS symptoms improvement was a subjective outcome measure.	Low risk: 57 out of 60 patients completed the study.Drop-out rate: 5.0%.	Unclear riskProtocol is not available.
Wei and colleagues⁷²	Unclear riskDetails not stated.	Unclear riskDetails not stated.	High riskAlthough the study did not mention blinding of participants and researchers, blinding was not possible as participants were either randomized to needle acupuncture group or medication group.	High riskBlinding of assessors was not mentioned and its impact may be high as global IBS symptoms improvement was a subjective outcome measure.	Unclear risk: 60 patients were randomized while the author did not mention the follow-up rate.	Unclear riskProtocol is not available.
Liu and Wang⁶¹	Unclear riskQuote: ‘Patients were randomized into treatment and control group.’ Random sequence generation method not stated.	Unclear riskDetails not stated.	High riskAlthough the study did not mention blinding of participants and researchers, blinding was not possible as participants were either randomized to electroacupuncture group or medication group.	High riskBlinding of assessors was not mentioned and its impact may be high as global IBS symptoms improvement was a subjective outcome measure.	Unclear risk: 60 patients were randomized while the author did not mention the follow-up rate.	Unclear riskProtocol is not available.
Sun and Song⁷¹	Low riskQuote: ‘60 patients were randomized using a random number table.’	Unclear riskDetails not stated.	High riskAlthough the study did not mention blinding of participants and researchers, blinding was not possible as participants were either randomized to electroacupuncture group or medication group.	High riskBlinding of assessors was not mentioned and its impact may be high as global IBS symptoms improvement was a subjective outcome measure.	Unclear risk: 60 patients were randomized while the author did not mention the follow-up rate.	Unclear riskProtocol is not available.
Li and colleagues⁵⁷	Low riskQuote: ‘Patients recruited were randomized using a random number table.’	Unclear riskDetails not stated.	High riskAlthough the study did not mention blinding of participants and researchers, blinding was not possible as participants were either randomized to electroacupuncture group or medication group.	High riskBlinding of assessors was not mentioned and its impact may be high as global IBS symptoms improvement was a subjective outcome measure.	Unclear risk: 70 patients were randomized while the author did not mention the follow-up rate.	Unclear riskProtocol is not available.
Li⁵⁹	Unclear riskQuote: ‘64 patients were randomized into treatment and control group.’ Random sequence generation method not stated.	Unclear riskDetails not stated.	High riskAlthough the study did not mention blinding of participants and researchers, blinding was not possible as participants were either randomized to needle acupuncture group or medication group.	High riskBlinding of assessors was not mentioned and its impact may be high as global IBS symptoms improvement was a subjective outcome measure.	Low risk: 60 out of 64 patients completed the study.Drop-out rate: 6.3%.	Unclear riskProtocol is not available.
Li and colleagues⁵⁸	Low riskQuote: ‘Patients recruited were randomized using a random number table.’	Unclear riskDetails not stated.	High riskAlthough the study did not mention blinding of participants and researchers, blinding was not possible as participants were either randomized to needle acupuncture group or medication group.	High riskBlinding of assessors was not mentioned and its impact may be high as global IBS symptoms improvement was a subjective outcome measure.	Unclear risk: 60 patients were randomized while the author did not mention the follow-up rate.	Unclear riskProtocol is not available.
Wu and Gao⁷⁴	Unclear riskQuote: ‘Patients were randomized based on admission sequence.’ Random sequence generation method not stated.	Unclear riskDetails not stated.	High riskAlthough the study did not mention blinding of participants and researchers, blinding was not possible as participants were either randomized to electroacupuncture group or medication group.	High riskBlinding of assessors was not mentioned and its impact may be high as global IBS symptoms improvement was a subjective outcome measure.	Unclear risk: 60 patients were randomized while the author did not mention the follow-up rate.	Unclear riskProtocol is not available.
Pei and colleagues⁶⁷	Low riskQuote: ‘65 eligible patients were randomized using a random number table.’	Unclear riskDetails not stated.	High riskAlthough the study did not mention blinding of participants and researchers, blinding was not possible as participants were either randomized to needle acupuncture group or medication group.	High riskBlinding of assessors was not mentioned and its impact may be high as global IBS symptoms improvement was a subjective outcome measure.	Low risk: 60 out of 65 patients completed the study.Drop-out rate: 7.7%.	Unclear riskProtocol is not available.
Gao³⁵	Low riskQuote: ‘A random number table was used to assign included patients into treatment and control group.’	Unclear riskDetails not stated.	High riskAlthough the study did not mention blinding of participants and researchers, blinding was not possible as participants were either randomized to periorbital acupuncture group or medication group.	High riskBlinding of assessors was not mentioned and its impact may be high as global IBS symptoms improvement was a subjective outcome measure.	Low risk: 60 out of 64 patients completed the study.Drop-out rate: 6.3%.	Unclear riskProtocol is not available.
Liu³⁶	Unclear riskQuote: ‘60 patients were assigned into treatment and control group with randomized method.’ Random sequence generation method not stated.	Unclear riskDetails not stated.	High riskAlthough the study did not mention blinding of participants and researchers, blinding was not possible as participants were either randomized to periorbital acupuncture group or medication group.	High riskBlinding of assessors was not mentioned and its impact may be high as global IBS symptoms improvement was a subjective outcome measure.	Low risk: 58 out of 60 patients completed the study.Drop-out rate: 3.3%.	Unclear riskProtocol is not available.
Zeng and colleagues⁷⁷	Low riskQuote: ‘The 65 patients were assigned by a random number table to two groups.’	Unclear riskDetails not stated.	High riskAlthough the study did not mention blinding of participants and researchers, blinding was not possible as participants were either randomized to needle acupuncture plus moxibustion group or medication group.	High riskBlinding of assessors was not mentioned and its impact may be high as global IBS symptoms improvement was a subjective outcome measure.	Low risk61 out of 65 patients completed the study.Drop-out rate: 6.2%	Unclear riskProtocol is not available.
Shi and colleagues⁶⁹	Low riskQuote: ‘The 40 patients were assigned by simple randomization to two groups.’	Unclear riskDetails not stated.	High riskAlthough the study was a single-blinded randomized control study, the blinded party was not mentioned. Blinding was not possible in the study as participants were either randomized to needle acupuncture group or medication group.	High riskBlinding of assessors was not mentioned and its impact may be high as global IBS symptoms improvement was a subjective outcome measure.	Unclear risk: 40 patients were randomized while the author did not mention the follow-up rate.	Unclear riskProtocol is not available.
Liu⁶⁵	Unclear riskQuote: ‘Patients were randomized into treatment and control group.’ Random sequence generation method not stated.	Unclear riskDetails not stated.	High riskAlthough the study did not mention blinding of participants and researchers, blinding was not possible as participants were either randomized to needle acupuncture group or medication group.	High riskBlinding of assessors was not mentioned and its impact may be high as global IBS symptoms improvement was a subjective outcome measure.	Unclear risk: 62 patients were randomized while the author did not mention the follow-up rate.	Unclear riskProtocol is not available.
Shi and colleagues⁶⁸	Low riskQuote: ‘Blocked randomization and random number table were used to assign 120 patients into treatment and control group.’	Unclear riskDetails not stated.	High riskAlthough the study did not mention blinding of participants and researchers, blinding was not possible as participants were either randomized to electroacupuncture group or medication group.	High riskBlinding of assessors was not mentioned and its impact may be high as global IBS symptoms improvement was a subjective outcome measure.	Unclear risk: 120 patients were randomized while the author did not mention the follow-up rate.	Unclear riskProtocol is not available.
Yao⁷⁶	Low riskQuote: ‘Patients were randomized using a random number table.’	Unclear riskDetails not stated.	High riskAlthough the study did not mention blinding of participants and researchers, blinding was not possible as participants were either randomized to catgut embedding plus medication group or medication group.	High riskBlinding of assessors was not mentioned and its impact may be high as global IBS symptoms improvement was a subjective outcome measure.	Unclear risk: 60 patients were randomized while the author did not mention the follow-up rate.	Unclear riskProtocol is not available.
Guo and colleagues⁵⁵	Unclear riskQuote: ‘The 100 patients were assigned to two groups using a randomized design.’ Random sequence generation method not stated.	Unclear riskDetails not stated.	High riskAlthough the study did not mention blinding of participants and researchers, blinding was not possible as participants were either randomized to needle acupuncture plus moxibustion group or medication group.	High riskBlinding of assessors was not mentioned and its impact may be high as global IBS symptoms improvement was a subjective outcome measure.	Unclear risk: 100 patients were randomized while the author did not mention the follow-up rate.	Unclear riskProtocol is not available.
Chu and colleagues⁵³	Low riskQuote: ‘The 60 patients were assigned by a random number table to two groups.’	Unclear riskDetails not stated.	High riskAlthough the study did not mention blinding of participants and researchers, blinding was not possible as participants were either randomized to moxibustion group or medication group.	High riskBlinding of assessors was not mentioned and its impact may be high as global IBS symptoms improvement was a subjective outcome measure.	Unclear risk: 60 patients were randomized while the author did not mention the follow-up rate.	Unclear riskProtocol is not available.
Ge and Zeng⁵⁴	Low riskQuote: ‘(Patients were) divided into a warm needling group and a western medicine group by using random digits table method.’	Unclear riskDetails not stated.	High riskAlthough the study did not mention blinding of participants and researchers, blinding was not possible as participants were either randomized to needle acupuncture plus moxibustion group or medication group.	High riskBlinding of assessors was not mentioned and its impact may be high as global IBS symptoms improvement was a subjective outcome measure.	Unclear risk: 120 patients were randomized while the author did not mention the follow-up rate.	Unclear riskProtocol is not available.
Liu and colleagues⁶³	Low riskQuote: ‘The 300 patients were assigned by a random number table to four groups.’	Unclear riskDetails not stated.	High riskAlthough the study did not mention blinding of participants and researchers, blinding was not possible as participants were either randomized to needle acupuncture plus Chinese herbal medicine (Geshanxiaoyao formula) group or Bifidobacterium group or Chinese herbal medicine (Geshanxiaoyao formula)-alone group or needle acupuncture alone group.	High riskBlinding of assessors was not mentioned and its impact may be high as global IBS symptoms improvement was a subjective outcome measure.	Unclear risk: 300 patients were randomized while the author did not mention the follow-up rate.	Unclear riskProtocol is not available.
Liu⁶²	Low riskQuote: ‘Randomization was done using a random number table.’	Low riskQuote: ‘Random numbers were marked and put into opaque envelopes.’	High riskAlthough the study did not mention blinding of participants and researchers, blinding was not possible as participants were either randomized to catgut embedding group or Chinese herbal medicine (Tongxieyaofang) group.	High riskBlinding of assessors was not mentioned and its impact may be high as global IBS symptoms improvement was a subjective outcome measure.	Low risk: 59 out of 60 patients completed the study.Drop-out rate: 1.7%.	Unclear riskProtocol is not available.
Wen⁷³	Low riskQuote: ‘Two groups of patients were divided based on randomization from random number table.’	Unclear riskDetails not stated.	High riskAlthough the study did not mention blinding of participants and researchers, blinding was not possible as participants were either randomized to needle acupuncture group or Chinese herbal medicine (Tongxieyaofang) group.	High riskBlinding of assessors was not mentioned and its impact may be high as global IBS symptoms improvement was a subjective outcome measure.	Low risk: All patients completed the study.Drop-out rate: 0%.	Unclear riskProtocol is not available.
Liao⁶⁰	Unclear riskQuote: ‘132 eligible patients were randomized into treatment and control group.’ Random sequence generation method not stated.	Unclear riskDetails not stated.	High riskAlthough the study did not mention blinding of participants and researchers, blinding was not possible as participants were either randomized to needle acupuncture group or Chinese herbal medicine (Tongxieyaofang) group.	High riskBlinding of assessors was not mentioned and its impact may be high as global IBS symptoms improvement was a subjective outcome measure.	Unclear risk: 132 patients were randomized while the author did not mention the follow-up rate.	Unclear riskProtocol is not available.

IBS, irritable bowel syndrome.

Results of pairwise meta-analyses

Results from pairwise random-effect meta-analyses showed that needle acupuncture was superior in improving global IBS symptoms, compared with either pinaverium bromide (pooled RR = 1.16; 95% CI: 1.07–1.27, I² = 0%, 7 RCTs) or trimebutine maleate (pooled RR = 1.25; 95% CI: 1.05–1.49, I² = 0%, 2 RCTs). Electroacupuncture was found to have significantly stronger effects in alleviating global IBS symptoms when compared with pinaverium bromide alone (pooled RR = 1.21; 95% CI: 1.08–1.35, I² = 0%, 4 RCTs). Needle acupuncture plus moxibustion was significantly more effective than loperamide in improving global IBS symptoms (pooled RR = 1.29; 95% CI: 1.09–1.52, I² = 12%, 2 RCTs). Significant differences in global IBS symptom improvement was not found in the pooled results of the following comparisons: (1) Periorbital acupuncture versus pinaverium bromide and (2) Needle acupuncture versus Tongxieyaofang. Detailed results are presented in Table 4.

Table 4.

Pairwise meta-analyses: Effectiveness of acupuncture and related therapies for improving global IBS symptoms.

Comparison	No. of studies	No. of patients in treatment group		No. of patients in the control group		Pooled RR** or RR (95% CI)	p values	I² values
Comparison	No. of studies	Improved	Total	Improved	Total	Pooled RR** or RR (95% CI)
Moxibustion versus pinaverium bromide	1	44	48	32	47	1.35 (1.09, 1.67)	0.006	NA
Needle acupuncture plus moxibustion versus pinaverium bromide	1	28	31	24	30	1.13 (0.91, 1.40)	0.260	NA
Periorbital acupuncture versus pinaverium bromide	2	48	59	36	59	1.35 (0.79, 2.30)**	0.270	76%
Electroacupuncture versus pinaverium bromide	4	114	125	94	125	1.21 (1.08, 1.35)**	<0.001	0%
Needle acupuncture versus pinaverium bromide	7	184	209	153	208	1.16 (1.07, 1.27)**	<0.001	0%
Needle acupuncture plus moxibustion versus trimebutine maleate	1	27	29	24	31	1.20 (0.97, 1.49)	0.090	NA
Electroacupuncture versus trimebutine maleate	1	55	60	44	60	1.25 (1.05, 1.48)	0.010	NA
Catgut embedding plus trimebutine maleate versus trimebutine maleate	1	27	30	16	30	1.69 (1.18, 2.41)	0.004	NA
Needle acupuncture versus trimebutine maleate	2	48	51	38	51	1.25 (1.05, 1.49)**	0.010	0%
Moxibustion versus loperamide	1	27	30	23	30	1.17 (0.93, 1.48)	0.170	NA
Needle acupuncture plus moxibustion versus loperamide	2	97	112	72	108	1.29 (1.09, 1.52)**	0.002	12%
Needle acupuncture plus Geshanxiaoyao formula versus Geshanxiaoyao formula	1	135	150	37	50	1.22 (1.02, 1.45)	0.030	NA
Needle acupuncture plus Geshanxiaoyao formula versus Bifidobacterium	1	135	150	34	50	1.32 (1.09, 1.61)	0.005	NA
Needle acupuncture versus Geshanxiaoyao formula	1	33	50	37	50	0.89 (0.69, 1.15)	0.380	NA
Needle acupuncture versus Bifidobacterium	1	33	50	34	50	0.97 (0.74, 1.28)	0.830	NA
Catgut embedding versus Tongxieyaofang	1	25	30	24	29	1.01 (0.80, 1.27)	0.950	NA
Needle acupuncture versus Tongxieyaofang	2	124	127	58	65	1.08 (0.97, 1.20)**	0.140	25%

CI, confidence interval; IBS, irritable bowel syndrome; NA, not applicable; RR, risk ratio.

Bold values indicate p < 0.050.

Results of network meta-analysis

Comparative effectiveness of the 14 interventions for global IBS symptom improvement was assessed using NMA. The network of comparisons included 1 four-arm trials and 26 two-arm trials (Table 2). Both nodes and edges were weighted according to the number of studies involved in each direct comparison. The size of nodes showed that needle acupuncture was the most common comparator across the studies (Figure 2). Indirect comparison results on the dichotomous outcome of global IBS symptom improvement among these 14 treatments is shown in Figure 3.

Figure 2.

Network of comparisons in the network meta-analysis.

Figure 3.

Odds ratio and 95% credibility intervals between 14 different interventions: indirect comparisons from network meta-analysis.

The cumulative probabilities (SUCRA results) of each included intervention being the relatively ‘most’ effective option is presented in Figure 4. The combination of needle acupuncture and Geshanxiaoyao formula had the highest probability of being the best option for improving global IBS symptoms, followed by catgut embedding plus trimebutine maleate, Geshanxiaoyao formula alone and moxibustion.

Figure 4.

Comparative effectiveness of the 14 different interventions: surface under the cumulative ranking curves (SUCRA) for improving overall symptoms in irritable bowel syndrome patients.

IF plot for assessment of consistency is shown in Appendix 6. The direct and indirect evidence in seven out of these eight loops were consistent, as RoRs of these seven loops were close to 1, ranging from 1.000 to 1.532. The RoRs of the remaining one quadratic loop, which included (1) needle acupuncture plus moxibustion, (2) loperamide, (3) moxibustion and (4) pinaverium bromide, was 2.619. This implied that the direct estimate could be around two times as large as the indirect estimate or vice versa.

Sensitivity analysis of the network meta-analysis

The network of the sensitivity analysis is shown in Appendix 7. The sensitivity analysis indicated that moxibustion had the highest probability for improving global IBS symptoms, followed by needle acupuncture plus moxibustion, electroacupuncture and needle acupuncture, while trimebutine maleate had the lowest probability. Detailed SUCRA results are presented in Appendix 8.

Adverse effects of acupuncture and related therapies

A total of 8^{35,36,62,63,65,70,71,76} out of 27 included RCTs reported adverse effect rates. No serious adverse events associated with acupuncture and related therapies were reported. Bruises were observed in periorbital acupuncture group (n = 5) in two RCTs.^35,36 Thickening in the area where catgut embedding was carried out (n = 3) was reported in one RCT.⁶² All of these events resolved in 3–5 days and participants continued to receive the treatment. A few cases of nausea and rash were reported in trimebutine maleate group in one RCT.⁶⁵ No occurrence of adverse events was observed in remaining four RCTs.^63,70,71,76

Discussion

In this overview, among the 24 RCTs which recruited IBS patients using various version of the Rome diagnostic criteria, of which 17 adopted Rome III. Rome III has been commonly used as one of the IBS diagnostic criteria since it was introduced in 2006. With increasing IBS knowledge in the past decade, it was modified to the latest Rome IV criteria.⁷⁸ One of the major differences between Rome III and Rome IV criteria is that the frequency of recurrent abdominal pain increased from 3 days per month to 1 day per week on average.⁷⁹ A recent study conducted by Vork and colleagues suggested that Rome IV IBS patients was likely a subgroup of Rome III IBS patients with more severe symptoms.⁸⁰ Hence, results from our study may not be directly applicable to IBS patients diagnosed with Rome IV criteria. Future trials might investigate the effect of acupuncture and related therapies for Rome IV IBS patients.

According to the NICE guideline,⁶ acupuncture is not recommended for treating IBS, due to limited evidence for its effectiveness. Pairwise meta-analyses results from our study indicated that needle acupuncture, electroacupuncture and needle acupuncture plus moxibustion were significantly more effective in alleviating global IBS symptoms when compared with antispasmodics and loperamide, which are pharmacological treatments suggested in the NICE guideline. Even in our NMA sensitivity analysis, the results indicated that moxibustion had the highest probability for improving global IBS symptoms while trimebutine maleate alone had the lowest probability. These results might add to the emerging evidence base on the effectiveness of acupuncture and related therapies for IBS.

In Chinese medicine practice, acupuncture and related therapies are frequently used in conjunction with Chinese herbal medicine, and this combined treatment is generally assumed to provide better treatment effects.^81,82 NMA results suggested that the combination of needle acupuncture with Geshanxiaoyao formula had the highest probability being the best treatment option for improving global IBS symptoms. This reconfirmed the multimodal approach adopted in traditional practice. However, since Chinese herbal medicine was not a main focus in this overview, future SRs should comprehensively assess the combined effect of acupuncture and Chinese herbal medicine.

Concurring with previous overviews on acupuncture safety,⁸³ no serious adverse events associated with acupuncture and related therapies were reported among the included studies. Taking into account potential adverse effects of these pharmacological therapies, including dry eyes and mouth from antispasmodics,⁸ dizziness and vomiting from antidiarrheals,⁹ IBS patients who are intolerant of these adverse effects may consider using acupuncture and related therapies as alternatives. Nevertheless, since all included RCTs were conducted in China among Chinese populations, generalizability of our results among different populations and geographical locations should be considered.

Limitations and recommendations for research

Firstly, antidepressants are suggested as the second-line treatment for IBS,⁶ but in this overview we did not locate any trials evaluating the comparative effectiveness of antidepressants and acupuncture, or the potential of using acupuncture as an add-on to antidepressants. These comparisons should be a priority for future trials.

Secondly, the methodological quality of included SRs was assessed as mediocre. The majority of the included reviews performed a comprehensive literature search and included characteristics of primary studies. Most of them also applied appropriate method to combine findings. However, there was still room for improvement, especially in the domains including grey literature and publishing SR protocols. In future, the reporting standards of SRs should follow the PRISMA requirement.⁸⁴

Thirdly, due to poor reporting, most of the included RCTs are regarded as having an unclear risk of bias in the domains of allocation concealment and selective outcome reporting. This may possibly reduce the trustworthiness of our conclusions. To improve the usefulness of study results, future trials should adhere to the CONSORT reporting statement.⁸⁵

Fourthly, the primary outcome of this study was subjective global IBS symptom improvement but blinding of patients and investigators were not performed in all included RCTs. This risk of bias may introduce further uncertainty to our conclusion.⁸⁶ In addition, a more comprehensive assessment on patient-centered outcomes should be added in future pragmatic trials. Additional outcomes including the Bristol stool form scale,⁸⁷ individual symptom assessment and IBS quality of life questionnaires,⁸⁸ should be considered.

Lastly, the follow-up duration of all included RCTs ranged from 2 to 7 weeks. Longer term effects of acupuncture and related therapies should be evaluated in future trials, for instance at 12 and 24 weeks of follow up.^89,90 Close monitoring and adequate reporting of all adverse events also needs to be considered by future investigators in this field.

Conclusion

In this overview of SRs and NMA, the combination of needle acupuncture and Geshanxiaoyao formula is suggested to have the highest probability of being the most effective treatment for improving global IBS symptoms. In sensitivity analysis where the combined use of acupuncture and Chinese herbal medicine was excluded, moxibustion showed the highest probability of being the most effective treatment for improving global IBS symptoms. However, trustworthiness of this conclusion is limited by lack of blinding and allocation concealment, possible selective outcome reporting. In view of such limitation, (1) needle acupuncture plus Geshanxiaoyao formula and (2) moxibustion could be alternative to those who are not responsive to first-line conventional therapies, or intolerant of the adverse effects of pharmacological treatments.

Footnotes

Appendix 1: search strategies and results for systematic review on acupuncture for irritable bowel syndrome

1	irritable bowel syndrome.mp. [mp=title, full text, keywords]	110
2	irritable bowel syndrome$.mp. [mp=title, full text, keywords]	110
3	irritable colon.mp. [mp=title, full text, keywords]	0
4	gastrointestinal disease$.mp.	85
5	gastrointestinal syndrome$.mp.	0
6	colonic disease$.mp. [mp=title, full text, keywords]	51
7	colon disease$.mp. [mp=title, full text, keywords]	0
8	((irritable or functional or spastic) and (bowel or colon)).mp.	152
9	1 or 2 or 3 or 4 or 5 or 6 or 7 or 8	261
10	Acupuncture.mp. [mp=title, full text, keywords]	471
11	acupunctur*.mp. [mp=title, full text, keywords]	471
12	Acupuncture Points.mp. [mp=title, full text, keywords]	77
13	Acupuncture Therapy.mp. [mp=title, full text, keywords]	312
14	Acupuncture Analgesia.mp. [mp=title, full text, keywords]	31
15	Electroacupuncture.mp. [mp=title, full text, keywords]	56
16	electroacupunctur*.mp. [mp=title, full text, keywords]	56
17	electro-acupunctur*.mp. [mp=title, full text, keywords]	26
18	acupoint*.mp. [mp=title, full text, keywords]	47
19	Transcutaneous Electric Nerve Stimulation.mp. [mp=title, full text, keywords]	52
20	Transcutaneous Electric Nerve Stimulat*.mp. [mp=title, full text, keywords]	52
21	percutaneous electrical nerve stimulat*.mp. [mp=title, full text, keywords]	1
22	TENS.mp.	58
23	10 or 11 or 12 or 13 or 14 or 15 or 16 or 17 or 18 or 19 or 20 or 21 or 22	533
24	9 and 23	7

Appendix 2. List of included systematic reviews

Appendix 3. List of included randomized controlled trials

Appendix

Appendix 5.

Methodological quality of included systematic reviews on acupuncture and related therapies for irritable bowel syndrome.

First author	AMSTAR item
First author	1	2	3	4	5	6	7	8	9	10	11
Manheimer and colleagues¹	N	Y	Y	N	N	Y	Y	Y	Y	N	Y
Suen and Zhong²	N	Y	Y	Y	Y	Y	Y	N	Y	N	N
Hussain and Quigley³	N	NR	N	N	N	N	N	N	N/A	N	Y
Park and colleagues⁴	N	Y	Y	N	N	Y	Y	Y	Y	Y	Y
Schneider and colleagues⁵	N	NR	N	N	N	Y	Y	Y	N/A	N	N
Zhao and colleagues⁶	N	NR	Y	N	N	N	Y	Y	Y	Y	N
Pei and colleagues⁷	N	Y	Y	N	N	Y	Y	Y	Y	N	N
Lim and colleagues⁸	Y	Y	Y	N	Y	Y	Y	Y	Y	N	Y
Chao and Zhang⁹	N	Y	Y	N	N	Y	Y	Y	Y	N	N
Chey and colleagues¹⁰	N	NR	Y	N	N	N	Y	Y	N/A	N	Y
Grundmann and Yoon¹¹	N	NR	Y	N	N	Y	N	N	N/A	N	N
Li and colleagues¹²	N	NR	Y	N	N	Y	Y	Y	Y	Y	N
Liu and Chen¹³	N	NR	Y	N	N	Y	Y	Y	Y	N	Y
Deng and colleagues¹⁴	N	N	Y	N	N	Y	Y	Y	Y	Y	N
Xu and colleagues¹⁵	N	NR	Y	N	N	Y	Y	Y	Y	N	N
# of yes (%)	1 (6.67)	6 (40.0)	13 (86.7)	1 (6.67)	2 (13.3)	12 (80.0)	13 (86.7)	12 (80.0)	11 (73.3)	4 (26.7)	6 (40.0)

# of yes, number of yes; N/A, not applicable; N, no; NR, not reported; SR, systematic review; Y, yes (SR fulfilling the criteria);

AMSTAR item: (1). Was an ‘a priori’ design provided? (2). Was there duplicate study selection and data extraction? (3). Was a comprehensive literature search performed? (4). Was the status of publication (i.e. grey literature) used as an inclusion criterion? (5). Was a list of studies (included and excluded) provided? (6). Were the characteristics of the included studies provided? (7). Was the scientific quality of the included studies assessed and documented? (8). Was the scientific quality of the included studies used appropriately in formulating conclusions? (9). Were the methods used to combine the findings of studies appropriate? (10). Was the likelihood of publication bias assessed? (11). Was the conflict of interest included?

Acknowledgements

The following contributed to this work. Study concept and design: C.W. and V.C. Acquisition of data: C.W. and W.C. Interpretation of data: C.W. and I.W. Figures 1–4 preparation: C.W. Tables 1–4 preparation: C.W. Appendix 1–8 preparation: C.W. Drafting of the manuscript: C.W. Critical revision of the manuscript for important intellectual content: I.W., H.C., A.F., J.W., S.W. and V.C., Administrative, technical, or material support: R.H. All authors reviewed the manuscript, agreed to all the contents and agreed the submission.

Funding

This study was supported by the High-level Talents Introduction Plan (no. 202045003) of Central South University, Changsha, China.

Conflict of interest statement

The authors declare that there is no conflict of interest.

ORCID iDs

Charlene H. L. Wong

William K. W. Cheung

Alexander C. Ford

References

Thompson

Longstreth

Drossman

et al . Functional bowel disorders and functional abdominal pain. Gut 1999; 45(Suppl. 2): II43–II47.

Yoon

Grundmann

Koepp

et al . Management of irritable bowel syndrome (IBS) in adults: conventional and complementary/alternative approaches. Altern Med Rev 2011; 16: 134–151.

Johannesson

Simrén

Strid

et al . Physical activity improves symptoms in irritable bowel syndrome: a randomized controlled trial. Am J Gastroenterol 2011; 106: 915–922.

Hayes

Fraher

Quigley

EM.

Irritable bowel syndrome: the role of food in pathogenesis and management. Gastroenterol Hepatol (N Y) 2014; 10: 164–174.

Schumann

Klose

Lauche

et al . Low fermentable, oligo-, di-, mono-saccharides and polyol diet in the treatment of irritable bowel syndrome: a systematic review and meta-analysis. Nutrition 2018; 45: 24–31.

Clinical practice guideline: Irritable bowel syndrome in adults: diagnosis and management of irritable bowel syndrome in primary care, https://www.nice.org.uk/guidance/cg61/chapter/1-Recommendations#pharmacological-therapy (2017, accessed 26 January 2018).

Quigley

Freid

Gwee

et al . World gastroenterology organization global guideline. Irritable bowel syndrome: a global perspective, 2015. J Clin Gastroenterol 2016; 50: 704–713.

Ford

Talley

Spiegel

et al . Effect of fibre, antispasmodics, and peppermint oil in the treatment of irritable bowel syndrome: systematic review and meta-analysis. BMJ 2008; 337: a2313.

Rezaizadeh

Olson

General GI motility disorders. In: Pocket handbook of GI pharmacotherapeutics. Cham: Humana Press, 2016, pp.31–44.

10.

Ford

Moayyedi

Lacy

et al . American College of Gastroenterology monograph on the management of irritable bowel syndrome and chronic idiopathic constipation. Am J Gastroenterol 2014; 109(Suppl. 1): S2–S26.

11.

Spiller

Aziz

Creed

et al . Guidelines on the irritable bowel syndrome: mechanisms and practical management. Gut 2007; 56: 1770–1798.

12.

Hulisz

The burden of illness of irritable bowel syndrome: current challenges and hope for the future. J Manag Care Pharm 2004; 10: 299–309.

13.

Koloski

Talley

Huskic

et al . Predictors of conventional and alternative health care seeking for irritable bowel syndrome and functional dyspepsia. Aliment Pharmacol Ther 2003; 17: 841–851.

14.

Kong

Hurlstone

Pocock

et al . The incidence of self-prescribed oral complementary and alternative medicine use by patients with gastrointestinal diseases. J Clin Gastroenterol 2005; 39: 138–141.

15.

Van Tilburg

Palsson

Levy

et al . Complementary and alternative medicine use and cost in functional bowel disorders: a six month prospective study in a large HMO. BMC Complement Altern Med 2008; 8: 46.

16.

Chung

Lau

et al . Views on traditional Chinese medicine amongst Chinese population: a systematic review of qualitative and quantitative studies. Health Expect 2014; 17: 622–636.

17.

Chung

Wang

et al . Integrating traditional Chinese medicine services in community health centers: insights into utilization patterns in the Pearl River Region of China. Evid Based Complement Alternat Med 2013; 2013: 426360.

18.

Wong

Chung

VC.

Medical synopsis: can acupuncture be an alternative treatment option for patients with refractory functional dyspepsia?

Adv Integr Med 2015; 2: 143–145.

19.

Chen

Yin

Takahashi

et al . Complementary and alternative therapies for functional gastrointestinal diseases. Evid Based Complement Alternat Med 2015; 2015: 138645.

20.

Lim

Manheimer

Lao

et al . Acupuncture for treatment of irritable bowel syndrome. Cochrane Database Syst Rev 2006; 4:CD005111.

21.

Manheimer

Wieland

Cheng

et al . Acupuncture for irritable bowel syndrome: systematic review and meta-analysis. Am J Gastroenterol 2012; 107: 835–847.

22.

Zhao

Cui

et al . Meta-analysis on acupuncture and moxibustion for irritable bowel syndrome [Chinese]. Chin Arch Trad Chin Med 2010; 28: 961–963.

23.

Pei

Zhang

Sun

et al . Meta-analysis of acupuncture-moxibusion in treatment of irritable bowel syndrome [Chinese]. Chin Acu & Mox 2012; 32: 957–960.

24.

Park

Lee

Moxibustion in the management of irritable bowel syndrome: systematic review and meta-analysis. BMC Complement Altern Med 2013; 13: 247.

25.

Mills

Thorlund

Ioannidis

JP.

Demystifying trial networks and network meta-analysis. BMJ 2013; 346: f2914.

26.

Higgins

Green

Cochrane handbook for systematic reviews of interventions. 4th ed. Hoboken, NJ: John Wiley & Sons, 2011.

27.

Chung

Hui

et al . Effectiveness of acupuncture and related therapies for palliative care of cancer: overview of systematic reviews. Sci Rep 2015; 5: 16776.

28.

Chung

et al . Chinese herbal medicine for improving quality of life among non-small cell lung cancer patients: overview of systematic reviews and network meta-analysis. Medicine (Baltimore) 2016; 95: e2410.

29.

Manning

Thompson

Heaton

et al . Towards positive diagnosis of the irritable bowel. Br Med J 1978; 2: 653–654.

30.

Kruis

Thieme

Weinzierl

et al . A diagnostic score for the irritable bowel syndrome. Its value in the exclusion of organic disease. Gastroenterology 1984; 87: 1–7.

31.

Drossman

Thompson

Talley

et al . Identification of sub-groups of functional gastrointestinal disorders. Gastroenterol Int 1990; 3: 159–172.

32.

Longstreth

Thompson

Chey

et al . Functional bowel disorders. Gastroenterology 2006; 130: 1480–1491.

33.

Lacy

Mearin

Chang

et al . Bowel disorders. Gastroenterology 2016; 150: 1393–1407. e1395.

34.

Lao

Acupuncture techniques and devices. J Altern Complement Med 1996; 2: 23–25.

35.

Gao

Eye acupuncture on treating diarrhea-predominant irritable bowel syndrome (spleen and stomach weakness). Master Thesis [Chinese], Liaoning University of Chinese Medicine, Liaoning, China, 2013.

36.

Liu

Eye acupuncture on treating diarrhea-predominant irritable bowel syndrome (liver depression and spleen deficiency). Master Thesis [Chinese], Liaoning University of Chinese Medicine, Liaoning, China, 2013.

37.

Huang

Choong

TS.

Treatment of obesity by catgut embedding: an evidence-based systematic analysis. Acupunct Med 2012; 30: 233–234.

38.

Camilleri

Mangel

Fehnel

et al . Primary endpoints for irritable bowel syndrome trials: a review of performance of endpoints. Clin Gastroenterol Hepatol 2007; 5: 534–540.

39.

Ford

Talley

Schoenfeld

et al . Efficacy of antidepressants and psychological therapies in irritable bowel syndrome: systematic review and meta-analysis. Gut 2009; 58: 367–378.

40.

Montori

Wilczynski

Morgan

et al . Optimal search strategies for retrieving systematic reviews from Medline: analytical survey. BMJ 2005; 330: 68.

41.

Wilczynski

Haynes

Team

EMBASE search strategies achieved high sensitivity and specificity for retrieving methodologically sound systematic reviews. J Clin Epidemiol 2007; 60: 29–33.

42.

Shea

Grimshaw

Wells

et al . Development of AMSTAR: a measurement tool to assess the methodological quality of systematic reviews. BMC Med Res Methodol 2007; 7: 10.

43.

Pollock

Fernandes

Hartling

Evaluation of AMSTAR to assess the methodological quality of systematic reviews in overviews of reviews of healthcare interventions. BMC Med Res Methodol 2017; 17: 48.

44.

Higgins

Altman

Gøtzsche

et al . The Cochrane Collaboration’s tool for assessing risk of bias in randomised trials. BMJ 2011; 343: d5928.

45.

Salanti

Indirect and mixed-treatment comparison, network, or multiple-treatments meta-analysis: many names, many benefits, many concerns for the next generation evidence synthesis tool. Res Synth Methods 2012; 3: 80–97.

46.

Borenstein

Hedges

Higgins

et al . A basic introduction to fixed-effect and random-effects models for meta-analysis. Res Synth Methods 2010; 1: 97–111.

47.

Higgins

Thompson

Deeks

et al . Measuring inconsistency in meta-analyses. BMJ 2003; 327: 557–560.

48.

Ades

Combination of direct and indirect evidence in mixed treatment comparisons. Stat Med 2004; 23: 3105–3124.

49.

Chaimani

Higgins

Mavridis

et al . Graphical tools for network meta-analysis in STATA. PLoS One 2013; 8: e76654.

50.

White

IR.

Multivariate random-effects meta-regression: updates to mvmeta. Stata J 2011; 11: 255–270.

51.

Hutton

Salanti

Caldwell

et al . The PRISMA extension statement for reporting of systematic reviews incorporating network meta-analyses of health care interventions: checklist and explanations. Ann Intern Med 2015; 162: 777–784.

52.

Salanti

Ades

Ioannidis

JP.

Graphical methods and numerical summaries for presenting results from multiple-treatment meta-analysis: an overview and tutorial. J Clin Epidemiol 2011; 64: 163–171.

53.

Chu

Huang

et al . Effect of indirect moxibustion on diarrhea-dominant irritable bowel syndrome patients [Chinese]. J Anhui TCM College 2011; 30: 33–36.

54.

Zeng

KX.

Efficacy observation on warm needling for 60 cases of diarrhea irritable bowel syndrome. World J Acupunct Moxibustion 2013; 23: 43–46.

55.

Guo

Bao

Zhang

YB.

Effect of Needle acupuncture with moxibustion on diarrhea-dominant irritable bowel syndrome patients [Chinese]. Modern J Integrated Traditional Chinese Western Medicine 2010; 19: 1998–1999.

56.

Kong

Wang

Xiao

et al . Clinical research of acupuncture plus ginger-partitioned moxibustion for diarrhea-predominant irritable bowel syndrome [Chinese]. Shanghai J Acu-mox 2014; 33: 895–898.

57.

Pei

Zhou

JL.

Comparative observation on the therpaeutic effects between acupuncture and western medication for diarrhea-predominant irritable bowel syndrome [Chinese]. Chin Acu & Mox 2012; 32: 679–682.

58.

et al . Therapeutic observation of diarrhea-predominant irritable bowel syndrome majorly treated by acupuncture with Ling Gui Ba Fa [Chinese]. Shanghai J Acu-mox. 2015; 34: 22–24.

59.

ZM.

The acupuncture of soothing the liver and tonifying the slpeen method on diarrhea predominant irritable bowel syndrome. Master Thesis [Chinese], Liaoning University of Chinese Medicine, Liaoning, China, 2012.

60.

Liao

YC.

Acupuncture treatment for 132 cases of irritable bowel syndrome [Chinese]. Clinical J Acupuncture Moxibustion 2000; 16: 13–14.

61.

Liu

Wang

Chinese research of acupuncture on Shang Juxu for irritable bowel syndrome [Chinese]. Shandong J Chinese Med 2013; 32: 183–184.

62.

Liu

QP.

Clinical research on irritable bowel syndrome of the type of diarrhea (liver Qi over-acting spleen) treated by acupoint catgut embedding therapy. Master Thesis [Chinese], Guangzhou University of Chinese Medicine, Guangzhou, China, 2013.

63.

Liu

Wang

Zhang

et al . Clinical observation on Geshanxiaoyao decoction combining acupuncture effect on the life quality of patients with irritable bowel syndrome [Chinese]. J Zhejiang Univ Trad Chinese Med 2010; 34: 510–513.

64.

Liu

SY.

Effect of needle acupuncture on diarrhea-dominant irritable bowel syndrome patients [Chinese]. Guangxi J Trad Chinese Med 2014; 37: 55–57.

65.

Liu

Acupuncture for 31 cases diarrhea-predominant irritable bowel syndrome [Chinese]. Hunan J Trad Chinese Med 2014; 30: 73–74.

66.

Luo

Long

Huang

Combination of moxibustion with pinaverium bromide for treating pain and diarrhea of irritable bowel syndrome [Chinese]. J Jingganshan Med College 2008; 15: 39–39.

67.

Pei

Sun

Xia

et al . Clinical evaluation of acupuncture treating IBS-D belonging to liver depression and spleen deficiency syndrome [Chinese]. J Nanjing Univ TCM 2012; 28: 27–29.

68.

Shi

Liu

et al . Ziwu Liuzhu acupuncture treatment of irritable bowel syndrome [Chinese]. Shaanxi Zhongyi 2015; 36: 1516–1518.

69.

Shi

Zhu

Wang

et al . Comparative study on irritable bowel syndrome treatment with acupuncture and western medicine [Chinese]. Chin Acu & Mox 2011; 31: 607–609.

70.

Sun

Xia

et al . Clinical evaluation of Soothing Gan (肝) and invigorating Pi (脾) acupuncture treatment on diarrhea-predominant irritable bowel syndrome. Chin J Integr Med 2011; 17: 780–785.

71.

Sun

Song

Clinical efficacy of acupuncture at Jiaji (EX-B2) in treating irritable bowel syndrome [Chinese]. Shanghai J Acu-mox 2015; 34: 856–857.

72.

Wei

Zhang

et al . Efficacy of acupuncture for treatment of irritable bowel syndrome [Chinese]. J Jinan Univ (Medical Edition) 2011; 32: 657–659.

73.

Wen

CW.

Clinical efficacy of acupuncture treatment of irritable bowel syndrome with diarrhea (IBS-D) (liver stagnation and spleen deficiency syndrome). Master Thesis [Chinese], Beijing University of Chinese Medicine, Beijing, China 2012.

74.

Gao

Acupuncture for 30 cases of Diarrhea-predominant irritable bowel syndrome [Chinese]. J External Therapy TCM 2013; 22: 38–39.

75.

Xao

Zhu

HX.

Effect of needle acupuncture with moxibustion on irritable bowel syndrome patients [Chinese]. Res Integrated Traditional Chinese Western Med 2009; 1: 212–213.

76.

Yao

JQ.

Clinical study on the effect of catgut embedding therapy with modification treatment on diarrhea-predominant irritable bowel syndrome patients. Master Thesis [Chinese], Guangzhou University of Chinese Medicine, Guangzhou, China, 2012.

77.

Zeng

Bao

Chu

et al . Effect of moxibustion on diarrhea-dominant irritable bowel syndrome patients in dog days [Chinese]. Chin Arch Trad Chin Med 2010; 28: 1774–1776.

78.

Drossman

DA.

Functional gastrointestinal disorders: history, pathophysiology, clinical features, and Rome IV. Gastroenterology 2016; 150: 1262–1279. e1262.

79.

Lacy

Patel

NK.

Rome criteria and a diagnostic approach to irritable bowel syndrome. J Clin Med 2017; 6: 99.

80.

Vork

Weerts

Mujagic

et al . Rome III vs Rome IV criteria for irritable bowel syndrome: A comparison of clinical characteristics in a large cohort study. Neurogastroenterol Motil 2018; 30.

81.

Xue

Yang

. Academic achievements in acupuncture-the emphasis of the combination of acupuncture and Chinese herbal medicine in clinical management. In: A compendium of clinical experience of acupuncture experts in Southern China [in Chinese]. 1st ed. Beijing: China Medical Technology Publishing House, 1998, pp.15–17.

82.

Guo

Zhang

Guo

XF.

Acupuncture combined with Chinese herbal medicine Plantain and Senna Granule in treatment of functional constipation: a randomized, controlled trial. Zhong Xi Yi Jie He Xue Bao 2011; 9: 1206–1214.

83.

Chan

et al . Safety of acupuncture: overview of systematic reviews. Sci Rep 2017; 7: 3369.

84.

Moher

Liberati

Tetzlaff

et al . Preferred reporting items for systematic reviews and meta-analyses: the PRISMA statement. PLoS Med 2009; 6: e1000097.

85.

Schulz

Altman

Moher

CONSORT 2010 statement: updated guidelines for reporting parallel group randomised trials. BMC Med 2010; 8: 18.

86.

Page

Higgins

Clayton

et al . Empirical evidence of study design biases in randomized trials: systematic review of meta-epidemiological studies. PLoS One 2016; 11: e0159267.

87.

Lewis

Heaton

Stool form scale as a useful guide to intestinal transit time. Scand J Gastroenterol 1997; 32: 920–924.

88.

Patrick

Drossman

Frederick

et al . Quality of life in persons with irritable bowel syndrome (development and validation of a new measure). Dig Dis Sci 1998; 43: 400–411.

89.

Staudacher

Lomer

Lindsay

et al . Clinical response to the low fodmap diet at 12 months: a prospective evaluation of patients with irritable bowel syndrome. Gastroenterology 2017; 152: S918.

90.

Laird

Tanner-Smith

Russell

et al . Short-term and long-term efficacy of psychological therapies for irritable bowel syndrome: a systematic review and meta-analysis. Clin Gastroenterol Hepatol 2016; 14: 937–947. e934.

Acupuncture and related therapies for treating irritable bowel syndrome: overview of systematic reviews and network meta-analysis

Abstract

Background:

Methods:

Results:

Conclusion:

Keywords

Introduction

Methods

Inclusion criteria

Participants

Intervention and comparisons

Outcome of interest

Literature search

Literature selection, data extraction, methodological quality and risk of bias assessment

Data synthesis

Results

Results on literature search and selection

Characteristics of included RCTs

Participants

Diagnostic criteria and subtypes of IBS

Interventions

Methodological quality of included SRs and risk of bias among included RCTs

Results of pairwise meta-analyses

Results of network meta-analysis

Sensitivity analysis of the network meta-analysis

Adverse effects of acupuncture and related therapies

Discussion

Limitations and recommendations for research

Conclusion

Footnotes

Appendix 1: search strategies and results for systematic review on acupuncture for irritable bowel syndrome

Appendix 2. List of included systematic reviews

Appendix 3. List of included randomized controlled trials

Appendix

Acknowledgements

Funding

Conflict of interest statement

ORCID iDs

References
