Abstract
New evidence continues to accumulate regarding a significant association between excessive inflammation and dysregulated immunity (local and systemic) and the risk of cardiovascular events in different patient cohorts. Whilst research has sought to identify novel atheroprotective therapies targeting inflammation and immunity, several marketed drugs for rheumatological conditions may serve a similar purpose. One such drug, methotrexate, has been used since 1948 for treating cancer and, more recently, for a wide range of dysimmune conditions. Over the last 30 years, epidemiological and experimental studies have shown that methotrexate is independently associated with a reduced risk of cardiovascular disease, particularly in rheumatological patients, and exerts several beneficial effects on vascular homeostasis and blood pressure control. This review article discusses the current challenges with managing cardiovascular risk and the new frontiers offered by drug discovery and drug repurposing targeting inflammation and immunity with a focus on methotrexate. Specifically, the article critically appraises the results of observational, cross-sectional and intervention studies investigating the effects of methotrexate on overall cardiovascular risk and individual risk factors. It also discusses the putative molecular mechanisms underpinning the atheroprotective effects of methotrexate and the practical advantages of using methotrexate in cardiovascular prevention, and highlights future research directions in this area.
Introduction
Atherosclerosis is a progressive disease that is characterized by the abnormal accumulation of lipids and fibrous elements in the arterial wall, with a consequent narrowing of the arterial lumen. 1 The primary clinical manifestations of atherosclerosis, ischaemic heart disease and stroke, remain the leading cause of disability, mortality and excessive healthcare costs worldwide. 2 For example, in the Global Burden of Disease 2019 study, a multinational research collaboration, the global prevalence of cardiovascular disease increased from 271 million in 1990 to 523 million in 2019. 3 During the same period, there was also a significant increase in cardiovascular deaths, from 12.1 to 18.6 million, and a doubling of years lived with disability, from 17.7 to 34.4 million, due to ischaemic heart disease and stroke. 3 Therefore, despite the availability of medications targeting key neurohormonal pathways (e.g. the renin–angiotensin–aldosterone system), blood pressure, lipid profile and platelet aggregation, additional research is needed to investigate the significance of unconventional cellular and biochemical mechanisms underpinning atherosclerosis. There is robust evidence that such mechanisms involve or even trigger the dysregulation of the immune system and the excessive activation of specific inflammatory pathways.4–7
A chronic local (arterial wall) and systemic pro-inflammatory and pro-oxidant state associated with a dysregulation of immune pathways plays a critical role in the pathophysiology of atherosclerosis. 8 Such alterations also mediate the untoward effects of established cardiovascular risk factors, particularly diabetes,9–11 arterial hypertension,12,13 hypercholesterolaemia14–18 and the metabolic syndrome.19,20 Consequently, there has been an increasing focus on discovering novel immunomodulatory and anti-inflammatory agents with atheroprotective effects that could complement existing cardiovascular therapies.21–23 An alternative approach consists of determining the atheroprotective potential of other traditional immunomodulatory and anti-inflammatory agents that are commonly prescribed in patients with autoimmune and/or inflammatory conditions.24–26 If effective, such ‘drug repurposing’ approaches would minimize the costs and uncertainties of conventional drug discovery programmes and provide rapid public health benefits in cardiovascular prevention, defined as the combination of pharmacological and non-pharmacological strategies used to reduce the risk of cardiovascular disease in the population.27,28
One example of such a traditional immunomodulatory and anti-inflammatory drug is methotrexate, a pteridine analogue that was initially used as an anti-cancer agent and, more recently, as a conventional synthetic disease-modifying anti-rheumatic drug (csDMARD).29–36 Evidence generated from experimental and observational clinical studies conducted over the last 30 years suggests that treatment with methotrexate is also associated with beneficial effects on surrogate markers of atherosclerosis and cardiovascular clinical endpoints, for example, myocardial infarction and stroke.37,38 Therefore, methotrexate could be a suitable candidate for ‘drug repurposing’ strategies aimed at enhancing the efficacy of national and international cardiovascular prevention programmes.
This review article discusses the issues that limit the efficacy of existing cardiovascular prevention strategies, particularly residual cardiovascular and inflammatory risk, and the critical pathophysiological role of dysregulated immunity and inflammation in driving the onset and the progression of atherosclerosis. Then, it critically appraises the published evidence, focusing on studies conducted over the last 5 years, regarding the potential atheroprotective effects of methotrexate in experimental and clinical studies in patients with and without autoimmune and inflammatory conditions. Finally, it discusses the potential practical advantages of methotrexate therapy over available treatments for routine cardiovascular prevention and proposes new research directions in this area, including the design of future intervention studies investigating the effects of methotrexate on cardiovascular risk.
Residual cardiovascular and inflammatory risk
A significant number of patients with previous atherosclerotic cardiovascular events, for example, acute coronary syndrome and ischaemic stroke, suffer from further events despite maximal treatment with statins, beta-blockers, antiplatelet agents, anticoagulants, angiotensin-converting enzyme (ACE) inhibitors and angiotensin receptor blockers.39,40 This observation suggests the presence of a significant ‘residual cardiovascular risk’, that is, the component of an individual patient’s cardiovascular risk that is not influenced by existing treatments.41–43 The increasing recognition of the critical role played by excess inflammation and dysregulated immunity in driving this residual risk has led several experts to rename this phenomenon ‘residual inflammatory risk’. The results of several observational studies support the clinical relevance of the residual inflammatory risk, potentially ascribable to the local pool of pro-inflammatory T memory cells.44–46 For example, in a Chinese study of 5840 patients with a recent ischaemic stroke or transient ischaemic attack receiving optimal preventive treatment, the subgroup with relatively high C-reactive protein (CRP) concentrations both at baseline and at 3-month of follow-up had significantly worse outcomes at 1 year when compared to the subgroup with relatively low CRP at both timepoints (stroke recurrence: adjusted hazard ratio, aHR = 1.39, 95% CI: 1.08–1.78, p = 0.01; composite of stroke, myocardial infarction, and cardiovascular death: aHR = 1.43, 95% CI: 1.12–1.82, p = 0.004; all-cause mortality: aHR = 2.57, 95% CI: 1.50–4.41, p < 0.001; and poor functional outcome: aHR = 1.75, 95% CI: 1.34–2.28, p < 0.001). 47 In another study of 3013 patients undergoing percutaneous coronary revascularisation and receiving optimal preventive treatment, those with persistently high CRP at baseline and after 4 weeks had a significantly higher risk of major adverse cardiac and cerebrovascular events at 1 year when compared with those with low CRP at both timepoints (aHR = 2.10, 95% CI: 1.45–3.02, p < 0.001). Different risks were also observed in two other subgroups (low baseline and high CRP at follow-up: aHR = 1.91, 95% CI: 1.21–3.03, p = 0.006; high baseline and low CRP at follow-up: aHR = 1.52, 95% CI: 0.95–2.44, p = 0.08), suggesting the importance of the temporal direction in changes in inflammation in modulating residual inflammatory risk. 48 Several other recent observational trials and post-hoc analyses of intervention trials have similarly reported significant associations between residual inflammatory risk, assessed by measuring CRP or other biomarkers (e.g. the neutrophil-to-lymphocyte ratio), and adverse outcomes in patients with atherosclerosis.49–55
Atheroprotective strategies targeting inflammation and immunity
The structural and functional integrity of the endothelium is critical to ensure the maintenance of homeostatic mechanisms protecting against atherosclerosis, mainly through the production of the endogenous messenger nitric oxide (NO) by endothelial NO synthase (eNOS). NO regulates endothelial-dependent vasodilation, peripheral vascular resistance, arterial stiffness, blood pressure and platelet activity, preventing at the same time the adhesion of leucocytes to the arterial wall and the proliferation of vascular smooth muscle cells, critical steps involved in the pathophysiology of atherosclerosis.56–63 According to the ‘inflammatory theory of atherosclerosis’ postulated some 40 years ago, the dysregulated production of specific cytokines by subpopulations of macrophages (M1), for example, tumour necrosis factor-alpha (TNF-α), interleukin-6 (IL-6) and IL-12, favours excess inflammation in the arterial wall. This, in turn, favours the oxidation of specific cholesterol fractions, that is, low-density lipoprotein (LDL) cholesterol, endothelial damage, the creation of foam cells and the ultimate formation of the atherosclerotic plaque.17,21,22,64
In support of the pathophysiological role played by pro-inflammatory cytokines in atherosclerosis, several observational studies have reported significant associations between circulating cytokines and the risk of adverse cardiovascular outcomes. For example, in a study of patients with myocardial infarction, the concentrations of TNF-α measured after an average of 9 months after the event were significantly higher in those who experienced recurrent cardiovascular events during follow-up than those who did not (2.84 pg/mL versus 2.57 pg/mL, p = 0.02). Notably, the association between TNF-α concentrations and recurrent events was also independent of conventional cardiovascular risk factors. 65 Similarly, a recent two-sample Mendelian randomization study has reported significant associations between genetically predicted TNF-α concentrations and ischaemic heart disease (odds ratio, OR = 2.25, 95% CI: 1.50–3.37, p < 0.001) and stroke (OR: 2.27, 95% CI: 1.50–3.43, p < 0.001). 66 In another prospective study investigating 3269 patients with acute coronary syndrome, plasma IL-6 concentrations ⩾5 ng/L were significantly associated with 12-month mortality in patients not undergoing revascularisation (relative risk, RR = 3.47, 95% CI: 1.95–6.21, p < 0.001) but not in those undergoing revascularisation (RR = 1.43, 95% CI: 0.64–3.21, p = 0.38). 67 Taken together, these studies highlight that the negative impact of excess inflammation is not only limited to the assessment of surrogate markers in experimental studies but also translates into a tangible increase in cardiovascular risk at the population level.
This evidence has stimulated a significant body of research over the last 10–15 years that has led to the identification of promising atheroprotective treatments targeting specific immune and inflammatory mediators. Such mediators include interleukin-1β (e.g. canakinumab), 65 the interleukin-1 receptor (e.g. anakinra), 68 the NLR family pyrin domain containing three inflammasome (e.g. MCC950 and tranilast),69,70 TNF-α (e.g. adalimumab), 71 IL-6 (e.g. tocilizumab), 72 chemokines (e.g. maraviroc and MNL1202),73,74 interleukin-2 (e.g. aldesleukin) 75 and CD20 (e.g. rituximab). 76 However, it is essential to highlight that these and other agents under investigation are often characterized by prohibitive costs and toxicity,77–83 which may limit their widespread use in cardiovascular prevention, a type of treatment that can last for several decades. Recent randomized-controlled studies have also demonstrated the benefits of ‘drug repurposing’ strategies for combating atherosclerosis with colchicine, a relatively old antimalarial, antimitotic and anti-inflammatory agent targeting multiple cellular pathways that is used for acute gout and pericarditis.84,85 A similar drug repurposing approach in the quest for alternative atheroprotective treatments will be discussed for another traditional immunomodulatory and anti-inflammatory agent, methotrexate, in the following sections.
Methotrexate pharmacology and role in cardiovascular risk in clinical studies
Methotrexate, a pteridine molecule and an analogue of the B-vitamin folic acid, has been used since 1948 for the treatment of cancer and, more recently over the last 30–40 years, as a csDMARD for a wide range of autoimmune and autoinflammatory conditions.34,36,86–88 In this context, it is essential to emphasize that the doses of methotrexate used for the treatment of autoimmune and inflammatory conditions, between 7.5 and 30 mg weekly, are considerably lower than those used for malignancies, up to ⩾500 mg/m2.34,86–90
Pharmacology of methotrexate
In patients with autoimmune and/or inflammatory conditions, methotrexate is normally administered once weekly either orally or subcutaneously. The mean bioavailability following oral administration has been shown to be 0.64 (range 0.21–0.96) when compared to subcutaneous administration. 91 Subcutaneous methotrexate is gaining increasing popularity in clinical practice because of the higher bioavailability, as previously described, a more predictable pharmacokinetic profile, and a reduced rate of gastrointestinal toxicity when compared to oral methotrexate. 92 Circulating methotrexate is not significantly bound to plasma proteins, ~50%, can easily distribute in the synovial fluid and is primarily eliminated by the kidney through glomerular filtration and active tubular secretion.93,94 The plasma half-life of methotrexate ranges between 4.5 and 10 h.93,94 However, the circulating concentrations of methotrexate are not particularly significant from a clinical standpoint as the drug enters cells via the human solute carrier superfamily of transporters before accumulating as pharmacologically active polyglutamate forms by folylpolyglutamate synthetases (Figure 1). 95 A pharmacokinetic study has shown that the median time to achieve a steady state of the different forms of methotrexate polyglutamate concentrations in red blood cells after commencing oral methotrexate ranged between 6 and 149 weeks. 96 The same study reported that the median time for the polyglutamates to become undetectable following treatment cessation ranged between 4 and 10 weeks. 96 This period is considerably longer that the half-life of circulating methotrexate, which also justifies the weekly administration schedules in patients with autoimmune and inflammatory disorders.

The pharmacology of methotrexate.
The polyglutamate forms mediate the inhibitory effects of methotrexate on the biosynthesis of purines and pyrimidines. These effects involve the inhibition of the enzymes thymidylate synthase, dihydrofolate reductase and aminoimidazole carboxamide ribonucleotide (AICAR) transformylase (Figure 1) (ATIC). 97 The accumulation of the ATIC substrate, AICAR, in turn, favours the accumulation of adenosine, a critical anti-inflammatory mediator, through the inhibition of catabolic pathways mediated by adenosine deaminase and adenosine monophosphate deaminase (Figures 1 and 2). 97

The effects of methotrexate on adenosine, AICAR and AMPK.
Treatment with methotrexate, particularly long-term, is known to be associated with gastroenterological, haematological, renal, neurological, pulmonary and mucocutaneous toxicity of different severity.98,99 However, with appropriate dosing and regular clinical and biochemical monitoring, the clinical manifestations of toxicity appear to be relatively infrequent and overall benign. For example, in an observational study of 673 patients with inflammatory arthritis, including rheumatoid arthritis, about three-quarters remained on methotrexate after 5 years. In the subgroup that stopped treatment, 11% reported inefficacy and opted for withdrawal, 6% liver abnormalities and a further 6% haematological abnormalities. 100 In a study of 379 patients with rheumatoid arthritis receiving 1-year treatment with methotrexate with other csDMARDs and/or corticosteroids, only 2% reported serious adverse events. 101 In a randomized-controlled study investigating the effects of 1-year treatment with methotrexate versus placebo in patients with arthritis thought to progress to rheumatoid arthritis, there were non-significant between-group differences in serious adverse events (11% versus 11%). However, patients receiving methotrexate had a higher incidence of significant (>3 × upper limit of normal) elevations in liver enzymes (incidence rate per 100 persons-years: 6.1, 95% CI: 3.2–10.4 versus 0.5, 95% CI: 0.0–27.4, p = 0.0025). 102 Additionally, early reports suggesting an increased risk of liver fibrosis during methotrexate treatment have not been confirmed in recent studies.103,104 The safety profile of methotrexate was also comprehensively investigated in a secondary analysis of the Cardiovascular Inflammation Reduction Trial (CIRT). The authors reported a mildly yet significantly higher 3-year cumulative incidence of severe adverse events in patients receiving methotrexate versus placebo (0.13, 95% CI: 0.12–0.15 versus 0.10, 95% CI: 0.08–0.11). 105 The safety of methotrexate reported in these studies appears similar to that reported in trials of conventional atheroprotective drugs. For example, in the Systolic Blood Pressure Intervention Trial in 9069 patients, 9.8% in the intensive treatment arm and 7.2% in the standard treatment arm reported serious adverse events. 106 Furthermore, in the Ongoing Telmisartan Alone and in Combination with Ramipril Global Endpoint Trial investigating a total of 25,620 patients, the incidence of serious adverse events in the three treatment arms ranged between 5.0% and 12.0%. 107
Rheumatoid arthritis and cardiovascular disease
The pathophysiological mechanisms underlying one of the most common and studied types of autoimmune disease, rheumatoid arthritis, 108 exhibit significant similarities with atherosclerosis. Such similarities include the presence of a vascular and systemic pro-inflammatory and pro-oxidant state,109–115 reduced NO synthesis and endothelial dysfunction,116–120 arterial stiffening121–124 and an increased risk of arterial hypertension.125,126 A critical additional element of similarity is represented by the excess production of pro-inflammatory and pro-atherogenic cytokines, for example, TNF-α, IL-1 and IL-6, that synergistically build and maintain a pro-inflammatory microenvironment in blood vessels.127–130 Not surprisingly, the risk of atherosclerotic cardiovascular disease in this group is significantly higher than the general population, as also shown in a systematic review and meta-analysis of six studies (RR = 1.55, 95% CI: 1.18–2.02). In subgroup analysis, the RR was higher in patients aged <60 years (RR = 1.98, 95% CI: 1.41–2.79) than in those aged ⩾60 years (RR = 1.43, 95% CI: 1.16–1.75), although the risk remained significant in both groups. 131 In addition to inflammation and oxidative stress, traditional risk factors, for example, diabetes, arterial hypertension and the metabolic syndrome, have also been shown to account for the increased risk of atherosclerosis and cardiovascular disease in rheumatoid arthritis.132,133
Methotrexate and cardiovascular risk
Several observational studies have reported that treatment with methotrexate is associated with a significant reduction of cardiovascular and all-cause mortality in patients with rheumatoid arthritis. For example, in a recent systematic review and meta-analysis of 15 studies, 7 longitudinal observational cohort, 6 retrospective cohort and 2 prospective cohort studies, the use of methotrexate was associated with a significant reduction in all-cause mortality (HR = 0.59, 95% CI: 0.50–0.71, p < 0.001). In a subgroup analysis of four studies, the use of methotrexate was also associated with a significant reduction in cardiovascular mortality (HR = 0.72, 95% CI: 0.53–0.97, p = 0.031). 134 The results of another systematic review and meta-analysis also support the possible protective role of methotrexate against cardiovascular events in rheumatoid arthritis. In 10 selected studies, 3 cohort, 2 cross-sectional, 1 case–control and four nest case–control, investigating a total of 195,416 participants, there was a significant negative association between methotrexate and cardiovascular events (RR = 0.80, 95% CI: 0.73–0.88, p < 0.001). The association was similar in a subgroup of eight studies that adjusted for concomitant cardiovascular risk factors (RR = 0.78, 95% CI: 0.71–0.86, p = 0.003). 135
Importantly, current evidence suggests that other immunomodulatory and anti-inflammatory agents do not share the putative protective effects of methotrexate against atherosclerosis and cardiovascular disease.136,137 In a systematic review and meta-analysis of eight studies investigating a total of 65,736 patients with rheumatoid arthritis, methotrexate use was associated with a significant reduction in total cardiovascular events when compared to other csDMARDs (RR = 0.72, 95% CI: 0.57–0.91, p = 0.007). A substantial reduction in the specific risk of myocardial infarction was also observed in a subgroup of three studies (RR = 0.81, 95% CI: 0.68–0.96). 138 A more recent retrospective cohort study assessing Medicare claims data in the United States for the period 2006–2015 sought to investigate whether methotrexate use might exert atheroprotective effects in patients with rheumatoid arthritis who are already receiving treatment with biologic agents. In a total of 88,255 patients receiving biologics, the additional use of methotrexate was associated with a significant reduction in the risk of a composite endpoint of myocardial infarction, stroke and fatal cardiovascular disease (aHR = 0.76, 95% CI: 0.68–0.85). 139 The effect size of the cardiovascular risk reduction with methotrexate in these studies is comparable to that observed in intervention studies of established atheroprotective agents, for example, ACE inhibitors (RR = 0.80, 95% CI: 0.70–0.91), 140 and statins (OR = 0.69, 95% CI: 0.64–0.75). 141
Another recent study has sought to investigate whether methotrexate may have competitive advantages in terms of cardiovascular prevention over other csDMARDs, such as hydroxychloroquine, an agent with evidence of atheroprotective effects in animal and human studies.26,142 Using Medicare data during the period 2008–2016, the study authors propensity score-matched 54,462 patients with rheumatoid arthritis aged ⩾65 years commenced on either hydroxychloroquine or methotrexate. No significant between-group differences were observed in the primary endpoint, sudden cardiac arrest (or ventricular arrhythmia) and major adverse cardiovascular events. However, in a subgroup of patients with heart failure, hydroxychloroquine was associated with a significantly higher risk of major adverse cardiovascular events (HR = 1.30, 95% CI: 1.08–1.56), cardiovascular mortality (HR = 1.34, 95% CI: 1.06–1.70), all-cause mortality (HR = 1.22, 95% CI: 1.04–1.43), myocardial infarction (HR = 1.74, 95% CI: 1.25–2.42) and hospitalizations for heart failure (HR = 1.29, 95% CI: 1.07–1.54) when compared to methotrexate. 143
The main study assessing the effects of methotrexate on cardiovascular prevention, the CIRT, randomized 4786 patients without autoimmune conditions but with myocardial infarction or multivessel coronary disease with either type 2 diabetes or metabolic syndrome to methotrexate (target dose of 15–20 mg/week) or placebo. There were non-significant between-group differences in the primary endpoint, a composite of nonfatal myocardial infarction, nonfatal stroke, cardiovascular death and hospitalization for unstable angina requiring urgent revascularisation (HR = 0.96, 95% CI: 0.79–1.16). 144 Whilst the results of this study do not support the presence of significant atheroprotective effects of methotrexate in patients without autoimmune conditions, it is essential to emphasize that, by trial design, both patients in the methotrexate and the placebo arms received treatment with the B-vitamin folic acid. Folic acid is often co-administered with methotrexate by rheumatologists, given that both compounds compete for the same transporter in the intestine and cellular uptake and that folic acid supplementation has been shown to reduce the incidence of adverse effects with methotrexate.145–147 However, at the same time, there is robust evidence from experimental and clinical studies that treatment with folic acid per se exerts significant atheroprotective effects, including the lowering of the highly reactive and pro-atherogenic amino acid homocysteine, 148 improved NO synthesis and endothelial function 149 and reduced arterial stiffness and blood pressure.150,151 Furthermore, in a large randomized-controlled trial conducted in China in 20,702 hypertensive patients without previous myocardial infarction or stroke, a combination treatment of folic acid with the ACE inhibitor enalapril significantly reduced the risk of overall stroke (primary endpoint, HR = 0.79, 95% CI: 0.68–0.93); first ischaemic stroke (HR = 0.76, 95% CI: 0.64–0.91) and a composite endpoint of cardiovascular death, myocardial infarction and stroke (HR = 0.80, 95% CI: 0.69–0.92). By contrast, there were non-significant between-group differences in other secondary endpoints, that is, haemorrhagic stroke (HR = 0.93, 95% CI: 0.65–1.34), myocardial infarction (HR = 1.04, 95% CI: 0.60–1.82) and all-cause mortality (HR = 0.94, 95% CI: 0.81–1.10). 152 Therefore, further studies investigating the effects of methotrexate on cardiovascular prevention are warranted to determine whether the use of folic acid in the comparator group might have diluted the potential atheroprotective effects of methotrexate in the CIRT study.
Effects of methotrexate on traditional cardiovascular risk factors
Several experimental and clinical studies have investigated the effects of methotrexate on conventional cardiovascular risk factors, particularly dyslipidaemia, diabetes, arterial hypertension and the metabolic syndrome (Figure 3).

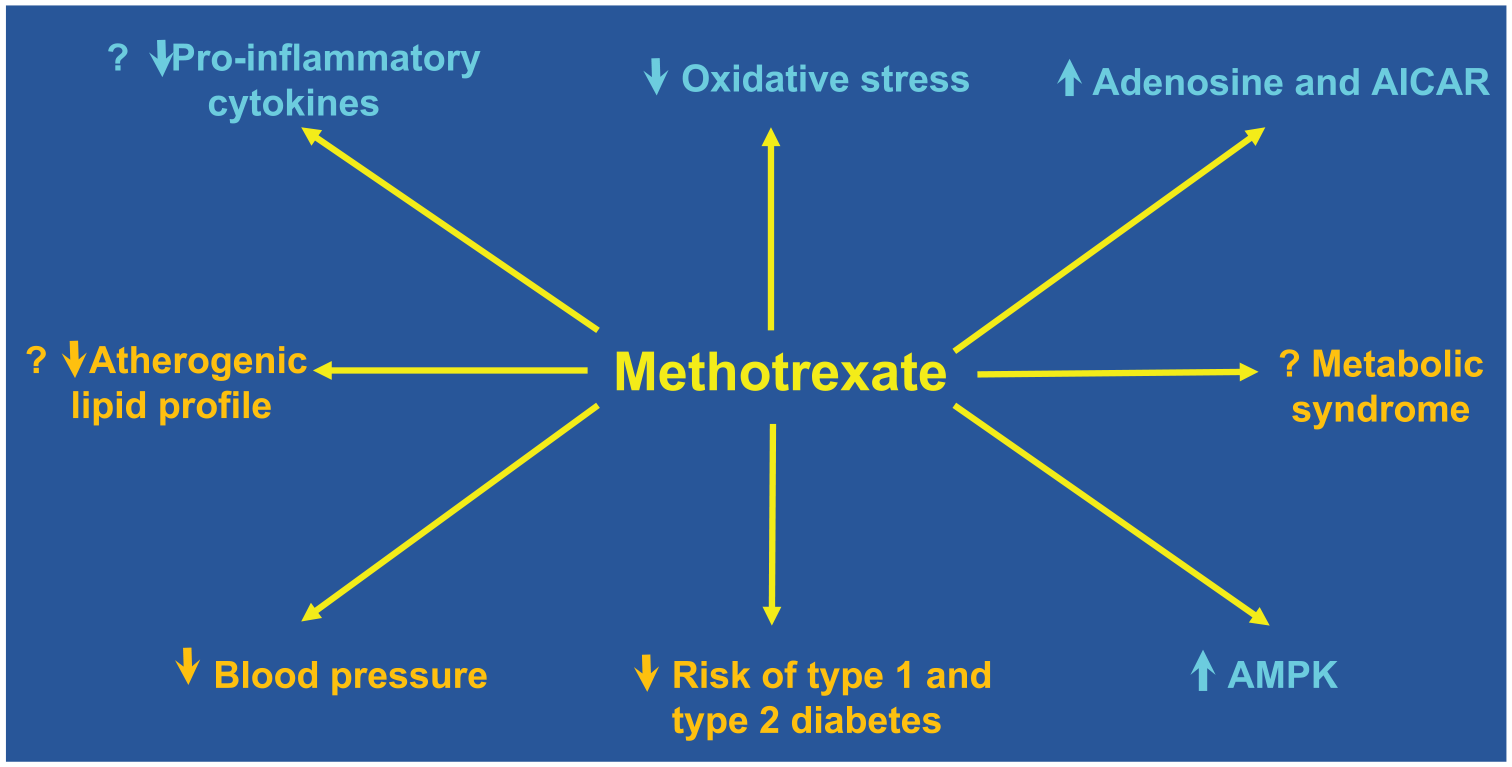

Effects of methotrexate on cardiovascular risk factors (orange) and putative atheroprotective mechanisms (cyan) according to experimental and clinical studies.
Lipid profile
In a study in cholesterol-fed rabbits, treatment with lipid core nanoparticles containing methotrexate, with or without paclitaxel, caused significant regression of aortic plaque (−59%) and intima areas (−57%). These effects were associated with a substantial reduction in macrophages and TNF-α gene expression. 153 In a secondary analysis of the Optimised Treatment Algorithm for Patients With Early Rheumatoid Arthritis (OPERA) trial, comparing the effects of adalimumab and methotrexate (n = 86) versus methotrexate and placebo (n = 88), there was no significant between-group difference in the changes at 1 year versus baseline in total, LDL cholesterol, high-density lipoprotein (HDL) cholesterol and triglyceride concentrations. 154 In an observational study of 262 patients with psoriasis, 12-week treatment with methotrexate significantly reduced total cholesterol (p < 0.05), LDL cholesterol (p < 0.05), apolipoprotein B (p < 0.001) and lipoprotein A (p < 0.001) in annexin A6, a protein that regulates cholesterol homeostasis, 155 TC and CC genotype carriers of rs11960458 and apolipoprotein B (p = 0.04) in TT genotype carriers. However, methotrexate also significantly reduced the concentrations of the atheroprotective subfractions, HDL cholesterol (p = 0.007) and apolipoprotein A1 (p = 0.04) in TC genotype carriers of rs11960458. Moreover, methotrexate significantly reduced triglyceride concentrations only in the CC genotype carriers (p = 0.01). 156 In another study of 288 patients with psoriasis, 136 with and 152 without psoriatic arthritis, 12-week treatment with methotrexate significantly lowered apolipoprotein B (p = 0.0003), total cholesterol (p = 0.0007), triglycerides (p = 0.04), HDL cholesterol (p = 0.037) and lipoprotein A (p = 0.005) in patients with arthritis, and apolipoprotein B (p < 0.0001), total cholesterol (p < 0.0001), HDL cholesterol (p = 0.011), LDL cholesterol (p = 0.0001) and lipoprotein A (p < 0.0001) in patients without arthritis. 157 Interestingly, in another study in 35 patients with psoriasis, 12-week treatment with methotrexate significantly reduced the concentrations of proprotein convertase subtilisin/kexin type 9, 158 critically involved in cholesterol homeostasis by binding to the LDL receptor in hepatocytes and an established therapeutic target for cardiovascular prevention.159,160 Collectively, these studies have provided conflicting results on the effects of methotrexate treatment on lipid profile and, expressly, on atheroprotective versus pro-atherogenic cholesterol fractions (Figure 3).
Type 1 and type 2 diabetes
In a systematic review and meta-analysis of 16 studies investigating patients with rheumatoid arthritis, 3 with a cross-sectional design, 1 with a nested case-control design, 8 prospective cohorts and 4 retrospective cohorts, the use of methotrexate was associated with a significant reduction in the risk of type 2 diabetes (RR = 0.13, 95% CI: 0.08–0.22). Factors significantly associated with the reduced risk of diabetes included age >60 years, rheumatoid arthritis duration ⩽2 years and the measurement of disease activity. 161 A similar negative association between methotrexate and type 1 and type 2 diabetes has been reported in another systematic review and meta-analysis of 15 studies (seven on methotrexate) investigating a total of 552,019 patients with rheumatoid arthritis (HR = 0.81, 95% CI: 0.75–0.87). The reduced risk of type 1 and type 2 diabetes with methotrexate was similar in studies assessing comparisons with non-users of methotrexate (HR = 0.77, 95% CI: 0.67–0.88) as well as users of csDMARDs not including methotrexate or hydroxychloroquine (HR = 0.85, 95% CI: 0.74–0.98). 162 Furthermore, in a nationwide population study of 69,799 patients with rheumatoid arthritis but without type 1 and type 2 diabetes at baseline, the long-term use of methotrexate (>270 days/year) was associated with a significant reduction in incident type 1 and type 2 diabetes (adjusted OR = 0.84, 95% CI: 0.78–0.92). 163 Taken together, the available evidence suggests that methotrexate treatment in rheumatoid arthritis is associated with a reduced risk of type 1 and type 2 diabetes, although the mechanisms underpinning the effects on glucose metabolism require further studies (Figure 3).
Arterial hypertension
In a repeated cross-sectional study of patients with rheumatoid arthritis, the use of methotrexate was associated with a significantly lower clinical and 24-h blood pressure when compared to other csDMARDs. 120 Another study of 21,916 patients with rheumatoid arthritis with data from administrative Veterans Affairs databases in United States investigated the changes in blood pressure after commencing methotrexate, leflunomide, sulfasalazine, hydroxychloroquine, TNF-α inhibitors or prednisone. In this study, there was a reduction in blood pressure after starting prednisone, methotrexate and hydroxychloroquine and a more modest decline with sulfasalazine and tumour necrosis factor inhibitors. Notably, in patients commencing methotrexate, a more significant proportion had an optimal blood pressure control at 6 months versus baseline (51.0% versus 46.8%, p < 0.001). Similar associations were observed for prednisone, tumour necrosis factor inhibitors and hydroxychloroquine. 164 Collectively, these studies suggest that methotrexate treatment can exert ameliorative effects on blood pressure control, at least in patients with rheumatoid arthritis (Figure 3).
Metabolic syndrome
The association between methotrexate and the metabolic syndrome has been investigated in cross-sectional and intervention studies. In a cross-sectional study of 400 patients with rheumatoid arthritis, the use of methotrexate, but not other csDMARDs, was significantly and negatively associated with the risk of metabolic syndrome in multivariate regression analysis (adjusted OR = 0.52, 95% CI: 0.33–0.80, p = 0.004). 165 The reduced prevalence of metabolic syndrome in methotrexate users versus non-users has also been reported in another cross-sectional study investigating 100 women with rheumatoid arthritis (17% versus 35%, p = 0.046). 166 However, a retrospective study has failed to show any significant effect of 24-month methotrexate treatment on the prevalence of metabolic syndrome and its individual components in 70 patients with psoriatic arthritis. 167 Therefore, there is conflicting evidence regarding the effects of methotrexate on the risk of metabolic syndrome and its individual components (Figure 3).
Methotrexate and atheroprotection: Mechanistic insights
Several mechanisms have been postulated to account for the possible atheroprotective effects of methotrexate. Such mechanisms include cytokine modulation, the accumulation of adenosine, the activation of 5′ adenosine monophosphate-activated protein kinase (AMPK) and the regulation of the redox balance (Figure 3).
Cytokines
Studies conducted over the last 20 years have shown the potential for methotrexate to downregulate several pro-inflammatory and pro-atherogenic cytokines, for example, TNF-α, IL-1 and IL-6,168–175 and to upregulate anti-atherogenic cytokines, for example, IL-10,175–181 providing a potential advantage over available therapies that target one pro-inflammatory cytokine. In more recent studies, the use of methotrexate-loaded chitosan nanoparticles has also been shown to significantly reduce the circulating concentrations of TNF-α (645 ± 37 pg/mL versus 140 ± 4 pg/mL, p < 0.001) and IL-6 (334 ± 34 pg/mL versus 62 ± 5 pg/mL, p < 0.001) in a rat model of arthritis. 182 In another study, the release of another pro-inflammatory cytokine, IL-8, by monocytic MONO-MAC-6-cells activated by lysates of Fusobacterium nucleatum was significantly reduced by methotrexate, but not by other anti-inflammatory agents, that is, ibuprofen or prednisolone. However, the concentrations of IL-8 following treatment with methotrexate remained significantly higher than those measured in the absence of exposure to F. nucleatum. 183 The results of another recent study have challenged the proposition that methotrexate can upregulate anti-inflammatory cytokines. In patients with plaque psoriasis, 12-week methotrexate treatment was associated with a significant reduction of the anti-inflammatory cytokine IL-10 (p = 0.02). 184 Additional uncertainties regarding the clinical relevance of the modulation of cytokine pathways by methotrexate derive from a sub-analysis of the previously described CIRT study, which showed that methotrexate treatment failed to significantly reduce the concentrations of IL-1β and IL-6 during follow-up. Interestingly, in this study, methotrexate also failed to significantly reduce the concentrations of CRP. This observation might be related to the relatively low baseline concentrations of CRP (1.5 mg/L), IL-1β (1.5 pg/mL) and IL-6 (2.3 pg/mL) in CIRT participants, particularly when compared to other, successful, trials investigating treatments (canakinumab) targeting IL-1β and residual inflammatory risk (baseline CRP and IL-6 concentrations, 4.10 and 2.6 pg/mL, respectively).144,185
Adenosine and AMPK
The methotrexate-mediated accumulation of adenosine (Figures 1 and 2) might exert significant effects on cardiovascular homeostasis, particularly vasodilatation through the inhibition of alpha-1 adrenergic vasoconstriction and the stimulation of the A2A and A2B receptors in the aorta,186,187 kidney 188 and skeletal muscle. 189 The resulting increase in blood flow in the renal medulla also favours natriuresis. 190 The critical role of adenosine in maintaining cardiovascular homeostasis is further supported by studies reporting a significant increase in arterial stiffness and blood pressure following the pharmacological inhibition of the adenosine receptors, A1 and A2A.191,192 There is also evidence that adenosine A2B receptor activation prevents the formation of atherosclerotic lesions and reduces the plasma concentrations of cholesterol and triglycerides, possibly through the reduced activation of the transcription factor sterol regulatory element-binding protein 1 in the liver.193,194 Additional potential beneficial effects of adenosine include promoting the differentiation of monocytes into the anti-inflammatory M2 macrophage phenotype 195 and upregulating cholesterol efflux transporters in macrophages. The transporters shown to be affected by adenosine include ABCA1, which effluxes cholesterol as apoA-1, a major component of HDL cholesterol, ABCG1, which effluxes cholesterol as HDL cholesterol, and sterol the cytochrome P450 enzyme 27-OH hydroxylase, which effluxes cholesterol in the form of 27-hydroxycholesterol.196,197 These forms of cholesterol prevent lipid overload and the transformation of macrophages in foam cells, which are critically involved in the formation and progression of the atherosclerotic plaque. 198
AICAR per se can upregulate the AMPK,199,200 which protects endothelial cells against oxidative stress and apoptosis and inhibits vascular smooth muscle cell proliferation.201–203 There is also increasing evidence that AICAR and/or AMPK activation enhances vasodilation, reduces blood pressure and improves cholesterol efflux capacity.204–211 Furthermore, AMPK exerts beneficial effects on glucose homeostasis by stimulating cellular glucose uptake and glycolysis.212–214
Redox balance
Methotrexate has been traditionally used at high doses to induce cytotoxicity in the treatment of malignancies as well as in experimental studies investigating the effects of rescuing treatments. The cytotoxic effects of methotrexate are ascribed to the inhibition of dihydrofolate reductase, involved in the conversion of dihydrofolate into tetrahydrofolate, required for the synthesis of the nucleotides of both DNA and RNA and the de novo purine synthesis of both purine and thymidylate synthase, which further inhibits DNA synthesis (Figure 1).32,35,215 However, at relatively high doses, methotrexate is also known to trigger a pro-oxidant state which further contributes to the structural and functional alteration of critical cell components, for example, lipids, proteins and DNA. 216
Notably, however, studies have reported that at lower doses methotrexate can exert significant anti-oxidant effects. In one study, methotrexate treatment (2 μg) in HEK293 cells was able to directly scavenge free radicals, specifically O2.−, consequently inhibiting the formation of malondialdehyde–acetaldehyde adducts, including proteins exerting pro-inflammatory effects that have also been detected in atherosclerotic plaques. 217 The use of a specific cell line to quantify the activation of the redox-sensitive transcription factor, nuclear factor (erythroid-derived 2)-like 2 (Nrf2), allowed to demonstrate that methotrexate also reduces the activation of the Nrf2-dependent intracellular redox signalling pathway. 218 In a more recent study in rat primary astrocytes, pre-conditioning with 10 or 20 nM methotrexate (corresponding to 5 or 10 μg of the drug) enhanced the anti-oxidant defence mechanisms in these cells, expressed as the ratio of reduced to oxidized glutathione, as well as cell viability against a higher dose of methotrexate (500 nM or 0.23 mg/L). 219 Taken together, the results of these studies suggest that, at specific doses, methotrexate can scavenge free radicals, reduce the activation of redox-sensitive intracellular signalling pathways and enhance anti-oxidant mechanisms in the context of atherosclerosis (Figure 3).
Practical considerations for using methotrexate in cardiovascular prevention
One potential advantage of methotrexate, in terms of treatment adherence, is the once-weekly administration compared to the daily administration of currently available antihypertensives, antiplatelet and lipid-lowering agents. This feature is likely clinically relevant as poor treatment adherence remains a vexing issue in cardiovascular prevention. For example, a systematic review and meta-analysis of 45 prospective studies investigating a total of nearly 2 million patients reported a good adherence (defined as an intake of ⩾80%) to medications used for cardiovascular prevention in only 60% (95% CI: 52–68). In further analyses, patients with good adherence were significantly less likely to experience a cardiovascular event when compared to those with poor adherence (RR = 0.81, 95% CI: 0.76–0.86 for antihypertensive drugs). 220
Future research directions
In the last 5 years, additional evidence has accumulated on the association between the use of methotrexate, surrogate markers of atherosclerosis and hard cardiovascular endpoints in experimental and clinical studies (Figure 3). However, the contrasting nature of the results observed, particularly regarding the effects on cardiovascular morbidity and mortality in observational versus intervention studies, suggests that further research is warranted to support the repurposing of methotrexate for cardiovascular prevention (Table 1). In the first instance, studies should investigate the effects of this immunomodulatory and anti-inflammatory drug on a wide range of conventional cardiovascular risk factors and determine the mediating role of pro- and anti-inflammatory cytokines, adenosine, AMPK activation and oxidative stress. In this context, the negative results of the CIRT study, whilst disappointing, have been helpful for the design of future intervention trials for at least two reasons. Firstly, the relatively low-baseline CRP concentrations in study participants and the lack of tangible effects of methotrexate on the pro-inflammatory cytokines, IL-1β and IL-6, in CIRT suggests that further studies should focus on patients with significant residual inflammatory risk, that is, higher baseline CRP, IL-1β and IL-6 concentrations. Secondly, future studies should ideally investigate the effects of methotrexate separately from those of folic acid, given the previously described effects of this B-vitamin on endothelial function, blood pressure and other markers of atherosclerosis. Such trials should ideally investigate the impact of methotrexate alone, folic acid alone and methotrexate in combination with folic acid and include a non-methotrexate/folic acid comparator arm to fully determine the atheroprotective potential of methotrexate. Finally, the peculiar pharmacology of methotrexate, which involves membrane transporters for cellular uptake, enzymes for the biotransformation into intracellular polyglutamates and other enzymes as drug targets (Figure 1), has stimulated a significant body of research to investigate whether specific genetic characteristics can influence the efficacy and safety of the drug, particularly in rheumatological disorders.221–223 While pharmacogenetic studies investigating surrogate markers of atherosclerosis are in their infancy, 224 the assessment of genetic polymorphisms might allow identifying specific subgroups that are more likely to benefit from the atheroprotective effects of methotrexate.
Directions for future research to investigate the role of methotrexate in cardiovascular prevention.
AICAR, 5-aminoimidazole-4-carboxamide ribonucleoside; CRP, C-reactive protein; IL, interleukin.
Conclusion
The recognition that atherosclerosis is a chronic inflammatory disease of the arterial wall, and that significant residual cardiovascular/inflammatory risk exists in many patients despite maximal treatment with atheroprotective medications justifies the search for more effective therapies that target multiple pathways, including inflammation. Recent studies have highlighted the beneficial effects of new biologics targeting specific inflammatory pathways and traditional anti-inflammatory drugs with a broader range of effects, such as colchicine and hydroxychloroquine, in reducing cardiovascular events.26,225–227
This review has discussed the current evidence supporting the potential for methotrexate to be repurposed for the management of atherosclerotic cardiovascular disease in view of a unique combination of anti-inflammatory and, possibly, blood pressure lowering and vasculoprotective effects (Figure 3). However, one important limitation of this review is the lack of randomized-controlled studies demonstrating the efficacy of methotrexate in significantly reducing cardiovascular risk in patients with or without autoimmune and inflammatory disorders. In this context, the identification of patients that are most likely to benefit from methotrexate might require additional stratification by measuring pro-atherogenic and possibly anti-atherogenic, cytokine concentrations as well as genetic polymorphisms of relevant transporters and enzymes. Ultimately, however, only the completion of additional prospective studies that take into account the design considerations previously discussed will provide a definite answer regarding the therapeutic potential of methotrexate in cardiovascular prevention.
