Abstract
Chronic obstructive pulmonary disease (COPD) affects one-tenth of the world’s population and has been identified as a major global unmet health need by the World Health Organisation, which predicts that within 10 years, COPD will become the third leading cause of death. Despite active research, there have been no recent major strides in terms of disease modifying treatment for COPD; smoking cessation remains the only intervention known to alter disease progression and improve mortality. As established COPD is a key driver of disease burden, earlier diagnosis coupled with disease-modifying intervention carries promise as a route to address this global health priority. The concept of early COPD is emerging as an area of focus for research and consideration of new treatment modalities, as it has been hypothesised that intervention at this stage may potentially halt or reverse the disease process. However, at present, a globally accepted criteria for defining early COPD does not exist. Several studies propose small airways disease as the earliest stage in the development of COPD, and this has been demonstrated to be a precursor to development of emphysema and to correlate with subsequent development of airflow obstruction. However, treatment strategies for early disease, which pre-date the development of airflow obstruction, remain uncertain. This review addresses the rationale and current evidence base for the diagnosis and treatment of early COPD and highlights the challenges of implementing trials and clinical pathways to address COPD earlier in the life course, particularly in the absence of a universally accepted definition of COPD.
Take home message
Emerging data suggest small airways disease as the beginning of early COPD. However, there are no studies exploring pharmacological therapies in this group. A consensus on definition of early COPD is essential to facilitate further research in this area.
Introduction
Chronic obstructive pulmonary disease (COPD) remains a major cause of morbidity and mortality in developed countries, and is emerging as a major disease in developing economies. 1 It is a heterogeneous condition arising from various contributing pathophysiological processes, including poor lung development, reduced lung growth in early life, lung damage related to exposure to cigarette smoke, air pollution, infections, and airway remodelling. 2
The British Thoracic Society (BTS) defines COPD as ‘a slowly progressive disorder characterised by airflow obstruction that does not vary markedly over several months’ observation.’ It is a highly prevalent disease, affecting 10% of the global population, 3 and greatly reduces quality of life and life expectancy in those afflicted. 4 Analysis by the WHO (World Health Organisation) predicts that COPD will become the third leading cause of death by 2030. The burden of COPD is projected to increase in the coming decades due to ongoing exposure to risk factors such as tobacco smoke, and an ageing population.5,6
There are several variations in the reported prevalence of COPD by Global Initiative for Obstructive Lung Disease (GOLD) stage. Haughney
COPD is a heterogeneous disease combining different pathological entities to varying degrees in different patients. 9 The natural history of emphysema, small airways disease and bronchitis vary in their onset, and the nature of their inter-relation requires further research. As one disease entity may lead to the development of another, early diagnosis and intervention may allow a targeted approach to the instigating disease process, and hence prevent progression to more complex disease states.
At present, most patients are diagnosed with COPD once the condition is established and chronic symptoms have developed as a consequence of demonstrable airflow obstruction. The majority of evidence for interventions is therefore established in patients who have had the disease for several years, with established airflow obstruction. However, as demonstrated in the SPIROMICS study, 10 patients develop symptoms prior to development of airflow obstruction, and the conventionally described forced expiratory volume in 1 s (FEV1)/ forced vital capacity (FVC) < 0.7 could be insensitive to early airway disease. This group demonstrated that respiratory symptoms were reported by 50% of current and former smokers with preserved pulmonary function. In addition, symptomatic patients, even with preserved spirometry, had reduced exercise capacity and more frequent exacerbations compared with asymptomatic patients, and even patients with GOLD-defined mild COPD appear to have significant symptoms requiring pharmacological therapy.11,12 The development of airflow obstruction therefore indicates an already established disease process, and this has implications for potential for treatment. So far, no treatment has been shown to halt or reverse the progression of COPD, and it is widely accepted that there is an urgent need for COPD to be identified early enough where lung damage is potentially reversible. A number of initiatives have recently sought to identify undiagnosed COPD and establish diagnosis earlier in the natural history of the condition, and the value of these will ultimately be determined by the impact of interventions in early disease. 13
As such, there has been recent renewed interest in the concept of early COPD. It is important to acknowledge that early COPD is not synonymous with mild COPD, as it is possible to have had the disease for several years, albeit at a mild stage. Early COPD relates to a time-point in the natural history of disease,
14
and it is unfortunate that several therapeutic trials have used ‘early’ and ‘mild’ COPD interchangeably in their data analyses. At present, little is known about when the earliest changes of COPD begin in susceptible individuals. Several authors suggest that these changes may begin as early as

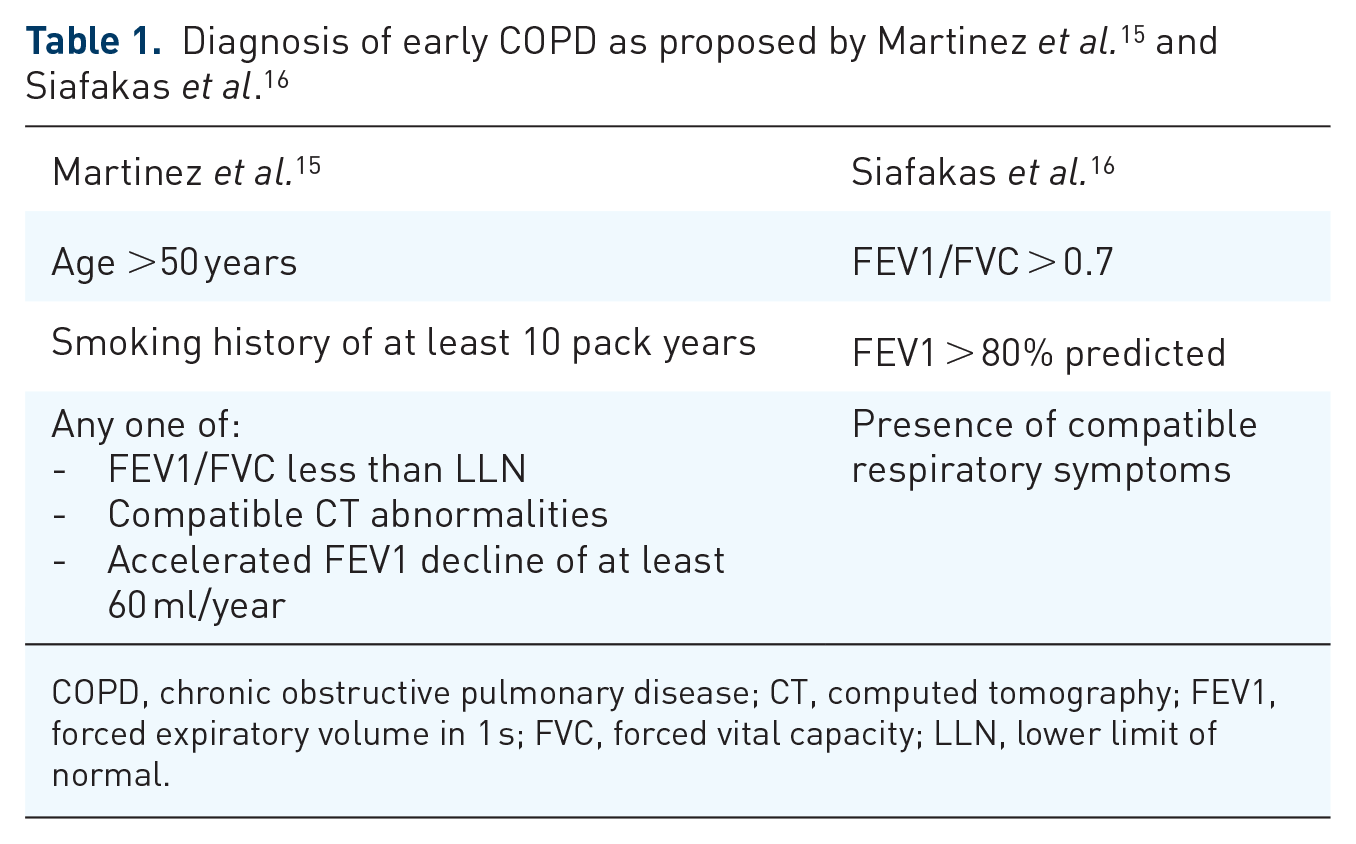

There are several reasons for a current lack of global consensus on the definition of early COPD. This is due, as mentioned previously, partly to complexities relating to the definition of COPD itself in terms of disease onset, as well as to the heterogeneity of the condition. Spirometry in isolation, especially with a fixed cut-off value, is in accurate in marking the beginning of COPD. Both the FEV1 and FVC reduce with age, but FEV1 declines faster, and therefore the fixed diagnostic cut-off ratio of 0.7, which defines current diagnosis, leads to under-diagnosis of COPD in younger individuals and over-diagnosis in older individuals. In addition, the marked heterogeneity of COPD means that various phenotypes of COPD might have varying natural histories, further complicating a definition describing the onset of disease.17–20
Martinez
Siafakas
Several groups have proposed small airways disease as the earliest stage of COPD, even prior to development of emphysema.23–25 Galban
Modifiable risk factors
COPD is the result of complex interplay of long-term exposure to inhaled noxious gases or particles, combined with a variety of host factors including genetics, early lung development, and maximal lung growth attainment.
The commonest risk factor for COPD worldwide is tobacco smoking. Analysis of subjects involved in the National Survey of Health and Development (NHSD) showed that cigarette smoking during adolescence and early adulthood modifies how early-life exposures such as childhood respiratory illnesses, social class, overcrowding and pollution levels impact on midlife FEV1. 27
Results of the Lung Health Study demonstrated that in men with FEV1/FVC less than 0.7 and FEV1 55–90% predicted, each year of self-reported occupational fume exposure was associated with a 0.25% reduction in FEV1 as a percentage of predicted value. 28 This compared with 1.2–1.9% reduction with continued smoking.
At present, risk factor modification often occurs in the context of an established diagnosis, which relies on the presence of airflow obstruction. Identification of and intervention at early COPD, prior to development of established disease, would allow for potential reversal of these early changes, through patient-centred risk reduction strategies.
Diagnostic criteria of COPD
The GOLD was established in 1998 to improve the diagnosis, management and prevention of COPD, and was most recently revised in 2019. The diagnosis of COPD requires a post-bronchodilator FEV1 to FVC ratio of less than 0.7 and is further classified into stages of severity according to FEV1 percentage predicted (Figure 1). 29

Revised GOLD classification of COPD based on spirometry, symptom score, and exacerbation frequency. Reproduced with permission from Vogelmeier

FEV1 decline according to COPD stage. Reproduced with permission from Tantucci
GOLD classification of COPD on post-bronchodilator FEV1 (% predicted):
I Mild ⩾80%
II Moderate 50–79%
III Severe 30–49%
IV Very severe <30%
The revised GOLD scheme also incorporates assessment of dyspnoea using the modified Medical Research Council scale or symptoms using the COPD Assessment Test, as well as frequency and severity of exacerbations.
Disease trajectory and prognosis in COPD
Tantucci
A potential explanation for this is that higher lung function provides greater potential for functional decline, whereas in more advanced COPD, lung function is already compromised and potential for further loss is reduced. This means that the potential for halting or reversing progression of disease is best when diagnosis is made at the earliest stage of disease onset.
Several studies report that mortality is affected even in the earlier and milder forms of COPD. Bridevaux
The Atherosclerosis Risk in Communities (ARIC) Study assessed mortality in COPD patients according to GOLD classification.
32
Subjects aged 43–66 years at baseline were followed for up to 11 years; 2244 subjects were in GOLD stage 0, 1679 in stage 1, and 1484 in stage 2. The death rate according to GOLD category in per 1000 person years was 10.1 for stage 0, which is early COPD as defined by Siafakas
The previously mentioned studies lend credence to evidence that even early stages of the disease affect mortality, stressing the need for earlier detection and intervention, ideally prior to development of clinically evident disease.
Potential diagnostic modalities for early disease
Pulmonary function tests
Spirometry has traditionally been the most often utilised diagnostic test for COPD, through assessment of impairment of FEV1 and airflow obstruction. However, it has clear limitations in the diagnosis of early disease, as obstruction on spirometry indicates an already established disease process. In the COPD Gene cohort, 33 smokers with normal spirometry had a significantly worse 6-min walk distance and 42% of these patients had emphysema or airway thickening on CT thorax, lending credence to the fact that use of spirometry alone is not sufficient for detection of early COPD (Table 2).
Investigative modalities with potential for diagnosis of early COPD.
COPD, chronic obstructive pulmonary disease; DLCO, diffusion capacity for carbon monoxide; FEF, forced expiratory flow at 25–75% of forced vital capacity; fSAD, functional small airway disease; HRCT, high resolution computed tomography; PRM, parametric response mapping.
Other parameters such as forced expiratory flow at 25–75% of FVC (FEF 25–75%), total lung volume, diffusion capacity for carbon monoxide (DLCO) and imaging have important roles in identifying potentially early disease. Harvey
Forced oscillometry techniques such as impulse oscillometry (IOS) have recently gained attention as a potential modality for recognising early disease. As mentioned previously, small airways have been proposed as the site of earliest changes in COPD, and oscillometry techniques allow assessment of these changes. Resistance at 20 Hz (R20) represents proximal resistance, whereas the resistance at 5 Hz (R5) represents total airway resistance. R5-20 can therefore be employed as a useful measure of small airways resistance.
Frantz
Oscillometry techniques are not currently available in routine clinical practice, and globally standard references values for diagnosis of COPD have not been defined. Lipworth
Imaging in early COPD
CT, in particular high-resolution CT, is the current imaging modality of choice in the diagnosis of COPD.37–39 Three features, namely, emphysema, air trapping and bronchial wall thickening, can be assessed in the identification of COPD by cross-sectional imaging. 40 Emphysema is the most commonly identified abnormality on imaging patients with COPD, and it has been demonstrated that it is possible to have emphysema in the absence of spirometry-defined airflow obstruction.41,42 However, as with spirometry-defined airflow obstruction, emphysema usually indicates an already established disease process, and not necessarily the beginning of pathology in COPD.
Comparison of inspiratory and expiratory scans can identify air trapping, and this has been utilised as a surrogate marker of small airways disease present in early disease through the technique of PRM. Through their work on this technique, Galban and colleagues analysed data from 194 subjects and studied the relationship between fSAD and emphysema. 26 The investigators found that many of the subjects had less than 10% emphysema, yet some had fSAD 10–30% of their lung parenchyma, suggesting that fSAD precedes the development of emphysema.
PRM was subsequently tested in the COPDGene cohort, 43 which included subjects with normal spirometry but features of chronic bronchitis. The results showed that in this group of subjects, every additional 5% of lung affected by fSAD was associated with an additional FEV1 decline of 2.2 ml/year. This suggests that PRM has potential in early identification of subjects with risk of developing spirometry-defined airflow obstruction.
Potential interventions in early COPD
Smoking cessation
Smoking cessation remains the only intervention definitively known to halt the progression of COPD, and several studies have demonstrated that early smoking cessation has the potential to slow down or even reverse accelerated decline in lung function, highlighting the importance of intervention in early disease.
The Lung Health Study randomized current smokers, on a 2:1 basis, to either an intensive smoking cessation programme (special intervention/SI), or to usual care (UC). 44 The SI group was further randomised on a 1:1 basis to receive either inhaled ipratropium bromide (SIA) or placebo (SIP).
Study participants in the SI and UC groups who stopped smoking in year 1 had an average increase in FEV1 of 47 ml. In contrast, continued smokers showed a decline in FEV1 by 49 ml in year 1. Over a 5-year period, continued smokers had a faster rate of FEV1 decline compared with sustained quitters. From year 1 to year 5, sustained quitters had a rate of decline of FEV1 of 31 +/– 48ml/year. In contrast, in continued smokers, FEV1 declined by 62 +/– 55ml/year from year 1 to year 5.
These results also translate into longer-term findings. The Lung Health Study participants were followed up 11 years after initial enrolment. 45 This extension study showed that men who stopped smoking at the beginning of the LHS had an FEV1 decline of 30.2 ml/year, whereas women who stopped smoking at the beginning had a rate of decline of 21.5 ml/year. Men who continued to smoke declined at 66.1 ml/year, whereas women who continued to smoke declined at 54.2 ml/year, demonstrating the potential value of early cessation.
Inhaled bronchodilator and steroid therapy
Most literature on treatment for COPD has focused on established disease, and there is a clear deficiency in literature on studies involving early COPD. As mentioned previously, almost all studies reporting intervention on ‘early COPD’ included subjects with mild to moderate COPD in their analyses, without clear distinction between early and mild/moderate COPD (Table 3).
Summary of studies exploring inhaled bronchodilator therapy in early COPD.
COPD, chronic obstructive pulmonary disease; DIMCA, detection, intervention, and monitoring program of COPD and asthma; FEV1, forced expiratory volume in 1 s; FVC, forced vital capacity; UPLIFT, understanding potential long-term impact on function with tiotropium.
The aforementioned Lung Health Study results showed a decline in FEV1 during the first year of follow up of 34.3 ml in the UC group, an increase of 11.2 ml in the SIP group, and an increase of 38.8 ml in the SIA group.
46
This increase in FEV1 in the SIA group at the end of the first year was maintained for the subsequent 4 years but did not increase further with time. Furthermore, when bronchodilator was discontinued towards the end of the study, the improvement in lung function associated with bronchodilator use was reversed, suggesting no long-term benefit of therapy in terms of preventing disease progression. Entry criteria for this study included age range 35–60 years, with mean age in the SIA group of 48.4 years. The mean FEV1 in the treatment group was 75.5% predicted with a mean FEV1/FVC ratio of 62.9% predicted. It is therefore important to note that while this group would have included patients with early COPD as defined by Martinez
The Understanding Potential Long-Term Impact on Function with Tiotropium (UPLIFT) Trial
47
reported on a pre-specified
Pauwels
The Detection, Intervention, and Monitoring program of COPD and Asthma (DIMCA) study attempted to identify patients with early disease by recruiting patients with normal spirometry and no prior diagnosis of COPD, but with accelerated decline in lung function. 49 Through GP surgeries, the investigators identified adults with an annual FEV1 decline of at least 80 ml per year (mean FEV1% predicted 88.3 in treatment group, 91.2 in placebo group), and randomised participants to receive either Fluticasone propionate 250 mcg twice daily or placebo. The trial was continued for 24 months, followed by a 7-month Fluticasone propionate extension. The authors found no statistically significant difference in the decline in FEV1 between the two treatment arms (primary outcome).
The magnitude of clinical benefit of inhaled therapy in early COPD is limited. Although there is some evidence that bronchodilator therapy offers symptomatic benefit and reduction in exacerbation rates, long-term outcomes such as lung function decline and mortality appear not to be affected on the limited evidence available. In addition, there is no evidence that currently established bronchodilator therapy confers benefit in patients with early COPD as defined previously,21,22 although data is severely limited and these inferences are based on secondary outcomes.
Phosphodiesterase-4 inhibitors (roflumilast)
Roflumilast is a potent and selective inhibitor of the enzyme phosphodiesterase-4 (PDE-4), and targets systemic inflammation associated with COPD. Several clinical trials have reported benefit of Roflumilast over placebo in patients with COPD in terms of FEV1 and exacerbations. It appears to confer benefit in patients with severe and very severe COPD with chronic bronchitis and frequent exacerbations.50,51 Currently, there is no evidence for its use in patients with early disease.
Macrolides and NAC
The main use of anti-inflammatory therapies such as macrolides and N-acetylcysteine (NAC) has been in the reduction of frequency and duration of exacerbations, which are associated with accelerated decline in lung function.52,53
Macrolides have been demonstrated to reduce the exacerbation frequency in patients with COPD. It has been suggested that its anti-inflammatory activity is not related to the anti-bacterial activity, as the anti-inflammatory effect is seen at concentrations lower than the minimal inhibitory concentration for airway bacteria. 54 Unfortunately, studies of this group of therapy in patients with early COPD are not currently available.
The 12-month HIACE study, 55 which investigated the effects of high-dose NAC (600 mg twice daily) in Chinese patients with COPD, reported a significant improvement in FEF 25–75% and forced oscillometry parameters with NAC compared with placebo. The primary endpoint for this study was the effect on small airways disease, which is now widely accepted as the site of early disease. A meta-analysis of the available evidence for NAC showed that NAC is effective at reducing exacerbations, but the benefit was greater in subjects with chronic bronchitis without a spirometric diagnosis of COPD. 56 As chronic bronchitis often precedes development of spirometric diagnosis of COPD, it is plausible that this may provide another therapeutic avenue in patients with early COPD.
Vaccination
Influenza, respiratory syncytial virus and other viral infections are known to be contributing factors for COPD exacerbations and hospital admissions.
57
Similarly, pneumococcal colonisation, which occurs more commonly in patients with COPD compared with healthy controls, is known to increase the frequency of exacerbations. Although there are no current licensed vaccines against RSV,
58
studies evaluating the effectiveness of influenza and pneumococcal vaccinations have reported a reduction in the number of exacerbations, hospital admissions, incidence of pneumonia, and risk of death, and is useful in elderly subjects even with preserved lung function.59–61 Similarly, a recent study reported the safety of non-typeable
Pulmonary rehabilitation
Physical inactivity is an important determinant of health-related quality of life (HRQoL) in patients with COPD and is a predictor of hospitalisation and mortality. 63 Physical deconditioning that follows leads to even more exertional dyspnoea and further deconditioning. Studies have demonstrated reduced skeletal muscle strength even in patients with mild airflow obstruction as well as in smokers without airflow obstruction, suggesting that physical deconditioning is present in early disease.64,65
Traditionally, pulmonary rehabilitation was prescribed for patients with severe disease. However, recent data, including a systematic review of the available data for pulmonary rehabilitation in patients with mild COPD, 64 showed evidence of improved exercise capacity and HRQoL , and improvement in 6-min walk test, suggesting their potential benefit even in early disease.
There is currently not enough capacity to deliver conventional pulmonary rehabilitation for large numbers of patients with early disease, and new modes of increasing exercise and fitness levels such as digital interventions will need to be tested in the context of these patient groups. 66
Nutrition
There has been much debate on the relationship between obesity and long-term outcomes in COPD. 67
Several studies indicate that obesity has a protective effect against mortality in patients with COPD. A meta-analysis of 22 studies involving 22,150 participants concluded that underweight individuals with COPD had a higher mortality while both overweight and obese individuals had a lower mortality.68,69
Data from the Copenhagen City Heart Study showed that there was a U-shaped relationship between patients with mild to moderate COPD and mortality, with the lowest mortality risk in the normal weight and overweight subjects. 70 In contrast, in severe COPD, mortality continued to decrease with increasing body mass index (BMI).
This suggests that obesity may exert different effects depending on disease severity. Unfortunately, the pathophysiological basis for this apparent obesity paradox is unknown. Loss of skeletal muscle mass is the main cause of weight loss in patients with COPD, which could then translate into diaphragmatic weakness. It is also possible that obesity itself contributes to a reduction in FEV1 and therefore these patients are classified into a class of COPD that is higher than their true pulmonary impairment, or that the decline in BMI in these patients is a marker of advanced disease and therefore higher mortality.67,68
The role of nutrition in patients with early COPD is a potential area of research, especially in terms of disease progression including risk of exacerbations, exercise tolerance, as well as mortality.
Novel diagnostic approaches and future research areas: role of biomarkers in early detection of COPD
Apart from alpha-1 antitrypsin, deficiency of which is the only known hereditary cause of COPD, no biomarker is currently in routine clinical use to identify at-risk individuals, and therefore subjects with potential early disease. However, there are several biomarkers under investigation that have been implicated in the pathogenesis of COPD, that have the potential to help detect early disease. Most of these biomarkers are involved in inflammatory pathways and oxidative stress that are known to be major pathogenic factors in the development of COPD.
For example, there are established associations between elevated C-reactive protein and fibrinogen levels, and risk of COPD. It has been postulated that regulating factors for these markers, that is, interleukin-1 (IL-1), interleukin-6 (IL-6) and tumour necrosis factor alpha (TNF-alpha) are involved in pathogenesis, rather than these markers themselves. IL-1 and TNF-alpha initiates and maintains inflammation and activates endothelial and epithelial cells, whereas IL-6 has a major role in vascular permeability and cell proliferation. The enzyme epoxide hydrolase-1 (EPHX-1) and superoxide dismutase 3 may inhibit increased oxidative stress in the lungs from cigarette smoke inhalation and are therefore potential markers of interest in COPD research. 71
Matrix metalloproteinases (MMPs) are currently under active research as potential biomarkers in the pathogenesis of COPD. These include MMP-8, MMP-9, MMP-12, and TIMP (the main endogenous inhibitor of MMP-8 and MMP-9). In particular, there is evidence that in patients with normal lung function, sputum MMP-8 levels are higher in symptomatic smokers compared with asymptomatic smokers and non-smokers,38,72 and perhaps represents a potential biomarker for diagnosis of early COPD.
Increased levels of cathepsin S and cystatin C have also been reported in symptomatic smokers compared with asymptomatic smokers and non-smokers, and represent another potential area of research to identify patients with early disease. 73
The role of imaging in early diagnosis of COPD is currently under active evaluation. Investigators from the COPDGene Study showed that PRM, 26 which compares quantification of emphysema on inspiratory scans to that of gas trapping on expiratory scans, has the potential to identify functional small airways disease, which correlates to subsequent FEV1 decline in patients particularly with milder stages of COPD. This association was also evident in GOLD 0 subjects, suggesting that this technique has potential for early detection of disease.
The implementation of biomarkers for diagnosis of early COPD in clinical practice still requires much research and validation, but the studies mentioned previously are promising. It is crucial to identify reliable biomarkers for early disease, a stage at which novel therapies might have the most impact on modifying disease course and preserving lung function.
The concept of early COPD is increasingly being recognised and trials are now underway to study cohorts of young smokers who are potentially at risk of developing COPD. These include the British Lung Foundation (BLF) Early COPD Development Study in the UK [ClinicalTrials.gov identifier: NCT03480347] and the study of Determinants of Onset and Progression of COPD in Young Adults (Early COPD) in Spain [ClinicalTrials.gov identifier: NCT02352220]. The UK BLF Early COPD Development Study is designed to monitor young smokers (30–45 years of age) with at least 10 pack-year smoking history for an initial duration of 3 years, with information collected on serum and sputum biomarkers as well as data on pulmonary function testing and thoracic imaging. One of the ultimate aims of this study will be to identify markers of early disease, which will be a vital step in development of treatment modalities aimed at early COPD.
Conclusion
Early COPD, although not a completely novel concept, remains poorly explored. The diagnosis of COPD as defined by currently established criteria indicate an established disease process which is irreversible. As no current pharmacological treatment is known to halt or reverse the progression of established COPD, it is essential for disease to be diagnosed early and prior to establishment of irreversible pathology, in order to allow timely interventions. Identification of pathological factors involved in the development of early disease will facilitate development of therapies targeting these early changes, and therefore potentially arrest or even reverse the disease process.
Unfortunately, currently available pharmacological therapy for COPD does not appear to impact on early disease as defined by authors.21,22 A universally accepted definition of early COPD is essential in the quest to identify the pathology of early COPD and pave way for design of novel treatments that have the ability to make an impact at this early and potentially reversible stage.
