Alpha-1-antitrypsin deficiency: increasing awareness and improving diagnosis

Abstract

Alpha-1-antitrypsin deficiency (AATD) is a hereditary disorder that is characterized by a low serum level of alpha-1-antitrypsin (AAT). The loss of anti-inflammatory and antiproteolytic functions, together with pro-inflammatory effects of polymerized AAT contribute to protein degradation and increased inflammation resulting in an increased risk of developing chronic obstructive pulmonary disease (COPD) and emphysema, especially in smokers. AATD is a rare disease that is significantly underdiagnosed. According to recent data that are based on extrapolations, in many countries only 5–15% of homozygous individuals have been identified. Furthermore, the diagnostic delay typically exceeds 5 years, resulting in an average age at diagnosis of about 45 years. Although the American Thoracic Society/European Respiratory Society recommendations state that all symptomatic adults with persistent airway obstruction should be screened, these recommendations are not being followed. Potential reasons for that include missing knowledge about the disease and the appropriate tests, and the low awareness of physicians with regard to the disorder. Once the decision to initiate testing has been made, a screening test (AAT serum level or other) should be performed. Further diagnostic evaluation is based on the following techniques: polymerase chain reaction (PCR) for frequent and clinically important mutations, isoelectric focusing (IEF) with or without immunoblotting, and sequencing of the gene locus coding for AAT. Various diagnostic algorithms have been published for AATD detection (severe deficiency or carrier status). Modern laboratory approaches like the use of serum separator cards, a lateral flow assay to detect the Z-protein, and a broader availability of next-generation sequencing are recent advances, likely to alter existing algorithms.

Introduction

Alpha-1-antitrypsin deficiency (AATD) is a rare disease that, like other rare diseases, is underdiagnosed [Blanco et al. 2006; Carroll et al. 2011]. Based on comparisons of the estimated frequency of AATD and the number of identified patients it has been concluded that the vast majority (>85%) of potential patients are yet to be identified [Silverman and Sandhaus, 2009]. Current surveys indicate that the diagnosis is often delayed for several years resulting in an average age at diagnosis of about 45 years [Campos et al. 2005; Kohnlein et al. 2010; Stoller et al. 2005].

This is noteworthy since clear recommendations regarding indications to test for AATD have existed for quite some time: The World Health Organisation recommends testing of all chronic obstructive pulmonary disease (COPD) patients [WHO, 1997], and the European Respiratory Society and American Thoracic Society Guidelines recommend the testing of all symptomatic adults with persistent airway obstruction [ATS/ERS, 2003]. The observed discrepancy between the number of expected patients and the number of identified patients leads to the assumption, that these recommendations are not being followed. Potential reasons for that include missing knowledge about the disease and the appropriate tests, and the low awareness of physicians with regard to the disorder. Moreover, the multi-step approach that is required for final diagnosis have been put forward as potential obstacles on the way to early identification of affected individuals [Stoller et al. 2007].

This review focuses on efforts in the past and on potential actions with the goal to overcome the low awareness and to improve the laboratory diagnosis of AATD.

Biological background

AATD was first described in 1963 by Laurell and Eriksson. Analysing the serum electrophoresis of five patients with severe emphysema, they recognized the absence of a specific band [Laurell and Eriksson, 2013]. Shortly after, AATD had also been associated with a specific type of liver cirrhosis [Sharp et al. 1969]. The finding of alpha-1-antitrypsin (AAT) being a protease inhibitor together with the observation of severe emphysema in deficient individuals led to the development of the protease–antiprotease imbalance hypothesis: antiproteases such as AAT protect tissue (mainly lung parenchyma) from proteolytic damage by enzymes such as neutrophil elastase [Carrell and Lomas, 2002; Gadek et al. 1981]. The absence of AAT as the most important antiprotease of the lung would then lead to uninhibited protease activity resulting in lung parenchymal destruction, i.e. emphysema.

The gene coding for AAT is located on chromosome 14q32.1 as part of a gene cluster called serine protease inhibitor (SERPIN). The Protease Inhibitor (Pi) locus itself is called SERPINA1. The 12.2 kb long gene consists of 4 coding exons (II, III, IV, V), 3 noncoding exons (IA, IB, IC) and 6 introns. The region coding for the reactive loop is located in exon V. The clinically most important mutation (Pi*Z) is caused by a single nucleotide polymorphism (SNP) at position 342 (Glu342Lys) [Jeppsson, 1976]. The consecutive conformational change allows the reactive loop of a second AAT molecule to bind at this position leading to AAT polymers formation [Carrell and Lomas, 2002]. In the liver, these polymers form inclusion bodies and are not secreted into the circulation. The other common mutation Pi*S results in a protein that is degraded intracellularly prior to secretion. Compared with the Pi*Z mutation the serum level is only mildly reduced, and the risk for lung disease is lower compared to the Pi*Z mutation [Crystal et al. 1989; Curiel et al. 1989]. Several mutations (resulting in a stop codon) lead to the total absence of AAT (null mutations). Although more than 150 different mutations in SERPINA1 have been described, the overall frequency in the population is very low [Fregonese et al. 2008; Stockley et al. 2007].

Formation of AAT polymers is not restricted to liver cells, but may also occur in the lungs of Pi*ZZ patients [Janciauskiene et al. 2002]. Polymerized AAT exhibits pro-inflammatory effects by stimulating neutrophil adhesion and chemotaxis [Lomas and Carrell, 2002; Mahadeva et al. 2005; Mulgrew et al. 2004]. Moreover, it could be demonstrated that misfolded AAT protein accumulates in the endoplasmic reticulum of neutrophils in Pi*ZZ individuals leading to the expression of pro-apoptotic pathways (including tumour necrosis factor [TNF]-alpha). Infusion of purified AAT in these patients reduces levels of membrane-bound TNF-alpha and apoptosis [Bergin et al. 2014]. This is in parallel with the restitution of the bacterial killing capacity of AAT-treated cells [Hurley et al. 2014]. Thus, pro-inflammatory effects of polymerized AAT, in addition to the loss of antiproteolytic and anti-inflammatory functions, may contribute significantly to the development of lung parenchyma degradation and inflammation in AATD patients (Figure 1).

Figure 1.

Simplified model of AATD pathophysiology. AAT protein (Z-protein >> M-protein) may polymerize, especially under the influence of cigarette smoke. Polymers may accumulate in the liver, leading to cirrhosis. The loss of protective properties together with the gain of pro-inflammatory and immunomodulatory properties leads to the development of emphysema. AAT, alpha-1-antitrypsin; AATD, alpha-1-antitrypsin deficiency; NE, neutrophil elastase. (Modified from Janciauskiene et al. [2002] and Lomas and Parfrey [2004].)

Prevalence

As in other orphan diseases the exact prevalence of AATD is difficult to determine. The main reason for that is that large-scale population-based screening studies are missing. Determining the prevalence of the genetic predisposition in diseased populations (e.g. respiratory diseases) will inevitably overestimate the prevalence in the general population. On the other hand, restricting the target population to healthy individuals (for example, blood donors) may underestimate the prevalence. Although both approaches are potentially flawed, the latter is very likely to be more precise. Table 1 displays published studies with >1000 individuals screened.

Table 1.

Screening studies with a number of screened individuals >1000, in the order of publication date. (Modified from Aboussouan and Stoller [2009].).

Year	Location	Screened Population	Number screened	ZZ [%]	SZ [%]	MZ [%]	SS [%]	MS [%]	Reference
1975	England	Population survey	5.588	0.04	0.21	2.02	0.32	7.19	Cook [1975]
1976	Sweden	Newborns	200.000	0.06	0.02	–	–	–	Sveger [1976]
1976	Netherlands	Population survey	1.474	0.07	0.07	2.24	0	2.84	Hoffmann and van den Broek [1976]
1976	California	High school	1.841	0	0.27	1.85	0.05	6.9	Lieberman et al. [1976]
1977	New York	Newborns	1.010	0	0	1.19	0.89	3.07	Evans et al. [1977]
1977	Arizona	Population survey	2.944	0.07	0.2	3.0	–	7.1	Morse et al. [1977]
1978	Oregon	Newborns	107.038	0.02	0.01		–	–	O’Brien et al. [1978]
1979	Sweden	Military recruits	11.128	0.04	0.08	0.03	–	–	Sveger and Mazodier, [1979]
1980	Netherlands	Newborns	95.083	0.03	–	–	0.04	0	Dijkman et al. [1980]
1988	Belgium	Newborns	10.329	0.06	0.12	0.97	0.01	0.88	Kimpen et al. [1988]
1989	Missouri	Blood donors	20.000	0.04	0.01	0.01	–	–	Silverman et al. [1989]
1993	New York	Newborns	11.081	0.03	0.05	0.53	0.01	0.09	Spence et al. [1993]
2002	Denmark	Random sample	9.187	0.07	0.11	4.91	0.13	5.0	Dahl et al. [2002]
2011	Ireland	Blood bank	1.100	–	0.18	4.18	0.18	10.3	Carroll et al. [2011]
2011	Turkey	Blood donors	1.203	–	–	0.58	–	0.50	Simsek et al. [2011]
2012	Switzerland	Population survey	6.057	0.02	0.17	2.36	0.16	7.48	Ferrarotti et al. [2012]
2014	Poland	Newborns	4.231	0.01	0.02	2.13	0.01	2.13	Chorostowska-Wynimko et al. [2014]

In Europe, the highest prevalence of the Pi*Z mutation has been recorded in North-Western European countries with a gene frequency between 0.026 and 0.049 [Dahl et al. 2002; Hutchison, 1998; Sveger, 1976]. The prevalence in North America seems to be similar (0.019 and 0.03) [Lieberman et al. 1976; Morse et al. 1977]. In eastern Asian countries, however, the gene frequency of Pi*Z seems to be extremely low (0.006).

Knowledge and awareness

AATD is significantly under-diagnosed

Comparing estimates of the prevalence with the number of known patients in specific countries, it becomes evident that only a minority of expected patients have already been identified. In the US, 70,000–100,000 AAT-deficient individuals are expected, although only 10% have been identified [Stoller and Brantly, 2013]. In Europe, where the estimated number of deficient individuals is 125,000, only approximately 5000 individuals have been included in the international registry [Blanco et al. 2006; Stockley et al. 2013].

Multiple investigations have demonstrated that the average delay between onset of symptoms and time of diagnosis exceeds 5 years [Stoller et al. 1994]. Although a variety of measures had been undertaken during the last 10 years, this scenario has not changed significantly [Campos et al. 2005; Kohnlein et al. 2010; Stoller et al. 2005].

Reasons for under-diagnosis

There are a number of possible reasons explaining under diagnosis: poor awareness of the disease and/or the methods of testing; the perception that existing treatments are lacking efficacy (or are unavailable in specific regions of the world); the testing algorithm for AATD that may be perceived as complicated. While these reasons are plausible, there are only scarce data to support them.

There is little to no evidence at all in the literature that therapeutic nihilism (no efficacious treatment available, therefore no need to test) contributes significantly to under-recognition of AATD. In a survey that assessed reasons for medical doctors for not testing as recommended, only 8% of survey respondents answered ‘There is no treatment available for this disease’ [Greulich et al. 2013]. This is in contrast to personal communication between many AATD specialists and their colleagues not specialized in AATD.

Regarding knowledge about the disease, Taliercio and colleagues assessed knowledge about clinical manifestations and test-related matters about AATD in a 30-item questionnaire emailed to respiratory therapists and interns of internal medicine. The percentage of correct answers was low, regardless of whether the respondents were respiratory therapists (52%) or internal medicine residents (54%) [Taliercio et al. 2010]. When doctors in Germany and Italy were asked to rate their own knowledge about AATD, 16.5% of pulmonologists (20/121), 41.1% of internists (37/90) and 56.0% of general practitioners (84/150) rated their own knowledge as poor (‘little’ or ‘none at all’) [Greulich et al. 2013]. In parallel, the percentage of doctors that reported testing on a regular basis decreases from pulmonologists over internists to general practitioners (Figure 2). In the same survey, only 20.6% of doctors that initiated testing stated that they would follow the ATS/ERS guidelines and test every COPD patient once in his lifetime [Greulich et al. 2013]. Taking into account that respondents to surveys tend to overestimate their performance, these results are somewhat disappointing.

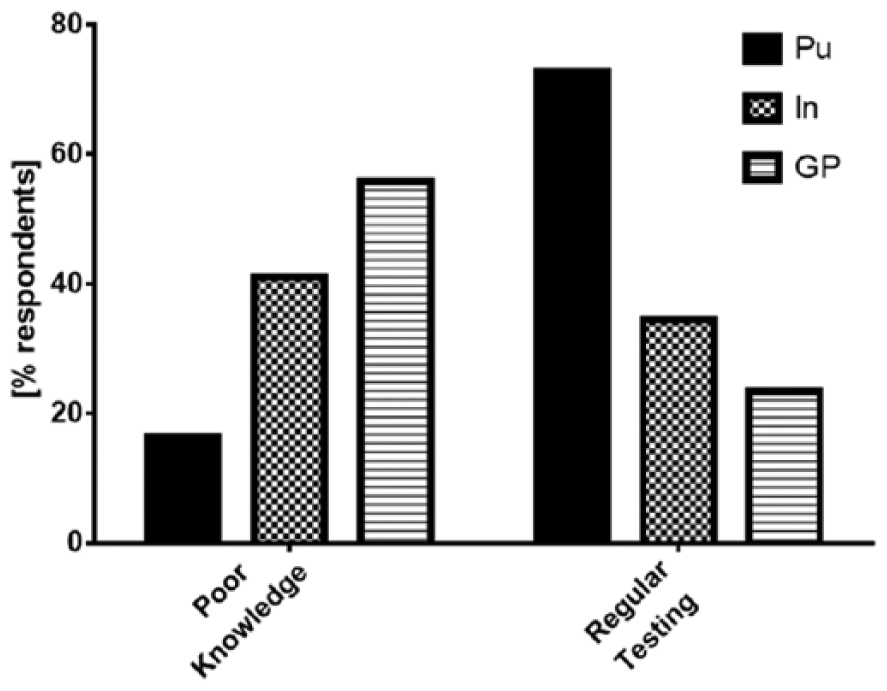

Figure 2.

The left-hand side of the figure displays the percentage of medical doctors that rated their own knowledge as either ‘little’ or ‘none at all’. The right-hand side of the figure displays the percentage of medical doctors that stated they would ‘currently test for alpha-1-antitrypsin deficiency’. GP, general practitioner (n = 150); In, internist (n = 90); Pu, pulmonologist (n = 121). (Modified from Greulich et al. [2013].)

Worldwide, there is considerable heterogeneity in the availability of augmentation therapy as a specific treatment for AATD (Table 2). It is obvious that the lack of a specific treatment may discourage physicians to screen for the disease.

Table 2.

The availability of different products licenced for alpha 1-antitrypsin augmentation therapy in certain countries of the world. S/D: solvent/detergent. (Modified from Teschler [2015].).

Manufacturer	Drug	Purification method	Approved in
Baxter (Deerfield, IL, USA)	Aralast	S/D purification + nanofiltration	USA
CSL Behring (King of Prussia, PA, USA)	Zemeira	Pasteurization	USA
Grifols (Barcelona, Spain)	Prolastin	Pasteurization	Austria, Belgium, Denmark, Finland, Germany, Greece, Ireland, Italy, The Netherlands, Norway, Poland, Portugal, Spain, Sweden, Switzerland
Grifols (Barcelona, Spain)	Prolastin C	Pasteurization	Argentina, Canada, Colombia, USA
Grifols (Barcelona, Spain)	Trypsone	S/D purification + nanofiltration	Argentina, Brazil, Chile, Mexico, Spain
Kamada (Ness Ziona, Israel)	Glassia	Nanofiltration + S/D purification	USA, Brazil
LFB (Courtaboeuf, France)	Alfalastin	Pasteurization	France

In summary, available data demonstrate the need to continue education of medical staff regarding AATD and support the assumption that inadequate knowledge does contribute significantly to under-recognition of AATD.

Targeted screening

While screening efforts in newborn screening programs (and less so in healthy populations such as blood donors, random population samples and others) are suited to determine the prevalence of deficiency genes in the general population, another approach is usually undertaken to detect potential patients in a time- and money-saving manner: ‘Targeted detection’ concentrates its efforts on populations that carry an increased risk for the mutation and the disease.

As AATD is a genetic disorder with pulmonary and extrapulmonary manifestations, a number of indicator diseases should attract the treating physician’s attention towards AATD. The joint ATS/ERS statement therefore recommends testing for AATD in all COPD patients, all nonresponsive asthmatic adults/adolescents, patients with bronchiectasis of unknown aetiology, all individuals with cryptogenic cirrhosis/liver disease, granulomatosis with polyangiitis, necrotizing panniculitis, and first-degree relatives of patients/carriers with AATD [ATS/ERS, 2003].

A high number of targeted detection programs have been undertaken (Table 3 displays published studies with >500 samples examined). It is impossible to compare the ‘success rate’ of these programs since the programs use different ‘inclusion criteria’; most of the programs do process all of the samples sent to the laboratories, even if information about the indication for testing is completely missing. It may be recognized that those programs, that are associated with a Pi*ZZ detection rate >5%, recommend external measurement of AAT serum level as a first step, thus enriching the test population with individuals having a high a priori probability for deficiency alleles, what may explain the high Pi*ZZ detection rates in Italy and Germany. On the other hand, both labs report that the recommendation is not always being followed.

Table 3.

Published studies with >500 samples examined in the order of their publication date. COPD, chronic obstructive pulmonary disease; PFT, pulmonary function test.

Year	Location	Screened Population	Number screened	ZZ [%]	SZ [%]	MZ [%]	SS [%]	MS [%]	Reference
1986	USA	COPD (hospitalized for carotid body surgery)	965	1.87	0.31	7.67	0.31	10.1	Lieberman et al. [1986]
1999	Italy	Case finding	1841	6.41	0.92	–	–	–	Luisetti et al. [1999]
2002	Germany	COPD, emphysema, asthma, bronchiectasis	1060	0	0.28	3.68	0.09	3.40	Wencker et al. [2002]
2005	Spain	COPD	2137	0.37	0.14	–	0.14	–	de la Roza et al. [2005]
2007	Germany	Case finding (education program and free testing)	2696	9.94	1.97	18.1	0	3.60	Bals et al. [2007]
2011	Spain	Case finding in primary care (education program, free testing, communication with lab and pulmonologist)	596	0.34	0.17	2.68	1.68	13.4	Molina et al. [2011]
2011	USA	Case finding (electronic record alert to test in fixed airflow obstruction)	979	2.63	0	2.63	0	5.26	Jain et al. [2011]
2012	Germany	Case finding (free testing)	11.264	6.63	1.48	17.8	0.27	4.97	Greulich et al. [2012]
2012	USA	Fixed airflow obstruction (initiated by PFT lab technician)	3.152	0.63		10.9			Rahaghi et al. [2012]
2013	USA	Case finding (free testing)	117.966	0.71	0.50	5.81	–	–	Stoller and Brantly [2013]
2015	Ireland	Case finding (free testing)	13.500	1.85	1.44	13.6	0.49	9.79	Fee et al. [2015]
2015	USA	Case finding (free testing)	7.530	0.65	0.66	6.92	0.37	7.82	Sanders and Kim [2015]
2015	Eastern Europe	Obstructive Lung Disease (Patient reported)	11.648	2.28	0.57	10.8	0.07	5.06	Greulich et al. [2015]

Recent advances

Increasing efforts have been made during the past decade to increase awareness and to overcome barriers to AAT testing. One possible way is to offer testing and to distribute test kits free of charge. This is typically done in cooperation with the pharmaceutical industry, namely manufacturers of augmentation therapy. One prominent example is the national detection program, performed by the University of Florida AAT Genetics Laboratory in cooperation with Grifols, USA. Testing 117,966 individuals, 843 Pi*ZZ, 593 Pi*SZ and 6859 Pi*MZ individuals have been detected (detection rate: 7.03%) [Stoller and Brantly, 2013]. In a second, state-wide detection program (State of Florida-funded, Alpha-1 Foundation sponsored), carried out by the same laboratory, 17,567 individuals have been tested [Brantly et al. 2003; Stoller and Brantly, 2013]. A total of 1016 individuals carried Pi*ZZ, Pi*SZ or Pi*MZ (detection rate: 5.78%). The Alpha-1 Coded Testing (ACT) program targets concerns of individuals regarding genetic discrimination: samples are sent on dried blood spot to the University of South Carolina and then submitted for coded testing through the AAT Genetics Laboratory of the University of Florida. Compared with the other two programs, the detection rate of the ACT program is significantly higher (39.13%) [Stoller and Brantly, 2013]. This may well be explained by the higher degree of family testing.

A second possible way to increase awareness is to remind physicians regularly: Rahaghi and colleagues added a written recommendation to test for AATD to pulmonary function test (PFT) reports of patients with fixed airflow obstruction. This intervention doubled the rate of testing for AATD (13% versus 6%), although it did not result in an increased number of homozygous test results [Rahaghi et al. 2009]. Jain and colleagues followed a similar strategy: Using a computer algorithm they inserted a comment into the electronic medical record that recommended AATD testing in those individuals whose PFT results demonstrated fixed airflow obstruction. While this increased the test rate significantly (15.1% versus 4.7%), the rate of detected individuals remained unchanged [Jain et al. 2011]. Both studies have been performed in centres that presumably already exhibited a high level of awareness, which could explain failure to increase AATD detection rate.

Another example for a combination of methods to increase awareness is the IDDEA (Information and Detection of the Deficiency of AAT) program that was initiated and evaluated in Spain in 2008 and 2009 (Molina et al. 2011). The program aimed to increase the detection rate of AATD especially in primary care. Participating primary care physicians were provided with information material about AATD (stressing the importance of early detection), simple sampling methods (DBS), and an Internet-based communication system to facilitate communication between the primary care centre, the laboratory, and a pulmonologist specialized in AATD. A total of 596 patients were enrolled by 90 participating primary care physicians: 3.2% were Pi*Z carriers among which two individuals (0.34%) carried the phenotype PiZZ [Molina et al. 2011]. This example demonstrates that targeted detection can be performed in the primary care setting, but may be associated with a low detection rate.

New ways of explaining the disease and reminding colleagues to initiate AAT testing are needed. Miravitlles and colleagues recommended a number of actions to enhance awareness, including increased efforts regarding medical education, dissemination of knowledge and measures to implement existing recommendations (Table 4) [Miravitlles et al. 2010]. While suggestions like this may very well enhance awareness, their effectiveness (with the exception of ‘physician alert’) has not been studied extensively.

Table 4.

Suggestions that could further increase the number of identified individuals with severe deficiency genotypes. (Modified from Miravitlles et al. [2010].).

Educational efforts	Dissemination of knowledge	Implementation of recommendations
AAT educational materials should be provided (including CME) All education about COPD should include an AATD test recommendation The value of preventive care (in healthy Pi*ZZ individuals and in individuals with intermediate risk) should be emphasized Recent data about the efficacy of treatment options in AATD should be communicated	Introduce or increase the number of sessions on AAT at pulmonologist, hepatologist, paediatric and general practitioner congresses ATS/ERS recommendations should be disseminated World COPD day and other similar opportunities should be used for providing information about AATD High-quality educational material should be made public on the Internet	The COPD diagnostic algorithm should include an AATD test recommendation Free distribution of test kits should be increased Incentives for AATD testing by increasing (or implementing) reimbursement to physicians should be provided Spirometry use by general practitioners should be encouraged to increase detection of fixed airflow obstruction Electronic medical records (‘physician alert’ for AATD testing) should be instituted to remind physicians on the disease

AAT, alpha 1-antitrypsin; AATD, alpha 1-antitrypsin deficiency; ATS/ERS, American Thoracic Society/European Respiratory Society; COPD, chronic obstructive pulmonary disease.

Newborn screening

Newborn screening for AATD (as part of a public health program) is seen as controversial: after having conducted one of the two existing large-scale programs (>100,000 samples, Oregon, USA) the initiators advised against the continuation of the program because pulmonary or hepatic disease would be rather infrequent (at least in childhood) and specific therapy would not be available [O’Brien et al. 1978]. In contrast, the WHO explicitly recommended neonatal screening programs (of limited time) to determine the prevalence of deficiency alleles in specific areas of the world [WHO, 1997]. Furthermore, a recent statement issued on an international AAT experts workshop (called together by the Alpha-1 Foundation) stated that pilot studies should be conducted to determine whether early detection improves clinical relevant outcomes [Teckman et al. 2014].

Diagnostic algorithm

Initial tests for AATD

There is no single universally accepted laboratory algorithm for AAT diagnosis. However, there is wide agreement that a combination of different laboratory methods delivers the best results [Bals et al. 2007; Ferrarotti et al. 2007; Miravitlles et al. 2010; Snyder et al. 2006]. Most often, quantitative measurements of the AAT serum level are used as the initial screening test [Bornhorst et al. 2013; Steiner et al. 2003]. Available methods for quantitative AAT measurements include radial immunodiffusion, nephelometry, and latex-enhanced immunoturbidimetry. The use of dried blood samples (DBSs) for AATD diagnosis has become widely available and has facilitated testing. AAT levels can be measured from DBS with moderate to good correlation with serum AAT serum levels [Costa et al. 2000].

Many laboratories and screening programs test for the most common S- and Z-mutations (some also for the F-mutation) either concomitantly or in ‘DBS AAT low’ samples [Miravitlles et al. 2010]. The decision to include targeted polymerase chain reaction (PCR) for the detection of Pi*S and Pi*Z as a concomitant first step or only in low-level samples is dependent on the funding that is available and on the primary goal of the algorithm: two recent publications showed that the negative predictive value of the AAT serum level (cutoff 104 mg/dl, 113 mg/dl) is 99.8% and 100%, respectively [Ferrarotti et al. 2012; Greulich et al. 2015]. In other words: if the serum level exceeds these thresholds, the probability to carry a homozygous mutation for AAT is extremely low. Therefore, if the primary goal of the algorithm is to detect all homozygous individuals this can be done effectively without conducting PCR as a first step.

However, if the testing algorithm aims to detect heterozygous carriers it is very difficult to determine a threshold. Recent laboratory analyses of high numbers of patient samples demonstrated 97.5% percentiles of PiMZ of approximately 150 mg/dl (220 mg/dl for PiMS). Thus, the serum level has only a very limited value if the goal is to exclude heterozygous carriers [Bornhorst et al. 2013; Donato et al. 2012].

The protective threshold

The threshold that is used to exclude severe deficiency is different from the so-called protective threshold. A protective threshold has been hypothesized when investigators noticed that Pi*SZ individuals with a serum level beyond that threshold did not have emphysema [Crystal, 1990]. At that time, the usually used method for AAT serum measurement was radial immunodiffusion that tends to overestimate the serum level. A level of 80 mg/dl was regarded as the protective threshold, while the normal range was approximately 150–350 mg/dl. Later, a highly purified standard was introduced (11 µM). Nowadays, nephelometry or immunoturbidimetry are the methods that are used in many laboratories. Using these methods, accepted normal ranges of serum AAT are approximately 90–200 mg/dl, the protective threshold is at 50 mg/dl [Stoller and Aboussouan, 2005].

The initial observation that this equals the 10% percentile of Pi*SZ patients has recently been substantiated in the large Swiss SAPALDIA (Swiss study on Air Pollution and Lung Disease in adults) cohort. In this cohort, the 10% percentile of Pi*SZ patients is at 49 mg/dl [Ferrarotti et al. 2012]. More recent confirmatory evidence comes from two large retrospective analyses of laboratories that received samples for analysis of AAT status, thus representing a patient population rather than the general population. The first analysis included 21,406 samples from adult patients, including 161 Pi*SZ samples: 11.8% had an AAT serum concentration below 50 mg/dl, supporting this cutoff as a protective threshold. In the second of these analyses, 72,229 samples were evaluated. Here, 15.37% of all PiSZ samples (n = 540) exhibited serum levels <50 mg/dl. Although the 10% percentile was not reported, the data support a protective threshold of approximately 50 mg/dl [Bornhorst et al. 2013].

The concept of a single protective threshold is challenged by the results of the largest randomized controlled trial so far that has been conducted on augmentation therapy in AATD. In the ‘Intravenous augmentation treatment and lung density in severe α1 antitrypsin deficiency’ (RAPID) trial, 180 patients were treated with AAT (60 mg/kg once weekly) or placebo for 24 months [Chapman et al. 2015]. The primary endpoint (lung density loss at total lung capacity [TLC] and functional residual capacity [FRC]) was negative, which is in line with a Cochrane analysis on augmentation therapy [Gotzsche and Johansen, 2010]. However, there was a statistically significant effect of the treatment arm towards a reduction of the loss of lung density at TLC (p = 0.03). During this trial, serum levels under augmentation therapy have been assessed. Individuals with higher serum levels seemed to benefit more than individuals with lower levels (although above the ‘threshold’), suggesting a direct correlation between achieved serum level and efficacy.

Phenotyping and gene sequencing

If AAT serum level and PCR do not give consistent results or if confirmation on the protein level is desired, isoelectric focusing (IEF) is the method of choice. IEF with or without immunoblotting separates proteins according to their isoelectric points (Figure 3), and enables the user to identify different AAT isoforms [Zerimech et al. 2008]. Although it is a relatively inexpensive test, it requires significant expertise. Traditionally, this method has been regarded as the gold standard in AAT diagnosis, but has recently been replaced in many laboratories by the combination of serum level and PCR. It still represents the gold standard to detect rare variants (except null variants) after having detected low serum levels of AAT [Greene et al. 2013].

Figure 3.

Isoelectric focusing electrophoresis with immunoblotting (Sebia Hydrasys 2). Samples are taken from dried blood spot. Different phenotypes can be distinguished according to their bands (analysis conducted by V. Kotke, University of Marburg, Germany).

Gene sequencing of SERPINA-1 is currently reserved for cases in which the serum level is low and this finding cannot be explained fully by targeted PCR or IEF [Miravitlles et al. 2010]. The sequence is compared with known mutations via Internet-based databases.

Currently published algorithms differ with regard to the indication for IEF and/or sequencing. The use of IEF and/or gene sequencing in all samples below a certain serum level is supported by the fact that PCR for S and Z together with the AAT serum level will still miss those allelic combinations where S or Z are combined with a rare mutation that would lead to intermediate deficiency. It could be argued that this would not be relevant as long as the serum level exceeds the protective threshold; on the other hand, little is known about the functional capacity of many rare alleles or the resulting AAT proteins. Thus, a serum level of 60 mg/dl in a Pi*MZ individual might have different functional properties than a serum level of 60 mg/dl in a Pi*M/rare mutation.

While mutations other than Pi*S or Pi*Z have been traditionally named ‘rare mutations’, the increasing number of novel allelic deficient variants challenges this concept [Ferrarotti et al. 2014; Lara et al. 2014]. It stresses the need for a combination of laboratory methods (including IEF and/or sequencing) with the goal of detecting all clinically relevant mutations.

Recent advances in the laboratory diagnosis of AATD

Very recently, a new test for AATD was introduced, following the principle of a lateral-flow assay [Vogelmeier et al. 2013]. The test works with a Z-protein-specific antibody, thus detecting the clinically most important Z-mutation. The advantage of that test is the availability of the test result within 15 min, reflecting a point of care test. The disadvantage is that all mutations ‘other than Z’ (mostly S, but also a number of rare mutations) are missed. This does not play a role in all combinations of mutations that include one Z-mutation. Combinations of two rare alleles have been described as being extremely rare, but the frequency depends strongly on the country in which the test is used. As the test cannot differentiate between heterozygous and homozygous carriers of the Z-mutation, further confirmatory analyses need to follow.

Advances in technology have made it possible to conduct gene sequencing from DBS-derived DNA and from serum separator cards, enabling the laboratory to conduct a multiple-step analysis (AAT level, PRC, IEF, gene sequencing) with only one patient visit [Sanders and Kim, 2015].

Currently, ‘next-generation sequencing’ is becoming widely available. Therefore, one alternative future algorithm would be to use a screening test with a very high sensitivity to exclude the disease. All test-positive individuals could then directly undergo sequencing of the SERPINA1 gene.

Conclusion

The delay between the onset of symptoms and time of diagnosis of AATD patients exceeds 5 years. This, together with the huge discrepancy between the estimated number of patients and the number of identified patients supports the hypothesis that AATD is still significantly underdiagnosed. Recent data confirm that this may be caused by limited knowledge and awareness of physicians. Furthermore, only a minority of physicians follow existing guidelines. Continued efforts to increase medical education, and the dissemination and implementation of existing recommendations are mandatory.

The diagnostic algorithm is likely to change as novel techniques (such as the lateral-flow assay to detect the Z-protein) and next-generation sequencing will become broadly available. Comparative research of diagnostic algorithms incorporating new technologies is needed, preferably in real-life settings.
