Transcriptional up-regulation of the TGF-β intracellular signaling transducer Mad of Drosophila larvae in response to parasitic nematode infection

Abstract

The common fruit fly Drosophila melanogaster is an exceptional model for dissecting innate immunity. However, our knowledge on responses to parasitic nematode infections still lags behind. Recent studies have demonstrated that the well-conserved TGF-β signaling pathway participates in immune processes of the fly, including the anti-nematode response. To elucidate the molecular basis of TGF-β anti-nematode activity, we performed a transcript level analysis of different TGF-β signaling components following infection of D. melanogaster larvae with the nematode parasite Heterorhabditis gerrardi. We found no significant changes in the transcript level of most extracellular ligands in both bone morphogenic protein (BMP) and activin branches of the TGF-β signaling pathway between nematode-infected larvae and uninfected controls. However, extracellular ligand, Scw, and Type I receptor, Sax, in the BMP pathway as well as the Type I receptor, Babo, in the activin pathway were substantially up-regulated following H. gerrardi infection. Our results suggest that receptor up-regulation leads to transcriptional up-regulation of the intracellular component Mad in response to H. gerrardi following changes in gene expression of intracellular receptors of both TGF-β signaling branches. These findings identify the involvement of certain TGF-β signaling pathway components in the immune signal transduction of D. melanogaster larvae against parasitic nematodes.

Keywords

immunity parasitism TGF-β signaling

Introduction

The ability of parasitic nematodes to infect a range of invertebrate and vertebrate hosts poses a serious threat to global health and agriculture and carries major socio-economic consequences. Furthermore, we are currently lacking a good model system for studying the molecular basis of anti-parasitic immune responses, which limits our understanding of the mechanisms underlying these host–parasite interactions.^1,2

The common fruit fly, Drosophila melanogaster, has been used extensively as an excellent model for innate immune processes, from analyzing immune signal transduction to characterizing immune function regulation. Identification of the conserved NF-κB signaling pathways Toll and immune deficiency pathway (IMD) has demonstrated that D. melanogaster is able to discriminate between different classes of pathogens and activate a wide range of responses.^3–7 Other conserved signaling pathways, such as the Janus kinase/signal transducer and activator of transcription (JAK/STAT) and c-Jun N-terminal kinase (JNK), also participate in immune reactions.^8–10 The well-conserved TGF-β signaling pathway, which is involved in inflammation and tissue repair in mammals, has been shown previously to be involved in the immune response to wounding and bacterial infection in D. melanogaster.^11,12 This is achieved through NF-κB regulation of decapentaplegic (dpp) and dawdle (daw). Wounding activates dpp and represses the production of antimicrobial peptides, whereas daw limits infection-induced melanization. In addition, our recent studies have demonstrated the participation of TGF-β signaling in the anti-nematode immune response in adult flies.¹³ Our results revealed that the extracellular ligands dpp and daw are transcriptionally induced following nematode infection, and they also modulate the survival ability of flies against these parasites.

The TGF-β pathway is composed of two signaling branches: the bone morphogenic protein (BMP) and the activin pathways. TGF-β pathway in D. melanogaster consists of extracellular ligands that bind to type I and type II receptors, intracellular signal transducers and nuclear read-out genes.^14,15 Extracellular ligands of the BMP pathway decapentaplegic (Dpp), glass bottom boat (Gbb) and screw (Scw) bind to type I receptors saxophone (Sax) and thick veins (Tkv), and type II receptors punt (Put) or wishful thinking (Wit). Receptor binding leads to signal transduction that is mediated by Smad proteins, more specifically in D. melanogaster, mothers against dpp (Mad). Similarly, extracellular ligands of the activin pathway activinβ (Actβ), dawdle (Daw) and myoglianin (Myo) bind to type I receptor, baboon (Babo) and type II receptors put or wit. Signal transduction is mediated by intracellular protein, Smad on X (Smox).^16,17 Interestingly, Mad activation can be achieved via signaling through receptor Babo.¹⁸

Previous studies in D. melanogaster have demonstrated that parasitic nematodes of the genus Heterorhabditis are able to infect and kill adult flies and larvae,^19–27 which leads to transcriptional up-regulation of genes in Toll, IMD, JAK/STAT and TGF-β signaling pathways.^21,25,28 Here, we investigated the regulation of TGF-β signaling pathway upon infection of D. melanogaster larvae with the nematode parasite Heterorhabditis gerrardi. This parasitic nematode harbors the mutualistic bacteria Photorhabdus asymbiotica, which can act as insect and human pathogen.^29–31 Upon infection, the bacteria are expelled from gut of nematode infective juveniles into the hemolymph of the insect host, where they multiply and secrete a cocktail of toxins and virulence factors that promote insect death and therefore provide a favorable environment for H. gerrardi development.^32,33

Using a real-time quantitative (q)RT-PCR approach to detect and reliably measure the transcript levels of genes encoding various TGF-β signaling components, here we demonstrate that the intracellular signaling transducer Mad is up-regulated in D. melanogaster larvae upon infection with H. gerrardi nematodes. This is achieved through both signaling branches of the TGF-β signaling pathway, BMP and activin. The reported findings integrate our understanding of the transcriptional regulation of certain TGF-β superfamily members in the Drosophila immune signaling during infection with potent parasitic nematodes. Further studies into the specific function of these signaling components in response to parasitic nematodes could lead to better understanding of the mechanisms that underlie host–parasite interactions.

Materials and methods

Fly and nematode stocks

All stocks were raised on standard cornmeal-soy based food (Cat. No. 101-NV, Meidi laboratories) with a few granules of dry baker’s yeast at 25℃, 12:12 light:dark photoperiod and 60% humidity. A fly strain carrying P-bac insertion Pbac{PB}Mad^c00574 was obtained from Exelixis Harvard Medical School. Strain w¹¹¹⁸ was used as background control in all experiments and it was also obtained from the Bloomington Drosophila Stock center.

Parasitic nematodes used in the experiments were H. gerrardi, amplified in the fourth instar larvae of the wax moth Galleria mellonella using the water trap technique.³⁴ H. gerrardi infective juveniles used in experiments were 1–5 wk old.

Nematode infection

For infection of D. melanogaster with the H. gerrardi infective juveniles, second and third instar larvae were collected and rinsed briefly in water and then placed in wells of a 96-well plate (one larva per well), each containing 100 µl of 1.25% agarose. Infective juveniles were washed and adjusted to the final density of approximately 100 per larva, and 10 µl of nematode suspension was added to a single D. melanogaster larva. For uninfected controls, 10 µl of sterile water was added to each larva. The 96-well plate was covered with plastic film, which was punctured to provide aeration. The plates were kept in dark and survival was quantified under a stereo-microscope. Survival rates in response to H. gerrardi nematode infection were determined twice per d for 72 h based on larval movement.

Gene transcript analysis

To analyze the transcriptional regulation of TGF-β signaling components in D. melanogaster responding to H. gerrardi nematodes, larvae were infected with infective juveniles as previously described and subsequently collected at 24, 40, and 64 h representing an early, an intermediate, and a late time point during infection, respectively. For each experiment, 20 second or early third instar larvae were infected, and four to five live individuals per replicate were collected at specified time points. Larvae of the same developmental stages were treated with water only and acted as uninfected controls. Total RNA was extracted from whole larvae using TRIzol Reagent (Ambion, Life Technologies). Reverse transcription was performed using iScript™ cDNA Synthesis Kit (Bio-Rad). iTaq™ Universal SYBR® Green Supermix (Bio-Rad) was used for qRT-PCR using CFX96™ Real-Time System, C1000™ Thermal Cycler with the following conditions: 95℃ for 2 min, 40 cycles of 95℃ for 15 s and 61℃ for 30 s, 95℃ for 15 s, 65℃ for 5 s and 95℃ for 5 s. CFX Manager 3.1 (Bio-Rad) was used for data analysis. Primers used to quantify mRNA levels are listed in Table 1.

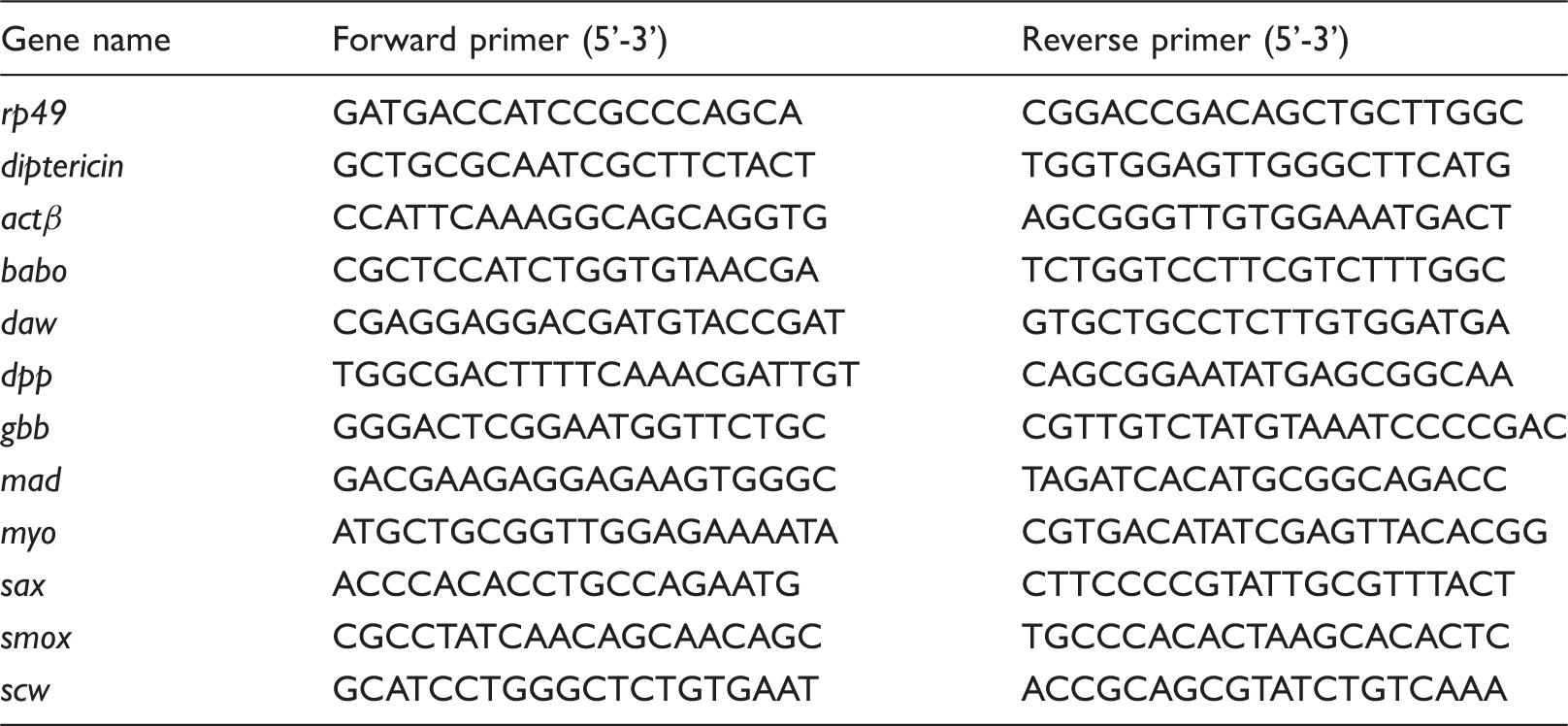

Table 1.

List of primers and sequences used in quantitative RT-PCR experiments.

Gene name	Forward primer (5'-3')	Reverse primer (5'-3')
rp49	GATGACCATCCGCCCAGCA	CGGACCGACAGCTGCTTGGC
diptericin	GCTGCGCAATCGCTTCTACT	TGGTGGAGTTGGGCTTCATG
actβ	CCATTCAAAGGCAGCAGGTG	AGCGGGTTGTGGAAATGACT
babo	CGCTCCATCTGGTGTAACGA	TCTGGTCCTTCGTCTTTGGC
daw	CGAGGAGGACGATGTACCGAT	GTGCTGCCTCTTGTGGATGA
dpp	TGGCGACTTTTCAAACGATTGT	CAGCGGAATATGAGCGGCAA
gbb	GGGACTCGGAATGGTTCTGC	CGTTGTCTATGTAAATCCCCGAC
mad	GACGAAGAGGAGAAGTGGGC	TAGATCACATGCGGCAGACC
myo	ATGCTGCGGTTGGAGAAAATA	CGTGACATATCGAGTTACACGG
sax	ACCCACACCTGCCAGAATG	CTTCCCCGTATTGCGTTTACT
smox	CGCCTATCAACAGCAACAGC	TGCCCACACTAAGCACACTC
scw	GCATCCTGGGCTCTGTGAAT	ACCGCAGCGTATCTGTCAAA

Statistical analysis

GraphPad Prism (v7.0 c) was used for data plotting and statistical analyses. Three independent survival experiments were performed, and the results were analyzed with Log-rank (Mantel-Cox) test. Experiments for TGF-β gene transcript levels were repeated three times, and the results were processed with unpaired t-test.

Results

H. gerrardi infection affects the expression of extracellular ligand scw in the BMP pathway of D. melanogaster

To investigate the regulation of TGF-β signaling in D. melanogaster larvae in response to infection with parasitic nematode H. gerrardi, we first analyzed the induction of the extracellular ligands scw, dpp, and gbb in the BMP pathway (Figure 1). While there was no significant difference in the transcript levels of dpp between infections with H. gerrardi infective juveniles and uninfected controls at any of the time points (Figure 1a,b), we found significantly higher transcript levels of scw at the mid timepoint (Figure 1c, 40 h post infection) following nematode infection. These results indicate that specific extracellular ligands in the BMP branch of the TGF-β signaling pathway are substantially up-regulated in D. melanogaster larvae following parasitic nematode infection.

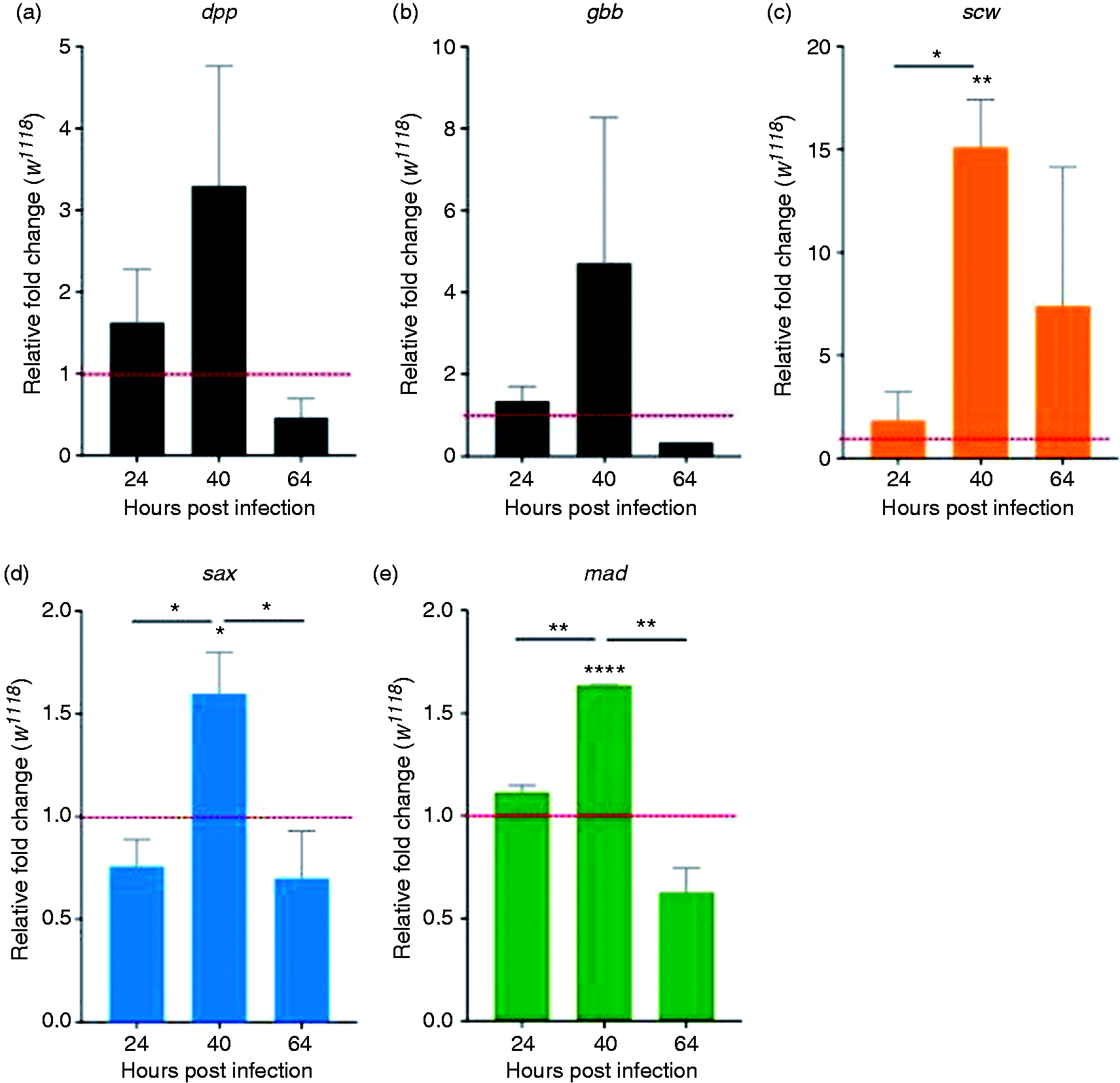

Figure 1.

Within BMP signaling pathway, infection of D. melanogaster larvae with H. gerrardi nematodes leads to increased transcript levels of extracellular ligand scw, type I receptor sax, and transcription factor mad. Expression levels of extracellular ligands (a) dpp and (b) gbb are not significantly different from uninfected background control w ¹¹¹⁸ larvae at 24, 40, and 64 h post infection. (c) Transcript levels of scw are significantly up-regulated at 24 and 40 h post infection compared with uninfected controls (*P = 0.0132 and **P = 0.0038, respectively). (d) Transcript levels of sax are up-regulated at 24 and 40 h post infection compared with uninfected controls (*P = 0.0244 and *P = 0.0399, respectively), followed by a decrease at 64 h post infection (*P = 0.0306). (e) Transcript levels of mad are up-regulated at 24 and 40 h post infection compared with uninfected controls (**P = 0.0048 and ****P < 0.0001, respectively), followed by a decrease at 64 h post infection (**P = 0.0067). Red dotted line at 1 indicates normalization of fold change relative to uninfected controls.

mad is transcriptionally up-regulated via type I receptor Sax of the BMP pathway

Following up the results above, we also assessed potential changes in the expression of intracellular components of the BMP pathway upon H. gerrardi challenge. We found that the intracellular receptor sax was transcriptionally up-regulated at the mid timepoint (40 h) in response to H. gerrardi and sequentially decreased at 64 h (Figure 1d). Interestingly, the transcript level pattern of mad, which is responsible for mediating the signal transduction in the BMP branch of the TGF-β pathway, was significantly up-regulated at 40 h post nematode infection compared with uninfected controls, and this up-regulation was substantially higher than the up-regulation observed for scw or sax (Figure 1e). Together, these results suggest that mad regulation is directionally achieved through the regulation of type I receptor sax during infection of D. melanogaster larvae with H. gerrardi nematode parasites.

H. gerrardi infection does not affect the expression of extracellular ligands in the activin pathway of D. melanogaster

We then examined the regulation of the extracellular ligands actβ, myo, mav, and daw in the activin branch of the TGF-β signaling pathway following infection of D. melanogaster larvae with H. gerrardi nematodes (Figure 2). We found that none of the extracellular ligands exhibited significant changes in transcript levels compared with the background control strain w¹¹¹⁸ at any timepoints post nematode infection (Figure 2a–d). These results suggest that TGF-β signaling in D. melanogaster larvae is not regulated at the level of extracellular ligand up-regulation of the activin pathway following H. gerrardi nematode infection.

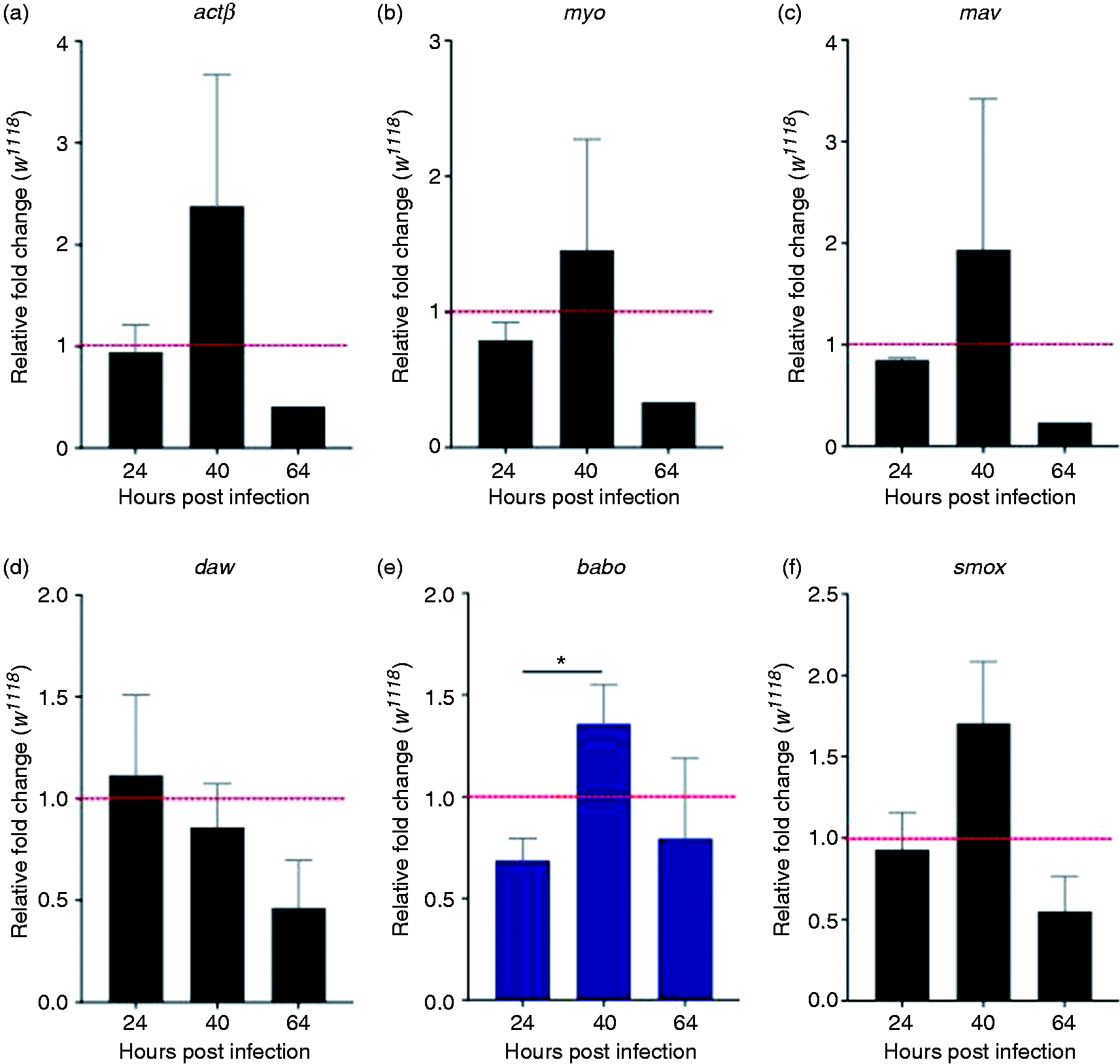

Figure 2.

Within activin signaling pathway, infection of D. melanogaster larvae with H. gerrardi infective juveniles leads to increased transcript levels of receptor babo. The transcript levels of extracellular ligands (a) actβ, (b) myo, (c) mav, (d) daw, and (f) intracellular protein smox are not significantly different compared with the uninfected background control w¹¹¹⁸ larvae at 24, 40, and 64 h post infection. (e) Transcript levels of babo are up-regulated at 40 h compared with 24 h post infection (***P = 0.0379). Red dotted line at 1 indicates normalization of fold change relative to uninfected controls.

mad is transcriptionally up-regulated via type I receptor babo of the activin pathway

Even though the extracellular ligands in the activin branch of the TGF-β signaling pathway were not transcriptionally up-regulated in response to parasitic nematode infection, we included the expression analysis of the receptor babo for its potential to activate mad.¹⁸ Indeed, we found that babo was transcriptionally up-regulated in w¹¹¹⁸ larvae at the mid timepoint (40 h) following infection with H. gerrardi compared with uninfected controls (Figure 2e). In contrast, expression of intracellular protein smox downstream of babo was not affected by H. gerrardi nematode infection (Figure 2f). Collectively, these results suggest that the transcriptional changes of TGF-β signaling in D. melanogaster larvae upon H. gerrardi nematode infection are regulated via signal transducer Mad, through either of the signaling branches, the BMP pathway, or the activin pathway.

mad up-regulation does not contribute to survival and antimicrobial peptide levels in D. melanogaster following infection with H. gerrardi

Generally, the extent of Mad involvement in response against nematode infection is still unclear as the survival of D. melanogaster mad mutant larvae upon H. gerrardi nematode infection was not affected compared with their background control strain w¹¹¹⁸ (Figure 3a). Furthermore, they only marginally triggered immune response, as read-out diptericin transcript levels were slightly higher, albeit insignificant, compared with w¹¹¹⁸ (Figure 3b).

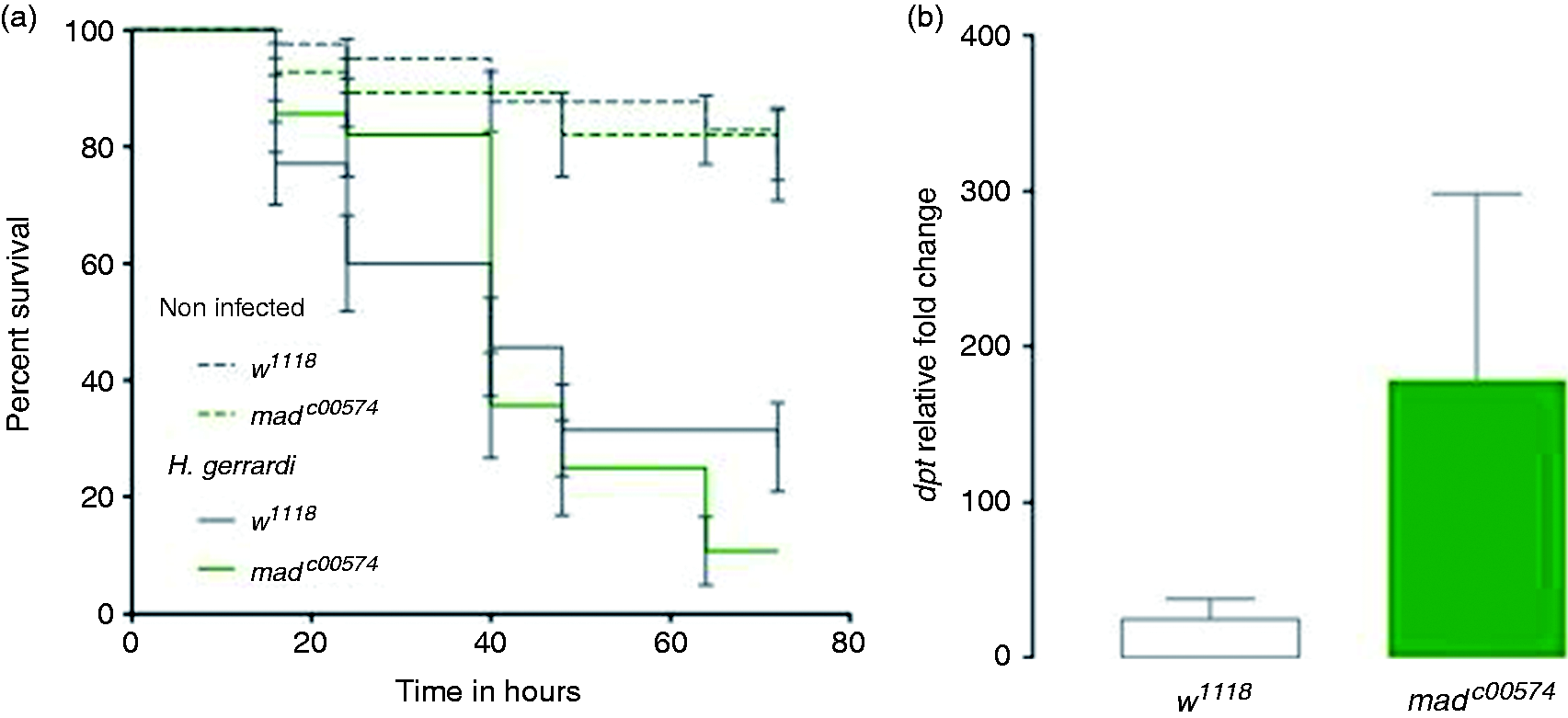

Figure 3.

Mad inactivated D. melanogaster mutant larvae performed similarly as control larvae when challenged with H. gerrardi infective juveniles. (a) Survival of Mad mutant larvae was not significantly different compared with background control w¹¹¹⁸ individuals. (b) At 24 h post infection, diptericin (dpt) transcript levels in Mad mutant larvae do not change significantly compared with w¹¹¹⁸ background controls following H. gerrardi parasitic nematode infection.

Our observation that transcript levels of scw, sax, and mad being up-regulated following infection with H. gerrardi nematodes at a mid timepoint (40 h post infection) is in accordance to the activation of Sax by Scw binding that leads to the phosphorylation of intracellular protein Mad.³⁵ Altogether, these results suggest that the transcriptional changes of TGF-β signaling in D. melanogaster larvae upon H. gerrardi attack are regulated via signal transducer Mad, through either of the signaling branches, the BMP or the activin pathway (Figure 4), but these molecular events do not provide a survival advantage to survival in response to nematode infection.

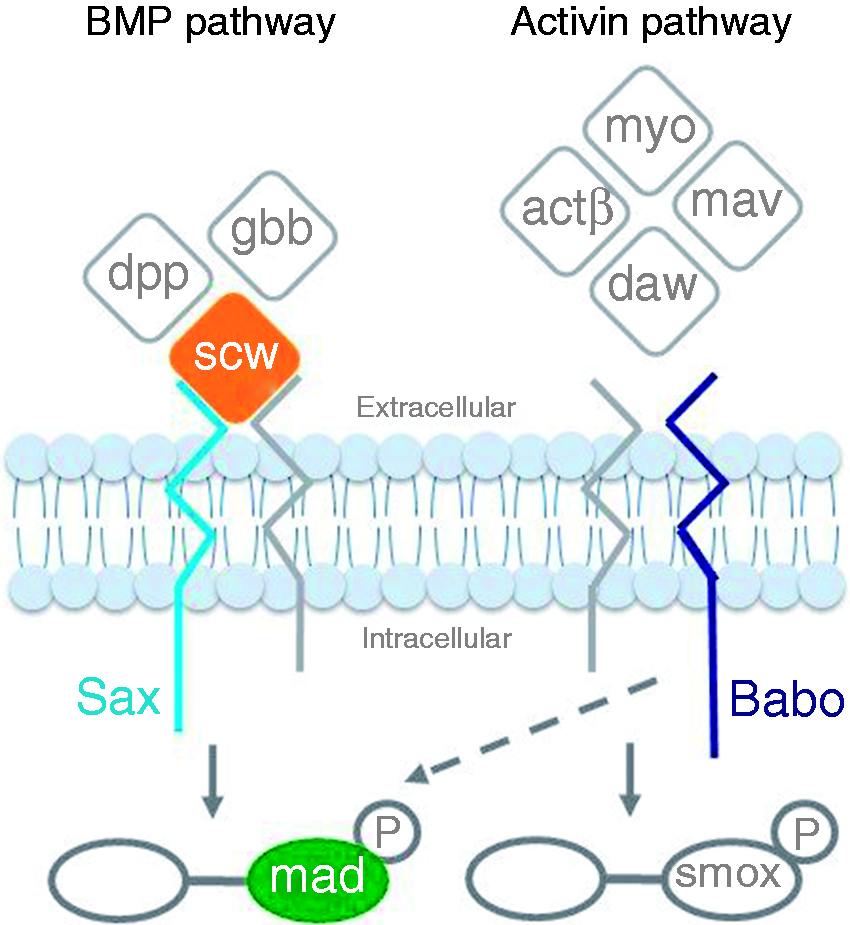

Figure 4.

Proposed model for transcriptional regulation of TGF-β signaling pathway in D. melanogaster following infection with H. gerrardi parasitic nematodes. Upon infection with H. gerrardi infective juveniles, Mad up-regulation in D. melanogaster larvae can be achieved via both BMP and activin branches of the TGF-β signaling pathway. Type I receptors, Sax, and Babo, are up-regulated in response to nematode infection and can lead to up-regulation of Mad. Activation of type I receptor Sax is achieved via binding of the extracellular ligand Scw.

Discussion

Parasitic nematodes cause infectious diseases that represent one of the major threats to human health. To understand the molecular mechanisms that regulate host-nematode interaction, it is crucial to develop and exploit tractable research tools.^1,2 Previous transcriptomic studies have demonstrated that the insect pathogenic nematodes H. bacteriophora are able to infect and kill D. melanogaster larvae, and that different types of signaling pathways are induced in D. melanogaster following infection with these parasites.^25,28 Here, we have examined the molecular regulation of the evolutionarily-conserved TGF-β signaling pathway in D. melanogaster larvae upon infection with a potent nematode parasite. TGF-β signaling has a role in tissue repair and inflammation in mammals and is also involved in the anti-pathogen immune response of adult flies.^11,13

In this study, we analyzed the transcriptional induction of different D. melanogaster BMP and activin signaling components including the type I receptors Sax and Babo upon infection with the parasitic nematode H. gerrardi. TGF-β signaling can be regulated in three distinct settings, the extracellular space, the cell membrane, and the intracellular region. At the level of extracellular ligands, we only observed the up-regulation of scw, a ligand in the BMP branch. In contrast, expression of dpp and daw, shown previously to be induced upon nematode infection of D. melanogaster adult flies,¹³ was not altered in larvae compared with uninfected controls, suggesting that the up-regulation of a specific TGF-β ligand, scw in this case, is restricted to developmental stage. When Scw binds to the type I receptor Sax, it leads to the activation of Mad. Indeed, we observed increased expression of sax and mad following infection with the nematode parasite H. gerrardi.

In Drosophila S2 cells, Mad up-regulation through Babo has been linked to Daw ligand binding.³⁶ Even though we did not observe up-regulation of extracellular ligands in the activin branch, the type I receptor Babo is up-regulated at a late timepoint following nematode infection and can also lead to activation of Mad.¹⁸ These results support the notion that transcriptional induction of mad in D. melanogaster larvae following infection with H. gerrardi parasitic nematodes can be achieved via either the BMP or activin branch (Figure 4). In mammalian hosts, helminth parasite infection triggers the activation of Mad and leads to increase in TGF-β levels.³⁷

The observation that there is no apparent change in transcript levels of other extracellular ligands following infection with H. gerrardi nematodes suggests that the up-regulation of extracellular ligand scw, as well as Type I receptors sax and babo, is nematode-species-specific. Indeed, transcriptional regulation of other extracellular ligands, such as dpp and daw, has been observed following infection with the related parasitic nematode species, H. bacteriophora.¹³ However, these results were obtained in nematode-infected adult flies. Therefore, our results indicate that the transcriptional changes of TGF-β signaling components through binding of different extracellular ligands can be achieved by different types of parasitic nematode infection in different life stages of D. melanogaster. Furthermore, the activation of a known antimicrobial immune signaling pathway, such as IMD, was not impaired following nematode infection of mad inactivated mutants, which showed similar sensitivity to H. gerrardi infection compared with background controls. These findings imply that, despite the observed differential regulation of mad, there is lack of cross-talk between the expression of this TGF-β signaling component and IMD pathway activation in D. melanogaster larvae in the context of H. gerrardi challenge, and these effects fail to alter insect survival against these nematodes.

Our current results follow up on previous findings and establish the involvement of TGF-β pathway in modulating insect-nematode molecular interactions. Our finding that the TGF-β intracellular signaling transducer mad can be up-regulated by both branches of the TGF-β signaling pathway (BMP and activin) indicates a potentially key role in the Drosophila signaling response to H. gerrardi. Further research involving related entomopathogenic nematodes, such as H. bacteriophora and H. downesi, or nematodes from the genus Steinernema together with natural insect hosts, such as lepidopteran larvae, could provide additional insight on whether activation of this pathway is nematode-specific or conserved as a wider insect anti-nematode response, and whether there is interaction with Toll, JAK/STAT, and JNK pathways, which also contribute to the immune response against different types of microbial infections.^6,8,10 Interestingly, expression of daw and dpp in Bombyx mori is differentially regulated in hemocytes of larvae infected with the nucleohedrovirus BmNPV, and virus replication can be reduced by overexpressing daw and dpp, or it can increase by RNAi knockdown of these molecules in B. mori culture cells.³⁸ In addition, functional studies involving experiments to investigate the cellular immune response³⁹ of larvae with mutations in certain TGF-β signaling molecules (including the type II receptors Punt and Wishful Thinking that can function in both the BMP and activin pathways) as well as the interaction between BMP/Activin signaling and the phenoloxidase/melanization activity will include both larvae and adult flies of the model insect D. melanogaster as well as natural insect hosts together with a collection of nematode parasites.^11,16,40

We anticipate that results from these efforts will lead to better understanding of evolutionarily conserved mechanisms of the insect host anti-nematode immune defense. These are central questions that apply not only to insect/invertebrate models but also to the mammalian innate immune system and have parallels with other parasitic organisms; therefore, similar findings will contribute towards clarifying some of the underlying rules about how hosts regulate anti-nematode immune signaling.

Footnotes

Acknowledgements

We thank Kyle Devine for maintaining the Drosophila stocks, and members of the Department of Biological Sciences at George Washington University for critical reading of the manuscript.

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: the National Institute of Allergy and Infectious Diseases (grant 1R01AI110675–01A1 and 1R56AI110675-01).

References

Krecek

Waller

. Towards the implementation of the “basket of options” approach to helminth parasite control of livestock: Emphasis on the tropics/subtropics. Vet Parasitol 2006; 139: 270–282.

Stock

. Insect-parasitic nematodes: From lab curiosities to model organisms. J Invertebr Pathol 2005; 89: 57–66.

Lemaitre

Kromer-Metzger

Michaut

et al.

A recessive mutation, immune deficiency (imd), defines two distinct control pathways in the Drosophila host defense. Proc Natl Acad Sci USA 1995; 92: 9465–9469.

Corbo

Levine

. Characterization of an immunodeficiency mutant in Drosophila. Mech Dev 1996; 55: 211–220.

Lemaitre

Hoffmann

. The host defense of Drosophila melanogaster. Annu Rev Immunol 2007; 25: 697–743.

Valanne

Wang

J-H

Rämet

. The Drosophila Toll signaling pathway. J Immunol 2011; 186: 649–656.

Kleino

Silverman

. The Drosophila IMD pathway in the activation of the humoral immune response. Dev Comp Immunol 2014; 42: 25–35.

Rämet

Lanot

Zachary

et al.

JNK signaling pathway is required for efficient wound healing in Drosophila. Dev Biol 2002; 241: 145–156.

Agaisse

Perrimon

Agaisse

et al.

The roles of JAK/STAT signaling in Drosophila immune responses. Immunol Rev 2004; 198: 72–82.

10.

Myllymäki

Rämet

. JAK/STAT Pathway in Drosophila Immunity. Scand J Immunol 2014; 79: 377–385.

11.

Wan

Sanjabi

et al.

Transforming growth factor-Β regulation of immune responses. Annu Rev Immunol 2006; 24: 99–146.

12.

Clark

Woodcock

Geissmann

et al.

Multiple TGF-β superfamily signals modulate the adult Drosophila immune response. Curr Biol 2011; 21: 1672–1677.

13.

Eleftherianos

Castillo

Patrnogic

. TGF-β signaling regulates resistance to parasitic nematode infection in Drosophila melanogaster. Immunobiology 2016; 221: 1362–1368.

14.

Shi

Massagué

. Mechanisms of TGF-β signaling from cell membrane to the nucleus. Cell 2003; 113: 685–700.

15.

Peterson

O’Connor

. Strategies for exploring TGF-β signaling in Drosophila. Methods 2014; 68: 183–193.

16.

Raftery

Sutherland

. TGF-β family signal transduction in Drosophila development: from Mad to Smads. Dev Biol 1999; 210: 251–268.

17.

Chapnick

Liu

. Dynamics of TGF-β/Smad signaling. FEBS Lett 2012; 586: 1921–1928.

18.

Gesualdi

Haerry

. Distinct signaling of Drosophila Activin/TGF-beta family members. Fly 2007; 1: 212–221.

19.

Hallem

Rengarajan

Ciche

et al.

Nematodes, bacteria, and flies: A tripartite model for nematode parasitism. Curr Biol 2007; 17: 898–904.

20.

Wang

Wilhelmsson

Hyrsl

et al.

Pathogen entrapment by transglutaminase—A conserved early innate immune mechanism. PLoS Pathog 2010; 6: e1000763–e1000763.

21.

Arefin

Kucerova

Dobes

et al.

Genome-wide transcriptional analysis of Drosophila larvae infected by entomopathogenic nematodes shows involvement of complement, recognition and extracellular matrix proteins. J Innate Immun 2014; 6: 192–204.

22.

Hyrsl

Dobes

Wang

et al.

Clotting factors and eicosanoids protect against nematode infections. J Innate Immun 2011; 3: 65–70.

23.

Dobes

Wang

Markus

et al.

An improved method for nematode infection assays in Drosophila larvae. Fly 2012; 6: 75–79.

24.

Castillo

Shokal

Eleftherianos

. A novel method for infecting Drosophila adult flies with insect pathogenic nematodes. Virulence 2012; 3: 339–347.

25.

Castillo

Shokal

Eleftherianos

. Immune gene transcription in Drosophila adult flies infected by entomopathogenic nematodes and their mutualistic bacteria. J Insect Physiol 2013; 59: 179–185.

26.

Kucerova

Broz

Arefin

et al.

The Drosophila chitinase-like protein IDGF3 is involved in protection against nematodes and in wound healing. J Innate Immun 2016; 8: 199–210.

27.

Peña

Carrillo

Hallem

. Variation in the susceptibility of Drosophila to different entomopathogenic nematodes. Infect Immun 2015; 83: 1130–1138.

28.

Castillo

Creasy

Kumari

et al.

Drosophila anti-nematode and antibacterial immune regulators revealed by RNA-Seq. BMC Genomics 2015; 16: 519–519.

29.

Gerrard

Joyce

Clarke

et al.

Nematode symbiont for Photorhabdus asymbiotica. Emerg Infect Dis 2006; 12: 1562–1564.

30.

Plichta

Joyce

Clarke

et al.

Heterorhabditis gerrardi n. sp. (Nematoda: Heterorhabditidae): the hidden host of Photorhabdus asymbiotica (Enterobacteriaceae: gamma-Proteobacteria). J Helminthol 2009; 83: 309–320.

31.

Costa

SCP

Girard

Brehélin

et al.

The emerging human pathogen Photorhabdus asymbiotica is a facultative intracellular bacterium and induces apoptosis of macrophage-like cells. Infect Immun 2009; 77: 1022–1030.

32.

Waterfield

Sanchez-Contreras

Eleftherianos

et al.

Rapid Virulence Annotation (RVA): Identification of virulence factors using a bacterial genome library and multiple invertebrate hosts. Proc Natl Acad Sci USA 2008; 105: 15967–15972.

33.

Eleftherianos

ffrench-Constant

Clarke

et al.

Dissecting the immune response to the entomopathogen Photorhabdus. Trends Microbiol 2010; 18: 552–560.

34.

White

. A method for obtaining infective nematode larvae from cultures. Science 1927; 66: 302–303.

35.

Neul

Ferguson

. Spatially restricted activation of the SAX receptor by SCW modulates DPP/TKV signaling in Drosophila dorsal–ventral patterning. Cell 1998; 95: 483–494.

36.

Peterson

Jensen

Shimell

et al.

R-SMAD competition controls activin receptor output in Drosophila. PLoS One 2012; 7: e36548–e36548.

37.

Johnston

CJC

Smyth

Dresser

et al.

TGF-β in tolerance, development and regulation of immunity. Cell Immunol 2015; 299: 14–22.

38.

Jiang

Gong

et al.

Important roles played by TGF-β member of Bmdpp and Bmdaw in BmNPV infection. Mol Immunol 2016; 73: 122–129.

39.

Parsons

Foley

. Cellular immune defenses of Drosophila melanogaster. Dev Comp Immunol 2016; 58: 95–101.

40.
