Supramolecular chemistry of organoplatinum(IV) complexes: A syndiotactic polymer with uracil substituents

Abstract

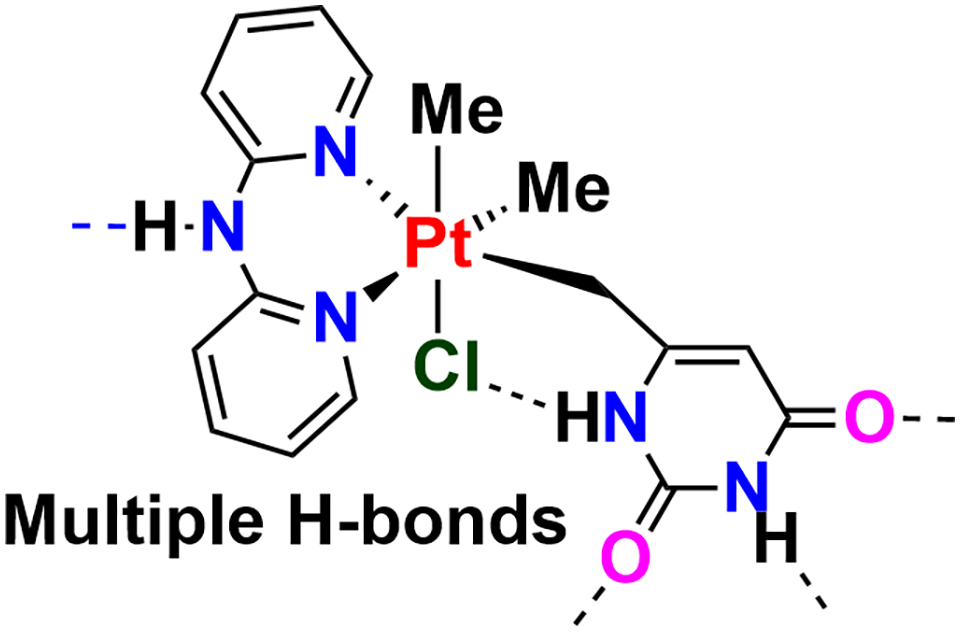

The reaction of RCH₂X with [PtMe₂(DPA)], 1, (DPA = di-2-pyridylamine) has given [PtXMe₂(CH₂R)(DPA)] by cis oxidative addition to give 2a, when R = 6-uracil, X = Cl, or 3a, when R = CO₂H, X = Br, but by a mixture of cis and trans oxidative addition to give 4a/4b when R = 4-C₆H₄CO₂H, X = Br. The unusual cis stereochemistry of oxidative addition is rationalized thermodynamically by the formation of an intramolecular hydrogen bond in 2a and 3a but not 4a, and kinetically by the role of the ligand DPA NH group in hydrogen bonding to halide. Complex 2a in the solid state forms an unusual supramolecular syndiotactic polymer by forming two different intermolecular NH..O=C hydrogen bonds to neighbouring molecules.

Introduction

The fields of supramolecular chemistry and organometallic chemistry continue to flourish, and there is increasing interest in the interface of these areas, since the products have potential applications in molecular materials, polymers, catalysis or pharmaceuticals.^1–7 For example, there are now many platinum complexes that contain substituents with hydrogen bonding properties that can participate in supramolecular self-assembly.^8–15 The incorporation of nucleobase units in platinum complexes has been a particular area of interest because both have important applications in cancer therapy, either separately or in combination. For example, a combination of 5-fluorouracil and cisplatin is effective against several tumour types.^16–18

A versatile route to organoplatinum(IV) complexes is by oxidative addition of alkyl halides to electron-rich platinum(II) complexes. These reactions typically occur by the polar S_N2 mechanism, leading to trans oxidative addition.^19,20 The reactions are tolerant of many functional groups. Specifically, hydrogen bonding groups, including carboxylic acids and the nucleobase uracil can be incorporated in this way (Scheme 1).^21–24 Complexes A and C have been shown to have the structures expected for trans oxidative addition, and they both self-assemble to form supramolecular dimers (Scheme 1). ²¹

Scheme 1.

The synthesis and supramolecular self-assembly of some organoplatinum(IV) complexes with hydrogen bonding substituents.

This paper describes related chemistry using the chelate ligand di-2-pyridylamine [HN(2-C₅H₄N)₂, DPA] in place of the 4,4′-di-t-butyl-2,2′-bipyridine (bubipy) ligand of Scheme 1. ²¹ DPA has an NH group and so there is potential for more extensive hydrogen bonding and self-assembly. ²⁵ Surprisingly, a difference in the stereochemistry of oxidative addition was observed, and the structure of a syndiotactic supramolecular polymer is described. We note the related expertise of Alwyn Davies in the self-association of organometallic compounds.^26,27

Results and discussion

The new organoplatinum complexes are shown in Scheme 2. The complex [PtMe₂(DPA)] (DPA = 2,2′-dipyridylamine), 1, has been reported previously but details of its spectra were not given. ²⁵ In the ¹H NMR spectrum, the methylplatinum groups give a singlet resonance at δ(¹H) = 0.58, with satellites arising from the coupling to ¹⁹⁵Pt with ²J(PtH) = 86 Hz, a typical value for methylplatinum(II) complexes. The NH resonance appeared as a broad singlet at δ(¹H) = 0.58. The organoplatinum(IV) complexes were prepared by oxidative addition of the corresponding alkyl halide to complex 1. Unexpectedly, the oxidative addition of 6-(chloromethyl)uracil and bromoacetic acid gave the products of cis oxidative addition 2a and 3a, in contrast to the trans stereochemistry observed with the corresponding bubipy complexes (Scheme 1). ²¹ The oxidative addition of 4-(bromomethyl)benzoic acid gave a mixture of the products of cis and trans oxidative addition, 4a and 4b, in approximately 1:3 ratio (Scheme 2).

Scheme 2.

The synthesis of organoplatinum(IV) complexes with hydrogen bonding groups.

We were not able to grow good single crystals of the carboxylic acid derivatives 3 or 4, but the stereochemistry was clearly defined by the NMR spectra. Thus, complex 3a and 4a have no symmetry while 4b has effective mirror symmetry (point group C_s). Complex 3a was formed as a single isomer and the ¹H NMR spectrum contained two equal intensity methylplatinum resonances at δ(¹H) = 0.87, ²J(PtH) = 72 Hz, and 1.20, ²J(PtH) = 70 Hz, and the coupling constants ²J(PtH) are typical for platinum(IV) complexes. ²¹ The PtCH₂ protons are diastereotopic and gave two doublet resonances at δ(¹H) = 2.42, ²J(HH) = 8 Hz, ²J(PtH) = 104 Hz, and 2.56, ²J(HH) = 8 Hz, ²J(PtH) = 102 Hz. Complex 4a gave similar NMR parameters, but the more symmetrical isomer 4b gave a single methylplatinum resonance at δ(¹H) = 1.08, ²J(PtH) = 70 Hz, and a single PtCH₂ resonance at δ(¹H) = 3.05, ²J(PtH) = 102 Hz. The 1:3 ratio of 4a:4b did not change at temperatures up to 60 °C, above which slow decomposition occurred.

The ¹H NMR spectrum of complex 2a clearly indicated the stereochemistry arising from cis oxidative addition. Thus, there were two methylplatinum resonances at δ(¹H) = 0.84, ²J(PtH) = 73 Hz, and 0.87, ²J(PtH) = 68 Hz, while the diastereotopic PtCH₂ protons gave an ‘AB’ quartet with δ(¹H) = 2.53, ²J(HH) = 10 Hz, ²J(PtH) = 82 Hz, and 3.11, ²J(HH) = 10 Hz, ²J(PtH) = 114 Hz. In this case, an X-ray structure determination was possible and the interesting features are shown in Figure 1. The complex 2a is chiral but crystallizes as a racemic mixture. The lattice contains equal amounts of the two enantiomers (for octahedral complexes, defined as C, clockwise, or A, anticlockwise). ²⁸ Figure 1(a) shows the molecular structure for one enantiomer, and indicates that there is an intramolecular NH..ClPt hydrogen bond, with distance N(5)..Cl(1) 3.125(5) Å. It is likely that it is the presence of this hydrogen bond that favours the formation of the product of cis oxidative addition 2a. In addition to this intramolecular hydrogen bond, each molecule is connected to a molecule of opposite chirality on either side by formation of complementary, head-to-tail intermolecular NH..O=C hydrogen bonds. On one side, the hydrogen bond donor is the N(2)H group of the DPA ligand and the acceptor is the uracil carbonyl oxygen atom O(2) of a neighbour related by inversion symmetry (Figure 1(b)), with distances N(2)..O(2B) = O(2)N(2B) = 2.865(6) Å. On the other side, the hydrogen bond donor is the uracil N(4)H group and the acceptor is the uracil carbonyl oxygen atom O(1) of a second neighbour, also related by inversion symmetry (Figure 1(c)), with distances N(4)..O(1A) = O(1)..N(4A) = 2.789(7) Å. In the related complex C (Scheme 1), formed by trans oxidative addition, the inter-uracil group hydrogen bonding involves the other pair of NH and CO groups. ²¹ The combination of the two forms of intermolecular hydrogen bonding results in the formation of a supramolecular syndiotactic polymer, with alternating CACA^.. chirality of the platinum complex components 2a (Figure 1(d)).

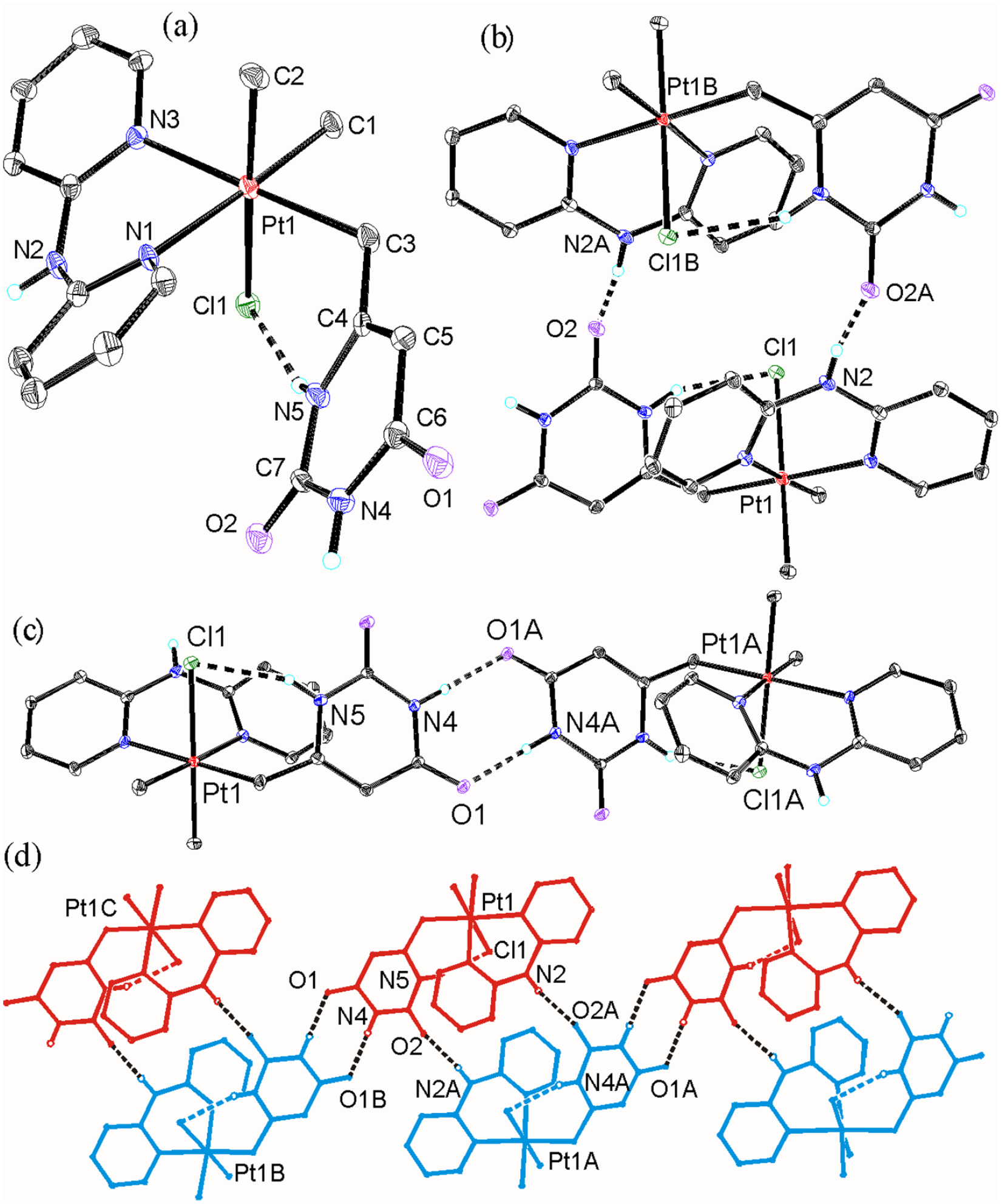

Figure 1.

Views of the structure of complex 2a; (a) the molecular structure and intramolecular hydrogen bond [graph set S¹₁(6), N(5)..Cl(1) 3.125(5) Å]; (b) intermolecular hydrogen bonds [graph set R²₂(20), N(2)..O(2B) = O(2)..N(2B) = 2.865(6) Å, symmetry equivalent atoms x,y,z; 2-x, -y,1-z]; (c) intermolecular hydrogen bonds [graph set R²₂(8), N(4)..O(1A) = O(1)..N(4A) = 2.789(7) Å, symmetry equivalent atoms x,y,z; 2-x, -1-y, -z]; (d) part of the supramolecular polymer formed by intermolecular hydrogen bonding (opposite enantiomers shown as red and blue).

To gain further insight into the molecular stereochemistry of the complexes, DFT calculations were carried out for both products of cis and trans oxidative addition (see experimental for details). ²⁹ The calculated structures and relative energies are shown in Figure 2. The calculations successfully predict the greater relative stability of 2a over 2b, by 11 kJ mol^–1, and 3a over 3b, by 21 kJ mol^–1. This is consistent with the presence of an intramolecular hydrogen bond, NH..Cl in 2a and OH..Br in 3a, only in the products of cis oxidative addition. The geometry of 4a (Figure 2(c)) does not allow formation of an intramolecular OH..Br hydrogen bond and, in this situation, the product of trans oxidative addition 4b is predicted to be more stable (by 20 kJ mol^–1). In related complexes [PtXMe₂R(NN)], X = halogen, NN = diamine ligand, it is generally found that the bulkier alkyl group R prefers the axial coordination site trans to X, so complex 4 behaves in the expected way with 4b preferred over 4a when hydrogen bonding is not present.^19,20,30 The DFT calculations do not consider intermolecular interactions, so the quantitative aspects should be considered with caution, but the predictions do support the experimental observations in a qualitative way.

Figure 2.

Calculated structures of trans and cis isomers of the complexes and their relative energies: (a) complex 2, (b) complex 3, (c) complex 4. Most of the hydrogen atoms are omitted, for clarity, with only those in NH or OH groups shown.

Conclusion

The prediction that the platinum(IV) complexes with DPA ligand might give different structures compared to the bubipy complexes of Scheme 1 has been upheld (Scheme 2). The observation of much faster cis-trans isomerism of the DPA complexes was not predicted but can be rationalized according to Scheme 3. The easy flexing of the 6-membered Pt(DPA) ring can allow the NH group to hydrogen bond to the leaving halide ion in the first step of the S_N2 oxidative addition to give 5-coordinate intermediate D .^19,20 The hydrogen bonding may then slow the transfer of the halide ion to platinum to give the typical product of trans oxidative addition, F . This slower coordination step can give time for the isomerization step from D to give E , and then halide transfer to platinum to give the product of cis oxidative addition G can occur. The hydrogen bonding might also facilitate the halide dissociation from F or G and so allow further isomerization steps by way of D or E (Scheme 3).

Scheme 3.

A likely mechanism of cis-trans isomerization for the DPA complexes.

The most interesting case was the oxidative addition of 6-(chloromethyl)uracil to give the chiral complex 2a (Scheme 2 and Figure 1). Compared with the bupy derivative C of Scheme 1, complex 2a is formed by cis rather than trans oxidative addition, it has an intramolecular NH..Cl hydrogen bond, it uses the NH/C=O groups at the 3/4 positions rather than the 1/2 positions of the uracil group in forming the intermolecular complementary head-to-tail NH..O = C hydrogen bonds between uracil groups,^17,31 and it contains extra intermolecular complementary head-to-tail NH..O=C hydrogen bonds using the NH group of the DPA ligand and the carbonyl group at the 2-position of the uracil group. The overall result is to form a supramolecular, syndiotactic polymer (Figure 1), whereas C forms a supramolecular dimer (Scheme 1). ²¹ The supramolecular self-assembly is becoming an important component of the toolbox for synthesis of functional organometallic polymers.^32–35

Experimental

The complex [Pt₂Me₄(µ-SMe₂)₂] was prepared according to the literature method.^36,37 NMR spectra were recorded by using a Varian Mercury 400 NMR or Varian Inova 600 NMR spectrometer. ¹H chemical shifts are reported relative to TMS and assignments were aided by ¹H-¹H NOESY and ¹H-¹H gCOSY experiments. The NMR labels are shown in Chart 1. IR spectra were recorded using a Bruker Vector spectrometer by ATR. X-ray data were collected at 150 K using a Nonius Kappa CCD diffractometer with graphite-monochromated Mo-Κα radiation (λ = 0.71073 Å). A suitable crystal of 2a, grown from DMSO/methanol/ether solution, was coated in Paratone oil and mounted on a glass fibre loop. Unit cell parameters were calculated and refined from the full data set. The structure was solved by direct methods and refined by full-matrix least-squares techniques using the SHELX suite of crystallographic software.^38,39 The hydrogen atoms were placed in calculated positions and refined using the riding model. There was a disordered solvent molecule in the lattice which could not be modelled so the program SQUEEZE was used to account for the electron density. ⁴⁰ Details of the structure are given in the Supplementary cif file (CCDC 2168906). The DFT calculations were carried out using the BLYP functional, with double-zeta basis set and first-order scalar relativistic corrections, with solvation modelled for dichloromethane solution by using COSMO, all as implemented in ADF-2020. ²⁹ Details of the calculated ground state structures are given in the Supporting Information.

Chart 1.

NMR labels.

[PtMe₂(DPA)] (DPA = 2,2′-dipyridylamine), 1

To a stirred solution of [Pt₂(SMe₂)₂Me₄] (1.50 g, 2.61 mmol) in diethyl ether (30 mL) was added 2,2′-dipyridylamine (1.25 g, 7.34 mmol) and the mixture was stirred for 3 h. The yellow precipitate which formed was separated by filtration, washed with ether (2 × 5 mL) and dried under vacuum. Yield 1.37 g, 61%. NMR in acetone-d₆: δ(¹H) = 0.58(s, 6H, ²J(PtH) = 86 Hz, PtMe), 6.94 (dd, 1H, ³J(H⁶H⁵) = 6 Hz, ³J(H⁵H⁴) = 8 Hz, H⁵), 7.17 (d, 2H, ³J(H⁴H³) = 8 Hz, H³), 7.82 (t, 2H, ³J(H⁴H³) = ³J(H⁴H⁵) = 8 Hz, H⁴), 8.59 (d, 2H, ³J(H⁶H⁵) = 6 Hz, H⁶), 9.28 (s, 1H, NH⁷). Anal. calcd for C₁₂H₁₅N₃Pt: C 36.4, H 3.8, N 10.6. Found: C 36.2, H 3.6, N 10.3%.

[PtClMe₂(CH₂C₄H₃N₄O₂)(DPA)], 2a

To a solution of [PtMe₂(DPA)], 1 (0.100 g, 0.25 mmol) in acetone (5 mL) was added a solution of 6-(chloromethyl)uracil (0.050 g, 0.31 mmol) in THF (5 mL). The mixture was stirred for 3 h, the solvent was removed under vacuum, and the product was recrystallized from MeCN/MeOH/Et₂O to give colourless crystals. Yield 0.095 g, 68%.

NMR in DMSO-d₆: δ(¹H) = 0.84 (s, 3H, ²J(PtH) = 73 Hz, PtMe), 0.87 (s, 3H, ²J(PtH) =68 Hz, PtMe), 2.53 (d, 1H, ²J(HH) = 10 Hz, ²J(PtH) = 82 Hz, CH^a), 3.11 (d, 1H, ²J(HH) = 10 Hz, ²J(PtH) = 114 Hz, CH^b), 5.19 (s, 1H, uracil CH); 7.16 (dd, 1H, ³J(H^6aH^5a) = 6 Hz, ³J(H^5aH^4a) = 7 Hz, H^5a); 7.18 (dd, 1H, ³J(H^6bH^5b) = 6 Hz, ³J(H^5bH^4b) = 7 Hz, H^5b); 7.29 (d, 1H, ³J(H^4bH^3b) = 8 Hz, H^3b); 7.30 (d, 1H, ³J(H^4aH^3a) = 8 Hz, H^3a); 7.92 (m, 2H, H^4a, H^4b); 8.25 (d, 1H, ³J(H^6bH^5b) = 6 Hz, H^6b); 8.40 (d, 1H, ³J(H^6aH^5a) = 6 Hz, H^6a), 9.84 (s, 1H, uracil NH¹); 10.66 (s, 1H, uracil NH³; 10.71 (s, 1H, NH⁷). IR (cm^–1): 1715, 1612 [ν(C=O)], 3100 [br, ν(NH)]. Anal. calcd for C₁₇H₂₀ClN₅O₂Pt: C 36.7, H 3.6, N 12.6. Found: C 37.0, H 3.6, N 12.3%.

[PtBrMe₂(CH₂CO₂H)(DPA)], 3a

To a solution of complex 1 (0.100 g, 0.25 mmol) in acetone (5 mL) was added a solution of bromoacetic acid (0.040 g, 0.29 mmol) in acetone (1 mL). The mixture was stirred for 3 h at room temperature. The solvent was removed under vacuum and the off-white product was washed with ether (5 mL) and dried under vacuum. Yield 0.12 g, 88%. NMR in DMSO-d₆: δ(¹H) = 0.87 (s, 3H, ²J(PtH) = 72 Hz, PtMe); 1.20 (s, 3H, ²J(PtH) = 70 Hz, PtMe); 2.42 (d, 1H, ²J(HH) = 8 Hz, ²J(PtH) = 104 Hz, PtCH^a); 2.56 (d, 1H, ²J(HH) = 8 Hz, ²J(PtH) = 102 Hz, PtCH^b); 7.14 (dd, 1H, ³J(H^4bH^5b) = 7 Hz ³J(H^5bH^6b) = 6 Hz, H^5b); 7.17 (dd, 1H, ³J(H^4aH^5a) = 7 Hz, ³J(H^5aH^6a) = 6 Hz, H^5a); 7.24 (d, 1H, ³J(H^3bH^4b) = 8 Hz, H^3b); 7.25 (d, 1H, ³J(H^3aH^4a) = 8 Hz, DPA H^3a), 7.89 (m, 2H, H^4a, H^4b); 8.32 (d, 1H, ³J(H^6bH^5b) = 6 Hz, H^6b); 8.79 (d, 1H, ³J(H^6aH^5a) = 6 Hz, H^6a), 10.61 (s, 1H, NH⁷). IR (cm^–1): 1720 [ν(C=O)], 3100 [br, ν(OH), ν(NH)]. Anal. calcd for C₁₄H₁₈BrN₃O₂Pt: C 31.4, H 3.4, N 7.8. Found: C 31.1, H 3.6, N 7.6%.

[PtBrMe₂(4-CH₂C₆H₄CO₂H)(DPA)], 4a and 4b

This was prepared similarly from complex 1 (0.100 g, 0.25 mmol) and 4-(bromomethyl)benzoic acid (0.060 g, 0.28 mmol). The product was isolated as a white powder. Yield 0.11 g, 71%. NMR in DMSO-d₆: 4b, δ(¹H) = 1.08 (s, 6H, ²J(PtH) = 70 Hz, PtMe); 3.05 (s, 2H, ²J(PtH) = 102 Hz, PtCH₂); 6.97-8.68 (m, 12H, aromatic CH), 10.48 (s, 1H, NH⁷); 4a, δ(¹H) = 0.66 (s, 3H, ²J(PtH) = 73 Hz, PtMe); 0.79 (s, 3H, ²J(PtH) = 70 Hz, PtMe); 2.48 (d, 1H, ²J(HH) = 8 Hz, ²J(PtH) = 102 Hz, PtCH^a), 2.31 (d, 1H, ²J(HH) = 8 Hz, ²J(PtH) = 100 Hz, PtCH^b), 6.97-8.68 (m, 12H, aromatic CH), 10.52 (s, 1H, NH⁷). Ratio 4a:4b = 1:3. IR (cm^–1): 1690 [ν(C=O)], 3005 [br, ν(OH), ν(NH)]. Anal. calcd for C₂₀H₂₂BrN₃O₂Pt: C 39.3, H 3.6, N 6.9. Found: C 38.9, H 3.8, N 6.5%.
