Synthesis of diaryl sulfides based on copper-doped OMS-2

Abstract

We describe a practical protocol for efficiently preparing diaryl sulfide compounds using Cu–OMS-2 as the catalyst. Cu–OMS-2 originates from manganese oxide octahedral molecular sieves modified with copper ions and catalyzes the C–S coupling reaction of substituted thiophenols and aryl halides. This protocol has the advantages of environmental friendliness, simple operation, high yields, good tolerance of functional groups, and the Cu–OMS-2 catalytic material can be recycled several times.

Introduction

Sulfides, appearing frequently in natural products and medicines,^1,2 are critical sulfur-containing organic compounds, especially in the field of new synthetic drugs. However, the traditional method of synthesizing sulfides by transition metal–catalyzed C–S coupling reaction of aryl halides with thiols has the shortcomings of high cost, harsh reaction conditions, and long response times.^3–5 Therefore, it is necessary to develop new and efficient synthetic methods by taking advantage of new catalytic materials.

In 1978, a C–S bond coupling reaction catalyzed by palladium was reported by Kosugi et al. ⁶ , who used Pd(PPh₃)₄ as the catalyst to produce a series of thioether compounds by coupling iodobenzene or bromobenzene compounds with thiophenols or mercaptans. In 2009, Xu et al. ⁷ reported a method to construct C–S bonds using halogenated hydrocarbons and mercaptans with Cu₂O. The main advantages of this method were that cheap and readily available Cu₂O replaced the expensive and specialized copper salts, and that the reaction could be carried out in air without N₂ protection. Compared with traditional methods, the transition metal–catalyzed coupling reaction of halogenated hydrocarbons and sulfur compounds has the advantages of simple operation, high efficiency, low cost, and mild reaction conditions, which have firmly attracted the attention of researchers. In 2012, Das and Chakraborty ⁸ revealed a method to synthesize thioethers using thiophenol and organic boric acid as substrates with AgOTf, 4Å molecular sieves, and KOH (Scheme 1(a)). In 2015, Anilkumar who has devoted significant efforts to study transition metal–catalyzed coupling reactions to prepare sulfides^9–11 reported a method to produce sulfides using an Fe salt as the catalyst (Scheme 1(b)). We have also reported some methods for synthesizing aryl sulfides by heterogeneous catalysis.^12–14

Scheme 1.

Strategies for the construction of sulfides: (a) Das and Chakraborty, ⁸ (b) Anilkumar (2015) ⁹ , and (c) this work.

Manganese oxide octahedral molecular sieves (OMS-2), the structure of which is similar to zeolite molecular sieves, are a new type of material that can supply a high specific surface area. Furthermore, the specialized framework structure of OMS-2 with a large number of mixed valence Mn ions (Mn²⁺, Mn³⁺, Mn⁴⁺) allows it to perform well in redox reactions. Later, researchers found that OMS-2 also demonstrated an excellent performance in the field of organic synthetic catalysis when different metal ions were used to modify OMS. Reflux,^15–18 ball milling, ¹⁹ impregnation, ²⁰ and multi-step hydrothermal methods^21–23 can produce OMS doped with Cu.

Finally, a one-step hydrothermal method was developed to synthesize the copper-doped manganese oxide octahedral molecular sieves (Cu–OMS-2). Figure 1 illustrates that the synthesized Cu–OMS-2 catalyst has a typical cryptomelane structure (KMn₈O₁₆).^24,25 Obvious characteristic peaks observed at the angles of 12.6°, 17.9°, 28.7°, 37.5°, 41.9°, 49.9°, and 60.1° are basically consistent with the data for standard OMS-2 PDF card (JCPDS-29-1020). Furthermore, the image indicates that Cu did not affect the crystal bulk structure of OMS-2 in the prepared Cu–OMS-2 catalyst. In addition, no obvious characteristic diffraction peaks corresponding to copper crystal phase oxides were detected in the X-ray diffraction (XRD) pattern, implying that the doped copper was highly dispersed in Cu–OMS-2. It is further speculated that some copper ions are located into the framework or pores. The morphology of the catalyst was observed by scanning electron microscope (SEM). Figure 2 illustrates the rod-like morphology of Cu–OMS-2.

Figure 1.

X-ray powder diffractogram of Cu–OMS-2.

Figure 2.

SEM image of Cu–OMS-2.

Based on our previous research,^26–32 herein, we report a method to efficiently synthesize diaryl sulfide compounds by utilizing copper-doped manganese oxide octahedral molecular sieves (Cu–OMS-2) to catalyze the heterogeneous C–S coupling reaction of thiophenols and aryl halides (Scheme 1(c)).

Results and discussion

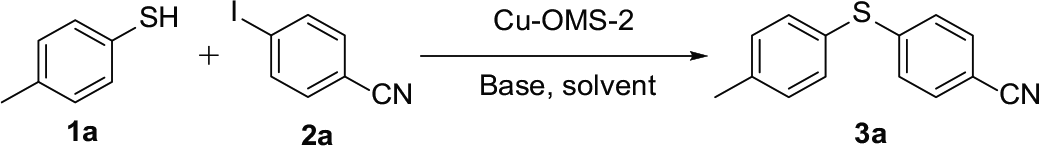

We began our initial trials with 4-methylthiophenol (1a) and 4-cyanoiodobenzene (2a) as model substrates for the construction of C–S bond in the presence of Cu–OMS-2 as the catalyst. We examined factors such as temperature, solvent, and base, which influence the reaction and the results are shown in Table 1. To our delight, the desired product 3a was obtained in 47% yield at 60 °C (Table 1, entry 1). Increasing the temperature to 95 °C (Table 1, entry 2), the yield reached 89%. Further increasing the temperature to 110 °C did not improve the yield (Table 1, entry 3). Therefore, a temperature of 95 °C was optimal for this reaction. Among the screened bases, Cs₂CO₃ was clearly superior to other bases. NaOH, KOH, and Cs₂CO₃ are more compatible with this reaction compared to Na₂CO₃ or K₂CO₃, with Cs₂CO₃ giving the highest yield of 89% (Table 1, entries 4–8). Solvent screening revealed that DMSO was found to be the best solvent. DMF was suitable for this reaction, albeit providing a lower yield of 67%. However, the reaction failed to give the desired product when THF or toluene was used as the solvent (Table 1, entries 9–11). It is not obvious that the reaction could be improved or inhibited by increasing or decreasing the amount of catalyst. When the reaction was run in 95 °C without Cu–OMS-2, the yield of the target product was reduced to 36% (Table 1, entry 14). It is noteworthy that Cu–OMS-2 greatly improved the yield and played an indispensable role during the reaction process. Thus, 4-methylthiophenol and 4-cyanoiodobenzene as the substrates with Cs₂CO₃ as the base and Cu–OMS-2 as the catalyst in DMSO at 95 °C were determined to be the optimal reaction conditions.

Table 1.

Reaction optimization. ^a

Entry	Base	Solvent	Temp (°C)	Yield b (%)
1	Cs2CO3	DMSO	60	47
2 f	Cs2CO3	DMSO	95	89
3	Cs2CO3	DMSO	110	88
4	Na2CO3	DMSO	95	21
5	K2CO3	DMSO	95	29
6	LiOH	DMSO	95	17
7	NaOH	DMSO	95	84
8	KOH	DMSO	95	81
9	Cs2CO3	THF	95	0
10	Cs2CO3	toluene	95	0
11	Cs2CO3	DMF	95	67
12 c	Cs2CO3	DMSO	95	48
13 d	Cs2CO3	DMSO	95	87
14 e	Cs2CO3	DMSO	95	36

a

Reaction conditions: 4-methylthiophenol (1 mmol), 4-cyanoiodobenzene (1 mmol), base (2 mmol), Cu–OMS-2 (10 mg), solvent (2.5 mL), 95 °C, 6 h.

b

Isolated yield.

c

Cu–OMS-2 (5 mg).

d

Cu–OMS-2 (16 mg).

e

No Cu–OMS-2, 95 °C.

f

The optimal reaction condition.

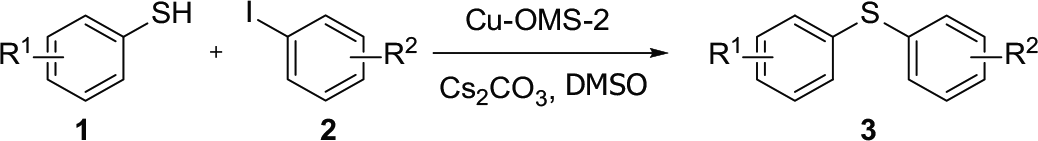

With the optimal reaction conditions having been established, we next focused on investigating the scope of substrates. So as to synthesize diaryl sulfide products, different aryl iodides and substituted thiophenols were reacted under the optimal conditions (Table 2). We succeeded in preparing various C–S coupling products with high yields ranging 74%–90%. Moreover, fluorine- or chlorine-substituted thiophenols can react with aryl iodides to afford the target products (3b–i) in high yields. The yield of the target product obtained from methyl-substituted thiophenol was higher than that of fluorine- or chlorine-substituted thiophenols. In addition, when we used substituted thiophenols in reactions with iodobenzenes with no electron-withdrawing group at the para position, the reactions proceeded smoothly to give the corresponding thioether products (3l and 3m) under the optimized conditions; however, the yields were lower.

Table 2.

Scope of thiophenols and aryl iodobenzenes. ^a

Entry	Product	R1	R2	Yield (%)
1	3a	4-CH3	4-CN	89
2	3b	2-Cl	4-CN	79
3	3c	2-Cl	4-NO2	81
4	3d	3-Cl	4-CN	83
5	3e	4-Cl	4-CN	85
6	3f	4-Cl	4-NO2	85
7	3g	4-Cl	4-COCH3	74
8	3h	4-F	4-CN	80
9	3i	4-F	4-NO2	83
10	3j	4-CH3	4-NO2	88
11	3k	4-OCH3	4-CN	90
12	3l	2-OCH3	4-H	36
13	3m	4-OCH3	4-H	43

a

Reaction conditions: 1 (1 mmol), 2 (1 mmol), Cs₂CO₃ (2 equiv.), Cu–OMS-2 (10 mg), DMSO (2.5 mL), 95 °C, 6 h.

Furthermore, recycling studies using Cu–OMS-2 were investigated by operating the reaction under the optimized conditions (Scheme 2). We can clearly see that recycled Cu–OMS-2 worked well and gave an excellent yield of 86% of the diaryl sulfide compound after six recycles. In addition, the results indicate that Cu–OMS-2 is stable over several cycles.

Scheme 2.

Catalyst recycling studies.

Conclusion

In conclusion, we have described a practical protocol for efficiently preparing diaryl sulfides using Cu–OMS-2 to catalyze the C–S coupling reactions of substituted thiophenols and aryl halides. This protocol has the advantages of environmental friendliness, simple operation, high yields, good tolerance of functional groups, and the Cu–OMS-2 catalyst material can be recycled several times.

General experiments

All the obtained products were characterized by ¹H NMR and ¹³C NMR spectroscopy (400 or 100 MHz). Chemical shifts are reported in parts per million (ppm, δ) downfield from tetramethylsilane. Proton coupling patterns are described as singlet (s), doublet (d), triplet (t), and multiplet (m); TLC was performed using commercially prepared 100–400 mesh silica gel plates (GF 254), and visualization was effected at 254 nm; all the reagents were purchased from commercial sources and were used without further purification.

Preparation of Cu–OMS-2

Manganese sulfate (8.8 g) and Cu(NO₃)₂·3H₂O (0.6375 g) in purified water (100 mL) were added to a solution of purified water (30 mL) containing concentrated nitric acid (3 mL) and potassium permanganate (5.89 g). The mixed solution was placed in an oven at 100 °C for the hydrothermal reaction for 24 h. The product was then filtered, washed, and dried at 120 °C for 8 h. Finally, the dry Cu–OMS-2 was calcined in a muffle furnace at 350 °C for 2 h to afford a black powder.

Typical procedure for the synthesis of 3

Benzenethiol 1 (1 mmol) was added to Schlenk tube with DMSO (2.5 mL) under oxygen at room temperature. Subsequently, Cs₂CO₃ (2.0 mmol), Cu–OMS-2 (10 mg), and substituted iodobenzene 2 (1 mmol) were added to the Schlenk tube quickly. The mixture was heated at 95 °C for 6 h. After the reaction was completed, the mixture was cooled to room temperature. Water (10 mL) was added to the mixture, and the crude was extracted with CH₂Cl₂. After removing the solvent, the resulting crude residue was purified by column chromatography with pure petroleum as the eluent to give compound 3.

4-(p-Tolylthio)benzonitrile (3a)

Yield: 89%, white solid, m.p. 95-96 °C (lit. ³³ ); ¹H NMR (400 MHz, CDCl3): δ: 7.40-7.32 (m, 4H, Ar-H), 7.18 (d, J = 8.4 Hz, 2H, Ar-H), 7.04 (d, J = 8.4 Hz, 2H, Ar-H), 2.3 (s, 3H, CH₃); ¹³C NMR (101 MHz, CDCl₃): δ: 146.65, 140.01, 135.01, 132.32, 130.80, 126.78, 126.69, 118.97, 108.28, 21.37.

4-[(2-Chlorophenyl)thio]benzonitrile (3b)

Yield: 79%, colorless oily liquid; ¹H NMR (400 MHz, CDCl3): δ: 7.49-7.42 (m, 4H, Ar-H), 7.34-7.28 (m, 1H, Ar-H), 7.26-7.20 (m,1H, Ar-H), 7.12 (d, J = 8.8 Hz, 2H, Ar-H); ¹³C NMR (101 MHz, CDCl₃): δ: 143.19, 138.14, 135.87, 132.61, 130.75, 130.73, 130.56, 128.17, 127.94, 118.71, 109.49.

(2-Chlorophenyl)(4-nitrophenyl) sulfane (3c)

Yield: 81%, yellow solid, m.p. 111-113 °C; ¹H NMR (400 MHz, CDCl3): δ: 8.10 (d, J = 7.2 Hz, 2H, Ar-H), 7.57 (t, J = 6.4 Hz, 2H, Ar-H), 7.41 (t, J = 6.0 Hz, 1H, Ar-H), 7.33 (t, J = 6.0 Hz, 1H, Ar-H), 7.20 (d, J = 6.8 Hz, 2H, Ar-H); 13C NMR (101 MHz, CDCl₃): δ: 145.92, 145.85, 138.54, 136.32, 131.06, 130.84, 130.11, 128.01, 127.45, 124.21.

4-[(3-Chlorophenyl)thio]benzonitrile (3d)

Yield: 83%, colorless oily liquid; ¹H NMR (400 MHz, CDCl3): δ: 7.45 (d, J = 8.8 Hz, 2H, Ar-H), 7.40 (s, 1H, Ar-H), 7.34-7.25 (m, 3H, Ar-H), 7.16 (d, J = 8.8 Hz, 2H, Ar-H); ¹³C NMR (101 MHz, CDCl₃): δ: 144.11, 135.49, 133.45, 132.64, 131.88, 130.91, 130.64, 129.38, 128.29, 118.63, 109.58.

4-[(4-Chlorophenyl)thio]benzonitrile (3e)

Yield: 85%, white solid, m.p. 88-89 °C (lit. ³⁴ ); ¹H NMR (400 MHz, CDCl3): δ: 7.51 (d, J = 8.8 Hz, 2H, Ar-H), 7.46-7.39 (m, 4H, Ar-H), 7.18 (d, J = 8.8 Hz, 2H, Ar-H); 13C NMR (101 MHz, CDCl₃): δ: 144.88, 135.71, 135.53, 132.47, 130.12, 129.49, 127.51, 118.56, 109.12.

(4-Chlorophenyl)(4-nitrophenyl)sulfane (3f)

Yield: 85%, yellow solid, m.p. 89-90 °C (lit. ³⁵ ); ¹H NMR (400 MHz, CDCl₃): δ: 8.10-8.06 (m, 2H, Ar-H), 7.50-7.41 (m, 4H, Ar-H), 7.22-7.16 (m, 2H, Ar-H); ¹³C NMR (101 MHz, CDCl₃): δ: 147.66, 145.64,136.10, 135.90, 130.32, 129.16, 126.97, 124.20.

1-[4-((4-Chlorophenyl)thio)phenyl]ethan-1-one (3g)

Yield: 74%, white solid, m.p. 83-84 °C (lit. ³⁴ ); ¹H NMR (400 MHz, CDCl₃): δ: 7.48 (d, J = 8 Hz, 2H, Ar-H), 7.42-7.35 (m, 4H, Ar-H), 7.22 (d, J = 8 Hz, 2H, Ar-H), 2.56 (s, 3H, CH₃); ¹³C NMR (101 MHz, CDCl3): δ: 197.11, 144.06, 135.03, 134.90, 134.84, 130.95, 129.92, 129.04, 127.83, 26.53.

4-[(4-Fluorophenyl)thio]benzonitrile (3h)

Yield: 80%, white solid, m.p. 85-86 °C (lit. ³³ ); ¹H NMR (400 MHz, CDCl3): δ: 7.54-7.50 (m, 2H, Ar-H), 7.48 (d, J = 6.8 Hz, 2H, Ar-H), 7.17-7.10 (m, 4H, Ar-H); ¹³C NMR (101 MHz, CDCl3): δ: 164.58, 162.58, 145.83, 137.07, 132.43, 126.88, 125.84, 118.71, 117.34, 108.81.

(4-Fluorophenyl)( 4-nitrophenyl)sulfane (3i)

Yield: 83%, yellow solid, m.p. 82-84 °C (lit. ³⁶ ); ¹H NMR (400 MHz, CDCl3): δ: 7.99 (d, J = 7.2 Hz, 2H, Ar-H), 7.51-7.44 (m, 2H, Ar-H), 7.12-7.05 (m, 4H, Ar-H); ¹³C NMR (101 MHz, CDCl3): δ: 164.72, 162.72, 148.48, 145.45, 137.26, 126.33, 125.56, 124.11, 117.46.

(4-Nitrophenyl)(p-tolyl)sulfane (3j)

Yield: 88%, yellow solid, m.p. 78-80 °C (lit. ³⁶ ); ¹H NMR (400 MHz, CDCl3): δ: 8.10 (d, J = 7.2 Hz, 2H, Ar-H), 7.49 (d, J = 6.4 Hz, 2H, Ar-H), 7.32 (d, J = 7.2 Hz, 2H, Ar-H), 7.19 (d, J = 7.2 Hz, 2H, Ar-H), 2.47 (s, 3H, CH₃); ¹³C NMR (101 MHz, CDCl₃): δ: 149.35, 145.17, 140.25, 135.10, 130.87, 126.52, 126.16, 123.99, 21.35.

4-[(4-Methoxyphenyl)thio]benzonitrile (3k)

Yield: 90%, white solid, m.p. 92-93 °C (lit. ³³ ); ¹H NMR (400 MHz, CDCl₃): δ: 7.48-7.43 (m, 4H, Ar-H), 7.07 (d, J = 8 Hz, 2H, Ar-H), 6.97 (d, J = 8 Hz, 2H, Ar-H), 3.86 (s, 3H, OCH₃); ¹³C NMR (101 MHz, CDCl₃): δ: 160.99, 147.37, 137.10, 132.26, 126.08, 120.42, 118.96, 115.59, 108.05, 55.47.

(2-Methoxyphenyl)(phenyl)sulfane (3l)

Yield: 36%, colorless liquid; ¹H NMR (400 MHz, CDCl₃): δ: 7.36-7.27 (m, 5H, Ar-H), 7.23-7.21 (m, 1H, Ar-H), 7.09-7.07 (m, 1H, Ar-H), 6.91-6.85 (m, 2H, Ar-H), 3.87 (s, 3H, OCH₃); ¹³C NMR (101 MHz, CDCl₃): δ: 157.34, 140.50, 134.51, 131.64, 131.53, 129.19, 128.33, 127.12, 124.12, 121.29, 110.89, 55.93, 29.75.

(4-Methoxyphenyl)(phenyl)sulfane (3m)

Yield: 43%, colorless liquid; ¹H NMR (400 MHz, CDCl3): δ: 7.43 (d, J = 8.4 Hz, 1H, Ar-H), 7.24-7.20 (m, 2H, Ar-H), 7.14-7.10 (m, 1H, Ar-H), 6.56-6.53 (m, 2H, Ar-H), 6.63 (d, J = 2.4 Hz, 1H, Ar-H), 6.56-6.53 (m, 2H, Ar-H), 3.82 (s, 3H, OCH₃); ¹³C NMR (101 MHz, CDCl₃): δ: 162.15, 157.59, 136.81, 135.72, 133.41, 128.07, 125.12, 124.77, 113.52, 107.26, 105.81, 99.46, 54.42.
