Abstract

To improve the robustness performance of dynamic sliding mode control to the time-varying uncertainties without the upper bound information in a hybrid robot system, a global robust super-twisting algorithm with adaptive switching gains is proposed. The main contributions are as follows: (1) for the problem that the robustness of the sliding mode control system is not guaranteed in the reaching phase, a global robust sliding surface is designed to eliminate the reaching phase of the sliding mode control; (2) for the chattering problem existing in the sliding phase of the sliding mode control system due to the conservative selection of switching gains, based on a reconstructive super-twisting sliding mode control and the equivalent principle, a fast-adaptive law is designed to effectively reduce the chattering while the global robustness is ensured. The stability of the proposed algorithm is proved by Lyapunov stability theorem. The simulation and experiment on the hybrid robot prototype system are implemented to verify the effectiveness of the proposed control method.

Keywords

Hybrid robot dynamics sliding mode global robustness adaptive switching gains

Introduction

Hybrid robot combines serial mechanism and parallel mechanism reasonably and inherits their advantages of large workspace and strong carrying capacity.¹ It has been used in machining,² aircraft manufacturing,³ and other fields. However, in the actual operation of the robot, the control performance degradation is often caused by uncertainties. Due to the effectiveness in solving uncertainties, the sliding mode control (SMC) has many applications such as robot control,⁴ motor control,⁵ and photovoltaic pumping.⁶ Furthermore, the SMC is often combined with other control methods to realize complementary advantages, so as to achieve better control effect for robotic systems, such as the researches in the work.^4,7,8 Based on this, this article takes a hybrid robot as the research object, and for the time-varying uncertainties without the upper bound information in the robot system, a global robust super-twisting sliding mode control (STW) method with adaptive switching gains is proposed to guarantee that the hybrid robot can operate in high performance.⁹

The SMC is insensitive to the uncertainties only in the sliding phase, but not robust in the reaching phase.¹⁰ Therefore, for the problem that the hybrid robot dynamic SMC has no robustness in the reaching phase, this article adopts the global sliding mode¹¹ strategy and a nonlinear sliding surface suitable for the hybrid robot control is designed, so as to eliminate the reaching phase of the SMC. As a result, the global robustness of the hybrid robot control system is guaranteed.

In the sliding phase, the SMC is robust to the system uncertainties theoretically.¹² However, because of the difficulty in obtaining the upper bound information of the uncertainties in real systems, switching gains, which ought to be chosen in line with the actual bound of the uncertainties, should be selected conservatively to guarantee the robustness of the hybrid robot system.^13,14 Accordingly, the discontinuity of the control law will produce a serious chattering problem to the control system and thus generates the uncontrollable chaotic dynamics which is sensitive to the initial condition.¹⁵ As a result, mechanical components may be fatigued, and even worse, the system may break down in a short time.^16,17 The STW¹⁸ is a high-order SMC, which can suppress chattering with less information required. However, a discontinuous term still exists in the STW law.^19,20 To this end, an adaptive law for the STW switching gains can be designed to avoid the conservative selection of the switching gains, and thereby, the chattering in the system is suppressed notablely.²¹

For the problem that the upper bound information of the uncertainties in an inverted-pendulum system is unknown, in the work of Huang et al.,²² an adaptive law with changeable switching gains is firstly designed according to the sliding variable which means the distance from the system state to the sliding surface. However, the chattering problem still remains in the control system due to the continuous increase of the switching gains. Aiming at the problem, the work of Shtessel et al.¹⁹ selects an electropneumatic actuator as the research object, and an adaptive law has been studied which can reduce the switching gains when the sliding variable approaches zero. The above two adaptive laws for the switching gains are designed indirectly on account of the sliding variable, with which the switching gains of STW may be overestimated undesirably since the value of the sliding variable cannot accurately reflect the upper bound of the uncertainties in real time.

Another adaptive law designing approach for a two-dimensional nonlinear system is proposed in the work.²³ In this work, based on the STW including uncertain term, the equivalent value of the uncertainties is obtained by exploiting the uncertain information contained in the equivalent control, and then an adaptive law is directly designed according to the equivalent value. Consequently, smaller switching gains can be obtained due to the real-time estimated value of the uncertainties. However, two shortcomings exist in the work²³: (1) In the reaching phase of the SMC, the system state is away from the sliding surface, which will cause the failure of the equivalent control; (2) the changing speed of the switching gains is not considered, so when the uncertainties change rapidly, the switching gains cannot be quickly adjusted to the minimum.

To this end, this thesis takes a hybrid robot as the research object, and a global robust STW method with adaptive switching gains is developed. Firstly, an improved sliding surface is designed to eliminate the reaching phase of the SMC and to achieve the global robustness of the control system. Then, the STW law is reconstructed on the basis of the uncertain hybrid robot and an adaptive law is proposed to simultaneously adjust the speed and size of the switching gains in the premise of unknown upper bound information about the time-varying uncertainties, and thereby smaller switching gains can be obtained quickly to suppress the chattering significantly while the global robustness of the system is ensured. Consequently, the robustness performance of the dynamic SMC in the uncertain hybrid robot system is improved.

The rest of the article is organized as follows. In the second section, for the uncertain hybrid robot system, a global robust STW controller with adaptive switching gains is proposed and then the stability of the controller is proved theoretically. To validate the effectiveness and superiority of the proposed algorithm, the hybrid robot prototype for automobile electro-coating conveying²⁴ and comparative simulation based on the prototype are respectively covered in the third section and the fourth section. For further verification, the proposed STW controller is applied to the prototype for experiment in the fifth section. Finally, conclusions are outlined in the sixth section.

Controller design

The standard dynamic equation of the hybrid robot can be expressed as²⁵

M ((q)) \ddot{q} + C ((q, \dot{q})) \dot{q} + G ((q)) = τ

where $q$ is the generalized pose vector of the hybrid robot system, $M (q)$ is the positive definite and symmetric inertia matrix, $C (q, \dot{q})$ is the centrifugal and Coriolis term, $G (q)$ is the gravity term, and $τ$ is the vector of generalized driving force/torque.

Considering uncertainties in the hybrid robot system, the dynamic model can be given by

M (q) \ddot{q} + C (q, \dot{q}) \dot{q} + G (q) + τ_{d} = τ

where $τ_{d}$ is the lumped disturbance term, including modeling errors, friction, and external disturbance.²⁶ In the hybrid robot practical control, these uncertainties will induce inaccurate motion of the hybrid robot and even instability of the whole system.

Remark 1

Modeling errors caused by the inaccurate measurements and flexible loads during the modeling process of the hybrid robot are considered as parametric uncertainties.²⁷ Besides, the friction and the external disturbance are nonparametric uncertainties. It is worth noting that both parametric and nonparametric uncertainties in this article are time-varying and are collectively referred to as lumped disturbance.

Design of the global robust STW algorithm

The sliding variable for the global robust STW controller is designed as

s = w ((t)) - e^{- λ t} w ((0))

where $w = \dot{e} + B e$ and $w ((0))$ is the initial value of $w ((t))$ ; $B = diag (b_{1}, b_{2})$ and b ₁, b ₂ are adjusted in accordance with the Holzer Woods condition; $λ = diag (λ_{1}, λ_{2})$ . $q_{d}$ and ${\dot{q}}_{d}$ are the expected pose vector and velocity vector, respectively. $q$ and $\dot{q}$ are the actual pose vector and velocity vector, respectively. $e = q_{d} - q$ and $\dot{e} = {\dot{q}}_{d} - \dot{q}$ are respectively the tracking error vector of pose and velocity.

From the standard dynamic equation (1), we have

\ddot{q} = M {((q))}^{- 1} ((τ - C ((q, \dot{q})) \dot{q} - G ((q))))

After differentiating $s$ in equation (3), equation (4) is substituted into it. Then, $\dot{s}$ can be expressed as

\dot{s} = {\ddot{q}}_{d} - M {((q))}^{- 1} ((τ - C ((q, \dot{q})) \dot{q} - G ((q)))) + B \dot{e} + λ e^{- λ t} w ((0))

The STW law can be designed as

({\begin{cases} \dot{s} = - α sgn {((s))}^{\frac{1}{2}} + u \\ \dot{u} = - η sgn ((s)) \end{cases})

where $sgn {(s)}^{\frac{1}{2}} = {[{|s_{1}|}^{\frac{1}{2}} sgn (s_{1}), {|s_{2}|}^{\frac{1}{2}} sgn (s_{2})]}^{T}$ . Besides, $α = diag (a_{1}, a_{2})$ and $η = diag (η_{1}, η_{2})$ are the STW switching gains.

From equations (5) and (6), the global robust STW law of the hybrid robot can be written as

({\begin{matrix} τ = M ((q)) (({\ddot{q}}_{d} + B \dot{e} + λ e^{- λ t} w ((0)) + α sgn {((s))}^{\frac{1}{2}} - u)) \\ + C ((q, \dot{q})) \dot{q} + G ((q)) \\ \dot{u} = - η sgn ((s)) \end{matrix})

Partial chattering can be suppressed due to the integral of the switching term in the STW. Besides, from equation (3), we can know that the improved sliding variable $s$ is zero from the start point and thus the reaching phase is eliminated, which overcomes the problem of non-robustness in the reaching phase of the SMC. As a result, the global robustness of the control system is satisfied.

Design of the global robust STW algorithm with adaptive switching gains

Considering the uncertainties, an additional term $ϕ (s, L))$ is added to simplify the stability analysis of the STW law. Then, the STW law (6) can be reconstructed as

({\begin{cases} \dot{s} = - α ((t)) sgn {((s))}^{\frac{1}{2}} + u + ϕ ((s, L)) \\ \dot{u} = - η ((t)) sgn ((s)) + f ((t)) \end{cases})

where $f ((t))$ is unknown but bounded, $L = {[L_{1}, L_{2}]}^{T}$ and $ϕ (s, L)) = [ϕ_{1}, ϕ_{2}]$ , where $ϕ_{i} = - \frac{{\dot{L}}_{i} ((t))}{L_{i} ((t))} s_{i} ((t)), i = 1, 2$ .

Based on the reconstructed STW law (8) and the standard dynamic model (1), the global robust STW law of the hybrid robot can be derived as

({\begin{matrix} τ = M ((q)) (({\ddot{q}}_{d} + B \dot{e} + λ e^{- λ t} w ((0)) + α sgn {((s))}^{\frac{1}{2}} - u - ϕ ((s, L)))) \\ + C ((q, \dot{q})) \dot{q} + G ((q)) \\ \dot{u} = - η sgn ((s)) + f ((t)) \end{matrix})

Remark 2

The uncertain term $f ((t))$ is corresponding to the lumped disturbance term $τ_{d}$ in equation (2). In this article, adding the additional term $ϕ (s, L))$ in equation (6) and according to the equations (2) and (9), one has $f ((t)) = M {((q))}^{- 1} {\dot{τ}}_{d}$ .

In the practical control system, the uncertain term $f ((t))$ is time-varying and unknown, which is not suitable for controller. As a result, the control law (9) cannot be put into practical control. Therefore, to solve the problem, an adaptive law of the global robust STW is presented next via real-time estimation of the uncertain term $f ((t))$ .

The sliding variable in the global robust STW meets $s ((0)) = 0$ from the initial instant due to the elimination of the reaching phase. In addition, system states of the SMC in the sliding phase are ideally maintained on the sliding surface and $s = \dot{s} = 0$ is satisfied. Based on this, this article uses the equivalent control strategy, and from the reconstructed STW control law (8), we have

η ((t)) sgn ((s)) |_{e q} = f ((t))

Define ${\bar{u}}_{e q} ((t)) = η ((t)) sgn ((s)) |_{e q}$ , where $sgn ((s)) |_{e q}$ is the equivalent value of the sign function. When equation (10) is satisfied, the system states are maintained on the sliding surface. In other words, ${\bar{u}}_{e q} ((t))$ can be regarded as the equivalent value of the uncertain term $f ((t))$ in the sliding phase of the SMC.

Remark 3

The equivalent value ${\bar{u}}_{e q} ((t))$ is an abstract value and can be estimated in real time via low-pass filtering

{\dot{\bar{u}}}_{e q} ((t)) = \frac{1}{μ} ((η ((t)) sgn ((s)) - {\bar{u}}_{e q} ((t))))

where μ is the filter time constant and evaluated between the sampling step and 1. The estimated accuracy of the equivalent value can be improved via reducing the value of μ. As a result, the constant μ should be as small as possible.

The equivalent value of uncertain term $f ((t))$ has been obtained timely. Next, according to the equivalent value, an adaptive law will be given to adjust the value of the switching gains and thus resists the effect of the uncertain term $f ((t))$ in equation (9).

Remark 4

The switching gains $α ((t))$ and $η ((t))$ of the STW are designed as $α_{i} ((t)) = α_{0 i} \sqrt{L_{i} ((t))}, i = 1, 2$ and $η ((t)) = η_{0} L ((t))$ , respectively, where $L ((t)) > l_{0} > 0$ , $α_{0} = diag(α_{01}, α_{02})$ , and $η_{0} = diag (η_{01}, η_{02})$ are positive and adjustable which satisfy $α_{0 i} = 2 \sqrt{2 η_{0 i}}, i = 1, 2$ .¹⁹

Define a new variable $δ = {[δ_{1}, δ_{2}]}^{T}$ as

\begin{matrix} δ_{i} ((t)) = L_{i} ((t)) - \frac{1}{a_{i} η_{0 i}} |{\bar{u}}_{e q i} ((t))| - ε_{i}, & i = 1, 2 \end{matrix}

where $a = diag (a_{1}, a_{2})$ is positive and adjustable, and $0 < a_{i} η_{0 i} < 1$ . $ε_{i} > 0$ represents a small offset. $L_{i} ((t)) > |{\bar{u}}_{e q i}|$ when $δ_{i} ((t)) = 0$ , which ensures the switching term is slightly larger than the absolute value of the uncertain term, namely, $η_{i} ((t)) > |f_{i} ((t))|$ .

An adaptive law for the time-varying gain $L ((t))$ is designed as

L ((t)) = l_{0} + l ((t))

\dot{l} ((t)) = - ρ ((t)) sgn ((δ ((t))))

ρ ((t)) = r_{0} + r ((t))

\begin{matrix} {\dot{r}}_{i} ((t)) = γ_{i} |δ_{i} ((t))|, & i = 1, 2 \end{matrix}

where $r = {[r_{1}, r_{2}]}^{T}$ and $\dot{r} = {[{\dot{r}}_{1}, {\dot{r}}_{2}]}^{T}$ ; $l_{0}$ , $r_{0}$ , and $γ =diag (γ_{1}, γ_{2})$ are positive and adjustable.

Remark 5

In equation (14), the change direction of the switching gains is adjusted according to the sign of $δ ((t))$ , which works as follows: (1) When $δ ((t)) > 0$ , which means that the switching term is larger than the uncertain term, $\dot{l} ((t)) < 0$ , and $L ((t))$ decreases, so do the switching gains. (2) When $δ ((t)) < 0$ , which means that the switching term is smaller than the uncertain term, $\dot{l} ((t)) > 0$ , and $L ((t))$ increases, so do the switching gains. Besides, it can be known from equation (14) that the robustness of the hybrid robot control system to the uncertainties has been ensured to some extent.

Remark 6

In equation (16), the changing speed of the switching gains follows the value of $δ ((t))$ which represents the error between the switching term and the uncertain term, so that the fast self-adaptation of the switching gains can be realized and the chattering amplitude can be reduced quickly to suppress the chattering to the minimum.

To sum up, the global robust STW law of the hybrid robot can be written as

({\begin{matrix} τ = M ((q)) (({\ddot{q}}_{d} + B \dot{e} + λ e^{- λ t} w ((0)) + α sgn {((s))}^{\frac{1}{2}} - u - ϕ ((s, L)))) \\ + C ((q, \dot{q})) \dot{q} + G ((q)) \\ \dot{u} = - η sgn ((s)) \end{matrix})

and the adaptive law for the STW switching gains is designed as equations (13) to (16). Figure 1 is the block diagram of the proposed global robust STW with adaptive switching gains (GNASTW) for the hybrid robot, where $q_{d}$ is the expected pose of the end effector; $x = {[x_{1}, x_{2}, \dots, x_{n}]}^{T}$ is the actual position of the active joints and n is the number of the active joints; $q$ is the actual pose of the end effector obtained via the forward kinematics transformation of $x$ ; $e$ is the tracking error of the end effector; $s$ is the sliding variable; $u$ is the output of the controller; $τ =$ ${[τ_{1}, τ_{2}, \dots τ_{n}]}^{T}$ is the control input of the hybrid robot active joints; $α$ and $η$ are the switching gains.

Figure 1.

Block diagram of the GNASTW for the hybrid robot. GNASTW: global robust STW with adaptive switching gain; STW: super-twisting sliding mode control.

Stability analysis

Assumption 1

The conditional constraints of the uncertain term $f ((t)) = {[f_{1}, f_{2}]}^{T}$ are shown as follows

\begin{matrix} |f_{i} ((t))| \leq a_{0 i} < + \infty, & i = 1, 2 \end{matrix}

\begin{matrix} |{\dot{f}}_{i} ((t))| \leq a_{1 i} < + \infty, & i = 1, 2 \end{matrix}

where $a_{0} = {[a_{01}, a_{02}]}^{T}$ and $a_{1} = {[a_{11}, a_{12}]}^{T}$ are unknown.

Theorem 1

For the hybrid robot system with uncertainties, if the global robust STW law is designed as equation (7), the global robust STW system will be stable asymptotically.

Proof

Setting $V = \frac{1}{2} s^{T} s$ as the Lyapunov function, and differentiating it, we obtain

\begin{matrix} \dot{V} = s^{T} \dot{s} \\ = s^{T} (({\ddot{q}}_{d} - M {((q))}^{- 1} ((τ - C ((q, \dot{q})) \dot{q} - G ((q))))) (+ B \dot{e} + λ e^{- λ t} w ((0)))) \\ = s^{T} ((- α sgn {((s))}^{\frac{1}{2}} + u)) \\ = - \sum_{i = 1}^{2} α_{i} s_{i} {|s_{i}|}^{\frac{1}{2}} sgn ((s_{i})) - \sum_{i = 1}^{2} s_{i} \int_{0}^{t} η_{i} sgn ((s_{i})) d t \\ = - \sum_{i = 1}^{2} α_{i} {|s_{i}|}^{\frac{3}{2}} - \sum_{i = 1}^{2} |s_{i}| \int_{0}^{t} η_{i} d t \leq 0 \end{matrix}

According to the Lyapunov stability theorem, the designed global robust STW system will be stable asymptotically.

Theorem 2

For the hybrid robot system with uncertainties, if the global robust STW law is designed as equation (17) and the adaptive law for the switching gains is designed as equations (13) to (16), the system will converge in a finite time.

Proof

The stability of the reconstructed STW in (8) is analyzed firstly.

A new state vector is introduced as

\begin{matrix} χ_{i} = {[χ_{i 1}, χ_{i 2}]}^{T} = {[\sqrt{L_{i} ((t))} {|s_{i}|}^{\frac{1}{2}} sgn (s_{i}), u_{i}]}^{T}, & i = 1, 2 \end{matrix}

and the equation (8) can be rewritten as

({\begin{cases} {\dot{χ}}_{i 1} = \frac{α_{i} ((t))}{2 {|s_{i}|}^{\frac{1}{2}}} χ_{1 i} + \frac{\sqrt{L_{i} ((t))}}{2 {|s_{i}|}^{\frac{1}{2}}} χ_{2 i} \\ {\dot{χ}}_{i 2} = \frac{\sqrt{L_{i} ((t))}}{{|s_{i}|}^{\frac{1}{2}}} ((- \frac{η_{i} ((t))}{L_{i}} χ_{1 i} + {\tilde{f}}_{i})) \end{cases})

where ${\tilde{f}}_{i} = \frac{{|s_{i}|}^{\frac{1}{2}}}{\sqrt{L_{i} ((t))}} f_{i} ((t))$ . $|{\tilde{f}}_{i}| = \frac{|χ_{i 1}|}{L_{i} ((t))} |f_{i} ((t))| \leq \frac{a_{0 i}}{L_{i} ((t))} |χ_{i 1}|$ since $|χ_{i 1}| = \sqrt{L_{i} ((t))} {|s_{i}|}^{\frac{1}{2}}$ . Then, equation (22) can be reorganized as

χ_{i} = \frac{L_{i} ((t))}{|χ_{i 1}|} ((A_{0 i} χ_{i} + B_{0 i} {\tilde{f}}_{i}))

where $A_{0 i} = [\begin{matrix} - \frac{1}{2} α_{0 i} & \frac{1}{2} \\ - η_{i} & 0 \end{matrix}]$ and $B_{0 i} = [\begin{matrix} 0 \\ 1 \end{matrix}]$ .

$V_{i} = χ_{i}^{T} P_{i} χ_{i}$ is selected as the Lyapunov function. According to the proof of proposition 1 in the work,¹⁸ it can be concluded that $χ_{i 1}$ and $χ_{i 2}$ can converge to the equilibrium point in a finite time. From the equation (21), s_i and ${\dot{s}}_{i}$ can converge to the equilibrium point in a finite time. Then, the stability of the STW in (8) has been proved.

Next, the designed adaptive law will be proved to ensure $L_{i} ((t)) > |f_{i} ((t))|$ in a finite time.

A new variable $ϕ = {[φ_{1}, φ_{2}]}^{T}$ is defined as

φ_{i} ((t)) = \frac{a_{1 i}}{a_{i} η_{0 i}} - r_{i} ((t))

and rewrite the equation (12), we know

δ_{i} ((t)) = L_{i} ((t)) - \frac{1}{a_{i} η_{0 i}} |f_{i} ((t))| - ε_{i}

The Lyapunov function is defined as

V = \frac{1}{2} δ^{2} + \frac{1}{2 γ} ϕ^{2}

Taking the derivative of equation (25) and considering equations (12) to (16) produce

\begin{matrix} δ_{i} ((t)) {\dot{δ}}_{i} ((t)) = δ_{i} ((t)) {\dot{l}}_{i} ((t)) - \frac{δ_{i} ((t))}{a_{i} η_{0 i}} \frac{d}{d t} |f_{i} ((t))| \\ \leq - |δ_{i} ((t))| r_{0 i} - |δ_{i} ((t))| r_{i} ((t)) + \frac{|δ_{i} ((t))| a_{1 i}}{a_{i} η_{0 i}} \end{matrix}

It can be obtained from equation (24) that ${\dot{φ}}_{i} ((t)) = - {\dot{r}}_{i} ((t)) = - γ_{i} |δ_{i} ((t))|$ . Then

\begin{matrix} {\dot{V}}_{i} \leq |δ_{i} ((t))| ((\frac{a_{1 i}}{a_{i} η_{0 i}} - r_{0 i} - r_{i} ((t)) - φ_{i} ((t)))) \\ = - |δ_{i} ((t))| r_{0 i} \leq 0 \end{matrix}

The system is asymptotically stable in the light of Lyapunov stability theorem. According to the Barbalat’s Lemma, there exists a finite time t ₀. Then, $|δ_{i} ((t))| = |L_{i} ((t)) - \frac{1}{a η_{0 i}} |{\bar{u}}_{e q i} ((t))| - ε_{i}| < \frac{ε_{i}}{2}$ for all time $t \geq t_{0}$ . And thus

L_{i} ((t)) > \frac{1}{a η_{0 i}} |{\bar{u}}_{e q i} ((t))| + \frac{ε_{i}}{2} > |f_{i} ((t))|

According to the proofs above, the system converges in a finite time.

Hybrid robot for automobile electro-coating conveying

To validate the effectiveness of the proposed algorithm, the global robust STW algorithm with adaptive switching gains is applied to a hybrid robot prototype for automobile electro-coating conveying. The hybrid robot is a bilaterally symmetric structure connected by a link rod, which is composed of two parts: a walking part and a lifting and turnover part. Figure 2 is the structure diagram of the prototype. The proposed algorithm is applied to the lifting and turnover part of the hybrid robot. $q = {(z, β)}^{T}$ , the pose parameter of the midpoint of the link rod which is the end effector of the prototype, is selected as the generalized coordinate, where z is the displacement of the link rod midpoint in the Z-axis and β is the counterclockwise rotation angle of the link rod midpoint in the Y-axis.

Figure 2.

The structure of the hybrid robot for automobile electro-coating conveying. (1) The guide rail. (2) The base. (3) The driving motor of the walking mechanism. (4) The reducer. (5) The slider. (6) The driving motor for lifting. (7) The link. (8) The driven wheel. (9) The driving wheel. (10) The link rod. (11) The car body. (12) The driving motor for turning. (13) The screw.

Lagrange method is selected to establish the dynamic model. Besides, to achieve more accurate model, the lifting and turnover part of the hybrid robot is divided into five subsystems: the car body, the body fixer, the branched chain, the driving and the driven wheels, and the sliders. After analyzing the kinetic energy and potential energy of each subsystem, the dynamic model of the lifting and turnover mechanism is obtained, which is formally shown as equations (1) and (2). The mechanism parameter values of the hybrid robot for automobile electro-coating conveying are listed in Table 1.

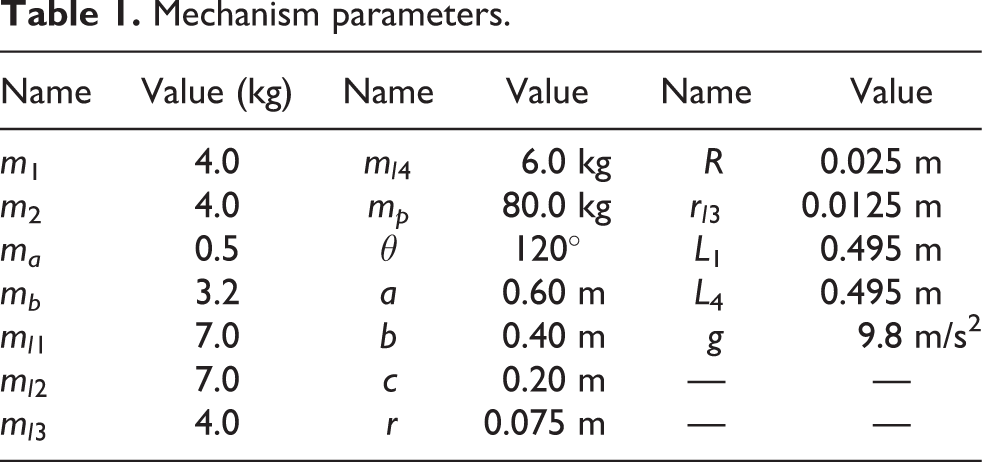

Table 1.

Mechanism parameters.

Name	Value (kg)	Name	Value	Name	Value
m ₁	4.0	$m_{l 4}$	6.0 kg	R	0.025 m
m ₂	4.0	m_p	80.0 kg	$r_{l 3}$	0.0125 m
m_a	0.5	θ	120°	L ₁	0.495 m
m_b	3.2	a	0.60 m	L ₄	0.495 m
$m_{l 1}$	7.0	b	0.40 m	g	9.8 m/s²
$m_{l 2}$	7.0	c	0.20 m	—	—
$m_{l 3}$	4.0	r	0.075 m	—	—

The hybrid robot is seriously nonlinear and strongly coupled. And in the actual control system, measuring errors and variable loads are inevitable. As a result, the dynamic parameters are always difficult to be determined. Furthermore, adverse impacts on the operation of the prototype may exist due to the friction and external disturbance.²⁵ Thus, the lumped disturbance term $τ_{d}$ of the prototype control system in this article can be presented as

τ_{d} = Δ M ((q)) \ddot{q} + Δ C ((q, \dot{q})) \dot{q} + Δ G ((q)) + F ((\dot{q})) + τ_{e x t}

where $τ_{e x t}$ is the external disturbance term; $Δ M ((q))$ , $Δ C (q, \dot{q})$ , and $Δ G ((q))$ are the dynamic modeling errors, and $F ((\dot{q}))$ is the friction term.

Remark 7

In Table 1, $m_{1} = m_{2}$ are the masses of the first and second sliders; m_a and m_b are the masses of the driving and driven wheels; $m_{l 1} = m_{l 2}$ are the masses of the links; $m_{l 3}$ and $m_{l 4}$ are the masses of the link rod and the body fixer; m_p is the mass of the car body; a, b, and c are respectively the length, height, and width of the car body; L ₁ and $L_{4}$ are the lengths of the links; $r_{l 3}$ , r, and R are the radius of the link rod, the driving wheel, and the driven wheel, respectively; and θ is the angle between the links.

Simulation results and analysis

Two sets of contrast simulation were presented and analyzed: (1) the GNASTW and the NASTW; (2) the GNASTW and the global robust STW with adaptive law about sliding variable (GSMASTW) designed in the work.²⁸

According to the process requirement of engineering practice and the prototype parameters, the expected trajectory of the link rod midpoint can be designed as

\begin{array}{l} z_{d} = ({\begin{cases} 0.2455 (0 s \leq t \leq 4 s) \\ 0.3455 - 0.1 cos ((\frac{π (t - 4)}{4})) (4 s < t \leq 12 s) \\ 0.2455 (12 s \leq t \leq 16 s) \end{cases}) \end{array}

\begin{array}{l} β_{d} = ({\begin{array}{l} \begin{array}{l} 0 (0 s \leq t \leq 2 s) \\ 0.5 π - 0.5 π cos ((\frac{π (t - 2)}{4})) (2 s < t \leq 6 s) \end{array} \\ π (6 s < t \leq 10 s) \\ \begin{array}{l} 1.5 π - 0.5 π cos ((\frac{π (t - 10)}{4})) (10 s < t \leq 14 s) \\ 2 π (14 s < t \leq 16 s) \end{array} \end{array}) \end{array}

To facilitate the actual control of the hybrid robot prototype, the generalized driving force/torque of the link rod midpoint is converted into joint driving force/torque. Based on this, the kinematics analysis is implemented first to obtain the inverse kinematics equation via the analytic method. And via the time derivation of the equation, the Jacobian matrix of the lifting and turnover part in the hybrid robot is deduced as

J = {[\begin{matrix} \frac{- z}{\sqrt{L_{1}^{2} - z^{2}}} & \frac{z}{\sqrt{L_{1}^{2} - z^{2}}} & \frac{- z}{\sqrt{L_{1}^{2} - z^{2}}} & \frac{z}{\sqrt{L_{1}^{2} - z^{2}}} & 0 & 0 \\ 0 & 0 & 0 & 0 & \frac{r_{1}}{r_{2}} & \frac{r_{2}}{r_{1}} \end{matrix}]}^{T}

Conversion from generalized driving force/torque to joint driving force/torque can be realized by

τ = J^{T} U

where $τ$ is the generalized driving force/torque, and $U$ is the joint driving force/torque.

The model in Simulink is built by referring to the block diagram of the proposed method in Figure 1. The parameters of the proposed controller are as follows: $λ = diag (40, 20)$ , $B = diag (10, 20)$ , $μ = 0.002$ , $α_{0} = diag (2.97, 2, 97)$ , $η_{0} = diag (1.1, 1.1)$ , $γ = diag (8, 8)$ , $a η_{0} = diag (0.95, 0.95)$ , $r_{0} = {[0.1, 0.1]}^{T}$ , $ε = {[0.05, 0.05]}^{T}$ , and $l_{0} = {[0.5, 0.1]}^{T}$ . To verify the stability of the proposed controller, $q_{0} = {[0.3455; 0.1]}^{T}$ is set as the initial pose of the link rod midpoint. It should be noted that the actual initial error of the studied control system must be zero. To verify the global robustness of the proposed method, larger uncertain terms are selected in the first simulation group.

1. Contrast and analysis of control performance between the GNASTW and the NASTW

The expected trajectory has been given as the equation (31) after presenting the dynamic model of the hybrid robot for automobile electro-coating conveying which contains uncertainties. The modeling errors are set as $Δ M = 0. 4 M$ , $Δ C = 0. 4 C$ , and $Δ G = 0. 4 G$ . $F ((\dot{q})) = {[0.58 sgn (({\dot{q}}_{1}) + 3.5 {\dot{q}}_{1}, 2.31 sgn (({\dot{q}}_{2}) + 3.5 (({\dot{q}}_{2})]}^{T}$ is set as the friction term. And the external disturbance term is set as $τ_{e x t} = {[50 cos (2 π t), 50 cos (2 π t)]}^{T}$ . The MATLAB simulation of the GNASTW and the NASTW is performed, and the results are shown in Figures 3 and 4 and Table 2. Figure 3 provides the curves of the sliding variables, and Figure 4 describes the tracking results of the link rod midpoint. Table 2 shows the maximum absolute values of the sliding variables.

Figure 3.

Curves of sliding variables: (a) s ₁ and (b) s ₂.

Figure 4.

Tracking results of the link rod midpoint: (a) tracking trajectory in z-direction, (b) tracking trajectory of β-angle, (c) tracking error in z-direction, and (d) tracking error of β-angle.

Table 2.

Maximum absolute values of the sliding variables.

	GNASTW	NASTW
$\|S_{1}\|$	$2.46 \times 10^{- 3}$	1
$\|S_{2}\|$	$1.65 \times 10^{-2}$	2

GNASTW: global robust STW with adaptive switching gain.

Remark 8

Define $MSE = \sqrt{\frac{1}{N} \sum_{j = 1}^{N} (e_{z}^{2} ((t)) + e_{β}^{2} ((t)))}$ as the mean square error, where $e_{z} ((t))$ and $e_{β} ((t))$ are the tracking errors in each component of the link rod midpoint, and N is the number of samples.

As shown in Figure 3 and Table 2, the sliding variable values of the GNASTW are smaller than those of the NASTW in the initial phase. From Figure 4, it can be known that the mean square errors of the link rod midpoint are $9.22 \times 10^{- 3}$ in z-direction and $2.56 \times 10^{- 2}$ of β-angle, respectively. In addition, the tracking performance of the GNASTW is significantly better than that of the NASTW in the initial phase. This is because the GNASTW eliminates the reaching phase theoretically via improving the sliding surface, and then the hybrid robot control system is guaranteed to be global robust.

2. Contrast and analysis of control performance between the GNASTW and the GSMASTW:

The expected trajectory has been given as the equation (31) after presenting the dynamic model of the hybrid robot for automobile electro-coating conveying which contains uncertainties. The modeling errors are set as $Δ M = 0. 2 M$ , $Δ C = 0. 2 C$ , and $Δ G = 0. 2 G$ . $F ((\dot{q})) = {[0.58 sgn (({\dot{q}}_{1}) + 3.5 {\dot{q}}_{1}, 2.31 sgn (({\dot{q}}_{2}) + 3.5 (({\dot{q}}_{2})]}^{T}$ is set as the friction term. And the external interference term is set as $τ_{e x t} = {[20 cos (2 π t), 20 cos (2 π t)]}^{T}$ . The MATLAB simulation of the GNASTW and the GSMASTW is performed, and the results are shown in Figures 5 to 7 and Table 3. The curves of the switching gains are shown in Figure 5, the tracking results of the link rod midpoint are shown in Figure 6, and the three active joint control input curves of the unilateral lifting and turnover part are shown in Figure 7. Table 3 gives the maximum and average of the switching gains.

Figure 5.
Curves of switching gains: (a) $α$ and (b) $η$ .

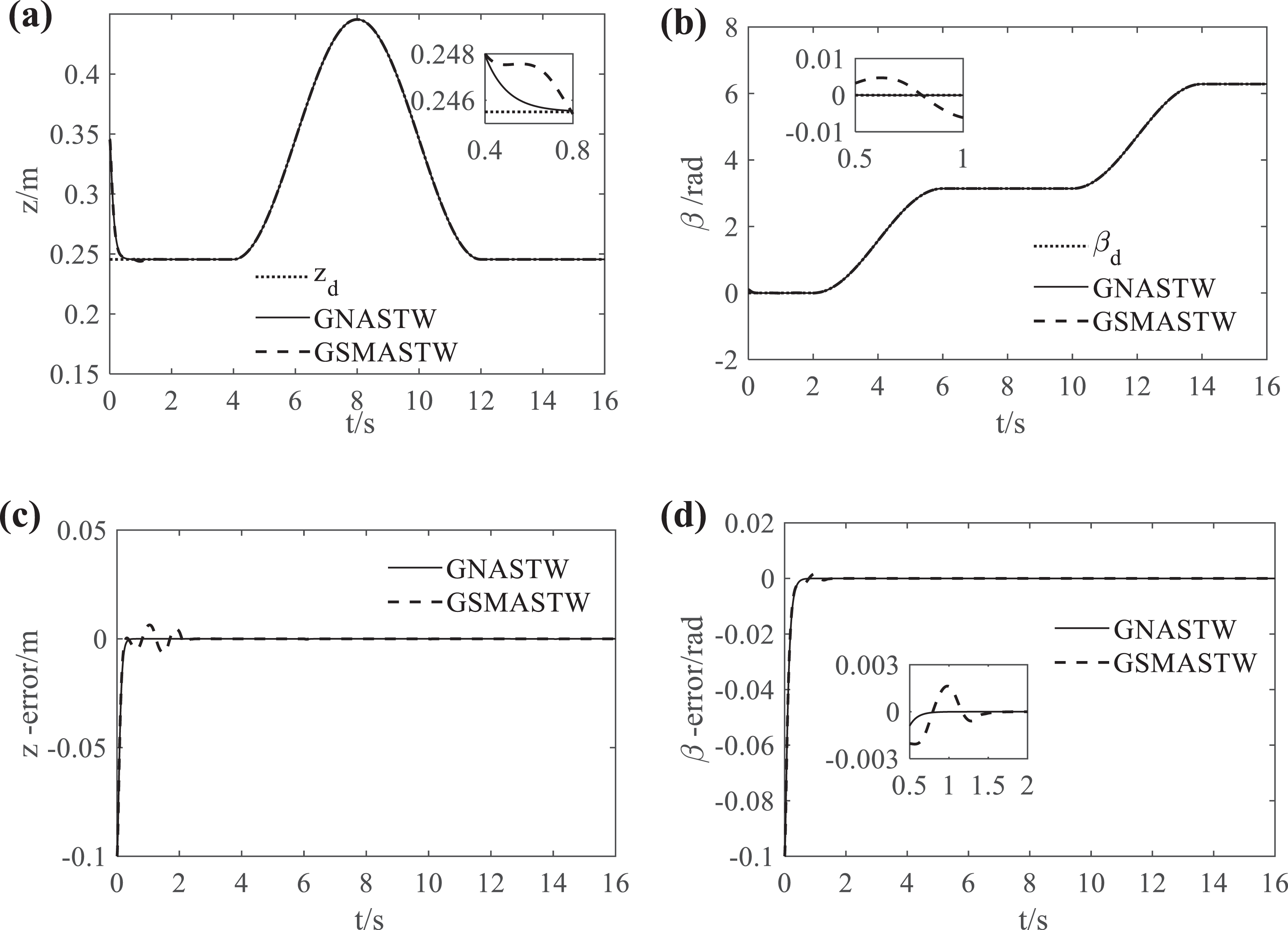

Figure 6.
Tracking results of the link rod midpoint: (a) tracking trajectory in z-direction, (b) tracking trajectory of β-angle, (c) tracking error in z-direction, and (d) tracking error of β-angle.

Figure 7.
Control inputs of the unilateral active joints: (a) driving force of the first slider, (b) driving force of the second slider, and (c) driving torque of the active wheel.

Prototype experimental results

Table 3.
Maximum and average of the switching gains.

GNASTW GSMASTW

MSG ASG MSG ASG

$α_{1}$ 0.838 0.581 0.639 0.601

$α_{2}$ 2.449 1.056 1.571 1.058

$η_{1}$ 1.723 0.842 1.916 1.804

$η_{2}$ 14.725 2.883 9.427 6.350

GNASTW: global robust STW with adaptive switching gain; GSMASTW: global robust STW with adaptive law about sliding variable; MSG: maximum of the switching gains; ASG: average of the switching gains.

Figure 5 shows that, compared with the GSMASTW, the switching term in the GNASTW can adapt to the uncertain term when the uncertain term is larger than the switching term. The reason for this is that the adaptive law designed in this article can adjust the changing direction of the switching gains via judging the size of the uncertain term and the switching term in real time. Besides, from Table 3, the average of the switching gains in GNASTW is smaller than that in GSMASTW. The reason for this is that the proposed adaptive law for the switching gains is directly designed according to the equivalent value of the uncertain term, which can achieve the minimum admissible switching gains.

As can be seen from Figure 6, both the GNASTW method and the NASTW method have good tracking performance, and the mean square errors of the link rod midpoint are $9.22 \times 10^{- 3}$ in z-direction and $9.24 \times 10^{- 2}$ of β-angle, respectively. Besides, compared with the GSMASTW, the tracking errors of the GNASTW converge faster. The reason for this is that the designed GNASTW can adjust the changing direction and speed of the switching gains in real time, which realizes the fast adaptation of the adaptive switching gains when the robustness is ensured. Thus, the robustness performance in the GNASTW is superior to that in the GSMASTW.

The lifting and turnover part of the prototype is a bilaterally symmetrical structure with the same motion of the corresponding joints on both sides. Therefore, as shown in Figure 7, only the control input curves of the unilateral active joints are given.

Figure 7 shows that the chattering amplitude of the three active joint control inputs on one side of the lifting and turnover part in the GNASTW is significantly smaller than that in the GSMASTW. The reason for this is that the fast acquisition and minimization of the switching gains in the GNASTW can effectively reduce the chattering caused by the conservatively obtained switching gains.

Therefore, it can be concluded that the global robust STW method with adaptive switching gains proposed in this article has better robustness performance, which ensures the global robustness, suppresses the chattering significantly, and then ameliorates the control performance in the system.

For further verification of the effectiveness, the global robust STW algorithm with adaptive switching gains proposed in this article was performed on the hybrid robot prototype for automobile electro-coating conveying. Figure 8 shows the distributed computer control system of the prototype with two main parts: PC (the host computer) and UMAC (the slave computer).

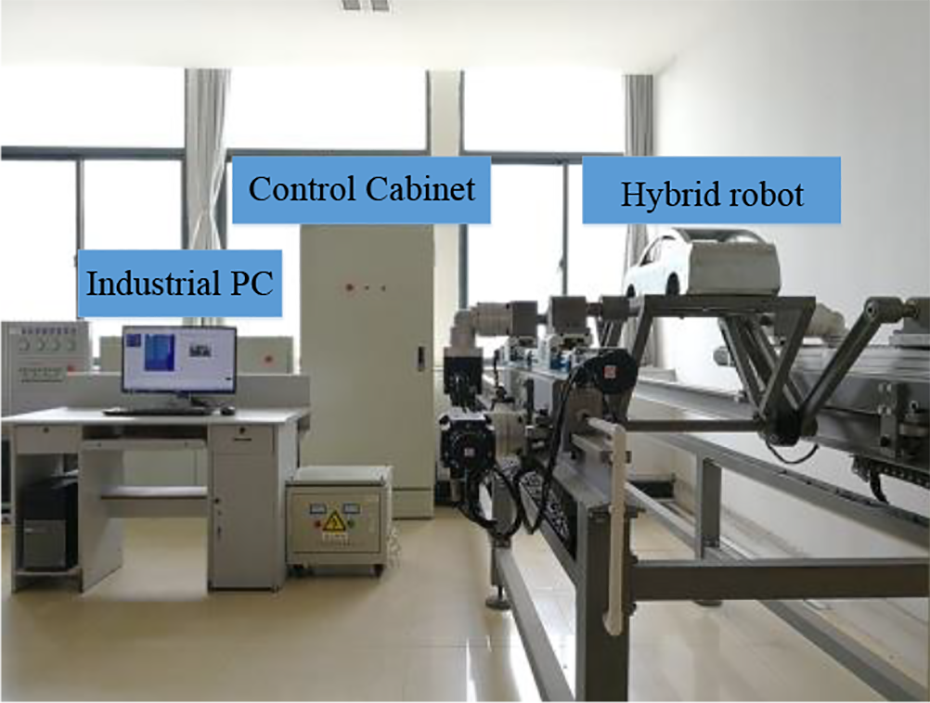

Figure 8.
Prototype system of the hybrid robot for automobile electro-coating conveying.

Comparative experiment among the proposed global robust STW controller with adaptive switching gains, the global robust STW controller with adaptive law about sliding variable, and the STW controller with adaptive switching gains has been performed. Specifically, the desired trajectory shown in equation (31) meets the requirements of coating process and actual operation of the mechanism. Therefore, in order to facilitate analysis, the expected trajectory in the experiment is the same as that in the simulation. Figure 9 and Table 4 are the experimental results, which further demonstrate the good robustness performance of the proposed method to the time-varying uncertainties without the upper bound information in a hybrid robot system.

Figure 9.
Experimental results: (a) tracking error in z-direction and (b) tracking error of β-angle.

Table 4.
Maximum tracking error of the link rod midpoint.

GNASTW NASTW GSMASTW

z _(m) $3.22 \times 10^{- 6}$ $1.15 \times 10^{- 4}$ $4.36 \times 10^{- 3}$

β _(rad) $5.10 \times 10^{- 4}$ $2.54 \times 10^{- 3}$ $1.39 \times 10^{- 2}$

GNASTW: global robust STW with adaptive switching gain; GSMASTW: global robust STW with adaptive law about sliding variable.

Conclusions and future work

A global robust STW method with adaptive switching gains is developed for the hybrid robot with time-varying uncertainties. And the robustness performance of dynamic SMC to the hybrid robot system is improved when the upper bound information of the uncertainties is unknown. The main conclusions are as follows:
A global robust sliding surface for the STW is designed, and the global robustness of the hybrid robot control system is ensured.

A fast-adaptive law for the STW switching gains is proposed, and chattering is suppressed significantly on the premise of ensuring the robustness of the hybrid robot control system.

The proposed method is applied to the prototype system, and the correctness and effectiveness of the method are verified via comparative simulation and experiment.

The future work will focus on finding a way to facilitate the selection of the proposed controller’s parameters.

	GNASTW	GSMASTW
$α_{1}$	0.838	0.581	0.639	0.601
$α_{2}$	2.449	1.056	1.571	1.058
$η_{1}$	1.723	0.842	1.916	1.804
$η_{2}$	14.725	2.883	9.427	6.350

	GNASTW	NASTW	GSMASTW
z _(m)	$3.22 \times 10^{- 6}$	$1.15 \times 10^{- 4}$	$4.36 \times 10^{- 3}$
β _(rad)	$5.10 \times 10^{- 4}$	$2.54 \times 10^{- 3}$	$1.39 \times 10^{- 2}$

Footnotes

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work was supported by the National Natural Science Foundation of China (Grant no. 51375210), the Zhenjiang Municipal Key Research and Development Program (Grant no. GZ2018004), the Priority Academic Program Development of Jiangsu Higher Education Institutions (Grant no. PAPD-2018-87), and the Jiangsu Graduate Research Innovation Program (Grant no. KYCX18_2252).

ORCID iDs

Songyun Zhang

References

Zeng

Fang

. Structural synthesis and analysis of serial-parallel hybrid mechanisms with spatial multi-loop kinematic chains. Mech Mach Theory 2012; 49: 198–215.

Wang

, et al. Study on the stiffness of a 5-DOF hybrid machine tool with actuation redundancy. Mech Mach Theory 2009; 44(2): 289–305.

Olazagoitia

Wyatt

. New PKM Tricept T9000 and its application to flexible manufacturing at aerospace industry. SAE Tech Papers 2007; 2142: 37–48.

Piltan

Aghayari

Rashidian

, et al. A new estimate sliding mode fuzzy controller for robotic manipulator. Int J Robot Autom 2012; 3(1): 45–60.

Njajra

Elhak

Ayman

, et al. Model reference adaptive sliding mode control for permanent magnet double rotor motor. Autom Syst Eng 2017; 11(1): 45–55.

Farhat

Barambones

Fleh

, et al. Variable structure MPP controller for photovoltaic pumping system. Trans Inst Meas Control 2016; 39(9): 1–10.

Ouyang

Acob

Pano

. PD with sliding mode control for trajectory tracking of robotic system. Robot Comput Integr Manuf 2014; 30(2): 189–200.

Matveev

Wang

Savkin

. Real-time navigation of mobile robots in problems of border patrolling and avoiding collisions with moving and deforming obstacles. Robot Auton Syst 2012; 60(6): 769–788.

Sun

Liang

Song

. Singular-perturbation-based nonlinear hybrid control of redundant parallel robot. IEEE Trans Ind Electron 2018; 65(4): 3326–3336.

10.

Mobayen

Tchier

. A novel robust adaptive second-order sliding mode tracking control technique for uncertain dynamical systems with matched and unmatched disturbances. Int J Control Autom Syst 2017; 15(3): 1097–1106.

11.

Choi

Park

Cho

, et al. Global sliding-mode control. Improved design for a brushless DC motor. IEEE Control Syst Mag 2001; 21(3): 27–35.

12.

Utkin

. Variable structure systems with sliding modes. IEEE Trans Autom Control 1977; 22(2): 212–222.

13.

Zhai

Song

. Adaptive sliding mode trajectory tracking control for wheeled mobile robots. Int J Control 2019; 92: 2255–2262.

14.

Plestan

Shtessel

Brégeault

, et al. New methodologies for adaptive sliding mode control. Int J Control 2010; 83(9): 1907–1919.

15.

Tutsoy

Brown

. Chaotic dynamics and convergence analysis of temporal difference algorithms with bang-bang control. Optim Control Appl Method 2016; 37(1): 108–126.

16.

Xiu

Wang

. Sliding mode control based on dynamic model for transport vehicle. IEEE Access 2018; 6: 33819–33825.

17.

Fridman

. Chattering analysis in sliding mode systems with inertial sensors. Int J Control 2003; 76(9–10): 906–912.

18.

Moreno

Osorio

. Strict Lyapunov functions for the super-twisting algorithm. IEEE Trans Autom Control 2012; 57(4): 1035–1040.

19.

Shtessel

Taleb

Plestan

. A novel adaptive-gain super-twisting sliding mode controller: methodology and application. Automatica 2012; 48(5): 759–769.

20.

Orlov

Aoustin

Chevallereau

. Finite time stabilization of a perturbed double integrator—part I: continuous sliding mode-based output feedback synthesis. IEEE Tran Autom Control 2011; 56(3): 614–618.

21.

Edwards

Shtessel

. Adaptive dual-layer super-twisting control and observation. Int J Control 2016; 89(9): 1759–1766.

22.

Huang

Kuo

Chang

. Adaptive sliding-mode control for nonlinear systems with uncertain parameters. IEEE Trans Syst Man Cybern B (Cybern) 2008; 38(2): 534–539.

23.

Utkin

Poznyak

. Adaptive sliding mode control with application to super-twist algorithm: equivalent control method. Automatica 2013; 49(1): 39–47.

24.

Cao

Gao

. Synchronization control based on novel error for a hybrid mechanism. Proc Inst Mech Eng Part I J Syst Control Eng 2017; 231(9): 717–728.

25.

Gao

Zhang

. Synchronous robust sliding mode control of a parallel robot for automobile electro-coating conveying. IEEE Access 2019; 7: 85838–85847.

26.

Niu

Gao

Liu

, et al. Decoupled sliding mode control for a novel 3-DOF parallel manipulator with actuation redundancy. Int J Adv Robot Syst 2015; 12(64): 1–13.

27.

Tutsoy

Barkana

Tugal

. Design of a completely model free adaptive control in the presence of parametric, non-parametric uncertainties and random control signal delay. ISA Trans 2018; 76: 67–77.

28.

Ding

Gao

. Adaptive robust SMC of hybrid robot for automobile electro-coating conveying. J Eng 2019; 15: 587–592.

Global robust super-twisting algorithm with adaptive switching gains for a hybrid robot

Abstract

Keywords

Introduction

Controller design

Remark 1

Design of the global robust STW algorithm

Design of the global robust STW algorithm with adaptive switching gains

Remark 2

Remark 3

Remark 4

Remark 5

Remark 6

Stability analysis

Assumption 1

Theorem 1

Proof

Theorem 2

Proof

Hybrid robot for automobile electro-coating conveying

Remark 7

Simulation results and analysis

Remark 8

Prototype experimental results

Conclusions and future work

Footnotes

Declaration of conflicting interests

Funding

ORCID iDs

References
