Abstract

Space-based Earth observation is now developing rapidly because of the advantages in coverage, convenience, and flexibility. However, it is difficult for one single satellite to realize the quick observation of wide areas. In order to catch all the significant information of a wide area in a short time, multi-satellite observation mission would be proposed. In this article, a mission planning method for online multi-satellite wide area observation is established to serve future multi-satellite observation missions. Firstly, a method for area division is proposed, and the whole area is divided into subareas. Then the multi-satellite observation path planning is realized by a strategy of path deduction. After that, a remaining time allocation method to maximize the observation gazing time of each subarea is proposed. Finally, the algorithms for the whole mission planning process are provided. Numerical simulations show that the mission planning method is able to ensure the complete coverage of different wide target areas, with high reliability and low computational complexity.

Keywords

Multi-satellite wide area observation satellite formation mission planning path deduction remaining time allocation mission planning algorithms

Introduction

Space-based Earth observation is now developing rapidly, because compared with other Earth surface observation methods, space-based Earth observation has advantages in coverage, convenience, and flexibility, thus becoming a mainstream satellite function.^1

–4 Nowadays, space-based observation plays an increasingly significant role in national economic activities, disaster forecasting, land surveying and mapping, meteorological monitoring, and national defense construction.^5,6 So far, about 200 Earth observation satellites, which are above 50 kg, have been launched all over the world. As estimated, more than 400 observation satellites will be in orbit within the next decade.³

The low Earth orbit (LEO) satellite, with the apogee altitude less than 3000 km, is the mostly used kind of satellites in space, compared with the medium Earth orbit satellite, geosynchronous Earth orbit satellite, and the highly eccentric orbit satellite, accounting for more than 80% of all the satellites in orbit.⁷ And the LEO satellite becomes the most common platform in space-based observation.

Many research studies have been conducted to study the theoretical problems of LEO observation satellites, including the calculation for the visibility of targets, the coverage of the observation mission, the overtopping situation above target points, and so on.^8

–15 Ali et al. proposed an algorithm to determine the visibility-time function of the circular LEO satellite at a target point on the ground, based on approximating the subastral point trajectory as a great circle during a short time interval of observation period, neglecting the Earth’s rotation.¹⁶ Palmer and Mai provided a fast algorithm for the prediction of passes of a LEO satellite over any given location through the sophisticated analytic model of the orbit.¹⁷ On this basis, Wu and Palmer offered a prediction approach consisted of the coarse search, the imaging estimation, and the imaging refinement for satellite online mission planning.¹⁸

However, due to the limitation of the field of view, the attitude maneuverability, and the insufficient observation window time of one single LEO satellite, the coverage of the surface area is still limited within one observation window time, which makes it difficult for a single satellite to quickly complete the observation of large areas. When the next observation window arrives, the effective target information might have been lost.

An effective solution is to use satellite formations that consist of multiple satellites with imaging load to observe a wide area on the ground in a short time.^19,20 When multi-satellite observes the wide area of the Earth, the coverage of the whole target area is achieved by gazing at each subarea one by one by the satellites. In the mission, the satellites gaze different subareas according to the time-target sequence obtained by the online mission planning program, as illustrated in Figure 1.

Figure 1.

Diagram of multi-satellite wide area observation.

One of the core issues of the multi-satellite wide area observation is to establish an online mission planning method that takes both the space position constraints and the actual attitude maneuverability of satellites into consideration. So, this article proposed a mission planning program that plans the gazing sequence of each satellite according to the relative position, the size of the target area, the size of the satellite field of view, the satellite attitude maneuverability, and the position and velocity of each satellite in the formation.

In this article, a method to divide the whole area into subareas is defined at first in the second section In the third section, the multi-satellite observation path planning is realized by a strategy of path deduction. After that, a method to maximize the observation gazing time of each subarea is proposed. A multi-satellite wide area observation mission planning algorithm is also summarized. Numerical simulations for the mission planning method are proposed in the fourth section.

Subarea division of the wide area

It is assumed that the target area is parallel to the subastral point trajectory, with the center point of longitude $λ_{c}$ and latitude $φ_{c}$ . As shown in Figure 2, the length of the whole target area is b, which is measured along the direction of the subastral point trajectory, while the width perpendicular to the subastral point trajectory is a.

Figure 2.

Diagram of spatial dimensions in observation.

According to an attitude control strategy, the yaw angles of the satellites all set to be 0 when staring at targets. When gazing at the surface of the Earth, the field of view of the cameras carried by satellites are measured by the length d and width c, respectively, representing the length and the width of ground coverage in condition of orthographic projection, measured by the distances parallel and perpendicular to the direction of satellite velocity.

During the observation period, the displacement of ground surface caused by the rotation of the Earth is commensurate to the magnitude of the camera field of view. Therefore, the influence of the rotation of the Earth must be taken into account in the planning of wide area observation mission. So in this section, an observation plane coordinate system of cameras is established, to avoid the influence of Earth rotation in the process of dividing subareas and path planning.

The camera observation plane coordinate system takes the center point of the whole target area at the time of overtopping as the origin. The value y represents the distance along the track direction of the subastral point, and the value x represents the arc distance perpendicular to the track of the subastral point. The definition of the observation coordination system is illustrated in Figure 3.

Figure 3.

Diagram of the observation plane coordinate system.

If the target area is parallel to the subastral point trajectory as assumed before, it becomes a standard rectangle in the camera observation coordinate system, whose length direction coincides with y direction and width direction coincides with x direction. On this basis, the area shall be divided into numbered subareas.

By solving the visibility of the regional center point $(λ_{c}, φ_{c})$ , the time that satellite overtops the area center t_c and the roll angle $η_{c}$ can be obtained.^16–18 Whether the whole target area is to the left or right of the center can be judged according to the positive or negative of $η_{c}$ . If the target area is to the right of the center, the number starts from the lower left corner, and if the target area is on the left, the number starts from the lower right corner, so as to facilitate the observation path from the nearest side in subsequent path planning process. The total number of rows n_b in y direction is equal to the ceil of $\frac{b}{d}$ , and the total number of columns n_a in x direction is equal to the ceil of $\frac{a}{c}$ . The numbering rule is shown in Figure 4.

Figure 4.

The numbering rule of subareas.

The visibility of the central points of the subareas is used to represent the visibility of subareas. So in order to calculate the visible period of one subarea, the longitude and latitude of the central point of this subarea in Earth center fix (ECF) coordinate should firstly be backstepping solved according to the coordinate value of the central point in the observation system. Then the visibility prediction methods as Wu and Palmer,¹⁸ Ali et al.,¹⁶ and Palmer and Mai¹⁷ proposed can be used to solve the visible periods of the central points, which is equal to the visible periods of corresponding subareas.

The transformation from the observation coordinate system to ECF system is time-dependent, because of the rotation of the Earth. A method for calculating the ECF longitude and latitude of the center points of the subarea by its subarea number is given below.

Firstly, the coordinate values of the central point of the subarea in the observation coordinate system are calculated by the subarea number $(i, j)$ . According to geometric relations

y = - \frac{1}{2} b + (i + \frac{1}{2}) d

And if the number starts at the lower left corner, then

x = - \frac{1}{2} a + (j + \frac{1}{2}) c

Meanwhile, if the number starts at the lower right corner, then

x = \frac{1}{2} a - (j + \frac{1}{2}) c

After determining the coordinates $(x, y)$ of the central point of the subarea $(i, j)$ , the time t when the satellite overtops the central point is calculated from the coordinate value y. According to the definition of the observation coordinate system

t = t_{c} + \frac{y}{{\bar{M}}^{'} \cdot R_{e}}

where ${\bar{M}}^{'}$ means the average angular velocity of the satellites and R_e is the radius of the earth.

After the time t is calculated, the position $r_{s}$ and velocity $v_{s}$ of the satellites under the Earth center inertial (ECI) coordinate, and the transformation matrix $Ε_{Ι}$ from ECI to ECF can be determined uniquely. According to the geometric relationship, the angle α between the geocentric-satellite connection and the geocentric-point connection can be obtained. At the overtopping moment, the geometric relationship among the Earth, the target point, and the satellite is shown in Figure 5.

Figure 5.

Geometric relation diagram of overtopping time.

Take the positive and negative of the angles into consideration, α is solved by

α = \frac{x}{R_{e}} - arcsin (\frac{r_{s} \cdot sin η_{c}}{R_{e}}) + η_{c}

where α gets positive when it is clockwise as in Figure 5.

Ignoring the ellipticity of the Earth, once the vector ${\hat{r}}_{s}$ from the geocentric to the subastral point in ECI is rotated by angle α around the velocity direction ${\hat{v}}_{s}$ of the satellite, the vector $r_{t}$ of the subastral point under ECI is obtained, wherein

{\hat{r}}_{s} = \frac{r_{s}}{r_{s}} \cdot R_{e}

{\hat{v}}_{s} = \frac{v_{s}}{‖v_{s}‖}

To define the quaternion q , let

q = [\begin{matrix} cos \frac{α}{2} \\ v_{s x} sin \frac{α}{2} \\ v_{s y} sin \frac{α}{2} \\ v_{s z} sin \frac{α}{2} \end{matrix}]

According to the properties of quaternions

r_{t} = [\begin{matrix} q_{0}^{2} + q_{1}^{2} - q_{2}^{2} - q_{3}^{2} & - 2 q_{0} q_{3} + 2 q_{1} q_{2} & 2 q_{0} q_{2} + 2 q_{1} q_{3} \\ 2 q_{0} q_{3} + 2 q_{1} q_{2} & q_{0}^{2} - q_{1}^{2} + q_{2}^{2} - q_{3}^{2} & - 2 q_{0} q_{1} + 2 q_{2} q_{3} \\ - 2 q_{0} q_{2} + 2 q_{1} q_{3} & 2 q_{0} q_{1} + 2 q_{2} q_{3} & q_{0}^{2} - q_{1}^{2} - q_{2}^{2} + q_{3}^{2} \end{matrix}] \cdot {\hat{r}}_{s}

While in ECF system, the geocentric vector $r_{t}^{e}$ corresponding to the central point of the subarea should be calculated by

r_{t}^{e} = Ε_{Ι} \cdot r_{t}

Through the transformation from rectangular coordinates to spherical coordinates, the longitude and latitude $(λ_{i j}, φ_{i j})$ corresponding to the center point of the subarea can be solved. By calling the prediction method of target visibility mentioned above,^16–18 the visible period $[t_{i j}^{in}, t_{i j}^{out}]$ of each subarea can be obtained by judging whether the angle between satellite-target line and local direction is less than a critical angle k.

Path planning for multi-satellite observation

Path deduction

Path deduction proposed in this article is used to simulate one satellite’s observation and attitude maneuver along a given route. The idea of path deduction is to accumulate time continuously and keep judging whether the next subarea by the given observation route would be visible or not after maneuvering to there. If the next subarea is invisible, it is abandoned and replaced by the subarea next to it, until the end of the route.

Considering the coverage efficiency, maneuvering time-consuming, and mission characteristics, the deduction route chosen in this article is an S-shaped path, starting from the subarea $(0, 0)$ . Then the deduction is carried out through the S-shaped path along the subastral point trajectory, as shown in Figure 6.

Figure 6.

The S-shaped deduction path.

For example, it is assumed that the satellite has established the attitude of gazing at the first subarea $(0, 0)$ before entering the observation period. After entering the visible period, it will maneuver to the subarea $(0, 1)$ immediately after gazing at the $(0, 0)$ for a time period $τ_{s}$ , and the maneuvering time-consuming is $τ_{m}$ . If the subarea $(0, 1)$ is still visible for more than $τ_{s}$ at the completion time of the attitude maneuver, then it will be gazed at for $τ_{s}$ . Otherwise, the subarea $(0, 1)$ will be abandoned and satellite should try to maneuver to the next subarea by the given route, that is, the subarea $(0, 2)$ .

The time-consuming taken by the satellite to switch its gazing attitude from one subarea center to another can be estimated by a linear formula, that

τ_{m} = c_{m} \cdot d + τ_{m}^{0}

where, d means the distance between the two subarea centers, c_m is a coefficient of maneuver time-consuming, and $τ_{m}^{0}$ represents a constant.

After the path deduction started from subarea $(0, 0)$ , an observation sequence can be obtained, along with the total number n_v of subareas that has been covered, as illustrated in Figure 7.

Figure 7.

The result of the first time path deduction.

Take Figure 7 as an example, it can be found that $n_{v} = 13$ .

Multi-satellite path planning

The first satellite’s observation path has been obtained after the path deduction. On this basis, the path for the other satellites can be deducted.

The principle for multi-satellite path planning is similar to the first path deduction, all the satellite should follow the given observation route. However, the start of the path deduction is moved to the first subarea that has not been covered in the former path. If one subarea has already been covered before, it should be skipped in the following path deduction process.

Take the second path deduction as an example, as illustrated in Figure 8, the red points are covered in the first path deduction, and the new start point subarea becomes the first uncovered subarea in the first path deduction. Also, the subareas that have already been covered in the first path should be skipped in the following deduction, from then on.

Figure 8.

Diagram of multi-satellite path planning.

Remaining time allocation

After multi-satellite path planning, the observation path and time series for each satellite in the formation would be obtained, including the number of the subareas, the maneuvering starting time $t_{m}^{p}$ , the attitude arrival time $t_{g}^{p}$ of each subarea, the departure time $t_{o}^{p}$ of each subarea, and the gazing time period of each subarea can be obtained, where p means the ordinal number of a subarea in the path of one satellite, $p \leq n_{v}$ . During path deduction, one satellite will immediately maneuver to the next subarea as long as the current subarea has been gazed for $τ_{s}$ , thus

t_{o}^{p} = t_{g}^{p} + τ_{s}

As for $p < n_{v}$

t_{o}^{p} = t_{m}^{p + 1}

It is possible to increase the gazing time for each subarea, but the excessive increase of the gazing time in one subarea would lead to the lack of gazing preconditions for subsequent subareas following the result of path deduction. The minimum allowable gazing time increment for all current subareas in the path is defined as the remaining time.

Before the remaining time allocation, the gazing time for all the subareas in the path except the last one is equal to $τ_{s}$ . After the remaining time allocation, the gazing time for each subarea would be evenly increased, to maximize the gazing time of each subarea without affecting the visibility of any other subarea in the path, so as to improve the quality of the mission planning.

The idea of remaining time allocation proposed in this article is to calculate the difference $τ_{p}$ between the invisible time $t_{i j}^{out}$ and the departure time $t_{o}^{p}$ of each subarea in the observation path. Finding out the number q ₁ that makes

τ_{p} = τ_{p}^{min}| |_{p = q_{1}}

Then let the gazing time for the subareas from the first one to number q ₁ extend for $\frac{τ_{q_{1}}}{q_{1}}$ . Then, once again, finding out the number q ₂ that makes

τ_{p} = τ_{p}^{min}| |_{p = q_{2}}

Let the gazing time for subareas from number $q_{1} + 1$ to number q ₂ prolong for $\frac{τ_{q_{2}} - τ_{q_{1}}}{q_{2} - q_{1}}$ .

The rest may be deduced by analogy, until the $q = n$ , which means all the remaining time has been allocated.

Process of the algorithm

The whole process for multi-satellite wide area observation mission planning is summarized as follows.

A. Input:

Inputting the initial time of program t ₀.

Inputting the orbit elements of each satellite $σ (t_{0})$ .

Inputting the target area as $λ_{c}$ , $φ_{c}$ , a, and b.

Inputting the size of the satellites’ field of view inputted as c and d.

Inputting the critical angle k for effective imaging.

Inputting the attitude maneuverability $τ_{m}^{0}$ and c_m .

Inputting the minimum gazing time for each subarea $τ_{s}$ .

B. Initialization:

Calling the visibility prediction algorithm, get t_c and $η_{c}$ .

Judging if the target area is on left or right.

Dividing the target area into subareas and numbering each subarea as $(i, j)$ .

Calculating $(λ_{i j}, φ_{i j})$ .

Calling the visibility prediction algorithm, to get the visible period $[t_{i j}^{in}, t_{i j}^{out}]$ for each satellite.

C. Path planning:

For each satellite,

Starting from the first uncovered subarea $(i, j)$ .

Marking subarea $(i, j)$ as covered.

Finding out the next uncovered subarea $(i^{*}, j^{*})$ following the path.

If there is no more uncovered subarea, going to D.

If $t_{i^{*}, j^{*}}^{in} \leq t + {τ_{m}|}_{i, j \to i^{*}, j^{*}} \leq t_{i^{*}, j^{*}}^{in} - τ_{s}$ , accepting subarea $(i^{*}, j^{*})$ as the pth subarea covered by this satellite, recording $t_{m}^{p}$ , $t_{g}^{p}$ , $t_{o}^{p}$ .

If $(i^{*}, j^{*})$ is the last subarea in the path, go to C for the next satellite.

Assigning $(i, j) \leftarrow (i^{*}, j^{*})$ , and go to c.

D. Remaining time allocation:

For each satellite,

Find out all the $t_{m}^{p}$ , $t_{g}^{p}$ , $t_{o}^{p}$ that have been recorded during the path deduction, comparing with the visible period $[t_{i j}^{in}, t_{i j}^{out}]$ , and realize the remaining time allocation.

E. Output:

For each satellite,

Outputting the $(λ_{i j}, φ_{i j})$ of the subarea covered, along with the corresponding arriving time, starting gazing time and the gazing time interval of subarea $(i, j)$ .

Numerical simulations

In the third section, a method of multi-satellite wide area observation mission planning is given. In this section, the effectiveness of the method proposed would be validated by taking one Earth observation mission by a serial satellite formation as examples.

In order to accurately calculate the state of Earth in the ECI system, the starting time of the simulation needs to be given.

In the fourth section, the time January 22, 2019, 00:00:00.000 UTCG is marked as time t ₀. At t ₀, the orbit elements of each satellite in the serial formation are shown in Table 1.

Table 1.

List of orbit elements of satellites.

Number	a (km)	i (°)	ω (°)	M (°)
1	6850	35	30	15
2	6850	35	30	10
3	6850	35	30	5

Example 1

Assuming that each satellite has similar attitude maneuverability and imaging performance, the parameters used in the simulation are shown in Table 2.

Table 2.

List of the parameters used in the simulation for example 1.

Parameter	Value
$λ_{c}$	11.5°
$φ_{c}$	24.6°
a	230 km
b	300 km
c	84 km
d	33 km
k	45°
c _m	6.5 × 10⁻⁵ s/m
$τ_{m}^{0}$	12 s
$τ_{s}$	3 s

Through mission planning, the observation path of each satellite is shown in Figure 9 and the observation sequence obtained is shown in Table 3.

Figure 9.

The observation path obtained by mission planning in example 1.

Table 3.

Observation sequence obtained by mission planning in example 1.

Satellite	Longitude (°)	Latitude (°)	Arrive time (s)	Maneuver time (s)	Gazing time (s)
1	10.69	25.70	1277.41	1277.41	3.04
1	10.34	25.02	1297.91	1280.45	3.04
1	9.99	24.33	1318.40	1300.94	3.04
1	10.26	24.21	1335.59	1321.44	3.04
1	10.61	24.89	1356.08	1338.62	3.04
1	10.97	25.58	1376.58	1359.12	3.04
1	11.24	25.45	1393.76	1379.62	3.04
1	10.89	24.77	1414.26	1396.80	3.04
1	11.17	24.64	1431.44	1417.30	3.04
1	12.54	24.00	1457.21	1434.48	3.04
2	10.54	24.09	1371.90	1371.90	3.33
2	10.81	23.96	1389.38	1375.24	3.33
2	11.52	25.33	1415.63	1392.71	3.33
2	11.80	25.20	1433.11	1418.97	3.33
2	11.44	24.52	1453.90	1436.44	3.33
2	11.09	23.83	1474.70	1457.24	3.33
2	11.36	23.71	1492.17	1478.03	3.33
2	11.72	24.39	1512.97	1495.51	3.33
2	11.99	24.26	1530.44	1516.30	3.33
3	12.08	25.07	1466.35	1466.35	4.39
3	12.35	24.94	1484.88	1470.73	4.39
3	11.63	23.58	1512.18	1489.26	4.39
3	11.90	23.45	1530.71	1516.57	4.39
3	12.26	24.13	1552.56	1535.10	4.39
3	12.63	24.81	1574.40	1556.94	4.39
3	12.90	24.68	1592.93	1578.79	4.39
3	12.17	23.32	1620.24	1597.32	4.39

Example 2

Similarly, assuming that each satellite has similar attitude maneuverability and imaging performance, the parameters used in the simulation are shown in Table 4.

Table 4.

List of the parameters used in the simulation for example 2.

Parameter	Value
$λ_{c}$	11.5°
$φ_{c}$	24.6°
a	230 km
b	400 km
c	84 km
d	33 km
k	45°
c _m	6.4 × 10⁻⁵ s/m
$τ_{m}^{0}$	8 s
$τ_{s}$	3 s

Through mission planning, the observation path of each satellite is shown in Figure 10 and the observation sequence obtained is shown in Table 5.

Figure 10.

The observation path obtained by mission planning in example 2.

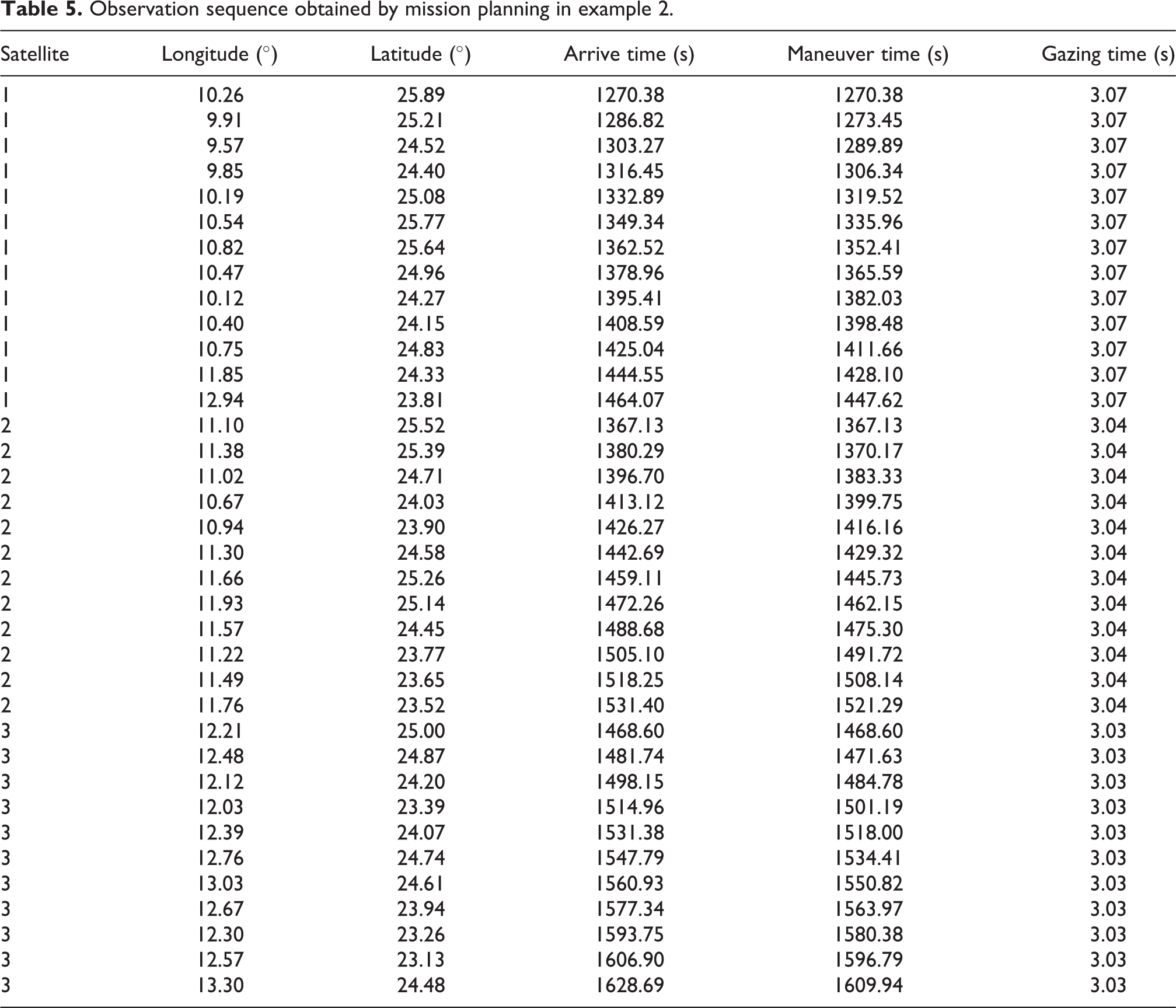

Table 5.

Observation sequence obtained by mission planning in example 2.

Satellite	Longitude (°)	Latitude (°)	Arrive time (s)	Maneuver time (s)	Gazing time (s)
1	10.26	25.89	1270.38	1270.38	3.07
1	9.91	25.21	1286.82	1273.45	3.07
1	9.57	24.52	1303.27	1289.89	3.07
1	9.85	24.40	1316.45	1306.34	3.07
1	10.19	25.08	1332.89	1319.52	3.07
1	10.54	25.77	1349.34	1335.96	3.07
1	10.82	25.64	1362.52	1352.41	3.07
1	10.47	24.96	1378.96	1365.59	3.07
1	10.12	24.27	1395.41	1382.03	3.07
1	10.40	24.15	1408.59	1398.48	3.07
1	10.75	24.83	1425.04	1411.66	3.07
1	11.85	24.33	1444.55	1428.10	3.07
1	12.94	23.81	1464.07	1447.62	3.07
2	11.10	25.52	1367.13	1367.13	3.04
2	11.38	25.39	1380.29	1370.17	3.04
2	11.02	24.71	1396.70	1383.33	3.04
2	10.67	24.03	1413.12	1399.75	3.04
2	10.94	23.90	1426.27	1416.16	3.04
2	11.30	24.58	1442.69	1429.32	3.04
2	11.66	25.26	1459.11	1445.73	3.04
2	11.93	25.14	1472.26	1462.15	3.04
2	11.57	24.45	1488.68	1475.30	3.04
2	11.22	23.77	1505.10	1491.72	3.04
2	11.49	23.65	1518.25	1508.14	3.04
2	11.76	23.52	1531.40	1521.29	3.04
3	12.21	25.00	1468.60	1468.60	3.03
3	12.48	24.87	1481.74	1471.63	3.03
3	12.12	24.20	1498.15	1484.78	3.03
3	12.03	23.39	1514.96	1501.19	3.03
3	12.39	24.07	1531.38	1518.00	3.03
3	12.76	24.74	1547.79	1534.41	3.03
3	13.03	24.61	1560.93	1550.82	3.03
3	12.67	23.94	1577.34	1563.97	3.03
3	12.30	23.26	1593.75	1580.38	3.03
3	12.57	23.13	1606.90	1596.79	3.03
3	13.30	24.48	1628.69	1609.94	3.03

According to the simulation results, through the online mission planning program, the satellite formation has effectively completed the observation coverage of the wide area, and the observation time of each subarea has been increased as much as possible.

Conclusion

The mission planning method introduced in this article takes full account of space geometric constraints and satellite attitude maneuverability. It completes the mission planning by an S-type path deduction and remaining time allocation. This method effectively reduces the amount of computation, so that can be realized online.

It is noteworthy that this article focuses on the elaboration of the basic principles of the mission planning method, and the ideal geometric model is used in the spatial relationship to simplify the formulation of algorithms. When applied to the process of practical application, the influence factors such as the ellipse of the Earth, the height of the target area, and the perturbation of the orbit should be taken into consideration.

Footnotes

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work is supported by the National Natural Science Foundation of China under grant no. 61903278, the Natural Science Foundation of Hubei Province under grant no. 2018CFB180, and the Fundamental Research Funds for the Central Universities under grant no. 2042019kf0044.

ORCID iD

Di Huang

References

Blaustein

. Earth observation needs space-based boost. Phys World 2018; 31: 8.

Gaposchkin

Braun

Sharma

. Space-based space surveillance with the space-based visible. J Guid Control Dynam 2000; 23: 148–152.

Zeng

. A method for spatial effective coverage analysis in space-based optical observation. Optik 2018; 166: 116–126.

Liu

Liao

Wen

, et al. Simulation and analysis of space object visibility based on space-based optics surveillance. In: Communications in computer and information science, Springer, Berlin, Heidelberg, 2012, pp.195–203.

Chu

Chen

Tan

. An anytime branch and bound algorithm for agile earth observation satellite onboard scheduling. Adv Space Res 2017; 60: 2077–2090.

Ortore

Circi

Bunkheila

, et al. Earth and Mars observation using periodic orbits. Adv Space Res 2012; 49: 185–195.

Ali

Al-Dhahir

Hershey

. Doppler characterization for LEO satellites. IEEE Trans Commun 1998; 46: 309–313.

Chylla

Eagle

. Efficient computation of satellite visibility periods. In: Spaceflight mechanics, Colorado Springs, CO, USA, 24–26 February 1992.

Flandrin

Ferrante

. Statistical evaluation of the ground coverage by a satellite and of the station visibility. ESA J 1983; 7: 75–88.

10.

MW.

The coverage of elliptical orbits using ergodic theory. In: Aerospace conference, Big Sky, MT, USA. 6–13 March 2004.

11.

Cao

Sun

, et al. Space debris observation via space-based ISAR imaging. In: International conference on microwave & millimeter wave technology, Builin, China, 18–21 April 2007.

12.

Dong

Wang

Zhang

. Modeling and validation of photometric characteristics of space targets oriented to space-based observation. Appl Optics 2012; 51: 7810–7819.

13.

Elliott

Walters

Wright

. The role of space-based observation in understanding and responding to active tectonics and earthquakes. Nature Commun 2016; 7: 13844.

14.

Sarangi

Devi

. Space-based observation of chlorophyll, sea surface temperature, nitrate, and sea surface height anomaly over the Bay of Bengal and Arabian Sea. Adv Space Res 2017; 59: 33–44.

15.

Winick

Picard

Wintersteiner

, et al. Space-based observation of gravity wave induced radiance fluctuations: simulation and MSX observations. AGU Spring Meeting Abstracts, 2001.

16.

Ali

Al-Dhahir

Hershey

. Predicting the visibility of LEO satellites. IEEE Trans Aerospace Electro Syst 1999; 35: 1183–1190.

17.

Palmer

Mai

. A fast prediction algorithm of satellite passes. https://digitalcommons.usu.edu/smallsat/2000/All2000/38 (2000).

18.

Palmer

. Fast prediction algorithms of satellite imaging opportunities with attitude controls. J Guid Control Dynam 2015; 25: 3006–3009.

19.

Ulybyshev

. Satellite constellation design for complex coverage. J Spacecraft Rockets 2008; 45: 843–849.

20.

Draim

. Three- and four-satellite continuous-coverage constellations. J Guid Control Dynam 2012; 1: 725–730.

A mission planning method for multi-satellite wide area observation

Abstract

Keywords

Introduction

Subarea division of the wide area

Path planning for multi-satellite observation

Path deduction

Multi-satellite path planning

Remaining time allocation

Process of the algorithm

Numerical simulations

Example 1

Example 2

Conclusion

Footnotes

Declaration of conflicting interests

Funding

ORCID iD

References
