Abstract

An adaptive iterative learning control approach based on disturbance estimation has been developed for trajectory tracking of manipulators with uncertain parameters and external disturbances. The external disturbances are estimated by the feedback iterative learning method, whereas the uncertain parameters are compensated by adaptive control. This approach which is based on the disturbance estimation technique provides a rapid convergence of trajectory tracking errors. According to the Lyapunov theory, the sufficient condition of the asymptotic stability has been developed for the 2-degrees of freedom (DOFs) manipulator system. The numerical results show that the adaptive iterative learning control approach based on disturbance estimation is feasible and effective for the 2-DOFs manipulator. A comparison of the adaptive iterative learning control method and the iterative learning control method is completed, which shows that the adaptive iterative learning control method performs a faster convergence of the disturbance to the steady state.

Keywords

Adaptive iterative learning control disturbance estimation trajectory tracking Lyapunov function manipulator system

Introduction

The robots are an important branch of robotics and an important part of today’s industry. The robots are mechatronics. Usually, it is assumed that each part of the robots is rigid, which is called as manipulator. The robots are widely used in reality, such as mobile robots, space robots, and soft robots.^1,2 A novel sliding mode control law was proposed for asymptotically stabilizing the mobile robot to a desired trajectory.³ Moreover, a Kalman-based active observer controller was developed for the path following of wheeled mobile robots.⁴ The trajectory tracking of the manipulators is a common problem in the manufacture industry, where the manipulators were unable to follow the desired trajectory without error.^5,6 However, the manipulator system always has different kinds of uncertainty. It cannot ensure the manipulators followed desired trajectory without errors. On the one hand, the parameters of manipulator system cannot be known in advance, for example, the quality and length of each link of the manipulators. Alternatively, considering the external environment, the manipulator system is usually attached by unpredictable disturbances. Even in the complex applications, the external disturbances may be random. Thus, the error can be caused by two factors: the uncertain parameters of the manipulators and the external disturbances. There were several control methods that had been developed and proved the effectiveness to solve the trajectory tracking problem, such as the proportional–integral–derivative control,⁷ the fuzzy control,⁸ the adaptive control,⁹ the time-delay control,^10
–12 and the neural network control.^13

–18 Sophisticated control methods were required to guarantee the performance of trajectory tracking for the manipulators with uncertain parameters and unknown disturbances.^19

–23

As a widely used sophisticated control method, the iterative learning control (ILC), which is proposed by Arimoto et al., uses the errors and output signals acquired in the previous operation to modify the input signals of the current operation.²⁴ To solve the uncertainties of the system, a large number of researchers used adaptive iterative learning control (AILC) methods to estimate the uncertain parameters of the manipulator systems.^25

–28 In recent years, AILC method became a popular technique in the control field, which generalized lots of algorithms. The following algorithms were effective to reduce the external disturbances, for instance, Nussbaum function,²⁹ saturation function,³⁰ and separation technology.³¹ A research developed an AILC method based on a fully saturated adaptive learning term and a time-domain feedback term, which aimed to estimate the uncertainty of the unknown time-varying systems.³² Moreover, a proportional–derivative controller with an adaptive term had been presented to estimate the uncertain parameters.³³ Although these methods can assure that the output errors of the manipulators system could be uniformly converged in the time domain, the minor disturbances might lead the process of the convergence to diverge.³⁴ Hence, it is important to estimate the external disturbances during the trajectory tracking process. The concept of disturbance estimation observer was firstly proposed by Grignion et al.,³⁵ as compensating disturbances. Due to the powerful applicability of disturbance estimation technique, a series of achievements had been obtained in recent years. The frequently applied disturbance estimation techniques were robust control and neural network.^36

–40 Furthermore, the feedback control had also been applied for compensating the disturbances.⁴¹ However, manipulators were frequently used for repetitive tasks, where the traditional control algorithms were unable to assure the accuracy of the trajectory of the manipulators at each task. Therefore, the ILC for estimating disturbances was particularly important. An ILC system with a feedback action term representing the disturbance estimation for performing repetitive tasks had been proposed by Bouakrif and Zasadzinski.⁴¹ To get a better tracking performance, this article would develop an AILC algorithm composed with disturbance estimation technique to achieve the manipulators on the desired trajectory.

This article contains three contributions. The first contribution is to construct an AILC scheme for trajectory tracking that uses the adaptive control and disturbance estimation technique. Secondly, it needs to provide a precisely proof of the asymptotic convergence for an AILC scheme based on disturbance estimation. Lastly, the effectiveness of the developed method needs to be testified based on the numerical results.

This article can be divided into five parts. In the second section, a controller is established that contains an iterative learning term and an adaptive term, which used to estimate the external disturbances and compensate the uncertainty parameters, respectively. In the third section, the verification process of the asymptotic stability is provided based on a Lyapunov function. In the fourth section, the simulation of the developed AILC scheme is achieved on a 2-degrees of freedom (DOFs) manipulator, where the results demonstrate the feasibility and effectiveness of the proposed method. Moreover, the developed method shows a faster convergence rate of tracking errors compared with the ILC method under the same numerical conditions. The result and future work are shown in the last section.

The dynamic model of manipulator

The equation of the dynamics model of manipulators with links is expressed as follows

M (q_{k}) {\ddot{q}}_{k} + C (q_{k}, {\dot{q}}_{k}) {\dot{q}}_{k} + G (q_{k}) + d (t) = τ_{k}

where t is the time and the nonnegative integer k is the operation or iteration number, q_k, ${\dot{q}}_{k}$ , and ${\ddot{q}}_{k} \in R^{n}$ are the link position, velocity, and acceleration vectors, respectively. $M (q_{k}) \in R^{n \times n}$ is the inertia matrix, $C (q_{k}, {\dot{q}}_{k}) \in R^{n \times n}$ is the centripetal–Coriolis matrix, $G (q_{k}) \in R^{n}$ is the gravity matrix, $d (t)$ is the disturbance torque, and $τ_{k} \in R^{n}$ is the torque input vector.

Equation (1) has the following properties which will be required:

Property 1: The inertia matrix $M (q_{k})$ is symmetric, positive definite, and bounded as

0 < β_{0} < | | M (q_{k}) | | < β_{1}

where $0 < β_{0} < β_{1}$ .

Property 2: $M (q_{k})$ is Lipschitz continuous in their arguments as follows

| | M (q_{k}) - M (q_{k - 1}) | | \leq l_{m} | | q_{k} - q_{k - 1} | |

Property 3: $\dot{M} (q_{k})$ and $C (q_{k}, {\dot{q}}_{k})$ satisfy skew-symmetric matrix as follows

x^{T} (\dot{M} (q_{k}) - 2 C (q_{k}, {\dot{q}}_{k})) x = 0, \forall x \in R^{n}

Property 4: $C (q_{k}, {\dot{q}}_{k}) {\dot{q}}_{d} + G (q_{k}) = Ψ (q_{k}, {\dot{q}}_{k}) ς (t)$ , where $Ψ (q_{k}, {\dot{q}}_{k}) \in R^{n \times (m - 1)}$ is an unknown matrix and $ς (t) \in R^{m - 1}$ is an unknown continuous vector during $[0, T]$ .

The lemma used in this article is summarized as below

Lemma 1: There considers a continuous function $f (x, y)$ , $x \in X$ , where

X = {x \in R^{p} | | x | | \leq ρ_{i},1 \leq i \leq p}, ρ_{i} \geq 0,

thus, there exists $L (y)$ such that

| | f (σ (x_{1}), y) - f (σ (x_{2}), y) | | \leq L (y) | | x_{1} - x_{2} | |

where

\forall x_{1}, x_{2} \in R^{p}, \forall y \in R^{q}

and

| | σ (x_{1}) - σ (x_{2}) | | \leq | | x_{1} - x_{2} | |

Proof

Using the mean value theorem, there exists a vector $z \in R^{p}$ such that

\begin{array}{l} f (σ (x_{1}), y) - f (σ (x_{2}), y) = \frac{\partial f}{\partial x} (z, y) (σ (x_{1}) - σ (x_{2})) \\ \leq \frac{\partial f}{\partial x} (z, y) (x_{1} - x_{2}) \end{array}

Therefore,

| | f (σ (x_{1}), y) - f (σ (x_{2}), y) | | \leq \frac{\partial f}{\partial x} (z, y) | | x_{1} - x_{2} | |

where $L (y)$ is the maximum of $‖ \frac{\partial f}{\partial x} (z, y) ‖$ .

In this article, the reasonable assumptions are imposed as:

Assumption 1:

The range of the control input θ is $| | θ | | \leq l_{θ}$

Assumption 2:

The adaptive rate $\hat{θ}$ is bounded as $‖ \hat{θ} ‖ \leq l_{\hat{θ}}$ , where is $l_{\hat{θ}}$ known value got from the physical limitations of 2-DOFs manipulator system

Assumption 3:

The disturbance $d (t)$ is bounded as $| | d (t) | | \leq l_{d}$

Assumption 4:

The control input ${\hat{d}}_{k}$ is bounded as $‖ {\hat{d}}_{k} ‖ \leq l_{u}$ , where l_u is known value got from the physical limitations of 2-DOFs manipulator system

Assumption 5:

${\dot{q}}_{d} (t), {\dot{q}}_{k} (t), q_{d} (t), q_{k} (t)$ are bounded $\forall t \in [0, T]$ , and the resetting condition is satisfied as follows

{\dot{q}}_{d} (0) - {\dot{q}}_{k} (0) = q_{d} (0) - q_{k} (0) = 0, \forall k \in N

Adaptive iterative learning controller for manipulator system

When the 2-DOFs manipulator system has no uncertainty parameters and disturbances, for the convenience of writing and discussion, the time term is omitted and denoted $M (q_{k}) \equiv M_{k}$ , $G (q_{k}) \equiv G$ .

The Lyapunov function candidate is defined as follows

V_{k} = \frac{1}{2} z_{k}^{T} M_{k} z_{k}

Using property 3, the derivate of (9) is given by

\begin{array}{l} {\dot{V}}_{k} = z_{k}^{T} M_{k} {\dot{z}}_{k} + \frac{1}{2} z_{k}^{T} {\dot{M}}_{k} z_{k} \\ = z_{k}^{T} (M_{k} {\ddot{q}}_{r} + C (q_{k}, {\dot{q}}_{k}) {\dot{q}}_{r} + G - τ_{0 k}) \end{array}

where

e_{k} = q_{d} - q_{k}, {\dot{e}}_{k} = {\dot{q}}_{d} - {\dot{q}}_{k}

z_{k} = {\dot{e}}_{k} + σ e_{k}, {\dot{q}}_{r} = {\dot{q}}_{d} + σ e_{k}, {\ddot{q}}_{r} = {\ddot{q}}_{d} + σ {\dot{e}}_{k}

σ is the positive scalar constant.

Then, the following control law is given by

τ_{0 k} = {\hat{M}}_{k} {\ddot{q}}_{r} + \hat{C} (q_{k}, {\dot{q}}_{k}) {\dot{q}}_{r} + \hat{G} + K_{p} e_{k} + K_{d} {\dot{e}}_{k}

where $K_{p}$ and $K_{d}$ are symmetric positive definite matrices, ${\hat{M}}_{k}$ , $\hat{C} (q_{k}, {\dot{q}}_{k})$ , and $\hat{G}$ are the estimated value of the matrices $M_{k}$ , $C (q_{k}, {\dot{q}}_{k})$ , and G, respectively.

The uncertain parameters of the manipulators and the external disturbances cause the trajectory tracking errors of manipulator systems. Thus, the control law (11) cannot ensure the stability of system for manipulators with uncertainties and external disturbances. It is necessary to redesign the controller to ensure that the tracking errors is asymptotically stable. Therefore

\begin{array}{l} M_{k} {\dot{z}}_{k} + C (q_{k}, {\dot{q}}_{k}) z_{k} + K_{p} e_{k} + K_{d} {\dot{e}}_{k} - d (t) \\ = - τ_{k} + τ_{0 k} + f_{k} \end{array}

where

f_{k} = (M_{k} - {\hat{M}}_{k}) {\ddot{q}}_{r} + (C (q_{k}, {\dot{q}}_{k}) - \hat{C} (q_{k}, {\dot{q}}_{k})) {\dot{q}}_{r} + (G - \hat{G})

Therefore, it can be assumed that

f_{k} = ϕ (q_{k,} {\dot{q}}_{k,} {\dot{e}}_{k}) θ (t)

where $ϕ (q_{k,} {\dot{q}}_{k,} {\dot{e}}_{k}) \in R^{n \times m}$ is the matrix defined as $ϕ (q_{k,} {\dot{q}}_{k,} {\dot{e}}_{k}) ≜ [Ψ (q_{k}, {\dot{q}}_{k}) sgn ({\dot{e}}_{k})]$ , $sgn ({\dot{e}}_{k})$ is the vector obtained by applying the signum function to all elements of ${\dot{e}}_{k}$ .

The uncertainty parameters are compensated by the following adaptive controller

{\hat{f}}_{k} = ϕ (q_{k,} {\dot{q}}_{k,} {\dot{e}}_{k}) {\hat{θ}}_{k}

with

{\hat{θ}}_{k} = {\hat{θ}}_{k - 1} + Γ ϕ {(q_{k,} {\dot{q}}_{k,} {\dot{e}}_{k})}^{T} z_{k}

where ${\hat{θ}}_{- 1} = 0$ , ${\hat{f}}_{k}$ is the estimated value of f_k, and ${\hat{θ}}_{k}$ is the estimated value of $θ (t) = {[ς^{T} (t) p]}^{T}$ . The unknown vector $ς (t)$ is defined by property 1 and the unknown parameter p is obtained according to property 1 and assumption 5 such that $| | M (q_{k}) {\ddot{q}}_{d} | | \leq p$ . $Γ \in R^{m \times m}$ is the symmetric positive definite matrix.

The external disturbance is estimated by feedback ILC. Estimating external disturbance is designed as (17); therefore, the controller of the system is described as

τ_{k} = τ_{0 k} + {\hat{f}}_{k} + {\hat{d}}_{k}

with the disturbance estimation given by

{\hat{d}}_{k} = d (t) + {\hat{d}}_{k - 1} + η z_{k - 1} .

If $2 σ η + ω \leq K_{p} + σ K_{d} + σ φ$ , $η \leq K_{d} + φ$ , and $σ η + ω \leq K_{p}$ , then

lim_{k \to \infty} e_{k} (t) = lim_{k \to \infty} {\dot{e}}_{k} (t) = 0, \forall t \in [0, T]

where

‖ \frac{\partial}{\partial \dot{q}} (C (q, \dot{q}) z) ‖ \leq φ, | | ϕ (q_{k,} {\dot{q}}_{k,} {\dot{e}}_{k}) | | \leq Φ

ω = β_{1} β_{0}^{- 2} l_{m} (Φ l_{θ} + Φ l_{\hat{θ}} + l_{u} + φ), λ_{min} (M_{k - 1}) = β_{0}

and $λ_{min} (M_{k}) = β_{1}$ , η, Φ, and φ are the positive definite matrices.

Substituting (1) into (16), it can be described as

\begin{array}{l} {\ddot{e}}_{k} + σ {\dot{e}}_{k} = M_{k}^{- 1} (- K_{p} e_{k} - K_{d} {\dot{e}}_{k} - C (q_{k}, {\dot{q}}_{k}) z_{k} \\ + ϕ (q_{k,} {\dot{q}}_{k,} {\dot{e}}_{k}) θ (t) - ϕ (q_{k,} {\dot{q}}_{k,} {\dot{e}}_{k}) {\hat{θ}}_{k - 1} \\ - ϕ (q_{k,} {\dot{q}}_{k,} {\dot{e}}_{k}) Γ ϕ^{T} (q_{k,} {\dot{q}}_{k,} {\dot{e}}_{k}) z_{k} - {\hat{d}}_{k - 1} - η z_{k - 1}) \end{array}

It can be seen that the $k - 1$ th iteration can be expressed as

\begin{array}{l} {\ddot{e}}_{k - 1} + σ {\dot{e}}_{k - 1} = M_{k - 1}^{- 1} (- K_{p} e_{k - 1} - K_{d} {\dot{e}}_{k - 1} \\ - C (q_{k}, {\dot{q}}_{k - 1}) z_{k - 1} + ϕ (q_{k,} {\dot{q}}_{k,} {\dot{e}}_{k}) θ (t) \\ - ϕ (q_{k,} {\dot{q}}_{k,} {\dot{e}}_{k}) {\hat{θ}}_{k - 1} + d (t) - {\hat{d}}_{k - 1}) \end{array}

To simplify the notation, let

D (q_{k}, {\dot{q}}_{k}) = C (q_{k}, {\dot{q}}_{k}) z_{k}

thus

‖ \frac{\partial}{\partial \dot{q}} D (q_{k}, {\dot{q}}_{k}) ‖ \leq φ

Subtracting (20) with (19), the following equality holds

\begin{array}{l} {\dot{\tilde{z}}}_{k} = - (M_{k}^{- 1} - M_{k - 1}^{- 1}) K_{p} e_{k - 1} - M_{k}^{- 1} (K_{p} e_{k} - K_{p} e_{k - 1}) \\ - (M_{k}^{- 1} - M_{k - 1}^{- 1}) K_{d} {\dot{e}}_{k - 1} - M_{k}^{- 1} (K_{d} {\dot{e}}_{k} - K_{d} {\dot{e}}_{k - 1}) \\ - (M_{k}^{- 1} - M_{k - 1}^{- 1}) D (q_{k}, {\dot{q}}_{k - 1}) \\ - M_{k}^{- 1} (D (q_{k}, {\dot{q}}_{k}) - D (q_{k}, {\dot{q}}_{k - 1})) \\ + (M_{k}^{- 1} - M_{k - 1}^{- 1}) (ϕ (q_{k,} {\dot{q}}_{k,} {\dot{e}}_{k}) θ (t) - ϕ (q_{k,} {\dot{q}}_{k,} {\dot{e}}_{k}) {\hat{θ}}_{k - 1}) \\ - (M_{k}^{- 1} - M_{k - 1}^{- 1}) (d (t) - {\hat{d}}_{k - 1}) - M_{k}^{- 1} d (t) \\ - M_{k}^{- 1} ϕ (q_{k,} {\dot{q}}_{k,} {\dot{e}}_{k}) Γ ϕ^{T} (q_{k,} {\dot{q}}_{k,} {\dot{e}}_{k}) z_{k} - M_{k}^{- 1} η z_{k - 1} \end{array}

where

{\tilde{z}}_{k} = z_{k} - z_{k - 1}, {\dot{\tilde{z}}}_{k} = {\dot{z}}_{k} - {\dot{z}}_{k - 1}

and

{\tilde{e}}_{k} = e_{k} - e_{k - 1}, {\dot{\tilde{e}}}_{k} = {\dot{e}}_{k} - {\dot{e}}_{k - 1}

The analysis of this theorem involves three parts: (1) The first part is composed of constructing a Lyapunov function $V_{k}$ which is positive definite. (2) The second part consists of proving that ${\dot{V}}_{0}$ is bounded for all $t \in [0, T]$ . (3) The third part is made up of demonstrating that

lim_{k \to \infty} e_{k} (t) = lim_{k \to \infty} {\dot{e}}_{k} (t) = 0, \forall t \in [0, T]

Proof.

Part 1: The Lyapunov function candidate is considered as follows

\begin{array}{l} V_{k} = \frac{1}{2} z_{k}^{T} M_{k} z_{k} + \frac{1}{2} e_{k}^{T} K_{p} e_{k} + T \frac{1}{2} e_{k}^{T} σ K_{d} e_{k} \\ + \frac{1}{2} \int_{0}^{t} ({\tilde{θ}}_{k}^{T} Γ^{- 1} {\tilde{θ}}_{k}) d τ + \int_{0}^{t} (z_{k}^{T} η z_{k}) d τ \end{array}

where ${\tilde{θ}}_{k} = θ (t) - {\hat{θ}}_{k}$ .

The derivate of (24) is given by

\begin{array}{l} {\dot{V}}_{k} = z_{k}^{T} (M_{k} {\ddot{q}}_{r} + C (q_{k}, {\dot{q}}_{k}) {\dot{q}}_{r} + G + d (t) - τ_{k}) \\ + e_{k}^{T} K_{p} {\dot{e}}_{k} + e_{k}^{T} σ K_{d} {\dot{e}}_{k} + \frac{1}{2} {\tilde{θ}}_{k}^{T} Γ^{- 1} {\tilde{θ}}_{k} + z_{k}^{T} η z_{k} \end{array}

From (16) and (25), the following equality is generalized as

\begin{array}{l} {\dot{V}}_{k} = z_{k}^{T} (M_{k} {\ddot{q}}_{r} + C (q_{k}, {\dot{q}}_{k}) {\dot{q}}_{r} + G + d (t) - {\hat{M}}_{k} {\ddot{q}}_{r} \\ - \hat{C} (q_{k}, {\dot{q}}_{k}) {\dot{q}}_{r} - \hat{G} - K_{p} e_{k} - K_{d} {\dot{e}}_{k} - ϕ {\hat{θ}}_{k} - {\hat{d}}_{k}) \\ + e_{k}^{T} K_{p} {\dot{e}}_{k} + e_{k}^{T} σ K_{d} {\dot{e}}_{k} + \frac{1}{2} \frac{1}{2} {\tilde{θ}}_{k}^{T} Γ^{- 1} {\tilde{θ}}_{k} + z_{k}^{T} η z_{k} \end{array}

Using (13), (14), (17), and (26) and after simple transformation, it follows

\begin{array}{l} {\dot{V}}_{k} = z_{k}^{T} (ϕ (q_{k,} {\dot{q}}_{k,} {\dot{e}}_{k}) {\tilde{θ}}_{k} - K_{p} e_{k} - K_{d} {\dot{e}}_{k} - {\hat{d}}_{k - 1} - η z_{k - 1}) \\ + e_{k}^{T} K_{p} {\dot{e}}_{k} + e_{k}^{T} σ K_{d} {\dot{e}}_{k} + \frac{1}{2} {\tilde{θ}}_{k}^{T} Γ^{- 1} {\tilde{θ}}_{k} + z_{k}^{T} η z_{k} \end{array}

Substituting $z_{k} = {\dot{e}}_{k} + σ e_{k}$ into (27), it has

\begin{array}{l} {\dot{V}}_{k} = z_{k}^{T} ϕ (q_{k,} {\dot{q}}_{k,} {\dot{e}}_{k}) {\tilde{θ}}_{k} + \frac{1}{2} {\tilde{θ}}_{k}^{T} Γ^{- 1} {\tilde{θ}}_{k} - σ e_{k}^{T} K_{p} e_{k} \\ - {\dot{e}}_{k}^{T} K_{d} {\dot{e}}_{k} - z_{k}^{T} {\hat{d}}_{k - 1} + z_{k}^{T} η {\tilde{z}}_{k} \end{array}

Therefore

\begin{array}{l} {\dot{V}}_{0} = z_{0}^{T} ϕ (q_{0,} {\dot{q}}_{0,} {\dot{e}}_{0}) {\tilde{θ}}_{0} + \frac{1}{2} {\tilde{θ}}_{0}^{T} Γ^{- 1} {\tilde{θ}}_{0} - e_{0}^{T} σ K_{P} e_{0} \\ - {\dot{e}}_{0}^{T} K_{d} {\dot{e}}_{0} - z_{0}^{T} {\hat{d}}_{0} + z_{0}^{T} η {\tilde{z}}_{0} \end{array}

The following equation is considered as follows

{\dot{V}}_{0} = {\dot{P}}_{0} + {\dot{Q}}_{0}

\begin{array}{l} {\dot{P}}_{0} = z_{0}^{T} ϕ (q_{0,} {\dot{q}}_{0,} {\dot{e}}_{0}) {\tilde{θ}}_{0} + \frac{1}{2} {\tilde{θ}}_{0}^{T} Γ^{- 1} {\tilde{θ}}_{0} \\ - e_{0}^{T} σ K_{P} e_{0} - {\dot{e}}_{0}^{T} K_{d} {\dot{e}}_{0} \end{array}

Since ${\hat{θ}}_{0 - 1} = 0$ , it can be yielded that ${\hat{θ}}_{0} = Γ ϕ^{T} (q_{0,} {\dot{q}}_{0,} {\dot{e}}_{0}) z_{0}$ , thereby

{\dot{P}}_{0} = θ {(t)}^{T} Γ^{- 1} {\tilde{θ}}_{0} - \frac{1}{2} {\tilde{θ}}_{0}^{T} Γ^{- 1} {\tilde{θ}}_{0} - e_{0}^{T} σ K_{P} e_{0} - {\dot{e}}_{0}^{T} K_{d} {\dot{e}}_{0}

Using Youngs inequality, it can be written as

θ {(t)}^{T} Γ^{- 1} {\tilde{θ}}_{0} \leq κ {‖ Γ^{- 1} {\tilde{θ}}_{0} ‖}^{2} + \frac{1}{4 κ} | | θ (t) | |^{2}

Hence

\begin{array}{l} {\dot{P}}_{0} \leq - λ_{min} σ K_{P} | | e_{0} | |^{2} - λ_{min} K_{d} | | {\dot{e}}_{0} | |^{2} \\ - (\frac{1}{2} λ_{min} (Γ^{- 1}) - κ λ^{2} ​_{max} (Γ^{- 1})) {‖ {\tilde{θ}}_{0} ‖}^{2} \\ + \frac{1}{4 κ} | | θ (t) | |^{2} \end{array}

Considering (30) and (31), the following equality holds

{\dot{Q}}_{0} = - z_{0}^{T} {\hat{d}}_{0} + z_{0}^{T} η {\tilde{z}}_{0}

Substituting $z_{k} = {\dot{e}}_{k} + σ e_{k}$ , ${\tilde{z}}_{k} = z_{k} - z_{k - 1}$ into (35), furthermore, according to $z_{0 - 1} = 0$ , $z_{0 - 1} = 0$ , it follows that

{\dot{Q}}_{0} = {\dot{e}}_{0}^{T} d (t) + σ e_{0} d (t) + {\dot{e}}_{0}^{T} η {\dot{e}}_{0} + e_{0}^{T} σ η σ e_{0} + 2 e_{0}^{T} σ η {\dot{e}}_{0}

Combined (19) and (36), the following equality is described as

\begin{array}{l} {\dot{Q}}_{0} = e_{0}^{T} σ d (t) + e_{0}^{T} σ η σ e_{0} \\ + \int_{0}^{t} (d (t) M_{0}^{- 1} (- K_{p} e_{0} - K_{d} {\dot{e}}_{0} - C (q_{0}, {\dot{q}}_{0}) z_{0} \\ + ϕ (q_{0,} {\dot{q}}_{0,} {\dot{e}}_{0}) θ (t)) - {\dot{e}}_{0}^{T} σ d (t)) d τ \\ + 2 \int_{0}^{t} ({\dot{e}}_{0}^{T} η M_{0}^{- 1} (- K_{p} e_{0} - K_{d} {\dot{e}}_{0} - C (q_{0}, {\dot{q}}_{0}) z_{0} \\ + ϕ (q_{0,} {\dot{q}}_{0,} {\dot{e}}_{0}) θ (t)) - {\dot{e}}_{0}^{T} σ η {\dot{e}}_{0}) d τ \\ + 2 \int_{0}^{t} (e_{0}^{T} σ η M_{0}^{- 1} (- K_{p} e_{0} - K_{d} {\dot{e}}_{0} - C (q_{0}, {\dot{q}}_{0}) z_{0} \\ + ϕ (q_{0,} {\dot{q}}_{0,} {\dot{e}}_{0}) θ (t)) - e_{0}^{T} σ^{2} η {\dot{e}}_{0} + {\dot{e}}_{0}^{T} σ η {\dot{e}}_{0}) d τ \end{array}

Due to assumption 1, assumption 3, and property 1, it is yielded that

{\dot{Q}}_{0} \leq \int_{0}^{t} | | l_{d} | | ϑ d τ + 2 \int_{0}^{t} δ | | {\dot{e}}_{0} | | d τ + 2 \int_{0}^{t} γ | | e_{0} | | d τ

where

ϑ = β_{0}^{- 1} Φ l_{θ}, δ = | | η | | α, γ = | | σ | | δ

Using Youngs inequality, it follows

γ ‖ e_{0} ‖ \leq φ {‖ e_{0} ‖}^{2} + \frac{1}{4 φ} γ^{2}, δ ‖ {\dot{e}}_{0} ‖ \leq α {‖ {\dot{e}}_{0} ‖}^{2} + \frac{1}{4 α} δ^{2}

Thus

\begin{array}{l} {\dot{Q}}_{0} \leq \int_{0}^{t} ‖ l_{d} ‖ ϑ d τ + 2 \int_{0}^{t} α {‖ {\dot{e}}_{0} ‖}^{2} d τ + \frac{1}{2 α} δ^{2} \\ + 2 \int_{0}^{t} φ {‖ e_{0} ‖}^{2} d τ + \frac{1}{2 φ} γ^{2} \end{array}

Together with (30) and (34), it can be derived as

\begin{array}{l} {\dot{V}}_{0} \leq - λ_{min} K_{d} {‖ {\dot{e}}_{0} ‖}^{2} - σ λ_{min} K_{P} {‖ e_{0} ‖}^{2} \\ - (\frac{1}{2} λ_{min} (Γ^{- 1}) - κ λ_{max} (Γ^{- 1})) {‖ {\tilde{θ}}_{0} ‖}^{2} \\ + \frac{1}{4 κ} {‖ θ ‖}^{2} + \int_{0}^{t} ‖ l_{d} ‖ ϑ d τ + 2 \int_{0}^{t} α {‖ {\dot{e}}_{0} ‖}^{2} d τ \\ + \frac{1}{2 α} δ^{2} + 2 \int_{0}^{t} φ {‖ e_{0} ‖}^{2} d τ + \frac{1}{2 φ} γ^{2} \end{array}

Since $‖ {\dot{e}}_{0} ‖, ‖ e_{0} ‖, ‖ {\tilde{θ}}_{0} ‖, ‖ θ ‖, ‖ l_{d} ‖$ are abounded, therefore, $V_{0}$ is bounded.

Part 2: According to (24), the following equality holds

\begin{array}{l} Δ V = V_{k} - V_{k - 1} \\ = W_{k} - W_{k - 1} + \int_{0}^{t} z_{k}^{T} η z_{k} d τ - \int_{0}^{t} z_{k - 1}^{T} η z_{k - 1} d τ \\ + \frac{1}{2} \int_{0}^{t} {\tilde{θ}}_{k}^{T} Γ^{- 1} {\tilde{θ}}_{k} d τ - \frac{1}{2} \int_{0}^{t} {\tilde{θ}}_{k - 1}^{T} Γ^{- 1} {\tilde{θ}}_{k - 1} d τ \end{array}

Let

\begin{array}{l} W_{k} = \frac{1}{2} z_{k}^{T} M_{k} z_{k} + \frac{1}{2} e_{k}^{T} K_{p} e_{k} + \frac{1}{2} e_{k}^{T} σ K_{d} e_{k} \\ = W_{k} (0) + \int_{0}^{t} (z_{k}^{T} (ϕ (q_{k,} {\dot{q}}_{k,} {\dot{e}}_{k}) {\tilde{θ}}_{k} - {\hat{d}}_{k - 1} \\ - η z_{k - 1}) - e_{k}^{T} K_{p} σ e_{k} - {\dot{e}}_{k}^{T} K_{d} {\dot{e}}_{k}) d τ \end{array}

Thereby

\begin{array}{l} Δ V = - W_{k - 1} + W_{k} (0) \\ + \int_{0}^{t} (z_{k}^{T} (- {\hat{d}}_{k - 1} - η z_{k - 1}) + z_{k}^{T} η z_{k} - z_{k - 1}^{T} η z_{k - 1}) d τ \\ - \frac{1}{2} \int_{0}^{t} (z_{k}^{T} (- 2 ϕ (q_{k,} {\dot{q}}_{k,} {\dot{e}}_{k}) {\tilde{θ}}_{k}) + 2 e_{k}^{T} K_{p} σ e_{k} \\ + 2 {\dot{e}}_{k}^{T} K_{d} {\dot{e}}_{k} - {\tilde{θ}}_{k}^{T} Γ^{- 1} {\tilde{θ}}_{k} + {\tilde{θ}}_{k - 1}^{T} Γ^{- 1} {\tilde{θ}}_{k - 1}) d τ \end{array}

Now, the following equality is considered as

Δ V = Δ M + Δ N

Considering (15), (43), and assumption 3, the following equality can be generalized as follows

\begin{array}{l} Δ M = - W_{k - 1} + {\bar{θ}}_{k} Γ^{- 1} {\bar{θ}}_{k} + 2 {\bar{θ}}^{T} ​_{k} Γ^{- 1} {\tilde{θ}}_{k} \\ - \frac{1}{2} \int_{0}^{t} (z_{k}^{T} (- 2 ϕ (q_{k,} {\dot{q}}_{k,} {\dot{e}}_{k}) (θ (t) - {\hat{θ}}_{k})) \\ + 2 e_{k}^{T} K_{p} σ e_{k} + 2 {\dot{e}}_{k}^{T} K_{d} {\dot{e}}_{k}) d τ \\ = - W_{k - 1} + 2 e_{k}^{T} K_{p} σ e_{k} + 2 {\dot{e}}_{k}^{T} K_{d} {\dot{e}}_{k}) d τ \\ - \frac{1}{2} \int_{0}^{t} (z_{k}^{T} ϕ (q_{k,} {\dot{q}}_{k,} {\dot{e}}_{k}) Γ ϕ^{T} (q_{k,} {\dot{q}}_{k,} {\dot{e}}_{k}) z_{k} \end{array}

where

{\bar{θ}}_{k} = {\hat{θ}}_{k} - {\hat{θ}}_{k - 1}

Hence

Δ M \leq 0

The following inequality can be inferred from (43), (45), and (46)

\begin{matrix} Δ N = \int_{0}^{t} (z_{k}^{T} (- {\hat{d}}_{k - 1} - η z_{k - 1}) + z_{k}^{T} η z_{k} - z_{k - 1}^{T} η z_{k - 1}) d τ \\ = \int_{0}^{t} (z_{k}^{T} (- {\hat{d}}_{k - 1} - η z_{k - 1}) + {\tilde{z}}_{k}^{T} η {\tilde{z}}_{k} + 2 {\tilde{z}}_{k}^{T} η z_{k - 1}) d τ \\ \leq \int_{0}^{t} (- z_{k - 1}^{T} η z_{k - 1} + {\tilde{z}}_{k}^{T} η {\tilde{z}}_{k} + {\tilde{z}}_{k}^{T} η z_{k - 1}) d τ \end{matrix}

Together with (23) and lemma 1 combined, the following inequality can be described as

‖ D (q, ({\dot{q}}_{k - 1} + {\dot{\tilde{e}}}_{k})) ‖ - ‖ D (q, {\dot{q}}_{k - 1}) ‖ \leq φ ‖ {\dot{\tilde{e}}}_{k} ‖

where

{\dot{\tilde{e}}}_{k} = {\dot{e}}_{k} - {\dot{e}}_{k - 1} = {\dot{q}}_{k} - {\dot{q}}_{k - 1}

It can be derived as follows

ξ ‖ z_{k} ‖ ‖ {\tilde{z}}_{k} ‖ \leq \frac{ξ}{2} {‖ z_{k} ‖}^{2} + \frac{ξ}{2} {‖ {\tilde{z}}_{k} ‖}^{2}

where

ξ = λ_{min} (ϕ (q_{k,} {\dot{q}}_{k,} {\dot{e}}_{k}) Γ ϕ^{T} (q_{k,} {\dot{q}}_{k,} {\dot{e}}_{k}))

thereby, ξ is the positive definite matrix.

By combining (23), (48), (49), (50), and Assumptions 1– 4, the following inequality holds

\begin{array}{l} Δ N \leq \int_{0}^{t} (η {‖ {\dot{\tilde{e}}}_{k} ‖}^{2} + 2 σ η ‖ {\dot{\tilde{e}}}_{k} ‖ ‖ {\tilde{e}}_{k} ‖ + σ^{2} η {‖ {\tilde{e}}_{k} ‖}^{2} \\ - λ_{min} M_{k} ‖ {\dot{\tilde{z}}}_{k} ‖ ‖ {\tilde{z}}_{k} ‖ - σ β_{1} β_{0}^{- 2} l_{m} K_{p} {‖ {\tilde{e}}_{k} ‖}^{2} ‖ e_{k - 1} ‖ \\ - β_{1} β_{0}^{- 2} l_{m} K_{p} ‖ {\dot{\tilde{e}}}_{k} ‖ ‖ {\tilde{e}}_{k} ‖ ‖ e_{k - 1} ‖ - σ K_{p} {‖ {\tilde{e}}_{k} ‖}^{2} \\ - K_{p} ‖ {\dot{\tilde{e}}}_{k} ‖ ‖ {\tilde{e}}_{k} ‖ - σ β_{1} β_{0}^{- 2} l_{m} K_{d} {‖ {\tilde{e}}_{k} ‖}^{2} ‖ {\dot{e}}_{k - 1} ‖ \\ - β_{1} β_{0}^{- 2} l_{m} K_{d} ‖ {\dot{\tilde{e}}}_{k} ‖ ‖ {\tilde{e}}_{k} ‖ ‖ {\dot{e}}_{k - 1} ‖ - σ K_{d} ‖ {\dot{\tilde{e}}}_{k} ‖ ‖ {\tilde{e}}_{k} ‖ \\ - K_{d} {‖ {\dot{\tilde{e}}}_{k} ‖}^{2} - σ β_{1} β_{0}^{- 2} l_{m} φ {‖ {\tilde{e}}_{k} ‖}^{2} - β_{1} β_{0}^{- 2} l_{m} φ ‖ {\dot{\tilde{e}}}_{k} ‖ ‖ {\tilde{e}}_{k} ‖ \\ - φ {‖ {\dot{\tilde{e}}}_{k} ‖}^{2} - σ φ ‖ {\dot{\tilde{e}}}_{k} ‖ ‖ {\tilde{e}}_{k} ‖ + σ β_{1} β_{0}^{- 2} l_{m} (ϕ (q_{k,} {\dot{q}}_{k,} {\dot{e}}_{k}) l_{θ} \\ - ϕ (q_{k,} {\dot{q}}_{k,} {\dot{e}}_{k}) l_{\hat{θ}}) {‖ {\tilde{e}}_{k} ‖}^{2} + β_{1} β_{0}^{- 2} l_{m} (ϕ (q_{k,} {\dot{q}}_{k,} {\dot{e}}_{k}) l_{θ} \\ - ϕ (q_{k,} {\dot{q}}_{k,} {\dot{e}}_{k}) l_{\hat{θ}}) ‖ {\dot{\tilde{e}}}_{k} ‖ ‖ {\tilde{e}}_{k} ‖ + σ β_{1} β_{0}^{- 2} l_{m} (l_{d} - l_{u}) {‖ {\tilde{e}}_{k} ‖}^{2} \\ + β_{1} β_{0}^{- 2} l_{m} (l_{d} - l_{u}) ‖ {\dot{\tilde{e}}}_{k} ‖ ‖ {\tilde{e}}_{k} ‖ - σ β_{1} β_{0}^{- 2} l_{m} l_{d} {‖ {\tilde{e}}_{k} ‖}^{2} \\ - β_{1} β_{0}^{- 2} l_{m} l_{d} ‖ {\dot{\tilde{e}}}_{k} ‖ ‖ {\tilde{e}}_{k} ‖ - \frac{ξ}{2} {‖ z_{k} ‖}^{2} - \frac{ξ}{2} {‖ {\tilde{z}}_{k} ‖}^{2}) d τ \end{array}

As shown in (51), it follows

\begin{array}{l} Δ N \leq - λ_{min} M_{k} {‖ {\tilde{z}}_{k} ‖}^{2} \\ - (σ φ + K_{p} + σ K_{d} - 2 σ η - ω) {‖ {\tilde{e}}_{k} ‖}^{2} \\ + \int_{0}^{t} (- \frac{ξ}{2} {‖ z_{k} ‖}^{2} - \frac{ξ}{2} {‖ {\tilde{z}}_{k} ‖}^{2} + (η - K_{d} - φ) {‖ {\dot{\tilde{e}}}_{k} ‖}^{2} \\ + σ (σ η + ω - K_{p}) {‖ {\tilde{e}}_{k} ‖}^{2}) d τ \end{array}

where

ω = β_{1} β_{0}^{- 2} l_{m} (Φ l_{θ} + Φ l_{\hat{θ}} + l_{u} + φ)

and

2 σ η + ω \leq K_{p} + σ K_{d} + σ φ, η \leq K_{d} + φ, σ η + ω \leq K_{p}

Thus

Δ N \leq 0

By combining (47) and (53), the following equality can be written as

Δ V = Δ M + Δ N \leq 0, \forall t \in [0, T]

Part 3: Based on (54), it can be computed that $V_{k} (t)$ converges to constant value. Thus, $V_{k} (t)$ is bounded and

lim_{k \to \infty} V_{k} (t) = V_{0} (t) + lim_{k \to \infty} Δ V_{k} (t)

Since $V_{0} (t)$ is finite and $V_{k} (t)$ is positive, then one can conclude that

lim_{k \to \infty} e_{k} (t) = lim_{k \to \infty} {\dot{e}}_{k} (t) = 0, \forall t \in [0, T]

This completes the proof.

Simulation results

The objective of this section is to investigate the applications to 2-DOFs manipulator system via AILC method. The approach is implemented by MATLAB2014a. The tests are performed on a PC computer with CPU Intel(R), 3.30 GH. The numerical simulations are conducted on the model for trajectory tracking of the 2-DOFs manipulator, as shown in Figure 1. The model equations which are in the form of equation (1) can be written as follows

\begin{array}{l} m_{11} = m_{1} l_{c 1}^{2} + m_{2} l_{1}^{2} + m_{2} l_{c 2}^{2} + 2 m_{2} l_{1} l_{c 2} cos (q_{2}) + I_{1} + I_{2}, \\ m_{12} = m_{21} = m_{2} l_{c 2}^{2} + 2 m_{2} l_{1} l_{c 2} cos (q_{2}) + I_{2}, \\ m_{22} = m_{2} l_{c 2}^{2} + I_{2}, \\ c_{11} = - m_{2} l_{1} l_{c 2} sin (q_{2}) {\dot{q}}_{2}, \\ c_{12} = - m_{2} l_{1} l_{c 2} sin (q_{2}) ({\dot{q}}_{1} + {\dot{q}}_{2}), \\ g_{2} = m_{2} l_{c 2} g sin (q_{1} + q_{2}), \\ c_{21} = m_{2} l_{1} l_{c 2} sin (q_{2}) {\dot{q}}_{1}, C_{22} = 0, \\ g_{1} = m_{2} l_{c 2} g sin (q_{1} + q_{2}) + (m_{1} l_{c 1} + m_{2} l_{1}) g sin (q_{1}), \\ ϕ_{11} (q_{k,} {\dot{q}}_{k,} {\dot{e}}_{k}) = {\dot{q}}_{2} sin q_{2}, ϕ_{13} (q_{k,} {\dot{q}}_{k,} {\dot{e}}_{k}) = cos q_{1}, \\ ϕ_{12} (q_{k,} {\dot{q}}_{k,} {\dot{e}}_{k}) = {\dot{q}}_{2} sin q_{2} - {\dot{q}}_{1} sin q_{2}, \\ ϕ_{14} (q_{k,} {\dot{q}}_{k,} {\dot{e}}_{k}) = ϕ_{24} (q_{k,} {\dot{q}}_{k,} {\dot{e}}_{k}) = cos (q_{1} + q_{2}), \\ ϕ_{15} (q_{k,} {\dot{q}}_{k,} {\dot{e}}_{k}) = sgn ({\dot{e}}_{1}), ϕ_{25} (q_{k,} {\dot{q}}_{k,} {\dot{e}}_{k}) = sgn ({\dot{e}}_{2}), \\ ϕ_{21} (q_{k,} {\dot{q}}_{k,} {\dot{e}}_{k}) = - {\dot{q}}_{1} sin q_{2}, \\ ϕ_{22} (q_{k,} {\dot{q}}_{k,} {\dot{e}}_{k}) = ϕ_{23} (q_{k,} {\dot{q}}_{k,} {\dot{e}}_{k}) = 0 \end{array}

Figure 1.

The 2-DOFs manipulator system.

The parameters of 2-DOFs manipulator are given by

m_{1} = 1 kg, m_{2} = 1 kg, l_{1} = 0.5 m, l_{1} = 0.5 m

and

m_{1} = 0.8 kg, m_{2} = 0.8 kg

are the estimated value of m₁, m₂.

Simulation parameters can be selected as follows

\begin{matrix} K_{d} = diag {10, 10}, K_{p} = diag {500, 500}, \\ η = diag {3, 3}, σ = 120, Γ = 10 I_{2 \times 2} \end{matrix}

The desired trajectories are chosen as follows

q_{d 1} (t) = - \frac{π}{2} + \frac{1}{4} (2 π \frac{t}{4} - sin (2 π \frac{t}{4}))

and

q_{d 2} (t) = \frac{1}{4} (2 π \frac{t}{4} - sin (2 π \frac{t}{4})),0 \leq t \leq 4

The external disturbances are sine functions

The external disturbances are given by the following equations

\begin{array}{l} d_{1} (t) = 100 sin (π t) + 50 sin (2 π t), \\ d_{2} (t) = 100 sin (π t) + 50 sin (2 π t) \end{array}

The simulation results are shown in Figures 2 to 7. The real and desired trajectories of each link for the 0th and 15th iteration are shown in Figures 2 and 3. The curves show that the real trajectory follows the desired trajectory over learning iterations. Thereby, trajectories of 2-DOFs manipulator system can achieve desired trajectory via executing 15 iterations.

Figure 2.

q₁ and $q_{d 1}$ of the system with the external disturbances (sine function).

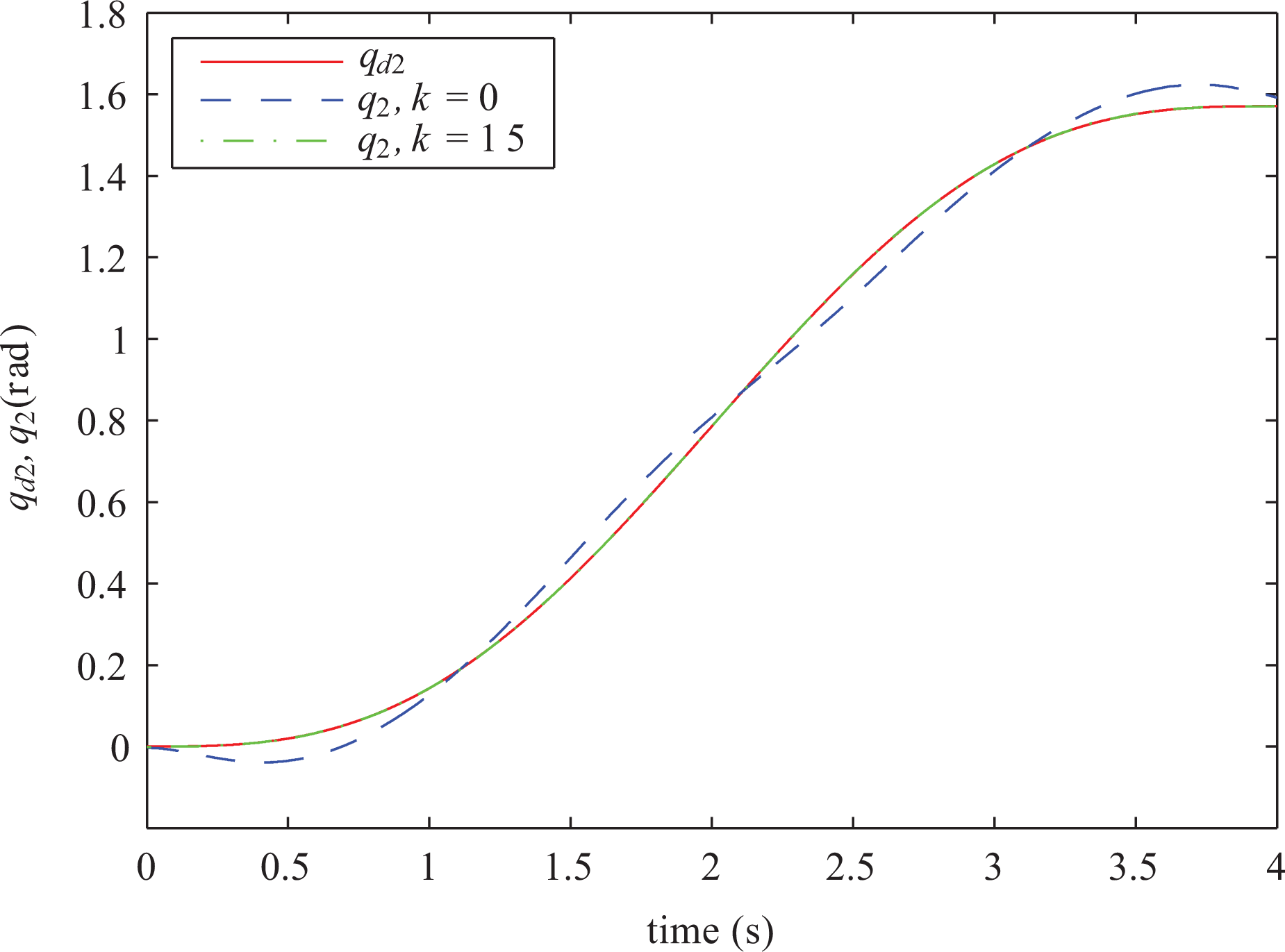

Figure 3.

q₂ and $q_{d 2}$ of the system with the external disturbances (sine function).

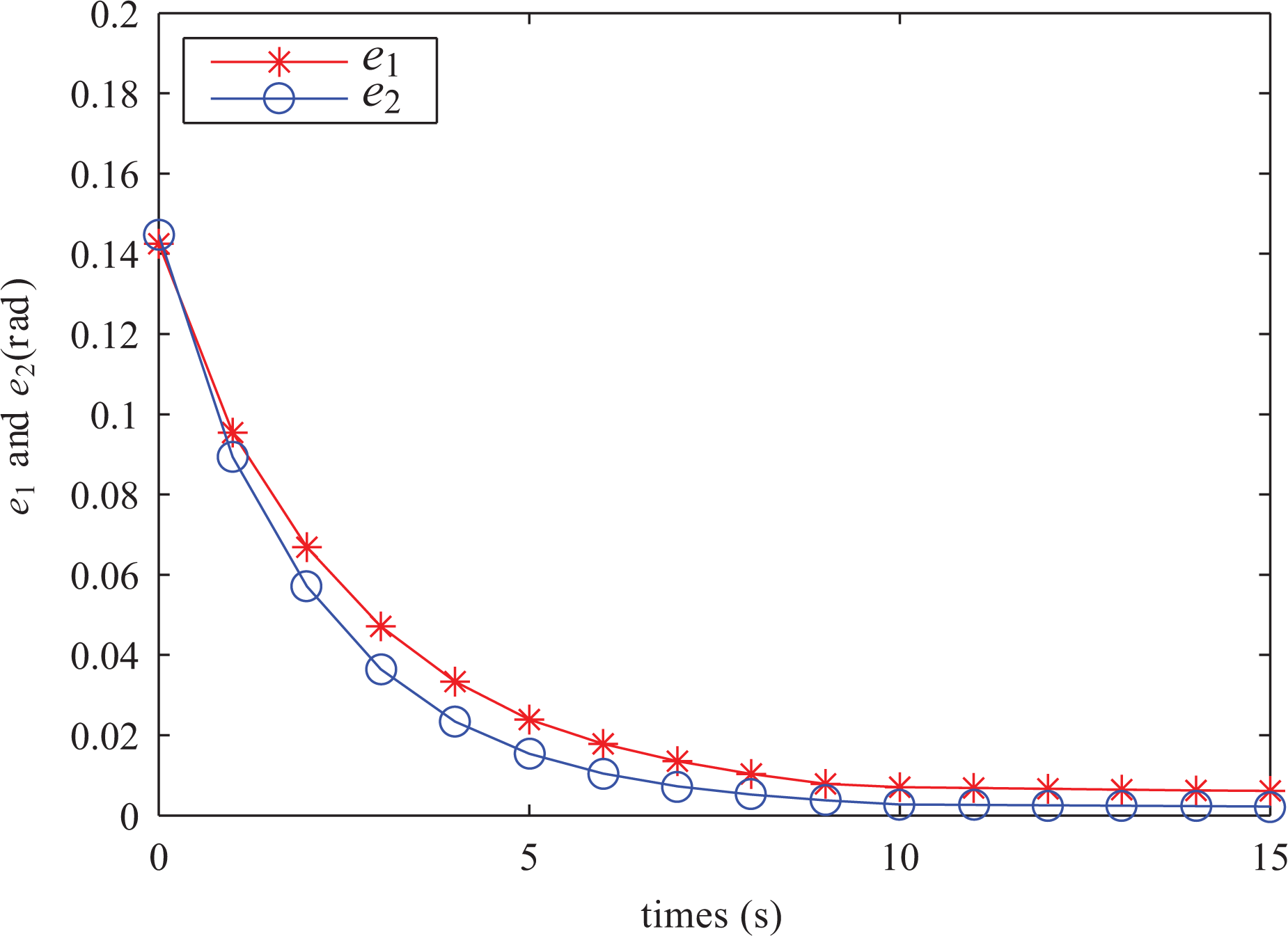

Figure 4.

e₁ and e₂ of AILC in iterations with the external disturbances (sine function). AILC: adaptive iterative learning control.

Figure 5.

e₁ and e₂ of ILC in iterations with the external disturbances (sine function). ILC: iterative learning control.

Figure 6.

Comparison on e₁ for the 10th iteration between ILC and AILC with the external disturbances (sine function). ILC: iterative learning control; AILC: adaptive iterative learning control.

Figure 7.

Comparison on e₂ for the 10th iteration between ILC and AILC with the external disturbances (sine function). ILC: iterative learning control; AILC: adaptive iterative learning control.

As shown in Figure 4, it shows the tracking performance of the developed algorithm over the first 15 iterations, where the tracking errors over the number of iterations. It can be seen that the maximum tracking errors of the first and second joints gradually tend to zero in iterations and keep the number for the 10th iteration. The tracking performance of the ILC scheme [41] over the first 20 iterations is shown in Figure 5. From Figures 4 and 5, it can be computed that the proposed AILC system in this article is faster compared with the ILC scheme of [41].

For the convenience of comparative analysis, numerical simulations are conducted adopting the developed algorithm and the ILC scheme of [41]. Figures 6 and 7 show that the proposed AILC law converges to be within the error for the 10th iteration, while the ILC law converges to be with some tracking errors at the same number of iterations. At the initial time, it shows that the ILC scheme of [41] has larger errors than the developed AILC algorithm.

The external disturbances are exponential functions

The exponential function disturbances are given as follows

\begin{array}{l} d_{1} (t) = 10 sin (2 π t) + e^{- 3 t}, \\ d_{2} (t) = 10 sin (2 π t) + e^{- 3 t} \end{array}

The simulation results based on the AILC system with the exponential function disturbances are presented in Figures 8 to 13. It can be seen that Figures 8 and 9 represent the real trajectory of the 2-DOFs manipulator system follows the desired trajectory for the 30th iteration, respectively.

Figure 8.

q₁ and $q_{d 1}$ of the system with the external disturbances (exponential function).

Figure 9.

q₂ and $q_{d 2}$ of the system with the external disturbances (exponential function).

Figure 10.

e₁ and e₂ of AILC in iterations with the external disturbances (exponential function). AILC: adaptive iterative learning control.

Figure 11.

e₁ and e₂ of ILC in iterations with the external disturbances (exponential function). ILC: iterative learning control.

Figure 12.

Comparison on e₁ for the 10th iteration between ILC and AILC with the external disturbances (exponential function). ILC: iterative learning control; AILC: adaptive iterative learning control.

Figure 13.

Comparison on e₂ for the 10th iteration between ILC and AILC with the external disturbances (exponential function). ILC: iterative learning control; AILC: adaptive iterative learning control.

The tracking errors with respect to the developed algorithm and the ILC scheme in iterations are displayed in Figures 10 and 11. As shown in Figure 10, the theoretical initial tracking errors value of each link are 0.7 and 0.5 which much smaller than those in Figure 11. As seen from the figures, the convergence iterations of the tracking errors based on the developed algorithm to zero are becoming much shorter than those based on the ILC scheme. It can be computed that, under the same conditions, the convergence rate of the proposed AILC system in this article with the exponential function disturbances is rapider compared with the ILC scheme.

Moreover, to highlight the superiority of the developed algorithm, the tracking errors value with the AILC scheme is compared with the ILC scheme for the 20th iteration . The simulation results are listed in Figures 12 and 13, and the figures show that the proposed AILC scheme performs better than the ILC scheme at the same iteration number.

The external disturbances are random functions

The random function disturbances are presented as follows

\begin{array}{l} d_{1} (t) = random (1) 100 sin (π t) + 5 sin (2 π t), \\ d_{2} (t) = random (1) 100 sin (π t) + 5 sin (2 π t) \end{array}

Similar to the above two groups of numerical simulations, the developed AILC models are utilized to eliminate the disturbances as (58). The simulation results are shown in Figures 14 to 19. As shown in Figures 14 and 15, with the random-parameter of (58) randomly generated in $[0, 1]$ , the real trajectories of the proposed AILC scheme all follow the desired trajectory for the 15th iteration.

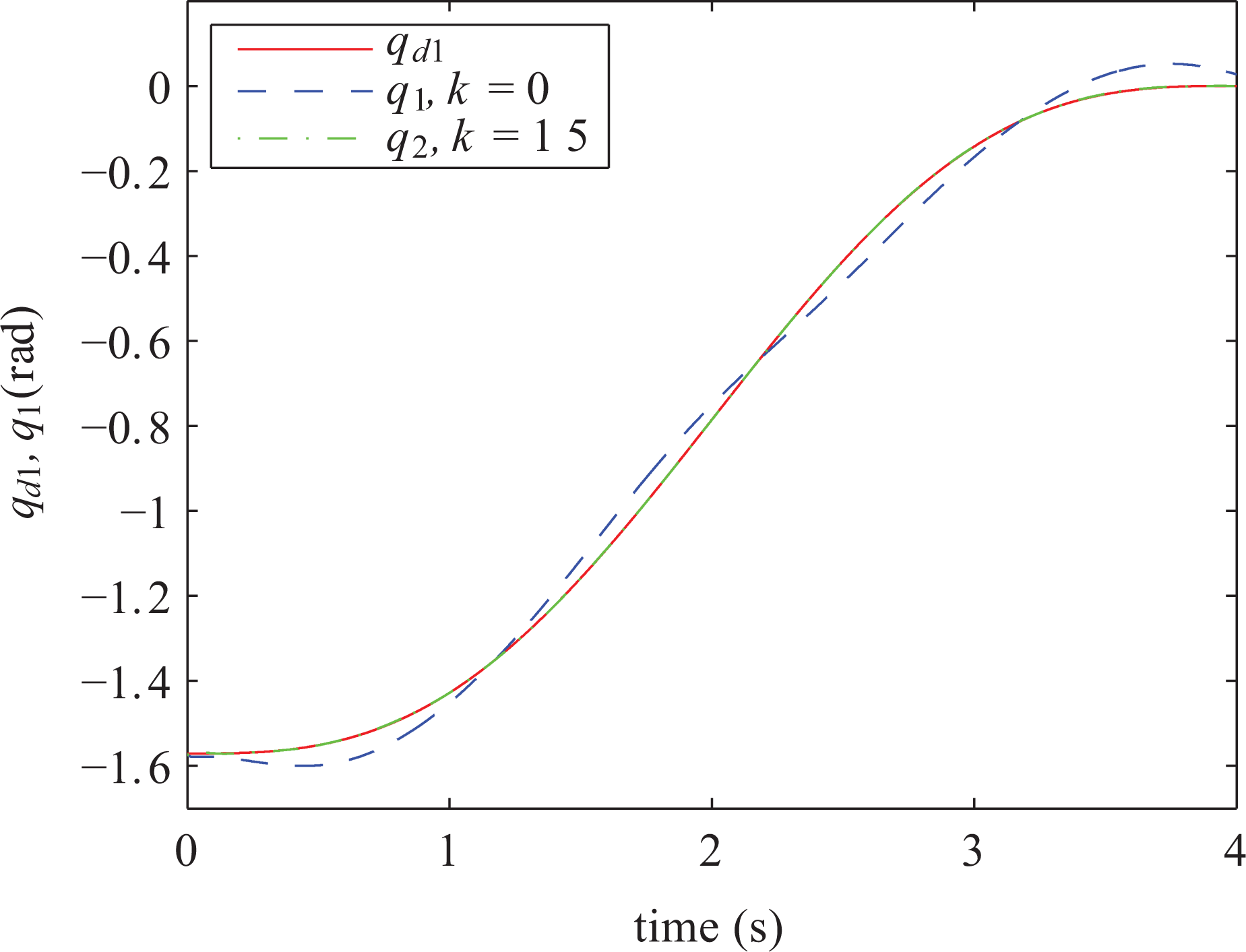

Figure 14.

q₁ and $q_{d 1}$ of the system with the external disturbances (random function).

Figure 15.

q₂ and $q_{d 2}$ of the system with the external disturbances (random function).

Figure 16.

e₁ and e₂ of AILC in iterations with the external disturbances (random function). AILC: adaptive iterative learning control.

Figure 17.

e₁ and e₂ of ILC in iterations with the external disturbances (random function). ILC: iterative learning control.

Figure 18.

Comparison on e₁ for the 10th iteration between ILC and AILC with the external disturbances (random function). ILC: iterative learning control; AILC: adaptive iterative learning control.

Figure 19.

Comparison on e₂ for the 10th iteration between ILC and AILC with the external disturbances (random function). ILC: iterative learning control; AILC: adaptive iterative learning control.

It is shown in Figures 16 and 17 that the developed algorithm law has faster convergence rate in iterations than that the ILC law. With the random function disturbances, the perfect tracking is achieved through only five iterations for the AILC law in this article. Thereby, with adaptive control and disturbance estimation technology, the convergence rate can be significantly improved.

Now, simulations with the developed algorithm and the ILC scheme for the fifth iteration are performed, and the simulation results are shown in Figures 18 and 19. It can be observed from figures that the tracking error values of the AILC system are very close to zero, while those of the ILC system to be with some errors for the fifth iteration.

From above the three groups of numerical simulations, for the external disturbances (56), (57), and (58), the developed AILC scheme based on disturbance estimation can solve the trajectory tracking of 2-DOFs manipulator with uncertain parameters and external disturbances. From the figures, the tracking errors of the developed algorithm for three groups of numerical simulations all converge to the zero more rapidly than the ILC algorithm under the same conditions. Through these numerical simulations, it can be obtained that the efficacy of developed algorithm is substantiated well.

Conclusions and future works

In terms of solving the trajectory tracking of 2-DOFs manipulator with uncertain parameters and external disturbances, an AILC approach composed with disturbance estimation technique has been developed in this article. The external disturbances were estimated by feedback ILC, whereas the uncertain parameters were compensated by adaptive control. The used approach has overcome the slow convergence of tracking errors. By constructing a Lyapunov function, the asymptotic stability which was monotonically decreasing has been certificated. Three kinds of external disturbances were discussed in this article, including sine functions, exponential functions, and random functions. For the convenience of comparative analysis, numerical simulations were, respectively, conducted adopting the developed algorithm and ILC scheme under the same conditions with three kinds of external disturbances. The simulation results presented the feasibility and effectiveness of the used method, as achieved it on a 2-DOFs manipulator.

In the future works, adaptive control and disturbance estimation technique of the developed AILC approach in this article can be used to combine with neural network control to construct models for eliminating disturbances with known dynamics. In addition, combining the discretized AILC scheme in this article with different control techniques can develop a variety of numerical algorithms. These developing numerical algorithms may be used to eliminate external disturbances for the manipulator-related applications, such as path planning and fault detection.

Footnotes

Acknowledgements

The authors would like to thank the anonymous reviewers and the technical editor for their valuable comments and suggestions on revising this article.

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This research was supported in part by the Key Science and Technology Project of Jilin Province, China (20170204067GX); in part by the Significant Scientific and Technical Projects of Changchun, China (17DY032,17SS012); in part the Industrial Innovation Special Funds Project of Jilin Province, China (2018C038-2); in part by the national natural science foundation of China under grants 61873304; in part by the China postdoctoral science foundation funded project under Grant 2018M641784; and also in part by the key science and technology projects of Jilin province, China, Grant Nos. 20190302025GX, 20170204067GX, and 20180201105GX.

ORCID iD

Zhongbo Sun

References

Matveev

Hoy

Katupitiya

. Nonlinear sliding mode control of an unmanned agricultural tractor in the presence of sliding and control saturation. Robot Auton Syst 2013; 61(9): 973–987.

Ghommam

Mehrjerdi

Saad

. Formation path following control of unicycle-type mobile robots. Robot Auton Syst 2010; 58(5): 727–736.

Yang

Kim

. Sliding mode control for trajectory tracking of nonholonomic wheeled mobile robots. IEEE T Robotic Autom 1999; 15(3): 578–587.

Coelho

Nunes

. Path-following control of mobile robots in presence of uncertainties. IEEE T Robot 2005; 21(2): 252–261.

Chen

Zhang

. Model-assisted extended state observer-based computed torque control for trajectory tracking of uncertain robotic manipulator systems. Int J Adv Robot Syst 2003; 15(5): 1–12.

Sariyildiz

Temeltas

. Performance analysis of numerical integration methods in the trajectory tracking application of redundant robot manipulators. Int J Adv Robot Syst 2011; 8(5): 25–38.

Joel

Perez

Soto

. Trajectory tracking error using PID control law for two-link robot manipulator via adaptive neural networks. Proc Tech 2012; 3(5): 139–146.

Wang

Lin

. Fuzzy control design for the trajectory tracking on uncertain nonlinear systems. IEEE T Fuzzy Syst 1999; 7(1): 53–62.

Park

Yoo

Park

. A simple adaptive control approach for trajectory tracking of electrically driven nonholonomic mobile robots. IEEE T Contr Syst T 2010; 18(5): 1199–1206.

10.

Wang

Yan

Chen

. A new adaptive time-delay control scheme for cable-driven manipulators. IEEE T Ind Inform 2018; 6: 1551–3203.

11.

Wang

Yan

. Practical adaptive fractional-order nonsingular terminal sliding mode control for a cable-driven manipulator. Int J Robust Nonlin 2018; 29(5): 1396–1417.

12.

Wang

Chen

Yan

. Adaptive super-twisting fractional-order nonsingular terminal sliding mode control of cable-driven manipulators. ISA Trans 2018; 86: 163–180.

13.

Long

Shuai

Hung

. Dynamic task allocation in multi-robot coordination for moving target tracking: a distributed approach. Automatica 2019; 100: 75–81.

14.

Long

Shuai

Bin

. RNN models for dynamic matrix inversion: a control-theoretical perspective. IEEE T Ind Inform 2018; 14(1): 189–199.

15.

Long

Shuai

Xin

. Neural dynamics for cooperative control of redundant robot manipulators. IEEE T Ind Inform 2018; 14(9): 3812–3821.

16.

Long

Yunong

Shuai

. Noise-tolerant ZNN models for solving time-varying zero-finding problems: a control-theoretic approach. IEEE T Automat Contr 2017; 62(2): 992–997.

17.

Long

Shuai

Bin

. Noise-suppressing neural algorithm for solving time-varying system of linear equations: a control-based approach. IEEE T Ind Inform 2019; 15(1): 236–246.

18.

Long

Shuai

Hung

. Manipulability optimization of redundant manipulators using dynamic neural networks. IEEE T Ind Inform 2017; 64(6): 4710–4720.

19.

Sun

Tian

Wang

. A novel projected Fletcher-Reeves conjugate gradient approach for finite-time optimal robust controller of linear constraints optimization problem: application to bipedal walking robots. Optim Contr Appl Met 2018; 39: 130–159.

20.

Sun

Tian

. A superlinear convergence feasible sequential quadratic programming algorithm for bipedal dynamic walking robot via discrete mechanics and optimal control. Optim Contr Appl Met 2016; 37: 1139–1161.

21.

Sun

. A new trust region-sequential quadratic programming approach for nonlinear systems based on nonlinear model predictive control. Eng Optimiz 2019; 51(6): 1071–1096.

22.

Shen

Zhang

Fang

. Complete and time-optimal path-constrained trajectory planning with torque and velocity constraints: theory and applications. IEEE/ASME Transac Mechatron 2018; 23: 735–746.

23.

Zhang

Chen

Farzadpour

. A visual distance approach for multi-camera deployment with coverage optimization. IEEE/ASME Transac Mechatron 2018; 23: 1007–1018.

24.

Arimoto

Kawamura

Miyazaki

. Bettering operation of robotics by learning. J Field Robot 2010; 1(2): 123–140.

25.

Tomei

Verrelli

. Advances on adaptive learning control: the case of non-minimum phase linear systems. Syst Control Lett 2018; 115: 55–62.

26.

Ajjanaromvat

Parnichkun

. Trajectory tracking using online learning LQR with adaptive learning control of a leg-exoskeleton for disorder gait rehabilitation. Mechatronics 2018; 51: 85–96.

27.

Chi

Hou

Jin

. A data-driven adaptive ILC for a class of nonlinear discrete-time systems with random initial states and iteration-varying target trajectory. J Frankl Inst 2015; 352(6): 2407–2424.

28.

Zhang

. Adaptive iterative learning control of non-uniform trajectory tracking for strict feedback nonlinear time-varying systems with unknown control direction. Appl Math Model 2015; 39(10–11): 2942–2950.

29.

Sun

. Partial-period adaptive repetitive control by symmetry. Automatica 2012; 48(9): 2137–2144.

30.

Zhang

Hou

. Adaptive iterative learning control for a class of non-linearly parameterised systems with input saturations. Int J Syst Sci 2016; 47(5): 1084–1094.

31.

Zhang

Hou

Chi

. Adaptive iterative learning control for nonlinearly parameterised systems with unknown time-varying delays and input saturations. Int J Control 2015; 88(6): 9–19.

32.

Islam

Liu

P X

. Adaptive iterative learning control for robot manipulators without using velocity signals. IEEE/ASME Int Con Advan Intell Mechatron 2011; 58: 1293–1298.

33.

French

Rogers

. Non-linear iterative learning by an adaptive Lyapunov technique. Int J Control 2010; 73(10): 840–850.

34.

Nakao

Ohnishi

Miyachi

. A robust decentralized joint control based on interference estimation. IEEE Int Con Robot Auto 1987; 1: 326–331.

35.

Grignion

Chen

Kar

. Estimation of load disturbance torque for DC motor drive systems under robustness and sensitivity take into accountation. IEEE T Ind Electron 2014; 61(2): 930–942.

36.

Gao

Liu

Chen

. Unknown input observer-based robust fault estimation for systems corrupted by partially decoupled disturbance. IEEE T Ind Electron 2016; 63(4):2537–2547.

37.

Lee

Park

. Robust H-infinity sliding mode descriptor observer for fault and output disturbance estimation of uncertain systems. IEEE T Automat Contr 2012; 57(11): 2928–2934.

38.

Herrmann

Lewis

. Discrete adaptive neural network disturbance feedforward compensation for non-linear disturbances in servo-control applications. Int J Control 2009; 82(4): 721–740.

39.

. Optimal disturbance rejection control approach based on a compound neural network prediction method. J Process Contr 2015; 24(10): 1516–1526.

40.

Song

Tang

Wang

. Design of active disturbance rejection controller for compass-like biped walking. Int J Adv Robot 2018; 15(3): 1–11.

41.

Bouakrif

Zasadzinski

. Trajectory tracking control for perturbed robot manipulators using iterative learning method. int J Adv Manuf Tech 2016; 87(5-8): 2013–2022.

An adaptive iterative learning control approach based on disturbance estimation for manipulator system

Abstract

Keywords

Introduction

The dynamic model of manipulator

Lemma 1: There considers a continuous function f ( x , y ) , x ∈ X , where

Proof

Assumption 1:

Assumption 2:

Assumption 3:

Assumption 4:

Assumption 5:

Adaptive iterative learning controller for manipulator system

Proof.

Simulation results

The external disturbances are sine functions

The external disturbances are exponential functions

The external disturbances are random functions

Conclusions and future works

Footnotes

Acknowledgements

Declaration of conflicting interests

Funding

ORCID iD

References

Lemma 1: There considers a continuous function $f (x, y)$ , $x \in X$ , where
