Abstract

This article proposes an active disturbance rejection controller design scheme to stabilize the unstable limit cycle of a compass-like biped robot. The idea of transverse coordinate transformation is applied to form the control system based on angular momentum. With the linearization approximation, the limit cycle stabilization problem is simplified into the stabilization of an linear time-invariant system, which is known as transverse coordinate control. In order to solve the problem of poor adaptability caused by linearization approximation, we design an active disturbance rejection controller in the form of a serial system. With the active disturbance rejection controller, the system error can be estimated by extended state observer and compensated by nonlinear state error feedback, and the unstable limit cycle can be stabilized. The numerical simulations show that the control law enhances the performance of transverse coordinate control.

Keywords

Biped robot walking control active disturbance rejection controller

Introduction

Compared with wheeled robots, biped robots have born adaptation for complex environment. The development of biped robot starts from full-actuated biped robot, which is well developed up to now. However, a big challenge still remains within the development of full-actuated robots, which is that the efficiency is low and they would consume excessive energy compared with human beings. Taking the famous full-actuated robot ASIMO¹ as an example, the energy consumption is nearly 20 times of a normal human.² Moreover, QRIO³ and HUBO⁴ are also troubled by the same problem. As a consequence, the efficiency problem restricts the application of full-actuated robots.

To solve the efficiency issue for biped robot walking, much improvement has been designed by researchers since McGeer⁵ who raised the concept of passive walking. He discovered that a biped machine could walk downhill with no torque input, and its walking style was similar to a normal human’s. Inspired by the idea of passive walking, researchers focused on designing prototypes and walking gaits to achieve efficient walking. To be specific, various other methods have been proposed to regulate full-actuated robots’ walking gaits,^6

–10 while several passivity-based control methods have been designed to stabilize the unstable walking gaits.^11,12 However, since the full-actuated biped robots mentioned above are equipped with flat feet and foot rotation is forbidden, the application of robot dynamics is limited and the efficiency is still not high enough. To improve the walking efficiency, underactuated walking robots and corresponding control methods have been proposed. Grizzle et al.¹³ developed the Poincaré map for systems with impulse effects, with which the stability of the walking gait for robots with point feet could be checked. Westervelt et al.¹⁴ proposed the method of hybrid zero dynamic to generate efficient walking gaits, which was a commonly used method since it was adjustable for different underactuated robots. Hu et al.¹⁵ designed a control scheme with time scaling control method and the control symmetries method to make robots with point feet to walk on different slopes. To stabilize the unstable limit cycles of underactuated walking robots, event-based control and transverse linearization were proposed.^16

–19 The method of transverse coordinate control was proposed to improve underactuated robots’ stability firstly by Yan et al.²⁰ In summary, through 20 years of development, theoretically, underactuated robots’ efficiency is more advanced than full-actuated robots and underactuated robots have attracted most of attention among current researchers.

Although underactuated robots have the advantage of high efficiency, underactuation makes them harder to control. The control strategies mentioned above achieve stabilization of underactuated robots, but the ability to reject external disturbances is still poor. Taking the work of Yan et al.²⁰ as an example, which is also the control method to be improved in our study. It could be seen in their research that they combined transverse coordinate transformation with linearization approximation. However, the linearization approximation method causes inevitable errors in the system and hence only takes effect when the states are so close to the limit cycle. Although the transverse coordinate controller could successfully improve robots stability, it could only function well in limited circumstances. Therefore, there is an urgent need for an effective tool to further enhance the ability of rejecting disturbance.

This article proposes to solve transverse coordinate controller’s drawback of the limitation by introducing active disturbance rejection controller (ADRC) into the design of underactuated robots. ADRC is a control method to measure and compensate the system disturbance to improve the robustness of the system, which was firstly proposed by Han.^21,22 Typical ADRC includes extended state observer (ESO), transient process, and nonlinear state error feedback (NLSEF). Specifically, ESO is used to estimate the state of the system and the disturbance inside and outside. Transient process is designed to soften the target curve when it changes drastically. NLSEF aims at fast following and shock restraining, which has better performance in terms of rejecting disturbance compared with linear feedback. Based on the combination of these three tools, ADRC could have good robustness and hence could be widely applied in many fields including robot control field. There have been some achievements about the control of single robot joint or leg.^23
–25 For the walking control of biped robot, Arcos-Legarda et al.²⁶ and Martínez-Fonseca et al.²⁷ have proposed an ADRC design method to stabilize the walking gait. In their work, external perturbations and model uncertainties are lumped as total disturbance and estimated by an extended observer. Furthermore, the system could be stabilized by the feedback controller. Based on their design method, this article proposes an ADRC design scheme by combining the idea of transverse coordinate control, in which the system to be controlled is based on the angular momentum of the biped rather than the angles of the joints.

In terms of the specific work of this article, we select compass-like biped robot as the research object. The reason we choose it is that it is simple and tractable, which enables us to systematically investigate the dynamic behavior control. We shall now sequentially state the process of our research. Firstly, we propose the dynamic model of the compass-like biped robot. Secondly, we search the limit cycle of this biped robot in an event-based control way. Through theoretical analysis and simulation, it is proved that the limit cycle is unstable. Thirdly, to stabilize the unstable limit circle, we plan to design an ADRC controller for the robot. For the purpose of applying the ADRC controller on this robot, we transform the robot system into a serial system of angular momentum with the method of transverse coordinate transformation. Specifically, in terms of how we design ADRC, ESO is used to track the state variables and to estimate the value of the system error, which will be compensated by the feedback controller. With the help of transient process, the tracking transient will be smooth even in the case where the tracking error is huge after collisions in the walking gaits. The NLSEF is designed after we have got the estimation of state variables and the transient process. Therefore, the final value which will be inputted into the robot walking model can be compensated with the estimated system error, which combines the model error and the external disturbance. Finally, it is verified that the characteristic root of Poincaré map of the system controller by ADRC is within the unit circle, which is to say that ADRC controller has the ability to stabilize the unstable limit cycle. By comparing with the method of transverse coordinate control in simulation, ADRC has superiority in robustness and convergence speed.

The key technical contributions made in this study can be summarized as follows. Firstly, we propose ADRC into the field of biped robot walking control based on the method of transverse coordinate control. This article focuses on the controller design problem of biped robot walking. Since the biped walking system does not directly meet the form requirements of ADRC, the main contribution of this article is to propose a transformation approach with which ADRC could be applied to biped walking control. To be specific, the transformation approach is transverse coordinate transformation, and it transforms the dynamic system with angles as state variables into a system with angular momentums as state variables, with which the problem is transformed to an angular momentum system stabilization problem with disturbance. We design an ADRC controller in the form of a serial system to stabilize the unstable limit cycle and to improve the performance of transverse coordinate control. Secondly, the proposed control scheme in this article can be applied to all biped walking stabilization problem with underactuation degree one, which is of great significance.

The remainder of this article is organized as follows. The dynamic model of the biped robot is given in the section “Dynamic model of robot.” The section “Limit cycle of walking gait” presents a limit cycle and analyzes the stability of it. In the section “Design of ADRC,” an ADRC controller is designed to stabilize the limit cycle. The numerical results are shown in the section “Simulation.” Finally, the last section concludes this article.

Dynamic model of robot

The biped model we discussed in this article is the compass-like biped robot.

As shown in Figure 1, $q_{1} [rad]$ and $q_{2} [rad]$ are the angles of the swing leg and the stance leg with respect to the vertical line, and the positive direction is counter-clockwise. ${\dot{q}}_{1} [rad]$ and ${\dot{q}}_{2} [rad]$ are the angular velocities.

Figure 1.

Compass-like biped robot model.

The model is designed in the form of Lagrange equation of motion²⁸ as follows

M (q) \ddot{q} + C (q, \dot{q}) \dot{q} + G (q) = S u_{H}

where $q = {[q_{1} q_{2}]}^{T}$ , $\dot{q} = {[{\dot{q}}_{1} {\dot{q}}_{2}]}^{T}$ , $S = {[- 1 1]}^{T}$ , and u_H is the hip torque

\begin{matrix} M (q) = [\begin{matrix} m b^{2} & - m l b cos (q_{2} - q_{1}) \\ - m l b cos (q_{2} - q_{1}) & (m_{H} + m) l^{2} + m a^{2} \end{matrix}] \\ C (q, \dot{q}) = [\begin{matrix} 0 & - m l b sin (q_{1} - q_{2}) {\dot{q}}_{2} \\ m l b sin (q_{1} - q_{2}) {\dot{q}}_{1} & 0 \end{matrix}] \\ G (q) = [\begin{matrix} m b g sin (q_{1}) \\ - (m_{H} l + m a + m l) g sin (q_{2}) \end{matrix}] \end{matrix}

The collision model of the swing foot touching the ground is

q^{+} = J q^{-}

where

J = [\begin{matrix} 0 & 1 \\ 1 & 0 \end{matrix}]

and

[\begin{matrix} {\dot{q}}^{+} \\ F \end{matrix}] = {[\begin{matrix} D_{e} (q^{-}) & - E {(q^{-})}^{T} \\ E (q^{-}) & 0_{2 \times 2} \end{matrix}]}^{- 1} [\begin{matrix} D_{e} (q^{-}) [\begin{matrix} {\dot{q}}^{-} \\ 0_{2 \times 1} \end{matrix}] \\ 0_{2 × 1} \end{matrix}]

where F is the force at the toe of the swing leg. The matrix $D_{e} (q^{-})$ is in $ℝ^{4 \times 4}$ and the matrix $E (q^{-})$ is in $ℝ^{2 \times 4}$ , whose elements are given below, respectively, with ${(\cdot)}_{i j}$ denoting its $(i, j)$ th entry

\begin{array}{l} D_{e} {(q^{-})}_{11} & = m b^{2} \\ D_{e} {(q^{-})}_{12} & = D_{e} {(q^{-})}_{21} = - m l b cos (q_{1}^{-} - q_{2}^{-}) \\ D_{e} {(q^{-})}_{13} & = D_{e} {(q^{-})}_{31} = - m b cos (q_{1}^{-}) \\ D_{e} {(q^{-})}_{14} & = D_{e} {(q^{-})}_{41} = m b sin (q_{1}^{-}) \\ D_{e} {(q^{-})}_{22} & = m a^{2} + m l^{2} + m_{H} l^{2} \\ D_{e} {(q^{-})}_{23} & = D_{e} {(q^{-})}_{32} \\ = (m a + m l + m_{H} l) cos (q_{2}^{-}) \\ D_{e} {(q^{-})}_{24} & = D_{e} {(q^{-})}_{42} \\ = - (m a + m l + m_{H} l) sin (q_{2}^{-}) \\ D_{e} {(q^{-})}_{33} & = D_{e} {(q^{-})}_{44} = 2 m + m_{H} \\ D_{e} {(q^{-})}_{34} & = D_{e} {(q^{-})}_{43} = 0 \\ E {(q^{-})}_{11} & = - l cos (q_{1}^{-}) \\ E {(q^{-})}_{21} & = l sin (q_{1}^{-}) \\ E {(q^{-})}_{12} & = l cos (q_{2}^{-}) \\ E {(q^{-})}_{22} & = - l sin (q_{2}^{-}) \\ E {(q^{-})}_{13} & = E {(q^{-})}_{24} = 1 \\ E {(q^{-})}_{14} & = E {(q^{-})}_{23} = 0 \end{array}

Limit cycle of walking gait

With the dynamic model in the last section, we search the limit cycle in an event-based control way that in each step of walking, the value of control which is inputted to the hip joint is constant and is changed at the beginning of each step, that is, $u_{H} (t) = u_{H} (t_{i})$ for $t \in (t_{i}, t_{i + 1}]$ , where $(t_{i}, t_{i + 1}]$ is the time interval for the i th step. By searching the limit cycle with different hip input values, we find the phenomenon that when the input u _H exceeds a certain value, the stable one-step limit cycle becomes unstable and the walking trajectory converges to a two-step limit cycle. The detail of this phenomenon has been discussed in our previous work.²⁹

Taking the case of $u_{H} = - 2.0977$ as an example (the limit cycle is shown in Figure 2), we analyze the stability property of the limit cycle with this input. The stability analysis of the fixed point of Poincaré return map is the general method to analyze the stability of these problems.^13,28 Specifically, the stability of the fixed point on the Poincaré return map is equivalent to the stability of the limit cycle. We select the definite point that $q_{2} = - q_{1}$ to be the Poincaré surface and calculate the Jacobian of Poincaré return map P, which maps the state of the definite point at current step to the state of the same definite point at the next step. Taking $x = (q_{1}, {\dot{q}}_{1}, {\dot{q}}_{2})$ as the state at the definite point, the fixed point in the Poincaré surface is

Figure 2.

The unstable limit cycle when $u_{H} = - 2.0977$ .

x^{*} = \begin{matrix} [\begin{matrix} - 0.1396 \\ - 0.3946 \\ - 0.6222 \end{matrix}] \end{matrix}

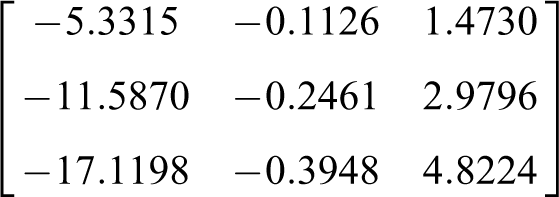

The Jacobian matrix is

\begin{matrix} [\begin{matrix} - 5.3315 & - 0.1126 & 1.4730 \\ - 11.5870 & - 0.2461 & 2.9796 \\ - 17.1198 & - 0.3948 & 4.8224 \end{matrix}] \end{matrix}

and the eigenvalues are $λ_{1} = - 1.1545$ , $λ_{2} = 0.4730$ , and $λ_{3} = - 0.0736$ . Since $| λ_{1} | > 1$ , the fixed point x^* is unstable, which means that the limit cycle is unstable. The numerical simulation shows that the walking gait converges to a two-step cycle as shown in Figure 3.

Figure 3.

The phenomenon that the unstable limit cycle converges to a two-step limit cycle with open-loop control.

In the next section, we will design a controller to keep the robot walking in the unstable limit cycle.

Design of ADRC

In this section, we first propose the form of transverse coordinate transformation of the compass-like biped robot. Furthermore, we analyze the structure of the transformed system. Finally, ESO, NLSEF, and transient process are designed, respectively.

The form of transverse coordinate transformation

In the swing phase, the angular momentum about the stance point is

\begin{array}{l} σ & = D M (q) \dot{q} \\ = [m b^{2} - m b l cos (q_{1} - q_{2})] {\dot{q}}_{1} + \\ [(m a^{2} + m l^{2} + m_{H} l^{2}) - m b l cos (q_{1} - q_{2})] {\dot{q}}_{2} \end{array}

where $D = [1 1]$ . As we can see in equation (1), the first-order and second-order derivatives are

\begin{array}{l} \dot{σ} & = - D G (q) \\ = - m b g sin (q_{1}) + (m a + m l + m_{H} l) g sin (q_{2}) \\ \ddot{σ} & = \frac{\partial \dot{σ}}{\partial q} \dot{q} \\ = - m b g cos (q_{1}) {\dot{q}}_{1} \\ + (m a + m l + m_{H} l) g cos (q_{2}) {\dot{q}}_{2} \end{array}

Let τ be a virtual time of the target limit cycle, $q^{*} (τ)$ and ${\dot{q}}^{*} (τ)$ be the states in the limit cycle, and $σ^{*} (τ)$ be the angular momentum in the limit cycle. We design the transverse coordinate x_⊥ as

x_{⊥} = [\begin{matrix} x_{1} \\ x_{2} \\ x_{3} \end{matrix}] = [\begin{matrix} σ - σ^{*} (τ) \\ \dot{σ} - {\dot{σ}}^{*} (τ) \\ \ddot{σ} - {\ddot{σ}}^{*} (τ) \end{matrix}]

where ${\dot{σ}}^{*} (τ)$ and ${\ddot{σ}}^{*} (τ)$ are the first-order and second-order derivatives of $σ^{*} (τ)$ about the virtual time τ. We choose the moving Poincaré section as $q_{2} = q_{2}^{*} (τ)$ . It is proved in the work of Yan et al.²⁰ that in each moving Poincaré section, $x_{⊥} = 0$ is equivalent to $q = q^{*} (τ)$ and $\dot{q} = {\dot{q}}^{*} (τ)$ .

Analysis of system structure

After the introduction of the transverse coordinate transformation, we construct a transformed system in the moving Poincaré section as

{\begin{array}{l} {\dot{x}}_{1} = \dot{σ} - {\dot{σ}}^{*} (τ) \frac{d τ}{d t} \\ {\dot{x}}_{2} = \ddot{σ} - {\ddot{σ}}^{*} (τ) \frac{d τ}{d t} \\ {\dot{x}}_{3} = \overset{⃛}{σ} - {\overset{⃛}{σ}}^{*} (τ) \frac{d τ}{d t} \end{array}

Since the reference point is chosen from the Poincaré section, it is necessary to point out that the values of ${\dot{σ}}^{*} (τ) \frac{d τ}{d t}$ , ${\ddot{σ}}^{*} (τ) \frac{d τ}{d t}$ , and ${\overset{⃛}{σ}}^{*} (τ) \frac{d τ}{d t}$ are unavailable. Let $w_{1} (t) = {\dot{σ}}^{*} (τ) (1 - \frac{d τ}{d t})$ , $w_{2} (t) = {\ddot{σ}}^{*} (τ) (1 - \frac{d τ}{d t})$ , and $w_{3} (t) = {\overset{⃛}{σ}}^{*} (τ) (1 - \frac{d τ}{d t})$ , and we change the form of equation (5) into

{\begin{array}{l} {\dot{x}}_{1} = x_{2} + w_{1} (t) \\ {\dot{x}}_{2} = x_{3} + w_{2} (t) \\ {\dot{x}}_{3} = \overset{⃛}{σ} - {\overset{⃛}{σ}}^{*} (τ) + w_{3} (t) \end{array}

When the states of the biped are in the limit cycle, $1 - \frac{d τ}{d t} = 0$ and $w_{1} (t) = w_{2} (t) = w_{3} (t) = 0$ . If the states diverge from the limit cycle, the values of $w_{1} (t)$ , $w_{2} (t)$ , and $w_{3} (t)$ are not equal to 0, and we treat them as the disturbances of the system.

For the dynamic of the state x₁

{\dot{x}}_{1} = x_{2} + w_{1} (t)

we design $u_{1} = x_{2}$ as the virtual input, and equation (7) comes to the system

{\dot{x}}_{1} = u_{1} + w_{1} (t)

If the nonlinear term $w_{1} (t) = {\dot{σ}}^{*} (τ) (1 - \frac{d τ}{d t})$ can be measured, the feedback controller can be designed as

u_{10} = u_{1} + w_{1} (t)

The system (8) becomes a linear system

{\dot{x}}_{1} = u_{10}

For such a system, it is easy to design the controller u₁₀ to make the error system converge to the fixed point $x_{1} = 0$ .

As x₂ is designed as the virtual input of system (7), the control target of x₂ is

x_{2} = u_{1} = u_{10} - w_{1} (t)

For the dynamic of the state x₂

{\dot{x}}_{2} = x_{3} + w_{2} (t)

we design $u_{2} = x_{3}$ as the virtual input, and equation (10) comes to the system

{\dot{x}}_{2} = u_{2} + w_{2} (t)

If the nonlinear term $w_{2} (t) = {\ddot{σ}}^{*} (τ) (1 - \frac{d τ}{d t})$ can be measured, the feedback controller can be designed as

u_{20} = u_{2} + w_{2} (t)

The system (11) becomes a linear system

{\dot{x}}_{2} = u_{20}

As x₃ is designed as the virtual input of system (10), the control target of x₃ is

x_{3} = u_{2} = u_{20} - w_{2} (t)

For the dynamic of the state x₃

{\dot{x}}_{3} = \overset{⃛}{σ} - {\overset{⃛}{σ}}^{*} (τ) + w_{3} (t)

we design $u_{3} = \overset{⃛}{σ} - {\overset{⃛}{σ}}^{*} (τ)$ as the virtual input, and equation (13) comes to the system

{\dot{x}}_{3} = u_{3} + w_{3} (t)

If the nonlinear term $w_{3} (t) = {\overset{⃛}{σ}}^{*} (τ) (1 - \frac{d τ}{d t})$ can be measured, the feedback controller can be designed as

u_{30} = u_{3} + w_{3} (t)

The system (14) becomes a linear system which can be controlled easily

{\dot{x}}_{3} = u_{30}

It has been illustrated in this subsection that the control structure of the system is a serial structure of three feedback controllers. Each controller needs to get the precise estimate of the nonlinear terms $w_{1} (t)$ , $w_{2} (t)$ , and $w_{3} (t)$ , respectively, to compensate the nonlinear terms as the disturbance when the feedback controllers are designed. In what follows, we will design ADRC controller to realize this control method.

Design of ESO and NLSEF

In this subsection, we design ESO to estimate the values of $w_{1} (t)$ , $w_{2} (t)$ , and $w_{3} (t)$ and NLSEF to compensate these disturbances.

For the system (8), suppose we can obtain the value of x₁ accurately. We extend the nonlinear term $w_{1} (t)$ into a new state variable $x_{1 e}$ , and let ${\dot{x}}_{1 e} = μ_{1} (t)$ . The new system with an extended state variable is

{\begin{array}{l} {\dot{x}}_{1} = u_{1} + x_{1 e} \\ {\dot{x}}_{1 e} = μ_{1} (t) \end{array}

The ESO of the new system is designed as

{\begin{array}{l} e = z_{11} - x_{1} \\ f e = f a l (e, α, h_{o}) \\ {\dot{z}}_{11} = z_{12} - β_{11} e + u_{1} \\ {\dot{z}}_{12} = - β_{12} f e \end{array}

where

f a l (e, α, δ) = {\begin{array}{l} \frac{e}{δ^{1 - α}}, & | e | \leq δ \\ | e |^{α} sign (e), & | e | > δ \end{array}

and h_o, α, β₁₁, and β₁₂ are parameters related to the performance of the ESO.³⁰ The nonlinear function $f a l ()$ is an exponential function which is linear near to zero. In this form, the high-frequency vibration phenomenon can be suppressed in numerical simulation.

The state observer can estimate the states of the system (16) accurately if appropriate parameters β₁₁ and β₁₂ are chosen. The details are shown as

\begin{array}{l} z_{11} \to x_{1} = σ - σ^{*} (τ) \\ z_{12} \to x_{1 e} = w_{1} (t) = {\dot{σ}}^{*} (τ) (1 - \frac{d τ}{d t}) \end{array}

With the value of z₁₂, the disturbance of the system (7) can be compensated and the NLSEF can be designed as

{\begin{array}{l} e_{1} = v_{1} - z_{11} \\ u_{1} = β_{c 1} f a l (e_{1}, α, h_{u}) - z_{12} \end{array}

where v₁ is the control target of x₁ and $f a l ()$ is in the form of equation (18).

For the system (11), the control target of x₂ is u₁ in equation (19). Suppose we can obtain the value of x₂ accurately and use the ESO to estimate the value of $w_{2} (t)$ .

We expand the nonlinear term $w_{2} (t)$ into a new state variable $x_{2 e}$ , and let ${\dot{x}}_{2 e} = μ_{2} (t)$ . The new system with an extended state variable is

{\begin{array}{l} {\dot{x}}_{2} = u_{2} + x_{2 e} \\ {\dot{x}}_{2 e} = μ_{2} (t) \end{array}

The ESO of the new system is designed as

{\begin{array}{l} e = z_{21} - x_{2} \\ f e = f a l (e, α, h_{o}) \\ {\dot{z}}_{21} = z_{22} - β_{21} e + u_{2} \\ {\dot{z}}_{22} = - β_{22} f e \end{array}

where the function of $f a l ()$ is defined in equation (18). The state observer can estimate the states of the system (20) as

\begin{array}{l} z_{21} \to x_{2} = \dot{σ} - {\dot{σ}}^{*} (τ) \\ z_{22} \to x_{2 e} = w_{2} (t) = {\ddot{σ}}^{*} (τ) (1 - \frac{d τ}{d t}) \end{array}

With the value of $z_{22}$ , the disturbance of the system (10) can be compensated and the NLSEF can be designed as

{\begin{array}{l} e_{2} = u_{1} - z_{21} \\ u_{2} = β_{c 2} f a l (e_{2}, α, h_{u}) - z_{22} \end{array}

For the system (14), the control target of x₃ is u₂ in equation (22). Suppose we can obtain the value of x₃ accurately and use the ESO to estimate the value of $w_{3} (t)$ . We expand the nonlinear term $w_{3} (t)$ into a new state variable $x_{3 e}$ , and let ${\dot{x}}_{3 e} = μ_{3} (t)$ . The new system with an extended state variable is

{\begin{array}{l} {\dot{x}}_{3} = u_{3} + x_{3 e} \\ {\dot{x}}_{3 e} = μ_{3} (t) \end{array}

The ESO of the new system is designed as

{\begin{array}{l} e = z_{31} - x_{3} \\ f e = f a l (e, α, h_{o}) \\ {\dot{z}}_{31} = z_{32} - β_{31} e + u_{3} \\ {\dot{z}}_{32} = - β_{32} f e \end{array}

where the function of $f a l ()$ is defined in equation (18). The state observer can estimate the states of the system (23) accurately as long as appropriate parameters $β_{31}$ and $β_{32}$ are chosen. The details are shown as

\begin{array}{l} z_{31} \to x_{3} = \ddot{σ} - {\ddot{σ}}^{*} (τ) \\ z_{32} \to x_{3 e} = w_{3} (t) = {\overset{⃛}{σ}}^{*} (τ) (1 - \frac{d τ}{d t}) \end{array}

With the value of $z_{32}$ , the disturbance of the system (13) can be compensated and the NLSEF can be designed as

{\begin{array}{l} e_{3} = u_{2} - z_{31} \\ u_{3} = β_{c 3} f a l (e_{3}, α, h_{u}) - z_{32} \end{array}

Design of transient process

However, the design of ADRC that merely containing ESO and NLSEF will lead to great fluctuation, recovering, and excessively large output of the controller. Since there is a collision when the swing foot touches down, the biped walking system is a hybrid system which further causes the states variables of the ESO to be impacted. Therefore, we introduce the transient process to solve this problem.

The transient process is designed as

\begin{array}{l} {\dot{v}}_{1} = - r f a l (v_{1} - v, α, h_{t}) \end{array}

where v is the target value of x₁. Parameter r is used to adjust the speed of transition³¹ and h_t is used to adjust the linear part of $f a l ()$ .

The transient process can achieve the smooth transition and avoid the excessively large input value for the reason that it can change the reference value from fixed value to a dynamic process.

Summary

In summary, the structure of the serial system which constitutes ESO, transient process, and NLSEF is described in Figure 4, and the three-loop serial system with ADRC is demonstrated below

Figure 4.

The structural diagram of serial system ADRC. ADRC: active disturbance rejection controller.

{\begin{array}{l} {\dot{v}}_{1} = r f a l (v_{1} - v, α, h_{t}) \\ e = z_{11} - x_{1} \\ f e = f a l (e,0.5, h_{o}) \\ {\dot{z}}_{11} = z_{12} - β_{11} e + u_{1} \\ {\dot{z}}_{12} = - β_{12} f e \\ e_{1} = v_{1} - z_{11} \\ u_{1} = β_{c 1} f a l (e_{1}, α, h_{u}) - z_{12,} \end{array} {\begin{array}{l} e = z_{21} - x_{2} \\ f e = f a l (e, α, h_{o}) \\ {\dot{z}}_{21} = z_{22} - β_{21} e + u_{2} \\ {\dot{z}}_{22} = - β_{22} f e \\ e_{2} = u_{1} - z_{21} \\ u_{2} = β_{c 2} f a l (e_{2}, α, h_{u}) - z_{22,} \end{array} {\begin{array}{l} e = z_{31} - x_{3} \\ f e = f a l (e, α, h_{o}) \\ {\dot{z}}_{31} = z_{32} - β_{31} e + u_{3} \\ {\dot{z}}_{32} = - β_{32} f e \\ e_{3} = u_{2} - z_{31} \\ u_{3} = β_{c 3} f a l (e_{3}, α, h_{u}) - z_{32 .} \end{array}

So far we have designed the feedback controller u₃. The value of $\overset{⃛}{σ}$ can be calculated as

\overset{⃛}{σ} = u_{3} + {\overset{⃛}{σ}}_{f}^{*} (τ)

Then, the input of the hip can be calculated as

u_{H} = \frac{\overset{⃛}{σ} - {\dot{q}}^{T} \frac{\partial H^{T} (q)}{\partial q} \dot{q} - H (q) I (q, \dot{q})}{H (q) M {(q)}^{- 1} S}

where $I (q, \dot{q}) = - M {(q)}^{- 1} (C (q, \dot{q}) + G (q))$ .

Simulation

The specific parameters of the ADRC controller we designed are shown in Table 1. In terms of the parameters selection criteria, we will next give some experience. For the parameters h_o, h_u, and h_t, they set a small neighborhood around zero in function $f a l ()$ , which should be adjusted upward from zero until the high-frequency vibration phenomenon is suppressed. For other parameters of ESO, taking β₁₁ and β₁₂ as an example, β₁₁ should be larger than β₁₂ and the magnitude of the parameters is related to the required tracking speed and accuracy. In terms of the parameters of feedback controller, the order of the three parameters is $β_{c 1} < β_{c 2} < β_{c 3}$ because of the serial structure of the controller. It is worthy to emphasize that the performance of observer and controller is not very sensitive to parameters, which is an advantage of ADRC controller.

Table 1.

The parameters of the designed ADRC controller.

ESO	NLSEF	Transient process
$h_{o} = 0.0001$	$h_{u} = 1.0$	$h_{t} = 0.01$
α = 0.5	α = 0.5	α = 0.5
$β_{11} = 2000$	$β_{c 1} = 2.5$	r = 1.0
$β_{12} = 10$	$β_{c 2} = 8$
$β_{21} = 4000$	$β_{c 3} = 200$
$β_{22} = 10$
$β_{31} = 2000$
$β_{32} = 10$

ADRC: active disturbance rejection controller; ESO: extended state observer; NLSEF: nonlinear state error feedback.

To verify the effectiveness of the controller, we adopt the same stability analysis method as the “Limit cycle of walking gait” section. The Jacobian matrix of Poincaré return map with the ADRC controller is calculated below. By taking the same fixed point as equation (2), the Jacobian matrix is

\begin{matrix} [\begin{matrix} 0.6023 & 0.1967 & - 0.2962 \\ - 2.0321 & 0.5375 & 0.1503 \\ 0.2082 & 0.5747 & - 0.4647 \end{matrix}] \end{matrix}

The eigenvalues are $λ_{1} = 0.3460 + 0.2473 i$ , $λ_{2} = 0.3460 - 0.2473 i$ , and $λ_{3} = - 0.0169$ , which means that the limit cycle is stabilized by the ADRC controller.

Starting from the states that diverge from the limit cycle, the walking gait converges to the limit cycle with the controller ADRC as shown in Figure 5.

Figure 5.

The ADRC controller can stabilize the unstable limit cycle in Figure 3. Starting from the states that diverge from the limit cycle, the walking gait converges to the target limit cycle. ADRC: active disturbance rejection controller.

To further illustrate the controller’s performance, the states of the ESO are shown in Figure 6. The tracking errors $z_{11} - x_{1}$ , $z_{21} - x_{2}$ , and $z_{31} - x_{3}$ are small, and the errors caused by foot collision converge fast. The simulation result illustrates that ESO achieves a fast and accurate tracking of the state variables, which also shows that the ESO we designed for walking control could reach the same performance level as the examples in the study by Han³⁰ and Huang et al.³¹

Figure 6.

The states of ESO z₁₁, z₂₁, and z₃₁ can track the state variables x₁, x₂, and x₃ fast and accurately. ESO: extended state observer.

The states z₁₂, z₂₂, and z₃₂, which are used to track the nonlinear terms $w_{1} (t)$ , $w_{2} (t)$ , and $w_{3} (t)$ , are shown in Figure 7. The nonlinear errors can be measured and reduced to zero. In the ADRC serial system, the control target of x₁, x₂, and x₃ are the states of transient process v₁, the input value u₁ and u₂, respectively. Figure 8 shows the tracking process with the ADRC controller.

Figure 7.

The nonlinear terms $w_{1} (t)$ , $w_{2} (t)$ , and $w_{3} (t)$ can be measured by the states $z_{12}$ , $z_{22}$ , and $z_{32}$ . With the ADRC controller, the nonlinear errors reduce to zero. ADRC: active disturbance rejection controller.

Figure 8.

With the ADRC controller, the states x₁, x₂, and x₃ converge to the targets v₁, u₁, and u₂, respectively. ADRC: active disturbance rejection controller.

Next, to illustrate the advancement of the controller in biped walking, we compare the converge speed of ADRC and the transverse coordinate control. We define $x_{p} (k)$ as the intersection of the state trajectory and the Poincaré section in the k th step and $x_{p}^{*}$ as the intersection of the target limit cycle and the Poincaré section. As shown in Figure 9, the state error $e_{p} = | | x_{p} (k) - x_{p}^{*} | |$ relative to the number of walking steps is used to illustrate the converge speed, the red line represents the method of transverse coordinate control, and the blue line represents the method ADRC. By comparison, it can be concluded that the state trajectory converges faster with ADRC than with the method of transverse coordinate control, after being disturbed.

Figure 9.

With the same initial state and the different control methods, the state error $e_{p} = | | x_{p} (k) - x_{p}^{*} | |$ converges to 0 relative to the number of walking steps. The red line represents that the method transverse coordinate is control and the blue line represents the method ADRC. ADRC: active disturbance rejection controller.

Conclusion

In this article, we propose an ADRC design scheme for compass-like robot walking. Firstly, we introduce the dynamic model of the biped robot to be controlled. Secondly, we find that the limit circle of the biped robot is unstable by searching it in an event-based control way. Thirdly, to stabilize this unstable limit circle, we design an ADRC controller which constitutes ESO, NLSEF, and transient process. Finally, the validity of the control strategy is illustrated by a series of numerical simulations.

For the future work, we will try to explore the theory in two aspects. Firstly, we will apply the control method to more robot models with more degrees of freedom, and then try to apply it in the three-dimensional field. Secondly, we will design a prototype of the compasses biped robot studied in this article and verify the theory through experiments.
