Abstract

Achieving balance between robustness and performance is always a challenge in the hypersonic vehicle flight control design. In this research, we focus on dealing with uncertainties of the fuzzy control system from the viewpoint of reliability. A probabilistic robust mixed H₂/H_∞ fuzzy control method for hypersonic vehicles is presented by describing the uncertain parameters as random variables. First, a Takagi–Sugeno fuzzy model is employed for the hypersonic vehicle nonlinear dynamics characteristics. Next, a robust fuzzy controller is developed by solving a reliability-based multi-objective linear matrix inequality optimization problem, in which the H₂/H_∞ performance is optimized under the condition that the system is robustly reliable to uncertainties. By this method, the system performance and reliability can be taken into account simultaneously, which reduces the conservatism in the robust fuzzy control design. Finally, simulation results of a hypersonic vehicle demonstrate the feasibility and effectiveness of the presented method.

Keywords

Hypersonic vehicle fuzzy control reliability method robust control

Introduction

Hypersonic vehicles (HVs) are envisioned to be a reliable and more cost-efficient way to access space by reducing flight time. Also, quick response and global cruise will be possible. However, flight control of HVs is more challenging since the distinctive coupling and nonlinear characteristics of the dynamics. Besides, a wide range of the flight envelope leads to unavoidable parameter variations and uncertainties, which brings about instability and performance deterioration of the flight control system.

In recent years, various techniques have been studied for dealing with parameter variations and uncertainties, such as robust control,^1
–3 adaptive control,⁴ sliding mode control,^5

–8 and so on. For example, H_∞ control theory was developed for the precision guidance problem by Savkin.² Moreover, many intelligent control techniques^9

–13 have been also proposed for the nonlinear characteristics in the flight control design. For example, Mu et al.⁹ provided a method based on adaptive dynamic programing to track a desired trajectory of HV. A neural network method was given to control the hypersonic flight dynamics by Xu et al.¹¹ Lin¹³ proposed a mixed H₂/H_∞ autopilot design method using fuzzy basis function networks. There also has been a rapid growing interest in the fuzzy control of the nonlinear HV systems. Especially, the control methods based on the Takagi–Sugeno (T-S) fuzzy model¹⁴ have attracted lots of attention,^15

–20 since it is conceptually simple and effective for controlling the nonlinear HV system along the trajectory. For example, Wu et al.¹⁶ proposed a mixed H₂/H_∞ fuzzy tracking control method for HVs to obtain a satisfactory anti-disturbance performance and quadratic optimal performance. However, the uncertainty was not taken into account in the modeling of HV.¹⁶ For a practical control of HV, the robustness is important as well as performance. By regarding the uncertainties in HV system as norm-bounded perturbations, a dynamic controller of HV was obtained with robustness and a prescribed anti-disturbance performance via T-S fuzzy approach.¹⁸ Similarly, a sufficient condition was studied to guarantee the robust stability of an adaptive fuzzy HV controller in the presence of uncertainty and disturbance.¹⁹ The norm-bounded assumption of uncertainty makes it possible to analyze the robustness for the uncertain system by solving linear matrix inequality (LMI). However, the norm of parametric uncertainty in the HV flight system is hard to measure. Also, this kind of assumption often leads to over-conservative results, and the desirable performance level based on the deterministic worst-case scenario may not be reached.

As is known, the uncertain parameters in the HV are randomly distributed, especially for the aerodynamic coefficients. A reasonable uncertainty modeling is treating them as random variables. For the HV flight control, the probability of instability and the probability that a certain performance requirement is not meet should be reduced. In the past years, the probabilistic robust design methods based on uncertainty distribution were studied to reduce over-conservatism.^21

–24 For example, Ray and Stengel²³ measured the probability of instability via Monte Carlo sampling. Based on the sampling procedure, Wang and Stengel²⁴ employed the genetic algorithm optimization method to meet performance requirement with a higher probability. By randomized algorithms and Monte Carlo sampling, it is possible to trade-off between achievable performance and robustness against uncertainties. However, a sufficiently large number of simulations are needed to estimate failure probability.

In order to develop an approximate analytic method as an alternative to sampling procedure, a reliability method for robust control of uncertain linear systems was proposed by Guo.^25

–28 As is known, the robustness of system can be analyzed in terms of LMI. Inspired by the concept of structural reliability, a reliability index was utilized to measure the maximum admissible degree of expansion of the uncertain parameters when LMI holds.²⁵ According to the first- and second-order reliability analysis methods²⁹ (FORM/SORM), the failure probability corresponding to a certain performance requirement was derived from the reliability measure of an uncertain system satisfying the required performance.²⁶ The robust reliability method based on LMI reduces considerable computational burden. Moreover, the system performance and reliability can be considered simultaneously. For example, Zhang et al. optimized the H_∞ performance under the condition that the prescribed reliability level is satisfied.³⁰ However, the reliability methods were developed based on the linearized model under a specific trim condition, which may not guarantee a desirable performance along the trajectory of HV. In such cases, it is more appealing to employ the T-S fuzzy control to transform the nonlinear system of HV into a set of local linear models, and then optimize the performance of HV with a prescribed reliability level based on LMIs.

In this study, a probabilistic robust mixed H₂/H_∞ fuzzy control method for HVs is developed by treating the uncertain parameters as normally distributed variables, where the anti-disturbance performance as well as the quadratic tracking performance of HV is optimized under the condition that the prescribed reliability level is satisfied. Initially, a T-S fuzzy model is employed for the HV nonlinear system. Subsequently, the reliability measure of fuzzy control system is described based on LMIs. Next, the probabilistic robust fuzzy controller is developed by carrying out reliability-based multi-objective LMI optimization, in which the H₂/H_∞ performance is optimized under the condition that the system is robustly reliable to uncertainties. Finally, a simulation study is given to illustrate the effectiveness of the proposed method.

Two contributions are made in this article. First, the control problem for nonlinear system of HV with parametric uncertainty is handled by T-S fuzzy model. Second, the reliability measure of a fuzzy control system with uncertainty is given, which makes it possible to trade-off between system performance and reliability for the fuzzy control design in terms of LMIs. By the proposed method, the conservatism in the robust design is reduced, as well as the computational complexity. The rest of the article is organized as follows: In the “Nonlinear dynamic modeling of HV with uncertainty” section, the description of HV modeling with uncertainty is given. In the “Problem formulation” section, the problem formulation is given. The “Probabilistic robust H₂/H_∞ fuzzy control based on reliability” section presents a probabilistic robust mixed H₂/H_∞ fuzzy control design method based on reliability. In the “Simulation study” section, the simulation results on the HV with randomly generated parameters are given to demonstrate the proposed method. Finally, some conclusions are drawn in the “Conclusions” section.

Notations: P^T, P⁻¹, and Tr(P) denote the transpose, inverse, and trace of any square matrix P, respectively. P > 0 denotes the positive matrix P. The notation I denotes the identity matrix of appropriate dimensions. diag{⋅} denotes the diagonal matrix. The ∗ is used in following matrix expressions as

[\begin{matrix} A & * \\ B & I \end{matrix}] ≜ [\begin{matrix} A & B^{T} \\ B & I \end{matrix}], B + * ≜ B + B^{T}

Nonlinear dynamic modeling of HV with uncertainty

In order to maneuver quickly and respond accurately for command, HVs usually have a plane symmetrical configuration. However, the configuration causes inevitable coupling in the yaw and roll channels of HV lateral-directional dynamic model,^31,32 which is presented and described by a set of differential equations as

\dot{β} = (Y + Y_{r}) / (\tilde{m} V) + p sin α - r cos α + μ / (V {(h + R)}^{2}) sin ϕ_{s} cos θ

{\dot{ϕ}}_{s} = p cos α + r s i n α

\dot{p} = (L + L_{r}) \times I_{z z} / (I_{x x} I_{z z} - I_{x z}^{2}) + (N + N_{r}) \times I_{x z} / (I_{x x} I_{z z} - I_{x z}^{2})

\dot{r} = (N + N_{r}) \times I_{x x} / (I_{x x} I_{z z} - I_{x z}^{2}) + (L + L_{r}) \times I_{x z} / (I_{x x} I_{z z} - I_{x z}^{2})

where

\begin{array}{l} Y = \tilde{Q} \tilde{S} C_{y}, L = \tilde{Q} \tilde{S} b C_{l}, N = \tilde{Q} \tilde{S} b C_{n}, \tilde{Q} = 0.5 ρ V^{2} \\ C_{y} = C_{y} (β) + C_{y} (δ_{a}) + C_{y} (δ_{r}), C_{l} = C_{l} (β) + C_{l} (δ_{a}) \\ + C_{l} (δ_{r}) + C_{l} (p) + C_{l} (r) \\ C_{n} = C_{n} (β) + C_{n} (δ_{a}) + C_{n} (δ_{r}) + C_{n} (p) + C_{n} (r) \end{array}

In equations (1) to (4), state variables are β, ϕ_s, p, and r, which denote the sideslip angle, bank angle, roll rate, and yaw rate of HV, respectively. The control variables are aileron deflection δ_a and rudder deflection δ_r. α denotes the angle of attack. $Y, L, N$ , C_y, C_l, and C_n are aerodynamic side force, roll moment, yaw moment, and corresponding aerodynamic coefficients, respectively. $C_{i} (β), C_{i} (δ_{a}), C_{i} (δ_{r}), C_{i} (p), C_{i} (r), and i = {y, l, n}$ , denote the aerodynamic coefficients relating to sideslip angle, aileron deflection, rudder deflection, roll rate, and yaw rate, respectively. $Y_{r}, L_{r}, and N_{r}$ are disturbance in side force, roll moment, and yaw moment, respectively. I_xx, I_zz and I_xz denote the moment of inertia about x-body axes, z-body axes, and product of inertia, respectively. $\tilde{Q}$ , ρ, $\tilde{S}$ , b, and θ denote velocity pressure, density of air, reference area, reference span, flight path angle, respectively. V, h, R, $\tilde{m}$ , and μ denote vehicle velocity, flight height, radius of the Earth, vehicle mass, and gravitational constant, respectively.

The HV dynamics (1) to (4) is a highly nonlinear system, which is affine in the control input in the flight envelop. The parameters in the HV system vary with flight conditions, and some of them such as aerodynamic coefficients are uncertain parameters. Then, the nonlinear system (1) to (4) can be expressed in the following state-space equation as

\dot{x} = f (x, ϑ) + g (x, ϑ) u

In equation (5), state vector $x ≜ {[β, ϕ_{s}, p, r]}^{T} \in ℝ^{4}$ and control input vector $u ≜ {[δ_{a}, δ_{r}]}^{T} \in ℝ^{2}$ . ϑ denotes uncertain parameter vector. $f (x, ϑ) and g (x, ϑ)$ are corresponding nonlinear functions, where

\begin{array}{l} f (x, ϑ) = [\begin{matrix} \tilde{Q} \tilde{S} C_{y} (β) / (\tilde{m} V) + p sin α - r cos α + μ / (V {(h + R)}^{2}) sin ϕ_{s} cos θ \\ p cos α + r s i n α \\ \tilde{Q} \tilde{S} b (C_{l} (β, p, r) / I_{x 1} + C_{n} (β, p, r) / I_{p r}) \\ \tilde{Q} \tilde{S} b (C_{n} (β, p, r) / I_{z 1} + C_{l} (β, p, r) / I_{p r}) \end{matrix}] \\ g (x, ϑ) = [\begin{matrix} \tilde{Q} \tilde{S} C_{y} (δ_{a}) / (\tilde{m} V) & \tilde{Q} \tilde{S} C_{y} (δ_{r}) / (\tilde{m} V) \\ 0 & 0 \\ \tilde{Q} \tilde{S} b (C_{l} (δ_{a}) / I_{x 1} + C_{n} (δ_{a}) / I_{p r}) & \tilde{Q} \tilde{S} b (C_{l} (δ_{r}) / I_{x 1} + C_{n} (δ_{r}) / I_{p r}) \\ \tilde{Q} \tilde{S} b (C_{n} (δ_{a}) / I_{z 1} + C_{l} (δ_{a}) / I_{p r}) & \tilde{Q} \tilde{S} b (C_{n} (δ_{r}) / I_{z 1} + C_{l} (δ_{r}) / I_{p r}) \end{matrix}] \end{array}

with $I_{x 1} = (I_{x x} I_{z z} - I_{x z}^{2}) / I_{z z}, I_{z 1} = (I_{x x} I_{z z} - I_{x z}^{2}) / I_{x x}, and I_{p r} = (I_{x x} I_{z z} - I_{x z}^{2}) / I_{x z}$ . The aerodynamic coefficient $C_{l} (β, p, r) = C_{l} (β) + C_{l} (p) + C_{l} (r)$ , and the coefficient $C_{n} (β, p, r) = C_{n} (β) + C_{n} (p) + C_{n} (r)$ .

Problem formulation

As the dynamics of HVs is nonlinear along the trajectory, a T-S fuzzy model can be employed for its conceptually simple and effective. The T-S fuzzy model has been proposed by Takagi and Sugeno,¹⁴ and each IF-THEN rule in the affine model represents the local linear input/output relations of nonlinear system. Considering the highly nonlinear HV system with uncertainty ϑ, the ith rule of the T-S fuzzy model of the nonlinear system (5) is as

Plant Rule i

\begin{array}{l} IF z_{1} (t) is M_{i 1} and \dots and z_{p} (t) is M_{i p} \\ THEN \dot{x} = A_{i} (ϑ) x + B_{i} (ϑ) u + B_{w i} w \end{array}

where $w = {[Y_{r}, L_{r}, N_{r}]}^{T}$ is norm-bounded disturbance vector. $A_{i} (ϑ) \in ℝ^{4 \times 4} and B_{i} (ϑ) \in ℝ^{4 \times 2}, i = 1, 2, \dots, N$ , are matrices that contain uncertain parameter vector ϑ. N is the number of IF-THEN rules. $z_{j} (t), j = 1, 2, \dots, p$ , are the premise variables. $M_{i j}, j = 1, 2, \dots, p$ , are the fuzzy sets. The fuzzy rule i means that if the premise variables $z_{j} (t)$ are within the fuzzy set M_ii, then the nonlinear model of HV in equations (1) to (4) can be expressed by the local linear model. Then, the overall fuzzy system with parametric uncertainty can be inferred as

\dot{x} = \sum_{i = 1}^{N} h_{i} (z (t)) (A_{i} (ϑ) x + B_{i} (ϑ) u + B_{w i} w)

where

z (t) = {[z_{1} (t), \dots, z_{p} (t)]}^{T}

h_{i} (z (t)) = ω_{i} (z (t)) / \sum_{i = 1}^{N} ω_{i} (z (t)), ω_{i} (z (t)) = \prod_{j = 1}^{p} μ_{i j} (z_{j} (t))

and $μ_{i j} (z_{j} (t))$ is the grade of membership of $z_{j} (t)$ in the fuzzy set M_ii. $h_{i} (z)$ is defined as the firing strength of the ith rule, which satisfies

h_{i} (z (t)) \geq 0 and \sum_{i = 1}^{N} h_{i} (z (t)) = 1, i = 1, 2, \dots N

Next, based on the parallel distributed compensation scheme,³³ the fuzzy control law with a state feedback controller for the HV is constructed as

Control Rule i

\begin{array}{l} IF z_{1} (t) is M_{i 1} and \dots and z_{p} (t) is M_{i p} \\ THEN u = K_{i} x \end{array}

where $K_{i} \in ℝ^{2 \times 4}, i = {1, 2, \dots, N}$ are the state feedback gain matrices to be designed. The overall fuzzy control law is represented by

u = \sum_{i = 1}^{N} h_{i} (z (t)) K_{i} x

Applying the above controller to the uncertain system (6), the closed-loop system is described as

\dot{x} = \sum_{i = 1}^{N} \sum_{j = 1}^{N} h_{i} h_{j} (A_{c i j} (ϑ) x + B_{w i} w)

where $A_{c i j} (ϑ) = A_{i} (ϑ) + B_{i} (ϑ) K_{j}$ . The matrices $A_{i} (ϑ) and B_{i} (ϑ)$ in the fuzzy model (6) are obtained by the fuzzy modeling method in two ways:

When the operation state is the equilibrium point, the local model is obtained by Taylor’s linearization means, where

A_{i} (ϑ) = \frac{\partial f (x, ϑ)}{\partial x (x, ϑ)} | \begin{matrix} x = x_{p} \end{matrix}, B_{i} (ϑ) = = \frac{\partial g (x, ϑ)}{\partial x (x, ϑ)} | \begin{matrix} x = x_{p} \end{matrix}

When the operation state is not the equilibrium point, the local mode is obtained,³⁴ where

\begin{array}{l} a_{i} = \nabla f_{i} (x_{p}, ϑ) + \frac{f_{i} (x_{p}, ϑ) - x_{p}^{T} \nabla f_{i} (x_{p}, ϑ)}{{‖ x_{o} ‖}^{2}} x_{p}, x_{p} \neq 0 \\ A_{i} (ϑ) = {[a_{1,}, a_{2}, \dots a_{n}]}^{T}, B_{i} (ϑ) = g (x_{p}, ϑ) \end{array}

In HV lateral flight control system, the uncertain parameter vector $ϑ = {[ϑ_{1}, ϑ_{2}, \dots, ϑ_{m}]}^{T} includes C_{y}^{β}, C_{l}^{β}, C_{l}^{p}, C_{l}^{r}, C_{n}^{β}, C_{n}^{p}, C_{n}^{r}, C_{y}^{δ_{a}}, C_{y}^{δ_{r}}, C_{l}^{δ_{a}}, C_{l}^{δ_{r}}, C_{n}^{δ_{a}}, and C_{n}^{δ_{r}}$ .

For the robust fuzzy control, it is worthy to notice that uncertain parameters ϑ_k can be treated as random variables with certain probability distributions, and they are generally assumed to be normally distributed based on statistics. According to the well-known FORM/SORM, the following transformation can be adopted to the random normally distributed variables ϑ_k as

ϑ_{k} = μ_{k} + σ_{k} ε_{k}, k \in {1, 2, \dots, m}

where μ_k and σ_k are the mean value and standard deviation of the uncertain parameters ϑ_k. ε_k are standard normally distributed variables. Then, the matrices $A_{i} (ϑ), B_{i} (ϑ), and A_{c i j} (ϑ)$ in equations (6) and (8) are further expressed as the corresponding forms that depend on the standard normally distributed variables $ε = {[ε_{1}, ε_{2}, \dots ε_{m}]}^{T}$ as

A_{i} (ϑ) = {\tilde{A}}_{i} (ε), B_{i} (ϑ) = {\tilde{B}}_{i} (ε), A_{c i j} (ϑ) = {\tilde{A}}_{c i j} (ε)

Remark 1

For the flight control system of HV, the random distributed variables ϑ_k are from many sources, and some are with large distributed ranges. Then, the assumption of norm-bounded uncertainty in the classical robust control may be over-conservative. In that case, it is more reasonable to analyze the robustness of the fuzzy control system in the sense of probability.

Remark 2

It is worth mentioned that there exists a probabilistic robust approach for controller design by treating uncertain parameters as random variables. In this method, a reliability index is utilized to measure the failure probability of performance requirement. Thus, the system control performance can be considerably improved under the condition that the reliability level is satisfied.

Considering the control design requirement for an HV, a robust controller is usually designed not only to stabilize the system but also to guarantee an adequate level of external disturbance attenuation. For the norm-bounded disturbance w(t) satisfying ${‖ w (t) ‖}_{2} \leq ϖ$ , H_∞ control will be employed, and we consider the following H_∞ performance for the uncertain system as

$\int_{0}^{t_{f}} (x {(t)}^{T} Q_{1} x (t) + u {(t)}^{T} R_{1} u (t)) d t \leq x_{0}^{T} P x_{0} + γ^{2} \int_{0}^{t_{f}} w {(t)}^{T} w (t) d t$
13

where t_f is the terminal time of control, γ is a prescribed level of disturbance attenuation. Q₁ and R₁ are the given positive diagonal weighting matrices. x₀ is the initial state of the system, and P is a symmetrical positive weighting matrix.

In addition, it is more appealing for the control designer that the following H₂ control performance is minimized for the system in the absence of w(t) (i.e. w(t) ≡ 0)

$J = \int_{0}^{t_{f}} (x {(t)}^{T} Q_{2} x (t) + u {(t)}^{T} R_{2} u (t)) d t$
14

where Q₂ and R₂ are the given positive diagonal weighting matrices.

Therefore, the objective of this study is to analyze the reliability measured by the maximum performance requirement violation probability and to seek a probabilistic robust fuzzy control design method for HV lateral system based on reliability theory. Then, the obtained controller may have optimal H₂/H_∞ performance under the condition that the reliability requirement is satisfied.

Before deriving the main results, the following lemma should be given.

Lemma 1

Given real matrices $Y, E_{i}, F_{i} (i = 1, 2, \dots, n)$ with appropriate dimensions and matrix Y = Y^T,²⁶ then, the inequality

$Y + \sum_{i = 1}^{n} (E_{i} Δ_{i} F_{i} + F_{i}^{T} Δ_{i}^{T} E_{i}^{T}) < 0$

holds for all Δ_i satisfying $Δ_{i}^{T} Δ_{i} \leq l_{i}^{2} I (i = 1, \dots n)$ if and only if there exist n positive constants ε_i $(i = 1, \dots n)$ such that

$Y + \sum_{i = 1}^{n} ε_{i} E_{i} E_{i}^{T} + \sum_{i = 1}^{n} ε_{i}^{- 1} l_{i}^{2} F_{i}^{T} F_{i} < 0$

Probabilistic robust H₂/H_∞ fuzzy control based on reliability

In this section, we first illustrate the reliability measurement for fuzzy control system with parametric uncertainty. Then, a probabilistic robust H₂/H_∞ fuzzy controller design method is presented, in which the closed-loop system H₂/H_∞ performance and reliability are considered simultaneously. Finally, the robustly reliable fuzzy controller is obtained by solving an LMI optimization problem.

Let us consider the H₂ and H_∞ performance defined in equations (13) to (14) for the uncertain fuzzy control system (8). In general, they can be obtained by solving a convex problem based on LMIs. The LMIs can be expressed as $Λ_{i j} (ϑ, X, Y_{j}) < 0, (1 \leq i, j \leq N)$ , in which matrices X, Y_j denote the feasible solution for LMIs, and ϑ denotes the uncertainty existing in matrices $A_{i} (ϑ) and B_{i} (ϑ)$ of the ith rule.

Motivated by the condition that the uncertain parameters in system (8) are normally distributed, they can be linearly transformed as $ϑ = T (ε) or ε = T^{- 1} (ϑ)$ . Then, the convex problem of $Λ_{i j} (ϑ, X, Y_{j}) < 0$ in the robust fuzzy control design can be expressed as

$Λ_{i j} (ϑ, X, Y_{j}) = {\tilde{Λ}}_{i j} (ε, X, Y_{j}) < 0, 1 \leq i, j \leq N$
15

where ${\tilde{Λ}}_{i j} (ε, X, Y_{j})$ denotes that the function is expressed in the standard normal space. And the convex problem ${\tilde{Λ}}_{i j} (ε, X, Y_{j}) < 0$ is a crucial issue for the probabilistic robust fuzzy control.

We first discuss the robust reliability for the system (8) corresponding to the required $H_{2} / H_{\infty}$ performance.

To evaluate the reliability, the performance function (also known as limit-state function) plays a vital role according to the commonly used structural reliability theory.²⁹ As is known, the robust fuzzy controllers exist if the matrix inequality ${\tilde{Λ}}_{i j} (ε, X, Y_{j}) < 0$ holds. So, the matrix inequality ${\tilde{Λ}}_{i j} (ε, X, Y_{j}) < 0$ can be taken as performance function to analyze the reliability. The requirement that the inequality ${\tilde{Λ}}_{i j} (ε, X, Y_{j}) < 0$ holds is satisfied (or not) is regarded as the safe (or failure) mode for the fuzzy control system (8). The two modes of the system are defined in the infinite topological space constructed by all the standard normally distributed variables in ε, as

$\begin{array}{l} Safe domain: Ω_{s} = {ε : {\tilde{Λ}}_{i j} (ε, X, Y_{j}) < 0, 1 \leq i, j \leq N} \\ Failure domain: Ω_{f} = {ε : {\tilde{Λ}}_{i j} (ε, X, Y_{j}) > 0, 1 \leq i, j \leq N} \\ Critical state: Ω_{c} = {ε : λ_{max} [{\tilde{Λ}}_{i j} (ε, X, Y_{j})] = 0, 1 \leq i, j \leq N} \end{array}$
16

Thus, the control performance requirement violation probability can be measured by the proportion of the failure domain to the whole infinite topological space. The reliability corresponding to the performance function ${\tilde{Λ}}_{i j} (ε, X, Y_{j})$ can be expressed as

$P_{s} = Prob {ε \in Ω_{s}} = Prob {{\tilde{Λ}}_{i j} (ε, X, Y_{j}) < 0, 1 \leq i, j \leq N}$
17

where Prob{⋅} denotes the probability of that the expression in the brace holds, which is the probability of that the performance function ${\tilde{Λ}}_{i j} (ε, X, Y_{j}) < 0$ holds.

As is known, the most commonly used method to estimate P_s is the random sampling method based on Monte Carlo simulation. However, an excessively large number of simulations are required to achieve a reliable estimated value. The sampling procedures sometimes are impractical, especially when the matrices X and Y_j are unknown. Thus, an approximate analytic method is employed in the probabilistic robust control.

With the help of the traditional reliability method, the reliability index and the robust reliability corresponding to the performance function are defined by Guo.²⁶ Reliability index for the uncertain system (8) is as

$η = sup_{l \in R^{+}} {l : {\tilde{Λ}}_{i j} (ε, X, Y_{j}) < 0, 1 \leq i, j \leq N, \sqrt{ε^{T} ε} \leq l}$
18

where sup{⋅} denotes the supremum, the set ${ε : {\tilde{Λ}}_{i j} (ε, X, Y_{j}) < 0, 1 \leq i, j \leq N}$ denote the safe domain in the infinite topological space built by ε. R⁺ is the set of all positive real numbers.

Reliability index η in equation (18) represents the maximum admissible degree of the uncertain parameters expansion in the infinite topological space that is built by the standard normally distributed variables such that the performance function (15) is satisfied. It is essentially the minimal distance that is from the surface of failure domain (or the critical state) to the origin. The relations between reliability index and safe/failure mode are shown in Figure 1.

Figure 1.
Illustration of reliability.

It can be seen from Figure 1, the larger the value of reliability index, the better the robustness of the fuzzy control, then the higher the reliability for the uncertain system satisfying the required performance. From this viewpoint, a fuzzy control system is reliable when the reliability index is set to a proper scale where the failure probability is rare.

The failure probability of performance requirement (performance requirement violation probability) is associated with the reliability index and the distribution of random variable ε. According to FORM, it is calculated as

$P_{f} = Φ (- η), P_{s} = 1 - P_{f} = Φ (η)$
19

where P_f denotes the failure probability, P_s denotes the safe probability, and Φ denotes the cumulative distribution function for the standard normal random variable.

Nevertheless, it is noteworthy that the performance function ${\tilde{Λ}}_{i j} (ε, X, Y_{j})$ contains the uncertain submatrices ${\tilde{A}}_{i} (ε) and {\tilde{B}}_{i} (ε)$ , which makes the reliability problem of equation (18) difficult to solve. To address that, the uncertain matrices $A_{i} (ϑ) and B_{i} (ϑ)$ with m random variables are expressed and further decomposed as

$\begin{array}{l} A_{i} (ϑ) = {\tilde{A}}_{i} (ε) = A_{i, 0} + \sum_{k = 1}^{m} A_{i, k} ε_{k} = A_{i, 0} + \sum_{j_{1} = 1}^{4} V_{A i, j_{1}} ε U_{A i, j_{1}} \\ B_{i} (ϑ) = {\tilde{B}}_{i} (ε) = B_{i, 0} + \sum_{k = 1}^{m} B_{i, k} ε_{k} = B_{i, 0} + \sum_{j_{2} = 1}^{2} V_{B i, j_{2}} ε U_{B i, j_{2}} \end{array}$
20

with

$\begin{array}{l} V_{A i, j_{1}} = [A_{i, 1, j_{1}}, \dots A_{i, k, j_{1}}, \dots A_{i, m, j_{1}}], \\ U_{A i, j_{1}} = [0, \dots \underset{j_{1} t h}{1}, \dots 0], j_{1} \in {1, 2, 3, 4} \\ V_{B i, j_{2}} = [B_{i, 1, j_{2}}, \dots B_{i, k, j_{2}}, \dots B_{i, m, j_{2}}], \\ U_{B i, j_{2}} = [0, \dots \underset{j_{2} t h}{1}, \dots 0], j_{2} \in {1, 2} \end{array}$

where $A_{i, k, j_{1}}$ represents the j₁ th column of the matrix A_i,k and $B_{i, k, j_{2}}$ represents the j₂ th column of the matrix B_i,k. Then, $V_{A i, j_{1}}$ is a matrix constructed by the j₁ th columns of all the matrices $A_{i, 1}, A_{i, 2}, \dots$ and A_i,m. $V_{B i, j_{2}}$ is a matrix constructed by the j₂ th columns of all the matrices $B_{i, 1}, B_{i, 2}, \dots$ and B_i,m.

Next, we discuss a sufficient condition for the fuzzy control of the uncertain system (8) to achieve the H_∞ performance (13) with the prescribed reliability index.

Theorem 1

Consider the uncertain fuzzy control system (8), where $\sqrt{ε^{T} ε} \leq l$ . For a given scale γ, if there exist a symmetric positive matrix $X = X^{T} \in ℝ^{4 \times 4}, matrices Y_{j} \in ℝ^{2 \times 4}$ , and positive constants $e_{i} > 0, (i = 1, \dots, 6)$ such that

$\begin{array}{l} Λ_{1,}_{i i} < 0, 1 \leq i \leq N \\ 1 / (N - 1) Λ_{1,}_{i i} + 1 / 2 (Λ_{1,}_{i j} + Λ_{1,}_{j i}) < 0, 1 \leq i \neq j \leq N \end{array}$
21

where

$\begin{array}{l} Λ_{1,}_{i j} = [\begin{array}{l} ψ_{i j} & * & * & * & * & * \\ B_{w i}^{T} & - γ^{2} I & * & * & * & * \\ X & 0 & - Q_{1}^{- 1} & * & * & * \\ Y_{j} & 0 & 0 & - R_{1}^{- 1} & * & * \\ l X & 0 & 0 & 0 & - E_{1} & * \\ l Y_{j} & 0 & 0 & 0 & 0 & - E_{2} \end{array}], \\ ψ_{i j} = (A_{i, 0} X + B_{i, 0} Y_{j} + ) + \sum_{j_{1} = 1}^{4} e_{j_{1}} V_{A i, j_{1}} V_{A i, j_{1}}^{T} \\ + \sum_{j_{2} = 1}^{2} e_{4 + j_{2}} V_{B i, j_{2}} V_{B i, j_{2}}^{T}, \\ E_{1} = diag {e_{1} \dots e_{4}}, E_{2} = diag {e_{5}, e_{6}}, \end{array}$
22

then the H_∞ performance is guaranteed for $\sqrt{ε^{T} ε} \leq l$ , and control matrix gains are given by $K_{j} = Y_{j} X^{- 1}$ .

Proof

For the system (8), the Lyapunov function is defined as $V (x) = x^{T} P x$ , where P is a symmetrical positive matrix, and robust H_∞ performance of disturbance attenuation defined in (13) is fulfilled if

$\begin{array}{l} \int_{0}^{t_{f}} (x^{T} Q_{1} x + u^{T} R_{1} u) d t \\ = \int_{0}^{t_{f}} (x^{T} Q_{1} x + u^{T} R_{1} u + \dot{V} (x)) d t + V (x_{o}) - V (x_{t_{f}}) \\ = \int_{0}^{t_{f}} (\sum_{i = 1}^{N} \sum_{j = 1}^{N} h_{i} h_{j} (x^{T} (P {\tilde{A}}_{c i j} (ε) + {\tilde{A}}_{c i j}^{T} (ε) P + Q_{1} + K_{j}^{T} R_{1} K_{j}) x \\ + x^{T} P B_{w i} w + w^{T} B_{w i}^{T} P x)) d t + V (x_{o}) - V (x_{t_{f}}) \\ \leq \int_{0}^{t_{f}} (\sum_{i = 1}^{N} \sum_{j = 1}^{N} h_{i} h_{j} x^{T} (P {\tilde{A}}_{c i j} (ε) + {\tilde{A}}_{c i j}^{T} (ε) P + γ^{- 2} P B_{w i} B_{w i}^{T} P \\ + Q_{1} + K_{j}^{T} R_{1} K_{j}) x) d t + \int_{0}^{t_{f}} γ^{2} w^{T} w d t + x_{0}^{T} P x_{0} \\ \leq x_{0}^{T} P x_{0} + \int_{0}^{t_{f}} γ^{2} w^{T} w d t \end{array}$
23

Therefore, the disturbance attenuation level is satisfied with zero initial condition x₀ = 0, if

$P {\tilde{A}}_{c i j} (ε) + {\tilde{A}}_{c i j}^{T} (ε) P + γ^{- 2} P B_{w i} B_{w i}^{T} P < - Q_{1} - K_{j}^{T} R_{1} K_{j}$
24

Substituting ${\tilde{A}}_{c i j} (ε) = {\tilde{A}}_{i} (ε) + {\tilde{B}}_{i} (ε) K_{j}$ into equation (24) and applying the Schur complement to it, it is equivalent to

$[\begin{matrix} P {\tilde{A}}_{i} (ε) + P {\tilde{B}}_{i} (ε) K_{j} + & * & * & * \\ B_{w i}^{T} P & - γ^{2} I & * & * \\ I & 0 & - Q_{1}^{- 1} & * \\ K_{j} & 0 & 0 & - R_{1}^{- 1} \end{matrix}] < 0$
25

Substituting equation (20) into equation (25), and pre- and post-multiplying by $diag {P^{- 1}, I, I, I}$ , it is

$[\begin{matrix} Ξ_{1} & * & * & * \\ B_{w i}^{T} & - γ^{2} I & * & * \\ X & 0 & - Q_{1}^{- 1} & * \\ Y_{j} & 0 & 0 & - R_{1}^{- 1} \end{matrix}] < 0$
26

with

$Ξ_{1} = (A_{i, 0} X + B_{i, 0} Y_{j} + ) + \sum_{j_{1} = 1}^{4} V_{A i, j_{1}} ε U_{A i, j_{1}} X + + \sum_{j_{2} = 1}^{2} V_{B i, j_{2}} ε U_{B i, j_{2}} Y_{j} + $
27

in which $X = P^{- 1}, Y_{j} = K_{j} P^{- 1}$ and the random variables satisfy $\sqrt{ε^{T} ε} \leq l$ .

By Lemma 1, the matrix inequality (26) holds for all uncertainties satisfying $\sqrt{ε^{T} ε} \leq l$ if and only if there exist a symmetric positive matrix $X = X^{T} \in ℝ^{4 \times 4}, matrices Y_{j} \in ℝ^{2 \times 4}$ , and positive constants $e_{i} > 0, (i = 1, \dots, 6)$ such that

$\begin{array}{l} [\begin{matrix} Ξ_{2} & & * & * \\ B_{w i}^{T} & - γ^{2} I & * & * \\ X & 0 & - Q_{1}^{- 1} & * \\ Y_{j} & 0 & 0 & - R_{1}^{- 1} \end{matrix}] < 0, \\ Ξ_{2} = (A_{i, 0} X + B_{i, 0} Y_{j} + ) + \sum_{j_{1} = 1}^{4} e_{j_{1}} V_{A i, j_{1}} V_{A i, j_{1}}^{T} \\ + \sum_{j_{2} = 1}^{2} e_{4 + j_{2}} V_{B i, j_{2}} V_{B i, j_{2}}^{T} + \sum_{j_{1} = 1}^{4} e_{j_{1}}^{- 1} l^{2} X^{T} U_{A i, j_{1}}^{T} U_{A i, j_{1}} X \\ + \sum_{j_{2} = 1}^{2} e_{4 + j_{2}}^{- 1} l^{2} Y^{T} U_{B i, j_{2}}^{T} U_{B i, j_{2}} Y \end{array}$
28

Considering that

$[\begin{matrix} U_{A i, 1} X \\ ⋮ \\ U_{A i, 4} X \end{matrix}] = X, [\begin{matrix} U_{B i, 1} Y \\ U_{B i, 2} Y \end{matrix}] = Y$
29

And by applying Schur complement to equation (28), it is equivalent to the matrix inequalities $Λ_{1,}_{i j} < 0$ , ( $1 \leq i, j \leq N$ ), where $Λ_{1,}_{i j}$ is defined in equation (22). According to Theorem 2.2,³⁵ $Λ_{1,}_{i j} < 0$ , ( $1 \leq i, j \leq N$ ) holds for uncertainties satisfying $\sqrt{ε^{T} ε} \leq l$ if

$\begin{array}{l} Λ_{1,}_{i i} < 0, 1 \leq i \leq N \\ 1 / (N - 1) Λ_{1,}_{i i} + 1 / 2 (Λ_{1,}_{i j} + Λ_{1,}_{j i}) < 0, 1 \leq i \neq j \leq N \end{array}$

This completes the proof. □

Remark 3

By Theorem 1, the performance function used for reliability analysis can be taken as equation (21). According to equations (18) and (19), the reliability index and the failure probability corresponding to the performance function (21) can be expressed as

$\begin{array}{l} η = sup_{l \in R^{+}} {l : Λ_{1,}_{i i} < 0, 1 / (N - 1) Λ_{1,}_{i i} + 1 / 2 (Λ_{1,}_{i j} + Λ_{1,}_{j i}) \\ < 0, 1 \leq i \neq j \leq N} \\ P_{f} = Φ (- η) \end{array}$
30

where $Λ_{1,}_{i j}$ is defined the same as in equation (22).

Now, we discuss a sufficient condition for the uncertain fuzzy control system (8) is quadratic stable with H₂ performance (14) under the condition that the prescribed reliability level is fulfilled.

Theorem 2

Consider the uncertain fuzzy control system (8), where $\sqrt{ε^{T} ε} \leq l$ if there exist a symmetric positive matrix $X = X^{T} \in ℝ^{4 \times 4}, matrices Y_{j} \in ℝ^{2 \times 4}$ , and positive constants $e_{i} > 0, (i = 1, \dots, 6)$ such that

$\begin{array}{l} Λ_{2,}_{i i} < 0, 1 \leq i \leq N \\ 1 / (N - 1) Λ_{2,}_{i i} + 1 / 2 (Λ_{2,}_{i j} + Λ_{2,}_{j i}) < 0, 1 \leq i \neq j \leq N \end{array}$
31

where

$\begin{array}{l} Λ_{2,}_{i j} = [\begin{array}{l} ψ_{i j} & & * & * & * \\ X & - Q_{2}^{- 1} & * & * & * \\ Y_{j} & 0 & - R_{2}^{- 1} & * & * \\ l X & 0 & 0 & - E_{1} & * \\ l Y_{j} & 0 & 0 & 0 & - E_{2} \end{array}] \\ ψ_{i j} = (A_{i, 0} X + B_{i, 0} Y_{j} + ) + \sum_{j_{1} = 1}^{4} e_{j_{1}} V_{A i, j_{1}} V_{A i, j_{1}}^{T} \\ + \sum_{j_{2} = 1}^{2} e_{4 + j_{2}} V_{B i, j_{2}} V_{B i, j_{2}}^{T} \\ E_{1} = diag {e_{1} \dots e_{4}}, E_{2} = diag {e_{5}, e_{6}} \end{array}$
32

then the system (8) is quadratically stable with H₂ performance satisfies $J \leq x_{0}^{T} X^{- 1} x_{0}$ , and control matrix gains are given by $K_{j} = Y_{j} X^{- 1}$ .

Proof

For the uncertain fuzzy control system (8), define the following Lyapunov function $V (x) = x^{T} P x$ . Calculating the time derivative of V(x) along the trajectory with w = 0, we obtain

$\begin{matrix} \dot{V} (x) = 2 x^{T} P \dot{x} = \sum_{i = 1}^{N} \sum_{j = 1}^{N} h_{i} h_{j} x^{T} (P {\tilde{A}}_{c i j} (ε) + {\tilde{A}}_{c i j}^{T} (ε) P) x \end{matrix}$
33

Then, the uncertain fuzzy control system (8) is quadratically stable if $P {\tilde{A}}_{c i j} (ε) + {\tilde{A}}_{c i j}^{T} (ε) P < 0$ .

The H₂ performance defined in equation (14) is as

$\begin{array}{l} \int_{0}^{t_{f}} (x^{T} Q_{2} x + u^{T} R_{2} u) d t = \int_{0}^{t_{f}} (x^{T} Q_{2} x + u^{T} R_{2} u + \dot{V} (x)) d t + V (x_{o}) - V (x_{t_{f}}) \\ \leq \int_{0}^{t_{f}} (\sum_{i = 1}^{N} \sum_{j = 1}^{N} h_{i} h_{j} x^{T} (P {\tilde{A}}_{c i j} (ε) + {\tilde{A}}_{c i j}^{T} (ε) P + Q_{2} + K_{j}^{T} R_{2} K_{j}) x) d t + x_{0}^{T} P x_{0} . \end{array}$
34

Therefore, the system (8) is quadratically stable, and H₂ performance satisfies $J \leq x_{0}^{T} P x_{0}$ if

$P {\tilde{A}}_{c i j} (ε) + {\tilde{A}}_{c i j}^{T} (ε) P < - Q_{2} - K_{j}^{T} R_{2} K_{j}$
35

As ${\tilde{A}}_{c i j} (ε) = {\tilde{A}}_{i} (ε) + {\tilde{B}}_{i} (ε) K_{j}$ , applying the Schur complement to equation (35), and pre- and post-multiplying by $diag {P^{- 1}, I, I}$ , it is equivalent to

$[\begin{array}{l} Ξ_{1} & & * \\ X & - Q_{2}^{- 1} & * \\ Y_{j} & 0 & - R_{2}^{- 1} \end{array}] < 0$
36

where $X = P^{- 1}, Y_{j} = K_{j} P^{- 1}, Ξ_{1}$ is defined the same as in equation (27), and the random variables satisfy $\sqrt{ε^{T} ε} \leq l$ .

By Lemma 1, the matrix inequality (36) holds for all uncertainties satisfying $\sqrt{ε^{T} ε} \leq l$ if and only if there exist a symmetric positive matrix $X = X^{T} \in ℝ^{4 \times 4}, matrices Y_{j} \in ℝ^{2 \times 4}$ , and positive constants $e_{i} > 0, (i = 1, \dots, 6)$ such that

$\begin{array}{l} [\begin{matrix} Ξ_{2} & * & * \\ X & - Q^{- 1} & * \\ Y_{j} & 0 & - R^{- 1} \end{matrix}] < 0, \\ Ξ_{2} = (A_{i, 0} X + B_{i, 0} Y_{j} + ) + \sum_{j_{1} = 1}^{4} e_{j_{1}} V_{A i, j_{1}} V_{A i, j_{1}}^{T} \\ + \sum_{j_{2} = 1}^{2} e_{4 + j_{2}} V_{B i, j_{2}} V_{B i, j_{2}}^{T} + \sum_{j_{1} = 1}^{4} e_{j_{1}}^{- 1} l^{2} X^{T} U_{A i, j_{1}}^{T} U_{A i, j_{1}} X \\ + \sum_{j_{2} = 1}^{2} e_{4 + j_{2}}^{- 1} l^{2} Y^{T} U_{B i, j_{2}}^{T} U_{B i, j_{2}} Y \end{array}$
37

Applying Schur complement to equation (37) and substituting equation (29) into it, it is equivalent to the matrix inequalities $Λ_{2,}_{i j} < 0$ , ( $1 \leq i, j \leq N$ ), where $Λ_{2,}_{i j}$ is defined in equation (32). According to Theorem 2.2,³⁵ $Λ_{2,}_{i j} < 0$ , ( $1 \leq i, j \leq N$ ) holds for uncertainties satisfying $\sqrt{ε^{T} ε} \leq l$ if the equation (31) is satisfied.

And the upper bound of H₂ performance $J^{} = Tr (P) = Tr (X^{- 1})$ when x₀ is assumed with zero mean and $E {x_{0}^{T} x_{0}} = I$ .

This completes the proof. □

Remark 4

By Theorem 2, the performance function used for reliability analysis can be taken as equation (31). Then, the reliability index of the uncertain fuzzy control system (8) in the sense of H₂ performance and corresponding to the performance function (31) can be expressed as

$η = sup_{l \in R^{+}} {l : Λ_{2,}_{i i} < 0, 1 / (N - 1) Λ_{2,}_{i i} + 1 / 2 (Λ_{2,}_{i j} + Λ_{2,}_{j i}) < 0, 1 \leq i \neq j \leq N}$
38

where $Λ_{2,}_{i j}$ is defined the same as in equation (32).

Theorems 1 and 2 provide an LMI approach to the design of a probabilistic robust fuzzy controller with mixed H₂/H_∞ performance. With the prescribed reliability level, if H₂ and H_∞ performance are considered to be optimized simultaneously, then the optimal fuzzy control design is a multi-objective optimization problem. According to equations (30) and (38), a reliability-based optimization of the robust mixed H₂/H_∞ fuzzy control can be carried out by solving the following problem

$\begin{array}{l} Minimize c_{1} γ^{2} + c_{2} Tr (X^{- 1}), s.t. \\ {\begin{array}{l} Λ_{1, i i} < 0, 1 \leq i \leq N \\ \frac{1}{N - 1} Λ_{1, i i} + \frac{1}{2} (Λ_{1, i j} + Λ_{1, j i}) < 0, 1 \leq i \neq j \leq N \end{array} \\ {\begin{array}{l} Λ_{2, i i} < 0, 1 \leq i \leq N \\ \frac{1}{N - 1} Λ_{2, i i} + \frac{1}{2} (Λ_{2, i j} + Λ_{2, j i}) < 0, 1 \leq i \neq j \leq N \end{array} \end{array}$
39

with $Λ_{1, i j} and Λ_{2, i j}$ are defined in equations (22) and (32), $X > 0, E_{1}, E_{2} > 0, η \geq η_{min}$ , in which, $η_{min} = Φ^{- 1} (1 - P_{f, all})$ denotes the allowable minimum reliability index, and P_f,all denotes the allowable maximum failure probability.

From the above analysis, the probabilistic robust optimal H₂/H_∞ fuzzy controller design based on the reliability theory in this study can be summarized as follows.

Design procedure

Step 1: Select the membership functions and the fuzzy rules in equation (6) and construct the corresponding T-S fuzzy model.

Step 2: Analyze the parametric uncertainty ϑ distribution and decompose the system matrices $A_{i} (ϑ), B_{i} (ϑ)$ as in equation (20).

Step 3: Choose the suitable weighting matrices Q₁, R₁, Q₂, and R₂ in equations (13) and (14).

Step 4: Choose the allowable η_min and the optimization weighting parameters c₁ and c₂ to find the feasible solution of X and Y_j for the optimization problem (39), then the probabilistic robust fuzzy controller can be obtained.

In the last step, the H₂/H_∞ performance and reliability for the uncertain fuzzy control system (8) are considered simultaneously, and the trade-off between these importance factors in the robust fuzzy control design is possible.

Simulation study

In this section, simulation results are shown and compared to verify the effectiveness of the proposed method. The reentry flight trajectory conditions are set as: Mach Number is from 10 to 8, flight height is from 80,000 ft to 60,000 ft, and angle of attack is from 3.5° to 4° (as given in Figure 2).

Figure 2.
HV reentry trajectory. HV: hypersonic vehicle.

According to the aerodynamic coefficients and the dynamic model of HV,³¹ the uncertain parameters ϑ₁, ϑ₂, ⋯, ϑ₁₃ in fuzzy control system are aerodynamic coefficients $C_{y}^{β}, C_{l}^{β}, C_{l}^{p}, C_{l}^{r}, C_{n}^{β}, C_{n}^{p}, C_{n}^{r}, C_{y}^{δ_{a}}, C_{y}^{δ_{r}}, C_{l}^{δ_{a}}, C_{l}^{δ_{r}}, C_{n}^{δ_{a}}, and C_{n}^{δ_{r}}$ . They are assumed to be normally distributed as $ϑ_{k} \sim N (μ_{k}, σ_{k}^{2}), k \in {1, \dots, 13} with 3 σ_{k} = 0.4 | μ_{k} |$ . The uncertain parameter distributions are shown in Table 1 (where only distributions of uncertain parameter at the first operation point are given for brevity).

Table 1.
Uncertainty distribution parameters.

Coefficients $C_{y}^{β}$ $C_{y}^{δ_{a}}$ $C_{y}^{δ_{r}}$ $C_{l}^{β}$ $C_{l}^{p}$ $C_{l}^{r}$ $C_{l}^{δ_{a}}$

μ_i 0.165 1.96e-5 0.015 −2.1e-3 −6.4e-4 3.17e-5 6.7e-3

Coefficients $C_{l}^{δ_{r}}$ $C_{n}^{β}$ $C_{n}^{p}$ $C_{n}^{r}$ $C_{n}^{δ_{a}}$ $C_{n}^{δ_{r}}$

μ_i 4.4e−3 0.047 2.6e-5 −1.7e-4 −8.8e-4 −0.016

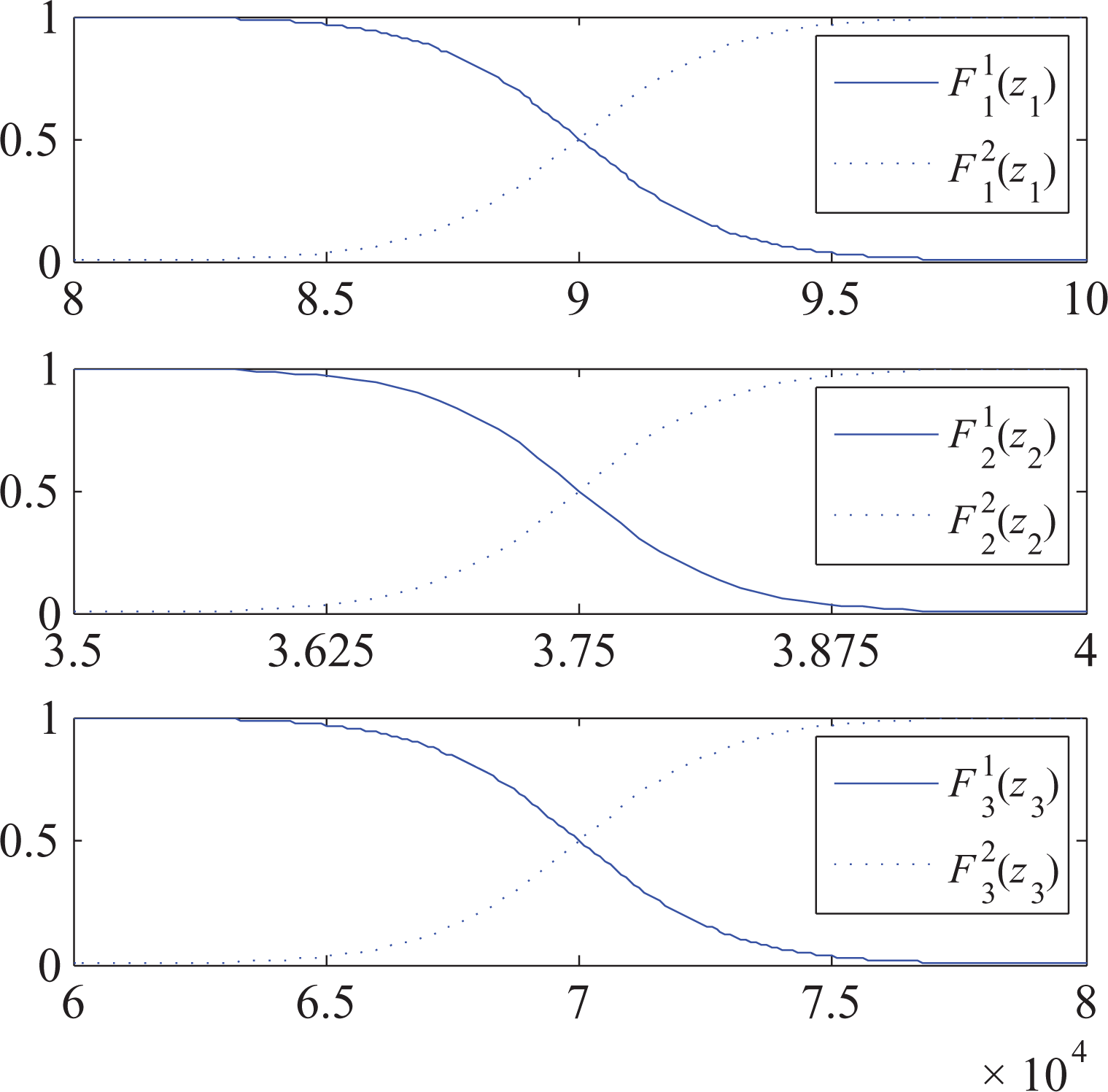

Under the above settings, we can construct the T-S fuzzy model of HV in equation (6) to apply the proposed method. The premise variables are Mach Number, angle of attack, and flight height. It is assumed that $z_{1} \in [8, 10], z_{2} \in [3.5, 4], and z_{3} \in [60, 000, 80, 000]$ according to the reentry conditions. We select the following 2³ operating points to construct the local linear model

$\begin{array}{l} x_{p 1} = {[8, 3.5, 60, 000]}^{T}, x_{p 2} = {[8, 3.5, 80, 000]}^{T}, \\ x_{p 3} = {[8, 4, 60, 000]}^{T}, x_{p 4} = {[8, 4, 80, 000]}^{T} \\ x_{p 5} = {[10, 3.5, 60, 000]}^{T}, x_{p 6} = {[10, 3.5, 80, 000]}^{T}, \\ x_{p 7} = {[10, 4, 60, 000]}^{T}, x_{p 8} = {[10, 4, 80, 000]}^{T} \end{array}$

Since the state variables of T-S fuzzy model (6) are not selected as premise variables, the equilibrium state $x_{e} = {[0, 0, 0, 0]}^{T}$ can be found at the operation point x_p. Then, the local linear model at operating point can be obtained by equation (9).

Let $F_{1}^{1} and F_{1}^{2}$ denote the fuzzy sets “about 8” and “about 10” for z₁, respectively. Let $F_{2}^{1} and F_{2}^{2}$ denote the fuzzy sets “about 3.5” and “about 4” for z₂, respectively. Let $F_{3}^{1} and F_{3}^{2}$ denote the fuzzy sets “about 60,000” and “about 80,000” for z₃, respectively. The membership functions of these fuzzy sets are given as follows (see Figure 3)

$\begin{array}{l} F_{1}^{1} = 1 - {(1 - e^{- 6.745 (z_{1} - 9)})}^{- 1}, F_{2}^{1} = 1 - {(1 - e^{- 26.98 (z_{2} - 3.75)})}^{- 1}, \\ F_{3}^{1} = 1 - {(1 - e^{- 6.74 e - 4 (z_{3} - 70000)})}^{- 1} \\ F_{1}^{2} = {(1 - e^{- 6.745 (z_{1} - 9)})}^{- 1}, F_{2}^{2} = 1 - {(1 - e^{- 26.98 (z_{2} - 3.75)})}^{- 1}, \\ F_{3}^{2} = 1 - {(1 - e^{- 6.74 e - 4 (z_{3} - 70000)})}^{- 1} \end{array}$

Figure 3.
Membership function of the fuzzy sets.

Hence, the following T-S fuzzy model for the HV nonlinear system (1) to (4) is obtained

Plant Rule i

$\begin{array}{l} I F z_{1} (t) is M_{i 1}, z_{2} (t) is M_{i 2}, and z_{3} (t) is M_{i 3} \\ T H E N \dot{x} = A_{i} (ϑ) x + B_{i} (ϑ) u + B_{w i} w \end{array}$

where $M_{i 1} = {\begin{matrix} F_{1}^{1}, i = 1, 2, 3, 4, \\ F_{1}^{2}, i = 5, 6, 7, 8, \end{matrix} M_{i 2} = {\begin{matrix} F_{2}^{1}, i = 1, 2, 5, 6, \\ F_{2}^{2}, i = 3, 4, 7, 8, \end{matrix} and M_{i 3} = {\begin{matrix} F_{3}^{1}, i = 1, 3, 5, 7, \\ F_{3}^{2}, i = 2, 4, 6, 8 . \end{matrix}$

Then, the T-S fuzzy model of HV system with uncertainty in (6) is obtained as

$\dot{x} = \sum_{i = 1}^{8} h_{i} (z (t)) (A_{i} (ϑ) x + B_{i} (ϑ) u + B_{w i} w)$

where $z = {[z_{1}, z_{2}, z_{3}]}^{T}$ , and

$h_{i} (z (t)) = \frac{F_{1}^{i_{1}} (z_{1}) F_{2}^{i_{2}} (z_{2}) F_{3}^{i_{3}} (z_{3})}{\sum_{i_{1} = 1}^{2} \sum_{i_{2} = 1}^{2} \sum_{i_{3} = 2}^{2} F_{1}^{i_{1}} (z_{1}) F_{2}^{i_{2}} (z_{2}) F_{3}^{i_{3}} (z_{3})}$

with $i = 4 (i_{1} - 1) + 2 (i_{2} - 1) + i_{3}, i_{1}, i_{2}, i_{3} = 1, 2$

Next, the uncertain matrices $A_{i} (ϑ), B_{i} (ϑ)$ in the linear model at the operation point are decomposed by equation (20) as follows (where only uncertain matrices of the first operation point are given for brevity)

$\begin{array}{l} A_{1, 0} = [\begin{matrix} 0.111 & 0.004 & 0.061 & - 0.998 \\ 0 & 0 & 0.998 & 0.061 \\ - 7.763 & 0 & - 2.317 & 0.116 \\ 16.976 & 0 & 0.009 & - 0.062 \end{matrix}], B_{1, 0} = [\begin{array}{l} 1.3 e - 5 & 0.009 \\ 0 & 0 \\ 24.593 & 15.915 \\ - 0.3219 & - 5.954 \end{array}] \\ B_{w 1} = [\begin{array}{l} 6.8 e - 10 & 0 & 0 \\ 0 & 0 & 0 \\ 0 & 7.8 e - 8 & 0.00 \\ 0 & 0.00 & 7.8 e - 9 \end{array}] \end{array}$

$\begin{array}{l} A_{1, 1, 1} = {[\begin{matrix} 0.015 & 0 & 0 & 0 \end{matrix}]}^{T}, A_{1, 2, 1} = {[\begin{matrix} 0 & 0 & 1.035 & 0.00 \end{matrix}]}^{T}, A_{1, 5, 1} = {[\begin{matrix} 0 & 0 & 0.00 & 2.260 \end{matrix}]}^{T} \\ A_{1, 3, 3} = {[\begin{matrix} 0 & 0 & 0.309 & 0.00 \end{matrix}]}^{T}, A_{1, 6, 3} = {[\begin{matrix} 0 & 0 & 0.00 & 0.001 \end{matrix}]}^{T}, A_{1, 4, 4} = {[\begin{matrix} 0 & 0 & 0.015 & 0.00 \end{matrix}]}^{T} \\ A_{1, 7, 4} = {[\begin{matrix} 0 & 0 & 0.00 & 0.008 \end{matrix}]}^{T} \\ B_{1, 8, 1} = {[\begin{matrix} 1.8 e - 6 & 0 & 0 & 0 \end{matrix}]}^{T}, B_{1, 10, 1} = {[\begin{matrix} 0 & 0 & 3.280 & 0.00 \end{matrix}]}^{T}, B_{1, 12, 1} = {[\begin{matrix} 0 & 0 & 0.00 & 0.043 \end{matrix}]}^{T} \\ B_{1, 9, 2} = {[\begin{matrix} 0.0013 & 0 & 0 & 0 \end{matrix}]}^{T}, B_{1, 11, 2} = {[\begin{matrix} 0 & 0 & 2.122 & 0.00 \end{matrix}]}^{T}, B_{1, 13, 2} = {[\begin{matrix} 0 & 0 & 0.00 & 0.043 \end{matrix}]}^{T} \end{array}$

where other columns $A_{1, k, j_{1}} and B_{1, k, j_{2}}$ ( $k \in {1, \dots, 13}, j_{1} \in {1, 2, 3, 4}, and j_{2} \in {1, 2}$ ) in equation (20) are all zero vectors.

The weighting matrices of H₂/H_∞ performance defined in equations (13) to (14) for the uncertain fuzzy system are set as $Q_{1} = diag {1, 1, 1, 1}, R_{1} = diag {1, 1}, Q_{2} = diag {1, 100, 1, 1}, and R = diag {1, 1}$ . The weighting parameters for the mixed H₂/H_∞ optimization (39) are $c_{1} = 10^{3} and c_{2} = 10^{- 6}$ .

By the presented method, the optimization problem corresponding to equation (39) with η_min = 4 is solved, the gain matrices of the optimal H₂/H_∞ robust controller are obtained as follows (where only two gains are given for brevity)

$K_{1} = [\begin{matrix} 6.12 & - 13.40 & - 3.69 & - 9.47 \\ - 7.08 & 0.54 & 0.196 & 4.13 \end{matrix}], K_{2} = [\begin{matrix} 3.31 & - 16.02 & - 4.43 & - 9.997 \\ - 2.34 & - 0.429 & - 0.076 & 2.75 \end{matrix}]$

$γ^{} = 5.24 e - 6, J^{} = 175.81$

If η_min = 3 is taken, the controller gains are

$K_{1} = [\begin{matrix} 5.36 & - 9.27 & - 2.07 & - 5.29 \\ - 4.89 & - 0.36 & - 0.069 & 3.14 \end{matrix}], K_{2} = [\begin{matrix} 6.08 & - 11.19 & - 2.58 & - 6.61 \\ - 1.22 & - 1.89 & - 0.26 & 2.35 \end{matrix}]$

$γ^{} = 8.44 e - 6, J^{} = 74.18$

If η_min = 1 is taken, the controller gains are

$K_{1} = [\begin{matrix} 1.89 & - 5.14 & - 0.904 & - 1.98 \\ - 1.56 & - 0.72 & - 0.026 & 1.75 \end{matrix}], K_{2} = [\begin{matrix} 1.11 & - 5.06 & - 0.95 & - 2.15 \\ 1.46 & - 1.58 & - 0.203 & 1.34 \end{matrix}]$

$γ^{} = 7.21 e - 6, J^{} = 36.55$

The relation between the prescribed minimum reliability and the optimal H₂/H_∞ performance $c_{1} γ^{2} + c_{2} Tr (X^{- 1})$ is shown in Figure 4.

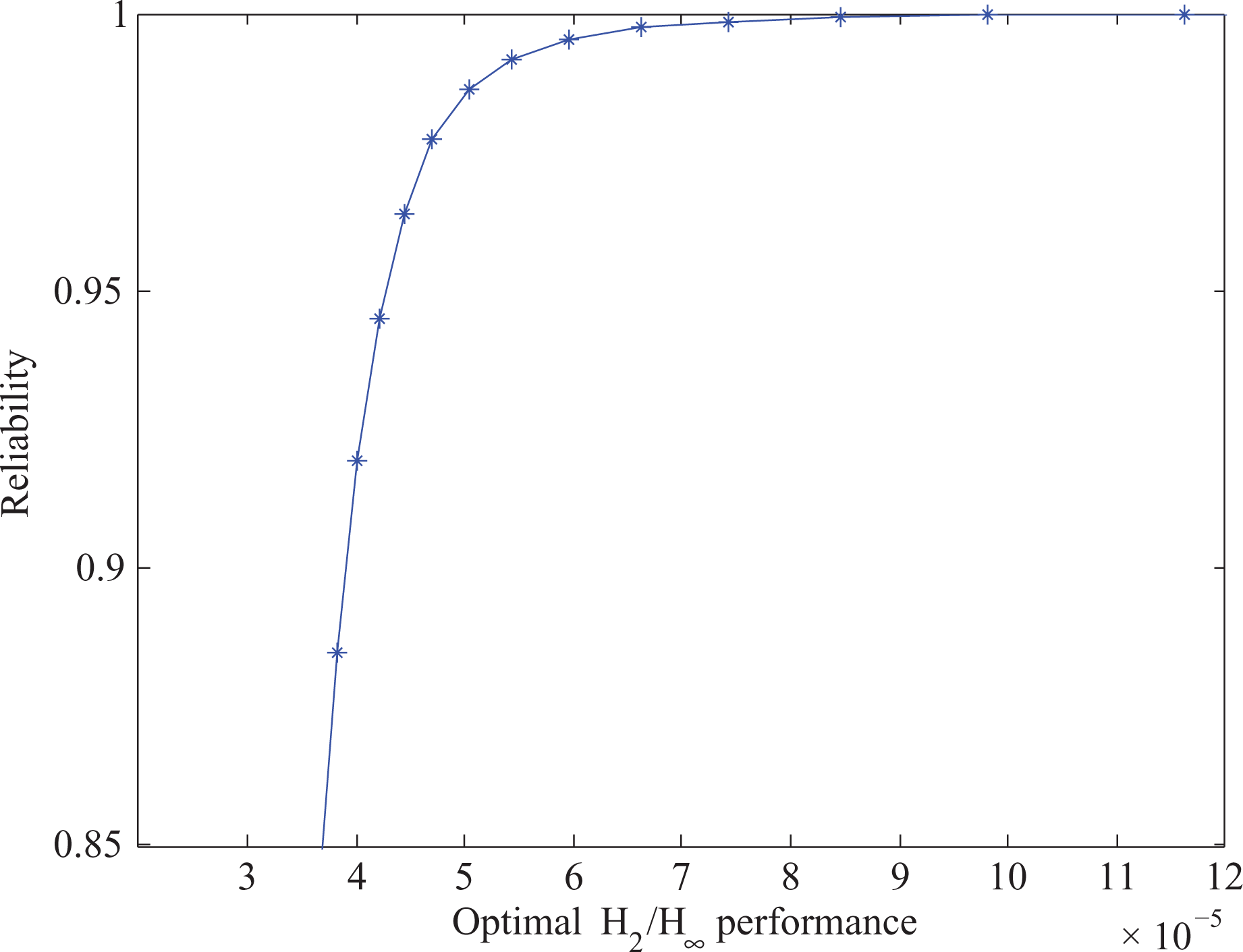

Figure 4.
The reliability versus the optimal performance.

To examine the effectiveness of the probabilistic robust fuzzy controller corresponding to the H_∞ performance, simulation results of impulse disturbance responses for the HV lateral system are shown in Figure 5, in which the uncertain parameters are generated randomly according to their probability distributions. And the data of the uncertain parameters in the simulations of the different cases are the same. The external disturbance is set as $Y_{r} = 5 \cdot 10^{7}$ lbf, $L_{r} = 2 \cdot 10^{8}$ ft-lbf, and $N_{r} = 2 \cdot 10^{9}$ ft-lbf, and the initial state is $x_{0} = {[0, 0, 0, 0]}^{T}$ . It can be seen that the larger the reliability (η_min) is specified, the better robustness of the fuzzy controller will be.

Figure 5.
Impulse disturbance responses of HV with the uncertain parameters generated randomly. HV: hypersonic vehicle.

To examine the effectiveness of fuzzy controller in the flight trajectory (Figure 2), the simulation results of attitude commands tracking responses of HV lateral system with randomly generated parameters are shown in Figure 6. In the simulation, the data of the uncertain parameters of the different cases are the same, and the initial state is $x_{0} = {[1, 1, 1, 1]}^{T}$ . The dashed lines in Figure 6 represent the attitude commands, and the solid lines represent the command tracking responses. The results show that the fuzzy rules and the robustly reliable fuzzy control design are effective and satisfactory. And similar to the former simulation, the larger reliability is specified, the better the performance and robustness of the fuzzy controller will be. The only cost of achieving higher performance is the relatively higher input. So, the simultaneously realization of the H₂/H_∞ performance and reliability in the fuzzy control design of an uncertain system is meaningful.

Figure 6.
Command tracking responses of HV with randomly generated parameters. (a) State tracking responses for HV with uncertain parameters. (b) Actuator responses for HV with uncertain parameters. HV: hypersonic vehicle.

Furthermore, the accuracy of the proposed reliability measure for uncertain system satisfying required performance is examined. After the fuzzy controller is obtained, we use Monte Carlo simulation to estimate the probability $P_{s} = Prob {Λ_{i j} (ϑ, X, Y_{j}) < 0}$ . The uncertain parameters ϑ in the HV model are generated randomly according to their distributions. The results are obtained with 10⁵ times Monte Carlo simulations. When η_min = 3, the Monte Carlo estimated probability P_s = 97.99%, and the probability obtained by the proposed method is $P_{s} = Φ (3) = 99.87 %$ . The error is less than 1.8%. When η_min = 3.5, the estimated probability P_s = 99.71%, and the probability obtained by the proposed method is $P_{s} = Φ (3) = 99.98 %$ . The error is less than 0.2%. It shows that the proposed probabilistic robust method is efficient, also, there exists small error in the reliability measure. The cause is that the relation $P_{s} = Φ (η)$ is approximate for nonlinear solutions.

Finally, to show the merit of the proposed method, we apply the robust T-S fuzzy method studied by Hu et al.¹⁸ for comparison, where the fuzzy control law and IF-ELSE rules in these two methods are the same. The regulated output in the robust T-S fuzzy method is given as $z = C x + D u$ . Herein, by choosing $C = diag {10, 1000, 10, 10}, D = 10^{- 2} {[I, I]}^{T}$ , the robust T-S fuzzy controller can be obtained.

By applying the probabilistic robust fuzzy controller and the robust fuzzy controller¹⁸ to the HV, respectively, the simulation results of attitude command tracking response of HV with randomly generated parameters are shown in Figure 7. The data for simulation are set the same.

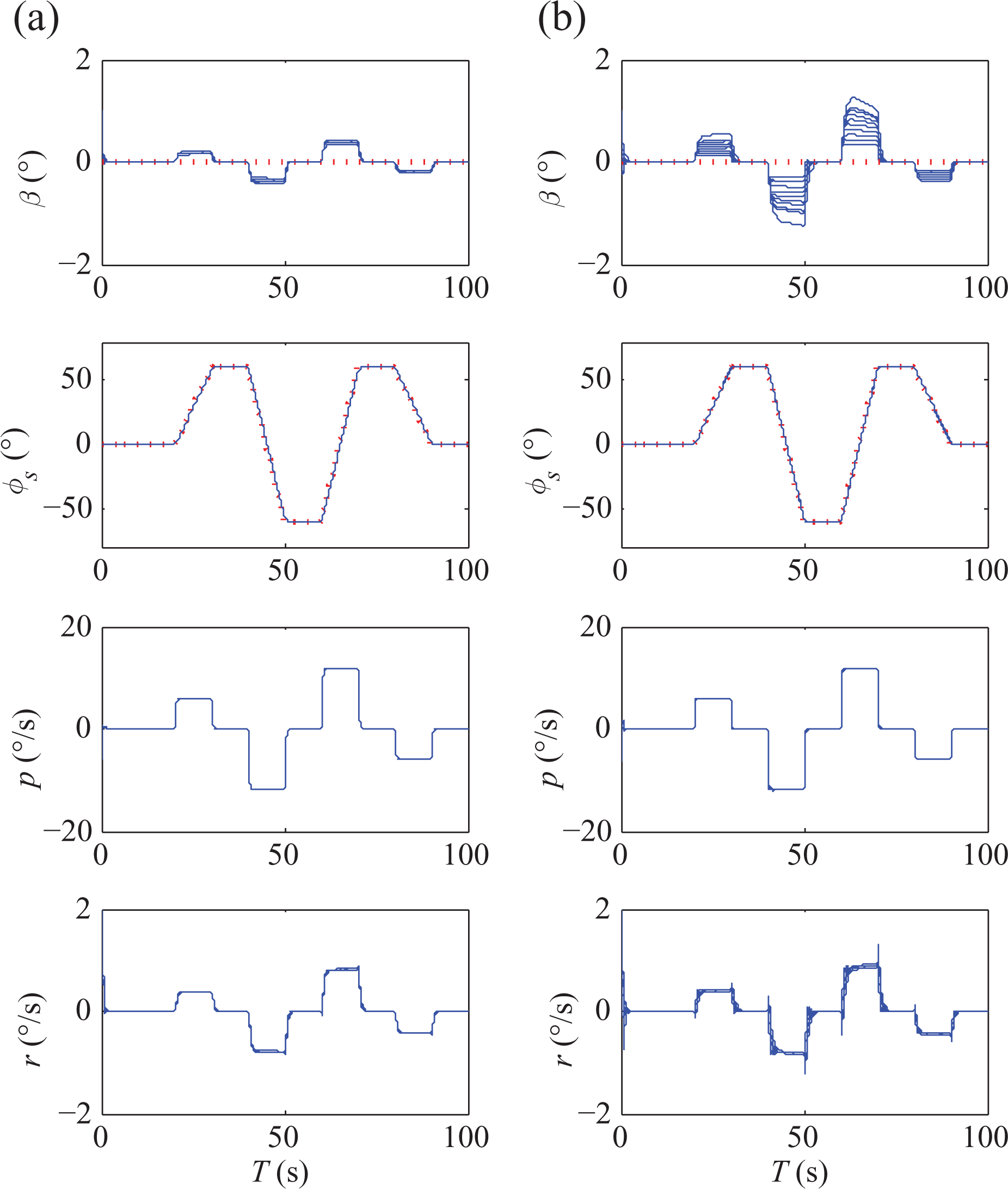

Figure 7.
Command tracking responses of HV by two fuzzy control methods. (a) Probabilistic robust fuzzy control. (b) Robust fuzzy control. HV: hypersonic vehicle.

The commands of sideslip angle and bank angle are depicted in the dashed lines. The solid lines show the state tracking responses of the HV with uncertainty, where the tracking responses of the probabilistic robust fuzzy control are shown in Figure 7(a), while the tracking responses of robust fuzzy control are shown in Figure 7(b). From Figure 7, we can observe that the proposed probabilistic robust T-S fuzzy controller based on reliability presents a better tracking performance than the robust fuzzy controller.¹⁸ Obviously, it is seen that proposed method can provide better robustness for the HV flight control system.

Conclusions

In this article, the problem of robust fuzzy control of the uncertain HV system was studied from the viewpoint of reliability. A new efficient probabilistic robust fuzzy control method of uncertain system based on reliability was presented systematically. A T-S fuzzy model was employed for nonlinear dynamics of HV. By treating the uncertain parameters as normally distributed variables, the probabilistic robust mixed H₂/H_∞ fuzzy state feedback controller design was carried out by solving a multi-objective optimization problem with the prescribed allowable minimum reliability index. With this method, the robust reliability measurement and the failure probability of the uncertain HV system satisfying required H₂/H_∞ performance can be obtained. The robust fuzzy controller obtained in this article may possess an optimal mixed H₂/H_∞ performance under the condition that the closed-loop HV system is robustly reliable with respect to random uncertainties. Moreover, the presented method makes it possible to consider the H₂/H_∞ performance and reliability simultaneously in terms of LMIs. The simulation results of the HV show that the proposed method is effective.

Coefficients	$C_{y}^{β}$	$C_{y}^{δ_{a}}$	$C_{y}^{δ_{r}}$	$C_{l}^{β}$	$C_{l}^{p}$	$C_{l}^{r}$	$C_{l}^{δ_{a}}$
μ_i	0.165	1.96e-5	0.015	−2.1e-3	−6.4e-4	3.17e-5	6.7e-3
Coefficients	$C_{l}^{δ_{r}}$	$C_{n}^{β}$	$C_{n}^{p}$	$C_{n}^{r}$	$C_{n}^{δ_{a}}$	$C_{n}^{δ_{r}}$
μ_i	4.4e−3	0.047	2.6e-5	−1.7e-4	−8.8e-4	−0.016

Footnotes

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work was supported in part by the National Nature Science Foundation of China (grant nos 61473124 and 61573161) and Science and Technology on Aerospace Intelligent Control Laboratory, Beijing Aerospace Automatic Control Institute.

References

Liu

. Robust optimal controller design for generic hypersonic vehicles. J Aerosp Eng 2017; 30(4): 1–8.

Savkin

Pathirana

FAF

. Problem of precision missile guidance: LQR and H∞ control frameworks. IEEE Trans Aerosp Electron Syst 2003; 39(3): 901–910.

Won

Tahk

Kim

. Three-axis autopilot design for a high angle-of-attack missile using mixed H2/H∞ control. Int J Aeronaut Space 2010; 11(2): 131–135.

Zong

Wang

. Robust adaptive backstepping tracking control for a flexible air-breathing hypersonic vehicle subject to input constraint. Proc Inst Mech Eng G J Aerosp Eng 2014; 229(1): 10–25.

Sun

. Fast sliding mode control on air-breathing hypersonic vehicles with transient response analysis. Proc Inst Mech Eng I J Syst Control Eng 2015; 230(1): 23–34.

Liu

Vazquez

. Extended state observer-based sliding-mode control for three-phase power converters. IEEE Trans Ind Electron 2017; 64(1): 22–31.

Liu

Luo

Yang

. Robust model-based fault diagnosis for PEM fuel cell air-feed system. IEEE Trans Ind Electron 2016; 63(5): 3261–3270.

Ding

Huang

Wang

. Vibration damping in manipulation of deformable linear objects using sliding mode control. Adv Rob 2014; 28(3): 157–172.

Sun

. Air-breathing hypersonic vehicle tracking control based on adaptive dynamic programming. IEEE Trans Neural Netw Learn Syst 2017; 28(3): 584–598.

10.

Luo

H-N

Huang

. Reinforcement learning solution for HJB equation arising in constrained optimal control problem. Neural Netw 2015; 71: 150–158.

11.

Zhang

Pan

. Neural network based dynamic surface control of hypersonic flight dynamics using small-gain theorem. Neurocomputing 2016; 173: 690–699.

12.

Shi

. Tracking error constrained robust adaptive neural prescribed performance control for flexible hypersonic flight vehicle. Int J Adv Robot Syst 2017; 14(1): 1–16.

13.

Lin

C-K

. Mixed H2/H∞ autopilot design of bank-to-turn missiles using fuzzy basis function networks. Fuzzy Sets Syst 2007; 158(20): 2268–2287.

14.

Takagi

Sugeno

. Fuzzy identification of systems and its applications to modeling and control. In: Readings in fuzzy sets for intelligent systems. San Francisco: Morgan Kaufmann, 1993, pp. 387–403.

15.

Wang

Chen

. Multiple-step fault estimation for interval type-II T-S fuzzy system of hypersonic vehicle with time-varying elevator faults. Int J Adv Rob Syst 2017; 14(2): 1–11.

16.

H-N

Feng

Liu

Z-Y

. Disturbance observer based robust mixed H2/H∞ fuzzy tracking control for hypersonic vehicles. Fuzzy Sets Syst 2017; 306: 118–136.

17.

Guo

Liang

X-G

Wang

J-W

. Mixed H2/H∞ decentralized fuzzy tracking control design for a flexible air-breathing hypersonic vehicle. Proc Inst Mech Eng I J Syst Control Eng 2015; 229(5): 388–405.

18.

. Dynamic output feedback control of a flexible air-breathing hypersonic vehicle via T-S fuzzy approach. Int J Syst Sci 2014; 45(8): 1740–1756.

19.

. Adaptive fuzzy integral sliding mode control for flexible air-breathing hypersonic vehicles subject to input nonlinearity. J Aerosp Eng 2013; 26(4): 721–734.

20.

Liu

Wang

. Reliable filter design for sensor networks using type-2 fuzzy framework. IEEE T Ind Inform 2017; 13(4): 1742–1752.

21.

Alamo

Tempo

Camacho

. Randomized strategies for probabilistic solutions of uncertain feasibility and optimization problems. IEEE Trans Autom Control 2009; 54(11): 2545–2559.

22.

Calafiore

. Distributed randomized algorithms for probabilistic performance analysis. Syst Control Lett 2009; 58(3): 202–212.

23.

Ray

Stengel

. Stochastic measures of performance robustness in aircraft control systems. J Guid Control Dyn 1992; 15(6): 1381–1387.

24.

Wang

Stengel

. Robust nonlinear flight control of a high-performance aircraft. IEEE T Contr Syst T 2005; 13(1): 15–26.

25.

Guo

S-X

. Robust reliability method for non-fragile guaranteed cost control of parametric uncertain systems. Syst Control Lett 2014; 64: 27–35.

26.

Guo

S-X

. An efficient reliability method for probabilistic H-infinity robust control of uncertain linear dynamic systems. J Vib Control 2015; 21(15): 2946–2958.

27.

Guo

S-X

. Non-probabilistic robust reliability method and reliability-based performance optimization for active vibration control of structures and dynamic systems with bounded uncertain parameters. J Vib Control 2014; 22(6): 1472–1491.

28.

Guo

S-X

. Non-probabilistic reliability method and reliability-based optimal LQR design for vibration control of structures with uncertain-but-bounded parameters. Acta Mech Sin 2013; 29(6): 864–874.

29.

Ditlevsen

Madsen

. Structural reliability methods. New York: John Wiley & Sons, Inc., 1996.

30.

Zhang

Y-W

Jiang

G-Q

Fang

. Suppression of panel flutter of near-space aircraft based on non-probabilistic reliability theory. Adv Mech Eng 2016; 8(3): 1–12.

31.

Keshmiri

Mirmirani

Colgren

. Six-DOF modeling and simulation of a generic hypersonic vehicle for conceptual design studies. In: AIAA modeling and simulation technologies conference and exhibit. Providence, Rhode Island, 2004, pp. 16–19.

32.

Cai

Song

Chen

. Command tracking control system design and evaluation for hypersonic reentry vehicles driven by a reaction control system. J Aerospace Eng 2015; 28(4): 1–19.

33.

Tanaka

Wang

. Fuzzy control systems design and analysis: a linear matrix inequality approach. New York: John Wiley & Sons, Inc, 2002.

34.

Teixeira

MCM

ZAk

. Stabilizing controller design for uncertain nonlinear systems using fuzzy models. IEEE Trans Fuzzy Syst 1999; 7(2): 133–142.

35.

Tuan

Apkarian

Narikiyo

. Parameterized linear matrix inequality techniques in fuzzy control system design. IEEE Trans Fuzzy Syst 2001; 9(2): 324–332.

A probabilistic robust mixed H 2 / H ∞ fuzzy control method for hypersonic vehicles based on reliability theory

Abstract

Keywords

Introduction

Nonlinear dynamic modeling of HV with uncertainty

Problem formulation

Remark 1

Remark 2

Lemma 1

Probabilistic robust H2/H∞ fuzzy control based on reliability

Theorem 1

Proof

Remark 3

Theorem 2

Proof

Remark 4

Design procedure

Simulation study

Conclusions

Footnotes

Declaration of conflicting interests

Funding

References

Probabilistic robust H₂/H_∞ fuzzy control based on reliability
