Abstract

The hybrid force position control algorithm based on neural network is considered for a class of robot system with nonlinear uncertainties. Compared with previous work, not only the steady-state performance but also the transient-state performance is considered. Firstly, in order to relax the control design dependent on detailed system information, a fast hybrid position/virtual-force controller is presented to build a virtual-force field between the obstacles and robot. The virtual force is the control parameter, which is set to maintain an expected distance between obstacles and the robot with unknown nonlinear and parameter uncertainty. Secondly, in order to alleviate the computation burden of parameter learning, and enhance the dynamic mapping of network ability, the Elman neural network is introduced. The output signal come from hybrid position/virtual-force controller is fed back to Elman neural network. Furthermore, since uncertainties of robot dynamics and obstacle location information, Elman neural network is also used to compensate for uncertainties and improve system stability performance. The control design conditions are relaxed because of the developed dynamic compensator. Finally, both simulations and results of obstacle avoidance are performed to show the potential of the proposed methods.

Keywords

Avoidance obstacles hybrid position/virtual-force mobile robot training technique Elman neural network

Introduction

Recently, many researches have dealt with the design of control laws for obstacle avoidance and trajectory tracking of wheeled mobile robots.^1
–3 The tracking control problem for extended nonholonomic chained-form robot systems has received increasing attention,⁴ and the global finite-time stabilization problem is also considered for mobile robots based on visual servoing and when subject to input saturation.^5,6 At the same time, mobile robots are no more restricted to factories and some specific places but are becoming closer to human beings when they moved to our families.^7,8 The basic idea of these algorithms is based on the parameters measured by the sensor and draws an environmental map around the mobile robot, which can avoid the collision between the robot and the wall object on path. The robots cannot find the path and collision avoidance of static obstacles, while maintaining the expected distance between the target and the robot.^9
–11 But if the robot needs to avoid the object collision timely, rather than relying on a static graphic avoid collision. There are mainly two basic motion tasks assigned to a mobile robot,¹² and under intelligent transportation systems, they can play an important role in the coordination between the vehicles and the roadside infrastructure, we need to use the dynamics of the collision-avoidance algorithms.^13
–15

The proportional-derivative (PD) control approach is already widely used in the automatic control system.¹⁶ However, the PD control is usually devised in the linear scope that ignores control input limitation, closed-loop performance will deteriorate sharply in terms of desired linear characteristic.¹⁷ Recently, the neural network (NN) attracted more attentions due to its versatile features such as taking indoor obstacle avoidance as example to show the effectiveness of a hierarchical structure that fuses a convolutional NN with a decision process.¹⁸ Only use the easy connections between robot behaviors and sensors without considering the influence of time on behavior. One method that can take into account the effects of time is the local recursive Elman NN (ENN)¹⁹ which means to use internal memory.²⁰ It possesses the favorable ability to predict time series because of its neural nodes as well as recursive connections. In the last few years, scientific research worker has already done efforts in this area. Cheng, Qi and Cai used the improved ENN for robot manipulator adaptive control.²¹ Abbasi, Landolsi, and Dhaouadi used ENN with genetic algorithm training for fault detection of motor and management system.²² Previously, we proposed the robot obstacle-avoidance strategies and the way of shooting for the android football systems as a journal article in²³ using ENN. In,^24,25 a kind of ENN scheme was presented to complete both the shooting method and obstacle avoidance such that the effectiveness of the ENN unlike the above efforts can be proved.

Although the ENN can complete the works, the system capability is not better in that the existence of uncertainty cannot be reduced really. Furthermore, since it has larger angular and linear velocities, large oscillation behavior occurs during the obstacle avoidance.^26
–28 Because of those limitations of ENN, in this study, it is necessary to consider the hybrid position/virtual-force (HPVF) structure in order to reduce the uncertainty of the impact and the inputs without changing the control scheme.^29,30 Thus, the ENN with HPVF control structure needs to be considered to get the same control mission in a wheeled robot. In this research, we have adopted ENN to compensate for uncertainty, while a number of shortcomings will be brought up with ENN alone to control the system. For example, real-time difference and relatively strong dependence on the hardware. Therefore, NN-based virtual-force algorithm is then employed to realize online self-tuning and to reduce the influence of uncertainties during the control. Furthermore, since the ENN with HPVF control structure can have much smaller angular and linear velocities, it can show better performance during obstacle-avoidance process.^31
–33 By this means, the satisfactory behavior of both position location and obstacle avoidance is achieved by using the ENN with HPVF structure for the wheeled mobile robot.

This study discusses in detail the optimization method for ENN-based deep learning control for obstacle avoidance of robot using HPVF incorporation. In the second section, mobile robot dynamics and kinematics are described. The third section introduces the ENN algorithm and hybrid position/virtual-force scheme and presents the method of using HPVF to optimize the ENN. In the fourth section, the simulation is given to verify the validity and efficiency of the proposed approach. Finally, some conclusions are drawn in the fifth section.

Mathematical model of wheeled robots

Generally speaking, the wheeled robot moves on the ground, and its dynamic model does not depend on the potential energy but depend on the dynamic energy.²⁷ The robot posture is shown in Figure 1, and robot model is described as

Figure 1.

Model of the wheeled mobile robot.

M (q) \ddot{q} + C (q, \dot{q}) = P (q) τ - J^{T} (q) λ

where M ( q ) is inertial matrix, $C (q, \dot{q})$ is Coriolis and centrifugal forces, P ( q ) is input matrix, τ is moment vector, J ( q ) is Jacobian matrix, q is the position vector for wheeled mobile robot, and λ is Lagrange factor. The dynamic parameters of robot are described as

τ = [\begin{array}{l} τ_{R} \\ τ_{L} \end{array}]

M (q) = [\begin{matrix} m & 0 & - m_{c} d c o s φ & 0 & 0 \\ 0 & m & m_{c} d cos φ & 0 & 0 \\ - m_{c} d sin φ & m_{c} d sin φ & I & 0 & 0 \\ 0 & 0 & 0 & I_{w} & 0 \\ 0 & 0 & 0 & 0 & I_{w} \end{matrix}]

P (q) = [\begin{matrix} 0 & 0 \\ 0 & 0 \\ 0 & 0 \\ I & 0 \\ 0 & I \end{matrix}]

C (q, \dot{q}) = [\begin{matrix} - m_{c} d {\dot{θ}}^{2} cos φ \\ - m_{c} d {\dot{θ}}^{2} sin φ \\ 0 \\ 0 \\ 0 \end{matrix}]

where m_c is the weight of robot without wheels, m is the robot weight, and φ is the heading angle. In order to make equation (1) much simpler, we can eliminate Lagrange factor.

And the speed of the wheeled robot is defined as follows

\dot{q} = W (q) \dot{v} (t)

\dot{v} (t) = [\begin{matrix} {\dot{θ}}_{R} \\ {\dot{θ}}_{L} \end{matrix}]

\dot{q} = [\begin{matrix} \dot{x} \\ \dot{y} \\ \dot{φ} \\ {\dot{θ}}_{R} \\ {\dot{θ}}_{L} \end{matrix}]

Forward velocity v of the robot and the angular velocity ω at the contact point P_O can be described as

[\begin{matrix} \dot{x} \\ \dot{y} \\ \dot{φ} \end{matrix}] = [\begin{matrix} sin φ & - d sin φ \\ sin ϕ & - d sin φ \\ 0 & 1 \end{matrix}] [\begin{matrix} v \\ ω \end{matrix}]

The velocities in Cartesian space and velocities in joint space have the relationship

[\begin{matrix} v \\ ω \end{matrix}] = [\begin{matrix} r / 2 & r / 2 \\ r / l & r / l \end{matrix}] [\begin{matrix} {\dot{θ}}_{R} \\ {\dot{θ}}_{L} \end{matrix}]

Applying equation (10) to equation (9), the following Jacobian relationship is obtained

\dot{Z} = J \dot{q}

J = [\begin{matrix} j_{11} & j_{12} \\ j_{21} & j_{22} \\ j_{31} & j_{32} \end{matrix}]

Each element of J can be defined as

\begin{array}{l} j_{11} = \frac{r}{2} cos φ - \frac{r}{l} (d sin φ) \\ j_{12} = \frac{r}{2} cos φ + \frac{r}{l} (d sin φ) \\ j_{21} = \frac{r}{2} sin φ + \frac{r}{l} (d cos φ) \\ j_{22} = \frac{r}{2} sin φ - \frac{r}{l} (d cos φ) \\ j_{31} = \frac{r}{d}, j_{32} = - \frac{r}{l} \end{array}

Using W^T to eliminate Lagrange factor and substituting equation (6) into equation (1) yields

M (\dot{W} \dot{v} (t) + W \ddot{v} (t)) + C (q, \dot{q}) = P (q) τ - A^{T} λ

where $W^{T} A^{T} λ = 0$ ; multiplying both sides of equation (14) by W^T , we get (15) after this simplification.

W [M (\dot{W} \dot{v} (t) + W \dot{v} (t)) + C (q, \dot{q})] = W^{T} P τ

Furthermore, $W^{T} P τ = τ$ ; equation (15) can be rewritten as

W^{T} M \dot{W} \dot{v} (t) + W^{T} M W \ddot{v} (t) + W^{T} C (q, \dot{q}) = τ

Matrix W is mentioned above, and then use the following formula (17) to make sure that $W^{T} A^{T} λ = 0$

W (q) = [\begin{array}{l} \frac{r}{2} cos φ - \frac{r}{l} (d sin φ + a cos φ) & \frac{r}{2} cos φ + \frac{r}{l} (d sin φ + a cos φ) \\ \frac{r}{2} sin φ + \frac{r}{l} (d cos φ - a sin φ) & \frac{r}{2} sin φ - \frac{r}{l} (d cos φ - a sin φ) \\ \frac{r}{l} & - \frac{r}{l} \\ 1 & 0 \\ 0 & 1 \end{array}]

Substituting equation (17) into equation (16) yields the dynamic equation of system that can be described as follows

\begin{array}{l} [\begin{matrix} D_{11} & D_{12} \\ D_{21} & D_{22} \end{matrix}] [\begin{matrix} {\ddot{θ}}_{R} \\ {\ddot{θ}}_{L} \end{matrix}] + [\begin{matrix} 2 c^{3} b d (m + m_{c}) ({\dot{θ}}_{R} {\dot{θ}}_{L} - {\dot{θ}}_{L}^{2}) \\ 2 c^{3} b d (m + m_{c}) ({\dot{θ}}_{R} {\dot{θ}}_{L} - {\dot{θ}}_{R}^{2}) \end{matrix}] = [\begin{matrix} τ_{R} \\ τ_{L} \end{matrix}] \\ D_{11} = c^{2} m (b^{2} + d^{2}) + 2 c^{2} d^{2} m_{c} + c^{2} I + I_{w} \\ D_{12} = c^{2} [m (b^{2} - d^{2}) - 2 d^{2} m_{c} - I] \\ D_{21} = c^{2} [m (b^{2} - d^{2}) - 2 d^{2} m_{c} - I] \\ D_{22} = c^{2} m (b^{2} + d^{2}) + 2 c^{2} d^{2} m_{c} + c^{2} I + I_{w} \end{array}

where b ≡ l/2 and c ≡ r/1.

Suppose the wheeled mobile robot moves slowly, then the Coriolis forces and centrifugal will equal 0. And the dynamic model can be made much simpler, and it can be described as

[\begin{matrix} D_{11} & D_{12} \\ D_{21} & D_{22} \end{matrix}] [\begin{matrix} θ_{R} \\ θ_{L} \end{matrix}] = [\begin{matrix} τ_{R} \\ τ_{L} \end{matrix}]

The robot on the ground can be treated as an inertia system. Obstacle avoidance is a key performance of robots. However, its experimental verification is rather difficult, due to the probabilistic behaviors of both the robots and the obstacles. This article presents a kind of obstacle-avoidance strategies-based dynamic models for a mobile robot in an unknown uncertain environment. The model is employed to analyze the behavior of the robot. And the objective is to design a dynamic model, such that the output trajectory between the desired output $\dot{q} = {[{\dot{x}}_{d} {\dot{y}}_{d} {\dot{φ}}_{d} {\dot{θ}}_{R d} {\dot{θ}}_{L d}]}^{T}$ and system output $\dot{q} = {[{\dot{x}}_{n} {\dot{y}}_{n} {\dot{φ}}_{n} {\dot{θ}}_{R n} {\dot{θ}}_{L n}]}^{T}$ is in an error bound. With t → ∞, the bound of the error converges to a small neighborhood of the origin.

Controller design

Intelligent HPVF control

HPVF intelligent scheme separates position control and force control, while the control of impedance does not control individually. And the dynamic model of the robot is given in equation (1), where $q = {[\begin{matrix} q_{R} & q_{L} \end{matrix}]}^{T}$ , $λ = {[\begin{matrix} f & μ \end{matrix}]}^{T}$ with f is external force vector and μ is an external moment. Wheel speed can be obtained from equation (12)

\dot{q} = J^{- 1} \dot{Z}

where Z is position vector and $Z = {[\begin{matrix} x & y & φ \end{matrix}]}^{T}$ . Just because J is not square, so when seeking Jacobian inverse matrix, we have introduced a pseudo-inverse matrix. Equation (20) can be rewritten as

\dot{q} = J^{+} \dot{Z}

J^{+} = {(J^{T} J)}^{- 1} J^{T}

The time derivative of equation (21) yields

\ddot{q} = J^{+} (\ddot{Z} - \dot{J} J^{+} \dot{Z}) = {(J^{T} J)}^{- 1} J^{T} [\ddot{Z} - \dot{J} {(J^{T} J)}^{- 1} J^{T} \dot{Z}]

where $\dot{Z} = {[\begin{matrix} \dot{x} & \dot{y} & \dot{φ} \end{matrix}]}^{T}$ and $\dot{q} = {[\begin{matrix} {\dot{q}}_{R} & {\dot{q}}_{L} \end{matrix}]}^{T}$ . The corresponding control law is

τ = \hat{M} (q) u + \hat{C} (q, \dot{q}) + J^{T} (q) λ

where u is the control input, and $\hat{M}$ and $\hat{C}$ are the estimated values. In the scheme of HPVF control, output vector F is described by the following form

F = {[\begin{matrix} f_{x} & f_{y} & φ \end{matrix}]}^{T}

We design the component of force along the x axis and y axis as follows

\begin{array}{l} f_{x} = k_{e} δ_{x} \\ f_{y} = k_{e} δ_{y} \end{array}

where $δ x = x - x_{e}$ , $δ y = y - y_{e}$ , with $(x_{e}, y_{e})$ is the position vector of the obstacle, $P_{O} (x, y)$ is the position vector of virtual contact point, and k_e is stiffness of the obstacle. Using equations (25) and (26), we have

F = K Δ Z = K_{e} (Z - Z_{e}) = [\begin{matrix} k_{e} & 0 & 0 \\ 0 & k_{e} & 0 \\ 0 & 0 & 1 \end{matrix}] [\begin{matrix} x - x_{e} \\ y - y_{e} \\ φ \end{matrix}]

Setting ${\dot{Z}}_{e} = 0$ , ${\ddot{Z}}_{e} = 0$ , $Z = K_{e}^{- 1} F$ , and substituting $Z = K_{e}^{- 1} F$ into equation (23) yields:

\ddot{q} = J^{+} (\ddot{Z} - \dot{J} J^{+} Z) = J^{+} (K_{e}^{- 1} \ddot{F} - \dot{J} J^{+} K_{e} \dot{F})

where $\ddot{q} = u$ . Substituting it into equation (24) yields (29), and we obtain the control law as follows

τ = \hat{M} [J^{+} K_{e}^{- 1} (\ddot{F} - \dot{J} J^{+} \dot{F})] + \hat{C} + J^{T} λ

For the virtual-force control, we obtain a control law u₁ as follows

u_{1} = \ddot{F} = {\ddot{F}}_{d} + K_{D} ({\dot{F}}_{d} - \dot{F}) + K_{P} (F_{d} - F)

Substituting equation (30) into equation (29) yields

τ = \hat{M} {J^{+} [K_{e}^{- 1} ({\ddot{F}}_{d} + K_{D} ({\dot{F}}_{d} - \dot{F}) + K_{P} (F_{d} - F)) - \dot{J} J^{+} K_{e}^{- 1} \dot{F}]} + \hat{C} + J^{T} λ

The control law of the position control direction can be described as

u_{2} = \ddot{Z} = {\ddot{Z}}_{d} + K_{D} ({\dot{Z}}_{d} - \dot{Z}) + K_{P} (Z_{d} - Z)

For the position control, with $λ = 0$ , then substituting equation (32) into equation (24) yields

τ = \hat{M} J^{+} [{\ddot{Z}}_{d} + K_{D} ({\dot{Z}}_{d} - \dot{Z}) - \dot{J} J^{+} \dot{Z} + K_{P} (Z_{d} - Z)] + \hat{C}

The force control and position control are selected by the selection matrixes S and $I - S$ , where S for position control and $I - S$ for force control. We design the selection matrix for system (1) with

S = [\begin{matrix} 1 & 0 & 0 \\ 0 & 1 & 0 \\ 0 & 0 & 1 \end{matrix}]

I - S = [\begin{matrix} 0 & 0 & 0 \\ 0 & 0 & 0 \\ 0 & 0 & 0 \end{matrix}]

The hybrid control law can be described as

\begin{matrix} τ = S {\hat{M} J^{+} [{\ddot{Z}}_{d} + K_{D} ({\dot{Z}}_{d} - \dot{Z}) + K_{P} (Z_{d} - Z) - \dot{J} J^{+} \hat{Z}] + \hat{C}} \\ + (I - S) {\hat{M} J^{+} K_{e}^{- 1} [\ddot{F} + K_{D} ({\ddot{F}}_{d} - \dot{F}) - \dot{J} J^{+} \dot{F} + K_{P} (F_{d} - F)] + \hat{C} + J^{T} λ} \end{matrix}

where $K_{E} = [\begin{matrix} K_{e} & 0 & 0 \\ 0 & K_{e} & 0 \\ 0 & 0 & 1 \end{matrix}]$ , $K_{P} = [\begin{matrix} K_{p x} & 0 & 0 \\ 0 & K_{p y} & 0 \\ 0 & 0 & K_{p φ} \end{matrix}]$ , and $K_{D} = [\begin{matrix} K_{d x} & 0 & 0 \\ 0 & K_{d y} & 0 \\ 0 & 0 & K_{d φ} \end{matrix}]$ .

If the estimated values for the model of robot are exact, such as $\hat{M} = M$ and $\hat{C} = C$ , the error equation of system (1) can be described as

\ddot{e} + K_{D} \dot{e} + K_{P} e = 0

where $e = Z_{d} - Z$ and $\dot{e} = F_{d} - F$ .

Generally, if we cannot obtain the accurate model of the robot, equation (37) cannot be achieved. This is the real reason why an intelligent control approach is needed. As an intelligent approach, the ENNs control is introduced. In this study, we have used the reference compensation method as an online training algorithm. In order to reduce the output errors, NN compensation values are added to the input of PD-type controller. ENN is combined with the virtual-force and position control, respectively. We add the compensation signal Φ into the input ports of ENN. The compensating signals can reduce the output errors. This can compensate the system uncertainty, while not affecting the interior structure of the control system. There are six inputs and one output in this intelligent control system, which played different roles in control of the virtual-force and position. The compensating signal values are also added to the input for virtual-force and position control, respectively. For the force control field, we have

\ddot{F} = {\ddot{F}}_{d} + K_{D} ({\dot{F}}_{d} - \dot{F}) + K_{P} (F_{d} - F + Φ_{f})

where $Φ_{f}$ is the compensation signal. Then substituting equation (38) into equation (29) yields

τ = \hat{M} J^{+} K_{e}^{- 1} [{\ddot{F}}_{d} + K_{d} ({\ddot{F}}_{d} - \dot{F}) - \dot{J} J^{+} \dot{F} + K_{P} (F_{d} - F + Φ_{f})] + \hat{C} + J^{T} λ

In the same way, for the position control field, the control input is given by

\ddot{Z} = {\ddot{Z}}_{d} + K_{D} ({\dot{Z}}_{d} - \dot{Z}) + K_{P} (Z_{d} - Z + Φ_{p})

Then, substituting equation (40) into equation (29) yields

τ = \hat{M} J^{+} [Z_{d} + K_{D} ({\dot{Z}}_{d} - \dot{Z}) - \dot{J} J^{+} \dot{Z} + K_{P} (Z_{d} - Z + Φ_{p})] + \hat{C} + J^{T} λ

Considering equations (39), (40), and (41), the overall control law is given by

τ = S {\hat{M} J^{+} [\ddot{Z} + K_{D} ({\dot{Z}}_{d} - \dot{Z}) - \dot{J} J^{+} \dot{Z} + K_{P} (Z_{d} - Z + Φ_{p})] + \hat{C}} + (I - S) {\hat{M} J^{+} K_{e}^{- 1} [\ddot{F} + K_{D} ({\dot{F}}_{d} - F) - \dot{J} J^{+} \dot{F} + K_{P} (F_{d} - F + Φ_{f})] + \hat{C} + J^{T} λ}

Figure 2 shows the intelligent controller with position and force signal.

Figure 2.

The intelligent controller with position and force signal.

Learning algorithm

This article uses the special recurrent NN, whose structure is as shown in Figure 3. It has an input, an output, a hidden, and a context layer. The network structure of the Elman is shown in Figure 3. Nine neurons for the input layer, 7 neurons for the hidden layer, 7 neurons for the context layer, and 4 neurons for the output layer are used. e_x, e_y, and e_i are the error input signals for the ENN. All nonlinear functions for the neurons are the tangent hyperbolic function. It is represented as follows

Figure 3.

The structure of ENN. ENN: Elman neural network.

f (x) = \frac{1 - exp (- x)}{1 + exp (- x)}

NN outputs can be described as

ψ = ψ_{y} + ψ_{i}

ψ_{y} = k_{p y} ψ_{1} + k_{d y} ψ_{2}

ψ_{i} = k_{p i} ψ_{3} + k_{d i} ψ_{4}

The training signal can be described as

v = k_{p y} e_{y} + k_{d y} {\dot{e}}_{y} + k_{p i} e_{i} + k_{d i} {\dot{e}}_{i}

The ENN online learning structure is considered as a special type of recurrent NN with local feedback and memory neurons. The “local connections” of context nodes in the ENN make its output sensitive not only to the current input data but also to historical input data, which is useful in time series prediction. Using the number of iterations k, we obtain the following equation

o_c_{i}^{k} = n e t_c_{i}^{k}

n e t_h_{j}^{(k)} = \sum_{i = 1}^{m} W 1_{i j} x_{j}^{(k)} + \sum_{i = 1}^{l} W 3_{i j} o_c_{i}^{(k)}

o_h_{j}^{(k)} = a (n e t_h_{j}^{(k)})

where $n e t_c_{i}^{k}$ and $o_c_{i}^{k}$ are the input and output of context node i, respectively. m and l are the numbers of neural nodes in the input layer and hidden layer. In order to calculate the input and output of the hidden node j, we have obtained equations (49) and (50). $x_{i}^{(k)}$ is the input of ENN, where $i = 1, 2, \dots m$ . $n e t_h_{j}^{(k)}$ is the hidden layer input of node i. $o_h_{j}^{(k)}$ is the hidden layer output of node i, with $i = 1, 2, \dots, l$ . In the output layer, the output of node is j, with $j = 1, 2, \dots, n$ . $y_{j}^{(k)}$ is given by

y_{j}^{(k)} = \sum_{i = 1}^{l} W 1_{i j} o_{i}^{(k)}

At the kth learning iteration step, the output of context node i is one-step delayed output of the hidden node i

n e t_c_{i}^{(k)} = o_h_{i}^{(k - 1)}

Define $Y_{j}^{(k)}$ as the expected output of ENN at the kth learning step, then update $W 1_{i j}, W 2_{i j}$ and $W 3_{i j}$ to reduce the errors E in the output layer

W^{n e w} ϖ = W^{o l d} ϖ + η \nabla W ϖ, λ = 1, 2, 3

E (W) = \frac{1}{2} \sum_{k = 1}^{T} \sum_{i = 1}^{n} {(Y_{i}^{(k)} - y_{i}^{(k)})}^{2}

And in this study, the objective function can be defined as

E (W) = E = \frac{1}{2} v^{2}

Differentiating equation (55) with respect to weights, we have

\frac{\partial E}{\partial ω} = \frac{\partial E}{\partial v} \frac{\partial v}{\partial ω} = v \frac{\partial v}{\partial ω} = - v \frac{\partial ψ}{\partial ω} = - v (\frac{\partial ψ_{y}}{\partial ω} + \frac{\partial ψ_{θ}}{\partial ω})

\frac{\partial ψ_{y}}{\partial ω} = k_{p y} \frac{\partial ψ_{1}}{\partial ω} + k_{d y} \frac{\partial ψ_{2}}{\partial ω}

\frac{\partial ψ_{θ}}{\partial ω} = k_{p θ} \frac{\partial ψ_{3}}{\partial ω} + k_{d θ} \frac{\partial ψ_{4}}{\partial ω}

Equations (48) to (58) are used in ENNs algorithm.

Simulation experiment

Constraint for the three wheels mobile robot on MATLAB is established. To verify the validity of the model, the simulation parameters are shown in Table 1. All the simulations are carried out via the MATLAB 2012 version in an intelligent Intel (R) core (TM): i5-6500 processor personal computer, RAM 4G, and 64 bit operating system. In this article, $Z_{d} = {[\begin{matrix} x_{d} & y_{d} & i_{d} \end{matrix}]}^{T}$ is positional vector, where the three variables are the horizontal and vertical coordinates, and forward direction angle of the robot. Force input signal is $F_{d} = {[\begin{matrix} f_{x d} & f_{y d} & f_{i d} \end{matrix}]}^{T}$ , where the three variables are virtual-forces components in x, y, and i directions between the robot and obstacle. Figure 4 shows the robot used in this simulation.

Table 1.

Basic parameters and torque parameters of robot.

Name	Symbol	Value
Wheels radius (m)	r	0.30
Distance between the axletree midpoint and centroid of the robot (m)	d	0.20
Distance between two wheels (m)	l	0.50
Robot weight (kg)	m	1.30
Weight of the robot without wheels (kg)	m_c	0.50
Steering angle torque (Nm)	I_ω	3.20
Two wheels torque (Nm)	I	0.25
External force horizontal component (N)	f ₁	9.50
External force vertical component (N)	f ₂	8.90
External force torque (N)	u	2.00

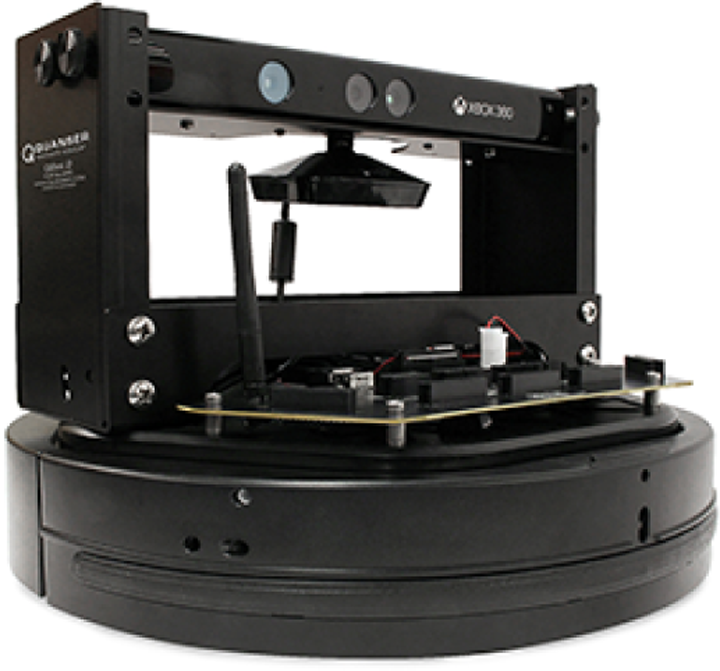

Figure 4.

Robot used in this study.

For the positional vectors

Figures 5 –10 represent the position vectors of the trajectory-tracking curve. The six graphs can fully demonstrate that introduced intelligent algorithm can achieve both position stabilization and obstacle avoidance. First, the robot follows the smoother and shorter path using the proposed method. This implies that the ENNs-based training technique HPVF control can reach the goal position and obstacle avoidance accurately, and this method can realize the real-time obstacle avoidance, as illustrated in Figures 8 –10: the stability of the tracking curve is obviously better, the response curves becomes more smoother, and the fluctuation amplitude of i becomes smaller. Actually, ENN hybrid position/force shows less oscillation behavior during obstacle avoidance.

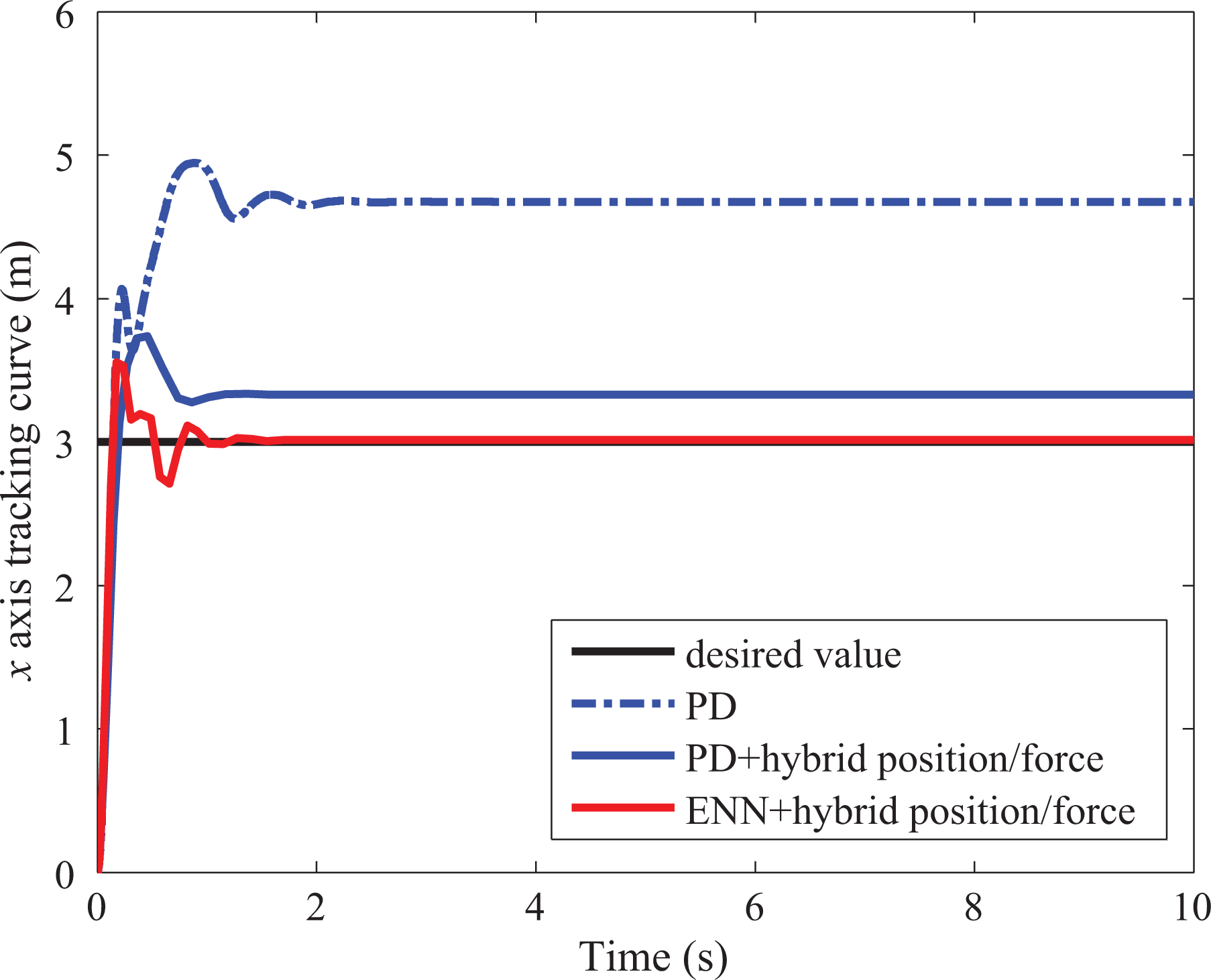

Figure 5.

X axis direction-tracking curve.

Figure 6.

Y axis direction-tracking curve.

Figure 7.

Trajectory tracking of the direction angle.

Figure 8.

X axis error.

Figure 9.

Y axis error.

Figure 10.

Direction angle error.

For the force vector

Figures 11 –13 show the simulation results based on the same conditions of the environment scene. According to the results, we notice that the obstacle-avoidance curve of ENN with HPVF structure is closer to the desired value. Using the intelligent scheme, the robot has smaller tracking errors and shorter moved distances. Figures 14 and 15 represent the error curve of horizontal component in f_x and f_y precision is significantly improved, while the transition time reduced significantly. In Figure 16, the steady-state error value is 0.3, which cannot be neglected. By using ENN with HPVF control approach, the system has much smaller distance error and shorter moved distance than the other two methods.

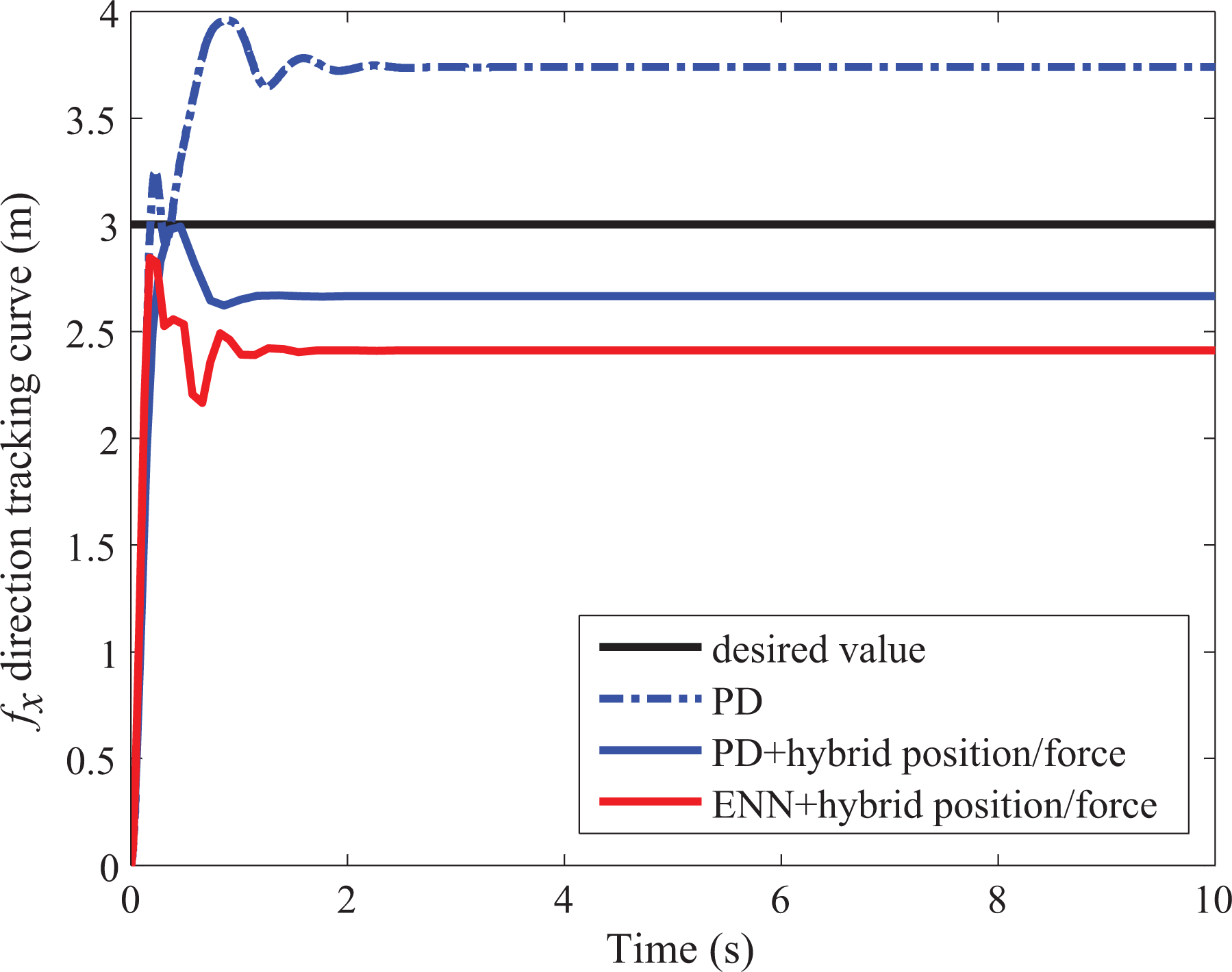

Figure 11.

f_x direction-tracking curve.

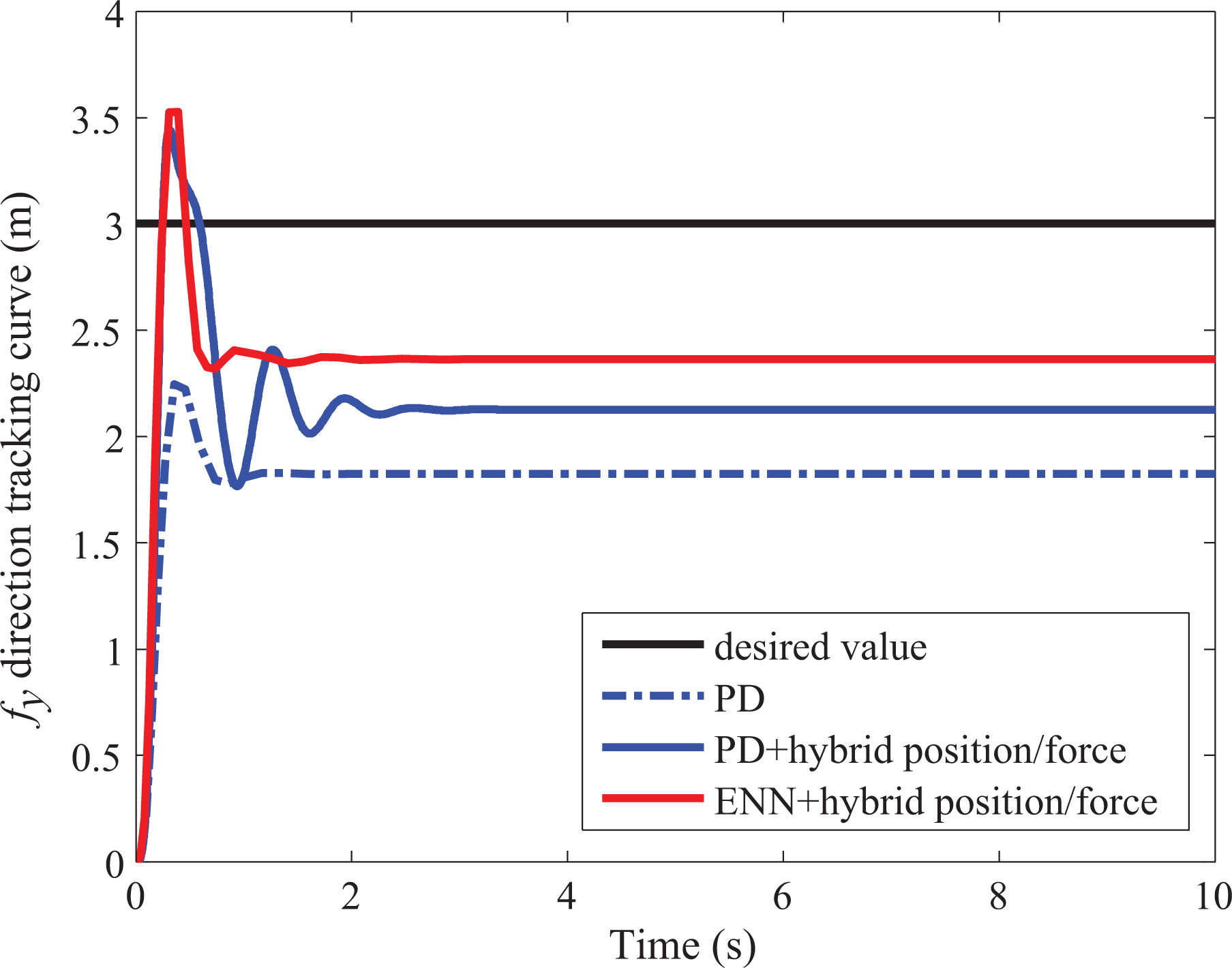

Figure 12.

f_y direction-tracking curve.

Figure 13.

f_i direction angle-tracking curve.

Figure 14.

f_x error.

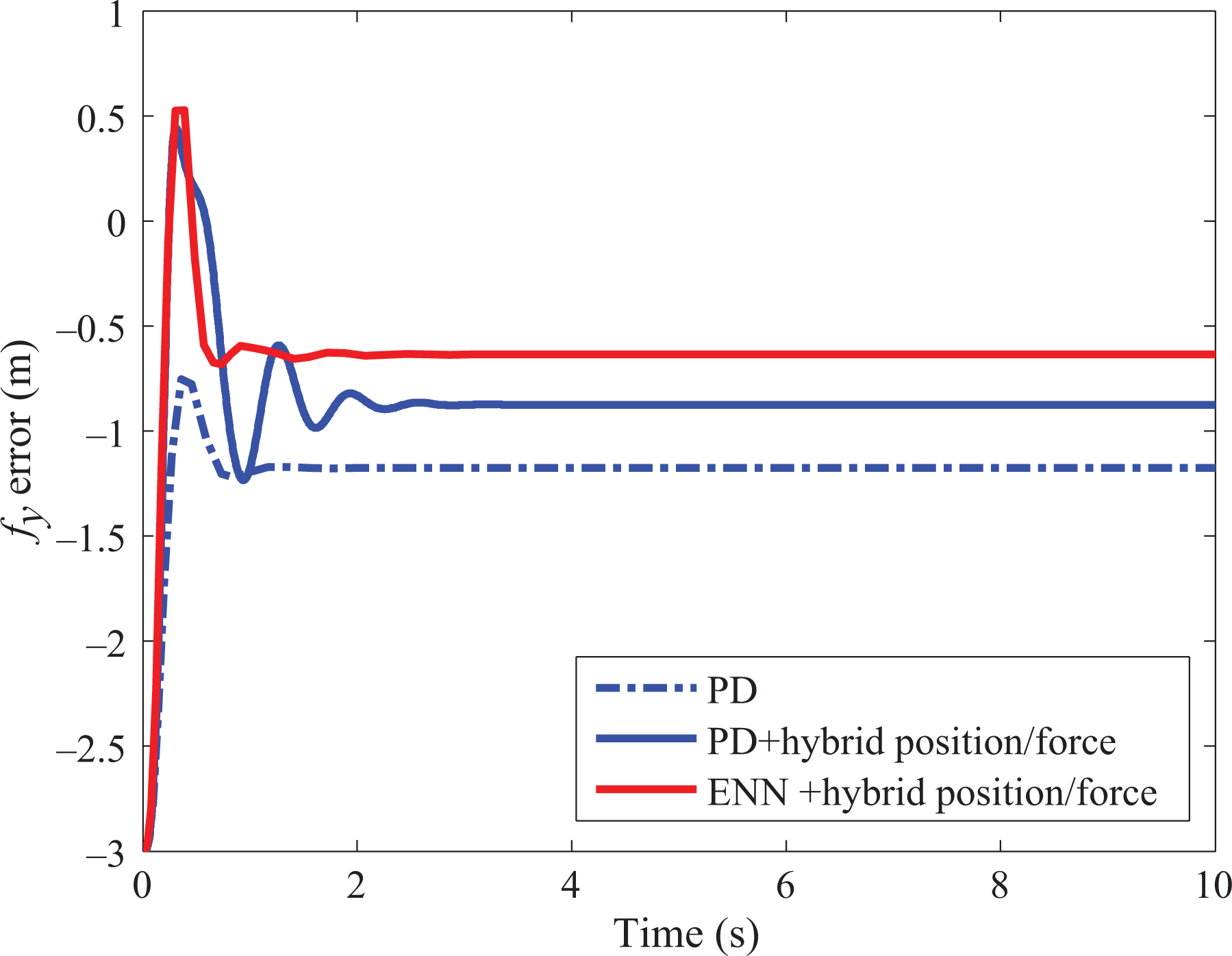

Figure 15.

f_y error.

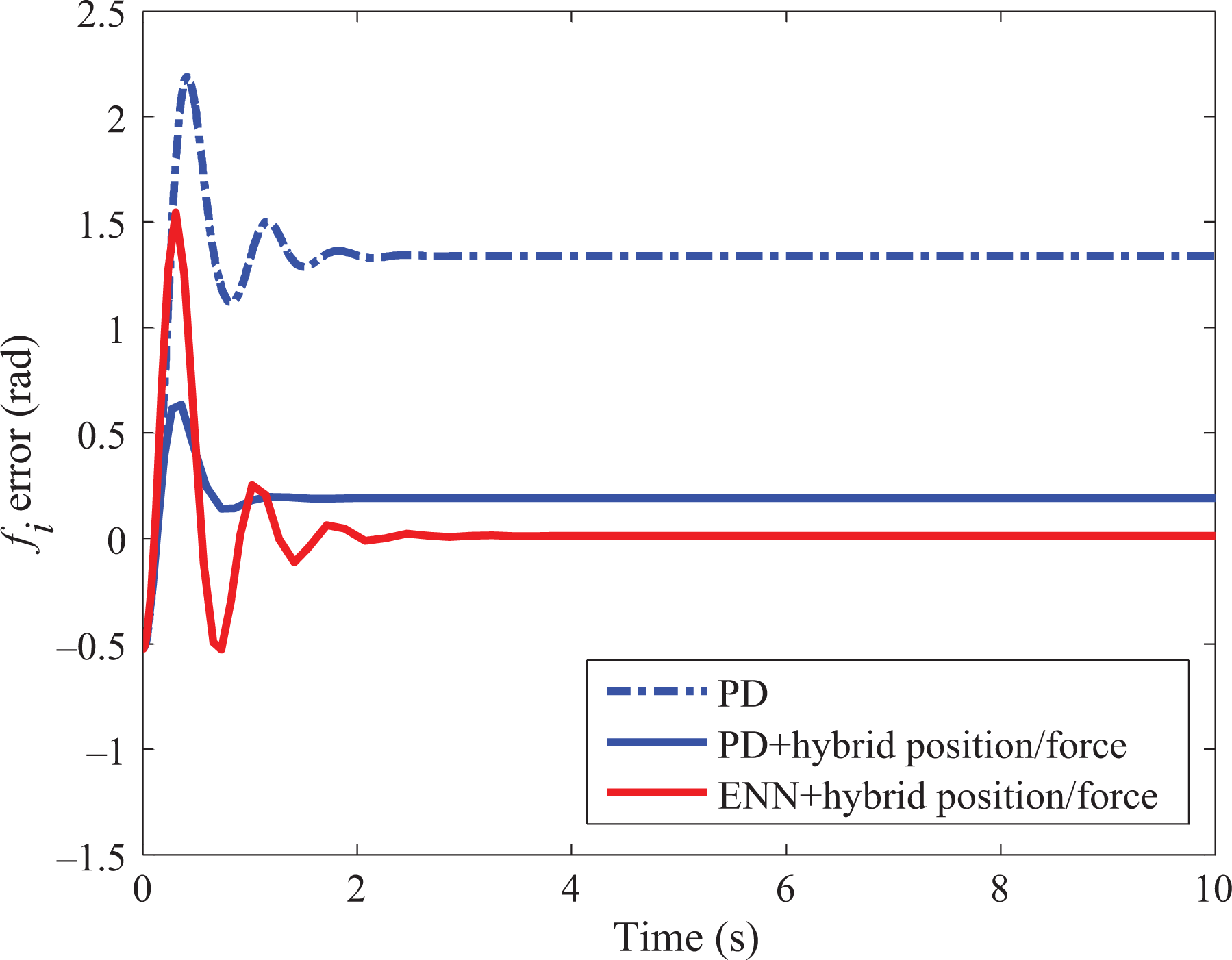

Figure 16.

f_i error.

For the rotation angles and control inputs

As illustrated in Figures 17 and 18, under the conventional PD control PD HPVF control, the amplitude fluctuation of the left and right wheel rotation angle curve is relatively large. After introducing the Elman-based deep learning algorithm and virtual-force structure, the fluctuation becomes stable. Actually, the proposed method shows less oscillation behavior during obstacle avoidance. Control input is provided here when using the three methods; it can be seen in Figures 19 and 20 that this intelligent system indicates high-performance dynamic characteristics and stronger robustness.

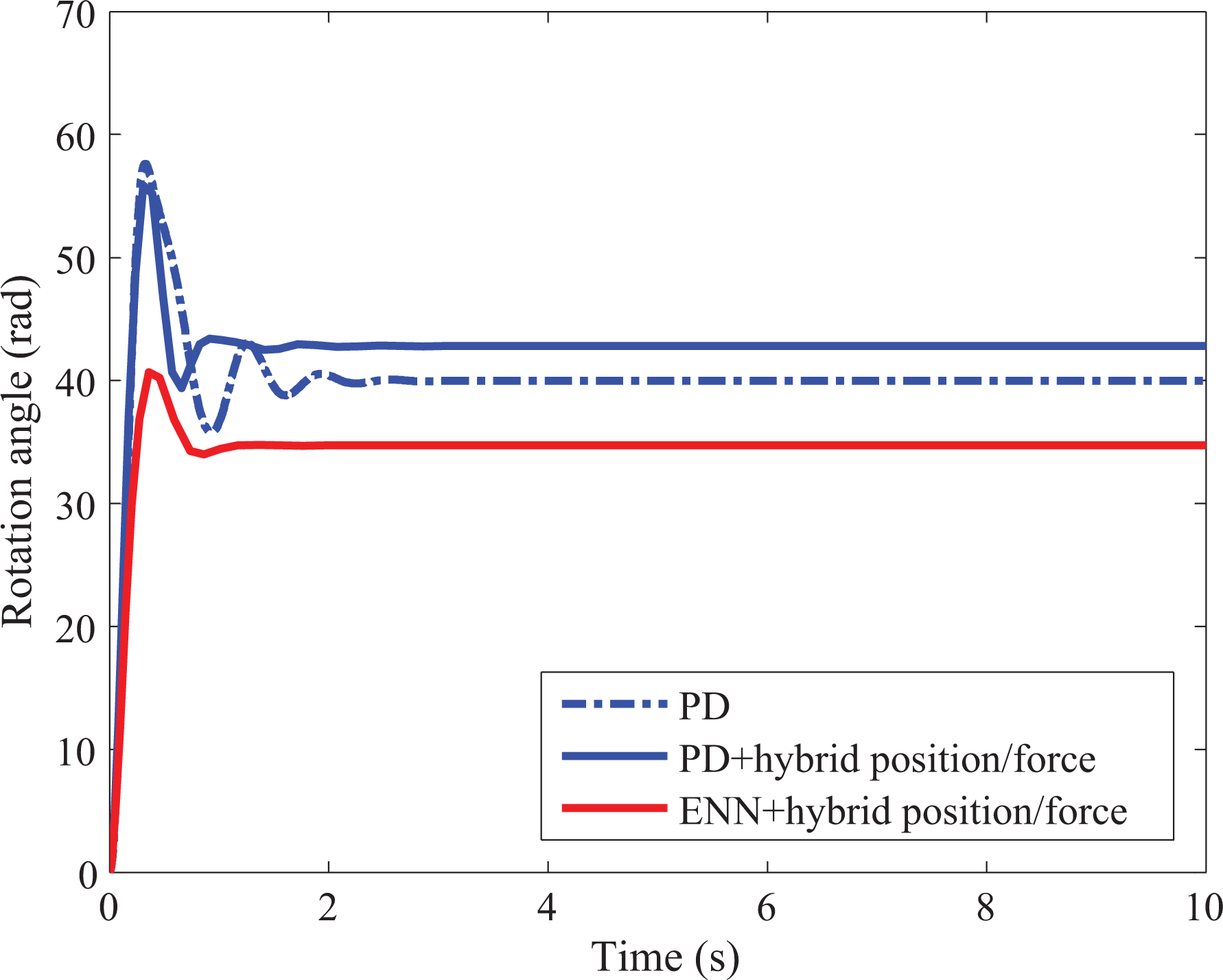

Figure 17.

The left wheel rotation angle.

Figure 18.

The right wheel rotation angle.

Figure 19.

Control input f₁.

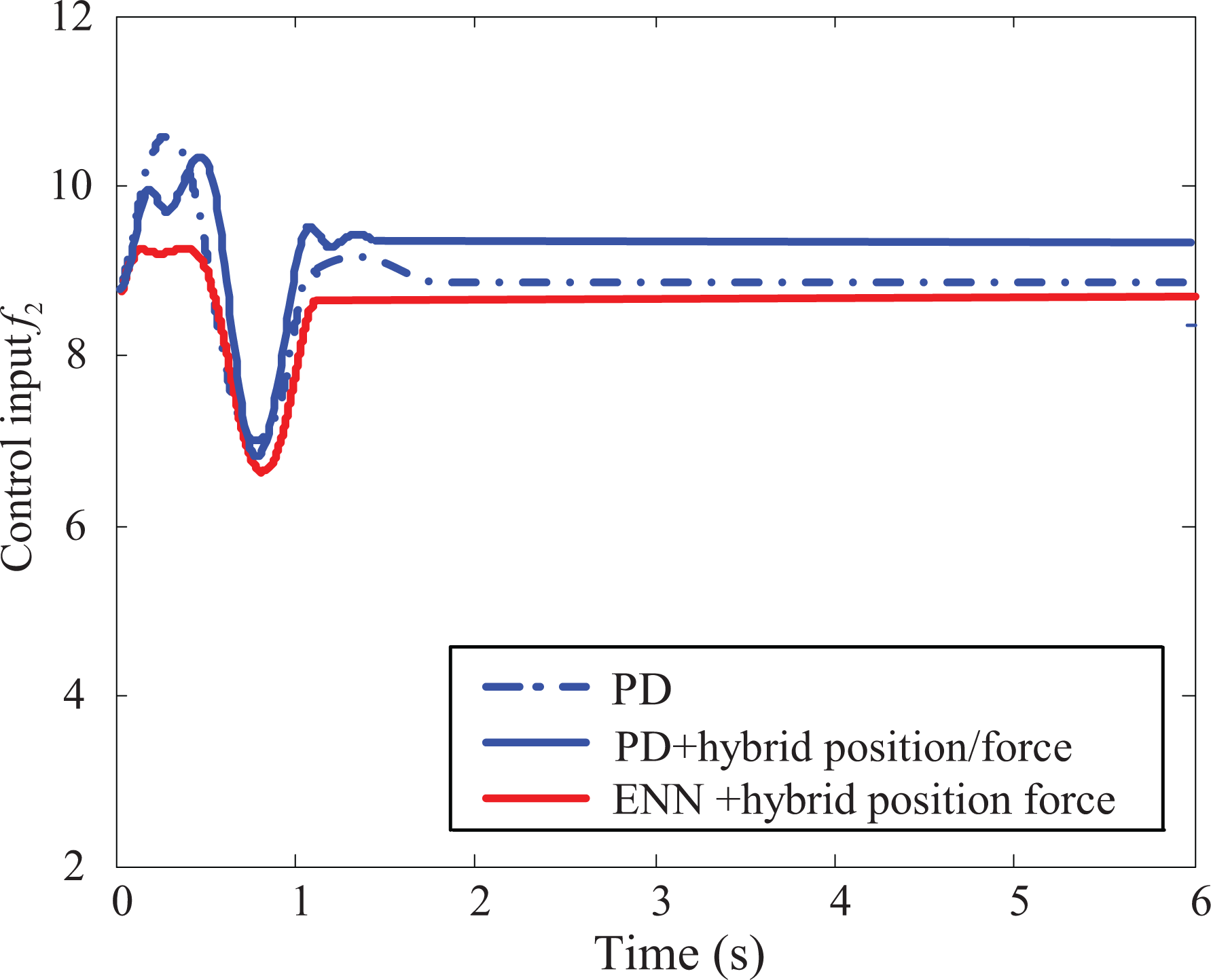

Figure 20.

Control input f₂.

Results of obstacle avoidance

The optimal path planning is created from start position toward the goal position. It is expected that the proposed control can realize collision avoidance in a complex environment with many static obstacles. The mobile robot gains the distance information from five range finder sensors equipped to the robot. Then the location information of static obstacles is considered the known information, and the start position is known while the environment is completely unknown. The same translational velocity and environment with the proposed approach is set. Maximum velocity is set to $v_{max} = 0.4 m/s$ and normal velocity is set to $v_{n} = 0.2 m/s$ .

In all three cases, the robot should determine steering to shorten the path to the goal position and avoid obstacles. Select the same start point and different end point at the same environmental conditions and obtain six trajectories in this study; the initial start point is (1.7, 2). It can be seen from Figures 21 and 22 that the robot made a left turn because it is found to be the shorter path. We can also observe that the robot shows overshoot response when an obstacle is appeared. This is due to the dynamic effect of the robot, which is usually ignored in kinematics model. As illustrated in Figures 23 –26, a better collision avoidance performance can be achieved using the proposed strategy, even multiple obstacles of the same shape (Figures 23 and 24) or multiple obstacles of the different shapes and sizes (Figures 25 and 26). The results are shown in Table 2, the results demonstrate that the robot can find a shortest way to the goal position and maintain a desired distance from the obstacle. Computing a collision-free trajectory for a robot located is a difficult task,⁷ this collision-free trajectory has to solve two problems. One is the geometric formulation and second is the nonholonomic motion.

Figure 21.

PD hybrid position/force control. PD: proportional-derivative.

Figure 22.

ENN hybrid position/force control for one obstacle for one obstacle. ENN: Elman neural network.

Figure 23.

PD hybrid position/force control. PD: proportional-derivative.

Figure 24.

ENN hybrid position/force control for multiobstacles. ENN: Elman neural network.

Figure 25.

PD hybrid position/force control. PD: proportional-derivative.

Figure 26.

ENN hybrid position/force control for multiobstacles with different shapes. ENN: Elman neural network.

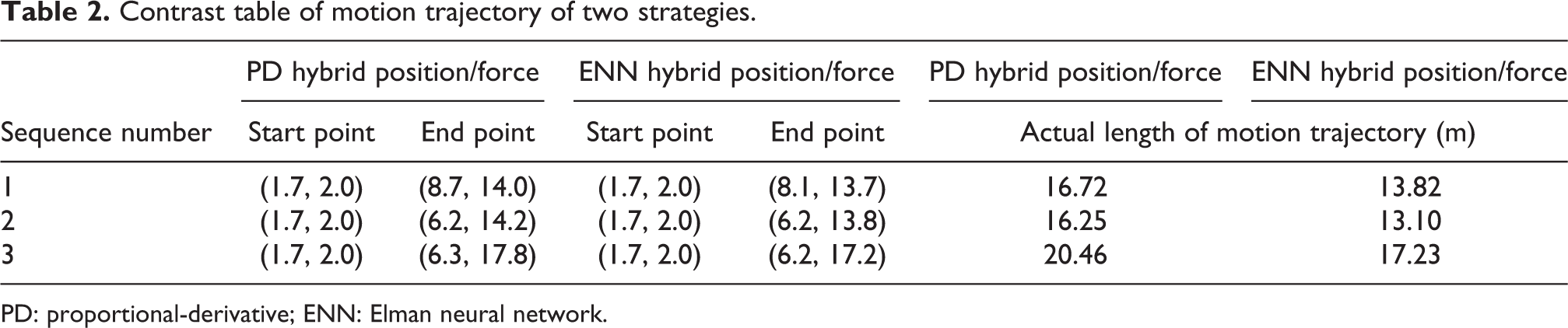

Table 2.

Contrast table of motion trajectory of two strategies.

	PD hybrid position/force		ENN hybrid position/force		PD hybrid position/force	ENN hybrid position/force
Sequence number	Start point	End point	Start point	End point	Actual length of motion trajectory (m)
1	(1.7, 2.0)	(8.7, 14.0)	(1.7, 2.0)	(8.1, 13.7)	16.72	13.82
2	(1.7, 2.0)	(6.2, 14.2)	(1.7, 2.0)	(6.2, 13.8)	16.25	13.10
3	(1.7, 2.0)	(6.3, 17.8)	(1.7, 2.0)	(6.2, 17.2)	20.46	17.23

PD: proportional-derivative; ENN: Elman neural network.

Case 1: one static obstacle on one side of the robot,

Case 2: multiple obstacles of on both sides of the robot, and

Case 3: multiple obstacles of the different shapes and sizes on both sides of the robot.

Conclusions

In this work, we propose an HPVF control algorithm to address obstacle-avoidance problems for a class of nonlinear robot system with an uncertain or interference component. The main contribution of this article is adding an HPVF control algorithm to the existing ENN method for nonlinear robot systems. Based on the superiorities of the ENN, the HPVF scheme has guaranteed the requirement for high-precision-tracking errors in different conditions. Furthermore, all the ENN online learning control laws in the HPVF control scheme are obtained, so that the stability can be ensured whether or not the appearance of interference and uncertainties. By comparing the simulation results, it can be seen that the ENN intelligent HPVF control approach is better than previous two methods, and the robustness and stability features have been improved. In addition, this method weakens the convergent influence of the system caused by the uncertain part of the system and the nonrepetitive disturbances. Future work will aim to apply the proposed algorithm to actual robot control and biochemical reaction processes.

Footnotes

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) received no financial support for the research, authorship, and/or publication of this article.

References

Dong

. Obstacle avoidance path planning of planar redundant manipulators using workspace density. Int J Adv Robot Syst 2015; 12(2): 9. DOI: 10.5772/59973.

Hedjar

Bounkhel

. Real-time obstacle avoidance for a swarm of autonomous mobile robots. Int J Adv Robot Syst 2014; 11(4): 67. DOI: 10.5772/58478.

Dong

Wan

Liu

. Horizontal-plane trajectory-tracking control of an underactuated unmanned marine vehicle in the presence of ocean currents. Int J Adv Robot Syst 2016; 13(3): 83. DOI: 10.5772/63634.

Chen

Zhang

Zhao

. Finite-time tracking control for extended nonholonomic chained-form systems with parametric uncertainty and external disturbance. J Vib Control 2016; pp. 1–10. DOI: 10.1177/1077546316633568.

Chen

Ding

Chen

. Global finite-time stabilization for nonholonomic mobile robots based on visual servoing. Int J Adv Robot Syst 2014; 11(11): 180. DOI: 10.5772/59307.

Chen

Zhang

. Global finite-time partial stabilization for a class of nonholonomic mobile robots subject to input saturation. Int J Adv Robot Syst 2015; 12(11): 159. DOI: 10.5772/61684.

Uchiyama

Hashimoto

Sano

. Model-reference control approach to obstacle avoidance for a human-operated mobile robot. IEEE Trans Ind Electron 2009; 56(10): 3892–3896. DOI: 10.1109/TIE.2009.2020715.

Hsu

Juan

. Evolutionary robot wall-following control using type-2 fuzzy controller with species-deactivated continuous ACO. IEEE Trans Fuzzy Syst 2013; 21(1): 100–112. DOI: 10.1109/TFUZZ.2012.2202.

Lin

. Adaptive moving-target tracing control of a vision-based mobile robot via a dynamic petri recurrent fuzzy neural network. IEEE Trans Fuzzy Syst 2013; 21(4): 688–701. DOI: 10.1109/TFUZZ.2012.2227974.

10.

Fang

. Model-free unified tracking and regulation visual servoing of wheeled mobile robots. IEEE Trans Control Syst Technol 2016; 24(4): 1328–1339. DOI: 10.1109/TCST.2015.2495234.

11.

Yang

Zheng

. Extended state observer based double loop integral sliding mode control of electronic throttle valve. IEEE Trans Intell Trans Syst 2015; 16: 1–10. DOI: 10.1109/TITS.2015.2410282.

12.

Takahashi

Suzuki

Matsumura

. Dynamic obstacle avoidance with simultaneous translational and rotational motion control for autonomous mobile robot. In: Infomatics in control, automation and robotics (eds, Ferrier

J-L

Bernard

Gusikhin

.), Berlin, Heidelberg, 28–31 July 2011, Vol. 4, pp. 51–64. Berlin: Springer. DOI: 10.1007/978-3-642-31353-0_4.

13.

Rezaee

Abdollahi

. A decentralized cooperative control scheme with obstacle avoidance for a team of mobile robots. IEEE Trans Ind Electron 2014; 61(1): 347–354. DOI: 10.1109/TIE.2013.2245612.

14.

Chen

Wang

. Simulation on parallel drive system of double switched reluctance motors based on sliding mode & fuzzy controllers. In: Proceedings of the Electric Power and Energy Conference (EPEC) (eds, MacMinn

Szczesny

), Halifax, NS, Canada, 25–27 August 2010, pp. 25–27. IEEE. DOI: 10.1109/EPEC.2010.5697237.

15.

Cuong

Wang

. Adaptive trajectory tracking neural network control with robust compensator for robot manipulators. Neural Comput Appl 2015; 1–12. DOI: 10.1007/s00521-015-1873-4.

16.

Gao

Ovaska

Dote

. Motor fault detection using Elman neural network with genetic algorithm-aided training. In: 2000 IEEE international conference on Systems, man, and cybernetics publication, 8–11 October 2000. Vol. 4, pp. 2386–2392. DOI: 10.1109/ICSMC.2000.884348.

17.

Lin

Boldbaatar

. Fault accommodation control for a biped robot using a recurrent wavelet Elman neural network. IEEE Syst J 2015; 1–12. DOI: 10.1109/JSYST.2015.2409888.

18.

Tai

Liu

. A deep-network solution towards model-less obstacle avoidance. In: IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS), Daejeon, Korea, 9–14 October 2016, Daejeon: Daejeon Convention Center.

19.

Wysocki

Ławryńczuk

. Elman neural network for modeling and predictive control of delayed dynamic systems. Arch Control Sci 2016; 26(1): 117–142. DOI: 10.1515/acsc-2016-0007.

20.

Al-Mutib

Abdessemed

Hedjar

. (2015) Mobile robot nonlinear feedback control based on Elman neural network observer. Adv Mech Eng 7(12): 2–6.

21.

Cheng

Cai

. Dynamic properties of Elman and modified Elman neural network. In: International conference on mchine learning and cybernetics proceedings (eds, Thammano

Ruxpakawong

), Beijing, China, 4–5 November 2002, Vol. 2, 2002, pp. 637–640.

22.

Abbasi

Landolsi

Dhaouadi

. A neural network based technique for vibration characterization using Gaussian laser beams. Mechatronics 2015; 25: 44–54. DOI: 10.1016/j.mechatronics.2014.11.007.

23.

Al-Araji

Abbod

Al-Raweshidy

. Applying posture identifier in designing an adaptive nonlinear predictive controller for nonholonomic mobile robot. Neurocomputing 2013; 99(1): 543–554. DOI: 10.1016/j.neucom.2012.06.033.

24.

Koivumaki

Mattila

Stability-guaranteed force-sensorless contact force/motion control of heavy-duty hydraulic manipulators. IEEE Trans Robot 2015; 31(4): 918–935. DOI: 10.1109/TRO.2015.2441492.

25.

Chan

Naghdy

Stirling

. Position and force tracking for non-linear haptic telemanipulator under varying delays with an improved extended active observer. Robot Auton Syst 2015; 9(6): 333–346.

26.

Rakotondrabe

Ivan

. Development and force/position control of a new hybrid thermo-piezoelectric microgripper dedicated to micromanipulation tasks. IEEE Trans Autom Sci Eng 2011; 8(4): 824–834. DOI: 10.1109/TASE.2011.2157683.

27.

Lijiao

Bin

. Distributed force/position consensus tracking of networked robotic manipulators. Autom Sinica IEEE/CAA J 2014; 1(2): 180–186. DOI: 10.1109/JAS.2014.7004548.

28.

Huard

Grossard

Moreau

. Sensorless force/position control of a single-acting actuator applied to compliant object interaction. Ind Electron IEEE Trans 2015; 62(6): 3651–3661. DOI: 10.1109/TIE.2014.2367465.

29.

Pliego-Jiménez

Arteaga-Pérez

. Adaptive position/force control for robot manipulators in contact with a rigid surface with uncertain parameters. Eur J Control 2015; 22: 1–12. DOI: 10.1109/TIE.2014.2367465.

30.

Heck

Saccon

Wouw

NVD

. Guaranteeing stable tracking of hybrid position–force trajectories for a robot manipulator interacting with a stiff environment. Automatica 2016; 63: 235–247. DOI: 0.1016/j.automatic.2015.10.29.

31.

Parra-Vega

García-Rodríguez

Armendariz

. Neurofuzzy self-tuning of the dissipation rate gain for model-free force-position exponential tracking of robots. Neurocomputing 2016; 171: 209–219. DOI:10.1016/j.neucom.2015.06.034.

32.

Wen

Zheng

Zhu

. Elman fuzzy adaptive control for obstacle avoidance of mobile robots using hybrid force/position incorporation. Syst Man Cybernet Part C 2012; 42(4): 603–608. DOI: 10.1109/TSMCC.2011.2157682.

33.

Kiguchi

Watanabe

Izumi

. Two-stage adaptive robot position/force control using fuzzy reasoning and neural networks. Adv Robot 2012; 14(3): 153–168. DOI: 10.1163/156855300741500.

Hybrid position/virtual-force control for obstacle avoidance of wheeled robots using Elman neural network training technique

Abstract

Keywords

Introduction

Mathematical model of wheeled robots

Controller design

Intelligent HPVF control

Learning algorithm

Simulation experiment

For the positional vectors

For the force vector

For the rotation angles and control inputs

Results of obstacle avoidance

Conclusions

Footnotes

Declaration of conflicting interests

Funding

References
