Adaptive fuzzy tracking control for a constrained flexible air-breathing hypersonic vehicle based on actuator compensation

Abstract

The design of an adaptive fuzzy tracking control for a flexible air-breathing hypersonic vehicle with actuator constraints is discussed. Based on functional decomposition methodology, velocity and altitude controllers are designed. Fuzzy logic systems are applied to approximate the lumped uncertainty of each subsystem of air-breathing hypersonic vehicle model. Every controllers contain only one adaptive parameter that needs to be updated online with a minimal-learning-parameter scheme. The back-stepping design is not demanded by converting the altitude subsystem into the normal output-feedback formulation, which predigests the design of a controller. The special contribution is that novel auxiliary systems are developed to compensate both the tracking errors and desired control laws, based on which the explored controller can still provide effective tracking of velocity and altitude commands when the inputs are saturated. Finally, reference trajectory tracking simulation shows the effectiveness of the proposed method in its application to air-breathing hypersonic vehicle control.

Introduction

Flexible air-breathing hypersonic vehicles (FAHVs) are crucial because they may represent a more cost-efficient way to make access to space routine or even make the space travel routine and intercontinental travel as easy as intercity travel. ^{1 –3} A key issue in making hypersonic vehicles feasible and efficient is the flight control design. ⁴ However, the flight control of FAHV is still an open challenge due to its peculiarity of flight dynamics. It is worth noting that there exists a strong coupling between the propulsive and the aerodynamic forces results from the integration of the scramjet engine, which makes the characteristics of FAHV’s aerodynamics very difficult to be estimated and measured. ^{5 –7}

Recently, lots of efforts have been put into flight control. Linear control theory was widely employed for flight control design based on the linearized model. As shown in the work of Marrison and Stengel, ⁸ the robust control of FAHV is studied by introducing a linear quadratic regulator (LQR) with stochastic robustness analysis. In the study by Groves, ⁹ LQR controller is proposed for the linearization model based on any equilibrium points of flight envelope.

Nonlinear control scheme is also employed for FAHV. Back-stepping design approach ^{10 –14} provides an efficient method to a class of nonlinear systems with mismatched conditions, including flight control systems, which can be converted into a strict-feedback form. The back-stepping design for nonlinear systems consists of a recursive design procedure that breaks down the full system control problem into a sequence of designs for lower order subsystems. However, it is well known that there exists a problem of “explosion of terms” in the traditional back-stepping design, which is caused by the repeated differentiations of virtual control laws. To solve this problem, dynamic surface control ¹⁵ is designed by introducing a low-pass filter in each step of back-stepping design.

The fuzzy logic systems (FLSs) ^16,17 have been used proverbially to approximate the unknown nonlinear functions because of the better approximation ability, and it is validated that FLSs are very effective methods. Intuitively, it is a promising technique for approximating the dynamic model of FAHV by fuzzy systems and then designing a fuzzy controller for achieving the desirable performances. Recently, some fuzzy control schemes have been proposed for FAHV in the study by Hu et al. ¹⁸ and Hu and Liu. ¹⁹ Hu et al. ¹⁸ have proposed a linear matrix inequality-based approach of designing a fuzzy guaranteed cost output tracking controller for the FAHV. An adaptive fuzzy control strategy based on dynamic surface control is proposed for hypersonic vehicle with uncertain parameters and external disturbances, ¹⁹ and the FLSs are used to approximate the uncertainties in the model including uncertain terms and gains.

To reduce the computational load, the minimal-learning-parameter (MLP) scheme ²⁰ is applied to regulate the maximum norm instead of the elements of the ideal weight vectors. In the study by Xu et al., ^20,21 the novel design without back stepping is developed to simplify the controller design for flight vehicles with cascade structure.

Considering technical application practice, the actuator fault, ²² input nonlinearity, ²³ and saturation ²⁴ are thoroughly considered to ensure the flight safety of the hypersonic vehicle. Especially, the input constraints cannot be ignored in practice since the outputs of actuator are constrained for physical limitations. If it is ignored, the system may suffer from important performance limitations or even lose stability. ^25,26 Much literature theoretically focuses on the control problem with input constraints. ^{27 –31} In practice, when input saturation occurs, the aircraft body may change seriously even disintegrating for the flight control system. So, it is necessary to research the control design problem with input constraints. The anti-windup control is adopted to deal with input constraints, but the stability properties of the closed-loop system cannot be established. ³¹ In the study by Xu et al., ³² auxiliary systems are constructed to deal with the magnitude constraints on actuators and states. The uniformly ultimately boundedness of that control scheme is guaranteed for the closed-loop system by compensating error and desired control law. However, there are still some problems for input saturation. For example, in the work of Xu et al., ³² only the boundedness of closed-loop system was guaranteed, but the boundedness of tracking errors was not ensured.

Motivated by the results of the previous studies, an adaptive fuzzy tracking control approach is addressed for the longitudinal dynamical model of FAHV with input constraints. Based on the functional decomposition methodology, the longitudinal dynamic model of FAHV is decomposed into two subsystems, including the velocity subsystem and the altitude subsystem. For each subsystem, the fuzzy systems are used to approximate the unknown system uncertainties. In order to decrease computational complexity of the controller, every controllers contain only one adaptive parameter that needs to be updated online. By introducing finite-time convergence high-order differentiator to estimate the newly defined variables, there is no need for the strict-feedback form and virtual controller. Especially, novel auxiliary systems are exploited to cope with the problem of control input constraints. Finally, reference trajectory tracking simulation shows the effectiveness of the proposed method. The main advantages of this article can be summarized as follows:

The effect of actuator saturation is successfully eliminated by a novel design of auxiliary error compensation, which guarantees the stability of closed-loop system, as well as the boundedness of velocity and altitude tracking errors even when the actuators are saturated.

The proposed strategy is considerably quite simpler than the ones derived from back stepping since there is no need of the complicated design of virtual controller in this article.

The organization of this article is outlined as follows. First, the longitudinal motion model of FAHV is described in section “FAHV model and preliminaries.” Section “Controller design” presents the design procedures of adaptive fuzzy controllers. Then, simulation results are given in section “Simulation.” Finally, brief concluding remarks are given in section “Conclusions.”

FAHV model and preliminaries

Longitudinal dynamic model of FAHV

The model taken into consideration in this article is developed by Bolender and Doman ³³ for the longitudinal dynamics of FAHV. The flexible effects are included in these equations by modeling the vehicle as a single flexible structure with mass-normalized mode shapes.

Assuming a flat earth and normalizing the span of FAHV to unit depth, the nonlinear motion equations are written as ³⁴

$\{\begin{array}{l}\dot{V}=\frac{T\text{cos}\left(\theta -\gamma \right)-D}{m}-g\text{sin}\gamma \hfill \\ \dot{h}=V\text{sin}\gamma \hfill \\ \dot{\gamma }=\frac{L+T\text{sin}\left(\theta -\gamma \right)}{mV}-\frac{g}{V}\text{cos}\gamma \hfill \\ \dot{\theta }=Q\hfill \\ \begin{array}{l}\dot{Q}=\frac{M+{\tilde{\psi }}_1{\ddot{\eta }}_1+{\tilde{\psi }}_2{\ddot{\eta }}_2}{I_{yy}}\\ k_1{\ddot{\eta }}_1=-2{\zeta }_1{\omega }_1{\dot{\eta }}_1-{\omega }_1^2{\eta }_1+N_1-{\tilde{\psi }}_1\frac{M}{I_{yy}}-\frac{{\tilde{\psi }}_1{\tilde{\psi }}_2{\ddot{\eta }}_2}{I_{yy}}\\ k_2{\ddot{\eta }}_2=-2{\zeta }_2{\omega }_2{\dot{\eta }}_2-{\omega }_2^2{\eta }_2+N_2-{\tilde{\psi }}_2\frac{M}{I_{yy}}-\frac{{\tilde{\psi }}_2{\tilde{\psi }}_1{\ddot{\eta }}_1}{I_{yy}}\end{array}\hfill \end{array}$

1

where the rigid body states V, h, γ, θ, and Q represent velocity, altitude, flight-path angle, pitch angle, and pitch rate, respectively; the flexible states $\eta =\left[\begin{array}{cccc}{\eta }_1& {\dot{\eta }}_1& {\eta }_2& {\dot{\eta }}_2\end{array}\right]$ denote the first two bending modes of the fuselage; m and I_yy are mass of vehicle and moment of inertia about pitch axis, respectively; ζ_i and ω_i( $i=1,2$ ) mean the damping ratio and natural frequency of the mass-normalized generalized coordinates of the flexible structure, respectively; k₁ and k₂ are constants. The thrust (T), drag (D), lift (L), pitch moment (M), and generalized forces $N_i(i=1,2$ ) are defined as ³⁴

$\{\begin{array}{l}T\approx C_T^{{\alpha }^3}{\alpha }^3+C_T^{{\alpha }^2}{\alpha }^2+C_T^{\alpha }\alpha +C_T^0\hfill \\ D\approx \overline{q}S\left(C_T^{{\alpha }^2}{\alpha }^2+C_T^{\alpha }\alpha +C_T^{{\delta }_e^2}{\delta }_e^2+C_T^{{\delta }_e}{\delta }_e+C_D^0\right)\hfill \\ L\approx \overline{q}S\left(C_L^{\alpha }\alpha +C_T^{{\delta }_e}{\delta }_e+C_L^0\right)\hfill \\ M\approx z_{T}T+\overline{q}S\overline{c}\left[C_{M,\alpha }^{{\alpha }^2}{\alpha }^2+C_{M,\alpha }^{\alpha }\alpha +C_{M,\alpha }^0+c_e{\delta }_e\right]\hfill \\ N_1=N_1^{{\alpha }^2}{\alpha }^2+N_1^{\alpha }\alpha +N_1^0\hfill \\ \begin{array}{l}{N}_2=N_2^{{\alpha }^2}{\alpha }^2+N_2^{\alpha }\alpha +N_2^{{\delta }_e}{\delta }_e+N_2^0\\ \overline{q}=\frac{1}{2}\rho V^2,\rho ={\rho }_0\exp \left(-\frac{h-h_0}{h_s}\right)\end{array}\hfill \end{array}$

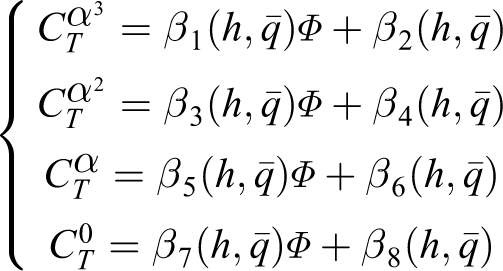

with

$\{\begin{array}{c}{C}_T^{{\alpha }^3}={\beta }_1\left(h,\overline{q}\right)\Phi +{\beta }_2\left(h,\overline{q}\right)\\ C_T^{{\alpha }^2}={\beta }_3\left(h,\overline{q}\right)\Phi +{\beta }_4\left(h,\overline{q}\right)\\ C_T^{\alpha }={\beta }_5\left(h,\overline{q}\right)\Phi +{\beta }_6\left(h,\overline{q}\right)\\ C_T^0={\beta }_7\left(h,\overline{q}\right)\Phi +{\beta }_8\left(h,\overline{q}\right)\end{array}$

where $\overline{q}$ , S, $\overline{c}$ , and z_T stand for the dynamic pressure, reference area, aerodynamic chord, and thrust moment arm, respectively; h₀ means a certain altitude; ρ₀ is air density at the altitude h₀; $1/h_s$ denotes air density decay rate; N_i and $N_i^{{\alpha }^j}\left(i=1,2;j=1,2\right)$ are the ith generalized force and jth order contribution of N_i; ${\beta }_j\left(h,\overline{q}\right)\left(j=1,2,\dots ,8\right)$ is the jth trust fit parameter.

Control constraints

In practice, due to physical limitations, the outputs of the actuator are constrained. Input constraints studied in the article include the constraints on fuel equivalence ratio and elevator deflection. The constraint on fuel equivalence ratio is imposed by the very nature of the propulsion system, which is required to maintain the conditions that sustain scramjet operation. ³⁵ If the limit is violated, the thermal choking will occur. It could induce that engine unstarts, which could jeopardize mission, vehicle, and its contents. ³⁶ The constraints on elevator deflection and canard deflection are mainly imposed by the limits on control surface displacement. The aforementioned input constraints can be expressed as

$\Phi =\{\begin{array}{c}{\Phi }_{\text{max}},{\Phi }_c\ge {\Phi }_{\text{max}}\\ {\Phi }_c,{\Phi }_{\text{min}}\le {\Phi }_c\le {\Phi }_{\text{max}}\\ {\Phi }_{\text{min}},{\Phi }_c\le {\Phi }_{\text{min}}\end{array}$

2

${\delta }_e=\{\begin{array}{c}{\delta }_{e\text{max}},{\delta }_{\mathit{\text{ec}}}\ge {\delta }_{e\text{max}}\\ {\delta }_{ec},{\delta }_{e\text{min}}\le {\delta }_{ec}\le {\delta }_{e\text{max}}\\ {\delta }_{e\text{min}},{\delta }_{ec}\le {\delta }_{e\text{min}}\end{array}$

3

where Φ_max and Φ_min denote the upper and lower bounds of Φ, respectively; δ_emax and δ_emin stand for the upper and lower bounds of δ_e, respectively; Φ_c and δ_ec are the desired control inputs to be designed in the subsequent section.

High-order differentiator description

A high-order continuous nonlinear differentiator ³⁷ is described as

$\{\begin{array}{c}{\dot{x}}_i=x_{i+1}-\frac{b_{n-i+1}}{{\epsilon }^i}{\left|x_1-\upsilon \left(t\right)\right|}^{a_{n-i+1}}\text{sign}\left(x_1-\upsilon \left(t\right)\right)\\ {\dot{x}}_n=-\frac{b_1}{{\epsilon }^n}{\left|x_1-\upsilon \left(t\right)\right|}^{a_1}\text{sign}\left(x_1-\upsilon \left(t\right)\right)\end{array}$

4

where x_i are the states of differentiator and they represent the estimations of υ, $\dot{\upsilon },\ddot{\upsilon },\text{ and }\stackrel{⃛}{\upsilon }$ , respectively, $i=1,\dots ,n-1;\upsilon \left(t\right)$ represents the input signal of differentiator; $\epsilon \in \left(0,1\right)$ is the parameter to be designed; $a_1\in \left(0,1\right),a_1,\dots ,a_n$ satisfy $a_{n-i+1}=\left(i{a}_1+n-1\right)/n,i=1,\dots ,n;b_1,\dots ,b_n>0$ satisfy $s^n+b_n{s}^{n-1}+\dots +b_{2}s+b_1$ is Hurwitz.

The high-order differentiator can reduce the chattering phenomenon sufficiently more than the high-order sliding mode differentiator. ³⁸ Moreover, this differentiator is a generalization of high-order sliding mode differentiator and linear high-gain differentiator, and the parameters regulation is easier. ³⁷

Description of FLSs

FLSs consist of four parts: the knowledge base, the fuzzifier, the fuzzy inference engine working on fuzzy rules, and the defuzzifier. The knowledge base for FLSs comprises a collection of fuzzy if-then rules of the following form:

R^l: If x₁ is $F_1^l$ and x₂ is $F_2^l$ and…and x_n is $F_n^l$ , then y is G^l, $l=1,2,\dots ,N$

where $x_1,x_2,\dots ,x_n$ and y stand for inputs and output of the FLSs; N denotes the total number of rules; $F_i^l$ and G^l are the input and output fuzzy sets to fuzzify $x_i(i=1,2,\dots ,n)$ and y, respectively.

Through singleton fuzzifier, center average defuzzification, and product inference, the FLSs can be proposed as

$\mathit{y}(\mathit{x})=\frac{{\sum }_{l=1}^N{\overline{y}}_l{\prod }_{i=1}^n{\mu }_{F_i^l}\left(x_i\right)}{{\sum }_{l=1}^N\left[{\prod }_{i=1}^n{\mu }_{F_i^l}\left(x_i\right)\right]}$

5

where ${\overline{y}}_l=\underset{y\in R}{\text{max}}{\mu }_{G^l}\left(\mathit{y}\right)$ . The fuzzy basis functions are defined as

${\xi }_l=\frac{{\prod }_{i=1}^n{\mu }_{F_i^l}\left(x_i\right)}{{\sum }_{l=1}^N\left[{\prod }_{i=1}^n{\mu }_{F_i^l}\left(x_i\right)\right]}$

6

Denoting ${\varpi }^T\text{=}\left[{\varpi }_1,{\varpi }_2,\dots ,{\varpi }_N\right]=\left[{\overline{y}}_1,{\overline{y}}_2,\dots ,{\overline{y}}_N\right]\text{ and }\xi \left(x\right)\text{=}{\left[{\xi }_1\left(x\right),{\xi }_2\left(x\right),\dots ,{\xi }_N\left(x\right)\right]}^T$ , equation (5) can be rewritten as

$\mathit{y}\left(\mathit{x}\right)={\varpi }^T\xi \left(\mathit{x}\right)$

7

Lemma 1

Let $f\left(x\right)$ be a continuous function defined on a compact set Ω. Then for any constant $\epsilon >0$ , there exists a FLS such that ¹⁸

$\underset{x\in \Omega }{\text{sup}}\left|f\left(\mathit{x}\right)-{\varpi }^T\xi \left(\mathit{x}\right)\right|\le \epsilon$

8

Controller design

The control objective pursued in this section is to develop an adaptive fuzzy controller for FAHV to provide a robust tracking of velocity and altitude commands V_ref and h_ref. It is assumed that the rigid body states V, h, γ, α, and Q are available for measurement. It is easy to note that the velocity V is mainly related to Φ and the altitude h is mainly affected by δ_e since the thrust T affects V and δ_e has a dominant contribution to h change in equation (1).

Control design for velocity subsystem

The velocity subsystem can be rewritten as the following formulation

$\{\begin{array}{c}\dot{V}=F_V+\Phi \\ u_V=\Phi \\ y_V=V\end{array}$

9

where

$F_V=\frac{T\text{cos}\left(\theta -\gamma \right)-D}{m}-g\text{sin}\gamma -\Phi$

u_V is the control input, y_V means the output signal, and F_V is an unknown function that is approached by the fuzzy system. The control goal of velocity subsystem is to make V track its command V_ref by exploring a fuzzy controller Φ.

The velocity track error is defined as

$\tilde{V}=V-V_{\text{ref}}$

10

The time derivative of equation (10) is given by

$\dot{\tilde{V}}=\dot{V}-{\dot{V}}_{\text{ref}}=F_V+\Phi -{\dot{V}}_{\text{ref}}$

11

To eliminate the saturation effect on Φ, a novel auxiliary system is introduced to deal with the saturation effect

${\dot{\chi }}_V=-k_0\text{tanh}{\chi }_V+\Phi -{\Phi }_c$

12

where k₀ is positive constants to be designed.

Define

$Z_V=\tilde{V}-{\chi }_V$

13

Differentiating Z_V with respect to time and invoking equations (11) and (12), we obtain

${\dot{Z}}_V=\dot{\tilde{V}}-{\dot{\chi }}_V=F_V-{\dot{V}}_{\text{ref}}+k_0\text{tanh}{\chi }_V+{\Phi }_c$

14

Based on the FLSs, the estimations of F_V can be designed as

${\widehat{F}}_V\left({\mathit{x}}_V|\varpi \right)={\widehat{\varpi }}_V^T{\xi }_V\left({\mathit{x}}_V\right)$

15

The optimal parameter vectors ${\varpi }_V^{\text{*}}$ are defined as

${\varpi }_V^{\ast }=\arg \underset{\varpi \in \Omega }{\text{min}}\left[\underset{x_V\in R^2}{\text{sup}}\left|{\widehat{F}}_V\left({\mathit{x}}_V|{\varpi }_V\right)-F_V\left({\mathit{x}}_V\right)\right|\right]$

16

where Ω and R₂ are bounded compact sets for ${\varpi }_V$ and x _V , respectively.

The unknown nonlinear function is defined as F_V, which can be approximated as

$F_V={\varpi }_V^{\ast T}{\xi }_V\left({\mathit{x}}_V\right)+{\epsilon }_V$

17

where $\left|{\epsilon }_V\right|\le B_V$ is the fuzzy approximation error, B_V denotes the upper bound of ε_V.

In order to decrease the computational complexity of the controller, the MLP technology ³⁹ is introduced to reduce the computational load of FLSs. We first define a constant as follows

${\vartheta }_V\text{=}{\Vert {\varpi }_V^{\ast }\Vert }^2$

18

then we can use the MLP technology to estimate ϑ_V instead of ${\varpi }_V^{\text{*}}$ .

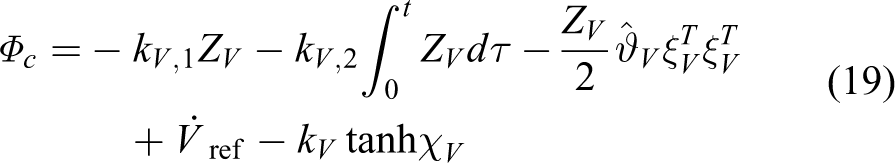

With the dynamic inversion theory, the desired controller Φ_c is introduced as

${\Phi }_c=-k_{V,1}{Z}_V-k_{V,2}{\displaystyle {\int }_0^t{Z}_{V}d\tau }-\frac{Z_V}{2}{\widehat{\vartheta }}_V{\xi }_V^T{\xi }_V^T+{\dot{V}}_{\text{ref}}-k_V\text{tanh}{\chi }_V$

19

where $k_{V,1}\text{ and }{k}_{V,2}$ are positive constants to be designed and ${\widehat{\vartheta }}_V$ is the estimation of ϑ_V. The adaptive law of ${\widehat{\vartheta }}_V$ is considered as

${\dot{\widehat{\vartheta }}}_V\text{=}\frac{1}{2}{c}_V{Z}_V^2{\xi }_V^T{\xi }_V-2k_{V,1}{\widehat{\vartheta }}_V$

20

where c_V is a positive design parameter.

Theorem 1

Consider the closed-loop system consisting of plant (9) with auxiliary system (12), controller (19), and adaptive law (20). Then, all the signals involved in equation (22) are semi-globally uniformly bounded.

Proof

Substituting equations (17) and (19) into equation (14) leads to

${\dot{Z}}_V=-k_{V,1}{Z}_V-k_{V,2}{\displaystyle {\int }_0^t{Z}_{V}d\tau }+{\varpi }_V^{*T}{\xi }_V\left(x_V\right)-\frac{1}{2}{Z}_V{\widehat{\vartheta }}_V{\xi }_V^T{\xi }_V+{\epsilon }_V$

21

Define the estimation error ${\tilde{\vartheta }}_V\text{=}{\widehat{\vartheta }}_V-{\vartheta }_V$ and choose the following Lyapunov function candidate

$W_V=\frac{1}{2}{Z}_V^2+\frac{1}{2}{k}_{V,2}{\left[{\displaystyle {\int }_0^t{Z}_{V}d\tau }\right]}^2+\frac{{\tilde{\vartheta }}_V}{2c_V}$

22

Taking time derivative along equation (22) and using equations (20) and (21)

${\dot{W}}_V=Z_V{\dot{Z}}_V+k_{V,2}{Z}_V{\displaystyle {\int }_0^t{Z}_{V}d\tau }+\frac{{\tilde{\vartheta }}_V{\dot{\widehat{\vartheta }}}_V}{c_V}=-k_{V,1}{Z}_V^2+Z_V{\varpi }_V^{*T}{\xi }_V\left({\mathit{x}}_V\right)-\frac{1}{2}{Z}_V^2{\vartheta }_V{\xi }_V^T{\xi }_V+Z_V{\epsilon }_V-2k_{V,1}\frac{{\tilde{\vartheta }}_V{\widehat{\vartheta }}_V}{c_V}$

23

Since

$\begin{array}{c}{Z}_V{\varpi }_V^{*T}{\xi }_V\left({\mathit{x}}_V\right)\le \frac{1}{2}{Z}_V^2{\Vert {\varpi }_V^{*}\Vert }^2{\Vert {\xi }_V\left({\mathit{x}}_V\right)\Vert }^2+\frac{1}{2}\\ =\frac{1}{2}{Z}_V^2{\vartheta }_V{\xi }_V^T{\xi }_V+\frac{1}{2}\\ -2k_{V,1}\frac{{\tilde{\vartheta }}_V{\widehat{\vartheta }}_V}{c_V}\le \frac{k_{V,1}}{c_V}\left({\vartheta }_V^2-{\tilde{\vartheta }}_V^2\right)\le \frac{k_{V,1}}{c_V}{\vartheta }_V^2\\ Z_V{\epsilon }_V\le \frac{1}{2}{Z}_V^2{B}_V^2+\frac{1}{2}\end{array}$

24

Thus, equation (23) can be rewritten as

${\dot{W}}_V\le -k_{V,1}{Z}_V^2+\frac{1}{2}{Z}_V^2{\left(B_V^M\right)}^2+\frac{k_{V,1}}{c_V}{\vartheta }_V^2+1=-\left[k_{V,1}-\frac{1}{2}{\left(B_V^M\right)}^2\right]Z_V^2+{\Sigma }_V$

25

where

${\Sigma }_V\text{=}\frac{k_{V,1}}{c_V}{\vartheta }_V^2+1>0$

Define the following compact sets

${\Omega }_{Z_V}=\left\{Z_V|\left|Z_V\right|\le \sqrt{{\sum }_V/\left(k_{V,1}-\frac{1}{2}{B}_V^2\right)}\right\}$

26

If Z_V is outside the compact set and $k_{V,1}\ge 1/2B_V^2$ , we can obtain ${\dot{W}}_V\le 0$ . The radiuses of ${\Omega }_{Z_V}$ can be made arbitrarily small by choosing sufficiently large $k_{V,1}$ and also the tracking error Z_V can be arbitrarily small. This completes the proof.

Theorem 2

Consider the auxiliary systems (12). Then the introduced states χ_V are bounded and can converge to zero in finite time.

Proof

Choose the following Lyapunov function candidate

$W_{{\chi }_V}=\frac{1}{2}{\chi }_V^2$

27

Define a positive constant D_Φ that satisfies $\left|\Phi -{\Phi }_c\right|\le D_{\Phi }$ . Invoking equation (19), the time derivative of $W_{{\chi }_V}$ can be expressed as

$\begin{array}{c}{\dot{W}}_{{\chi }_V}={\chi }_V{\dot{\chi }}_V=-k_0{\chi }_V\text{tanh}{\chi }_V+{\chi }_V\left(\Phi -{\Phi }_c\right)\\ \le -k_0\left|{\chi }_V\right|\left|\text{tanh}{\chi }_V\right|+\left|{\chi }_V\right|D_{\Phi }\\ \le -\left(k_0\left|\text{tanh}{\chi }_V\right|-D_{\Phi }\right)\left|{\chi }_V\right|\end{array}$

28

If $k_0\ge \left|\left|\text{tanh}{\chi }_V\right|\right|k_0\ge D_{\Phi }$ , then ${\dot{W}}_{{\chi }_V}\le 0$ . Thus χ_V is bounded and can converge to zero in finite time by setting bounded ${\chi }_V\left(0\right)$ . This completes the proof.

Invoking Theorem 1, Theorem 2, and equation (13), it is obvious that the tracking error $\tilde{V}$ still keeps bounded even when the control input constraints are in effect. However, using the compensation strategy presented in the study by Xu et al., ³² only the boundedness of Z_V can be achieved.

Control design for altitude subsystem

The control objective pursued in the altitude subsystem is to design a fuzzy-based output-feedback controller δ_e to let h track its reference trajectory h_ref.

Defining

$\tilde{h}=h-h_{\text{ref}}$

29

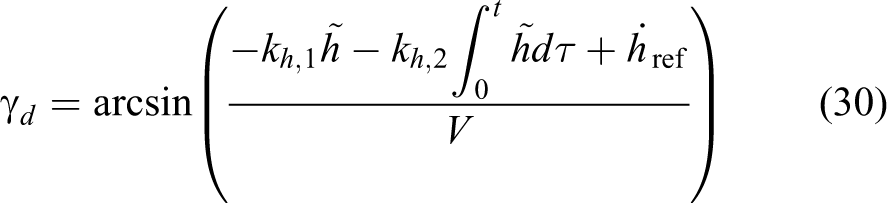

the command of γ is proposed as

${\gamma }_d=\arcsin \left(\frac{-k_{h,1}\tilde{h}-k_{h,2}{\displaystyle {\int }_0^t\tilde{h}d\tau }+{\dot{h}}_{\text{ref}}}{V}\right)$

30

Letting $k_{h,1}>0,k_{h,2}>0\text{ and }\gamma \to {\gamma }_d,\tilde{h}$ can converge to zero exponentially. ²¹

The remainder of altitude subsystem is rewritten as

$\{\begin{array}{l}\dot{\gamma }=f_{\gamma }+\theta \hfill \\ \dot{\theta }=Q\hfill \\ \dot{Q}=f_Q+{\delta }_e\hfill \\ u_h={\delta }_e\hfill \\ y_h=\gamma \hfill \end{array}$

31

where

$f_{\gamma }=\frac{L+T\text{sin}\left(\theta -\gamma \right)}{mV}-\frac{g}{V}\text{cos}\gamma -\theta$

$f_Q=\frac{M+{\tilde{\psi }}_1{\ddot{\eta }}_1+{\tilde{\psi }}_2{\ddot{\eta }}_2}{I_{yy}}-{\delta }_e$

u_h is the control input and z₂ represents the output signal.

Define

$\{\begin{array}{c}{y}_h=z_1\\ z_2={\dot{z}}_1=f_{\gamma }+\theta \end{array}$

32

So, the time derivative of z₂ is considered as

${\dot{z}}_2={\dot{f}}_{\gamma }+\dot{\theta }={\dot{f}}_{\gamma }+Q$

33

Letting $z_3={\dot{z}}_2={\dot{f}}_{\gamma }+Q$ , the time derivative of z₂ is expressed as

${\dot{z}}_3={\ddot{f}}_{\gamma }+\dot{Q}=F_h+{\delta }_e$

34

where $F_h={\ddot{f}}_{\gamma }+f_Q$ .

Thus, equation (31) can be rewritten as the following output-feedback formulation

$\{\begin{array}{l}{\dot{z}}_1=z_2\hfill \\ {\dot{z}}_2=z_3\hfill \\ {\dot{z}}_3=F_h+{\delta }_e\hfill \\ u_h={\delta }_e\hfill \\ y_h=\gamma \hfill \end{array}$

35

With the foregoing analysis, different from the conventional back-steeping control design process, there is only one unknown function F_h that needs to be approximated by fuzzy system. Simultaneously,, the “explosion of terms” problem also can be avoided. The new states z₂ and z₃ can be estimated by high-order differentiator.

Define the tracking error $\tilde{\gamma }$ and error function R as

$\tilde{\gamma }=\gamma -{\gamma }_d=z_1-{\gamma }_d$

36

$R={\left(\frac{d}{dt}+\mu \right)}^3{\displaystyle {\int }_0^t\tilde{\gamma }d\tau }$

37

where μ is a positive constant to be chosen.

The time derivative of R can be expressed as

$\dot{R}=\stackrel{⃛}{\tilde{\gamma }}+3\mu \ddot{\tilde{\gamma }}+3{\mu }^2\dot{\tilde{\gamma }}+{\mu }^3\tilde{\gamma }$

38

Since

$\{\begin{array}{c}\dot{\tilde{\gamma }}={\dot{z}}_1-{\dot{\gamma }}_d=z_2-{\dot{\gamma }}_d\\ \ddot{\tilde{\gamma }}={\dot{z}}_2-{\ddot{\gamma }}_d=z_3-{\ddot{\gamma }}_d\\ \stackrel{⃛}{\tilde{\gamma }}={\dot{z}}_3-{\stackrel{⃛}{\gamma }}_d=F_h+{\delta }_e-{\stackrel{⃛}{\gamma }}_d\end{array}$

39

Combining equations (38) and (39), we have the expression as follows

$\dot{R}=F_h+{\delta }_e+3\mu \ddot{\tilde{\gamma }}+3{\mu }^2\dot{\tilde{\gamma }}+{\mu }^3\tilde{\gamma }-{\stackrel{⃛}{\gamma }}_d$

40

Noticing the fact that δ_e is constrained, we explore the following additional system by introducing three new variables χ₁, χ₂, and χ₃

$\{\begin{array}{c}{\dot{\chi }}_1={\chi }_2\\ {\dot{\chi }}_2={\chi }_3\\ {\dot{\chi }}_3=-k_1\text{tanh}{\chi }_1-k_2\text{tanh}{\chi }_2-k_3\text{tanh}{\chi }_3+{\delta }_e-{\delta }_{ec}\end{array}$

41

where k₁, k₂, and k₃ are positive constants to be designed.

Define

$Z_2=\tilde{\gamma }-{\chi }_1$

42

$Z_h={\left(\frac{d}{dt}+\mu \right)}^3{\displaystyle {\int }_0^t{Z}_{2}d\tau }$

43

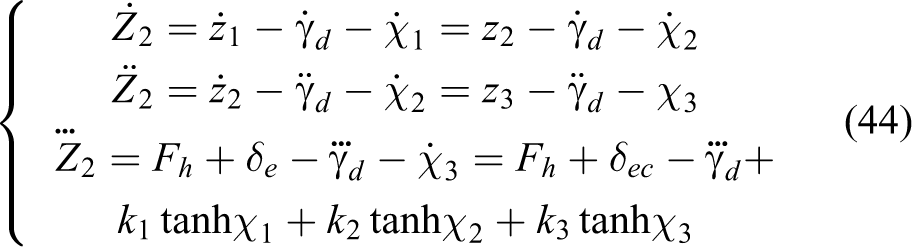

Since

$\{\begin{array}{c}{\dot{Z}}_2={\dot{z}}_1-{\dot{\gamma }}_d-{\dot{\chi }}_1=z_2-{\dot{\gamma }}_d-{\dot{\chi }}_2\\ {\ddot{Z}}_2={\dot{z}}_2-{\ddot{\gamma }}_d-{\dot{\chi }}_2=z_3-{\ddot{\gamma }}_d-{\chi }_3\\ {\stackrel{⃛}{Z}}_2=F_h+{\delta }_e-{\stackrel{⃛}{\gamma }}_d-{\dot{\chi }}_3=F_h+{\delta }_{ec}-{\stackrel{⃛}{\gamma }}_d+\\ k_1\text{tanh}{\chi }_1+k_2\text{tanh}{\chi }_2+k_3\text{tanh}{\chi }_3\end{array}$

44

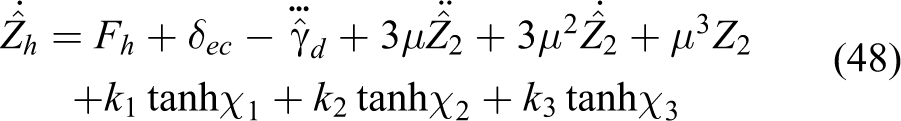

The time derivative of Z_h is formulated as

${\stackrel{⃛}{\tilde{Z}}}_h=F_h+{\delta }_{ec}-\stackrel{⃛}{\widehat{\gamma }}+3\mu {\stackrel{⃛}{\tilde{Z}}}_2+3{\mu }^2{\stackrel{⃛}{\tilde{Z}}}_2+{\mu }^3{Z}_2+k_1\text{tanh}{\chi }_1+k_2\text{tanh}{\chi }_2+k_3\text{tanh}{\chi }_3$

45

Let γ and γ_d as the input signals of the high-order differentiator, we easily get the ${\widehat{z}}_2,{\widehat{z}}_3,{\dot{\widehat{\gamma }}}_d,{\ddot{\widehat{\gamma }}}_d,\text{ and }{\stackrel{⃛}{\widehat{\gamma }}}_d$ . They are the estimations of $z_2,z_3,{\dot{\gamma }}_d,{\ddot{\gamma }}_d,\text{ and }{\stackrel{⃛}{\gamma }}_d$ , respectively.

The estimation errors are defined as

$\{\begin{array}{l}{\nu }_1={\widehat{z}}_2-z_2\hfill \\ {\nu }_2={\widehat{z}}_3-z_3\hfill \\ {\nu }_3={\dot{\widehat{\gamma }}}_d-{\dot{\gamma }}_d\hfill \\ {\nu }_4={\ddot{\widehat{\gamma }}}_d-{\ddot{\gamma }}_d\hfill \\ {\nu }_5={\stackrel{⃛}{\widehat{\gamma }}}_d-{\stackrel{⃛}{\gamma }}_d\hfill \end{array}$

46

From the discussion in the work of Wang and Bijan, ³⁷ it is easy to conclude that there exist positive constants ${\nu }_i^M$ such that ${\nu }_i\le {\nu }_i^M\left(i=1,\mathrm{2...},5\right)$ .

Then, equations (44) and (45) can be rewritten as

$\{\begin{array}{c}{\dot{\widehat{Z}}}_2={\widehat{z}}_2-{\dot{\widehat{\gamma }}}_d-{\chi }_2\\ {\stackrel{⃛}{\widehat{Z}}}_2={\widehat{z}}_3-{\ddot{\widehat{\gamma }}}_d-{\chi }_3\\ {\stackrel{⃛}{\widehat{Z}}}_2=F_h+{\delta }_{ec}-{\stackrel{⃛}{\widehat{\gamma }}}_d+k_1\text{tanh}{\chi }_1+k_2\text{tanh}{\chi }_2+k_3\text{tanh}{\chi }_3\end{array}$

47

$\begin{array}{c}{\dot{\widehat{Z}}}_h=F_h+{\delta }_{ec}-{\stackrel{⃛}{\widehat{\gamma }}}_d+3\mu {\stackrel{⃛}{\widehat{Z}}}_2+3{\mu }^2{\dot{\widehat{Z}}}_2+{\mu }^3{Z}_2\\ +k_1\text{tanh}{\chi }_1+k_2\text{tanh}{\chi }_2+k_3\text{tanh}{\chi }_3\end{array}$

48

Similarly, the optimal parameter vectors ${\varpi }_h^{\text{*}}$ are defined as

${\varpi }_h^{\ast }=\arg \underset{\varpi \in \Omega }{\text{min}}\left[\underset{x_h\in R^2}{\text{sup}}\left|{\widehat{F}}_h\left({\mathit{x}}_h|{\varpi }_h\right)-F_V\left({\mathit{x}}_h\right)\right|\right]$

49

where Ω and R₂ are bounded compact sets for ϖ _h and x _h , respectively.

The unknown nonlinear function is defined as F_h, which can be approximated as

$F_h={\varpi }_h^{\ast T}{\xi }_h\left({\mathit{x}}_h\right)+{\epsilon }_h$

50

where $\left|{\epsilon }_h\right|\le B_h$ is the fuzzy approximation error and B_V denotes the upper bound of ε_V.

Based on the MLP technology, ³⁹ a constant ${\vartheta }_h\text{=}{\Vert {\varpi }_h^{\ast }\Vert }^2$ is defined. Then, we can use the MLP technology to estimate ϑ_h instead of ${\varpi }_h^{\text{*}}$ .

The desired controller δ_ec is deduced as

$\begin{array}{c}{\delta }_{ec}=-k_h{\widehat{Z}}_h-\frac{Z_V}{2}{\widehat{\vartheta }}_h{\xi }_h^T{\xi }_h^T+{\stackrel{⃛}{\widehat{\gamma }}}_d-3\mu {\stackrel{⃛}{\widehat{Z}}}_2-3{\mu }^2{\dot{\widehat{Z}}}_2-{\mu }^3{Z}_2\\ -k_1\text{tanh}{\chi }_1-k_2\text{tanh}{\chi }_2-k_3\text{tanh}{\chi }_3\end{array}$

51

where $k_h\ge 0$ is a design parameter. ${\widehat{\vartheta }}_h$ is the estimation of ϑ_h. The adaptive law of ${\widehat{\vartheta }}_h$ is considered as

${\dot{\widehat{\vartheta }}}_h\text{=}\frac{1}{2}{c}_h{Z}_h^2{\xi }_h^T{\xi }_h-2k_h{\widehat{\vartheta }}_h$

52

where c_h is a positive design parameter.

Theorem 3

Consider the closed-loop system consisting of plant (35) with auxiliary system (41), controller (51), and adaptive law (52). Then all the signals involved in equation (54) are semi-globally uniformly bounded.

Proof

Define the estimation error ${\tilde{\vartheta }}_h\text{=}{\widehat{\vartheta }}_h-{\vartheta }_h$ , combining equations (48) to (51), we have the expression as follows

${\dot{\widehat{Z}}}_h=-k_h{\widehat{Z}}_h+{\varpi }_h^{\text{*}T}{\xi }_h\left({\mathit{x}}_h\right)-\frac{1}{2}{\widehat{Z}}_h{\widehat{\vartheta }}_h{\xi }_h^T{\xi }_h+{\epsilon }_h$

53

Design the following Lyapunov function candidate

$W_h=\frac{1}{2}{\widehat{Z}}_h^2+\frac{{\tilde{\vartheta }}_h^2}{2c_h}$

54

Taking time derivative along equation (54) and using equations (52) and (53)

$\begin{array}{c}{\dot{W}}_h={\widehat{Z}}_h{\dot{\widehat{Z}}}_h+\frac{{\tilde{\vartheta }}_h{\dot{\widehat{Z}}}_h}{c_h}=-k_h{\widehat{Z}}_h^2-\frac{1}{2}{\widehat{Z}}_h{\vartheta }_h{\xi }_h^T{\xi }_h+\\ {\widehat{Z}}_h{\varpi }_h^{\text{*}T}{\xi }_h\left({\mathit{x}}_h\right)+{\widehat{Z}}_h{\epsilon }_h-\frac{2k_h{\tilde{\vartheta }}_h{\widehat{\vartheta }}_h}{c_h}\end{array}$

55

Since

$\begin{array}{c}{Z}_h{\varpi }_h^{*T}{\xi }_h\left({\mathit{x}}_h\right)\le \frac{1}{2}{\widehat{Z}}_h^2{\Vert {\varpi }_h^{*}\Vert }^2{\Vert {\xi }_h\left({\mathit{x}}_h\right)\Vert }^2+\frac{1}{2}\\ =\frac{1}{2}{\widehat{Z}}_h^2{\vartheta }_h{\xi }_h^T{\xi }_h+\frac{1}{2}\\ -2k_h\frac{{\tilde{\vartheta }}_h{\widehat{\vartheta }}_h}{c_h}\le \frac{k_h}{c_h}\left({\vartheta }_h^2-{\tilde{\vartheta }}_h^2\right)\le \frac{k_h}{c_h}{\vartheta }_h^2\\ {\widehat{Z}}_h{\epsilon }_h\le \frac{1}{2}{\widehat{Z}}_h^2{B}_h^2+\frac{1}{2}\end{array}$

56

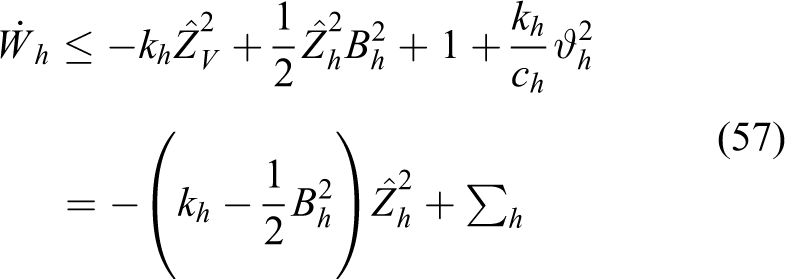

Thus, equation (55) can be rewritten as

$\begin{array}{c}{\dot{W}}_h\le -k_h{\widehat{Z}}_V^2+\frac{1}{2}{\widehat{Z}}_h^2{B}_h^2+1+\frac{k_h}{c_h}{\vartheta }_h^2\\ =-\left(k_h-\frac{1}{2}{B}_h^2\right){\widehat{Z}}_h^2+{\sum }_h\end{array}$

57

where

${\Sigma }_h\text{=}\frac{k_h}{c_h}{\vartheta }_h^2+1>0$

Define the following compact sets

${\Omega }_{{\widehat{Z}}_h}=\left\{{\widehat{Z}}_h|\left|{\widehat{Z}}_h\right|\le \sqrt{{\Sigma }_h/\left(k_h-\frac{1}{2}{B}_h^2\right)}\right\}$

58

If ${\widehat{Z}}_h$ is outside the compact set and $k_h\ge 1/2B_h^2$ , we can obtain ${\dot{W}}_h\le 0$ . The radiuses of ${\Omega }_{{\widehat{Z}}_h}$ can be made arbitrarily small by choosing sufficiently large k_h and also the tracking error ${\widehat{Z}}_h$ can be arbitrarily small. This is the end of proof.

Theorem 4

When the actuator δ_e is saturated, the auxiliary system (41) is still globally asymptotically stable, and the proposed altitude controller enables the altitude to track its command with bounded tracking error.

Proof

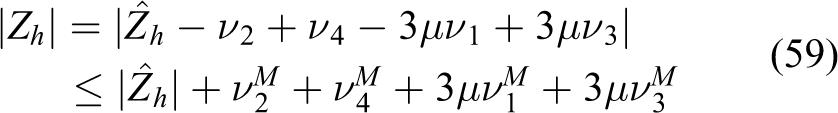

Combining equations (43) to (48), we have the expression as follows

$\begin{array}{c}\left|Z_h\right|=\left|{\widehat{Z}}_h-{\nu }_2+{\nu }_4-3\mu {\nu }_1+3\mu {\nu }_3\right|\\ \le \left|{\widehat{Z}}_h\right|+{\nu }_2^M+{\nu }_4^M+3\mu {\nu }_1^M+3\mu {\nu }_3^M\end{array}$

59

Thus, Z_h is bounded since ${\widehat{Z}}_h$ is semi-globally uniformly bounded. Moreover, the boundedness of Z₂ is achieved according to equation (43).

Then, a Lyapunov function can be chosen in a sufficiently small domain near the trim point (0, 0, $\tan \left[\left({\delta }_e-{\delta }_{ec}\right)/k_3\right]$ ) as follows

$W_{\chi }=k_2{\displaystyle {\int }_0^{{\chi }_1}\text{tanh}{\tau }_1}d{\tau }_1+k_2{\displaystyle {\int }_{{\chi }_2}^{{\chi }_3}\text{tanh}{\tau }_2}d{\tau }_2+\frac{1}{2}{\chi }_3^2$

60

In the chosen sufficiently small domain, it is supposed that ${\chi }_i\ge 0\left(i=1,2,3\right)$ .

Define a positive constant $D_{{\delta }_e}$ that satisfies $\left|{\delta }_e-{\delta }_{ec}\right|\le D_{{\delta }_e}$ . Invoking equation (41), the time derivative of W_χ can be expressed as

${\dot{W}}_{\chi }=k_2{\dot{\chi }}_1\text{tanh}{\chi }_1+k_2{\dot{\chi }}_2\text{tanh}{\chi }_2-k_2{\dot{\chi }}_1\text{tanh}{\chi }_1+{\chi }_3{\dot{\chi }}_3=k_2{\chi }_2\text{tanh}{\chi }_1+k_2{\chi }_3\text{tanh}{\chi }_2-k_2{\chi }_2\text{tanh}{\chi }_1+{\chi }_3{\dot{\chi }}_3=-k_1{\chi }_3\text{tanh}{\chi }_1-k_3{\chi }_3\text{tanh}{\chi }_3+{\chi }_3\left({\delta }_e-{\delta }_{ec}\right)\le -k_1\left|{\chi }_3\right|\text{tanh}{\chi }_1-k_3\left|{\chi }_3\right|\text{tanh}{\chi }_3+\left|{\chi }_3\right|D_{{\delta }_e}\le -k_3\left|{\chi }_3\right|\text{tanh}{\chi }_3+\left|{\chi }_3\right|D_{{\delta }_e}=-\left(k_3\text{tanh}{\chi }_3-D_{{\delta }_e}\right)\left|{\chi }_3\right|$

61

If $k_3\ge \left|\left|\text{tanh}{\chi }_3\right|\right|k_3\ge D_{{\delta }_e}$ , then ${\dot{W}}_{\chi }\le 0$ . Obviously, these states ${\chi }_1,{\chi }_2$ , and χ₃ are bounded.

Invoking Theorem 3, Theorem 4, and equation (42), it is obvious that the tracking error $\tilde{\gamma }$ still keeps bounded even when the control input constraints are in effect. This completes the proof.

Simulation

In this section, simulations on a vehicle are departed into two parts to verify the effectiveness of the proposed control scheme (19), (30), and (51). The aerodynamic coefficients and model parameters of the utilized dynamic model are referred from the literature. ³⁴ The initial values of the states are set as listed in Table 1. The natural frequencies and damping ratios for the flexible state are worked out as follows: ${\tilde{\psi }}_1\text{=}4223.44,{\tilde{\psi }}_2\text{=}4223.55,{\omega }_1\text{=}16.02\text{\hspace{0.17em}rad/s},{\omega }_2\text{=}19.58\text{\hspace{0.17em}rad/s},{\zeta }_1\text{=}{\zeta }_2\text{=}0.02$ .

Table 1.

Initial trim conditions.

Item	Values	Units
V	7700	ft/s
h	85,000	ft
γ	0	deg
θ	1.6325	deg
Q	0	deg/s
η 1	0.9700	ft·slugs0.5/ft
η 2	0.7967	ft·slugs0.5/ft
${\dot{\eta }}_1$	0	ft/s·slugs0.5/ft
${\dot{\eta }}_2$	0	ft/s·slugs0.5/ft

The reference commands of altitude and velocity steps are generated by the filter

$\frac{V_{\text{ref}}\left(s\right)}{V_c\left(s\right)}=\frac{{0.1}^2}{s^2+2\times 0.9\times 0.1\times s+{0.1}^2}$

62

$\frac{h_{\text{ref}}\left(s\right)}{h_c\left(s\right)}=\frac{{0.1}^2}{s^2+2\times 0.9\times 0.1\times s+{0.1}^2}$

63

The parameters for the controller are selected as $k_{V,1}=5.5,k_{V,2}=3,k=9,k_I=2,k_h=35,\mu =7,c_V=c_h=0.1,k_V=1.8,k_1=k_2=\text{1}.\text{5},k_3=0.\text{5}$ .

According to equation (4), the fourth-order differentiator is designed as

$\{\begin{array}{c}{\dot{x}}_1=x_2-\frac{b_4}{\epsilon }{\left|x_1-\upsilon \left(t\right)\right|}^{a_4}\text{sign}\left(x_1-\upsilon \left(t\right)\right)\\ {\dot{x}}_2=x_3-\frac{b_3}{{\epsilon }^2}{\left|x_1-\upsilon \left(t\right)\right|}^{a_3}\text{sign}\left(x_1-\upsilon \left(t\right)\right)\\ {\dot{x}}_3=x_4-\frac{b_2}{{\epsilon }^3}{\left|x_1-\upsilon \left(t\right)\right|}^{a_2}\text{sign}\left(x_1-\upsilon \left(t\right)\right)\\ {\dot{x}}_4=-\frac{b_1}{{\epsilon }^n}{\left|x_1-\upsilon \left(t\right)\right|}^{a_1}\text{sign}\left(x_1-\upsilon \left(t\right)\right)\end{array}$

64

where $a_1\text{=}0.5,a_2\text{=}0.625,a_3\text{=}0.75,a_4\text{=0.875},\epsilon \text{=}0.1,b_1\text{=3},b_2\text{=5},b_3\text{=8},b_4\text{=12}$ .

Let $x_V=V,x_h={\left[V,\gamma ,\theta ,Q,{\widehat{z}}_2,{\widehat{z}}_3\right]}^T$ as the inputs of FLSs. We choose the fuzzy membership functions as

${\mu }_{F_i^l}\left(x_i\right)\text{=}\exp \left\{-{\left(x_i-{\mu }_{ij}\right)}^2\right\}\text{, }i=V,h,j=1,2,\mathrm{...7}$

Scenario 1

In this scenario, the altitude tracks a square command with a period of 200 s and magnitude ± 700 ft. To show the effectiveness of the proposed novel auxiliary systems, the following three cases are considered.

Case 1. The actuator saturations are supposed as $\Phi \in \left[0.2,0.35\right],{\delta }_e\in \left[{10}^{\circ },{15}^{\circ }\right]$ . The desired controllers (19) and (51) are compensated by the proposed auxiliary systems (12) and (41).

Case 2. The actuator saturations are supposed as $\Phi \in \left[0.05,1.2\right],{\delta }_e\in \left[-{20}^{\circ },{20}^{\circ }\right]$ . The proposed auxiliary systems (12) and (41) are eliminated.

Case 3. The actuator saturations are supposed as $\Phi \in \left[0.2,0.35\right],{\delta }_e\in \left[{10}^{\circ },{15}^{\circ }\right]$ . The proposed auxiliary systems (12) and (41) are eliminated.

The simulation results of cases 1 and 2 are shown in Figures 1 to 5. From Figure 1, we can see that the χ_V and χ₁ of auxiliary systems can duly compensate the actuator saturation, which indicates that the introduced auxiliary systems can commendably provide error compensation on the desired controllers. As shown in Figures 2 and 3, the velocity and altitude can track their commands timely and with bounded tracking errors when the limitations on actuators are in effect. However, the tracking error during the transient in case 2 is less than that of case 1. This is due to the saturation of Φ and δ_e. The simulation results in Figures 4 and 5 confirm that the rigid/flexible states converge to the desired trim conditions in a short time. Thus, the designed control method has a good performance on disposing input constraints.

Figure 1.

Control inputs.

Figure 2.

Velocity tracking and tracking error.

Figure 3.

Altitude tracking and tracking error.

Figure 4.

Flight-path angle, pitch angle, and pitch rate.

Figure 5.

The flexible states.

Figures 6– to 8 show the results of case 3. Since auxiliary systems (12) and (41) are eliminated, the strategy cannot tackle the control inputs constraints anymore. The velocity and altitude also can’t track their reference trajectory.

Figure 6.

Control inputs (case 3).

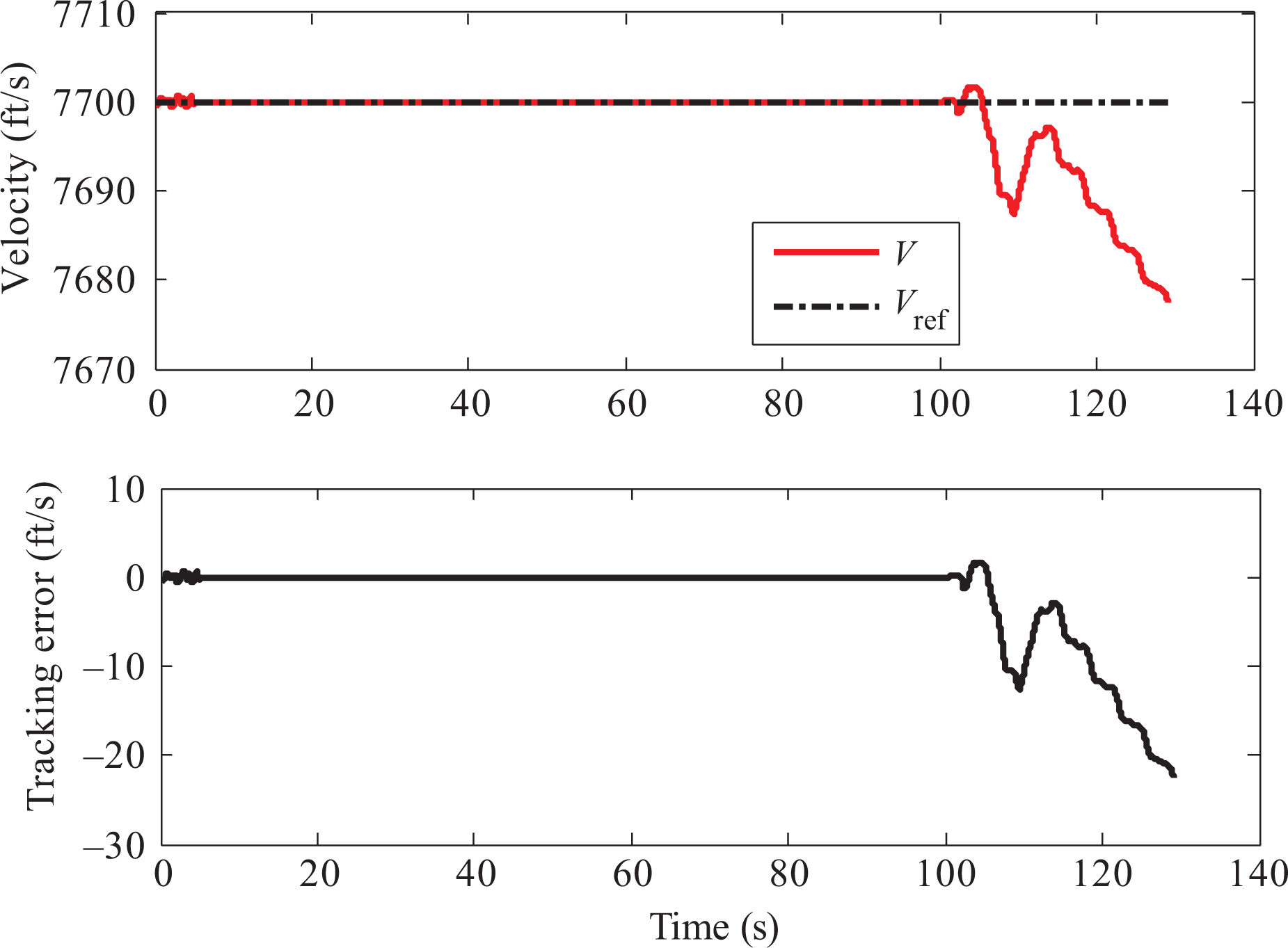

Figure 7.

Velocity tracking and tracking error (case 3).

Figure 8.

Altitude tracking and tracking error (case 3).

Scenario 2

In this scenario, the altitude controller tracks the step change with magnitude 2000 ft, while the velocity steps from 7700 ft/s to 8200 ft/s. The actuator saturations are supposed as $\Phi \in \left[0.05,1.2\right],{\delta }_e\in \left[-{20}^{\circ },{20}^{\circ }\right]$ . To illustrate the robustness of control laws developed herein, the aerodynamic coefficient’s value C is assumed as

$C=\{\begin{array}{c}{C}_0,0\text{s}\le t\le 100\text{s}\\ 0.9C_0,100\text{s}\le t\le 150\text{s}\\ 1.2C_0,150\text{s}\le t\le 200\text{s}\\ \left(1+0.3\text{sin}(0.01\pi t\right)C_0,200\text{s}\le t\le 300\text{s})\end{array}$

65

where C₀ is aerodynamic coefficient’s nominal value.

The simulation results are illustrated in Figures 9 to 11. It can be seen from Figures 9 and 10 that the velocity and altitude can track their commands timely and without any steady tracking errors under aerodynamic coefficient perturbation. Time responses to control inputs change are presented in Figure 8. It can be seen from Figure 8(a) that the saturation occurs in fuel equivalence ratio during simulation, but the controller still provides a good track characteristic according to Figures 9 and 10.

Figure 9.

Velocity tracking and tracking error.

Figure 10.

Altitude tracking and tracking error.

Figure 11.

Control inputs.

Conclusions

For a nonlinear model of FAHV, an adaptive fuzzy tracking control approach is addressed for the longitudinal dynamical model of FAHV with input constraints. The longitudinal dynamic model of FAHV is decomposed into two subsystems including the velocity subsystem and the altitude subsystem. For each subsystem, the FLSs are designed to approximate the unknown system nonlinearity, which needs less knowledge of dynamic model. To alleviate computational burden of the controller, the MLP is introduced to decrease the amount of adaptive parameters that needs to be updated online. By introducing finite-time convergence high-order differentiator to estimate the newly defined variables, the design of controller is predigested. Furthermore, novel auxiliary systems are constructed to eliminate the saturation effect. A comprehensive Lyapunov-based stability analysis is provided to show that the control design achieves ultimate boundedness tracking for FAHV. Simulation results demonstrate that the proposed control strategy can provide satisfactory velocity and altitude tracking performance with input constraints and external disturbance.
