Abstract

With complex dynamic characteristics in many variables changing during actual operation, a Mecanum-wheeled mobile robot (MWMR) causes many difficulties for path planning and control. In addition, in many applications, robots need to operate automatically and find the optimal path. This article proposes intelligent MWMR path planning based on the real-time rapidly exploring random tree* (RT-RRT*) and optimal interval type 2 fuzzy logic controller (IT2FLC). First, the path planning of the MWMRs in dynamic environments is developed by RT-RRT*. Second, the optimal IT2FLC is designed for MWMRs based on the genetic algorithm. The pre-treatment and post-treatment coefficients of IT2FLC are optimized with the goal of achieving the best trajectory quality of the robot. This helps the robot to operate independently and accurately, and complete tasks in environments with many complex disturbances. Various trajectories are given to test the performance of the proposed approach. The results show that the efficiency of the designed method is better than that of a type 1 fuzzy logic controller (traditional fuzzy logic controller) and proportional–integral–derivative under the same conditions.

Keywords

Mobile robot nonholonomic Mecanum wheeled trajectory tracking

Introduction

Mobile robots play a crucial role in various applications, including industrial automation, logistics, and autonomous navigation in many important fields such as agriculture,¹ exploration,² rescue,³ and so on. Among different types of mobile robots, the Mecanum-wheeled mobile robot (MWMR)⁴ offers superior maneuverability due to its omnidirectional movement capabilities. These robots employ custom-engineered mecanum wheels that enable omnidirectional movement without necessitating a change in orientation, rendering them highly suitable for confined environments where accurate trajectory control is critical. This type of robot is capable of operating autonomously, working in dangerous or hard-to-reach environments. In real applications, unfortunately, mecanum-wheeled mobile robots inevitably face many complex uncertainties caused by non-holonomic constraints and complex dynamics. These challenges make the field highly attractive to researchers, pushing advancements in mobile robot path planning based on intelligent algorithms.

Path planning is a crucial aspect of robotics and autonomous navigation, enabling robots to find optimal or feasible routes in complex environments.^5–7 Among various approaches, random path planning techniques offer flexibility and adaptability in dynamic and unpredictable settings. Real-time rapidly exploring random tree* (RT-RRT*)⁸ is a novel approach inspired by the erratic yet goal-oriented movements of rabbits in nature. Rabbits often navigate their surroundings using a combination of random exploration and strategic decision-making to avoid obstacles and reach safe destinations. Similarly, RT-RRT* leverages randomized path selection while continuously adapting based on the environmental feedback, making it well-suited for real-time applications.⁹ This method is particularly effective in environments where traditional deterministic algorithms struggle due to uncertainties, dynamic obstacles, or incomplete information. By incorporating elements of randomness and real-time decision-making, RT-RRT* aims to enhance efficiency, adaptability, and robustness in robotic path planning. Guo et al.¹⁰ propose the hierarchical rapidly exploring random tree algorithm based on potential function lazy planning and low-cost optimization* (HPO-RRT*) algorithm, designed to enhance unmanned aerial vehicle (UAV) navigation in dynamic settings. This algorithm integrates a hierarchical planning structure with an optimized sampling strategy, enabling UAVs to efficiently generate collision-free paths in environments with moving obstacles. Xu¹¹ provides a comprehensive overview of the developments in rapidly exploring random tree (RRT) algorithms. The article delves into theoretical enhancements, such as improvements in branching strategies, sampling methods, post-processing techniques, and the integration of model-driven approaches. Lee et al.¹² introduce an enhanced path planning algorithm aimed at improving dynamic obstacle avoidance for aircraft. Building upon the traditional RRT framework, the proposed method incorporates directed sampling strategies to efficiently navigate complex airspaces. Xu et al.¹³ introduce the informed anytime fast marching tree* (IAFMT*) algorithm, an advancement in sampling-based motion planning. IAFMT* is designed to efficiently find asymptotically optimal paths by integrating informed sampling strategies with an anytime framework, allowing for rapid initial solutions that improve over time. In the literature review, the algorithms only focus on constructing and optimizing path trajectories for robots based on different algorithms. Combining path planning with control schemes is often neglected.

In particular, for the MWMRs, a type of wheel that is quite complicated to control. Many algorithms have been applied to control mobile mecanum wheel robots from classic to modern, such as proportional–integral–derivative (PID),^14–16 neural network,^17–19 fuzzy,^20–22 and so on. Huang et al.²³ propose an innovative control strategy for omnidirectional mobile robots. The authors integrate a metaheuristic-optimized fuzzy neural network with a self-tuning autonomous control mechanism to enhance the robots’ adaptability and performance in dynamic environments. Zijie et al.²⁴ propose a fuzzy proportional-integral control algorithm to enhance the course accuracy of omnidirectional mobile robots. The algorithm dynamically adjusts the robot's course in real-time by analyzing its omnidirectional movement characteristics. Sun et al.²⁵ propose a novel control strategy for trajectory tracking in MWMR used in agricultural settings. The authors develop a kinematic and dynamic model with four control inputs and three states, and design a fuzzy adaptive recursive terminal sliding mode controller to enhance tracking accuracy and control smoothness. There are also other optimized controllers,^26–29 such as PID controller optimized using neural networks,³⁰ fuzzy-PID controller optimized by a genetic algorithm (GA).³¹ It can be seen that using different algorithms to optimize parameters for the controller yields many good results and fast processing times in simulation and experimental environments. This is also a method used by many researchers to control a system with many uncertain factors, such as mobile robots.

The goal of applying the combination of the RT-RRT* and the genetic algorithm with type-2 fuzzy logic controller (GA-T2FLC) is to help the robot move from the initial position to the target in the obstructed space with high accuracy. The RT-RRT* makes it possible for the robot to create the optimal trajectory in the map with factors such as the size and location of obstacles known in advance. The MWMR is used to take advantage of the ability to move flexibly and accurately according to complex trajectories. From there, it can meet most diverse trajectories created by RT-RRT*. Compared to the existing works, the proposed approach has several contributions as follows:

The path planning of the MWMR in dynamic environments is developed by RT-RRT*. Instead of employing purely random space exploration, the RT-RRT* algorithm performs an informed exploration of the search space. It makes use of the first path found by RT-RRT* as an intelligent guess and uses intelligent sampling to give an optimum or near-optimum path at a very fast rate of convergence and reduced execution time.

The genetic algorithm with interval type 2 fuzzy logic controller (GA-IT2FLC) is responsible for giving control signals to MWMR following a defined trajectory. The pre-treatment coefficients before feeding the feedback signal into IT2FLC are optimized based on a GA. The proposed method has better tracking performance compared to the genetic algorithm with type-1 fuzzy logic controller (GA-T1FLC) and PID controller.

MWMR kinematic analysis and dynamic modeling

Kinematic analysis

The MWMR employed in this study adopts a wheel arrangement as illustrated in Figure 1.³² In this configuration, the robot's origin and the positive direction are indicated in the diagram. The orientation of the rollers from Wheel 1 to Wheel 4 is arranged sequentially at angles of $π / 4$ , $3 π / 4$ , $3 π / 4$ , and $π / 4$ to be sure that the least amount of energy is needed. The forwarding kinematic equations vary depending on the configuration. But the rotational mix of the wheels does not change.³³ Since not all arrangements can provide the required motion in the appropriate direction and because they require more torque to move, arrangements other than these two are deemed incorrect.

Figure 1.

Potential configuration of Mecanum wheels.

In Figure 2, the kinematic analysis is displayed, where $υ_{i a} = r w_{i}$ $(i = 1, 2, 3, 4)$ is a velocity vector that, under the condition of no slippage, corresponds to wheel revolutions. r is the radius of the wheel, $ω_{i}$ is angular velocity of the wheel i, $υ_{i b}$ is the free roller's tangential velocity vector in relation to the floors, and l is the platform's half-length, while d is the platform's half-width.

Figure 2.

Kinematic analysis of the Mecanum-wheeled mobile robot (MWMR).

The linear movement of the MWMR is $υ_{i y}$ which is derived from the wheel velocity $υ_{i b} \sin 45^{o}$ . Likewise, $υ_{i x}$ is $υ_{i a}$ and $υ_{i b} \cos 45^{o}$ . The value of $\cos (π / 4) = \sin (π / 4) = 1 / \sqrt{2}$ . Therefore

\begin{aligned} υ_{1 x} = υ_{1 a} + \frac{υ_{1 b}}{\sqrt{2}}; υ_{1 y} = \frac{υ_{1 b}}{\sqrt{2}} \\ υ_{2 x} = υ_{2 a} + \frac{υ_{2 b}}{\sqrt{2}}; υ_{2 y} = \frac{υ_{2 b}}{\sqrt{2}} \\ υ_{3 x} = υ_{3 a} + \frac{υ_{3 b}}{\sqrt{2}}; υ_{3 y} = \frac{υ_{3 b}}{\sqrt{2}} \\ υ_{4 x} = υ_{4 a} + \frac{υ_{4 b}}{\sqrt{2}}; υ_{4 y} = \frac{υ_{4 b}}{\sqrt{2}} \end{aligned}

(1)

For rotational movement, $υ_{i y}$ is synthesized from the robot's moving velocity along the y-axis and the robot's angular velocity $ω$ . $υ_{i x}$ is equal to the robot's moving speed along the x-axis $υ_{x}$ plus the distance of the wheel center to the platform d in the direction times $ω$ .

\begin{aligned} υ_{1 x} = υ_{x} - d ω; υ_{1 y} = υ_{y} + l ω \\ υ_{2 x} = υ_{x} + d ω; υ_{2 y} = υ_{y} + l ω \\ υ_{3 x} = υ_{x} - d ω; υ_{3 y} = υ_{y} - l ω \\ υ_{4 x} = υ_{x} + d ω; υ_{4 y} = υ_{y} - l ω \end{aligned}

(2)

From equations (1) and (2), we can summarize the equation as follows:

\begin{aligned} υ_{1 a} = υ_{x} - υ_{y} (l + d) ω υ_{2 a} = υ_{x} + υ_{y} (l + d) ω υ_{3 a} \\ = υ_{x} + υ_{y} (l + d) ω υ_{4 a} = υ_{x} - υ_{y} (l + d) ω \end{aligned}

(3)

Equation (3) can be written in matrix form as follows:

[\begin{matrix} υ_{1 a} \\ υ_{2 a} \\ υ_{3 a} \\ υ_{4 a} \end{matrix}] = H [\begin{matrix} υ_{x} \\ υ_{y} \\ ω_{z} \end{matrix}]

(4)

where

H = [\begin{matrix} 1 & - 1 & - (l + d) \\ 1 & 1 & l + d \\ 1 & 1 & - (l + d) \\ 1 & - 1 & l + d \end{matrix}]

(5)

Matrix D in equation (5) must be changed using the pseudo-inverse method in order to solve this equation, where

\begin{aligned} H^{+} = (H^{T} \cdot H)^{- 1} H^{T} \\ = \frac{1}{4} [\begin{matrix} 1 & 1 & 1 & 1 \\ - 1 & 1 & 1 & - 1 \\ 1 / - (l + d) & 1 / (l + d) & 1 / - (l + d) & 1 / (l + d) \end{matrix}] \end{aligned}

(6)

Rearranging equation (6), the forward kinematic equation can be obtained as follows:

[\begin{matrix} υ_{x} \\ υ_{y} \\ ω \end{matrix}] = \frac{r d}{4} [\begin{matrix} 1 & 1 & 1 & 1 \\ - 1 & 1 & 1 & - 1 \\ 1 / (l + d) & 1 / - (l + d) & 1 / - (l + d) & 1 / (l + d) \end{matrix}] [\begin{matrix} ω_{1} \\ ω_{2} \\ ω_{3} \\ ω_{4} \end{matrix}]

(7)

Table 1 provides a summary of the movement's direction with regard to the wheel's rotation, with “+” denoting clockwise and counterclockwise rotation, respectively. The number “0” indicates that only the free rollers are turning, and the wheel is still halted.

Table 1.

Combination of wheels rotation in producing Mecanum-wheeled mobile robot (MWMR) motions.

Directions	Wheel 1	Wheel 2	Wheel 3	Wheel 4
North	+	+	+	+
South	−	−	−	−
East	+	−	−	+
West	−	+	+	−
North East	+	0	0	+
North West	0	+	+	0
South East	−	0	0	−
South West	0	−	−	0
Clockwise	+	−	+	−
Counter clockwise	−	+	−	+

Dynamic modeling

Newton's method states that dynamic equations take into account the effects of both Coulomb and viscous friction as follows:

{\begin{matrix} m \frac{d υ_{x}}{d t} = \sum F_{x} - F_{B x} - F_{C x} \\ m \frac{d υ_{y}}{d t} = \sum F_{y} - F_{B y} - F_{C y} \\ m \frac{d ω}{d t} = \sum T - T_{B ω} - T_{C ω} \end{matrix}

(8)

Using the coordinate axis system that was chosen, as illustrated in Figure 2, we have

{\begin{matrix} F_{x} = \frac{\sqrt{2}}{2} (- f_{1} - f_{2} + f_{3} + f_{4}) \\ F_{y} = \frac{\sqrt{2}}{2} (f_{1} - f_{2} - f_{3} + f_{4}) \\ T = d (f_{1} + f_{2} + f_{3} + f_{4}) \end{matrix}

(9)

$F_{B x} = B_{x} sgn (υ_{x}), F_{B y} = B_{y} sgn (υ_{y})$ : Viscous friction force in the direction $υ_{x}$ and $υ_{y}$ . $T_{B ω} = B_{ω} sgn (ω)$ : Viscous friction in the direction of rotation of the robot.

$F_{C x} = C_{x} sgn (υ_{x}), F_{C y} = C_{y} sgn (υ_{y})$ : Coulomb friction force in the direction $υ_{x}$ and $υ_{y}$ .

$T_{C ω} = C_{ω} sgn (ω)$ : Coulomb friction in the direction of rotation of the magnetic robot, we get.

{\begin{matrix} m \frac{d υ_{x}}{d t} + B_{x} υ_{x} + C_{x} sgn (υ_{x}) = \frac{\sqrt{2}}{3} \frac{1}{r} (- τ_{1} - τ_{2} + τ_{3} + τ_{4}) \\ m \frac{d υ_{y}}{d t} + B_{y} υ_{y} + C_{y} sgn (υ_{y}) = \frac{\sqrt{2}}{3} \frac{1}{r} (τ_{1} - τ_{2} - τ_{3} + τ_{4}) \\ J \frac{d ω}{d t} + B_{ω} ω + C_{ω} sgn (ω) = \frac{d}{r} (τ_{1} + τ_{2} + τ_{3} + τ_{4}) \end{matrix}

(10)

From there, we have the dynamic equation of the robot, which looks like this:

M (q) \dot{υ} + C υ + G sgn (υ) + τ_{d} = B τ

(11)

where

υ = {[\begin{matrix} υ_{x} & υ_{y} & ω \end{matrix}]}^{T}

is the velocity vector of the robot.

M (q) = [\begin{matrix} m & 0 & 0 \\ 0 & m & 0 \\ 0 & 0 & J \end{matrix}]

it is a matrix, where m is the mass and J is the moment of inertia of the robot.

C = [\begin{matrix} B_{x} & 0 & 0 \\ 0 & B_{y} & 0 \\ 0 & 0 & B_{ω} \end{matrix}]

and

G = [\begin{matrix} C_{x} & 0 & 0 \\ 0 & C_{y} & 0 \\ 0 & 0 & C_{ω} \end{matrix}]

are the coefficient of viscous friction matrix and coulomb friction, respectively.

B = [\begin{matrix} - \frac{\sqrt{2}}{2 r} & - \frac{\sqrt{2}}{2 r} & \frac{\sqrt{2}}{2 r} & \frac{\sqrt{2}}{2 r} \\ \frac{\sqrt{2}}{2 r} & - \frac{\sqrt{2}}{2 r} & - \frac{\sqrt{2}}{2 r} & \frac{\sqrt{2}}{2 r} \\ \frac{d}{r} & \frac{d}{r} & \frac{d}{r} & \frac{d}{r} \end{matrix}]

is the control factor matrix.

RT-RRT* algorithm for dynamic environments

The RT-RRT*³⁴ is a real-time path planning algorithm, improved based on RRT and Informed RRT. As such, RT-RRT* combines the advantages of RRT* in optimal pathfinding with the fast computation time of informed RRT*. The proposed algorithm is capable of performing calculations while the root of the tree may change, without discarding previously sampled paths. In other words, the tree structure is preserved without the need to resample from scratch. The interleaved restructuring of the tree significantly reduces computation time. As a result, the algorithm can respond quickly to environmental changes while maintaining the ability to find an optimal path. The implementation method of the RT-RRT* algorithm is illustrated in Figure 3.

Figure 3.

Diagram of the operation process of the real-time rapidly exploring random tree* (RT-RRT*) algorithm.

The proposed method is shown in Algorithm 1. The algorithm presents a detection method that intersperses tree expansion and node connection. The root of the tree is defined with $χ_{root}$ , while the position of the obstacle is $χ_{obs}$ and the destination position is $χ_{goal}$ are shown in line 1 of the algorithm. The tree is denoted by $Ψ$ , while each node in it is represented by $χ_{i}$ . $ρ_{r}$ and $ρ_{s}$ are defined by tree expansion-and-rewriting in.³⁴ The user will define the number of connections in each generation (line 3 of the algorithm). Then a trajectory is started at the base of the tree, the user can further define the desired number of steps ( $k$ in line 7). The designed trajectory is set at the nodes starting from the base of the tree $(χ_{0}, χ_{1}, \dots, χ_{k})$ . In each generation, individuals are limited in the number of moves to keep them close to the base of the tree ( $χ_{0}$ in line 10). When the trajectory detection is complete and each individual is at the base of the tree, the stump will be changed to the next node $χ_{0}$ in the orbit being searched ( $χ_{1}$ in lines 8 and 9). Therefore, each of the moves is based on the stump of the tree, from which they are able to reach the target.

The tree grows so big (but with fewer nodes) when $Ψ$ is kept between iterations that real-time path planning is unable to handle it completely. To make things simpler and save memory, a subset of buttons is used instead, represented as $χ_{S I}$ (subset of nodes).

$χ_{S I}$ is also used to search for a node inside the target zone ( $r_{g}$ ) as well as to block all nodes inside the obstacle zone ( $r_{b}$ ) of dynamic obstacles. To work with $χ_{S I}$ instead of the entire $Ψ$ environment with a square grid (Figure 4(a)). To find the $χ_{S I}$ around a node (e.g. a coin), we find the square grid where the coin is located. Then we return all the nodes of the plant located inside the target zone and in its adjacent squares. A $g_{i}$ grid is considered to be adjacent to another g_i grid when $g_{j}$ is the closest grid to the g_i that has at least one node of the tree inside it. Figure 4(b) illustrates the difference between the adjacent grids of g_i and taste. Note that the size of the mesh strongly affects the processing time and size of the $χ_{S I}$ . In addition, each grid must be large enough to accommodate the obstacle zone around each animal obstacle.

Figure 4.

(a) Consider only the influence of dynamic obstructions within $r_{b}$ the radius and (b) adjacent cells of the target zones $r_{g}$ and $g_{i}$ .

Adaptive type 2 fuzzy logic controller

Type 2 fuzzy logic controller

An IT2FLC is designed and improved based on the T1FLC.³⁵ The principle diagram of IT2FLC³⁶ can be seen in Figure 5. In which some of the components of IT2FLC are similar to T1FLC. The difference is the type-reducer³⁷ to convert a type 2 fuzzy set (T2FS) to a type 1 fuzzy set (T1FS).

Figure 5.

Block diagram describing a type 2 fuzzy logic set (T2FLS).

For T1FLC, T1FS X is the equation that represents the relationship between the real domain $Δ_{X}$ with a membership function (MF) $μ_{X} : Δ_{X} \to [0, 1]$

X = \int_{D_{X}} μ_{X} (x) / x

where

\int

is the set of

x \in Δ_{X}

elements computed from

μ_{X} (x)

It can be seen that the members of T1FS's are clear values. Therefore, many studies indicate that although T1FS helps T1FLC to handle uncertainties, it is still limited in some cases [aaa]. The T2FS is made up of blurring the members of the MF.

A T2FS $\tilde{X}$ represented by MF $μ_{\tilde{X}} (x, v)$ . In which $\tilde{X}$ calculated as follows:

\begin{aligned} \tilde{X} & = \int_{x \in Δ_{\tilde{X}}} \int_{v \in L_{x} \subseteq [0, 1]} μ_{\tilde{X}} (x, u) / (x, u) \\ = \int_{x \in Δ_{\tilde{X}}} \int_{v \in L_{x} \subseteq [0, 1]} 1 / (x, u) = \int_{x \in Δ_{\tilde{X}}} [\int_{v \in L_{x} \subseteq [0, 1]} 1 / u] / x \end{aligned}

(12)

where x is a primary variable, located in the domain

D_{\tilde{X}}

;

v \in [0, 1]

called the secondary variable, which is located in the

L_{X} \subseteq [0, 1]

of each

x \in D_{\tilde{X}}

; amplitude of

μ_{\tilde{X}} (x, v)

called the secondary layer of

\tilde{X}

equal 1 with

\forall x \in Δ_{\tilde{X}}

and

\forall v \in L_{X} \in [0, 1]

Figure 6 shows an example of T2FS, $\tilde{X}$ . As can be seen, the difference between the $x^{'}$ value in T1FS is a number, while in T2FS is an interval. T2FS is made up of the upper MF $\bar{X}$ and the lower MF $\underline{X}$ . The space between $\bar{X}$ and $\underline{X}$ is called the footprint of uncertainty (FOU).

Figure 6.

A sample of an interval type 2 fuzzy set (IT2FS).

The calculation of IT2FLC adopts a system based on the experience of the operator. Suppose IT2FLC's law system includes K law. The general system is given as follows:

\tilde{R^{k}} : IF x_{1} is \tilde{X_{1}^{k}} and \dots and x_{N} is \tilde{X_{N}^{k}}, THEN y i s Y^{k}

where

\tilde{X_{i}^{k}} (i = 1, \dots, N; k = 1, \dots, K)

is T2FS and

Y^{k} = [{\bar{y}}^{k}, y^{k}]

are the intervals defined in based on the Takagi-Sugeno method. IT2FLC performs the calculation in the following steps:

Step 1: The input of the controller is the vector $x^{'} = ({x^{'}}_{1}, {x^{'}}_{2}, \dots, {x^{'}}_{k})$ , which performs the calculation of the membership interval of $x_{i}^{'}$ each $\tilde{X_{1}^{k}}$ , $[μ_{{\underline{X}}_{i}^{k}} ({x^{'}}_{i}), μ_{{\bar{X}}_{i}^{k}} ({x^{'}}_{i})] (i = 1, \dots, N; k = 1, \dots, K)$ .

Step 2: Calculating the fuzzy space of the second law $k th$ , $H^{n} (x^{'})$ :

H^{n} (x^{'}) = [μ_{{\underline{X}}_{1}^{k}} ({x^{'}}_{1}) \times \dots \times μ_{{\underline{X}}_{N}^{K}} ({x^{'}}_{N})] \equiv [{\underline{g}}^{k}, {\bar{g}}^{k}]]

(13)

Step 3: Type-reducer, $Y_{r e} (x^{'})$ , the commonly used method is the center-of-set type reducer.

Y_{r e} (x^{'}) = \underset{\begin{matrix} g^{k} \in G^{k} (x^{'}) \\ y^{k} \in Y^{k} \end{matrix}}{\cup} \frac{\sum_{k = 1}^{K} g^{k} y^{k}}{\sum_{k = 1}^{K} g^{k}} = [y_{l}, y_{r}]

(14)

where

y_{l} = \min_{m \in [1, k - 1]} \frac{\sum_{k = 1}^{m} {\bar{g}}^{k} {\underline{y}}^{k} + \sum_{k = m + 1}^{K} {\underline{g}}^{k} {\underline{y}}^{k}}{\sum_{k = 1}^{m} {\bar{g}}^{k} + \sum_{k = m + 1}^{K} {\underline{g}}^{k}} \equiv \frac{\sum_{k = 1}^{L} {\bar{g}}^{k} {\underline{y}}^{k} + \sum_{k = L + 1}^{K} {\underline{g}}^{k} {\underline{y}}^{k}}{\sum_{k = 1}^{L} {\bar{g}}^{k} + \sum_{k = L + 1}^{K} {\underline{g}}^{k}}

(15)

and

y_{r} = \max_{m \in [1, k - 1]} \frac{\sum_{k = 1}^{m} {\underline{g}}^{k} {\bar{y}}^{k} + \sum_{k = m + 1}^{K} {\bar{g}}^{k} {\bar{y}}^{k}}{\sum_{k = 1}^{m} {\underline{g}}^{k} + \sum_{k = m + 1}^{K} {\bar{g}}^{k}} \equiv \frac{\sum_{k = 1}^{R} {\underline{g}}^{k} {\bar{y}}^{k} + \sum_{k = R + 1}^{K} {\bar{g}}^{k} {\bar{y}}^{k}}{\sum_{k = 1}^{R} {\underline{g}}^{k} + \sum_{k = R + 1}^{K} {\bar{g}}^{k}}

(16)

where L and R are defined by the following equation:

{\underline{y}}^{L} \leq y_{l} \leq {\underline{y}}^{L + 1}, {\bar{y}}^{R} \leq y_{r} \leq {\bar{y}}^{R + 1}

(17)

y_{l}

and

y_{r}

can be computed by the Karnik-Mendel algorithms.³⁵

Step 4: The defuzzification process is done by equation (18), which obtains a crisp output value.

y = \frac{y_{l} + y_{r}}{2}

(18)

The mobile robot was modeled with a Takagi-Sugeno fuzzy controller. The linear and the angular velocity errors are taken as input variables, and the right and left torques as the outputs. The membership functions used in the input are trapezoidal for the negative (N) and positive (P), and triangular for the zero (Z) linguistic terms. Table 2 shows the set of used fuzzy rules.

Table 2.

Direction of the Mecanum-wheeled mobile robot.

$e_{v}$ (In1)	$e_{w}$ (In2)	Out1	Out2
N	N	N	N
N	Z	N	Z
N	P	N	P
Z	N	Z	N
Z	Z	Z	Z
Z	P	Z	P
P	N	P	N
P	Z	P	Z
P	P	P	P

N: negative; P: positive; Z: zero.

The set of membership functions used in the inputs by the T1FLC is shown in Figures 6 and 7, for $e_{v}$ and $e_{w}$ , respectively.

Figure 7.

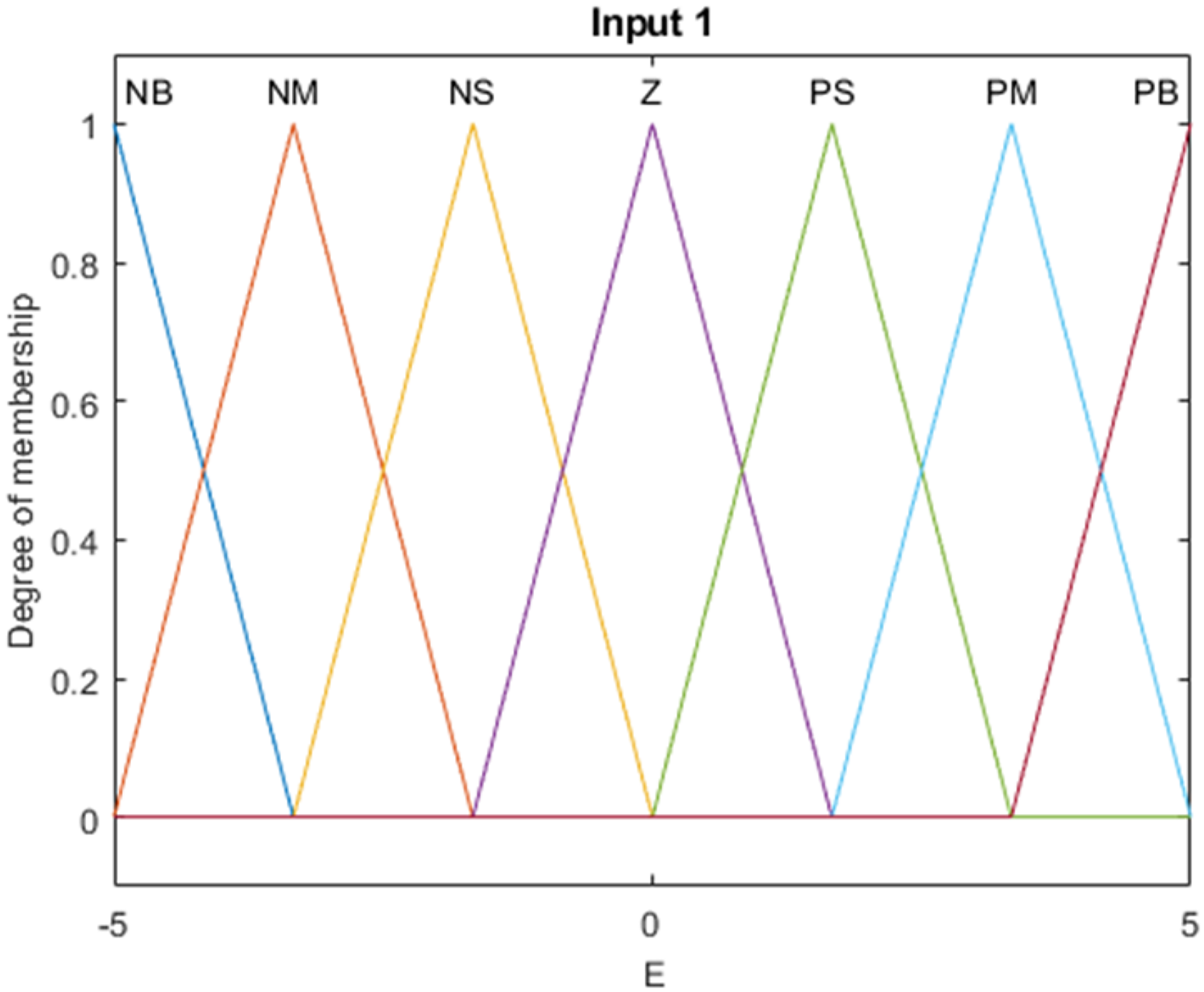

Membership function distribution for the $e_{v}$ input with a type 1 fuzzy logic controller (T1FLC).

The set of membership functions used on the inputs by the IIT2FLC is shown in Figures 8 and 9, for $e_{v}$ and $e_{w}$ , respectively. It can be noted here that both sets of membership functions for each input, $e_{v}$ and $e_{w}$ , are the same since the FOU covers the slight difference between both $e_{v}$ and $e_{w}$ as noted in the membership functions of the T1FLC.

Figure 8.

Membership function distribution for $e_{w}$ input with type 1 fuzzy logic controller (T1FLC).

Figure 9.

Membership function distribution for $e_{v}$ input with an interval type 2 fuzzy set (IT2FS).

Finally, the set of membership functions used on the inputs of the IT2FLC is shown in Figures 10 and 11 where only one representative set of membership functions is used for both $e_{v}$ and $e_{w}$ since, the same as with the IT2FLC, the FOU covers the slight difference which exists in the T1FLC.

Figure 10.

Membership function distribution for $e_{w}$ input with an interval type 2 fuzzy set (IT2FS).

Figure 11.

(a) T1FLS control surface and (b) T2FLS control surface.

GA-type 2 fuzzy logic controller

In this study, the author uses a GA to calibrate the pretreatment coefficient for the IT2FLC controller, the control system block diagram shown in Figure 12.

Figure 12.

Block diagram of an interval type 2 fuzzy logic controller (IT2FLC) optimal control system for a mobile robot.

As analyzed in the “Mecanum wheels mobile robot kinematic analysis and dynamic modeling” section, each corresponding wheel will have an IT2FLC. The input of each IT2FLC is the velocity error and the velocity error derivative. Figure 13 more clearly shows the pretreatment coefficients of IT2FLC. Corresponding to each input, there will be a pretreatment factor. We have the pretreatment coefficient vector as follows:

K = [\begin{matrix} K_{1} & K_{2} & K_{3} & K_{4} & K_{5} & K_{6} & K_{7} & K_{8} \end{matrix}]

Figure 13.

Detailed square block diagram for an interval type 2 fuzzy logic controller (IT2FLC) mobile robot controller.

The management of $K$ pretreatment factors is important because it affects the input interval of IT2FLC. So changing $K$ will change the quality of the system. The goal of selecting coefficients in the $K$ matrix is to help the system reduce response time, reduce errors as well as ridiculous jumps. Therefore, the author chooses genetic algorithms to find the best values.

The GA algorithm³⁸ will go to find the best values in the $K$ for the robot (Figure 14). The author uses the target function as a function that calculates the integral value of time error. The target function can be seen in formula (18) as follows:

J = \int t | e_{1} | d t + \int t | e_{2} | d t + \int t | e_{3} | d t + \int t | e_{4} | d t

(19)

Figure 14.

Algorithmic flowchart of genetic algorithms.

The focus parameters in the GA algorithm are selected:

Maximum number of generations: 200. With this controller, finding eight parameters $K_{1}, K_{2}, K_{3}, K_{4}, K_{5}, K_{6}, K_{7}, K_{8}$ is not too complicated and difficult, so the maximum generation set to 200 is considered a lot.

Number of chromosomes in an individual: eight.

Hybridization: 0.8 using multipoint hybridization.

Mutation coefficient: 0.2 mutation in an evenly distributed fashion.

Decimal type encoding.

May end early when 25 consecutive generations are satisfactory.

Results and discussion

Real-time path planning algorithm

The simulated environment is limited to a size of 600 × 600 pixels (Figure 15), where the tree covering the entire space will contain ∼3000 nodes. To calculate the subset of XSI nodes, the environment is divided into 225 squares that are 40 × 40 pixels in size. The maximum number of neighboring nodes in an area is limited to $k_{m a x} = 5$ (this metric helps distribute nodes evenly in space), and the minimum length of each branch is $r_{s} = 10$ .

Figure 15.

Real-time rapidly exploring random tree* (RT-RRT*) algorithm simulation map structure.

In simulation of the paper, the immovable obstacles are assumed to have fixed travel trajectories to test the algorithm. However, our algorithm is much more flexible. Obstacles can move in any trajectory, and the algorithm doesn’t need to care about how they move but only focuses on determining their current location. Based on this information, the algorithm will plan and adjust the path to ensure effective obstacle avoidance, even in complex situations. In the random sampling function, the coefficients $α, β$ in turn 0.1 and 2. The radius of the tree extension area includes $r_{0} = 200$ , $r_{b} = 45$ , and $r_{g} = 36$ . The time limit for scaling and restructuring the tree is 10 ms.

Figure 16(a) illustrates that when the tree is growing, one destination is selected and one path is found immediately. Figure 16(b) and (c) illustrates the flexible variation of the target point, where the path is determined quickly. The agent not only moves, but also drags the base of the search tree, and the tree expands to gradually cover the entire environment. In Figure 16(d) to (f), the path is replaced or changed when blocked by a dynamic obstruction. Figure 16(b) to (f) shows the algorithm's superior adaptability in handling dynamic changes, ensuring efficiency in path planning. In Figure (g), the agent has reached the target, and the restructuring of the nodes based on the current position of the stump has produced paths of minimal length to other nodes of the tree.

Figure 16.

Real-time rapidly exploring random tree (RT-RRT) algorithm implementation process.

The tree growth graph over time illustrates the rate of expansion and space coverage of the tree during the search (Figures 17 and 18). As time increases, the density of nodes covering the path gradually becomes denser, reflecting the tree's ability to effectively restructure around critical nodes (Figure 19). This improves the optimal level of the path over time, rather than expanding randomly, contributing to a shorter and more efficient journey for the agent.

Figure 17.

Real-time rapidly exploring random tree (RT-RRT) tree growth chart over time.

Figure 18.

(a) The tree grows up to 380 nodes after 2 s; (b) the tree grows up to 900 nodes after 10 s; and (c) the tree grows up to 1200 nodes after 40 s.

Figure 19.

Node cost allocation chart across the entire real-time rapidly exploring random tree* (RT-RRT*).

Trajectory tracking control

The orbital control model of MWMB is shown in Figure 20. In which the trajectory is generated from the RT-RRT algorithm.

Figure 20.

The system model was simulated on MATLAB.

As can be seen in Figure 21, the target function has declined sharply after 100 generations of GA. In the 100th generation, the total error target function over time reaches a minimum value of 0.0296. The K matrix after the optimum is

K = [\begin{matrix} 1.63 & 1.53 & 1.91 & 0.32 & 1.63 & 0.93 & 1.86 & 0.63 \end{matrix}]

Figure 21.

Graph the change trend of a target function over generations.

In this part, the author uses two orbits, a circle and a straight line, to test the performance of the system.

Trajectory 1

t \leq 0.25 {\begin{matrix} x = t \\ y = t \end{matrix}} t > 0.25 {\begin{matrix} x = 0.25 \sqrt{2} \sin (π t) \\ y = 0.25 \sqrt{2} \cos (π t) \end{matrix}}

(20)

Trajectory 2

t \leq 1.25 {\begin{matrix} x = 0.1 t \\ y = 0 \end{matrix}} t \leq 3 {\begin{matrix} x = 0.1 t \\ y = 0.1 * (t - 1.5) \end{matrix}} t > 3 {\begin{matrix} x = 0.1 t - (0.1 * (t - 3)) \\ y = 0.05 t \end{matrix}}

(21)

In both cases, IT2FLC shows better results in the criteria of overshoot and steady-state error. The robot's response in the case of a circular robot trajectory can be seen in Figures 22 to 25. In the absence of impact interference, the error of the system is stable in the range of 0.02 m for the controllers. In which, GA-IT2FLC has the lowest establishment error (< 0.005 m) for both the x and y axes. PID has the largest dynamic star error with an amplitude of 0.023 m. In case of interference impact is a weight with a value of 10 N. As can be seen in Figures 24 and 25, the response of the controllers has a larger amplitude of oscillation and cumulative error. However, the deviation of the system is still within the design value. The GA-IT2FLC continues to provide the best responsiveness in controllers with the smallest cumulative error (<0.0025 m).

Figure 22.

Trajectory response of PID, T1FLC, and IT2FLC with the original signal.

Figure 23.

Compare the error of controllers with the original signal: (a) Error of Y-axis and (b) error of X-axis.

Figure 24.

Trajectory response of PID, T1FLC, and IT2FLC with disturbance signal.

Figure 25.

Compare errors of controllers with original signal: (a) error of Y-axis and (b) error of X-axis.

The response of the system in the case of trajectories is the straight lines shown in Figures 26 to 29. The GA-IT2FLC continues to exhibit the best performance for error and response time in this case. When there is no interference signal acting on the system, the robot can respond relatively stable on straight sections. However, at times when the orbit is at a right angle, the robot is more unstable than usual.

Figure 26.

Trajectory response of PID, T1FLC, and IT2FLC with disturbance signal.

Figure 27.

Compare errors of controllers with original signal: (a) error of Y-axis and (b) error of X-axis.

Figure 28.

Trajectory response of PID, T1FLC, and IT2FLC with disturbance signal.

Figure 29.

Compare the error of controllers with the original signal: (a) error of Y-axis; and (b) error of X-axis.

The case where the robot is subjected to interference is a force with an equation $f = 8 \sin (0.5 t)$ (N). The response of the system in this case can be seen in Figures 28 and 29. Maybe the teacher and controller recommend the lowest establishment error and keep it stable during orbital movement.

The results when the robot applies the recommended controller are shown in Figures 30 and 31. The node cost allocation chart (Figure 30) clearly shows the cost values or the length of distance that the agent needs to move from the current position to each node. If the destination chosen is a specific node or the node closest to it, this cost reflects the efficiency of the path. Through the graph, we can identify the distribution and prioritize potential paths, helping to optimize the agent's journey in the search space. Figure 31 shows the robot's response to the trajectory found in Figure 30. It can be seen that the robot can move closely following the trajectory based on the optimal algorithm IT2FLC.

Figure 30.

Path is found and smoothed out with real-time rapidly exploring random tree* (RT-RRT*).

Figure 31.

The robot is moving along the road with the genetic algorithm with type 2 fuzzy logic controller (GA-IT2FLC).

Conclusions

This article has presented a method of using the IT2FLC and RT-RRT* to control the trajectory of a wheeled mobile robot. The two methods presented for comparison are T1FLC and PID. IT2FLC has shown strong trajectory control ability by showing better results than PID and T1FLC. However, it is possible to improve the control ability of the system when applying algorithms to optimize fuzzification coefficients or preprocessing coefficients.

Footnotes

ORCID iD

Van-Truong Nguyen

Funding

The authors received no financial support for the research, authorship, and/or publication of this article.

Declaration of conflicting interests

The authors declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Data availability statement

No data was used for the research described in the article.

Appendix

References

Zhang

Guo

Yang

, et al. Many-objective evolutionary algorithm based agricultural mobile robot route planning. Comput Electron Agric 2022; 200: 107274.

Nelson

Corah

Michael

. Environment model adaptation for mobile robot exploration. Auton Robots 2018; 42: 257–272.

Sun

Yang

, et al. BIT-DMR: a humanoid dual-arm mobile robot for complex rescue operations. IEEE Robot Autom Lett 2021; 7: 802–809.

Yin

Feng

. Pulse width modulation control of Mecanum-wheeled mobile robot with random noise. IEEE Access 2025: 1–1. doi:https://doi.org/10.1109/ACCESS.2025.3530405

Wang

, et al. Dynamic path planning of mobile robots using adaptive dynamic programming. Expert Syst Appl 2024; 235: 121112.

Raza

Ali

Akram

. Immunity-based dynamic reconfiguration of mobile robots in unstructured environments. J Intell Robot Syst 2019; 96: 501–515.

Zhang

Xie

Jiang

, et al. Fault-tolerant dynamic control of a four-wheel redundantly-actuated mobile robot. IEEE Access 2019; 7: 157909–157921.

Yuan

Zhang

Liu

, et al. A heuristic rapidly-exploring random trees method for manipulator motion planning. IEEE Access 2019; 8: 900–910.

Zhang

Lin

Wang

, et al. Rapidly-exploring random trees multi-robot map exploration under optimization framework. Rob Auton Syst 2020; 131: 103565.

10.

Guo

Liu

Jia

, et al. HPO-RRT*: a sampling-based algorithm for UAV real-time path planning in a dynamic environment. Complex Intell Syst 2023; 9: 7133–7153.

11.

. Recent advances in rapidly-exploring random tree: a review. Heliyon 2024; 10: e32451.

12.

Lee

Noh

Park

, et al. Real-time directed rapidly exploring random tree path planning for air collision avoidance. J Aeros Inform Syst 2022; 19: 330–343.

13.

Song

Zhang

, et al. Informed anytime fast marching tree for asymptotically optimal motion planning. IEEE Trans Ind Electron 2020; 68: 5068–5077.

14.

Zijie

Peng

Cui

, et al. PID control of an omnidirectional mobile platform based on an RBF neural network controller. Indust Robot: Int J Robot Res Appl 2022; 49: 65–75.

15.

Nguyen

Van

, et al. Robust adaptive nonlinear PID controller using radial basis function neural network for ballbots with external force. Eng Sci Technol, Int J 2025; 61: 101914.

16.

Nguyen

Duong

Phan

, et al. Adaptive nonlinear PD controller of two-wheeled self-balancing robot with external force. Comput Mater Continua 2024; 81: 2337.

17.

Zhang

, et al. Neural network adaptive sliding mode control for omnidirectional vehicle with uncertainties. ISA Trans 2019; 86: 201–214.

18.

Nguyen

Pham

Nguyen

, et al. Optimal design of Takagi-Sugeno-Kang fuzzy neural network based on balancing composite motion optimization for chaotic synchronization with uncertainty and disturbance. Results Eng 2025; 25: 104234.

19.

Nguyen

Ngo

Phan

, et al. Resilient consensus control for networked robotic manipulators under actuator faults and deception attacks. ISA Trans 2025; 159: 22–31.

20.

Zijie

Qiang

Yonjie

, et al. Fuzzy control strategy for course correction of omnidirectional mobile robot. Int J Control, Autom Syst 2019; 17: 2354–2364.

21.

Nguyen

Van

, et al. Novel adaptive fuzzy control for pendubot with actuator faults and uncertainties: design and experiments. Res Eng 2024; 24: 102916.

22.

Nguyen

Giap

, et al. Design and experiment of interval type-2 fuzzy hierarchical sliding-mode control for pendubot with uncertainties. IEEE/ASME Trans Mechatron 2024: 1–12. doi:https://doi.org/10.1109/TMECH.2024.3457015

23.

Huang

Kuo

. Fusion of metaheuristic fuzzy neural network and self-tuning autonomous control for omnidirectional Mobile platforms in robotic cyber-physical systems. Int J Fuzzy Syst 2024; 26: 1–12.

24.

Zijie

Qiang

Yonjie

, et al. Fuzzy control strategy for course correction of omnidirectional mobile robot. Int J Control, Autom Syst 2019; 17: 2354–2364.

25.

Sun

Xie

, et al. Fuzzy adaptive recursive terminal sliding mode control for an agricultural omnidirectional mobile robot. Comput Electr Eng 2023; 105: 108529.

26.

Nguyen

Mac

, et al. Trajectory tracking of mobile robots using hedge-agebras-based controllers. Intell Ser Robot 2024; 17: 1–22.

27.

PENG

, et al. A novel algorithm based on nonlinear optimization for parameters calibration of wheeled robot mobile chasses. Appl Math Model 2021; 95: 396–408.

28.

ZOU

ZHAO

DIAN

. Finite-time adaptive interval type-2 fuzzy tracking control for Mecanum-wheel mobile robots. Int J Fuzzy Syst 2021; 24: 1–16.

29.

Jhang

Lin

, et al. Navigation control of mobile robots using an interval type-2 fuzzy controller based on dynamic-group particle swarm optimization. Int J Control, Autom Syst 2018; 16: 2446–2457.

30.

Ben Jabeur

Seddik

. Design of a PID optimized neural networks and PD fuzzy logic controllers for a two-wheeled mobile robot. Asian J Control 2021; 23: 23–41.

31.

Razali

Mohd Faudzi

Shamsudin

, et al. A hybrid controller method with genetic algorithm optimization to measure position and angular for mobile robot motion control. Front Robot AI 2023; 9: 1087371.

32.

Tagliavini

Colucci

Botta

, et al. Wheeled mobile robots: state of the art overview and kinematic comparison among three omnidirectional locomotion strategies. J Intell Robot Syst 2022; 106: 57.

33.

Chen

, et al. Analysis of the Mecanum wheel arrangement of an omnidirectional vehicle. Proc Inst Mech Eng, Part C: J Mech Eng Sci 2019; 233: 5329–5340.

34.

Naderi

Rajamäki

Hämäläinen

. RT-RRT* a real-time path planning algorithm based on RRT. In Proceedings of the 8th ACM SIGGRAPH Conference on Motion in Games (pp. 113–118). 2015, November.

35.

Hagras

. Type-2 FLCs: a new generation of fuzzy controllers. IEEE Comput Intell Mag 2007; 2: 30–43.

36.

Karnik

Mendel

Liang

. Type-2 fuzzy logic systems. IEEE Trans Fuzzy Syst 1999; 7: 643–658.

37.

. On the fundamental differences between interval type-2 and type-1 fuzzy logic controllers. IEEE Trans Fuzzy Syst 2012; 20: 832–848.

38.

Lambora

Gupta

Chopra

. Genetic algorithm-A literature review. In 2019 international conference on machine learning, big data, cloud and parallel computing (COMITCon) (pp. 380–384). IEEE. 2019, February.

Real-time path planning for Mecanum-wheeled robots with type-2 fuzzy logic controller

Abstract

Keywords

Introduction

MWMR kinematic analysis and dynamic modeling

Kinematic analysis

Dynamic modeling

RT-RRT* algorithm for dynamic environments

Adaptive type 2 fuzzy logic controller

Type 2 fuzzy logic controller

GA-type 2 fuzzy logic controller

Results and discussion

Real-time path planning algorithm

Trajectory tracking control

Conclusions

Footnotes

ORCID iD

Funding

Declaration of conflicting interests

Data availability statement

Appendix

References
