Abstract

Aiming at the dynamic characteristics test bench of sliding bearings, the dynamic model is established. Based on the forward and inverse dynamic problems of the bearing, a simulation evaluation method for the identification accuracy of the sliding bearing dynamic characteristics is proposed and the algorithm is verified. The identification errors of dynamic characteristic coefficients under different excitation frequencies are analyzed, the sensitivities of single frequency excitation method and dual-frequency excitation method to test error are contrastively analyzed, and the influence laws of dynamic characteristic identification accuracy of sliding bearing are evaluated. Based on which the traditional single frequency excitation method has been improved. The dynamic characteristic test should be carried out respectively in the low frequency range and the high frequency range. The main stiffness and cross damping are the average of two tests, the main damping is the identification value in the high frequency, and the cross stiffness is the identification value in the low frequency. That will effectively reduce the impact of test error. The obtained data and laws could support the improvement of the dynamic characteristics test method of sliding bearings and the confirmation of test parameters, thereby the accuracy of dynamic characteristics identification is improved.

Keywords

Sliding bearing test bench dynamic characteristic identification test error excitation frequency

Introduction

The sliding bearings are widely used in various industrial fields, because of the advantages of large carrying capacity and long life.^1,2 It is an important supporting component in rotating machinery. A relatively well-developed theoretical system has been established for hundreds of years,^3–5 but in practical applications, the service performances of the bearing are usually greatly different from the theoretical analysis results, especially the dynamic characteristics.^6,7 In linear theory, the dynamic characteristics of bearings are characterized by stiffness and damping coefficients, mainly using conventional 8-coefficient model,^8,9 frequency-varying 8-coefficient model,^10,11 complete dynamics model,^12,13 etc. Among them, the conventional 8-coefficient model is the basis. The dynamic characteristic coefficients of the bearing are generally obtained by the experimental methods.^14,15

There are many methods to identify dynamic characteristics, which can be mainly divided into time domain method and frequency domain method. The time domain method includes hammering method, pulse excitation method,^16,17 etc. The frequency domain method includes unbalanced response method, sine excitation method and multi-frequency excitation method, etc.^18–20 All of these methods can obtain the dynamic characteristic coefficients of the bearing, but the test results are often quite different from the theoretical value. Al-Ghasem and Childs²¹ tested a 5-pad tilting-pad bearing with a diameter of 117 mm and compared it with the theoretical value of San Andrés et al.²² In general, the stiffness coefficient differs by 10%–30%, and the damping coefficient differs by 10%–40%. Delgado et al.²³ identified the main stiffness of 4-pad and 5-pad tilting-pad bearings with 110 mm diameter on a test rig. The difference between the test value and theoretical value of 4-pad bearing is about 25%–55%. The domestic researches on bearing dynamic characteristics identification were started in the 1990s. Jiang et al.²⁴ firstly identified the dynamic characteristics coefficients of 50 MW steam turbine bearings on a dynamic balancing machine, and the identification results are the same order of magnitude as the theoretical values. Although there are many theoretical and experimental studies on the dynamic characteristics of sliding bearings at home and abroad, the results of the dynamic characteristics identification are not satisfactory. The main reason is that the dynamic characteristics identification process is very complicated and the influence factors are numerous, which brings great difficulties to the accurate measurement of dynamic characteristic coefficients.^25,26

For the sliding bearing test bench, a simulation evaluation method for the identification accuracy of dynamic characteristics based on the forward and inverse dynamic problems of the bearing is proposed in this paper. The influence of the exciting frequency on the identification accuracy of the dynamic characteristics considering the test error is analyzed. And the test method is improved to reduce the impact of test errors, so as to improve the accuracy of dynamic characteristics identification.

Frequency domain principles and methods for the dynamic characteristic test of sliding bearing

Basic structure and dynamic model of sliding bearing test bench

The structure of the sliding bearing test bench is shown in Figure 1. The main part of the test bench mainly includes the support system, the test bearing system, the dynamic loading system, and the static loading system, except the auxiliary systems such as the driving system and the lubrication system. The dynamic model of the test bench system is shown in Figure 2, considering the connection stiffness and connection damping of the loading system.

Figure 1.

Schematic diagram of the structure of the test bench (excluding the dynamic excitation device).

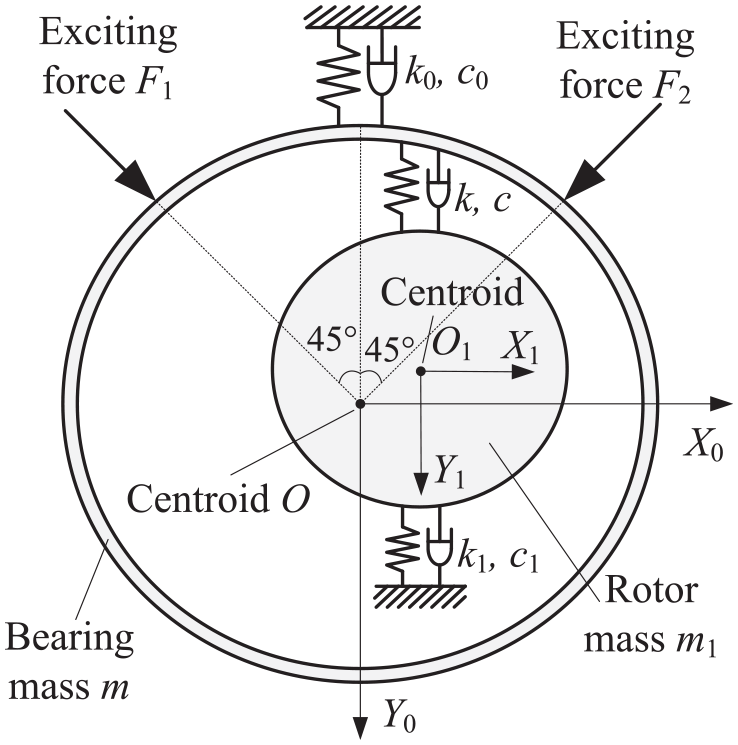

Figure 2.

Dynamic model of test bench system.

The dynamic differential equations of the system are as following, under the assumption that the excitation forces pass through the geometric center of the bearing, and the bearing moves in a plane. The bearing and rotor don’t swing.

{\begin{cases} m [\begin{array}{l} {\overset{\cdot\cdot}{X}}_{0} \\ {\overset{\cdot\cdot}{Y}}_{0} \end{array}] + k_{0} [\begin{array}{l} X_{0} \\ Y_{0} \end{array}] + c_{0} [\begin{array}{l} {\dot{X}}_{0} \\ {\dot{Y}}_{0} \end{array}] + k [\begin{array}{l} X_{2} \\ Y_{2} \end{array}] \\ + c [\begin{array}{l} {\dot{X}}_{2} \\ {\dot{Y}}_{2} \end{array}] = [\begin{matrix} \frac{\sqrt{2}}{2} \\ \frac{\sqrt{2}}{2} \end{matrix}] F_{1} + [\begin{matrix} - \frac{\sqrt{2}}{2} \\ \frac{\sqrt{2}}{2} \end{matrix}] F_{2} \\ m_{1} [\begin{array}{l} {\overset{\cdot\cdot}{X}}_{1} \\ {\overset{\cdot\cdot}{Y}}_{1} \end{array}] + k_{1} [\begin{array}{l} X_{1} \\ Y_{1} \end{array}] + c_{0} [\begin{array}{l} {\dot{X}}_{1} \\ {\dot{Y}}_{1} \end{array}] + k [\begin{array}{l} - X_{2} \\ - Y_{2} \end{array}] + c [\begin{array}{l} - {\dot{X}}_{2} \\ - {\dot{Y}}_{2} \end{array}] = 0 \\ [\begin{array}{l} X_{2} \\ Y_{2} \end{array}] = [\begin{array}{l} X_{0} \\ Y_{0} \end{array}] - [\begin{array}{l} X_{1} \\ Y_{1} \end{array}] \end{cases}

(1)

Where, F₁ and F₂ are the excitation forces. X₀ and Y₀ are the absolute displacements of the test bearing relative to the static equilibrium position, X₁ and Y₁ are the absolute displacements of the rotor at the test bearing, X₂ and Y₂ are the displacements of the test bearing center relative to the rotor center. m and m₁ are respectively the test bearing mass and the rotor mass. k₀ and c₀ are the connection stiffness and damping coefficients, which are both 2 × 2 matrices, $k = [\begin{matrix} k_{xx} & k_{xy} \\ k_{yx} & k_{yy} \end{matrix}]$ and $c = [\begin{matrix} c_{xx} & c_{xy} \\ c_{yx} & c_{yy} \end{matrix}]$ . Where the k_xx and k_yy are the main stiffness of the bearing, the k_xy and k_yx are the cross stiffness of the bearing, the c_xx and c_yy are the main damping of the bearing, the c_xy and c_yx are the cross damping of the bearing. k₁ and c₁ are the stiffness and damping coefficients of the supportting bearing, which are both 2 × 2 matrices, $k_{1} = [\begin{matrix} k_{1 xx} & 0 \\ 0 & k_{1 yy} \end{matrix}]$ and $c_{1} = [\begin{matrix} c_{1 xx} & 0 \\ 0 & c_{1 yy} \end{matrix}]$ . Where k_1xx and k_1yy are the supporting stiffness, and c_1xx and c_1yy are the supporting damping. Because the support bearings are the rolling bearings, the cross stiffness and cross damping are very small and can be ignored. k and c are the stiffness and damping coefficients of the test bearing, which are both 2 × 2 matrices, $k_{0} = [\begin{matrix} k_{0 xx} & 0 \\ 0 & k_{0 yy} \end{matrix}]$ and $c_{0} = [\begin{matrix} c_{0 xx} & 0 \\ 0 & c_{0 yy} \end{matrix}]$ . Where k_0xx and k_0yy are the connection stiffness, c_0xx and c_0yy are the connection damping, and the cross term is very small and can be ignored.

Frequency domain method and measurement equation of dynamic characteristic identification

In practical working conditions, the system is affected by non-active excitation interference force, out-of-round bearing, temperature excursion of the test system, and material non-uniform, it is difficult to establish the principle and method of dynamic characteristic identification in the of time domain. However, some of the above factors are periodic, so the frequency domain method can be used to eliminate their influence. The main methods include single frequency excitation method and dual-frequency excitation method.

The single frequency excitation method is to apply the harmonic excitation force of the same frequency (ω) twice respectively in two directions of the bearing. The dynamic differential equations (1) are carryed out by Fourier Transform, substituting $X_{0} = {\bar{X}}_{0} e^{j ω t}$ , $X_{1} = {\bar{X}}_{1} e^{j ω t}$ , $X_{2} = {\bar{X}}_{2} e^{j ω t}$ , $Y_{0} = {\bar{Y}}_{0} e^{j ω t}$ , $Y_{1} = {\bar{Y}}_{1} e^{j ω t}$ , $Y_{2} = {\bar{Y}}_{2} e^{j ω t}$ , $F_{1} = {\bar{F}}_{1} e^{j ω t}$ , $F_{2} = {\bar{F}}_{2} e^{j ω t}$ . For simplicity, the following ${\bar{X}}_{0}$ is represented by X₀, and the rest of the symbols are similarly expressed.

Then X₁ and Y₁ are eliminated. The measurement equations of the single frequency excitation method can be obtained as shown in equation (2).

{\begin{matrix} (k + j ω c) [\begin{matrix} X_{21} (ω) \\ Y_{21} (ω) \end{matrix}] - (m ω^{2} - k_{0} - j ω c_{0}) [\begin{matrix} X_{01} (ω) \\ Y_{01} (ω) \end{matrix}] \\ = [\begin{matrix} \sqrt{2} / 2 \\ \sqrt{2} / 2 \end{matrix}] F_{1} (ω) \\ (k + k_{1} - m_{1} ω^{2} + j ω (c + c_{1})) [\begin{matrix} X_{21} (ω) \\ Y_{21} (ω) \end{matrix}] \\ + (m_{1} ω^{2} - k_{1} - j ω c_{1}) [\begin{matrix} X_{01} (ω) \\ Y_{01} (ω) \end{matrix}] = 0 \\ (k + j ω c) [\begin{matrix} X_{22} (ω) \\ Y_{22} (ω) \end{matrix}] - (m ω^{2} - k_{0} - j ω c_{0}) [\begin{matrix} X_{02} (ω) \\ Y_{02} (ω) \end{matrix}] \\ = [\begin{matrix} - \sqrt{2} / 2 \\ \sqrt{2} / 2 \end{matrix}] F_{2} (ω) \\ (k + k_{1} - m_{1} ω^{2} + j ω (c + c_{1})) [\begin{matrix} X_{22} (ω) \\ Y_{22} (ω) \end{matrix}] \\ + (m_{1} ω^{2} - k_{1} - j ω c_{1}) [\begin{matrix} X_{02} (ω) \\ Y_{02} (ω) \end{matrix}] = 0 \end{matrix}

(2)

Where, X₀₁(ω), Y₀₁(ω), X₂₁(ω), Y₂₁(ω) are the displacements caused by the first excitation. X₀₂(ω), Y₀₂(ω), X₂₂(ω), Y₂₂(ω) are the displacements caused by the second excitation.

The dual-frequency excitation method refers to apply the harmonic excitation forces of different frequencies (ω₁ and ω₂) simultaneously in the two directions of the bearing. The measurement equations are shown in equation (3).

{\begin{matrix} (k + j ω_{1} c) [\begin{matrix} X_{21}^{'} (ω_{1}) \\ Y_{21}^{'} (ω_{1}) \end{matrix}] - (m ω_{1}^{2} - k_{0} - j ω_{1} c_{0}) [\begin{matrix} X_{01}^{'} (ω_{1}) \\ Y_{01}^{'} (ω_{1}) \end{matrix}] \\ = [\begin{matrix} \sqrt{2} / 2 \\ \sqrt{2} / 2 \end{matrix}] F_{1} (ω_{1}) \\ (k + k_{1} - m_{1} ω_{1}^{2} + j ω_{1} (c + c_{1})) [\begin{matrix} X_{21}^{'} (ω_{1}) \\ Y_{21}^{'} (ω_{1}) \end{matrix}] \\ + (m_{1} ω_{1}^{2} - k_{1} - j ω_{1} c_{1}) [\begin{matrix} X_{01}^{'} (ω_{1}) \\ Y_{01}^{'} (ω_{1}) \end{matrix}] = 0 \\ (k + j ω_{2} c) [\begin{matrix} X_{22}^{'} (ω_{2}) \\ Y_{22}^{'} (ω_{2}) \end{matrix}] - (m ω_{2}^{2} - k_{0} - j ω_{2} c_{0}) [\begin{matrix} X_{02}^{'} (ω_{2}) \\ Y_{02}^{'} (ω_{2}) \end{matrix}] \\ = [\begin{matrix} - \sqrt{2} / 2 \\ \sqrt{2} / 2 \end{matrix}] F_{2} (ω_{2}) \\ (k + k_{1} - m_{1} ω_{2}^{2} + j ω_{2} (c + c_{1})) [\begin{matrix} X_{22}^{'} (ω_{2}) \\ Y_{22}^{'} (ω_{2}) \end{matrix}] \\ + (m_{1} ω_{2}^{2} - k_{1} - j ω_{2} c_{1}) [\begin{matrix} X_{02}^{'} (ω_{2}) \\ Y_{02}^{'} (ω_{2}) \end{matrix}] = 0 \end{matrix}

(3)

Where, X′₀₁(ω₁), Y′₀₁(ω₁), X′₂₁(ω₁), Y′₂₁(ω₁) are the displacement of the corresponding frequency ω₁. X′₀₂(ω₂), Y′₀₂(ω₂), X′₂₂(ω₂), Y′₂₂(ω₂) are the displacement of the corresponding frequency ω₂.

Accuracy evaluation method and verification of dynamic characteristic identification based on forward and inverse problem

Quantitative analysis of dynamic characteristic identification accuracy based on forward and inverse problems

Taking the single frequency excitation method as an example, the forward problem is to solve the displacement responses of the bearing according to the excitation forces and bearing stiffness and damping coefficients. The inverse problem is to identify the stiffness and damping coefficients of the bearing based on the amplitudes, frequencies, and phases of the excitation force signals and vibration signals.

Algorithm for solving the forward problem

In Figure 1, when an excitation force with a frequency of ω is applied in the −45° direction, set F₂= 0, then:

{\begin{matrix} (k + j ω c) [\begin{matrix} X_{21} (ω) \\ Y_{21} (ω) \end{matrix}] \\ - (m ω^{2} - k_{0} - j ω c_{0}) [\begin{matrix} X_{01} (ω) \\ Y_{01} (ω) \end{matrix}] = [\begin{matrix} \sqrt{2} / 2 \\ \sqrt{2} / 2 \end{matrix}] F_{1} (ω) \\ (k + k_{1} - m_{1} ω^{2} + j ω (c + c_{1})) [\begin{matrix} X_{21} (ω) \\ Y_{21} (ω) \end{matrix}] \\ + (m_{1} ω^{2} - k_{1} - j ω c_{1}) [\begin{matrix} X_{01} (ω) \\ Y_{01} (ω) \end{matrix}] = 0 \end{matrix}

(4)

Substituting the expressions of the stiffness and damping coefficients into equation (4), it can be expanded in the form of real and imaginary parts as following:

A_{1} B_{1} = C_{1}

(5)

Where,

A_{1} = [\begin{matrix} k_{xx} & k_{xy} & - (m ω^{2} - k_{0 xx}) & 0 & - ω c_{xx} & - ω c_{xy} & - ω c_{0 xx} & 0 \\ k_{yx} & k_{yy} & 0 & - (m ω^{2} - k_{0 yy}) & - ω c_{yx} & - ω c_{yy} & 0 & - ω {c_{0}}_{yy} \\ ω c_{xx} & ω c_{xy} & ω c_{0 xx} & 0 & k_{xx} & k_{xy} & - (m ω^{2} - k_{0 xx}) & 0 \\ ω c_{yx} & ω c_{yy} & 0 & ω c_{0 yy} & k_{yx} & k_{yy} & 0 & - (m ω^{2} - k_{0 yy}) \\ k_{xx} + k_{1 xx} - m_{1} ω^{2} & k_{xy} & m_{1} ω^{2} - k_{1 xx} & 0 & - ω (c_{1 xx} + c_{xx}) & - ω c_{xy} & ω c_{1 xx} & 0 \\ k_{yx} & k_{yy} + k_{1 yy} - m_{1} ω^{2} & 0 & m_{1} ω^{2} - k_{1 yy} & - ω c_{yx} & - ω (c_{1 yy} + c_{yy}) & 0 & ω c_{1 yy} \\ ω (c_{xx} + c_{1 xx}) & ω c_{xy} & - ω c_{1 xx} & 0 & k_{xx} + k_{1 xx} - m_{1} ω^{2} & k_{xy} & m_{1} ω^{2} - k_{1 xx} & 0 \\ ω c_{yx} & ω (c_{yy} + c_{1 yy}) & 0 & - ω c_{1 yy} & k_{yx} & k_{yy} + k_{1 yy} - m_{1} ω^{2} & 0 & m_{1} ω^{2} - k_{1 yy} \end{matrix}]

(6)

B_{1} = [\begin{matrix} Re X_{21} (ω) \\ Re Y_{21} (ω) \\ Re X_{01} (ω) \\ Re Y_{01} (ω) \\ Im X_{21} (ω) \\ Im Y_{21} (ω) \\ Im X_{01} (ω) \\ Im Y_{01} (ω) \end{matrix}]

(7)

C_{1} = [\begin{matrix} \sqrt{2} / 2 Re F_{1} (ω) \\ \sqrt{2} / 2 Re F_{1} (ω) \\ \sqrt{2} / 2 Im F_{1} (ω) \\ \sqrt{2} / 2 Im F_{1} (ω) \\ 0 \\ 0 \\ 0 \\ 0 \end{matrix}]

(8)

Since A₁ and C₁ are known, and A₁ is an 8 × 8 matrix, the absolute displacements of bearing X₀₁(ω), Y₀₁(ω) and the displacements of the bearing X₂₁ (ω), Y₂₁ (ω) relative to the rotor under the excitation force F₁ can be obtained by solving the matrix equation B₁ = A₁⁻¹C₁.

Similarly, when an excitation force with a frequency of ω is applied in the +45° direction, the displacements of bearing X₀₂(ω), Y₀₂(ω) and displacements of the bearing X₂₂(ω), Y₂₂(ω) relative to the rotor can be obtained by solving the matrix equation B₂ = A₂⁻¹C₂.

Algorithm for solving the inverse problem

According to equation (2), the relative displacements and absolute displacements of the bearing are X₂₁(ω), Y₂₁(ω), X₀₁(ω), Y₀₁(ω) under the action of excitation force F₁, the relative displacements and absolute displacements of the bearing are X₂₂(ω), Y₂₂(ω), X₀₂(ω), Y₀₂(ω) under the action of excitation force F₂. Substituting the stiffness and damping coefficient matrixes expression into equation (2), it can be transform to marix form as following:

DE = F

(9)

Where, the value of the matrix D and F are known, the eight coefficients of the stiffness coefficient k and damping coefficient c can be obtained by solving the matrix equation E = D⁻¹F.

Where,

\begin{matrix} D = [\begin{matrix} Re X_{21} (ω) & Re Y_{21} (ω) & 0 & 0 & \dots \\ 0 & 0 & Re X_{21} (ω) & Re Y_{21} (ω) & \dots \\ Im X_{21} (ω) & Im Y_{21} (ω) & 0 & 0 & \dots \\ 0 & 0 & Im X_{21} (ω) & Im Y_{21} (ω) & \dots \\ Re X_{22} (ω) & Re Y_{22} (ω) & 0 & 0 & \dots \\ 0 & 0 & Re X_{22} (ω) & Re Y_{22} (ω) & \dots \\ Im X_{22} (ω) & Im X_{22} (ω) & 0 & 0 & \dots \\ 0 & 0 & Im X_{22} (ω) & Im X_{22} (ω) & \dots \end{matrix} \\ \begin{matrix} \dots & - ω Im X_{21} (ω) & - ω Im Y_{21} (ω) & 0 & 0 \\ \dots & 0 & 0 & - ω Im X_{21} (ω) & - ω Im X_{21} (ω) \\ \dots & ω Re X_{21} (ω) & ω Re Y_{21} (ω) & 0 & 0 \\ \dots & 0 & 0 & ω Re X_{21} (ω) & ω Re Y_{21} (ω) \\ \dots & - ω Im X_{22} (ω) & - ω Im Y_{22} (ω) & 0 & 0 \\ \dots & 0 & 0 & - ω Im X_{22} (ω) & - ω Im X_{22} (ω) \\ \dots & ω Re X_{22} (ω) & ω Re Y_{22} (ω) & 0 & 0 \\ \dots & 0 & 0 & ω Re X_{22} (ω) & - ω Re Y_{22} (ω) \end{matrix}] \end{matrix}

(10)

E = {[\begin{matrix} k_{xx} & k_{xy} & k_{yx} & k_{yy} & c_{xx} & c_{xy} & c_{yx} & c_{yy} \end{matrix}]}^{T}

(11)

F = {\begin{matrix} \sqrt{2} / 2 Re F_{1} (ω) + (m ω^{2} - k_{0 xx}) Re X_{01} (ω) + ω c_{0 xx} Im X_{01} (ω) \\ \sqrt{2} / 2 Re F_{1} (ω) + (m ω^{2} - k_{0 yy}) Re Y_{01} (ω) + ω c_{0 yy} Im Y_{01} (ω) \\ \sqrt{2} / 2 Im F_{1} (ω) + (m ω^{2} - k_{0 xx}) Im X_{01} (ω) - ω c_{0 xx} Re X_{01} (ω) \\ \sqrt{2} / 2 Im F_{1} (ω) + (m ω^{2} - k_{0 yy}) Im Y_{01} (ω) - ω c_{0 yy} Re Y_{01} (ω) \\ - \sqrt{2} / 2 Re F_{2} (ω) + (m ω^{2} - k_{0 xx}) Re X_{02} (ω) + ω c_{0 xx} Im X_{02} (ω) \\ \sqrt{2} / 2 Re F_{2} (ω) + (m ω^{2} - k_{0 yy}) Re Y_{02} (ω) + ω c_{0 yy} Im Y_{02} (ω) \\ - \sqrt{2} / 2 Im F_{2} (ω) + (m ω^{2} - k_{0 xx}) Im X_{02} (ω) - ω c_{0 xx} Re X_{02} (ω) \\ \sqrt{2} / 2 Im F_{2} (ω) + (m ω^{2} - k_{0 yy}) Im Y_{02} (ω) - ω c_{0 yy} Re Y_{02} (ω) \end{matrix}

(12)

Quantitative analysis of identification accuracy of dynamic characteristics

The basic method used in this pepper is to compare the identification values of k and c with the given values. Firstly, the excitation forces, bearing stiffness k and damping c are given, the amplitudes A_x₂, A_y₂, A_x, A_y and phases φ_x₂, φ_y₂, φ_x, φ_y of relative and absolute displacements of the bearing under the action of F₁, and the relative and absolute displacements amplitudes A′_x2, A′_y2, A′_x, A′_y and phases φ′_x2, φ′_y2, φ′_x, φ′_y of the bearing under the action of F₂ are obtained according to the forward problem algorithm. Then the test error is added directly as fomula (13) to the bearing displacement data obtained by the simulation, and the results are taken as the vibration test data of the dual-frequency excitation method.

{\begin{matrix} A_{m} = (1 + a_{A} / 100) A_{m 0} \\ φ = φ_{0} + a_{φ} \end{matrix}

(13)

Where, A_m₀, φ₀ and A_m, φ are the signal amplitude and phase before and after adding test error. α_A and α_φ are respectively the relative error of amplitude and the absolute error of phase.

Then the stiffness k′ and damping c′ of the bearing can be identifed according to the algorithm of inverse problem. So that the identification accuracy ε of the dynamic characteristic coefficients can be evaluated by comparing the given values k, c and the identification values k′, c′:

\begin{matrix} ε_{k} = [(k - k') / k] \times 100 %; \\ ε_{c} = [(c - c') / c] \times 100 % . \end{matrix}

(14)

It should be noted that if the identification error is positive, the identification value is less than the given value, otherwise it is greater than the given value.

Algorithm verification of accuracy evaluation of dynamic characteristic identification

Basic parameters of the case

For a sliding bearing dynamic characteristics test bench system, the tested bearing is a tilting-pad bearing, the supporting bearing is rolling bearing, and its damping characteristics are ignored. The basic parameters of the test bench system and the tested bearing are shown in Table 1.

Table 1.

Basic parameters of a bearing test system (including the stiffness and damping parameters of the tested bearing).

Item	Unit	Value
Test bearing mass m	kg	22
Exciting force amplitude of −45°	N	350
Exciting force frequency of −45°	Hz	10–2000
Exciting force phase of −45°	°	35
Rotor mass m₁	kg	85
Exciting force amplitude of +45°	N	490
Exciting force frequency of −45°	Hz	10–2000
Exciting force Phase of +45°	°	−57
Test bearing stiffness k_xx	N/m	7.95 × 10⁷
Test bearing stiffness k_xy	N/m	1.99 × 10⁵
Test bearing stiffness k_yx	N/m	1.99 × 10⁵
Test bearing stiffness k_yy	N/m	7.94 × 10⁷
Test bearing damping c_xx	N s/m	1.68 × 10⁴
Test bearing damping c_xy	N s/m	2.03 × 10³
Test bearing damping c_yx	N s/m	2.03 × 10³
Test bearing damping c_yy	N s/m	1.66 × 10⁴
Connection stiffness k_0xx	N/m	2.42 × 10⁵
Connection stiffness k_0xx	N/m	2.42 × 10⁵
Support stiffness k_1xx	N/m	6.9 × 10⁸
Support stiffness k_1xx	N/m	6.9 × 10⁸
Connection damping c_0xx	N s/m	1.21 × 10³
Connection damping c_0yy	N s/m	1.21 × 10³
Support damping c_1xx	N s/m	1.21 × 10⁴
Support damping c_1yy	N s/m	1.21 × 10⁴

Analysis of dynamic characteristics identification results

Taking the excitation frequency as 20 Hz, the amplitude and phase of the relative displacements and absolute displacements of the bearing under the excitation forces F₁ and F₂ are calculated respectively according to the forward problem, as shown in Table 2.

Table 2.

The relative and absolute vibration of the bearing under the action of excitation forces F₁ and F_2.

Exciting force (frequency 20 Hz)		F ₁		F ₂
		Amplitude/N	Phase/°	Amplitude/N	Phase/°
		130	37	180	–53
Displacement		Amplitude/μm	Phase/°	Amplitude/μm	Phase/°
Relative displacement	X ₂ direction	3.10830	33.175	4.64211	121.535
	Y ₂ direction	3.11225	33.191	4.64799	−58.449
Absolute displacement	X ₀ direction	3.46806	33.338	5.17669	121.661
	Y ₀ direction	3.47202	33.353	5.18258	−58.326

Then the identified stiffness and damping coefficients without the test error are shown in Table 3, according to the algorithm of inverse problem. The identified stiffness and damping coefficients are shown in Table 4, without considering the test error. It can be seen from the calculation results that the errors between the identification values and the given values are very small, and they are related to the data truncation errors in the calculation process. The more accurate the data values are, the smaller the stiffness and damping errors are. So the algorithm has better accuracy in identifying the dynamic characteristic coefficients, which verifies the correctness of the algorithm.

Table 3.

Comparison of simulation results and given values for identification of dynamic characteristic coefficients of bearings.

Dynamic characteristic coefficients	Unit	Given values	Identification values	Error/%
k_xx	N/m	7.95 × 10⁷	7.95 × 10⁷	0.000
k_xy	N/m	1.99 × 10⁵	1.9903 × 10⁵	−0.016
k_yx	N/m	1.99 × 10⁵	1.9905 × 10⁵	−0.026
k_yy	N/m	7.94 × 10⁷	7.94 × 10⁷	0.000
c_xx	N s/m	1.68 × 10⁴	1.6799 × 10⁴	0.004
c_xy	N s/m	2.03 × 10³	2.0286 × 10³	0.067
c_yx	N s/m	2.03 × 10³	2.0316 × 10³	−0.080
c_yy	N s/m	1.66 × 10⁴	1.66 × 10⁴	−0.002

Table 4.

Comparison of identification accuracy of bearing dynamic characteristic coefficients under both amplitude and phase errors.

	Amplitude error/%	3	5	10	20
	Phase error/°	0.5	1	3	5
Error of identification value of dynamic characteristic coefficients/%	k_xx	2.78	4.53	8.62	16
	k_xy	0.19	−0.56	−6.03	−6.31
	k_yx	0.19	−0.56	−6.03	−6.31
	k_yy	2.78	4.53	8.63	16.01
	c_xx	15.56	29.51	79.65	124.7
	c_xy	3.17	5.28	10.67	19.19
	c_yx	3.17	5.28	10.67	19.19
	c_yy	15.7	29.77	80.41	125.9

Analysis of the influence of test error on the accuracy of dynamic characteristic identification

In practice, due to the transmission error of the hardware and the external disturbance during the test, the test signal inevitably has an error with the true value, including amplitude error and phase error. The identification accuracy of the dynamic characteristic coefficients of the bearing according to the previous algorithm when there is only amplitude error or phase error under the excitation frequency of 50 Hz are shown in Figures 3 and 4. The results show that when there is only the amplitude error, the identification errors of the dynamic characteristic coefficients increase with the increasing of the amplitude error of the test signal. When the amplitude error is small (for example, 5%), the identification error of the dynamic characteristic coefficients is equivalent to amplitude error, and when the amplitude error is large (for example, 20%), the identification error (16%) of the dynamic characteristic coefficients is slightly smaller than the amplitude error. When there is only phase error, the sensitivity of the identification error of the dynamic characteristic coefficients to the phase error of the test signal is different. The identification values of main stiffness and cross damping are almost unaffected, and the identification errors of cross stiffness and main damping increase with the phase error, and the identification error of main damping is most affected by the phase error, and the identification error of cross stiffness is affected next. For example, when the phase error is 1°, the identification errors of main stiffness and cross damping are both less than 1%, but the identification error of cross stiffness reaches −5%, and the identification error of main damping reaches 25%.

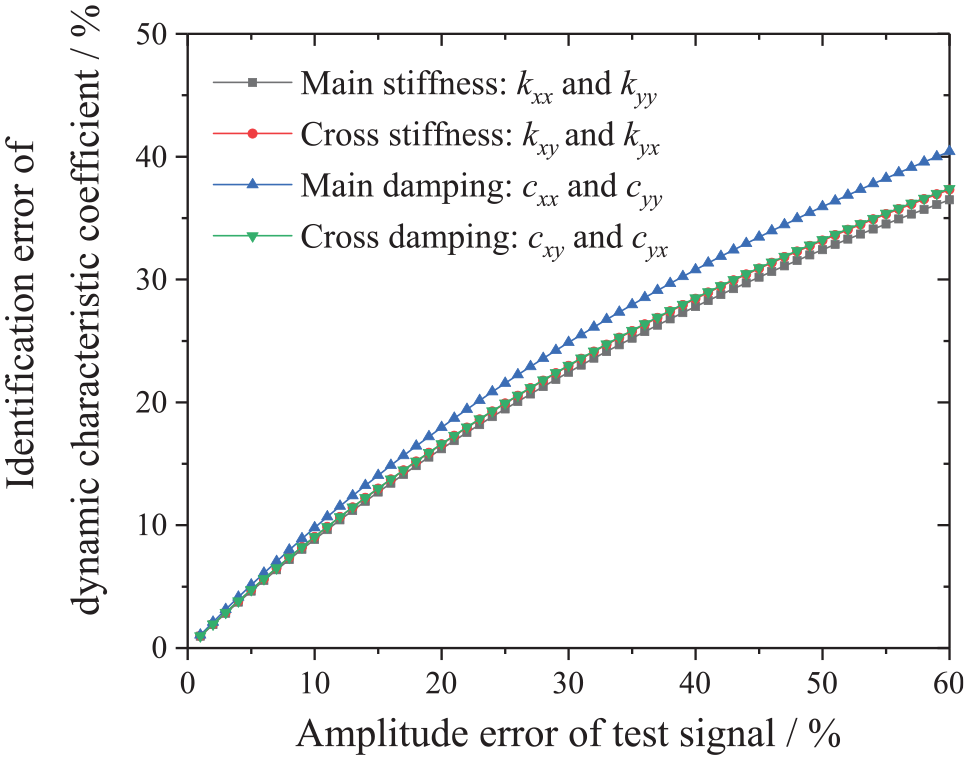

Figure 3.

Identification error of bearing dynamic characteristics under different amplitude errors.

Figure 4.

Identification error of bearing dynamic characteristics under different phase errors.

When the test signal has both amplitude error and phase error, the errors between the dynamic characteristic identification results and the given values are shown in Table 4. Comparing the data in Table 4 with Figures 3 and 4, when the test signal has both amplitude and phase errors, the impact on the identification accuracy of the dynamic characteristic coefficients is basically the superposition of the effects of two separate errors.

Research on the influence of excitation frequency and testing method on the accuracy of dynamic characteristic identification

Vibration response analysis of bearing test bench system

For the sliding bearing test bench shown in Figure 1, the tested bearing is a tilting pad bearing. Considering the symmetry, the vibrations of the bearing and the rotor in the X direction are focused on in this paper. The amplitude and phase of vibration responses of bearing and rotor at different excitation frequencies are shown in Figures 5 and 6, which is the frequency response function.

Figure 5.

Frequency response function of bearing vibration in X direction: (a) amplitude frequency characteristics and (b) phase frequency characteristics.

Figure 6.

Frequency response function of rotor vibration in X direction: (a) amplitude frequency characteristics and (b) phase frequency characteristics.

According to the dynamic model of rotor bearing system, the equivalent stiffness K_b and equivalent damping C_b of the bearing in the X direction are as following:

{\begin{matrix} K_{b} = \frac{k_{xx} \times k_{1 xx}}{k_{xx} + k_{1 xx}} + k_{0 xx} = 7.15 \times 10^{7} N \cdot m^{- 1} \\ C_{b} = \frac{c_{xx} \times c_{1 xx}}{c_{xx} + c_{1 xx}} + c_{0 xx} = 8.24 \times 10^{3} N \cdot m^{- 1} \end{matrix}

(15)

Similarly, the equivalent stiffness K_r and equivalent damping C_r of the rotor can be obtained respectively as 6.9 ×10⁸ N/m and 1.32 ×10⁴ N/m. Using the analytical process of vibration mechanics, the undamped natural frequency f_bn and the damped natural frequency f_bd of the bearing can be obtained as following:

{\begin{matrix} f_{bn} = \frac{1}{2 π} \cdot \sqrt{\frac{K_{b}}{m}} = 286 Hz \\ f_{bd} = = f_{bn} \cdot \sqrt{1 - {(\frac{C_{b}}{2 m \sqrt{\frac{k_{b}}{m}}})}^{2}} = 285 Hz \end{matrix}

(16)

Similarly, the undamped natural frequency f_rn and the damped natural frequency f_rd of the rotor are respectively 453.54 and 453.37 Hz.

By comparing the results of the vibration response, it can be seen that the bearing has an obvious resonant frequency (275 Hz), which is very close to the damped natural frequency of the bearing vibration, which is about 285 Hz, and the phase is 90°. For the rotor, it can be seen that there are two more obvious resonance peaks. The frequency of one is 461 Hz, which is close to the natural frequency of the rotor vibration (453.37 Hz). The phases of the bearing and the rotor are both close to 180° near this frequency.

Analysis of the influence of excitation frequency on the identification accuracy of dynamic characteristic

Considering the accuracy of the general test, the amplitude error and the phase error of the test signal are respectively selected as +5% and +1° for analysis.²⁷ The variation curves of the identification error of the bearing dynamic characteristics under different excitation frequencies are shown in Figure 7. The identification error of the main stiffness goes through the zero point when the frequency near 262 Hz. The identification error of the main damping goes through the zero point when the frequency near 369 Hz. And the identification error of the cross damping goes through the zero point when the frequency near 403 Hz. The cross stiffness identification error is more sensitive to frequency, and the values in the low frequency range are relatively small.

Figure 7.

Identification error of bearing stiffness and damping coefficient under different excitation frequencies (amplitude error is 5% and phase error is 1°): (a) integrated graph and (b) partial enlarged detail.

When there is a error in the test signal, the test accuracy of the main stiffness and cross damping in the low frequency range is high. The error is basically equal to the amplitude error of the test signal, and it slowly decreases with the increasing of frequency. The identification result of the main stiffness is almost no error when the frequency near 262 Hz, which means that it is not affected by the test error. The identification error of main damping is relatively large in the low frequency range, and relatively small in a range of high frequency, which is about 0 near the frequency of 369 Hz. The identification error of cross stiffness is very sensitive to the phase error, so it is difficult to test accurately, and relatively small in the low frequency range. When the excitation frequency is in the uncertain area, the dynamic characteristic identification error is very sensitive to the test frequency and the curves fluctuate a lot. The possible reason is that the rotor resonates in this area and the test results are unreliable. So the excitation frequency during the test should not fall in this area.

In an actual test, the test signal generally has both amplitude error and phase error. In order to eliminate or reduce the impact of these errors on the identification accuracy of dynamic characteristics, the choice of excitation frequency is also very important in the test method, except to improve the level of test software and hardware to reduce the error of the test signal. Through the analysis of the frequency corresponding to the zero-crossing point of the above curves, the identification error of the main stiffness and cross damping is positive or negative in the range of low frequency and high frequency (less than the resonant frequency). Therefore, it is suggested that the dynamic characteristic test should be carried out respectively in the low frequency range and the high frequency range (less than the resonant frequency) using the single frequency excitation method. Based on the data of two tests, the main stiffness and cross damping are the average values of the two tests, the main damping is the identification value in the high frequency, and the cross stiffness is the identification value in the low frequency. For example, taking the excitation frequency as 40 and 260 Hz respectively, the data of two tests and the final dynamic characteristic coefficients are shown in Table 5.

Table 5.

Identification accuracy in low and high frequency range.

Dynamic characteristiccoefficients	Given value	40 Hz of the excitationfrequency		260 Hz of the excitationfrequency		Final recommendedvalue	Error/%
		Identification value	Error/%	Identification value	Error/%
k_xx(N/m)	7.95 × 10⁷	7.58397 × 10⁷	4.604	7.94303 × 10⁷	0.088	7.7635 × 10⁷	2.346
k_xy (N/m)	1.99 × 10⁵	1.97974 × 10⁵	0.516	2.40434 × 10⁵	−20.821	1.97974 × 10⁵	0.516
k_yx(N/m)	1.99 × 10⁵	1.97971 × 10⁵	0.517	2.40434 × 10⁵	−20.821	1.97971 × 10⁵	0.517
k_yy (N/m)	7.94 × 10⁷	7.57434 × 10⁷	4.605	7.93296 × 10⁷	0.089	7.75365 × 10⁷	2.347
c_xx (N s/m)	1.68 × 10⁴	1.07615 × 10⁴	35.943	1.59088 × 10⁴	5.305	1.59088 × 10⁴	5.305
c_xy (N s/m)	2.03 × 10³	1.91984 × 10³	5.427	1.94374 × 10³	4.249	1.93179 × 10³	4.838
c_yx (N s/m)	2.03 × 10³	1.92022 × 10³	5.408	1.94374 × 10³	4.249	1.93198 × 10³	4.829
c_yy (N s/m)	1.66 × 10⁴	1.05775 × 10⁴	36.28	1.57181 × 10⁴	5.313	1.57181 × 10⁴	5.313

Comparison of identification accuracy betweenthe single frequency excitation method anddual-frequency excitation method

Comparison of the identification accuracy of excitation in the low frequency range

For the single frequency excitation method and dual-frequency excitation method, the biggest difference lies in the excitation frequency. Considering that the excitation frequency has a more obvious influence on the accuracy of dynamic characteristics identification. The identification accuracies of the two methods are analyzed when there is test error under different excitation frequencies, which is the sensitivity to the error.

In the low frequency range, the excitation frequencies are respectively 30 and 60 Hz. When the test signals exist the amplitude error of +5% and the phase error of +1°, the comparison of the identification accuracy of the two test methods is shown in Table 6.

Table 6.

The identification accuracy comparison of the two test methods in the low frequency range.

Dynamiccharacteristiccoefficients	Identification accuracy ofthe dual-frequency excitation method/%	Identification accuracy of single frequency excitation method/%
	30 and 60 Hz	30 Hz	60 Hz
k_xx (N/m)	4.558	4.669	4.44
k_xy (N/m)	45.783	1.576	−1.623
k_yx (N/m)	45.382	1.576	−1.623
k_yy (N/m)	4.56	4.669	4.441
c_xx (N s/m)	35.891	46.568	25.159
c_xy (N s/m)	93.871	5.637	5.186
c_yx (N s/m)	94.018	5.637	5.186
c_yy (N s/m)	36.225	47.018	25.378

In the low frequency range, the identification accuracy of the main stiffness and main damping of the dual-frequency excitation method is between that of the single frequency excitation method at the two frequencies, and both have good identification accuracy. But the identification accuracy of the cross stiffness and cross damping becomes very poor.

Comparison of the identification accuracy of excitation in the high frequency range

In the high frequency range, the excitation frequencies are respectively 260 and 370 Hz. When the test signals exist the amplitude error of +5% and the phase error of +1°, the comparison of the identification accuracy of the two test methods is shown in Table 7.

Table 7.

The identification accuracy comparison of the two test methods in the high frequency range.

Dynamic characteristiccoefficients	Identification accuracyof the dual-frequencyexcitation method/%	Identification accuracy of single frequency excitation method / %
	260 and 370 Hz	260 Hz	370 Hz
k_xx (N/m)	−2.726	0.088	−5.526
k_xy (N/m)	1090.853	−20.821	−25.618
k_yx (N/m)	1104.739	−20.821	−25.618
k_yy (N/m)	−2.702	0.089	−5.529
c_xx (N s/m)	2.706	5.305	−0.076
c_xy (N s/m)	25.411	4.249	2.289
c_yx (N s/m)	25.547	4.249	2.289
c_yy (N s/m)	2.750	5.313	−0.107

In the high frequency range, the single frequency excitation method can only identify one main parameter (main stiffness or main damping) with high accuracy at one frequency. The identification accuracy of the main stiffness and main damping of the dual-frequency excitation method is between that of the single frequency excitation method at the two frequencies, but the two main parameters can be obtained at one time with high identification accuracy. The identification accuracy of the cross stiffness and cross damping also becomes very poor.

Comparison of identification accuracy of both low frequency and high frequency excitation

In the low and high frequency range, the excitation frequencies are respectively 30 and 260 Hz. When the test signals exist the amplitude error of +5% and the phase error of +1°, the comparison of the identification accuracy of the two test methods is shown in Table 8.

Table 8.

The identification accuracy comparison of low frequency and high frequency excitations.

Dynamiccharacteristiccoefficients	Identification accuracy of the dual-frequency excitationmethod/%	Identification accuracy ofsingle frequencyexcitation method/%
	30 and 2600 Hz	30 Hz	260 Hz
k_xx (N/m)	2.414	4.669	0.088
k_xy (N/m)	901.449	1.576	−20.821
k_yx (N/m)	908.209	1.576	−20.821
k_yy (N/m)	2.4	4.669	0.089
c_xx (N s/m)	26.095	46.568	5.305
c_xy (N s/m)	174.649	5.637	4.249
c_yx (N s/m)	176.504	5.637	4.249
c_yy (N s/m)	26.175	47.018	5.313

Through the combined excitation of high frequency and low frequency, the identification accuracy of the main stiffness and main damping coefficients may be improved, but the influence of the error of cross stiffness and cross damping is amplified, and the test results are unreliable.

In summary, the identification error of the main stiffness and main damping identified by the dual-frequency excitation method is basically the average of that of the single frequency excitation method at two frequencies. This can reduce the adverse effect of the improper selection of the test frequency of the single frequency excitation method to some extent, but the influence of the test error on the identification accuracy of the cross stiffness and cross damping is amplified, which makes the identification error of the cross stiffness and cross damping large and the test results unreliable.

Conclusion

Taking the bearing dynamic characteristics test bench as an example, a simulation evaluation method for the identification accuracy of the sliding bearing dynamic characteristics based on the forward and inverse dynamics problem of the bearing is proposed. The influence of the amplitude error and the phase error on the identification accuracy of the dynamic characteristics is analyzed. The results show that when there is only the amplitude error, the dynamic characteristic identification error is basically equivalent to the amplitude error. When there is only the phase error, the identification results of the main stiffness and cross damping identification are almost unaffected, but it has a great influence on the identification results of the cross stiffness and main damping. When there are both amplitude and phase errors, the influence on the identification accuracy of the dynamic characteristic coefficients is basically the superposition of the effects of two separate errors.

Based on the analysis of the influence of excitation frequency on the identification accuracy of dynamic characteristics, the traditional single frequency excitation method is improved. It is suggested that the dynamic characteristic test should be carried out respectively in the low frequency range and high frequency range (less than the rotor resonance frequency). The main stiffness and cross damping are the average of two tests, the main damping is the identification value in the high frequency, and the cross stiffness is the identification value in the low frequency.

The influence of excitation frequency on the identification accuracy of the single frequency excitation method and dual-frequency excitation method is compared and analyzed. When the dual-frequency excitation method is used to identify the dynamic characteristic coefficients, the identification error of the main stiffness and the main damping is basically the average of that of the single frequency excitation method at the two frequencies, but the dual-frequency excitation method makes the identification error of the cross stiffness and cross damping large.

Footnotes

Handling Editor: Chenhui Liang

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This paper was supported by the National Natural Science Foundation of China (grant number 11802232), the National Key R&D Program of China (grant number 2018YFB2000505), the Scientific Research Program Funded by Shaanxi Provincial Education Department (grant number 18JK0569), and China Postdoctoral Science Foundation (grant number 2021MD703875).

ORCID iDs

Runlin Chen

Chen Du

Yanchao Zhang

References

König

Sous

Ouald Chaib

, et al. Machine learning based anomaly detection and classification of acoustic emission events for wear monitoring in sliding bearing systems. Tribol Int 2021; 155: 106811.

Liu

, et al. A high-speed rolling bearing test rig supported by sliding bearing. Ind Lubrication Tribol 2020; 72: 955–959.

Cupillard

Glavatskih

Cervantes

MJ.

Computational fluid dynamics analysis of a journal bearing with surface texturing. Proc IMechE, Part J: J Engineering Tribology 2008; 222: 97–107.

Wang

Shen

Fan

YW.

Static characteristics analysis of spherical hybrid sliding bearings. Ind Lubrication Tribol 2019; 72: 93–100.

Wang

Liu

Qin

, et al. Performance of high-speed hydrodynamic sliding bearings with lubricating oils combining laminar and turbulent flows. Adv Mech Eng 2020; 12: 1–13.

Wang

Xiong

Dynamic coefficients identification of water-lubricated hybrid bearings used in high-speed spindles with different excitation methods. Shock Vib 2017; 2017: 2597910.

, et al. Dynamic analysis of a sliding bearing under transient loads. Lubr Eng 2013; 38: 32–35.

Chen

Wang

, et al. Identification method of dynamic characteristics coefficients of tilting pad bearing in critical speed range of large unit. Proc IMechE, Part J: J Engineering Tribology 2021; 235: 588–597.

Guo

Dai

Guo-Ping

, et al. Study of the characteristic parameters influence of tilting-pad journal radial bearing dynamic performance. Ship Engineering 2014; 36: 62–65.

10.

Gao

Liu

Feng

Analysis and comparison of low-frequency vibration in tilting-pad journal bearing under different load cases. Power Eng J 2014; 34: 286–291.

11.

Wang

Gao

, et al. Method for identifying dynamic coefficients of sliding bearing based on different frequency disturbance and CFD technology. J Propul Technol 2020; 41: 1138–1143.

12.

Brizmer

Gabelli

Vieillard

, et al. An experimental and theoretical study of hybrid bearing micropitting performance under reduced lubrication. Tribol Trans 2015; 58: 829–835.

13.

Zhang

Dai

XD.

Research on the complete dynamical model of tilting-pad bearings considering the coupling moving of shaft and pads with turbulent oil film. Adv Mater Res 2011; 338: 611–617.

14.

Xue

Zhu

Wang

, et al. Research on dynamic characteristics of oil-bearing joint surface in slide guides. Mech Based Des Struct Mach. Epub ahead of print 24 May 2020. DOI: 10.1080/15397734.2020.1766493

15.

Zhang

, et al. Identification investigation of oil-film dynamic coefficients of large-size journal bearings. J Xi’an Jiao Tong Univ 2010; 44: 75–78.

16.

Chen

Wang

, et al. Stiffness model and experimental study of hydrostatic spindle system considering rotor swing. Shock Vib 2020; 2020: 5901432.

17.

Jiang

Xie

YB.

The time domain multi-conditions identifying method of oil film coefficients of journal bearings. Mech Sci Technol 2000; 19: 123–124+136.

18.

Chen

Wang

Yuan

, et al. Modeling and parameter identification accuracy on inverted test bed of dynamic characteristic coefficients for sliding bearing. J Huazhong Univ Sci Technol Nat Sci 2018; 46: 31–37.

19.

Mao

Huang

, et al. Bearing dynamic parameters identification for a sliding bearing-rotor system with uncertainty. Inverse Probl Sci Eng 2018; 26: 1094–1108.

20.

Moore

Ransom

Viana

Rotordynamic force prediction of centrifugal compressor impellers using computational fluid dynamics. J Eng Gas Turbine Power 2011; 133: 042504.

21.

Al-Ghasem

Childs

DW.

Rotordynamic coefficients measurements versus predictions for a high-speed flexure-pivot tilting-pad bearing (load-between-pad configuration). J Eng Gas Turbine Power 2006; 128: 896–906.

22.

San Andres

Childs

Yang

. Turbulent-flow hydrostatic bearings: analysis and experimental results. Int J Mech Sci 1995; 37: 815–829.

23.

Delgado

Vannini

Ertas

, et al. Identification and prediction of force coefficients in a five-pad and four-pad tilting pad bearing for load-on-pad and load-between-pad configurations. J Eng Gas Turbine Power 2011; 133: 092503.

24.

Jiang

Xie

, et al. Identification of oil film coefficients of large journal bearings. Lubr Eng 1998; 01: 18–21.

25.

Chen

Wei

Shi

, et al. Dynamic calibration and verification device of measurement system for dynamic characteristic coefficients of sliding bearing. Sensors 2016; 16: 1202.

26.

Ouyang

Peng

Chen

, et al. Simulated identification on dynamic characteristics of large heavy-load bearing. J Vibroengineering 2017; 19: 3230–3242.

27.

Dimond

Sheth

Allaire

, et al. Identification methods and test results for tilting pad and fixed geometry journal bearing dynamic coefficients: a review. Shock Vib 2009; 16: 13–43.

Simulation evaluation of dynamic characteristic identification accuracy of sliding bearing considering test error

Abstract

Keywords

Introduction

Frequency domain principles and methods for the dynamic characteristic test of sliding bearing

Basic structure and dynamic model of sliding bearing test bench

Frequency domain method and measurement equation of dynamic characteristic identification

Accuracy evaluation method and verification of dynamic characteristic identification based on forward and inverse problem

Quantitative analysis of dynamic characteristic identification accuracy based on forward and inverse problems

Algorithm for solving the forward problem

Algorithm for solving the inverse problem

Quantitative analysis of identification accuracy of dynamic characteristics

Algorithm verification of accuracy evaluation of dynamic characteristic identification

Basic parameters of the case

Analysis of dynamic characteristics identification results

Analysis of the influence of test error on the accuracy of dynamic characteristic identification

Research on the influence of excitation frequency and testing method on the accuracy of dynamic characteristic identification

Vibration response analysis of bearing test bench system

Analysis of the influence of excitation frequency on the identification accuracy of dynamic characteristic

Comparison of identification accuracy betweenthe single frequency excitation method anddual-frequency excitation method

Comparison of the identification accuracy of excitation in the low frequency range

Comparison of the identification accuracy of excitation in the high frequency range

Comparison of identification accuracy of both low frequency and high frequency excitation

Conclusion

Footnotes

Declaration of conflicting interests

Funding

ORCID iDs

References
