Abstract

This paper presents the results of fluid flow and convection heat transfer in concentric and eccentric annuli between two cylinders using a three-dimensional computational fluid dynamics model. Effects of rotational speed (n = 0, 150, 300, and 400 rpm) and eccentricity (ε = 0, 0.15, 0.3, 0.45, and 0.6) on axial and tangential velocity distribution, pressure drop and forced convection heat transfer are investigated for radii ratios (η) of 0.2, 0.4, 0.6, and 0.8, Reynolds number 2.0 × 10³–1.236 × 10⁵, Taylor number 1.47 × 10⁶–1.6 × 10¹⁰, and Prandtl number 3.71–6.94. The parameters cover many applications, including rotary heat exchangers, mixers, agitators, etc. Nusselt numbers and friction factors for stationary and rotated concentric and eccentric annuli are correlated with four dimensionless numbers. The results revealed that when the speed of the inner cylinder increases from 0 to 400 rpm, the friction factor increases by 7.7%–103% for concentric and 8.2%–148% for eccentric annuli, whereas Nusselt number enhances by 37%–333% for concentric and 44%–340% for eccentric annuli. The radius ratio has a substantial effect on the heat transfer and pressure drop in annuli. The eccentricity enhances the heat transfer up to 12%, whereas its effect on the friction factor is not monotonic as it depends on Reynolds number, radii ratios, and rotational speed.

Keywords

Concentric and eccentric annuli Taylor-Couette-Poiseuille flow heat transfer pressure drop inner cylinder rotation radius ratio

Introduction

Fluid flow and heat transfer in the annular space between two circular cylinders, where the inner cylinder is rotating and the outer cylinder is stationary, is encountered in many types of equipment and engineering applications. A narrow annular space exists in the clearance between the stator and rotor of an electric motor or gas turbine or the peripheral clearance of twin-screw pumps and many other applications. Also, the wide annular space takes place in numerous industrial applications, including rotating heat exchangers, mixers, agitators, around nuclear fuel rods in reactors, and wells drilling (the annulus between a borehole and a drill pipe).¹

The fluid flow in the annular space between two cylinders may be classified into a Couette flow, Taylor-Couette flow, Poiseuille flow, and Taylor-Couette-Poiseuille flow. The viscous flow between two cylinders where either one is rotating is termed a Couette flow, whereas for Taylor-Couette flow, the outer cylinder is stationary and the inner cylinder is rotating, without axial flow. In Poiseuille flow, both cylinders are stationary with the imposed axial flow, whereas for Taylor-Couette-Poiseuille flow, the outer cylinder is stationary, and the inner cylinder is rotating with the imposed axial flow.² In addition, other applications may include imposed flow in the radial direction.³

The annular space between the two cylinders may be a concentric or an eccentric one. The two cylinders have a common center for a concentric annulus, or one of the centers is shifted from the other by a distance e to form an eccentric annulus. Figure 1 shows a section of an eccentric annulus where the eccentricity of the inner cylinder splits the annulus into a large space (s = P1) and a small space (s = P2); for concentric cylinders P1 and P2 are equal. The thermal boundary conditions of two walls in concentric or eccentric annular duct for laminar and turbulent flow were classified into four types.⁴

Figure 1.

Eccentric annulus with large space (P1) and small space (P2).

The application of Taylor-Couette flow without imposed axial flow may be encountered in journal bearings. The present work focuses on heat exchangers applications, which include Poiseuille flow for stationary heat exchangers or Taylor-Couette-Poiseuille flow for rotating heat exchangers. Due to the importance and wide applications of the topic, a plethora of work is available on the literature, particularly for Taylor-Couette flow. A comprehensive literature review of the fluid flow work was reported by Tagg,⁵ Childs and Long,⁶ and Nakashima et al. ⁷ The review of fluid and heat transfer work was reported by Fénot et al. ⁸ and Togun et al. ⁹ Table 1 lists a few recent papers on the topic of Taylor-Couette flow, where the aspect ratio (pipe length to hydraulic diameter) and rotational speed of the inner cylinder are the driving force for flow, heat, and absolute instability in such applications. The listed work includes concentric^10–13 and eccentric^14–21 annuli with stationary^{13,14,17–21} or rotating^{10–12,15,16} inner cylinder.

Table 1.

Survey of previous work on Taylor-Couette flow.

No.	Reference	Field F/H*	Approach E/N**
	Concentric annuli papers:
1.	Adebayo and Rona¹⁰	F	N	0.53, 0.44	500	0
2.	Moussa et al.¹¹	F	N	0.25, 0.5, 0.8, 0.97	5–35	0
3.	Ostilla-Mónico et al.¹²	F	E/N	0.5–0.909	650–1200	0
4.	Alipour et al.¹³	H	E	0.1–0.2	0	0
	Eccentric annuli papers:
5.	Imtiaz and Mahfouz¹⁴	H	N	0.3–0.7	0	0.0–0.6
6.	Bojko et al.¹⁵	F	N	0.985	600–3000	0.15
7.	Siong¹⁶	F	E	0.72, 0.8, 0.9	0–545	0–0.8
8.	Choueiri and Tavoularis¹⁷	H	E	0.61	0	0.1, 0.3, 0.5, 0.7, 0.8, 0.9
9.	Mokheimer and El-Shaarawi¹⁸	H	N	0.0–0.9	0	0.0–0.9
10.	Shu et al.¹⁹	F	N	0.5	0	0.2, 0.25, 0.35, 0.5, 0.7, 0.8
11	Guj and Stella²⁰	F/H	N	0.4237	0	0–1
12.	Haciislamoglu and Langlinais²¹	F	N	0.63, 0.333	0	0.43, 0.65

F/H indicates paper field Fluid/Heat.

E/N indicates paper approach Experimental/Numerical.

On the other hand, Table 2 presents a comprehensive review of fluid flow and heat transfer in Taylor-Couette-Poiseuille flow, where the axial flow is encountered in such applications. The listed work is ordered from recent to early papers within three categories, namely fluid flow work,^22–39 forced convection heat transfer work for concentric,^1,40–48 and eccentric^49–58 annuli. The fluid flow work, reported in Table 2, indicated that the topic receives a major consideration in the literature. It includes laminar and turbulent flow, stationary, and rotating inner cylinder, and concentric and eccentric annuli with various radii ratios.

Table 2.

Survey of previous work on Taylor-Couette-Poiseuille flow.

No	Reference	ApproachE/N**	Radius ratio	Speed (rpm)	Eccentricity	Re
	Fluid flow papers:
1.	Bicalho et al.²²	E/N	0.5	0, 200, 400	0, 0.23, 0.46	40–1578
2.	Hamd²³	N	0.5	0–250	0.2, 0.4	200
3.	Kelessidis et al.²⁴	E	0.57	0	0, 1.0	<1.0629 × 10⁴
4.	Ninokata et al.²⁵	DNS	0.1, 0.5	0	0.5	4000
5.	Chung and Sung²⁶	LES	0.5	0, 270, 1080	0	8900
6.	Kaneda et al.²⁷	N	0.001–0.99	0	0	10³–10⁶
7.	Dumont et al.²⁸	E	0.615	30–600	0	<4
8.	Escudier et al.²⁹	E/N	0.2,0.5,0.8	0–400	0.2, 0.3, 0.4,0.5, 0.6, 0.7	105, 115, 120
9.	Moser et al.³⁰	E	0.5	15	0	0–20
10.	Wereley and Lueptow³¹	E	0.83	10–20	0	0–25
11.	Fang et al.³²	N	0.2–0.8	0	0.2–0.8	6–15
12.	Nouri and Whitelaw³³	E	0.5	0, 300	0	9000
13.	Torii and Yang³⁴	N	0.2,0.5,0.8	0	0–0.8	10⁴–10⁵
14.	Velusamy and Garg³⁵	N	0.1–0.8	0	0.2–0.9	6–15
15.	Nouri et al.³⁶	E	0.5	0	0,0.5,1.0	8.9 × 10³–2.6 × 10⁴
16.	Rehme³⁷	E	0.02–0.1	0	0	2 × 10⁴–2 × 10⁵
17.	Jonsson and Sparrow³⁸	E	0.28–0.75	0	0–1	1.8 × 10⁴–1.8 × 10⁵
18.	Barrow et al.³⁹	E	0.25–0.6	0	0–1	Turbulent (NA)
	Forced Convection Papers for Concentric Annuli:
19.	Chithrakumar et al.⁴⁰	E/N	0.624	50–440	0	0–6760
20.	Yassin et al.⁴¹	E	0.333	0–400	0	3 × 10⁴–9 × 10⁴
21.	Lancial et al.⁴²	E/N	0.922	0–1500	0	0–1.425 × 10⁴
22.	Abou-Ziyan et al.¹	E	0.333	0–400	0	8.1 × 10⁴–1.8 × 10⁵
23.	Aubert et al.⁴³	E	0.888	200, 300	0	11,200
24.	Poncet et al.⁴⁴	N	0.506, 0.961	0–2000	0	1200, 2500, 7500
25.	Sreenivasulu and Prasad⁴⁵	N	0.5,0.56, 0.67	0	0	2 × 10⁴–1.8 × 10⁵
26.	Lu and Wang⁴⁶	E	0.8	0	0	10–30,000
27.	Jeng et al.⁴⁷	E	0.8955	0–1028	0	30–1200
28.	Coney and El-Shaarawi⁴⁸	N	0.1,0.5,0.9	0	0	Laminar (NA)
	Forced convectionpapers for eccentric annuli:
29.	Nouri-Borujerd and Nakhch⁴⁹	E	0.928	0–1980	0.928	4.6 × 10³–1.23 × 10⁴
30.	Ali et al.⁵⁰	N	0.333	0–500	0, 0.2, 0.3, 0.4	5 × 10³–5 × 10⁴
31.	Teimouri et al⁵¹	N	0.384	NA	0, 0.6	275
32.	Chauhan et al.⁵²	N	0.5–0.95	0	0.0–0.7	10⁴–10⁶
33.	Piot and Tavoularis⁵³	E	0.28	0	0.5–0.8	400–1200
34.	Nikitin et al.⁵⁴	N	0.6,0.7,0.8	0	0, 0.5, 1	8000
35.	Manglik and Fang⁵⁵	N	0.25–0.75	0	0.0–0.6	6–15
36.	Ogino et al.⁵⁶	E	0.3–0.48	0	0.25–0.75	5 × 10³–4 × 10⁴
37.	Feldman et al.⁵⁷	N	0.5, 0.9	0	0.1, 0.4	2.5–50
38.	Trombetta⁵⁸	N	0.5, 0.9	0	0.1–0.8	52–66
39.	Presentwork (2020)	N (CFD)	0.2, 0.4, 0.6, 0.8	0–400	0, 0.15, 0.3,0.45, 0.6	2 × 10³–1.23 × 10⁵

DNS: direct normal simulation; LES: large eddy simulation; CFD: computational fluid dynamics.

E/N indicates paper approach Experimental/Numerical.

Table 2 indicated that most of the work on forced convection heat transfer in concentric annuli was performed for a single radius ratio under stationary or rotating conditions. The exception to that is the work of Sreenivasulu and Prasad⁴⁵ and Coney and El-Shaarawi⁴⁸ that covers three radii ratios under stationary conditions in turbulent and laminar flow regions, respectively. Also, Poncet et al.⁴⁴ covered two radii ratios (0.506 and 0.961) under rotating conditions, but for low Reynolds number range (1200, 2500, and 7500). Therefore, the effect of rotation on the annular space of different radii ratios is lacks in the literature. This is of particular interest in many industrial applications such as agitators, mixers, and rotary heat exchangers.

Most of the reported work on forced convection heat transfer in eccentric annuli (Table 2) is conducted for stationary inner cylinder^51–58 under a wide range of eccentricity (0–1) and laminar and turbulent flow conditions. Only the work presented in^49,50 was performed under rotational conditions for a very narrow annulus with a radius ratio of 0.928 and an eccentricity of 0.928⁴⁹ or for a fixed annulus with a radius ratio of 0.333 and eccentricity ranges from 0 to 0.4.⁵⁰ Therefore, the effect of eccentricity on various radii ratios under rotational conditions was not investigated. The interaction between the radius ratio and eccentricity on heat transfer and fluid flow in applications involved small, medium, and large radii ratios, and eccentricity needs to be explored.

The earlier discussion revealed that the previous work did not consider the effect of radius ratio, particularly for a rotating annular space on fluid flow and convection heat transfer. Also, the effect of the eccentricity of a rotating annulus of various radii ratios on heat transfer was not examined in the open literature as most of the investigated work for eccentric annuli was conducted under either a stationary inner cylinder or limited Reynolds numbers at a single radius ratio.

Therefore, the aim of the present work is to investigate the effect of radius ratio, eccentricity, and inner pipe rotation speed on fluid flow and heat transfer in wide, medium, and narrow annular gaps to cover various applications, including rotary heat exchangers. Concentric and eccentric annular space of radii ratios of 0.2, 0.4, 0.6, and 0.8 are investigated for eccentricity of 0, 0.15, 0.30, 0.45, and 0.60 and rotational speed of 0, 150, 300, and 400 rpm. The simulated data of Nusselt number and friction factor are correlated with Reynolds number from about 2000 to 123,600, Taylor’s number of 0 and from 1.47 × 10⁶ to 1.6 × 10¹⁰, Prandtl number from 3.71 to 6.94, and radius ratio from 0.2 to 0.8. The work is conducted using 3D-CFD simulations with a k-ε turbulence model.

Numerical modeling and simulation

This section describes the modeling and simulation of fluid flow and heat transfer of water flow through the annular space between two circular cylinders where the inner cylinder is assumed to be at constant surface temperature and the outer cylinder is adiabatic. The inner cylinder is either stationary or rotating, and the outer one is stationary. Fluid flow and heat transfer in the concentric or eccentric annulus can be described mathematically using the three-dimensional governing conservations of mass, momentum, and energy. Several three-dimensional test cases have been simulated using ANSYS- Fluent version 18.2. In the case of incompressible flow under steady-state conditions, the equations solved in each computational cell are Navier-Stokes equations. The continuity equation (conservation of mass) in cylindrical coordinates is given in equation (1).

\frac{1}{r} \frac{\partial}{\partial r} (r u_{r}) + \frac{1}{r} \frac{\partial u_{θ}}{\partial θ} + \frac{\partial u_{z}}{\partial z} = 0

(1)

Where u_r, u_θ, and u_z are the velocity vector components in the cylindrical coordinates r, z, and θ. Conservation of momentum equation (equation of motion) in r, z, and θ directions is expressed by equations (2)–(4), respectively.

\begin{matrix} ρ (u_{r} \frac{\partial u_{r}}{\partial r} + \frac{u_{θ}}{r} \frac{\partial u_{r}}{\partial θ} + u_{z} \frac{\partial u_{r}}{\partial z} - \frac{{u_{θ}}^{2}}{r}) = - \frac{\partial p}{\partial r} + ρ g_{r} \\ + μ [\frac{1}{r} \frac{\partial}{\partial r} (r \frac{\partial u_{r}}{\partial r}) + \frac{1}{r^{2}} \frac{\partial^{2} u_{r}}{\partial θ^{2}} + \frac{\partial^{2} u_{r}}{\partial z^{2}} - \frac{u_{r}}{r^{2}} - \frac{2}{r^{2}} \frac{\partial u_{θ}}{\partial θ}] \end{matrix}

(2)

\begin{matrix} ρ (u_{r} \frac{\partial u_{θ}}{\partial r} + \frac{u_{θ}}{r} \frac{\partial u_{θ}}{\partial θ} + u_{z} \frac{\partial u_{θ}}{\partial z} + \frac{u_{r} u_{θ}}{r}) = - \frac{1}{r} \frac{\partial p}{\partial θ} + ρ g_{θ} \\ + μ [\frac{1}{r} \frac{\partial}{\partial r} (r \frac{\partial u_{θ}}{\partial r}) + \frac{1}{r^{2}} \frac{\partial^{2} u_{θ}}{\partial θ^{2}} + \frac{\partial^{2} u_{θ}}{\partial z^{2}} - \frac{u_{θ}}{r^{2}} + \frac{2}{r^{2}} \frac{\partial u_{r}}{\partial θ}] \end{matrix}

(3)

\begin{matrix} ρ (u_{r} \frac{\partial u_{z}}{\partial r} + \frac{u_{θ}}{r} \frac{\partial u_{z}}{\partial θ} + u_{z} \frac{\partial u_{z}}{\partial z}) = - \frac{\partial p}{\partial θ} + ρ g_{z} \\ + μ [\frac{1}{r} \frac{\partial}{\partial r} (r \frac{\partial u_{z}}{\partial r}) + \frac{1}{r^{2}} \frac{\partial^{2} u_{z}}{\partial θ^{2}} + \frac{\partial^{2} u_{z}}{\partial z^{2}}] \end{matrix}

(4)

Where ρ and μ are the fluid density and dynamic viscosity, p is the pressure, and $ρ g_{i}$ is the body force in the r, z, and θ directions. Conservation of energy equation is given in equation (5):

\begin{matrix} u_{r} \frac{\partial T}{\partial r} + \frac{u_{θ}}{r} \frac{\partial T}{\partial θ} + u_{z} \frac{\partial T}{\partial z} \\ = α [\frac{1}{r} \frac{\partial}{\partial r} (r \frac{\partial T}{\partial r}) + \frac{1}{r^{2}} \frac{\partial^{2} T}{\partial θ^{2}} + \frac{\partial^{2} T}{\partial z^{2}}] + S_{T} \end{matrix}

(5)

Where T is the temperature, α is the thermal diffusivity (α = k/ρc_p), k is the thermal conductivity of element, c_p is the specific heat, and $S_{T}$ is the source term, which may be due to electrical current flow, chemical reaction, etc.

ANSYS FLUENT Workbench Release 18.2 is set to solve three-dimensional turbulent fluid flow and heat transfer in the concentric and eccentric horizontal annulus. The computational scheme used by ANSYS FLUENT Workbench is based on the finite volume discretization method in which the flow equations are integrated over each control volume.

Turbulence is accounted for by time-averaging the equations (1–5) to produce the Reynolds Averaged Navier-Stokes (RANS) equations, and to solve for the additional terms generated using this process; a turbulence model has to be implemented.

Computational domain and boundary conditions

As shown in Figure 2, the physical model consists of double cylinders with an inner cylinder of 50 mm diameter and a 2000 mm length at a constant surface temperature of 85°C. The outer cylinder is adiabatic with variable diameters to study the effect of radii ratios on both fluid flow and heat transfer. A downstream section of 1000 mm is added to the original domain length to eliminate the reversed backflow, which results from flow rotation in the low-pressure zone adjacent to the exit.

Figure 2.

The computational domain and boundary conditions.

The working fluid used is water with an inlet temperature of 20°C and a variable inlet water velocity from 0.15 to 0.6 m/s to investigate the effect of Reynolds number on the fluid flow and heat transfer characteristics in the annular space. The outlet boundary conditions are pressure outlet with zero-gauge pressure. The outer cylinder is stationary with the no-slip surface condition. Reynolds averaged Navier-Stokes equations were solved using the realizable k–ε turbulence model with enhanced wall treatment while the pressure gradient effect is taken into consideration. The pressure velocity coupling was the semi-implicit method for pressure-linked equations (SIMPLE). The residuals were set to $10^{- 5}$ for all transport equations to achieve convergence.

Turbulence model selection

Turbulence is a very complicated physical process to represent mathematically and consequently difficult to be accurately modeled. However, there are three common approaches to predict turbulent flow; Direct Numerical Simulation (DNS), Large Eddy Simulation (LES), and Reynolds-Averaged Navier-Stokes (RANS) equation simulation with an appropriate turbulence model. The RANS approach has become widely used in modeling fluid flow in the annulus due to its limited requirements of computer resources. Therefore, in this study, the RANS approach is adopted, and various turbulence models have been tested to predict the turbulence effects of the water flow. Among the tested models, the realizable k–ε turbulence model performed better than the other models in predicting more accurate results than the reported results in.⁵⁰

Grid size study

ANSYS meshing is used for mesh generation using the multi-zone method. Figure 3 shows a section of the mesh in the annular space. The mesh is created using edge sizing and the multi-zone method. The accuracy of the solution of the three-dimensional governing equations depends on the number and the size of the cells of the generated mesh. Therefore, a grid independence study was conducted on the three-dimensional geometries to determine the best mesh spacing. The output from the program is the outlet water temperature and the pressure drop across the test section. Table 3 lists the results of outlet temperature, pressure drop, and Nusselt number for three grid sizes 204,771, 418,500, and 671,660. The comparison shows that the mesh size of 418,500 obtains results with 0.01%, 0.29%, and 0.45% difference from the finest mesh for outlet temperature, pressure drop, and Nusselt number, respectively, with a reasonable computational time.

Figure 3.

Section of the computational grid.

Table 3.

Effect of cell size on the predicted results.

Grid size	Parameters			% Difference
	T_o (°C)	ΔP (Pa)	Nu	T_o	ΔP	Nu
204,771	26.540	3.42	83.58	0.075	0.87	0.96
418,500	26.557	3.45	84.38	0.01	0.29	0.45
671,660	26.560	3.46	84.76	0.00	0.00	0.00

Model validation

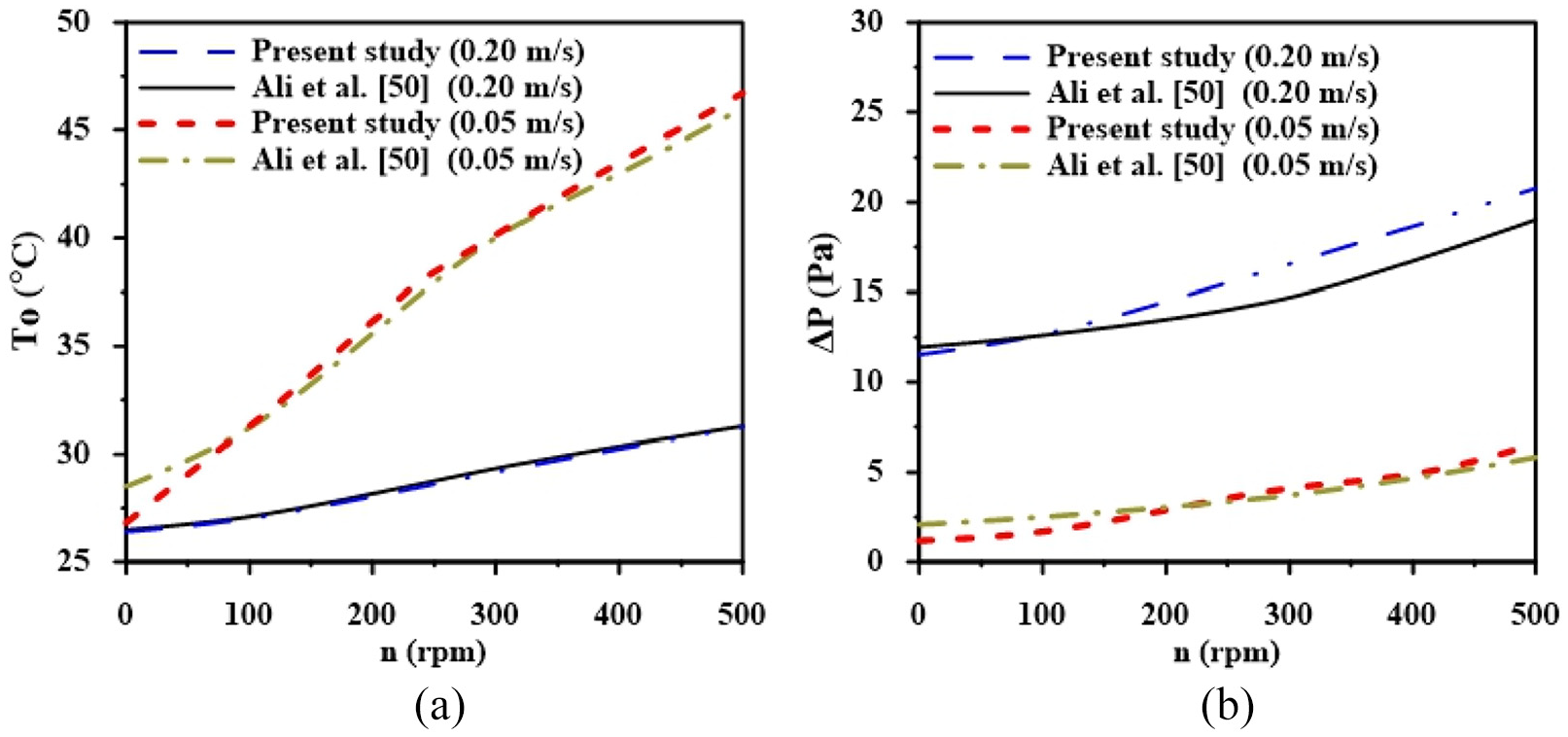

The predictions of the CFD model are validated against results reported by Ali et al.⁵⁰ for a concentric annulus with a radius ratio of 0.33. A reasonable agreement is obtained for the outlet temperature and pressure drop. The validation is conducted at rotational speeds of 0, 100, 300, 400, and 500 rpm at two axial water velocities of 0.05 and 0.20 m/s. Figure 4 shows the comparison between the results of the present work and those reported by Ali et al.⁵⁰ for the main program output. The percentage difference ranges from 0.06% to 0.67% for the outlet temperature and 0.4% to 11.52% for pressure drop.

Figure 4.

Validation of the numerical results: (a) Outlet temperature and (b) pressure drop.

Data analysis and reduction

As stated before, the inputs to the CFD program are the inlet water velocity (U_b) and temperature (T_i) with inner cylinder surface temperature (T_s) of 85°C. The output of the CFD simulation is the outlet water temperature (T_o), inlet pressure (p_i), and outlet pressure (p_o). Those data are used to calculate the heat transfer rate (Q) using equations (6). The mass flow rate of water (m) is calculated using equation (7). A_c is the cross-sectional area of the annular space as given in equation (8), where d_i and d_o are the diameters of the inner and outer cylinders, respectively.

Q = m c_{p} (T_{o} - T_{i})

(6)

m = ρ U_{b} A_{c}

(7)

A_{c} = \frac{π (d_{o}^{2} - d_{i}^{2})}{4}

(8)

The convection heat transfer coefficient (h) is calculated using equation (9), where A_s is the surface area of heat exchange, and L is the test section length. The logarithmic mean temperature difference (LMTD) along the test section is calculated using equation (11).

h = \frac{Q}{A_{s} LMTD}

(9)

A_{s} = π d_{i} L

(10)

LMTD = \frac{T_{o} - T_{i}}{\ln (\frac{T_{s} - T_{i}}{T_{s} - T_{o}})}

(11)

On the other hand, the pressure drop (Δp) is the difference between inlet and outlet pressure along the test section (equation (12)). Also, the pumping power (PP) required to drive the water through the annular space is calculated using equation (13).

Δ p = p_{o} - p_{i}

(12)

PP = Δ p U_{b} A_{c}

(13)

The convection heat transfer coefficient, pressure drop, and the water velocity are presented in dimensionless forms as Nusselt number (Nu), friction factor (f), and Reynolds number (Re) as defined in equations (14–16), respectively. Nu, f, and Re are based on the hydraulic diameter (D_h) that characterize the geometry of the annular channel (equation (17)). Also, dimensionless Prandtl number (Pr) accounts for the water properties, as defined in equation (18).

Nu = \frac{h D_{h}}{k}

(14)

f = \frac{2 Δ p D_{h}}{ρ U_{b}^{2} L}

(15)

Re = ρ U_{b} D_{h} / μ

(16)

D_{h} = d_{o} - d_{i}

(17)

\Pr = c_{p} μ / k

(18)

Taylor’s number (Ta) is a dimensionless quantity that characterizes the importance of centrifugal forces or so-called inertial forces due to rotation of fluid about an axis relative to viscous forces. There are various definitions of Taylor’s number in literature, which are not all equal. The most commonly used are Taylor’s number or the rotational Reynolds number (Re_r), as defined in equations (19–20)⁸ Taylor’s number incorporates the annulus radius or diameter ratio.⁹ It should be noted that some authors used the square root of Ta instead of Ta. The angular velocity (ω) is defined by equation (21).

Ta = {(\frac{ω d_{i}}{ν})}^{2} \frac{{(d_{o} - d_{i})}^{3}}{8 (d_{o} + d_{i})}

(19)

R e_{r} = \frac{ω d_{i} (d_{o} - d_{i})}{4 ν}

(20)

ω = 2 π n / 60

(21)

Finally, the best-operating conditions are that lead to the highest ratio (R) of the heat transfer rate (Q) to the theoretical pumping power (PP) as defined by the following equation:

R = \frac{Q}{PP} = \frac{Q}{Δ p U_{b} A_{c}} = \frac{ρ c_{p} (T_{o} - T_{i})}{Δ p}

(22)

Results and discussion

Effects of rotation, eccentricity, and radius ratio on axial and tangential velocity distributions, friction factors, and Nusselt numbers in an annular channel between two concentric and eccentric cylinders are discussed in this section. The reported results cover concentric and eccentric annuli with radii ratios of 0.2, 0.4, 0.6, and 0.8 under stationary and rotating (n = 150, 300, and 400 rpm) inner cylinder with constant surface temperature and adiabatic stationary outer cylinder. The results cover Reynolds number from 2.0 × 10³ to 1.236 × 10⁵, Taylor number from 1.47 × 10⁶ to 1.6 × 10¹⁰, Prandtl number from 3.71 to 6.94, radius ratio (η) from 0.2 to 0.8, and eccentricity (ε) from 0 to 0.6.

Axial and tangential velocity distribution

Concentric annuli

The results of the concentric annular gap are reported for a fully developed turbulent flow (at z = 1.9 m and Re > 2000) under stationary (Ta = 0) and rotating conditions (Ta between 2.35 × 10⁷ and 3.6 × 10¹⁰). The simulations are carried out for wide to narrow annuli with radii ratios (η = R_i/R_o) from 0.2 to 0.8 with an eccentricity of the inner cylinder (ε = e/R_o–R_i) from 0 to 0.6, where e is the distance between the centers of the inner and outer cylinders, R_i the outer radius of the inner cylinder and R_o the inner radius of the outer cylinder, refer to Figure 1.

Taylor-Couette-Poiseuille flow in concentric annuli is affected by many factors such as the flow rate through the annulus, the radius ratio, and the rotational speed of the inner cylinder. Figure 5(a) to (d) shows the normalized axial (upper figures) and tangential (lower figures) velocity profiles in concentric annuli (ε = 0) of radii ratios of 0.2, 0.4, 0.6, and 0.8, respectively, at bulk fluid velocity of 0.35 m/s. The outer cylinder is stationary with an adiabatic surface, while the inner cylinder is isothermal and either stationary (n = 0) or rotating (n = 150, 300, and 400 rpm). Both axial (u) and tangential (w) velocities are normalized concerning the bulk fluid velocity (U_b = 0.35 m/s). The x-axis (r/s) is normalized concerning the distance between the inner and outer cylinders (s), with 0.0 at the outer cylinder surface and 1.0 at the inner cylinder surface.

Figure 5.

Normalized axial (upper) and tangential (lower) velocity profiles in concentric annulus of various radii ratios at bulk velocity, U_b = 0.35 m/s: (a) h = 0.2, (b) h = 0.4, (c) h = 0.6, and (d) h = 0.8.

The axial velocity distribution for a small radius ratio (wide annular space) shows a non-symmetric profile, particularly for the stationary inner cylinder as the maximum velocity occurs near the inner cylinder surface. For the stationary inner cylinder with the largest radius ratio (0.8), the velocity distribution is approximately symmetric, and the maximum axial velocity is near r/s = 0.5. This is mainly because as the radius ratio increases, the hydraulic diameter, and Re decrease. Consequently, the velocity profile becomes less turbulent. On the other hand, the axial velocity distribution for the rotational cases is more symmetric than the stationary cases, with the maximum velocity takes place around r/s = 0.5. Thus, the axial velocities near the rotating inner cylinder surface are greater than those under stationary conditions, particularly for small radii ratios. The maximum axial velocities are about 1.12U_b for η ≤ 0.6 and 1.18 U_b for the largest radius ratio (η = 0.8), as shown in Figure 5.

The tangential velocity results mainly from the rotation of the inner cylinder. Thus, the tangential velocity (ωr) for the case of the stationary inner cylinder is zero and overlaps with the x-axis in Figure 5. Figure 5(a) to (d) (lower frames) show that the normalized tangential velocity is maximum at the rotating inner cylinder and zero at the outer stationary cylinder due to the no-slip condition in which the fluid velocity at all fluid-solid boundaries is equal to that of the solid boundary. Also, Figure 5(a) to (d) show that the tangential velocity increases with the rotational speed for all radii ratios. Also, the effect of the radius ratio on the tangential velocity is observed by comparing Figure 5(a) to (d). As the radius ratio increases, the annulus becomes smaller, and the effect of rotation on the tangential velocity becomes clearer. At the radius ratio of 0.8, the mean tangential velocity is greater than the axial velocity. Normalized tangential velocity reaches about 3 U_b in the annular space for the concentric case, near the wall of the inner cylinder. This suggests a considerable effect of rotation in small annuli than in large annuli (small radii ratios).

Figure 6(a) to (d) show the axial (upper) and tangential (lower) velocity contours of the concentric annulus of radii ratios of 0.2, 0.4, 0.6, and 0.8, respectively, at the bulk fluid velocity of 0.35 m/s and 400 rpm. The contours are taken in the fully developed region at z = 1.9 m. These contours are corresponding to the cases represented by the red dashed curves in Figure 5(a) to (d). The contours of both axial and tangential velocities show no angular distribution for concentric annuli. It is clear that the maximum velocity represented by a narrow ring (shown in dark red) occurs in the middle of the annulus of η = 0.8 (Figure 6(d)). The ring, representing the maximum axial velocity, is getting wider as η decreases indicating the trend of higher turbulent flow as Re increases due to the hydraulic diameter increase. Also, the ring moves toward the inner cylinder as η decreases for the wider annulus. It is also shown that the axial velocity is zero at the walls of the inner and outer cylinders (circles shown in dark blue color).

Figure 6.

Axial (upper) and tangential (lower) velocity contours of concentric annulus of various radii ratios at bulk velocity, U_b = 0.35 m/s and 400 rpm: (a) η = 0.2, Re = 7.22 × 10⁴, (b) η = 0.4, Re = 2.71 × 10⁴, (c) η = 0.6, Re = 1.20 × 10⁴, and (d) η = 0.8, Re = 0.45 × 10⁴.

On the other hand, the development of the tangential velocity profile as the radius ratio increases from 0.2 to 0.8 is depicted in the lower part of Figure 6(a) to (d). It is clear that the tangential velocity is zero at the outer cylinder surface and maximum at the rotating inner cylinder surface. As the radius ratio increases from 0.2 to 0.8, the magnitude of the tangential velocity becomes higher, and the dark blue ring representing the zero tangential velocity becomes thinner. This is observed by comparing the development of the tangential velocity contours in Figure 6(a) to (d).

Similar trends to those shown in Figures 5 and 6 are observed for the other tested bulk fluid velocities (0.05–0.60 m/s) for the normalized axial velocity. However, the effect of rotation on the tangential velocity decreases as the bulk fluid velocity is increased. This is confirmed by the fact that, at 400 rpm, the maximum normalized tangential velocity reaches about 1.74, 2.97, and 6.97 for fluid bulk velocities of 0.6, 0.35, and 0.15 m/s, respectively.

Eccentric annuli

Figure 1 shows a section of an eccentric annulus where the eccentricity of the inner cylinder splits the annulus into a large space (s = P1) and a small space (s = P2). The results are reported for spaces P1 and P2 for a fully developed turbulent flow (at z = 1.9 m and Re > 2000) under stationary (Ta = 0) and rotating inner cylinder. The normalized axial and tangential velocity profiles are shown in Figures 7 and 8, respectively, in the eccentric annulus of spaces P1 and P2. The velocity profiles are presented at the largest tested eccentricity (ε = 0.6) for various radii ratios of 0.2, 0.4, 0.6, and 0.8, under stationary (n = 0) and rotation (n = 150, 300, and 400 rpm) conditions. Figures 7 and 8 are made of the same ordinate to ease visual comparison between velocity distribution in the annuli of various radii ratios for the large (P1, in the upper part of Figures 5 and 6) and small (P2, in the lower part of Figures 5 and 6) spaces.

Figure 7.

Normalized axial velocity profiles in the large plan (upper) and small plan (lower) in eccentric annulus (ε = 0.6) of various radii ratios at bulk velocity, U_b = 0.35 m/s: (a) η = 0.2, (b) η = 0.4, (c) η = 0.6, (d) η = 0.8.

Figure 8.

Normalized tangential velocity profiles in the large plan (upper) and small plan (lower) in eccentric annulus (ε = 0.6) of various radius ratios at bulk velocity, U_b = 0.35 m/s: (a) η = 0.2, (b) η = 0.4, (c) η = 0.6, and (d) η = 0.8.

In general, the axial and tangential velocity profiles at η = 0.2 (Figures 7(a) and 8(a)) in the large space (P1) are somewhat similar to those of the concentric case (Figure 5(a)). This indicates a small effect of the eccentricity on the velocity profiles for a small radius ratio due to the low sensitivity of the large annular space to the eccentricity variation. On the other hand, the effect of eccentricity is more evident on the axial and tangential velocity distribution in the small space (P2) as presented in Figures 7(a) and 8(a) (lower frames). The axial velocity for the stationary inner cylinder, in the small space (P2), decreases in comparison with the concentric case, as can be seen in Figure 7(a). This is mainly because a small percentage of water flows in the small space (small flow area) due to a larger resistance to flow than that for the large space (large flow area).

Additionally, both axial and tangential velocities in the small space (P2) increase as the rotational speed increases. This is mainly because as the eccentricity increases, the space P2 becomes smaller and hence more sensitive to the rotation of the inner cylinder for both axial and tangential velocities. This is more obvious for greater radii ratios (η = 0.4–0.8) as the axial velocities under rotation conditions are higher than those under stationary conditions for the small eccentric space (P2) and lowers for the large eccentric space (Figure 7(b)–(d)). This pattern becomes clearer as the radius ratio increases. The velocity profile in the small eccentric space (P2) is symmetric only for η = 0.8. Also, the maximum axial velocity shifts near to the inner cylinder when it is stationary and to the outer cylinder when the inner cylinder is rotating.

Figure 8 shows that the tangential velocity profiles in the large eccentric space (P1) are similar to those of concentric annuli with η = 0.2–0.4 (Figure 5(a) and (b)), whereas those in the small eccentric space (P2) are comparable to those of concentric annuli with η = 0.6–0.8 (Figure 5(c) and (d)). The effect of eccentricity on the tangential velocity in the small eccentric space is more significant than those in the case of the concentric annulus (Figure 5).

The effect of the radius ratio on the axial and tangential velocity contours in the eccentric annuli is shown in Figure 9(a) to (d) for radii ratios of 0.2, 0.4, 0.6, and 0.8, respectively. The velocity contours are taken in the fully developed region at z = 1.9 m for 4009 rpm. These contours are corresponding to the red dashed curves in Figures 7 and 8. Due to the combined effect of the inner cylinder rotation and eccentricity, the contours show an angular velocity distribution for both axial and tangential velocity. These angular variations of the axial and tangential velocity contours are different for each radius ratio. Accordingly, the maximum axial velocity in the large space (P1) takes place in the center of the eccentric annulus of the case of η = 0.2 in the wider ring, as shown in Figure 9(a). But the maximum axial velocity becomes thinner and shifts angularly in the cases of larger η = 0.4–0.8.

Figure 9.

Axial (upper) and tangential (lower) velocity contours of eccentric annulus (ε = 0.6) of various radii ratios at bulk velocity, U_b = 0.35 m/s and 400 rpm: (a) η = 0.2, (b) η = 0.4, (c) η = 0.6, and (d) η = 0.8.

On the other hand, the tangential velocity contours (Figure 9) show lower values in the large eccentric space (P1) compared to those in the small eccentric space (P2). This is mainly because the rotation has a greater effect on the small space (P2) than the large space (P1). The tangential velocity contours have larger variations and magnitude for the larger radii ratios than for the small ones.

Figure 10(a) to (d) show the effect of rotation at 0, 150, 300, and 400 rpm, respectively, on the axial and tangential velocity contours for a radius ratio of 0.8 and eccentricity of 0.6. The velocity contours in Figure 10 are corresponding to the four cases presented in Figures 7(d) and 8(d). Figure 10(a) shows that for stationary annulus, the maximum axial velocity occurs at the large space (P1), but by increasing the rotational speed, the maximum velocity shifts angularly near the small space (P2). This is because the effect of rotation on the small space (P2) becomes more influential as the inner cylinder speed increases. On the other hand, the tangential velocity contours, in Figure 10(a) to (d), show that the velocity is zero for the stationary inner pipe. The tangential velocity increases as the rotational speed is increased, particularly in the small space (P2). It decreases from about 1 m/s at the rotating surface of the inner cylinder to zero at the surface of the stationary outer cylinder.

Figure 10.

Axial (upper) and tangential (lower) velocity contours in eccentric annulus (ε = 0.6), η = 0.8 and U_b = 0.35 m/s: (a) 0 rpm, (b) 150 rpm, (c) 300 rpm, and (d) 400 rpm.

Pressure drop and friction factors

The pressure drop along the annular test section of the constant length of 2 m is predicted using the simulation program. The pressure drop increases as the water inlet velocity or the rotational speed of the inner cylinder is increased. The ratio of pressure drop in a wide annulus of radius ratio of 0.2 to a narrow one of radius ratio of 0.8 is listed in Table 4, for concentric and eccentric (ε = 0.6) cases at rotational speeds 0, 150, 300, and 400εrpm. These ratios of pressure drop range from 0.019 for low to 0.042 for large inlet water velocity. Also, the rotational speed and eccentricity have a substantial effect on the ratio of pressure drop.

Table 4.

Ratio of DP_0.2/DP_0.8 under different rotational speed for concentric and eccentric (ε = 0.6) annuli.

V (m/s)	Concentric annuli (n, rpm)				Eccentric annuli, ε = 0.6 (n, rpm)
	0	150	300	400	0	150	300	400
0.15	0.026	0.024	0.020	0.019	0.032	0.023	0.020	0.019
0.25	0.031	0.029	0.025	0.023	0.036	0.028	0.025	0.023
0.35	0.033	0.032	0.029	0.027	0.039	0.032	0.028	0.027
0.45	0.035	0.034	0.032	0.030	0.041	0.034	0.031	0.029
0.60	0.037	0.037	0.035	0.033	0.042	0.037	0.034	0.032

The pressure drop may be presented in the dimensionless form of friction factor, f, as defined by equation (15). Figure 11(a) to (d) show the effect of rotational speed on the friction factor of concentric (ε = 0) and eccentric (ε = 0.6) annuli for radius ratios 0.2, 0.4, 0.6, and 0.8, respectively, for the stationary and rotating inner cylinder.

Figure 11.

Effect of speed on the friction factor of annuli at various radii ratios: (a) h = 0.2, (b) h = 0.4, (c) h = 0.6, and (d) h = 0.8.

In general, the friction factor decreases as the Reynolds number increases for the concentric and eccentric annuli (Figure 11). This is a typical relationship between friction factor and Reynolds number. It is also clear that the friction factor increases as the radius ratio increases for both concentric and eccentric annuli (Figure 11). This is mainly because as the radius ratio increases, the flow area decreases and, consequently, the resistance to flow increases. Also, the quantitative effect of rotational speed on the friction factor for concentric and eccentric annuli can be observed in Table 5. The ratio (f_rot/f_st) indicates that the friction factor is more pronounced for large radius ratio, low Reynolds number, and higher speed. As the rotational speed of the inner cylinder increases from 0 to 400 rpm, the friction factor increases by 7.7%–40.4% for a radius ratio of 0.2 and from 21.3% to 98.3% for a radius ratio of 0.8. The effect of rotation on the friction factor in eccentric annuli is larger than that in concentric annuli. As the speed increases from 0 to 400 rpm in the eccentric annulus (ε = 0.6), the friction factor increases by 8.2%–44.6% for a radius ratio of 0.2 and 42.7%–148% for a radius ratio of 0.8 (Table 5).

Table 5.

Ratio of f_rot/f_st under different rotational speed for concentric and eccentric (ε = 0.6) annuli.

η	Re × 10⁴	Concentric annuli (n, rpm)			Eccentric annuli (n, rpm)
		150	300	400	150	300	400
0.2	3.139	1.137	1.304	1.404	1.144	1.323	1.446
	12.36	1.016	1.051	1.077	1.025	1.067	1.082
0.4	1.177	1.234	1.581	1.822	1.262	1.712	1.919
	4.636	1.036	1.104	1.157	1.028	1.101	1.170
0.6	0.523	1.283	1.715	2.028	1.395	1.886	2.259
	2.060	1.039	1.128	1.204	1.063	1.191	1.311
0.8	0.196	1.275	1.699	1.983	1.599	2.140	2.480
	0.773	1.037	1.131	1.213	1.172	1.323	1.427

In conclusion, the friction factor increases with increasing the rotational speed, or the radius ratio, where the effect is more pronounced at the smallest annulus space (η = 0.8) as the resistance to flow increases in the narrow annulus and the rotation makes the fluid more turbulent. Consequently, the pressure drop increases as the flow rate, rotational speed, and radius ratio increase, while the effect of rotation is more evident in the narrow annulus of high radius ratio (η = 0.8).

The effect of eccentricity on the friction factor for the stationary (n = 0 rpm) and rotating (n = 400 rpm) inner cylinder is presented in Table 6 for radii ratios 0.2, 0.4, 0.6, and 0.8 and eccentricities 0.15, 0.30, 0.45, and 0.60. In a large stationary annulus (at η = 0.2 and n = 0 rpm), as the eccentricity increases from 0 to 0.6, the friction factor increases by less than 1% at low Reynolds number (3.14 × 10⁴) and decreases by about 2% at the largest Reynolds number (1.236 × 10⁵, Table 6). In intermediate stationary annulus (at η = 0.4), the friction factor increases with the eccentricity for all Reynolds numbers by 1%–2%. For a small stationary annulus (at η ≥ 0.6 and n = 0 rpm), the friction factor decreases for all Re by 1%–17% (Table 6). Therefore, the effect of eccentricity on friction factor for stationary annuli depends on the radius ratio and Reynolds number.

Table 6.

Ratio of f_ecc/f_con under different eccentricity for stationary and rotating (n = 400) annuli.

η	Re × 10⁴	Stationary annuli (n = 0 rpm)				Rotating annuli (n = 400 rpm)
		0.15	0.30	0.45	0.60	0.15	0.30	0.45	0.60
0.2	3.139	0.99	0.99	1.01	1.01	1.00	1.01	1.03	1.04
	12.36	0.98	0.97	0.98	0.98	0.99	0.98	0.99	0.98
0.4	1.177	1.00	1.01	1.01	1.01	1.00	1.01	1.03	1.06
	4.636	1.00	1.01	1.01	1.02	1.00	1.01	1.02	1.03
0.6	0.523	1.00	0.99	0.98	0.95	1.00	1.02	1.04	1.06
	2.060	1.00	1.00	0.99	0.97	1.00	1.02	1.03	1.06
0.8	0.196	0.99	0.96	0.90	0.83	1.00	1.01	1.02	1.04
	0.773	0.99	0.97	0.93	0.87	1.00	1.00	1.01	1.02

Also, Table 6 presents the effect of eccentricity for rotational inner cylinder (n = 400) with radius ratios of 0.2, 0.4, 0.6, and 0.8, respectively, for eccentricity of 0, 0.15, 0.30, 0.45, and 0.60. In general, the friction factor increases as the eccentricity is increased for all Reynolds number by 1%–6%, except for wide annulus (η = 0.2) at high Re (1.236 × 10⁵), where the friction factor shows a slight decrease by about 2% with the eccentricity increase (Table 6). Also, the effect of eccentricity becomes less significant at high Re compared to that at low Re.

In conclusion, the effect of eccentricity on the friction factor is not monotonic for the different conditions. The trend is different for stationary and rotating conditions, small and large radii ratios, or low and high Reynolds numbers.

Convection heat transfer and Nusselt numbers

As discussed in section 3, the convection heat transfer coefficient (h) is evaluated at rotational speeds of the inner cylinder of 0, 150, 300, and 400 rpm and eccentricity of 0, 0.15, 0.30, 0.45, and 0.60 for radii ratios of 0.2, 0.4, 0.6, and 0.8. The effect of rotation on the ratio of h for a radius ratio of 0.2 to that of 0.8 (h_0.2/h_0.8) at various inlet water velocities is given in Table 7. It is clear that the ratio (h_0.2/h_0.8) in a stationary concentric annulus is less than 1, particularly at a low water velocity. The rotation enhances h in a narrow annulus (η = 0.8) more than in a wide annulus (η = 0.2) to increase the ratio (h_0.2/h_0.8) to become larger than 1. Also, the effect of rotation is more influential in the concentric annulus at a low water velocity. The effect of rotation on the ratio (h_0.2/h_0.8) for the eccentric annulus is larger than that for the concentric annulus at the largest water velocity.

Table 7.

Ratio of h_0.2/h_0.8 under different rotational speed for concentric and eccentric (ε = 0.6) annuli.

V (m/s)	Concentric annuli (n, rpm)				Eccentric annuli, ε = 0.6 (n, rpm)
	0	150	300	400	0	150	300	400
0.15	0.933	1.322	1.552	1.712	0.982	1.299	1.478	1.581
0.25	0.949	1.186	1.301	1.443	1.005	1.197	1.333	1.391
0.35	0.967	1.114	1.267	1.341	1.022	1.146	1.266	1.319
0.45	0.993	1.068	1.209	1.276	1.020	1.108	1.215	1.271
0.60	0.982	1.029	1.142	1.204	1.016	1.082	1.167	1.216

The results of heat transfer are presented in the form of Nu in Figure 12 for concentric (left column) and eccentric (ε = 0.6, right column). Also, the quantitative effect of rotational speed on Nusselt number of concentric and eccentric annuli can be observed in Table 8. In the case of concentric cylinders at a radius ratio of 0.2, Nu increases by 111%, 243%, and 333% at Re of 3.14 × 10⁴ and by 12%, 44%, and 68% at Re of 1.236 × 10⁵ when the inner cylinder rotational speed increases from 0 to 400 rpm, respectively, as presented in Figure 12(a). The comparison between the augmentations in Nu indicates that Nu enhances as the rotation speed increases. Also, the effect of rotation on Nu enhancement decreases as Re increase. This can be noted in Figure 12(a) as the distances between the curves of different rotation decreases as Re increases. This is mainly because as axial Re increases, the flow turbulence increase, and the effect of rotational speed on the rate of heat transfer decreases.

Figure 12.

Effect of speed on Nu at various radii ratios: (a) h = 0.2, (b) h = 0.4, (c) h = 0.6, and (d) h = 0.8.

Table 8.

Ratio of Nu_rot/Nu_st under different rotational speed for concentric and eccentric (ε = 0.6) annuli.

ε	Re × 10⁴	Concentric annuli (n, rpm)			Eccentric annuli (n, rpm)
		150	300	400	150	300	400
0.2	3.139	2.11	3.43	4.33	2.22	3.54	4.30
	12.36	1.12	1.44	1.68	1.14	1.46	1.70
0.4	1.177	2.17	3.45	4.30	1.99	3.32	4.10
	4.636	1.10	1.37	1.61	1.12	1.38	1.62
0.6	0.523	1.98	3.14	3.88	1.84	3.15	4.02
	2.060	1.14	1.44	1.68	1.08	1.37	1.61
0.8	0.196	1.49	2.06	2.36	1.67	2.35	2.67
	0.773	1.07	1.24	1.37	1.07	1.27	1.42

The results in the case of concentric cylinders with a radius ratio of 0.6 (Figure 12(c)) indicates that at Re = 5.23 × 10³, Nu increases by 98%, 214%, and 288% as the rotational speed increases from 0 to 150, 300, and 400 rpm, respectively, as listed in Table 8. Comparing Nu of the concentric case in Figure 12(a) to (d) indicates that Nu in the wide annulus (with a low radius ratio) is greater than Nu in the small annulus (with a high radius ratio). Also, the effect of rotational speeds reduces as Re increases, which can be seen in Figure 12(a) to (d) by the narrower gap between curves at large Re compared to the wider gap at low Re.

Figure 12(a) to (d) (right column) show the effect of rotational speed on Nu for radii ratios of 0.2, 0.4, 0.6, and 0.8, respectively, for the annuli with an eccentricity of 0.6. Comparing Nusselt numbers for concentric and eccentric annuli, in Table 8, indicates that the rotational speed enhances Nu for eccentric annuli in a similar way to that reported for concentric annuli. Also, Nu for eccentric annulus of 0.6 is greater than Nu for concentric annulus of the same radius ratio. It can be concluded that the rotational speed has a positive effect on the convective heat transfer at all radii ratios for concentric and eccentric annuli.

Table 9 presents the effect of eccentricity (ε = 0.15, 0.30, 0.45, and 0.60) on Nu of stationary and rotating (n = 400 rpm) annuli for radii ratios 0.2, 0.4, 0.6, and 0.8, respectively. For stationary annulus, Nu enhances as the eccentricity of the inner cylinder increases from 0 to 0.6, particularly for intermediate radii ratios (0.4 and 0.6), with the largest Nu occurs at the eccentricity of 0.6. Except for the radius ratio of 0.8 (narrow annulus), where Nu decreases by 1%–4% at the eccentricity of 0.6. Also, the effect of eccentricity on Nu, for stationary annuli, is more pronounced for small Reynolds numbers (Table 9). This is due to the increase in the turbulence of the fluid, and hence the heat transfer and Nu due to the eccentricity increases, particularly for large eccentricity values.

Table 9.

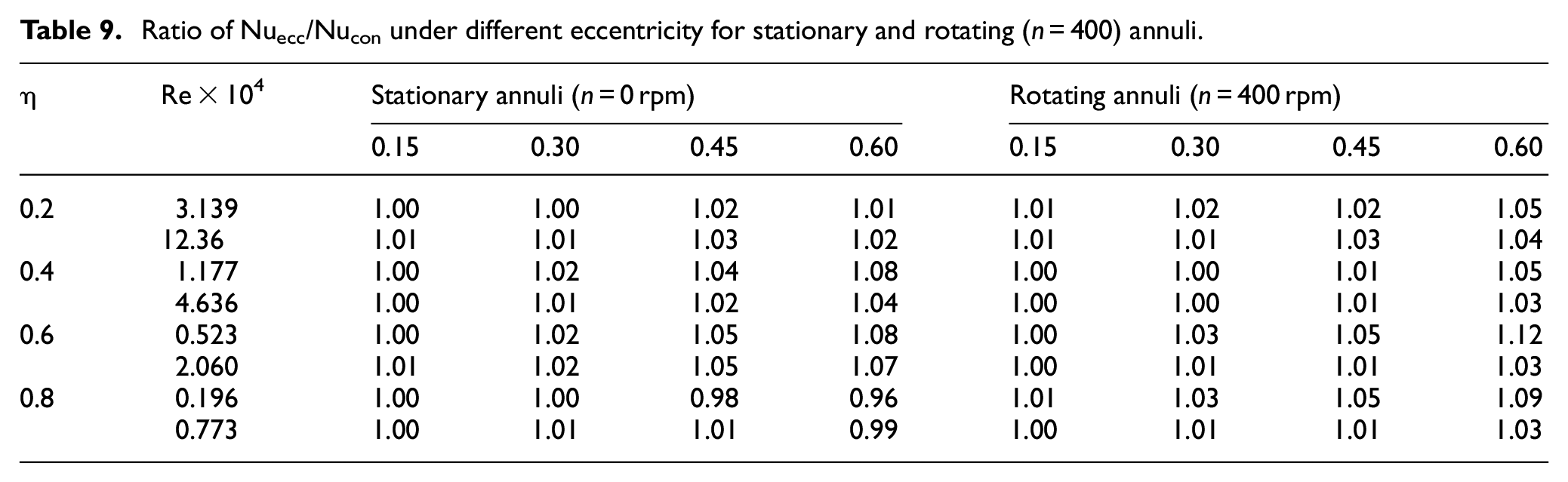

Ratio of Nu_ecc/Nu_con under different eccentricity for stationary and rotating (n = 400) annuli.

η	Re × 10⁴	Stationary annuli (n = 0 rpm)				Rotating annuli (n = 400 rpm)
		0.15	0.30	0.45	0.60	0.15	0.30	0.45	0.60
0.2	3.139	1.00	1.00	1.02	1.01	1.01	1.02	1.02	1.05
	12.36	1.01	1.01	1.03	1.02	1.01	1.01	1.03	1.04
0.4	1.177	1.00	1.02	1.04	1.08	1.00	1.00	1.01	1.05
	4.636	1.00	1.01	1.02	1.04	1.00	1.00	1.01	1.03
0.6	0.523	1.00	1.02	1.05	1.08	1.00	1.03	1.05	1.12
	2.060	1.01	1.02	1.05	1.07	1.00	1.01	1.01	1.03
0.8	0.196	1.00	1.00	0.98	0.96	1.01	1.03	1.05	1.09
	0.773	1.00	1.01	1.01	0.99	1.00	1.01	1.01	1.03

On the other hand, Nu enhances up to 9% and 12% for radii ratios of 0.6 and 0.8, respectively, at an eccentricity of 0.6 when the inner cylinder rotates at 400 rpm, particularly at a low Reynolds number (Table 9). Comparing (Nu_ecc/Nu_con) for stationary and rotating annulus (Table 9) indicates that the effect of eccentricity (ε = 0.60) on Nu is more significant in the case of rotation (n = 400 rpm) compared to that of stationary. It can be stated that the combined effects of eccentricity and rotation enhance Nu significantly, particularly for radii ratios of 0.6 and 0.8 at low Re. Therefore, Nu increases by increasing both rotation and eccentricity of the inner cylinder up to 12%, in cases of large radii ratios due to the enhancement in the fluid and thermal boundary layers in narrow gaps.

Correlations of Nusselt number and friction factor

Nusselt number data points, in concentric and eccentric annuli for stationary and rotating cases, are correlated in terms of Reynolds number, Taylor number, Prandtl number, and radii ratios. The data of concentric and eccentric stationary annuli are fitted by a single equation with a correlation coefficient of 0.999 and 94 degrees of freedom, as given in equation (23). Also, the data for concentric and eccentric rotating cases are fitted by equation (24) with 294 degrees of freedom and correlation factors of 0.994. Figure 13(a) shows the predicted Nu using equations (23) and (24) for stationary and rotating cases versus the simulated Nu. The data are well scattered around the plotted 1:1 dashed line indicating the good accuracy of predicting Nu using the stated equations.

N u_{st} = 0.0244 {Re}^{0.834} \overset{0.4}{\Pr} η^{- 0.15}

(23)

N u_{rot} = 0.126 {Re}^{0.19} \overset{0.4}{\Pr} T a^{0.276} η^{- 0.115}

(24)

Figure 13.

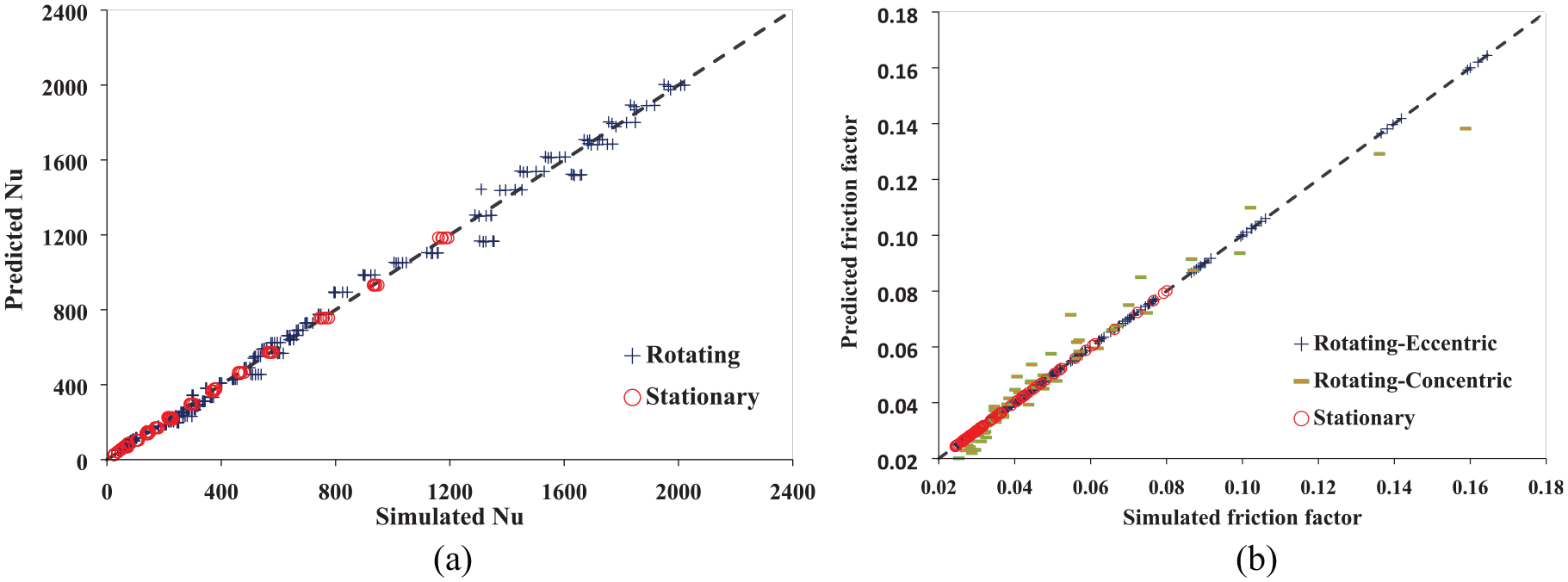

Predicted versus simulated results for stationary and rotating data: (a) Nusselt number, (b) Friction factor.

The above equations are valid for Re between 2000 and 123,618, Pr between 3.71 and 6.94, Ta of zero and between 1.47 × 10⁶ and 1.60 × 10¹⁰, and η between 0.2 and 0.8. The constant and exponents of Re and Pr in equation (23) are similar to those of the classical correlations of the turbulent flow inside cylinders or tubes (Sider-Tata correlation). The exponent of the radius ratio indicates that Nu for the smallest radius ratio (0.2) is higher than those of the largest radii ratios (0.8) by about 23.1% for the same Re and Pr numbers.

On the other hand, equation (24) indicates a substantial effect of rotation on the heat transfer data. This is indicated by the influential exponent of Ta and the considerable reduction in Re exponent from 0.834 for stationary annulus to 0.19 for rotating annulus. The effect of the radius ratio on Nu for the rotating case is lower than that for the stationary case, as indicated by the smaller exponent, which is lower than the exponent for stationary cases. In the rotating case, Nu for the smallest radius ratio is larger than that for the largest radius ratio by about 17.3%, for the same Re and Pr.

The 400 data points of the friction factor are correlated in a similar way to that described for the correlation of Nu. It was possible to correlate the friction factor of stationary concentric and eccentric annuli by one equation with a correlation factor of 0.927 and 94 degrees of freedom as given in equation (25). Similarly, the friction data for rotating concentric and eccentric annuli are correlated by equation (26). Equation (26) has a correlation factor of 0.953 and 288 degrees of freedom. Figure 13(b) shows the relation between the predicted and simulated friction factors. The friction factor data for stationary and rotating eccentric annuli are fitted better than those of the rotating concentric annuli, which show relatively more scattered data around the plotted 1:1 line.

f_{st} = 2.894 {Re}^{- 0.42} \overset{- 0.4}{\Pr} η^{- 0.44}

(25)

f_{rot} = 10.62 {Re}^{- 0.7} \overset{- 0.40}{\Pr} T a^{- 0.089} η^{- 0.36}

(26)

Equations (25) and (26) are valid for the same ranges of variables specified for equations (23) and (24). Equations (25) and (26) indicated that the exponent for Re, in the case of stationary annuli, is noticeably different from the exponent for the rotating annuli. This is mainly due to the significant effect of Ta. Also, the effect of the radii ratios is considerable for either stationary or rotating cases.

Finally, it should be stated that due to the small and non-monotonic effect of the eccentricity on the Nusselt number and friction factor data under the investigated conditions, it was not practical to incorporate the eccentricity in equations (23)–(26). However, the newly developed correlations (equations (23)–(26)) incorporate the effect of radius ratio on stationary and rotating annuli, which was not correlated before.

Summary and conclusion

The investigation of fluid flow and heat transfer in concentric and eccentric annuli with a stationary adiabatic outer cylinder and a stationary or rotating isothermal inner cylinder is conducted for rotational speeds 0, 150, 300, and 400 rpm, radii ratios 0.2, 0.4, 0.6, and 0.8 with eccentricities 0.0, 0.15, 0.30, 0.45, and 0.6. The effects of radius ratio, rotational speed, and eccentricity are reported for Re, Ta, and Pr ranges of 2.0 × 10³–1.236 × 10⁵, 1.47 × 10⁶–1.6 × 10¹⁰, and 3.71–6.94, respectively. Based on the reported results, the following conclusions are drawn:

Correlations for heat transfer and pressure drop, using 400 data points for each, are developed in the form of Nu and f as a function of Re, Ta, Pr, and radii ratios (η). Two correlations are developed for Nu and f under stationary and rotating conditions, with R² greater than 0.99 and 0.92, respectively. The correlations facilitate the design of rotating and stationary heat exchangers and other applications based on the annular space between fixed and rotating cylinders.

The heat transfer and pressure drop in cylindrical annuli are largely affected by the rotational speed, followed by the radius ratio, while the effect of eccentricity is small in the investigated range of 0–0.6.

The rotational speed of the inner cylinder enhances the convective heat transfer for concentric and eccentric annuli, particularly at low Reynolds numbers. As the rotational speed increases from 0 to 400 rpm, Nu increases by 333% at Re of 3.14 × 10⁴ and by 68% at Re of 1.236 × 10⁵, for a radius ratio of 0.2.

The radius ratio has a considerable effect on pressure drop and heat transfer. The pressure drop at a large radius ratio (narrow annuli) is 23.8–52.6 times that at a small radius ratio for concentric and eccentric stationary or rotating annuli.

The effect of eccentricity on Nu for rotating annuli is larger than that for stationary annuli; as the eccentricity increases from 0 to 0.60, Nu enhances up to 8% for stationary annuli and 12% for rotating annuli at a speed of 400 rpm and a radius ratio of 0.60.

As the rotational speed of the inner pipe increases from 0 to 400 rpm, the pressure drop increases by 40.4%, and 98.3%, in wide and narrow annular gaps, respectively, for low Reynolds number and by 7.6% and 21.3% for high Reynolds number.

The friction factor increases with increasing the rotational speed or the radius ratio. However, the effect of eccentricity on the friction factor is not monotonic.

For concentric annuli, the axial velocity profile is not symmetric for a small radius ratio (wide annular space) under stationary conditions and becomes relatively symmetric for large radii ratios or under rotation conditions.

The effect of rotation is more important in small annuli (large radii ratios) than that in large annuli (small radii ratios).

The effect of eccentricity on the axial and tangential velocity profiles is distinct for large radii ratios and a rotating inner cylinder.

As the eccentricity splits the annulus into large and small spaces, the effect of eccentricity on the velocity profiles is more pronounced in the small annular space for the small radius ratio.

The combined effect of eccentricity and rotation of the inner cylinder causes obvious angular distribution in the axial velocity contours, which is not exit for concentric annuli.

Footnotes

Appendix

Handling Editor: James Baldwin

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) received no financial support for the research, authorship, and/or publication of this article.

ORCID iDs

Hosny Abou-Ziyan

Khairy Elsayed

References

Abou-Ziyan

Helali

AHB

Selim

MYF

. Enhancement of forced convection in wide cylindrical annular channel using rotating inner pipe with interrupted helical fins. Int J Heat Mass Transf 2016; 95: 996–1007.

Marques

Sanchez

Weidman

PD.

Generalized couette–poiseuille flow with boundary mass transfer. J Fluid Mech 1998; 374: 221–249.

Mochalin

Shi-Ju

Wang

, et al. Numerical study of heat transfer in a Taylor-Couette system with forced radial throughflow. Int J Therm Sci 2020; 147: 106142.

Rohsenow

Hartnett

Cho

Handbook of heat transfer. 3rd ed. New York: McGraw-Hill Education, 1998, pp.333–360.

Tagg

The Couette-Taylor problem. Nonlinear Sci Today 1994; 4: 1–25.

Childs

PRN

Long

. A review of forced convective heat transfer in stationary and rotating annuli. Proc IMechE, Part C: J Mechanical Engineering Science 1996; 210: 123–134.

Nakashima

Oliveira

Jr Caetano

EF.

Calculation of pressure drop in narrow rotating annular clearances. Revista de Engenharia Térmica 2008; 7: 27–34.

Fénot

Bertin

Dorignac

, et al. A review of heat transfer between concentric rotating cylinders with or without axial flow. Int J Therm Sci 2011; 50: 1138–1155.

Togun

Abdulrazzaq

Kazi

, et al. A review of studies on forced, natural and mixed heat transfer to fluid and nanofluid flow in an annular passage. Renew Sustain Energ Rev 2014; 39: 835–856.

10.

Adebayo

Rona

The three-dimensional velocity distribution of wide gap Taylor-Couette flow modelled by CFD. Int J Rotating Mach 2016; 2016: 1–11.

11.

Ait-Moussa

Poncet

Ghezal

Numerical simulations of co- and counter-Taylor-Couette flows: influence of the cavity radius ratio on the appearance of Taylor vortices. Am J Fluid Dyn 2015; 5: 17–22.

12.

Ostilla-Mónico

Huisman

Jannink

, et al. Optimal Taylor–Couette flow: radius ratio dependence. J Fluid Mech 2014; 747: 1–29.

13.

Alipour

Hosseini

Rezania

Radius ratio effects on natural heat transfer in concentric annulus. Exp Therm Fluid Sci 2013; 49: 135–140.

14.

Imtiaz

Mahfouz

FM.

Heat transfer within an eccentric annulus containing heat generating fluid. Int J Heat Mass Transf 2018; 121: 845–856.

15.

Bojko

Kozdera

Kozubkova

(2013). Investigation of viscous fluid flow in an eccentrically deposited annulus using CFD methods. In: EFM12 – experimental fluid mechanics 2012, in EPJ web conference 45, Hradec Kralove, Czech Republic, 2013.

16.

Siong

. An experimental investigation of Taylor Couette flow between eccentric cylinders, ScholarBank @NUS Repository, 2006, p.205, https://scholarbank.nus.edu.sg/handle/10635/15685.

17.

Choueiri

Tavoularis

An experimental study of natural convection in vertical, open-ended, concentric, and eccentric annular channels. J Heat Transf 2011; 133: 1–9.

18.

Mokheimer

EMA

El-Shaarawi

MAI

. Correlations for maximum possible induced flow rates and heat transfer parameters in open-ended vertical eccentric annuli. Int Commun Heat Mass Transf 2007; 34: 357–368.

19.

Shu

Wang

Chew

, et al. Numerical study of eccentric Couette? Taylor flows and effect of eccentricity on flow patterns. Theor Comput Fluid Dynam 2004; 18: 43–59.

20.

Guj

Stella

Natural convection in horizontal eccentric annuli: numerical study. Numer Heat Transf A Appl 1995; 27: 89–105.

21.

Haciislamoglu

Langlinais

Non-Newtonian flow in eccentric annuli. J Energy Resour Technol 1990; 112: 163–169.

22.

Bicalho

dos Santos

Ataíde

, et al. Fluid-dynamic behavior of flow in partially obstructed concentric and eccentric annuli with orbital motion. J Pet Sci Eng 2016; 137: 202–213.

23.

Hamd

RF.

Effect of angular velocity of inner cylinder on laminar flow through eccentric annular cross section pipe. Asian Trans Eng 2013; 3: 39–48.

24.

Kelessidis

Dalamarinis

Maglione

Experimental study and predictions of pressure losses of fluids modeled as Herschel–Bulkley in concentric and eccentric annuli in laminar, transitional and turbulent flows. J Pet Sci Eng 2011; 77: 305–312.

25.

Nikitin

Okumura

Merzari

, et al. Direct numerical simulation of turbulent flows in an eccentric annulus channel. Comput Math Math Phys 2006; 46: 489–504.

26.

Chung

Sung

HJ.

Large-eddy simulation of turbulent flow in a concentric annulus with rotation of an inner cylinder. Int J Heat Fluid Flow 2005; 26: 191–203.

27.

Kaneda

Ozoe

, et al. The characteristics of turbulent flow and convection in concentric circular annuli- part I: flow. Int J Heat Mass Transf 2003; 46: 5045–5057.

28.

Dumont

Fayolle

Sobolık

, et al. Wall shear rate in the Taylor–Couette–Poiseuille flow at low axial Reynolds number. Int J Heat Mass Transf 2002; 45: 679–689.

29.

Escudier

Gouldson

Oliveira

, et al. Effects of inner cylinder rotation on laminar flow of a Newtonian fluid through an eccentric annulus. Int J Heat Fluid Flow 2000; 21: 92–103.

30.

Moser

Raguin

Harris

, et al. Visualization of Taylor-Couette and spiral Poiseuille flows using a snapshot flash spatial tagging sequence. Magn Reson Imaging 2000; 18: 199–207.

31.

Wereley

Lueptow

RM.

Velocity field for Taylor–Couette flow with an axial flow. Phys Fluids 1999; 11: 3637–3649.

32.

Fang

Manglik

Jog

MA.

Characteristics of laminar viscous shear-thinning fluid flows in eccentric annular channels. J Non-Newton Fluid Mech 1999; 84: 1–17.

33.

Nouri

Whitelaw

JH.

Flow of Newtonian and non-Newtonian fluids in an eccentric annulus with rotation of the inner cylinder. Int J Heat Fluid Flow 1997; 18: 236–246.

34.

Torii

Yang

A numerical study on heat transport in turbulent Couette flows in concentric annuli. Int J Numer Methods Heat Fluid Flow 1997; 7: 81–94.

35.

Velusamy

Garg

VK.

Entrance flow in eccentric annular ducts. Int J Numer Methods Fluids 1994; 19: 493–512.

36.

Nouri

Umur

Whitelaw

JH.

Flow of Newtonian and non-Newtonian fluids in concentric and eccentric annuli. J Fluid Mech 1993; 253: 617–641.

37.

Rehme

Turbulent flow in smooth concentric annuli with small radius ratios. J Fluid Mech 1974; 64: 263–288.

38.

Jonsson

Sparrow

EM.

Experiments on turbulent-flow phenomena in eccentric annular ducts. J Fluid Mech 1966; 25: 65–86.

39.

Barrow

Lee

Roberts

The similarity hypothesis applied to turbulent flow in an annulus. Int J Heat Mass Transf 1965; 8: 1499–1505.

40.

Chithrakumar

Venugopal

Rajkumar

MR.

Convection in vertical annular gap formed by stationary heated inner cylinder and rotating unheated outer cylinder. Heat Mass Transf 2019; 55: 2873–2888.

41.

Yassin

Shedid

El-Hameed

HMA

, et al. Heat transfer augmentation for annular flow due to rotation of inner finned pipe. Int J Therm Sci 2018; 134: 653–660.

42.

Lancial

Torriano

Beaubert

, et al. Taylor-Couette-Poiseuille flow and heat transfer in an annular channel with a slotted rotor. Int J Therm Sci 2017; 112: 92–103.

43.

Aubert

Poncet

Le Gal

, et al. Velocity and temperature measurements in a turbulent water-filled Taylor–Couette–Poiseuille system. Int J Therm Sci 2015; 90: 238–247.

44.

Poncet

Haddadi

Viazzo

Numerical modeling of fluid flow and heat transfer in a narrow Taylor–Couette–Poiseuille system. Int J Heat Fluid Flow 2011; 32: 128–144.

45.

Sreenivasulu

Prasad

BV.

Flow and heat transfer characteristics in an annulus wrapped with a helical wire. Int J Therm Sci 2009; 48: 1377–1391.

46.

Wang

Experimental investigation on heat transfer characteristics of water flow in a narrow annulus. Appl Therm Eng 2008; 28: 8–13.

47.

Jeng

Tzeng

Lin

CH.

Heat transfer enhancement of Taylor–Couette–Poiseuille flow in an annulus by mounting longitudinal ribs on the rotating inner cylinder. Int J Heat Mass Transf 2007; 50: 381–390.

48.

Coney

JER

El-Shaarawi

MAI

. Finite difference analysis for laminar flow heat transfer in concentric annuli with simultaneously developing hydrodynamic and thermal boundary layers. Int J Numer Methods Eng 1975; 9: 17–38.

49.

Nouri-Borujerdi

Nakhchi

ME.

Friction factor and Nusselt number in annular flows with smooth and slotted surface. Heat Mass Transf 2019; 55: 645–653.

50.

Ali

MAM

El-Maghlany

Eldrainy

, et al. Heat transfer enhancement of double pipe heat exchanger using rotating of variable eccentricity inner pipe. Alex Eng J 2018; 57: 3709–3725.

51.

Teimouri

Sheikhzadeh

Afrand

, et al. Mixed convection in a rotating eccentric annulus containing nanofluid using bi-orthogonal grid types: a finite volume simulation. J Mol Liq 2017; 227: 114–126.

52.

Chauhan

Prasad

Patnaik

BS.

Numerical simulation of flow through an eccentric annulus with heat transfer. Int J Numer Methods Heat Fluid Flow 2014; 24: 1864–1887.

53.

Piot

Tavoularis

Gap instability of laminar flows in eccentric annular channels. Nucl Eng Des 2011; 241: 4615–4620.

54.

Nikitin

Wang

Chernyshenko

Turbulent flow and heat transfer in eccentric annulus. J Fluid Mech 2009; 638: 95–116.

55.

Manglik

Fang

PP.

Effect of eccentricity and thermal boundary conditions on laminar fully developed flow in annular ducts. Int J Heat Fluid Flow 1995; 16: 298–306.

56.

Ogino

Sakano

Mizushina

Momentum and heat transfers from fully developed turbulent flow in an eccentric annulus to inner and outer tube walls. Heat and Mass Transfer Wärme-und Stoffübertragung 1987; 21: 87–93.

57.

Feldman

Hornbeck

Osterle

JF.

A numerical solution of developing temperature for laminar developing flow in eccentric annular ducts. Int J Heat Mass Transf 1982; 25: 243–253.

58.

Trombetta

ML.

Laminar forced convection in eccentric annuli. Int J Heat Mass Transf 1971; 14: 1161–1173.

Fluid flow and convection heat transfer in concentric and eccentric cylindrical annuli of different radii ratios for Taylor-Couette-Poiseuille flow

Abstract

Keywords

Introduction

Numerical modeling and simulation

Computational domain and boundary conditions

Turbulence model selection

Grid size study

Model validation

Data analysis and reduction

Results and discussion

Axial and tangential velocity distribution

Concentric annuli

Eccentric annuli

Pressure drop and friction factors

Convection heat transfer and Nusselt numbers

Correlations of Nusselt number and friction factor

Summary and conclusion

Footnotes

Appendix

Declaration of conflicting interests

Funding

ORCID iDs

References
