Operation of assistive apparatus through recognition of human behavior: Development and experimental evaluation of chair-typed assistive apparatus of nine-link mechanism with 1 degree of freedom

Abstract

Because of deterioration of strength, range of joint motion, and balance ability, most care-dependent older adults require assistance to move from a seated position to a standing position. Although many sit-to-stand assisting apparatuses consisting of a seat, power transmission mechanism, and sensors have been developed, most of movements depend several actuators as the power transmission mechanism. This study aims to develop the chair-typed apparatus of nine-link mechanism with 1 degree of freedom at first, then to prove the possibility that the apparatus can be operated through the recognition of human behavior by one sensor. Here, the nine-link mechanism is divided into two mechanisms: the five link for raising the height; the four link for rotating. The mechanical part enables two input links for two mechanisms to be driven by one linear actuator simultaneously. The measurement with the infrared sensor enables the assistive apparatus to be operated automatically while patterns from measured data help the apparatus recognize what the user want to do: one is the sit-to-stand movement; the other is the stand-to-sit movement. It is discussed that the operating method through the human behavior is helpful for most older adults who are not familiar with the operation of machine.

Keywords

Chair-typed apparatus human behavior nine-link mechanism power transmission mechanism technology acceptance

Introduction

People frequently engage in sit-to-stand (SiSt) and stand-to-sit (StSi) movements as they change from a sitting position to a standing position and vice versa. The ability to perform the SiSt and StSi movements is thus an important skill; in care-dependent older adults, the inability to perform this basic skill can lead to institutionalization and impaired functioning and mobility in activities of daily living (ADL). Changes in the ability to perform the SiSt and StSi movements are found in care-dependent older adults and people with disabling diseases and are largely related to the determinants of the SiSt and StSi movements. In the Health Assessment Questionnaire, a survey of independently living Dutch men and women aged 55 years and older, 25% of the men reported moderate disability and 5% of the men reported severe disability with regard to the ability to rise.¹ The index of ADL is an important representation used to evaluate people’s quality of life (QOL). Among all daily activities related to ADL, the SiSt and StSi movements have been identified as the most difficult and mechanically demanding; furthermore, it has been proved that almost everyone performs the SiSt and StSi at least 45 times per a day.² However, the ability to perform this basic skill gradually decreases because of muscle strength deterioration, allowable range of joint mobility, and a sense of balance.^3,4 Furthermore, with the growing population of those over 60, there is an urgent need for the development of assisting apparatuses.^5–7

Various types of assisting apparatuses have been developed: the powered exoskeleton, the wearable robotic suit Hybrid Assistive Limb (HAL) from Cyberdyne, Japan,⁸ the powered lower limb exoskeleton such as Ekso from Ekso Bionics, Germany,⁹ the Indego from Exoskeleton Report LLC, USA,¹⁰ the ReWalk for the rehabilitation from ReWalk Robotics Inc., USA,¹¹ the passive gravity-balancing knee-ankle-foot orthosis,¹² and the standing-style locomotion system.¹³ However, it is considered that these exoskeletons have many limitations and design insufficiencies in terms of StSi and SiSt movements,¹⁴ although direct comparison of both exoskeleton-typed apparatus and human postures is not proper. These involve both hardware limitations, such as an adequate power supply, materials for skeleton structure, actuators, joint flexibility, power control, modulation, and so on and operation limitations, such as detection of unsafe or invalid motions, adaptation to user size variations, joint pinch hazards, and so on. Especially regarding the latter, challenges in safety and operation especially deter the exoskeleton’s practical use in assisting older adults with weakened lower limbs in daily locomotion.¹⁵ In addition, most of the apparatuses mentioned above were designed specifically for rehabilitation training; they can assist patients in performing the SiSt or StSi movements well; however, it is considered that the next human behavior immediately after the SiSt or StSi movement is often limited, for example, taking down one’s pants for toilet, and so on. Thus, although supporting the SiSt and StSi movements is integral because of these movements’ function as a precursor to most other movements in daily life, the necessary human behavior immediately after the basic SiSt and StSi tasks should not be ignored.

It is important to consider the primary impetus of changes in the frequency of use of technology by older, care-dependent, independently living adults. Technology acceptance is influenced by many factors¹⁶; these factors can be divided into six keywords: concerns regarding technology (e.g. high cost, privacy implications, and usability factors); expected benefits of technology (e.g. increased safety and perceived usefulness); need for technology (e.g. perceived need and subjective health status); alternatives to technology (e.g. help by family or spouse); social influence (e.g. influence of family, friends, and professional caregivers); and characteristics of older adults (e.g. desire to age in place). Given these contributing factors to technology acceptance and the familiarity with which older adults can use a chair, the chair-typed apparatus is considered better suited to assisting care-dependent older adults than the power exoskeleton.

Several chair-typed apparatuses or their components have been developed: the control method of the apparatus for the SiSt and StSi transfers, devices for assisting the stand-up motion for rehabilitation, and the assistive device for the SiSt transfer based on passive gravity compensation.^17–27 Some upright wheeled chairs and mobility aids have also been developed, such as LEVO from Switzerland,²³ UPnRIDE from Israel,²⁴ and TekRMD from Matia Robotics, USA.²⁵ These kinds of chair-typed apparatuses²⁶ consist of multiple actuators, a power transmission mechanism or mechanical structure, and some sensors. We suppose that most of these apparatuses pay little attention to the design of the power transmission mechanism, and instead solely rely on the number of actuators to drive the apparatus. However, a proper designed power transmission mechanism may be able to amplify the output torque, reduce the number of actuators, and thus increase the potential for the technology’s acceptance. Generally, for an assisting SiSt/StSi apparatus with some degree of freedom (DOF), the power transmission mechanism is used to transfer the input driving power source to the end-effector. The role of such a transmission mechanism is passive and limited in its ability to achieve the final goal for the seat’s posture. A nine-link mechanism used as the power transmission mechanism may reduce the number of actuators needed to achieve the final seat posture; the unique linkage mechanism is then connected to the improvement of stability and cost for the entire apparatus.

Therefore, this study aims to develop the chair-typed assistive apparatus of nine-link mechanism as the power transmission mechanism with 1 DOF, then to prove the possibility that the apparatus can be operated automatically through the recognition of human behavior by one sensor. This study is to propose the designed mechanical part, to design the chair-typed assistive apparatus of nine-link mechanism with 1 DOF, and to propose the operating method while recognizing the human behavior through one sensor feedback.

Consideration of mechanism and DOF

Determinants of SiSt movement

It is very necessary to know what kinds of design parameters are important before the chair-typed apparatus starts to be developed at the first step. Through the review,^27–29 it has been well-known that the height of the chair seat, the use of armrests, and foot positioning have a major influence on SiSt and StSi movement performance.

A higher chair seat results in lower moments at hip and knee level (up to 60% and 50%, respectively).^27,28 Lowering the chair seat will increase the need for generation of momentum or repositioning of the feet to lower the moments needed. Comparison of the results of the studies is difficult because of differences in study design and the fact that the height of chair seat is not always based on lower-extremity length. Using armrests will lower the moments needed at the knee by 50%, probably without influencing the range of motion of the joints.²⁹ Repositioning of feet appears to influence the SiSt movement strategy, enabling lower peak moments at the hip and knee.^27–29 No experimental study was found that addressed the influence of the use of a backrest.

Consideration of necessary DOF

Figure 1 shows considerations of the necessary DOF for the chair-typed apparatus. Figure 1(a) represents the case in which there is 1 DOF, which involves changing the height of the seat with opened-loop mechanism. Although, in general 1 DOF may be sufficient, the customizable seat height afforded by 1 DOF may not be suitable for care-dependent older adults. In addition, it is unknown whether, for older adults, there is serious interference between the rear side of lower limbs and the edges of seat during the SiSt movement or not. In the worst case, care-dependent older adults must face the danger of falling while sitting on the seat during the StSi movement, as the interference of the rear side of lower limbs and the edge of seat involved a high possibility of falling.

Figure 1.

Consideration of the necessary degree of freedom (DOF) for the chair-typed apparatus: (a) an apparatus of opened-loop mechanism with 1 DOF; (b) an apparatus of opened-loop mechanism with 2 or 3 DOFs; and (c) an apparatus of closed-loop mechanism with 1 DOF.

Alternatively, Figure 1(b) represents the case in which there are 2 or 3 DOFs; these involve changes to the height of seat as well as to the horizontal shift or rotation with opened-loop mechanism. Here, rotation of the seat is assumed to lead to foot repositioning because hip sliding is needed in order for the person to be supported by their feet, and the height of seat is directly related to the height of chair. Thus, it is expected that 2 or 3 DOFs are enough to satisfy two: the height of the chair and foot positioning.^27,28 However, it is necessary to have many DOFs when the apparatus with opened-loop mechanism is considered.

Figure 1(c) represents the case of closed-loop mechanism. Although the closed-loop mechanism has a difficulty in designing because of the consideration of power transmission structure including the length and placement of links, this mechanism is useful for reducing the number of actuators. The proper design of structure enables us to utilize the closed-loop mechanism to develop the chair-typed apparatus. The concept design shows nine-link mechanisms with 1 DOF.

Design of chair-typed assistive apparatus

Inverse kinematics

The two-dimensional computer-aided design (CAD) drawing in Figure 2 shows the placement of nine-link mechanism (which is divided into three-link mechanism actually; five-link mechanism 1, four-link mechanism 1 and 2) as well as the definitions of the design parameters for each link mechanisms constituting the power transmission mechanism.

Figure 2.

Two-dimensional computer-aided design (CAD) as the power transmission structure: (a) drawing and placement of one five-link mechanism and two four-link mechanism 1 and 2 in the apparatus; (b) parameter definitions for four-link mechanism 1.

The posture of seat can be decided by two red-colored and blue-colored points of $T_{1}$ and $T_{2}$ as shown in Figure 2(a). Although it is not included to the defined range of power transmission mechanism in this study because four-link mechanism 1 which is expressed by black-colored links is to drive the apparatus, the output of four-link mechanism 1 is related to the positioning of original point of $A$ for five-link mechanism 1. One point of $T_{1}$ in the five-link mechanism 1 is related to the height of seat, the other of $T_{2}$ in the four-link mechanism 2 is related to the rotation of seat. Two mechanisms are combined with two points; one pink-colored point of $O_{1}$ indicates the fixed joint, and the white-colored black-lined point indicates the combined joint, respectively. Two pink-colored points of $O_{2}$ and $O_{3}$ are also meant to fixed joints. Thus, the kinematic analysis is performed to decide the relation of two green-colored vectors between two red-colored and blue-colored points and all links and angles in this study.

Four-link mechanism 1

Figure 2(b) shows a definition of parameters for the each link mechanism. The top is for four-link mechanism 1. It is necessary to get the relation between $O_{1}$ and two points of $A$ and $B$ . This solution is simply calculated by

{\vec{l}}_{5} = [\begin{matrix} l_{5} \cos (α_{o 1} + α_{c 1}) \\ l_{5} \sin (α_{o 1} + α_{c 1}) \end{matrix}]

(1)

{\vec{l}}_{11} = [\begin{matrix} l_{11} \cos (α_{o 1} + α_{c 2}) \\ l_{11} \sin (α_{o 1} + α_{c 2}) \end{matrix}]

(2)

where $α_{c 1}$ and $α_{c 2}$ indicate the constant angle, and $α_{o 1}$ indicates the output angle of four-link mechanism 1.

In $α_{o 1} = π - α_{1} - α_{2}$ , two angles of $α_{1}$ and $α_{2}$ can be computed by the second law of cosines through the drawing line of diagonal line $L_{1}$ as shown in Figure 2(b) bottom. Angles around the respective corner points can be calculated in general³⁰

\begin{matrix} α_{1} = \arccos (\frac{l_{1} - l_{2} \cos (α_{i 1})}{\sqrt{l_{1}^{2} + l_{2}^{2} - 2 l_{1} l_{2} \cos (α_{i 1})}}) \\ α_{2} = \arccos (\frac{l_{1}^{2} + l_{2}^{2} - l_{3}^{2} + l_{4}^{2} - 2 l_{1} l_{2} \cos (α_{i 1})}{2 l_{4} \sqrt{l_{1}^{2} + l_{2}^{2} - 2 l_{1} l_{2} \cos (α_{i 1})}}) \\ α_{3} = \arccos (\frac{l_{2} - l_{1} \cos (α_{i 1})}{\sqrt{l_{1}^{2} + l_{2}^{2} - 2 l_{1} l_{2} \cos (α_{i 1})}}) \\ α_{4} = \arccos (\frac{l_{1}^{2} + l_{2}^{2} + l_{3}^{2} - l_{4}^{2} - 2 l_{1} l_{2} \cos (α_{i 1})}{2 l_{3} \sqrt{l_{1}^{2} + l_{2}^{2} - 2 l_{1} l_{2} \cos (α_{i 1})}}) \end{matrix}

(3)

where $α_{i 1}$ represents the input internal angle formed by the input linkage $l_{2}$ and the bottom connection linkage $l_{1}$ ; $α_{1}$ represents the first internal angle formed by the lower connection linkage $l_{1}$ and the diagonal line $L_{1}$ which from the corner point between the linkages $l_{2}$ and $l_{3}$ to the corner point between the linkages $l_{4}$ and $l_{1}$ ; $α_{2}$ represents the second internal angle formed by the diagonal line $L_{1}$ and the output linkage $l_{4}$ ; $α_{3}$ represents the third internal angle formed by the diagonal line $L_{1}$ and the input linkage $l_{2}$ ; and $α_{4}$ represents the fourth internal angle formed by the diagonal line $L_{1}$ and the top connection linkage $l_{3}$ . Here, most of parameters are the constant because the input of four-link mechanism 1 is driven by the linear actuator which produces the vector of ${\vec{l}}_{3}$ ; $α_{i 1}$ , $α_{1}$ , and $α_{2}$ are all constants. The output is $α_{o 1} = π - α_{1} - α_{2}$ .

The output of four-link mechanism 1 is related to two inputs of four-link mechanism 2 and four-link mechanism 1. Two input vectors of ${\vec{l}}_{5}$ and ${\vec{l}}_{11}$ are controlled by the output vector of ${\vec{l}}_{4}$ which is consisted in the length of $l_{4}$ and angle of $α_{o 1}$ as shown in equations (1)–(3).

Four-link mechanism 2

It is necessary to get the relation between the point of $T_{2}$ and all of links and angles as shown in Figure 3 top. The vector ${\vec{l}}_{11}$ is decided by the length of link $l_{11}$ and angle of $α_{o 1} + α_{c 2}$ . The angle $α_{o 1}$ is related to the vector ${\vec{l}}_{4}$ , and the angle $α_{c 2}$ is the constant. The relation between the origin point and the point of $T_{2}$ is taken

{\vec{T}}_{2} = {\vec{l}}_{11} + {\vec{l}}_{12}

(4)

Figure 3.

Parameter definitions for four-link mechanism 2 and five-link mechanism 1.

The projections of ${\vec{l}}_{11}$ and ${\vec{l}}_{12}$ vectors are expressed as follows

X_{T_{2}} = l_{11} \cos α_{11} + l_{12} \cos (α_{11} + α_{12})

(5)

Y_{T_{2}} = l_{11} \sin α_{11} + l_{12} \sin (α_{11} + α_{12})

(6)

In order to find two generalized coordinates $α_{11}$ and $α_{12}$ determining the location of the kinematic chain, equations (5) and (6) must be squared and then added

\begin{matrix} X_{T_{2}}^{2} = l_{11}^{2} \overset{2}{\cos} α_{11} + 2 l_{11} l_{12} \cos α_{11} \cos (α_{11} + α_{12}) \\ + l_{12}^{2} \overset{2}{\cos} (α_{11} + α_{12}) \end{matrix}

(7)

\begin{matrix} Y_{T_{2}}^{2} = l_{11}^{2} \overset{2}{\sin} α_{11} + 2 l_{11} l_{12} \sin α_{11} \sin (α_{11} + α_{12}) \\ + l_{12}^{2} \overset{2}{\sin} (α_{11} + α_{12}) \end{matrix}

(8)

X_{T_{2}}^{2} + Y_{T_{2}}^{2} = l_{11}^{2} + l_{12}^{2} + 2 l_{11} l_{12} \cos α_{12}

(9)

The obtained equation (9) allows one to calculate the values of $α_{11}$ and $α_{12}$

\begin{matrix} \cos α_{12} & = \frac{X_{T_{2}}^{2} + Y_{T_{2}}^{2} - (l_{11}^{2} + l_{12}^{2})}{2 l_{11} l_{12}} \\ α_{12} & = \pm \arccos \frac{X_{T_{2}}^{2} + Y_{T_{2}}^{2} - (l_{11}^{2} + l_{12}^{2})}{2 l_{11} l_{12}} \end{matrix}

(10)

In order to determine coordinates, it is necessary to get equations (7) and (8) in the expanded form and to transform them to receive $\cos α_{11}$ and $\sin α_{11}$ . As a result, we have

\cos α_{11} = \frac{l_{12} \sin α_{11} \sin α_{12} + X_{T_{2}}}{l_{12} \cos α_{12} + l_{11}}

(11)

\sin α_{11} = \frac{Y_{T_{2}} - l_{12} \cos α_{11} \sin α_{12}}{l_{12} \cos α_{12} + l_{11}}

(12)

Substituting $\sin α_{11}$ in equation (11) and simplifying, we obtain formulas necessary for $\sin α_{11}$

\cos α_{11} = \frac{l_{12} Y_{T_{2}} \sin α_{12} + X_{T_{2}} (l_{12} \cos α_{12} + l_{11})}{{(l_{12} \cos α_{12} + l_{11})}^{2} + l_{12}^{2} \overset{2}{\sin} α_{12}}

(13)

α_{11} = \arccos \frac{l_{12} Y_{T_{2}} \sin α_{12} + X_{T_{2}} (l_{12} \cos α_{12} + l_{11})}{{(l_{12} \cos α_{12} + l_{11})}^{2} + l_{12}^{2} \overset{2}{\sin} α_{12}}

(14)

Similarly, we can determine the location of the kinematic chain. We present radius vector of the point $T_{2}$ in the form of the following vector sum

{\vec{T}}_{2} = - {\vec{l}}_{13} - {\vec{l}}_{14}

(15)

As in the previous case, $α_{14}$ is computed after equation (15) is squared and then added

\begin{matrix} \cos α_{14} = \frac{X_{T_{2}}^{2} + Y_{T_{2}}^{2} - (l_{13}^{2} + l_{14}^{2})}{2 l_{13} l_{14}} \\ α_{14} = \pm \arccos \frac{X_{T_{2}}^{2} + Y_{T_{2}}^{2} - (l_{13}^{2} + l_{14}^{2})}{2 l_{13} l_{14}} \end{matrix}

(16)

Likewise, we obtain the following formulas for calculating $α_{40}$ with similar transformations of equations (5) and (6)

α_{40} = \arccos \frac{- l_{13} Y_{T_{2}} \sin α_{14} + X_{T_{2}} (l_{13} \cos α_{14} + l_{14})}{{(l_{13} \cos α_{14} + l_{14})}^{2} + l_{13}^{2} \overset{2}{\sin} α_{14}}

(17)

As a result, the vector of ${\vec{O}}_{1} T_{2}$ was calculated by the relation between angles and lengths of links.

Five-link mechanism 1

It is necessary to get the relation between the point $T_{1}$ and all of links and angles in the bottom of Figure 3 (five-link mechanism 1). The trajectory of the output link of the apparatus is defined on the bases of the given angles of rotation of the actuator. Problems of this type are known as inverse geometrical problem of the mentioned mechanical system is also based on the use of homogeneous coordinates. The temporal original point for five-link mechanism 1 is the point $A$ ; thus, the solution of inverse kinematics for this mechanism is the vector $\vec{A} T_{1}$ . The final solution vector ${\vec{T}}_{1}$ in terms of original point $O_{1}$ for the entire apparatus is calculated by the vector sum of ${\vec{l}}_{5}$ and $\vec{A} T_{1}$ . The point $A$ is related to the vector ${\vec{l}}_{5}$ which is composed by the length of $l_{5}$ and angle of $α_{o 1} + α_{c 1}$ . The angle $α_{o 1}$ is related to the vector ${\vec{l}}_{4}$ , and the angle $α_{c 1}$ is the constant.

For this, the radius vector of the point $A T_{1}$ from the origin is taken and represent it as the sum of two vectors

{\vec{T}}_{1} = {\vec{l}}_{6} + {\vec{l}}_{7} + {\vec{l}}_{8}

(18)

The projections of ${\vec{l}}_{11}$ and ${\vec{l}}_{12}$ vectors is expressed as follows

X_{T_{1}} - l_{6} \cos α_{6} = l_{7} \cos α_{7} + l_{8} \cos (α_{7} + α_{8})

(19)

Y_{T_{1}} - l_{6} \sin α_{6} = l_{7} \sin α_{7} + l_{8} \sin (α_{7} + α_{8})

(20)

where $l_{6} \cos α_{6}$ and $l_{6} \sin α_{6}$ are the constants to be decided by $Δ O_{1} O_{3} l_{5}$ .

In order to find two generalized coordinates $α_{7}$ and $α_{8}$ determining the location of the kinematic chain, equations (19) and (20) must be squared and then added

\begin{matrix} (X_{T_{1}} - l_{6} \cos α_{6})^{2} = l_{7}^{2} \overset{2}{\cos} α_{7} + l_{8}^{2} \overset{2}{\cos} (α_{7} + α_{8}) \\ + 2 l_{7} l_{8} \cos α_{7} \cos (α_{7} + α_{8}) \end{matrix}

(21)

\begin{matrix} (Y_{T_{1}} - l_{6} \sin α_{6})^{2} = l_{7}^{2} \overset{2}{\sin} α_{7} + l_{8}^{2} \overset{2}{\sin} (α_{7} + α_{8}) \\ + 2 l_{7} l_{8} \sin α_{7} \sin (α_{7} + α_{8}) \end{matrix}

(22)

\begin{matrix} (X_{T_{1}} - l_{6} \cos α_{6})^{2} + (Y_{T_{1}} - l_{6} \sin α_{6})^{2} = l_{7}^{2} + l_{8}^{2} \\ + 2 l_{7} l_{8} \cos α_{8} \end{matrix}

(23)

Obtained equation (24) allows one to calculate the values of $α_{7}$ and $α_{8}$

\begin{matrix} \cos α_{8} = \\ \frac{{(X_{T_{1}} - l_{6} \cos α_{6})}^{2} + {(Y_{T_{1}} - l_{6} \sin α_{6})}^{2} + (- l_{7}^{2} - l_{8}^{2})}{2 l_{7} l_{8}} \\ α_{8} = \pm \arccos \\ \frac{{(X_{T_{1}} - l_{6} \cos α_{6})}^{2} + {(Y_{T_{1}} - l_{6} \sin α_{6})}^{2} + (- l_{7}^{2} - l_{8}^{2})}{2 l_{7} l_{8}} \end{matrix}

(24)

In order to determine coordinate, it is necessary to write equations (21) and (22) in the expanded form and to transform them to receive $\cos α_{7}$ and $\sin α_{7}$ . Then similarly, substituting $\sin α_{7}$ and simplifying, we obtain formulas necessary

\begin{matrix} \cos α_{7} = \\ \frac{l_{7} (Y_{T_{1}} - l_{6} \sin α_{6}) \sin α_{8} + (X_{T_{1}} - l_{6} \cos α_{6}) (l_{7} \cos α_{8} + l_{6})}{{(l_{7} \cos α_{8} + l_{6})}^{2} + l_{7}^{2} \overset{2}{\sin} α_{8}} \\ α_{7} = \arccos \\ \frac{l_{7} (Y_{T_{1}} - l_{6} \sin α_{6}) \sin α_{8} + (X_{T_{1}} - l_{6} \cos α_{6}) (l_{7} \cos α_{8} + l_{6})}{{(l_{7} \cos α_{8} + l_{6})}^{2} + l_{7}^{2} \overset{2}{\sin} α_{8}} \end{matrix}

(25)

Similarly, we can determine the location of the kinematic chain. We present radius vector of the point $T_{1}$ in the form of the following vector sum

{\vec{T}}_{1} = - {\vec{l}}_{9} - {\vec{l}}_{10}

(26)

As in the previous case, $α_{10}$ is computed after equation (26) is squared and then added

\begin{matrix} \cos α_{10} = \frac{X_{T_{1}}^{2} + Y_{T_{1}}^{2} - (l_{9}^{2} + l_{10}^{2})}{2 l_{9} l_{10}} \\ α_{10} = \pm \arccos \frac{X_{T_{1}}^{2} + Y_{T_{1}}^{2} - (l_{9}^{2} + l_{10}^{2})}{2 l_{9} l_{10}} \end{matrix}

(27)

Likewise, we obtain the following formulas for calculating $α_{00}$ with similar transformations of equations (19) and (20)

α_{00} = \arccos \frac{- l_{9} Y_{T_{1}} \sin α_{10} + X_{T_{1}} (l_{9} \cos α_{10} + l_{10})}{{(l_{9} \cos α_{10} + l_{10})}^{2} + l_{9}^{2} \overset{2}{\sin} α_{10}}

(28)

As a result, the vector of $\vec{A} T_{1}$ was calculated by the relation between angles and lengths of links. Then, the vector of ${\vec{O}}_{1} T_{1}$ was also computed by the sum of $\vec{A} T_{1}$ and ${\vec{l}}_{5}$ .

Mechanical design

Driving part

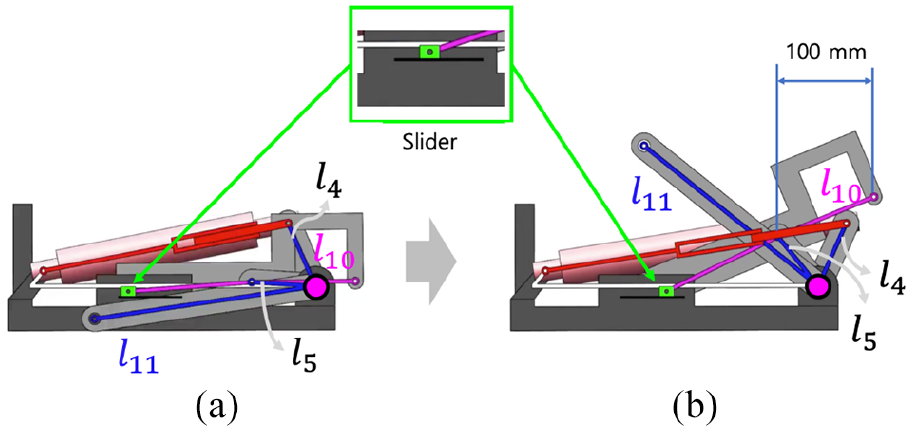

Figure 4 shows the movement of linear actuator and the mechanical design used to drive the apparatus: (a) indicates the initial condition; (b) indicates the final condition of red-colored linear actuator. To simplify the mechanical design, instead of using a geared motor to drive the movement from the initial to the final condition, a red-colored linear actuator is applied to drive the apparatus. By comparing the two different conditions, it was possible to determine the movement of linear actuator. A cylinder part is used to indicate the linear actuator. The actuator is settled on the fixed base frame with a range of movement of 0–100 mm. $α_{i 1}$ , $α_{1}$ , $α_{3}$ , and $α_{4}$ are decided as the constant by equation (2)³¹; thus, $α_{o 1}$ and $α_{o}$ are determined by the length of $l_{3}$ as shown in Figure 2(b). Three links of $l_{4}$ , $l_{5}$ , and $l_{11}$ were moved according to the length of actuator, and the link of $l_{10}$ was moved by the relation between the linear actuator and the green-colored slider of the base frame. The detailed relation is referred by the attached Supplemental movie file (videoMexhanism1.mp4).

Figure 4.

Movement of linear actuator (the half-white cylinder) designed to drive the apparatus and the mechanical connection ( $l_{10}$ and $l_{11}$ are input link for five-link mechanism 1 and four-link mechanism 2, respectively): (a) linear actuator in its initial condition (black lines); (b) linear actuator in its final condition (green lines).

Figure 5 shows the mechanical design to connect the driving part to the two input links: (a) design to transfer driving power source to the two input links of $l_{10}$ and $l_{11}$ ; (b) design of sickle-shaped link for five-link mechanism 1. To simultaneously drive both two input links of $l_{10}$ and $l_{11}$ through the single linear actuator, it is the key-point that the mechanical connection between the mechanical part of linear actuator and two input links was designed to be fixed. The straight red-colored link of $l_{10}$ is connected to the five-link mechanism 1 to raise the seat, and the straight blue-colored link of $l_{11}$ is connected to the four-link mechanism 2 to rotate the seat. The black-colored link of $l_{5}$ is connected to the four-link mechanism 1 as shown in Figure 5(b).

Figure 5.

Mechanical design to connect the driving part to the two input links ( $l_{6}$ and $l_{12}$ ): (a) design to transfer driving power source to the two input links; (b) design of sickle-shaped link for five-link mechanism 1.

To avoid interference between the input link of five-link mechanism 1 and other mechanical parts during motion, the sickle-shaped mechanical part is adopted. The sickle-shaped mechanical part enables the driving power of the output link of green lines (as shown in Figure 4(b)) to be transmitted to two input links of $l_{10}$ and $l_{11}$ at the same time.

The angle between two points $T_{1}$ and $T_{2}$ as shown in Figure 2(a) influences the posture of the seat; thus, a suitable combination of these parameters has to be decided for the seat posture. Accordingly, the length and initial position of all links are determined according to the results of ADAMS simulations. The Adams tutorial package is designed as a supplemental curriculum kit for undergraduate Mechanical Engineering courses, including Design of Machinery, Dynamics, Mechanisms, and Mechanical Design in reference to the textbook design of machinery by Robert L. Norton.³²

During CAD design, the length of all links structures is decided through a simulation in ADAMS (a computer-aided engineering (CAE) software which assists engineers in studying the dynamics of multi-moving parts and how loads and forces are distributed throughout mechanical systems)^33,34; design errors due to graphical and analytical methods can be eliminated through simulations in ADAMS, thus allowing better results.

Raising part

Figure 6 shows the inter-related movement of the mechanical part used to raise the five-link mechanism 1, where light red lines indicate the initial condition and bold red lines indicate the final condition. There are two challenges to overcome: the interference with other mechanical parts needs to be avoided during performance; then, the motion of the linear actuator needs to be transmitted to two different input links of $l_{10}$ and $l_{11}$ . To address these two challenges, two mechanical designs as shown in Figure 6 are proposed. This part is rotated by the linear actuator, and contributes to induce the movement of two input links.

Figure 6.

Inter-related movement of the mechanical part used to raise the five-link mechanism 1, where (a) light red lines indicate a parts initial condition and (b) bold red its final condition.

Because the rotating motion of the sickle-shaped mechanical part is not driven around the pink-colored fixed center point in Figure 7, the height of five-link mechanism 1 is expected to be much higher than that under the fixed-center-point condition. Thus, the length of $l_{5}$ and $l_{10}$ plays the important role in deciding the height of the seat. In this study, the 125 mm of the height is designed by the length of $l_{5}$ and $l_{10}$ .

Figure 7.

Inter-related movement of the mechanical part used to rotate the four-link mechanism 2, where (a) light blue lines indicate a parts initial condition and (b) bold blue its final condition.

Here, it should be considered whether there is any contact between the apparatus and lower limbs of human body or not when the apparatus supports some users. Because the interference between the five-link mechanism 1 and lower limbs during the SiSt movement results in the serious danger or incident. In this study, the length of $l_{10}$ was decided by the foot position of users through our previous studies.^6,7

Rotating part

Figure 7 shows the movement of four-link mechanism 2: light blue lines represent the initial condition and bold blue lines represent the final condition. With the movement of the linear actuator as shown in Figure 4, the input link of $l_{11}$ is simultaneously driven. Although this mechanical design is typical, the main role of four-link mechanism 2 is to rotate the seat; to avoid interference between linkages, this rotation can be achieved by two particular mechanical parts in order. In this study, the 55° of the angle is designed by the each length of four-link mechanism 2.

Figure 8 shows the exploded assembly diagram. It is easy to understand the entire assembly view. The proposed nine-link mechanism combining five-link mechanism 1 with four-link mechanism 2 enables the developed apparatus to be driven with 1 DOF.

Figure 8.

Exploded assembly diagram.

Results of design of nine-link mechanism with 1 DOF

Figure 9 shows the design-to-prototype chair-typed apparatus development and its functionality with a human subject. Figure 9(a) shows three-dimensional (3D) rendering of CAD drawing of the apparatus and side view of the developed apparatus. The base frame, made of the aluminum, is included to fix the driving mechanical part. The total size of prototype is (width × height × depth = 620 × 405 × 540) mm.

Figure 9.

Design-to-prototype chair-typed apparatus development and its functionality with a human subject: (a) 3D rendering of computer-aided design (CAD) drawing of the apparatus and side view of the developed apparatus; (b) five states of the performance of the apparatus; and (c) relation between the height and angle of the seat.

Figure 9(b) shows the performance of the developed prototype apparatus. The total weight was 45 kg; however, for improved portability, it is possible to decrease the body weight in the next prototype after the optimized mechanical design process.

Figure 9(c) shows the results of the relationship between the height and angle of center of mass (COM) for the seat. The high-speed camera³⁵ (VW-9000 High-speed Camera from KEYENCE Corporation) was used for the measurement, and then measured data were compared with simulated data. This camera system is capable of both macro- and micro-level observation, which has a built-in digital display, can record videos at speed of up to 230,000 frame per second (fps), and the fps for this study was set to 125.

It was confirmed that the movement for the vertical translation motion was 125.0 mm and the rotation motion 55.0°, which results from the combined relationship between the input and output linkages. The vertical movement is considered by most of Japanese elderly heights.³⁶ The average ± standard deviation (SD) of height for Japanese elderly people (60–80 years old) is (167.2 ± 1.061) cm for male and (153.6 ± 1.344) cm for female. The average ± SD of body weight is (66.7 ± 0.917) kg for male and (54.0 ± 0.778) kg for female. But, adjustment of the height and angle was possible with adjustments to the length of linkages. The sequence used to raise the seat to the vertical translation direction and the sequence to rotate the seat were conducted simultaneously.

Experimental evaluation

Experimental system

Figure 10 shows an overview of experimental system and environment. A description of experimental system is shown in Figure 10(a). This system is an Up and Down movable chair system to be consisted of nine-link mechanism. As I mentioned, the one linear actuator is used to drive the Up and Down movement of apparatus. The one distance sensor to identify user behavior is used. The sensor for distance measurement is the position sensitive detector (PSD) that distance measurement sensor of the infrared (IR) type.³⁷

Figure 10.

Experimental condition: (a) A description of experimental system; (b) an overview description of experimental environment.

The sensor is mounted 45° from the lower horizontal plane of the seat backrest as shown in Figure 10(a) and measures the seat back and distance from the user in real time. The distance information performs the measurement, and the changing rates of the distance information are the major factors for recognizing the human behavior. The proposed concept is similar to the automatic faucet when you wash your hands at the restroom. When your hands approach the closer faucet, you have some water to wash your hands because of the attached sensor. If there is no approaching hand, the sensor is not working; thus, you could not have some water from the faucet. Similarly, when there is no user ahead, the maximum of measurement distance from the backrest to the obstacle assumed with the toilet door is 1 m. When the user is approaching, the measured distance is changed, then the apparatus can recognize the user’s behavior through the changing rate of measurement.

The measured sensor data are converted to dimensionless values from 0 to 255 through the analog-to-digital (A/D) converting. Sampling rate is 100 ms, and the applied controller is an 8-bit Arduino board. Of course, the sampling rate is changeable according to the speed of human behavior.

Algorithm

Experimental scenario

In order for the developed apparatus to be applied for assisting the toilet, it is necessary to confirm the feasibility. The following scenario represents the experimental scenario. When a human subject enters the toilet, measured data are going to be suddenly changed because the distance between PSD sensor and the human subject is changed. Then, the apparatus is moved automatically when the human subject is ready for sitting on the seat. Finally, when the human subject bends forward one’s trunk for standing up, the distance is changed; thus, the apparatus is moved automatically.

Flow chart

Figure 11 shows a flowchart for the explanation of algorithm in order to confirm the feasibility of experimental scenario. The phase for human behavior is defined by three phases: the phase 1 is that user enters the toilet and the user is in front of the toilet seat; the phase 2 is that the user starts to sit on the seat; and the phase 3 is that the user leaves the toilet after standing up the seat.

Figure 11.

A flowchart for the explanation of algorithm.

Three patterned human behaviors can be determined through the measured sensing data from 0 to 255. For phase 1, the range of measured data is $Svalu e_{c} \geq (Svalu e_{(\max)} / 2)$ when somebody is approaching to the seat. Here, the parameter of $Svalu e_{c}$ represents current sensing data from 0 to 255, and $Svalu e_{(\max)}$ represents the maximum of the distance with nobody. For phase 2, the range of measured data is $Svalu e_{c} < (Svalu e_{(\max)} / 2)$ because somebody tries to sit on the seat. When a human subject is just sitting on the seat, measured sensing data are not big changed. When a human subject is trying to stand up from the seat, measured data are big changed because the trunk is bending to stand. The particular angle value is about 30° when the user bends one’s waist forward to stand up from the seat. At this time, when the slope of the changing rate of sensing data is more than 30°, it is recognized as a human intention point. The angle is calculated, $θ = \cos^{- 1} (n_{1 s} / \sqrt{{(n_{1 s})}^{2} + {(n_{phase 3} - n_{phase 2})}^{2}})$ , where $n_{1 s}$ indicates the number of data during 1 s, $n_{phase 3}$ indicates the value for phase 3, and $n_{phase 2}$ indicates the value for phase 2. For phase 3, a human subject is leaving because the range of measured data is $Svalu e_{c} \geq (Svalu e_{(\max)} / 2)$ after big changed data. It is considered that the important thing to estimate the human behavior is three things which are current measured data, changing rate, and what is the previous phase.

Results

Results of recognition for human behaviors

Figure 12 shows the experimental results. The horizontal axis represents the time, and the vertical axis represents the value of PSD sensor. The red plot indicates the mean, and the gray plot indicates the SD for total 10 times.

Figure 12.

Experimental results.

For phase 1, when a human subject enters the toilet, the distance between the PSD sensor and the door of toilet is suddenly changed from $Svalu e_{(\max)}$ to the lower $Svalu e_{c}$ . For phase 2, when a subject tries to sit on the seat, the distance between the PSD sensor and the human body is closer. Then, when the apparatus moves automatically, the distance value is keeping constantly because the displacement of PSD sensor is placed on the backrest of apparatus. For phase 3, when a subject tries to stand up the seat, the distance between the PSD sensor and the human body is suddenly changed because the trunk of human subject is bending forward. Then, the apparatus moves automatically for standing up; thus, the distance value is closer. And finally, when a human subject leaves the toilet, $Svalu e_{c}$ is kept to $Svalu e_{(\max)}$ . Through the results of experiments, it was found that the pattern for the each phase was different. It was confirmed that the measured value through the PSD sensor worked well in order to recognize the human behavior.

Results of measured muscle activity

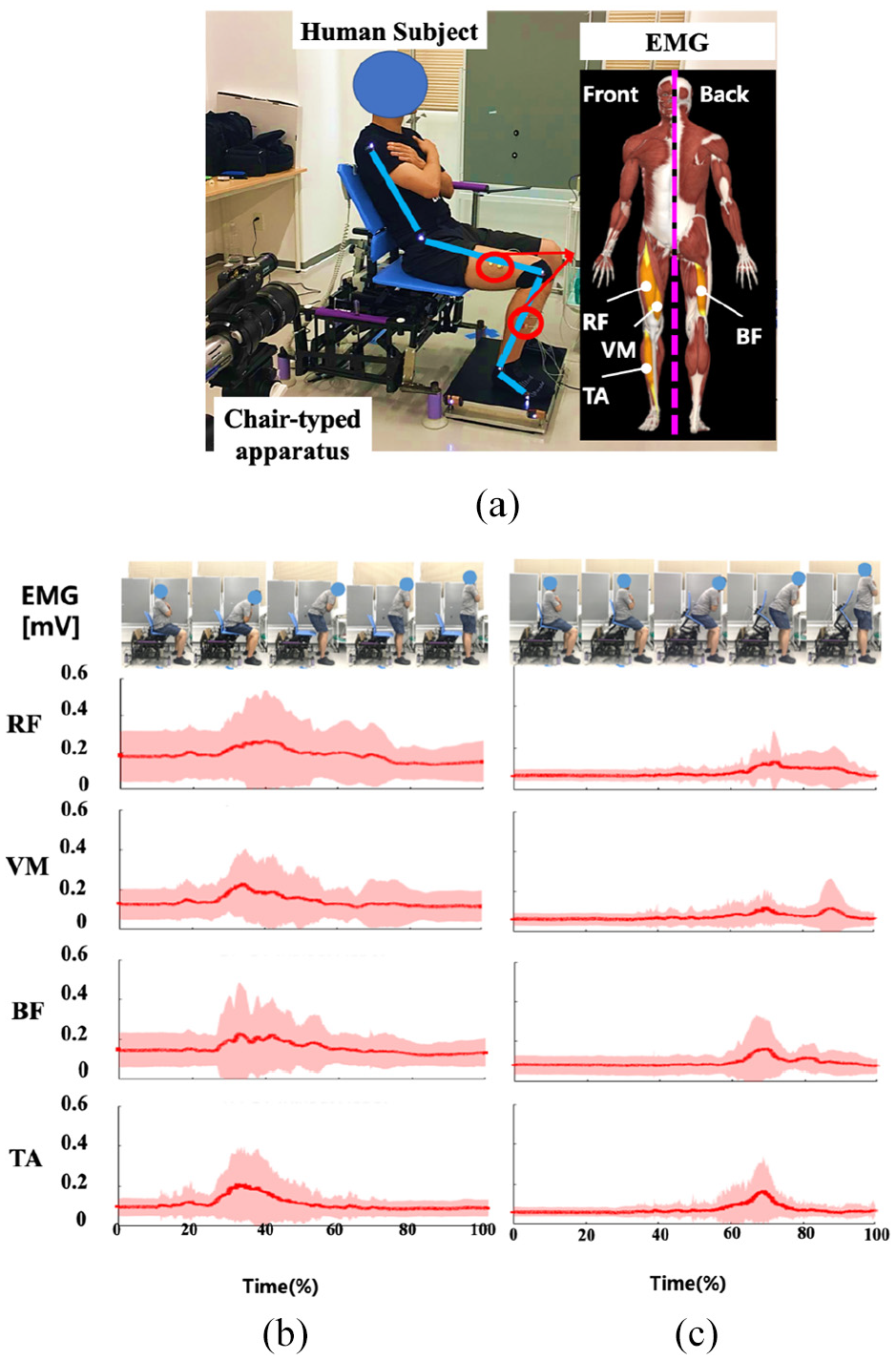

Figure 13 shows the results of measured muscle activity during the SiSt movement through electromyography (EMG)³⁸ with and without assistance of the apparatus: (a) represents the description of measuring points; (b) and (c) represent the results of measured EMG under the condition of assistance or not, respectively. The initial height of the chair was 43 cm; at this height, it is reported that all healthy human subjects felt inconvenience during the SiSt movement. After measuring raw signal data, the root mean square (RMS) signal processing was applied. An alternative way to capture the EMG envelope is to compute the RMS value of the signal within a small window. The red-colored line indicates the average and the light red-colored area indicates the SD for total measurement.

Figure 13.

Results of measured muscle activity of the rectus femoris (RF), vastus medialis (VM), tibialis anterior (TA), and biceps femoris (BF) through electromyography (EMG): (a) a description of measuring points; (b) result of sit-to-stand (SiSt) EMG without the use of an apparatus; and (c) result of SiSt EMG with the assistance of an apparatus.

Ten human subjects were participated, including five males and five females. No subject reported a major back or lower limb pathological condition, medication use, or a history of neurological disease that might influence supine and lateral posture. No major difference in body mass index (BMI) was observed between the human subjects. The mean ± SD of the subject’s age and BMI was 24.9 ± 3.6 years old and 22.5 ± 3.0 kg/m², respectively. All experiments were conducted by voluntary participation. The experimental procedures were performed in accordance with the Declaration of Helsinki and approved by the Ethics Committee of the Clinical Trial Center, Department of Medical Innovation, Osaka University Hospital (no. 305, 21 August 2014). Informed consent was obtained from all human subjects, all of whom were adults.

According to the results of measurement, it was proven that the proposed apparatus enabled all human subjects to reduce the burden of muscle activity during the SiSt movement. Compared to the maximum amplitude at the measuring point of rectus femoris (RF) under the condition of assistance, the muscle activity lessened 76%. At the measuring points of vastus medialis (VM), biceps femoris (BF), and tibialis anterior (TA) under the condition of assistance, muscle activity was lessened to 171%, 41%, and 48%, respectively. Accordingly, it is considered that the apparatus helps older adults with weaker muscle strength of lower limbs perform the SiSt movement. Furthermore, there was no need to move the trunk to achieve the inertial effect during SiSt movement, as the proposed apparatus led to the final condition of the SiSt movement as shown in Figure 13.

As a result, through explanation of the proposed design, development of a prototype, and results of EMG-measured muscle activity analysis, it is verified that the chair-typed apparatus of nine-link mechanisms with 1 DOF enables most of care-dependent independently living older adults to be useful for SiSt movement.

Discussion

In a rapidly aging society, solutions are needed to both alleviate the burden on healthcare and provide solutions to healthcare challenges. Because of assisting apparatus’ reliability, consistency, and accuracy, they may be able to alleviate common burdens associated with daily life activities. However, there has been little research that investigates the applications of such healthcare apparatuses for practical use while also focusing on qualitative evaluations of them. To fill this gap, the authors sought to explore this field by investigating human performance and technology acceptance in the design of a health care apparatus.

In one previous study, wherein a healthcare robot’s inability to know if its service satisfies the user or not was addressed, an approach to informing a nursing care robot of the patient’s psychological change was developed⁶; this approach was based on the determination of vertical ground reaction forces. The results of the study indicate that the developed classifier had the ability to discriminate some faults classes from others. In other previous studies, the SiSt performance was evaluated by the collaboration between movements of the trunk and lower limbs with the relative phase (RP).⁷ The results indicate that evaluating SiSt movements through the RP is an effective method of evaluating the service quality of robots and the collaboration between movements of the trunk and lower limbs; features extracted from RP theory could distinguish classes of movements with a high probability. Nevertheless, the self-reliance support robot developed by PANASONIC Co., Ltd in Japan has yet to be widely and practically used.

Thus, a new design of the SiSt chair-typed apparatus with nine-link mechanisms was proposed herein. This design is intended for practical use in elderly residential facilities. Application of the linkage mechanism to the assisting apparatus reduces the number of actuators needed, which reduces the cost of the SiSt assisting apparatus. In addition, the apparatus’ likeness to a chair makes it a familiar piece of equipment, which is likely to contribute to a relatively high technology acceptance in its practical use. The results of prototype testing sufficiently verified the feasibility of the proposed design. In the future, further trial and error and augmented version of the original design could result from feedback from the apparatus’ practical use in elderly residential facilities.
