Abstract

This article presents a computed-torque controller plus adaptive fuzzy trajectory feedforward compensator suitable for the trajectory tracking control of uncertain underwater vehicle. To address the issue of unavailable normalization factor, an adaptive fuzzy trajectory feedforward compensator is proposed and assembled at the input trajectory level of the computed-torque controller rather than at the joint drive torque position. The compensator serving as a low-pass filter is implemented outside the inner control loop by adjusting the desired characteristic depth. Due to the nearly unchanged internal control algorithm, the adaptive fuzzy compensator is feasible to implement and is robust when varying the feedback gain in the inner control loop. Moreover, an adaptive dead zone fuzzy compensator is designed to reduce the effect of the dead zone on the actuators of underwater vehicles according to the unknown input dead zone characteristics. To validate the effectiveness of the proposed controller, simulations are conducted for a desired characteristic depth, and the performance of the proposed controller has been compared with conventional controllers to illustrate the usefulness and efficiency of the proposed controller.

Keywords

Autonomous underwater vehicles feedforward compensation adaptive fuzzy control depth control dead zone

Introduction

The depth control of autonomous underwater vehicles (AUVs) is an important technology for successfully completing tasks in complex environments. Submarine oil pipeline inspection, underwater welding, shipwreck search, terrain survey of unknown waters, and so on require AUVs with good depth tracking performance. Due to the strong multi-coupling and the parameter uncertainty, especially the fluid force parameters such as additional mass and damping coefficient, the difficulty of the depth control of the underwater vehicle is increased. The controller needs to better adapt to changes in system parameters to resist complex external environments.

There were many research results on the depth control of AUVs. Many research works were conducted for controlling AUVs with different techniques such as adaptive control,^1,2 sliding mode control,^1,3,4 fuzzy control,^5–7 artificial network control,^8,9 and indirect robust control.¹⁰ Nag et al.¹¹ proposed H_∞ controller, which considers the uncertainties in hydrodynamic parameters due to altered operating conditions and also provides an appropriate control mode for desired setpoint tracking and interference suppression. Joo and Qu¹² proposed an H_∞ controller also considering uncertainties in hydrodynamic parameters due to altered operating conditions and providing appropriate control activities for desired point tracking and interference suppression. Song and Arshad¹³ focused on hovering AUV and developed a robust sliding mode depth controller which can minimize the effect of external interference on system performance. Wang et al.¹⁴ proposed a smoothing function of fuzzy controller for depth control of underwater vehicles based on variable structure control and fuzzy logic. It can be seen from the literature that it is difficult to obtain accurate mathematical models, and the impact of environmental disturbance and other uncertainties on system performance is the difficulty of controller design.

Although the computed-torque control method based on inverse kinematics has been widely used in robot control,^15–17 there are few applications on underwater vehicles, due to the time-varying nonlinear modeling error between nominal model and real model. It is difficult to achieve desired control performance only by computed-torque control. Radial basis function (RBF) neural network control has the universal approximation characteristic; it is therefore widely used in the computed-torque control to compensate the tracking error caused by the uncertainty. Jiang et al.¹⁸ designed RBF neural network fault compensator on the basis of the computed-torque control method. Elmokadem et al.¹⁹ combined the computed-torque control with sliding mode compensator to solve the trajectory tracking problem of underwater vehicle on a horizontal plane, which use sliding mode control to overcome the perturbation of system parameters. Chen et al.²⁰ proposed an adaptive fuzzy compensator based on computed-torque control, which uses the adaptive fuzzy algorithm to improve the trajectory tracking performance of the system under external uncertain disturbances. Generally, compensation signal of the aforementioned fuzzy compensators is appended at joint drive torque position, which might require data normalization and de-normalization for good signal matching. However, many normalization factors that are inaccurate or unavailable can cause performance degradation and even the instability of control system. Furthermore, these fuzzy compensators located in the inner control loop may affect the control performance of the closed-loop system through the feedback gains of the compensator depending on the inertia matrix. To address the issue of the unavailability of normalization factor, this article presents an adaptive fuzzy trajectory feedforward compensator. This compensator is conceptually different from those presented previously. In this compensator, the compensation of robotic model uncertainties can be achieved outside the inner control loop by adjusting the desired characteristic trajectory rather than the normalization factor.

The dead zone phenomenon is involved in the nonlinear characteristics of the actuators of underwater vehicles.^21–23 Failing to eliminate the influence of dead zone characteristics on the system may cause output error and may produce the limit cycle oscillations of the system,²⁴ which can reduce the control performance and even make the system unstable. Xia et al.²¹ proposed a fuzzy neural network robust adaptive control as the dead zone compensator for the input dead zone characteristics, which eliminates the adverse effects of dead zone characteristics on the system. Makavita et al.²² designed command governor adaptive control for the actuator dead zone of underwater drone measurement noise to improve system controllability and tracking performance. The use of the auxiliary task method by Ropars et al.²³ adds additional constraints to the thrust distribution of horizontally redundant underwater vehicles in order to eliminate the effects of the dead zone of the thruster from the response. For underwater vehicle, the motion situation becomes more complex under the effect control input dead zone, which affects the accuracy of the motion and even leads to control failure. Therefore, it is necessary to consider the influence of dead zone on the control performance of underwater vehicles.

In this study, we focus on the depth control of underwater vehicles with uncertain input dead zones and design a composite adaptive fuzzy controller based on computed-torque control strategy. Based on the computed-torque control of inverse kinematics, the fuzzy algorithm is applied to online adaptive learning of feedback errors and to modify the given target of the system, eliminating the influence of system parameter perturbation and external disturbance. According to the unknown input dead zone characteristics, an adaptive dead zone fuzzy compensator is built to eliminate the bad effect of dead zone on system performance. The stability of the closed-loop system is proved using Lyapunov stability theorem. Taking the depth control of underwater vehicles as an example, the simulations are carried out. The results demonstrate that by adaptively compensating the given target of the system and the unknown dead zone characteristics of the control input, respectively, this method can well overcome the shortage of the computed-torque algorithm and improve dynamic and robust performance of the system.

The rest of this article is organized as follows. Section “Dynamic modeling of underwater vehicles” describes the nominal model and the simplified model of the vertical dynamics of underwater vehicles. Section “Adaptive fuzzy compensation controller” describes a composite adaptive fuzzy controller based on the method of computed-torque control. The results and discussions of the simulation are presented in section “Simulated results and discussions.” Section “Conclusion” concludes this study.

Dynamic modeling of underwater vehicles

The underwater vehicle’s model and its reference coordinate system are shown in Figure 1, where {I} is the inertial coordinate system, and {B} is the body coordinate system. The dynamic model of the underwater vehicle on the vertical plane is expressed as the following matrix form

{\begin{matrix} M \overset{\cdot}{v} + C (v) v + D (v) v + g (η) + τ_{d} = τ \\ \overset{\cdot}{η} = Jv \end{matrix}

(1)

where M is the AUV inertial matrix including additional mass, C(v) denotes the Coriolis centripetal force, D(v) is the fluid damping matrix of AUV, g(η) is the restoring force matrix, τ_d is external interference, τ is the torque vector produced by the propeller, v is the velocity vector in the body coordinate system, η is the position vector of vertical planar model of underwater vehicle in the inertial coordinate system, and J is a coordinate transformation matrix.

Figure 1.

Underwater vehicle’s model and definition of its coordinate system.

The conversion between the body coordinate system and the world coordinate system can be realized using the above formula. We assume that the gravity center and the buoyant center of AUV coincide, and gravity and buoyancy are equal. Then, the restoring force matrix g(η) can be ignored. Assuming that the speed of the underwater vehicle is low, the Coriolis centripetal force C(v) can be ignored. The simplified dynamic equation on the vertical plane is as follows

{\begin{matrix} M \overset{\cdot}{v} + D (v) v + τ_{d} = τ \\ \overset{\cdot}{η} = Jv \end{matrix}

(2)

where η = [x, z, θ]^T are the position vector of vertical planar model of underwater vehicle in the inertial coordinate system; v = [u, w, q]^T is the longitudinal, heave velocity, pitch angle velocity vector in the body coordinate system; M is the AUV inertial matrix including additional mass; D(v) is the fluid damping matrix of AUV; τ_d is external interference; τ is the torque vector produced by the propeller; J is a coordinate transformation matrix; and M, D(v) and J are described as follows, respectively

\begin{matrix} M = [\begin{matrix} m - X_{\overset{\cdot}{u}} & 0 & 0 \\ 0 & m - Z_{\overset{\cdot}{w}} & 0 \\ 0 & 0 & I_{y} - M_{\overset{\cdot}{q}} \end{matrix}] \\ D (v) = [\begin{matrix} X_{u} + X_{u | u |} | u | & 0 & 0 \\ 0 & Z_{w} + Z_{w | w |} | w | & 0 \\ 0 & 0 & M_{q} + M_{q | q |} | q | \end{matrix}] \\ J = [\begin{matrix} - \sin θ & - \cos θ & 0 \\ \cos θ & \sin θ & 0 \\ 0 & 0 & 0 \end{matrix}] \end{matrix}

where m is the mass of AUV; I_y is the moment of inertia; $X_{\overset{\cdot}{u}}, Z_{\overset{\cdot}{w}}, M_{\overset{\cdot}{q}}$ are additional mass matrices; $X_{u}, Z_{w}, M_{q}$ are linear viscous damping terms; $X_{u | u |} | u |, Z_{w | w |} | w |, M_{q | q |} | q |$ are nonlinear viscous damping term; and θ is pitching angle.

By considering the fact that ${\overset{\cdot\cdot}{η}}_{d} = \overset{\cdot\cdot}{e} + \overset{\cdot\cdot}{η}$ and $\overset{\cdot\cdot}{η} = \overset{\cdot}{J} v + J \overset{\cdot}{v}$ , we can obtain $\overset{\cdot}{v} = J^{- 1} ({\overset{\cdot\cdot}{η}}_{d} - \overset{\cdot\cdot}{e} - \overset{\cdot}{J} v)$ . And substituting $\overset{\cdot}{v}$ into the first formula of equation (2) yields the following equation

\overset{\cdot\cdot}{e} = {\overset{\cdot\cdot}{η}}_{d} - \overset{\cdot}{J} v + J M^{- 1} (D (v) v + τ_{d} - τ)

(3)

To eliminate the acceleration error, the computed-torque control law can be designed as follows:²⁵ $τ = \hat{M} J^{- 1} ({\overset{\cdot\cdot}{η}}_{d} - \overset{\cdot}{J} v + u) + \hat{D} (v) v$ , where $u$ is the control input function. Let $u = - k_{v} \overset{\cdot}{e} - k_{p} e$ such that the control input function is considered as the proportional-plus-derivative (PD) control law. Thus, the computed-torque control law in the inertial coordinate system can be written as

τ = \hat{M} J^{- 1} ({\overset{\cdot\cdot}{η}}_{d} - \overset{\cdot}{J} v + k_{v} \overset{\cdot}{e} + k_{p} e) + \hat{D} (v) v

(4)

where $\overset{\cdot}{e} = {\overset{\cdot}{η}}_{d} - \overset{\cdot}{η}$ and $e = η_{d} - η$ represent the velocity and position errors in the inertial coordinate system, respectively; $\hat{M}$ , $\hat{D}$ , and $\hat{g}$ are nominal model parameters; and k_v and k_p are feedback gain.

Substituting equation (4) into equation (2) yields

M \overset{\cdot}{v} + D (v) v + τ_{d} = \hat{M} J^{- 1} ({\overset{\cdot\cdot}{η}}_{d} - \overset{\cdot}{J} v + k_{v} \overset{\cdot}{e} + k_{p} e) + \hat{D} (v) v

(5)

M \overset{\cdot}{v} + D (v) v + τ_{d} = \hat{M} J^{- 1} (\overset{\cdot\cdot}{e} + k_{v} \overset{\cdot}{e} + k_{p} e) + \hat{M} \overset{\cdot}{v} + \hat{D} (v) v

(6)

Rearranging equation (6), the closed-loop error dynamic equation can be rewritten as follows

\overset{\cdot\cdot}{e} + k_{v} \overset{\cdot}{e} + k_{p} e = J {\hat{M}}^{- 1} τ_{d} + σ

(7)

where $σ = J {\hat{M}}^{- 1} [(M - \hat{M}) \overset{\cdot}{v} + (D (v) - \hat{D} (v)) v]$ .

There is modeling error in the dynamic model of the underwater vehicle, such as the error $σ$ caused by the uncertainty of the model parameters and the external interference error τ_d. The existence of these uncertainties causes e and $\overset{\cdot}{e}$ not to converge to 0.

Adaptive fuzzy compensation controller

Unsymmetrical dead zone fuzzy compensator

The characteristics of dead zone for the actuators of underwater vehicles are that the control system is insensitive to small signals and presents an undesirable discontinuity around the origin. When the signal enters the dead zone, the signal information is missing, which causes a large tracking error of the system. Failing to eliminate the influence of dead zone characteristics on the system may cause output error and may produce the limit cycle oscillations of the system, which can reduce the control performance and even make the system unstable. The nonlinear characteristics of asymmetrical dead zone of parameter uncertainty are illustrated in Figure 2. Ignoring the uncertain nonlinear perturbation of dead zone, the system input of AUV can be expressed as a control input after passing through dead zone

τ ol = D (τ) = {\begin{matrix} τ - b_{-}, & τ < b_{-} \\ 0, & b_{-} \leq τ < b_{+} \\ τ - b_{+}, & b_{+} \leq τ \end{matrix}

(8)

where τ is the control input before entering the dead zone, τol is the control input after dead zone, b =[b_–, b₊]^T is the parameter of the unknown dead zone and b₊∈R and b_–∈R.

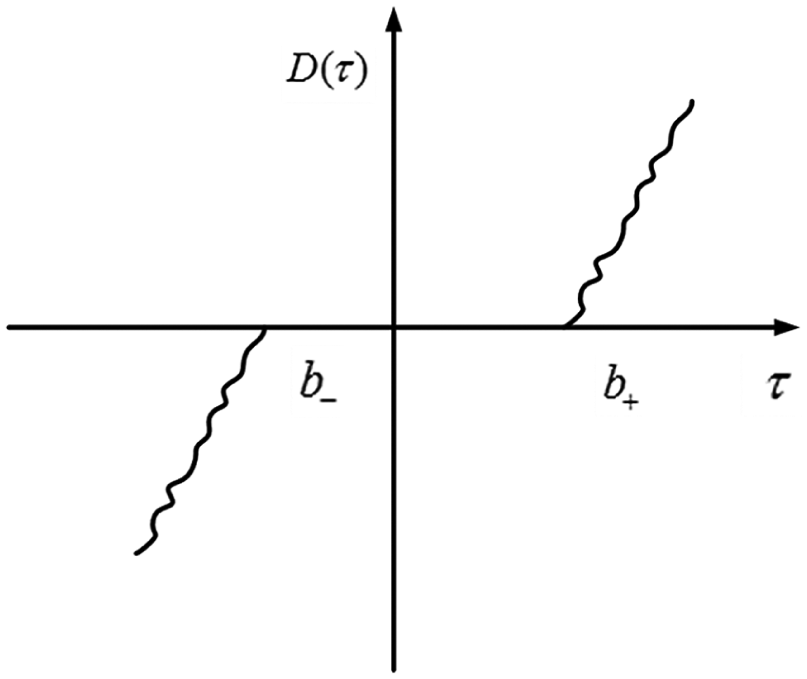

Figure 2.

Nonlinear characteristics of asymmetrical dead zone.

Dead zone has a great influence on the performance of the control system, which decreases the stability of the control system. Therefore, the impact of the dead zone characteristics of thrusters on the system cannot be ignored. A dead zone compensator is applied. The dead zone compensation rules are designed as follows: if (τ_i > 0), then $(τ o l_{i} = τ_{i} + {\hat{b}}_{+})$ ; if (τ_i < 0), then $(τ o l_{i} = τ_{i} + {\hat{b}}_{-})$ , where $\hat{b} = [{\begin{matrix} {\hat{b}}_{+} & {\hat{b}}_{-}] \end{matrix}}^{T}$ is the estimated value of dead zone parameter b =[b_–b₊]^T; B = diag{d₁, d₂, …, d_n} is the diagonal matrix composed of dead zone parameters, in which d_i is the value of dead zone parameter corresponding to different control input τ_i, and d_i∈b =[b_–b₊]^T; the uncertain dead zone||B|| is assumed to be bounded by||B||≤||B_M||; i = 1,2, …, n represents the number of control input; τol is the control input after dead zone compensation; and $τ_{f_{i}}$ represents the output of dead zone fuzzy compensation controller.

The membership function of uncertain dead zone parameters is designed as follows

X (τ_{i}) = {\begin{matrix} X_{+} (τ_{i}) = {\begin{matrix} 0, & τ_{i} < 0 \\ 1, & τ_{i} \geq 0 \end{matrix} \\ X_{-} (τ_{i}) = {\begin{matrix} 1, & τ_{i} < 0 \\ 0, & τ_{i} \geq 0 \end{matrix} \end{matrix}

(9)

The output function τ_fi of the dead zone compensator is determined by the following fuzzy rule: if (τ_i∈X ₊ (τ_i)), then $(τ_{f_{i}} = {\hat{b}}_{+})$ ; if (τ_i∈X_–(τ_i)), then $(τ_{f_{i}} = {\hat{b}}_{-})$ . Thus, the output function of the dead zone compensator is expressed as follows

τ_{f_{i}} = {\hat{b}}_{i} X (τ_{i})

(10)

Design of adaptive fuzzy trajectory feedforward compensator

To address the issue of unavailable normalization factor, an adaptive fuzzy trajectory feedforward compensator is proposed and assembled at the input trajectory level of the computed-torque controller rather than at the joint drive torque position. As shown in Figure 3. z_d is the target depth. y_f is the output function of adaptive fuzzy feedforward controller, which is target to compensate the depth value. z_r is the modified target depth value after feedforward compensation. z is the measured depth of AUV. The compensator serving as a low-pass filter is implemented outside the inner control loop by adjusting the desired characteristic trajectory rather than the feedback channel. Due to the nearly unchanged internal control algorithm, the adaptive fuzzy compensator is feasible to implement and is robust when varying the feedback gain in the inner control loop.

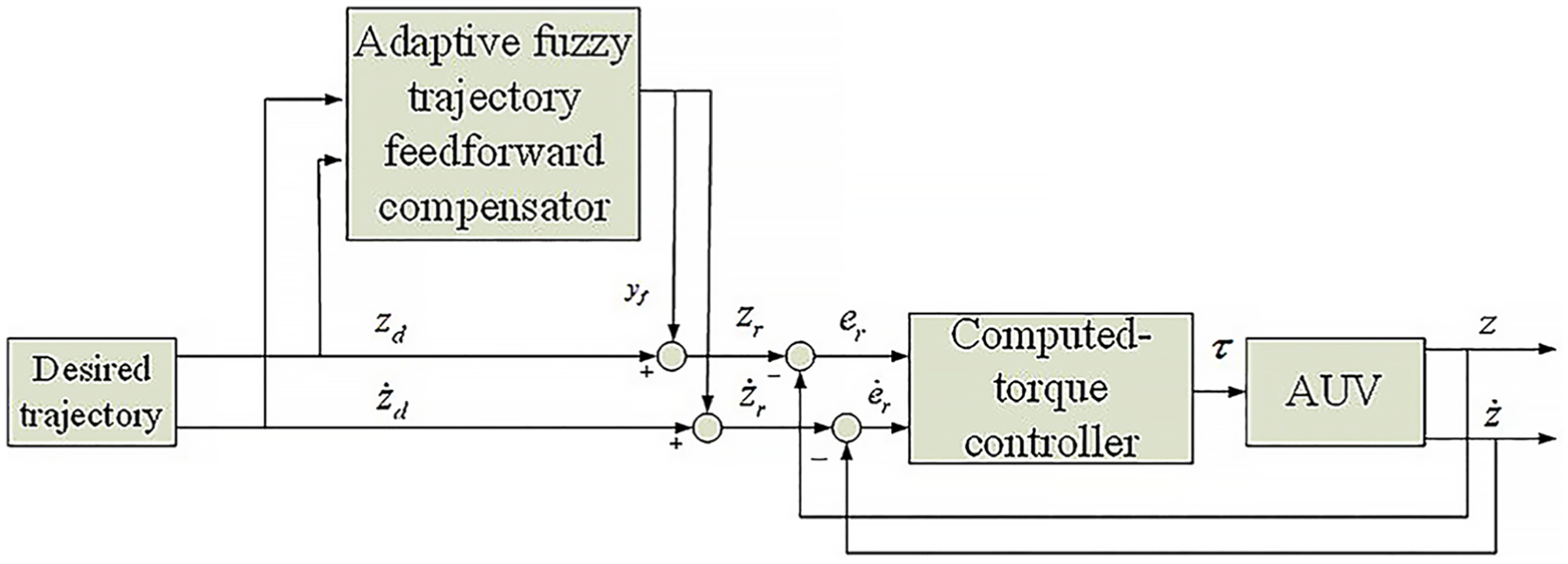

Figure 3.

Control structure based on adaptive fuzzy feedforward compensation controller.

Let $e_{r} = z_{r} - z$ , ${\overset{\cdot}{e}}_{r} = {\overset{\cdot}{z}}_{r} - \overset{\cdot}{z}$ , and ${\overset{\cdot\cdot}{e}}_{r} = {\overset{\cdot\cdot}{z}}_{r} - \overset{\cdot\cdot}{z}$ . The closed-loop error dynamic equation (7) of the computed-torque controller can be rewritten as follows

{\overset{\cdot\cdot}{e}}_{r} + k_{v} {\overset{\cdot}{e}}_{r} + k_{p} e_{r} = J {\hat{M}}^{- 1} τ_{d} + σ

(11)

As can be observed from Figure 3, the three real error terms $e$ , $\overset{\cdot}{e}$ , and $\overset{\cdot\cdot}{e}$ are given as $e = e_{r} + y_{f}$ , $\overset{\cdot}{e} = {\overset{\cdot}{e}}_{r} + {\overset{\cdot}{y}}_{f}$ , and $\overset{\cdot\cdot}{e} = {\overset{\cdot\cdot}{e}}_{r} + {\overset{\cdot\cdot}{y}}_{f}$ . We can obtain the closed-loop error dynamic equation of the computed-torque controller plus adaptive fuzzy trajectory feedforward compensator from equation (11)

\overset{\cdot\cdot}{e} + k_{v} \overset{\cdot}{e} + k_{p} e = J {\hat{M}}^{- 1} τ_{d} + σ + {\overset{\cdot\cdot}{y}}_{f} + k_{v} {\overset{\cdot}{y}}_{f} + k_{p} y_{f}

(12)

In order to eliminate the errors, the adaptive fuzzy trajectory feedforward compensator is designed as

y_{f} (x | \hat{W}) = - k_{p}^{- 1} (J {\hat{M}}^{- 1} τ_{d} + σ + {\overset{\cdot\cdot}{y}}_{f} + k_{v} {\overset{\cdot}{y}}_{f} + w)

(13)

where $\hat{W}$ is the optimal fuzzy control parameter, $w$ is the error of the fuzzy approximation, and $x = [{\begin{matrix} e_{r} & \overset{\cdot}{e} \end{matrix}}_{r}]^{T}$ is the input vector of the adaptive fuzzy trajectory feedforward compensator. Substituting equation (13) into equation (12) yields

\overset{\cdot\cdot}{e} + k_{v} \overset{\cdot}{e} + k_{p} e = y_{f} (x | W) - y_{f} (x | \hat{W})

(14)

Adaptive fuzzy compensation for uncertain terms

Figure 4 illustrates computed-torque controller plus adaptive fuzzy trajectory feedforward compensator based on uncertain dead zone compensation for AUVs. The desired depth trajectories $z_{d}$ , ${\overset{\cdot}{z}}_{d}$ are utilized as the input variables of the computed-torque controller, and the state error vector $x = [{\begin{matrix} e_{r} & \overset{\cdot}{e} \end{matrix}}_{r}]^{T}$ is considered as the self-tuning parameter of the adaptive fuzzy trajectory feedforward compensator. The filtered output parameters $z_{d} - z_{r}$ , ${\overset{\cdot}{z}}_{d} - {\overset{\cdot}{z}}_{r}$ of the adaptive fuzzy compensator are inputted to the computed-torque controller. Since the adaptive fuzzy compensator acts as the inverse of robotic plant and eliminates the effects of uncertainties at the input trajectory level rather than at the joint drive torque position, it is called feedforward fuzzy trajectory compensator.

Figure 4.

Block diagram of computed-torque controller plus adaptive fuzzy trajectory feedforward compensator based on uncertain dead zone compensation for autonomous underwater vehicles.

The compensator is composed of an adaptive fuzzy trajectory feedforward compensator and a dead zone fuzzy compensator. The adaptive fuzzy compensator estimates the structured uncertainties and is the main component of the compensator. The dead zone fuzzy compensator is employed to reduce the effects of the dead zone characteristics of the actuators of underwater vehicles on the control system. Hence, the total control torque τol is the sum of the control torque $τ$ of the computed-torque controller and the control torque $τ_{f}$ of the dead zone fuzzy compensator

τ ol = \hat{M} J^{- 1} ({\overset{\cdot\cdot}{η}}_{d} - \overset{\cdot}{J} v + k_{v} \overset{\cdot}{e} + k_{p} e) + \hat{D} (v) v + τ_{f} (\hat{B} | τ)

(15)

To reduce the tracking errors, the output parameter ${\hat{y}}_{f} (x | \hat{W})$ of the adaptive fuzzy trajectory feedforward compensator and its adaptive fuzzy control law $\overset{\cdot}{\hat{W}}$ with two rows and one column are designed as follows

y_{f} (x | \hat{W}) = {\hat{W}}^{T} Φ (x)

(16)

\overset{\cdot}{\hat{W}} = - Γ_{1} \cdot x^{T} \cdot P \cdot F \cdot Φ (x)

(17)

where e = z_d – y_f – z and $\overset{\cdot}{e} = {\overset{\cdot}{z}}_{d} - {\overset{\cdot}{y}}_{f} - \overset{\cdot}{z}$ ; $x = [{\begin{matrix} e_{r} & \overset{\cdot}{e} \end{matrix}}_{r}]^{T}$ is the input vector of the adaptive fuzzy trajectory feedforward compensator, in which $e_{r} = z_{r} - z$ and ${\overset{\cdot}{e}}_{r} = {\overset{\cdot}{z}}_{r} - \overset{\cdot}{z}$ ; $Φ (x)$ is a vector of the fuzzy basis function; ${\hat{W}}^{T}$ is a vector of the estimated tuning parameter; P is a symmetric positive definite matrix; and $Γ_{1}$ is a positive constant.

To eliminate the influence of dead zone characteristics on the system, the output function $τ_{f} (\hat{B} | τ)$ of the dead zone fuzzy compensator and its adaptive fuzzy control law $\overset{\cdot}{\hat{B}}$ with two rows and one column are designed as follows

τ_{f} (\hat{B} | τ) = {\hat{B}}^{T} X (τ)

(18)

\overset{\cdot}{\hat{B}} = - Γ_{2} \cdot x^{T} \cdot P \cdot F \cdot X (τ) - κ \cdot Γ_{2} \cdot \hat{B} \cdot ‖ x ‖

(19)

where $x = [{\begin{matrix} e_{r} & \overset{\cdot}{e} \end{matrix}}_{r}]^{T}$ is the input vector of the dead zone fuzzy compensator, in which $e_{r} = z_{r} - z$ and ${\overset{\cdot}{e}}_{r} = {\overset{\cdot}{z}}_{r} - \overset{\cdot}{z}$ ; $X (τ)$ is a vector of the fuzzy basis function; ${\hat{B}}^{T}$ is a vector of the estimated tuning parameter; P is a symmetric positive definite matrix; and $Γ_{2}$ is a positive constant.

Convergence proof

After considering the dead zone compensator, the closed-loop error dynamic equation of the computed-torque controller plus adaptive fuzzy trajectory feedforward compensator based on uncertain dead zone compensation is written as follows

\begin{matrix} \overset{\cdot\cdot}{e} + k_{v} \overset{\cdot}{e} + k_{p} e = y_{f} (x | W) - y_{f} (x | \hat{W}) \\ - (τ_{f} (B | τ) - τ_{f} (\hat{B} | τ)) \end{matrix}

(20)

where $y_{f} (x | W) = W^{T} Φ (x)$ , $y_{f} (x | \hat{W}) = {\hat{W}}^{T} Φ (x)$ , $τ_{f} (B | τ) = B^{T} X (τ)$ , and $τ_{f} (\hat{B} | τ) = {\hat{B}}^{T} X (τ)$ . Given $\tilde{W} = W - \hat{W}$ , $\overset{⌢}{B} = B - \hat{B}$ , and the state vector $x = [{\begin{matrix} e_{r} & \overset{\cdot}{e} \end{matrix}}_{r}]^{T}$ , the closed-loop error dynamic equation (20) can be rewritten as the following compact form

\overset{\cdot}{x} = Ax + F \cdot u

(21)

where

A = [\begin{matrix} 0 & I \\ - k_{P} & - k_{v} \end{matrix}], F = [\begin{matrix} 0 \\ I \end{matrix}], u = {\tilde{W}}^{T} Φ (x) - {\overset{⌢}{B}}^{T} X (τ)

Theorem 1

For the dynamic equation (1) of the underwater vehicle on the vertical plane, under the assumption that the unknown dead zone is bounded||B|| ≤ B_M, a control law based on computed-torque controller and adaptive fuzzy compensator for system uncertainty is adopted, as expressed in equation (15). Adaptive law in equation (17) for the adaptive fuzzy trajectory feedforward compensator and the adaptive law in equation (19) of the dead zone fuzzy compensator satisfy Lyapunov stability condition, and the system is finally consistent and stable.

Proof

A positive definite candidate Lyapunov function is defined as

V = \frac{1}{2} x^{T} Px + \frac{1}{2 Γ_{1}} tr ({\tilde{W}}^{T} \tilde{W}) + \frac{1}{2 Γ_{2}} tr ({\overset{⌢}{B}}^{T} \overset{⌢}{B})

(22)

where Γ₁ and Γ₂ are two positive constants, $\tilde{W} = W - \hat{W}$ , $\overset{⌢}{B} = B - \hat{B}$ , and P is symmetric positive definite matrix, satisfying the following Lyapunov equation

PA + A^{T} P = - Q

(23)

where Q ≥ 0.

Differentiating V with regard to the closed-loop error dynamic equation (20) results in

\begin{matrix} \overset{\cdot}{V} & = \frac{1}{2} (x^{T} P \overset{\cdot}{x} + {\overset{\cdot}{x}}^{T} Px) + \frac{1}{2 Γ_{1}} tr ({\overset{\cdot}{\tilde{W}}}^{T} \tilde{W} + {\tilde{W}}^{T} \overset{\cdot}{\tilde{W}}) \\ + \frac{1}{2 Γ_{2}} tr ({\overset{\cdot}{\overset{⌢}{B}}}^{T} \overset{⌢}{B} + {\overset{⌢}{B}}^{T} \overset{\cdot}{\overset{⌢}{B}}) \\ = \frac{1}{2} (Ax + Fu)^{T} Px + \frac{1}{2} x^{T} P (Ax + Fu) \\ + \frac{1}{Γ_{1}} tr ({\tilde{W}}^{T} \overset{\cdot}{\tilde{W}}) + \frac{1}{Γ_{2}} tr ({\overset{⌢}{B}}^{T} \overset{\cdot}{\overset{⌢}{B}}) \\ = - \frac{1}{2} x^{T} Qx + x^{T} PFu + \frac{1}{Γ_{1}} tr ({\tilde{W}}^{T} \overset{\cdot}{\tilde{W}}) + \frac{1}{Γ_{2}} tr ({\overset{⌢}{B}}^{T} \overset{\cdot}{\overset{⌢}{B}}) \end{matrix}

(24)

Substituting $u = {\tilde{W}}^{T} Φ (x) - {\overset{⌢}{B}}^{T} X (τ)$ in equation (21), ${\overset{\cdot}{\tilde{W}}}^{T} = - {\overset{\cdot}{\hat{W}}}^{T}$ and ${\overset{\cdot}{\overset{⌢}{B}}}^{T} = - {\overset{\cdot}{\hat{B}}}^{T}$ into equation (24) yields

\begin{matrix} \overset{\cdot}{V} & = - \frac{1}{2} x^{T} Qx + x^{T} PF ({\tilde{W}}^{T} Φ (x) - {\overset{⌢}{B}}^{T} X (τ)) \\ - \frac{1}{Γ_{1}} tr ({\tilde{W}}^{T} \overset{\cdot}{\hat{W}}) + \frac{1}{Γ_{2}} tr ({\overset{⌢}{B}}^{T} (- \overset{\cdot}{\hat{B}})) \\ = - \frac{1}{2} x^{T} Qx + tr ({\tilde{W}}^{T} (- x^{T} PF Φ (x)) - \frac{1}{Γ_{1}} \overset{\cdot}{\hat{W}}) \\ + tr ({\overset{⌢}{B}}^{T} (- x^{T} PFX (τ) - \frac{1}{Γ_{2}} \overset{\cdot}{\hat{B}})) \end{matrix}

(25)

Substituting equation (17) and equation (19) into equation (25) yields

\overset{\cdot}{V} = - \frac{1}{2} x^{T} Qx + tr ({\overset{⌢}{B}}^{T} (κ \cdot \hat{B} \cdot ‖ x ‖))

(26)

Since $\hat{B} = B - \overset{⌢}{B}$ , equation (26) can be rewritten as

\overset{\cdot}{V} = - \frac{1}{2} x^{T} Qx + tr ({\overset{⌢}{B}}^{T} (κ B ‖ x ‖ - κ \tilde{B} ‖ x ‖))

(27)

Since $‖ B ‖ \leq B_{M}$ , therefore

\begin{matrix} \overset{\cdot}{V} & \leq - \frac{1}{2} λ_{min} (Q) ‖ x ‖^{2} + κ ‖ \overset{⌢}{B} ‖ B_{M} ‖ x ‖ - κ ‖ \overset{⌢}{B} ‖^{2} ‖ x ‖)) \\ = - ‖ x ‖ (\frac{1}{2} λ_{min} (Q) ‖ x ‖ - κ ‖ \overset{⌢}{B} ‖ B_{M} + κ {‖ \overset{⌢}{B} ‖}^{2}) \end{matrix}

(28)

To make $\overset{\cdot}{V} \leq 0$ , the following inequality should be satisfied

\begin{matrix} \frac{1}{2} λ_{min} (Q) ‖ x ‖ - κ ‖ \overset{⌢}{B} ‖ B_{M} + κ ‖ \overset{⌢}{B} ‖^{2} = \frac{1}{2} λ_{min} (Q) ‖ x ‖ \\ + {(\sqrt{κ} ‖ \overset{⌢}{B} ‖ - \frac{κ B_{M}}{2 \sqrt{κ}})}^{2} - \frac{{(κ B_{M})}^{2}}{4 κ} \geq 0 \end{matrix}

(29)

From the foregoing, the following results can be obtained: $‖ x ‖ \geq ((κ B_{M}^{2}) / (2 λ_{min} (Q)))$ . Or, the convergence radius of x is $‖ x ‖ \geq ((κ B_{M}^{2}) / (2 λ_{min} (Q)))$ .

Simulated results and discussions

REMUS underwater vehicle is applied to validate the effectiveness of the computed-torque controller plus adaptive fuzzy trajectory feedforward compensator based on uncertain dead zone compensation. The nominal parameters in the vertical plane motion model of REMUS underwater vehicle are taken as follows:²⁶ the mass of underwater vehicle is m = 30.48 kg; the moment of inertia is I_y = 3.5 kg m²/rad; additional mass matrix is $X_{\overset{\cdot}{u}} = 0.93 kg$ , $Z_{\overset{\cdot}{w}} = - 35.5 kg$ , $M_{\overset{\cdot}{q}} = - 4.88 kg m^{2} / rad$ ; the linear viscous damping terms are X_u = –13.5 kg/s, Z_w = –66.6 kg/s, M_q = –6.87 kg m²/s; the nonlinear viscous damping terms are X_u_|u| = –1.62 kg/m, Z_w_|w| = –131 kg/m, M_q_|q| = –188 kg m²/rad². The external interference is τ_d = 0.5[1·sin(t) + 0.5·cos(t); 1·sin(t) – 0.5·cos(t); 1·sin(t) + 0.5·cos(t)]. To better verify the robustness of the designed controller, it is assumed that all the parameters of REMUS underwater vehicle have 20% uncertainty. The nonlinear dead zone has the following forms

\begin{matrix} u_{i} = D (tol) = \\ {\begin{matrix} (1 - 0.2 \cdot \sin (tol)) (tol - 25), \\ 0 \\ (1 - 0.1 \cdot \cos (tol)) (tol + 10), \end{matrix} \begin{matrix} tol > 25 \\ 25 > tol > - 10 \\ tol < - 10 \end{matrix} \end{matrix}

(30)

In the depth tracking test, the control target is to force the controller to track a desired depth z_d = 0 m, and the initial state is set as follows: longitudinal velocity of underwater vehicle s₀ = 2 m/s; w₀ = 0.02 m/s; q₀ = 0.04 rad/s; z₀ = 2 m. The control parameters in the computed-torque controller are chosen as k_v = k_p = 10. The matrix Q in equation (23) is selected as Q =[500 0;0 500]. For the given matrix Q, we can solve the positive definite symmetric matrix P from the Lyapunov equation (23). The value of the positive constant in the adaptive fuzzy control law of equation (17) is picked as Γ₁ = 20. The parameter in the adaptive fuzzy control law of equation (19) is chosen as Γ₂ = 250 with κ = 0.2. Five fuzzy labels (i.e. NB, NS, ZO, PS, and PB) are utilized to describe the universe of discourse of each fuzzy input term. The following membership functions are selected as $μ_{NB} (x_{i}) = e^{- {(x_{i} + π / 6)}^{2} / {(π / 24)}^{2}}$ , $μ_{NS} (x_{i}) = e^{- {(x_{i} + π / 12)}^{2} / {(π / 24)}^{2}}$ , $μ_{ZO} (x_{i}) = e^{- x_{i}^{2} / {(π / 24)}^{2}}$ , $μ_{PS} (x_{i}) = e^{- {(x_{i} - π / 12)}^{2} / {(π / 24)}^{2}}$ , and $μ_{PB} (x_{i}) = e^{- {(x_{i} - π / 6)}^{2} / {(π / 24)}^{2}}$ . Numerical computations of the following four examples are performed to investigate the depth tracking performances of the computed-torque controller plus adaptive fuzzy trajectory feedforward compensator based on uncertain dead zone compensation.

Example 1

The conventional computed-torque controller is applied to the REMUS underwater vehicle. Its control drive torque is written as

τ = \hat{M} J^{- 1} ({\overset{\cdot\cdot}{η}}_{d} - \overset{\cdot}{J} v + k_{v} \overset{\cdot}{e} + k_{p} e) + \hat{D} (v) v

(31)

A series of numerical simulation results of the depth tracking trajectories and control drive torques under the actions of the conventional computed-torque controller are illustrated in Figure 5. It can be seen that the tracking displacement errors tend to deteriorate. Moreover, it is noteworthy that the estimated parameter values of the control drive torques fluctuate remarkably, which might exceed the limitations of actuators. Hence, some compensators should be appropriately designed and embodied in the conventional computed-torque controller to reduce the effects of uncertainties.

Figure 5.

Depth tracking performances of the conventional computed-torque controller: (a) response curve of system depth z and (b) control input τ₁, τ₂, and τ₃.

Example 2

The computed-torque controller plus adaptive fuzzy trajectory feedforward compensator is applied to the REMUS underwater vehicle. Its control drive torque is defined as

\begin{array}{l} τ = \hat{M} J^{- 1} ({\overset{\cdot\cdot}{η}}_{d} - \dot{J} v + k_{v} ({\dot{e}}_{r} + {\dot{y}}_{f} (x | W)) \\ + k_{p} (e_{r} + y_{f} (x | W))) + \hat{D} (v) v \end{array}

(32)

Figure 6 demonstrates the depth tracking performances under the actions of the computed-torque controller plus adaptive fuzzy trajectory feedforward compensator. Compared with uncompensated example shown in Figure 5, the tracking errors in transient and steady state in the second example, shown in Figure 5, are remarkably reduced. The reason is that the external disturbances and unknown parameter uncertainties are reduced by the adaptive fuzzy compensator in equation (16). As shown in Figure 6(c), the adaptive fuzzy compensator can be used for online identification of complex modeling uncertainties of the system. Although there are fluctuations in the initial stage, it is generally smooth, and can effectively compensate for the control input. However, due to the existence of uncertain dead zone in the control input, there is a wide range of energy intensive tremble in the control input, as shown in Figure 6(b). This tremble will cause the chattering of the mechanical system, reduce the performance of the system control, and is very unfavorable to the closed-loop control of the system.

Figure 6.

Depth tracking performances of the computed-torque controller plus adaptive fuzzy trajectory feedforward compensator: (a) response curve of system depth z; (b) control input τ₁, τ₂, and τ₃; and (c) output of adaptive fuzzy trajectory feedforward compensator y_f.

Example 3

The computed-torque controller with uncertain dead zone compensator is applied to the REMUS underwater vehicle, and its control drive torque is calculated as

τ = \hat{M} J^{- 1} ({\overset{\cdot\cdot}{η}}_{d} - \overset{\cdot}{J} v + k_{v} \overset{\cdot}{e} + k_{p} e) + \hat{D} (v) v + τ_{f} (B | τ)

(33)

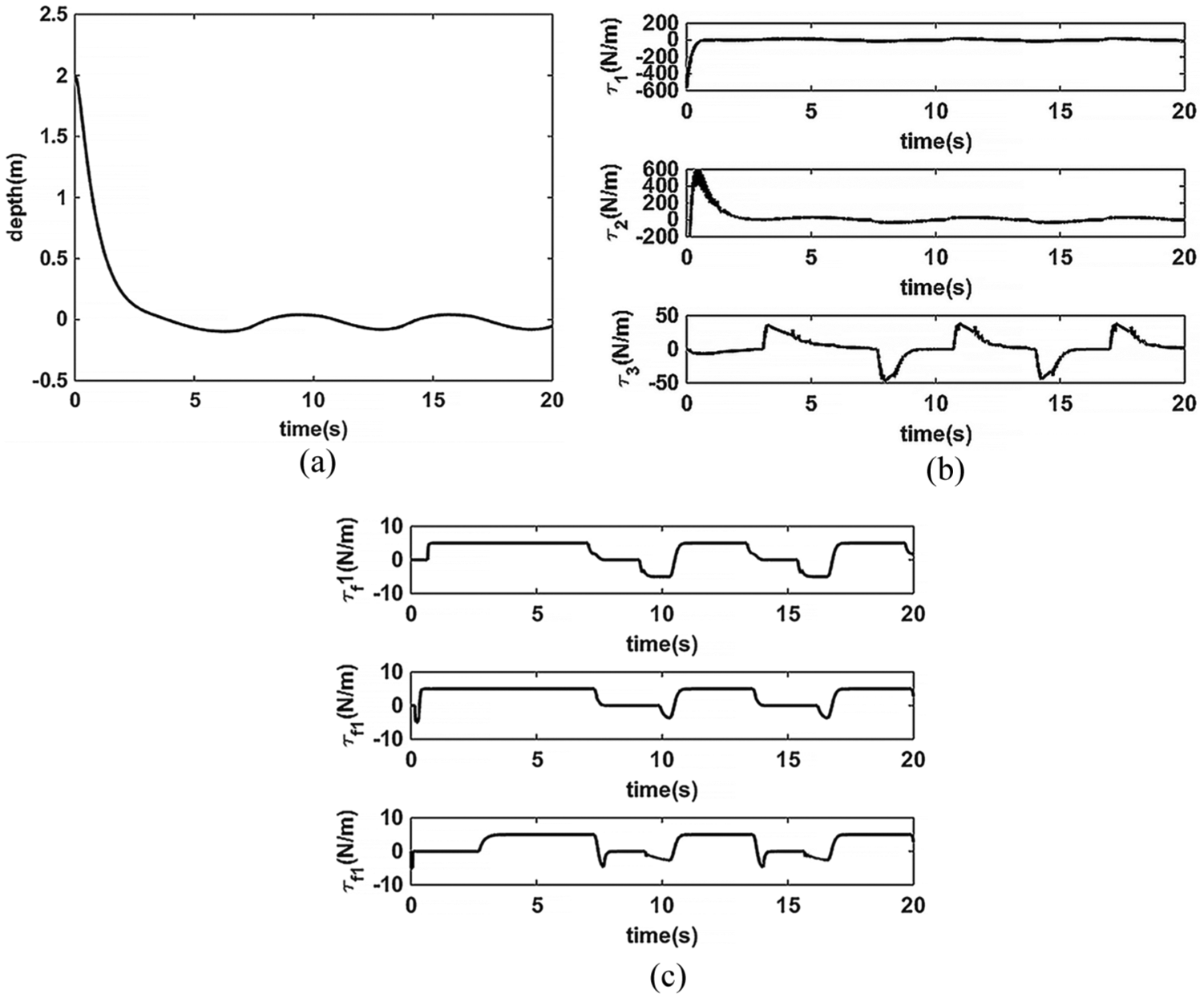

Figure 7 illustrates the depth tracking performances of the computed-torque controller plus adaptive fuzzy trajectory feedforward compensator based on uncertain dead zone compensator. The simulation results demonstrate that the proposed controller tracks the desired depth extremely well and reaches convergence rapidly. Comparing Figures 5(a) and 7(a), the dynamic and static performances of the proposed controller have been slightly improved, after the addition of the only uncertain dead zone compensator into the conventional computed-torque controller. However, the control performances are still unsatisfactory. As can seen from Figures 6(a) and 7(a), it is clear that the computed-torque controller plus the single adaptive fuzzy trajectory feedforward compensator can achieve better control performances than the computed-torque controller with the only uncertain dead zone compensator. However, the smoothness of the control input torque shown in Figure 7(b) clearly demonstrates the advantage of the uncertain dead zone compensator over the single adaptive fuzzy trajectory feedforward compensator without dead zone compensation in Figure 6(b).

Figure 7.

Depth tracking performances of the computed-torque controller with uncertain dead zone compensator: (a) response curve of system depth z; (b) control input τ₁, τ₂, and τ₃; and (c) output of uncertain dead zone compensator τ_f₁, τ_f₂, and τ_f₃.

Example 4

The computed-torque controller plus adaptive fuzzy trajectory feedforward compensator based on uncertain dead zone compensator is applied to the REMUS underwater vehicle, and its control drive torque is calculated as

\begin{array}{l} τ = \hat{M} J^{- 1} ({\overset{\cdot\cdot}{η}}_{d} - \dot{J} v + k_{v} ({\dot{e}}_{r} + {\dot{y}}_{f} (x | W)) \\ + k_{p} (e_{r} + y_{f} (x | W))) + \hat{D} (v) v + τ_{f} (B | τ) \end{array}

(34)

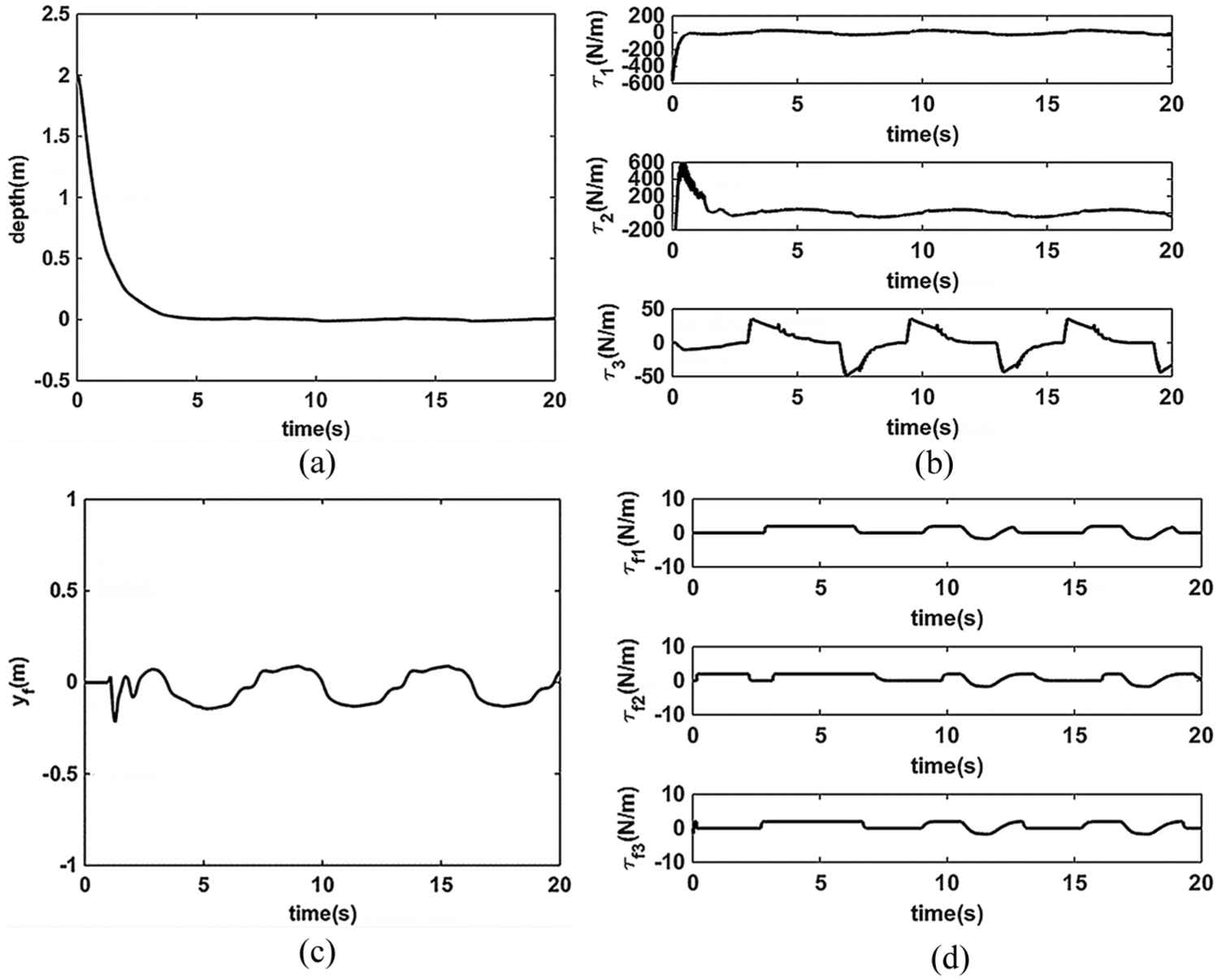

Figure 8 demonstrates the depth tracking performances under the actions of the computed-torque controller plus adaptive fuzzy trajectory feedforward compensator based on uncertain dead zone compensator. By comparing Figures 5 and 8, it is clear that after adding the two adaptive fuzzy compensators, the dynamic and static performances of the proposed controller are improved, and the control input torque has no obvious change. From the simulation results in Figures 6 –8, it is clear that the compensation ability of the union of the two adaptive fuzzy compensators is more robust than only adaptive fuzzy trajectory feedforward compensator, or only uncertain dead zone compensator.

Figure 8.

Depth tracking performances of the computed-torque controller plus adaptive fuzzy trajectory feedforward compensator based on uncertain dead zone compensator: (a) response curve of system depth z; (b) control input τ₁, τ₂, and τ₃; (c) output of adaptive fuzzy trajectory feedforward compensator y_f , and (d) output of uncertain dead zone compensator τ_f₁, τ_f₂, and τ_f₃.

Conclusion

In this article, the computed-torque controller plus adaptive fuzzy trajectory feedforward compensator based on uncertain dead zone compensator is proposed for depth tracking control of REMUS underwater vehicle with uncertain dynamic model. The adaptive fuzzy trajectory feedforward compensator serves as a low-pass filter at the input trajectory level rather than at the joint drive torque position, and it offers good compensation performance by adjusting the desired characteristic trajectory outside the inner control loop. Compensating at the input trajectory level provides several benefits over other fuzzy compensators at the joint drive torque position. First, the adaptive fuzzy compensator outside the inner control loop is feasible to implement due to the nearly unchanged internal control algorithm. Second, it provides robust performance to varying feedback gains in the inner control loop. Moreover, an adaptive dead zone fuzzy compensator is built to eliminate the bad effect of dead zone on the actuators of underwater vehicles according to the unknown input dead zone characteristics. The computed-torque controller plus adaptive fuzzy trajectory feedforward compensator based on uncertain dead zone compensator guarantees that all control signals are bounded and the closed-loop system is globally and asymptotically stable. The regulation and depth tracking performances of the proposed controller have been demonstrated by simulations of REMUS underwater vehicle with uncertain dynamic model.

Footnotes

Handling Editor: Dan Zhang

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work was supported by the Major Scientific and Technological Innovation Project of Shandong Province with Grant No. 2017CXGC0923 and Key Research and Development Program of Shandong Province under Grant Nos 2017GGX30112 and 2018GGX103025.

ORCID iD

Yuan Chen

References

Lakhekar

Saundarmal

. Novel adaptive fuzzy sliding mode controller for depth control of an underwater vehicles. In: IEEE international conference on fuzzy systems, Hyderabad, India, 7–10 July 2013, pp.1–7 (paper no. 6622573). New York: IEEE.

Mohan

Kim

. Indirect adaptive control of an autonomous underwater vehicle-manipulator system for underwater manipulation tasks. Ocean Eng 2012; 54: 233–243.

Ruiz-Duarte

Loukianov

. Higher order sliding mode control for autonomous underwater vehicles in the diving plane. IFAC PapersOnline 2015; 48: 49–54.

Zhou

Liu

et al . Dynamic sliding mode control based on multi-model switching laws for the depth control of an autonomous underwater vehicle. Int J Adv Robot Syst. Epub ahead of print 29 July 2015. DOI: 10.5772/61038

Jun

Kim

Lee

. Design of T-S fuzzy-model-based diving control of autonomous underwater vehicles: line of sight guidance approach. In: International conference on control, automation and systems, Jeju City, South Korea, 17–21 October 2012, paper no. 6393225. Washington, DC: IEEE Computer Society.

Xiang

Zhang

et al . Adaptive fuzzy trajectory tracking control of an under-actuated autonomous underwater vehicle subject to actuator saturation. Int J Fuzzy Syst 2018; 20: 269–279.

Xiang

Lapierre

et al . Survey on fuzzy-logic-based guidance and control of marine surface vehicles and underwater vehicles. Int J Fuzzy Syst 2017; 20: 1–15.

Shojaei

. Neural network formation control of underactuated autonomous underwater vehicles with saturating actuators. Neurocomputing 2016; 194: 372–384.

Nguyen

Pham

Nguyen

. Heading and depth control of autonomous underwater vehicles via adaptive neural network controller. In: 4th international conference on advanced engineering theory and applications, Ho Chi Minh City, Vietnam, 7–9 December 2017. Berlin: Springer Verlag.

10.

Pan

Xin

. Depth control of autonomous underwater vehicles using indirect robust control method. Int J Contr 2012; 85: 6216–6221.

11.

Nag

Patel

Kishore

et al . A robust H-infinity based depth control of an autonomous underwater vehicle. In: International conference on advanced electronic systems, Pilani, India, 21–23 September 2013, pp.68–73 (paper no. 6659363). Washington, DC: IEEE Computer Society.

12.

Joo

. An autonomous underwater vehicle as an underwater glider and its depth control. Int J Contr Automat Syst 2015; 13: 1212–1220.

13.

Song

Arshad

. Sliding mode depth control of a hovering autonomous underwater vehicle. In: IEEE international conference on control system, computing and engineering, George Town, Malaysia, 27–29 November 2015, pp.435–440 (paper no. 7482225). New York: IEEE.

14.

Wang

Shen

Wang

et al . Fuzzy controller used smoothing function for depth control of autonomous underwater vehicle. In: OCEANS, Shanghai, China, 10–13 April 2016, paper no. 7485589. New York: IEEE.

15.

Kumar

Sudha

Pushpalatha

. Design of prisoner’s dilemma based fuzzy logic computed torque controller with Lyapunov synthesis linguistic model for PUMA-560 robot manipulator. J Intel Fuzzy Syst 2016; 31: 345–355.

16.

Ansari

Mohammad

Ghanbari

. Adaptive fuzzy computed torque controller for under actuated bipedal robot. In: ASME international mechanical engineering congress and exposition, Montreal, QC, Canada, 14–20 November 2014. New York: ASME.

17.

Zuo

Wang

Liu

et al . Neural network robust H∞ tracking control strategy for robot manipulators. Appl Math Model 2010; 34: 1823–1838.

18.

Jiang

Cao

Dai

. Research on RBF neural network model compensation and adaptive control of robot manipulators. In: Chinese control and decision conference, Yinchuan, China, 28–30 May 2016, pp.516–520 (paper no. 7531039). New York: IEEE.

19.

Elmokadem

Zribi

Youcef-Toumi

. Trajectory tracking sliding mode control of underactuated AUVs. Nonlinear Dynam 2016; 84: 1079–1091.

20.

Chen

Lin

et al . Computed-torque plus robust adaptive compensation control for robot manipulator with structured and unstructured uncertainties. IMA J Math Contr Inf 2016; 33: 37–52.

21.

Xia

Pang

Xue

. Fuzzy neural network-based robust adaptive control for dynamic positioning of underwater vehicles with input dead-zone. J Intell Fuzzy Syst 2015; 29: 2585–2595.

22.

Makavita

Nguyen

Jayasinghe

et al . Command governor adaptive control for unmanned underwater vehicles with measurement noise and actuator dead-zone. In: 2nd international Moratuwa engineering research conference, Moratuwa, Sri Lanka, 5–6 April 2016, paper no. 7480171. New York: IEEE.

23.

Ropars

Lasbouygues

Lapierre

et al . Thruster’s dead-zones compensation for the actuation system of an underwater vehicle. In: European control conference, Linz, 15–17 July 2015, paper no. 7330631. New York: IEEE.

24.

Wang

. Adaptive fuzzy control with smooth inverse for nonlinear systems preceded by non-symmetric dead-zone. Int J Syst Sci 2015; 47: 1–10.

25.

Lewis

Dawson

Abdallah

. Robot manipulator control: theory and practice. 2nd ed. New York: Marcel Dekker, 2004, pp.248–252.

26.

Prestero

. Verification of a 6-degree of freedom simulation model for the REMUS AUV. ME Thesis, Mechanical Engineering, University of California, Davis, Davis, CA, 2001.
