Abstract

In this article, the most contribution is to propose a novel general stiffness model to analyze the stiffness of a wall-climbing hexapod robot. First, we propose a new general stiffness model of serial mechanism, which includes the linear and nonlinear stiffness models. By comparison, the nonlinear stiffness model is a variable stiffness model which introduces the external load force as a variable, obtaining that the nonlinear stiffness model can greatly improve the accuracy of stiffness model than linear stiffness model. Then, the stiffness model of one leg of the robot and the overall stiffness model of the robot are derived based on the general stiffness model. Next, to improve the stiffness of the robot, a new minimum and maximum stiffness are introduced, which provide with effective reference for the selection and optimization of the structural parameters of the robot. Finally, we develop a new wall-climbing hexapod robot based on selection and optimization of the structural parameters, then the experiments are used to show that the selection of structure parameters of the robot effectively improve the stiffness of the robot.

Keywords

Nonlinear stiffness model wall-climbing hexapod robot stiffness performance evaluation structural parameter optimization

Introduction

Modern city skyscrapers, for good glass lighting performance and good esthetic considerations purposes, glass curtain walls have been widely used in the high buildings. Due to the perennial exposure in the air, contaminations accumulate on the glass curtain wall surface, which need to be removed regularly. There have been two kinds of wall-cleaning methods so far. The first one mainly depends on cradle-carried window cleaners. The second method is to install a track on the roof, and the glass wall is then washed by the window-cleaning machine. The former method has low efficiency and high risk. The latter method has limited the field of application; hence, there is a large demand for high-altitude glass-wall cleaning robots.

Wall-cleaning robot can move on glass curtain walls flexibly, which consists of three major parts including the cleaning device, the adhesive mechanism, and the motion mechanism, of which the adhesive mechanism and the motion mechanism are the important contents. The adhesive mechanism mainly includes the following: adhesion of adhesive materials,¹ magnetic adhesion,² and vacuum adhesion.^3,4 Adhesion of adhesive materials can be applied to wall surfaces with various shapes, but it is difficult to be applied to large-size robots. The magnetic adhesion is more flexible, but its application is limited to surfaces of magnetic material with permeability. The vacuum adhesion on glass curtain wall is strong, and its application is wide. The motion mechanism of robot mainly includes frame type,⁵ crawler type,⁶ and legged type.⁷ Frame structure is simple, but the motion is not continuous. The bearing capacity of crawler-type is strong, but the turning is difficult. Legged-type robots offer strong obstacle crossing abilities and wall adaptability. In legged robots, Zhang et al.⁸ analyzed a hexapod robot walking on unstructured terrain. Wang et al.⁹ investigated motion performance of a radial symmetrical six-legged robot.

Mechanism stiffness is a very important evaluation index for the performance evaluation of mechanism.¹⁰ The research of stiffness is therefore very necessary in the mechanism design or precise control of mechanism. For a linear deformation, the relationship between force and deformation is described by a stiffness matrix.^11–13 In general, considering the flexibilities of each compliant element, the stiffness model of robot which has six legs can be established directly.¹⁴ Some works contain the results of the manipulator under external loading, the influence of the passive joint,¹⁵ and internal constraints.¹⁶ Other works analyzed the problem with antagonistic actuating or internal preloading of the robot.¹⁷ The existing methods of the stiffness modeling can be divided into three categories: (1) the finite element analysis (FEA), (2) the matrix structural analysis (SMA), and (3) the virtual joint method (VJM). The FEA is the most accurate one,¹⁸ which allows for modeling joints and links with their true shape.¹⁹ SMA also uses the main ideas of the FEA and works with 3D flexible beams which are presented in the manipulator structure.²⁰ Finally, the VJM method describes the elastic deformations of the actuators, links, and joints.²¹

Several different performance indices have been proposed of stiffness evaluation, including minimum stiffness, maximum stiffness, and determinant of stiffness matrix.^22–24 The determinant of stiffness matrix cannot distinguish specific stiffness values in a certain direction.^25,26 The minimum and maximum stiffness^27–29 can reflect variation range of the stiffness value of the mechanism, and the corresponding eigenvector directions of the minimum and maximum stiffness of mechanism represent the minimum and maximum stiffness direction, respectively.

In this article, the support legs which are deformed are influenced by the gravity of the robot body and cleaning mechanism. The position control and precision control of the robot body are thus affected, and the walking trajectory deviation occurs in the process. Thus, the stiffness of the wall-climbing hexapod robot is investigated. Previous studies have mainly focused on the deformation of the joint as a linear deformation. However, there is a considerable part of the mechanical joint deformation that does not meet the linear deformation. In this case, the error between the stiffness matrix which is obtained using the linear instead of the nonlinear and the real stiffness matrix can be very large, and the stiffness matrix cannot reflect the effect of the external load force on the stiffness of the mechanism. The most contribution of this article is to propose a new general stiffness model of serial mechanism, which includes linear and nonlinear stiffness models. Next, by comparing the linear and nonlinear stiffness models, obtaining the nonlinear stiffness model introduces the external load force as a variable, which can greatly improve the accuracy of stiffness model. However, linear stiffness model is a constant. Furthermore, to improve the stiffness of the robot, a new minimum and maximum stiffness are introduced, obtaining a reasonable range of structure parameters and providing effective reference for the selection and optimization of the structure of the robot. According to the investigations of this work, it provides a scientific basis for the position and precision control of wall-climbing hexapod robot.

Structural design of wall-climbing hexapod robot

We first design a wall-climbing hexapod robot; the computer-aided design (CAD) model is illustrated in Figure 1. The body frame of robot is a shape of regular octagon. The robot is designed with six legs and each of which consists of four components, including the suction cup, calf, thigh, and hip. The suction cup generates the adhesive force that ensures the robot can adhere on the glass curtain wall. The suction cup and calf are connected by a spherical joint, and the calf and the thigh, and the thigh and the hip are connected by revolute joints, which are parallel to the body. The hip and the body are also connected via a revolute joint perpendicular to the body. The connection between calf and thigh is defined as joint 3, the connection between thigh and hip is defined as joint 2, and the connection between hip and body is defined as joint 1.

Figure 1.

CAD model of wall-climbing hexapod robot.

The three-dimensional mathematical model of the robot is shown in Figure 2(a), and the top view of the mathematical model is shown in Figure 2(b). Points $A_{1}$ , $A_{2}$ , $A_{3}$ , $A_{4}$ , $A_{5}$ , and $A_{6}$ are the six vertices of the regular octagon, which form the base plane, and the length of $A_{2} A_{5}$ is $2 R$ . The geometrical center of the regular octagon is defined as point O, which is the origin of the coordinate system. The axis y lies in the direction of $A_{2} A_{5}$ , the axis z is perpendicular to the plane of Oxy and points from the base to the body plane of the robot, and the axis x is then defined according to the right-hand rule. Points $D_{1}$ , $D_{2}$ , $D_{3}$ , $D_{4}$ , $D_{5}$ , and $D_{6}$ are the six vertices of the regular octagon of robot body, and the length of $D_{2} D_{5}$ is $2 r$ . Point C is the geometric center of body, and the projection of point C on the plane Oxy is point O. Point $A_{i} (i = 1, 2, 3, 4, 5, 6)$ presents the spherical joint. Points $B_{i}$ , $C_{i}$ , and $D_{i}$ are revolute joints. The length of the calf, thigh, and hip are $L_{1}$ , $L_{2}$ , and $L_{3}$ , respectively. The angle $θ_{i 1} (45^{0} \leq θ_{i 1} \leq 90^{0})$ is the angle between $A_{i} B_{i}$ and the projection of $A_{i} B_{i}$ in Oxy plane. The angle $α_{i} (0^{0} \leq α_{i} \leq 90^{0})$ is the angle between the axis of x and the projection of $A_{i} B_{i}$ in the Oxy plane. The angle $θ_{i 2} (0^{0} \leq θ_{i 2} \leq 180^{0})$ is the angle between line $B_{i} C_{i}$ and the axis z. The angle $θ_{i 3} (0^{0} \leq θ_{i 3} \leq 180^{0})$ is the angle between line $C_{i} D_{i}$ and the axis z. The leg $A_{i} B_{i} C_{i} D_{i}$ is defined as the ith leg.

Figure 2.

(a) Mathematical model of the wall-climbing hexapod robot and (b) top view of the mathematical model of the wall-climbing hexapod robot.

Stiffness model of wall-climbing hexapod robot

In order to improve the accuracy for the stiffness model of the robot, we first propose a new general stiffness model of serial mechanism, which includes the linear and nonlinear stiffness models. The linear stiffness model is a constant stiffness model. However, the nonlinear stiffness model is a variable stiffness model which is more comprehensive to indicate the relation between force and deformation at the end of serial mechanism. Next, based on general stiffness model of serial mechanism, we establish the stiffness model of one leg of robot, and then derive the overall stiffness model of the wall-climbing hexapod robot.

General stiffness model of serial mechanism

For the serial mechanism, it is supposed that the individual bars of the mechanism are not flexible, and the actuating and transmission agents are the only flexible source in the mechanism. Supposing that there are $n (n \in N^{*})$ joints in the serial mechanism, each joint is an actuated joint, and the torque/force and deformation of the ith joint can be given by

τ_{i} = k_{im} Δ q_{i}^{m} + \dots + k_{i 3} Δ q_{i}^{3} + k_{i 2} Δ q_{i}^{2} + k_{i 1} Δ q_{i}

(1)

where $τ_{i}$ is the force applied to the ith joint, $Δ q_{i}$ is the deformation of the ith joint, $m \in N^{*}$ , $k_{im} \neq 0 (i = 1, 2, \dots, n)$ , and $k_{ij} (j = 1, 2, \dots, m)$ is a constant coefficient.

It is supposed that $δ_{i} = k_{im} Δ q_{i}^{m - 1} + \dots + k_{i 3} Δ q_{i}^{2} + k_{i 2} Δ q_{i} + k_{i 1}$ and $δ_{i}$ is called the deformation coefficient; hence, equation (1) can be converted to

τ_{i} = δ_{i} Δ q_{i}

(2)

where $i = 1, 2, \dots, n$ .

Then, the torque/force and deformation of all joints can be expressed in matrix form as follows

σ = K_{θ} Δ q

(3)

where $σ = (τ_{1}, τ_{2}, \dots, τ_{n})^{T}$ , $K_{θ} = diag (δ_{1}, δ_{2}, \dots, δ_{n})^{T}$ , and $Δ q = (Δ q_{1}, Δ q_{2}, \dots, Δ q_{n})^{T}$ .

Derived from the definition of velocity Jacobi matrix $J (s \times n)$ and force Jacobi matrix of serial mechanism, giving

Δ X = J Δ q

(4)

σ = J^{T} F

(5)

where $Δ X$ is the deformation of the end of serial mechanism, and force screw F is the external load at the end of mechanism.

According to equations (3)–(5), obtaining

Δ X = J Δ q = J (K_{θ}^{- 1} σ) = J (K_{θ}^{- 1} (J^{T} F)) = ({JK}_{θ}^{- 1} J^{T}) F

(6)

Supposing that C is a compliance matrix of serial mechanism, by equation (6), yielding

C = {JK}_{θ}^{- 1} J^{T}

(7)

where C is $s \times s$ matrix.

The stiffness matrix and compliance matrix are mutually inverse matrix, thus, the stiffness matrix of serial mechanism can be given by

K_{s} = {({JK}_{θ}^{- 1} J^{T})}^{- 1}

(8)

where

\begin{array}{l} K_{θ} = [\begin{matrix} δ_{1} & 0 & \dots & 0 \\ 0 & δ_{2} & \dots & 0 \\ ⋮ & ⋮ & ⋱ & ⋮ \\ 0 & 0 & \dots & δ_{n} \end{matrix}] \\ = [\begin{matrix} \sum_{j}^{n} k_{1 j} Δ q_{1}^{j - 1} & 0 & \dots & 0 \\ 0 & \sum_{j}^{n} k_{2 j} Δ q_{2}^{j - 1} & \dots & 0 \\ ⋮ & ⋮ & ⋱ & ⋮ \\ 0 & 0 & \dots & \sum_{j}^{n} k_{n j} Δ q_{n}^{j - 1} \end{matrix}] \end{array}

(9)

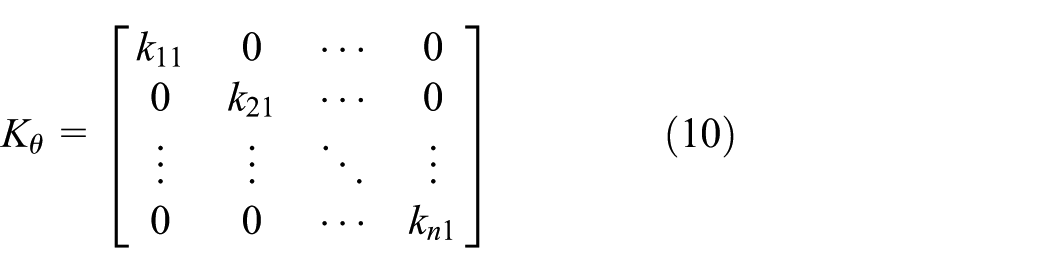

It can be seen that $K_{s}$ in equation (8) is determined by two independent design parameters, J and $K_{θ}$ . With regard to all joints, if $m = 1$ , according to equation (1), it can be obtained that $τ_{i} = k_{i 1} Δ q_{i} (i = 1, 2, \dots, n)$ ; hence, the relation between force and deformation of all joints is a linear relation. The matrix $K_{θ}$ in equation (9) is simplified as

K_{θ} = [\begin{matrix} k_{11} & 0 & \dots & 0 \\ 0 & k_{21} & \dots & 0 \\ ⋮ & ⋮ & ⋱ & ⋮ \\ 0 & 0 & \dots & k_{n 1} \end{matrix}]

(10)

Thus, for all joints, if $m = 1$ , the stiffness matrix $K_{s}$ in equation (8) is defined as linear stiffness matrix. According to equations (8) and (10), no matter how external load changes, the linear stiffness matrix $K_{s}$ is kept as a constant stiffness matrix, which cannot indicate the effect of the external load on the stiffness of the mechanism.

If there are several joints, and the relation between the moment or force and deformation of these joints satisfies $m \geq 2$ . According to equation (1), it can be obtained that the relation between force and deformation of joint is a nonlinear relation. So, the stiffness matrix $K_{s}$ in equation (8) is defined as a nonlinear variable stiffness matrix, and $δ_{i}$ is termed as nonlinear deformation coefficient. Assuming the external load F is a variable at the end of serial mechanism. Substituting variable F into equation (5), we obtain $σ$ as a variable. Next, substituting variable $σ$ into equation (3), we obtain $Δ q$ as a variable, that is, $Δ q_{i}$ is a variable. According to equation (9), the matrix $K_{θ}$ contains $Δ q_{i} (i = 1, 2, \dots, n)$ , and $Δ q_{i}$ is a variable, so the matrix $K_{θ}$ is a variable matrix. According to equation (8), the nonlinear stiffness matrix $K_{s}$ is a variable stiffness matrix, which varies with external load F. The nonlinear stiffness matrix $K_{s}$ indicates the effect of the external load F on the stiffness matrix. Compared to the linear stiffness matrix, the nonlinear stiffness matrix can indicate the relation between force and deformation at the end of serial mechanism.

If Jacobi matrix J is $6 \times 6$ matrix and $n = 6$ , then equation (8) can be updated as

K_{s} = J^{- T} K_{θ} J^{- 1}

(11)

General stiffness model of one leg of wall-climbing hexapod robot

On the basis of the general stiffness model of serial mechanism explained in section “General stiffness model of serial mechanism,” next we establish the general stiffness model of one leg of the wall-climbing hexapod robot.

The mathematical model of one leg of the wall-climbing hexapod robot is shown in Figure 3. The global coordinate system $O - xyz$ is established based on the geometric center of the suction cup. Angle $θ$ is the angle between the projection of the leg in the plane of Oxy and axis y. Angle $θ_{1}$ is the angle between the calf and Oxy plane. Angle $θ_{2}$ is the angle between the thigh and axis z. Angle $θ_{3}$ is the angle between the hip and axis z. When the robot is walking and cleaning the wall, the body is required to be parallel with the vertical wall, thus, angle $θ_{3} = 90^{0}$ . $F = (τ, f)^{T}$ is defined as the wrench at the end of the leg, where $τ = (τ_{x}, τ_{y}, τ_{z})^{T}$ represents three moments around the axes $x, y$ , and z, respectively; $f = (f_{x}, f_{y}, f_{z})^{T}$ reveals three forces along axes $x, y$ , and z, respectively. $ξ = (ϕ, δ)^{T}$ is defined as the twist at the end of the leg, where $ϕ = (ϕ_{x}, ϕ_{y}, ϕ_{z})^{T}$ represents the corresponding rotational deflections around their corresponding axes, and $δ = (δ_{x}, δ_{y}, δ_{z})^{T}$ reveals the three translational deflections along their corresponding axes. Since the spherical joint can be regarded as three revolute joints, supposing that $S_{i} (i = 1, 2, 3, 4, 5, 6)$ is defined as screws of each joint, respectively. $δ_{1}$ , $δ_{2}$ , and $δ_{3}$ are the deformation coefficients caused by rotation of suction cup around the axes x, y, and z, respectively. $δ_{4}$ , $δ_{5}$ , and $δ_{6}$ are the deformation coefficients of joints 3, 2, and 1, respectively. Supposing that robs of calf, thigh, and hip are rigid body, with no deformation. The velocity Jacobi matrix of the serial mechanism can therefore be given by

J_{1} = [S_{1} S_{2} S_{3} S_{4} S_{5}; S_{6}]

(12)

where

S_{1} = [\begin{matrix} 1 \\ 0 \\ 0 \\ 0 \\ 0 \\ 0 \end{matrix}], S_{2} = [\begin{matrix} 0 \\ 1 \\ 0 \\ 0 \\ 0 \\ 0 \end{matrix}], S_{3} = [\begin{matrix} 0 \\ 1 \\ 0 \\ 0 \\ 0 \\ 0 \end{matrix}], S_{4} = [\begin{matrix} - \cos θ \\ \sin θ \\ 0 \\ - L_{1} \sin θ_{1} \sin θ \\ - L_{1} \sin θ_{1} \cos θ \\ L_{1} \cos θ_{1} \end{matrix}]

S_{5} = [\begin{matrix} - \cos θ \\ \sin θ \\ 0 \\ - (L_{1} \sin θ_{1} + L_{2} \cos θ_{2}) \sin θ \\ - (L_{1} \sin θ_{1} + L_{2} \cos θ_{2}) \cos θ \\ L_{1} \cos θ_{1} + L_{2} \sin θ_{2} \end{matrix}]

S_{6} = [\begin{matrix} 0 \\ 0 \\ 1 \\ (L_{1} \cos θ_{1} + L_{2} \sin θ_{2} + L_{3}) \cos θ \\ - (L_{1} \cos θ_{1} + L_{2} \sin θ_{2} + L_{3}) \sin θ \\ 0 \end{matrix}]

(13)

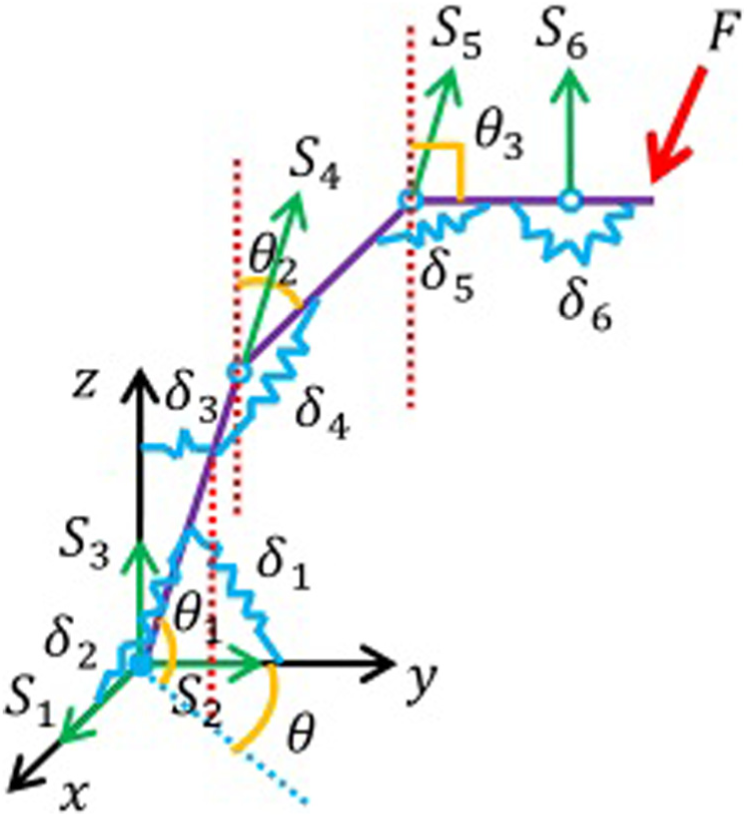

Figure 3.

Mathematical model of one leg of the wall-climbing hexapod robot.

It is assumed that $K_{L}$ is the general stiffness matrix of the leg of the wall-climbing hexapod robot. According to equation (11), the stiffness matrix $K_{L}$ can be given by

K_{L} = J_{1}^{- T} K_{θ} J_{1}^{- 1}

(14)

where $K_{θ} = diag (δ_{1}, δ_{2}, δ_{3}, δ_{4}, δ_{5}, δ_{6})^{T}$ .

Then, yielding

F = K_{L} ξ

(15)

where the unit of $τ_{x}, τ_{y}$ , and $τ_{z}$ is Nm; the unit of $f_{x}, f_{y}$ , and $f_{z}$ is N; the unit of $ϕ_{x}, ϕ_{y}$ , and $ϕ_{z}$ is rad, and the unit of $δ_{x}, δ_{y}$ , and $δ_{z}$ is m.

The general stiffness matrix $K_{L}$ in equation (14) can comprehensively reflect the relationship between the force and deformation at the end of one leg.

Overall stiffness model of wall-climbing hexapod robot

Based on the general stiffness model of one leg of the robot explained in section “General stiffness model of one leg of wall-climbing hexapod robot,” next we establish the overall stiffness model of the wall-climbing hexapod robot.

It is supposed that the robot has $λ (1 \leq λ \leq 6, λ \in N^{*})$ legs attached on the wall which are supporting legs, and the other legs are lifted. The robot body is subjected to an external load W, which makes robot produce deformation $Δ X$ . According to the structural characteristics of the parallel mechanism, the deformations of the end of the all supporting legs are also $Δ X$ . Assuming that $K_{Li}$ is the general stiffness matrix of ith supporting leg in the global coordinate system. Then, yielding

W = \sum_{i = 1}^{λ} (K_{Li} Δ X) = (\sum_{i = 1}^{λ} K_{Li}) Δ X

(16)

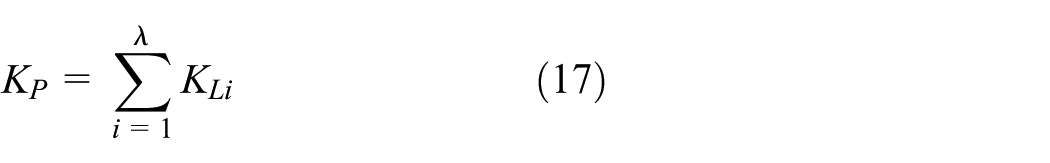

Supposing matrix $K_{P}$ is the overall stiffness matrix of the wall-climbing hexapod robot, by equation (16), yielding

K_{P} = \sum_{i = 1}^{λ} K_{Li}

(17)

By equation (17), it is obtained that the overall stiffness matrix of the robot is the sum of the stiffness matrix of each support leg. Therefore, the analysis of overall stiffness model of the robot can be simplified as the stiffness analysis of all supporting legs, which greatly facilitates the calculation of the overall stiffness model of the robot.

Stiffness analysis of wall-climbing hexapod robot

Analysis of general stiffness model

We have already proposed a new general stiffness model of serial mechanism in section “General stiffness model of serial mechanism,” next, by comparing the linear and nonlinear stiffness models, indicating that the nonlinear stiffness model can effectively improve the accuracy of the stiffness model than linear stiffness model. In the following, we use one leg of the robot as the research object, indicating that the nonlinear stiffness model can show the effect of the external load on the stiffness model but the linear stiffness model cannot show the effect of the external load on the stiffness model. First, the estimated structural parameters of the robot in Figure 3 are summarized in Table 1.

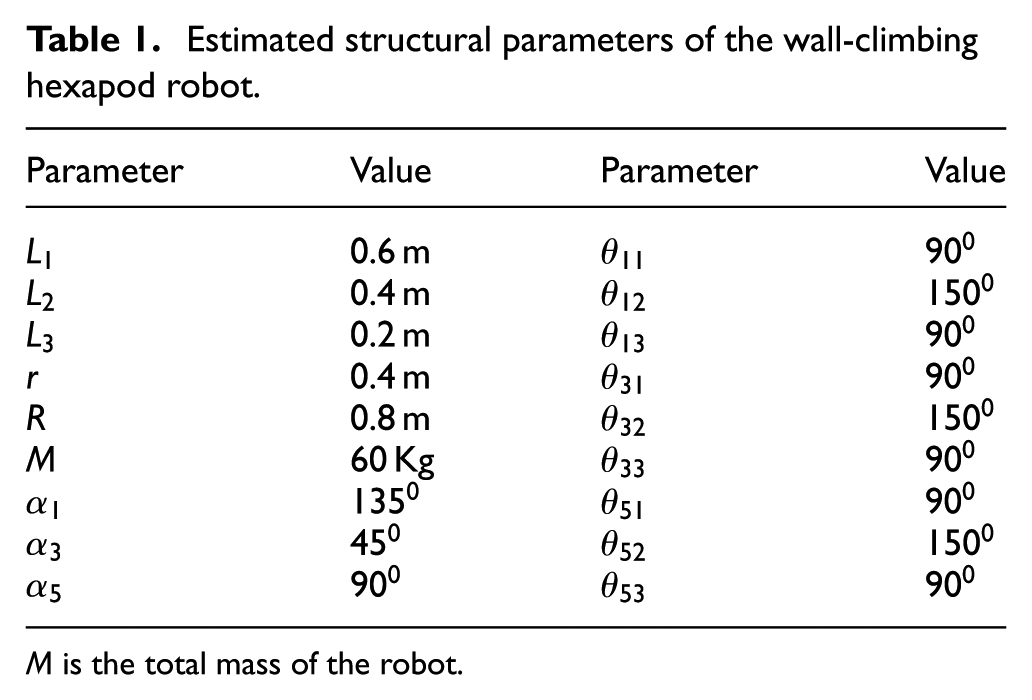

Table 1.

Estimated structural parameters of the wall-climbing hexapod robot.

Parameter	Value	Parameter	Value
$L_{1}$	0.6 m	$θ_{11}$	$90^{0}$
$L_{2}$	0.4 m	$θ_{12}$	$150^{0}$
$L_{3}$	0.2 m	$θ_{13}$	$90^{0}$
r	0.4 m	$θ_{31}$	$90^{0}$
R	0.8 m	$θ_{32}$	$150^{0}$
M	60 Kg	$θ_{33}$	$90^{0}$
$α_{1}$	$135^{0}$	$θ_{51}$	$90^{0}$
$α_{3}$	$45^{0}$	$θ_{52}$	$150^{0}$
$α_{5}$	$90^{0}$	$θ_{53}$	$90^{0}$

M is the total mass of the robot.

According to the estimated structural parameters of the robot, in this article, the suction cup which is produced by a Japanese SMC company is selected, of which the model is ZP2-250HTN, as shown in Figure 4. According to torque requirements of each joint of the robot, the motors and the retarders produced by Shenzhen Techservo Co. Ltd in China are selected. The models of the motors and the retarders are shown in Table 2, and the structure is shown in Figure 5.

Figure 4.

Suction cup of the wall-climbing hexapod robot.

Table 2.

Models of the motors and retarders of the wall-climbing hexapod robot.

Joint	Motor	Retarder-A	Retarder-B	Connection mode
Joint 1	ST8N40P10V2E	S042L3-100	RAD-60-2	Motor series A series B
Joint 2	ST8N60P20V2E	S042L3-100	RAD-60-2	Motor series A series B
Joint 3	ST8N40P10V4E	S042L3-100	RAD-60-2	Motor series A series B

Figure 5.

Motor and retarders of the wall-climbing hexapod robot.

The experiment data of the relation between torque $τ$ (Nm) and angle deformation $θ$ (rad) of the suction cup, joint 1, joint 2, and joint 3 are obtained and summarized in Table 3. Torques $τ_{1}$ , $τ_{2}$ , and $τ_{3}$ express the suction cup rotation around the axes x, y, and z, respectively. Torques $τ_{4}$ , $τ_{5}$ , and $τ_{6}$ express the torques of joint 3, joint 2, and joint 1, respectively.

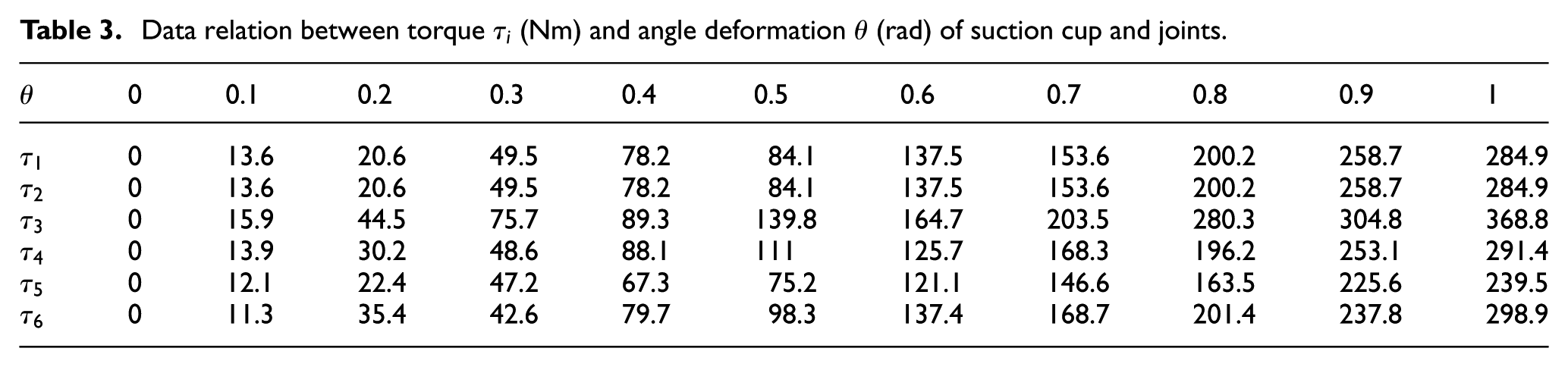

Table 3.

Data relation between torque $τ_{i}$ (Nm) and angle deformation $θ$ (rad) of suction cup and joints.

$θ$	0.1	0.2	0.3	0.4	0.5	0.6	0.7	0.8	0.9	1
$τ_{1}$	13.6	20.6	49.5	78.2	84.1	137.5	153.6	200.2	258.7	284.9
$τ_{2}$	13.6	20.6	49.5	78.2	84.1	137.5	153.6	200.2	258.7	284.9
$τ_{3}$	15.9	44.5	75.7	89.3	139.8	164.7	203.5	280.3	304.8	368.8
$τ_{4}$	13.9	30.2	48.6	88.1	111	125.7	168.3	196.2	253.1	291.4
$τ_{5}$	12.1	22.4	47.2	67.3	75.2	121.1	146.6	163.5	225.6	239.5
$τ_{6}$	11.3	35.4	42.6	79.7	98.3	137.4	168.7	201.4	237.8	298.9

We select polynomial function to fit the experimental data; here, in order to simplify the calculation, the quadratic function is selected to fit the data, as shown in Figure 6, and the deformation coefficients of the quadratic function are summarized in Table 4.

Figure 6.

Experimental data are fitted with the quadratic function. (a) Relation between $τ_{1}$ and $θ$ , (b) relation between $τ_{2}$ and $θ$ , (c) relation between $τ_{3}$ and $θ$ , (d) relation between $τ_{4}$ and $θ$ , (e) relation between $τ_{5}$ and $θ$ , and (f) relation between $τ_{6}$ and $θ$ .

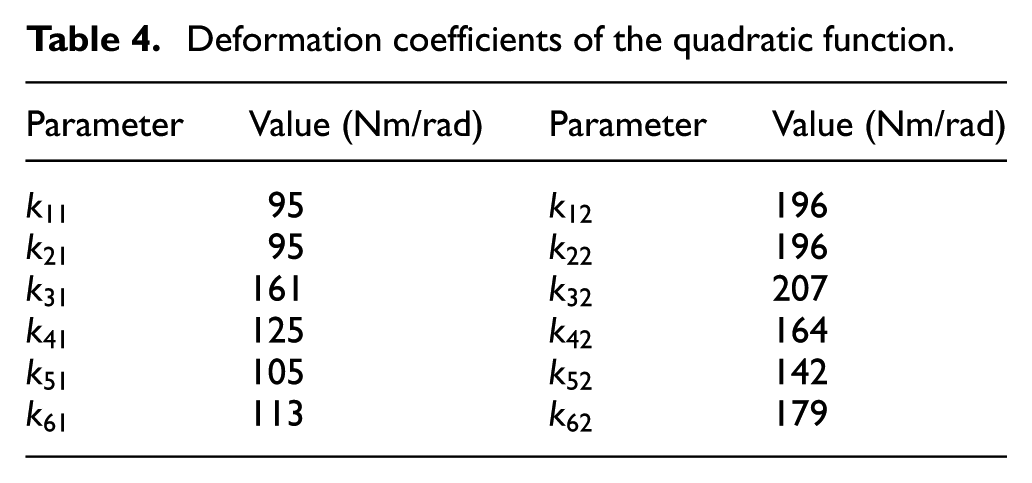

Table 4.

Deformation coefficients of the quadratic function.

Parameter	Value (Nm/rad)	Parameter	Value (Nm/rad)
$k_{11}$	95	$k_{12}$	196
$k_{21}$	95	$k_{22}$	196
$k_{31}$	161	$k_{32}$	207
$k_{41}$	125	$k_{42}$	164
$k_{51}$	105	$k_{52}$	142
$k_{61}$	113	$k_{62}$	179

It is obtained that the maximum absolute errors between the experimental values and the fitted values of torques $τ_{1}$ , $τ_{2}$ , $τ_{3}$ , $τ_{4}$ , $τ_{5}$ , and $τ_{6}$ are 7.9, 7.9, 9.4, 6.2, 10.7, and 4.9 Nm, respectively.

Next, the external force $f_{x}$ is applied at the end of the leg along the x axis in Figure 3. Here, first, supposing that $f_{x}$ is a constant as follows

f_{x} = 172 N

(18)

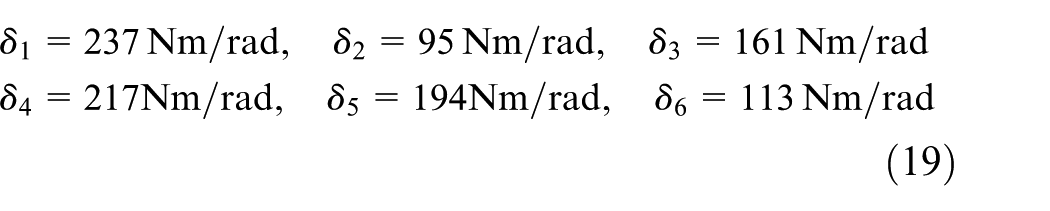

Derived from equations (3), (5), (9), and (18), the nonlinear deformation coefficient can be obtained as follows

\begin{matrix} δ_{1} = 237 Nm / rad, δ_{2} = 95 Nm / rad, δ_{3} = 161 Nm / rad \\ δ_{4} = 217 Nm / rad, δ_{5} = 194 Nm / rad, δ_{6} = 113 Nm / rad \end{matrix}

(19)

Equation (19) gives the nonlinear stiffness coefficient when the force $f_{x}$ is a constant. Next, if the external force $f_{x}$ is a variable, we investigate the effect of the external force $f_{x}$ on the stiffness model. The relation between the nonlinear deformation coefficient $δ_{i} (i = 1, 2, 3, 4, 5, 6)$ and the external force $f_{x}$ is shown in Figure 7.

Figure 7.

(a) Relation between $δ_{1}$ and $f_{x}$ , (b) relation between $δ_{2}$ and $f_{x}$ , (c) relation between $δ_{3}$ and $f_{x}$ , (d) relation between $δ_{4}$ and $f_{x}$ , (e) relation between $δ_{5}$ and $f_{x}$ , and (f) relation between $δ_{6}$ and $f_{x}$ .

From Figure 7(a), (d), and (e), it can be seen that when the external force $f_{x}$ increases, the nonlinear deformation coefficients $δ_{1}$ , $δ_{4}$ , and $δ_{5}$ will also increase, with a decreased accelerated speed, and the increased scope of $δ_{1}$ is the largest, thus explaining that the change in the external force $f_{x}$ has great influences on $δ_{1}$ , $δ_{4}$ , and $δ_{5}$ , $δ_{1}$ in particular. From Figure 7(b), (c), and (f), when the external force $f_{x}$ increases, the nonlinear deformation coefficients $δ_{2}$ , $δ_{3}$ , and $δ_{6}$ are constants, explaining that the change in the external force $f_{x}$ has no influences on $δ_{2}$ , $δ_{3}$ , and $δ_{6}$ .

The nonlinear stiffness model of one leg has been analyzed, and the nonlinear deformation coefficients of each joint have been obtained above. Next, we select the linear stiffness model to analyze the stiffness model of one leg, and the deformation of each joint is assumed to be a linear deformation. Here, in order to simplify the analysis of the linear stiffness model, the suction cup is selected to rotate around x axis as an example to analyze the linear stiffness model. The linear stiffness model of the suction cup around the y and z axes and the linear stiffness model of the joints 1, 2, and 3 can be analyzed by the same method. According to the data summarized in Table 2, we select linear function to fit the experimental data, as shown in Figure 8. It is obtained that the linear deformation coefficient $k = 204 Nm / rad$ , which is a constant, cannot indicate the influence of the external force $f_{x}$ on the linear deformation coefficient. Furthermore, when angle $θ$ increases, it can be seen that the distances between the scatter point and the fitting straight line are larger in Figure 8, which indicates that linear deformation coefficient cannot show the real relation between the torque $τ_{1}$ and the deformation angle $θ$ of the suction cup. Meanwhile, the maximum absolute error between the experimental values and the fitted values of torque $τ_{1}$ is 80.9 Nm. However, in the nonlinear stiffness model, the maximum absolute error of torque $τ_{1}$ is 7.9 Nm, the value 7.9 Nm is far less than 80.9 Nm, so the nonlinear stiffness model is more accurate than the linear stiffness model to show the relation between the torque and deformation of the suction cup.

Figure 8.

Relation between $τ_{1}$ and $θ$ of the suction cup using linear function to fit experimental data.

Based on the above analysis, the nonlinear stiffness model can effectively improve the accuracy of the stiffness model than the linear stiffness model, reducing the error between the joint deformation coefficient and the real joint deformation coefficient of the robot.

Stiffness evaluation of one leg of wall-climbing hexapod robot

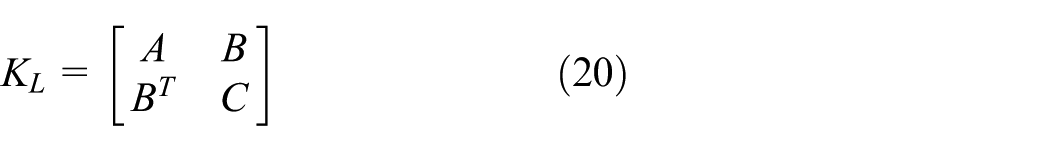

Since the structural parameters of the robot directly affect the stiffness of the robot, in order to improve the stiffness of the robot, next, we investigate the influence of structural parameter on the stiffness of the robot. By equation (17), it is obtained that the research of the overall stiffness model of the robot can be converted to the research of the stiffness model of supporting legs. Thus, we investigate the influence of structural parameter on the stiffness of one leg. However, the units of elements in equation (14) are not consistent, then there is no way to compare the size of eigenvalues. Thus, the conventional minimum and maximum stiffness cannot be applied to a 6 × 6 symmetric stiffness matrix. Here, we define a new minimum and maximum stiffness to evaluate the stiffness performance of one leg. In order to facilitate the presentation of this definition, we first block the stiffness matrix $K_{L}$ in equation (14), which can be generally represented in the form of

K_{L} = [\begin{matrix} A & B \\ B^{T} & C \end{matrix}]

(20)

where the symmetric 3 × 3 block matrices A and C denote the pure rotation and translation matrices, B is the coupling one, and $B^{T}$ is the transpose of the matrix B.

Then, by equation (15), yielding

{\begin{matrix} τ = A ϕ + B δ \\ f = B^{T} ϕ + C δ \end{matrix}

(21)

The unit of each element in matrix A, B, and C is Nm/rad, Nm/m, and N/m, respectively. That is, the unit of each element in matrix A, B, and C is respectively consistent, Thus, we define the minimum and maximum eigenvalues of the matrix A, B, and C as the minimum and maximum stiffness, respectively. Here, we are primarily concerned with the forces and deformations of the robot along the axes x, y, and z. Thus, we investigate the minimum and maximum stiffness of matrix C to evaluate the stiffness performance of one leg, which provide with effective basis for the selection and optimization of the structural parameters of one leg. Next, in order to facilitate research, we take the value of $K_{θ}$ in equation (14) as $δ_{1} = 237 Nm / rad$ , $δ_{2} = 95 Nm / rad$ , $δ_{3} = 161 Nm / rad$ , $δ_{4} = 217 Nm / rad$ , $δ_{5} = 194 Nm / rad$ , and $δ_{6} = 113 Nm / rad$ in equation (19). Meanwhile, supposing that $K_{min}$ and $K_{max}$ are minimum and maximum stiffness of matrix C. First, the influence of structural parameter $θ$ in Figure 3 on the minimum and maximum stiffness is analyzed and shown in Figure 9.

Figure 9.

(a) Influence of structural parameter $θ$ on the minimum stiffness and (b) influence of structural parameter $θ$ on the maximum stiffness.

In Figure 9(a), it can be seen that when $θ \in [0^{0}, 90^{0})$ and angle $θ$ increases, with a decreasing minimum stiffness, the speed of change turns to be fast. When $θ \in [90^{0}, 135^{0})$ and angle $θ$ increases, and the minimum stiffness also increases, the speed of change turns to be slow. When $θ = 90^{0}$ , the minimum stiffness has a minimum value. In Figure 9(b), when $θ \in [0^{0}, 45^{0})$ and angle $θ$ increases, the maximum stiffness first decreases and then increases. When $θ = 30^{0}$ , the maximum stiffness has a minimum value. When $θ = 45^{0}$ , the maximum stiffness tends to positive infinity. When $θ \in [145^{0}, 135^{0})$ and angle $θ$ increases, the maximum stiffness first decreases and then increases. When $θ = 85^{0}$ , the maximum stiffness has a minimum value. When $θ = 135^{0}$ , the maximum stiffness tends to positive infinity. Considering the minimum and maximum stiffness, angle $θ = 45^{0}$ is selected. In the case of $θ = 45^{0}$ , we investigate the influence of structural parameters $L_{1}$ , $L_{2}$ , and $L_{3}$ and the external force $f_{x}$ on the minimum stiffness, as shown in Figure 10.

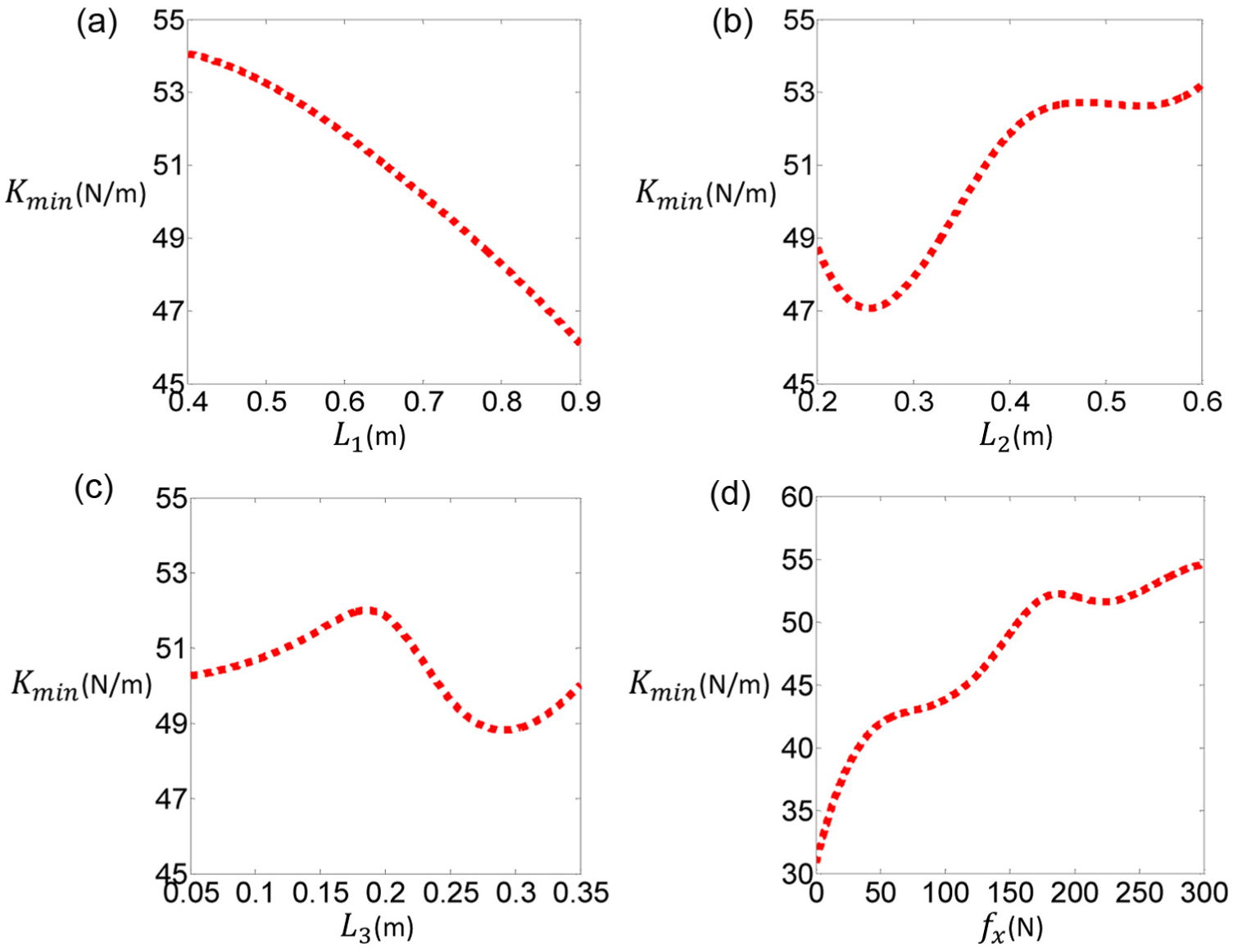

Figure 10.

(a) Influence of structural parameter $L_{1}$ on the minimum stiffness, (b) influence of structural parameter $L_{2}$ on the minimum stiffness, (c) influence of structural parameter $L_{3}$ on the minimum stiffness, and (d) influence of structural parameter $f_{x}$ on the minimum stiffness.

In Figure 10(a), when the length $L_{1}$ increases, with a decreasing minimum stiffness, the reduced speed is approximately kept constant, which indicates that the effect of length $L_{1}$ on the minimum stiffness is smooth with no fluctuation. According to the actual work requirements for robot, the length $L_{1} \in [0.5, 0.7] m$ is selected which is more suitable for robot. In Figure 10(b), when the length $L_{2}$ increases, the minimum stiffness first decreases and then increases. When $L_{2} = 0.25 m$ , the minimum stiffness has a minimum value. When $L_{2} \in [0.25, 0.45] m$ , the growth rate of minimum stiffness is fast. When $L_{2} \in [0.45, 0.6] m$ , the range of the change in minimum stiffness is small. Thus, $L_{2} \in [0.4, 0.5] m$ is selected which is more suitable for robot. In Figure 10(c), when the length $L_{3}$ increases, the minimum stiffness first increases and then decreases, and finally increases. When $L_{3} = 0.18 m$ , the minimum stiffness has a maximum value. When $L_{3} = 0.29 m$ , the minimum stiffness has a minimum value. Therefore, $L_{3} = 0.2 m$ is selected which is more suitable for robot. In Figure 10(d), when the external force $f_{x}$ increases, the minimum stiffness also increases. When $f_{x} \in [0, 50] N$ and $f_{x} \in [120, 170] N$ , the growth rate of minimum stiffness is fast, which indicates that the effect of the external force $f_{x}$ on the minimum stiffness is great. When $f_{x} \in [170, 300] N$ , the effect of the external force $f_{x}$ on the minimum stiffness is small. Through the above analysis, obtaining the effect of the structural parameters $θ$ , $L_{1}$ , $L_{2}$ , and $L_{3}$ and the external force $f_{x}$ on the stiffness of one leg provides with effective basis for the selection and optimization of the structural parameters of the robot.

Experiments

We have analyzed the effect of the structural parameters $θ$ , $L_{1}$ , $L_{2}$ , and $L_{3}$ and the external force $f_{x}$ on the stiffness of one leg in section “Stiffness evaluation of one leg of wall-climbing hexapod robot.” Next, experiments indicate that the selection of the structural parameters of the robot effectively improves the stiffness of the robot. In order to improve the stiffness of the robot, based on the minimum and maximum stiffness analysis of different structural parameters, a prototype of the robot is developed, as shown in Figure 11. The structural parameters of the prototype of the robot are as follows: $L_{1} = 0.55 m$ , $L_{2} = 0.45 m$ , $L_{3} = 0.20 m$ . According to the cleaning effect of the wall, radius of the robot body $r = 0.40 m$ is chosen.

Figure 11.

(a) Prototype of the wall-climbing hexapod robot and (b) structure of one leg of wall-climbing hexapod robot.

In order to show that the prototype of the robot has good stiffness performance, simulations are operated. Here, it is assumed that the structural parameters of the robot $L_{1} = 0.55 m$ , $L_{2} = 0.45 m$ , $L_{3} = 0.20 m$ , and $r = 0.40 m$ are recorded as parameter A. The structural parameters of the robot $L_{1} = 0.80 m$ , $L_{2} = 0.45 m$ , $L_{3} = 0.20 m$ , and $r = 0.40 m$ are recorded as parameter B. Next, simulations and experiments show that the prototype of the robot has good stiffness performance and can walk on the vertical wall. Figure 12 shows that robot walks on vertical wall in horizontal direction using the triangle gait.³⁰

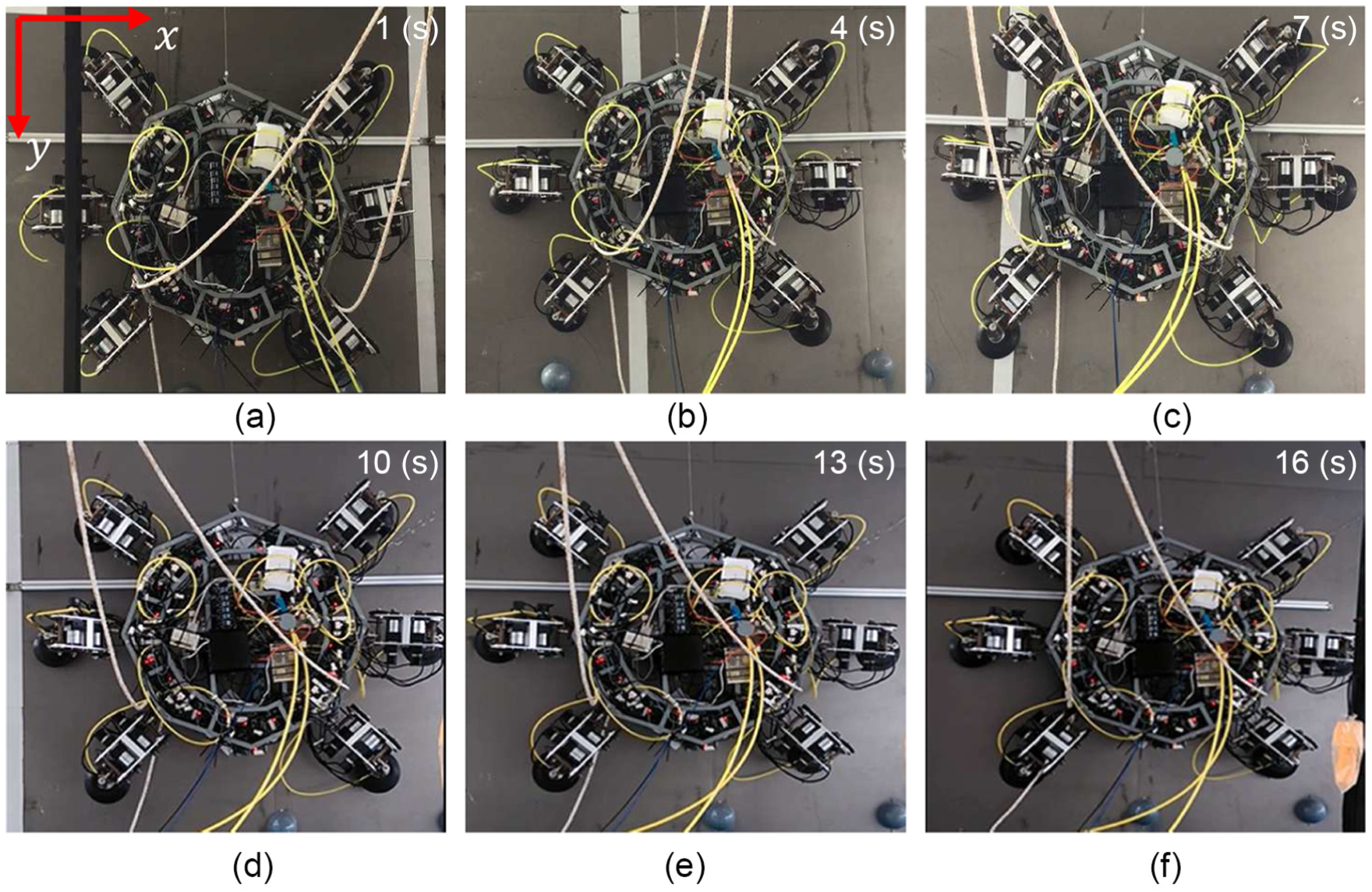

Figure 12.

Wall-climbing hexapod robot walks on vertical wall in horizontal direction using the triangle gait.

The results of simulations and experiments are given in Figure 13. The x axis is the horizontal direction, and the y axis is the vertical downward direction.

Figure 13.

Results of simulations and experiments of the wall-climbing hexapod robot.

Through Figure 12, it is obtained that the deformation of each leg of robot is very small, and the robot can walk very well in the vertical wall. From Figure 13, we can see that the simulation results show that parameter A of the robot effectively improves the stiffness of the robot than parameter B. Furthermore, when $x = 3.0 m$ , the deviation distance between parameter A and parameter B of the robot reaches the maximum value $y = 3.8 \times 10^{- 2} m$ . Experimental results of actual walking trajectory of robot with parameter A and simulation results with parameter A of robot have a small deviation, and when $x = 3.0 m$ , the deviation distance reaches the maximum value $y = 0.4 \times 10^{- 2} m$ . Therefore, by the above analysis, the structural parameter design of the prototype in this article effectively improves the stiffness of the wall-climbing hexapod robot.

Discussions

When the wall-climbing hexapod robot adhere on the glass wall, the impact of the weight of the robot body will generate deformation of support leg and also affect the position precision and the track of the robot. In previous researches, the deformations of joints of the robot are mainly defined as linear deformation and obtain the stiffness matrix of the robot. But in practice, some deformations of joints of the robot are not satisfied with the linear deformation, but satisfied with the nonlinear deformation. In this case, if the linear deformation of joint is used to replace the nonlinear deformation of joint to study the stiffness of the robot, this will make the stiffness model of the robot have a large error with the real stiffness model, hence influencing the control accuracy and trajectory of the robot.

The quadratic function has been selected to fit the experimental data in this article. However, the polynomial function of three or higher order can also be used to fit the experimental data, making the relation between the torque and the deformation of joints more accurate, so as to effectively improve the stiffness analysis of the robot. In this article, the stiffness analysis of wall-climbing hexapod robot using the triangle gait on the wall is analyzed. Simultaneously, the quadrupedal gait and five foot gait of robot can be analyzed with same methodology of the triangle gait.

Conclusion and future work

In this article, we first propose a new general stiffness model of serial mechanism, which includes linear and nonlinear stiffness models. Different from the stiffness model of linear deformation, nonlinear stiffness model is a dynamic stiffness model, which can directly reflect the influence of the external load force as a variable on the stiffness model of the robot, and it can express the external load force and the deformation of the robot leg joints more accurately. Next, based on general stiffness model of serial mechanism, we establish the stiffness model of one leg of robot, and then derive the overall stiffness model of the robot. Meanwhile, the overall stiffness model of the robot can be decomposed into the stiffness model of the supporting legs; thus, the investigation on the stiffness performance of robot has been simplified as the research of stiffness of each leg. In addition, in order to improve the stiffness of the robot, a new minimum and maximum stiffness is introduced, obtaining effective reference for the selection and the optimization of the structure of robot. Next, experiments illustrate that the selection of structure parameters of the robot effectively improve the stiffness of the robot. The conclusions achieved in this work have improved the analysis of the stiffness performance of the robot greatly, and the accuracy of position control and walking trajectory effectively.

This article investigates the nonlinear stiffness model of the wall-climbing hexapod robot under circumstances of static and slow-uniform speed, and if the robot acts under circumstance of high-speed motion or variable-speed motion, the stiffness performance of the robot is also worth further researches in the future work. Simultaneously, the kinematic control of this wall-climbing hexapod robot will be investigated based on the kinematic model and stiffness model in the future.
