Abstract

A novel energy-coupling-based control method for under-actuated double-pendulum overhead cranes with initial control force constraint is proposed in this article. The significant feature of the designed controller is its superior control performance as well as its strong robustness with respect to parameter variations and external disturbances. By incorporating a smooth hyperbolic tangent function into the control law, the proposed controller guarantees soft start of the trolley. Moreover, to improve the transient performance of the crane system, coupling behavior among the trolley movement, the hook swing, and the payload swing is enhanced by introducing a generalized payload horizontal-displacement signal. Lyapunov techniques and LaSalle’s invariance theorem are utilized to prove the stability of the designed closed-loop system. Simulation results demonstrate that the new energy-coupling control method achieves superior control performance and strong robustness over different payload masses, cable lengths, desired positions, and external disturbances with reduced initial control force.

Keywords

Under-actuated system anti-swing control double-pendulum overhead cranes robustness Lyapunov techniques LaSalle’s invariance theorem

Introduction

Overhead cranes have been widely applied to some industrial fields, such as construction sites, harbors, and factories, for bulky cargoes transportation.^1–3 Control problems for overhead crane systems attract much attention due to the under-actuated nature of overhead cranes. For overhead cranes, fast movement of the trolley inevitably induces unexpected payload swing, which reduces their efficiency and even results in a crash.⁴ In the crane’s conventional mode of operation, a duty cycle is divided into three phases: payload hoisting, horizontal transportation and payload lowering,^5–7 among which the most complex and difficult to control is horizontal transportation. The primary goal of horizontal transportation phase is to move the payload from its initial position to its desired position accurately while suppressing and eliminating the payload swing rapidly, so as to put down the payload steadily and vertically in the payload lowering stage. Therefore, it is of great importance to improve the transient performance such as the maximum swing amplitude and the overshoots of the trolley movement, as well as steady-state performance such as the positioning error of the trolley.

For these reasons mentioned before, it is important to design a high-performance controller for overhead cranes. Most existing control methods treat the payload swing as that of a simple pendulum. During the past decades, many methods regarding simple pendulum overhead crane have been developed, including optimal control,^8–10 input shaping,^11–14 trajectory planning,^{4,5,7,15–18} energy-based control methods,^19,20 sliding mode control (SMC),²¹ flatness-based inverse methods,^22,23 adaptive control,²⁴ switching-based control,²⁵ fuzzy-model-based control,^26–28 and neural network control.²⁹

The aforementioned control methods focused on the control problem for single-pendulum overhead cranes. But in many cases, the crane acts like a double pendulum, for example, in the circumstances when the hook mass is not negligible or the payload is large and distributes mass unevenly. In these cases, the overall performance of the above-mentioned controllers designed for single-pendulum overhead cranes will be attenuated. Therefore, a series of control methods are developed for two-pendulum cranes. Liu et al.³⁰ built the dynamic model for a double-pendulum overhead crane system with Lagrangian method and analyzed the under-actuated nature, the passivity, and its two natural frequencies of the system model. Based on this, a passivity-based controller was designed, which presented complicated structure and residual swing. By convolving the human-generated command with a sequence of impulses, the input-shaping control methods can effectively suppress the payload swing of double-pendulum overhead cranes.^31–34 However, input-shaping control methods cannot eliminate external disturbances.³⁵ In Tuan and Lee,³⁶ using SMC technique, two robust controllers (continuous sliding mode control (CSMC) controller and hierarchical sliding mode control controller) were presented for both positioning and anti-swing control of double-pendulum overhead cranes. However, controllers designed in Tuan and Lee³⁶ were sophisticated, makes it unwieldy to implement in practice.

In this article, we derive a novel controller based on energy coupling for double-pendulum overhead cranes. Compared with most existing control methods of double-pendulum overhead cranes, the proposed controller has a simpler structure and does not contain cable-length-related terms and payload-mass-related terms, which make it robust with respect to different cable lengths and payload masses. For regulation control methods, the initial control force will become larger as the destination gets farther, which causes damage to the actuating motors.³⁷ Large-amplitude payload swing will be excited by the corresponding large trolley acceleration. To address above-mentioned problems, we introduce a smooth hyperbolic tangent function into the control law to guarantee soft trolley start and reduce the initial control force. First, we introduce a composite payload horizontal-displacement signal containing the information of the trolley movement, the hook swing, and the payload swing. And then, we design an energy-coupling-based controller with initial control force constraint by incorporating a smooth saturated function into the control method. By utilizing Lyapunov techniques and LaSalle’s invariant theorem, the origin of the closed-loop system is proven to be asymptotically stable. Numerical simulation is used to compare control performance of the proposed controller with passivity-based controller³⁰ and CSMC controller³⁶ and illustrates robustness of the designed controller against different internal (cable lengths, payload masses, and desired positions) and external disturbances.

In general, the main contribution of this article is given as follows.

While most existing control methods are complicated, the designed controller has a simpler structure, which is easy to apply in the engineering.

The defined generalized signal involves the trolley movement, the hook swing, and the payload swing, which increases the state coupling, resulting in an improved transient performance.

By introducing a hyperbolic tangent function into the controller, the proposed control method guarantees soft trolley start.

The proposed control law has strong robustness with respect to different payload masses, cable lengths, desired positions, and external disturbances.

This article is organized as follows. In section “Dynamic model of a double-pendulum overhead crane system,” we present the dynamic model of a double-pendulum overhead crane. Controller development and stability analysis are carried out in section “Main results.” In section “Numerical simulation and analysis,” numerical simulation results are exhibited. We conclude this article in section “Conclusion.”

Dynamic model of a double-pendulum overhead crane system

In our study, the control problem for a double-pendulum overhead crane with fixed cable length is addressed. Figure 1 shows a double-pendulum overhead crane with a suspended payload. It is made up of a trolley moving along a horizontal direction (X-direction) by applying a control force $F_{x}$ . The suspension cable length from the trolley to the hook is represented by $l_{1}$ , and $θ_{1}$ represents the hook swing angle with respect to the vertical direction (Y-direction). The payload is connected to the hook via a cable of length $l_{2}$ , and $θ_{2}$ stands for the payload swing with respect to the Y-direction.

Figure 1.

Schematic diagram of a double-pendulum overhead crane.

With air resistance being ignored, the dynamic model of a double-pendulum overhead crane in the X-Y plane is represented by^30,36

M (q) \overset{\cdot\cdot}{q} + C (q, \overset{\cdot}{q}) \overset{\cdot}{q} + G (q) = U

(1)

where q = [x θ₁θ₂]^T∈R³ is the system state vector, M ( q ) ∈ R^3*3 represents the inertia matrix, $C (q, \overset{\cdot}{q}) \in R^{3 * 3}$ denotes the centripetal-Coriolis matrix, G ( q ) ∈ R³ is the gravity vector, and U ∈ R³ denotes the control input vector, which are defined in detail as follows

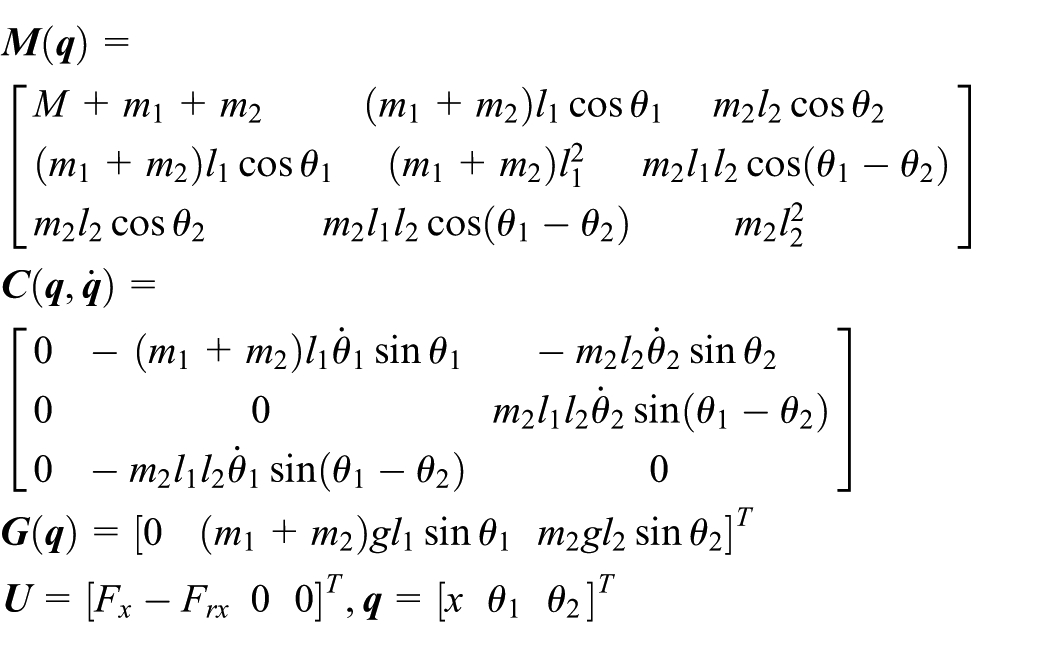

\begin{array}{l} M (q) = [\begin{array}{l} M + m_{1} + m_{2} & (m_{1} + m_{2}) l_{1} \cos θ_{1} & m_{2} l_{2} \cos θ_{2} \\ (m_{1} + m_{2}) l_{1} \cos θ_{1} & (m_{1} + m_{2}) l_{1}^{2} & m_{2} l_{1} l_{2} \cos (θ_{1} - θ_{2}) \\ m_{2} l_{2} \cos θ_{2} & m_{2} l_{1} l_{2} \cos (θ_{1} - θ_{2}) & m_{2} l_{2}^{2} \end{array}] \\ C (q, \dot{q}) = [\begin{array}{l} 0 & - (m_{1} + m_{2}) l_{1} {\dot{θ}}_{1} \sin θ_{1} & - m_{2} l_{2} {\dot{θ}}_{2} \sin θ_{2} \\ 0 & 0 & m_{2} l_{1} l_{2} {\dot{θ}}_{2} \sin (θ_{1} - θ_{2}) \\ 0 & - m_{2} l_{1} l_{2} {\dot{θ}}_{1} \sin (θ_{1} - θ_{2}) & 0 \end{array}] \\ G (q) = {[\begin{array}{l} 0 & (m_{1} + m_{2}) g l_{1} \sin θ_{1} & m_{2} g l_{2} \sin θ_{2} \end{array}]}^{T} \\ U = {[\begin{array}{l} F_{x} - F_{r x} & 0 & 0 \end{array}]}^{T}, q = {[\begin{array}{l} x & θ_{1} & θ_{2} \end{array}]}^{T} \end{array}

where M, m₁, and m₂ ∈ R⁺ denote the trolley mass, the hook mass, and the payload mass, respectively; x ∈ R¹ is the trolley displacement; F_rx ∈ R¹ is the nonlinear bridge friction; and the following model is used to describe the nonlinear bridge friction^5,18–20

F_{rx} = f_{rox} \tan h (\frac{\overset{\cdot}{x}}{ε_{x}}) - k_{rx} | \overset{\cdot}{x} | \overset{\cdot}{x}

(2)

and the friction model (2) is inspired by Makkar et al.³⁸ In equation (2), $f_{rox}$ and $ε_{x}$ are static friction-related coefficients and $k_{rx} \in R^{1}$ is a viscous friction-related parameter, which can be identified by offline experiment tests and data fitting.

Define the resultant force imposed on the trolley as F and then

F = F_{x} - F_{rx}

(3)

It is not difficult to verify that there exists a skew symmetric relationship between the inertial matrix M ( q ) and the centripetal-Coriolis matrix $C (q, \overset{\cdot}{q})$ such that

υ^{T} [\frac{1}{2} \overset{\cdot}{M} (q) - C (q, \overset{\cdot}{q})] υ = 0, \forall υ \in R^{3}

(4)

As can be seen from Figure 1, the horizontal-displacement of the payload has the following expression

x_{p} = x + l_{1} \sin θ_{1} + l_{2} \sin θ_{2}

(5)

which indicates that x_p(t) is a natural coupling signal reflecting the trolley movement x(t), the hook swing θ₁(t), and the payload swing θ₂(t). Inspired by the form of equation (5), a generalized payload horizontal-displacement signal capturing x(t), θ₁(t), and θ₂(t) is introduced as follows

X_{p} = x + λ_{1} \sin θ_{1} + λ_{2} \sin θ_{2}

(6)

where λ₁ and λ₂ are yet-to-adjust parameters.

Without loss of generality, the following assumptions are made.

Assumption 1. The cable is massless and inflexible.³⁹ Moreover, the cable length is kept constant during a specific transportation process.²⁸

Assumption 2. During the overall transferring process, the payload is always beneath the trolley,⁵ namely

- \frac{π}{2} < θ_{1}, θ_{2} < \frac{π}{2}, \forall t \geq 0

(7)

Main results

In this section, we design a novel energy-coupling-based controller with initial control force constraint by means of analyzing the passivity characteristics of the double-pendulum overhead crane associated with a generalized payload horizontal-displacement signal. Through strict mathematic analysis, a new energy-like function is constructed. Based on this, the controller is put forward. Moreover, a smooth hyperbolic tangent function is introduced into the control scheme to reduce the initial control force and achieve soft trolley start.

Controller development

The system energy including kinetic energy and potential energy can be expressed as

E (t) = \frac{1}{2} {\overset{\cdot}{q}}^{T} M (q) \overset{\cdot}{q} + (m_{1} + m_{2}) g l_{1} (1 - \cos θ_{1}) + m_{2} g l_{2} (1 - \cos θ_{2})

(8)

By taking the derivative of equation (8) with respect to time, and substituting equation (3) into the resulting equation, one has

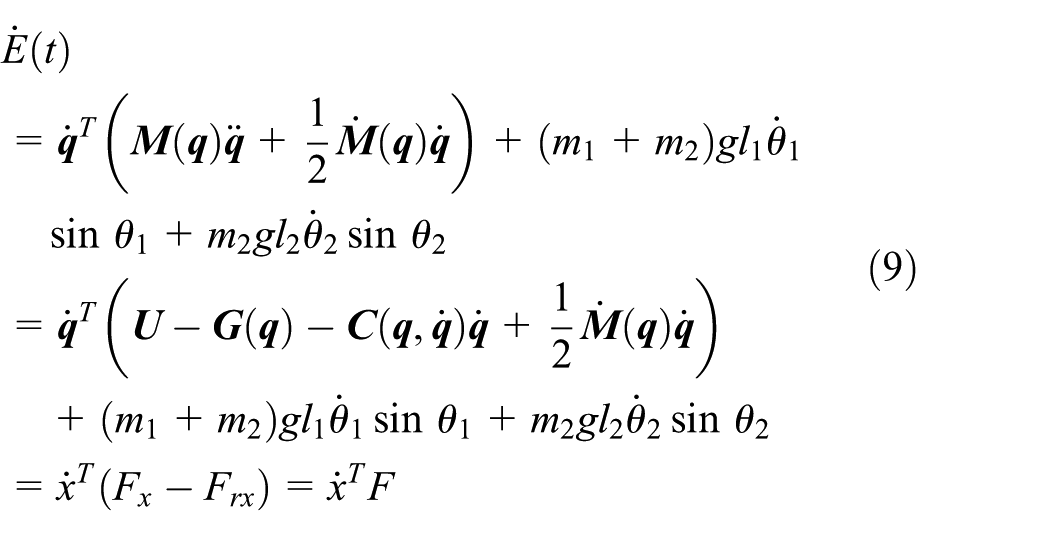

\begin{matrix} \overset{\cdot}{E} (t) \\ = {\overset{\cdot}{q}}^{T} (M (q) \overset{\cdot\cdot}{q} + \frac{1}{2} \overset{\cdot}{M} (q) \overset{\cdot}{q}) + (m_{1} + m_{2}) g l_{1} {\overset{\cdot}{θ}}_{1} \\ \sin θ_{1} + m_{2} g l_{2} {\overset{\cdot}{θ}}_{2} \sin θ_{2} \\ = {\overset{\cdot}{q}}^{T} (U - G (q) - C (q, \overset{\cdot}{q}) \overset{\cdot}{q} + \frac{1}{2} \overset{\cdot}{M} (q) \overset{\cdot}{q}) \\ + (m_{1} + m_{2}) g l_{1} {\overset{\cdot}{θ}}_{1} \sin θ_{1} + m_{2} g l_{2} {\overset{\cdot}{θ}}_{2} \sin θ_{2} \\ = {\overset{\cdot}{x}}^{T} (F_{x} - F_{rx}) = {\overset{\cdot}{x}}^{T} F \end{matrix}

(9)

which indicates that the double-pendulum overhead crane system with input F(t) and output $\overset{\cdot}{x} (t)$ is passive and dissipates.⁴⁰ As can be seen from equation (9), there are no terms related to $θ_{1}$ (or ${\overset{\cdot}{θ}}_{1}$ ) and $θ_{2}$ (or ${\overset{\cdot}{θ}}_{2}$ ) in $\overset{\cdot}{E} (t)$ . To circumvent this problem and improve the transient control performance, we plan to construct an energy-like storage function E_t(t) whose time derivative along the system dynamic model (1) has the following expression

{\overset{\cdot}{E}}_{t} (t) = {\overset{\cdot}{X}}_{p} F = \overset{\cdot}{E} + {\overset{\cdot}{E}}_{k_{1}} + {\overset{\cdot}{E}}_{k_{2}}

(10)

where X_p is defined as equation (6). Taking the time derivative of equation (6), we are led to the following result

{\overset{\cdot}{X}}_{p} = \overset{\cdot}{x} + λ_{1} {\overset{\cdot}{θ}}_{1} \cos θ_{1} + λ_{2} {\overset{\cdot}{θ}}_{2} \cos θ_{2}

(11)

Substituting equations (1) and (11) into equation (10), it is straightforward to derive that

\begin{matrix} {\overset{\cdot}{E}}_{k_{1}} = λ_{1} {\overset{\cdot}{θ}}_{1} \cos θ_{1} F \\ = - (M + m_{1} + m_{2}) λ_{1} l_{1} {\overset{\cdot}{θ}}_{1} {\overset{\cdot\cdot}{θ}}_{1} + λ_{1} {\overset{\cdot}{θ}}_{1} \cos θ_{1} \\ (m_{1} + m_{2}) l_{1} (\cos θ_{1} {\overset{\cdot\cdot}{θ}}_{1} - {\overset{\cdot}{θ}}_{1}^{2} \sin θ_{1}) \\ - (M + m_{1} + m_{2}) λ_{1} g \sin θ_{1} {\overset{\cdot}{θ}}_{1} - \frac{M + m_{1} + m_{2}}{m_{1} + m_{2}} \\ m_{2} λ_{1} l_{2} \sin θ_{1} \sin θ_{2} {\overset{\cdot}{θ}}_{1} {\overset{\cdot\cdot}{θ}}_{2} \\ - \frac{M}{m_{1} + m_{2}} m_{2} λ_{1} l_{2} \cos θ_{1} \cos θ_{2} {\overset{\cdot}{θ}}_{1} {\overset{\cdot\cdot}{θ}}_{2} \\ - \frac{M + m_{1} + m_{2}}{m_{1} + m_{2}} m_{2} λ_{1} l_{2} \sin θ_{1} \cos θ_{2} {\overset{\cdot}{θ}}_{1} {\overset{\cdot}{θ}}_{2}^{2} \\ + \frac{M}{m_{1} + m_{2}} m_{2} λ_{1} l_{2} \cos θ_{1} \sin θ_{2} {\overset{\cdot}{θ}}_{1} {\overset{\cdot}{θ}}_{2}^{2} \end{matrix}

(12)

and

\begin{matrix} {\overset{\cdot}{E}}_{k_{2}} = λ_{2} {\overset{\cdot}{θ}}_{2} \cos θ_{2} F \\ = - (M + m_{1} + m_{2}) l_{2} λ_{2} {\overset{\cdot\cdot}{θ}}_{2} {\overset{\cdot}{θ}}_{2} + λ_{2} m_{2} l_{2} {\overset{\cdot}{θ}}_{2} \\ \cos θ_{2} ({\overset{\cdot\cdot}{θ}}_{2} \cos θ_{2} - {\overset{\cdot}{θ}}_{2}^{2} \sin θ_{2}) \\ - (M + m_{1} + m_{2}) g λ_{2} \sin θ_{2} {\overset{\cdot}{θ}}_{2} - M l_{1} λ_{2} \\ \cos θ_{1} \cos θ_{2} {\overset{\cdot\cdot}{θ}}_{1} {\overset{\cdot}{θ}}_{2} \\ - (M + m_{1} + m_{2}) l_{1} λ_{2} \sin θ_{1} \sin θ_{2} {\overset{\cdot\cdot}{θ}}_{1} {\overset{\cdot}{θ}}_{2} \\ + M l_{1} λ_{2} \sin θ_{1} \cos θ_{2} {\overset{\cdot}{θ}}_{1}^{2} {\overset{\cdot}{θ}}_{2} \\ - (M + m_{1} + m_{2}) l_{1} λ_{2} \cos θ_{1} \sin θ_{2} {\overset{\cdot}{θ}}_{1}^{2} {\overset{\cdot}{θ}}_{2} \end{matrix}

(13)

Therefore, in view of the structures of equations (12) and (13), the relationship between $λ_{1}$ and $λ_{2}$ are set as

\frac{M}{m_{1} + m_{2}} m_{2} λ_{1} l_{2} = M l_{1} λ_{2} \Rightarrow \frac{λ_{1}}{λ_{2}} = \frac{(m_{1} + m_{2}) l_{1}}{m_{2} l_{2}}

(14)

And on this basis, equations (12) and (13) can be rewritten as

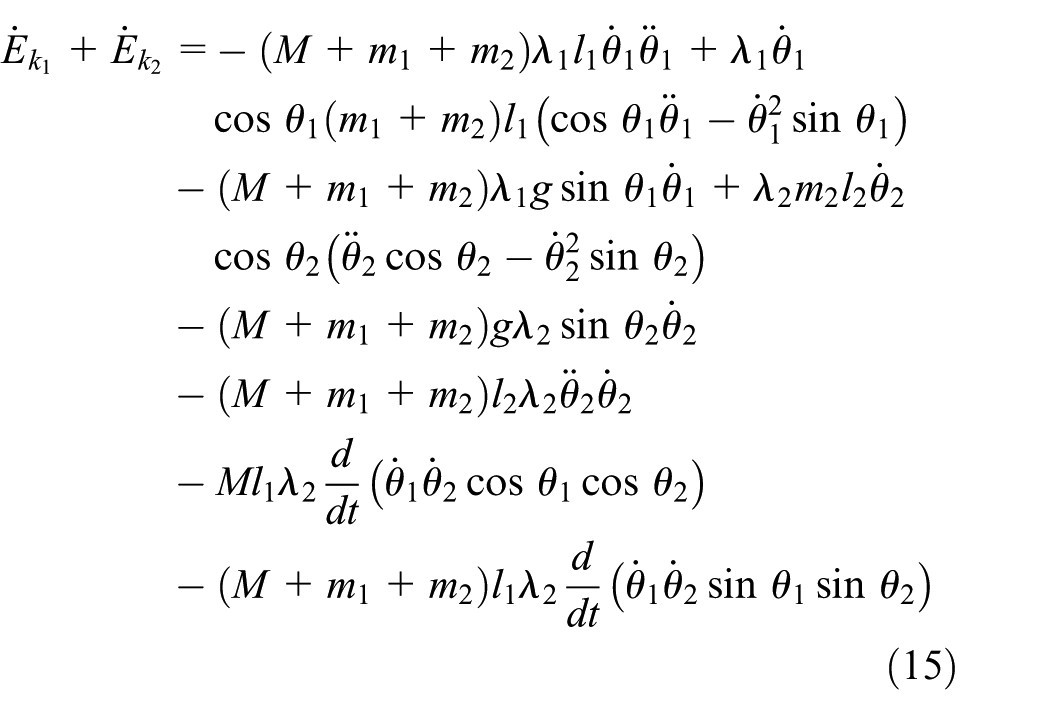

\begin{matrix} {\overset{\cdot}{E}}_{k_{1}} + {\overset{\cdot}{E}}_{k_{2}} = - (M + m_{1} + m_{2}) λ_{1} l_{1} {\overset{\cdot}{θ}}_{1} {\overset{\cdot\cdot}{θ}}_{1} + λ_{1} {\overset{\cdot}{θ}}_{1} \\ \cos θ_{1} (m_{1} + m_{2}) l_{1} (\cos θ_{1} {\overset{\cdot\cdot}{θ}}_{1} - {\overset{\cdot}{θ}}_{1}^{2} \sin θ_{1}) \\ - (M + m_{1} + m_{2}) λ_{1} g \sin θ_{1} {\overset{\cdot}{θ}}_{1} + λ_{2} m_{2} l_{2} {\overset{\cdot}{θ}}_{2} \\ \cos θ_{2} ({\overset{\cdot\cdot}{θ}}_{2} \cos θ_{2} - {\overset{\cdot}{θ}}_{2}^{2} \sin θ_{2}) \\ - (M + m_{1} + m_{2}) g λ_{2} \sin θ_{2} {\overset{\cdot}{θ}}_{2} \\ - (M + m_{1} + m_{2}) l_{2} λ_{2} {\overset{\cdot\cdot}{θ}}_{2} {\overset{\cdot}{θ}}_{2} \\ - M l_{1} λ_{2} \frac{d}{dt} ({\overset{\cdot}{θ}}_{1} {\overset{\cdot}{θ}}_{2} \cos θ_{1} \cos θ_{2}) \\ - (M + m_{1} + m_{2}) l_{1} λ_{2} \frac{d}{dt} ({\overset{\cdot}{θ}}_{1} {\overset{\cdot}{θ}}_{2} \sin θ_{1} \sin θ_{2}) \end{matrix}

(15)

Herein, integrating equation (15) with respect to time, we have

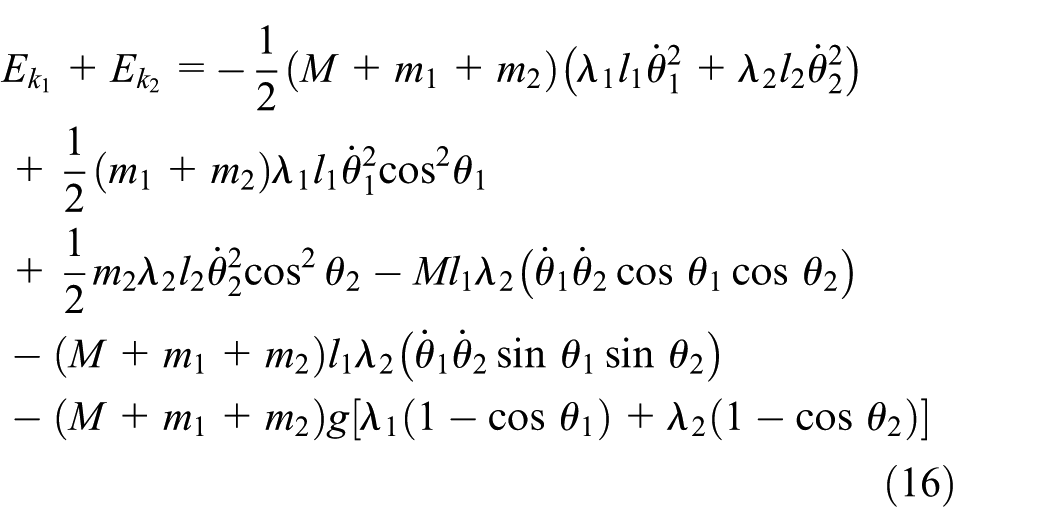

\begin{matrix} E_{k_{1}} + E_{k_{2}} = - \frac{1}{2} (M + m_{1} + m_{2}) (λ_{1} l_{1} {\overset{\cdot}{θ}}_{1}^{2} + λ_{2} l_{2} {\overset{\cdot}{θ}}_{2}^{2}) \\ + \frac{1}{2} (m_{1} + m_{2}) λ_{1} l_{1} {\overset{\cdot}{θ}}_{1}^{2} \cos^{2} θ_{1} \\ + \frac{1}{2} m_{2} λ_{2} l_{2} {\overset{\cdot}{θ}}_{2}^{2} \cos^{2} θ_{2} - M l_{1} λ_{2} ({\overset{\cdot}{θ}}_{1} {\overset{\cdot}{θ}}_{2} \cos θ_{1} \cos θ_{2}) \\ - (M + m_{1} + m_{2}) l_{1} λ_{2} ({\overset{\cdot}{θ}}_{1} {\overset{\cdot}{θ}}_{2} \sin θ_{1} \sin θ_{2}) \\ - (M + m_{1} + m_{2}) g [λ_{1} (1 - \cos θ_{1}) + λ_{2} (1 - \cos θ_{2})] \end{matrix}

(16)

It is easily concluded from equation (17) that whenever λ₁ and λ₂ < 0, one has

λ_{1} l_{2} l_{1} λ_{2} = \frac{(m_{1} + m_{2})}{m_{2}} l_{1}^{2} λ_{2}^{2} > l_{1}^{2} λ_{2}^{2}

(17)

In accordance with equation (20) and the arithmetic geometric means inequality, one derives the following result from equation (19) that

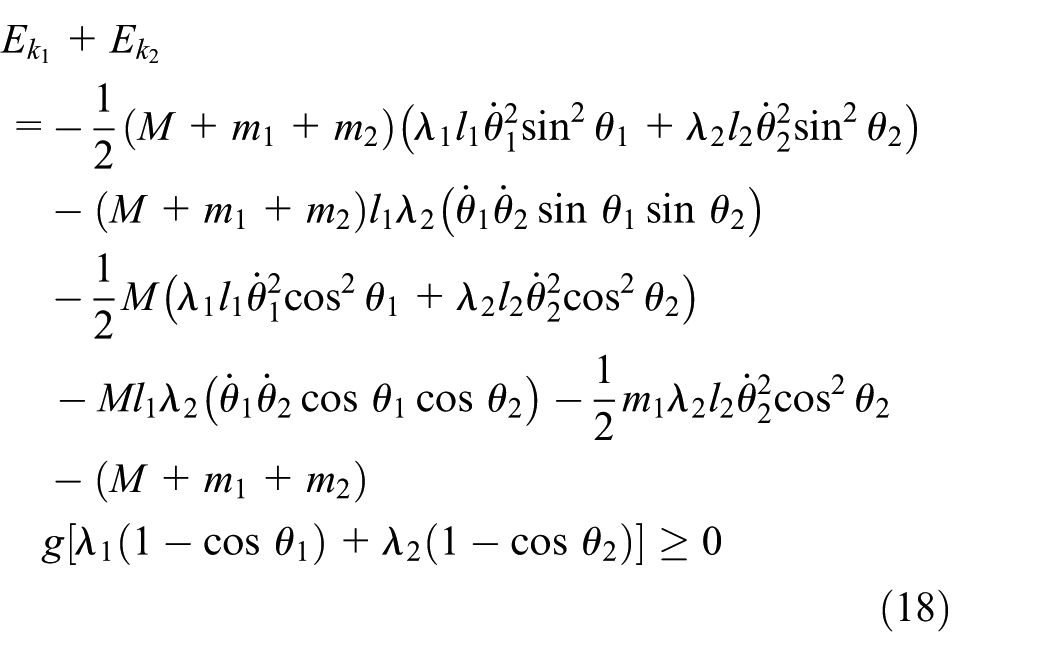

\begin{matrix} E_{k_{1}} + E_{k_{2}} \\ = - \frac{1}{2} (M + m_{1} + m_{2}) (λ_{1} l_{1} {\overset{\cdot}{θ}}_{1}^{2} \sin^{2} θ_{1} + λ_{2} l_{2} {\overset{\cdot}{θ}}_{2}^{2} \sin^{2} θ_{2}) \\ - (M + m_{1} + m_{2}) l_{1} λ_{2} ({\overset{\cdot}{θ}}_{1} {\overset{\cdot}{θ}}_{2} \sin θ_{1} \sin θ_{2}) \\ - \frac{1}{2} M (λ_{1} l_{1} {\overset{\cdot}{θ}}_{1}^{2} \cos^{2} θ_{1} + λ_{2} l_{2} {\overset{\cdot}{θ}}_{2}^{2} \cos^{2} θ_{2}) \\ - M l_{1} λ_{2} ({\overset{\cdot}{θ}}_{1} {\overset{\cdot}{θ}}_{2} \cos θ_{1} \cos θ_{2}) - \frac{1}{2} m_{1} λ_{2} l_{2} {\overset{\cdot}{θ}}_{2}^{2} \cos^{2} θ_{2} \\ - (M + m_{1} + m_{2}) \\ g [λ_{1} (1 - \cos θ_{1}) + λ_{2} (1 - \cos θ_{2})] \geq 0 \end{matrix}

(18)

which, together with equation (11), indicates that

E_{t} (t) = E + E_{k_{1}} + E_{k_{2}} \geq 0

(19)

To facilitate the subsequent controller development and analysis, we introduce the following generalized payload positioning error ξ_x as

\begin{matrix} ξ_{x} = X_{p} - p_{d} = x - p_{d} + λ_{1} \sin θ_{1} + λ_{2} \sin θ_{2} \\ = e_{x} + λ_{1} \sin θ_{1} + λ_{2} \sin θ_{2} \end{matrix}

(20)

where p_d ∈ R⁺ denotes the desired target position and e_x ∈ R¹ represents the trolley positioning error of

e_{x} = x - p_{d}

(21)

Differentiating equation (20) with regard to time leads to

{\overset{\cdot}{ξ}}_{x} = {\overset{\cdot}{X}}_{p} = {\overset{\cdot}{e}}_{x} + λ_{1} {\overset{\cdot}{θ}}_{1} \cos θ_{1} + λ_{2} {\overset{\cdot}{θ}}_{2} \cos θ_{2}

(22)

Then, equation (13) can be rewritten as

{\overset{\cdot}{E}}_{t} (t) = {\overset{\cdot}{ξ}}_{x} F

(23)

Based on the structure of equation (23), we design the energy-based coupling controller with initial control force constraint as follows

F_{x} = F_{rx} - k_{p} \tan h (ξ_{x}) - k_{d} {\overset{\cdot}{ξ}}_{x}

(24)

where k_p and k_d ∈ R⁺ are positive control gains.

The objective of introducing the hyperbolic tangent function $\tan h (ξ_{x})$ is to reduce the initial control force and thus to guarantee soft trolley start. For zero initial conditions, namely

\begin{matrix} x (0) = 0, \overset{\cdot}{x} (0) = 0, θ_{1} (0) = θ_{2} (0) = 0, {\overset{\cdot}{θ}}_{1} (0) = {\overset{\cdot}{θ}}_{2} (0) = 0 \\ \Rightarrow F_{rx} = 0, {\overset{\cdot}{ξ}}_{x} = 0, ξ_{x} = - p_{d} \end{matrix}

(25)

the initial control force is calculated from equation (24) as

| F_{x} (t) | = | k_{p} \tan h (- p_{d}) | \leq k_{p} min {| p_{d} |, 1}

(26)

Thus, if the desired position of the trolley is far away from the initial position, that is

| e_{x} (0) | = p_{d} > > 1

(27)

the proposed controller (24) can effectively lower the initial control efforts and hence achieve soft trolley start, which can reduce trolley acceleration and avoid exciting large-amplitude payload swing.

Stability analysis

As summarized by the following theorem, the designed controller (24) ensures that the system state converges to the equilibrium point asymptotically.

Theorem 1

The trolley can be driven to the desired position p_d accurately, and the hook swing θ₁(t) and the payload swing θ₂(t) can be suppressed and eliminated rapidly by the control strategy (24) in the sense that

lim_{t \to \infty} {[x (t) \overset{\cdot}{x} (t) θ_{1} (t) θ_{2} (t) {\overset{\cdot}{θ}}_{1} (t) {\overset{\cdot}{θ}}_{2} (t)]}^{T} = {[p_{d} 0 0 0 0 0]}^{T}

(28)

Remark

In practice, due to the limited trolley acceleration, the swing angles θ₁(t) and θ₂(t) are usually kept within 10 degrees,^{15,17,18,34,36} and under these circumstances, the following approximations

\sin θ_{1} \approx θ_{1}, \sin θ_{2} \approx θ_{2}, \cos θ_{1} \approx 1, \cos θ_{2} \approx 1

(29)

are valid.

Proof

To prove the above theorem, the following Lyapunov function candidate is chosen

V (t) = E_{t} (t) + k_{p} \ln [\cos h (ξ_{x})]

(30)

The time derivative of equation (30), along the trajectories of equations (23) and (24), is calculated as

\overset{\cdot}{V} (t) = - k_{d} {\overset{\cdot}{ξ}}_{x}^{2} \leq 0

(31)

which implies that the designed closed-loop system is Lyapunov stable at the origin and V(t) is non-increasing; in other words, V(t) is bounded as

V (t) \in L_{\infty}

(32)

Hence, it can be concluded from equations (2), (11), (20), (22), (24), (30), and (32) that

\overset{\cdot}{x}, {\overset{\cdot}{θ}}_{1}, {\overset{\cdot}{θ}}_{2}, F_{x}, F_{rx}, ξ_{x}, {\overset{\cdot}{ξ}}_{x}, e_{x}, {\overset{\cdot}{e}}_{x} \in L_{\infty}

(33)

To accomplish the proof, let

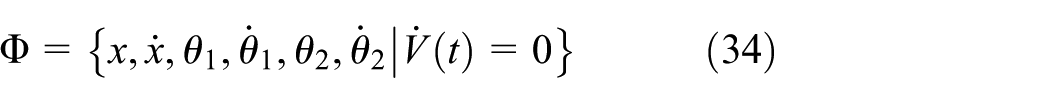

Φ = {x, \overset{\cdot}{x}, θ_{1}, {\overset{\cdot}{θ}}_{1}, θ_{2}, {\overset{\cdot}{θ}}_{2} | \overset{\cdot}{V} (t) = 0}

(34)

and define S as the largest invariant set contained in Ф. Thus, in S

{\overset{\cdot}{ξ}}_{x} = \overset{\cdot}{x} + λ_{1} {\overset{\cdot}{θ}}_{1} \cos θ_{1} + λ_{2} {\overset{\cdot}{θ}}_{2} \cos θ_{2} = 0

(35)

It is straightforward to derive from equation (35) that

ξ_{x} = e_{x} + λ_{1} \sin θ_{1} + λ_{2} \sin θ_{2} = α

(36)

and

{\overset{\cdot\cdot}{ξ}}_{x} = \overset{\cdot\cdot}{x} + λ_{1} {\overset{\cdot\cdot}{θ}}_{1} \cos θ_{1} - λ_{1} {\overset{\cdot}{θ}}_{1}^{2} \sin θ_{1} + λ_{2} {\overset{\cdot\cdot}{θ}}_{2} \cos θ_{2} - λ_{2} {\overset{\cdot}{θ}}_{2}^{2} \sin θ_{2} = 0

(37)

Substituting equations (35) and (36) into equation (24), the following equation holds

F_{x} - F_{rx} = - k_{p} \tan h α

(38)

It can be obtained from equation (37) that

λ_{1} {\overset{\cdot\cdot}{θ}}_{1} \cos θ_{1} - λ_{1} {\overset{\cdot}{θ}}_{1}^{2} \sin θ_{1} + λ_{2} {\overset{\cdot\cdot}{θ}}_{2} \cos θ_{2} - λ_{2} {\overset{\cdot}{θ}}_{2}^{2} \sin θ_{2} = - \overset{\cdot\cdot}{x}

(39)

After some arrangements, equation (1) can be rearranged into

\cos θ_{1} {\overset{\cdot\cdot}{θ}}_{1} - {\overset{\cdot}{θ}}_{1}^{2} \sin θ_{1} + \frac{m_{2} l_{2}}{(m_{1} + m_{2}) l_{1}} ({\overset{\cdot\cdot}{θ}}_{2} \cos θ_{2} - {\overset{\cdot}{θ}}_{2}^{2} \sin θ_{2}) = \frac{1}{(m_{1} + m_{2}) l_{1}} [F - (M + m_{1} + m_{2}) \overset{\cdot\cdot}{x}]

(40)

which, together with the conclusions of equations (14) and (40), indicates that

\overset{\cdot\cdot}{x} = - \frac{k_{p} λ_{1}}{(m_{1} + m_{2}) l_{1} + (M + m_{1} + m_{2}) λ_{1}} \tan h α

(41)

Suppose that α ≠ 0, it is concluded that

\overset{\cdot}{x} (t) \to {\begin{matrix} + \infty, α < 0, \\ - \infty, α < 0, \end{matrix} as t \to \infty

(42)

which contradicts with the conclusion $\overset{\cdot}{x} (t) \in L_{\infty}$ in equation (33), so the assumption α ≠ 0 does not hold. In other words, in S

α = 0

(43)

After substituting equation (43) into equations (38) and (41), we can obtain

F_{x} - F_{rx} = 0, \overset{\cdot\cdot}{x} = 0 \to \overset{\cdot}{x} = {\overset{\cdot}{e}}_{x} = β

(44)

In a similar way, it is obtained that

β = 0 \to \overset{\cdot}{x} = {\overset{\cdot}{e}}_{x} = 0

(45)

After substituting equations (29) and (44) into equation (1), equation (1) can be rewritten in the following manner

(m_{1} + m_{2}) l_{1} {\overset{\cdot\cdot}{θ}}_{1} + m_{2} l_{2} {\overset{\cdot\cdot}{θ}}_{2} = 0

(46)

(m_{1} + m_{2}) l_{1} {\overset{\cdot\cdot}{θ}}_{1} + m_{2} l_{2} {\overset{\cdot\cdot}{θ}}_{2} + (m_{1} + m_{2}) g θ_{1} = 0

(47)

l_{1} {\overset{\cdot\cdot}{θ}}_{1} + l_{2} {\overset{\cdot\cdot}{θ}}_{2} + g \sin θ_{2} = 0

(48)

It can be obtained from equations (7), (46), and (47) that in S

θ_{1} = 0

(49)

the first- and second-order derivatives of which can be derived as

{\overset{\cdot}{θ}}_{1} = 0, {\overset{\cdot\cdot}{θ}}_{1} = 0

(50)

It can be concluded from equations (46) and (48)–(50) that

θ_{2} = 0

(51)

Accordingly, the following equations hold in S

{\overset{\cdot}{θ}}_{2} = 0, {\overset{\cdot\cdot}{θ}}_{2} = 0

(52)

Substituting equations (49) and (51) into equation (36), one has

e_{x} = 0 \to x = p_{d}

(53)

which together with equations (45) and (49)–(52) further indicates that only the equilibrium point ${[x \overset{\cdot}{x} θ_{1} θ_{2} {\overset{\cdot}{θ}}_{1} {\overset{\cdot}{θ}}_{2}]}^{T} = {[p_{d} 0 0 0 0 0]}^{T}$ is included in the largest invariant set S. By invoking LaSalle’s invariant theorem,⁴⁰ we can conclude that the system state asymptotically converges to the equilibrium point.

Numerical simulation and analysis

In this section, some simulation tests are carried out to verify the superior performance of the proposed control method. The numerical simulation is implemented in MATLAB/Simulink. The physical parameters of the double-pendulum overhead crane system are set as follows

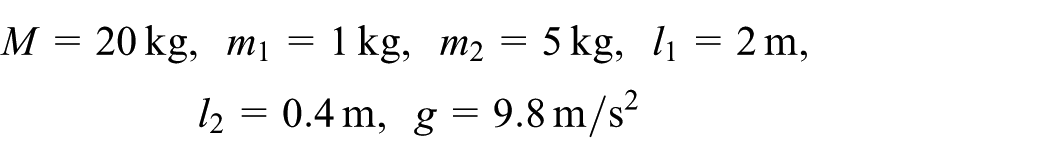

M = 20 kg, m_{1} = 1 kg, m_{2} = 5 kg, l_{1} = 2 m, l_{2} = 0.4 m, g = 9.8 m / s^{2}

The initial trolley position x(0), the hook swing angle θ₁(0), and the payload swing angle θ₂(0) are determined as zero. The parameters for the bridge friction model are set as

f_{rox} = 8, k_{rx} = - 1.2, ε_{x} = 0.01

The desired trolley location is set as

p_{d} = 2 m

Contrast tests

To verify the superior performance of the proposed control scheme, we compare our controller with the passivity-based controller³⁰ and the CSMC controller.³⁶ For literature completeness, we provide the expressions of the passivity-based controller and the CSMC controller as follows.

1. Passivity-based controller

F_{x} = F_{rx} - {(k_{E} I + k_{D} Z M^{- 1} (q) Z^{T})}^{- 1} [k_{p} (x - p_{d}) + k_{D} Z M^{- 1} (q) (C (q, \overset{\cdot}{q}) \overset{\cdot}{q} + G (q)) + k_{d} \overset{\cdot}{x}]

(54)

where k_E, k_D, k_p, and k_d ∈ R⁺ are control gains and I denotes available identity matrix, Z = [1 0 0].

2. CSMC controller

The dynamic model of overhead crane in this article is different from Tuan and Lee,³⁶ which has a damper for the trolley. Furthermore, the directions of the two angles in Figure 1 are also opposite. To be fair, the expression of the CSMC controller is rewritten as

\begin{array}{l} - (M + m_{1} + m_{2}) (λ \dot{x} + α {\dot{θ}}_{1} + β {\dot{θ}}_{2}) + (m_{1} + m_{2}) l_{1} (\cos θ_{1} {\overset{\cdot\cdot}{θ}}_{1} - {\dot{θ}}_{1}^{2} \sin θ_{1}) \\ + m_{2} l_{2} {\overset{\cdot\cdot}{θ}}_{2} \cos θ_{2} - m_{2} l_{2} {\dot{θ}}_{2}^{2} \sin θ_{2} + F_{r x} - K s a t (s) = F_{x} \end{array}

(55)

where λ, α ∈ R⁺, and β ∈ R^– represent control parameters and $s = \overset{\cdot}{x} + λ (x - p_{d}) + α θ_{1} + β θ_{2}$ denotes the sliding surface and

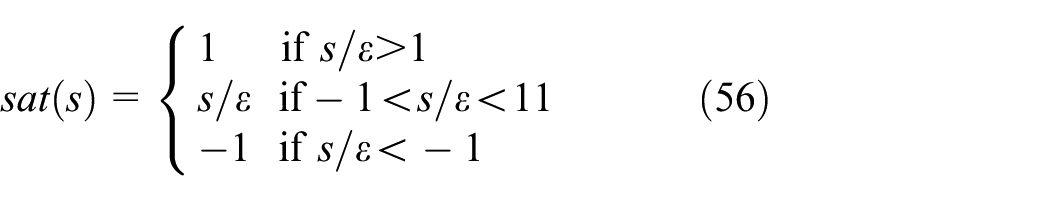

sat (s) = {\begin{matrix} 1 & if s / ε > 1 \\ s / ε & if - 1 < s / ε < 11 \\ - 1 & if s / ε < - 1 \end{matrix}

(56)

where $ε$ is a constant indicating the thickness of the boundary.

The control gains for the proposed controller, the passivity-based controller, and CSMC controller are fully tuned until the respective best performance is achieved, which are described in Table 1. Simulation results and some quantified indexes are illustrated in Figures 2 –4 and Table 2. In Table 2, the following seven performance indices are included:

Maximal hook swing θ_1max that denotes the maximum hook swing amplitude during the transferring process.

Maximal payload swing θ_2max that denotes the maximum load swing amplitude during the transferring process.

Hook residual swing θ_1res, which refers to the maximum hook swing amplitude after the trolley stops.

Payload residual swing θ_2res, which refers to the maximum payload swing amplitude after the trolley stops.

Trolley final position p_f.

Setting time t_s that denotes the moment when θ₁(t) and θ₁(t) enter the ranges of $| θ_{1} (t) | \leq 0 . 5^{\circ}$ and $| θ_{2} (t) | \leq {0.5}^{°}$ .

Maximum actuating force F_xmax.

Table 1.

Control gains.

Controllers	k_p	k_d	k_E	k_D	λ	α	β	K	λ ₁	λ ₂
Passivity-based controller	10	20	1	0	NA	NA	NA	NA	NA	NA
CSMC controller	NA	NA	NA	NA	0.5	17	−11	90	NA	NA
Proposed controller	12	30	NA	NA	NA	NA	NA	NA	−6	−1

Figure 2.

Results for the proposed control method.

Figure 3.

Results for the passivity-based control method.³⁰

Figure 4.

Results for the CSMC control method.³⁶

Table 2.

Control performance comparison.

Controllers	Passivity-based controller	CSMC controller	Proposed controller
Maximal hook swing θ_1max (°)	3.84	5.52	1.66
Maximal payload swing θ_2max (°)	3.97	5.89	1.68
Residual hook swing θ_1res (°)	1.4	0.32	0.06
Residual payload swing θ_2res (°)	1.48	0.51	0.05
Trolley final position p_f (m)	2.02	1.98	2.00
Settling time t_s (s)	13.82	5.20	5.48
Maximal actuating force F_xmax (N)	23.27	69.25	17.05

We can see from Table 2 and Figures 2 –4 that with similar transportation time for positioning (both with 8s), the transient performance of the proposed controller is superior over that of passivity-based controller and CSMC controller, in the sense that the hook swing and the payload swing are better eliminated by the designed controller and there is almost no residual swing as the trolley stops. More precisely, the proposed control method has the smallest maximal hook swing 1.66°, the smallest maximal payload swing 1.68°, the smallest residual hook swing 0.06°, and the smallest residual payload swing 0.05°. Although settling time of CSMC controller is smaller than the proposed controller, but the maximum actuating force of the designed controller is the smallest. These simulation results directly demonstrate that the transient performance of the double-pendulum overhead crane system is improved by introducing a generalized payload horizontal-displacement signal.

Robustness verification experiment

The main purpose of this simulation study is to validate the robustness of the proposed control method against parameter variations and external disturbances. To this end, we divide our numerical simulation tests into four groups.

Simulation group 1

In this group, we plan to test the robustness of the designed controller with respect to different cable lengths. To do so, the following three cable lengths are considered:

l₁ = 1 m;

l₁ = 2 m;

l₁ = 4m.

The control gains are kept the same as in Table 1 for all three cases. Figure 5 illustrates the simulation results. It is concluded from Figure 5 that the trolley positioning, the hook swing, and the payload swing elimination are not impacted much by different cable lengths, indicating that the designed controller is not sensitive to the uncertainties of the cable lengths.

Figure 5.

Results for the proposed controller with respect to different cable lengths.

Simulation group 2

Next, we intend to verify the control performance of the presented control method for different payload masses, while the control gains remain the same as in Table 1. The following three payload masses are considered:

m₂ = 1 kg;

m₂ = 3 kg;

m₂ = 5 kg.

The derived results are shown in Figure 6. For all the three cases, the trolley arrives at the desired location accurately, while the hook swing and the payload swing are suppressed and eliminated rapidly. Therefore, these simulation results demonstrate the proposed control method’s strong robustness with respect to different payload masses, which is of great benefit.

Figure 6.

Results for the proposed controller with respect to different payload masses.

Simulation group 3

In this group, we intend to validate the proposed controller’s robustness over different desired positions, while the control gains are kept the same as in Table 1. Toward this end, the following four traveling distances are set:

p_d = 1 m;

p_d = 2 m;

p_d = 3 m;

p_d = 4 m.

The simulation results are shown in Figure 7. We can see from Figure 7 that for different desired positions, the trolley is driven to reach the destinations accurately and the payload swing and the hook swing are less than 1.7° during the whole transportation process, with no residual swing after the trolley stops. One can see that the transferring distances have little impact on the payload swing amplitude, indicating that the designed controller guarantees soft trolley start.

Figure 7.

Results for the proposed controller with respect to different desired positions.

Simulation group 4

In this group, three kinds of disturbances are added to the payload swing to emulate external disturbances such as winds during the whole transportation process. More precisely, we add impulsive disturbances between 9 and 10 s and sinusoid disturbances between 15 and 16 s, all of the disturbances added are with an amplitude of 2°. It can be seen from Figure 8 that the external disturbances are suppressed and eliminated rapidly, which indicates the strong robustness of the proposed control method.

Figure 8.

Results for the proposed controller with respect to different disturbances.

Conclusion

In this article, we propose an energy-coupling-based control method for double-pendulum overhead crane systems with initial control force constraint, which successfully overcomes the drawbacks of existing regulation schemes. The proposed controller has a simpler structure and achieves an improved control performance with strong robustness by enhancing the coupling behavior between the trolley motion, the hook swing, and the payload swing. In addition, in order to guarantee soft trolley start and reduce the initial control force, we introduce a smooth hyperbolic tangent function into the control law. Numerical simulation results are included to illustrate the superior control performance and strong robustness with respect to different system parameters and external disturbances of the designed controller. In our future work, we will try to perform some experimental tests.

Footnotes

Handling Editor: Chenguang Yang

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This study was funded by the National High-tech Research and Development (863 Program) of China under Award No. 2015AA042307; Shandong Provincial Scientific and Technological Development Foundation, China, under Award No. 2014GGX103038; Shandong Province Independent Innovation & Achievement Transformation Special Foundation, China, under Award No. 2015ZDXX0101E01; and the Fundamental Research Funds of Shandong University, China, under Award No. 2015JC027.

References

Zhang

Rong

et al . Adaptive tracking control for double-pendulum overhead cranes subject to tracking error limitation, parametric uncertainties and external disturbances. Mech Syst Signal Pr 2016; 76–77: 15–32.

Sun

Fang

Chen

et al . Nonlinear stabilizing control for ship-mounted cranes with disturbances induced by ship roll and heave movements: design, analysis, and experiments. IEEE T Syst Man Cy: S 2017; PP: 1–13.

Andziulis

Eglynas

Bogdevicius

et al . Multibody dynamic simulation and transient analysis of quay crane spreader and lifting mechanism. Adv Mech Eng 2016; 8: 1–11.

Blajer

Kolodziejczyk

. Motion planning and control of gantry cranes in cluttered work environment. IET Control Theory A 2007; 1: 1370–1379.

Sun

Fang

Zhang

et al . A novel kinematic coupling-based trajectory planning method for overhead cranes. IEEE-ASME T Mech 2012; 17: 166–173.

Lawrence

. Crane oscillation control: nonlinear elements and educational improvements. PhD Thesis, Georgia Institute of Technology, Atlanta, GA, 2006.

Xia

. Optimal motion planning for overhead cranes. IET Control Theory A 2014; 8: 1833–1842.

Piazzi

Visioli

. Optimal dynamic-inversion-based control of an overhead crane. IEE P Contr Theor Ap 2002; 149: 405–411.

Terashima

Shen

. Modeling and optimal control of a rotary crane using the straight transformation method. Control Eng Pract 2007; 15: 1179–1192.

10.

Moon

Hugh

Yvan

. Fuzzy time optimal control of crane load. In Proceedings of the 35th IEEE conference on decision and control, Kobe, Japan, 13 December 1996, pp.1127–1132. New York: IEEE.

11.

Sorensen

Singhose

Dickerson

. A controller enabling precise positioning and sway reduction in bridge and gantry cranes. Control Eng Pract 2007; 15: 825–837.

12.

Blackburn

Singhose

Kitchen

et al . Command shaping for nonlinear crane dynamics. J Vib Control 2010; 6: 477–501.

13.

Sung

Singhose

. Limited-state commands for systems with two flexible modes. Mechatronics 2009; 19: 780–787.

14.

Singhose

Seering

Singer

. Residual vibration reduction using vector diagrams to generate shaped inputs. J Mech Design 1994; 116: 654–659.

15.

Sun

Fang

Zhang

et al . Transportation task-oriented trajectory planning for underactuated overhead cranes using geometric analysis. IET Control Theory A 2012; 6: 1410–1423.

16.

Uchiyama

Ouyang

Sano

. Simple rotary crane dynamics modeling and open-loop control for residual load sway suppression by only horizontal boom motion. IEEE-ASME T Mech 2013; 23: 1223–1236.

17.

Sun

Fang

Zhang

et al . Phase plane analysis based motion planning for underactuated overhead cranes. In: Proceedings of the IEEE international conference on robotics and automation, Shanghai, China, 9–13 May 2011, pp.3283–3488. New York: IEEE.

18.

Sun

Fang

. An efficient online trajectory generating method for underactuated crane systems. Int J Robust Nonlin 2014; 24: 1653–1663.

19.

Sun

Fang

. New energy analytical results for the regulation of underactuated overhead cranes: an end-effector motion-based approach. IEEE T Ind Electron 2012; 59: 4723–4734.

20.

Sun

Fang

Zhang

. Energy-coupling output feedback control of 4-DOF underactuated cranes with saturated inputs. Automatica 2013; 49: 1318–1325.

21.

Park

Chwa

Hong

. Antisway tracking control of overhead cranes with system uncertainty and actuator nonlinearity using an adaptive fuzzy sliding-mode control. IEEE T Ind Electron 2008; 55: 3972–3984.

22.

Heyden

Woernle

. Dynamics and flatness-based control of a kinematically undetermined cable suspension manipulator. Multibody Syst Dyn 2006; 16: 155–177.

23.

Blajer

Kolodziejczyk

. Improved DAE formulation for inverse dynamics simulation of cranes. Multibody Syst Dyn 2011; 25: 131–143.

24.

Yang

. Adaptive coupling control for overhead crane systems. Mechatronics 2007; 17: 143–152.

25.

Fang

Zhang

. Switching-based emergency braking control for an overhead crane system. IET Control Theory A 2010; 4: 1739–1747.

26.

Zhao

Gao

. Fuzzy-mode-based control of an overhead crane input delay and actuator saturation. IEEE T Fuzzy Syst 2012; 20: 181–186.

27.

Chang

Lie

. Real-time visual tracking and measurement to control fast dynamics of overhead cranes. IEEE T Ind Electron 2012; 59: 1640–1649.

28.

Chang

. Adaptive fuzzy controller of the overhead cranes with nonlinear disturbance. IEEE T Ind Inform 2007; 3: 164–172.

29.

Lee

Huang

Shih

. Parallel neural network combined with sliding mode control in overhead crane control system. J Vib Control 2014; 20: 749–760.

30.

Liu

Guo

. Dynamics and stable control for a class of underactuated mechanical systems. Acta Autom Sin 2006; 32: 422–427.

31.

Singhose

Kim

Kenison

. Input shaping control of double-pendulum bridge crane oscillations. J Dyn Syst: T ASME 2008; 130: 034504.

32.

Kim

Singhose

. Performance studies of human operators driving double-pendulum bridge cranes. Control Eng Pract 2010; 18: 567–576.

33.

Manning

Clement

Kim

et al . Dynamics and control of bridge cranes transporting distributed-mass payloads. J Dyn Syst: T ASME 2010; 132: 014505.

34.

Masoud

Alhazza

Abu-Nada

et al . A hybrid command-shaper for double-pendulum overhead cranes. J Vib Control 2014; 20: 24–37.

35.

Huang

Liang

Zang

. Dynamics and swing control of double-pendulum bridge cranes with distributed-mass beams. Mech Syst Signal Pr 2015; 54–55: 357–366.

36.

Tuan

Lee

. Sliding mode controls of double-pendulum crane systems. J Mech Sci Technol 2013; 27: 1863–1873.

37.

Sun

Fang

. A partially saturated nonlinear controller for overhead cranes with experimental implementation. In: Proceedings of the 2013 IEEE international conference on robotics and automation, Karlsruhe, 6–10 May 2013, pp.4473–4478. New York: IEEE.

38.

Makkar

Sawyer

et al . Lyapunov-based tracking control in the presence of uncertain nonlinear parameterizable friction. IEEE T Automat Contr 2007; 52: 1988–1994.

39.

Abdel-Rahman

Nayfeh

Masoud

. Dynamics and control of cranes: a review. J Vib Control 2003; 9: 863–908.

40.

Khalil

. Nonlinear systems. 3rd ed. Englewood Cliffs, NJ: Prentice Hall, 2002.

A novel energy-coupling-based control method for double-pendulum overhead cranes with initial control force constraint

Abstract

Keywords

Introduction

Dynamic model of a double-pendulum overhead crane system

Main results

Controller development

Stability analysis

Theorem 1

Remark

Proof

Numerical simulation and analysis

Contrast tests

Robustness verification experiment

Simulation group 1

Simulation group 2

Simulation group 3

Simulation group 4

Conclusion

Footnotes

Declaration of conflicting interests

Funding

References
