Abstract

The Stewart platform is a typical parallel manipulator. It is used as a space docking mechanism whose requirement for movement scope is determinate. This article addresses the dimension synthesis of the space docking mechanism. First, this article compares the common indexes used to evaluate the performance of parallel manipulator. These indexes can mainly be divided into two types. The evaluation indexes based on the Jacobian matrix, including the singular value index, the manipulability index, and condition index, are derived from the Jacobian matrix of the manipulator, and the transmissibility indexes, such as pressure angle, transmission angle, and motion/force transmission index, lay emphasis on the power transmission ability of manipulator. This article proposes the global transmission index under determinate constraint of workspace on the basis of the previous transmissibility indexes to evaluate the performance of parallel manipulator whose workspace is determinate and movement is the combination of translation and rotation. And the optimization design of the manipulator is carried out by taking the global transmission index under determinate constraint of workspace into account. The detailed process of determining the optimal configuration for the Stewart manipulator used as space docking mechanism is presented. The optimal result is gotten, which has a large value of global transmission index under determinate constraint of workspace in the required workspace, and a simulation is carried out to verify the validity of the optimal result.

Keywords

Stewart platform transmissibility index global evaluation index optimal design method simulation analysis

Introduction

Almost 50 years ago, Stewart introduced a parallel actuated manipulator with 6 degrees of freedom (DOF), which is now popularly known as the Stewart platform.¹ The manipulator consists of six identical branched chains, each including a prismatic actuator, a spherical joint (three orthogonal intersecting revolute joints) connecting the branched chain to a base platform, and a universal or Hooke joint (two orthogonal intersecting revolute joints) connecting the branched chain to a mobile platform. It is commonly used in the occasion, such as the flight or driving simulators, vibration isolation platforms, space docking mechanisms, and parallel machine tools, for its high stiffness, compactness, load-to-weight ratio, and accuracy.² Hence, how to find a Stewart platform being capable of perfectly answering customers’ needs is of great importance, thus special attention must be paid to the optimization design for Stewart platform.

The essential problems for the optimization of the Stewart platform lie at the optimization object and the optimization algorithm,³ among which the optimization object represents the performance evaluation indexes for the parallel manipulators, and the optimization algorithm is the mathematical method used to find the optimal solution based on the optimization object.

In the aspects of optimization object, the evaluation indexes, investigated from the 1970s, can mainly be divided into the following two types.

The evaluation indexes based on the Jacobian matrix, including the singular value index, the manipulability index,^4,5 the local condition index (LCI), and the global condition index (GCI),^6–8 are derived from the Jacobian matrix of the manipulator. The Jacobian matrix will be different with the change of the frame, so the evaluation indexes will be different under different coordinate systems. Besides, the Jacobian matrix describes the linear transformation relating the joints velocity of the manipulator to its end-effector velocity, which is the combination of translation and rotation, so with the change of the translation velocity unit and rotation velocity unit, the Jacobian matrix will also be different, leading to the change of the indexes value. Thus, those evaluation indexes share common drawbacks such as frame-dependent property and the unit inhomogeneous problem.⁹ As noted above, the characteristic length is introduced to scale the relative importance of translational related terms to that of rotational, in this way, achieving the unit homogeneous of translation and rotation. But choosing a shorter length emphasizes translation terms, while conversely a longer length emphasizes rotation terms.⁶

Another kind of evaluation indexes is the transmissibility indexes which pay special attention to the power transmission ability of manipulator. Since power is a scalar, which is independent of the coordinate system, and is the product of the linear velocity and force or the product of angular velocity and torque, respectively, the unit is homogeneous for translation or rotation whatever the units of velocity and force are. Thus, this kind of evaluation indexes is frame-free and unit homogeneous.

In this article, a new index called global transmission index under determinate constraint of workspace (GTI_c) will be introduced, on the basis of the previous transmissibility indexes, to evaluate the motion/force transmissibility of a parallel manipulators whose motion is a combination of translation and rotation. Dimension synthesis for the Stewart manipulator used for space docking will be achieved using the GTI_c.

The remainder of this article is organized as follows. The next section gives a rigorous analysis of the evaluation indexes based on the Jacobian matrix. Section “The transmissibility indexes” investigates the transmissibility indexes from the view of power transmission, the motion/force transmission index (TI) based on screw theory is presented, and the GTI_c is proposed in this section. In section “Optimization of the Stewart manipulator used for space docking,” the optimization method for the Stewart platform, used for a space docking mechanism, with special requirement of the workspace including orientation and position is proposed, and the optimal solution is given for the special optimization mission. Section “Simulation analysis of the optimal result” presents the simulation to verify the validity of the optimal result. Conclusions are presented in section “Conclusion.”

The evaluation indexes based on the Jacobian matrix

The Jacobian matrix for Stewart platform

The Jacobian matrix¹⁰ of the manipulator is the linear transformation relating the joints velocity of the manipulator to its end-effector velocity, which is found as follows

\overset{\cdot}{q} = J \overset{\cdot}{r}

(1)

where $\overset{\cdot}{q}$ represents the prismatic actuator velocity vector, $\overset{\cdot}{q} = [\begin{matrix} {\overset{\cdot}{l}}_{1} & {\overset{\cdot}{l}}_{2} & \dots & {\overset{\cdot}{l}}_{6} \end{matrix}]^{T}$ ; ${\overset{\cdot}{l}}_{i} (i = 1, 2, \dots, 6)$ is the velocity of each prismatic actuator; $\overset{\cdot}{r} = [v^{T} ω^{T}]^{T}$ is the velocity vector of the end-effector platform; v and $ω$ are the linear and angular velocities of the platform with respect to the desired frame of reference, respectively; and J is the Jacobian matrix of the manipulator.

With the concept of virtual work,¹¹ the relationship between the actuator force F vector and the generalized force W vector applied on the platform can be expressed as

W = [f^{T} m^{T}]^{T} = J^{T} F

(2)

where f and m are the effective external force and torque with respect to the desired frame of reference, respectively; $F = [\begin{matrix} F_{1} & F_{2} & \dots & F_{6} \end{matrix}]^{T}$ , $F_{i} (i = 1, 2, \dots, 6)$ , represents the force applied on each prismatic actuator.

Derivation of the evaluation index based on the Jacobian matrix

The singular value index

The singular value index is proposed to analyze the drive capability of the manipulator. Assuming there is no singular point in the workspace, the Jacobian matrix J is invertible. If the generalized velocity of the platform, which is defined as the norm of $\overset{\cdot}{r}$ , is no more than unity, then the velocity vector of the platform $\overset{\cdot}{r}$ satisfies the following condition

‖ \overset{\cdot}{r} ‖ = ‖ J^{- 1} \overset{\cdot}{q} ‖ \leq 1

(3)

which leads to

{\overset{\cdot}{r}}^{T} \overset{\cdot}{r} = {\overset{\cdot}{q}}^{T} J^{- T} J^{- 1} \overset{\cdot}{q} \leq 1

(4)

If the Euclidean 2-norm is used, then equation (3) represents a unit hypersphere in the mobile platform velocity space $R^{6}$ . The hypersphere is mapped through the matrix $J^{- T} J^{- 1}$ into a hyper ellipse, whose major half axial length is the singular value $σ_{i}$ of the Jacobian matrix J , usually called velocity ellipse. The velocity ellipse is in the prismatic actuator velocity space $R^{6}$ .

To better understand the physical significance of the relationship between the velocity ellipse and singular value, a brief discussion of the singular values of the Jacobian matrix follows. For an arbitrarily invertible matrix $J^{- 1}$ , $J^{- T} J^{- 1}$ is a symmetric matrix. Through the eigenvalue decomposition (EVD) of a symmetric matrix,¹² we obtain

J^{- T} J^{- 1} = U^{T} Λ U

(5)

where U is an orthogonal matrix, $Λ = diag (1 / λ_{1}, 1 / λ_{2}, \dots, 1 / λ_{6})$ is a diagonal matrix whose diagonal element is the reciprocal of the eigenvalue of matrix $J J^{T}$ . Then, equation (5) was substituted in equation (4), which leads to

{\overset{\cdot}{q}}^{T} U^{T} Λ U \overset{\cdot}{q} = (U \overset{\cdot}{q})^{T} Λ (U \overset{\cdot}{q}) \leq 1

(6)

Let $\overset{\cdot}{Q} = U \overset{\cdot}{q} = [\begin{matrix} {\overset{\cdot}{Q}}_{1} & {\overset{\cdot}{Q}}_{2} & \dots & {\overset{\cdot}{Q}}_{6} \end{matrix}]^{T}$ and then we can obtain

\frac{{\overset{\cdot}{Q}}_{1}^{2}}{λ_{1}} + \frac{{\overset{\cdot}{Q}}_{2}^{2}}{λ_{2}} + \dots + \frac{{\overset{\cdot}{Q}}_{6}^{2}}{λ_{6}} \leq 1

(7)

Hence, $\overset{\cdot}{Q}$ is a hyper ellipse whose major half axial length is $\sqrt{λ_{i}} (i = 1, 2, \dots, 6)$ . Since $\overset{\cdot}{Q}$ is the orthogonal transformation (which does not change the norm of a vector) of $\overset{\cdot}{q}$ , then $\overset{\cdot}{q}$ is a hyper ellipse whose major half axial length is $\sqrt{λ_{i}}$ . From the definition of singular value, we can get that the major half axial length of the hyper ellipse is the singular value $σ_{i}$ of the Jacobian matrix J , where $σ_{i}$ is the square root of $λ_{i}$ as $σ_{i} = \sqrt{λ_{i}}$ .

A classical geometrical interpretation of this relationship is presented for the two-dimensional (2D) case as shown in Figure 1.

Figure 1.

The geometrical interpretation of the mapping relation for two-dimensional case.

The largest value of the length of half axis velocity ellipse is equal to the value of the maximum velocity of these prismatic actuators when the generalized velocity of the platform is unity. And through the above analysis, it is obvious that the maximum singular value of the Jacobian matrix is equal to the length of the longest half axis of velocity ellipse. Therefore, the maximum singular value $σ_{max}$ of Jacobian matrix can be used to measure the maximum velocity of the prismatic actuators when the generalized velocity of the platform is unity, so the $σ_{max}$ index can be used to measure the drive capability of the manipulator.

When the velocity of the mobile platform is given, the less the maximum singular value $σ_{max}$ of Jacobian matrix is, the lower the needed velocity of the prismatic actuators will be. Therefore, in the design process, the maximum singular value $σ_{max}$ of Jacobian matrix should be as little as possible.

Manipulability index

The concept of the manipulability index proposed by Yoshikawa^4,5 is also derived from the velocity ellipse. It is usually claimed that the shape and size of the velocity ellipse represent the amplifying ability of the manipulator between the platform velocity space and the joint velocity space. And the lengths of the axis of the ellipse, which are equal to the singular values of the Jacobian matrix, respectively, are considered as a measurement of the velocity amplification coefficient. In order to evaluate this amplifying ability, Yoshikawa introduced the manipulability index and the volume of the velocity ellipse, for robots as follows

w = \sqrt{det (J J^{T})}

(8)

In fact, the manipulability can also be expressed as the product of the singular value of the Jacobian matrix

w = σ_{1} σ_{2} \dots σ_{n}

(9)

Less manipulability index means less volume for the velocity ellipse, which will lead to a poor amplifying ability for manipulator. Hence, the manipulability index can be used to optimize the configuration of a manipulator.

Condition number index

The condition number index was first introduced for use in the field of serial robots and extended to the field of parallel manipulators gradually.¹³ As we all know, the maximum and minimum lengths of the axis of velocity ellipse are equal to the maximum and minimum amplification coefficients between the platform velocity and joint velocity, respectively. The closer these lengths are, the closer the velocity ellipse is to a spatial hypersphere and then the more isotropic the manipulator is. In order to evaluate this closeness, the condition number, the ratio of the maximum and minimum singular value of Jacobian matrix, is introduced for parallel manipulator as

Cond (J) = ‖ J^{- 1} ‖_{2} ‖ J ‖_{2} = \frac{σ_{max}}{σ_{min}}

(10)

where $‖ \cdot ‖_{2}$ represents the 2-norm of a matrix; $σ_{max}$ and $σ_{min}$ are the maximum and minimum of the singular value of the Jacobian matrix J , respectively; so the range of the $Cond (J)$ is $[1, + \infty)$ . The reciprocal of the condition number called local condition index (LCI) is also used to evaluate the closeness of the manipulator to an isotropic configuration as

η = 1 / Cond (J)

(11)

where the scope of LCI is $(0, 1]$ . The closer the LCI is to unit, the closer the manipulator is to an isotropic configuration.

As we all know, the LCI will vary at different positions and orientations, so the index can only be used to evaluate the performance of a manipulator when the position and orientation are determinate. The global condition index (GCI) is proposed to evaluate the global performance in the entire workspace of a parallel manipulator, which is defined in the following form

κ = \int_{W} (LCI) dW / \int_{W} dW

(12)

where W is the workspace of the manipulator.

In fact, GCI is the average value of LCI in the whole workspace of a manipulator. Thus, the GCI can be used to evaluate the global performance of a manipulator. The better performance of isotropy is connected with a larger number of GCI. Besides, the condition number is also commonly used to evaluate the singularity,^14–16 dexterity,^3,6,17 and accuracy⁹ of a manipulator.

Discussion of the evaluation indexes based on the Jacobian matrix

All these above indexes are derived from the concept of velocity ellipse and can be used to evaluate the performance of a parallel manipulator. The singular index mainly pays attention to the largest length of the velocity ellipse half axis, while the manipulability index represents the volume of the velocity ellipse, which is the product of all the length of the velocity ellipse half axis. So, there is no value bound for the two indexes, in other words, given the value of index, we cannot judge if the performance of the manipulator is good or bad. However, LCI and GCI are bounded between zero and one, so the performance of the manipulator can be easily judged from the number of the index. Therefore, the condition number index has been commonly accepted to evaluate the performance of a manipulator.

However, all these indexes share some common drawbacks. The first one is the frame-dependent property. Since the Jacobian matrix is dependent to the frame, when the reference frame changes, the Jacobian matrix will change, leading the change of these indexes.

The second drawback is the unit inhomogeneous problem, that is, when the velocity of the platform is a mix of rotational and translational velocities, the units of the rotational and translational velocity are different, and this will lead to different Jacobian matrices under different systems of units, thus resulting in different values of evaluation index under different systems of units. In order to solve the problem, the characteristic length is introduced to unify the rotational and translational velocities. But it is obvious that the indexes will accordingly vary with the change of the characteristic length. So, it is not intuitive for user to evaluate a manipulator, because they will get different results to the same manipulator with the change of the characteristic length and reference frame.

The transmissibility indexes

The transmissibility indexes describe the transmission ability from the joint force to the platform movement. The physical significance of the transmissibility is very intuitive. The discussion about the transmissibility will begin from the planar linkage.

Transmission angle and power coefficient for planar linkage

The concept of transmission angle is easy to be understood. Take the planar four-bar mechanism, shown in Figure 2, for example. If AB is the input link, the force exerted on the output link CD is transmitted through coupler link BC. Ignoring inertia force of link, the coupler link BC is a two-force bar, that is, the force in the link BC is the pour tension or pressure and is directed along BC as $e_{w}$ in Figure 2. Then, it is obvious that the velocity of the joint point C is perpendicular to the link BC as $e_{t}$ in Figure 2. There $e_{w}$ and $e_{t}$ are the unit vectors along the direction of the joint force and velocity, respectively.^21,22

Figure 2.

A planar four-bar mechanism.

For the given unit joint force $e_{w}$ and velocity $e_{t}$ , the maximum power $‖ e_{w} ‖ ‖ e_{t} ‖$ appears when the direction of $e_{w}$ and $e_{t}$ is identical. The actual power of the unit joint force and velocity is $e_{w} \cdot e_{t}$ . So, the power coefficient $ρ$ is defined as the ratio of the actual power and the maximum power generated by the unit joint force and velocity and is shown as follows

ρ = \frac{e_{w} \cdot e_{t}}{‖ e_{w} ‖ ‖ e_{t} ‖} = e_{w} \cdot e_{t}

(13)

In fact, the power coefficient is the cosine value of the smaller angle between the unit joint force $e_{w}$ and velocity $e_{t}$ . Therefore, the smaller angle between the direction of the velocity vector and the direction of the output force vector of the couple link, as $α$ in Figure 2, is defined as the transmission angle for planar linkage.

When the transmission angle is $0 \circ$ , then the power coefficient is 1, the transmissibility of the mechanism is at the optimal station. However, when the transmission angle is $90 \circ$ , the power coefficient is 0, the transmissibility is at the worst station as shown in Figure 2 in dotted line. In this case, the torque on the output bar decreases to 0 and is not able to drive the movement of the output bar. So, the power coefficient of a linkage should be as large as possible, that is, the transmission angle should not be too great.

The mathematical theory foundation of screw theory

To spread the concept of the transmissibility from planar linkage to spatial mechanisms, the theory foundation of the screw theory is a must. It has been commonly accepted that the screw theory is an efficient mathematical tool for the study of spatial mechanisms since the screw can unify the force and torque or translation and rotation in one expression. And the movement of the spatial mechanism is a combination of rotation and translation, and the generalized force applied on the spatial mechanism is a combination of force and torque. In this article, the screw theory is employed as the mathematical tool to analyze the transmissibility of the spatial parallel mechanisms.

Twist screw and wrench screw

A screw can be used to describe the movement of a rigid body, usually called twist screw, and also can be used to describe the generalized force applied on a rigid body named wrench screw. As shown in Figure 3, the movement of a rigid body can be represented by a twist screw as

$_{T} = w $_{t} = w (ω; v) = w (ω; r_{1} \times ω + h_{1} ω)

(14)

where $$_{T}$ is the twist screw of the rigid body; $$_{t}$ is the unit twist screw; w is the amplitude of $$_{T}$ ; $w ω$ and wv are the rotational velocity and translational velocity with respect to the reference frame, respectively; $ω$ is the unit vector of the rotational velocity; $v = r_{1} \times ω + h_{1} ω$ is the dual of the unit screw; $r_{1}$ is the coordinate of arbitrary point on the axis line of $$_{t}$ ; and $h_{1} = (ω \cdot v / ω \cdot ω) = ω \cdot v$ is the pitch of the unit screw. And the axis line of the unit can be expressed as

r \times ω = v - h_{1} ω

(15)

where r is the coordinate of arbitrary point on the axis line.

Figure 3.

Twist screw and wrench screw of rigid body.

The generalized force exerted on a rigid body can be expressed by a wrench screw as

$_{W} = w $_{w} = F (f; τ) = F (f; r_{2} \times f + h_{2} f)

(16)

where $$_{W}$ is the wrench screw applied on the rigid body; $$_{w}$ is the unit wrench screw; F is the amplitude of $$_{W}$ ; $F f$ and $F τ$ are the force and torque with respect to the reference frame, respectively; f is the unit vector of the force; $τ = r_{2} \times f + h_{2} f$ is the dual of the unit screw; $r_{2}$ is the coordinate of arbitrary point on the axis line of $$_{w}$ ; and $h_{2} = f \cdot τ$ is the pitch of the unit screw. And the axis line of the unit can be expressed as

r \times f = τ - h_{2} f

(17)

where r is the coordinate of arbitrary point on the axis line.

Reciprocal product and reciprocal screw

The concept of reciprocal product was first introduced by Ball.¹⁸ The reciprocal product between the twist screw $$_{t}$ and the wrench screw $$_{w}$ is defined as

$_{t} \circ $_{w} = f \cdot v + ω \cdot τ

(18)

Substituting equations (14) and (16) into equation (18), we can obtain

\begin{matrix} $_{t} \circ $_{w} = (h_{1} + h_{2}) (f \cdot ω) + (r_{2} - r_{1}) (f \times ω) \\ = (h_{1} + h_{2}) \cos θ - d \sin θ \end{matrix}

(19)

The physical significance of the reciprocal product is the instantaneous power generated by the wrench screw $$_{w}$ on the rigid body which is moving under the motion described by the twist screw $$_{t}$ . The reciprocal product between the twist screw and the wrench screw is the instantaneous power generated by the two screws. If the value of the reciprocal product between two screws $$_{t}$ and $$_{w}$ is zero, we can obtain

$_{t} \circ $_{w} = 0

(20)

Then, the instantaneous power generated by the wrench screw on the rigid body which is moving along the twist screw is zero. In this situation, the wrench screw does not do any work for the body no matter how large the force and the torque of the wrench screw are, thus not changing the moving status of the rigid body. Then, the wrench screw is usually called the reciprocal screw of the twist screw, and the twist screw is also the reciprocal screw of the wrench screw.

TI

Transmission wrench screw and output twist screw

For most mechanisms, the prime function is to transmit motion from the input joint to the output joint and the end effector, so the motion of the output joint and the end effector caused by the movement of the input joint represented in screw format is called the output twist screw (OTS). Similarly, the external load exerted on the output joint and the end effector is transmitted to the input joint, so the internal wrench caused by the external load represented in screw format is called the transmission wrench screw (TWS).¹⁹

TI

Similarly, with the concept of the power coefficient for planar linkage, which is the ratio of the actual power and the maximum power generated by the unit joint force and velocity, the definition of TI for spatial mechanisms is the ratio of instantaneous power and the maximum power generated by the unit TWS and OTS on a rigid body. Hence, the TI between TWS and OTS can be represented as

ρ = \frac{| $_{t} \circ $_{w} |}{{| $_{t} \circ $_{w} |}_{max}} = \frac{| (h_{1} + h_{2}) \cos θ - d \sin θ |}{{(\sqrt{{(h_{1} + h_{2})}^{2} + d^{2}})}_{max}}

(21)

When the two screws, TWS and OTS, are given, their pitch, $h_{1}$ and $h_{2}$ , are thought to be constant. Thus, the reciprocal product is only relevant to the relative position d and direction $θ$ , and the maximum value of the reciprocal product becomes

{| $_{t} \circ $_{w} |}_{max} = \sqrt{{(h_{1} + h_{2})}^{2} + {d_{max}}^{2}}

(22)

where $d_{max}$ is the distance from the characteristic point of the TWS to the axis line of the OTS. The characteristic point of the TWS is defined as the point that the axis line of the TWS always passes through.

Discussion of TI

Compared to the evaluation index based on the Jacobian matrix, the TI completely solves the drawbacks such as frame-dependent property and unit inhomogeneous problem. Since the mathematical tool, the reciprocal product of screw, used in the process to calculate the TI is frame-independent,^19,23,24 the proof can easily be found in the screw theory. Besides, the substance of the concept of TI is the power transmission coefficient. No matter for translation or rotation, the power is the product of the linear velocity and force or the product of angular velocity and torque, respectively, so the unit is homogeneous for translation or rotation whatever the units of velocity and force are.

GTI_c

In order to evaluate and optimize the spatial mechanism whose movement is a combination of rotation and translation and workspace is determinate, the orientation average transmission index (OATI) and the GTI_c are proposed here. Compared to the previous global evaluation indexes, which are commonly obtained by calculating the average value of the evaluation index in the translational workspace when keeping the orientation constant, or calculating the average value of the evaluation index in the rotational workspace when keeping the position constant, the GTI_c proposed in this article can evaluate the transmissibility in translational and rotational direction simultaneously. The OATI is defined as the average value of TI in the orientation workspace when keeping the position constant as follows

OATI = \int_{W_{o}} (TI) d W_{o} / \int_{W_{o}} d W_{o}

(23)

where $W_{o}$ is the orientation workspace of a mechanism. And GTI_c is defined as the average value of OATI in the position workspace as follows

GT I_{c} = \int_{W_{p}} (\int_{W_{o}} (TI) d W_{o} / \int_{W_{o}} d W_{o}) d W_{p} / \int_{W_{p}} d W_{p}

(24)

where $W_{p}$ is the position workspace of a spatial mechanism. Thus, the GTI_c can be used to describe the transmissibility of a spatial mechanism in the global workspace including orientation workspace and position workspace.

Optimization of the Stewart manipulator used for space docking

Based on the above analysis, this article uses GTI_c for spatial mechanism to carry out the optimization of the Stewart manipulator used for space docking for its frame-independent and unit homogeneous property. The optimization procedure is shown below.

Step 1: determine the optimization object, constraint condition, and optimization parameters

For the optimization mission of space docking mechanism, the Stewart manipulator whose structural sketch shown in Figure 4 is used here. As is known to us, the Stewart manipulator should have properties that are as homogeneous as possible; therefore, the manipulator should possess high degree of geometric symmetry. To achieve this symmetry, the six actuator attachment points on the base, $B_{1} ~ B_{6}$ , and on the platform, $P_{1} ~ P_{6}$ , should be considered to be distributed along the periphery of circles as illustrated in Figure 5, and the frame is established as shown in Figure 4. The following geometric parameters can describe the configuration of the Stewart manipulator:

$r_{p}$ : the radius of the platform circle that determines the size of the moving platform;

$r_{b}$ : the radius of the base circle that determines the size of the base;

$ϕ_{p}$ : the separation angle between adjacent actuator attachment points on the platform circle;

$ϕ_{b}$ : the separation angle between adjacent actuator attachment points on the base circle;

$l_{i}$ : the length of the $i th$ prismatic actuator.

Figure 4.

Structural sketch of Stewart manipulator.

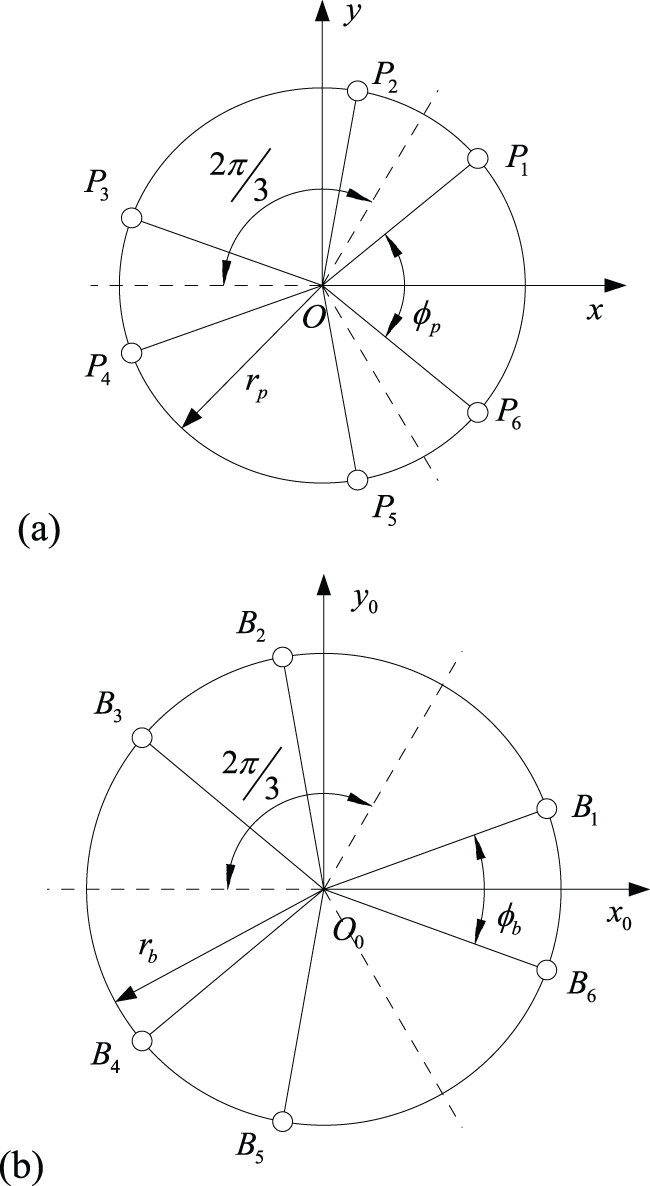

Figure 5.

Actuator attachment points on (a) platform and (b) base.

For the space docking mechanism, the moving platform circle must conform to the international standard, so $r_{p}$ is set as 0.363 m. Because of the structural constraint, the minimum length of the prismatic actuator is 0.15 m. The movement of the platform with respect to the reference frame can be indicated as $pos = [\begin{matrix} x & y & z \end{matrix}]^{T}$ , representing the translation along the coordinate axis, and $ori = [\begin{matrix} α & β & γ \end{matrix}]^{T}$ , representing the rotation angle represented in pitch-yaw-roll format. And the scope of the movement is shown in Table 1.

Table 1.

Movement scope of the platform.

Translation	Along X axis	Along Y axis	Along Z axis
Amplitude (m)	$\geq \pm 0.05$	$\geq \pm 0.05$	$\geq \pm 0.15$
Rotation	Pitch	Yaw	Roll
Amplitude (°)	$\geq \pm 5$	$\geq \pm 5$	$\geq \pm 5$

Therefore, this optimization mission can be concluded as:

Optimization object: the GTI_c in the moving scope of the docking mechanism is as large as possible;

Constraint condition: the minimum value of the length of prismatic actuator is 0.15 m, the radius of the platform circle is 0.363 m, and the workspace of the docking mechanism must conform to Table 1;

Optimization parameters: the optimization parameters of this problem are the radius of the base circle and the separation angle between adjacent actuator attachment points on the platform circle and the base circle, which can be represented as $conf = [\begin{matrix} r_{b} & ϕ_{p} & ϕ_{b} \end{matrix}]^{T}$ .

Step 2: calculate the TWS of the branched chain of the docking mechanism when the configuration, position, and orientation are given

The branched chain of the docking mechanism is universal-prismatic-spherical (UPS) kinematic chain. The TWS of the branched chain can be obtained when the prismatic actuator is locked, thus the branched chain becomes a U-S kinematic chain shown in Figure 6. Then, the TWS of the spherical pair $TW S_{s}$ and universal pair $TW S_{u}$ will be calculated, respectively, from its reciprocity relation to all the flexible twist screws (FTSs) of the joints.²⁰

Figure 6.

The UPS kinematic chain.

The spherical (S) pair can be considered as a combination of three independent rotation (R) pairs with intersecting axes. The FTSs of the S pair can be expressed as $FT S_{s 1}$ , $FT S_{s 2}$ , and $FT S_{s 3}$ , respectively, and the TWS of the S pair be expressed as $TW S_{s}$ shown in Figure 6. By considering the center of the S pair as the reference origin, the duals of the three FTS vanish. Thus, we can obtain

FT S_{si} = (e_{tsi}; 0), (i = 1, 2, 3)

(25)

In this way, we can obtain the following equation for the $TW S_{s} = (e_{ws}; τ_{ws})$

[\begin{matrix} {e_{ts 1}}^{T} & 0^{T} \\ {e_{ts 2}}^{T} & 0^{T} \\ {e_{ts 3}}^{T} & 0^{T} \end{matrix}] [\begin{matrix} τ_{ws} \\ e_{ws} \end{matrix}] = [\begin{matrix} {e_{ts 1}}^{T} \\ {e_{ts 2}}^{T} \\ {e_{ts 3}}^{T} \end{matrix}] τ_{ws} = 0

(26)

Since the three vectors $e_{ts 1}$ , $e_{ts 2}$ , and $e_{ts 3}$ are linearly independent, the only way to keep equation (26) is to let $τ_{ws}$ vanish. This implies that the $TW S_{s}$ degenerates to a pure force whose axis passing through the center of the S pair.

The universal (U) pair can be considered as a combination of two independent R pairs with intersecting axes. The FTSs of the S pair can be expressed as $FT S_{u 1}$ and $FT S_{u 2}$ , respectively, and the TWS of the U pair be expressed as $TW S_{u}$ shown in Figure 6. By considering the center of the U pair as the reference origin, the duals of the two FTS vanish. Thus, one can obtain

FT S_{ui} = (e_{tui}; 0), (i = 1, 2)

(27)

In this way, we can obtain the following equation for the $TW S_{u} = (e_{wu}; τ_{wu})$

[\begin{matrix} {e_{tu 1}}^{T} & 0^{T} \\ {e_{tu 2}}^{T} & 0^{T} \end{matrix}] [\begin{matrix} τ_{wu} \\ e_{wu} \end{matrix}] = [\begin{matrix} {e_{tu 1}}^{T} \\ {e_{tu 2}}^{T} \end{matrix}] τ_{us} = 0

(28)

Since the two vectors $e_{tu 1}$ and $e_{tu 2}$ are linearly independent, the only way to keep equation (28) is to let $τ_{us}$ vanish. This implies that the $TW S_{u}$ degenerates to a pure force whose axis passes through the center of the U pair.

Therefore, the TWS of the $i th$ branched chain of the docking mechanism is a pure force whose axis passes through the center of the S pair and U pair simultaneously. And the TWS can be expressed as

TW S_{i} = (l_{i}; r_{i} \times l_{i}), (i = 1, \dots, 6)

(29)

where $l_{i}$ is the unit vector of the direction of the $i th$ branched chain, and $r_{i}$ is the coordinate of arbitrary point on the $i th$ branched chain with respect to the reference frame.

Step 3: obtain the OTS of the motion of the platform

When the Stewart manipulator is only driven by prismatic actuator $P_{i}$ and other prismatic actuators are locked, the Stewart manipulator becomes a single-DOF manipulator, and the twist screw of the manipulator becomes the $OT S_{i}$ of the motion of the platform, shown in Figure 7, which can be represented as

OT S_{i} = (ω_{i}; v_{i}), (i = 1, \dots, 6)

(30)

where $ω$ is the unit vector of the rotation velocity, and v is the corresponding translational velocity. Besides, the five TWSs represented as $TW S_{j}, (j = 1, \dots, 6, j \neq i)$ , become the constraint wrench of the moving platform, so the $OT S_{i}$ is reciprocal to all the five TWSs; in this way, one can obtain the following equation

OT S_{i} \circ TW S_{j} = 0 (i, j = 1, \dots, 6, j \neq i)

(31)

Figure 7.

The TWS and OTS on the platform.

Equation (31) can represent five equations for $OT S_{i}$ . Here, a kind of method to calculate the reciprocal screw of five given screws is introduced. Assuming $i = 6$ , equation (31) can be expressed as

[\begin{matrix} l_{1}^{T} & {(r_{1} \times l_{1})}^{T} \\ l_{2}^{T} & {(r_{2} \times l_{2})}^{T} \\ l_{3}^{T} & {(r_{3} \times l_{3})}^{T} \\ l_{4}^{T} & {(r_{4} \times l_{4})}^{T} \\ l_{5}^{T} & {(r_{5} \times l_{5})}^{T} \end{matrix}] [\begin{matrix} v_{6} \\ ω_{6} \end{matrix}] = 0

(32)

And then introduce the following equation

[\begin{matrix} - ω_{6} & v_{6} \end{matrix}] [\begin{matrix} v_{6} \\ ω_{6} \end{matrix}] = 0

(33)

Combining equations (32) and (33), one can obtain

AS = 0

(34)

where

A = [\begin{matrix} v_{6} & - ω_{6} \\ {(r_{1} \times l_{1})}^{T} & l_{1}^{T} \\ {(r_{2} \times l_{2})}^{T} & l_{2}^{T} \\ {(r_{3} \times l_{3})}^{T} & l_{3}^{T} \\ {(r_{4} \times l_{4})}^{T} & l_{4}^{T} \\ {(r_{5} \times l_{5})}^{T} & l_{5}^{T} \end{matrix}], S = [\begin{matrix} ω_{6} \\ v_{6} \end{matrix}]

Since S cannot vanish, so the determinant of A must be equal to zero, thus we can get

det (A) = 0

(35)

Assuming $ω_{6} = {[\begin{matrix} L_{6} & M_{6} & N_{6} \end{matrix}]}^{T}$ and $v_{6} = {[\begin{matrix} P_{6} & Q_{6} & R_{6} \end{matrix}]}^{T}$ , expand the determinant $det (A)$ by first row, we can get

\begin{matrix} det (A_{11}) P_{6} - det (A_{12}) Q_{6} + det (A_{13}) R_{6} - det (A_{14}) L_{6} \\ + det (A_{15}) M_{6} - det (A_{16}) N_{6} = 0 \end{matrix}

(36)

where $det (A_{ij})$ is the $a_{ij}$ entry algebraic cofactor of the determinant $det (A)$ . Besides, we can get the following equation from equation (33)

- L_{6} P_{6} - M_{6} Q_{6} - N_{6} R_{6} + P_{6} L_{6} + Q_{6} M_{6} + R_{6} N_{6} = 0

(37)

Comparing the coefficient of equations (36) and (37), we can obtain

\begin{matrix} [\begin{matrix} L_{6} & M_{6} & N_{6} & P_{6} & Q_{6} & R_{6} \end{matrix}] = λ [\begin{matrix} - det (A_{11}) & det (A_{12}) & - det (A_{13}) & det (A_{14}) & - det (A_{15}) & det (A_{16}) \end{matrix}] \end{matrix}

(38)

where $λ$ is a nonzero scalar. Besides, the $OT S_{i}$ is a unit screw, so we have

‖ ω_{6} ‖ = ‖ \begin{matrix} L_{6} & M_{6} & N_{6} \end{matrix} ‖ = 1

(39)

Thus, we can obtain

λ = 1 / ‖ \begin{matrix} - det (A_{11}) & det (A_{12}) & - det (A_{13}) \end{matrix} ‖

(40)

With this, we can get the OTSs of the motion of the platform.

Step 4: figure out the TI when the TWS and OTS have been gotten

From equations (21) and (22), we can get that the key to calculate the TI when the TWS and OTS are given is to get the distance from the characteristic point of the TWS to the axis line of the OTS $d_{max}$ . In this case, the characteristic point of the TWS is the attachment point $P_{i}$ on the moving platform of the branched chain shown in Figure 7. And the distance can be obtained through the following equation

d_{max} = | d \times ω_{i} |

(41)

where d is the vector from the characteristic point $P_{i}$ to arbitrary point on the axis line of the OTS_i, and $ω_{i}$ is the unit vector of along the axis line of the OTS_i, and the equation of the axis line can be written as

r \times ω_{i} = v_{i} - h ω_{i}

(42)

Substituting the result of equation (41) into equation (21), the TI_i of the $i th$ branched chain can be determined, thus the TI of the manipulator, when the configuration, position, and orientation are given, can be obtained as

TI = min {\begin{matrix} T I_{1} & T I_{2} & T I_{3} & T I_{4} & T I_{5} & T I_{6} \end{matrix}}

(43)

Step 5: fathom out the OATI when the configuration and position of the manipulator are constant

Here, assuming the configuration of the manipulator is $conf = [\begin{matrix} r_{b} & ϕ_{p} & ϕ_{b} \end{matrix}]^{T} = [\begin{matrix} 0.307 & 100 \circ & 60 \circ \end{matrix}]^{T}$ and the position parameter is $pos = [\begin{matrix} x & y & z \end{matrix}]^{T} = [\begin{matrix} 0 & 0 & 0.2 \end{matrix}]^{T}$ , we can get the distribution atlas of the TI in the orientation workspace as shown in Figure 8.

Figure 8.

The distribution atlas of the TI while fixing $pos = [\begin{matrix} x & y & z \end{matrix}]^{T} = [\begin{matrix} 0 & 0 & 0.2 \end{matrix}]^{T}$ : (a) in the orientation workspace, (b) in the $β - γ$ plane when $α = 0 \circ$ , (c) in the $α - γ$ plane when $β = 0 \circ$ , and (d) in the $α - β$ plane when $γ = 0 \circ$ .

To get the changing characteristic of the distribution in the orientation workspace, we will change the position of the Stewart manipulator to $pos = [\begin{matrix} x & y & z \end{matrix}]^{T} = [\begin{matrix} 0 & 0.03 & 0.2 \end{matrix}]^{T}$ and then we can get the distribution atlas of the TI in the orientation workspace as shown in Figure 9.

Figure 9.

The distribution atlas of the TI while fixing $pos = [\begin{matrix} x & y & z \end{matrix}]^{T} = [\begin{matrix} 0 & 0.03 & 0.2 \end{matrix}]^{T}$ : (a) in the orientation workspace, (b) in the $β - γ$ plane when $α = 0 \circ$ , (c) in the $α - γ$ plane when $β = 0 \circ$ , and (d) in the $α - β$ plane when $γ = 0 \circ$ .

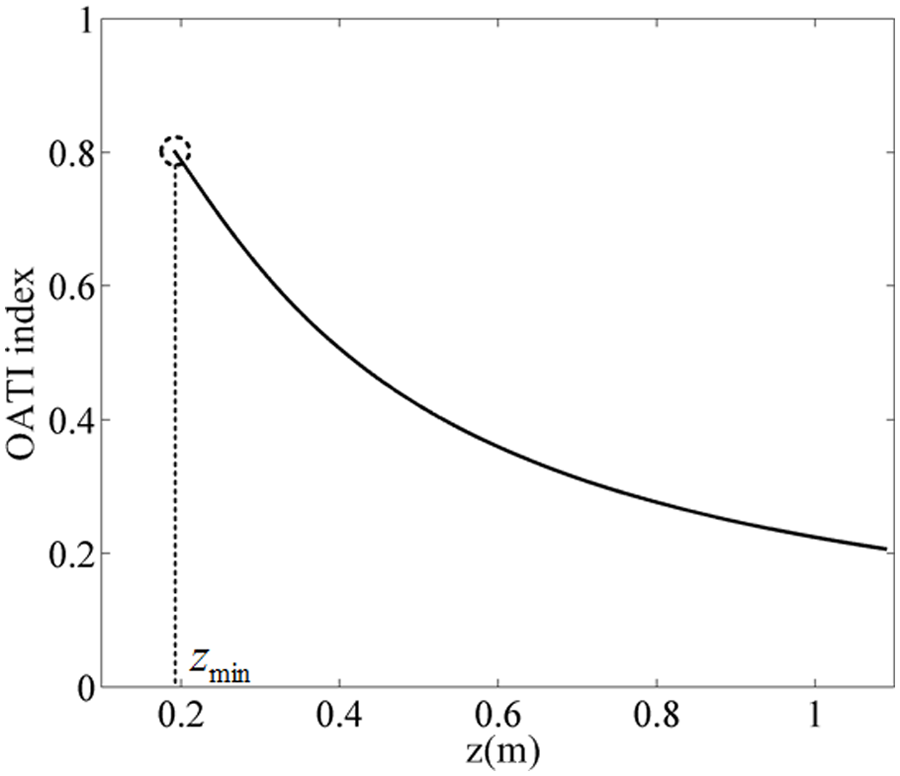

Then, we can get the OATI when the configuration and position of the manipulator are given according to the distribution atlas and equation (23).

Step 6: work out the GTI_c when the configuration of the manipulator is given

To calculate the GTI in the whole workspace of the manipulator, we must determine the appropriate zero position first. Here, we also assume the configuration parameter of the manipulator is $conf = [\begin{matrix} r_{b} & ϕ_{p} & ϕ_{b} \end{matrix}]^{T} = [\begin{matrix} 0.307 & 100 \circ & 60 \circ \end{matrix}]^{T}$ . According to the symmetry of the manipulator, the zero position can be set at $pos = [\begin{matrix} x & y & z \end{matrix}]^{T} = [\begin{matrix} 0 & 0 & z_{0} \end{matrix}]^{T}$ . Taking the constraint condition into consideration that the minimum value of the length of prismatic actuator is 0.15 m and the minimum value of z must conform to the orientation scope shown in Table 1, we can find the changing characteristics of OATI of the manipulator from Figure 10.

Figure 10.

Changing characteristics of OATI with the change of position z.

In Figure 10, $z_{min}$ represents the minimum value of position z which can conform to the constraint condition of the length of prismatic actuator and the orientation scope simultaneously. It is obvious that with the increase in z, the OATI decreases gradually. Since the moving scope of position z is 0.3 m, we can choose the zero position $z_{0} = z_{min} + 0.15$ .

Then, according to the zero position and the moving scope of translation, we can get the distribution atlas of the OATI in the position workspace as shown in Figure 11.

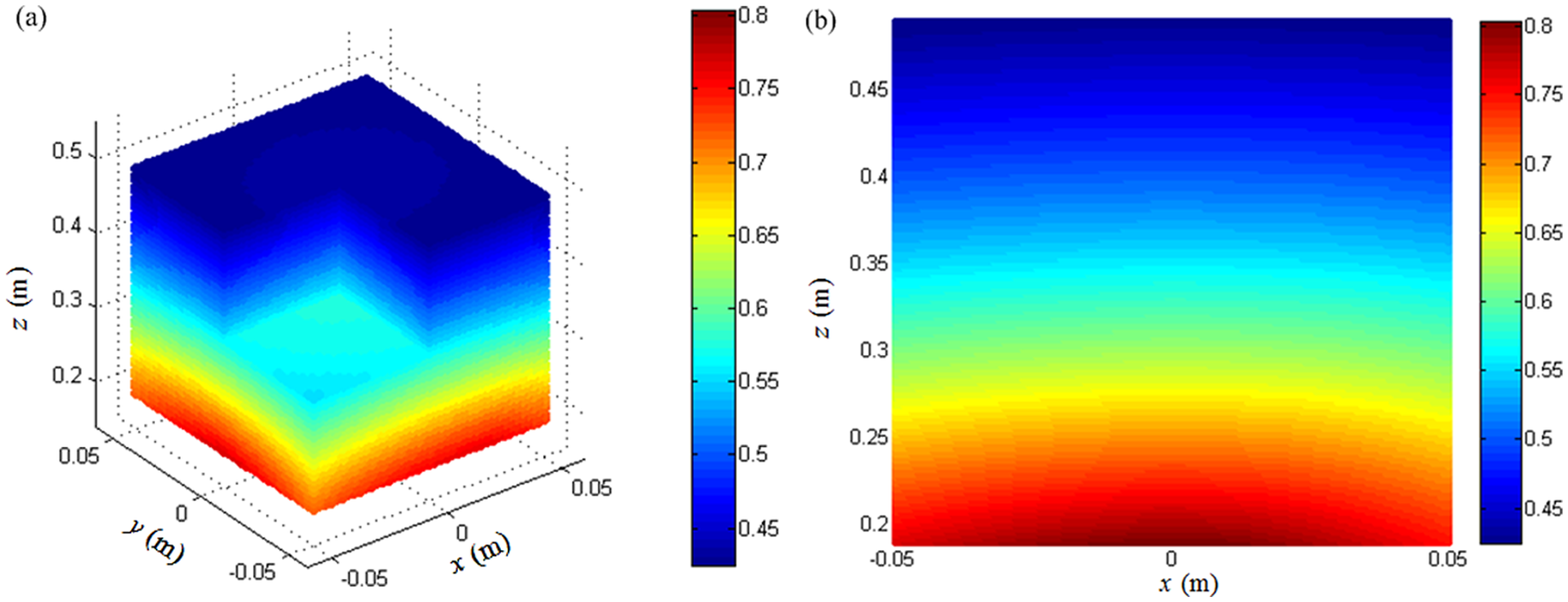

Figure 11.

The distribution atlas of the OATI when $conf = [\begin{matrix} r_{b} & ϕ_{p} & ϕ_{b} \end{matrix}]^{T} = [\begin{matrix} 0.307 & 100 \circ & 60 \circ \end{matrix}]^{T}$ : (a) in the position workspace and (b) in the $x - z$ plane when $y = 0$ .

Therefore, we can get the GTI_c of the manipulator when the configuration of the manipulator is given according to the distribution atlas of the OATI and equation (24).

Step 7: seek the optimal configuration for manipulator based on the GTI_c

The exhaustive method is used in this article to seek the optimal configuration. The scope of $ϕ_{p}$ and $ϕ_{b}$ is between $10 \circ$ and $110 \circ$ , and the scope of $r_{b}$ is between 0.3 and 0.45 m. The changing characteristics of GTI_c with different configurations are shown in Figure 12.

Figure 12.

The changing characteristics of the GTI_c.

Through Figure 12, we can find the optimal configuration for the Stewart platform whose movement scope as in Table 1 is $conf = [\begin{matrix} r_{b} & ϕ_{p} & ϕ_{b} \end{matrix}]^{T} = [\begin{matrix} 0.424 & 78 \circ & 110 \circ \end{matrix}]^{T}$ , and the value of GTI_c can reach 0.921.

Simulation analysis of the optimal result

After finishing the optimization of the Stewart manipulator, a contrast experiment needs to be carried out to verify the validity of the optimal result. For the Stewart manipulator, to compare the transmissibility, we can drive one prismatic actuator using identical force and for the same time, and keep others locked, and then measure the kinetic energy of the mobile platform. In this way, the kinetic energy represents the energy transmitted from actuator to the mobile platform and can be used as the basis of the comparison.

The contrast experiment is carried out between two models, one is the optimal result whose configuration is $conf = [\begin{matrix} r_{b} & ϕ_{p} & ϕ_{b} \end{matrix}]^{T} = [\begin{matrix} 0.424 & 78 \circ & 110 \circ \end{matrix}]^{T}$ and the value of GTI_c is 0.921, and another is the comparative item whose configuration is $conf = [\begin{matrix} r_{b} & ϕ_{p} & ϕ_{b} \end{matrix}]^{T} = [\begin{matrix} 0.307 & 104 \circ & 60 \circ \end{matrix}]^{T}$ and the value of GTI_c is 0.576. And then establish the simplified models under the two configurations, import the simplified models to Adams and then add constraints and joint driving force as in Figures 13 and 14.

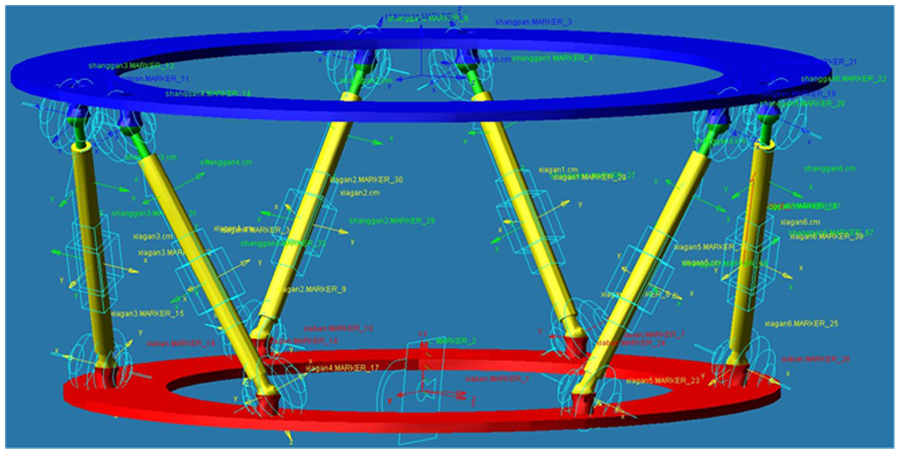

Figure 13.

The simplified model in Adams before optimization.

Figure 14.

The simplified model in Adams after optimization.

Keep five prismatic actuators fixed and add 5-N driving force on the other actuator for 3 s. Measure the change of the kinetic energy of the mobile platform, as shown in Figure 15. It is obvious that the kinetic energy increase speed of the optimal result is greater than that of the other configuration. Thus, the manipulator after optimization has a better transmissibility.

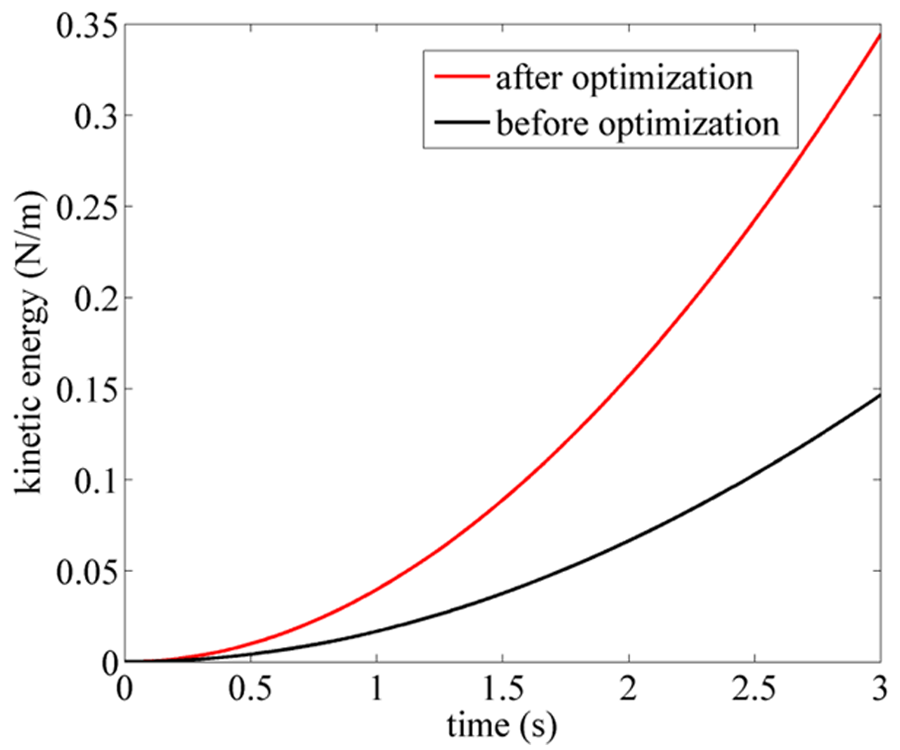

Figure 15.

The change of kinetic energy.

Conclusion

GTI_c is proposed and the dimension synthesis method for Stewart manipulator used for space docking is introduced in this article. This article carries on a detailed research about the evaluation indexes for parallel manipulator and analyzes the merits and the demerits of these indexes. And then the GTI_c is proposed based on the TI which has the advantages of frame-independent and unit homogeneous property. Finally, the exhaustive method, which considers all the possibilities, is used to find the optimal configuration of the docking mechanism which has the largest value of GTI_c. And the simulation is carried out to verify the validity of the optimal result. The GTI_c and the optimization method introduced in this article can also be applied to other mechanisms.

Footnotes

Handling Editor: Yangmin Li

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work was supported by the General Program (Grant No. 51675117), the Major Research Plan (Grant No. 91648201) and the Foundation for Innovative Research Groups (Grant No. 51521003) of the National Natural Science Foundation of China, and China Postdoctoral Science Foundation (Grant No. 2014M561338).

References

Stewart

A platform with six degrees of freedom. P I Mech Eng 1965; 180: 371–386.

Chen

Liu

Xie

et al . A comparison study on motion/force transmissibility of two typical 3-DOF parallel manipulators: the sprint Z3 and A3 tool heads. Int J Adv Robot Syst 2014; 11–19.

Stoughton

Arai

A modified Stewart platform manipulator with improved dexterity. IEEE T Robotic Autom 1993; 9: 166–173.

Yoshikawa

Manipulability of robotic mechanisms. Int J Robot Res 1985; 4: 3–9.

Yoshikawa

. Analysis and control of robot manipulators with redundancy. In: Proceedings of the first international symposium robotics research, Bretton Woods, NH, 25 August–2 September 1984, pp.735–747. Cambridge, MA: MIT Press.

Pittens

Podhorodeski

RP.

A family of Stewart platforms with optimal dexterity. J Robotic Syst 1993; 10: 463–479.

Gosselin

Angeles

A global performance index for the kinematic optimization of robotic manipulators. J Mech Design 1991; 113: 220–226.

Olds

KC.

Global indices for kinematic and force transmission performance in parallel robots. IEEE T Robot 2015; 31: 494–500.

Merlet

JP.

Jacobian, manipulability, condition number, and accuracy of parallel robots. J Mech Design 2006; 128: 199–206.

10.

Siciliano

Sciavicco

Villani

et al . Robotics: modelling, planning and control. Berlin, Heidelberg: Springer Science+Business Media, 2010.

11.

Hunt

KH.

Kinematic geometry of mechanisms. Oxford: Oxford University Press, 1978.

12.

Horn

Johnson

CR.

Matrix analysis. Cambridge: Cambridge University Press, 2012.

13.

Salisbury

Craig

JJ.

Articulated hands force control and kinematic issues. Int J Robot Res 1982; 1: 4–17.

14.

Downing

Samuel

Hunt

KH.

Identification of the special configurations of the octahedral manipulator using the pure condition. Int J Robot Res 2002; 21: 147–159.

15.

Funabashi

Takeda

. Determination of singular points and their vicinity in parallel manipulators based on the transmission index. In: Proceedings of the 9th world congress on the theory of machines and mechanisms, Milan, 29 August–2 September 1995, pp.1977–1981. Milan: Edizioni Unicopli.

16.

Voglewede

Ebert-Uphoff

. Measuring “closeness” to singularities for parallel manipulators. In: Proceedings of the IEEE international conference on robotics and automation (ICRA’04), New Orleans, LA, 26 April–1 May 2004, pp.4539–4544. New York: IEEE.

17.

Rao

ABK

Rao

PVM

Saha

. Workspace and dexterity analyses of hexaslide machine tools. In: Proceedings of the IEEE international conference on robotics and automation (ICRA’03), Taipei, Taiwan, 14–19 September 2003, pp.4104–4109. New York: IEEE.

18.

Ball

RS.

A treatise on the theory of screws. Cambridge: Cambridge University Press, 1998.

19.

Sutherland

Roth

A transmission index for spatial mechanisms. J Eng Ind 1973; 95: 589–597.

20.

Chen

Angeles

Generalized transmission index and transmission quality for spatial linkages. Mech Mach Theory 2007; 42: 1225–1237.

21.

Wang

Liu

Optimal design of a new spatial 3-DOF parallel robot with respect to a frame-free index. Sci China Ser E 2009; 52: 986–999.

22.

Hartenberg

Denavit

Kinematic synthesis of linkages. New York: McGraw-Hill, 1964.

23.

Liu

Wang

et al . Optimal design of spherical 5R parallel manipulators considering the motion/force transmissibility. J Mech Design 2010; 132: 031002.

24.

Wang

Liu

XJ.

Performance evaluation of parallel manipulators: motion/force transmissibility and its index. Mech Mach Theory 2010; 45: 1462–1476.

Optimal design of a Stewart platform using the global transmission index under determinate constraint of workspace

Abstract

Keywords

Introduction

The evaluation indexes based on the Jacobian matrix

The Jacobian matrix for Stewart platform

Derivation of the evaluation index based on the Jacobian matrix

The singular value index

Manipulability index

Condition number index

Discussion of the evaluation indexes based on the Jacobian matrix

The transmissibility indexes

Transmission angle and power coefficient for planar linkage

The mathematical theory foundation of screw theory

Twist screw and wrench screw

Reciprocal product and reciprocal screw

TI

Transmission wrench screw and output twist screw

TI

Discussion of TI

GTIc

Optimization of the Stewart manipulator used for space docking

Step 1: determine the optimization object, constraint condition, and optimization parameters

Step 2: calculate the TWS of the branched chain of the docking mechanism when the configuration, position, and orientation are given

Step 3: obtain the OTS of the motion of the platform

Step 4: figure out the TI when the TWS and OTS have been gotten

Step 5: fathom out the OATI when the configuration and position of the manipulator are constant

Step 6: work out the GTIc when the configuration of the manipulator is given

Step 7: seek the optimal configuration for manipulator based on the GTIc

Simulation analysis of the optimal result

Conclusion

Footnotes

Declaration of conflicting interests

Funding

References

GTI_c

Step 6: work out the GTI_c when the configuration of the manipulator is given

Step 7: seek the optimal configuration for manipulator based on the GTI_c
