Abstract

A discrete reconfigurable back-stepping controller is proposed to resolve the attitude command tracking problem of hypersonic flight vehicle in reentry mode. The hypersonic flight vehicle dynamic equations are transformed into discrete form based on Euler numerical integration method. Discrete control command is designed via discrete back-stepping. Control allocation strategy is introduced to deal with the resource distributing problem of reaction control system and aero-surfaces. In computer simulation environment, the vehicle tracks command signals precisely and quickly.

Keywords

Control theory adaptive control system and control theory aerodynamics system modeling

Introduction

Hypersonic flight vehicle (HFV), as an efficient and low-cost tool to access space, is drawing more and more attention (Figure 1). Flight envelope of HFV covers wide range of height and velocity. Conditions of hypersonic flight are difficult to measure or estimate.^1–3 HFV is susceptive to modeling uncertainties and measuring inaccuracies. HFV dynamics is unstable, and it is a non-minimum phase.^4–6 As a result, robust nonlinear control has become one of the significant strategies for HFV control system.^1,7–12 A robust neural adaptive controller based on inverse dynamics is presented by Xu et al.⁸ Simulation studies of a generic hypersonic aircraft shows good performance.^4,13 Validity of sliding mode control design is demonstrated in the works by Zhao et al.,⁷ Shtessel et al.,¹¹ and Yang et al.¹⁴ A sliding mode observer is added to the robust optimal control loop to attenuate the external disturbances.¹⁵ Progress in artificial neural network reveals bright future in nonlinear control problems, especially in the presence of severe model uncertainties.^16–20 Using a nonlinear disturbance observer and radial basis function neural network, a dynamic surface back-stepping control method is proposed to deal with uncertain system and input saturation.¹⁹

Figure 1.

HFVs (X-33, X-34, and X-37).

Historical efforts^1,9,12,21 also reveal back-stepping design has been an effective and promising tool for control problems. The advantage of back-stepping control design is its flexibility. Based on Lyapunov stability theory, the closed-loop control system stability is easily guaranteed. In some conditions, block back-stepping control law may offer significant advantages over the simple nonlinear dynamic inversion control law.²² However, it requires a strict-feedback form of dynamic equations. A two-loop controller based on back-stepping is designed for HFV to attenuate uncertainties and disturbances during reentry process.¹ In the work by Zou et al.,¹² a strict-feedback form control-oriented reusable launch vehicle (RLV) model is first proposed, and then, a novel robust adaptive back-stepping controller is developed to deal with input restraint, modeling uncertainty, and aero disturbance. By introducing a novel tracking function and a constant positive gain, the nonlinear back-stepping attitude controller in the work by Ali et al.²¹ showed improved performance in decreasing the maximum control moment and the transient time. To simplify the design procedure of back-stepping controller, minimal-learning-parameter strategy is successfully introduced into a high-gain observer.²³ Fan system air speed control experiments showed the good performance of two back-stepping sliding mode control laws, one of which introduced an integrator to ensure precise responses and the other of which incorporated an estimator to estimate modeling uncertainty.²⁴

As digital computers are more and more popular with modern vehicles, control laws designed in discrete-time domain should be given more attention.⁴ Neural networks are usually used to enhance control algorithms’ robustness to uncertainties and modeling errors.²⁵ Based on a generic hypersonic vehicle, Xu and colleagues^4,26,27 have investigated the discrete back-stepping controller of the vehicle’s longitudinal dynamics. Single hidden layer feed-forward network and extreme learning machine are introduced into neural control design. The number of online adaptive parameters is reduced.⁴ Neural network approximation and nominal feedback are used to design the virtual control.²⁶ Inspired by features of the social organizations,²⁸ new learning scheme is incorporated into the discrete neural back-stepping controller design.

Reconfigurable flight control is concerned with adapting control gains or switching control laws to adapt to failures and damages. Reconfigurable control systems significantly enhance the flight mission reliability. The robust reconfiguration technique adapts controller parameters to tolerate failures. However, control system based on control allocation only changes the allocation strategy. Control allocation reduces the difficulty of controller design and guarantees the closed-loop stability after reconfiguration.²⁹ In the work by Shtessel et al.,¹¹ control allocation based on quadratic programming method of aero-surfaces is demonstrated. In the work by Doman and Ngo,³⁰ a linear programming control allocation operates in two modes: nominal minimum deflection mode and faulty null-space injection mode. When an actuator fault is detected, control allocation is switched to faulty null-space injection mode. Further research is conducted to compensate for effectors’ dynamics in the work by Oppenheimer and Doman.³¹ Unlike continuous aero-surface effector, the reaction control jet is discrete. A mixed-integer linear programming (MILP)-based reaction control system (RCS) control allocator is compared with the traditional pulse-width modulation (PWM) approach.^32,33 The MILP control allocator significantly decreases the number of RCS switch transitions. A L₂ optimal control allocation of aero-surfaces and RCS jets is designed for missile autopilot.³⁴ The missile achieves good tracking performance in simulation environment.

In this article, a discrete reconfigurable controller is presented. Based on Euler numerical integration method, the attitude dynamics of HFV is transformed to discrete model. Considering model uncertainties and external disturbance torque, we design a discrete back-stepping controller. In order to weaken the influence of actuator failure, control allocation strategy is incorporated into the control design.

The rest of the article is organized as follows. First, the HFV discrete model to be used is presented; then, the discrete back-stepping control algorithm is discussed, followed by the control allocation strategy design. In the end, the applicability of the proposed method is demonstrated by its utilization to command tracking for HFV.

HFV modeling

Attitude dynamics

The nominal rotational dynamics of HFV is described by six equations as follows¹¹

\begin{matrix} \overset{\cdot}{γ} = R ω \\ J \overset{\cdot}{ω} = - Ω J ω + τ \end{matrix}

(1)

where $ω = [p, q, r]^{T}$ is the body angular rate vector, $J \in R^{3 \times 3}$ is the moment of inertia tensor of the HFV, $τ \in R^{3}$ is the control moment vector, and $Ω$ is a matrix given by

Ω = [\begin{matrix} 0 & - ω_{3} & ω_{2} \\ ω_{3} & 0 & - ω_{1} \\ - ω_{2} & ω_{1} & 0 \end{matrix}]

(2)

In reentry mode, $γ = [ϕ, β, α]^{T}$ (bank angle, sideslip angle, and angle of attack, respectively), and $R$ is defined as

R = [\begin{matrix} \cos (α) & 0 & \sin (α) \\ \sin (α) & 0 & - \cos (α) \\ 0 & 1 & 0 \end{matrix}]

(3)

Considering additive parametric uncertainty, inertia uncertainty $Δ J$ , and external disturbance torque $Δ τ$ , kinetic equation can be rewritten as

(J + Δ J) \overset{\cdot}{ω} = - Ω (J + Δ J) ω + τ + Δ τ

Equation (1) has a new form

\begin{matrix} \overset{\cdot}{γ} & = R ω \\ J \overset{\cdot}{ω} & = - Ω J ω + P + τ \end{matrix}

(4)

where $P = - Δ J \overset{\cdot}{ω} - Ω Δ J ω + Δ τ$ represents the effect of inertia uncertainty and external perturbation.

Control goal

In spite of any initial condition $γ_{0}$ , the goal is to design a discrete autopilot to control the HFV attitude angular $γ$ to track the desired mission angular profiles $γ_{d}$ in the presence of modeling uncertainties and external aerodynamic perturbations.

Discrete back-stepping controller design

Discrete-time model

Define $x_{1} = γ$ and $x_{2} = ω$ . The nominal equation (1) is adapted to the strict-feedback form

\begin{matrix} {\overset{\cdot}{x}}_{1} = f_{1} + g_{1} \cdot x_{2} \\ {\overset{\cdot}{x}}_{2} = f_{2} + g_{2} \cdot u \end{matrix}

(5)

where $f_{1} = 0$ , $g_{1} = R$ , $f_{2} = - J^{- 1} Ω J ω$ , and $g_{2} = J^{- 1}$ .

Using Euler numerical integration method with sample time $T_{s}$ , equation (5) is transformed into discrete-time equations as

x_{1} (k + 1) = x_{1} (k) + T_{s} \cdot [f_{1} (k) + g_{1} (k) \cdot x_{2} (k)]

(6)

x_{2} (k + 1) = x_{2} (k) + T_{s} \cdot [f_{2} (k) + g_{2} (k) \cdot u (k)]

(7)

Discrete controller design

The errors are defined as

z_{1} (k) = x_{1} (k) - x_{1 d} (k)

(8)

z_{2} (k) = x_{2} (k) - x_{2 d} (k)

(9)

where $x_{1 d} (k) = γ_{d} (k)$ . $x_{2 d} (k)$ is the virtual control input.⁴

Step 1: From equations (6) and (8)

\begin{array}{l} z_{1} (k + 1) = x_{1} (k) + T_{s} \cdot \\ [f_{1} (k) + g_{1} (k) \cdot x_{2} (k)] - x_{1 d} (k + 1) \end{array}

(10)

Treat $x_{2} (k)$ in equation (10) as the virtual control variable and set its desired value as

\begin{array}{l} x_{2 d} (k) = {[T_{s} \cdot g_{1} (k)]}^{- 1} \\ [- x_{1} (k) - T_{s} \cdot f_{1} (k) + x_{1 d} (k + 1) + c_{1} \cdot z_{1} (k)] \end{array}

(11)

where diagonal matrix $c_{1} \in R^{3 \times 3}$ , whose element $c_{1 ii} \in (0, 1)$ , and $x_{1 d} (k + 1) = γ_{d} (k + 1)$ .

From equations (9)–(11), we have the following equation

z_{1} (k + 1) = c_{1} \cdot z_{1} (k) + T_{s} \cdot g_{1} (k) \cdot z_{2} (k)

(12)

Step 2: Combining equations (7) and (9), we know

z_{2} (k + 1) = x_{2} (k) + T_{s} \cdot [f_{2} (k) + g_{2} (k) \cdot u (k)] - x_{2 d} (k + 1)

(13)

The control command $u (k)$ can be chosen as

\begin{array}{l} u (k) = {[T_{s} \cdot g_{2} (k)]}^{- 1} \cdot \\ [- x_{2} (k) - T_{s} \cdot f_{2} (k) + x_{2 d} (k + 1) + c_{2} \cdot z_{2} (k)] \end{array}

(14)

where diagonal matrix $c_{2} \in R^{3 \times 3}$ , whose element $c_{2 ii} \in (0, 1)$ . Thus, we have

z_{2} (k + 1) = c_{2} z_{2} (k)

(15)

Note that $x_{2 d} (k + 1)$ is the future virtual control signal value. The future value cannot be obtained. Here, we substitute $x_{2 d} (k)$ for $x_{2 d} (k + 1)$ technically.

Stability analysis

First, according to Lyapunov stability analysis of discrete-time systems, we choose a candidate discrete Lyapunov function $L_{2} (k)$ as

L_{2} (k) = \frac{1}{2} \cdot z_{2} (k)^{T} \cdot z_{2} (k)

(16)

Then, the forward difference $Δ L_{2} (k)$ is defined as

\begin{matrix} Δ L_{2} (k) & = L_{2} (k + 1) - L_{2} (k) \\ = \frac{1}{2} \cdot z_{2} (k + 1)^{T} \cdot z_{2} (k + 1) - \frac{1}{2} \cdot z_{2} (k)^{T} \cdot z_{2} (k) \end{matrix}

(17)

Substituting equation (15) into equation (17), we get

\begin{matrix} Δ L_{2} (k) & = \frac{1}{2} \cdot z_{2} (k)^{T} \cdot c_{2}^{T} \cdot c_{2} \cdot z_{2} (k) - \frac{1}{2} \cdot z_{2} (k)^{T} \cdot z_{2} (k) \\ = \frac{1}{2} \cdot z_{2} (k)^{T} \cdot [c_{2}^{T} \cdot c_{2} - I_{3 \times 3}] \cdot z_{2} (k) \end{matrix}

(18)

Because each element of diagonal matrix $c_{2}$ satisfies $c_{2 ii} \in (0, 1)$ , matrix $[c_{2}^{T} \cdot c_{2} - I_{3 \times 3}]$ is negative definite. So, we know $L_{2} (k) > 0$ , $Δ L_{2} (k) < 0$ , if $z_{2} (k) \neq 0$ . According to discrete-time Lyapunov stability theorems, the $z_{2} (k)$ subsystem is globally asymptotically stable.

Second, we will demonstrate the stability of the whole system (z₁ and z₂). Choose the discrete Lyapunov function $L (k)$ as

L (k) = ‖ z_{1} (k) ‖_{2} + ‖ z_{2} (k) ‖_{2}

(19)

where $| | \cdot | |_{2}$ represents 2-norm. $Δ L (k)$ comes out to be

\begin{matrix} Δ L (k) & = L (k + 1) - L (k) \\ = ‖ c_{1} \cdot z_{1} (k) + T_{s} \cdot g_{1} (k) \cdot z_{2} (k) ‖_{2} \\ + ‖ c_{2} \cdot z_{2} (k) ‖_{2} - ‖ z_{1} (k) ‖_{2} - ‖ z_{2} (k) ‖_{2} \end{matrix}

(20)

According to matrix analysis theory,³⁵ we can easily get the inequality below

\begin{array}{l} Δ L (k) \leq ({‖ c_{1} ‖}_{2} - 1) \cdot {‖ z_{1} (k) ‖}_{2} \\ + (T_{s} \cdot {‖ g_{1} (k) ‖}_{2} + {‖ c_{2} ‖}_{2} - 1) \cdot {‖ z_{2} (k) ‖}_{2} \end{array}

(21)

From $g_{1} = R$ , we know $| | g_{1} (k) | |_{2}$ is bounded. Assume $| | g_{1} (k) | |_{2} \leq Ψ$ , where $Ψ$ is a constant positive value. The inequality (21) becomes

\begin{array}{l} Δ L (k) \leq ({‖ c_{1} ‖}_{2} - 1) \cdot {‖ z_{1} (k) ‖}_{2} \\ + (T_{s} \cdot Ψ + {‖ c_{2} ‖}_{2} - 1) \cdot {‖ z_{2} (k) ‖}_{2} \end{array}

(22)

Selecting the values of $c_{1}$ , $c_{2}$ , $T_{s}$ , and $Ψ$ carefully, we will get the inequality $Δ L (k) \leq 0$ . Therefore, the stability of the whole system (z₁ and z₂) is guaranteed. Note that element of matrices $c_{1}$ and $c_{2}$ still satisfies $c_{ii} \in (0, 1)$ .

Control allocation

During reentry phase, HFV will proceed in three different stages according to different air density, dynamic pressure, Mach number, and altitude. In the first stage, because of the low air density, control torque provided by aero-surfaces is little. Therefore, RCS thrusters are the only effectors to adjusting attitude of HFV. Control torque vector $τ = τ_{R}$ , $τ_{R} = Hb$ , is RCS torque. Where $H \in R^{3 \times n}$ is a torque allocation matrix of RCS thrusters. $b$ is a binary state vector including (0, 1), where element 0 represents the off state of a thruster and element 1 represents the on state. In the second stage, as the air density and dynamic pressure increase, aero-surfaces start to operate, together with RCS. $τ = τ_{R} + τ_{A}$ , $τ_{A} = D δ$ , is the torque produced by aero-surfaces deflection. $δ \in R^{n}$ is a vector of n aero-surfaces deflection angles. $D \in R^{3 \times n}$ is a connection matrix calculated in real time based on aerodynamic coefficient data. In the last stage, efficiency of RCS lessens. Aero-surfaces take over control. Hence, $τ = τ_{A}$ .

Referred to Figure 2, the difference between different stages is shown as follows:

First stage, $b \neq 0$ , $δ = 0$ , $τ = τ_{R}$ ;

Second stage, $b \neq 0$ , $δ \neq 0$ , $τ = τ_{R} + τ_{A}$ ;

Third stage, $b = 0$ , $δ \neq 0$ , $τ = τ_{A}$ .

Figure 2.

Block diagram of attitude tracker using discrete controller.

In stage 2, a “daisy chain” strategy-mixed RCS jets with aero-surfaces are studied. In order to save RCS fuels, RCS thruster control logic $b$ is chosen as follows: (1) aero-surfaces have a higher operation priority; (2) when aero-surfaces are unable to offer the command control torque, relevant RCS thrusters are operated to supply the residual.

MILP of RCS

Here, we use MILP method to allocate RCS thrusters.³² Define a slack vector variable $b_{s}$

b_{s} = | τ - Hb |

(23)

The formulation of the pulsed RCS actuators control allocation problem is presented as follows

J (b) = min_{b_{s}, b} {{kb}_{s} + lb} = min_{b_{s}, b} [\begin{matrix} k & l \end{matrix}] [\begin{matrix} b_{s} \\ b \end{matrix}]

(24)

Subject to

{\begin{matrix} b_{s} + [τ \pm] Hb = [τ \pm] τ \\ [τ \pm] Hb \leq [τ \pm] τ \\ - [τ \pm] Hb \leq 0 \\ b_{s} \geq 0 \\ b_{j} \in {0, 1}, j = 1, \dots, n \end{matrix}

where

[τ \pm] = [\begin{matrix} sign (τ_{1}) \\ sign (τ_{2}) \\ sign (τ_{3}) \end{matrix}]

where $k$ and $l$ are design parameters.

Quadratic programming of aero-surfaces

The relationship between aerodynamic control torque $τ_{A}$ and aero-surfaces deflection angle vector $δ$ is $τ_{A} = D \cdot δ$ . Propose the following optimization problem¹¹

min_{δ \in Π} f (δ) = δ^{T} Q δ, Π : {δ | D δ - τ_{A} = 0}

(25)

The weighted pseudo-inverse solution that minimizes equation (25) is given by

δ = Q^{- 1} D^{T} {[{DQ}^{- 1} D^{T}]}^{- 1} τ_{A}

(26)

Simulation

In this section, the method proposed in sections “Discrete back-stepping controller design” and “Control allocation” is verified. The initial conditions are chosen as $ω_{0} = [0, 0, 0]^{T} rad / s$ and $γ_{0} = [0, 0, 0]^{T} rad$ . The step command at 10 s is $ω_{c} = [0, 0, 0]^{T} rad / s$ and $γ_{c} = [- 0.1, 0.05, 0.2]^{T} rad$ .

The inertia tensor is taken as

J = [\begin{matrix} 554486 & 0 & - 23002 \\ 0 & 113649 & 0 \\ - 23002 & 0 & 1376852 \end{matrix}]

Here, we suppose the representative HFV is equipped with eight ideal thrusters (eight flight thrusters and two spares). Based on the works by Lee et al.,⁵ Doman et al.,³² and Muss,³⁶ matrix $H$ is chosen as

H = [\begin{matrix} 0 & - 1511 & 8574 & - 5098 & 0 & 1515 & - 8573 & 5098 \\ - 367 & 0 & - 6982 & 8702 & - 367 & 0 & - 6981 & 8702 \\ 14675 & - 11597 & - 6918 & - 8702 & - 14675 & 11597 & 6981 & 8702 \end{matrix}]

Inertia uncertainty $| Δ J | < 0.02 | J |$ . External disturbance torque $Δ τ$ is defined as

Δ τ = 1000 \times {[\begin{matrix} \sin (t) & \cos (0.7 t) & 0.5 \sin (2 t) \end{matrix}]}^{T}

To get a reasonable tracking performance, the value ranges of parameters $c_{1}$ and $c_{2}$ are recommended through numerous simulation tests. A good range of $c_{1}$ is [0.6, 0.9] and $c_{2}$ is [0.5, 0.8]. In the simulation examples below, c₁ = 0.8 and c₂ = 0.5.

Exo-atmospheric flight

First, we present exo-atmospheric flight simulation results. In stage 1, RCS thrusters are the only actuators, which can provide control torque. Figure 3 shows the attitude command tracking results. One can see that the transient process is less damping. The overshoot is about 50%. This is because the RCS torque is always less than the command. Especially, torque saturation is a dominating feature in transient process, as shown in Figure 4. In transient process, command torque is about 10 times more than RCS torque.

Figure 3.

Attitude command tracking results in exo-atmospheric flight.

Figure 4.

RCS torque versus ideal command in exo-atmospheric flight.

Endo-atmospheric flight

Flight control in stages 2 and 3 incorporates aero-surfaces. Figures 5 –7 show the simulation results of flight in stage 2. One can see from Figure 5 that transient performance is better than results in stage 1. In transient process, aero-surface torque is saturated and daisy-chained with RCS torque. One can also see that RCS torque is always no more than the ideal torque that aero-surfaces are inefficient to support.

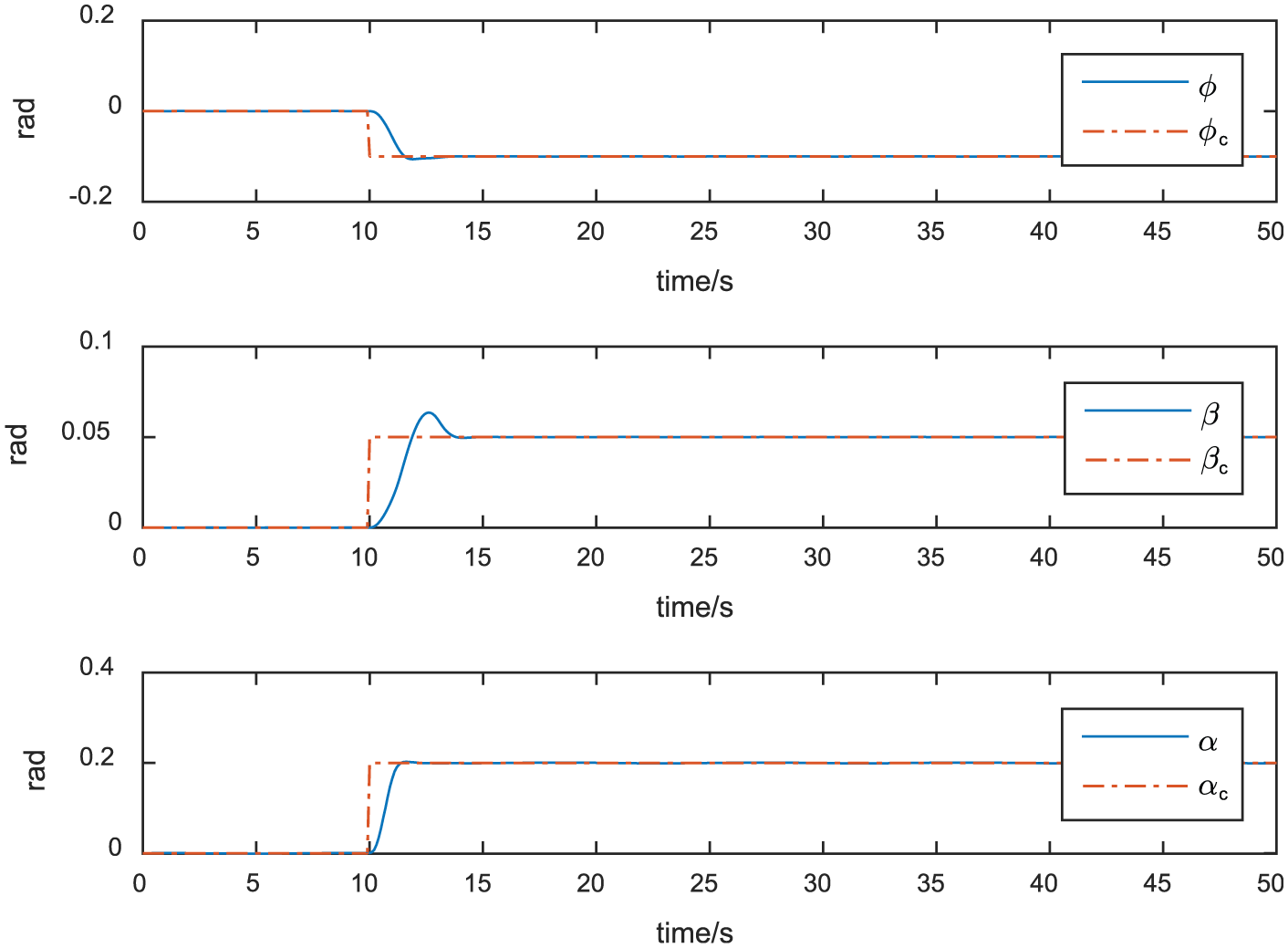

Figure 5.

Attitude tracking result of mixed actuators (RCS and aero-surfaces).

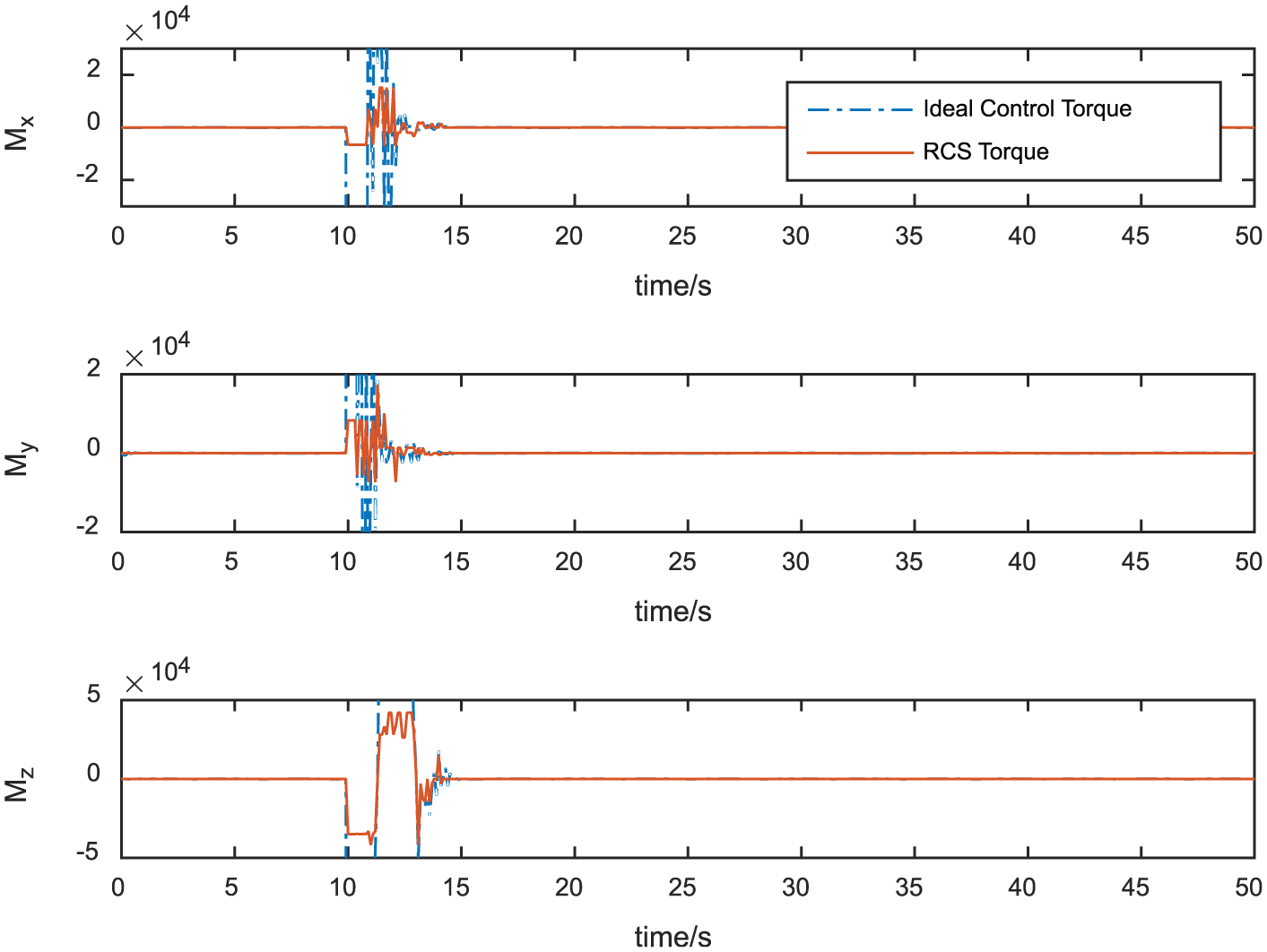

Figure 6.

Daisy-chained RCS torque.

Figure 7.

Inefficiency of aero-surface torque.

Figure 8 shows the results in stage 3. The aero-surfaces are fully efficient. The transient performance is the best.

Figure 8.

Attitude tracking result with full-efficient aero-surfaces.

Conclusion

This article has revealed the good performance of back-stepping technique to resolve the HFV’s attitude control problem in discrete-time domain. The discrete controller, in the presence of uncertainties and perturbations, accurately tracks the step attitude command. Stability analysis shows that the closed-loop asymptotic stability of HFV can be guaranteed by choosing reasonable parameters. Control allocation is introduced to resolve the effectors torque distribution problem of over-actuated system. The whole control strategy is validated in computer simulation.
