Abstract

Bridges are one of the most important infrastructure systems that provide public and economic bases for humankind. It is also widely known that bridges are exposed to a variety of flood-related risk factors such as bridge scour, structural deterioration, and debris accumulation, which can cause structural damage and even failure of bridges through a variety of failure modes. However, flood fragility has not received as much attention as seismic fragility despite the significant amount of damage and costs resulting from flood hazards. There have been few research efforts to estimate the flood fragility of bridges considering various flood-related factors and the corresponding failure modes. Therefore, this study proposes a new approach for bridge flood fragility analysis. To obtain accurate flood fragility estimates, reliability analysis is performed in conjunction with finite element analysis, which can sophisticatedly simulate the structural response of a bridge under a flood by accounting for flood-related risk factors. The proposed approach is applied to a numerical example of an actual bridge in Korea. Flood fragility curves accounting for multiple failure modes, including lack of pier ductility or pile ductility, pier rebar rupture, pile rupture, and deck loss, are derived and presented in this study.

Keywords

Bridge flood fragility reliability analysis finite element analysis multiple failure modes

Introduction

With the recent unprecedented growth of the global economy and rapid technological advances in civil engineering, a number of bridges have been constructed to build transportation systems that provide public and economic bases for humankind. However, it is also widely known that bridges are exposed to risks from natural hazards such as floods, earthquakes, and typhoons. These diverse hazards often cause structural damage to bridges, even resulting in their collapse. Because a bridge failure can cause huge casualties, economic losses, and social problems, an accurate assessment of the structural vulnerability of bridges to natural hazards is critical to effective design and maintenance of bridges.

Defined as the relationship between hazard intensity and the probability that a bridge is damaged more than to a certain level, bridge fragility curves have been widely used to express the structural vulnerability of a bridge subjects to a variety of natural hazards. However, previous studies have mainly focused on the fragility curve derivation for bridges under earthquakes. For example, Basoz et al.¹ and Shinozuka et al.² developed empirical fragility curves using a data set of bridge damages resulting from the 1994 Northridge earthquake and the 1995 Kobe earthquake, respectively. Alternatively, Karim and Yamazaki³ generated analytical fragility curves of the highway bridge piers utilizing a numerical simulation based on the 1995 Kobe earthquake data. Choi et al.⁴ modeled a type of bridge built in the central and southeastern United States to produce analytical fragility curves for identifying vulnerabilities under an earthquake. In addition, Yang et al.⁵ presented the analytical fragility curves of six bridge types such as multi-span simply supported concrete and steel bridges, multi-span continuous concrete and steel bridges, and single-span concrete and steel bridges. Seo et al.⁶ proposed a method for fragility curve derivation considering unknown truck characteristics, to quantify the structural integrity of in-service highway bridges. In these studies, a wide variety of seismic fragility curves of bridges were obtained either empirically or analytically, and the results were used to assess the structural integrity of bridges under earthquakes.

In comparison with seismic fragility analysis, fragility analysis related to floods has received less attention. Decò and Frangopol⁷ generated the fragility curves of highway bridges under multiple hazards including earthquake, scour, traffic load, and environmental attack. With a similar approach, Dong et al.⁸ derived seismic fragility curves of bridges considering the effects of scour and corrosion. In addition, Dawson et al.⁹ assessed the flood risk vulnerability of a fluvial dike system, and Witzany and Cejka¹⁰ performed a numerical analysis of flood fragility of a stone vault bridge structure. However, these studies mainly focused on the derivation of seismic fragility curves, while flood-related risk factors such as scour and corrosion were considered as an alternative cause of bridge failure in addition to earthquakes. As such, there have been few studies on the flood fragility estimation of bridges.

However, various flood-related factors such as water stream pressure, debris accumulation, corrosion, and scour are reported as the most common causes of bridge failure.^11,12 In reality, a flood often generates a rapid water flow with accumulated debris, which yields a combined loading impact on bridges via the service loads and may bring about structural damage or collapse. Furthermore, if the structural integrity of a bridge is significantly degraded by the corrosion of steel reinforcements in addition to the scour-induced removal of soil resistances, the failure risk of bridges under flood events increases and their failure modes can become more complex.

Recently, Lee et al.¹³ proposed to perform reliability analysis in conjunction with finite element analysis (i.e. finite element reliability analysis) to derive flood fragility curves of bridges. However, this research focused on the suggestion of a computational platform for performing finite element reliability analysis, and only some of the flood-related factors and bridge failure modes were addressed. In the research, the water pressure increase due to debris accumulation and structural deterioration caused by corrosion were considered in the finite element model of a target bridge, and only the lack of ductility of the bridge pier was introduced as a failure mode. While this work presented a fundamental methodology for flood fragility analysis, flood-related factors and bridge failure modes were found to be limited. In reality, scour is also an important risk factor during a flood, and bridges may collapse with more diverse failure modes than only lack of ductility. To obtain more realistic and accurate fragility curves of bridges against floods, these flood-related factors and failure modes should be carefully addressed in the fragility analysis.

In this study, a new approach for flood fragility analysis is developed to evaluate the structural vulnerability of bridges under floods. Bridge scour around piers is simulated in a finite element model using the flood-related factors discussed in Lee et al.¹³ In addition, various bridge failure modes, including the lack of pier ductility, the lack of pile ductility, pier rebar rupture, pile rupture, and deck loss, are considered during the flood fragility analysis. The proposed approach is then applied to a numerical example of an actual bridge in Korea.

Proposed approach for flood fragility analysis

To conduct a proper analysis for flood fragility curve derivation, the proposed approach suggests simulating flood-related factors, such as bridge scour, in a finite element model. Additionally, it is necessary to consider the critical failure modes of bridges subject to floods. Furthermore, to perform finite element reliability analysis and calculate the probability of bridge failure efficiently, a Python-based interface for FERUM and ABAQUS (PIFA)¹³ is introduced as a computational platform.

Flood-related factors in consideration

To evaluate bridge fragility under floods accurately, as previously mentioned, essential flood-related factors that can cause damages to bridges need to be included in the flood fragility analysis. This study considers the following critical flood-related factors to conduct a more realistic flood fragility analysis: (1) bridge scour, (2) structural deterioration of steel reinforcements and piles due to corrosion, and (3) the increased water pressure due to debris accumulation around bride piers. These three factors account for more than 50% of bridge failures according to a survey study on causes of bridge failure in the United States between 1987 and 2011.¹²

Bridge scour

Bridge scour is known as one of the most common causes of bridge failure during a flood. When a flood occurs, the water velocity rapidly increases from upstream to downstream, bringing the downflow water from the water surface to the bottom around the bridge piers, as shown in Figure 1. The downflow water primarily produces a scour hole by removing the sediments from the vicinity of the foundations. The horseshoe vortex and wake vortex are subsequently generated from the dissimilar flow depths, which create a scour hole to a certain depth. Such bridge scour can occur at all of the bridge foundations, and the depth depends on various factors such as water velocity, pier dimensions, and sediment types. Because bridge scour directly affects the stability of a whole bridge system, reasonable consideration of the scour in a finite element model is important for realistic flood fragility analysis.

Figure 1.

Occurrence of the scour hole during a flood.

Bridge scour is taken into account in the finite element modeling by employing adjustable scour depths for each bridge pier. To simplify the finite element model, the soil can be modeled with horizontal rigid elements that are attached to bridge piers or piles to provide fixed boundary conditions. When a part of the soil is removed due to bridge scour, the stiffness values of the corresponding rigid elements are set to a negligibly small value to eliminate stiffness provided by the elements to the structure.

The scour depth for a single pier can be determined by an empirical equation¹⁴ defined as

S = 1.564 \times χ^{0.405} \times {(\frac{v}{\sqrt{g \times d}})}^{0.413}

(1)

where S is the scour depth, χ is the relative approach flow depth, v is the water velocity, g is the gravitational acceleration, and d is the depth of the approach flow. The calculated scour depth is used to select the rigid elements corresponding to the removed soil; thus, stiffness needs to be set to a small value to simulate the scour. However, the stiffness values of the springs below the calculated scour depth remain unchanged from the originally fixed condition.

As a bridge typically has multiple piles, the scour depths around each pile vary depending on their geometric shapes, locations, and arrangement. Various studies have been conducted to estimate the scour hole depth experimentally^15–17 with different sets of conditions including pile arrangement, water velocity, spacing, and sediment size. It was observed in these studies that the ratio of scour hole depths at the first three piles with respect to the first pile was nearly 1:0.94:0.90, despite different values of sediment particle size, water velocity, and pile spacing. Because studies on the scour depths at piles extending beyond the third are few, the scour depth calculated by equation (1) and a scour depth ratio of 1:0.94:0.90 are used in the finite element model of this study.

Structural deterioration of steel reinforcements and piles due to corrosion

Another primary flood-related factor of bridge failure is structural deterioration resulting from the corrosion of steel reinforcements and piles. When water infiltrates into the concrete and subsequently contacts with a steel reinforcement, the stiffness of a bridge can be significantly diminished as the effective area reduces. Thoft-Christensen et al.¹⁸ considered the reduction of the cross-sectional area of steel reinforcements based on the following time-dependent model

A (t) = {\begin{matrix} D_{i}^{2} \frac{π}{4} & for t \leq T_{i} \\ {[D (t)]}^{2} \frac{π}{4} & for T_{i} < t < T_{i} + \frac{D_{i}}{r_{corr}} \\ 0 & for t \geq T_{i} + \frac{D_{i}}{r_{corr}} \end{matrix}

(2)

where A(t) is the effective cross-sectional area of steel reinforcement, D_i is the diameter of steel reinforcements, T_i is the corrosion onset time, r_corr is the rate of corrosion reflecting both the thickness of the concrete cover and the water–cement ration, and D(t) is the effective diameter of steel reinforcements following a lapse of t years. In addition, the effective diameter D(t) can be calculated using the following equation

D (t) = D_{i} - r_{corr} \times (t - T_{i})

(3)

The corrosion of bridge piles is also considered in this study based on the work of Decker et al.¹⁹ When the bridge piles are exposed to high chloride concentration, the average corrosion rate is 13 µm/year, which has been experimentally proven.¹⁸ This corrosion rate is introduced to describe the corrosion of steel reinforcement and piles during a flood in this study.

Increased water pressure due to debris accumulation

Finally, a high level of water velocity is generally observed during a flood, but debris accumulation that often happens around bridge piers may lead to increase in water velocity level. Regarding the water velocity increase, American Association of State Highway and Transportation Officials (AASHTO)²⁰ and Korean Highway Bridge Design Specification (KHBDS) suggest the following equation for estimating water pressure (P_w) considering the impact of accumulated debris²¹

p_{w} = 5.14 \times 10^{- 4} \times C_{D} \times v^{2}

(4)

where v is the water velocity and C_D is the drag coefficient which can be determined from pier type, as shown in Table 1. It is noteworthy in Table 1 that the drag coefficient gets the maximum value (i.e. 1.4) with lodged debris. The calculated water pressure is then applied to bridge piers as an external load.

Table 1.

Drag coefficient.

Pier type	C_D
Semicircular-nosed pier	0.7
Square-ended pier	1.4
Debris lodged against the pier	1.4
Wedged-nosed pier with nose angle 90° or less	0.8

The collision force from the floating debris can cause bridge failure. However, this loading effect is excluded in this study because it was observed from a preliminary analysis that the collision force due to debris such as wood yields a negligible impact as compared with other flood-related factors such as scour, structural deterioration, and water pressure and debris. Furthermore, AASHTO²⁰ and KHBDS²¹ no longer suggest considering the collision force in their recent guidelines of bridge design.

Bridge failure modes and hazard intensity measure

When a bridge is exposed to a heavy flood, the flood-related factors described in section “Flood-related factors in consideration” can result in failure of the bridge with several different failure modes. As aforementioned, a fragility curve illustrates the relationship between a hazard intensity and the exceedance probability with a failure mode. For example, a peak ground acceleration (PGA) is generally used as the intensity measure for seismic fragility curves. In other words, a fragility curve quantifies the likelihood of experiencing a certain level of structural damage with a given failure mode defined by structural responses such as excessive stress or displacement.²² Similarly, failure modes and an intensity measure need to be defined for the derivation of fragility curves against floods, but it is a challenging task because there are several different failure modes and flood intensity–related factors. In this study, three different types of failure modes are considered as follows: (1) lack of displacement ductility, (2) steel rupture, and (3) deck loss.

Lack of displacement ductility

First, the displacement ductility demand (M_D) is defined according to the ratio of the imposed post-elastic deformation, which is mathematically defined by the following equation²³

M_{D} = \frac{Δ_{D}}{Δ_{Y (i)}}

(5)

where Δ_D is the maximum displacement of a structural member and Δ_Y(i) is the displacement at the yielding point of the member. The displacement ductility is calculated at both bridge piers and piles in this study in order to check the ductile failure of bridges.

Steel rupture

In addition, steel rupture is defined as the case of maximum stress at steel reinforcements or bridge piles reaching ultimate stress, which is defined by the following equation

σ_{\max} > σ_{u}

(6)

where σ_u is the ultimate stress and σ_max is the maximum stress at steel reinforcements or bridge piles.

Deck loss

Deck loss is assumed to occur when the deck displacement is greater than a certain value resulting in the deck dislodging from the bridge bearing. This is expressed in the following equation

Δ_{Pier} - Δ_{Deck} > Δ_{Bearing}

(7)

where Δ_Bearing is the bearing length, and Δ_Pier and Δ_Deck are the maximum displacements of the pier and deck, respectively. When the relative displacement between pier and deck is greater than the length of the bridge bearing, the bridge is evaluated as having a brittle failure.

The water velocity is selected as the intensity measure of the flood fragility curve. In bridge design, one of the critical water loads is stream pressure. AASHTO²⁰ defines this water pressure as the pressure of flowing water acting in the longitudinal direction of bridge substructures, such as piers. Floating debris accumulates around piers and decks, resulting in increased water pressure on the bridge and frequent overflow that may induce secondary flood damage. Regarding the effect of piled debris on the water force, AASHTO²⁰ also suggests a function of mean flow velocity. In that sense, the water velocity is introduced as a reasonable intensity measure to determine bridge failure in this study. Whereas the water level may also be an appropriate intensity measure, it is introduced as a deterministic parameter at its maximum value (i.e. the pier height) because we assume that a bridge is in a heavy flood and the water level reaches the maximum.

Software platform for calculating probability of failures

For increased accuracy in the analysis of bridge flood fragility, the flood-related factors and failure modes described in sections “Flood-related factors in consideration” and “Bridge failure modes and hazard intensity measure” need to be sophisticatedly modeled for structural analysis using methods such as finite element analysis. A fragility curve is generally obtained from structural reliability analysis that requires repeated structural analyses. Consideration of the flood-related factors and failure modes in a finite element model can render each finite element analysis computationally expensive, subsequently increasing the time cost of flood fragility curve derivation.

To overcome this challenge and calculate the probability of bridge failure in an accurate and efficient manner, a PIFA, which was recently developed as a computational platform for finite element reliability analysis in Lee et al.,¹³ is employed in this research. As shown in Figure 2, this computational platform consists of three components: (1) finite element reliability using MATLAB (FERUM) for reliability analysis, (2) ABAQUS for finite element analysis, and (3) a python-based interface for connecting these two software packages. FERUM²⁴ is an open-source software package built in MATLAB, developed by researchers at the University of California, Berkeley to conduct reliability analysis using various methodologies including first-order reliability method (FORM).²⁵ ABAQUS is a widely used commercial software package for finite element analysis.

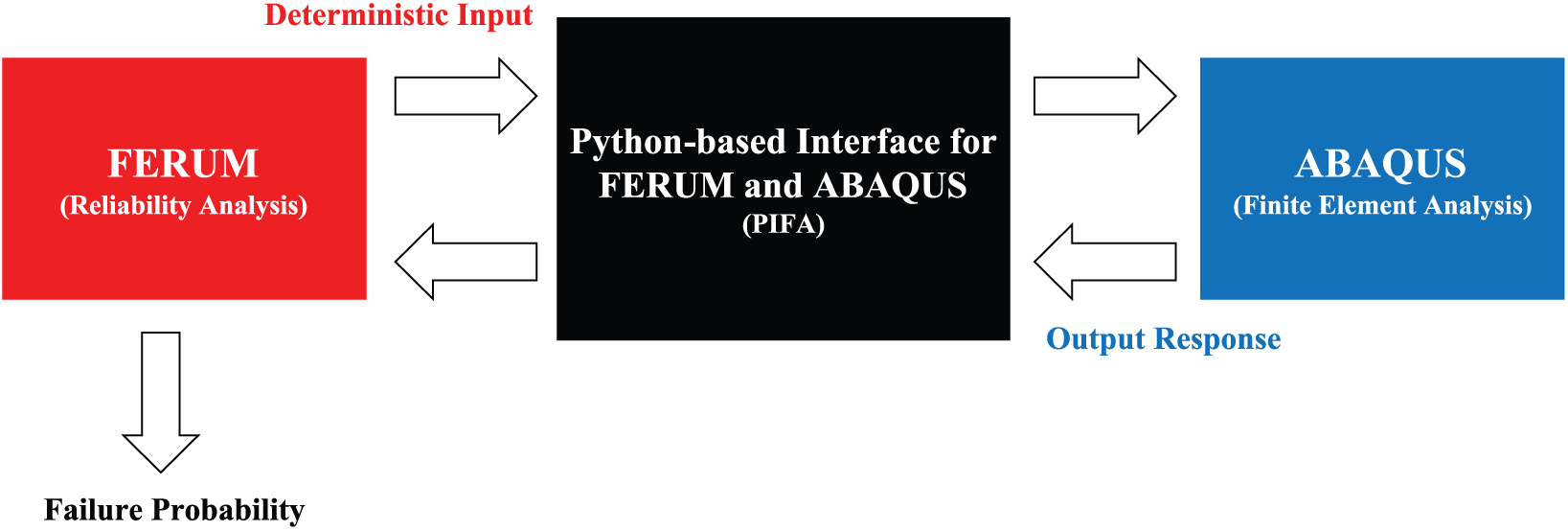

Figure 2.

Schematic flow of the software platform.

In the platform, PIFA was carefully designed to control the overall process of finite element reliability analysis efficiently through interaction with FERUM and ABAQUS. As shown in Figure 2, FERUM repeatedly provides deterministic input values of random variables for PIFA so that it can automatically construct finite element models with varying input values and deliver them to ABAQUS. Then, ABAQUS performs finite element analyses and returns the desired structural output responses (e.g. stress and displacement), which are then sent to FERUM via PIFA. Based on the structural responses, FERUM performs reliability analysis employing FORM, which is a widely used method of reliability analysis. More details on the computational platform and FORM can be found in Lee et al.¹³ and Der Kiureghian,²⁵ respectively.

Example application of the proposed approach

As an application example, the proposed approach of flood fragility analysis is applied to a real bridge in Korea. The name of the bridge used in this example is the Wangsukcheon Bridge that was reported to have collapsed in 2001 due to bridge scour around piers. A simple design drawing of the collapsed bridge was obtained from a regional department, but unfortunately, more detailed information could not be found. In addition, a new bridge was built in the same location following the collapse and is now in service. Thus, a finite element model of the bridge is constructed based on the acquired design drawing of the bridge, but designs of other similar bridges of that time are also considered. The constructed model is subsequently used in flood fragility analysis employing the proposed approach.

Finite element model

To derive flood fragility curves using the proposed methodology, a finite element model of the Wangsukcheon Bridge is built using ABAQUS, as shown in Figure 3. The finite element model consists of reinforced concrete piers and steel piles. According to the design drawing of the target bridge, piers are connected to a deck using isolated bearings, allowing individual consideration of each pier. Therefore, only one pier located at the bridge center (red pier in Figure 3) is considered in the finite element model shown in Figure 4, in order to save on time cost of fragility curve derivation. In the finite element model, the interactions between concrete and steel reinforcements of the pier are represented by embedded elements of ABAQUS. More detailed information on the example bridge is presented in Table 2.

Figure 3.

Finite element model of the Wangsukcheon Bridge.

Figure 4.

Finite element model of the bridge pier.

Table 2.

Properties of the Wangsukcheon Bridge.

Total length (m)	50.4
Height of piers (m)	8.1
Width of piers (m)	5
Length of piles (m)	6

To simulate the removal of soil resistances at the bridge piles due to the occurrence of scour holes, the bridge piles are equally spaced and modeled with horizontal springs, as shown in Figure 4. With a given water velocity, the scour hole depth is calculated using equation (1), and the stiffness values of the springs installed above the depth are changed to zero, which describes the removal of soil resistance down to the scour depth. In addition, the ratio of scour hole depth described in section “Flood-related factors in consideration” is applied to determine the scour depth behind the first pile.

The material nonlinearity of concrete and steel is also considered in the model to simulate the structural response realistically. Among the diverse models to simulate this nonlinear behavior, the strain–stress curves obtained from Le Roux and Wium²⁶ and Shima and Tamai²⁷ are used in this study, considering the concrete and steel used in the target bridge. Selected strain–stress curves are presented in Figure 5.

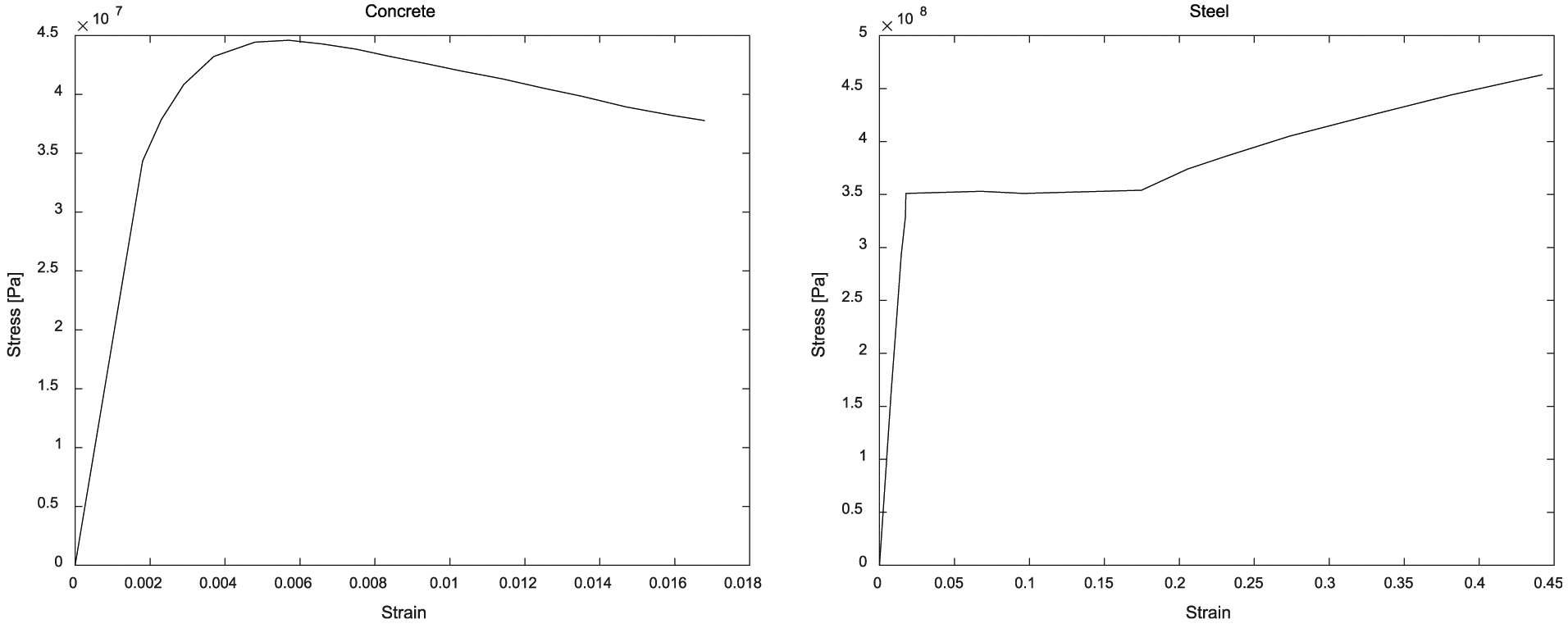

Figure 5.

Strain–stress curves of concrete (left) and steel (right).

Statistical parameters and limit-states

Using appropriate statistical properties of random variables is a key to accurate fragility estimates. In this research, two kinds of uncertainties are considered and assumed as random variables: mass and water pressure intensity; the statistical properties of these random variables are shown in Table 3. As shown in Table 3, a total of four random variables are introduced in this example, and all random variables are assumed to be independent. These statistical properties were carefully introduced based on the works of Lehký et al.,²⁸ Ju et al.,²⁹ and Kolisko et al.³⁰ following an extensive literature review. It is also noteworthy that the water pressure intensity is multiplied by the water pressure as calculated from equation (4) to consider the uncertainty of water velocity.

Table 3.

Statistical properties of random variables.

	Mean	Standard deviation	Coefficient of variation	Distribution type
Concrete mass density	2300 kg/m³	115 kg/m³	0.05	Normal
Steel bar mass density	7861.5 kg/m³	314.5 kg/m³	0.04	Normal
Pile steel mass density	7868.6 kg/m³	314.7 kg/m³	0.04	Normal
Water pressure intensity	1	0.1	0.10	Normal

In a fragility analysis, limit-states are defined to deal with different failure modes of bridges. As mentioned in section “Bridge failure modes and hazard intensity measure,” the following kinds of failure modes are considered in this example: (1) lack of displacement ductility, (2) steel rupture, and (3) deck loss. Since the first two criteria can be applied to both piers and piles, a total of five limit-states are assumed in this example: the lack of pier ductility, lack of pile ductility, pier rebar rupture, pile rupture, and deck loss.

The limit-states of displacement ductility are defined as the three damage states (i.e. minor damage, major damage, and collapse), as shown in Table 4, which is introduced from the works of Song et al.³¹ and Chiou et al.³² The three damage states are defined by ductility demand (M_D), which can be calculated by equation (5), and the structural meanings of the first two damage states are the first and second occurrences of plastic hinge, respectively. Note that when the second plastic hinge occurs, the displacement is rapidly increased due to the external load. In addition, the criteria for steel rupture and deck loss are considered as 0.436 GPa of the ultimate strength and 0.4 m of the bearing length, respectively.

Table 4.

Damage states and corresponding ductility demands.

Damage state	Ductility demand
Minor damage (first plastic hinge occurrence)	1 ≤ M_D ≤ 3.3
Major damage (second plastic hinge occurrence)	3.3 ≤ M_D ≤ 7.0
Collapse	M_D > 7.0

Analysis result: flood fragility curves

Employing the proposed approach, fragility analysis of the example bridge against floods is conducted, and the corresponding analysis results are shown in Figures 6 and 7. Initially, the performance of fragility analysis with all five of the limit-states described in section “Statistical parameters and limit-states” was attempted, but the results showed that three of the failure modes (i.e. lack of pier ductility, pier rebar rupture, and pile rupture) occur when the water velocity exceeds 20 m/s. Considering water velocity during an extreme flood ranges from 3 to 10 m/s,^33,34 risk of these three failure modes is seen to be negligible, thus Figures 6 and 7 show only the fragility curves for the remaining two failure modes (i.e. lack of pile ductility and deck loss).

Figure 6.

Flood fragility curves for various periods of structural deterioration with (a) deck loss, (b) first plastic hinge occurrence, (c) second plastic hinge occurrence, and (d) collapse.

Figure 7.

Flood fragility curves with various damage states succeeding structural deterioration for (a) 0 year, (b) 25 years, (c) 50 years, and (d) 75 years.

The fragility estimates of all limit-states increase with aging of the bridge. To display this more clearly, the fragility curve of each limit-state at different deterioration periods is plotted in Figure 6. From Figure 6, it is observed that structural deterioration of steel reinforcement due to corrosion can give a significant impact on flood fragility estimates because the effective area of steel reinforcement decreases with time.

Flood fragility curves with several deterioration periods are subsequently illustrated in Figure 7. The fragility curves in Figure 7 detail four damage states (i.e. first plastic hinge occurrence, second plastic hinge occurrence, collapse, and deck loss) succeeding 0, 25, 50, and 75 years of structural deterioration, respectively. As presumed, 0-year deterioration represents the intact bridge. As shown in the curves, the exceedance probability generally increases with increasing water velocity because a large water velocity means a deep scour hole and strong water pressure, as expressed in equations (1) and (4), respectively. It is also noteworthy that the order of the occurrence likelihood of structural damages is as follows: first plastic hinge occurrence, deck loss, second plastic hinge occurrence, and collapse.

In addition, the fragility results in Figure 7 show that deck loss and the occurrence of the second plastic hinge take place at nearly the same water velocity, which represents the deck displacement suddenly increasing due to the occurrence of the second plastic hinge at bridge piles. To verify this phenomenon, a deterministic finite element analysis is conducted with various water velocities, employing the mean values of random variables; the analysis results are shown in Figure 8. As shown in Figure 8, when the water velocity exceeds approximately 9 m/s, the relative displacement between pier and deck, and the displacement ductility of piles, reaches their corresponding failures of deck loss and second plastic hinge occurrence at nearly equivalent water velocities.

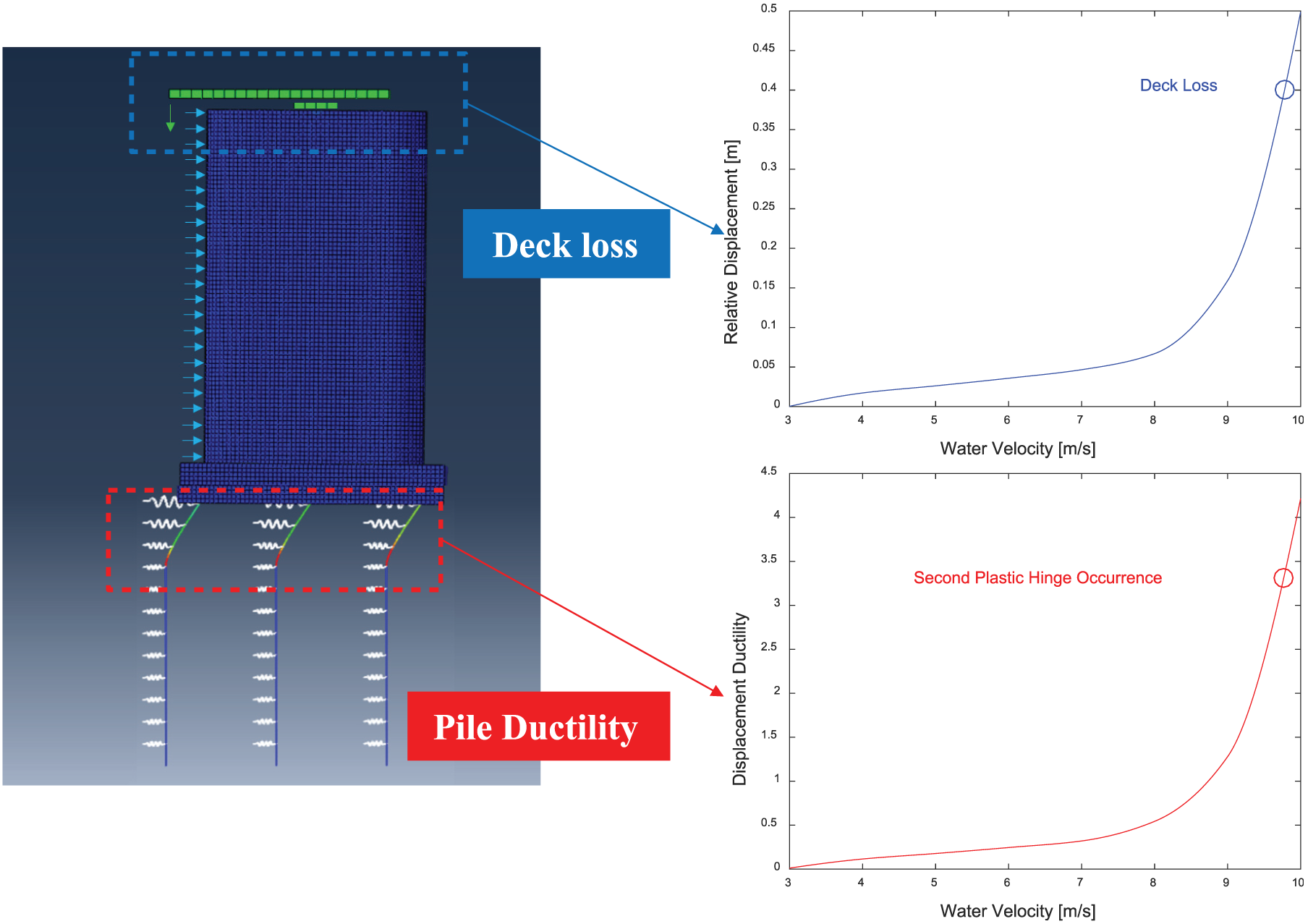

Figure 8.

The analysis results of deck loss and second plastic hinge occurrence.

Conclusion

This study developed a new approach for deriving flood fragility curves of bridges subject to floods with multiple failure modes. For accurate flood fragility estimates, it was suggested to consider bridge scour, structural deterioration due to corrosion, and water velocity increase due to debris accumulation in the construction of a bridge finite element model. However, this can make fragility analysis that is based on finite element reliability analysis computationally expensive, so it was also suggested to use a PIFA as a computational platform for the analysis. The proposed approach was applied to an actual bridge in Korea, and the analysis results revealed that the flood fragilities increased with increasing water velocity. In addition, it was observed that the occurrence likelihood of structural damages was in the following order: first hinge occurrence, deck loss and second plastic hinge occurrence, and collapse. The analysis results also showed that the exceedance probabilities of damage states increased with the increasing period of structural deterioration. These findings confirm the successful application of the proposed approach to the derivation of flood fragility curves of bridges.
