Abstract

This article provides systematic analysis and controller design methods for dynamic tracking performance of servo mechanisms associated with practical systems. Discrete general composite nonlinear feedback, as a fundamental controller, will be proposed to yield a good transient performance. Particularly, in the servo systems, there also exist unmodeled disturbances which may lead to tracking errors. A novel repetitive control scheme based on disturbance observer configuration is incorporated into the controller to counteract this unexpected effect. Furthermore, to deal with any periodic signal of variable frequency, a fractional-order repetitive control scheme based on disturbance observer strategy is proposed. The stability of the overall closed-loop system is guaranteed via frequency domain analysis. Three controllers, that is, the proportional–derivative controller with zero-phase error tracking controller scheme and the conventional disturbance observer, the integral backstepping controller, and the compound discrete general composite nonlinear feedback controller with fractional-order repetitive control scheme based on disturbance observer are compared. To demonstrate the dynamic tracking performance of the proposed control strategy, comparative experiments are conducted.

Keywords

Servomechanisms dynamic tracking performance repetitive control composite nonlinear feedback control fractional order

Introduction

Dynamic tracking has become one of the most significant performances of servo controlling systems. This indispensable servo technique is used in a wide variety of high-performance mechatronic systems, including a typical hard disk drive,¹ a nanopositioning stage,² an XY-table positioning mechanism,³ and a hydraulic servo system.⁴ Over the past decades, the existing researches are focused on the design of feedforward controller to improve the dynamic performance of servo systems.⁵ Instead of altering the stability, a feedforward controller provides the overall system with specific frequency tracking characteristics. In addition, a closed-loop controller is essential to guarantee the stability of the system. As an effective feedforward design approach, zero-phase error tracking controller (ZPETC) counteracts the closed-loop poles and the cancellable zeros of the control plant to turn the gain into the unit circle at low frequencies, and at the same time, eliminates phase error induced by non-cancellable zeros at all frequencies.⁶ To ensure the anticipated performance of ZPETC, it is indispensable to acquire the precise model of the plant system. However, servo mechanisms may have a large extent of nonlinear uncertainties such as nonlinear friction and the large change of payload. Therefore, the tracking performance of ZPETC may be deteriorated by parameter perturbations and external disturbances.

Improving transient performance plays a crucial role in tracking dynamic external signals. Compared to conventional approaches, an intelligent nonlinear control technique, the so-called composite nonlinear feedback (CNF) control, is capable of performing track following with much better result. The CNF control, which is rooted in the article of Lin et al.,⁷ consists of a linear feedback law and a nonlinear feedback law. The linear feedback part is designed to yield a closed-loop system with a small damping ratio for a quick response. The nonlinear feedback law, on the other hand, is supposed to increase the damping ratio of the closed-loop system as the system output approaches the target reference. This transformation of system can reduce the overshoot caused by the linear part. Chen et al.⁸ developed the CNF control technique for more general linear systems with input saturation. In the most previous forms of the CNF control technique, the target reference has always been assumed to be a step signal. In particular, Cheng et al.⁹ adopted a reference generator which produces more general signals to supplement the CNF control technique. Thus, it can yield a good performance for tracking general non-step references. Moreover, in the current digital control systems, a controller designed in continuous-time domain eventually has to be discretized for implementation. It seems more efficient to design controllers directly in the discrete-time domain whenever possible. However, the existing studies hardly focus on tracking more general reference signals via CNF control strategy for a class of discrete-time systems.

Friction, as the main source of torque disturbance, occurs unavoidably in direct-driving servo mechanical systems. Thus, there is a wide recognition that in order to achieve better tracking performance, it is essential to design compensatory components which can inhibit the effect of frictional disturbance. The conventional disturbance observer (DOB) becomes one of most effective ways to restrain the internal and external disturbance,^10,11 which will enhance the rigidity of servo mechanism eventually. However, due to the low-pass Q-Filter, the compensations of DOB usually result in magnitude distortions and phase lags when confronted with periodic inputs. Therefore, with regard to the dynamic tracking, the conventional DOB fails to compensate for specific disturbances.

However, providing that these disturbances, especially friction, have periodic and repetitive characteristics, then the compensation schemes become much easier to design. Actually, all state variables as well as disturbances in direct current (DC) servo mechanisms have the same repetitive period as that of repetitive external command, and then, the stated assumption becomes reasonable. As a consequence, repetitive control (RC) is very effective to attenuate these periodic disturbances. Distinguished by its high performance as well as the simple design and implementation criteria, RC improves the periodic tracking performance^12,13 by implementing $z^{- N}$ (N is the period of the disturbance/reference) into the feedback loop or the feedforward loop. Then, the errors in the previous repetition can be reused to improve the current control. However, because of its strict stability condition and poor response to non-periodic disturbances, conventional RC fails to be applied in practice. Recently, a new structural configuration of disturbance of observer in RC (RDOB), wherein designers have more flexibility in the repetitive loop-shaping design, is developed in Chen and Tomizuka¹⁴ and Li et al.¹⁵ The proposed RDOB is an approach to extract the repetitive errors in feedback control, leading to a great decline in gain amplifications at the non-repetitive frequencies. An additional benefit of the scheme is that just like the design procedure of conventional DOB, the fundamental feedback controller and RDOB can be designed separately without any interference.

Unfortunately, the period of the disturbance or reference ( $N = f_{s} / f_{r}$ ), where $f_{r}$ is the fundamental frequency of the reference signal and $f_{s}$ is the sampling rate, may be fractional in the case of a fixed sampling rate $f_{s}$ . As it is known, only $Z^{- N}$ with an integer N can be implemented in practice. Failing to compensate the exact fractional period signals, the conventional structure of RDOB^14,15 is insufficient to track arbitrary frequency external signal or eliminate any periodic disturbance.^16,17 In other words, with the fixed sampling rate, the former RDOB would lead to significant performance degradation in practice.

In this article, by borrowing ideas from general CNF and RC based on DOB structure and integrating them with some assumptions, a new compound controller is proposed. It can adapt to arbitrary frequency signals for a high-accuracy flight simulator system driven by DC motors. To verify the high performance of the proposed controller, extensive comparative experimental results have been obtained from the motion control of a DC motor. The distinctive characteristics of this work are as follows:

Unlike the general CNF designed in continuous-time domain,⁹ the general CNF based on discrete-time domain which is more practical is proposed to yield good performance in tracking dynamic signal. And the explicit design procedure is given in the following.

The RDOB strategy was first proposed by Chen and Tomizuka.¹⁴ It differs from the control scheme,¹⁸ which just combines the conventional DOB and RC controller separately (both the phase lag problem of DOB and undesired gain amplifications of RC may occur in reality). The novelty of RDOB is the flexible structure of RC presented in DOB configuration. However, in the existing literatures, the order N of RDOB has to be an integer, which limits the implementation of RDOB in practical engineering. In this article, the proposed fractional RDOB can effectively overcome this adverse limitation.

This article is organized as follows. Problem formulation and dynamic models are presented in section “Introduction.” Section “Problem formulation” gives the discrete general composite nonlinear feedback (DGCNF) controller design procedure and the new structure of FRDOB, and the stability analysis is also presented in this section. Experimental setup and comparative results are presented in section “Compound control scheme.” Section “Conclusion” contains the conclusions.

Problem formulation

A flight simulator, as being a kind of servo mechanism with high accuracy in position tracking, has been widely used in modern engineering system. As shown in Figure 1, a complex flight motion simulator is currently composed of an orthogonal outer axis frame, a middle-axis frame which is horizontal to the outer axis, and an inner-axis frame supported by the middle-axis frame. The inner axis is driven by a DC motor that is fixed onto the center of the middle frame. In practice, in order to achieve dynamic tracking performance, both the outer- and middle-axis frames have to be designed largely enough to be consistent with more powerful motors. Whereas, the inner axis frames can not be manufactured large enough for the reason that the middle-axis frames fail to endure overweight load. In consequence, the inner-axis frame, with the less powerful motor but the greater force of friction, has trouble behaving well in frequency tracking. Considerations should be given priority to the inner-axis frame.

Figure 1.

Architecture of a three-axis flight simulator.

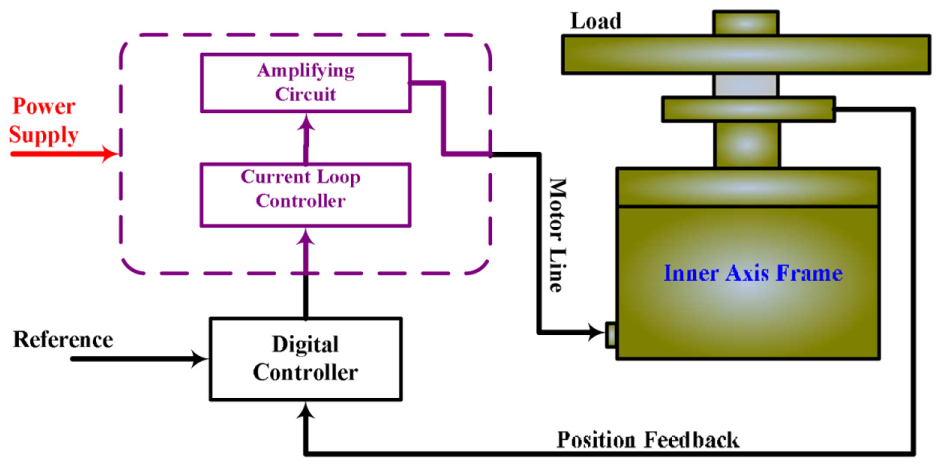

The architecture of the inner-axis frame is described by Figure 2. It is a current-controlled permanent-magnet DC motor with an analog amplified driver.

Figure 2.

Architecture of the inner-axis frame.

The equation of dynamic plant model in the inner-axis frame is described as¹⁹

J \overset{\cdot\cdot}{θ} = - B_{p} \overset{\cdot}{θ} + u + f (θ, \overset{\cdot}{θ}, t)

(1)

where $θ$ and J represent the angular displacement and the inertia load, respectively. $B_{p}$ represents the viscous friction coefficient and f represents other unmodeled disturbances, such as nonlinear friction and external disturbances. u is the control input voltage. Equation (1) can be rewritten into a state-space form as follows

\begin{matrix} {\overset{\cdot}{x}}_{1} = x_{2} \\ {\overset{\cdot}{x}}_{2} = - \frac{B_{p}}{J} x_{2} + \frac{1}{J} u + d (x, t) \end{matrix}

(2)

where $x = (x_{1}, x_{2})^{T}$ represents the state vector of the position and velocity and d represents the lumped disturbance.

At the same time, being ignored of unstructured uncertainties, the nominal model of the plant can be expressed as follows

P (s) = \frac{1}{J s^{2} + B_{p} s}

(3)

where J and B_p could be obtained approximately by open-loop system identification.²⁰ But as for d, the precise modeling of disturbance is challenging and difficult.²¹ To eliminate the effects of disturbance and achieve highly precise motion control, significant efforts have been devoted to compensation strategy.

Given the approximate second-order plant, our aim is to synthesize a control input u to make the state vector x track the dynamic signal as precisely as possible in spite of parameter uncertainties or unstructured nonlinear uncertainties.

Compound control scheme

Fundamental feedback controller design

In order to achieve the fundamental servo performance and robustness, a feedback controller has to be designed. Instead of using conventional proportional–integral–derivative (PID) or Sliding Mode Control scheme, a unique variable structure control strategy DGCNF is adopted to yield a good performance for the second-order servo model mentioned above. By altering the damping ratio of the overall closed-loop system corresponding to the error, the proposed controller can perform well in quick response and succeed to reduce overshoot as well. It is a necessary characteristic for tracking dynamic signal. The proposed DGCNF is consisted of an auxiliary reference generator and a discrete CNF control scheme.

Specifically, a typical discrete second-order servo model is characterized by

\sum_{P} : {\begin{matrix} x (k + 1) = Ax (k) + B σ [u (k)] \\ y (k + 1) = Cx (k) \end{matrix}

(4)

where $x \in R^{2}$ , $y \in R$ , and $u \in R$ are the state, control output, and control input, respectively. A, B, and C are appropriate dimensional constant matrices that can be obtained by discretization of equation (2), and $σ$ represents the actuator saturation defined as

σ [u] = sgn (u) \min {u_{\max}, | u |}

(5)

with $u_{\max}$ being the saturation level of the input ( $u_{\max}$ usually equals 10 V in practical servo controller). In the same way, A, B, and C in the practical servo system can be recognized that

(A, B) is stabilizable.

(A, B, C) is invertible and has no invariant zeros at $z = 1$ .

The reference generator, based on equation (4), is constructed to generate any sinusoidal signal such as $r = a \sin (2 π ft)$ . Consider an auxiliary plant characterized by

\sum_{aux} : {\begin{matrix} x_{e} (k + 1) = A x_{e} (k) + B u_{e} (k), x_{e} (0) = x_{e 0} \\ r (k) = C x_{e} (k) \end{matrix}

(6)

where $x_{e} \in R^{2}$ , $r \in R$ , and $u_{e} \in R$ are the state, control output, and control input, respectively. r is the reference produced to be tracked. A, B, and C are the same as equation (4).

Next, we design a linear control law for the auxiliary system as follows

u_{e} (k) = F_{e} x_{e} (k)

(7)

where $F_{e}$ is the feedback gain matrix that can transform the shape of equation (6).

The auxiliary system (6) and the linear control law (7) are combined to form the final reference generator as follows

\sum_{ref} : {\begin{matrix} x_{e} (k + 1) = (A + B F_{e}) x_{e} (k), x_{e} (0) = x_{e 0} \\ \begin{matrix} u_{e} (k) = F_{e} x_{e} (k) \\ r (k) = C x_{e} (k) \end{matrix} \end{matrix}

(8)

The reference generator (8) can generate an arbitrary type of sine signal $r (k) = a \sin (2 π f_{r} k)$ by setting the initial value $x_{e 0} = [0 2 π f]^{T}$ and choosing appropriate $F_{e}$ . The proof of this is involved with matrix function calculation method, and the similar design procedure can be found.⁹

Then, let $\hat{x} (k) = x (k) - x_{e} (k)$ , equation (9) can be obtained as

\hat{x} (k + 1) = A \hat{x} (k) + B (σ [u (k)] - u_{e} (k))

(9)

This equation will be used in the design of the DGCNF control law. The following design procedure will be carried out in three steps similar to Chen et al.⁸

Step 1: Design a linear feedback law

U_{L} (k) = F \hat{x} (k) + u_{e} (k)

(10)

In this step, F is designed by two main principles. First, the stability of the overall system must be guaranteed, and then, the closed-loop poles should be placed to have a dominating pair with a small damping ratio. It will in turn yield a fast rise time in the closed-loop system response. This procedure corresponds with the conventional proportional–derivative (PD) control design.

Step 2: Design a nonlinear feedback law

Furthermore, as $A + BF$ is asymptotically stable, there exist an positive define matrix $W \in R^{2 \times 2}$ and a symmetric matrix P ( $P > 0$ ) that satisfies the following Lyapunov equation

P = (A + BF)^{T} P (A + BF) + W

(11)

The nonlinear feedback portion of the DGCNF control law $U_{N}$ is given by

U_{N} (k) = ρ B^{T} P (A + BF) \hat{x} (k)

(12)

where $ρ$ is a nonpositive scalar with a limitation $| ρ | \leq 2 (B^{T} PB)^{- 1}$ , and it is used to change the system closed-loop damping ratio as the output approaches the target reference.

Step 3: The linear feedback control law and nonlinear feedback portion derived in the previous steps are now combined to form a DGCNF control law

u (k) = U_{L} (k) + U_{N} (k)

(13)

The DGCNF control law comprising the reference generator (8) and the modified enhanced CNF control law (13) will drive system output y to track arbitrary reference r asymptotically. The proof will be discussed in the end of this section.

Modified repetitive controller design

As mentioned above, the design of DGCNF assumes that there is no disturbance in the model. When the given system does have disturbances, the system output under DGCNF control generally cannot track the sinusoidal reference precisely. In the case of practical servo mechanism, there are always some disturbances, such as friction and bias torques. In this section, a newly developed repetitive strategy RDOB is adopted to compensate or counteract disturbance.

As shown in Figure 3, the ingenious feature of RDOB is that the novel repetitive configuration based on DOB aims at maintaining $e (k)$ small by shaping the transfer function. And the flexible form of $Q (z^{- 1})$ is concentrated on extracting only periodical disturbance component. Compared with conventional DOB structure in Figure 4, Figure 3 has two main distinctions. First, the transfer function from $r (k)$ to $e (k)$ has changed. Second, the filter $Q (z^{- 1})$ plays a role in extracting the repetitive signal instead of being a low-pass filter.

Figure 3.

Block diagram of the RDOB scheme.

Figure 4.

Block diagram of the DOB scheme.

An infinite impulse response (IIR) $Q (z^{- 1})$ filter is applied to satisfy the property

Q (z^{- 1}) = \frac{(1 - α) z^{- (N - m)}}{1 - α z^{- N}}

(14)

where $α \in (0, 1)$ and m represent the relative order of $P (z^{- 1})$ .

To explore the proposed scheme more thoroughly, the block diagram can be transformed into Figure 5.

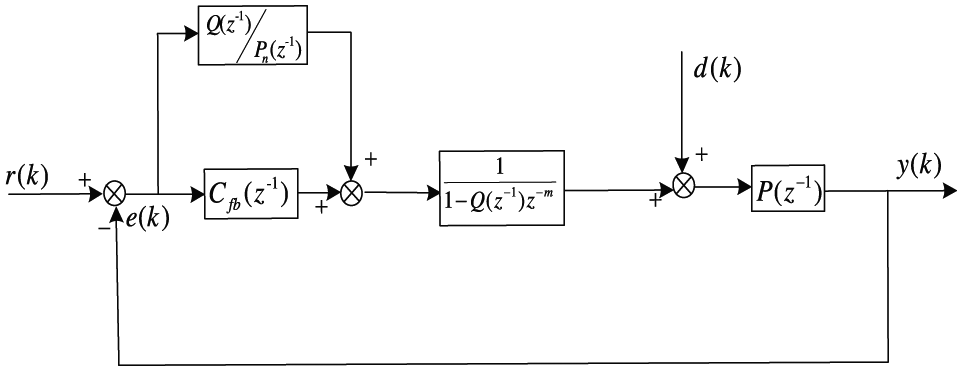

Figure 5.

Equivalent structure of Figure 3.

In forward channel of the diagram, there exists $1 / 1 - Q (z^{- 1}) z^{- m}$ . We can obtain that

1 - Q (z^{- 1}) z^{- m} = \frac{1 - z^{- N}}{1 - α z^{- N}}

(15)

Therefore, under the specific frequency, $1 - Q (z^{- 1}) z^{- m}$ equals to zero for containing $1 - z^{- N}$ , which provides the overall system with more enhanced gain. By tuning the variable of $α$ , the gain can be changed as well. As a consequence, RDOB is especially advantageous when tracking the periodical signal. Unfortunately, however, the period N is permanently assumed to be an integer.^14,15 In digital control system, when the sample rate $f_{s}$ is fixed, N may be fractional for the arbitrary $f_{r}$ . The delay module $z^{- N}$ , due to the fractional N, cannot be achieved in practice. In this work, a fractional-order delay filter²² is adopted, which can alleviate the mismatch of substitution for the fractional N. Based on the principle of finite impulse response (FIR) filter, fractional delay can be well approximated by the given filter with integer orders. Let $Z^{- N} = Z^{- N_{i} - F}$ with $N_{i}$ being the maximum integer but less than N and F ( $0 \leq F < 1$ ) being the fractional part of N. $Z^{- F}$ can be approximated by a Lagrange interpolation polynomial FIR filter as follows²³

Z^{- F} \approx \sum_{k = 0}^{n} A_{k} z^{- k}

(16)

where $k = 0, 1, \dots, n$ and the coefficient $A_{k}$ can be obtained as

A_{k} = Π_{\binom{i = 0}{i \neq k}}^{n} \frac{F - i}{k - i} k, i = 0, 1, \dots, n

(17)

Moreover, Lagrange interpolation is one of the easiest ways to design a fractional-order delay filter. The coefficient of equation (17) for the assumed filter only consumes a small number of additions and multiplications. Therefore, fractional-order delay filter based on Lagrange interpolation can not only be easily implemented in real-time applications but also offer high approximation accuracy in most cases.

In this work, with the consideration of computational complexity and approximate precision, n is equaled to 3. Then, equation (18) is obtained as follows

z^{- N} \approx A_{0} z^{- N_{i}} + A_{1} z^{- (N_{i} + 1)} + A_{2} z^{- (N_{i} + 2)} + A_{3} z^{- (N_{i} + 3)}

(18)

Moreover, from equations (14) and (18), the final form of $Q (z^{- 1})$ can be rewritten as

Q_{f} (z^{- 1}) = \frac{(1 - α) A_{0} z^{- (N_{i} - m)} + (1 - α) A_{1} z^{- (N_{i} - m + 1)} + (1 - α) A_{2} z^{- (N_{i} - m + 2)} + (1 - α) A_{3} z^{- (N_{i} - m + 3)}}{1 - α A_{0} z^{- N_{i}} - α A_{1} z^{- (N_{i} + 1)} - α A_{2} z^{- (N_{i} + 2)} - α A_{3} z^{- (N_{i} + 3)}}

(19)

Combining equations (15) and (18) yields

1 - z^{- m} Q_{f} (z^{- 1}) = \frac{1 - A_{0} z^{- N_{i}} - A_{1} z^{- (N_{i} + 1)} - A_{2} z^{- (N_{i} + 2)} - A_{3} z^{- (N_{i} + 3)}}{1 - α A_{0} z^{- N_{i}} - α A_{1} z^{- (N_{i} + 1)} - α A_{2} z^{- (N_{i} + 2)} - α A_{3} z^{- (N_{i} + 3)}}

(20)

To investigate the performance of $Q_{f} (z^{- 1})$ and the precise approximation of fractional-order delay filter, the magnitude responses of $Q_{f} (z^{- 1})$ and $1 - z^{- m} Q_{f} (z^{- 1})$ are plotted in Figures 6 and 7.

Figure 6.

Magnitude responses of $1 - z^{- m} Q_{f} (z^{- 1})$ and $Q_{f} (z^{- 1})$ with $α = 0.9131$ $m = 1$ , $f_{s} = 1000 Hz$ , $f_{r} = 11 Hz$ , and $N \approx 90.9091$ are used as an illustrative example.

Figure 7.

Magnitude responses of $1 - z^{- m} Q_{f} (z^{- 1})$ and $Q_{f} (z^{- 1})$ with $α = 0.3669$ $m = 1$ , $f_{s} = 1000 Hz$ , $f_{r} = 5 Hz$ , and $N = 200$ are used as an illustrative example.

As shown above, $Q_{f} (z^{- 1})$ behaves as a spectral selection filter to preserve only the specific repetitive components. Correspondingly, $1 - z^{- m} Q_{f} (z^{- 1})$ works as a band-stop filter to enhance the gain at the given frequency point. Moreover, increasing $α$ yields the magnitude responses of $Q_{f} (z^{- 1})$ with a sharper filter function and provides $1 - z^{- m} Q_{f} (z^{- 1})$ with a sharper comb-like magnitude response as well.

Furthermore, as the FRDOB produces high gain at specific frequencies, it may amplify the mismatch between the actual $P (z^{- 1})$ and nominal plant $P_{n} (z^{- 1})$ . Eventually, it will lead to the controller output chattering dramatically. Therefore, a zero-phase low-pass filter needs to be introduced as follows

q (z^{- 1}) = \frac{{(1 + z^{- 1})}^{2} {(1 + z)}^{2}}{16}

(21)

The practically implemented $Q_{p} (z^{- 1})$ can be written as

Q_{p} (z^{- 1}) = Q_{f} (z^{- 1}) z^{n_{q}} \times z^{- n_{q}} q (z^{- 1})

(22)

where $n_{q}$ is the delay term to make $q (z^{- 1})$ realizable, and here $n_{q} = 2$ .

Stability and robust stability

To prove the convergence of DGCNF, we can combine the previous demonstration.^9,24 The process of proof is essentially the same as conventional CNF. The DGCNF controller output (13) will drive system-controlled output $y (k)$ to track sinusoidal reference $r (k)$ asymptotically. To avoid repetition, it is not described in this article. The emphasis will be put on the stable criteria of the overall system with the fundamental feedback controller DGCNF and FRDOB.

The expected DGCNF controller output can be express as

\begin{matrix} u (k) & = U_{L} (k) + U_{N} (k) \\ = F \hat{x} + u_{e} + ρ B^{T} P (A + BF) \hat{x} \\ = {F + ρ B^{T} P (A + BF)} \hat{x} + u_{e} \end{matrix}

(23)

Furthermore, equation (23) can be rewritten as

u (k) = {F + ρ B^{T} P (A + BF)} (x - x_{e}) + F_{e} x_{e}

(24)

where $x_{e}$ can be considered definitely as the reference vector which is consisted of command of position and command of velocity.

On observation, we can regard the DGCNF control law (24) as a compound algorithm composed of a novel variable PD strategy and a feedforward controller that can improve tracking performance to some extent. Performing the block diagram transformations in Figure 3, we obtain an ultimate form of the overall system in Figure 8.

Figure 8.

Block diagram of the proposed scheme.

From Figure 8, the closed-loop transfer function from $r (k)$ to $y (k)$ can be derived as

Φ (z) = \frac{(C_{fb} + C_{ff} + P_{n}^{- 1} Q_{p} - z^{- m} C_{ff} Q_{p}) P}{1 - z^{- m} Q_{p} + (C_{fb} + P_{n}^{- 1} Q_{p}) P}

(25)

where the feedforward controller does not affect the stability. And the characteristic polynomial of the closed-loop transfer function can be obtained as

D (z) = 1 + C_{fb} (z^{- 1}) P (z^{- 1}) + (P_{n}^{- 1} (z^{- 1}) P (z^{- 1}) - z^{- m}) Q_{p} (z^{- 1})

(26)

Basically, the overall closed-loop stability can be assured by checking whether the roots of the characteristics equation (26) lie within the unit circle. However, the approach of frequency domain analysis may be more efficient.

Equation (26) can be rewritten as

\begin{array}{l} D (z) = {1 + C_{f b} (z^{- 1}) P (z^{- 1})} \\ \times {1 + \frac{P_{n}^{- 1} (z^{- 1}) P (z^{- 1}) - z^{- m}) Q_{p} (z^{- 1})}{1 + P (z^{- 1}) C_{f b} (z^{- 1})}} \end{array}

(27)

In equation (27), $1 + C_{fb} (z^{- 1}) P (z^{- 1})$ can be stable by designing the reasonable $C_{fb} (z^{- 1})$ . Then, the stability of the overall closed-loop system depends on the second term of equation (27). According to the Small Gain Theorem,²⁵ the stability condition can be obtained

‖ \frac{(P_{n}^{- 1} (z^{- 1}) P (z^{- 1}) - z^{- m}) Q_{p} (z^{- 1})}{1 + P (z^{- 1}) C_{fb} (z^{- 1})} ‖_{\infty} < 1

(28)

Robust stability can also be analyzed by applying Small Gain Theorem when there exists perturbation $Δ_{p} (z)$ in the plant $P (z^{- 1})$ .

By computing the sensitivity function $S (z^{- 1}) = (\partial Φ (z^{- 1}) / \partial P (z^{- 1})) (P (z^{- 1}) / Φ (z^{- 1}))$ , the complementary sensitivity function can be given as

\begin{matrix} T (z^{- 1}) & = 1 - S (z^{- 1}) \\ = 1 - \frac{\partial Φ (z^{- 1})}{\partial P (z^{- 1})} \frac{P (z^{- 1})}{Φ (z^{- 1})} \\ = \frac{(C_{fb} + P_{n}^{- 1} Q_{p}) P}{1 - z^{- m} Q_{p} + (C_{fb} + P_{n}^{- 1} Q_{p}) P} \end{matrix}

(29)

The robust stability condition can be achieved as the following condition is satisfied

‖ T (z^{- 1}) Δ_{p} (z^{- 1}) () ‖_{\infty} \leq 1

(30)

A factual example of stability and robust stability analysis will be provided in Figures 11 and 12.

Experimental validation

Experimental setup

To demonstrate the applicability of the proposed method, an actual flight simulator system is employed as the test platform, which is shown in Figure 9. It consists of an inner-axis rotary actuator, a digital control system, and a DC pulse-width-modulated (PWM) amplifier.

Figure 9.

Test platform.

The rotary sensor of the device uses the encoder of Heidenhain ECN125 whose accuracy is about $\pm 20 ″$ . The proposed control algorithms are implemented via a C++ language based on Windows-RTX real-time system on an industrial computer (E5300 2.8-GHz). The velocity is acquired by backward difference of a high-accuracy position signal. The sampling interval is 1.0 ms.

System identification

Using the method of frequency domain identification, the nominal model can be identified as

P (s) = \frac{1}{0.0005 s^{2} + 0.006 s}

(31)

The distinctions of frequency characteristics between the actual plant and the nominal model are shown in Figure 10.

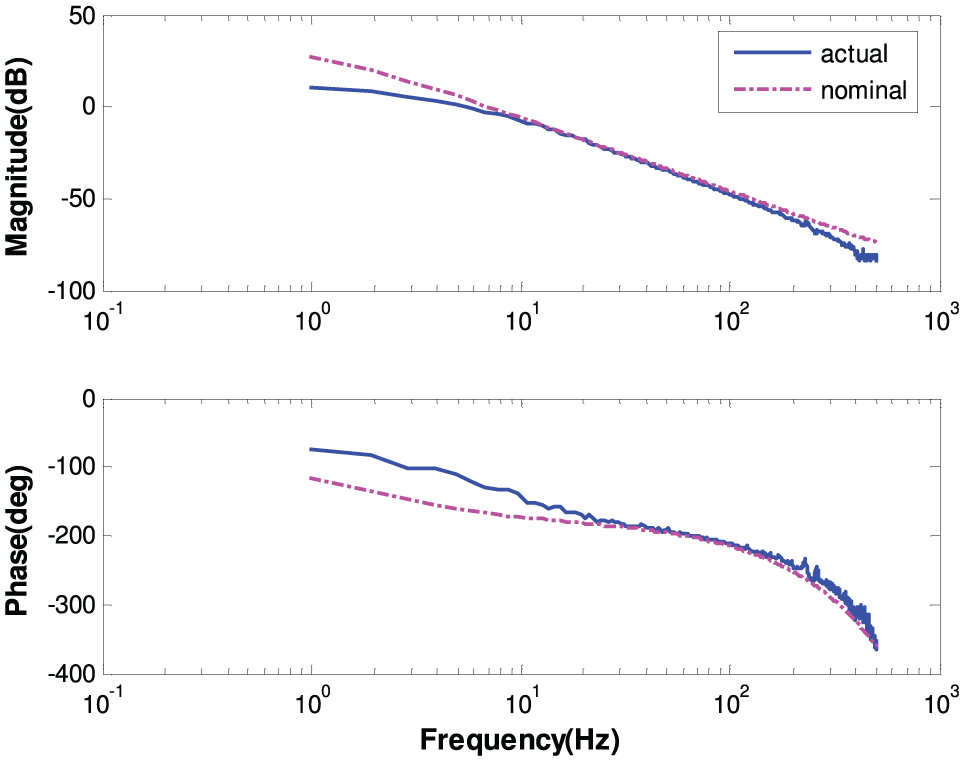

Figure 10.

Frequency characteristics between the actual plant and the nominal model.

Figure 11.

(a) Stability and (b) robust stability when the external signal at 5 Hz.

Figure 12.

(a) Stability and (b) robust stability when the external signal at 11 Hz.

From Figure 10, there are extreme mismatches in amplitude–frequency and phase–frequency characteristics at both low frequency and high frequency. These uncertainties will definitely cause difficulties in achieving desired control performance.

Design of controllers

The following three controllers are compared:

PD + DOB + ZPETC: This compound control strategy is commonly used in servo system. It consists of three components, a PD feedback controller, a DOB as the compensation of friction, and a ZPETC as the feedforward controller. The details of this control structure can be found.²⁶ At the end, the parameters are set as $Kp = 0.8$ and $Kd = 0.02$ , and $τ$ of the DOB is chosen as 0.015.

Integral backstepping: As a nonlinear controller, backstepping control with integral function can improve the system tracking response and bandwidth in some degree. The design procedure of this control scheme can be found,²⁷ and the parameters are set as $c_{1} = 180.0$ , $c_{2} = 180.0$ , and $λ_{1} = 2.0$ .

FRDOB + DGCNF: The overall structure of the proposed algorithm is depicted in Figure 8. And according to Figure 8, the procedure of the algorithm is established as follows:

Step	Algorithm process
1.	Initialization
2.	Set constant matrixes A, B, F, and P of DGCNF
3.	Confirm the frequency of the external dynamic signal
4.	Compute the integer N_i and the fractional part F
5.	According to equations (19), (21), and (22), acquire the form of $Q_{p}$
6.	{main loop}
7.	for i = 1 to m do
8.	$u_{Q_{p} / P_{n}} (i) \Leftarrow {e (i) \to Q_{p} (z^{- 1}) / P_{n} (z^{- 1})}$
9.	$u_{Q_{p} / z^{m}} (i) \Leftarrow {u_{1} (i) \to Q_{p} (z^{- 1}) z^{- m}}$
10.	$\begin{matrix} u_{fb} (i) \Leftarrow {e (i) \to C_{fb} (z^{- 1})} \\ where C_{fb} (z^{- 1}) = {F + ρ (i) B^{T} P (A + BF)} (x (i) - x_{e} (i)) \end{matrix}$
11.	$u_{ff} (i) \Leftarrow {r (i) \to C_{ff} (z^{- 1})}, where C_{ff} (z^{- 1}) = F_{e} x_{e} (i)$
12.	$u_{1} (i) \Leftarrow u_{Q_{p} / P_{n}} (i) + u_{Q_{p} / z^{m}} (i) + u_{fb} (i)$
13.	$u_{k} (i) \Leftarrow u_{1} (i) + u_{ff} (i)$
14.	End for
15.	Return $u_{k} (i)$

where $ρ = - 0.2 (B^{T} PB)^{- 1} (2 / π) \arctan (- 0.2 | | e (k) / e (k - 1) | - 1 |)$ . And $F_{e}$ varies according to the command signal. In the filter of FRDOB $Q_{p}$ , $α = 0 . 999^{N}$ .

Experimental results

The three controllers are first tested for two specified sinusoidal trajectories in 5 and 11 Hz, that is, the tracking command signals are employed as $r = 0.5 \sin (2 π \cdot 5 t)$ and $r = 0.5 \sin (2 π \cdot 11 t)$ . Then, N is an integer and a fraction, respectively. The illustrations for stability and robust stability of the closed-loop system are analyzed as follows. With the parameter of DGCNF $ρ$ varies in $[- 2 (B^{T} PB)^{- 1}, 0]$ , the magnitude responses of equations (28) and (30) present dramatic changes. However, magnitudes are obviously lower than zero, and then, the stability and robust stability can be guaranteed.

The compared tracking errors of the three controllers are shown in Figure 13. It shows that the proposed FRDOB + DGCNF controller performs extremely better than PD + DOB + ZPETC controller and integral backstepping controller in terms of tracking accuracy at both 5 and 11 Hz: the maximum tracking errors decrease to 0.000568 with the help of FRDOB + DGCNF. The precision raises two orders of magnitude in the proposed schemes.

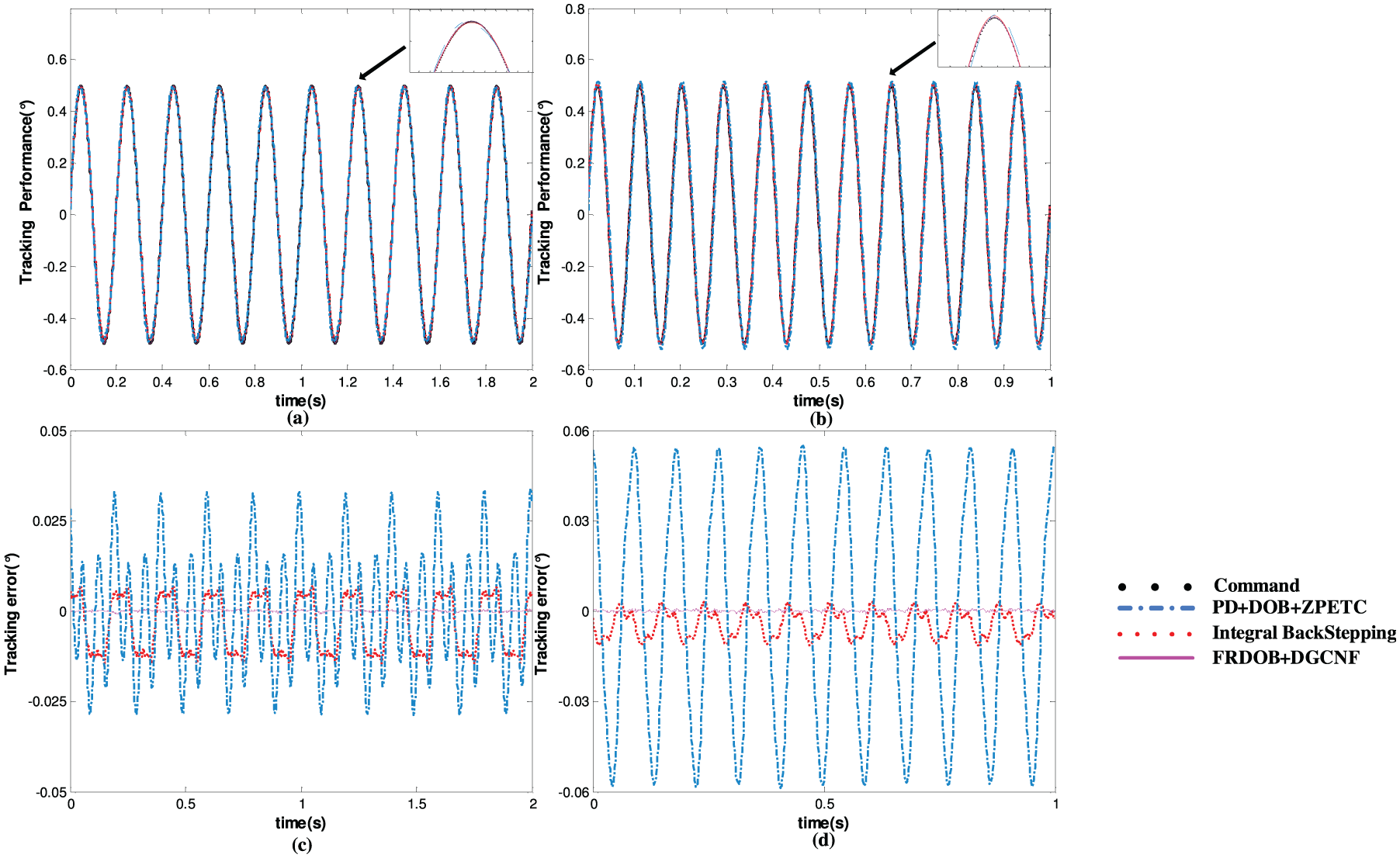

Figure 13.

Control performance of the three control strategies: (a) 5 Hz and (b) 11 Hz.

To further show the robustness of the proposed strategy contrast to the previous methods, an unbalanced payload is installed on the inner axis. The condition is shown in Figure 14; the payload is about 6.6 pounds.

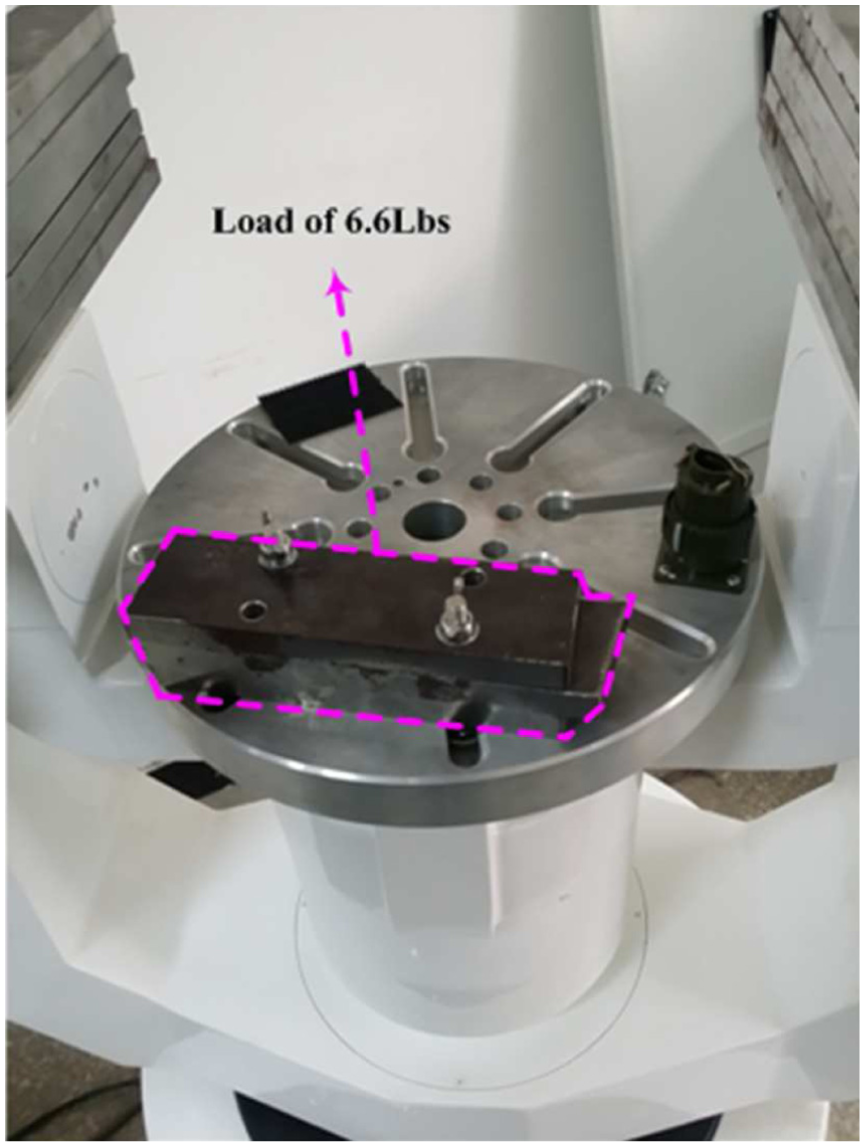

Figure 14.

Inner axis is installed with an unbalanced payload.

The comparative performance is illustrated in Figure 15. In the case of extra payload, the tracking error of the proposed FRDOB + DGCNF controller can be limited within a small level. It is also found in Figure 16(e) and (f), regardless of the additional payload, the proposed FRDOB + DGCNF scheme remains almost unchanged in tracking dynamic signal at 5 and 11 Hz. Particularly, with the increase in the signal frequency, the errors of those two control schemes increase obviously.

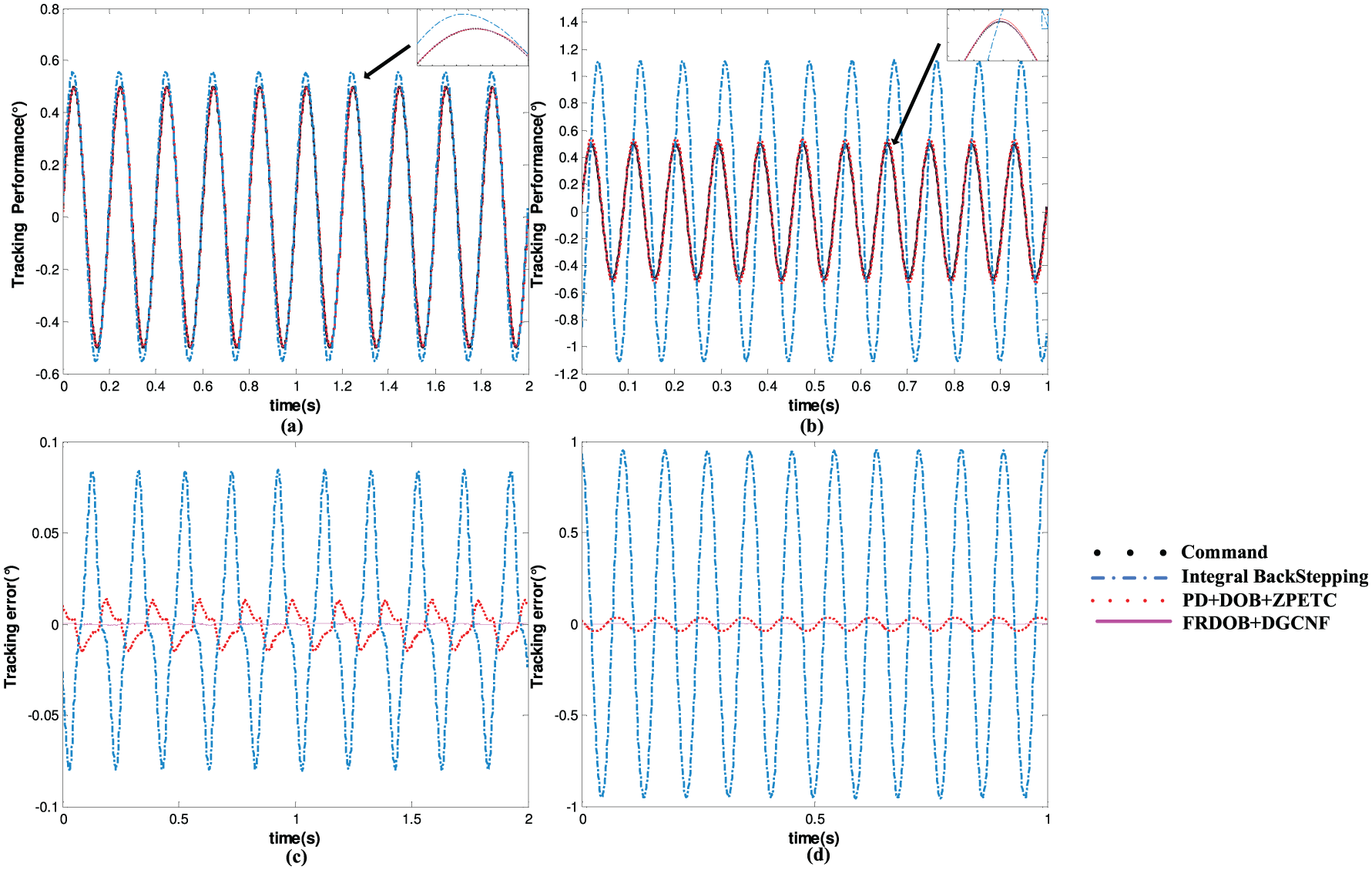

Figure 15.

Control performance of the three control strategies with payload: (a) 5 Hz and (b) 11 Hz.

Figure 16.

Comparison of tracking error with and without the payload: (a), (c), and (e) 5 Hz and (b), (d), and (f) 11 Hz.

The strong robustness of the proposed scheme can be explained by two primary factors: first, DGCNF scheme is essentially a PID mode algorithm; therefore, it is unsusceptible to the uncertainties of the model. Concentrating on the input and output, it contributes to diminish error. Second, the filter $Q_{p}$ with a function of low-pass makes a contribution that $P_{n}^{- 1} P Q_{p} - z^{- m}$ in equation (29) is insignificant for robustness.

In addition, the tracking performance of the proposed control scheme is compared with the pre-existing RDOB³ to demonstrate the effectiveness of the fractional filter. When the external signal is 11 Hz, the order of N in equation (14) is fractional (1000/11). The comparative performance is illustrated in Figure 17. Due to the inexact fractional order, the conventional RDOB fails to compensate the periodical error or disturbance in appropriate discrete-time point. However, by numerical approximation with fractional order, the proposed FRDOB can eliminate the mismatch to a great extent.

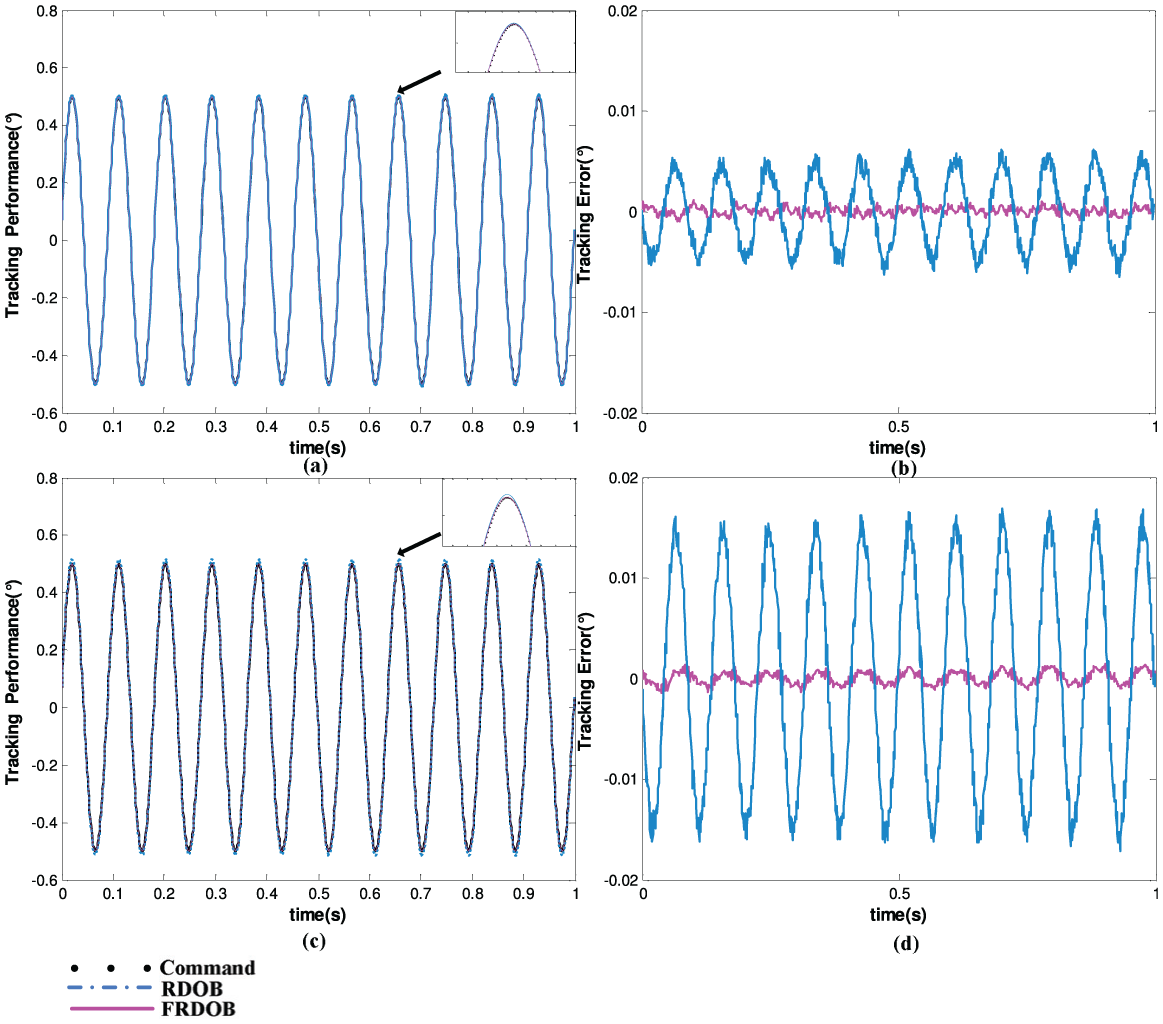

Figure 17.

Comparison of tracking performance of FRDOB and RDOB: (a and b) with payload and (c and d) without payload.

Conclusion

In this article, a DGCNF combined with repetitive controller based on DOB form is proposed for dynamic tracking servo system. The developed controller has the property of improving transient performance without too much overshoot which mainly derives from CNF technique. The FRDOB, with the fractional delay filter, has an advanced improvement of rejecting any periodic disturbance or tracking arbitrary repetitive external signal. The stability as well as robustness of this controller is guaranteed via frequency domain analysis. The illustrative experiments demonstrate the effectiveness of the proposed controller. The performance limitations of traditional PD + DOB + ZPETC and integral backstepping in servo systems are experimentally investigated, while the proposed controller could overcome these limitations and improve the dynamic tracking performance effectively.

Footnotes

Academic Editor: Anand Thite

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work was partly supported by the grants of National Natural Science Foundation of China (No. 61563041) and Inner Mongolia Natural Science Foundation (No. 2015MS0603).

References

Kobayashi

Horowitz

Track seek control for hard disk dual-stage servo systems. IEEE T Magn 2001; 37: 949–954.

Devasia

Eleftheriou

Moheimani

SOR

. A survey of control issues in nanopositioning. IEEE T Contr Syst T 2007; 15: 802–823.

Liu

Luo

Rashid

MH.

Robust high speed and high precision linear motor direct-drive XY-table motion system. IEE P: Contr Theor Ap 2004; 151: 166–173.

Yao

Yang

Jiao

High dynamic feedback linearization control of hydraulic actuators with backstepping. Proc IMechE, Part I: J Systems and Control Engineering 2015; 229: 728–737.

Clayton

Tien

Leang

. A review of feedforward control approaches in nanopositioning for high-speed SPM. J Dyn Sys Meas Control 2009; 131: 636–650.

Park

Chang

Lee

DY.

Concurrent design of continuous zero phase error tracking controller and sinusoidal trajectory for improved tracking control. J Dyn Sys Meas Control 2001; 123: 127–129.

Lin

Pachter

Banda

Toward improvement of tracking performance nonlinear feedback for linear systems. Int J Control 1998; 70: 1–11.

Chen

Lee

Peng

. Composite nonlinear feedback control for linear systems with input saturation: theory and an application. IEEE T Automat Contr 2003; 48: 427–439.

Cheng

Peng

Chen

. Improving transient performance in tracking general references using composite nonlinear feedback control and its application to high-speed-table positioning mechanism. IEEE T Ind Electron 2007; 54: 1039–1051.

10.

Lee

Tomizuka

Robust motion controller design for high-accuracy positioning systems. IEEE T Ind Electron 1996; 43: 48–55.

11.

Chen

Komada

Fukuda

Design of a nonlinear disturbance observer. IEEE T Ind Electron 2000; 47: 429–437.

12.

Manayathara

Tsao

Bentsman

. Rejection of unknown periodic load disturbances in continuous steel casting process using learning repetitive control approach. In: Proceedings of the 1993 IEEE international symposium on intelligent control, Chicago, IL, 25–27 August 1993, pp.36–41. New York: IEEE.

13.

Peery

OZbay

Peery

TE.

H_∞ optimal repetitive controller design for stable plants. J Dyn Sys Meas Control 1997; 119: 541–547.

14.

Chen

Tomizuka

New repetitive control with improved steady-state performance and accelerated transient. IEEE T Contr Syst T 2014; 22: 664–675.

15.

Yang

. High-speed tracking of a nanopositioning stage using modified repetitive control. IEEE T Autom Sci Eng 2015; 1–11. DOI: 10.1109/TASE.2015.2428437.

16.

Zou

Zhou

Wang

. Frequency-adaptive fractional-order repetitive control of shunt active power filters. IEEE T Ind Electron 2015; 62: 1659–1668.

17.

Nagahara

Yamamoto

H-infinity-optimal fractional delay filters. IEEE T Signal Proces 2013; 61: 4473–4480.

18.

GriñÓ

Costa-Castelló

. Repetitive controller for time-delay systems based on disturbance observer. IET Control Theory A 2010; 4: 2391–2404.

19.

Yao

Jiao

Adaptive robust control of DC motors with extended state observer. IEEE T Ind Electron 2014; 61: 3630–3637.

20.

Peng

Dubay

Identification and adaptive neural network control of a DC motor system with dead-zone characteristics. ISA T 2011; 50: 588–598.

21.

Chen

Ren

. Adaptive prescribed performance motion control of servo mechanisms with friction compensation. IEEE T Ind Electron 2014; 61: 486–494.

22.

Kwan

Jiang

. Design of IIR variable fractional delay digital filters. In: ISCAS 2007. IEEE international symposium on circuits and systems, New Orleans, LA, 27–30 May 2007, pp.2714–2717. New York: IEEE.

23.

Laakso

TI.

Splitting the unit delay. IEEE Signal Proc Mag 1996; 13: 30–60.

24.

Venkataramanan

Peng

Chen

. Discrete-time composite nonlinear feedback control with an application in design of a hard disk drive servo system. IEEE T Contr Syst T 2003; 11: 16–23.

25.

Lee

HS.

Robust digital tracking controllers for high-speed/high accuracy positioning systems. PhD Dissertation, Department of Mechanical Engineering, The University of California, Berkeley, CA, 1994.

26.

Yunjie

Liu

Tian

Research of compound controller for flight simulator with disturbance observer. Chinese J Aeronaut 2011; 24: 613–621.

27.

Tan

Chang

Tan

. Integral backstepping control and experimental implementation for motion system. In: IEEE international conference on control applications, Anchorage, AK, 27 September 2000, pp.367–372. New York: IEEE.

Dynamic tracking performance of servo mechanisms based on compound controller

Abstract

Keywords

Introduction

Problem formulation

Compound control scheme

Fundamental feedback controller design

Modified repetitive controller design

Stability and robust stability

Experimental validation

Experimental setup

System identification

Design of controllers

Experimental results

Conclusion

Footnotes

Declaration of conflicting interests

Funding

References
